Industrial Winmate E430M2-3G (Standard)
|
|
The product from the archive - production terminated
|
Compare all versions
Founded in 1996 in Taiwan, the company Winmate achieved an excellent reputation as a manufacturer of industrial LCD displays and laptops. Due to the high position of the products in the high-tech, have won many awards in tests conducted around the world.
|
|
|

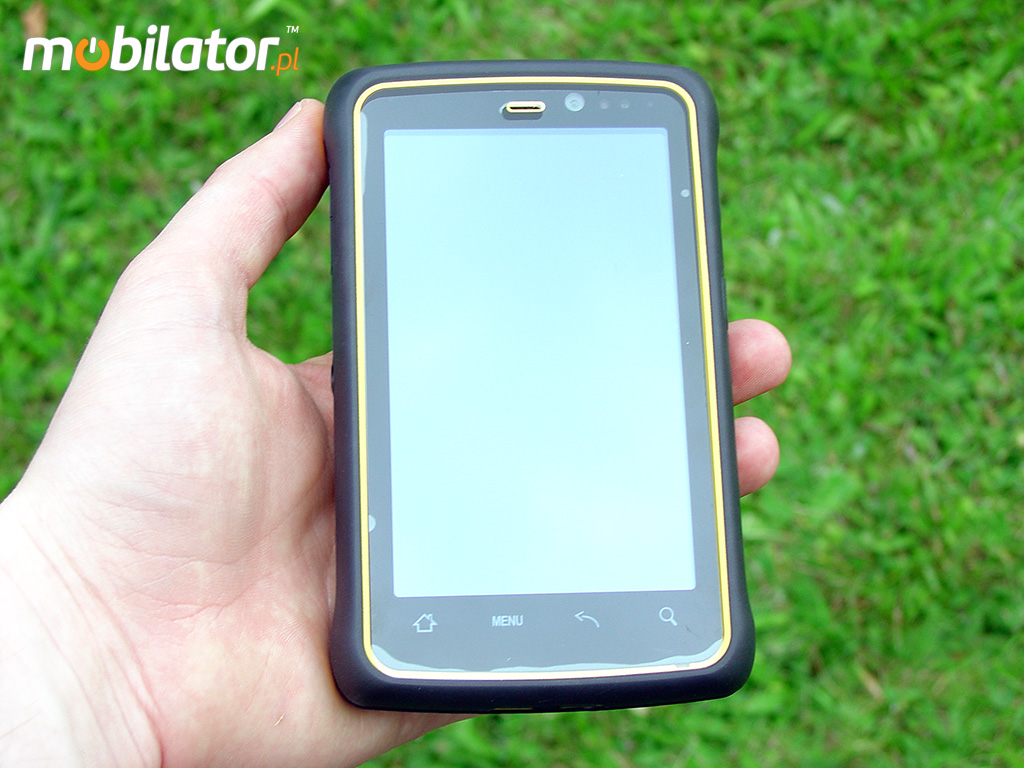

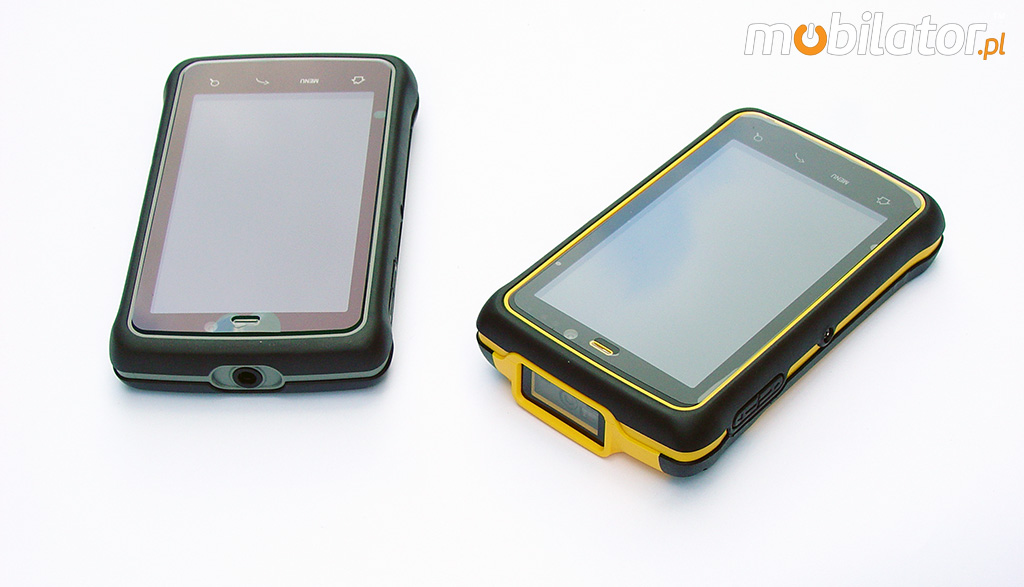

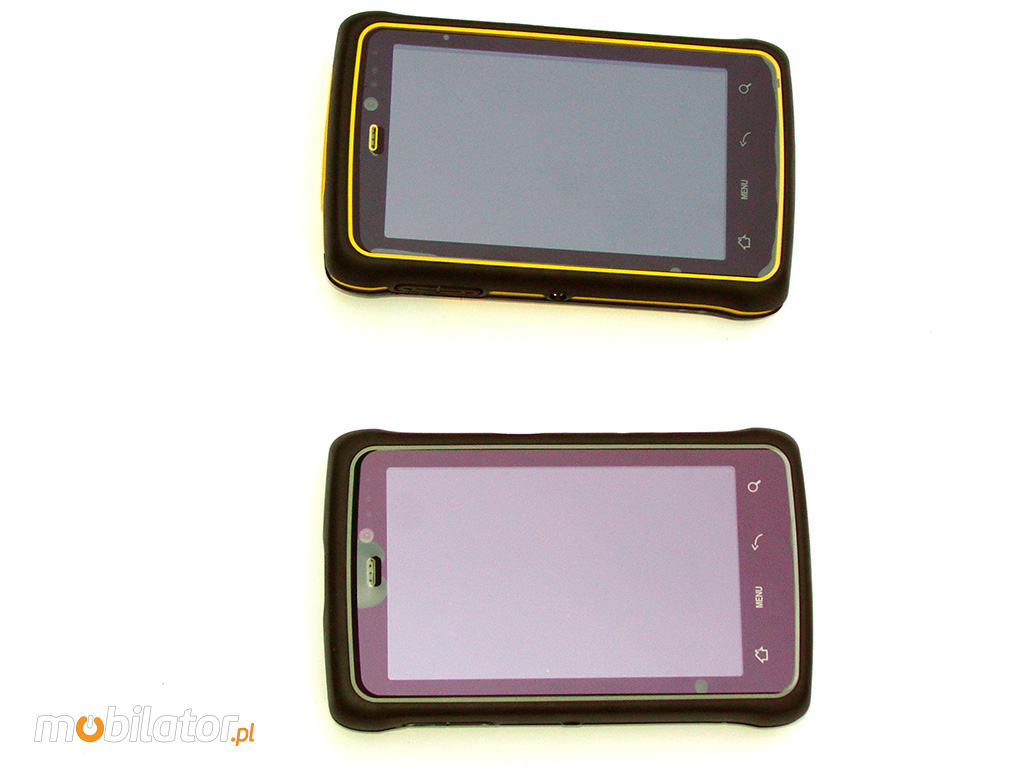

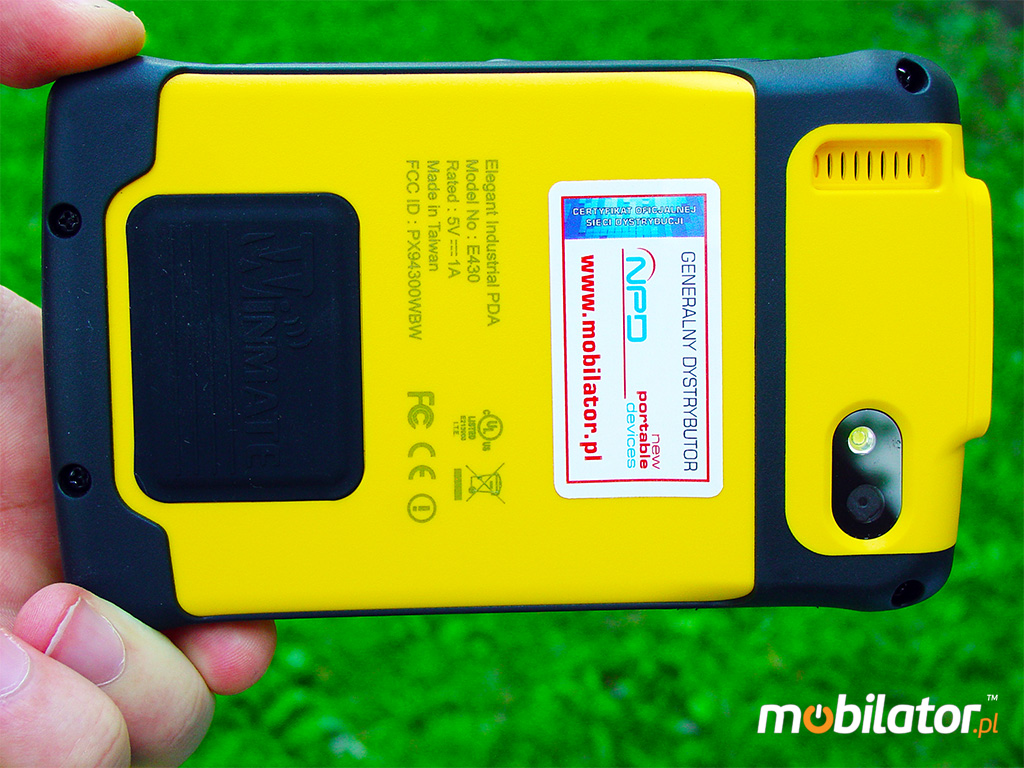

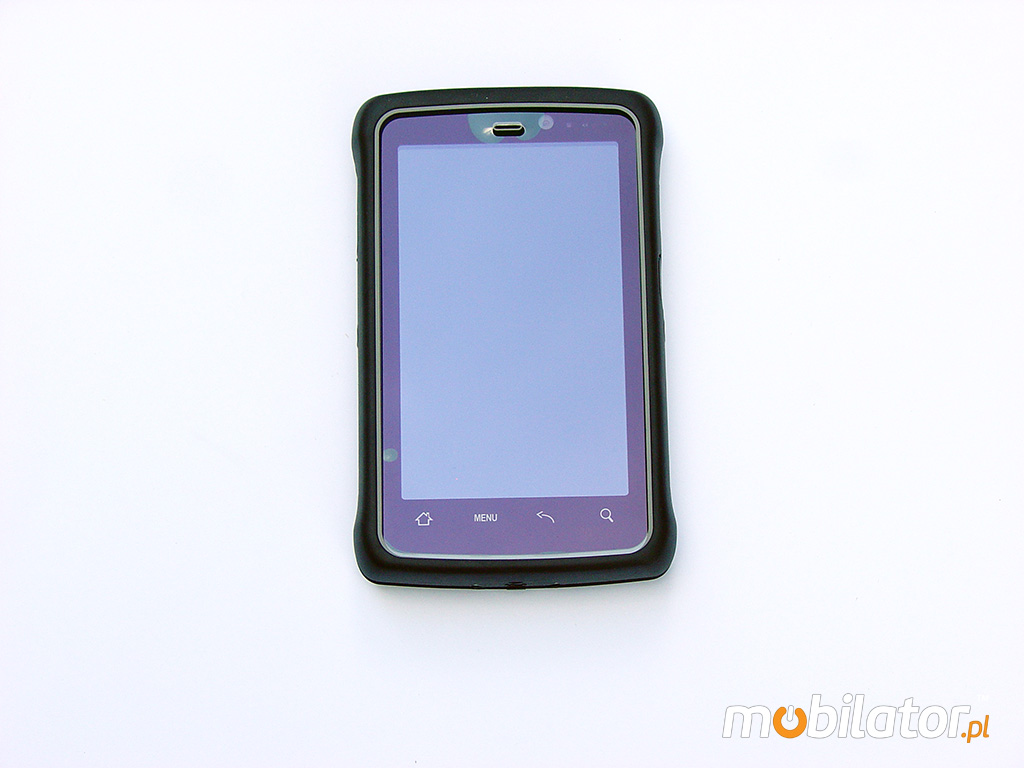

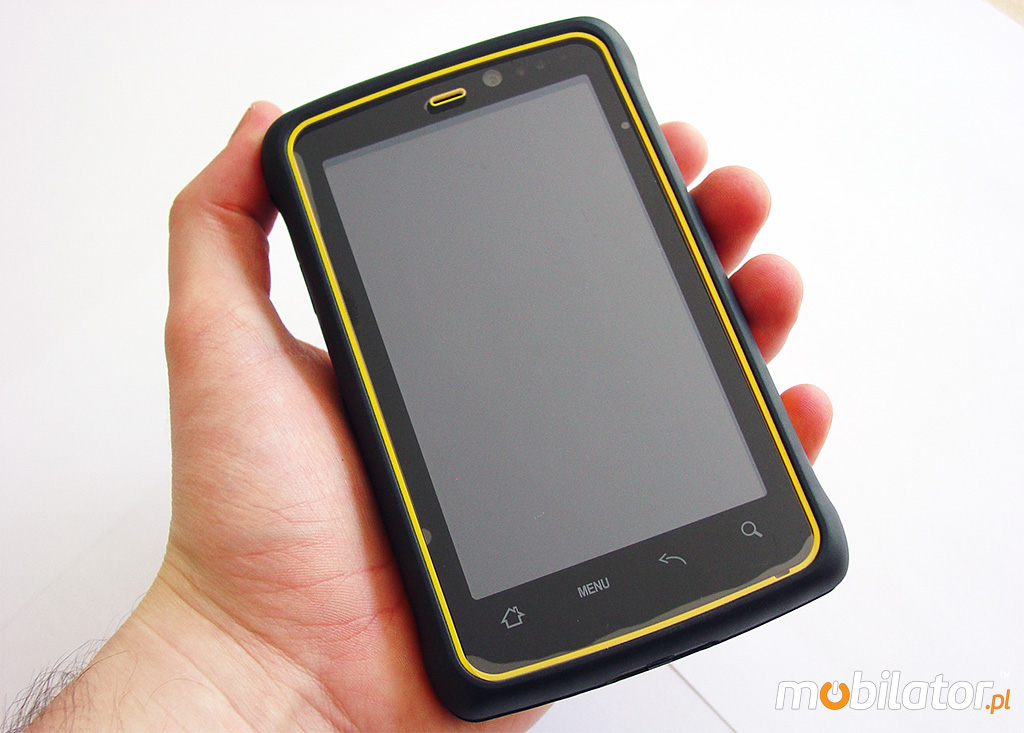

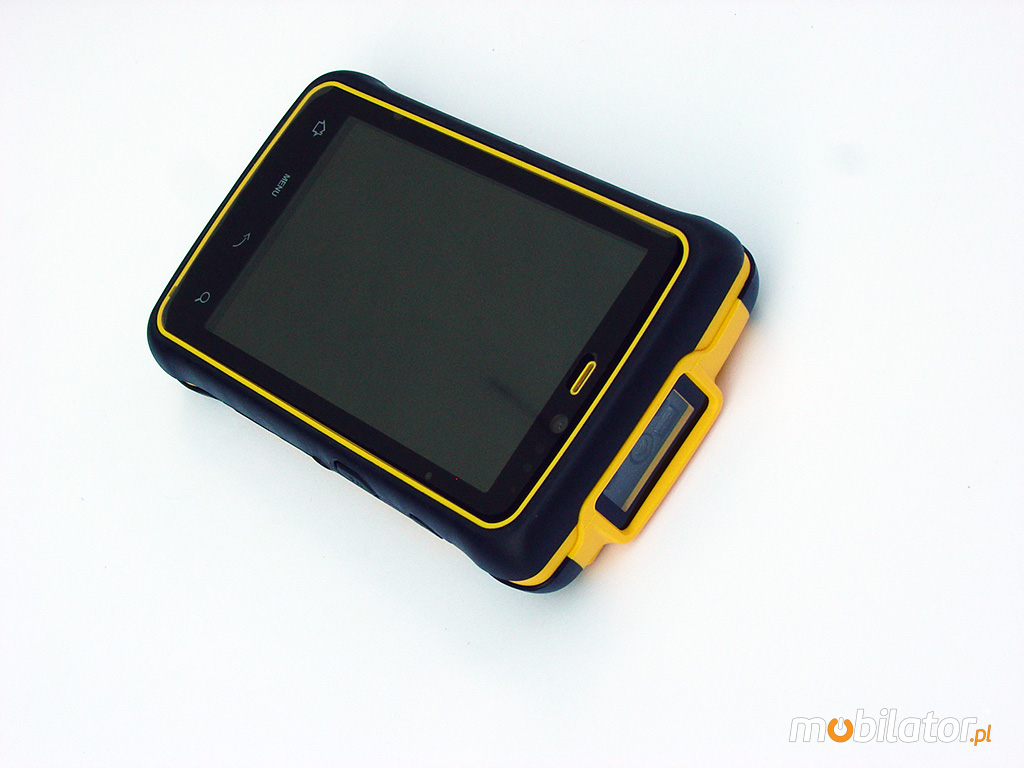

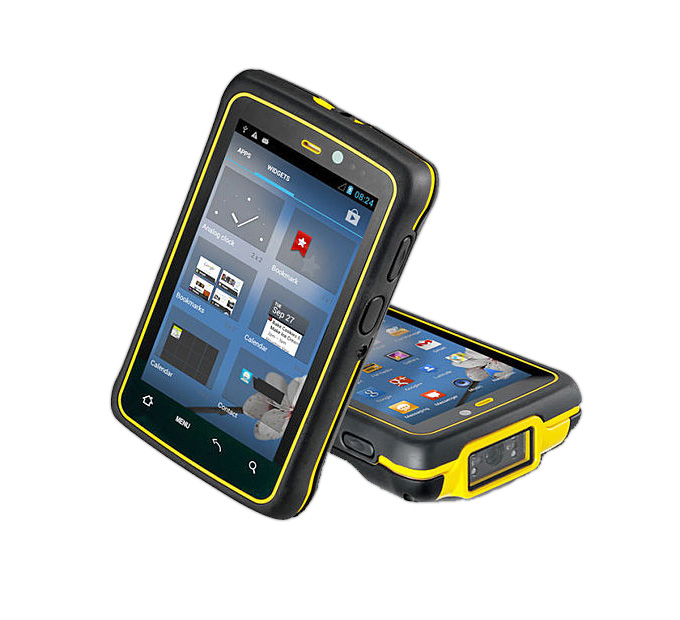

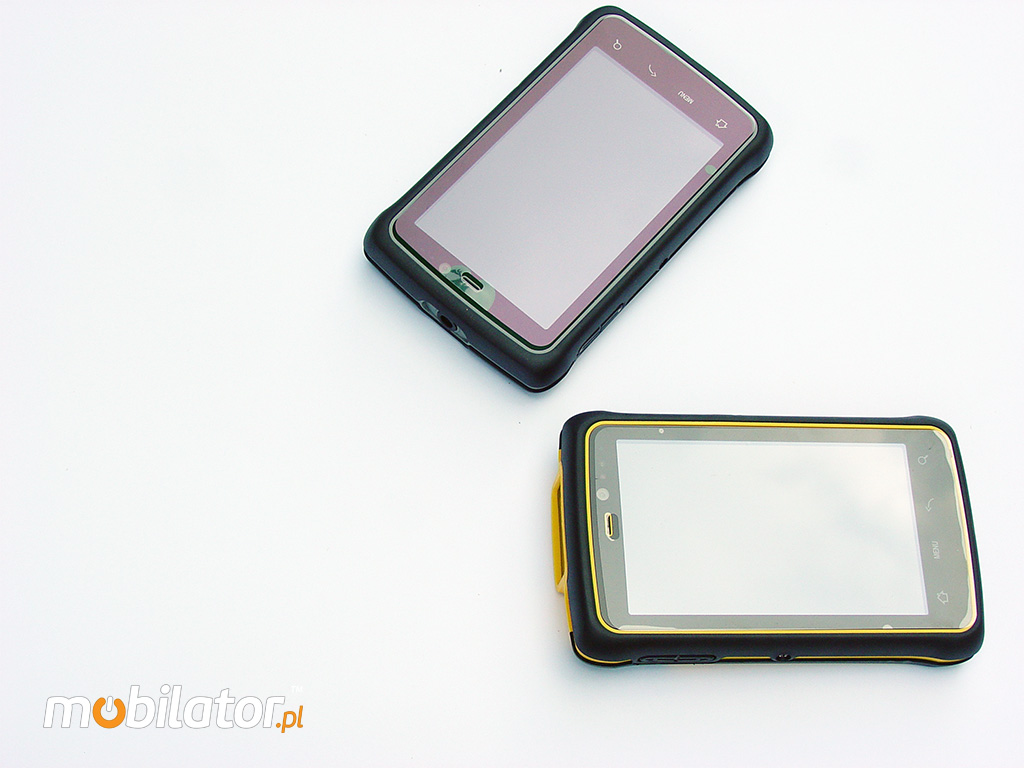

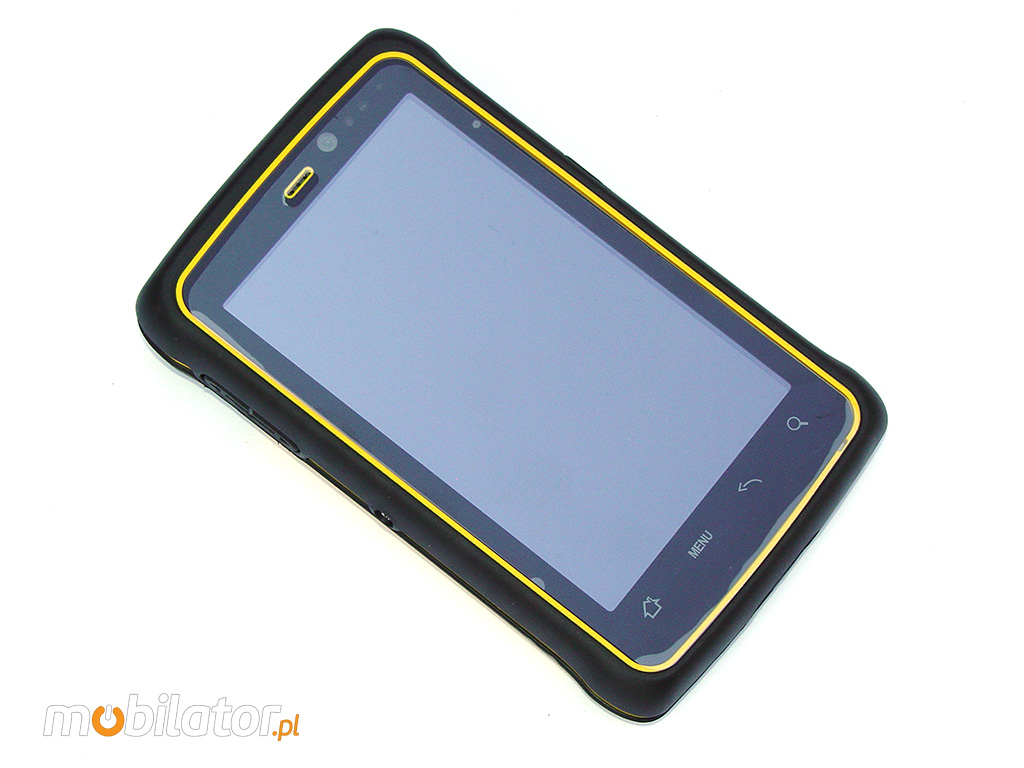

Winmate E430M2 - 3G
|
|
• |
Dual-core Cortex A9 1.0GHz |
|
• |
Android 4.1 Jelly Bean |
|
• |

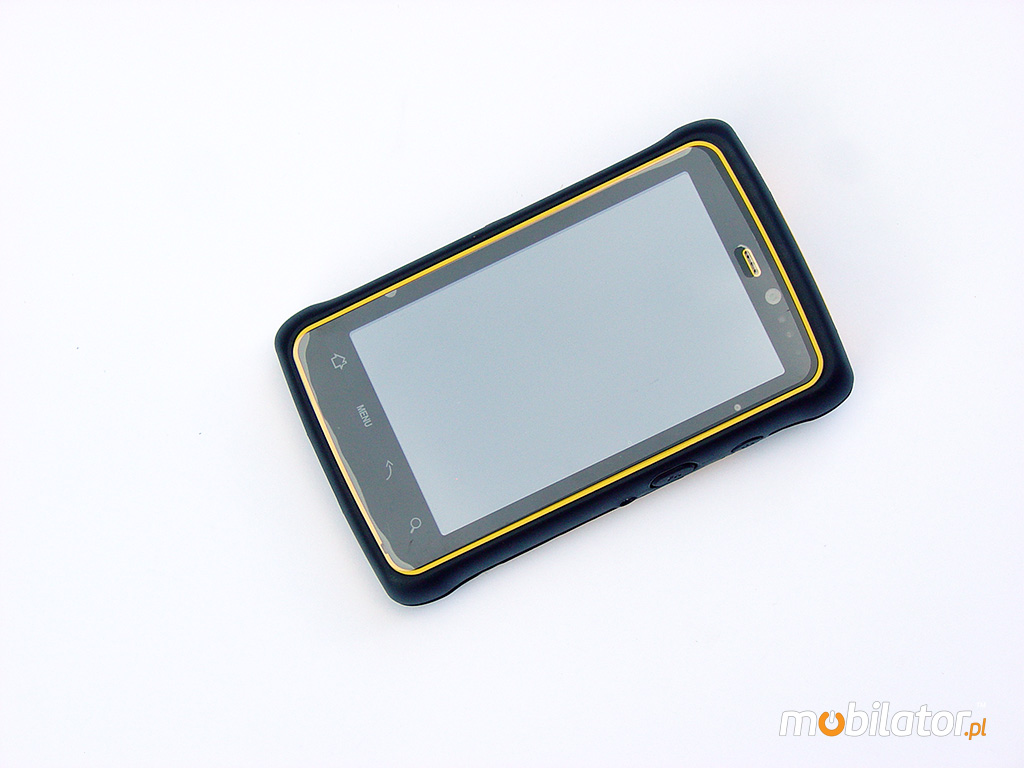

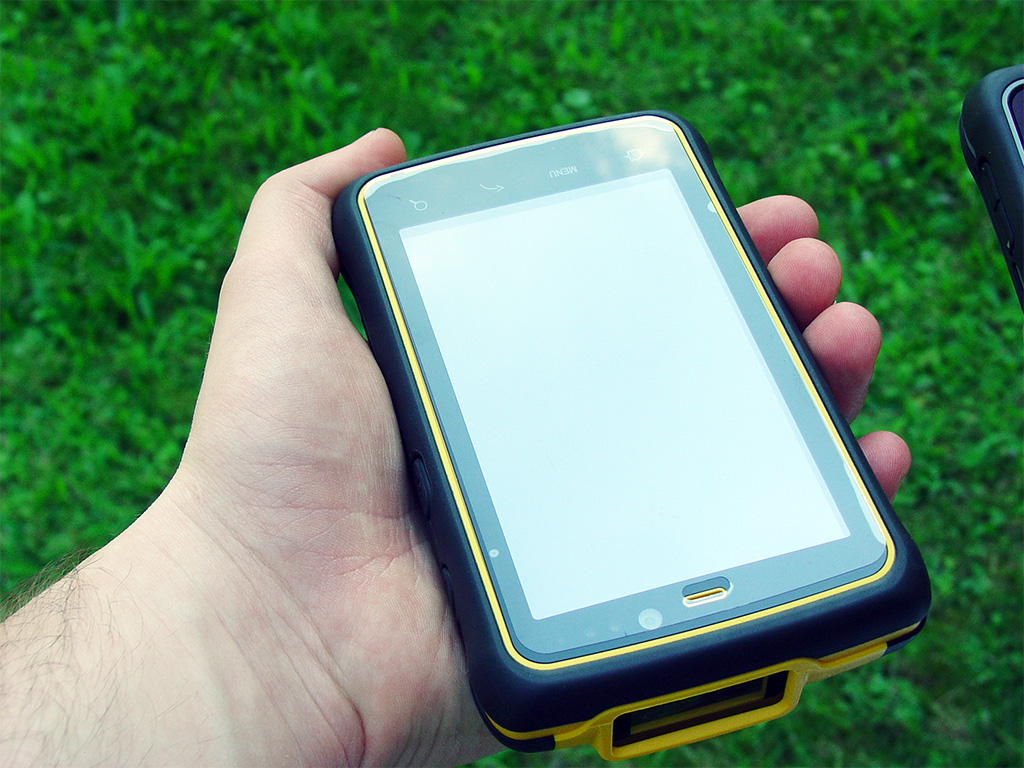

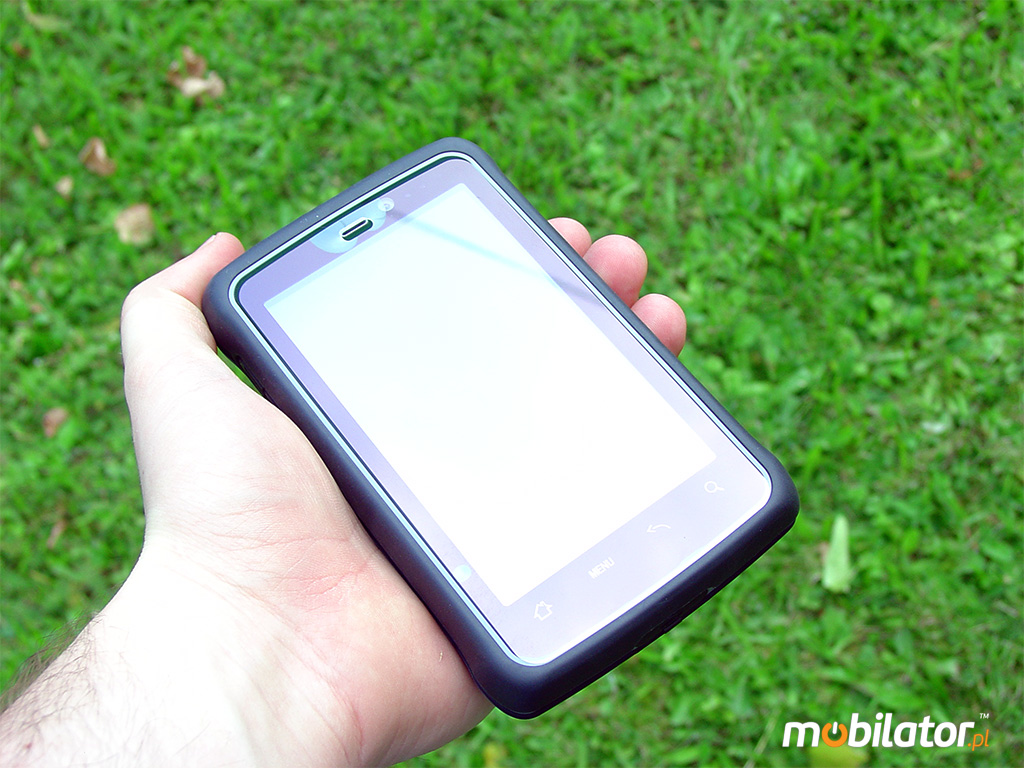

Brilliant 4.3-inch P-Cap display |
|
• |

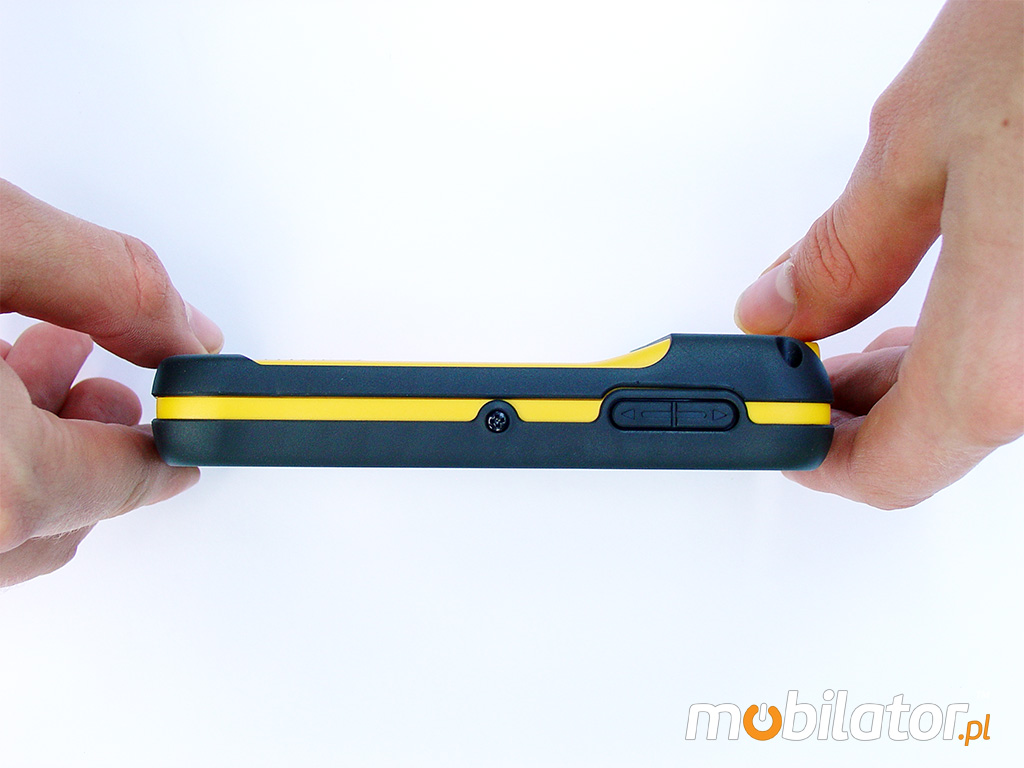

Lightweight portability in rugged handheld form factor |
|
• |
Rubberized bumper areas for protection along the sidesand corners |
|
• |
IP67 (water- and dustproof) |
|
• |
MIL-STD-810G |
|
• |
Multiple wireless communications option |
|
• |
Two cameras with LED |
|
• |
Support for RFID and 1D/2D Barcode Reader |
|
• |
Robust battery |
|
• |
Flexible warranty |
Winmate introduces the next generation of its Android-based E430M Rugged Handheld device. The new E430M2 retains the popular form factor of its predecessor, but is faster, easier to use, and includes numerous technology improvements.
|
|
Refer to the "Available hardware configurations" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form. |
 |
|

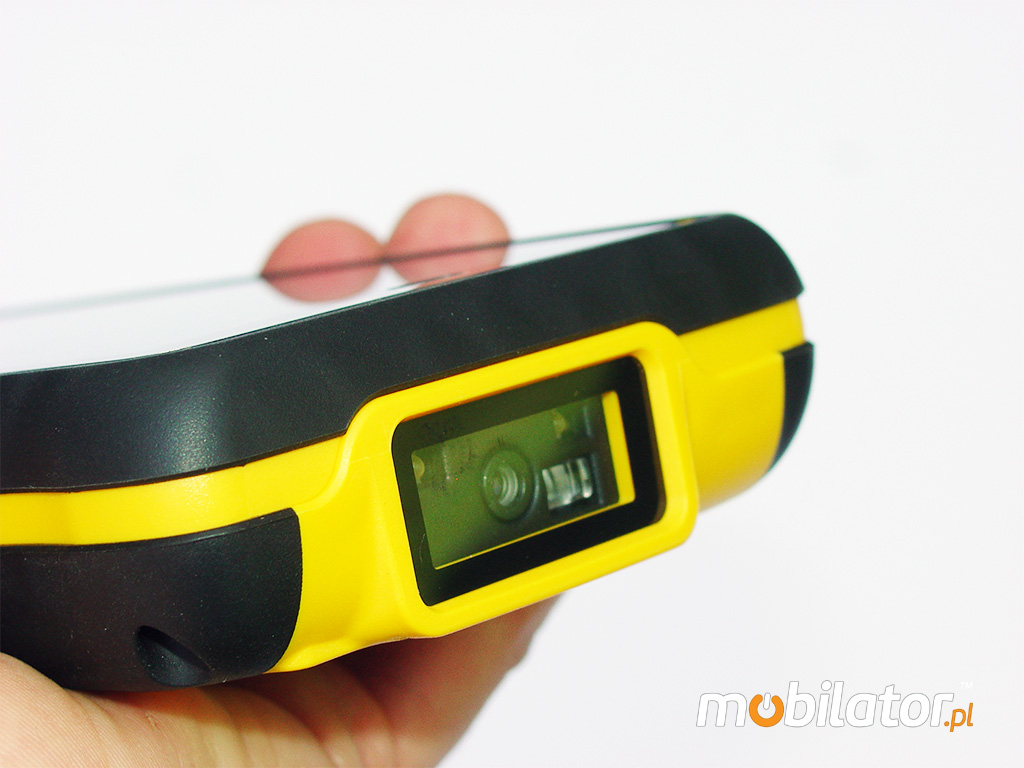

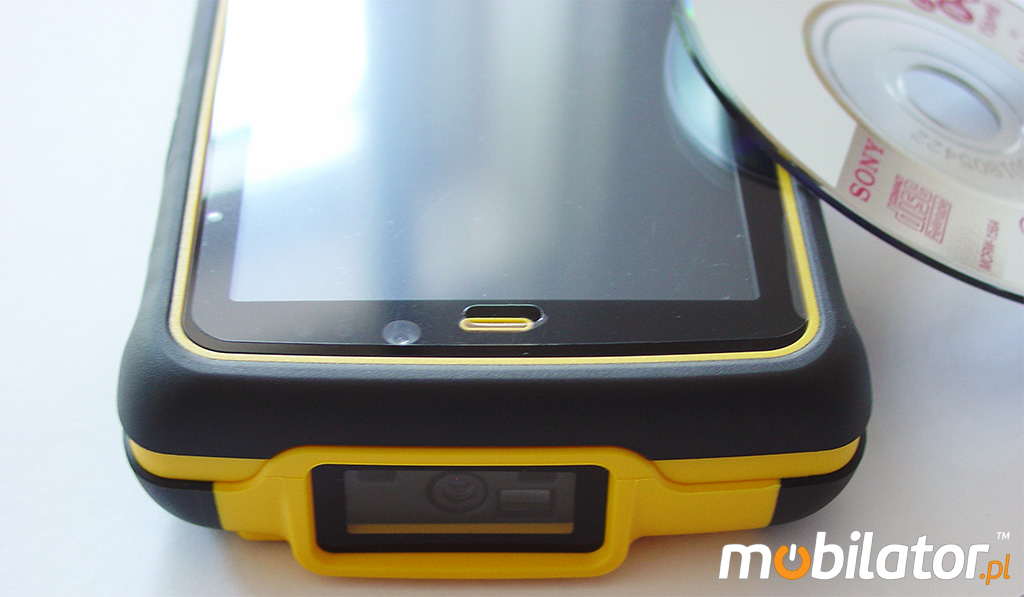

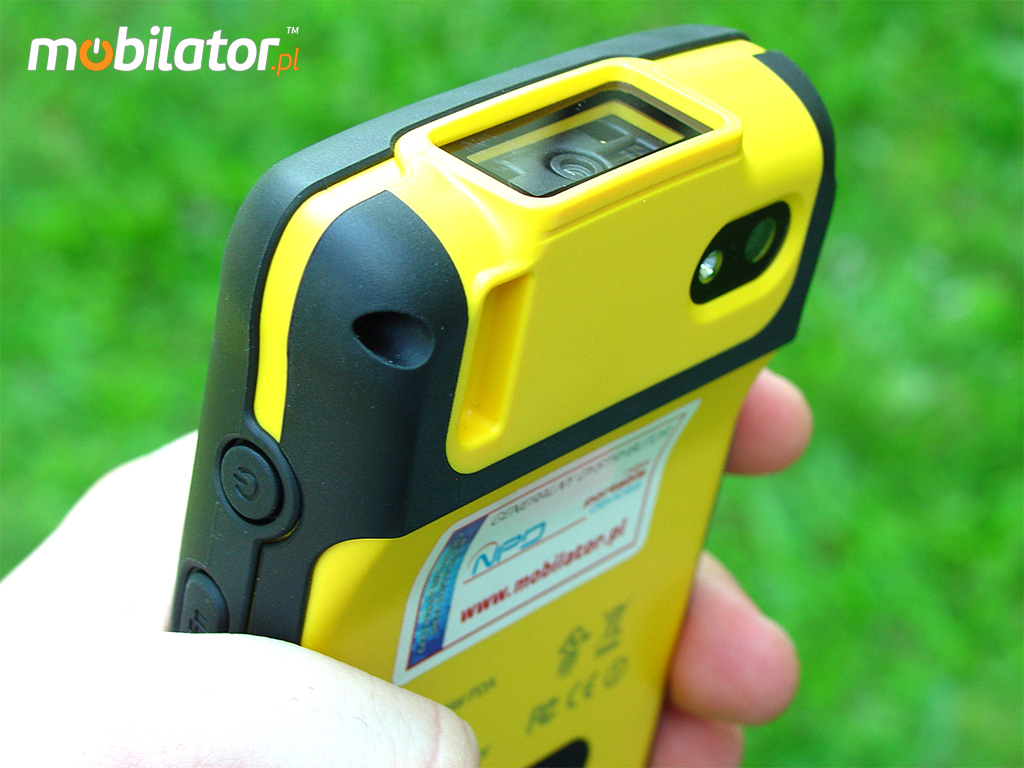

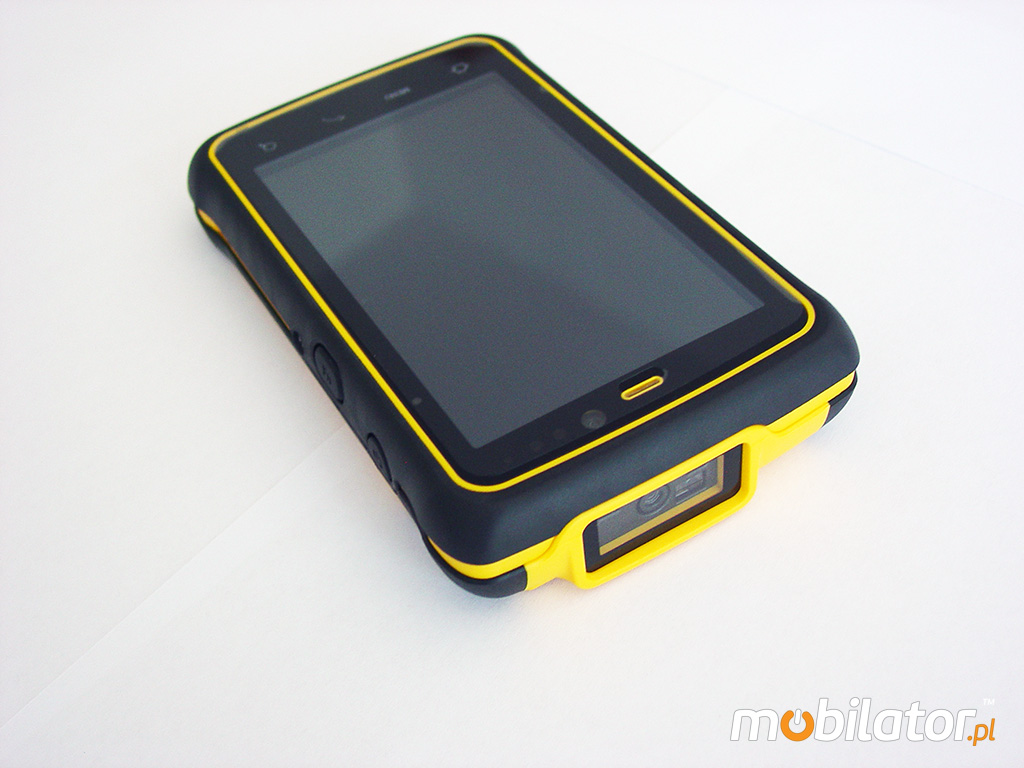

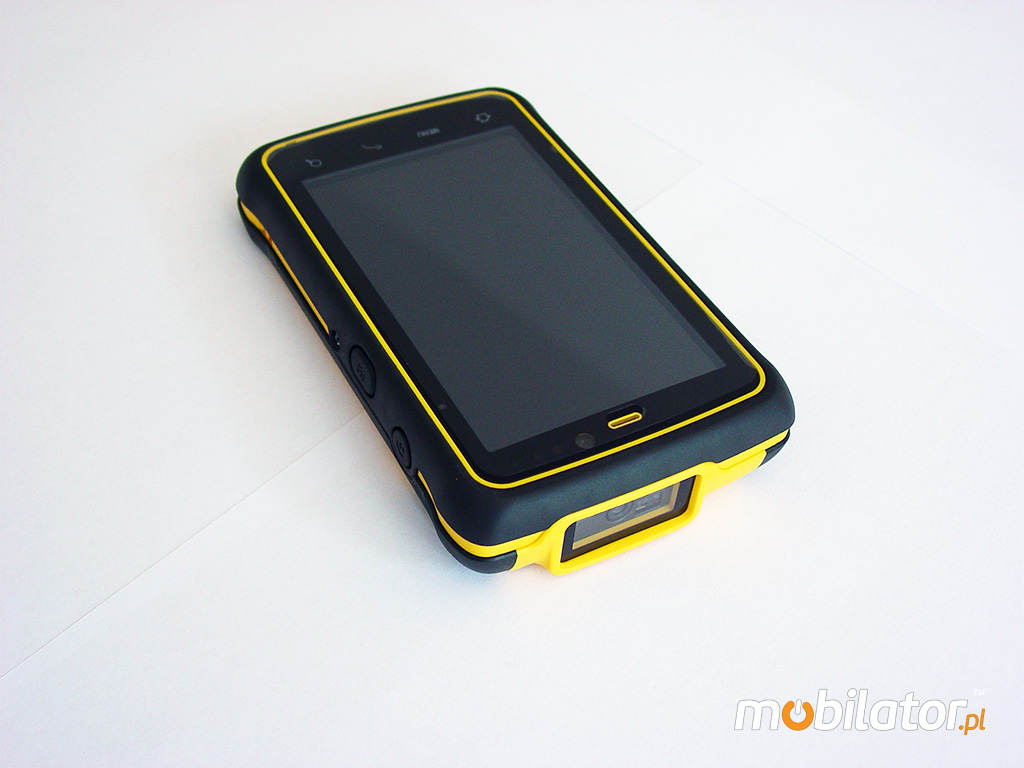

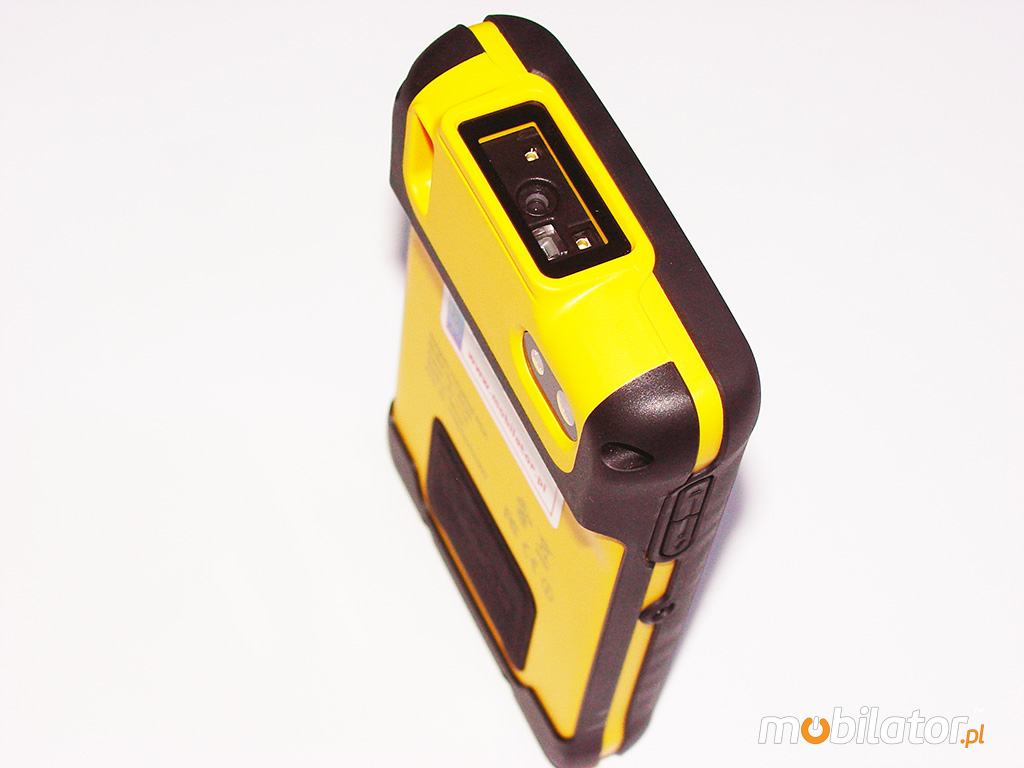

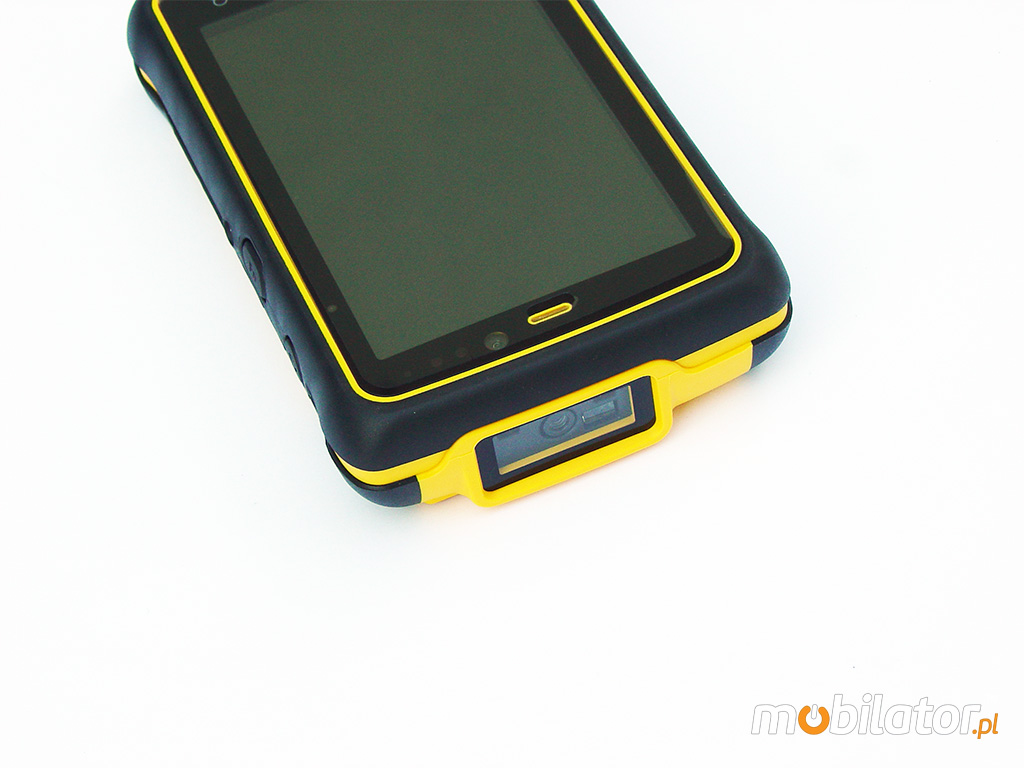

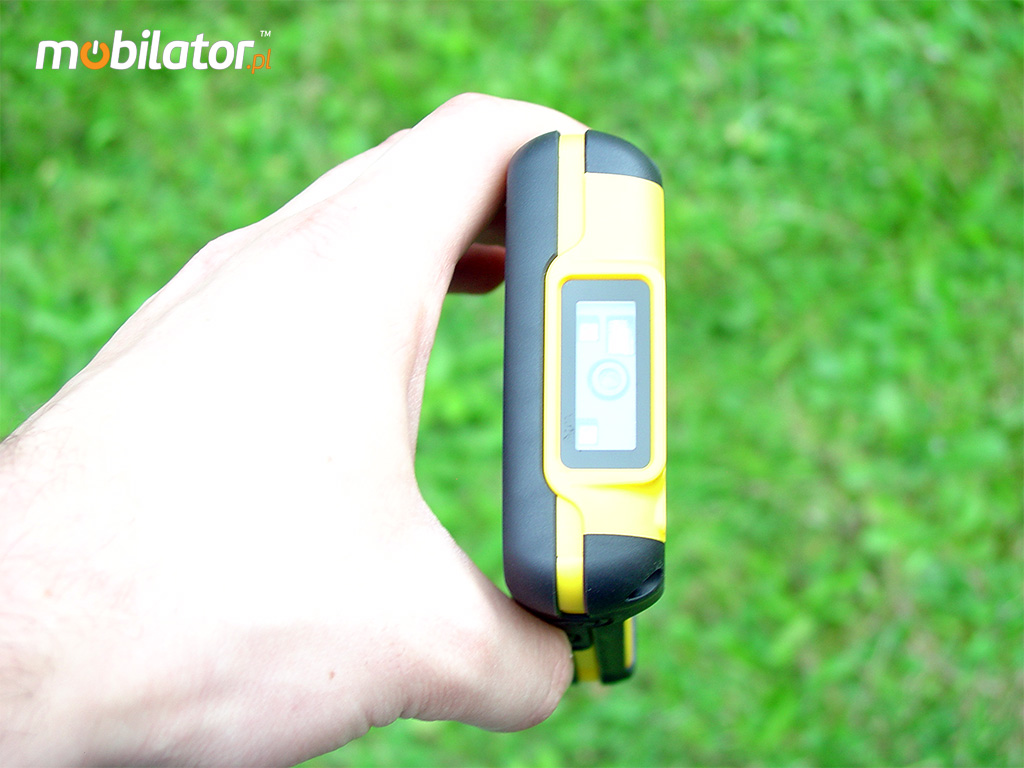

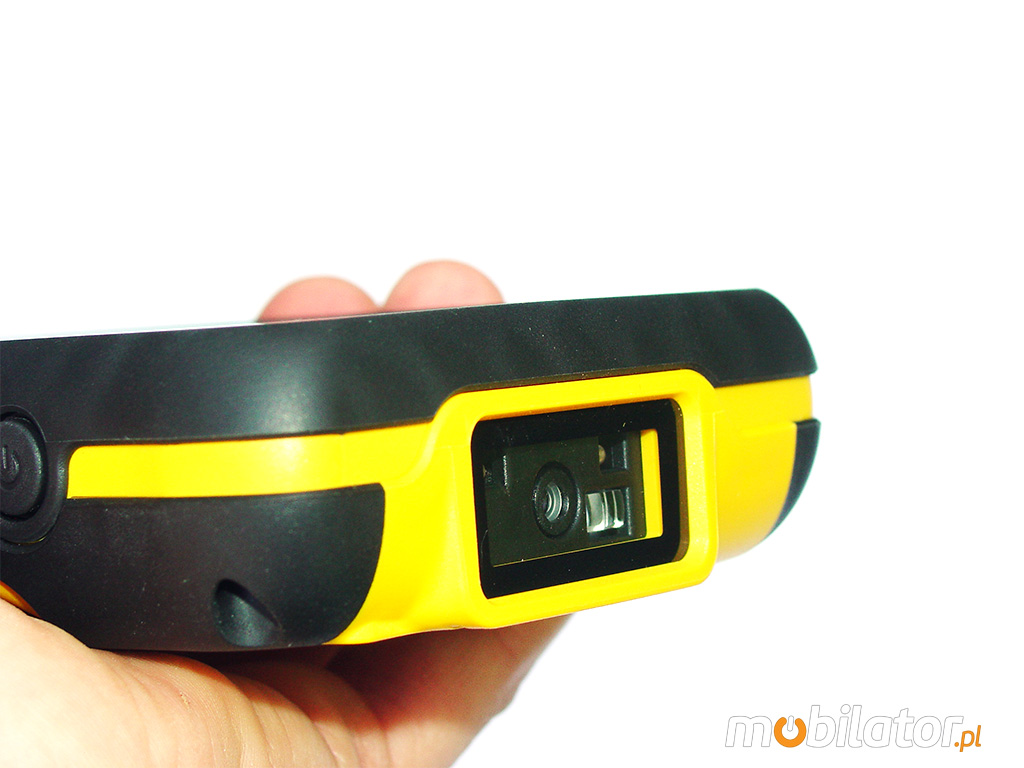

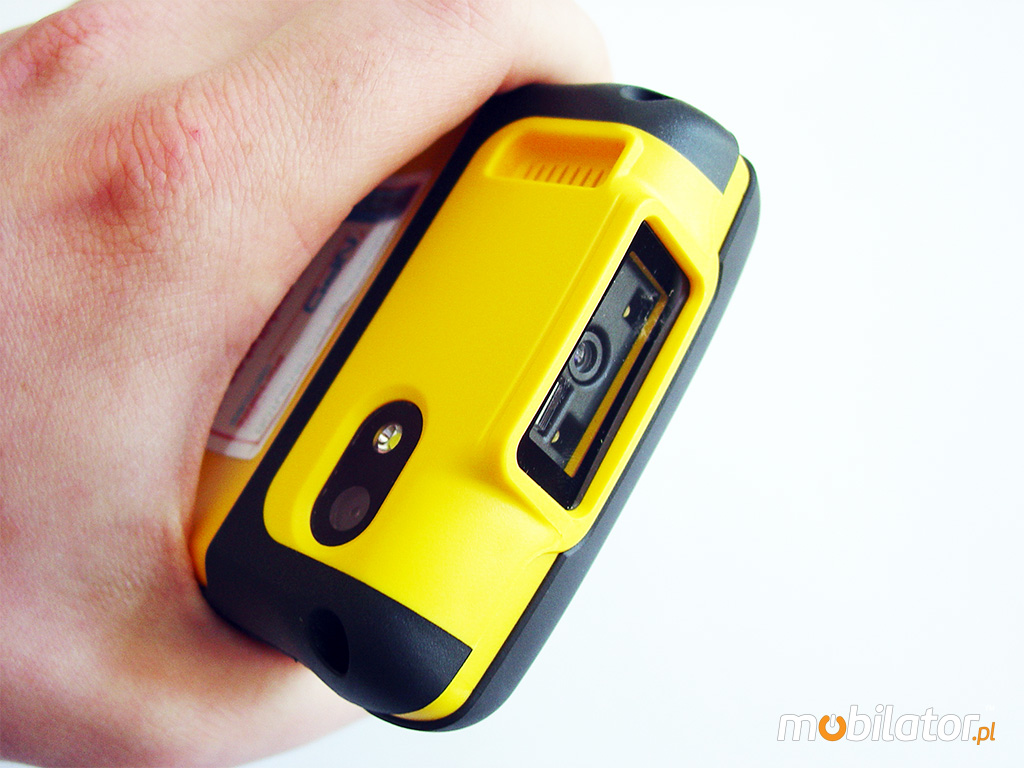

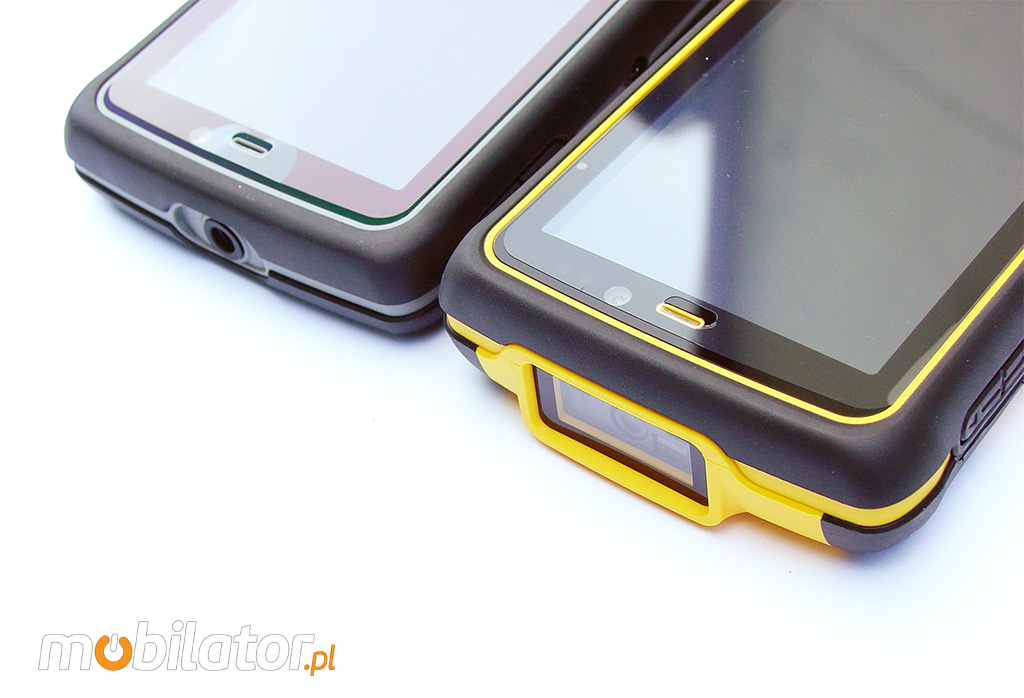

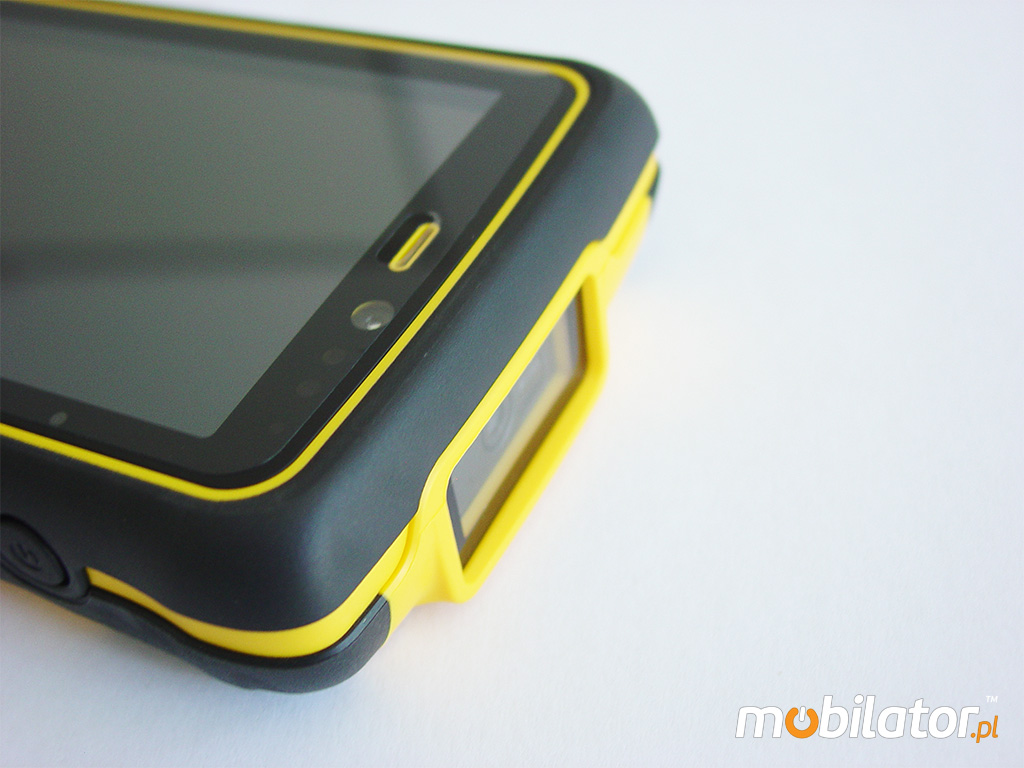

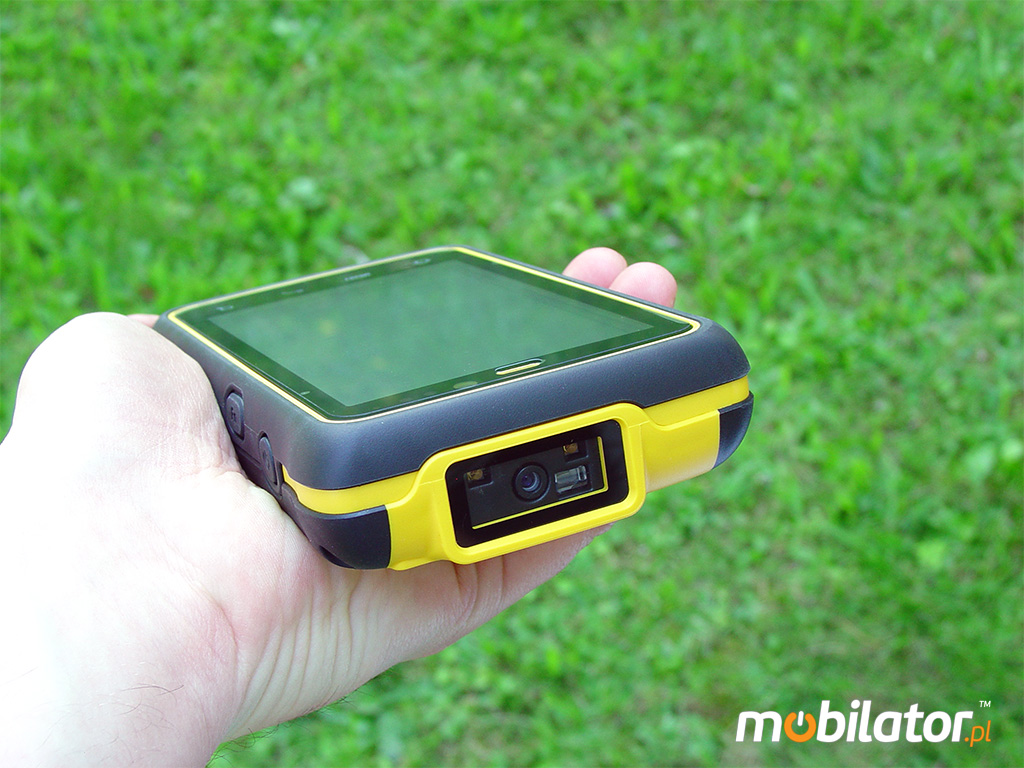

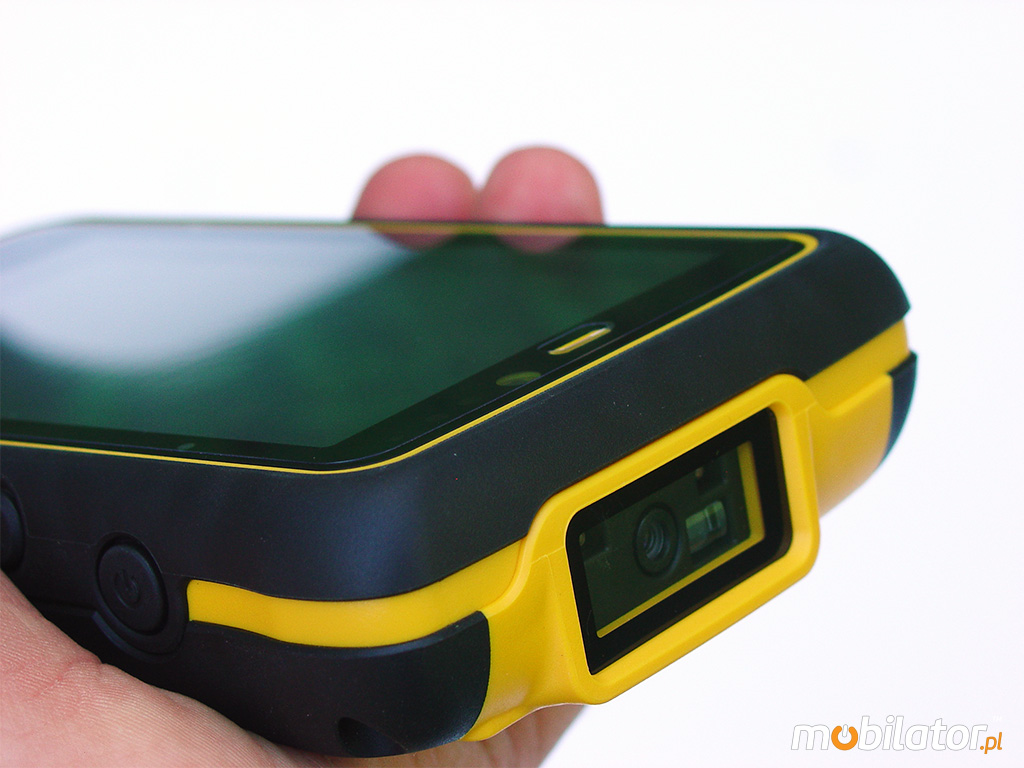

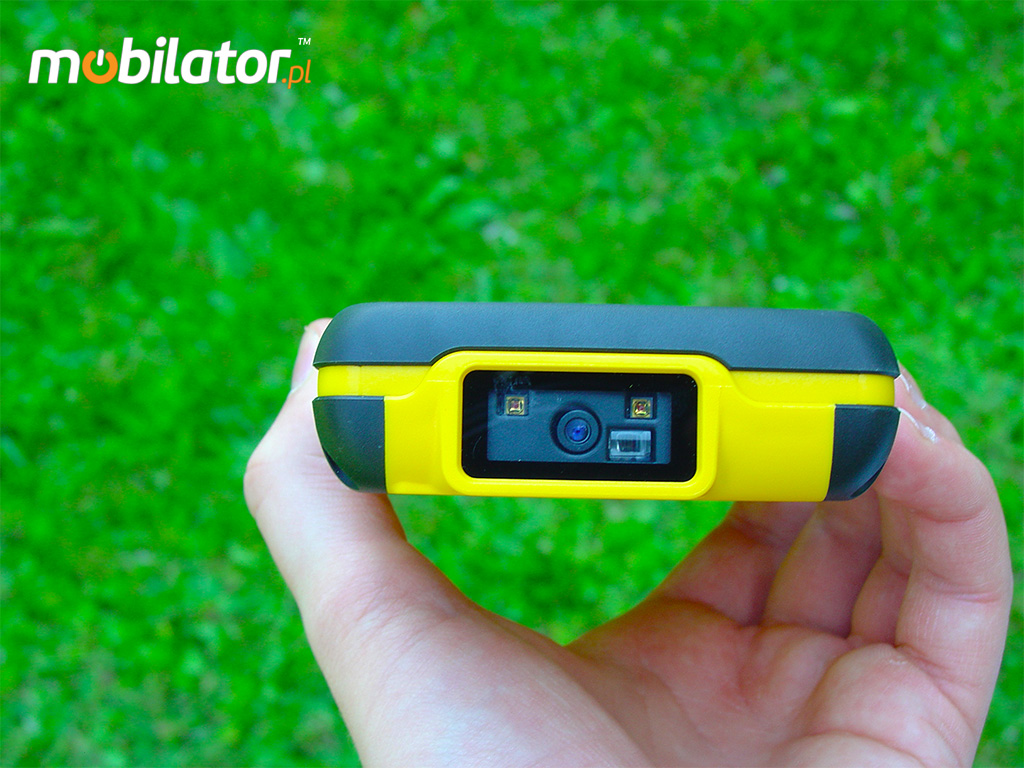

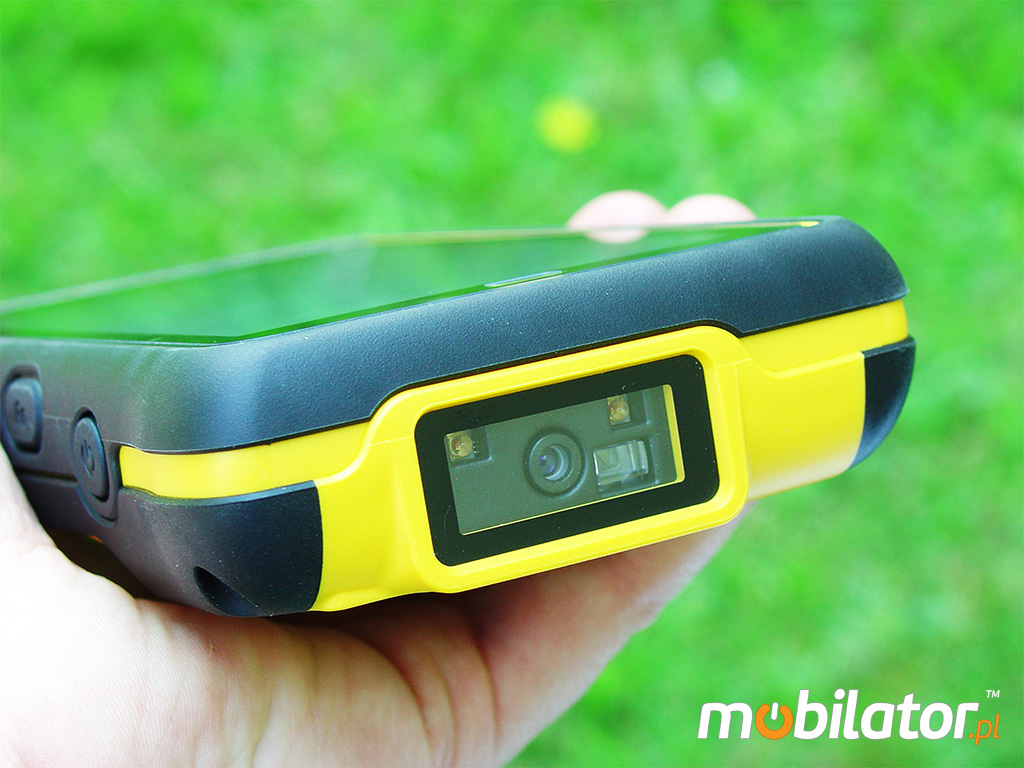

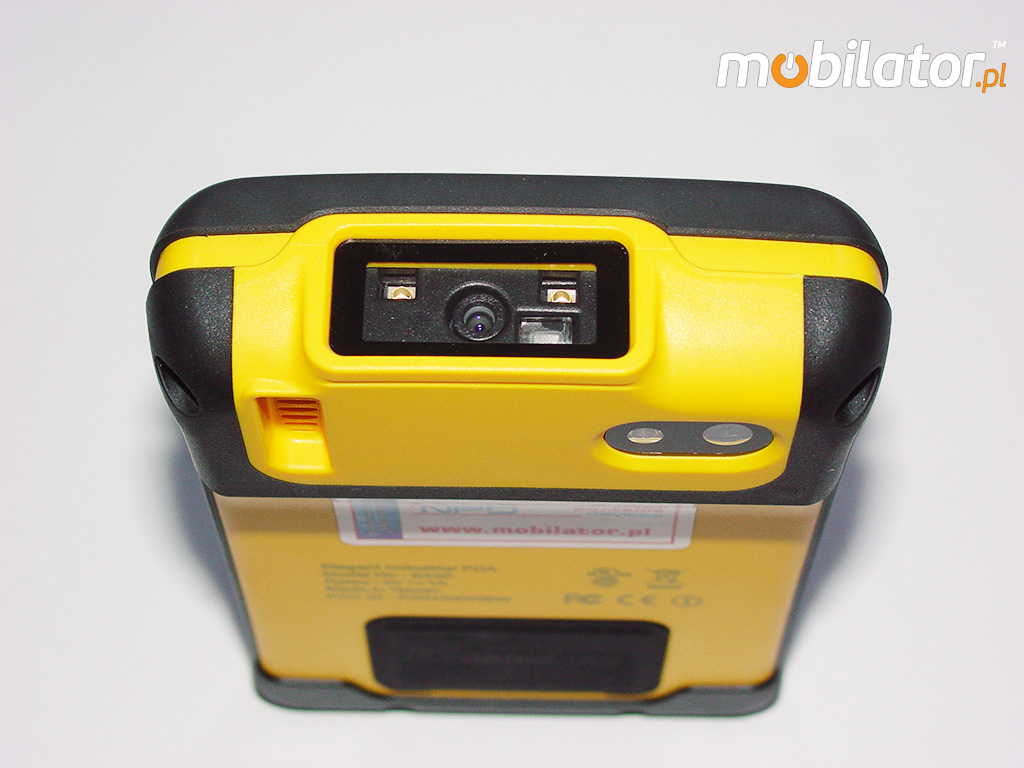

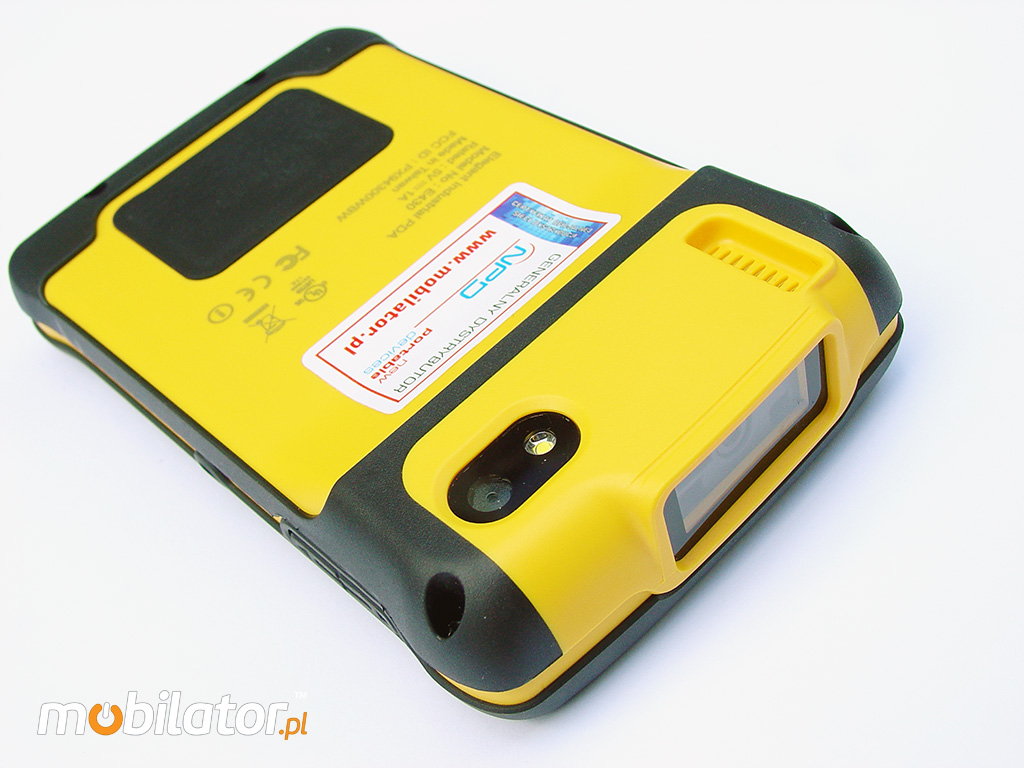

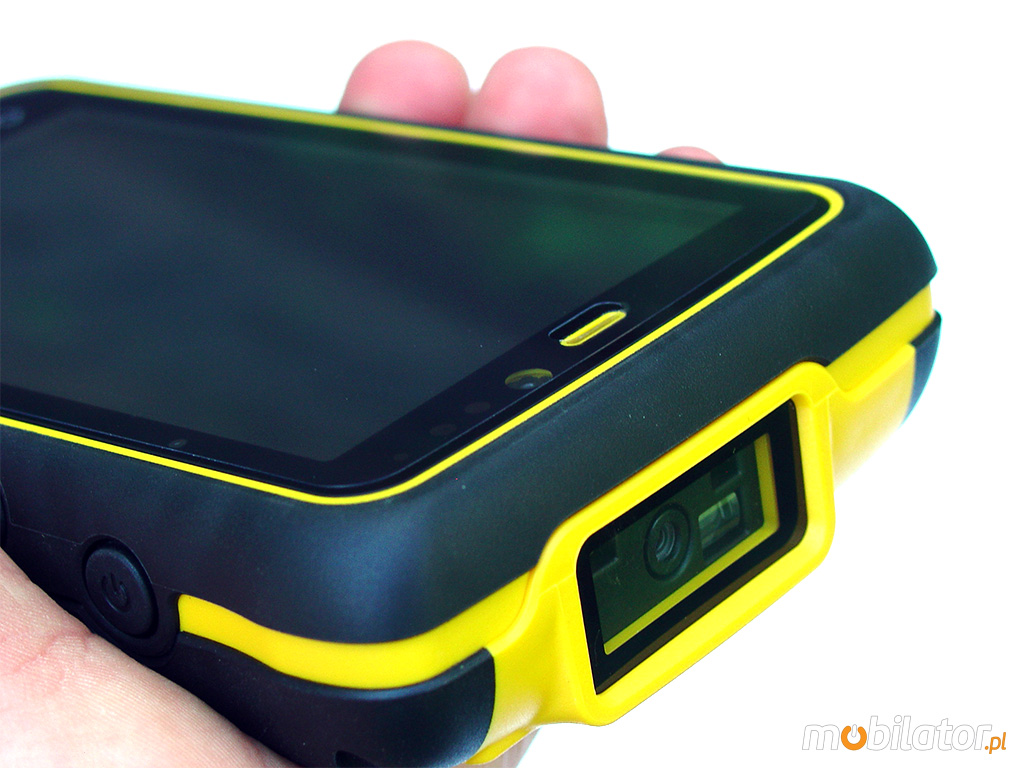

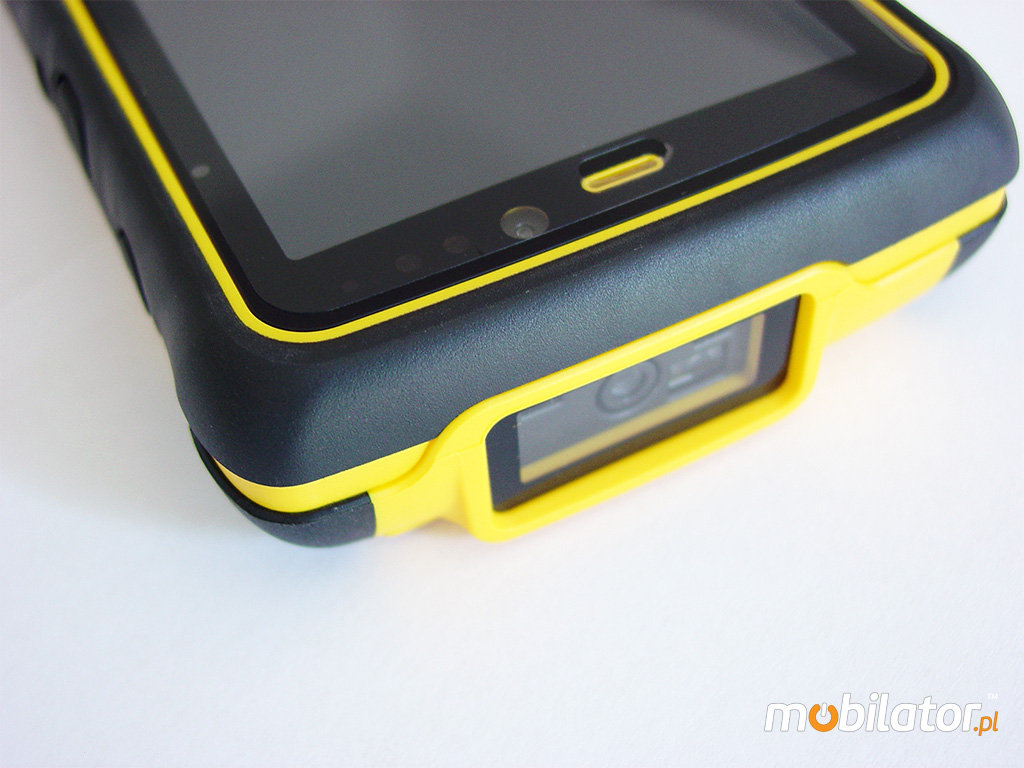

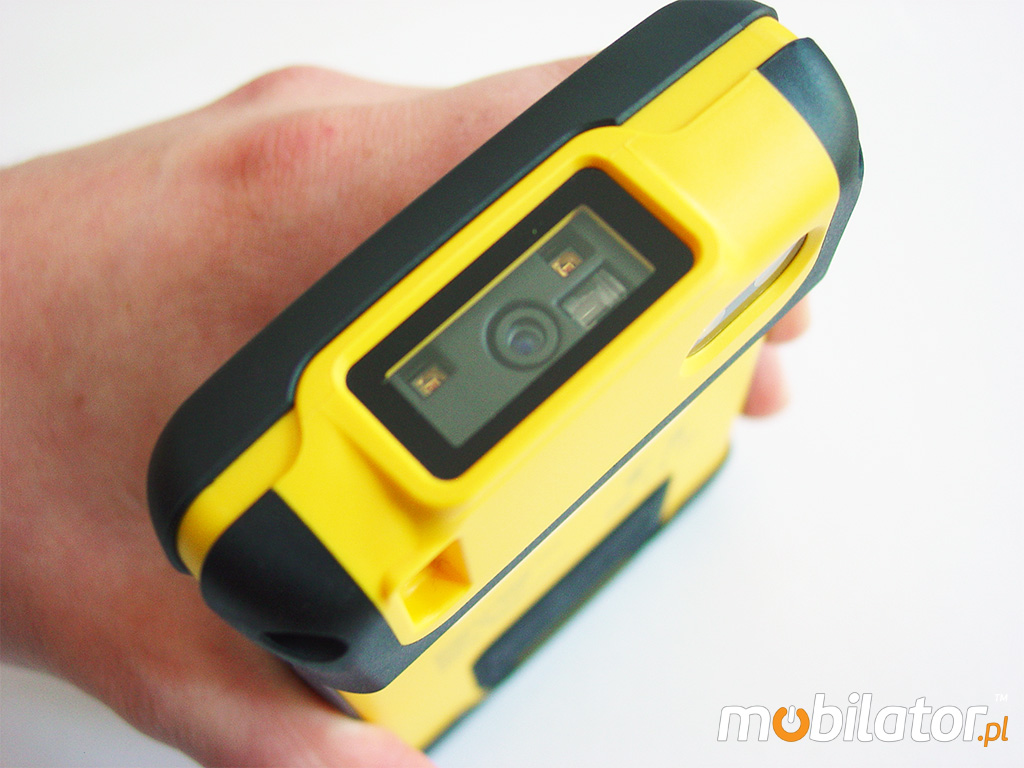

Barcode Scanner (option)
Quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large scope of the reading of the data collector collects data Winmate exactly what helps to increase the speed and productivity. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.
.jpg)
|
RFID (option)
RFID technology worldwide has aroused great interest. They are expected to solve the many problems with fast and unmistakable identification of people and equipment. Its development is more turbulent than being gradually implemented barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.
.jpg)
Modules and Wireless Networks
RFID (option)
|
HF:13.56M (ISO14443A Protocol) : reading distance- 4cm
|
|
WiFi |
802.11 a/b/g/n |
|
Bluetooth |
Bluetooth Class2.1 with EDR |
|
GPS |
Built-in |
|
WCDMA |
2100/900MHz |
go top...  menu…
|
|
|
|

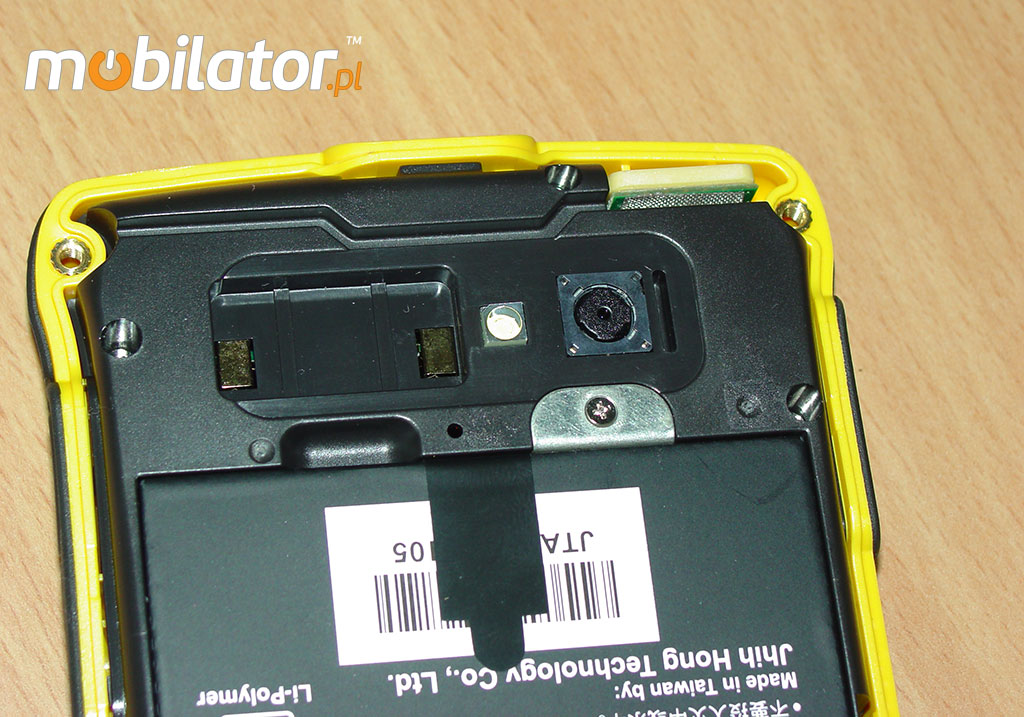

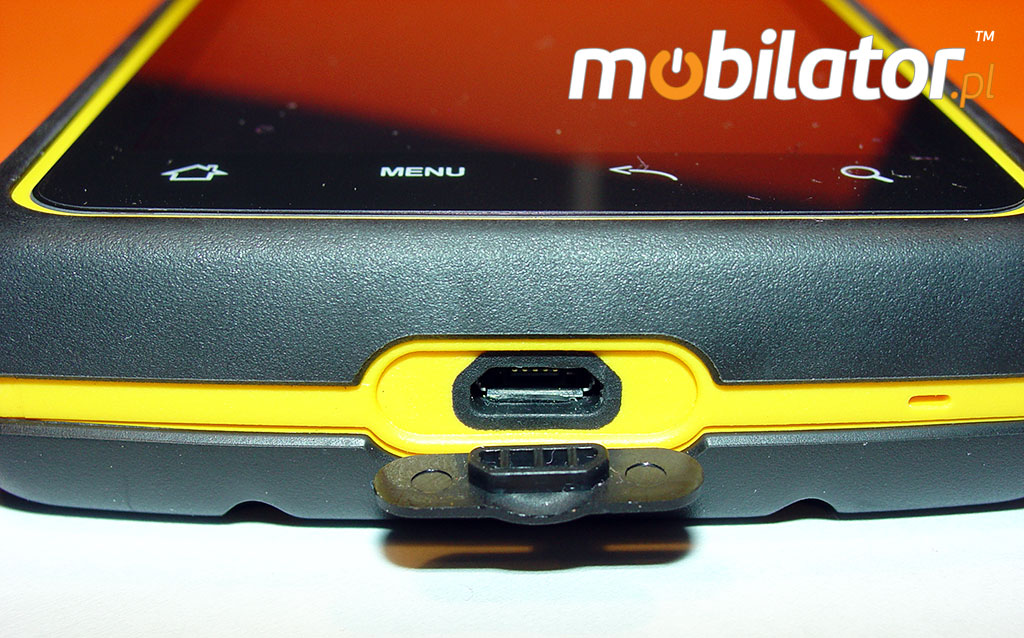

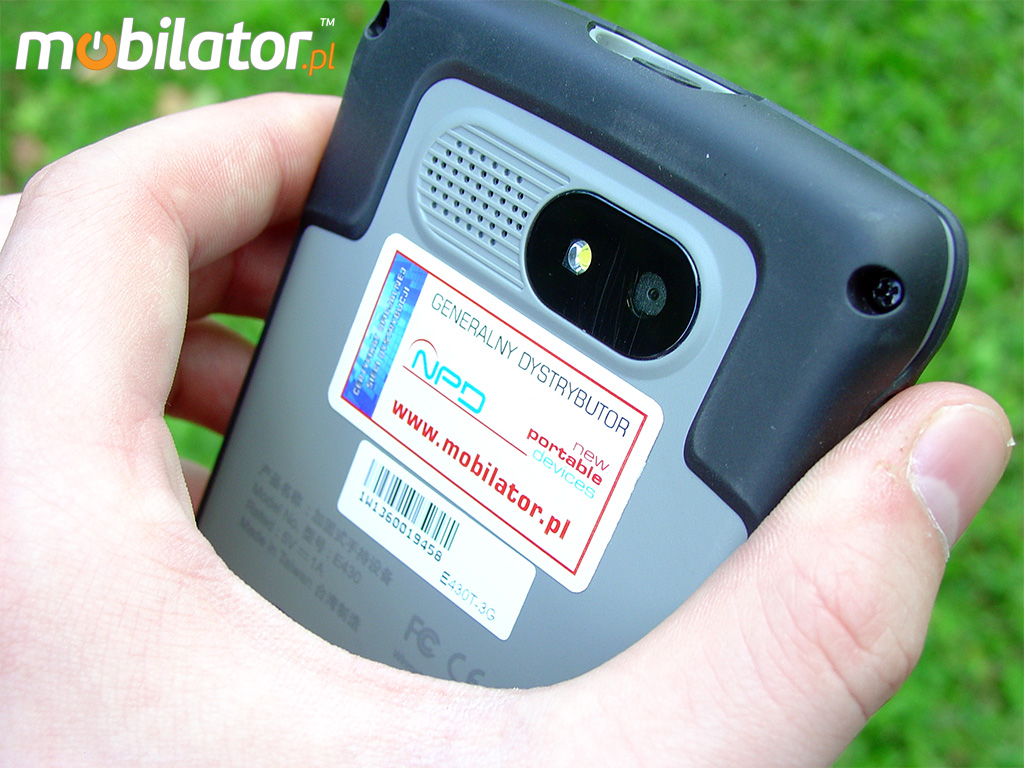

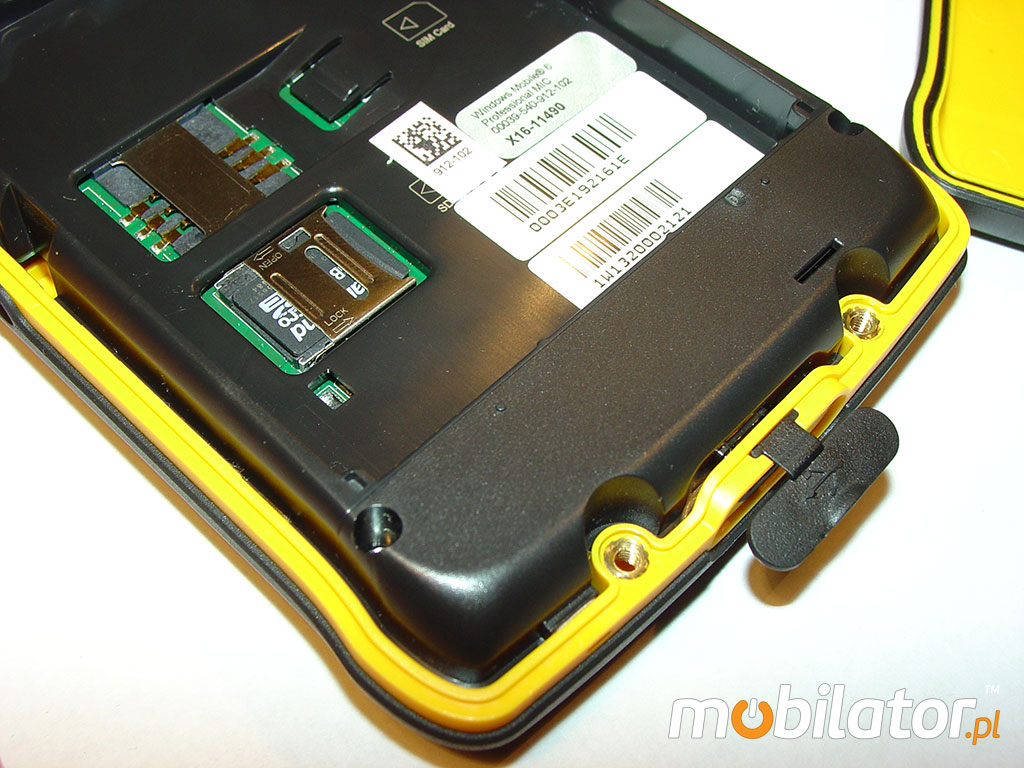

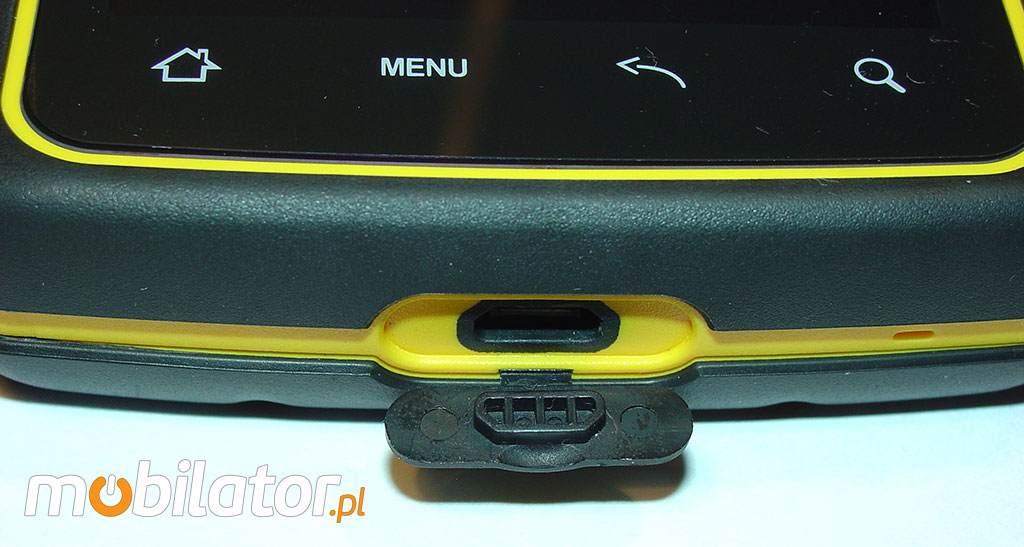

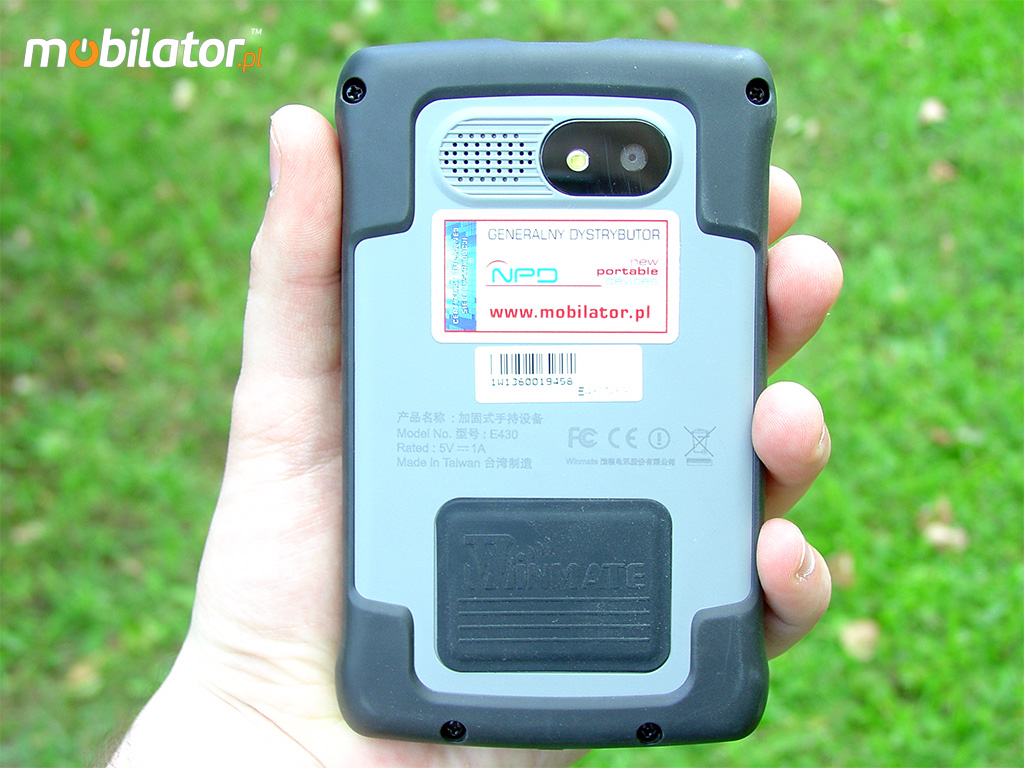

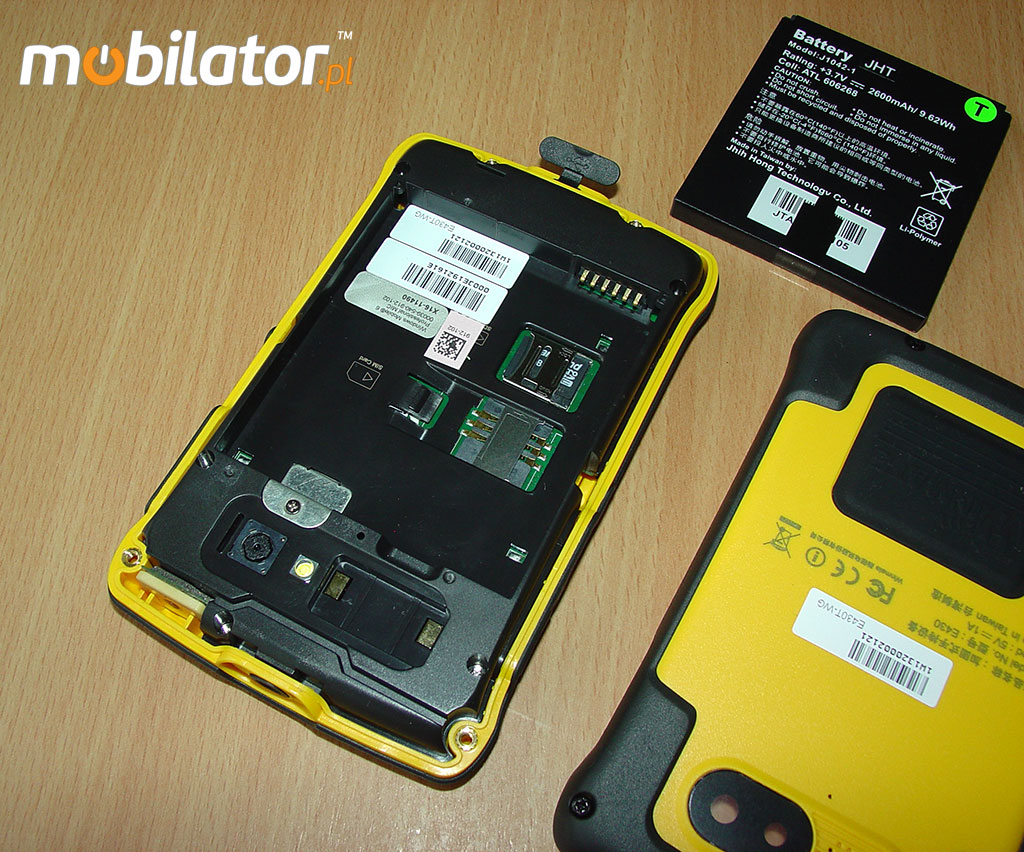

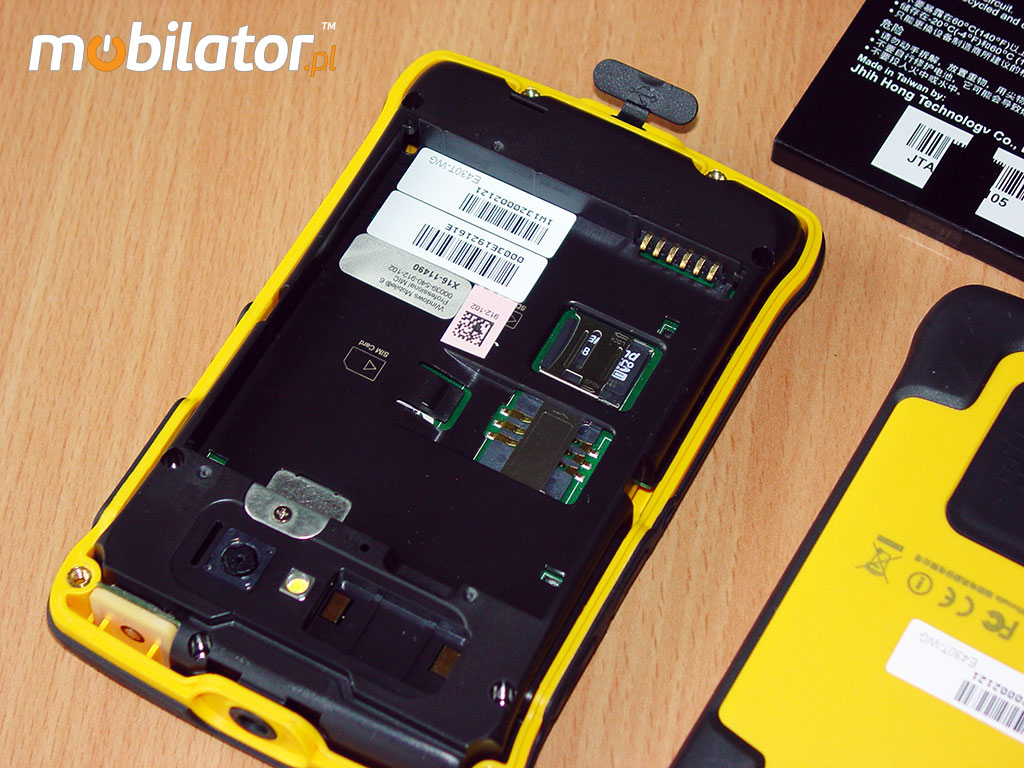

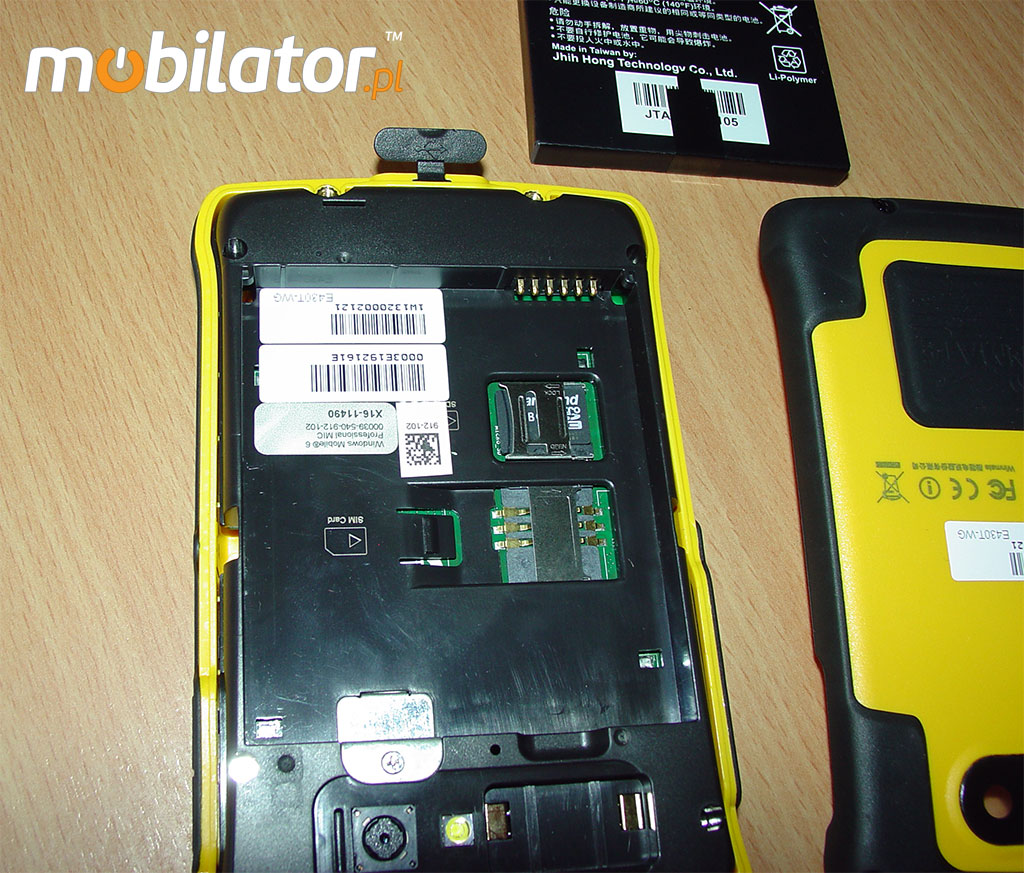

Winmate E430M2 is equipped with a micro-USB port / SD card. The possibility of recording two cameras allow 2Mpx and 5Mpx. Each model has an input for the SIM card - it device can connect to the internet at any time. Navigating the site facilitates efficient GPS module, in which each model is equipped with Winmate E430M2. Barcode scanner and RFID, is available on select configurations to select the appropriate version select the menu item "available hardware configurations."
go top... menu…
|
|
|
Operating
|
-30°C -- +60°C |
Standby Time
|
-40°C -- +70°C |
Operating Humidity
|
5% -- 95% non-condensing |
|
Dust |
IP6x (dust) |
|
Water |
IPx7 (water) |
|
Vibration |
MIL-STD-810G M514.6 |
|
Drop |
Multiple drops to concrete 5ft./1.5m
|
|
Regulatory |
CE, FCC class B, CCC, UL |
go top... menu…
.jpg)
IP65 Resistance
Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.
go top... menu…
|
The first digit [x]
Protection against solid objects |
|
The second digits [y]
Protection against liquids |
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from object not greater than 12mm in diamete |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from water projected from a nozzle |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
|
|
|
 |
7
|
|
Protection against immersion |
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water |
|
Hardware configuration
|
If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories. |
|
|
|
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ...
|
Compare all versions
| Durability: |
MIL-STD 810G |
| Humidity: |
95% non-condensation |
| Waterproof: |
IP 67 |
| Weight: |
|
| Temperature: |
Operating temperature: -30°C - 60°C / Storage temperature: -40°C - 70°C |
| Shock: |
MIL-STD-810G Metod 516.6 |
| Vibration: |
MIL-STD-810G Metod 514.6 |
| Drop: |
MIL-STD-810G Metod 516.6 |
| Sand and dust: |
IP 67 |
| 1D barcode scanner (reader): |
none (available in other configurations) |
| 2D barcode scanner (reader): |
none (available in other configurations) |
| RFID scanner (reader): |
none (available in other configurations) |
| Magnetic card reader (MSR): |
No |
| Microchip card reader: |
No |
| Docking station connector: |
No |
| VESA standard – holders and mounts support: |
No |
| COM port: |
No |

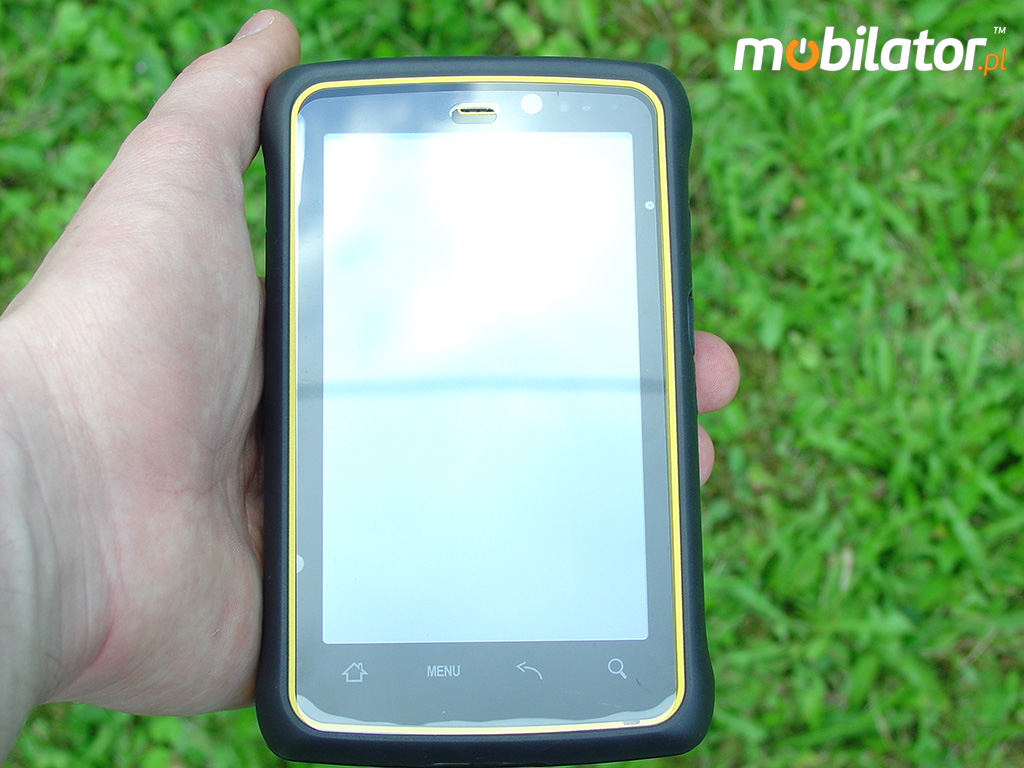

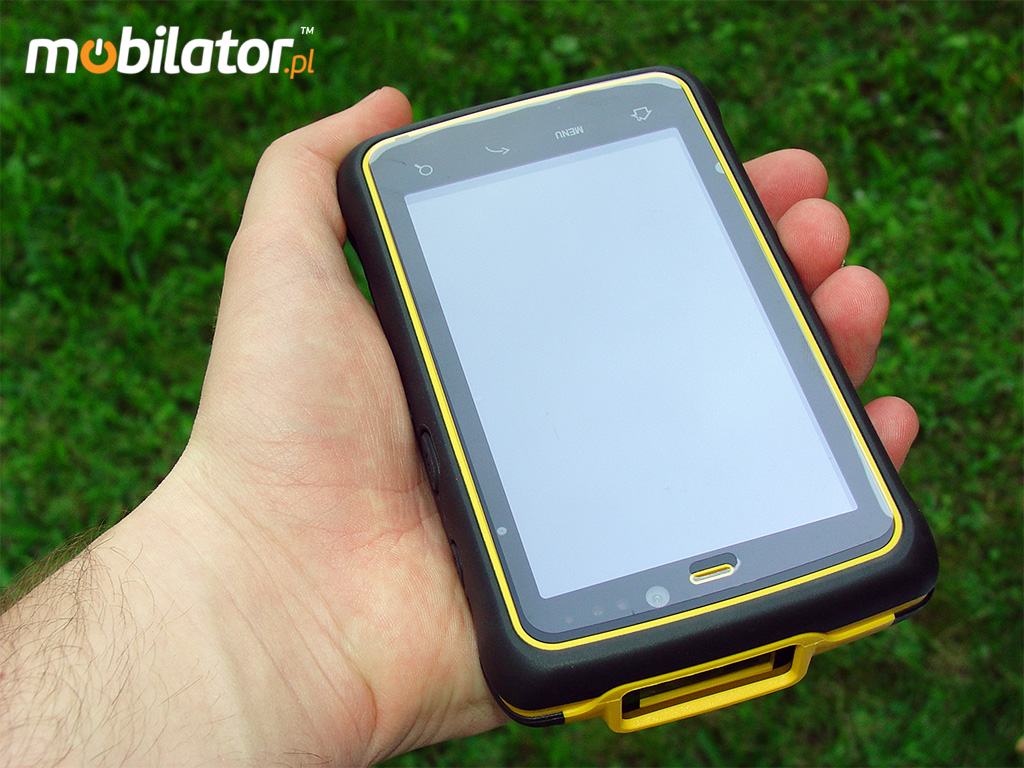

| Dispaly: |
4.3'' (800x480) LED |
| Brightness: |
400nit |
| Contrast: |
800:1 |
| Touch screen: |
Yes - Touch Projected Capacitive with Multi-Touch |
| Graphics card: |
-------- |
| Swivel Hinge: |
No |
| VGA out: |
No |
| TV Out: |
No |
| TV Tuner: |
No |
| Processor: |
ARM ® Cortex™ - A9 1.0Ghz |
| Chipset: |
-------- |
| BIOS: |
-------- |
| Memory: |
1GB SDRAM |
| Hard Drive: |
4GB eMMC (max. 32GB, MOQ:1K) |
| Flash Memory: |
|

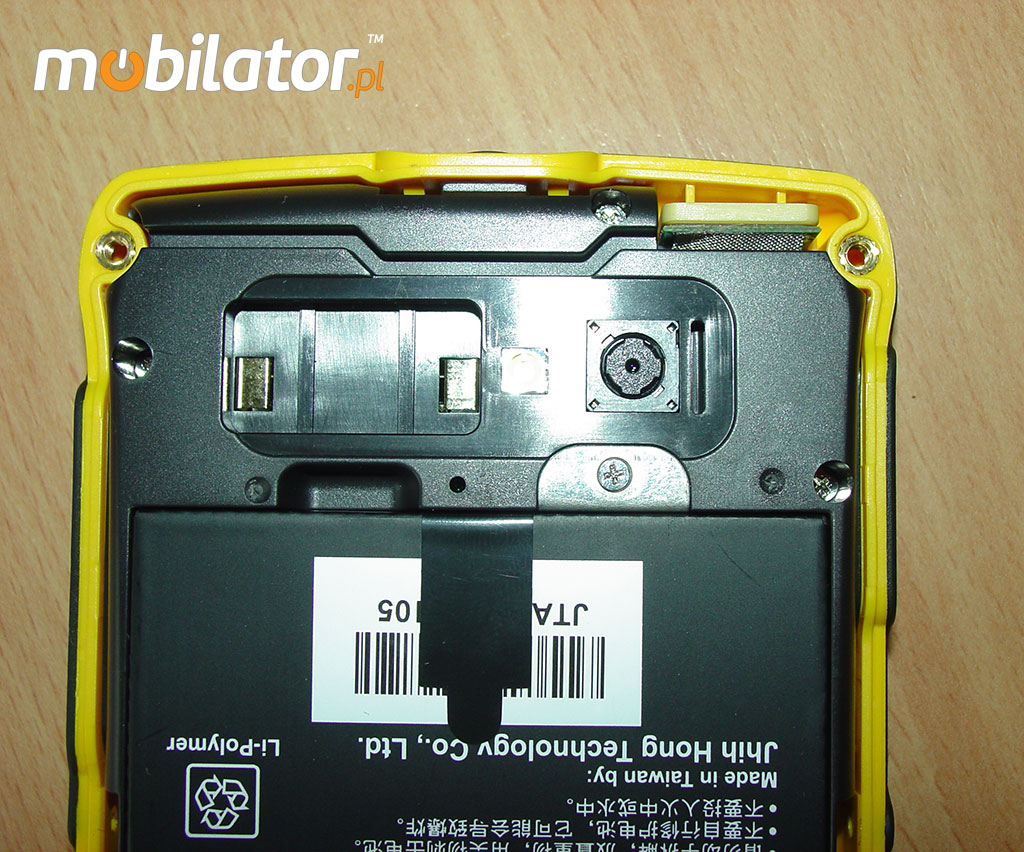

| Battery: |

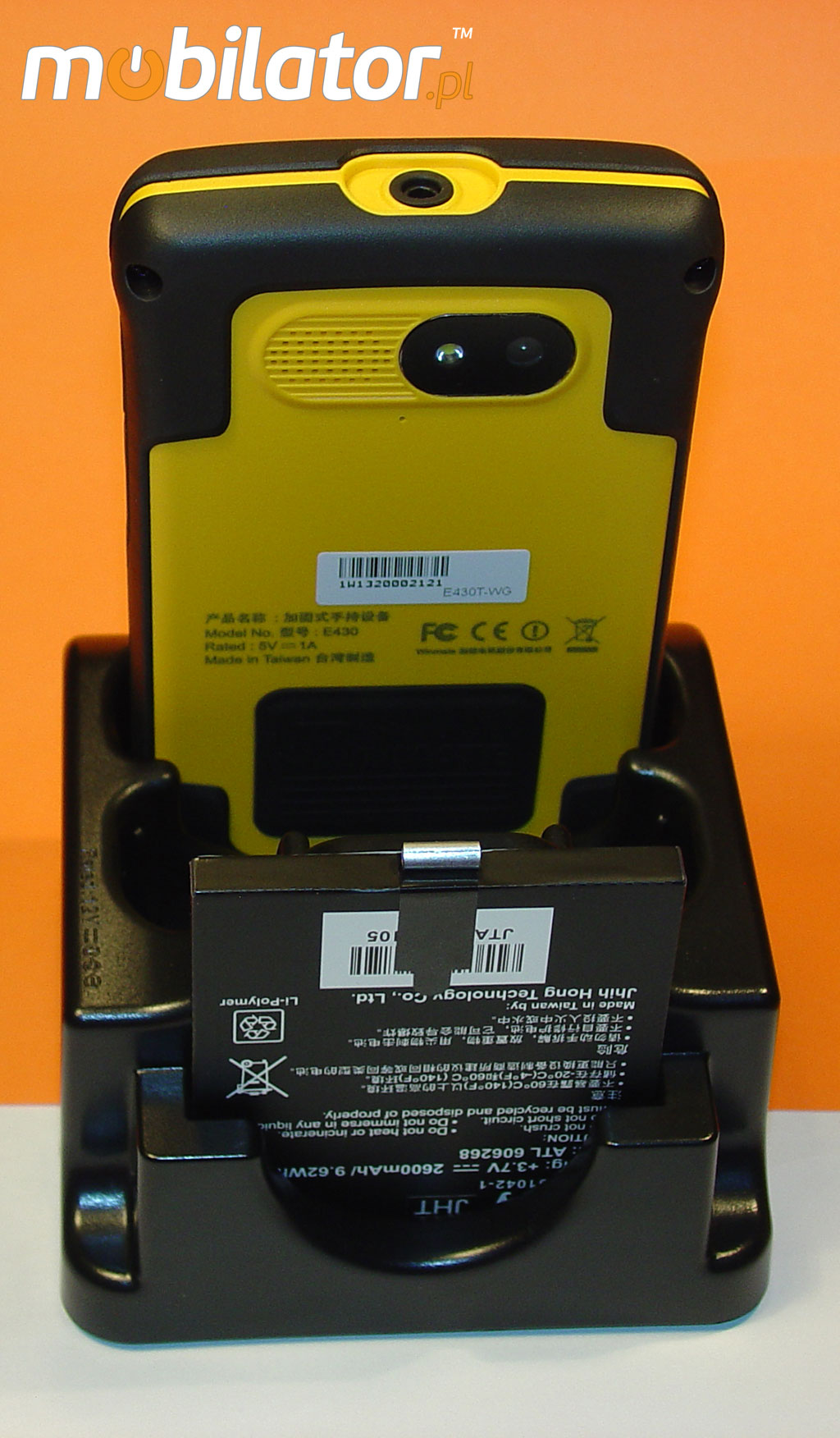

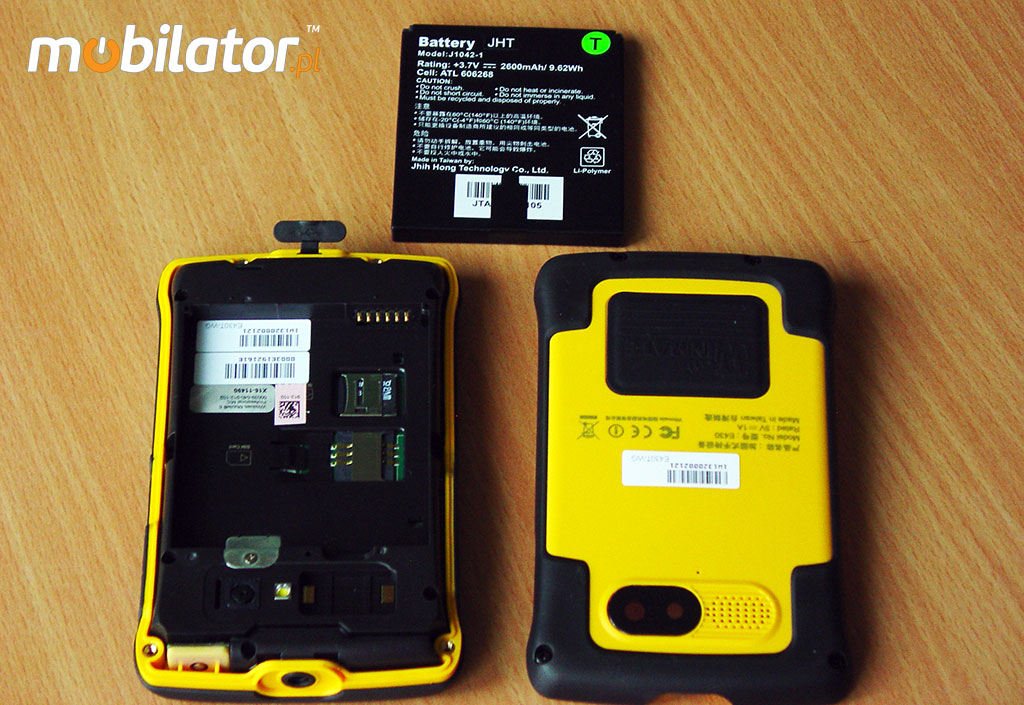

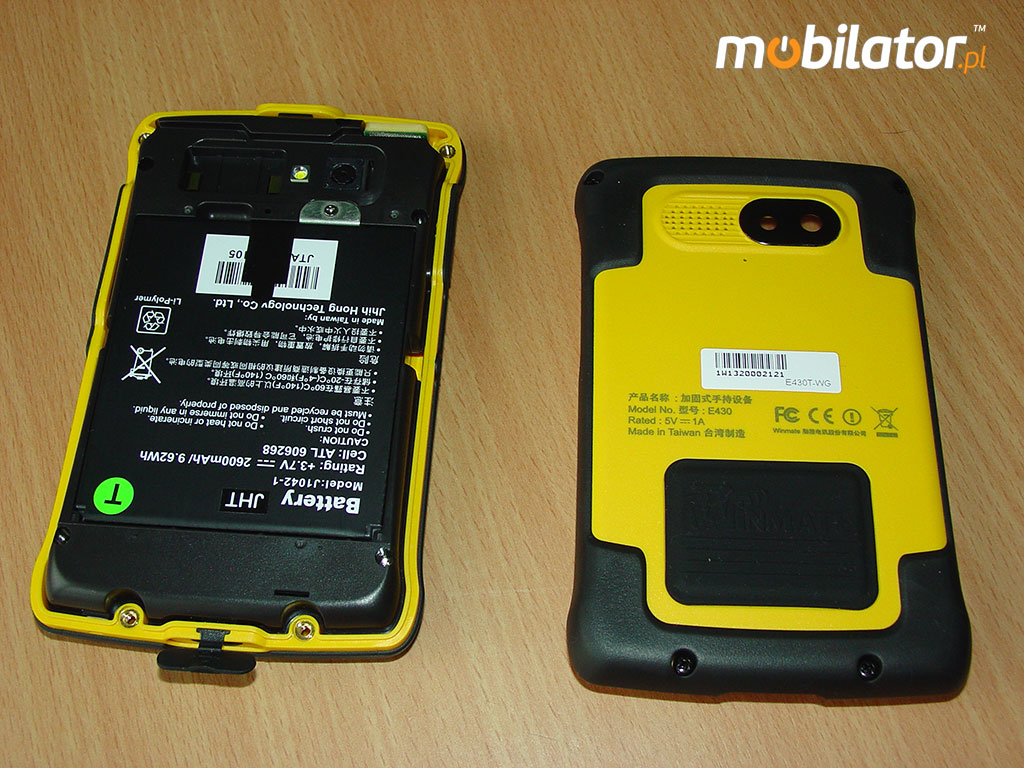

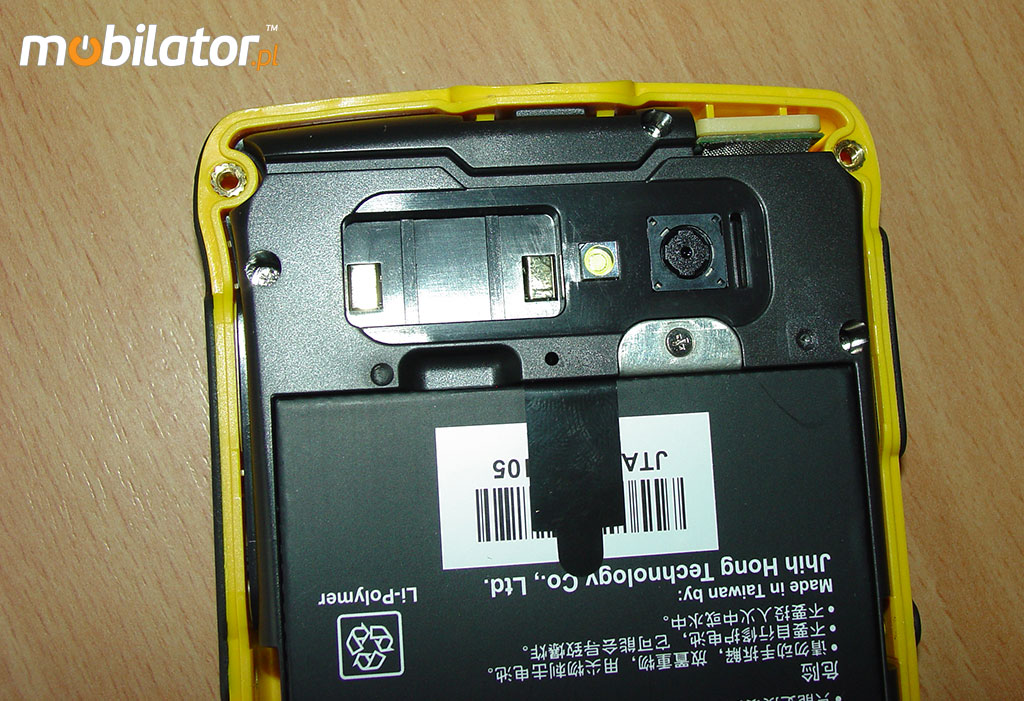

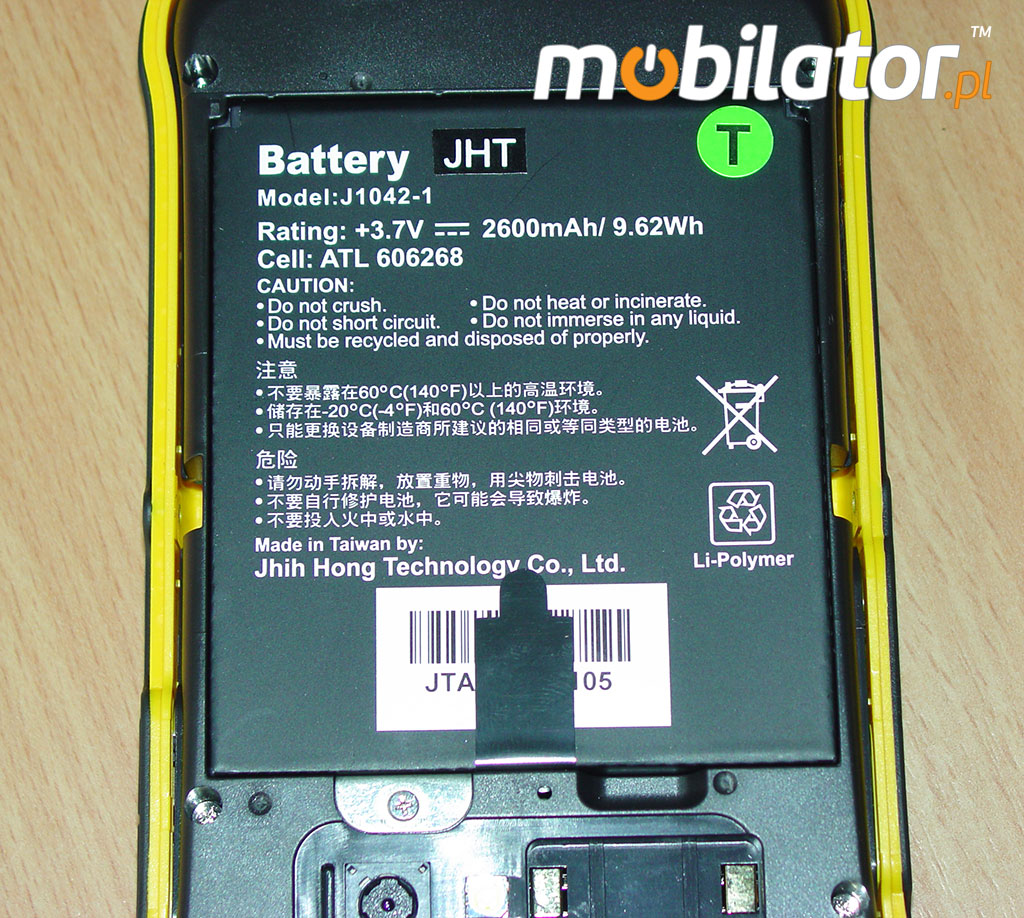

3.7V 2600mAh Li-Ion rechargeable battery
5V 1A Adapter |
| Working time on battery: |
up to 8.6hr (Backlight at 10% duty cycle, default level, idle) |
| HotSwap battery: |
No |
| Fast battery replacement ability: |
No |
| Size: |

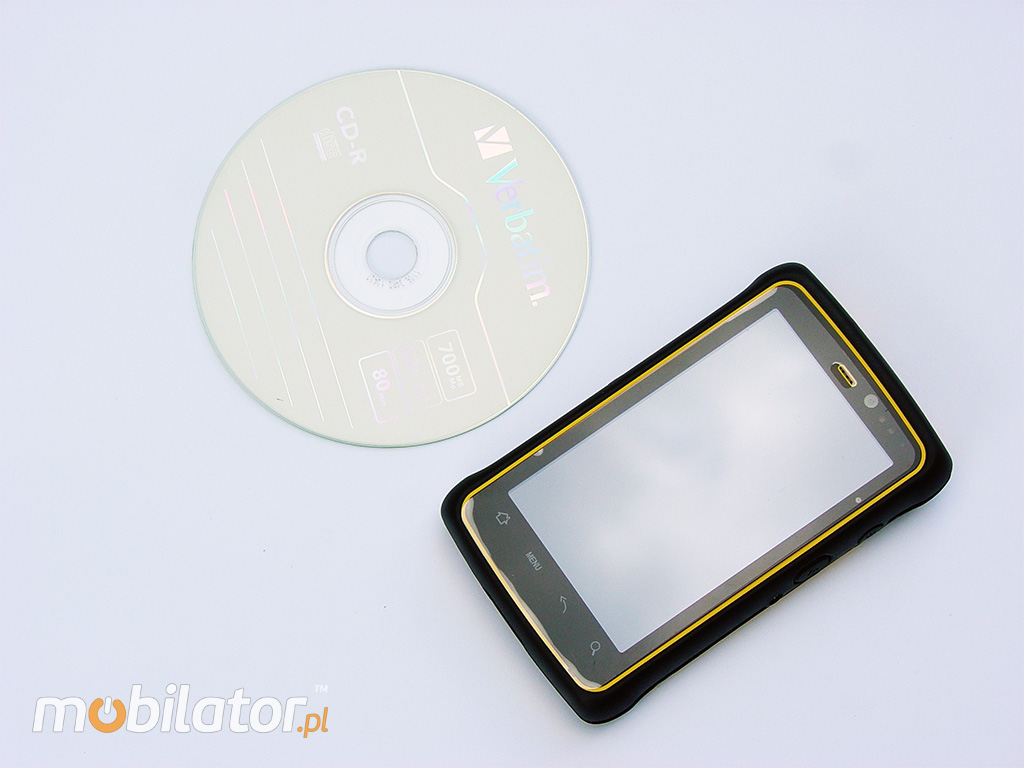

132.2 x 82 x 21.5 mm
232g |
| Casing material: |
plastic |
| Fanless casing: |
Yes |
| Operating System: |
Yes - Android 4.1 |
| LAN: |
No |
| WLAN: |
Yes - 802.11 a/b/g/n |
| Bluetooth: |
Yes - (2.1+ EDR) |
| WAN: |
Yes - 3.5G |
| GPS: |
Yes - Built-in |
| Flash Card Reader: |
Yes - micro SD up to 32GB |
| CD/DVD: |
No |

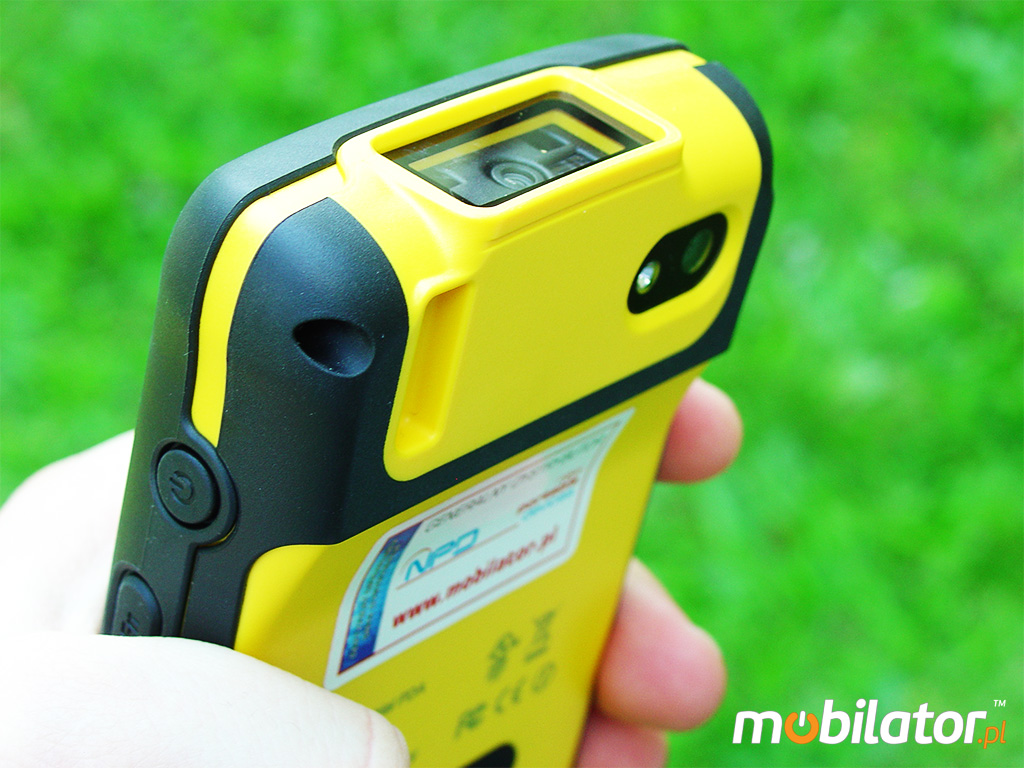

| Camera: |
Yes - 2MPx front and 5Mpix rear (LED+Autofocus) |
| Audio: |
Microphone : Earphone : Speaker 1.2W |
| Seciurity: |
Gum case |
| In/Out: |
Micro USB : SIM : Micro SD : 3.5mm Audio Jack |
| Keyboard: |
No |
| Additional Navigation Devices : |

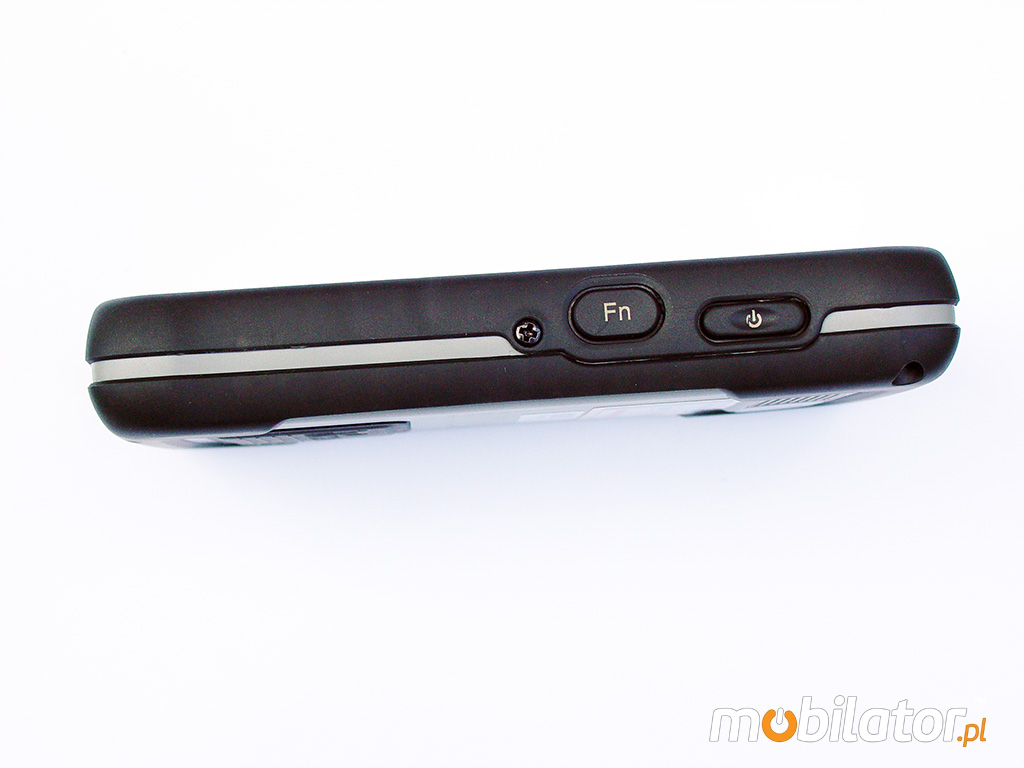

Yes - Function keys |
| Color: |
black-yellow |
| Optional accessories: |
1D Barcode scanner : 1D/2D Barcode scanner : RFID : Car holder : Car charger |
| Other: |
Optional warranty up to 3 years |
