Industrial Winmate E430M2-3G (Standard)
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/przemyslowy-winmate-e430m2-3g-standard-produkt-86038.html

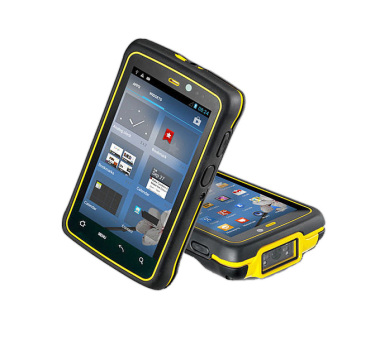

Industrial Winmate E430M2-3G (Standard)

winmate e430m2 3G 1D 2D RFID

Founded in 1996 in Taiwan, the company Winmate achieved an excellent reputation as a manufacturer of industrial LCD displays and laptops. Due to the high position of the products in the high-tech, have won many awards in tests conducted around the world.

Description

kolektor danych winmate e430m2

Winmate E430M2 - 3G

Dual-core Cortex A9 1.0GHz
Android 4.1 Jelly Bean
Brilliant 4.3-inch P-Cap display
Lightweight portability in rugged handheld form factor
Rubberized bumper areas for protection along the sidesand corners
IP67 (water- and dustproof)
MIL-STD-810G
Multiple wireless communications option
Two cameras with LED
Support for RFID and 1D/2D Barcode Reader
Robust battery
Flexible warranty

Winmate introduces the next generation of its Android-based E430M Rugged Handheld device. The new E430M2 retains the popular form factor of its predecessor, but is faster, easier to use, and includes numerous technology improvements.

System specifications
 Processor ARM®Cortex™ - A9 1.0Ghz
 Display 4.3" (480x800) Capacitive : Multi-Touch
 System Memory
1GB SDRAM
 Memory
4GB eMMC
 Connectors Micro USB : SIM : Micro SD (max.32GB)
 Audio Microphone : Spekaer : 3.5mm Jack (only in version 3G)
 Battery 3.7V 2600mAh Li-Ion (8.6hrs in standby time)
 Camera Front - 2Mpx : Rear - 5Mpx : LED
 Sensors Light : Proximity
 Readers RFID (option)  : 1D (option) : 1D/2D (option)
 Modules WiFi : Bluetooth V2.1+EDR : GPRS/WCDMA
 Operating System
Android 4.1
 Standard - 3G
E430M2-3G winmate e430m2-3G
 HF RFID
E430M2-3HF winmate E430M2-3HF
 1D E430M2-3BL winmate E430M2-3BL
 1D / 2D Motorola
E430M2-3B2Mot winmate E430M2-3B2
 1D / 2D

E430M2-3B2

winmate E430M2-3B2
Refer to the "Available hardware configurations" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

The collection and processing of data

winmate e430m2 kolektor danych kolektory danych 1D 2D IP67

Barcode Scanner (option)

Quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large scope of the reading of the data collector collects data Winmate exactly what helps to increase the speed and productivity. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.

winmate e430m2 barcode scanner czytnik kodów kreskowych

RFID (option)

RFID technology worldwide has aroused great interest. They are expected to solve the many problems with fast and unmistakable identification of people and equipment. Its development is more turbulent than being gradually implemented barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.



czytnik RFID winmate e430m2 gps wcdma Bluetooth wifi

Modules and Wireless Networks

RFID (option)
HF:13.56M (ISO14443A Protocol) : reading distance- 4cm
WiFi 802.11 a/b/g/n
Bluetooth Bluetooth Class2.1 with EDR
GPS Built-in
WCDMA 2100/900MHz

go top... do góry menu… menu

Minimalism



kolektor danych winmate e430m2 ip67

Winmate E430M2 is equipped with a micro-USB port / SD card. The possibility of recording two cameras allow 2Mpx and 5Mpx. Each model has an input for the SIM card - it device can connect to the internet at any time. Navigating the site facilitates efficient GPS module, in which each model is equipped with Winmate E430M2. Barcode scanner and RFID, is available on select configurations to select the appropriate version select the menu item "available hardware configurations."

winmate e430m2 android 4.1 tablet przemysłowy kolektor danych


E430M2-3G

E430M2-3BL

E430M2-3B2 E430M2-3HF
 Dimensions 132x82x21mm 132.2x82x21.5mm
132.2x82x21.5mm 132.2x82x21.5mm
 Weight 232g 240g 240g 240g

winmate e430m2 mały dla sklepów przemysł winmate e430m2 kolektory danych rfid 1d 2d

go top... do góry menu… menu

Protection Standards

Standards and Tests

 Operating
-30°C -- +60°C
 Standby Time
-40°C -- +70°C
 Operating Humidity
5% -- 95% non-condensing
 Dust IP6x (dust)
 Water IPx7 (water)
 Vibration MIL-STD-810G M514.6
 Drop Multiple drops to concrete 5ft./1.5m
 Regulatory     CE, FCC class B, CCC, UL

go top... do góry menu… menu

winmate e430m2 hand rubberized data collector 1d 2d rfid

IP65 Resistance

Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.

go top... do góry menu… menu

The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids
No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8


Protection against complete, continuous submersion in water
go top... do góry menu… menu

Available hardware configurations

 Hardware configuration

If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories.

E430M2-3G

E430M2-3BL

E430M2-3B2 E430M2-3B2Mot E430M2-3HF
 WiFi
 Bluetooth
 Kamera
 IP66 -
 IP67 - - - -
 GPS
 3G
 1D - -
 2D - - -
 2D  Motorola
- - - -
 RFID - - - -

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

menu… menu

Durability: MIL-STD 810G
Humidity: 95% non-condensation
Waterproof: IP 67
Weight:
Temperature: Operating temperature: -30°C - 60°C / Storage temperature: -40°C - 70°C
Shock: MIL-STD-810G Metod 516.6
Vibration: MIL-STD-810G Metod 514.6
Drop: MIL-STD-810G Metod 516.6
Sand and dust: IP 67
1D barcode scanner (reader): none (available in other configurations)
2D barcode scanner (reader): none (available in other configurations)
RFID scanner (reader): none (available in other configurations)
Magnetic card reader (MSR): No
Microchip card reader: No
Docking station connector: No
VESA standard – holders and mounts support: No
COM port: No
Dispaly: 4.3'' (800x480) LED
Brightness: 400nit
Contrast: 800:1
Touch screen: Yes - Touch Projected Capacitive with Multi-Touch
Graphics card: --------
Swivel Hinge: No
VGA out: No
TV Out: No
TV Tuner: No
Processor: ARM ® Cortex™ - A9 1.0Ghz
Chipset: --------
BIOS: --------
Memory: 1GB SDRAM
Hard Drive: 4GB eMMC (max. 32GB, MOQ:1K)
Flash Memory:
Battery: 3.7V 2600mAh Li-Ion rechargeable battery
5V 1A Adapter
Working time on battery: up to 8.6hr (Backlight at 10% duty cycle, default level, idle)
HotSwap battery: No
Fast battery replacement ability: No
Size: 132.2 x 82 x 21.5 mm
232g
Casing material: plastic
Fanless casing: Yes
Operating System: Yes - Android 4.1
LAN: No
WLAN: Yes - 802.11 a/b/g/n
Bluetooth: Yes - (2.1+ EDR)
WAN: Yes - 3.5G
GPS: Yes - Built-in
Flash Card Reader: Yes - micro SD up to 32GB
CD/DVD: No
Camera: Yes - 2MPx front and 5Mpix rear (LED+Autofocus)
Audio: Microphone : Earphone : Speaker 1.2W
Seciurity: Gum case
In/Out: Micro USB : SIM : Micro SD : 3.5mm Audio Jack
Keyboard: No
Additional Navigation Devices : Yes - Function keys
Color: black-yellow
Optional accessories: 1D Barcode scanner : 1D/2D Barcode scanner : RFID : Car holder : Car charger
Other: Optional warranty up to 3 years


CURRENT PRICE
2309.82 € Net
2841.08€ Gross
