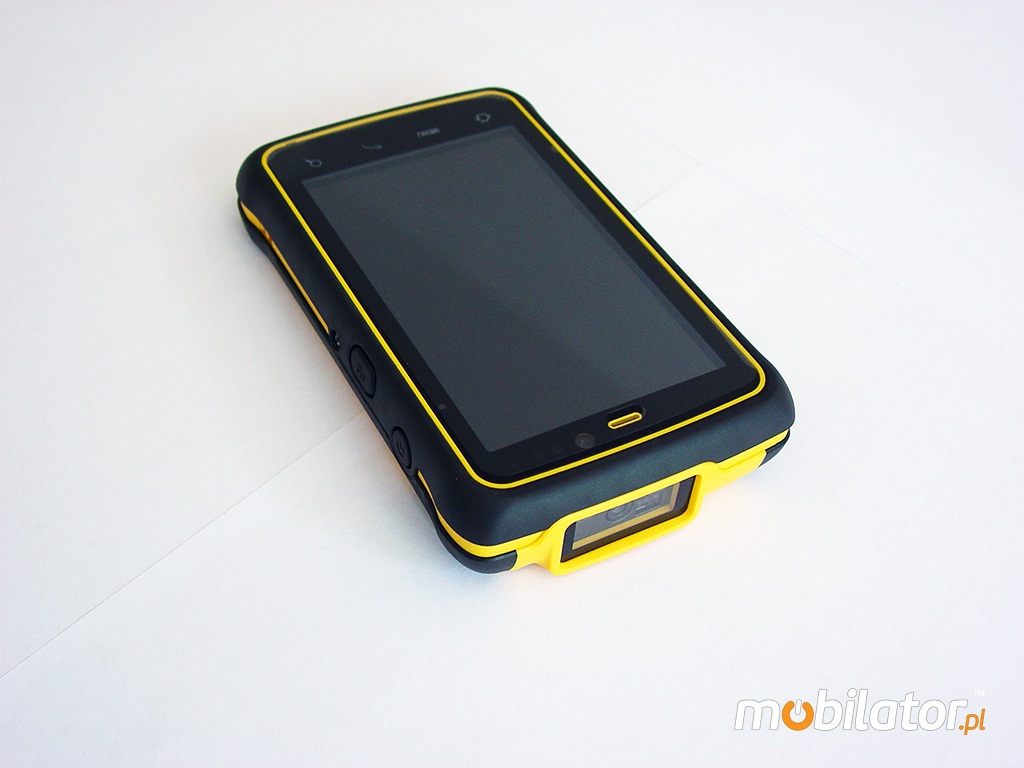

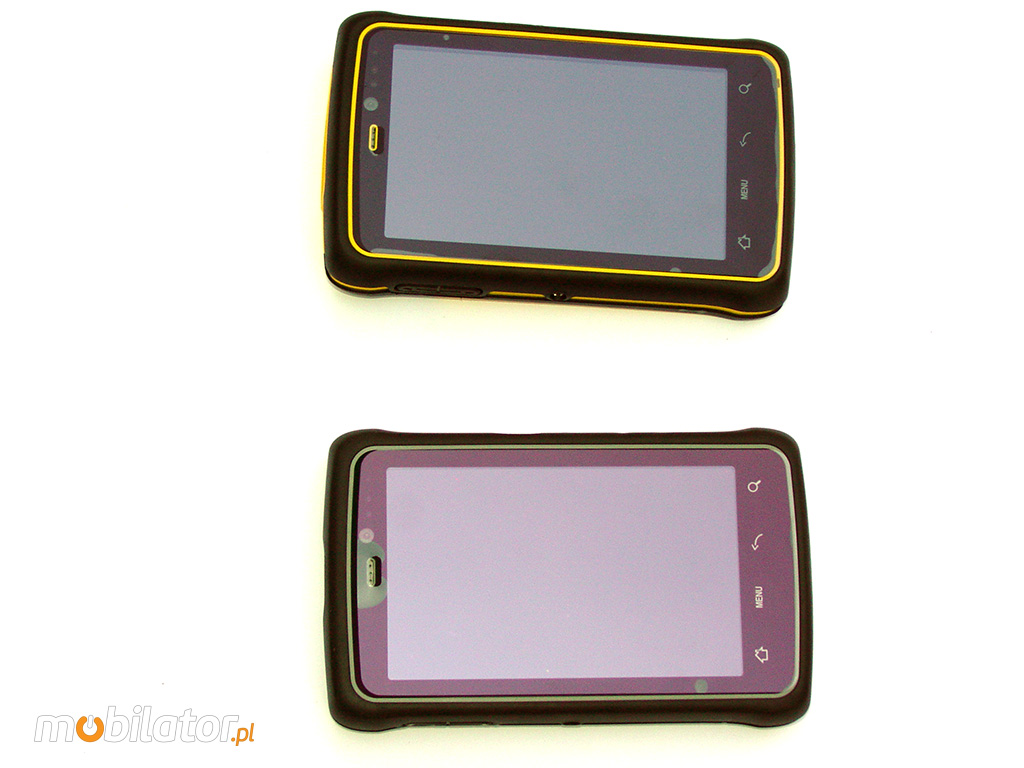

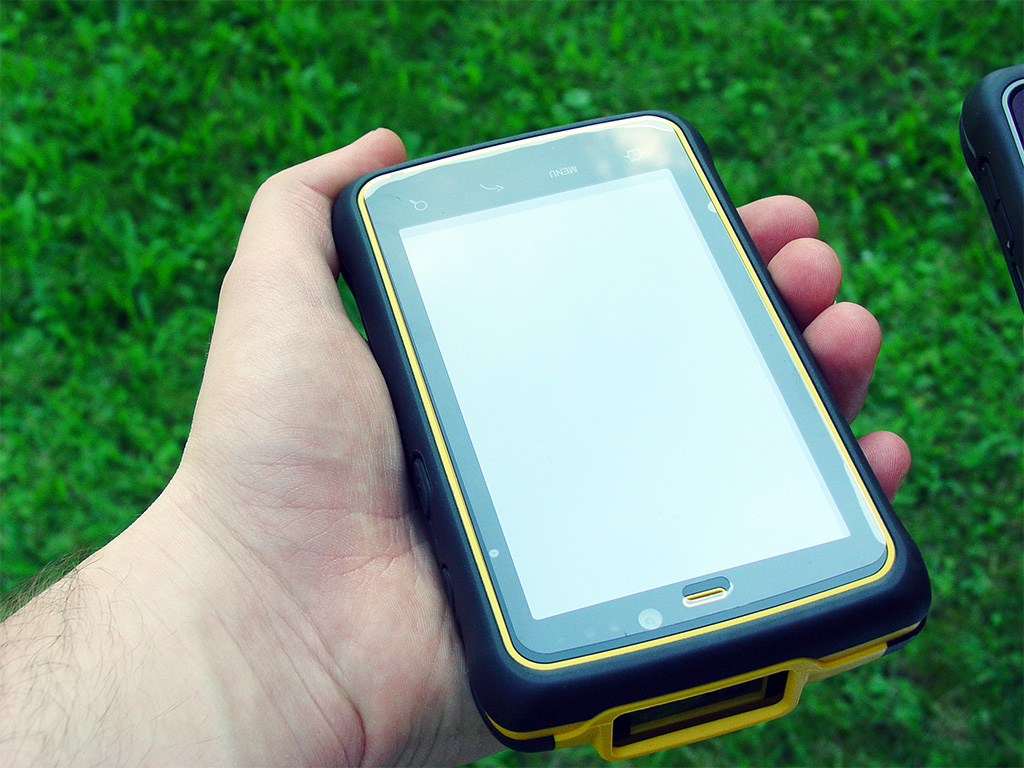

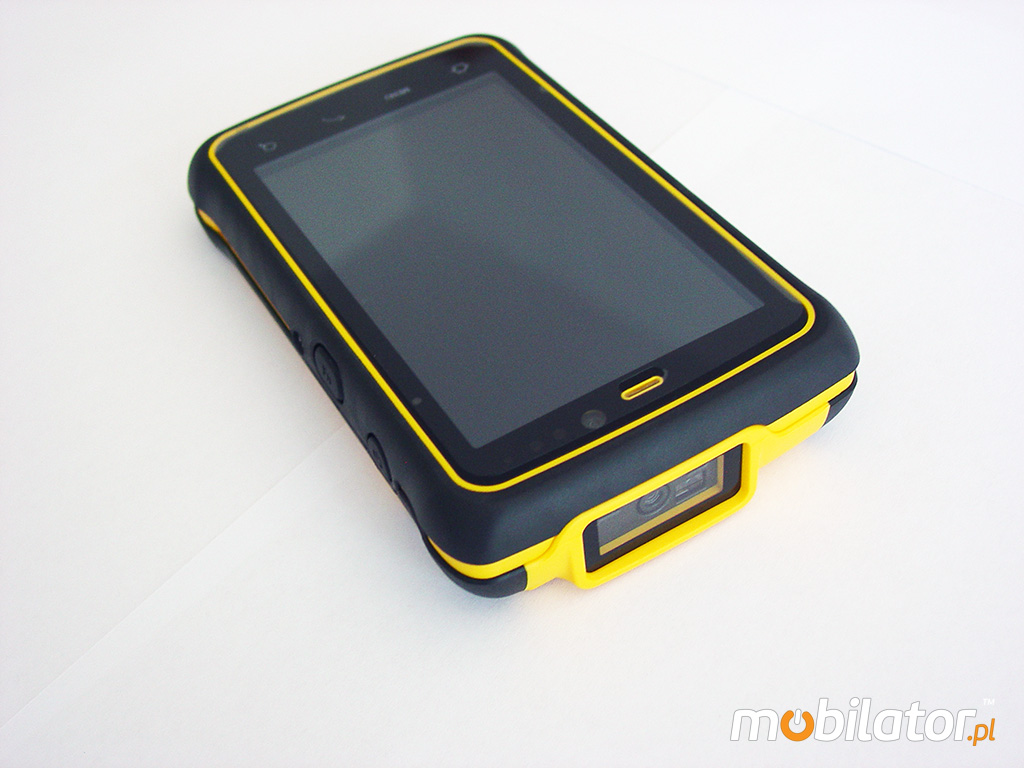

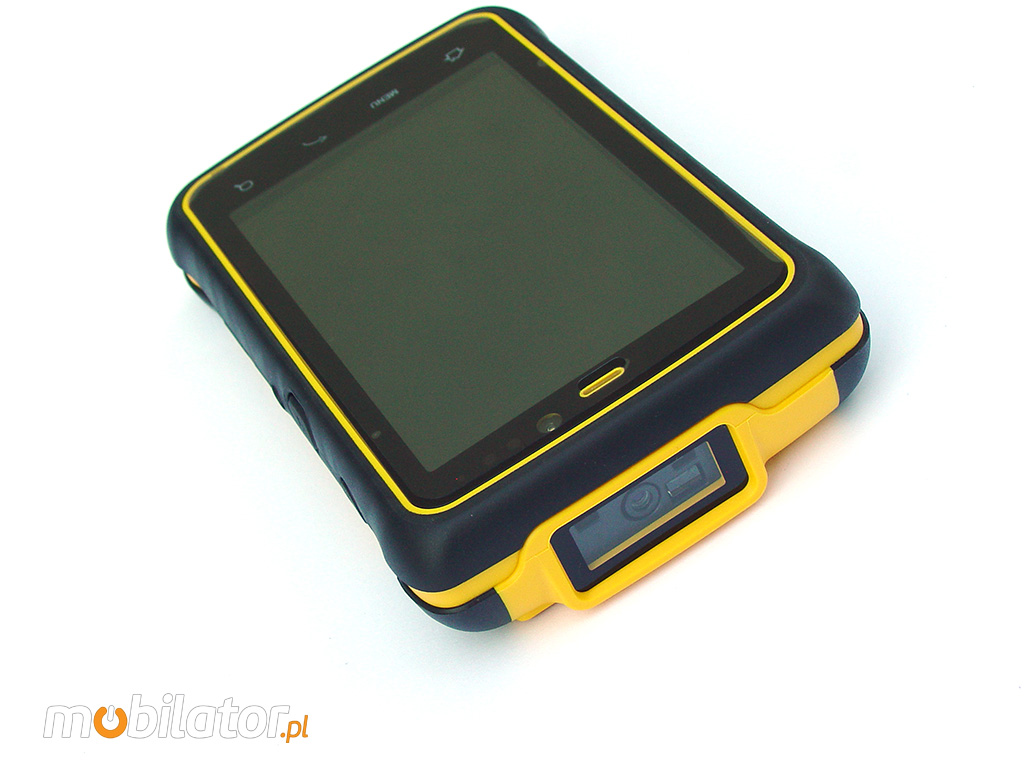

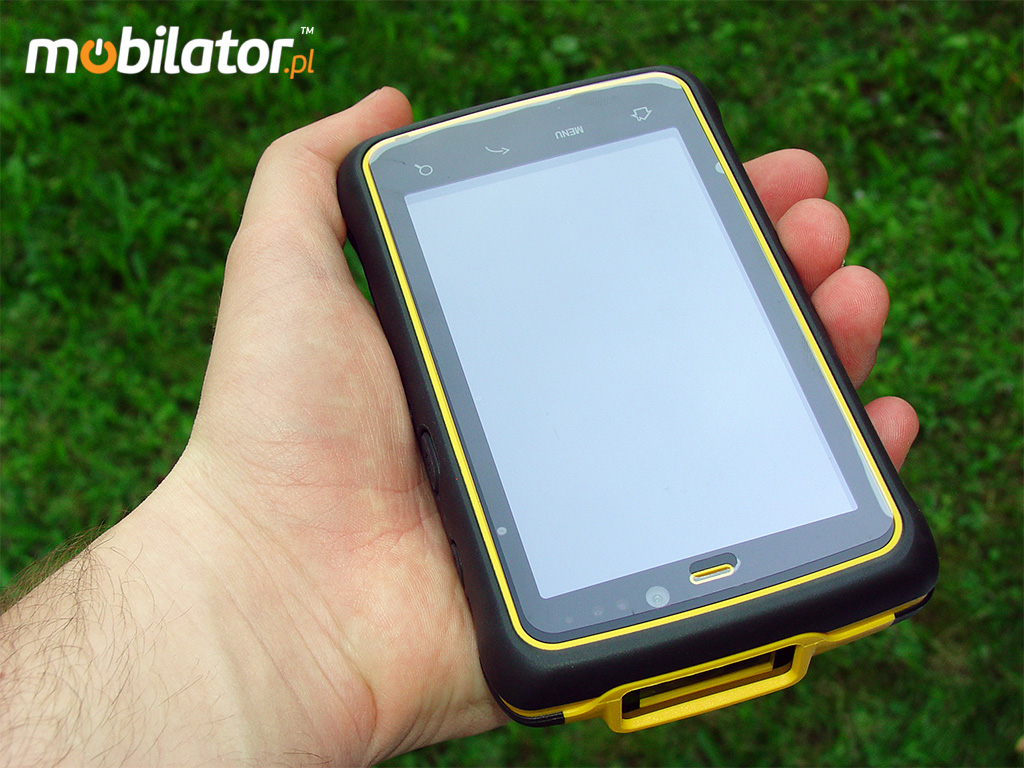

Industrial Winmate E430M2-3B2Mot (1D/2D) Motorola

Data update: 2019-10-09

guarantee 1 year (opt.2)

Ask about the product

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated

Compare all versions

winmate e430m2 3G 1D 2D RFID

Description
The collection and processing of data
Minimalism
Protection Standards
Available hardware configurations

Founded in 1996 in Taiwan, the company Winmate achieved an excellent reputation as a manufacturer of industrial LCD displays and laptops. Due to the high position of the products in the high-tech, have won many awards in tests conducted around the world.

Description

kolektor danych winmate e430m2

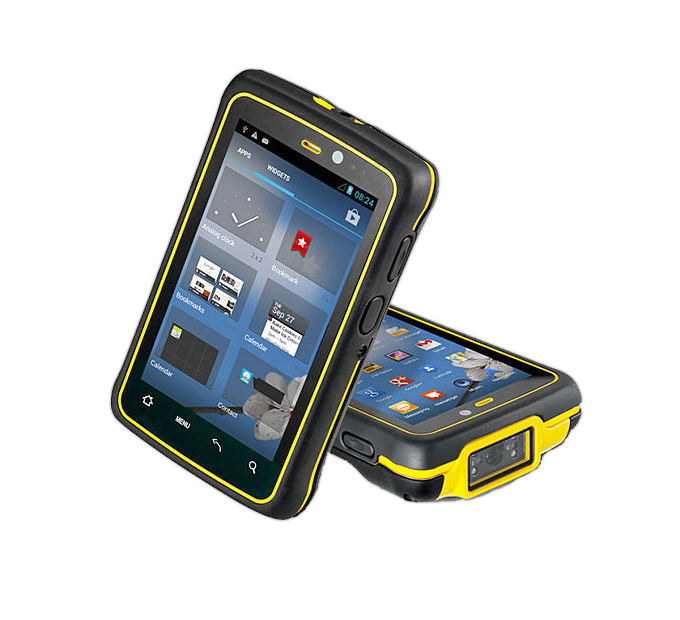

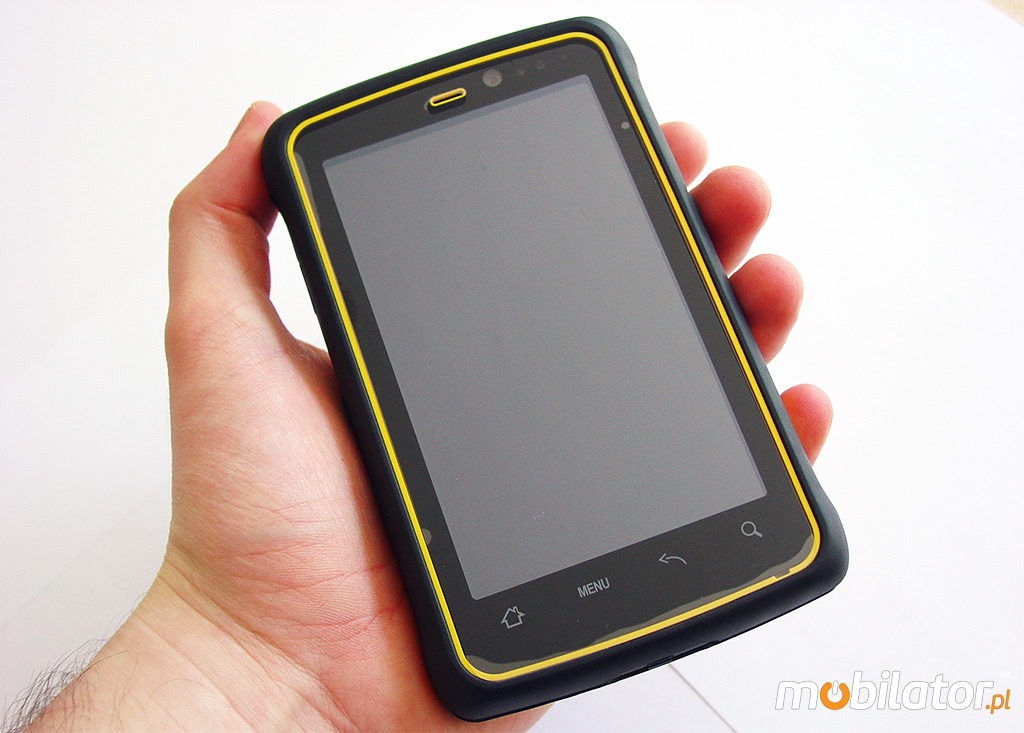

Winmate E430M2 - 3B2 (1D/2D)
•	Dual-core Cortex A9 1.0GHz
•	Android 4.1 Jelly Bean
•	Brilliant 4.3-inch P-Cap display
•	Lightweight portability in rugged handheld form factor
•	Rubberized bumper areas for protection along the sidesand corners
•	IP65 (water- and dustproof)
•	MIL-STD-810G
•	Multiple wireless communications option
•	Two cameras with LED
•	Support for RFID and 1D/2D Barcode Reader
•	Robust battery
•	Flexible warranty

Winmate introduces the next generation of its Android-based E430M Rugged Handheld device. The new E430M2 retains the popular form factor of its predecessor, but is faster, easier to use, and includes numerous technology improvements.

System specifications	Processor	ARM®Cortex™ - A9 1.0Ghz
	Display	4.3" (480x800) Capacitive : Multi-Touch
	System Memory	1GB SDRAM
	Memory	4GB eMMC
	Connectors	Micro USB : SIM : Micro SD (max.32GB)
	Audio	Microphone : Speaker
	Battery	3.7V 2600mAh Li-Ion (8.6hrs in standby time)

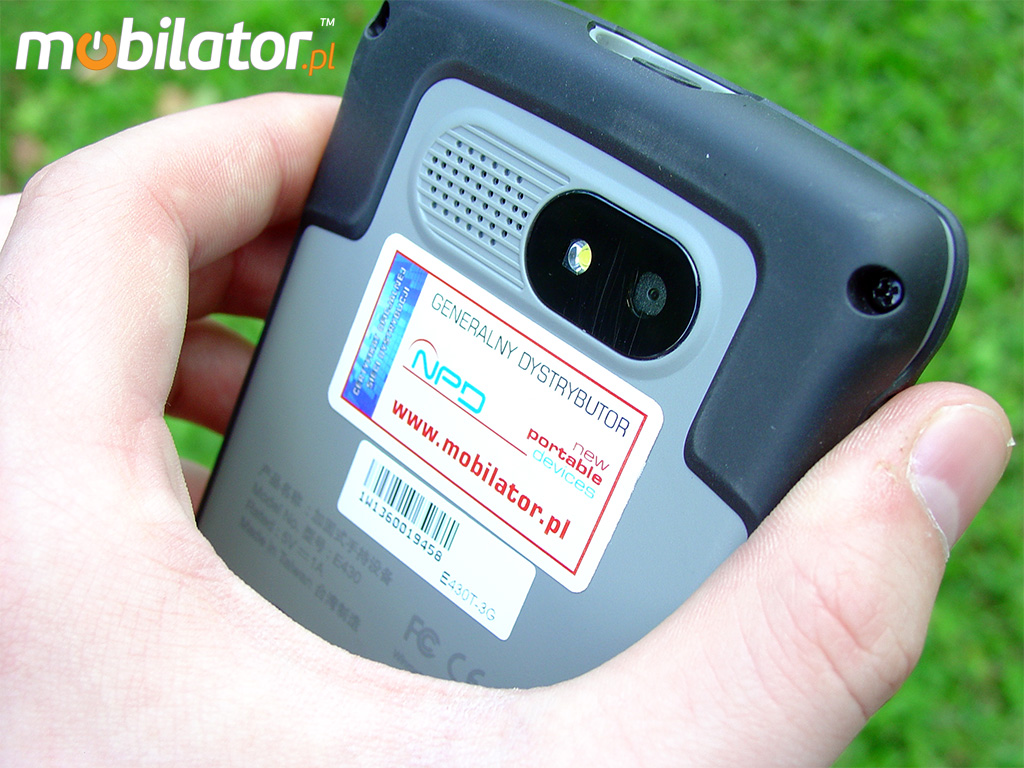

	Camera	Front - 2Mpx : Rear - 5Mpx : LED
	Sensors	Light : Proximity
	Readers	RFID (option) : 1D : 1D/2D
	Modules	WiFi : Bluetooth V2.1+EDR : GPRS/WCDMA
	Operating System	Android 4.1
	Standard - 3G	E430M2-3G
	HF RFID	E430M2-3HF
	1D	E430M2-3BL
	1D/2D Motorola	E430M2-3B2Mot
	1D / 2D	E430M2-3B2

Refer to the "Available hardware configurations" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

The collection and processing of data

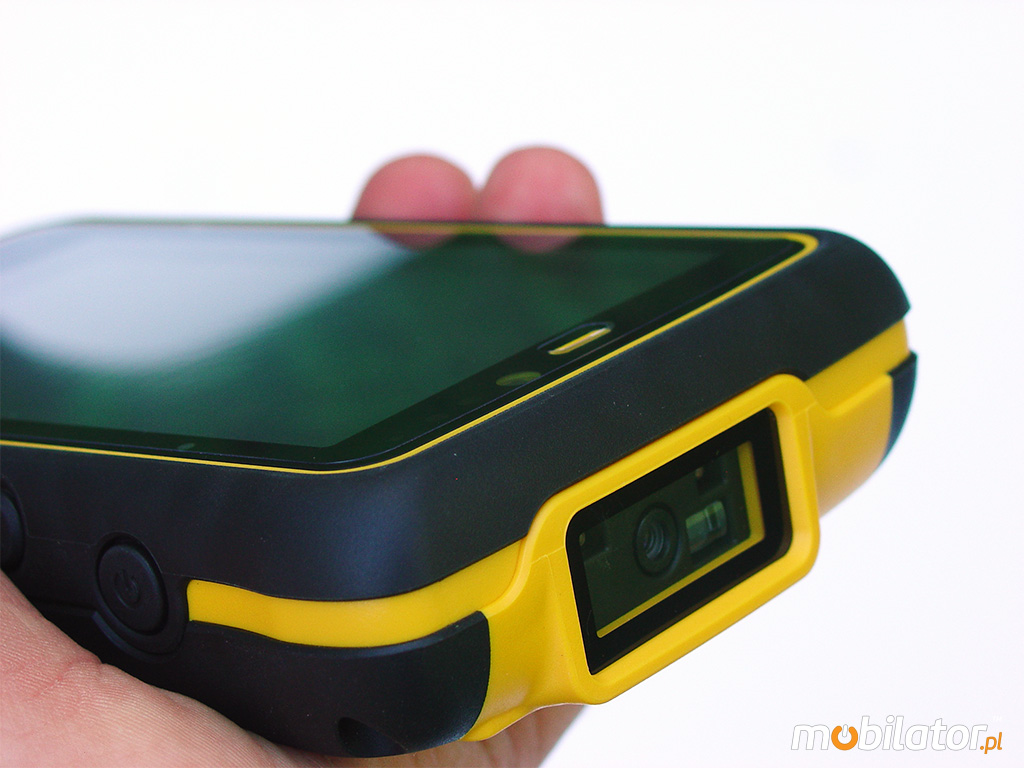

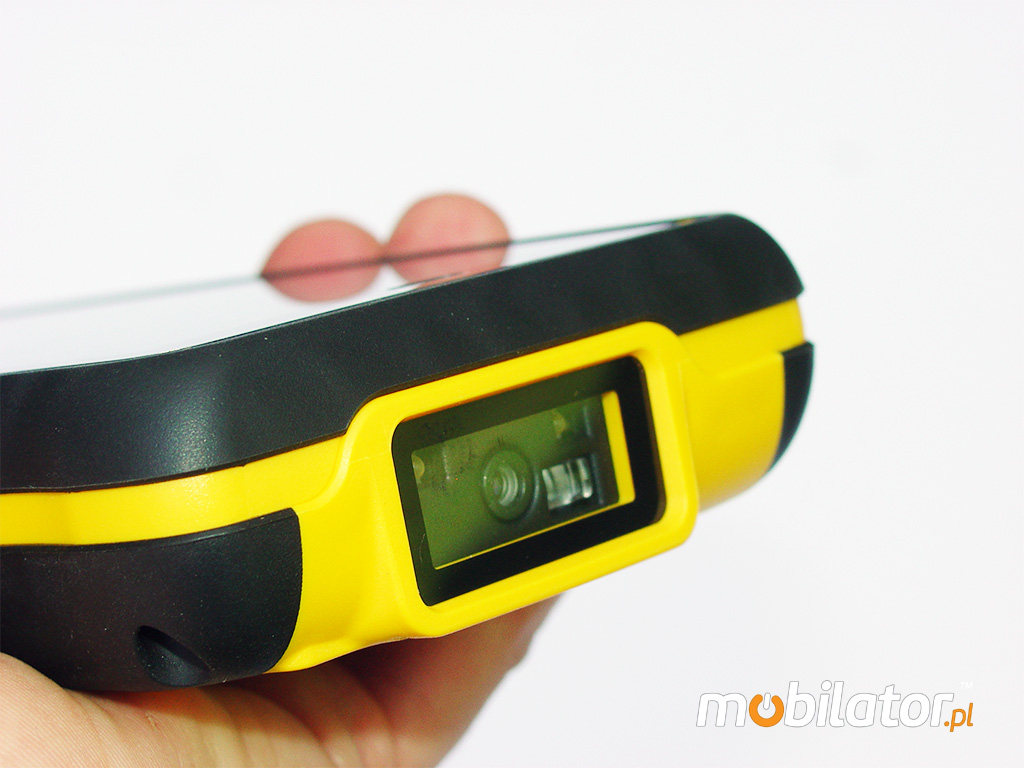

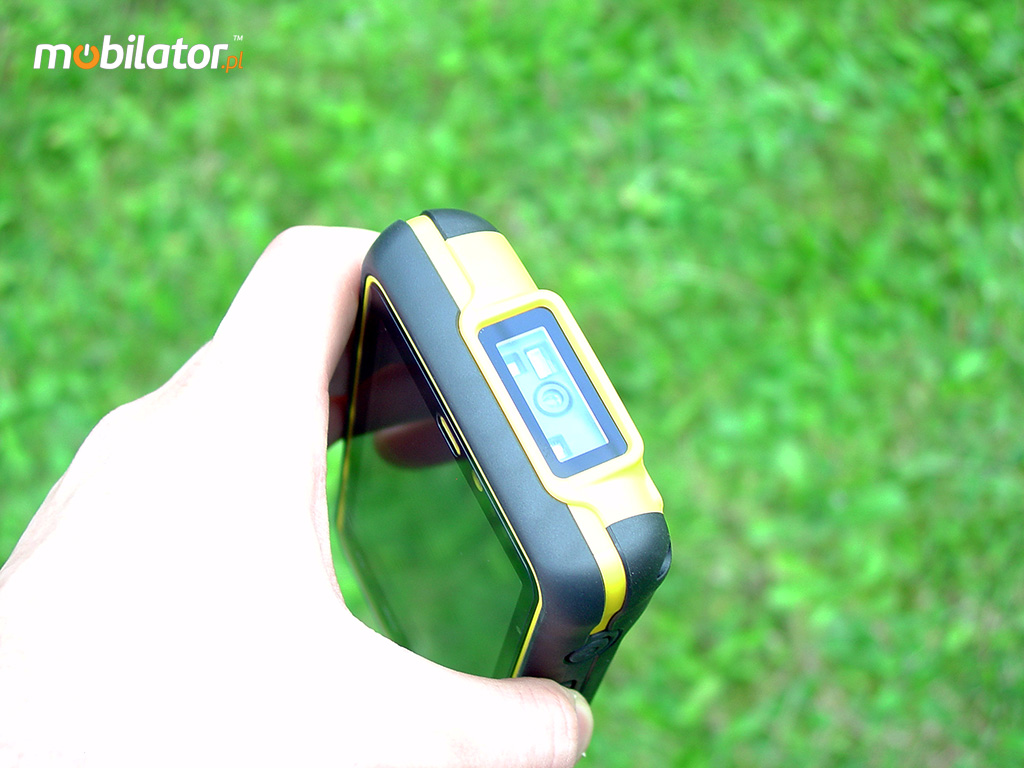

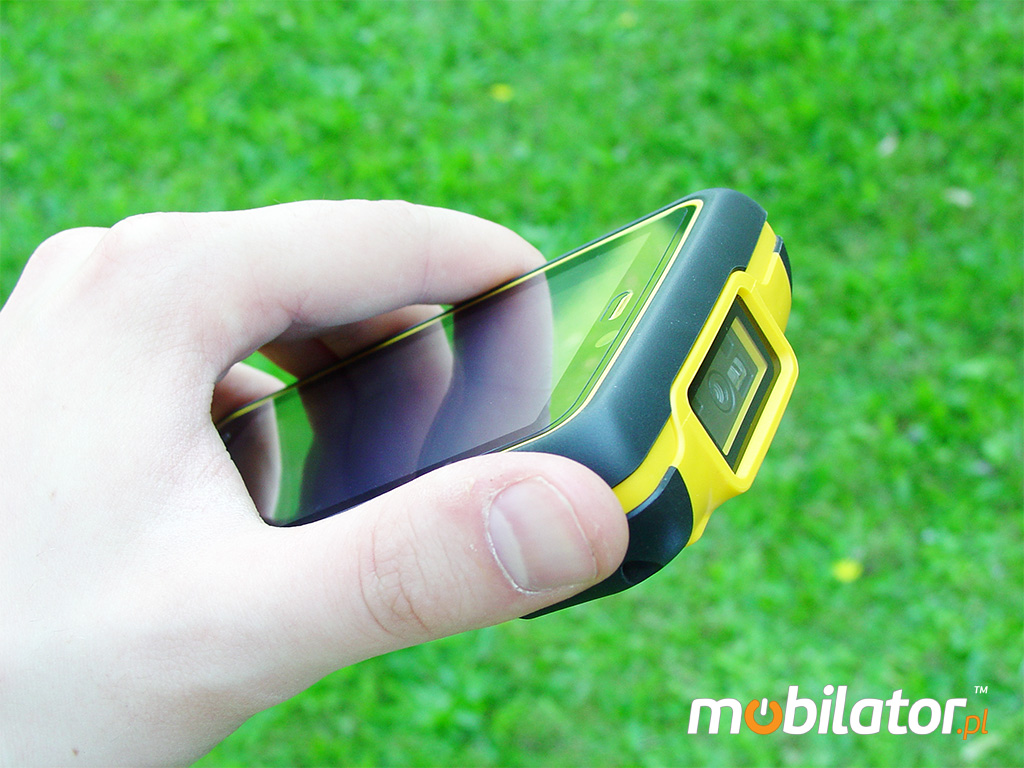

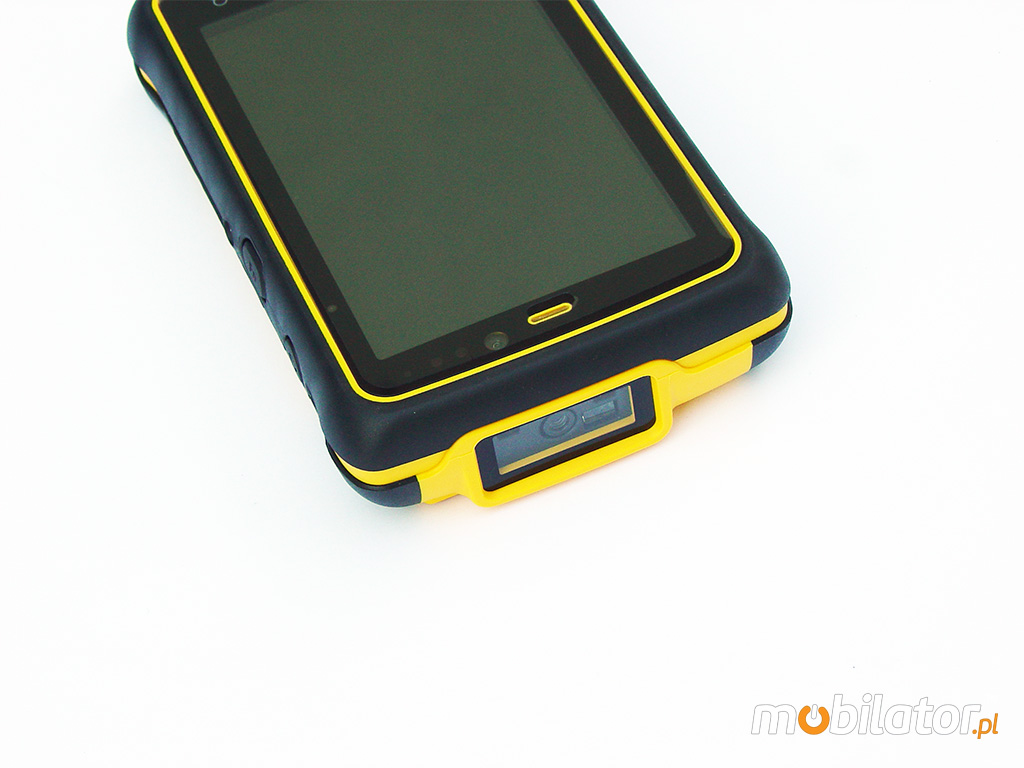

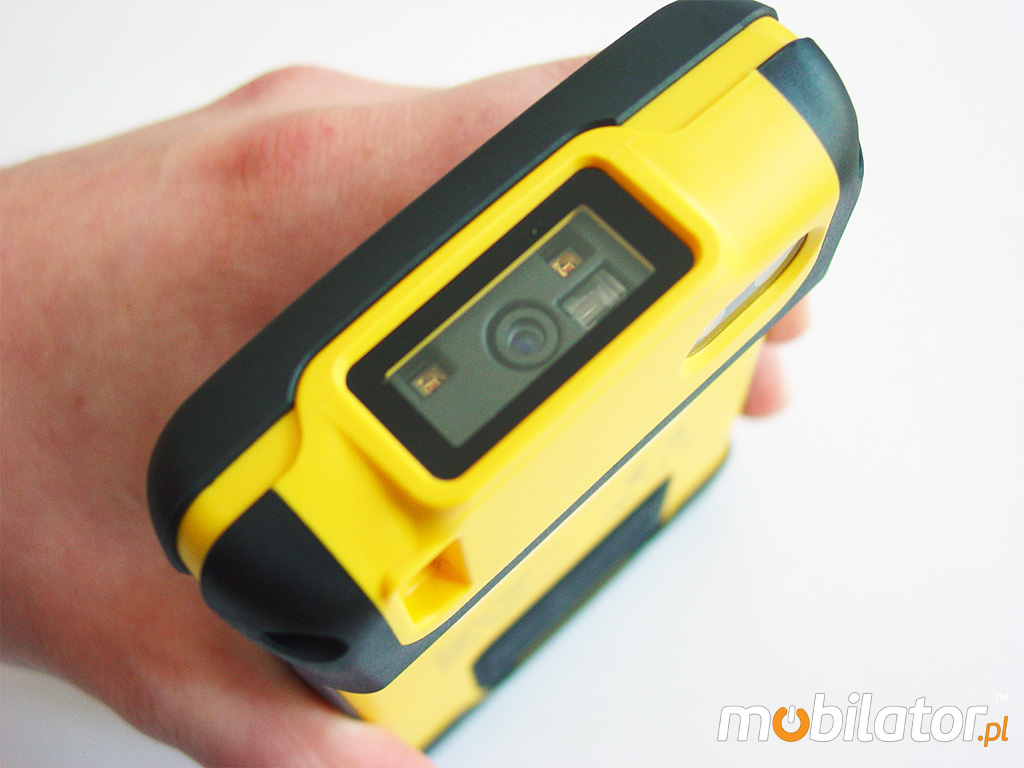

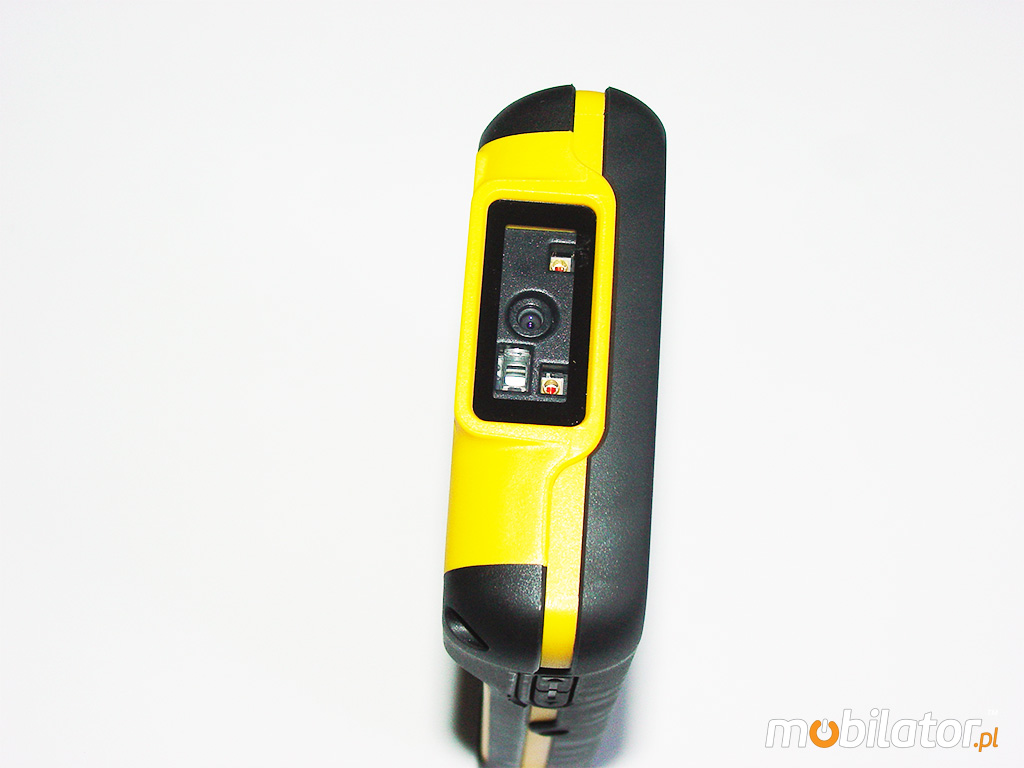

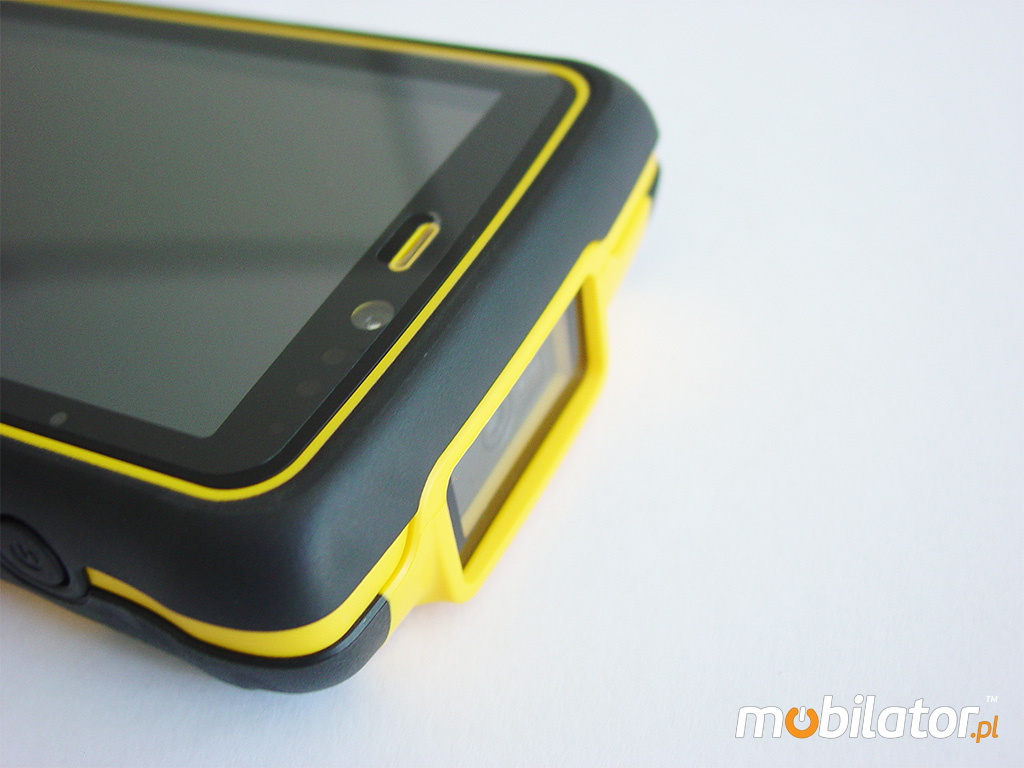

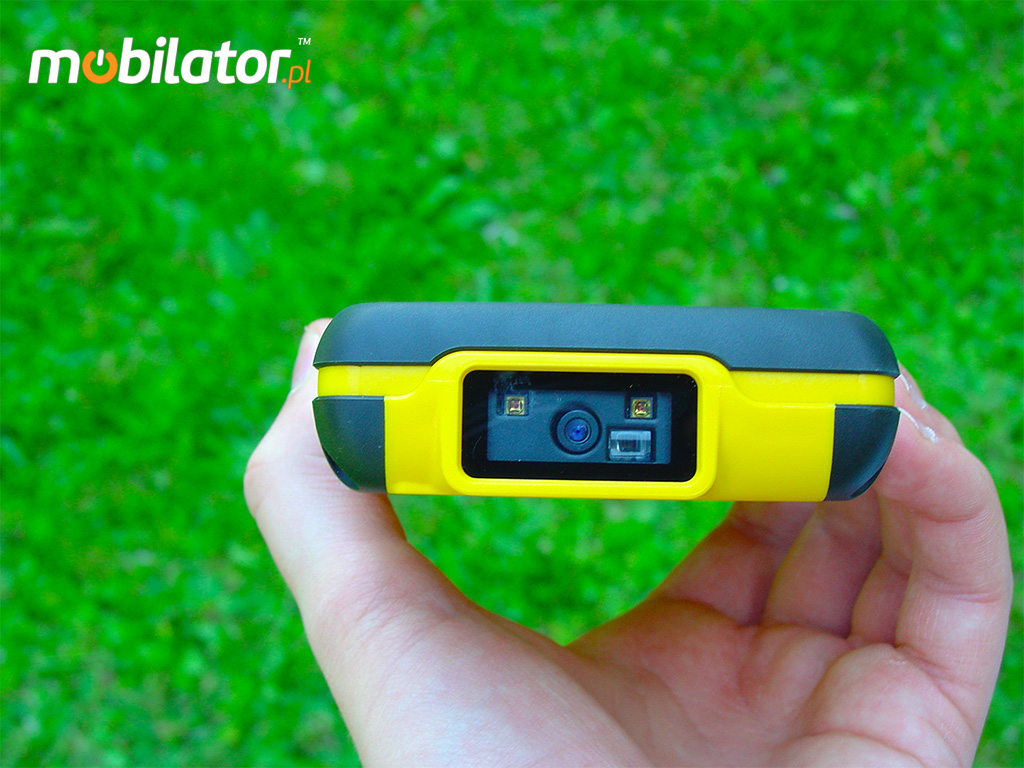

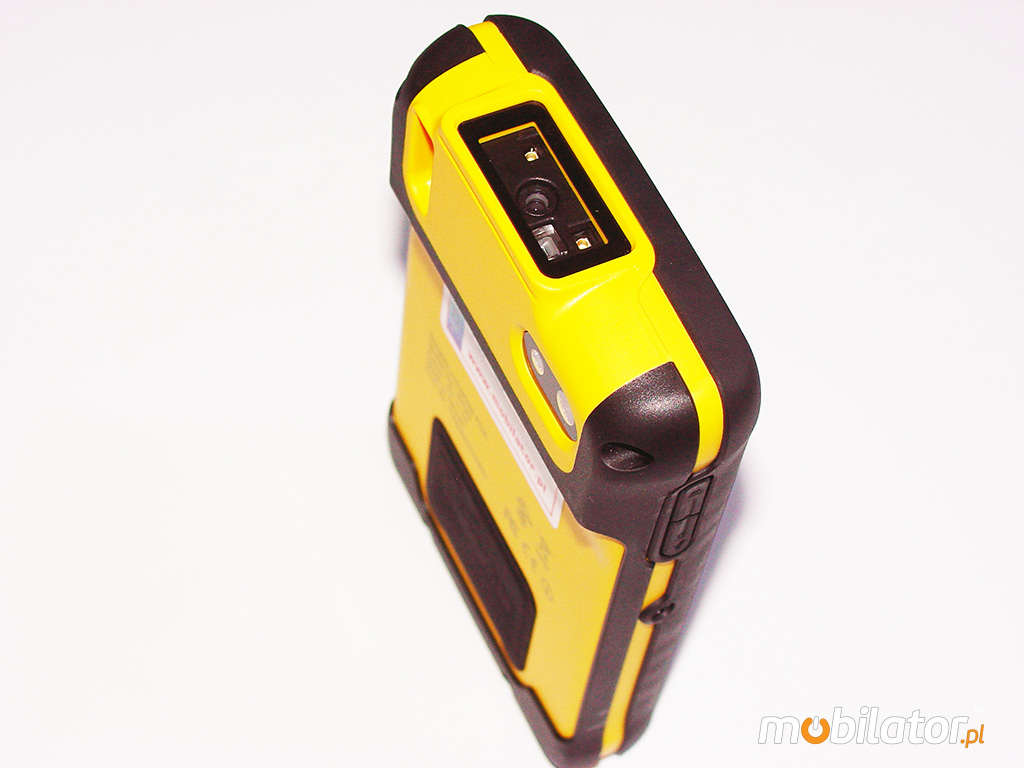

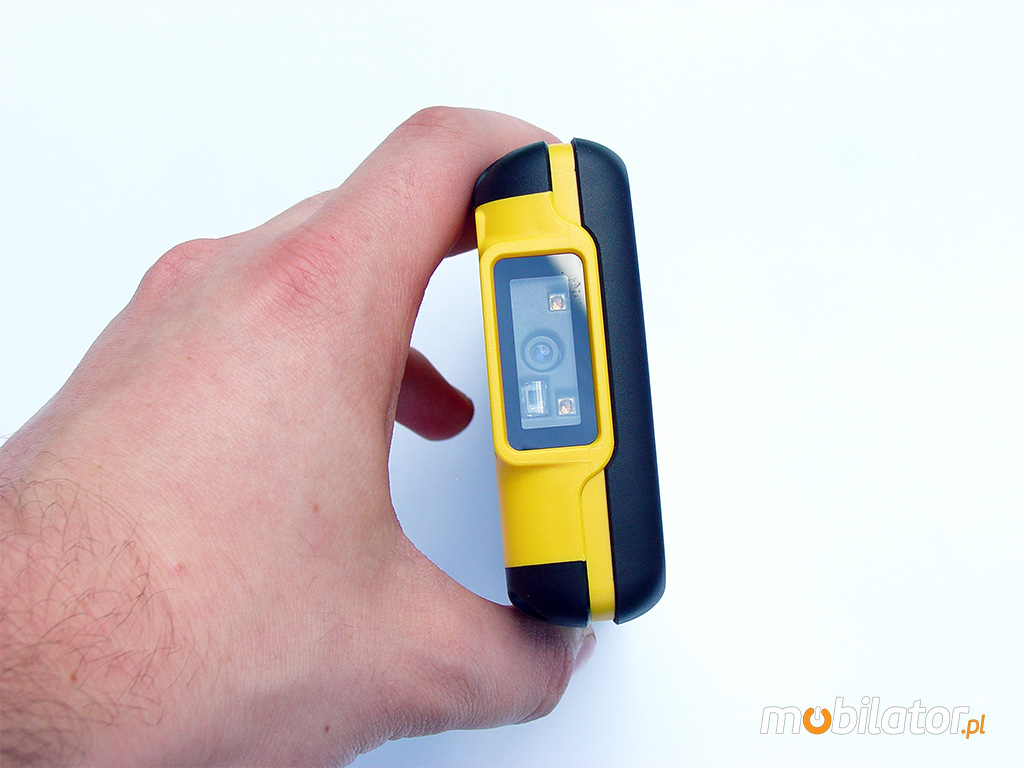

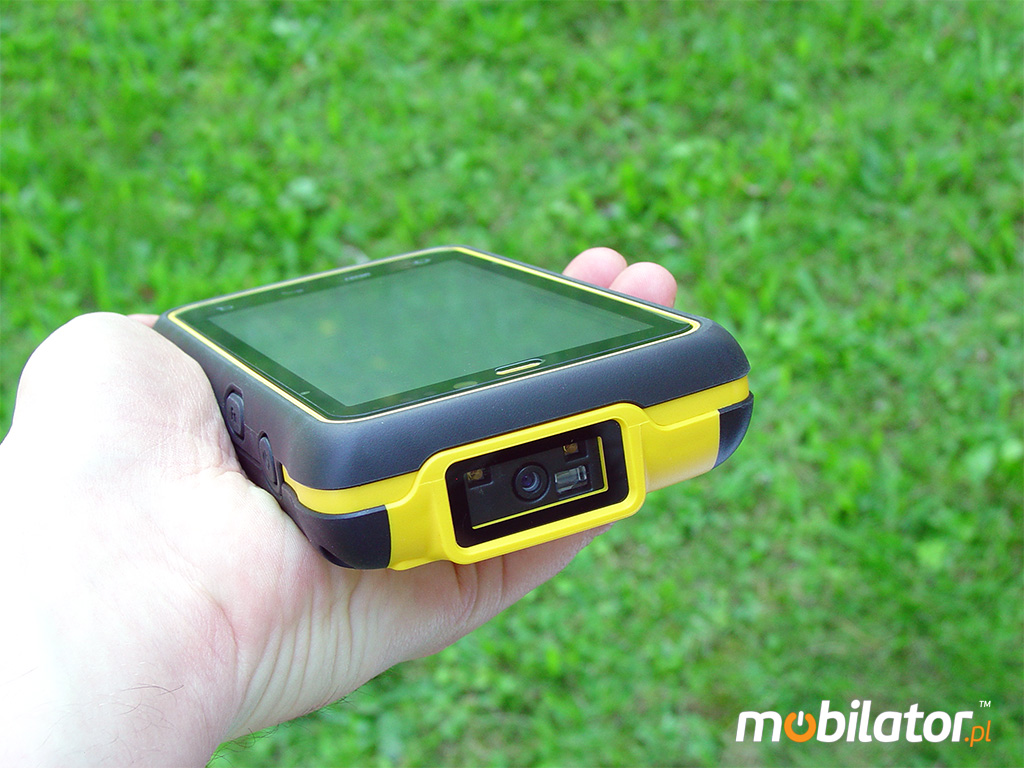

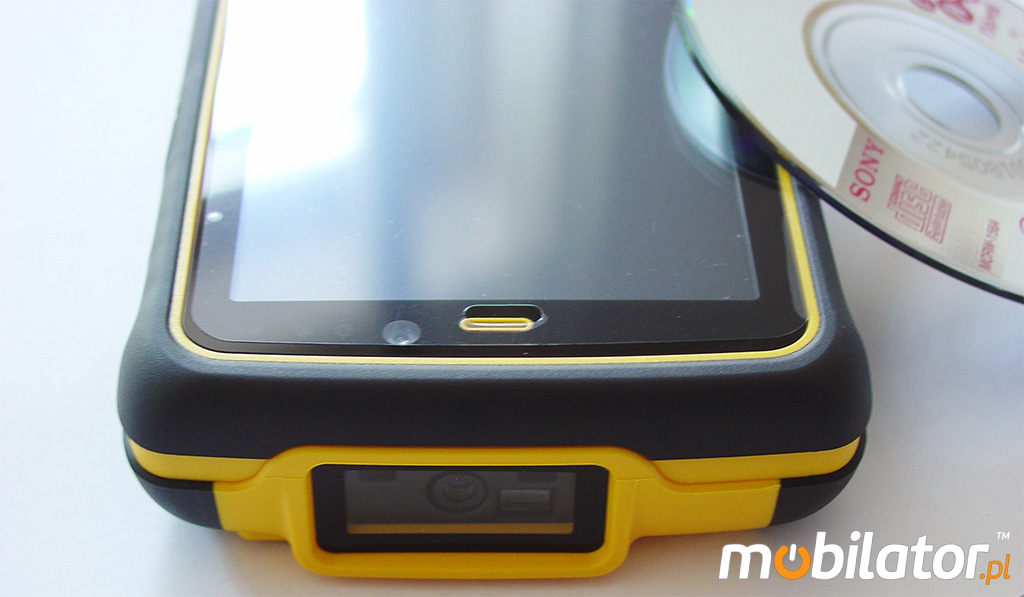

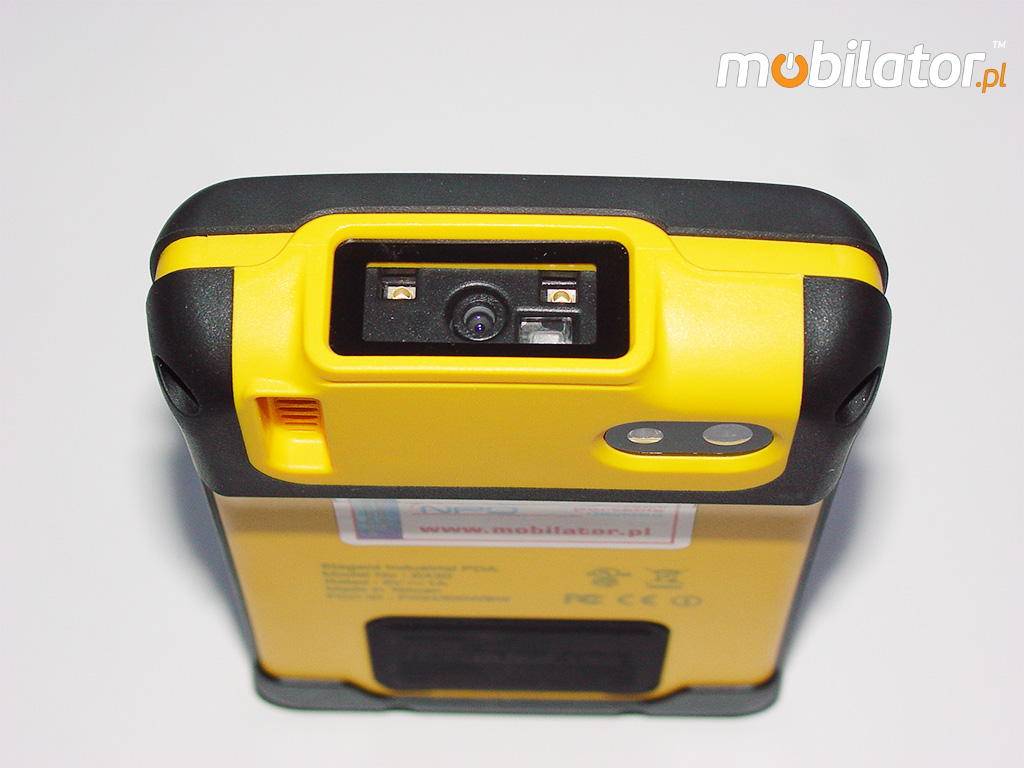

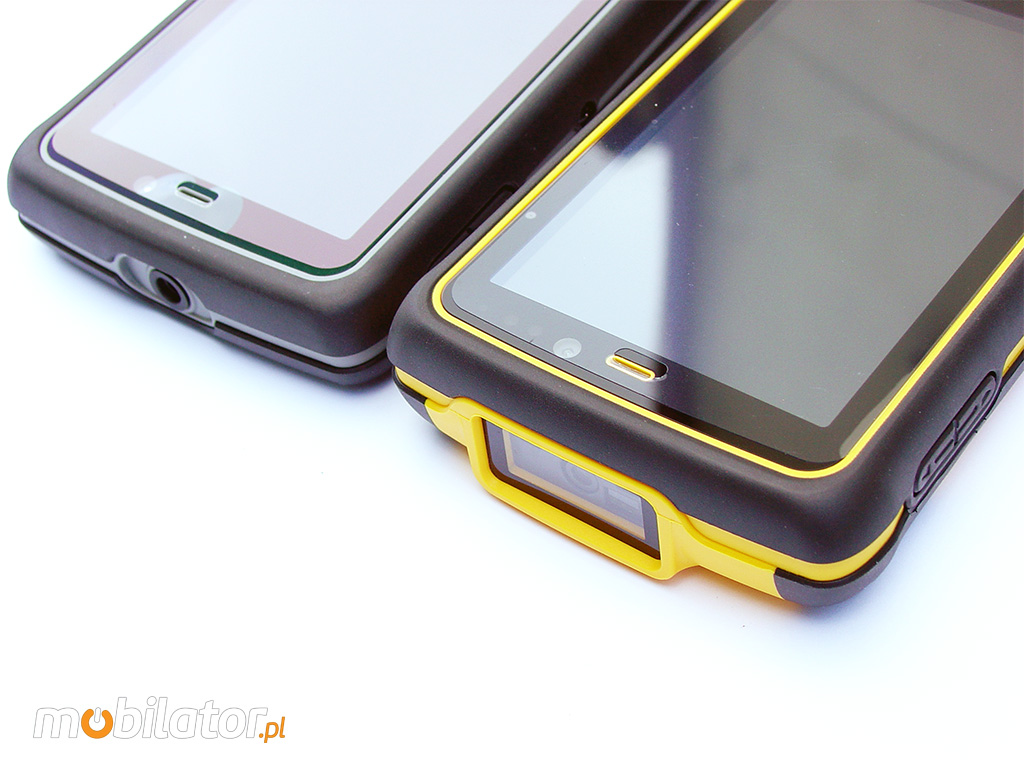

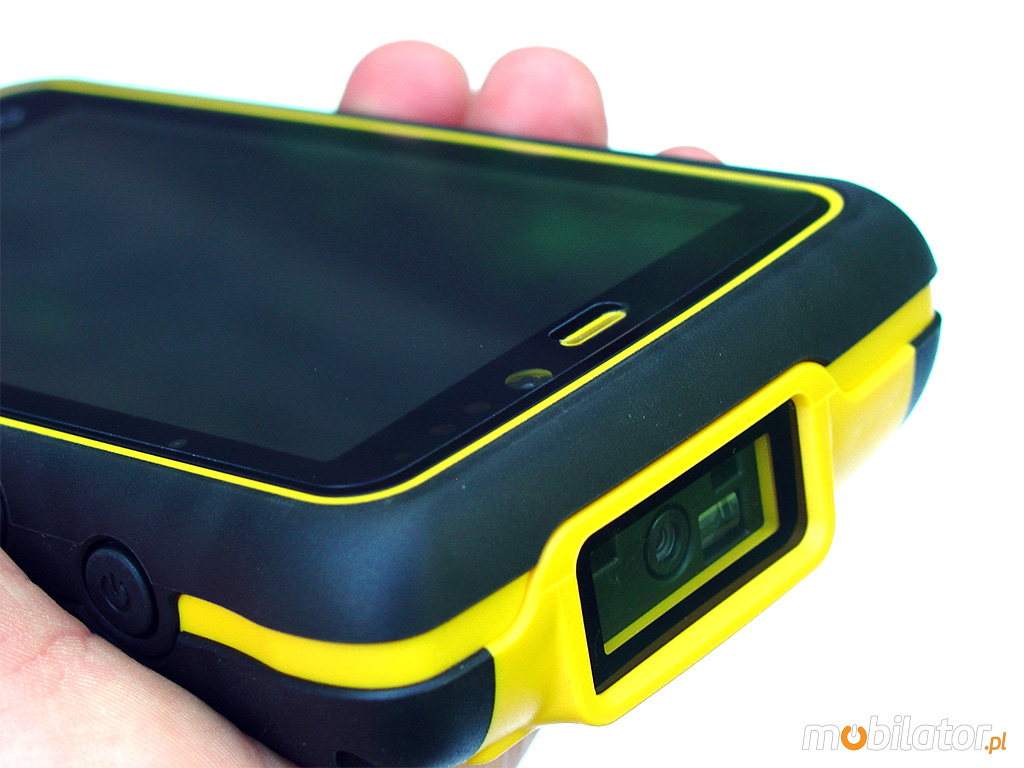

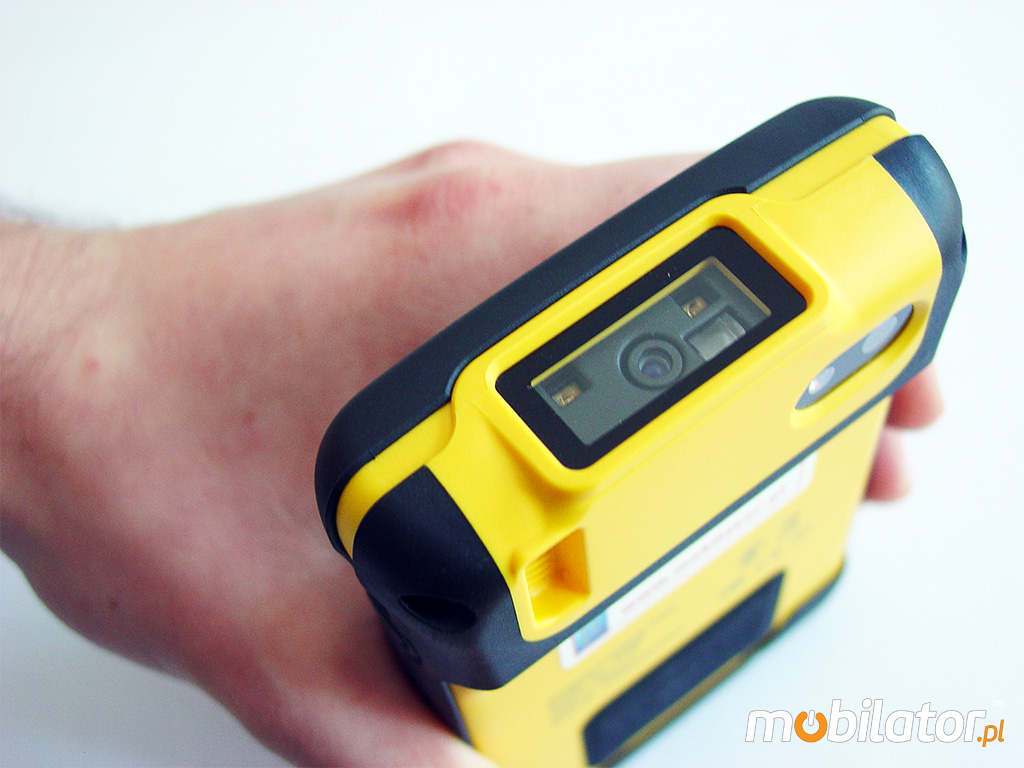

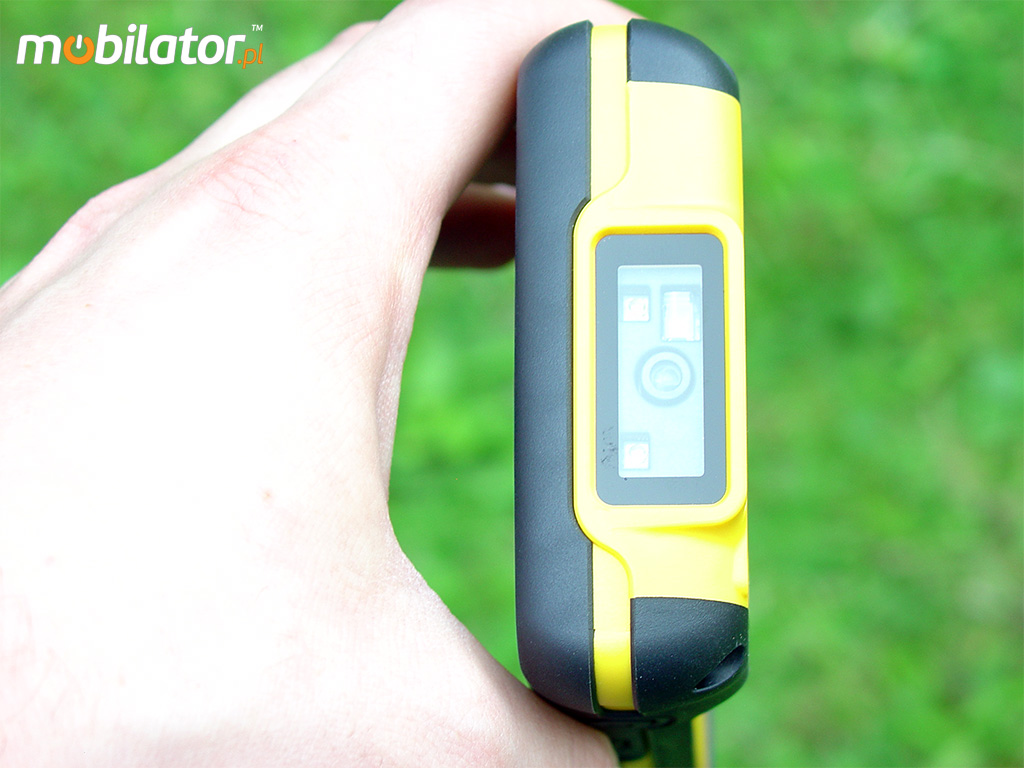

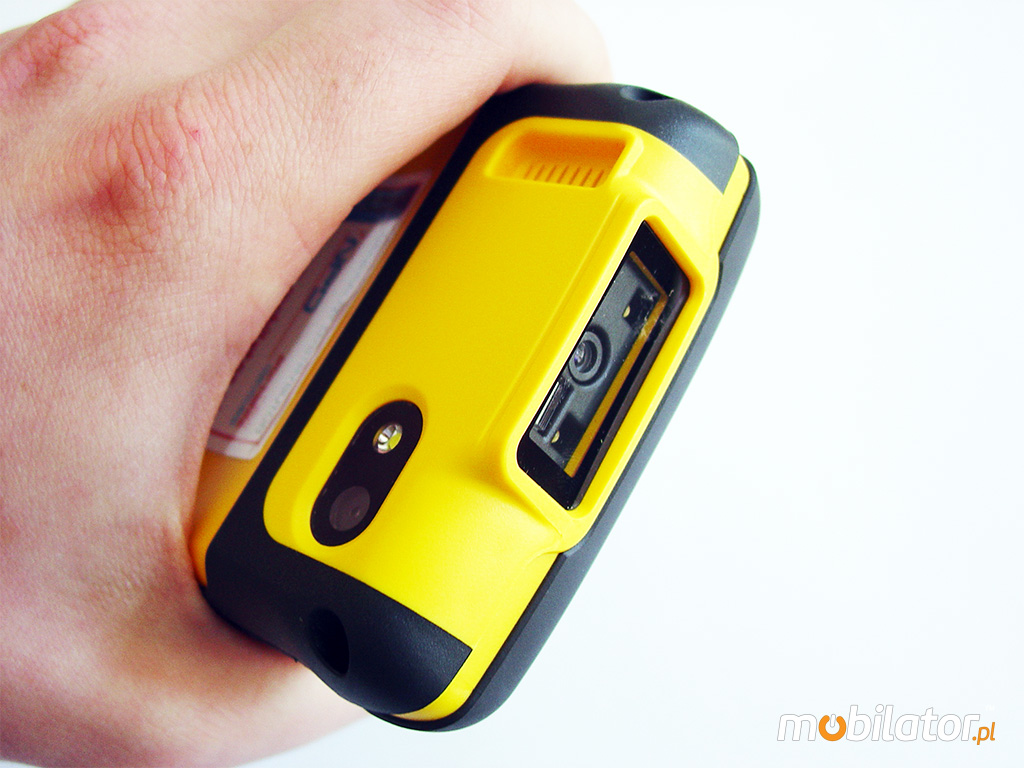

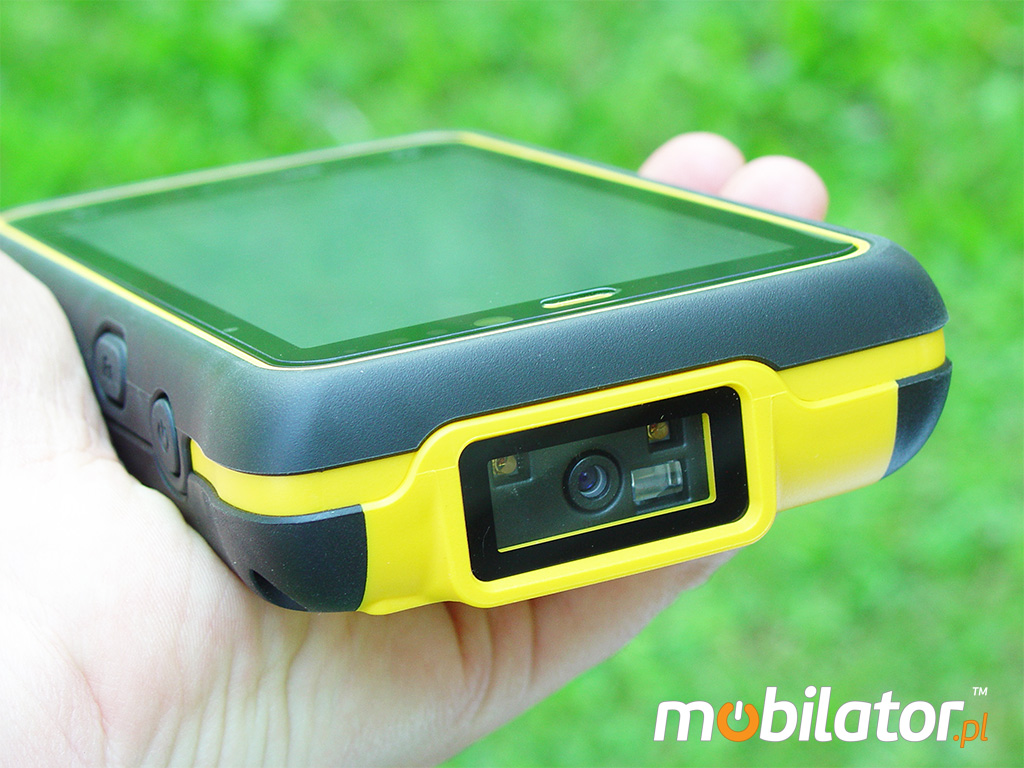

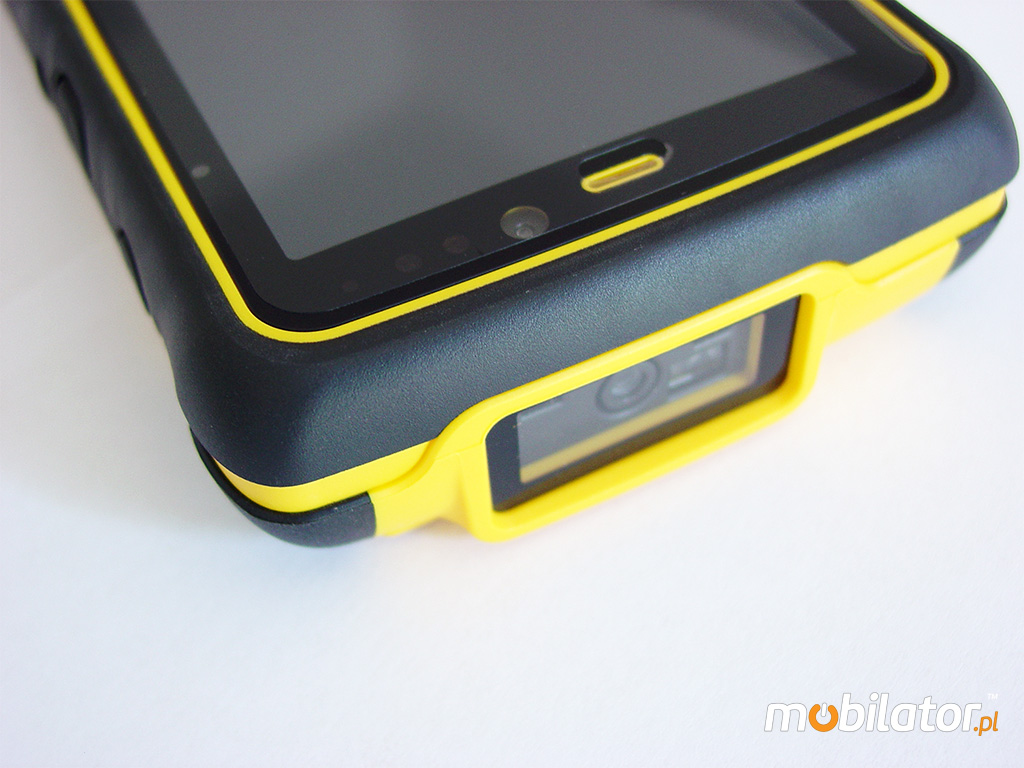

Barcode Scanner

Unlike consumer smartphones that may be able to scan using their integrated cameras, professional quality devices such as E430M2 use industrial grade scanners. Depending on the intended use, Winmate offers standard 2D scanner for indoor/outdoor use, or a Motorola 2D scanner with extended symbology support. From retail and healthcare to warehouse and logistics, Winmate E430M2 with various options of the scan engine can boost productivity and efficiency immediately.

1D/2D

(Motorola Interface)

UPC-A, -E, -E1
EAN-8/JAN-8
EAN-13/JAN-13
Code-128
GS1-128
Code 39, 93/93i
Code 11
Interleaved 2/5
Discrete 2/5
Codabar
MSI
Chinese 2/5
Matrix 2/5
Korean 3/5
Postal Codes

Code 39 Full ASCII
Code 39 Italian Pharmaceutical
Codabar
GS1 Databar
DataMatrix
Aztec / Aztec Runes
QR Code (Model 2)
Micro QR Code (Model 4)
Maxicode (Model 4)
PDF417
Micro PDF417
GS1 DataBar
Composite

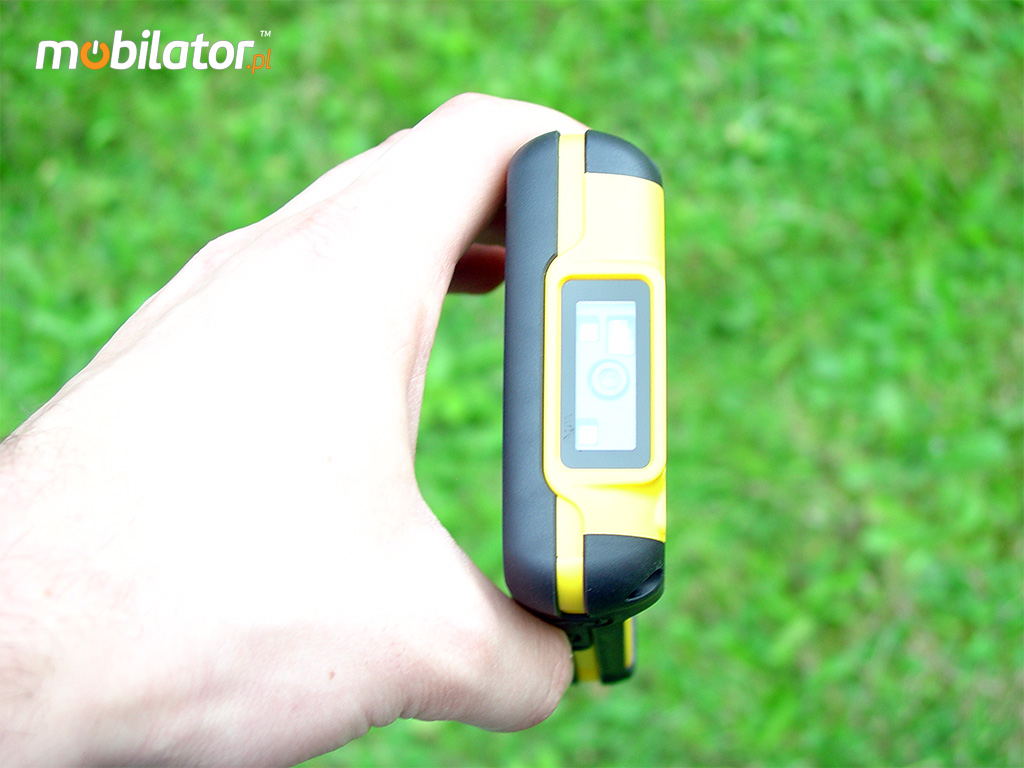

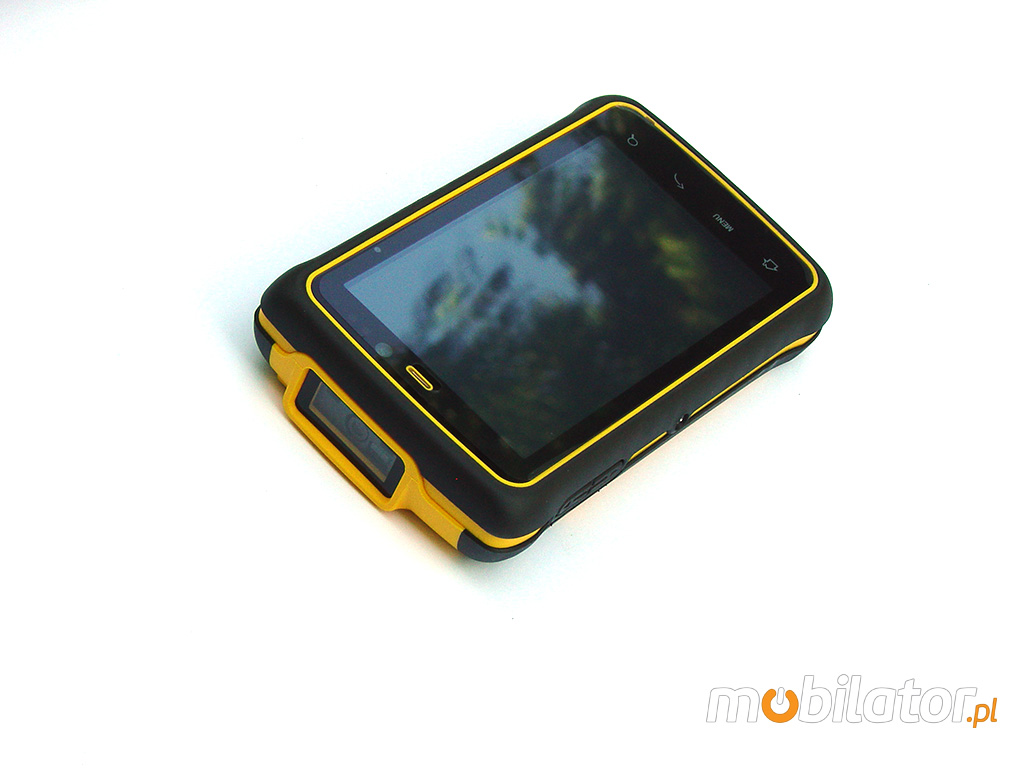

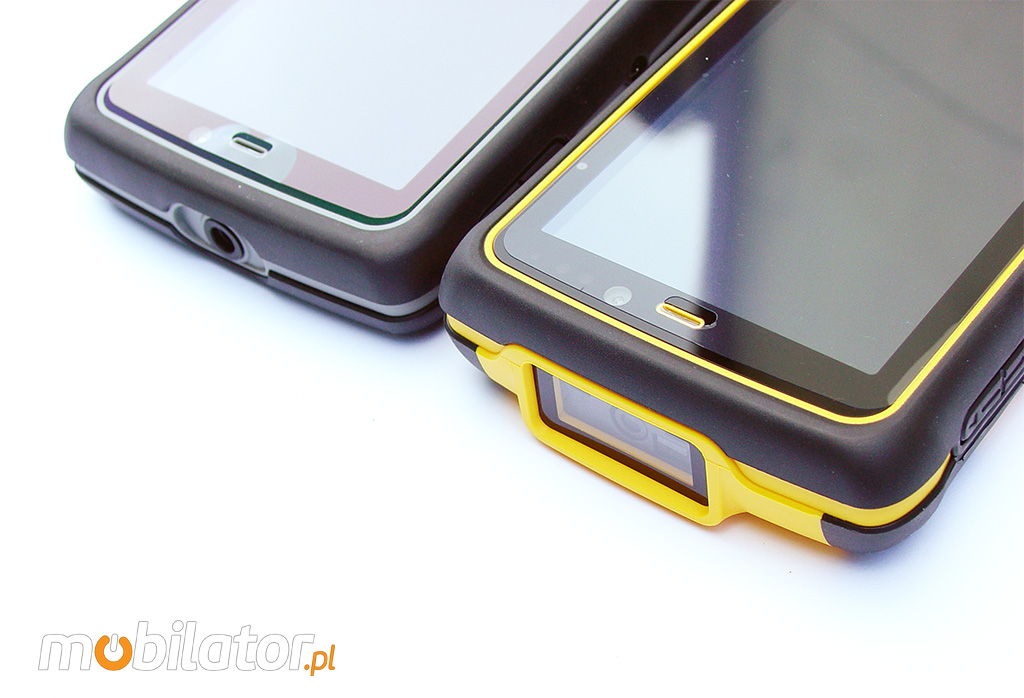

Now, user can order the E430M2 with either a standard 2D laser scanner module or a Motorola 2D Barcode module. This Motorola module will give users ease of use, full omnidirectional scanning, eliminating the need of having to align the imager at barcode with the same orientation. Laser aiming pattern with a bright central dot ensures rapid and accurate scanning (even in bright sunlight).

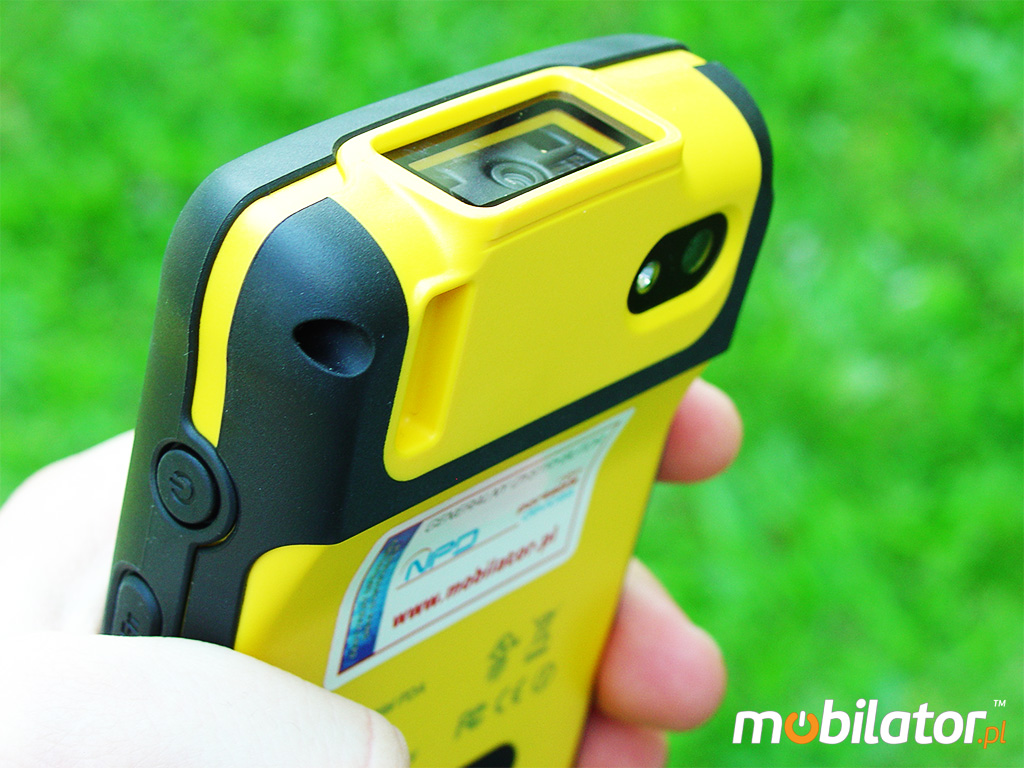

winmate e430m2 barcode scanner czytnik kodów kreskowych

RFID (option)

RFID technology worldwide has aroused great interest. They are expected to solve the many problems with fast and unmistakable identification of people and equipment. Its development is more turbulent than being gradually implemented barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

czytnik RFID winmate e430m2 gps wcdma Bluetooth wifi

Modules and Wireless Networks

RFID (option)	HF:13.56M (ISO14443A Protocol) : reading distance- 4cm
WiFi	802.11 a/b/g/n
Bluetooth	Bluetooth Class2.1 with EDR
GPS	Built-in
WCDMA	2100/900MHz

go top... menu…

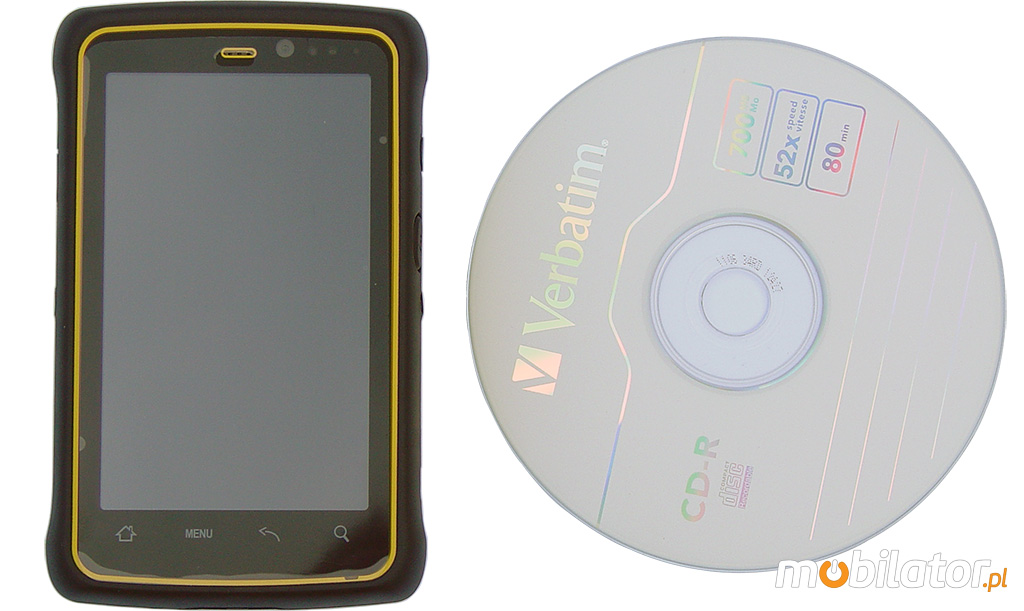

Minimalism

kolektor danych winmate e430m2 ip67

Winmate E430M2 is equipped with a micro-USB port / SD card. The possibility of recording two cameras allow 2Mpx and 5Mpx. Each model has an input for the SIM card - it device can connect to the internet at any time. Navigating the site facilitates efficient GPS module, in which each model is equipped with Winmate E430M2. Barcode scanner and RFID, is available on select configurations to select the appropriate version select the menu item "available hardware configurations."

winmate e430m2 android 4.1 tablet przemysłowy kolektor danych

	E430M2-3G	E430M2-3BL	E430M2-3B2	E430M2-3HF
Dimensions	132x82x21mm	132.2x82x21.5mm	132.2x82x21.5mm	132.2x82x21.5mm
Weight	232g	240g	240g	240g

winmate e430m2 mały dla sklepów przemysł winmate e430m2 kolektory danych rfid 1d 2d

go top... menu…

Protection Standards

Standards and Tests

Operating	-30°C -- +60°C
Standby Time	-40°C -- +70°C
Operating Humidity	5% -- 95% non-condensing
Dust	IP6x (dust)
Water	IP6 (water)
Vibration	MIL-STD-810G M514.6
Drop	Multiple drops to concrete 5ft./1.5m
Regulatory	CE, FCC class B, CCC, UL

go top... menu…

IP65 Resistance

Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.

go top... menu…

The first digit [x]
Protection against solid objects

The second digits [y]
Protection against liquids

No special protection

No waterproofing

Protection from solid objects greater than 50mm in diameter

Protection from dripping water

Protection from object not greater than 12mm in diamete

Protection from vertically dripping water (tilted up to 15°)

Protection from object not greater than 2,5mm in diameter

Protection from sprayed water (tilted up to 60°)

Protection from object not greater than 1mm in diameter

Protection from splashed water

Complete protection against contact, Protection against dust deposit

Protection from water projected from a nozzle

Complete protectionm against contact, Protection from infiltration of dust

Protection against heavy seas, or powerful jets of water

Protection against immersion

Protection against complete, continuous submersion in water

go top...

menu…

Available hardware configurations

Hardware configuration

If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories.

	E430M2-3G	E430M2-3BL	E430M2-3B2	E430M2-3B2Mot	E430M2-3HF
WiFi
Bluetooth
Kamera
IP65	-
IP67		-	-	-	-
GPS
3G
1D	-				-
2D	-	-			-
2D Motorola	-	-	-		-
RFID	-	-	-	-

* All product prices - gross

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

menu…

Compare all versions

Durability:	MIL-STD 810G
Humidity:	95% non-condensation
Waterproof:	IP 65
Weight:
Temperature:	Operating temperature: -30°C - 60°C / Storage temperature: -40°C - 70°C
Shock:	MIL-STD-810G Metod 516.6
Vibration:	MIL-STD-810G Metod 514.6
Drop:	MIL-STD-810G Metod 516.6
Sand and dust:	IIP 65
1D barcode scanner (reader):	Yes - Laser 1D (Motorola) UPC-A, -E, -E1 EAN-8/JAN-8 EAN-13/JAN-13 Code-128 GS1-128 Code 39, 93/93i Code 11 Interleaved 2/5 Discrete 2/5 Codabar MSI Chinese 2/5 Matrix 2/5 Korean 3/5 Postal Codes
2D barcode scanner (reader):	Yes - Laser 2D (Motorola) Code 39 Full ASCII Code 39 Italian Pharmaceutical Codabar GS1 Databar DataMatrix Aztec / Aztec Runes QR Code (Model 2) Micro QR Code (Model 4) Maxicode (Model 4) PDF417 Micro PDF417 GS1 DataBar Composite
RFID scanner (reader):	none (available in other configurations)
Magnetic card reader (MSR):	No
Microchip card reader:	No
Docking station connector:	No
VESA standard – holders and mounts support:	No
COM port:	No
Dispaly:	4.3' (800x480) LED
Brightness:	400nit
Contrast:	800:1
Touch screen:	Yes - Touch Projected Capacitive with Multi-Touch
Graphics card:	--------
Swivel Hinge:	No
VGA out:	No
TV Out:	No
TV Tuner:	No
Processor:	ARM ® Cortex™ - A9 1.0Ghz
Chipset:	--------
BIOS:	--------
Memory:	1GB SDRAM
Hard Drive:	4GB eMMC (max. 32GB, MOQ:1K)
Flash Memory:
Battery:	3.7V 2600mAh Li-Ion rechargeable battery 5V 1A Adapter
Working time on battery:	up to 8.6hr (Backlight at 10% duty cycle, default level, idle)
HotSwap battery:	No
Fast battery replacement ability:	No
Size:	132.2 x 82 x 21.5 mm 232g
Casing material:	plastic
Fanless casing:	Yes
Operating System:	Yes - Android 4.1
LAN:	No
WLAN:	Yes - 802.11 a/b/g/n
Bluetooth:	Yes - (2.1+ EDR)
WAN:	Yes - 3.5G
GPS:	Yes - Built-in
Flash Card Reader:	Yes - micro SD up to 32GB
CD/DVD:	No
Camera:	Yes - 2MPx front and 5Mpix rear (LED+Autofocus)
Audio:	Microphone : Earphone : Speaker 1.2W
Seciurity:	Gum case
In/Out:	Micro USB : SIM : Micro SD
Keyboard:	No
Additional Navigation Devices :	Yes - Function keys
Color:	black-yellow
Optional accessories:	RFID : Car holder : Car charger
Other:	Optional warranty up to 3 years
