yBOX-X56-(6LAN)-I7 1165G7 v.3 - Dedicated Process Management Computer (6*LAN) - MiniPC I7 1165G7, 8GB RAM, 128GB M.2 SSD
Compare all versions
%20I7%201165G7/MiniPC%20yBOX-X56%20-%20kompaktowy%20szybki%20komputer%20przemys%C5%82owy22.png)
Small-sized industrial computers are at the forefront of environments where dust, dirt and moisture are prevalent. They are ideal for applications requiring quiet operation. Small and reliable MiniPCs use heat-pipe technology and aluminum fins for passive cooling. The rugged yBOX-X56 MiniPC Industrial MiniPC is designed for any industrial or non-industrial application that requires continuous operation - 24 hours, 7 days a week.
TECHNICAL SPECIFICATIONS
| yBOX-X56 |
| CPU |
Intel Core i7 1165G7 (4x 4.70 GHz) |
| Operating system |
Support: Windows, Linux
|
| RAM |
8GB DDR4 |
| Hard drive |
256GB M.2
|
| Graphics card |
Intel Iris Xe Graphics |
| Interfaces |
WLAN: 1xMini PCIe WiFi/3G/4G
LAN: 6*2.5 GbE Intel i225-V
|

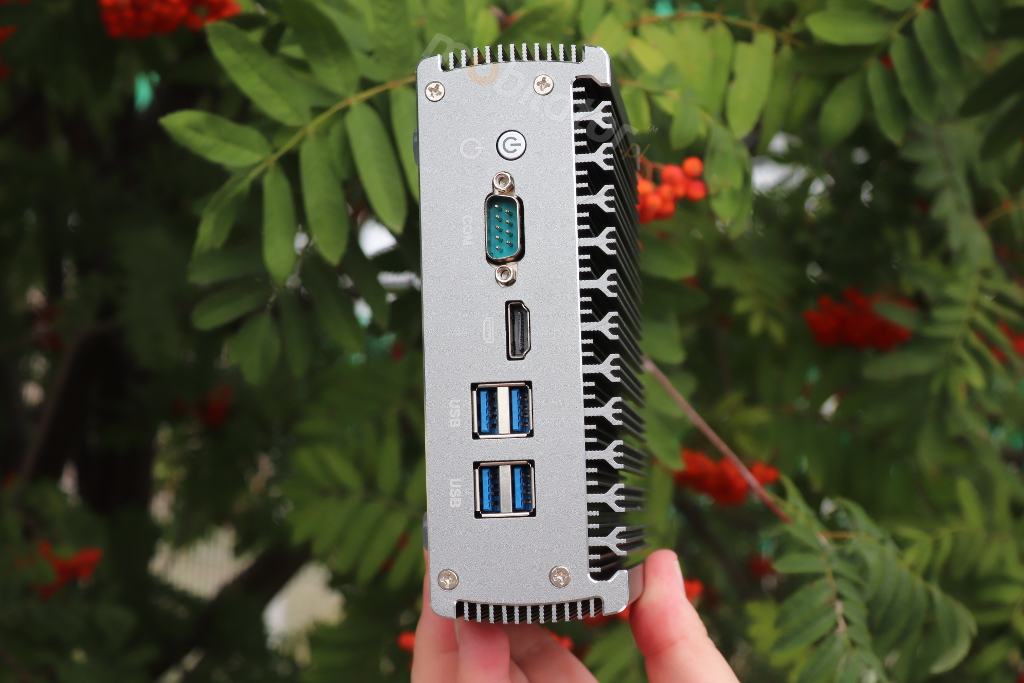

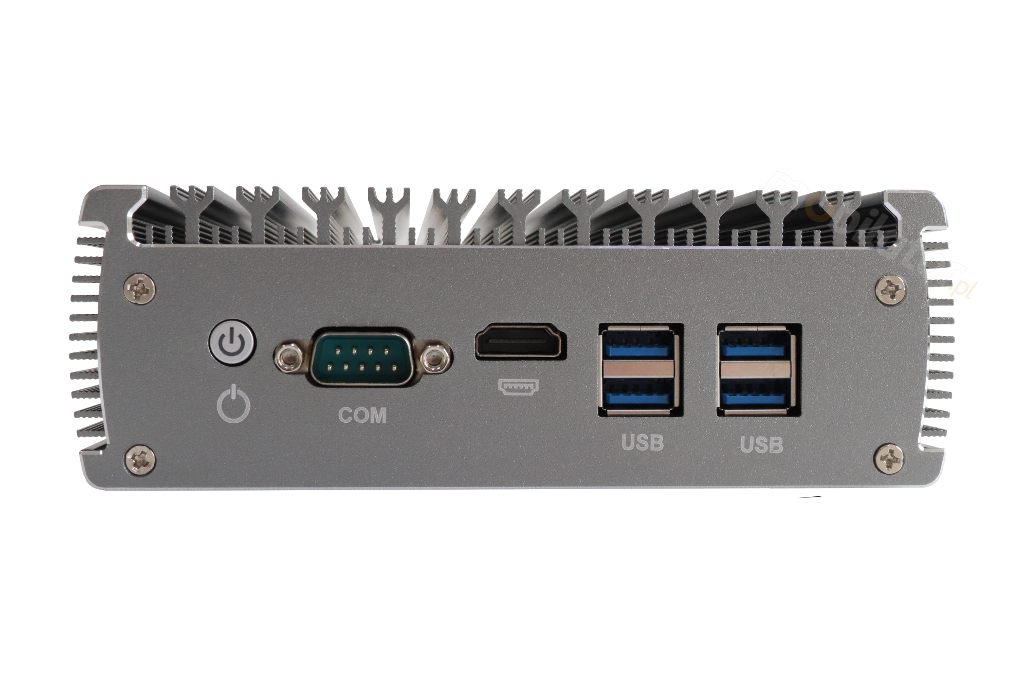

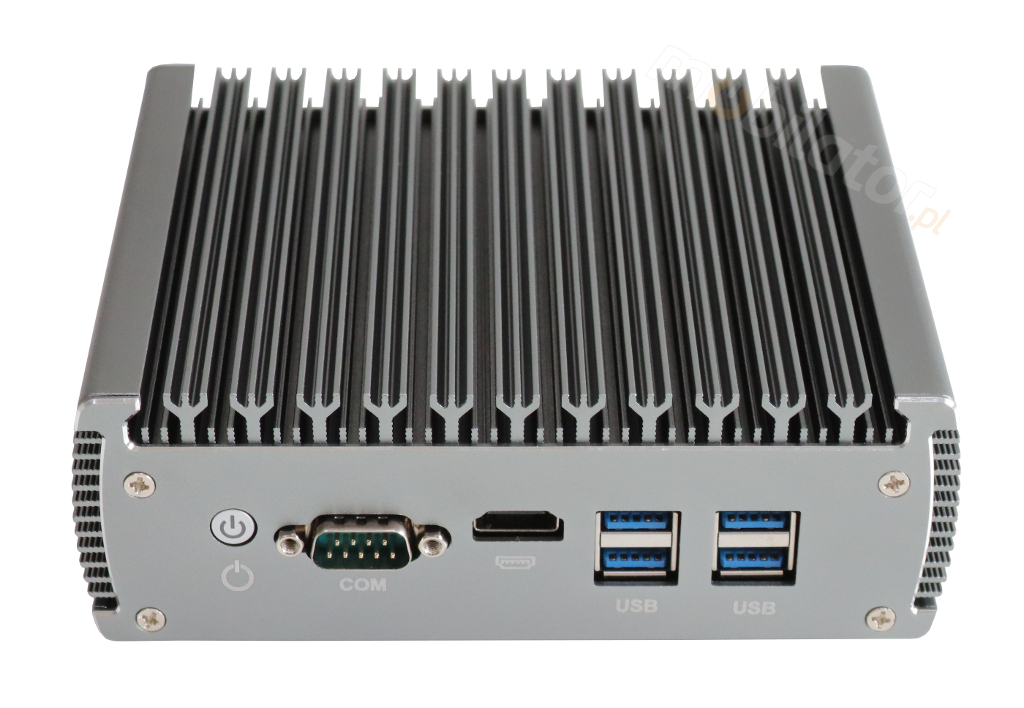

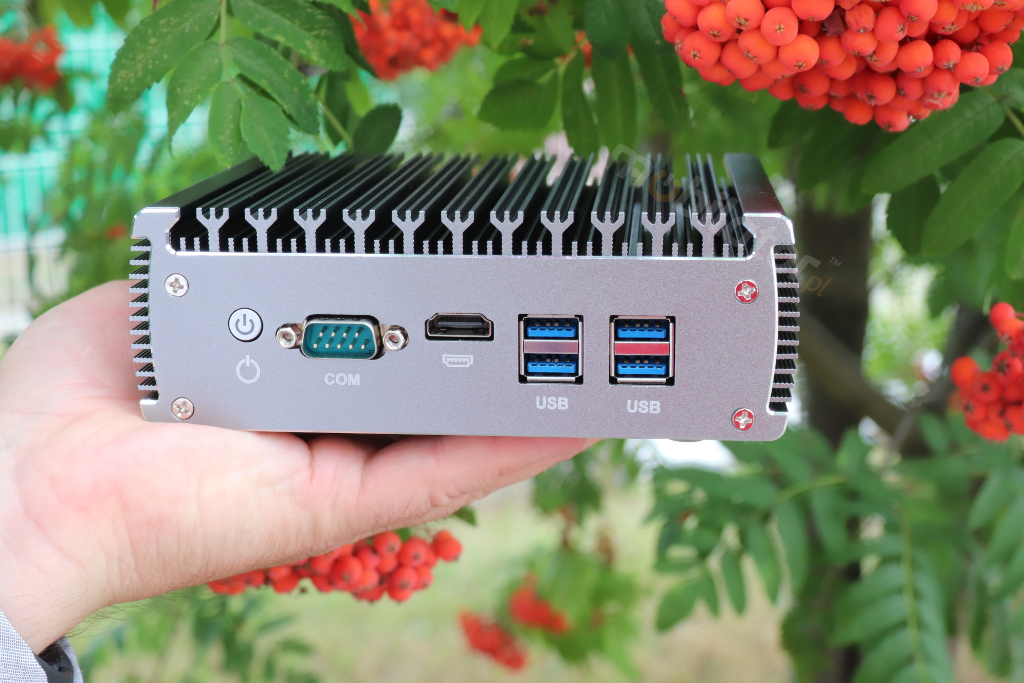

| Connections - front panel |
On/Off switch | 4 x USB 3.1 | HDMI |

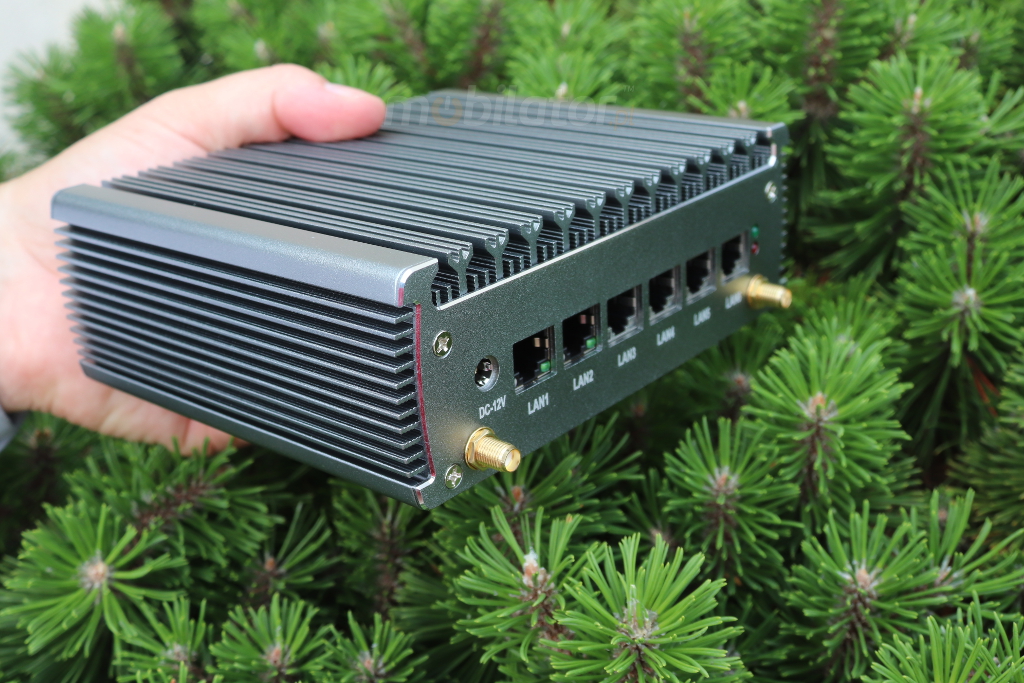

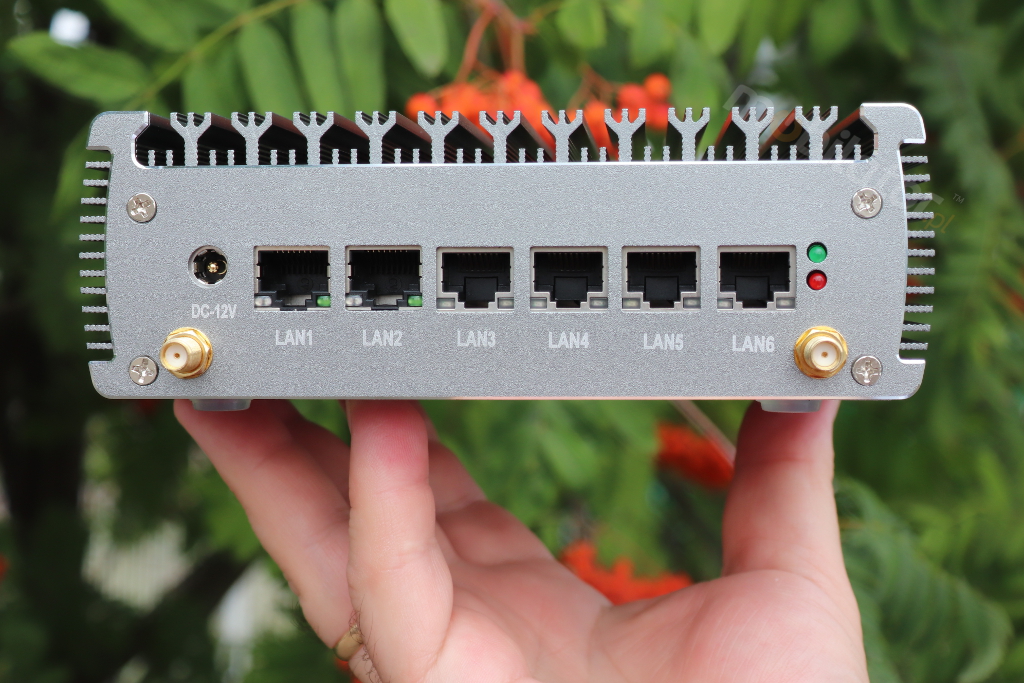

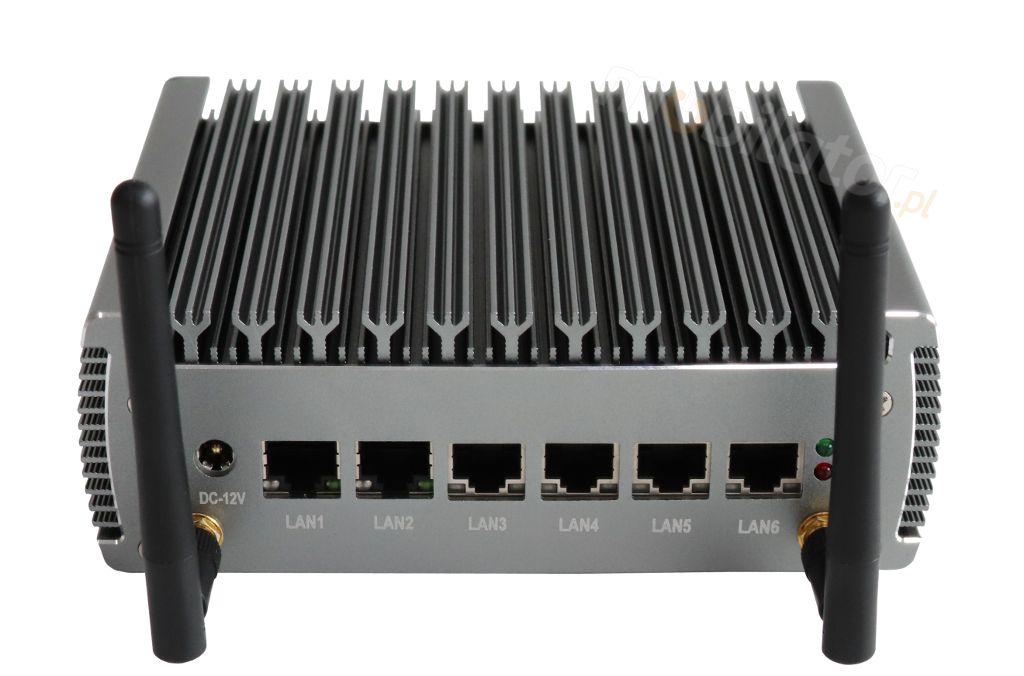

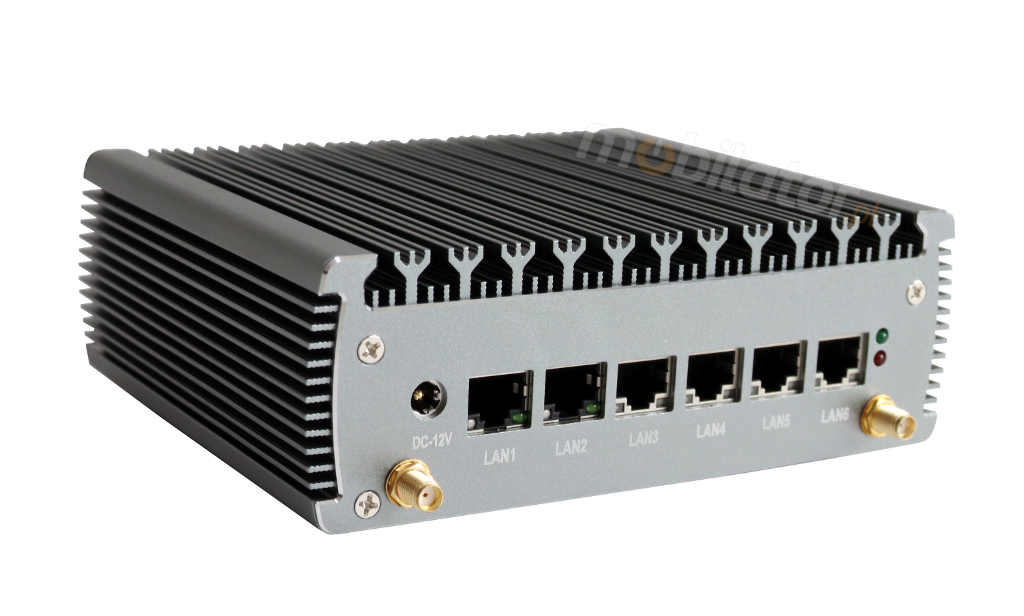

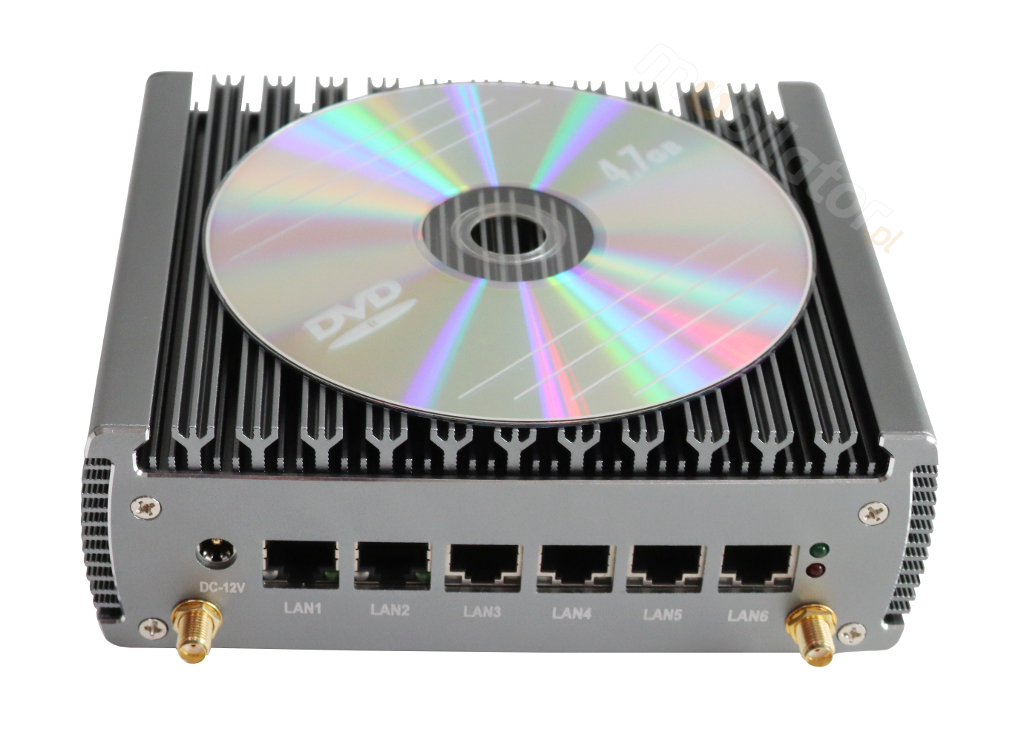

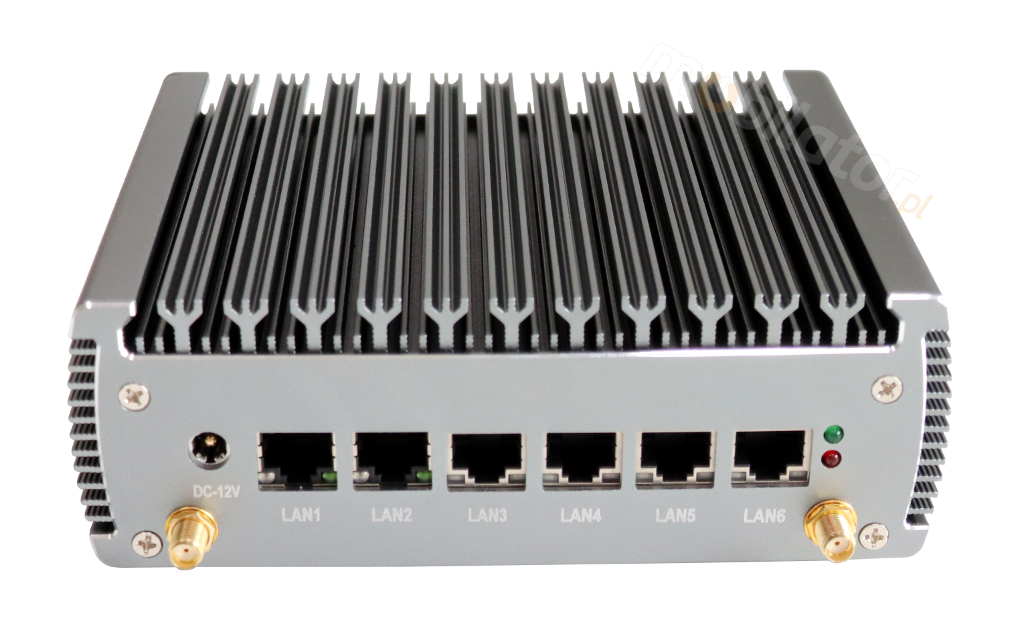

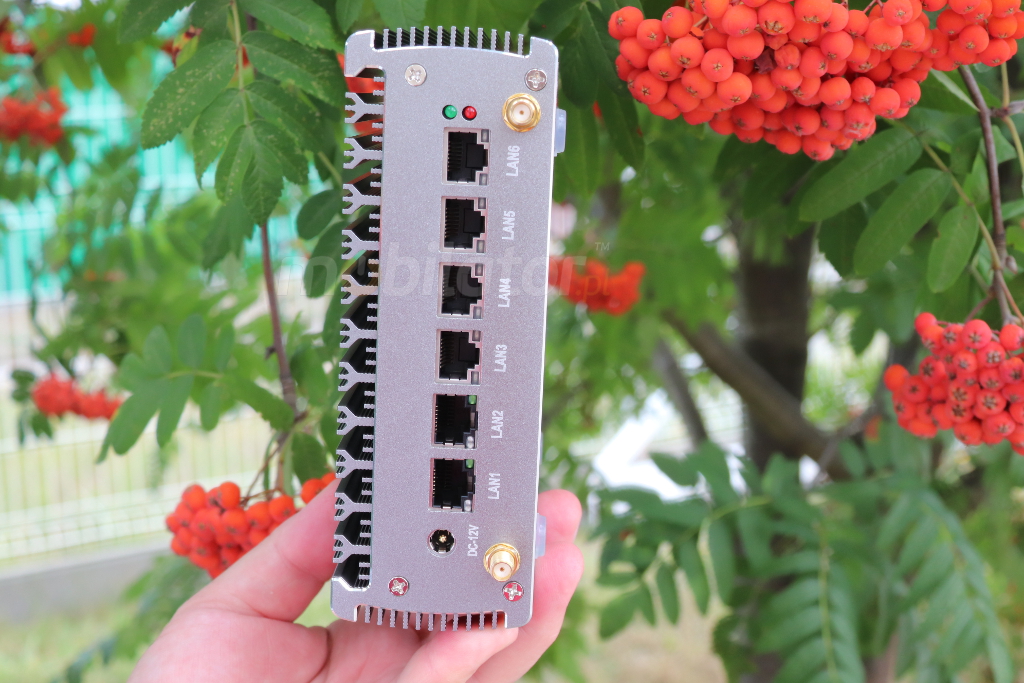

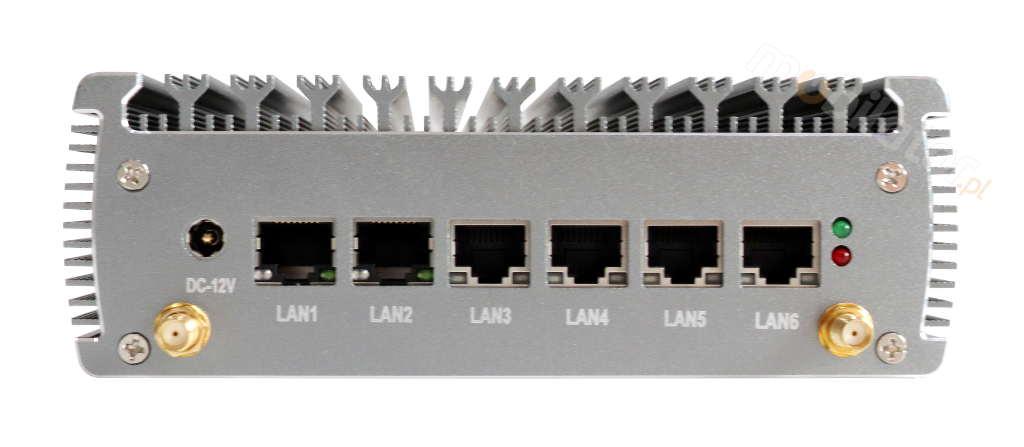

| Connections - rear panel |
DC-IN 12V | 6xRJ-45 | 2x Wi-Fi antennas |
| Available colors |
Silver |
| Measurements |
155x126x52 mm |
| Weight |
1.0 kg |

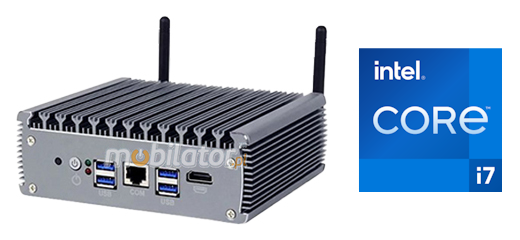

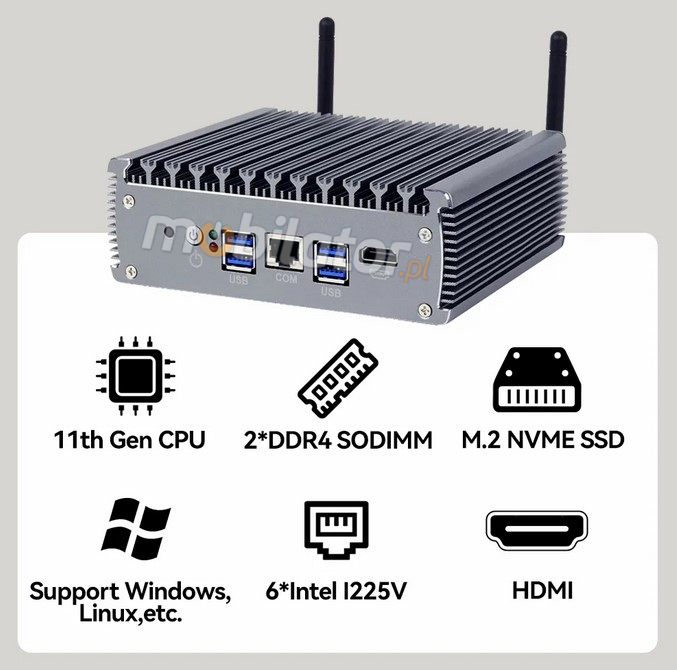

Powerful CPU
%20I7%201165G7/yBOX-X56-(6LAN)-I7%201165G7%20Barebone%20-%20Kompaktowy%20bud%C5%BCetowy%20komputer%20przemys%C5%82owy%20bezwentylatorowy-8.png)
The yBOX-X56 Industrial MiniPC uses a powerful and energy-efficient Intel Core i7 1165G7 processor. It features four interacting cores for more efficient processing of multiple tasks simultaneously. The shared cache memory, which uses a multi-level hierarchy, is dynamically allocated to each processor core depending on the workload. This leads to a reduction in the average access time to main memory.

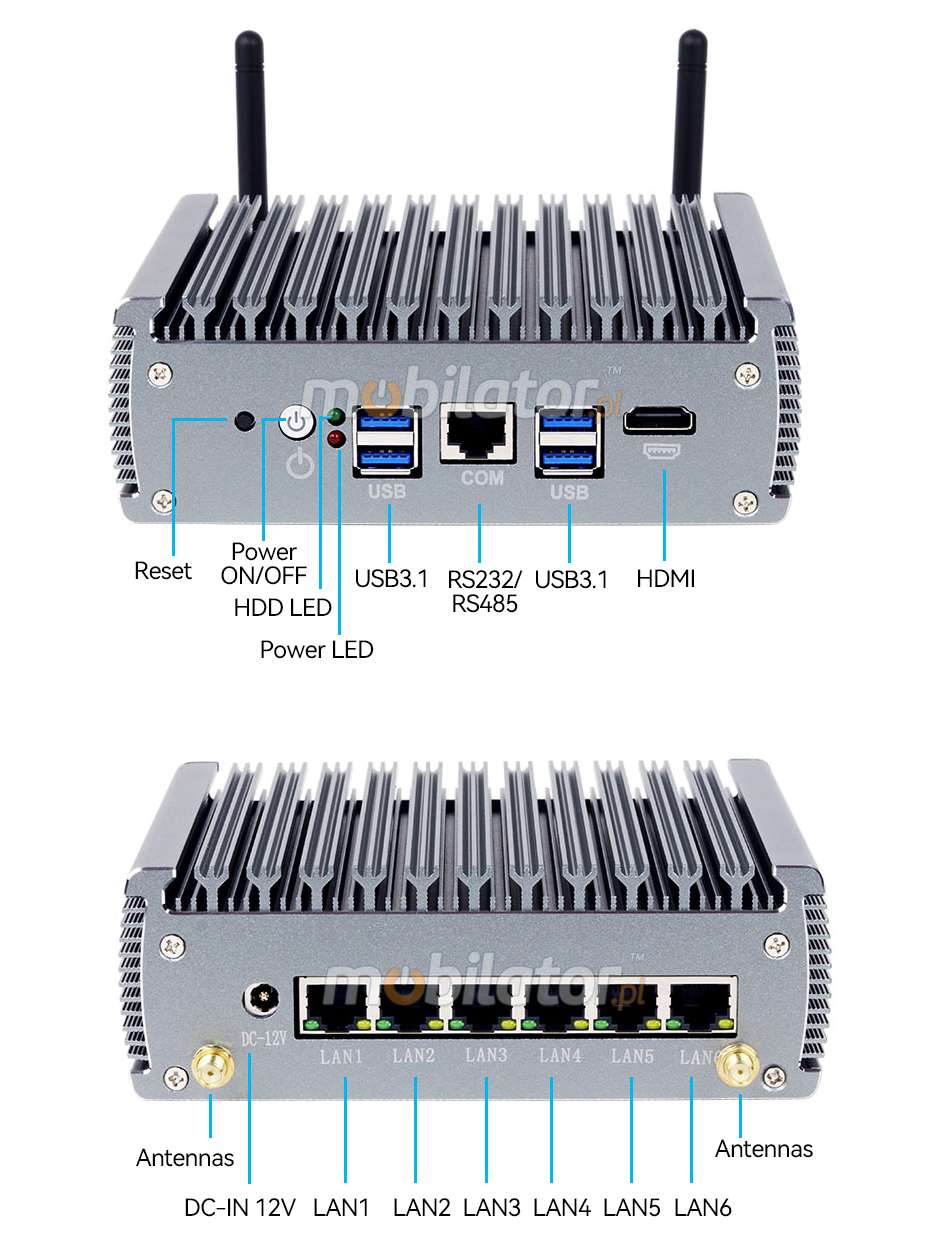

Connectors | Interfaces
%20I7%201165G7/MiniPC%20yBOX-X56%20-%20z%C5%82%C4%85cza%20do%20kompaktowego,%20wydajnego,%20szybkiego,%20odpornego%20komputera%20przemys%C5%82owego-remaster.png)

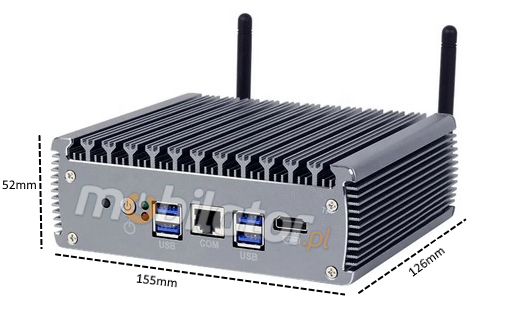

Measurements
%20I7%201165G7/wymiary-MINIPC-yBOX-X56-kompaktowego-wydajnego-odpornego-szybkiego-komputera-przemys%C5%82owego.png)

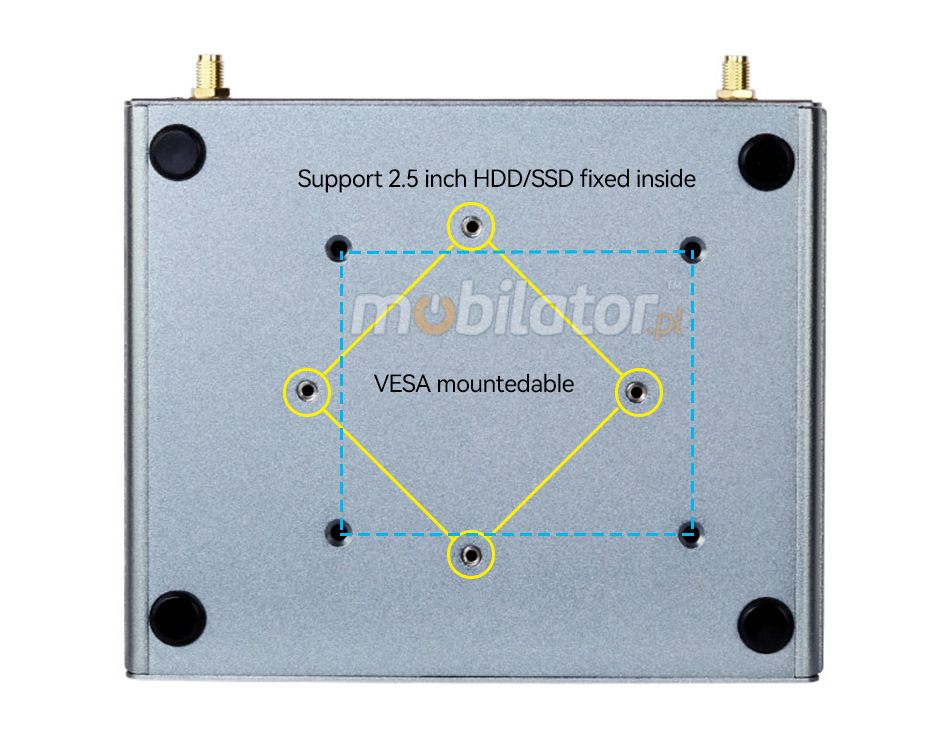

Thanks to its small size, the MiniPC has versatile applications both at home, in the office and in industry on the factory floor, for example. It will fit literally anywhere, and thanks to its VESA mount, it can be mounted on the back of a monitor to optimize your workstation.
%20I7%201165G7/MiniPC%20yBOX-X56%20Barebone%20-%20z%C5%82a%CC%A8cze%20vesa%20komputer%20przemys%C5%82owy.png)
| Measurements |
155x126x52 mm |
| Net weight |
1.0 kg |

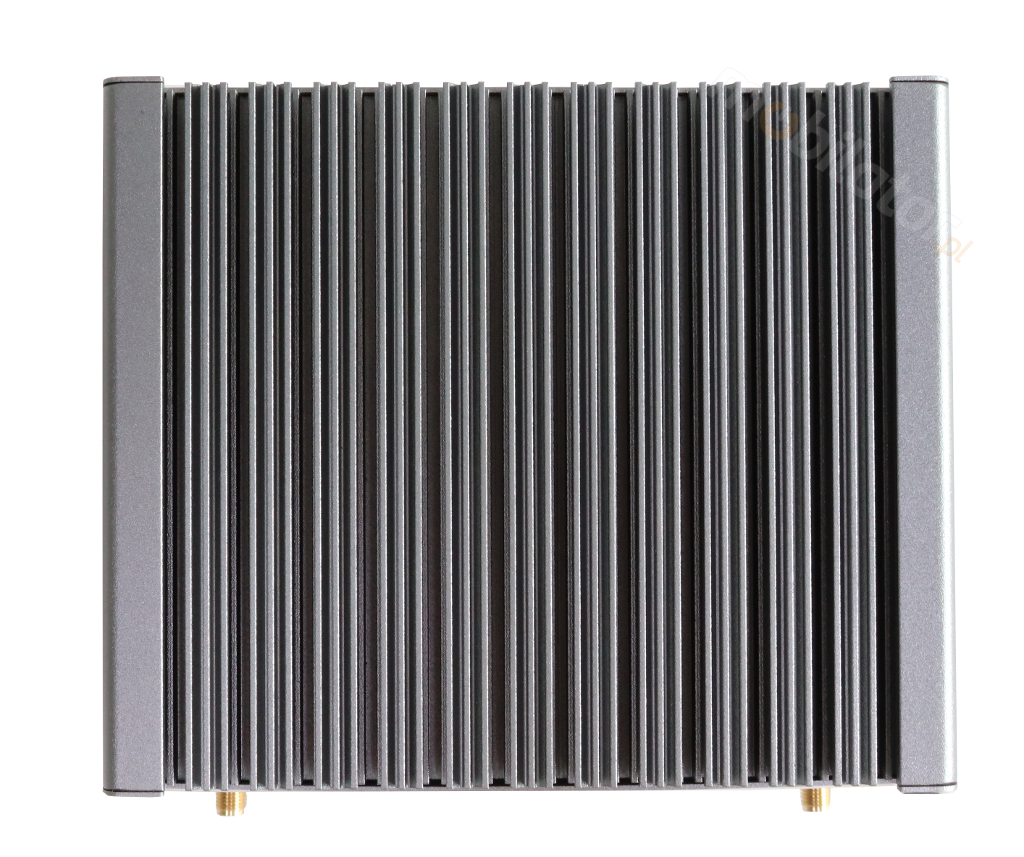

Passive cooling
The Industrial Mini PC uses a proven cooling system, based solely on fixed elements, mainly heat sinks. This system takes advantage of the phenomenon of metals giving up heat energy to the environment - there are no additional moving elements in the form of, for example, fans. Such a solution ensures noiseless operation, lower failure rate and greater protection against dust and other dirt, while reducing the amount of energy consumed.
up...  menu…
RESISTANCE AND DURABILITY
Temperature variation
The yBOX-X56 MiniPC is designed for continuous operation in both very low and high temperatures in the range of -20°C to 65°C. In the case of storing the device turned off, it will already cope with temperatures in the range of -40°C to 80°C as well.
| Working Temp. |
-20°C to 65°C |
| Resting Temp. |
-40°C to 80°C |
| Operating Humidity |
0% to 90% |
| Resting Moisture |
0% to 90% |
Mechanical damage
The passive cooling system used in the MiniPC yBOX-X56 makes this computer very resistant to various types of mechanical trauma. An additional advantage of industrial computers is a solid structure made of high-quality aluminum and specially designed in such a way that, in addition to high efficiency at heat dissipation, it can also resist any external damage
up... menu…
CONNECTIVITY AND COMMUNICATIONS
Wireless network
The dual-band Wi-Fi module provides high-speed network access wherever you can get a connection to secure or open Wi-Fi networks. This is a convenient solution for people who have a router and a wireless network at their workplace or residence, which can be used at no extra charge. The industrial MiniPC yBOX-X56 is equipped with a technology standard - Intel Gigabit, which allows files to be transferred at dizzying speeds of up to 1,000 Mbps.

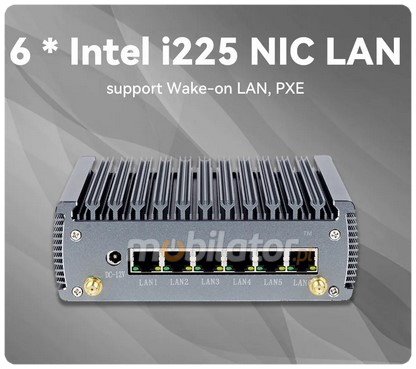

Wired LAN
The yBOX-X56 MiniPC has a built-in Intel network card that can run on a high-speed Gigabit Ethernet network
Support for Wake-on LAN
Wake-on LAN (WOL) is a technology that allows you to initiate the activation of a computer remotely. With this technology, it is possible to activate a computer from any point on the network, using another device such as a computer, router or phone.
%20I7%201165G7/MiniPC%20yBOX-X56-(6LAN)-I7%201165G7%20Barebone%20-%20Kompaktowy2remaster-funkcja-wakeonLAN.png)

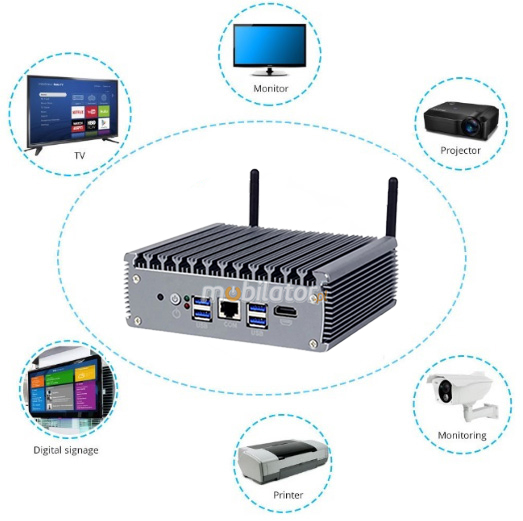

USAGE
Trade and Services
Mini PC is an ideal tool to support us in the implementation of many activities in the field of commerce, small dimensions increase its adaptability for such activities as invoicing or preparation of documentation, which in turn allows us to conveniently and optimally manage sales. The VESA mount mounted to the chassis provides many mounting options, for example, in stores (at the cash register, under the desk top, behind the LCD/LED monitor), in factory halls, or in a delivery vehicle
Warehouse and logistics
Thanks to its high performance, the industrial computer can be used to connect a number of devices in the warehouse and make their management much easier. Its rugged housing and fanless cooling system will be ideal for the harsh conditions of such premises. The robust design guarantees long-lasting operation, even in dusty and dirty environments
-C3865U%20Zastosowanie%20wielofunkyjnego%20przemys%C5%82owego%20miniPC.jpg)
Transportation and automotive
The small industrial computer can be used in transportation thanks to its ability to operate on 12V power. Then the mini computer can be used in cars, buses, streetcars, cabs, trains and even airplanes. It allows informing the driver about the current state of the vehicle, transmitting its current location to the management center, displaying passenger information, etc. It will perform its functions very well in vehicles where the small size of the device matters.
up... menu…
VERSIONS AVAILABLE
The yBOX X56 industrial mini computer is offered in several versions to suit different needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters listed in the table below.
Porównaj wszystkie wersje
| |
v.0 |
v.1 |
v.2 |
v.3 |
v.4 |
v.5 |
| 8GB RAM (DDR 4) |
— |
✔ |
✔ |
✔ |
— |
— |
| 16GB RAM (DDR 4) |
— |
— |
— |
— |
✔ |
— |
| 32GB RAM (DDR 4) |
— |
— |
— |
— |
— |
✔ |
| 128GB (SSD) |
— |
✔ |
— |
— |
— |
— |
| 256GB (SSD) |
— |
— |
✔ |
— |
— |
— |
| 256GB (M.2 2242) |
— |
— |
— |
✔ |
— |
— |
| 512GB (M.2 2242) |
— |
— |
— |
— |
✔ |
— |
| 1000GB (M.2 2242) |
— |
— |
— |
— |
— |
✔ |
| WiFi + Bluetooth |
— |
✔ |
✔ |
✔ |
✔ |
✔ |
Compare all versions
| Others: |
Color Silver | VESA mount included |
| Chipset: |
Intel Chipset |
| CPU Support: |
Intel Core i7 1165G7 |
| Installed CPU: |
Intel Core i7 1165G7 (4x 4.70 GHz) |
| Memory Support: |
DDR4 (max. 32GB) |
| Installed Memory: |
8GB DDR4 |
| Graphic Card: |
i7 1165G7: Intel Iris Xe Graphics |
| Storage (HDD) Support: |
M.2 2242 |
| Installed Storage (HDD): |
256GB M.2 |
| CD/DVD Drive: |
----- |
| LAN: |
6*2.5 GbE Intel i225-V |
| Wireless LAN card: |
Mini PCIe WiFi + Bluetooth |
| Bluetooth: |
No |
| 3G: |
----- |
| 4G LTE: |
----- |
| TV Tuner: |
----- |
| Watch Dog Timer: |
0-255 seconds |
| Front Panel (ports): |
4xUSB 3.1 |
| Rear Panel (ports): |
6xRJ-45 | 4xUSB 3.1 | HDMI | 2x Wi-Fi antennas |
| Power: |
12V - power supply available in the kit |
| Supported OS: |
Windows, Linux, CentOS, Pfsense, MikroTIK, VMWare |
| Installed OS: |
----- |
| Dimensions: |
155x126x52 mm |
| Weight: |
1.0kg |
| Expansion: |
----- |
| Fanless: |
Yes |
| Humidity: |
0% ~ 90% |
| Temp: |
-20°C to 65°C |
| IP Norm: |
----- |
| Storage temperature: |
-40°C to 80°C |
Compare all versions
 |
MiniPC yBOX-X56-(6LAN)-I7 1165G7 Barebone - Compact budget fanless industrial computer |
The product from the archive - production terminated |
 |
yBOX-X56-(6LAN)-I7 1165G7 v.1 - Ruggedized mini PC with 8GB RAM, WiFi + Bluetooth, 128GB SSD - for advanced networking tasks |
The product from the archive - production terminated |
 |
yBOX-X56-(6LAN)-I7 1165G7 v.3 - Dedicated Process Management Computer (6*LAN) - MiniPC I7 1165G7, 8GB RAM, 128GB M.2 SSD |
The product from the archive - production terminated |
 |
yBOX-X56-(6LAN)-I7 1165G7 v.2 - Industrial MiniPC with rugged metal chassis, 4xUSB, 6xLAN, 1xHDMI, 1xCOM inputs and Intel Core i7 1165G7 processor, 8GB RAM, 256GB SSD |
The product from the archive - production terminated |
 |
yBOX-X56-(6LAN)-I7 1165G7 v.4 - Totally silent, ruggedized miniPC for industry with 16GB RAM, 512GB SSD M.2, 6*LAN |
The product from the archive - production terminated |
 |
yBOX-X56-(6LAN)-I7 1165G7 v.5 - Industrial 6xLAN miniPC with reinforced case and I7 1165G7 processor, 32GB RAM, 1000GB M.2 SSD |
The product from the archive - production terminated |
