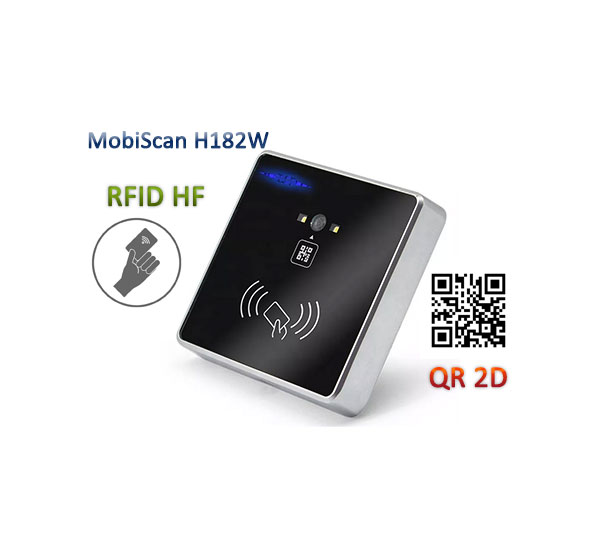

MobiScan H182W-HF - external barcode and QR (1D / 2D) scanner + RFID HF 13.56MHz reader - for industrial computers, machines, PC panels, mini PC (connection via USB / RS232 / RS485)
|
|
| CURRENT PRICE |
| 140.99 € |
Net |
| 173.41 € |
Gross |
|
Compare all versions
|
|
The MobiScan brand is a new distribution of Mobilator. It has achieved an excellent reputation as a manufacturer of barcode scanners. Due to the high position of its products in the high-tech segment, it has won the trust of many customers around the world.
|
|
|
|
A barcode scanner is a device that allows you to read barcodes from boxes, machines, documents and all places where these codes have been implemented. MobiScan brand products are characterized by high quality and the ability to trouble-free operation for many years.
|
| MobiScan H182W |
| Code scanner |
2D CMOS |
| Supported system |
Android, Windows 10 |
| Communication |
USB/RS232/RS485 |
| Dimensions |
86 x 86 x 18 mm |
| Weight |
150g |
| RFID reader |
HF 13,56 MHz |
| |
Detailed specification of a given configuration is available in the tab "Technical data"
|
|

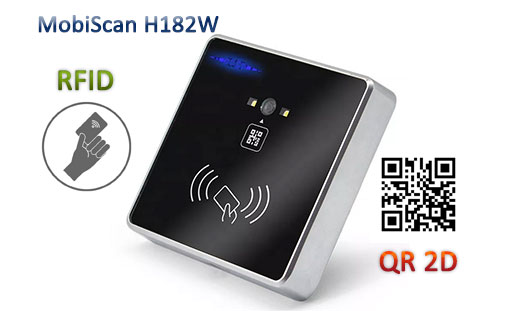

An unusual, modern barcode scanner with an RFID reader MobiScan H182W has been designed for users for whom it is necessary to meticulously catalog all available logistics information in the form of electronic databases, spreadsheets, lists, forms, etc.
MobiScan H182W intelligent and ergonomic handheld barcode reader will facilitate the work of warehouse workers, stationary sellers, pharmacists, logisticians, quality controllers and production process controllers, and all those who need to catalog and save information read from barcodes in their work.
Barcode scanner 1D/2D CMOS - MobiScan H182W, thanks to the USB / RS232 / RS485 module (which ensures proper communication), is compatible with devices such as industrial panels and computers running on various operating systems.

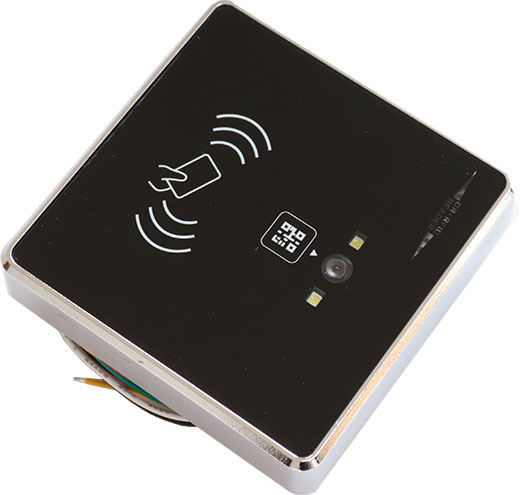

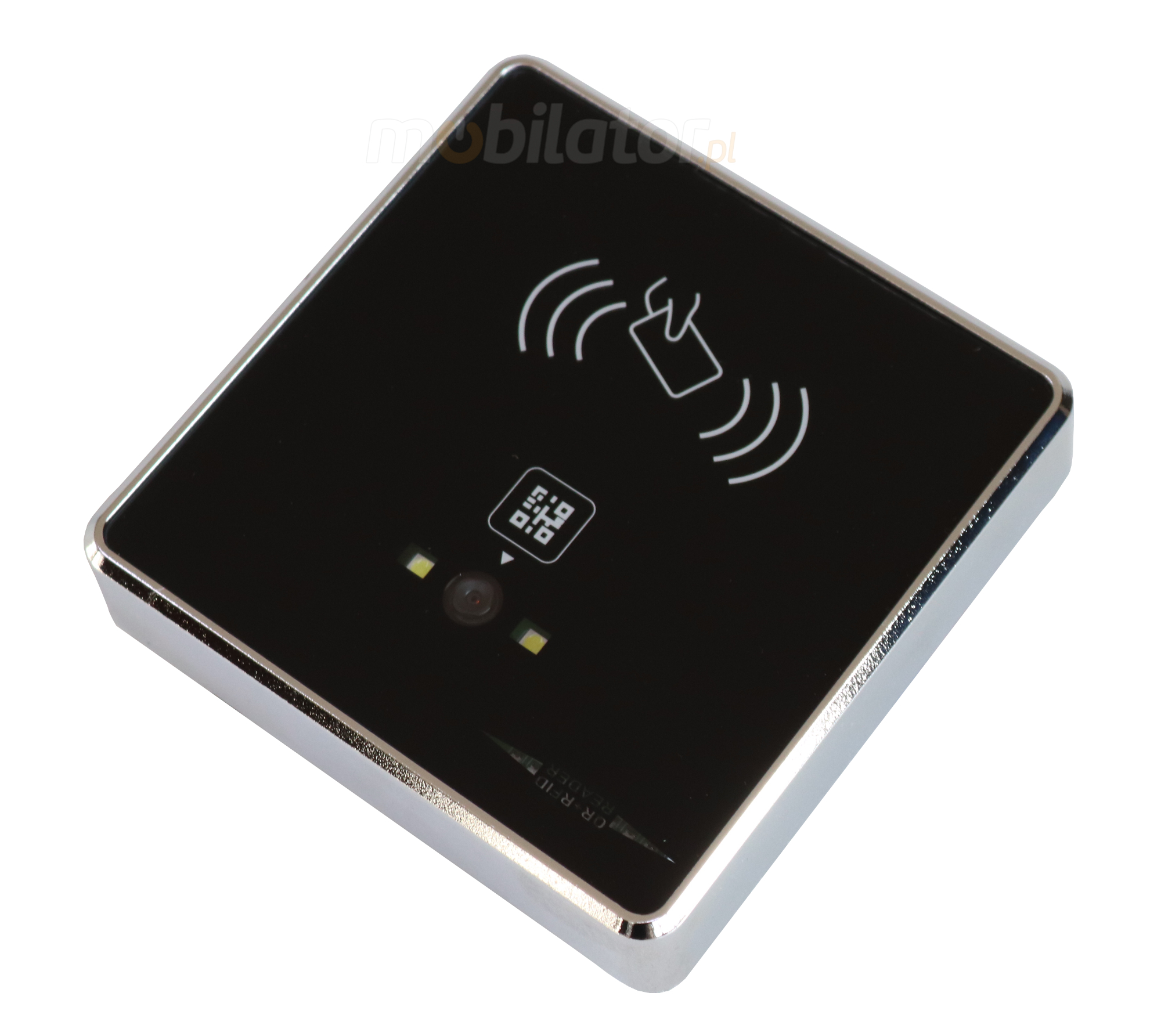

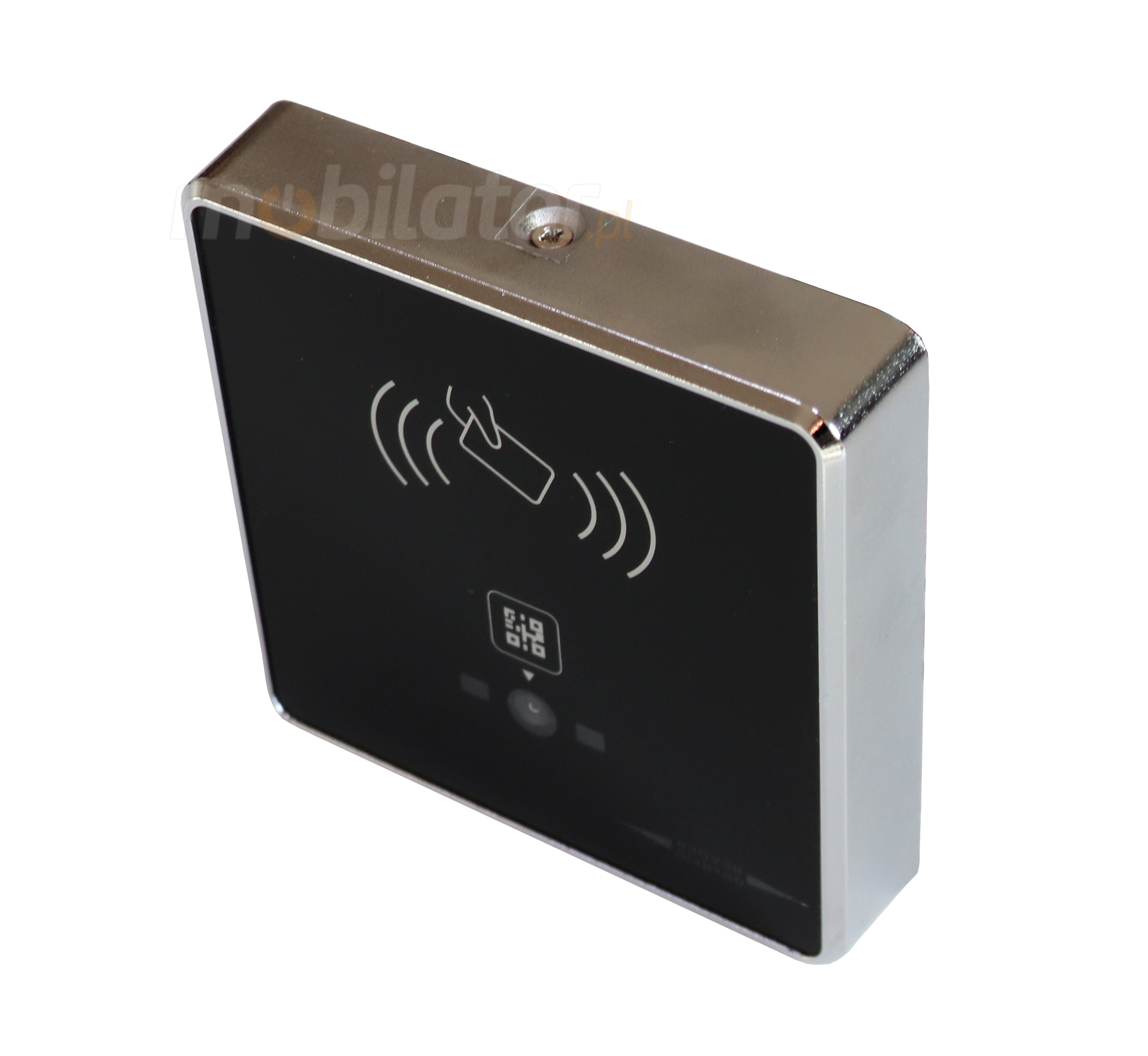

 The new generation scanner surprises with its appearance. This ergonomic, small and extremely light module combining a barcode scanner and an HF 13.56MHz RFID reader ensures a wide range of applications.
|
|
Code scanner
The external barcode and QR scanner has a built-in code reader 1D/2D CMOS, which by connecting to the device provides information, among others name of the product, its type, approximate value, availability, and allows for quick and convenient automatic grouping of data.
|
|

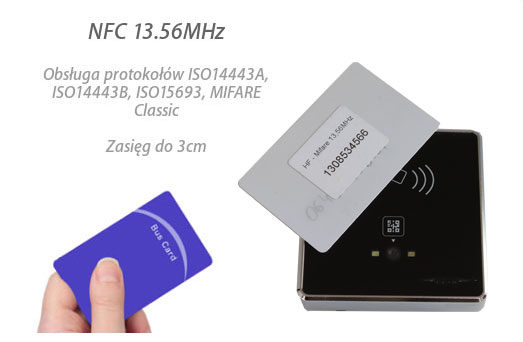

RFID reader
Short-range communication, known as NFC, is a short-range, radio communication standard that allows for wireless data exchange over a distance of several to several centimeters. This technology is a simple extension of the proximity card standard that combines the smart card interface and reader in one device. NFC devices can communicate with both existing ISO / IEC 14443 equipment (cards and readers) as well as with other NFC devices, and thus are compatible with the existing and already in use public transport and payment infrastructure, such as MIFARE.
| RFID HF |
13,56MHz (Mifare), range to 3cm
|
| RFID LF (option) |
125kHz, range to 3cm |
Obs³ugiwane systemy
Designed to fit a variety of applications, the barcode scanner can be compatible with systems such as Android, iOS, Windows 7, Windows 8, Windows 10, Linux. Users can transfer data in real time to PCs or mobile devices.
|
| |
|
|
|
Dla MobiScan H182W is recommended by the manufacturer very broad application in situations where quick identification is essential goods in trade, logistics, transport, forwarding, industrial, financial and public sectors.
Application
|
|
Apteka
MobiScan H182W allows you to quickly identify and enter prescriptions into the database. Thanks to the small, mobile and light structure, it is easy to carry and take orders efficiently.
|
|
Trade
The device is used for quick barcode reading. Certainly, it will find application in all kinds of retail chains.
|
|
|
|
Magazine
The barcode reader allows you to quickly update your inventory using data transfer.
|
|
Logistics and transport
The scanner will certainly find all kinds of use also in transport - as a mobile and super-light barcode reader that allows for quick identification of goods.
|
|
|

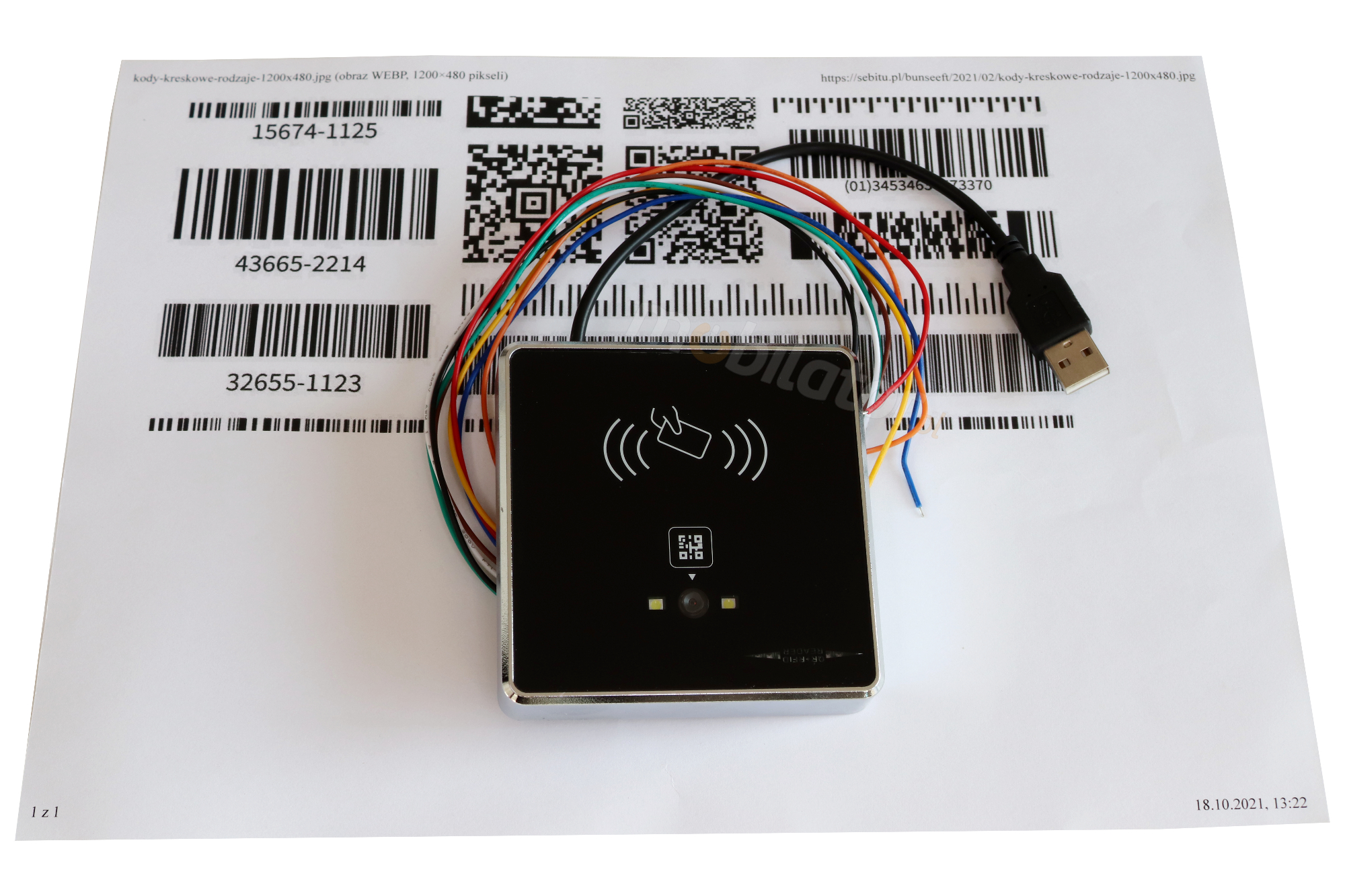

Barcode readers with the RFID HF reader enable reading and sending data stored in the barcode to the computer. The highest quality devices we offer work flawlessly even in very difficult industrial conditions.
After the encoded data is scanned, it can be transferred to a computer or portable database. Quick and error-free identification of the item relieves the warehouse worker and does not create a bottleneck in logistics processes.
.jpg)

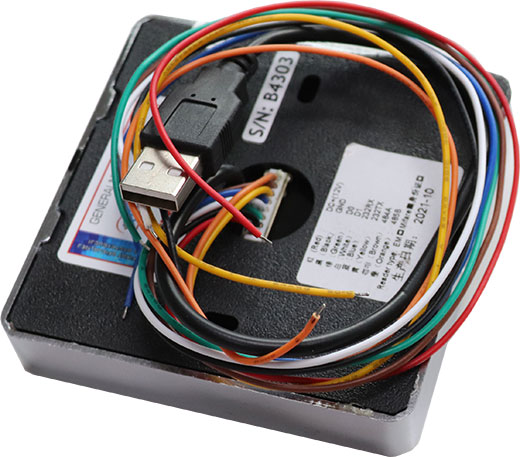

The barcode scanner can be connected to almost any computer technology device & ndash; via the USB port.
| MobiScan H182W - 1D / 2D and RFID HF code scanner |
| Dimensions |
Height: 18 mm
Width: 86 mm
Length: 86 mm
Weight: 150g
|
| Power |
DC: 8-12V |
| Scanning performance |
Sensor type: 1D/2D CMOS
Scanning speed: 200 times / second
Scan angle: 45°
Reflection: 30%
|
| RFID reader |
HF 13,56 MHz
Card support: Mifare
|
| Barcode types |
2D: QR, PDF417,Data Matrix code etc.
1D: UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code93,
Code 11, Interleaved 2 of 5, Matrix 2 of 5, China post etc. |

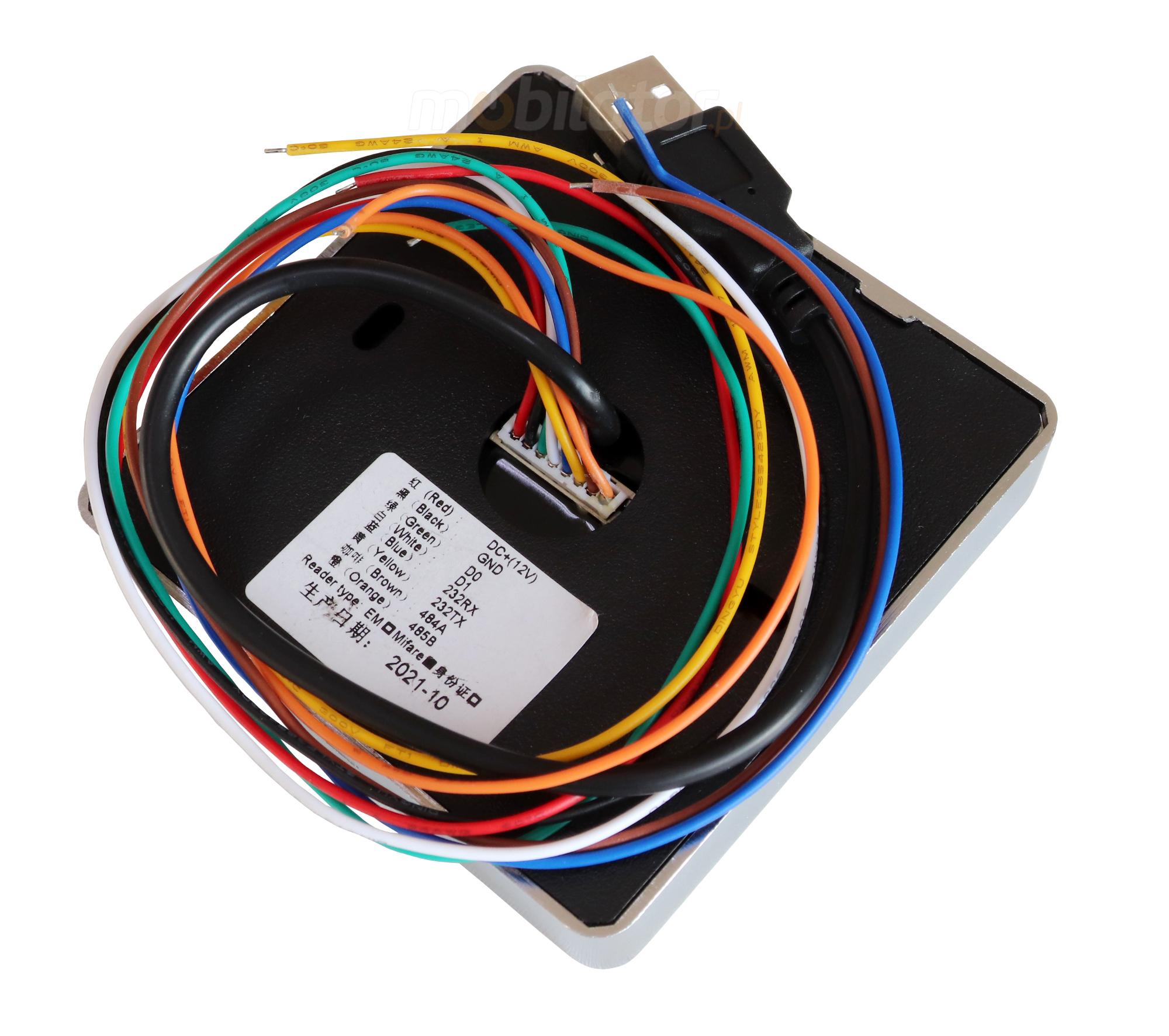

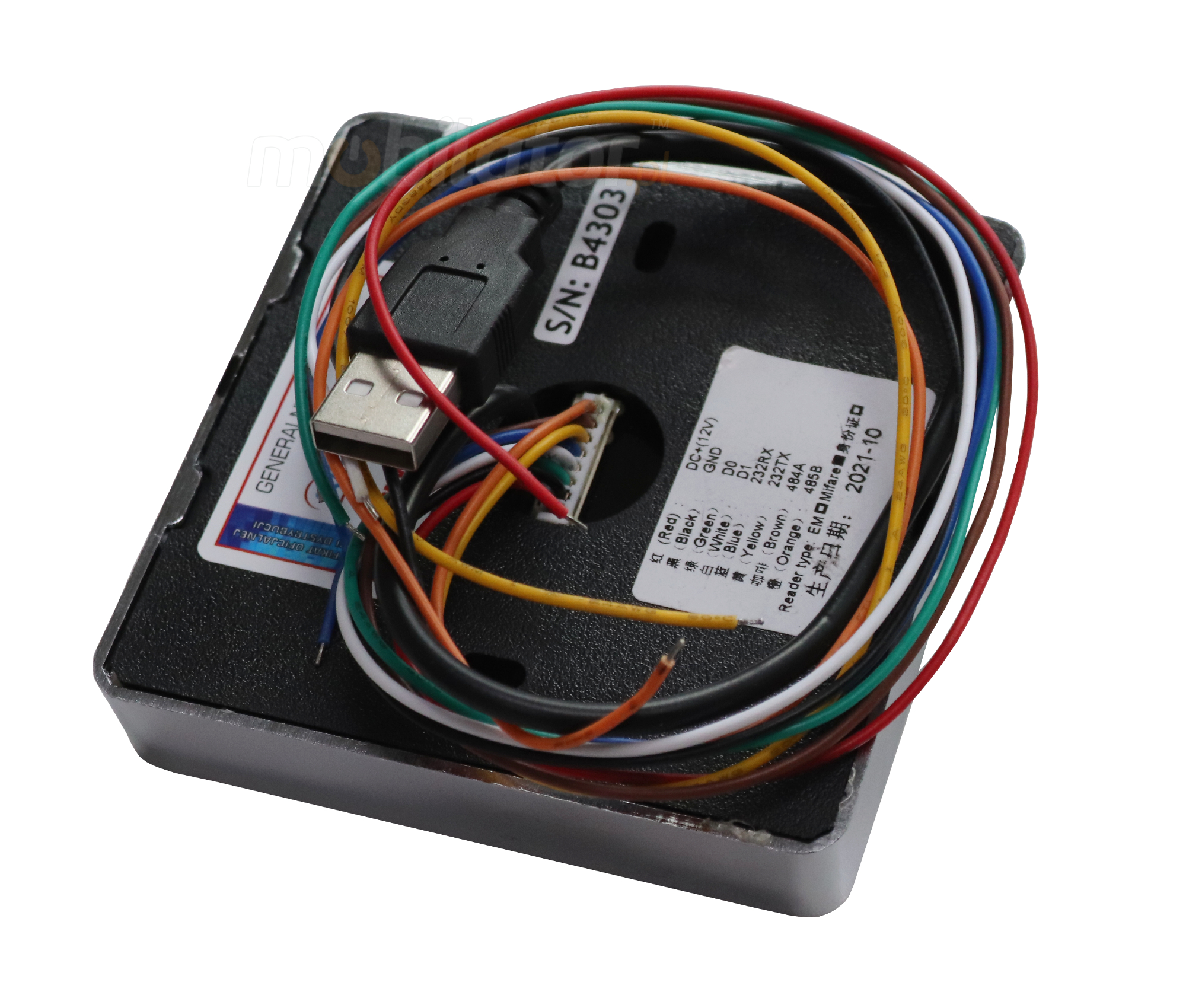

| Communication |
USB, RS232, RS485 Wiegand |
| Certificates |
FCC /CE /RHos/CCC
|
| Accessories |
User manual, USB cable
|
|
|
more photos in the tab "Gallery"...
specification of the given version is available in the "Technical data" tab ...
|
|
|
|
Compare all versions
| Supported Operating Systems: |
Android, iOS,Windows 7, Windows 8, Windows 10, Linux, MAC |
| Internal memory: |
--- |
| Operation Voltage: |
DC 8-12V |
| Reading indicator: |
1D/2D CMOS |
| Dimensions: |
86 x 86 x 18 mm |
| Weight: |
150g |
| Battery: |
--- |
| Housing material: |
ABS+PC environmentally friendly |
| Scan rate: |
200 times/sec |
| Light source: |
CMOS |
| Resolution: |
--- |
| Communication distance: |
USB cable |
| Readable codes: |
1D:UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, China post etc.
2D: QR, PDF417,Data Matrix code etc. |
| Sensor: |
2D CMOS |
| Scan Angle: |
45° |
| Print Contrast Ratio: |
30% |
| Scan range: |
（BASED ON CODE 39） >4.0mil:35mm-500mm |
| Cable Type: |
USB |
| Battery Life: |
--- |
| Communication: |
USB(COM), RS232, RS485, Wiegand |
| Interface/ Pro le: |
HID/ SPP |
| Operating Temperature: |
-20°C ~ 70°C |
| Storage Temperature: |
-40°C ~ 85°C |
| Relative Humidity: |
5% ~ 95%, non-condensing |
| Resistance IP: |
--- |
| Drop test: |
Multiple drops 1.8m |
| Barcodes 1D: |
Barcodes 1D: |
| 2 of 5 Chinese: |
Yes |
| 2 of 5 Discrete: |
No |
| 2 of 5 IATA: |
No |
| 2 of 5 Industrial: |
No |
| 2 of 5 Interleaved: |
Yes |
| 2 of 5 Matrix: |
Yes |
| 2 of 5 Standard: |
No |
| BC - 412: |
No |
| Bookland EAN: |
No |
| Codabar: |
Yes |
| Codabar - NW7: |
Yes |
| Code - 11: |
No |
| Code - 11(USD-8): |
Yes |
| Code - 32: |
Tak |
| Code - 39: |
Yes |
| Code - 39 Extended (full ASCII): |
Yes |
| Code - 39 Trioptic : |
No |
| Code - 93: |
No |
| Code - 128 (A, B, C): |
Yes |
| EAN-8: |
Yes |
| EAN-13: |
Yes |
| EAN -128 / UCC-128: |
No |
| GS1 DataBar: |
Yes |
| Intelligent Mail: |
No |
| ISBN: |
Yes |
| ISBT - 128: |
No |
| ISSN: |
Yes |
| ITF-6: |
No |
| ITF-14: |
No |
| KIX code: |
No |
| Matrix 25: |
No |
| MSI: |
Yes |
| MSI - Plessey: |
Yes |
| Pharmacode - One Track: |
No |
| Pharmacode - Two Track: |
No |
| Planet: |
No |
| Plessey: |
Yes |
| Post - Australian (4-State Postal Code): |
No |
| Post - China (4-State Postal Code): |
Yes |
| Post - Japanese (4-State Postal Code): |
No |
| Post - Singapore (4-State Postal Code): |
No |
| PostNET: |
No |
| Royal Mail (RM-4SCC): |
No |
| Telepen Code: |
No |
| UK/Plessey: |
No |
| UPC - A: |
Yes |
| UPC - E: |
Yes |
| UPC - E1: |
Yes |
| Barcodes 2D: |
Barcodes 2D: |
| Aztec: |
Yes |
| Composite code: |
No |
| DataMatrix: |
Yes |
| MaxiCode: |
No |
| Micro PDF 417: |
Yes |
| Micro QR Code : |
No |
| PDF 417: |
Yes |
| QR Code : |
Yes |
| RSS: |
No |
| TLC-39: |
No |
