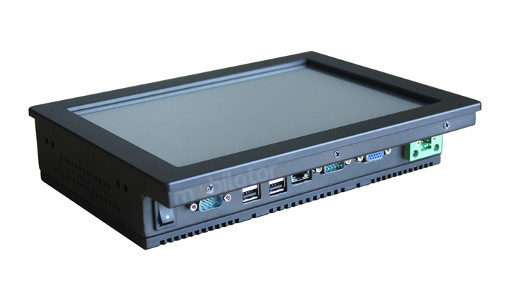

Durable strengthened Industrial PanelPC QBOX 10, its 10 inch industrial computer of type AiO(All-in-One, thats it connecting the monitor and computer in one closed housing) adapted to work in places with high pollination level. Additional thanks carefully designed case, device got IP65 norm(for front panel).
To produce industrial PanelPC used high quality materials. Inside of device mounted professional modules and components makes that device is not only durable but also very efficient.
|
Specification of device is on the bottom of this description. To find more details click on "Technical data" overlap.
|
 |
QBOX 10 has been equipped with 10.4 inch LED screen, with 800x600 pixels resolution showing high quality image making possible to comfortable work for eyes.
IP65 norm is granted to devices which pass series of specialist tests exploring their durability for dust and water. IP norm consist of two digitals. First means the level of dust resistance, second to water. Industrial PanelPC QBOX 10 have IP65 norm for front panel.
Full specification of IP norms.
The first digit [x]
Protection against solid objects |
|
The second digits [y]
Protection against liquids |
|
No special protection
|
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from object not greater than 12mm in diamete |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from water projected from a nozzle |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
|
|
|
 |
7
|
|
Protection against immersion
|
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water |

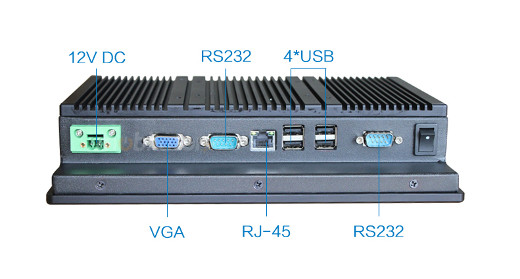

Strengthened Industrial PanelPC QBOX 10 is equipped with a number of ports like: VGA, RJ-45, USB or RS232. Their placement in the current model is presented in the following graphics.
Additional QBOX 10 might be equipped with wireless WiFi module making possible to data transfer - depends of version. Below You can find a label with all available interfaces.
Input/Output Interfaces
|
|
Image |
1x VGA
|
|
Internet |
1x RJ-45 | WiFi(factory)
|
Communication
|
4x USB 2.0
|
|
Other |
2x RS232
|
|
Type of installed modules depends of chosen version of device. Table with all available options is on the bottom of this description.
|
|
Trade
High performance and quality of Industrial PanelPC make possible to present the latest sales offers for products, information about building - for example in shopping center - or any other visualization directed at the potential customers.
Transport nad Services
Modern forms of electronic payment are becoming more and more popular. Because of this much more often We can see possition where customers can buy themselves, for example food or bus tickets. Strengthened Industrial AiO computer is well-suited to this role reducing queues and makes that employees will be able to do rest of their works.
Information Panels for employees
 Real-time message transfer is necessary to increase the efficiency of the team and entire departaments in enterprises, for example between the production manager and his subordinates in the factory. Displaying new tasks for actuall day and other notifications lead to more coordinated and controlled actions. A helpful device in this area can be Industrial PanelPC QBOX 10, which can handle such tasks without any problems.
Control of devices
Thanks to the appropriate connectors, the Industrial PanelPC QBOX 10 can be used as controling unit for other devices. Using a properly prepared application, it is possible to control, for example lighting, air conditioning, electric windows or machines on the production hall.
We offer a number of additional accessories and operating systems for Industrial PanelPC QBOX 10 to further enhance its functionality and comfort of work. Below You find list with all available accessories. Point the mouse at the picture to read short description or click it to move to the full description.
*product does not contain any elements in the kit,
except products marked with star...
Table below presents techical data of this device. Type of installed modules depends of chosen version. Look at table with device's versions on the bootom of description.
More details about acctually chosen version You can find in "Technical data" overlap which is on the top of description.
|
Display |
|
Size and resolution |
10.4 (800x600) |
|
Type of display |
LED |
|
Type of touch |
Resistive (Type of touch: 4-wire resistive)
|
|
Protection |
IP65 (for front panel)
|
|
Screen ratio |
16:9 |
|
Brightness |
400 cd/m2 |
Contrast
|
500:1
|
Processor
|
|
Model |
Intel® Atom™ Processor N2800 |
|
Timing |
1.86GHz |
|
Cores |
2
|
|
Graphic |
Model
|
Intel HD Graphic
|
|
RAM memory |
|
Capacity |
2GB(optional) | 4GB(factory) |
|
Type of memory |
DDR3
|
|
Flash memory |
|
Capacity |
32GB(optional) | 64GB(optional) | 128GB(factory) |
|
Type of memory |
SSD
|
Operating system(optional)
|
Windows
|
Windows 10 Home | Windows 10 Pro
|
Other
|
Linux
|
|
I/O ports |
|
1x VGA
|
|
Network and communication |
1x RJ-45(LAN) | WiFi(factory)
|
|
Data transfer |
4x USB 2.0
|
Other
|
2x Port RS232 | DC In 12V
|
|
Data input |
|
Keyboard |
On screen |
|
Functional keys |
Power
|
|
Size |
Weight
|
2000g
|
|

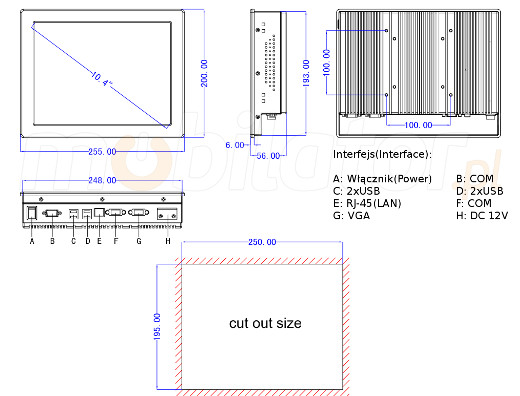

Dimensions |
255 x 200 x 56mm
|
|
Certyfications |
|
Level of security |
IP65(for front panel)
|
Additional
|
CE
|
|
Other optional |
Accessories
|
Stylus | VESA handle |
*license of Windows 10 is included only in chosen versions...
|
