« Back    Home / UMPC - Ruggedized / Archives

Rugged Tablet MobiPad Apad 2D Symbol

Rugged Tablet MobiPad Apad 2D Symbol

Data update: 2019-03-26

guarantee 1 year (opt.2)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated

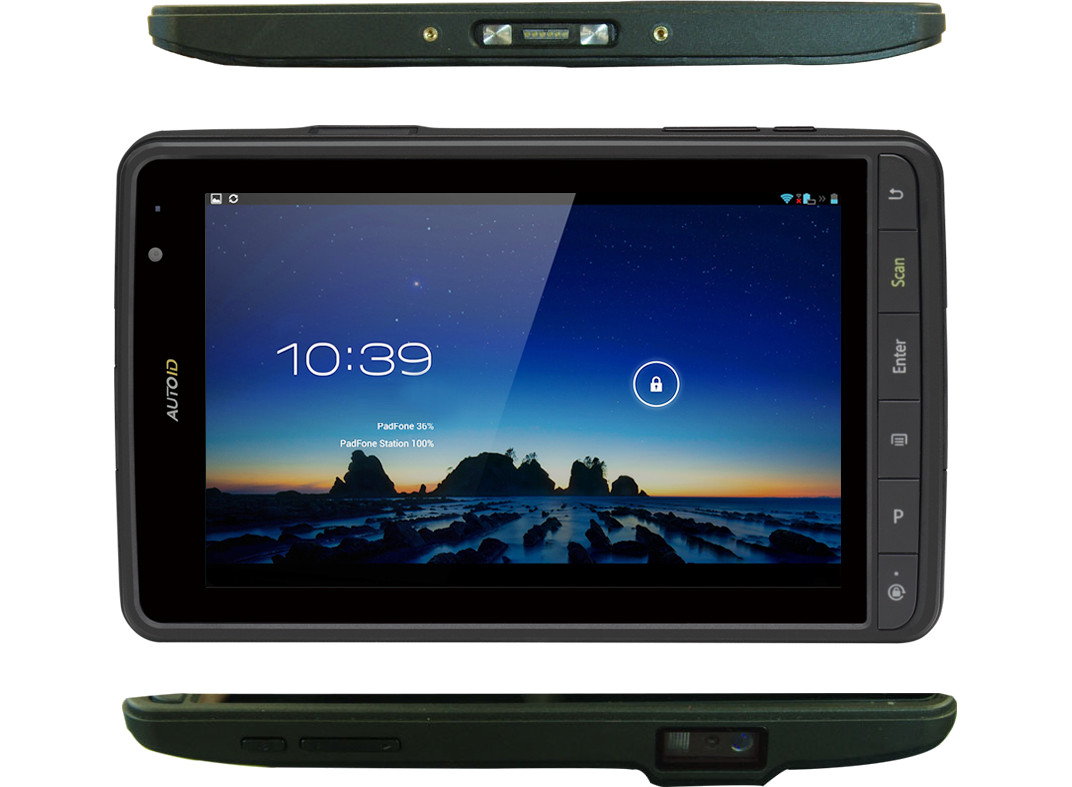

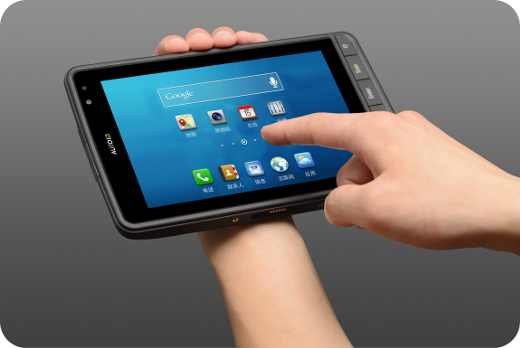

mobipad apad 4g wi-fi rugged tablet industrial nfc 2d scanner

Industrial Tablet MobiPad Apad has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP65 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.

Specification

back to top... menu…

Processor Cortex™ - A53 Quad Core 1.2GHz
Operating system Android 5.1
RAM 2 GB
Flash memory 16 GB
Connectors Micro USB (OTG) | Micro SIM | Micro SD
GPS GPS | GLONASS | Beidou | AGPS
Audio Built-in speaker and microphone
Battery 6200mAh Li-Ion
Keyboard On-Screen + Function keys
Modules Bluetooth | Wi-Fi | GPS | 4G
Readers NFC | 2D Honeywell Scanner
Dimensions 123 × 199 × 11mm (21mm at barcode engine)
Weight 485g
Resistance IP65
To get more information about this product click "Ask about the product" or use the Contact form.

mobipad apad 4g wi-fi rugged tablet industrial nfc 2d scanner

MobiPad Apad is offered with the latest four-core Cortex™ - A53 Quad Core 1.2GHz processor to ensure the highest performance, low power consumption and long battery life. The tablet works with Android 5.1 operating system to meet the growing requirements in industrial applications.

The collection and processing of data

back to top... menu…

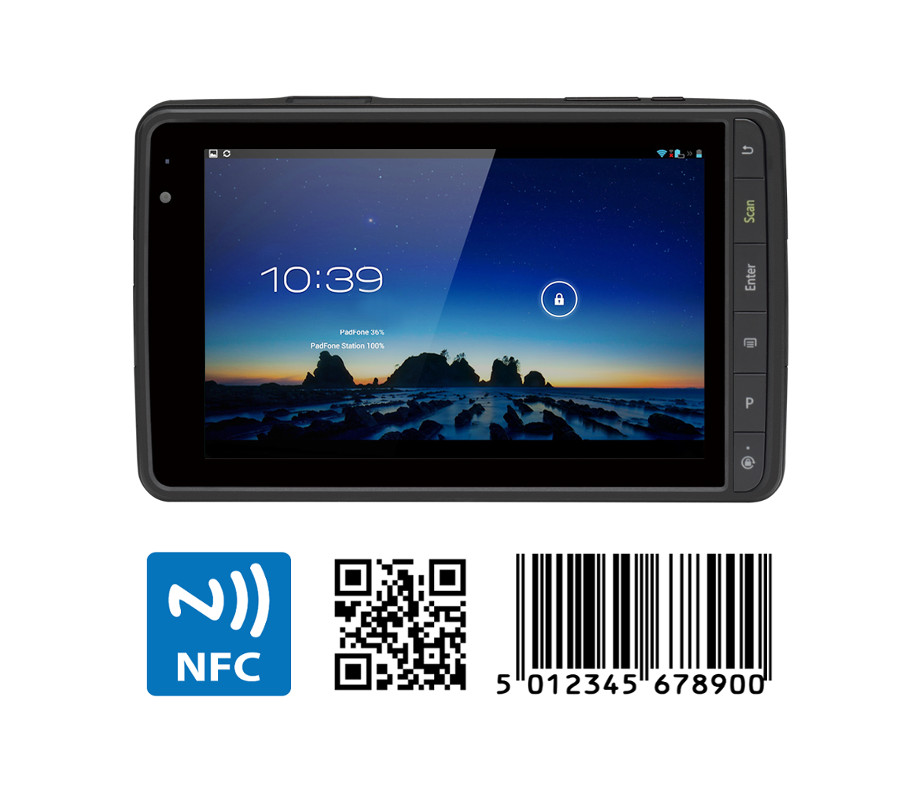

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly

Sensor resolution 844 x 640
Rotate 360°
Pitch angle ±45°
Skew tolerance ±65°
Scan depth 7cm, 36cm

mobipad apad 4g wi-fi rugged tablet industrial nfc 2d scanner

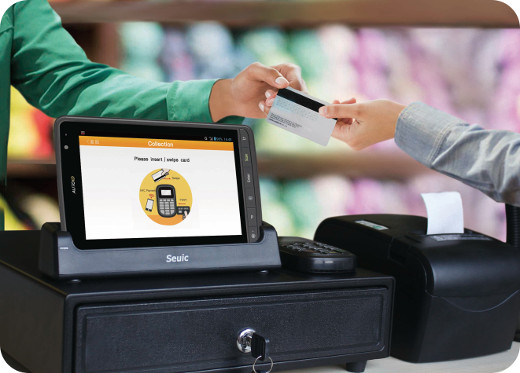

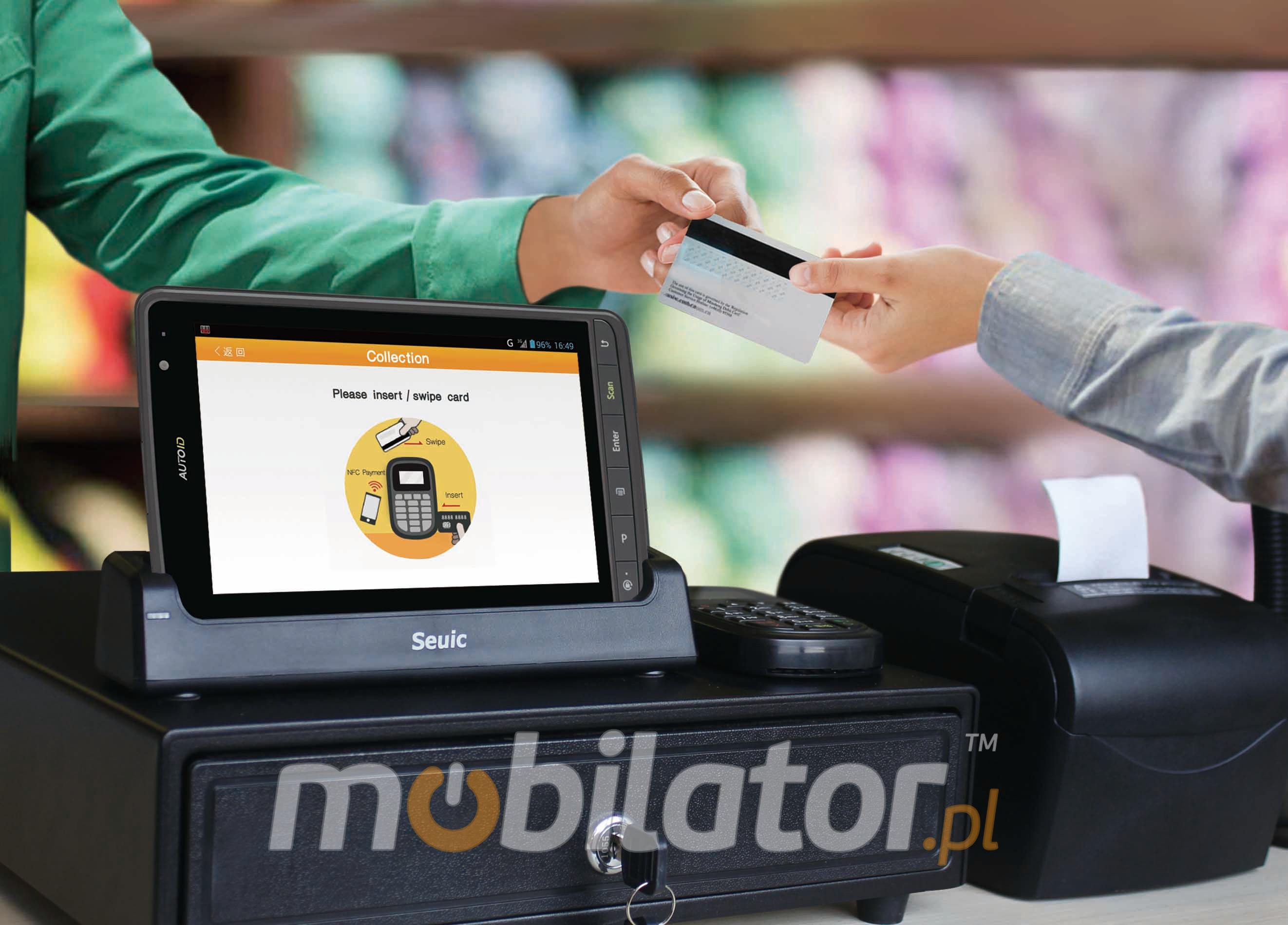

Near Field Connection (NFC)

Its a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less.

Frequency 13.56MHz
Read distance 0 - 5 cm (ISO15693), 0 - 3.5cm (ISO14443A/B)
Card standard Mifare
Supported standards ISO15693, ISO14443A/B, ISO14443A

Resistance

back to top... menu…

Work temperature -20°C – +50°C
Storage temperature -40°C – +60°C
Humidity 5% – 95% Bez kondensacji
Drop resistance 1.2m

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

mobipad apad 4g wi-fi tablet rugged industrial nfc 2d scanner

No protection 0 0 No protection
Protection against any large surface of the body, such as the back of a hand 1 1 Protection against vertically dripping water
Protection from object > 12mm, e.g. Fingers or similar objects 2 2 Protection against vertically dripping water when device is tilted at an angle up to 15 degrees
Protection from object > 2.5mm, e.g tools, thick wires, etc. 3 3 Protection against direct sprays of water when device is tilted at an angle up to 60 degrees
Protection from object > 1mm, e.g. most wires, slender screws, large ants etc. 4 4 Protection from sprays and splashing of water in all directions
Dust protected - Ingress of dust is almost entirely prevented. 5 5 Protection from low pressure water projected from a nozzle with a 6.3mm diameter opening in any direction
Dust tight - No ingress of dust, complete protection against contact. 6 6 Protection from water projected in powerful jets from a nozzle with a 12.5mm diameter opening in any direction
7 7 Protected from immersion in water with a depth of up to 1 meter (or 3.2ft) for up to 30 mins
8 8 Protected from immersion in water with a depth of more than 1 meter

The battery at its best

High quality Li-Ion battery provides a long operating life under severe temperature conditions. With MobiPad Apad you can easily work out at temperatures as low as -20 ° C.

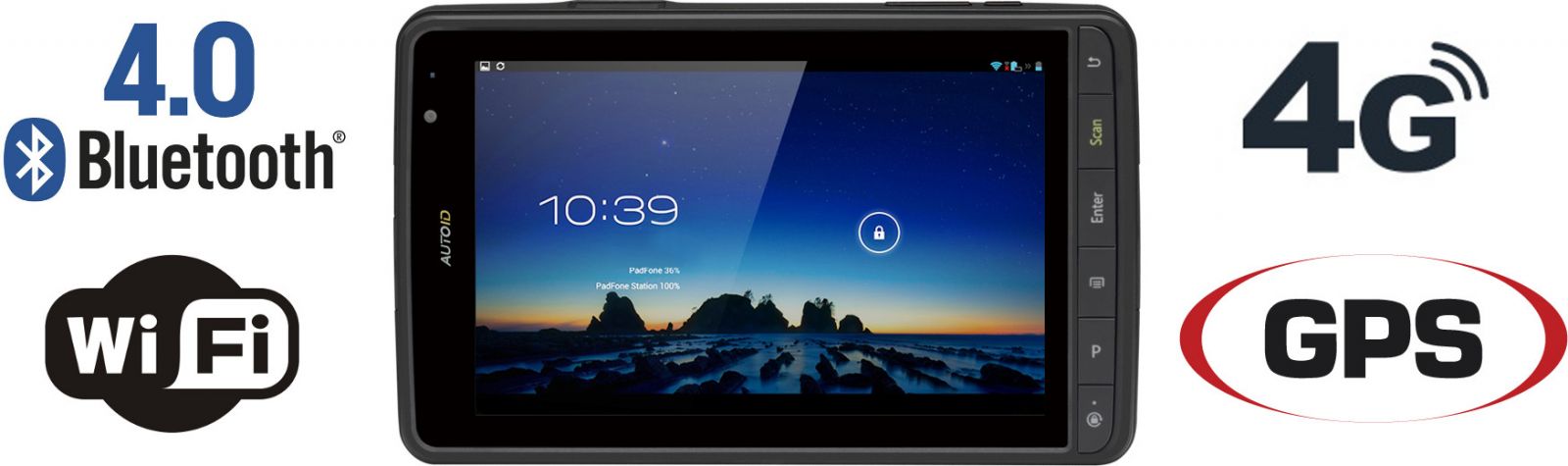

Modules and wireless networks

back to top... menu…

Real-time data access to the right information is very important to mobile users. Apad offers 4G, GPS, WiFi 802.11 a/b/g/n, Bluetooth 4.0 which enable users to get connect in the way that best suits their needs. With built-in 8 Mega Pixels camera on rear side, users can capture photos, videos, documents instantly, or utilize the front 2 Mega Pixel camera for application such as user self video recording, or video communication.



mobipad apad 4g wi-fi tablet rugged industrial nfc 2d scanner



Wi-Fi IEEE 802.11a/b/g/n
GPS GPS | GLONASS | Beidou | AGPS
4G GSM:850/900/1800MHz
TD - SCDMA : Band34, Band39
WCDMA : Band1, Band5
CDMA 1x /EVDO : BC0
TDD - LTE : Band38 , Band39 , Band40 , Band41
FDD - LTE : Band1 , Band3
Phone calls Yes

Thanks to the WCDMA module, you only need to insert a SIM card in the slot and you are able to instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 4G module used in MobiPad Apad adjusts automatically to transfer and network coverage.

Minimalism and comfort

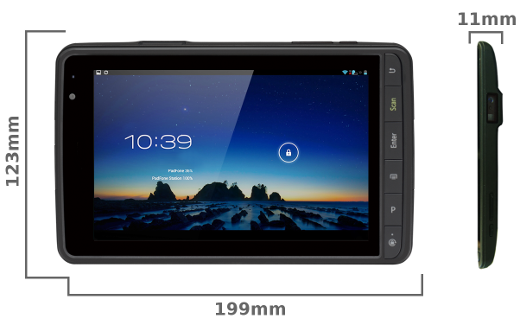

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, this problem disappears forever with MobiPad Apad. The device weighs just 485g and its dimensions (123 × 199 × 11mm) allow you to take this device everywhere.

mobipad apad 4g wi-fi rugged tablet industrial nfc 2d scanner dimensions
