Smart Watch 1D/2D (Zebra SE2707) Mobile 1D/2D Barcode Scanner
|
|
| CURRENT PRICE |
| 307.79 € |
Net |
| 378.58 € |
Gross |
|
Compare all versions
|

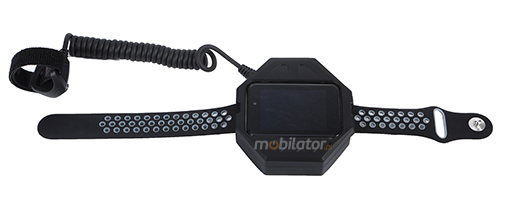

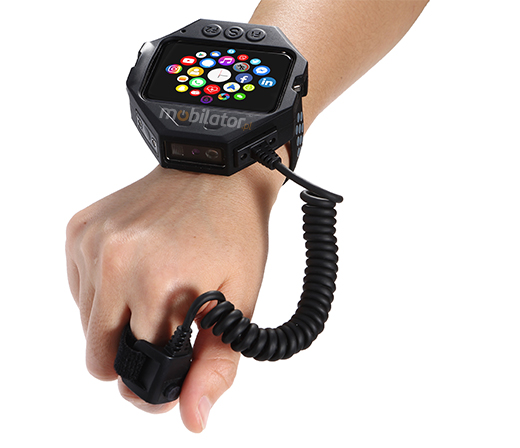

Industrial barcode scanner Smartwatch, its 2.8 inch tablet adapted to work with FingerRing 1D/2D barcode scanner. Device passed specialist tests and obtain high norms of durable and resistant like IP42 and drop up to 1.0m
To produce rugged industrial tablet used high quality materials. Inside of device mounted professional modules and components makes that device is not only durable but also very efficient.
|
Specification of device is on the bottom of this description. To find more details click on "Tecnical data" overlap.
|
 |
2.8 inch IPS display with resolution 640 x 480 pixels show high quality image, making possible to comfortable work for eyes. To ensure better protection, screen is secure by hardened glass pane GorillaGlass3. Thanks this solution display becomes resistant against scratch and tension.
.jpg)

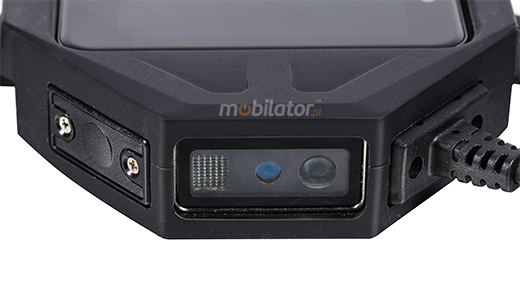

Barcode scanner, its one of the basic industrial modules increase effinency of work i places where barcodes are using. Thanks technology development modern readers are more efficent and precise.
| Scanner 1D (optional) |
| Type of scanner |
1D |
| Type of matrix |
CCD |
| Type of reading barcodes |
1D |
| Support barcodes |
UPC-A, UPC-E, UPC-E1, EAN-13(ISBN/ISSN), EAN-8, Code 39(code 32,
Trioptic code 39), Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar,
Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11, MSI/Plessey, China Post,
GS1 DataBar(GS1 DataBar Truncated), GS1 DataBar Limited, GS1 DataBar Expanded. |
| Scanner 2D |
| Type of scanner |
2D |
| Type of matrix |
CMOS |
| Type of reading barcodes |
1D and 2D |
Support barcodes |
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc. |
One of the important element which strengthens construction of the shockproof tablet Smartwatch 2D is hardened glass GorillaGlass3 providing better protection of display. This solution makes that screen is less susceptible for scratch and tension relative to normal glass.
IP42 norm is granted to devices which pass series of specialist tests exploring their durability for dust and water. IP norm consist of two digitals. First means the level of dust resistance, second to water.
Full specification of IP norms.
| Rugged rate |
| Operate temperature |
-10°C -- +50°C |
| Storage temperature |
-40C -- +70°C |
| Humidity |
95% |
| Drop |
1.0m |
Dustproof tablet Smartwatch 2D might be equipped with a number of wired and wireless data transferable comonents and accurate location. In standard device has WiFi and Bluetooth for easy data transfer and high accuracy GPS to determine your possition. Additional build-in 4G module(after set SIM card to slot) making possible to wireless connection to Internet.
| Available modules |
| 3G |
WCDMA (900 / 2100 MHz), HSDPA 7.2Mbps, HSUPA 5.76Mbps |
| 4G |
FDD LTE: Band 1/2/3/4/5/7/8/20 |
| GPS |
GPS |
| WiFi |
Dual band 802.11 a/b/g/n |
| Bluetooth |
Bluetooth 4.0 |
| Camera |
Rear 5 Mpx |
|
Type of installed modules depends of chosen version of device. Table with all available options is on the bottom of this description.
|
|
Strengthened Smartwatch was design with mind to meet the needs of the widest possible audience. Professional parts like processor, high prerformance RAM memory, fast Flash and expanded communication module makes that industrial Smartwatch 2D meet the most demanding tasks.

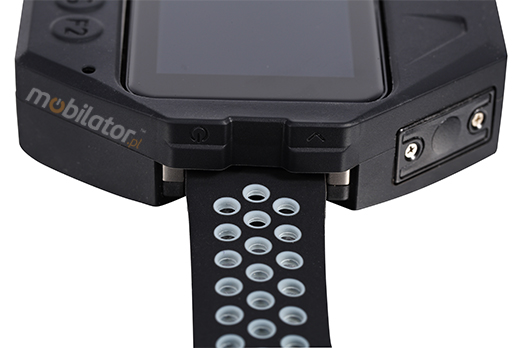

Equipped with additional expansion connectors, docking connector and functional keys makes that utility and mulittasking of device increase. In cooperation with enhanced housing of the Smartwatch 2D which provides to high resistant against water, dust and fall whole product become much more attractive.
| Physical features |
| Dimensions |
118 mm × 91 mm × 33mm |
| Weight |
273g |
Trade and Services
Sales representatives often offer more produtcs so its difficult to have all of them with You. In this situation thanks rugged tablet all products, their prices, availability and apperance can be present by mobile vendor.
Architecture
Hard conditions on the construction site its a nightmare for miost devices. High pollination an other adverse environmental factors make it almost impossible for them to work. This does not apply to the Smartwatch 2D, which thanks rugged rates can handle them in extreme conditions.
Industry
It's another area where Smartwatch will take full advantage of its potential. High level of humidity, temperature fluctations, water and dust will not interfere with his work. Extremely durable makes that tablet can be use in places with hard conditions, for example in cold room and sawmill.
Warehouse
Efficient and functional data collection device are the basis of all modern warehouses. Installed barcode scanner in Smartwatch 2D is one of the best readers used today allowing You to conveniently and quick scan your assortment.
Table below presents techical data of this device. Type of installed modules depends of chosen version. Look at table with device's versions on the bootom of description.
More details about acctually chosen version You can find in "Technical data" overlap which is on the top of description.
| Display |
| Size and resolution |
2.8 (640x480) |
| Type of display |
LCD |
| Type of touch |
Capacitive (10-point) |
| Protection |
Gorilla Glass 3 |
| Screen ratio |
4:3 |
| Processor |
| Model |
MediaTek MT6739 |
| Timing |
1.5 |
| Cores |
4 |
| Graphic |
| Model |
Adreno 205
|
| RAM memory |
| Capacity |
1GB |
| Type of memory |
DDR3L |
| Flash memory |
| Capacity |
16GB |
| Type of memory |
EMMC |
| Camera |
| Rear |
5 Mpx |
| Operating system |
| Android |
Android 5.1 |
| Battery |
| Capacity |
2700mAh |
| Tension |
3.8V |
| Type of battery |
Li-Ion |
| I/O ports |
| Network and communication |
microSIM card slot | WiFi | Bluetooth |
| Audio |
Microphone | AudioJack | Speaker |
| Other |
Pogo Pin |
| Modules |
| 3G |
WCDMA (900 / 2100 MHz), HSDPA 7.2Mbps, HSUPA 5.76Mbps |
| 4G |
FDD LTE: Band 1/2/3/4/5/7/8/20 |
| Positioning |
GPS, support Beidou, Glonass |
| Data input |
| Keyboard |
On screen |
| Functional keys |
Volume control | Scanner | Power |
| Readers |
| Scanner 1D |
1D Zebra SE965 (option) |
| Scanner 2D |
2D Zebra SE2707 |
| Size |
| Weight |
154g |
| Dimensions |
95 mm x 110 mm x 83 mm |
| Certyfications |
| Level of security |
IP42 |
| Additional |
CE, Rohs, FCC, 1.0m drop test(500 times), IP42 |
|
Compare all versions
| Supported Operating Systems: |
Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Windows 10, Linux, MAC |
| Internal memory: |
512KB |
| Operation Voltage: |
5V - 300mA - DC |
| Reading indicator: |
1D/2D |
| Dimensions: |
55 x 39.2 x 51.2 mm |
| Weight: |
65g (include battery) |
| Battery: |
550 mAh Li-ion |
| Housing material: |
ABS+PC |
| Scan rate: |
100 times/sec |
| Light source: |
Laser/CMOS |
| Resolution: |
640 x 400 |
| Communication distance: |
10m |
| Readable codes: |
2 of 5 Industrial，QR Code 2 of 5 Matrix，Codabar，Code - 39， Code - 39 Extended (full ASCII)， Code - 93，Code - 128 (A, B, C)， 2 of 5 Interleaved,EAN-8，EAN-13， Matrix 25，MSI， Post - China (4-State Postal Code)， Telepen Code，UPC - A，UPC - E， UPC - E1，Aztec，DataMatrix， MaxiCode，Micro PDF 417，PDF 417 |
| Sensor: |
2D (640x400) |
| Scan Angle: |
60⁰, 60⁰, 360⁰(Skew,Pitch,Roll) |
| Print Contrast Ratio: |
>20% |
| Scan range: |
（BASED ON CODE 39） 3.9mil:25mm-112mm; 10mil:31mm-420.5mm; 20mil:43mm-495mm; 30mil:64mm-537mm; 35mil:145mm-604mm |
| Cable Type: |
--- |
| Battery Life: |
4 h（continuously working） |
| Communication: |
Bluetooth 4.0 receiver
Bluetooth 3.0 inside scanner |
| Interface/ Pro le: |
HID/ SPP |
| Operating Temperature: |
0°C ~ 50°C |
| Storage Temperature: |
-20°C ~ 60°C |
| Relative Humidity: |
5% ~ 90%, non-condensing |
| Resistance IP: |
IP 65 |
| Drop test: |
Multiple drops 1.5m |
| Barcodes 1D: |
Barcodes 1D: |
| 2 of 5 Chinese: |
Yes |
| 2 of 5 Discrete: |
Yes |
| 2 of 5 IATA: |
No |
| 2 of 5 Industrial: |
Yes |
| 2 of 5 Interleaved: |
Yes |
| 2 of 5 Matrix: |
Yes |
| 2 of 5 Standard: |
No |
| BC - 412: |
No |
| Bookland EAN: |
Yes |
| Codabar: |
Yes |
| Codabar - NW7: |
Yes |
| Code - 11: |
Yes |
| Code - 11(USD-8): |
Yes |
| Code - 32: |
Tak |
| Code - 39: |
Yes |
| Code - 39 Extended (full ASCII): |
Yes |
| Code - 39 Trioptic : |
Yes |
| Code - 93: |
Yes |
| Code - 128 (A, B, C): |
Yes |
| EAN-8: |
Yes |
| EAN-13: |
Yes |
| EAN -128 / UCC-128: |
No |
| GS1 DataBar: |
Yes |
| Intelligent Mail: |
No |
| ISBN: |
No |
| ISBT - 128: |
No |
| ISSN: |
No |
| ITF-6: |
No |
| ITF-14: |
No |
| KIX code: |
Yes |
| Matrix 25: |
Yes |
| MSI: |
Yes |
| MSI - Plessey: |
No |
| Pharmacode - One Track: |
No |
| Pharmacode - Two Track: |
No |
| Planet: |
No |
| Plessey: |
No |
| Post - Australian (4-State Postal Code): |
No |
| Post - China (4-State Postal Code): |
Yes |
| Post - Japanese (4-State Postal Code): |
Yes |
| Post - Singapore (4-State Postal Code): |
No |
| PostNET: |
No |
| Royal Mail (RM-4SCC): |
No |
| Telepen Code: |
Yes |
| UK/Plessey: |
No |
| UPC - A: |
Yes |
| UPC - E: |
Yes |
| UPC - E1: |
Yes |
| Barcodes 2D: |
Barcodes 2D: |
| Aztec: |
Yes |
| Composite code: |
No |
| DataMatrix: |
Yes |
| MaxiCode: |
Yes |
| Micro PDF 417: |
Yes |
| Micro QR Code : |
Yes |
| PDF 417: |
Yes |
| QR Code : |
Yes |
| RSS: |
No |
| TLC-39: |
No |
