Fingering FS01P - mini barcode scanner 1D - Ring - Bluetooth
|
|
| CURRENT PRICE |
| 199.89 € |
Net |
| 245.86 € |
Gross |
|
Compare all versions
|
.jpg)
|
The company's MobiScan new distribution of Mobilator. Company achieved an excellent reputation as a manufacturer of bar code scanners. Due to the high position of the products in the high-tech won the trust of many customers around the world.
|
|
|
|
The bar code scanner is a device that allows read with barcodes from boxes or devices. Business accessories MobiScan porduktu guarantee high quality and serve for many years without any loss of quality.
|
|
Fingering FS01P - mini barcode scanner 1D - Ring - Bluetooth |
Barcode scanner
|
1D |
Working time
|
4 h（continuously working） |
|
Support system |
Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Windows 10, Linux, MAC |
|
Range |
10 m |
|
Communication |
Bluetooth 3.0 |
|
Dimensions |
55 x 39.2 x 51.2mm
|
Weight
|
65g |
|
Other |
Adapter Bluetooth 4.0 (optional) |
|
The detailed specification of the configuration available in the "Technical data" |
|

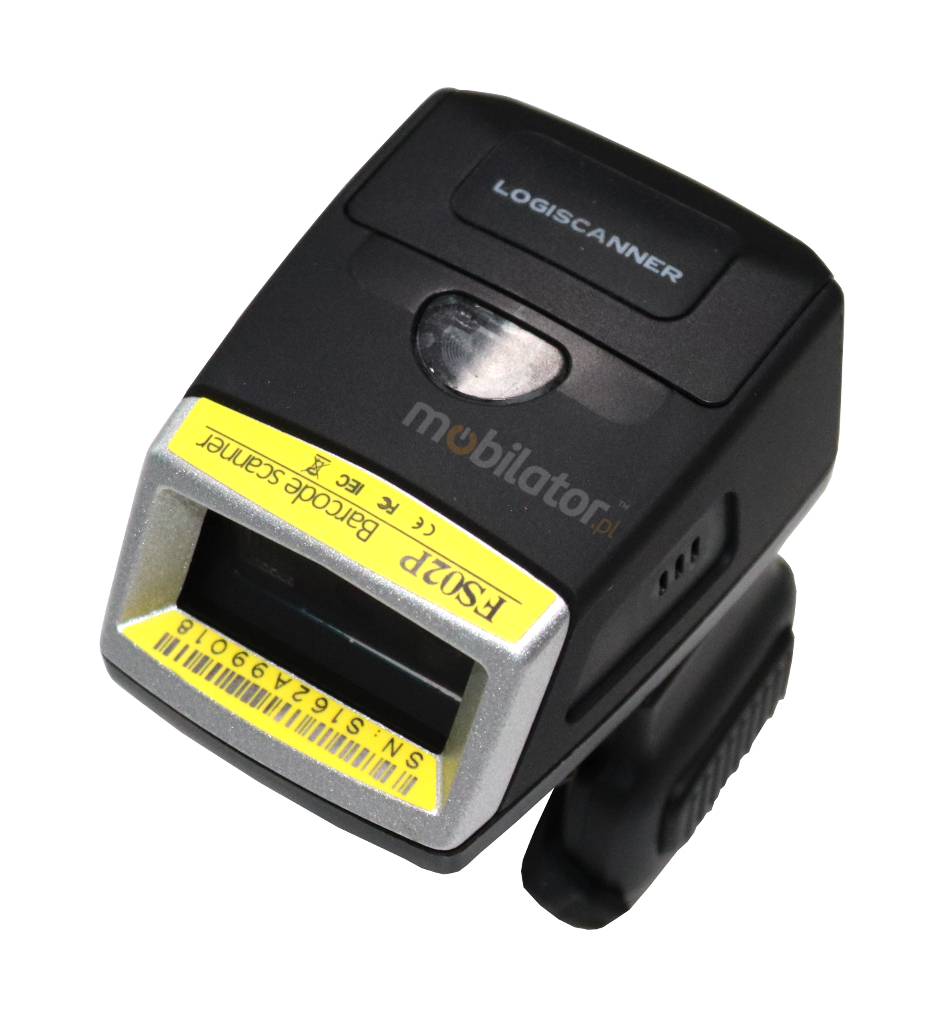

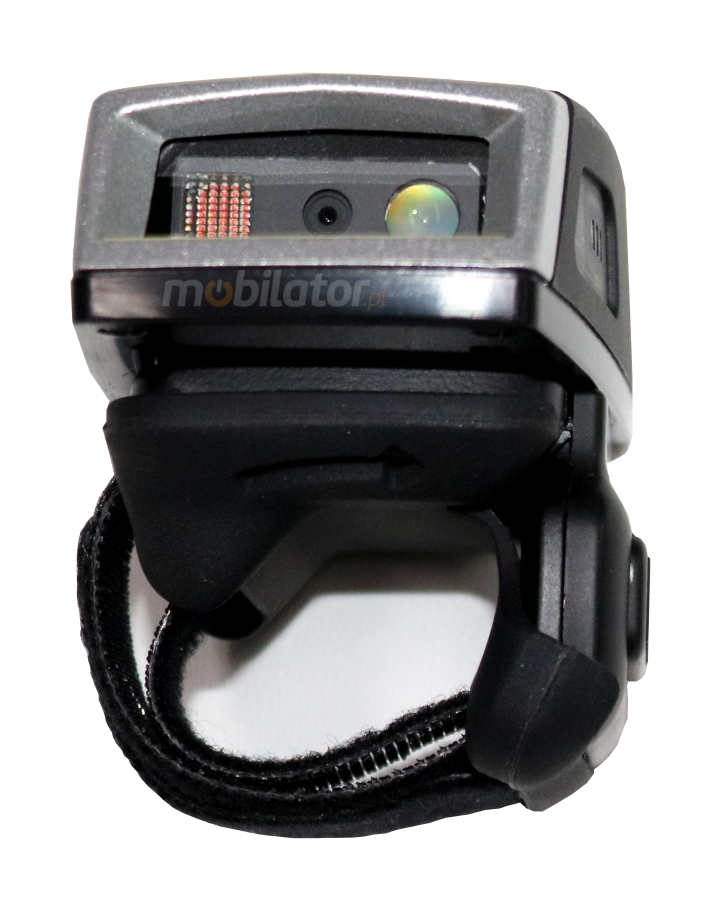

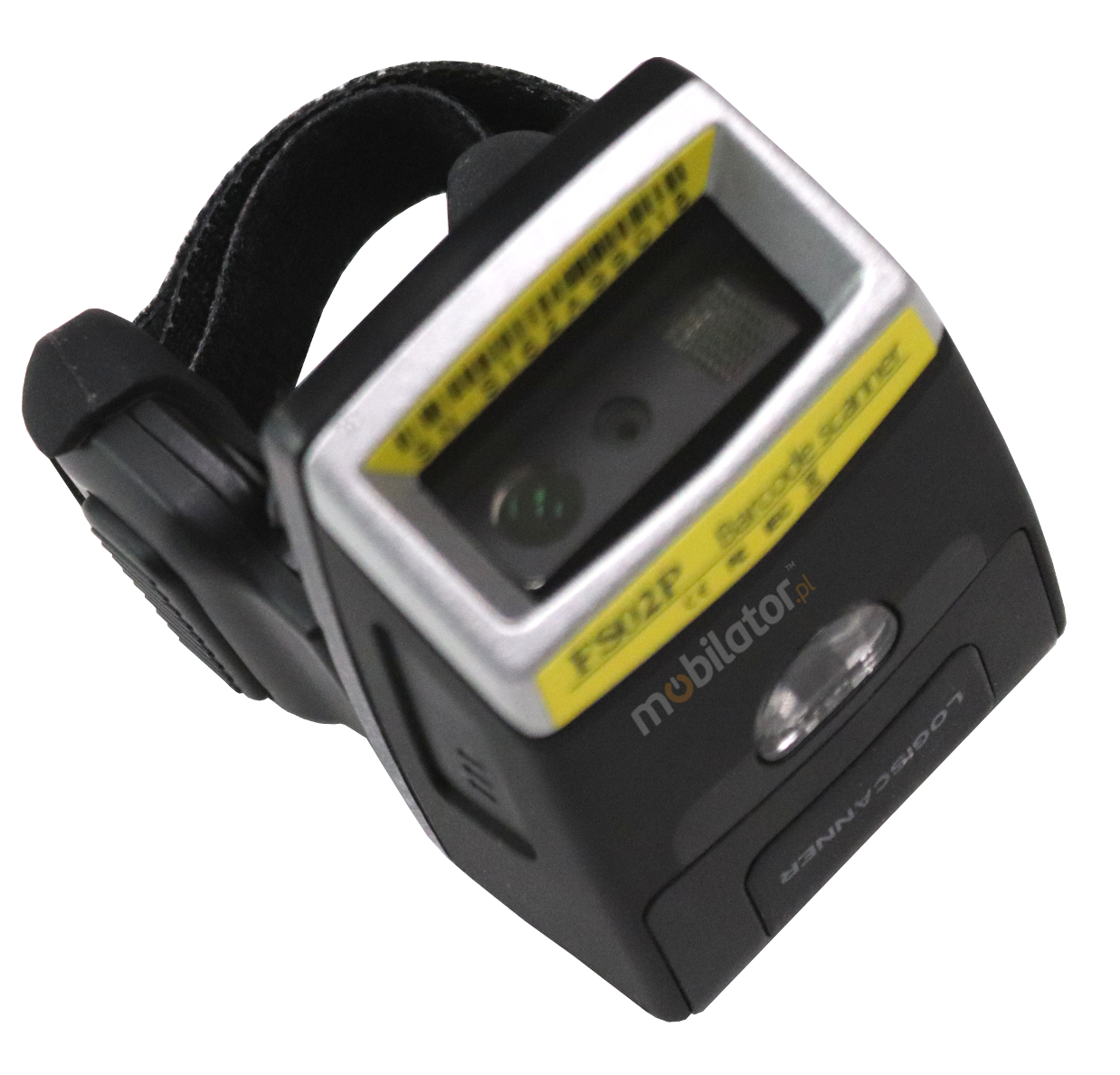

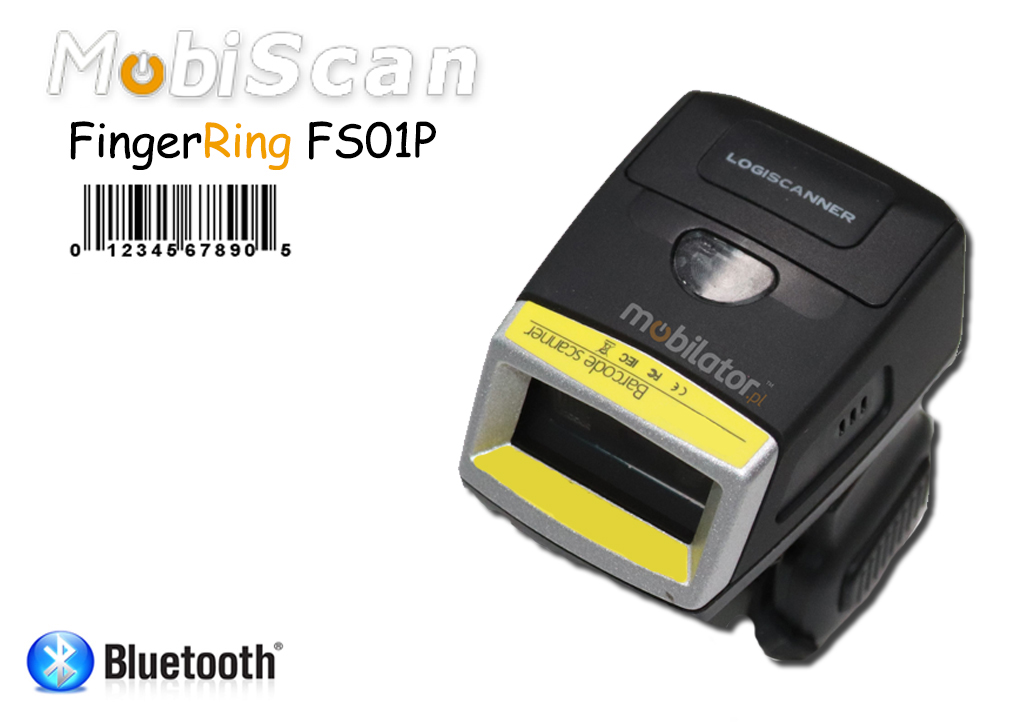

MobiScan Fingering FS01P is small size and powerful new generation barcode scanner.It design for picking and sorting application ,enable your operator to free hand and improve operational efficiency in your warehouse,distribution center and retail store. You never need setting an item down to check paper work order or picking up handheld scanner. Operator even no need to put heavy pakage to the desktop for scan ,it will save more time and physical strength. Compare with common wired handheld scanner, FS01P wearable scanner can increase 15% -30% productivity !
 MobiScan Fingering FS01P intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers and logistics, quality controllers and inspectors of manufacturing processes and all those who need to work cataloging and storing the information read from the barcode .
2D Barcode Scanner - Fingering FS01P through Bluetooth module (which provides reliable communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).

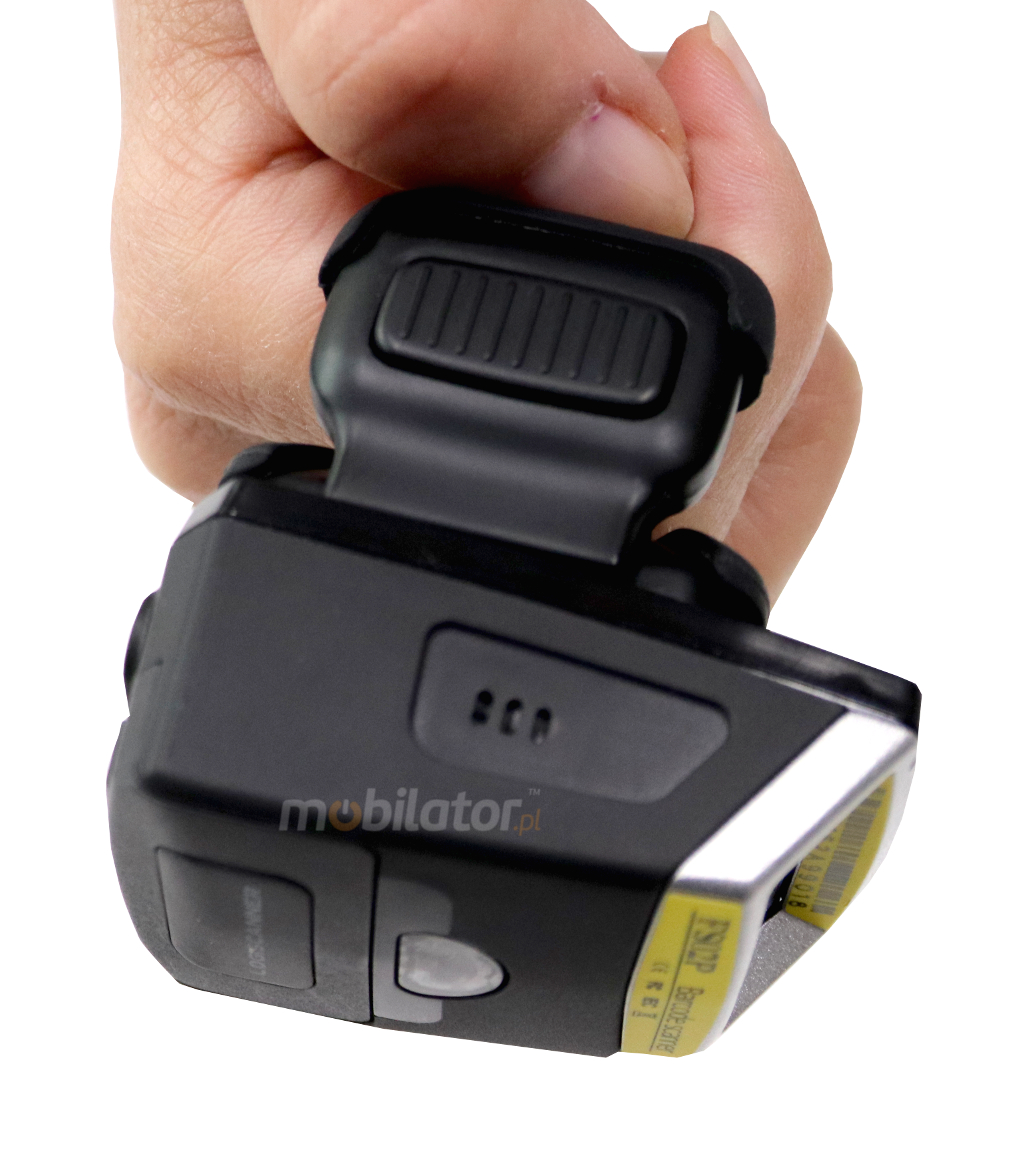

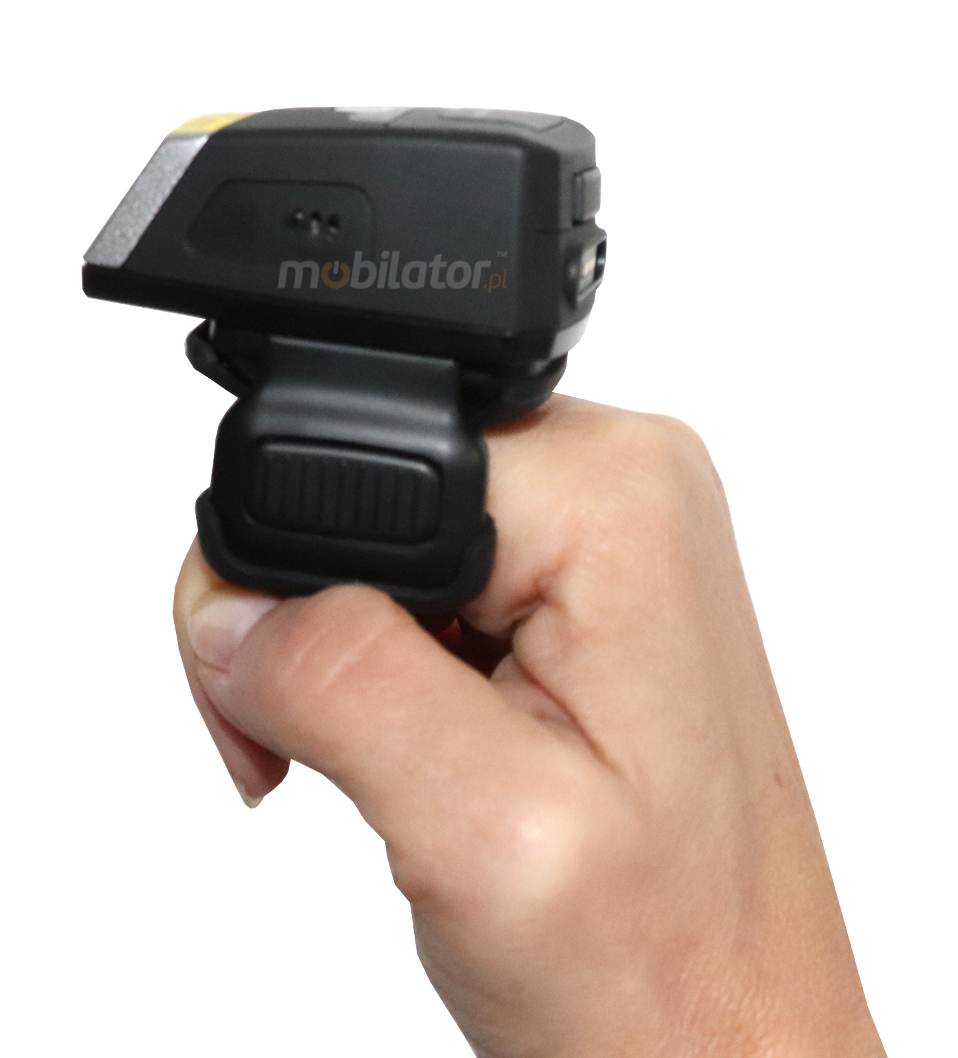

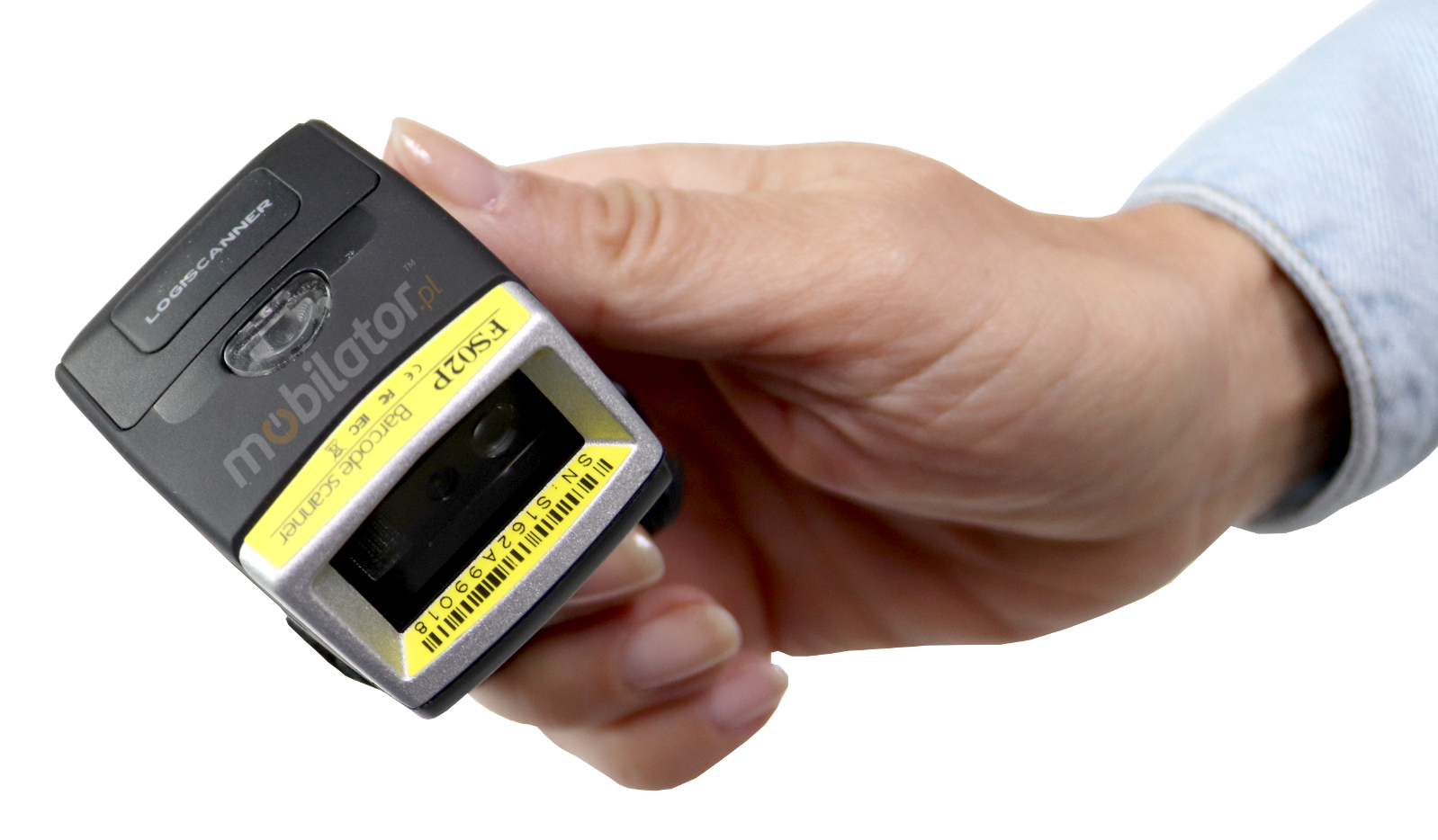

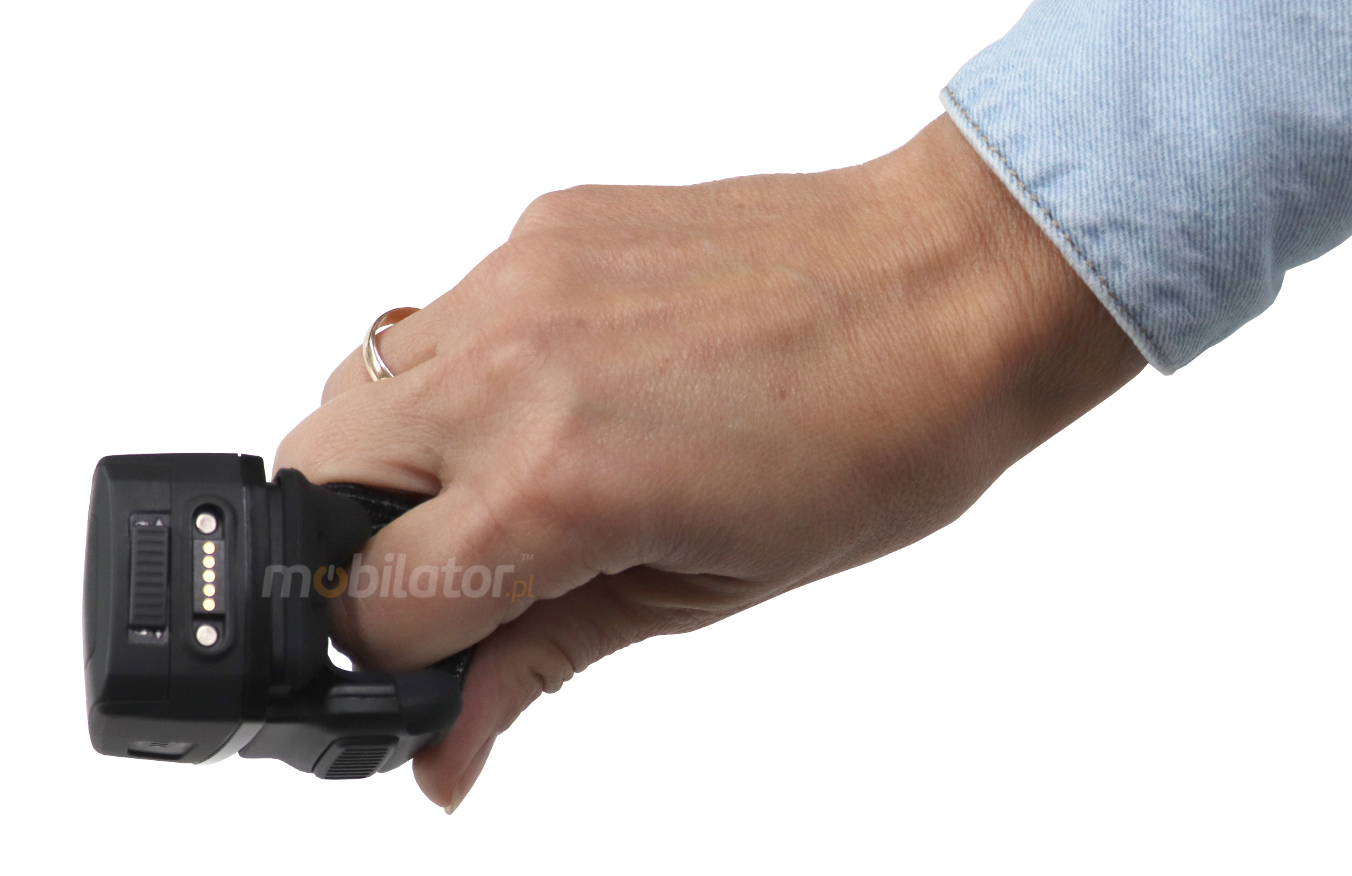

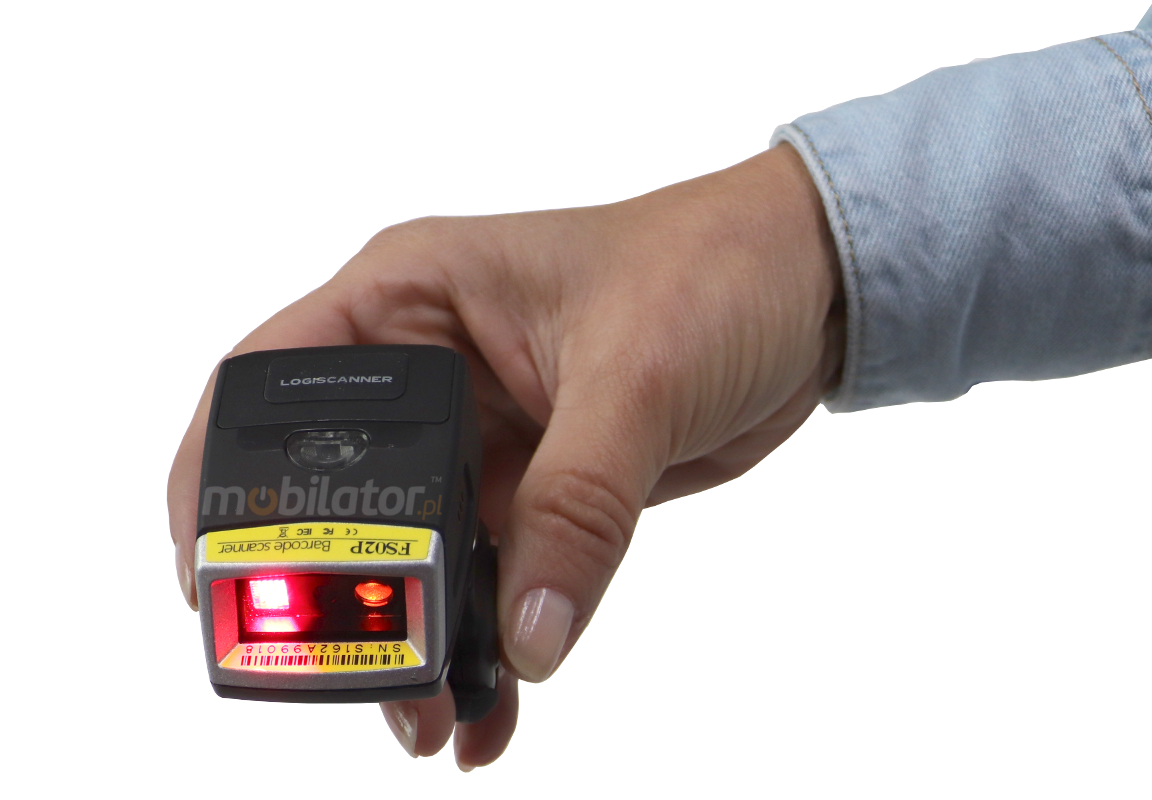

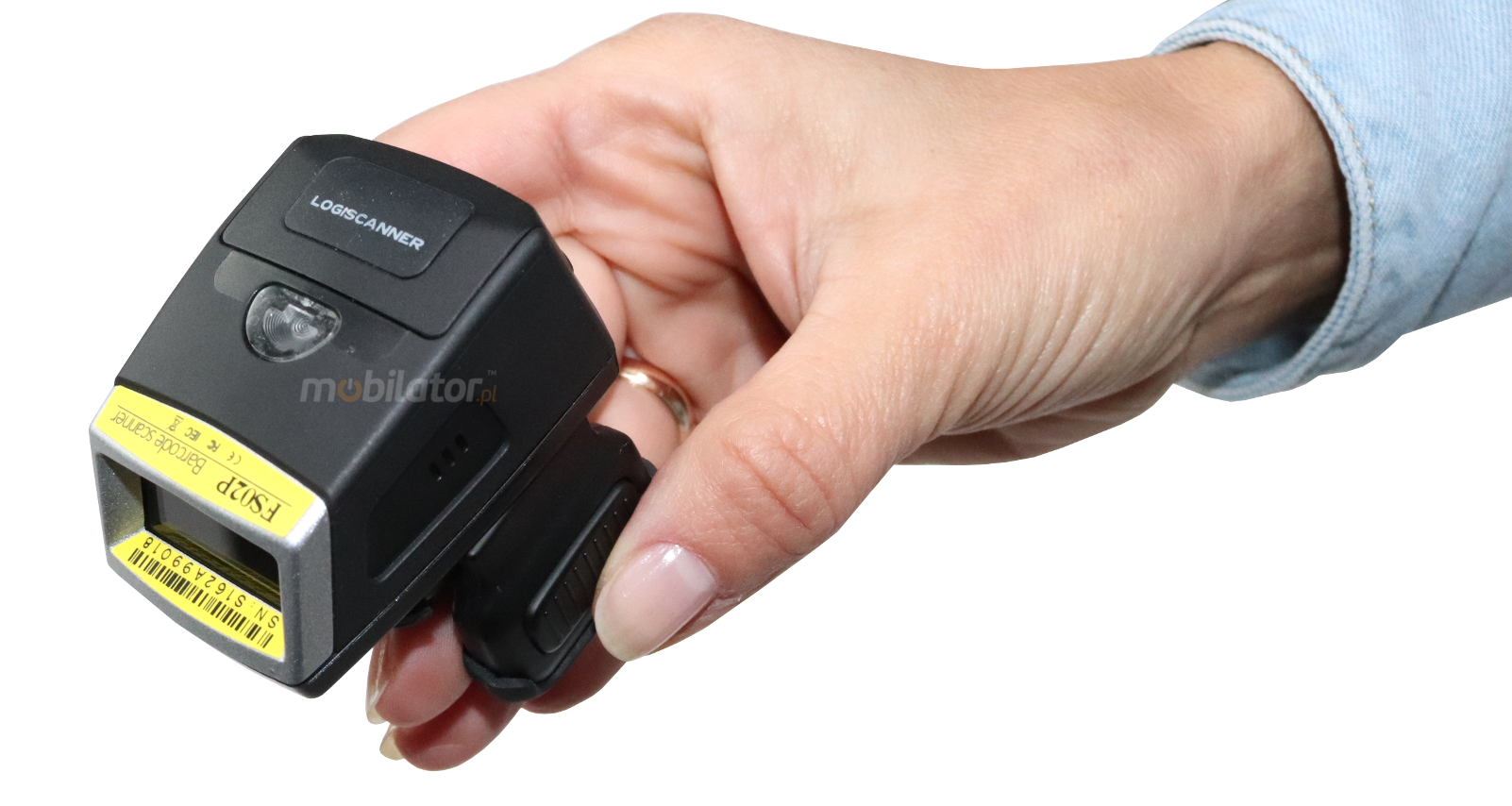

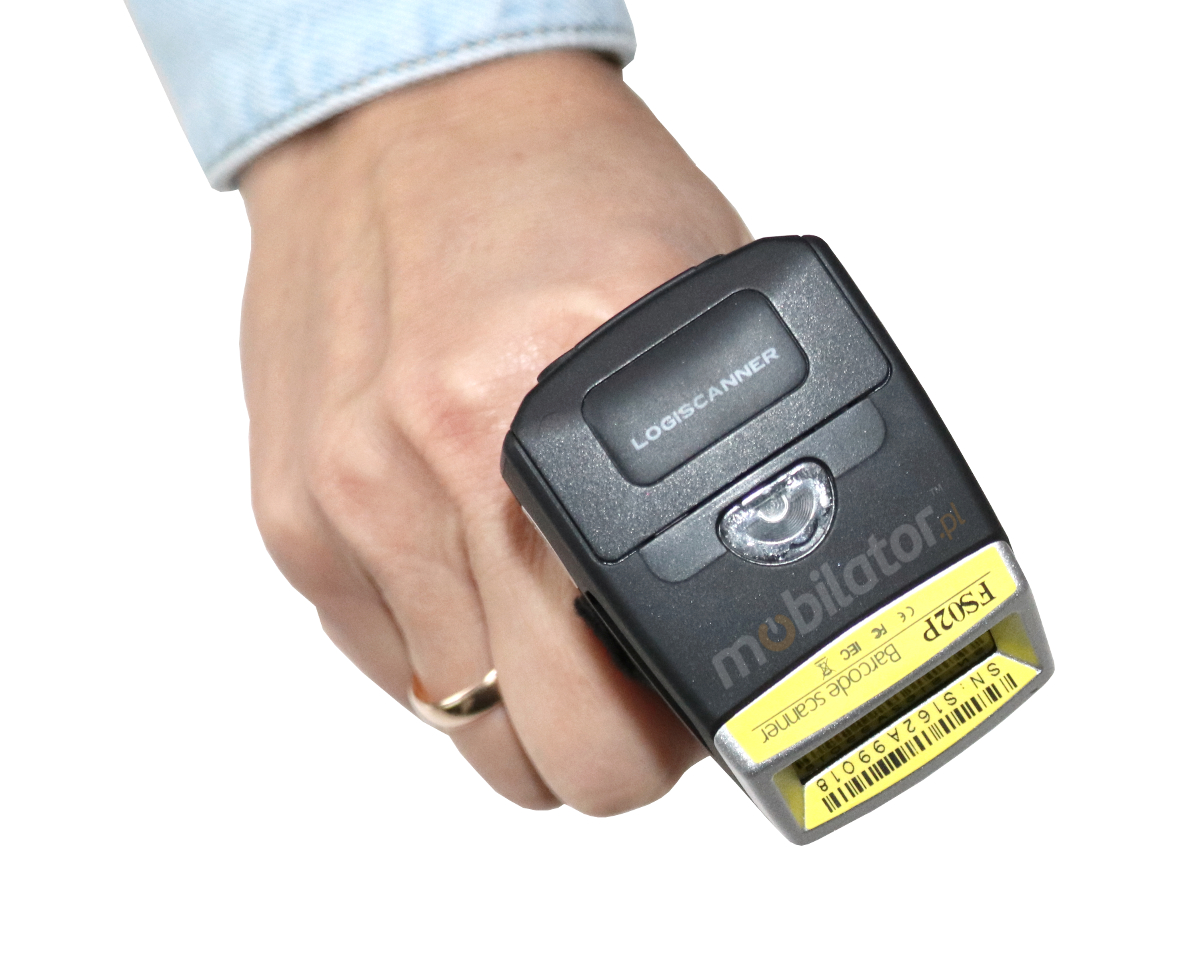

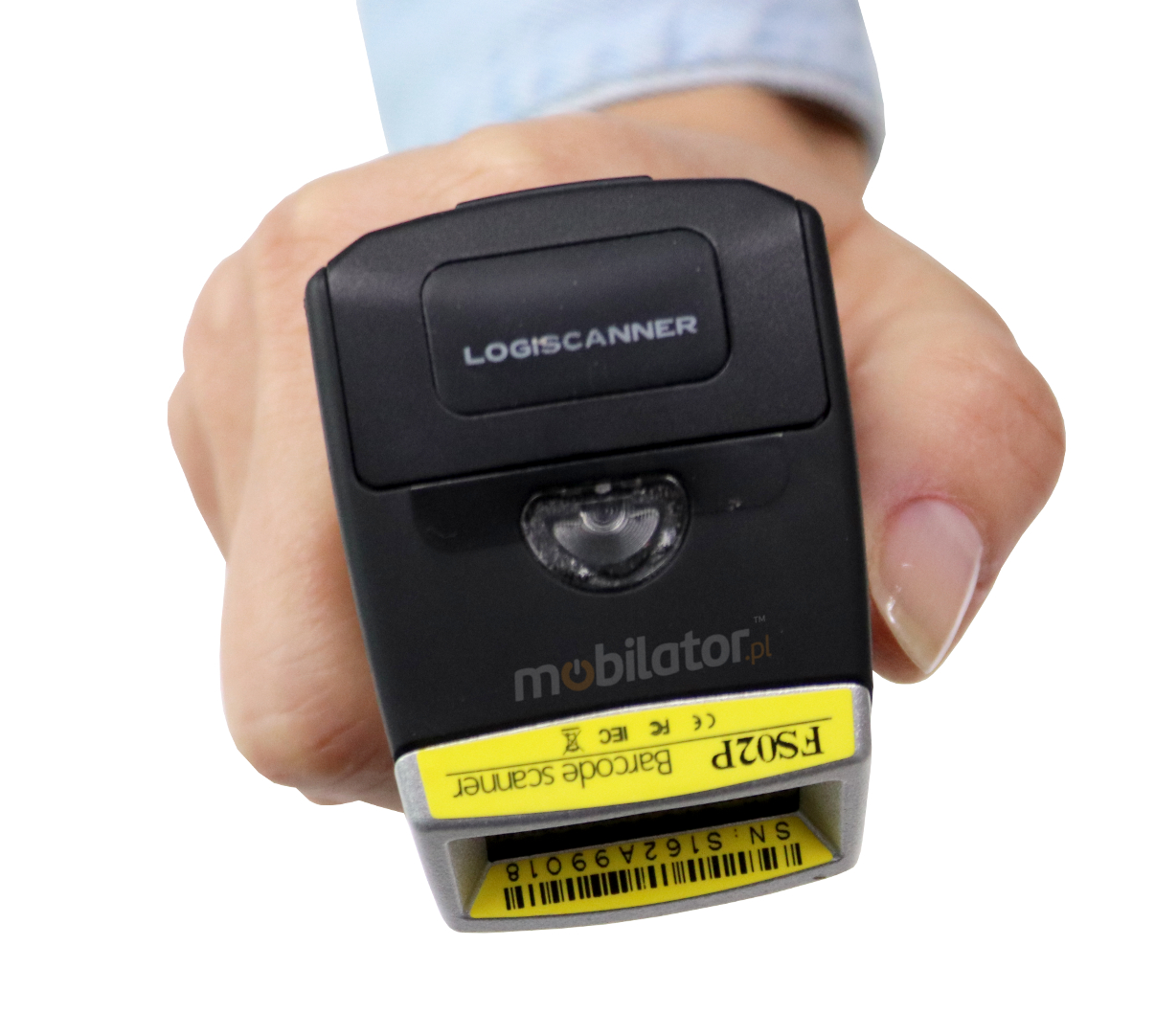

 FingerRing wearable ring scanner enable operator to move package ,products and materials,helping to increase more efficiency, It is very comfortable to wear it in whole working day ,with high performance laser scan engine ,even poor printed barcode can be read.The rugged rubber shell make daily use reliable even in the roughest environments.
 FS01P is equipped with a Li-Ion battery with sufficient capacity 550mAh, which allows the scanner to work about four hours in scan mode (continuously working).
|
 The present device has a built-2D barcode reader that connecting via Bluetooth with your device. It provides information such as the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data. |
|
.jpg)
Designed to be tailored to different applications, wireless (Bluetooth) barcode scanner can be compatible with Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Windows 10 and Linux. Users can send data directly to a PC or in real time to mobile devices.

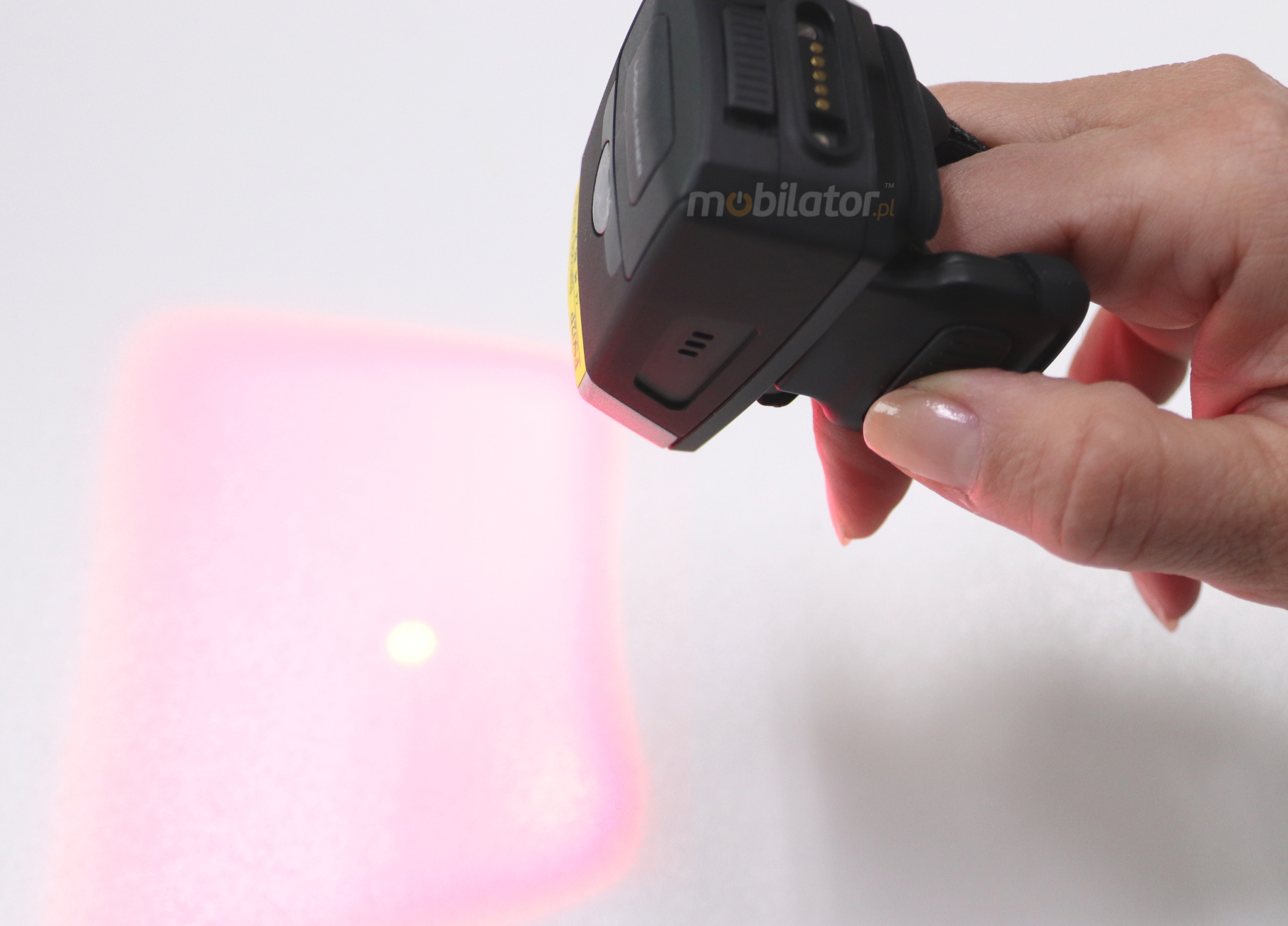

Portable (radio and bluetooth-arid) barcode readers using laser technology are comfortable and easy to use, with wide possibilities to set parameters. Enable automatic operation and manual. Read codes with different contrasts with a distance of several centimeters. The use of wireless communication (Bluetooth or radio) offer a range of up to 20m from the computer.
The device uses the HID interface
To scanner devices need to use the right software to a Bluetooth port collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.
If we have the right scanner (USB HID) - when barcode in fact our introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswaæ text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.
Supported Bluetooth profiles SPP system.
SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment).
Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .
|
|
|
|
|
|
Compliance standards and tests performed
|
Work |
0° do 50°C |
|
Humidity |
5% do 90% (No condensation) |
|
Dust |
IP6x (dust) |
|
Water |
IPx5 (Water splashes) |
|
Drop |
Multiple Drop 1.5m |
go top…  menu…
Resistance IP65
Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.
do góry… menu…
|
.jpg)
do góry… menu…
|
Fingering FS01P - mini barcode scanner 2D - Ring - Bluetooth which the manufacturer recommends widely used in situations where it is necessary to rapidly identify the goods in commerce, logistics, transport, shipping, industrial, financial and public sectors.
Accessories

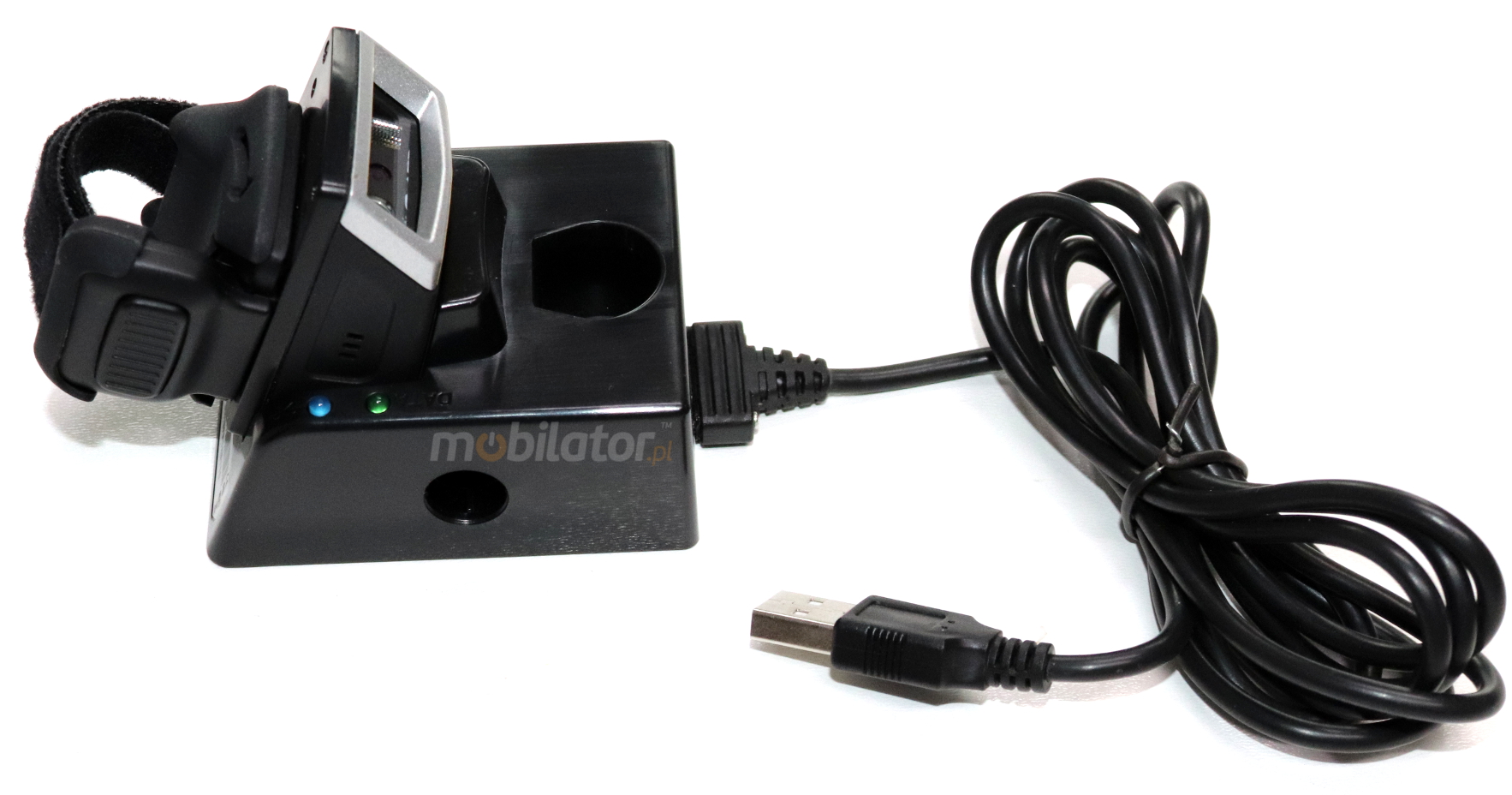

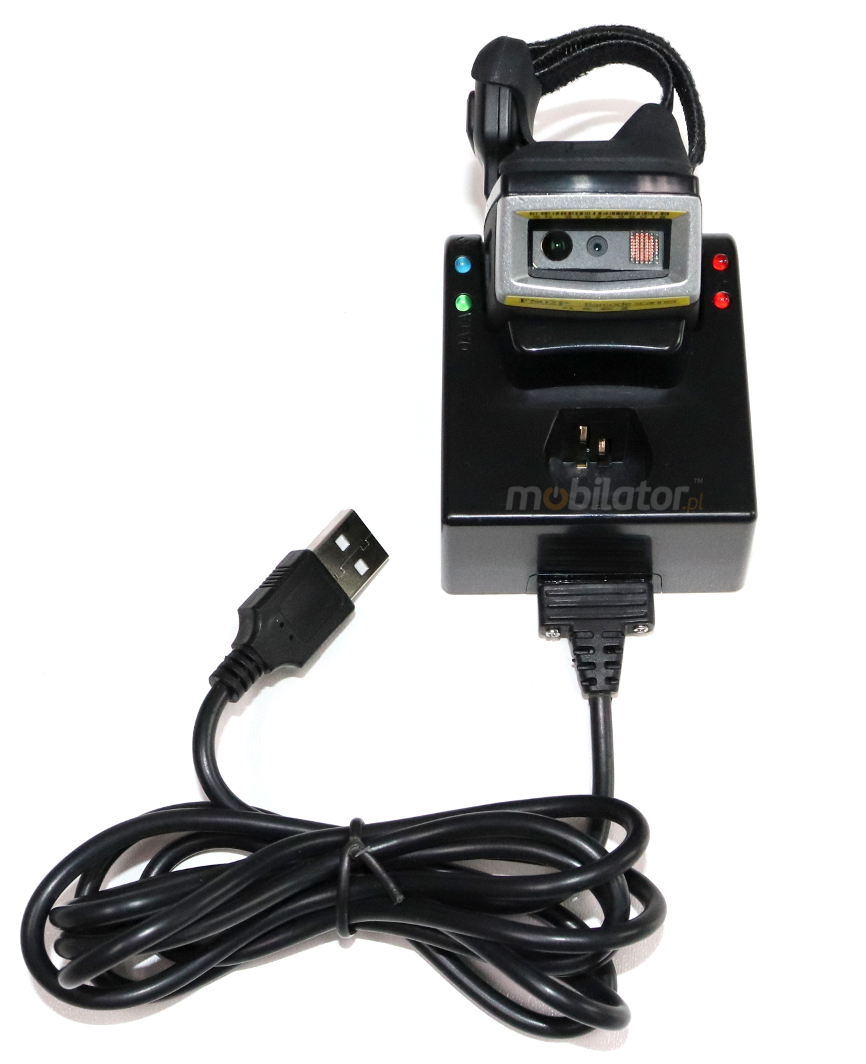

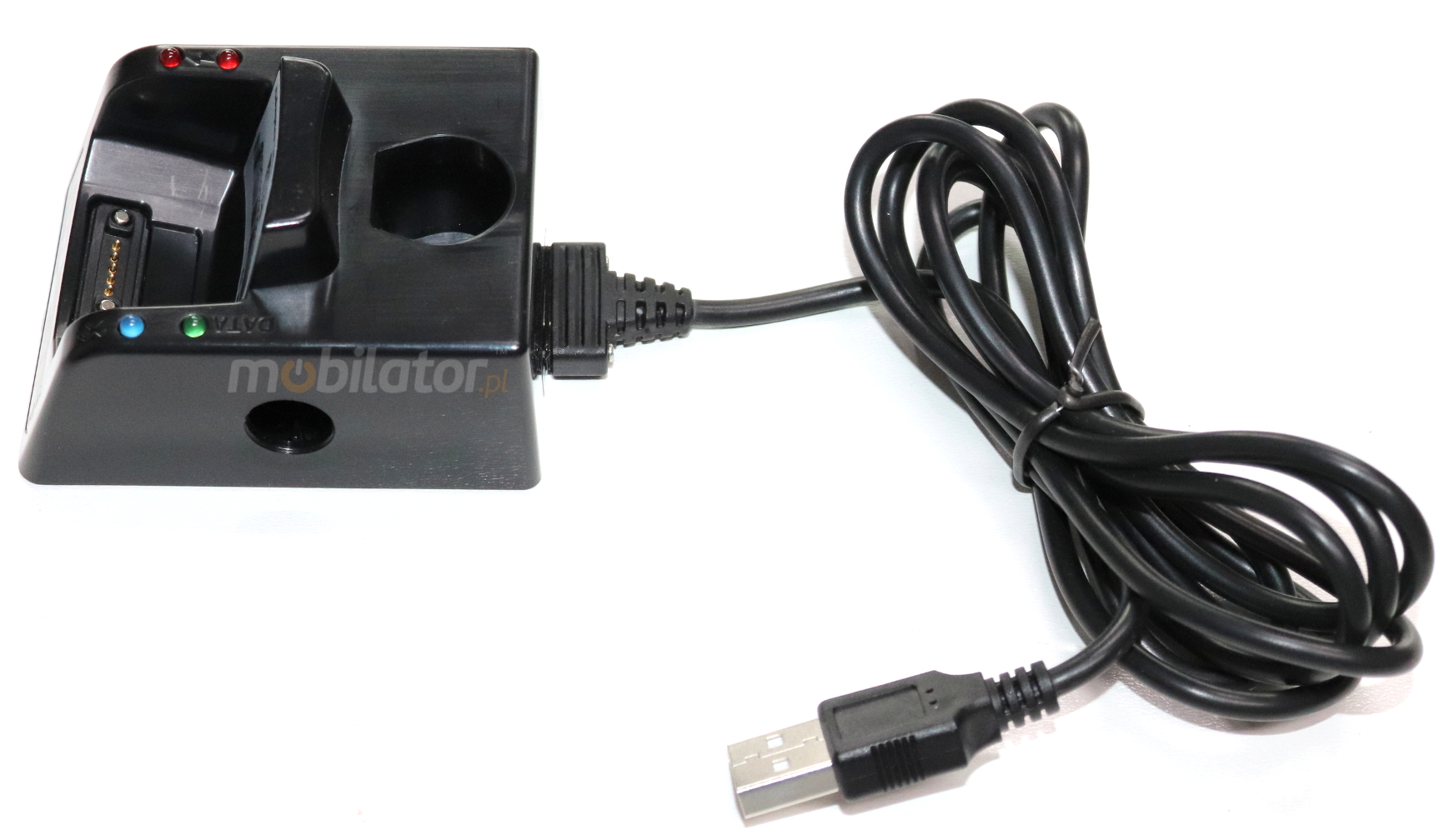

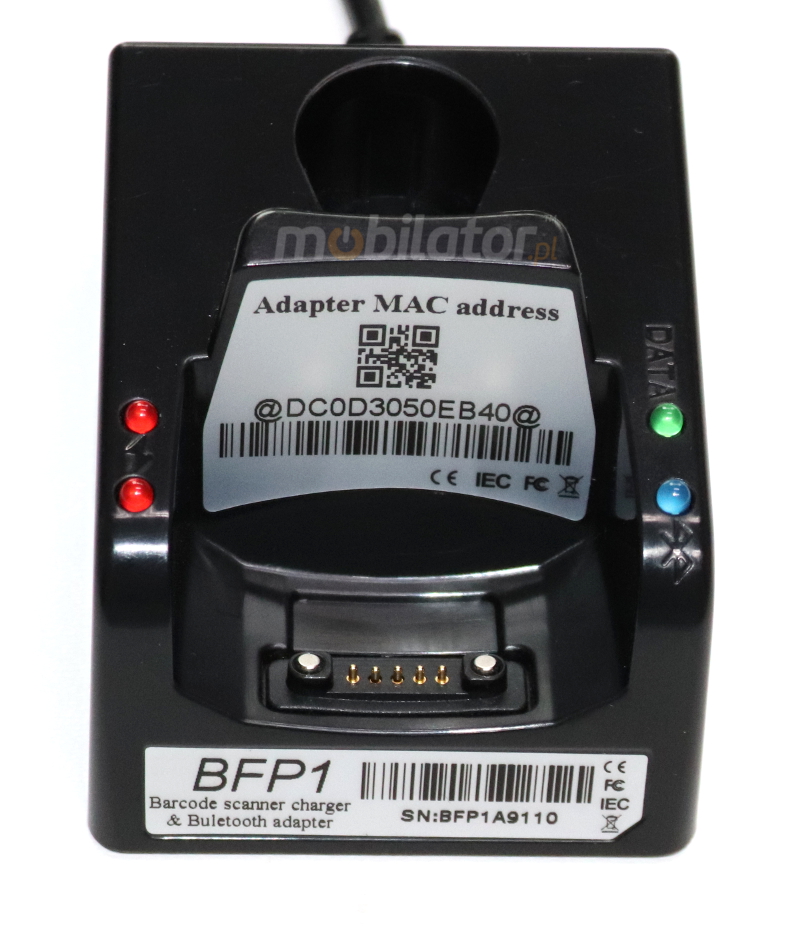

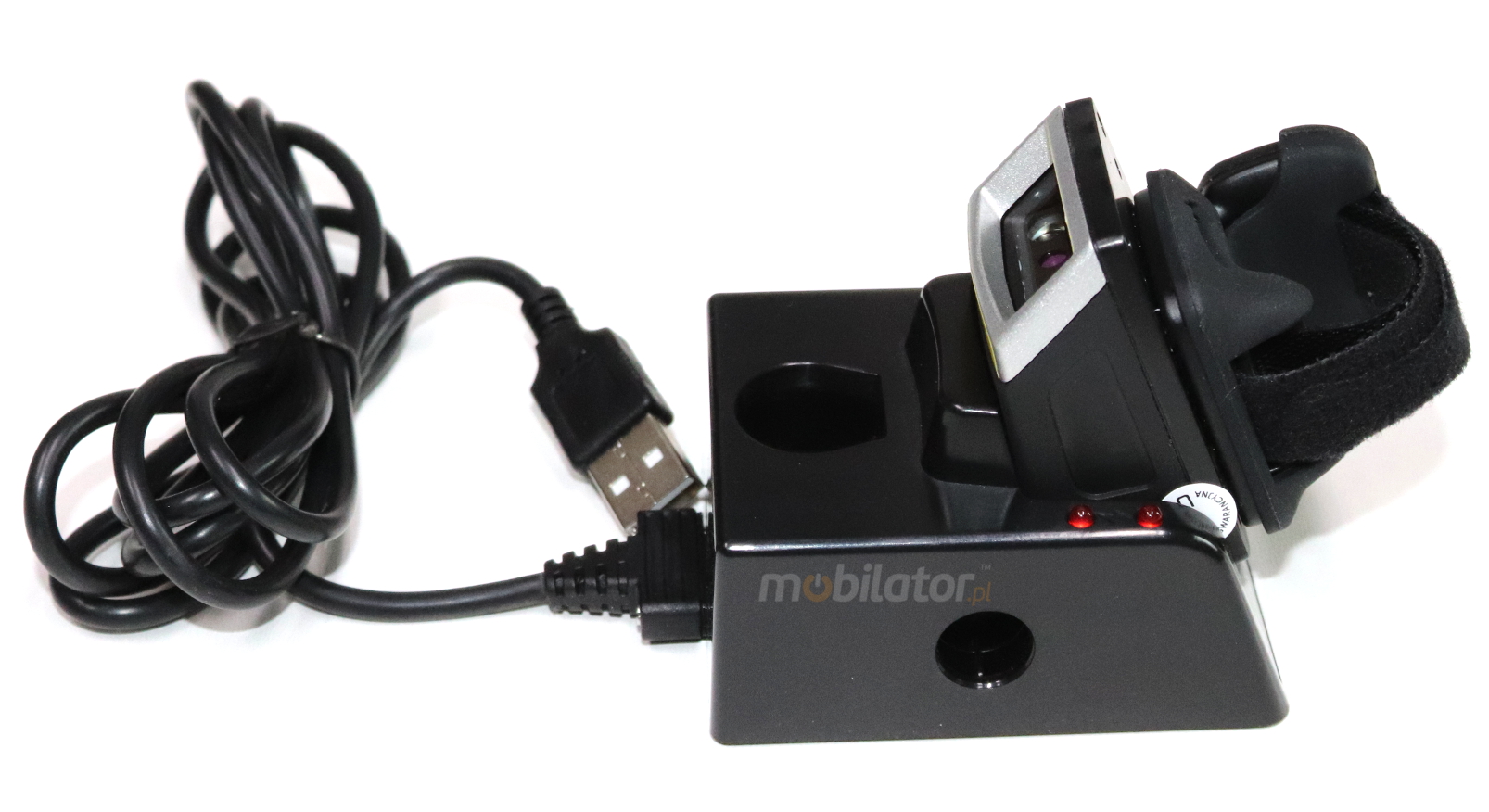

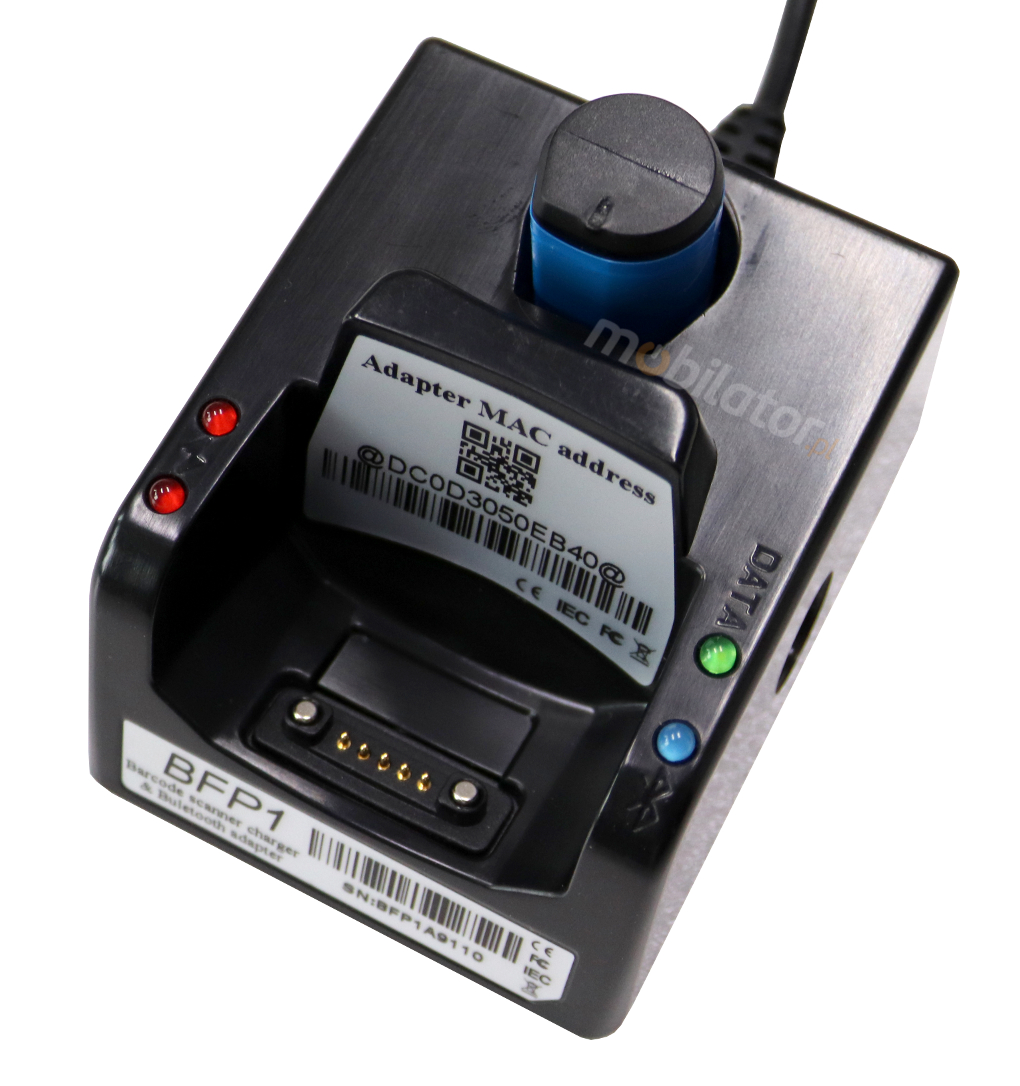

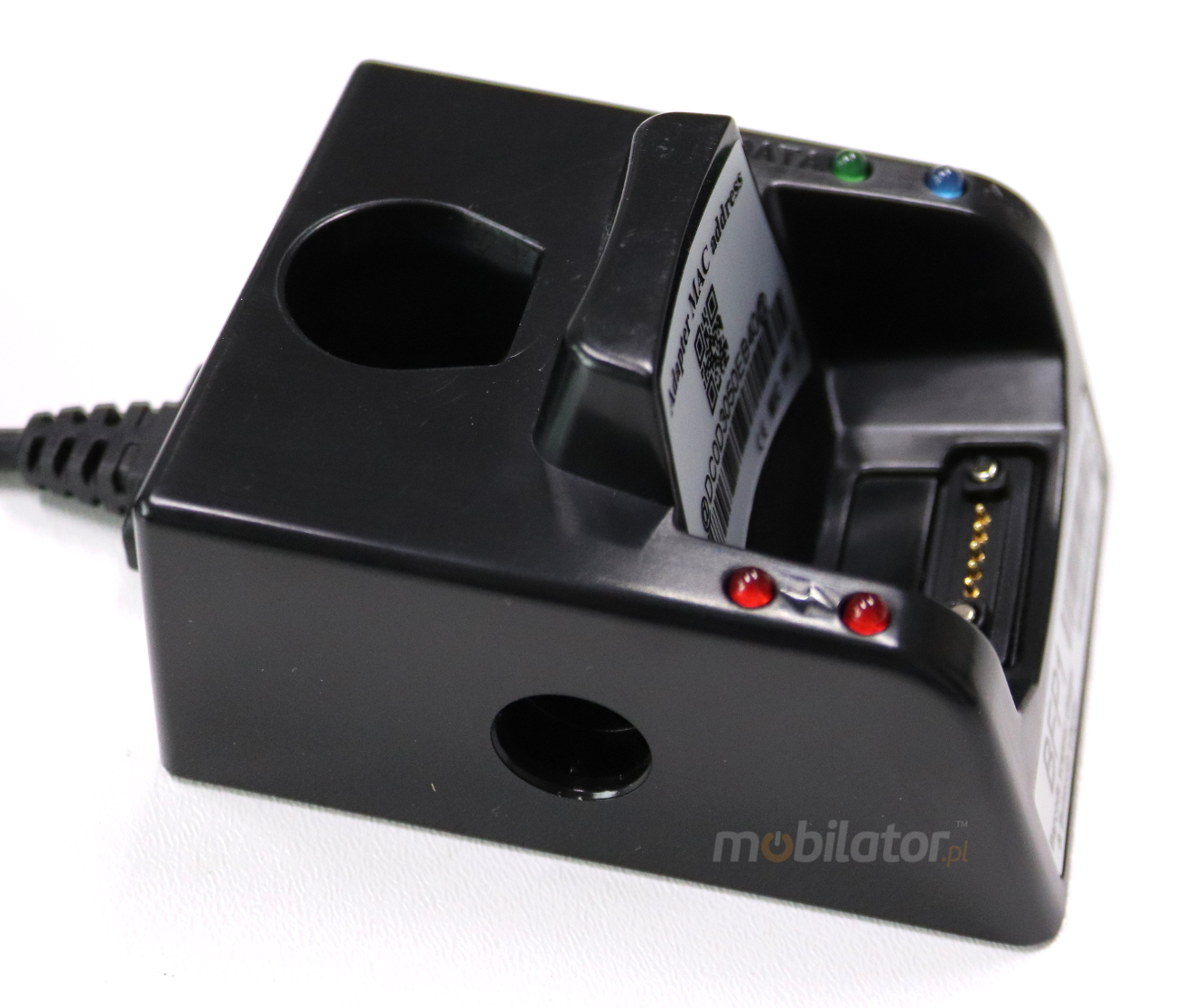

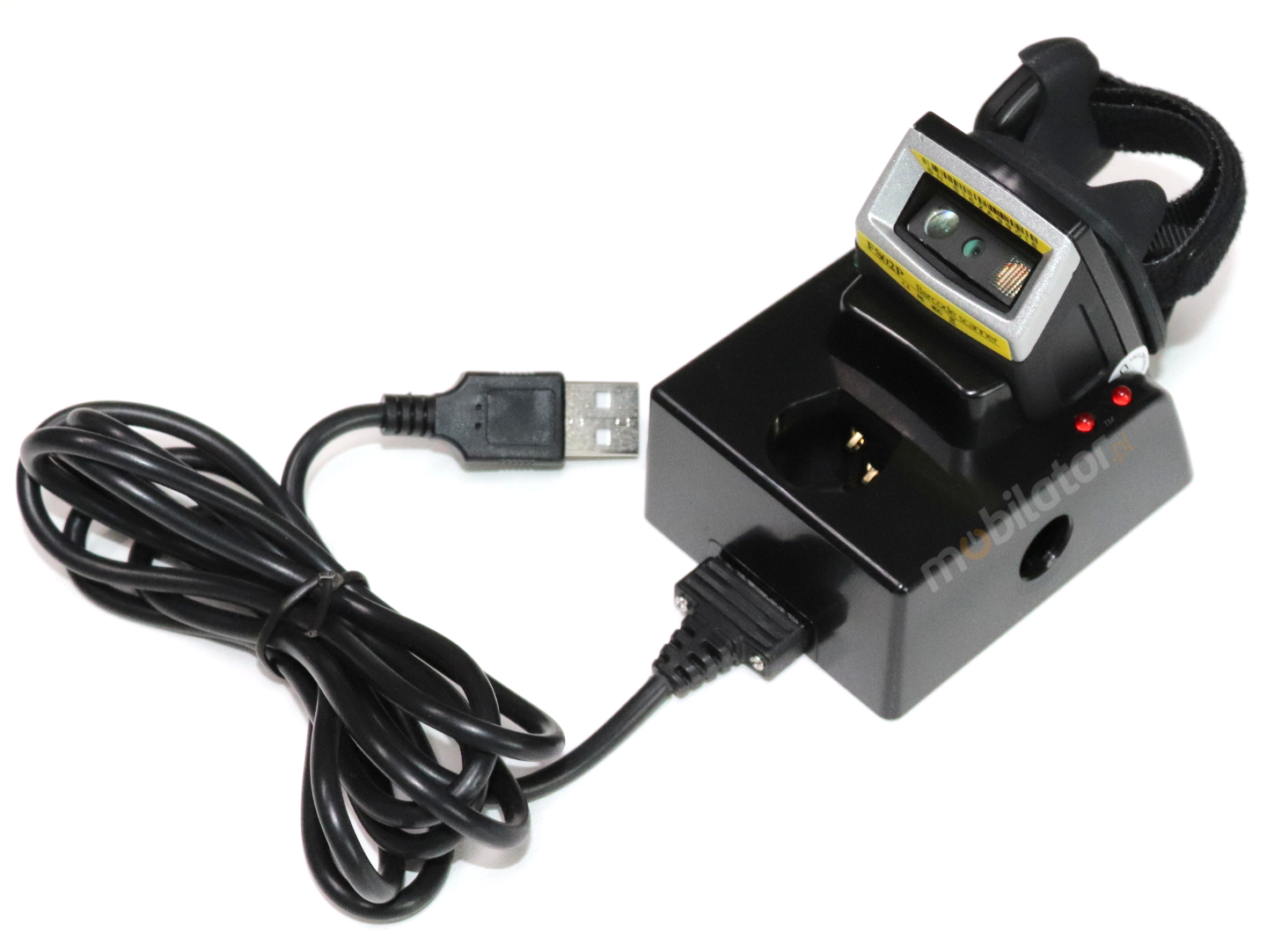

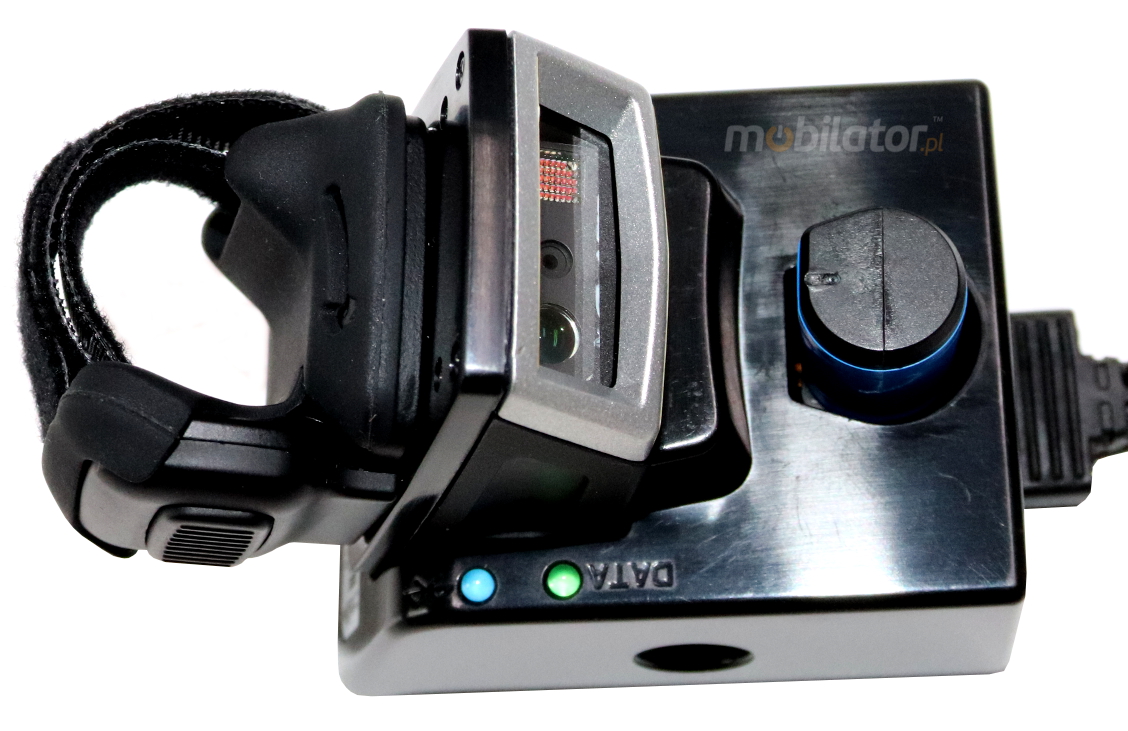

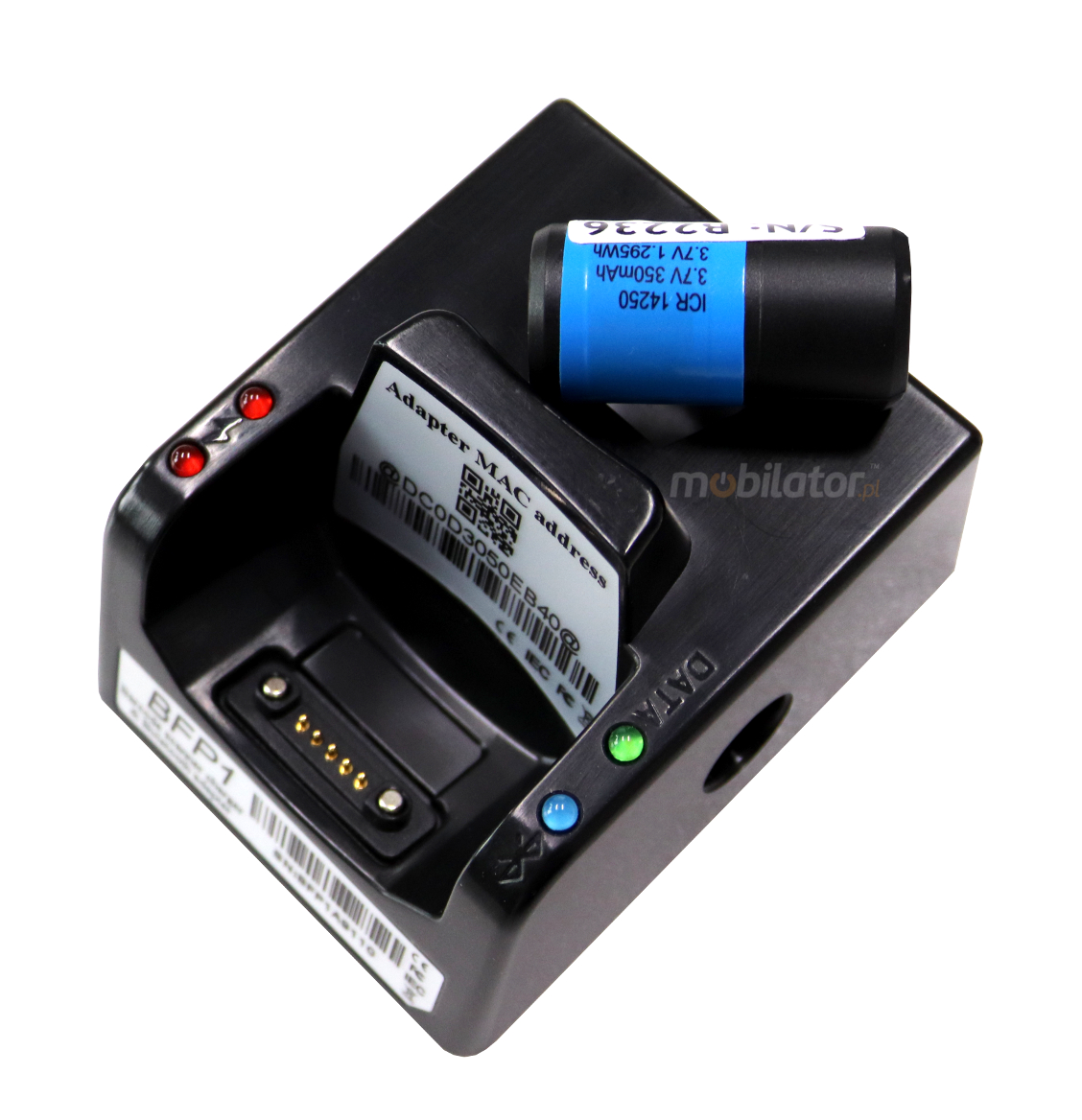

The Fingering FS1D-Alar comes standard with a charger station (oprional), battery and Bluetooth 4.0 adapter (optional).
Application
|
|
Pharmacy
It allows you to quickly identify and enter prescriptions into the database. With a small and lightweight design is easy to carry around in your pocket thus increases the efficiency of the orders received.
|
|
Trade
The device used to quickly read bar codes. Certainly can be applied to any kind of trade.
|
|
|
|
Magazine
Mini barcode reader allows you to quickly update the inventory with the help of Bluetooth wireless data transfer.
|
|
Logistics and transport
Scanner RING certainly will also use all kinds of transport as a barcode reader to help you quickly identify the goods.
|
|
|
Barcode readers allow you to in the bar code read and send to your database. .jpg) We offer high quality device for reading bar codes that work flawlessly even in the harshest industrial environments.
After scanning the coded data can be transferred to a computer or a portable database. Such a rapid and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes.
.jpg)
The bar code scanner can be connected to almost any device of computer - via USB.
Fingering FS01P - mini barcode scanner 1D - Ring - Bluetooth
|
Mechanical
|
Height:51.2 mm
Width: 39.2 mm
Lenght: 55 mm
Weight: 65g
|
Electrical
|
DC: 5V - 300mA - DC |
Scan Performance
|
Sensor Type: 1D
Scan Rate: 100 times
Scan Angle: 60⁰, 60⁰, 360⁰(Skew,Pitch,Roll)
Contrast: >20%
Decode Speed: 100 times per second
|
Baterry Power
|
Internal Baterry:
- Li-ion 550 mAh,
- 4 h（continuously working）
|
Barcode Type
|
UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN,
Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128
Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32
Prefix, Code 39 Check Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet
Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced Quiet Zone, Discrete 2 of
5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5,
GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Convert GS1 DataBar to
UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128
Emulation Mode for UCC/EAN Composite Codes |
|
Communication |
Bluetooth 3.0 HID, SPP,
With 10 m distance
|
Certificates
|
CE, Rohs, FCC, EN60950, IEC60825, IP65, EMC, 1.5m drop test(200 times).
Utility Model Patent No.: ZL201420211350.8
|
|
Accessories |
User manual, finger holder, battery charge station(optional).
|
|
more photos in "Gallery"...
specification of this version is available in the "Specifications"...
|
|
Compare all versions
| Supported Operating Systems: |
Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Windows 10, Linux, MAC |
| Internal memory: |
512KB |
| Operation Voltage: |
5V - 300mA - DC |
| Reading indicator: |
1D |
| Dimensions: |
55 x 39.2 x 51.2 mm |
| Weight: |
65g (include battery) |
| Battery: |
550 mAh Li-ion |
| Housing material: |
ABS+PC |
| Scan rate: |
100 times/sec |
| Light source: |
Laser |
| Resolution: |
640 x 400 |
| Communication distance: |
10m |
| Readable codes: |
2 of 5 Industrial，QR Code 2 of 5 Matrix，Codabar，Code - 39， Code - 39 Extended (full ASCII)， Code - 93，Code - 128 (A, B, C)， 2 of 5 Interleaved,EAN-8，EAN-13， Matrix 25，MSI， Post - China (4-State Postal Code)， Telepen Code，UPC - A，UPC - E， UPC - E1，Aztec，DataMatrix， MaxiCode，Micro PDF 417，PDF 417 |
| Sensor: |
1D (640x400) |
| Scan Angle: |
60⁰, 60⁰, 360⁰(Skew,Pitch,Roll) |
| Print Contrast Ratio: |
>20% |
| Scan range: |
（BASED ON CODE 39） 3.9mil:25mm-112mm; 10mil:31mm-420.5mm; 20mil:43mm-495mm; 30mil:64mm-537mm; 35mil:145mm-604mm |
| Cable Type: |
--- |
| Battery Life: |
4 h（continuously working） |
| Communication: |
Bluetooth 4.0 receiver
Bluetooth 3.0 inside scanner |
| Interface/ Pro le: |
HID/ SPP |
| Operating Temperature: |
0°C ~ 50°C |
| Storage Temperature: |
-20°C ~ 60°C |
| Relative Humidity: |
5% ~ 90%, non-condensing |
| Resistance IP: |
IP 65 |
| Drop test: |
Multiple drops 1.5m |
| Barcodes 1D: |
Barcodes 1D: |
| 2 of 5 Chinese: |
Yes |
| 2 of 5 Discrete: |
Yes |
| 2 of 5 IATA: |
No |
| 2 of 5 Industrial: |
Yes |
| 2 of 5 Interleaved: |
Yes |
| 2 of 5 Matrix: |
Yes |
| 2 of 5 Standard: |
No |
| BC - 412: |
No |
| Bookland EAN: |
Yes |
| Codabar: |
Yes |
| Codabar - NW7: |
Yes |
| Code - 11: |
Yes |
| Code - 11(USD-8): |
Yes |
| Code - 32: |
Tak |
| Code - 39: |
Yes |
| Code - 39 Extended (full ASCII): |
Yes |
| Code - 39 Trioptic : |
Yes |
| Code - 93: |
Yes |
| Code - 128 (A, B, C): |
Yes |
| EAN-8: |
Yes |
| EAN-13: |
Yes |
| EAN -128 / UCC-128: |
No |
| GS1 DataBar: |
Yes |
| Intelligent Mail: |
No |
| ISBN: |
No |
| ISBT - 128: |
No |
| ISSN: |
No |
| ITF-6: |
No |
| ITF-14: |
No |
| KIX code: |
No |
| Matrix 25: |
Yes |
| MSI: |
Yes |
| MSI - Plessey: |
No |
| Pharmacode - One Track: |
No |
| Pharmacode - Two Track: |
No |
| Planet: |
No |
| Plessey: |
No |
| Post - Australian (4-State Postal Code): |
No |
| Post - China (4-State Postal Code): |
Yes |
| Post - Japanese (4-State Postal Code): |
Yes |
| Post - Singapore (4-State Postal Code): |
No |
| PostNET: |
No |
| Royal Mail (RM-4SCC): |
No |
| Telepen Code: |
Yes |
| UK/Plessey: |
No |
| UPC - A: |
Yes |
| UPC - E: |
Yes |
| UPC - E1: |
Yes |
| Barcodes 2D: |
Barcodes 2D: |
| Aztec: |
No |
| Composite code: |
No |
| DataMatrix: |
No |
| MaxiCode: |
No |
| Micro PDF 417: |
No |
| Micro QR Code : |
No |
| PDF 417: |
No |
| QR Code : |
No |
| RSS: |
No |
| TLC-39: |
No |
