Barcode Scanner 1D CCD MobiScan Mini1H
|
|
The product from the archive - production terminated
|
|

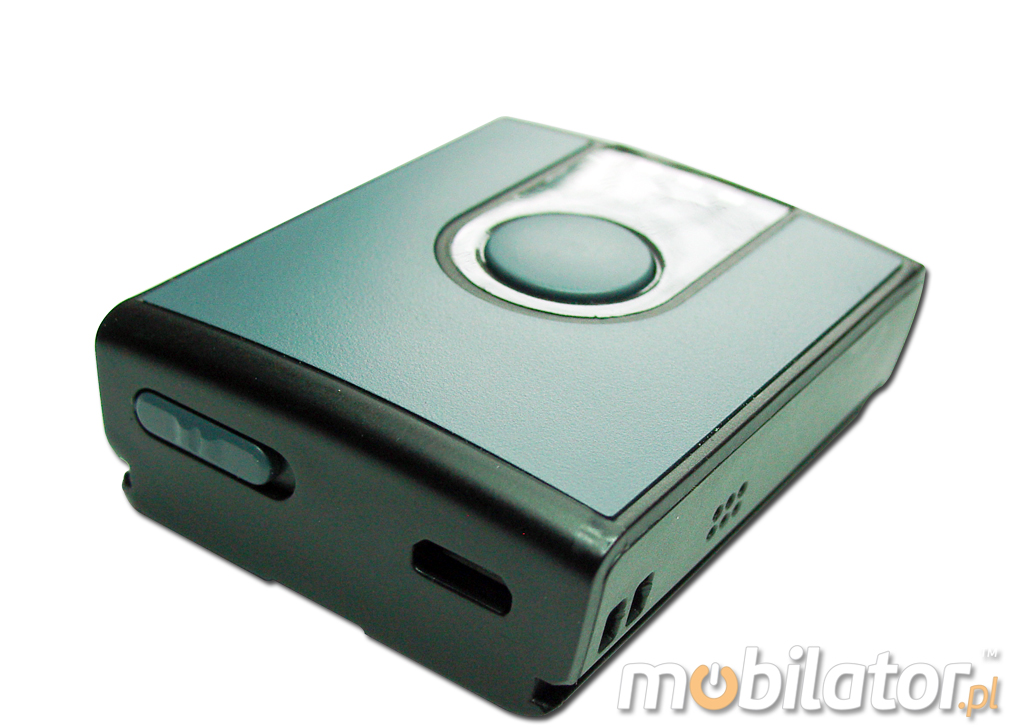

.jpg)
|
The company's MobiScan new distribution of Mobilator. Company achieved an excellent reputation as a manufacturer of bar code scanners. Due to the high position of the products in the high-tech won the trust of many customers around the world.
|
|
|
|

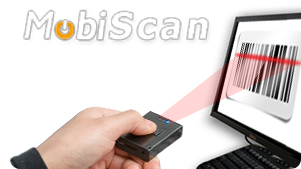

The bar code scanner is a device that allows data read barcodes from boxes, equipment, documents and all the places where these codes were implemented. MobiScan products are of high quality and the ability to trouble-free operation for many years.
.jpg)
|
|
MobiScan Mini 1H |
Barcode Scanner
|
1D CCD
|
Working time
|
6 h
|
Support system
|
Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux
|
|
Range |
10 m
|
|
Communication |
Bluetooth
|
|
Dimensions |
50.2 x 42 x 15mm |
Weight
|
100g |
|
Other |
Built-in memory, and offline store 10,000 15-bit character barcode / Support for screen scraper directly.
|
|
The detailed specification of the configuration available in the "Technical data"
|
|
Unusual, modern, wireless (Bluetooth) mini barcode scanner MobiScan MS-Mini 1 is designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc.
 MS-Mini 1 intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing the information read from the barcode .
Barcode Scanner 1D CCD - MobiScan MS-Mini 1 through Bluetooth module (which ensures proper communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).

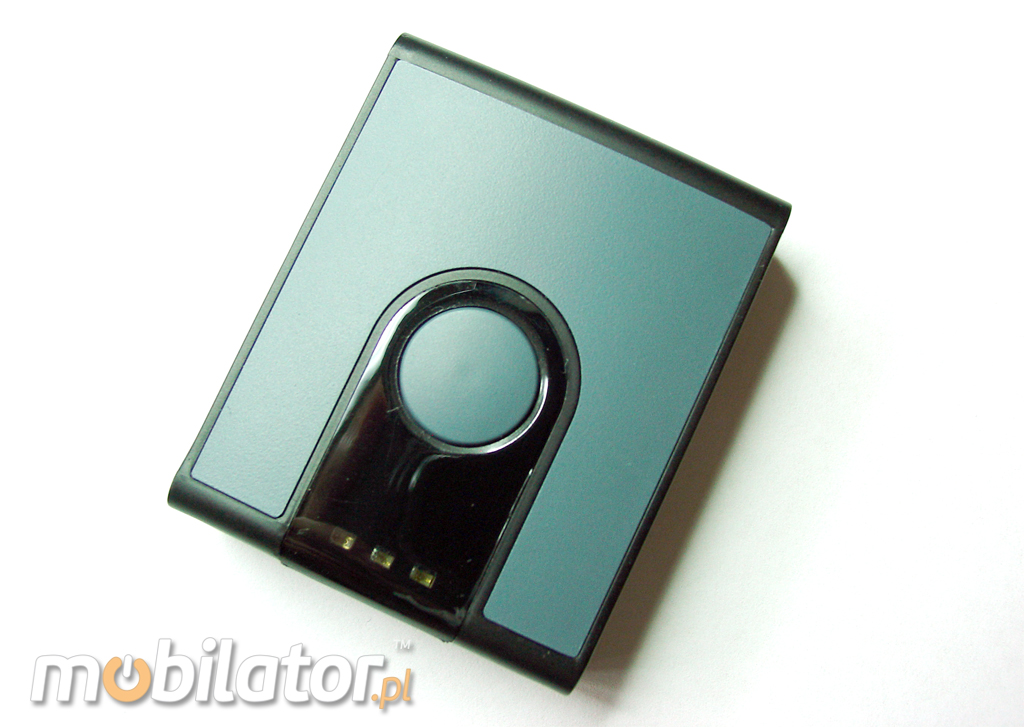

.jpg)

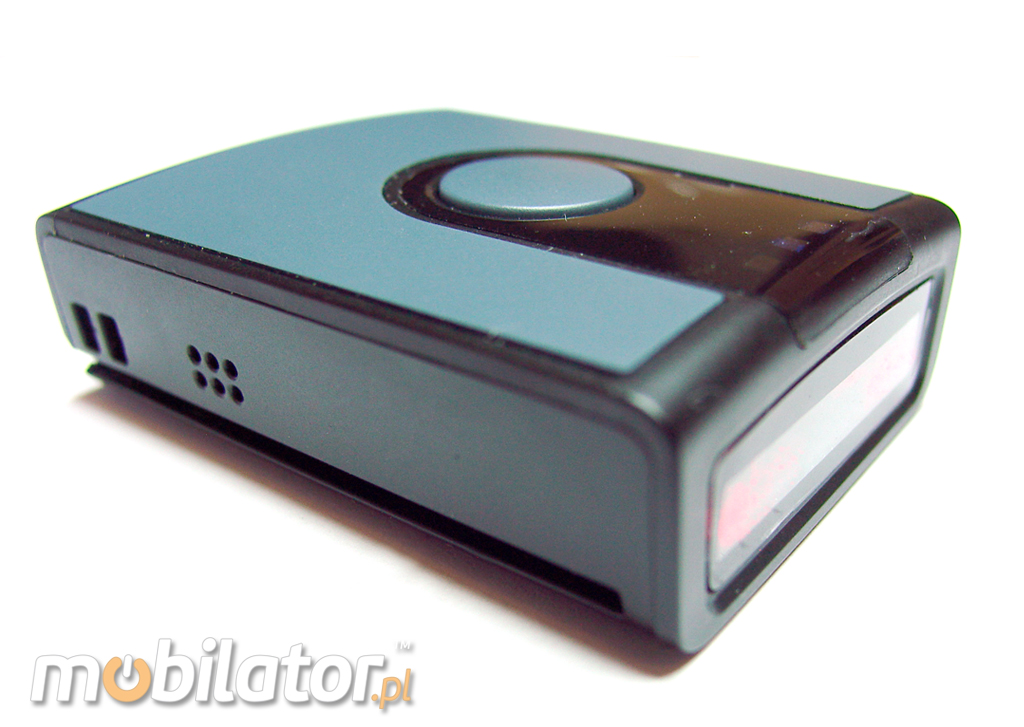

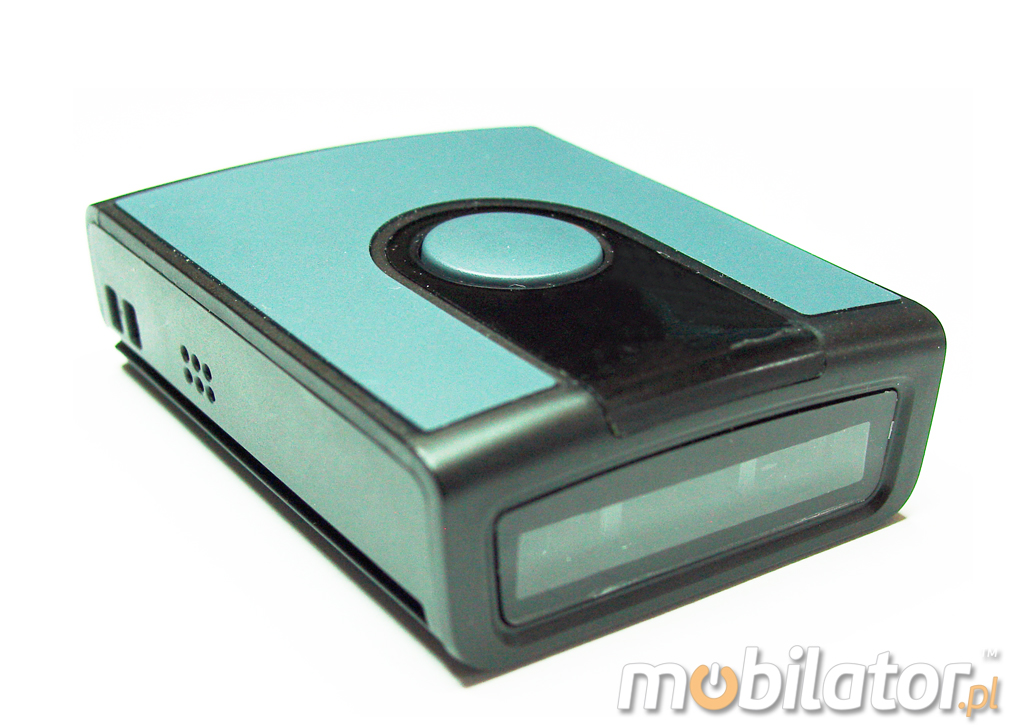

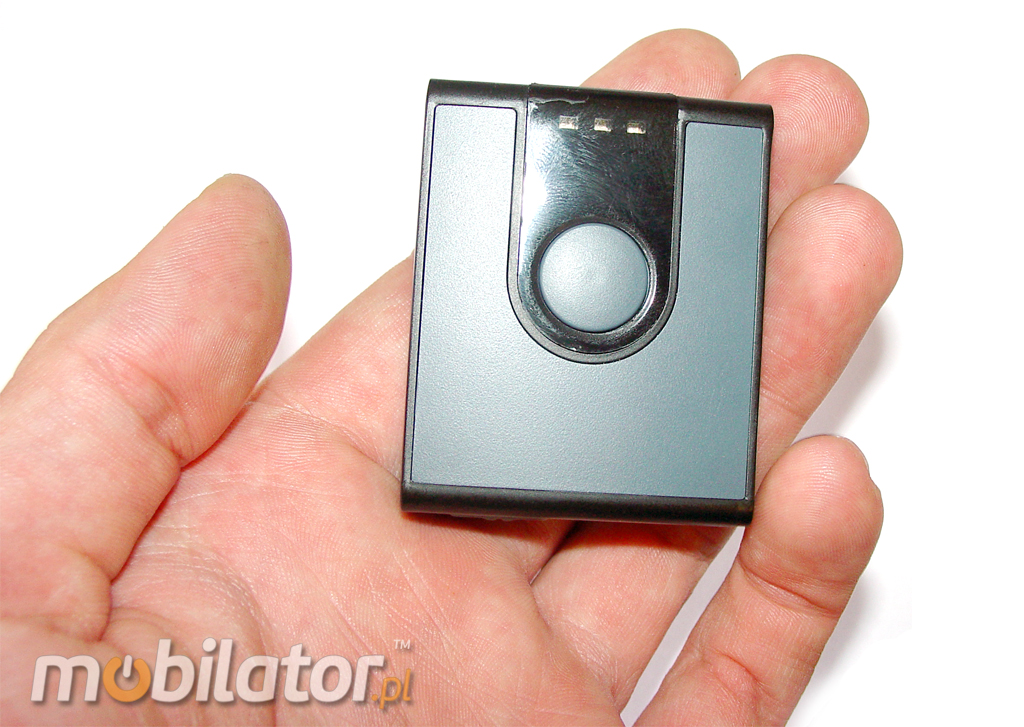

 A new generation of mini scanner surprises his appearance. This ergonomic, compact and extremely lightweight barcode reader with an appropriate surface texture provides a good grip and reduces hand fatigue with long hours of work. The scanner has a set of handle by which we can easily przymocowoæ to the device from which we use.
MobiScan MS-Mini 1 is equipped with a Li-Ion battery with 300mAh capacity Sufficient, Which Allows the scanner to operate for about 6 hours in scan mode or leave it on standby for 15days.

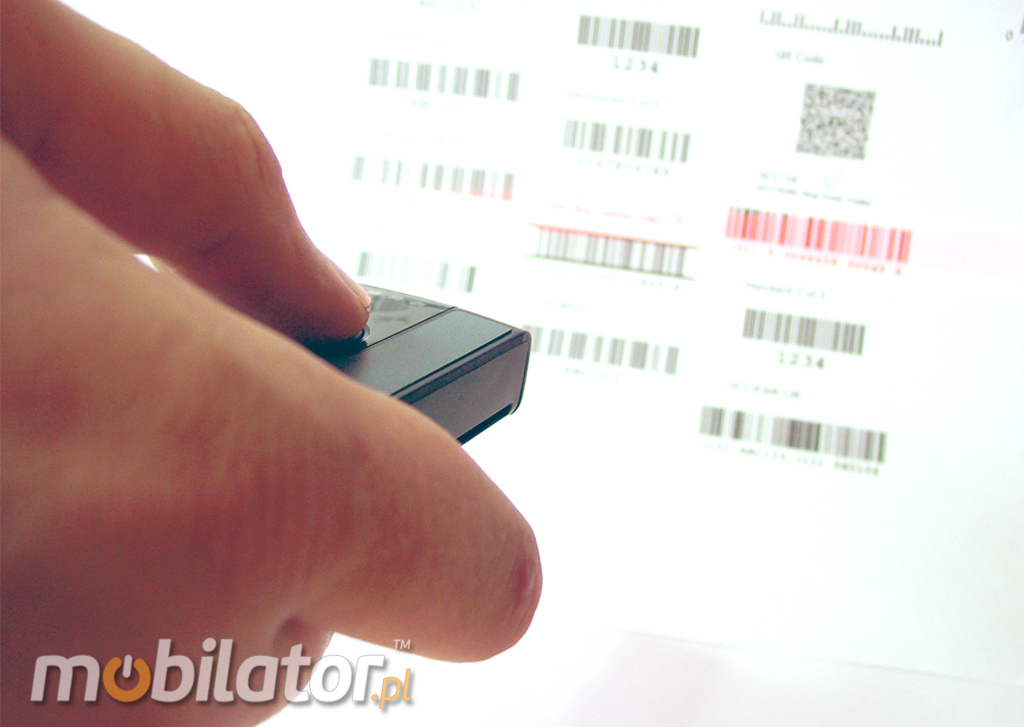

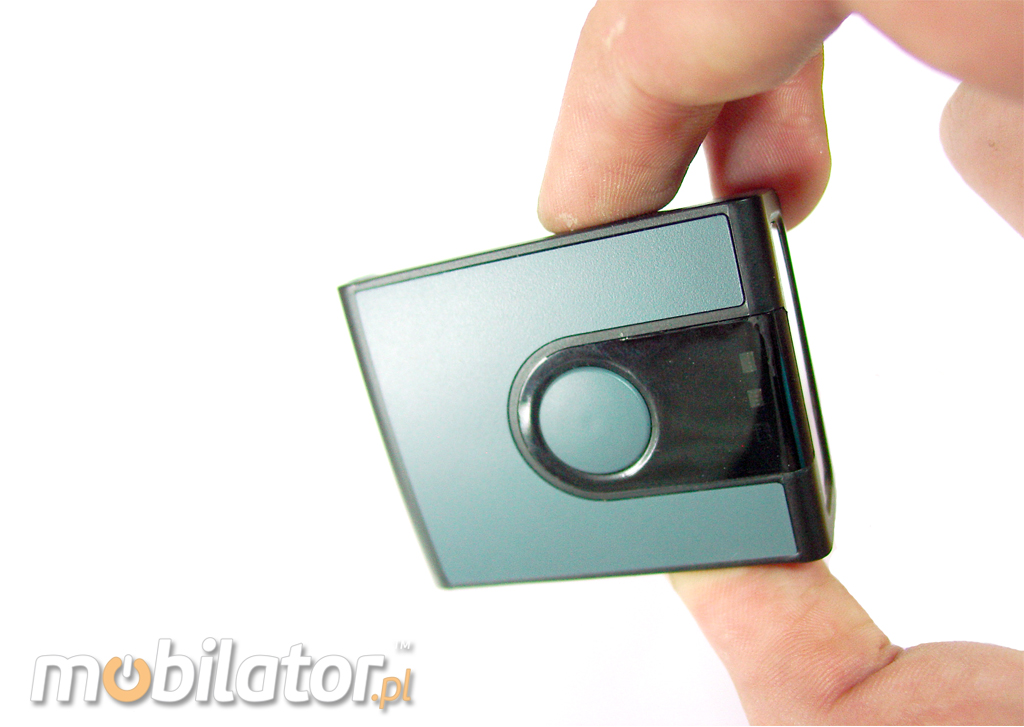

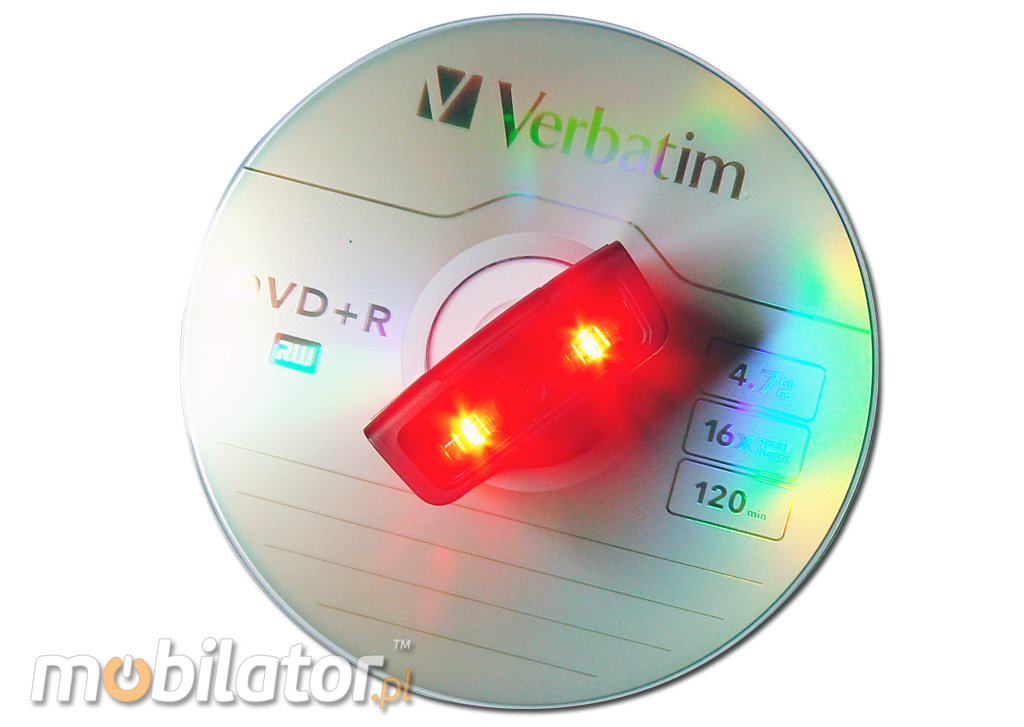

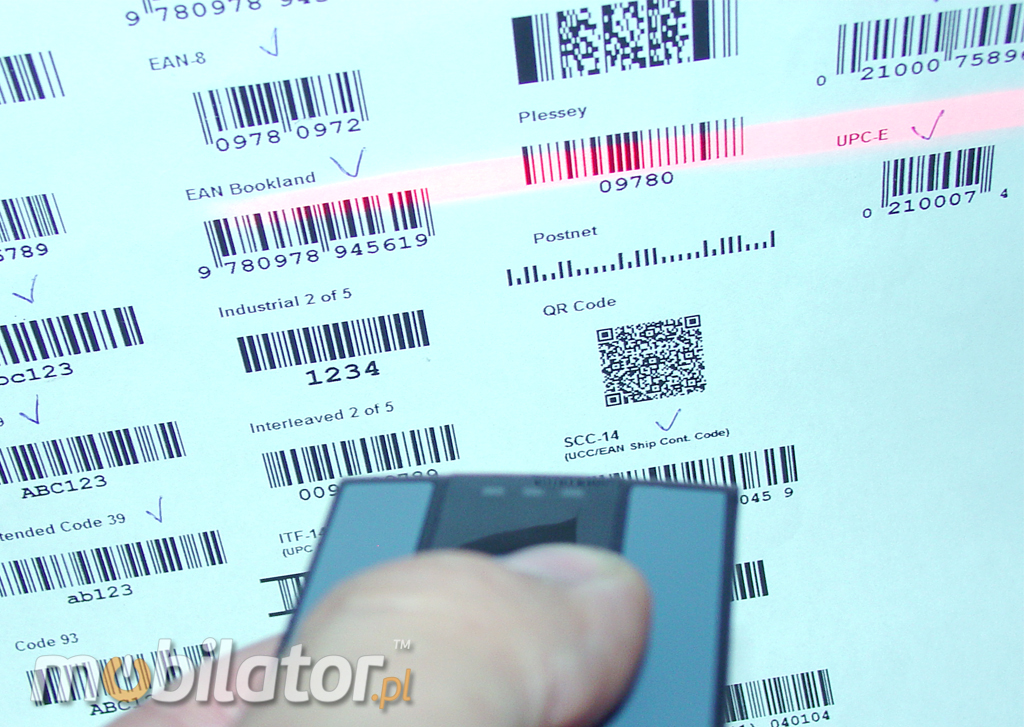

.jpg) Mini 1 scanner has an additional function of read-out bar codes straight from the screens and displays. With built-in internal memory scanner can operate in trybyi (offline) and without konieczo¶ci connecting the device, remembers up to 10 000 thousand barcodes. Built-in battery support big amount of data scanned.
|
|

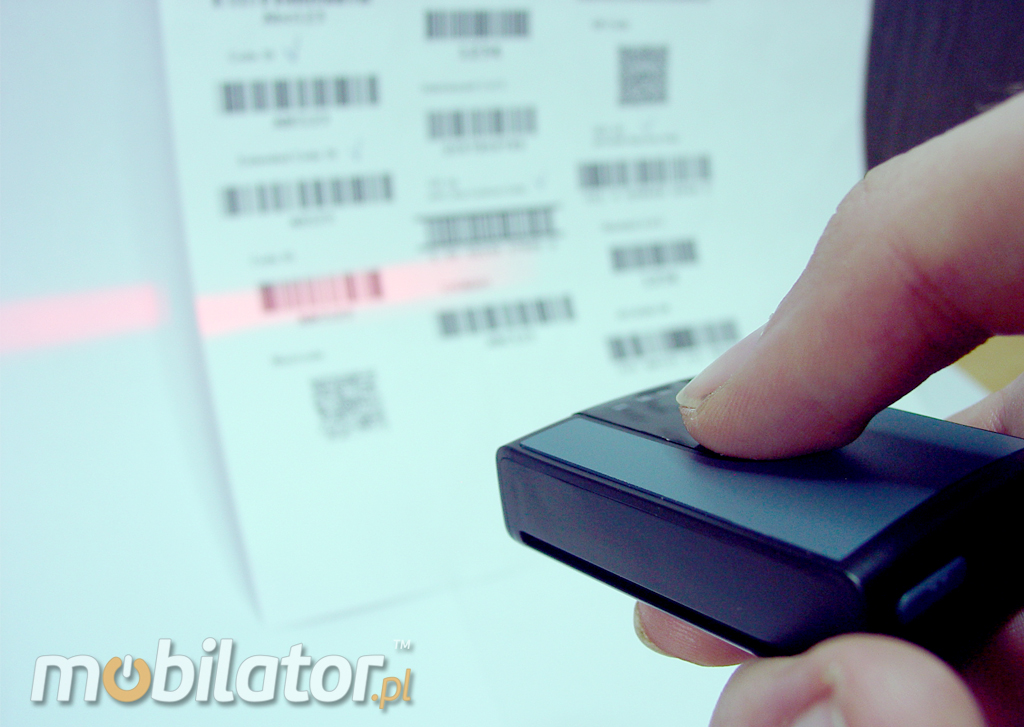

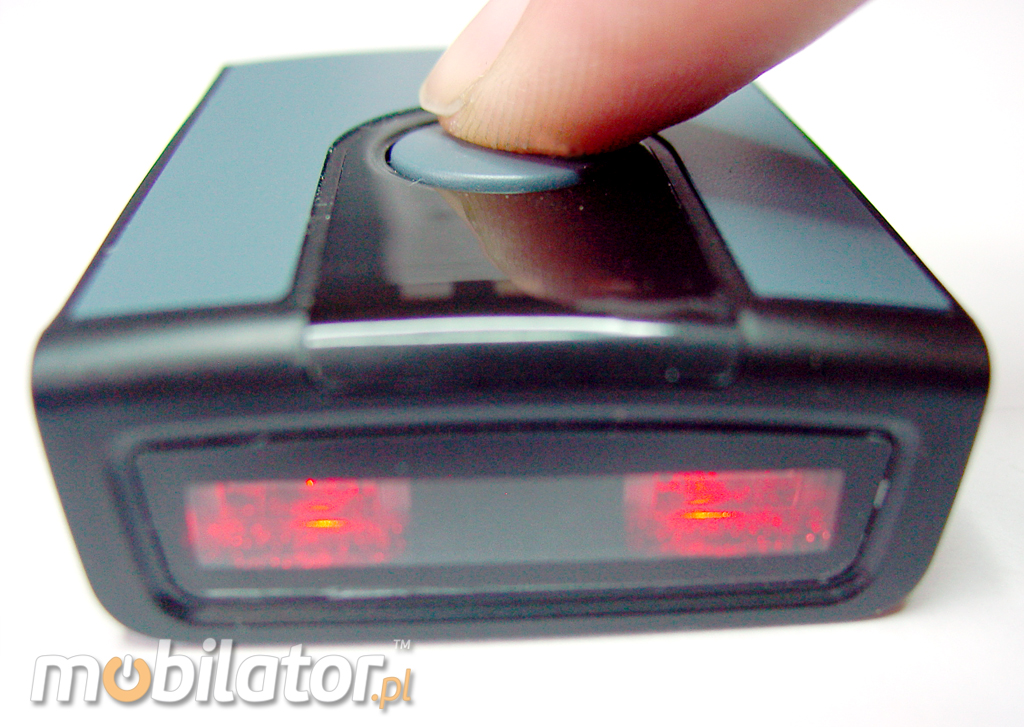

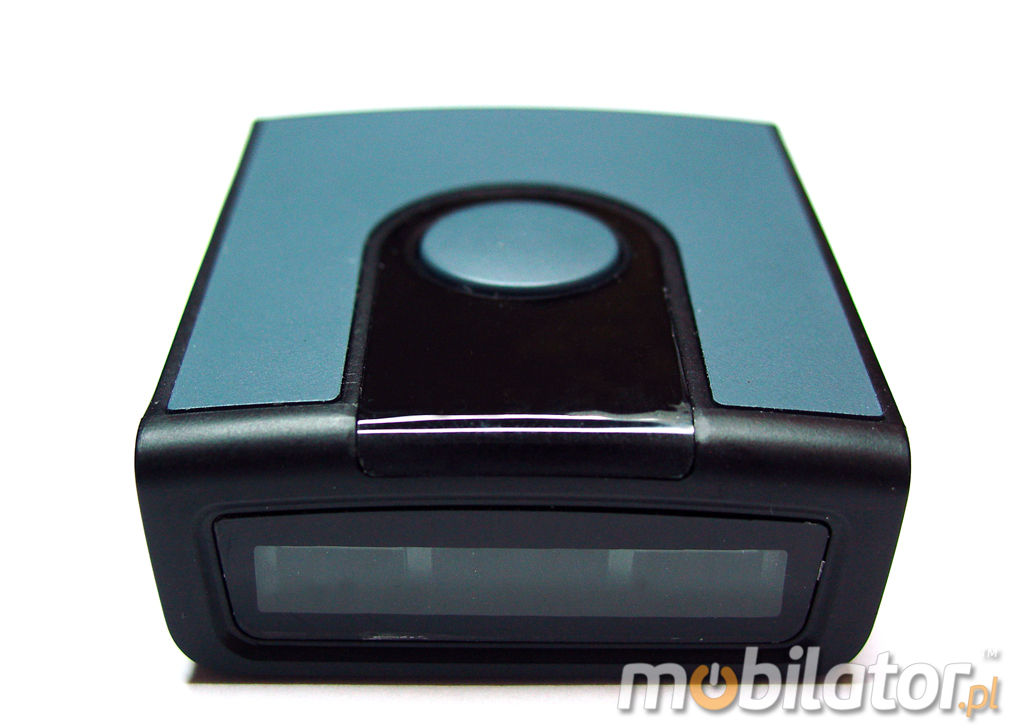

.jpg) Mini scanner has a built-in barcode reader, 1D CCD, which is connecting to a Bluetooth device provides information on, among others, the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.
 Designed to be tailored it different applications, wireless (Bluetooth) barcode scanner can be compatible with dry systems as Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux. Users can transmit data in real time to PCs or mobile devices.
|
|
Portable (radio and bluetooth-arid) barcode readers through the use of laser read-out techniques are convenient and easy to use and offer a wealth of configuration parameters. Enable automatic operation and manual. Read the codes with different contrasts with a distance of several centimeters. Thanks to the wireless communications offer coverage up to 10m from the computer.
The device uses the HID interface
To scanner devices need to use the right software to a serial port (RS-232) collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.
If we have the right scanner (USB HID) - when barcode in fact our introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswaæ text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.
Supported Bluetooth profiles SPP system.
SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment).
Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .
|
|
|
|
|
|
Operating |
-25° do 60°C |
|
Operating Humidity |
5% ~ 95%
|
|
Dust |
IP5x (Dust) |
|
Water |
IPx4 (Protection from splashed water) |
|
Drop |
---- |
go top…  menu…

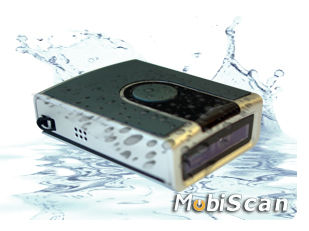

Resistance IP54
 Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.
go top… menu…
The first digit [x]
Protection against solid objects
|
|
The second digits [y]
Protection against liquids
|
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from object not greater than 12mm in diamete |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from water projected from a nozzle |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
|
|
|
 |
7
|
|
Protection against immersion
|
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water
|
|
Application
For MobiScan MS-Mini 1 manufacturer recommends widely used in situations where it is necessary to fast and mobile identification of goods in trade, logistics, transport, freight forwarding, industrial sector, financial and public sectors.
|
|
Pharmacy
For MobiScan MS-Mini 1 manufacturer recommends widely used in situations where it is necessary to fast and mobile identification of goods in trade, logistics, transport, freight forwarding, industrial sector, financial and public sectors.
|
|
Trade
The device is used for fast read-out bar codes. Certainly can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Mini barcode reader Allows you to quickly update the inventory with the help of Bluetooth wireless data transfer.
|
|
Logistics and transport
Small scanner will find all kinds of use including in transport - a portable and super light barcode reader for fast identification. |
|
|

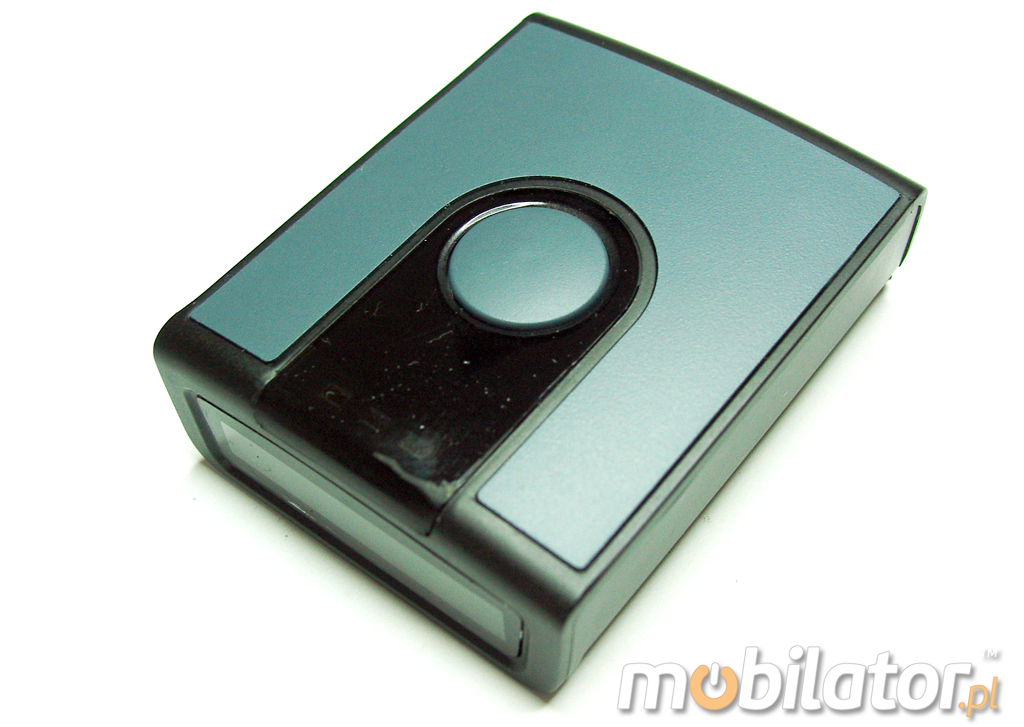

.jpg) Barcode readers allow you to read and send data to a computer stored in the barcode. We offer the highest quality devices work flawlessly even in harsh industrial environments..jpg)
After scanning the coded data you can upload them to your computer or portable database. Mobile, quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes.
The bar code scanner can be connected to almost any device of computer technology - via the USB port.
MobiScan Mini 1H
|
Mechanical
|
Height: 15mm
Lenght: 50.2 mm
Witdh: 42 mm
Weight: 100g
|
Electrical
|
DC: 5V
|
|
Scan Performance |
Sensor Type: Linear CCD
Light Source: 620nm LED
Scan Rate: 280 times / sec
Scan angle: 40⁰
Reflection: > 20%
|
Battery
|
Li-ion 300 mAh
Working time: to. 6h
Standby time: to 15 day
|
Barcode Type
|
Code 39, Codabar, Code 128, Interleaved 2 of 5, Code 93, UPC‐A, UPC‐E, EAN13, EAN8, Pharm code, ISBN, ITF14
|
|
Communication |
Bluetooth
Range: 10 m
Cable MicroUSB
|
Scan Range
|
Barcode Width:
0.003" (0.085mm)
0.005" (0.127mm)
0.010" (0.254mm)
0.015" (0.381mm)
0.020" (0.508mm)
Depth of Filed:
0.98"~7.48" (25~65mm)
0.98"~7.48" (25~150mm)
0.78"~12.20" (20~310mm)
0.98"~7.48" (20~370mm)
0.78"~19.29" (20~490mm)
Scan Width:
1.0" (25mm)@ 1.7" (42mm)
2.4" (61mm)@ 3.0" (76mm)
4.2" (107mm)@ 6.0" (152mm)
5.4"(137mm)@8.0"(213mm)
7.0" (178mm)@ 11" (279mm) |
Housing color
|
Black / Silver
|
|
Accessories |

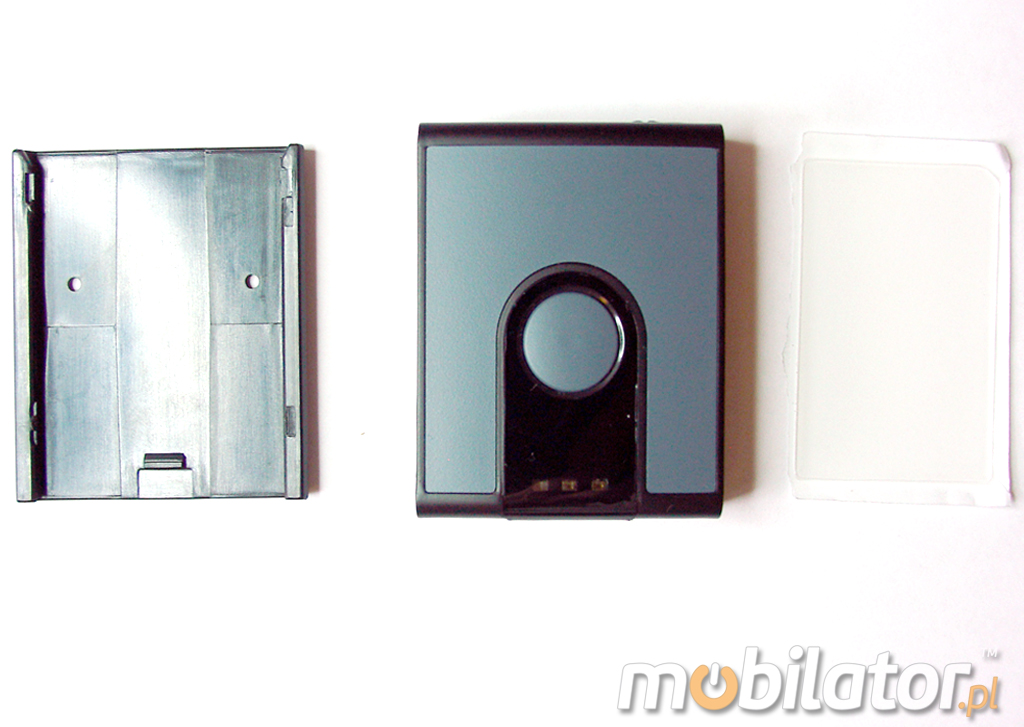

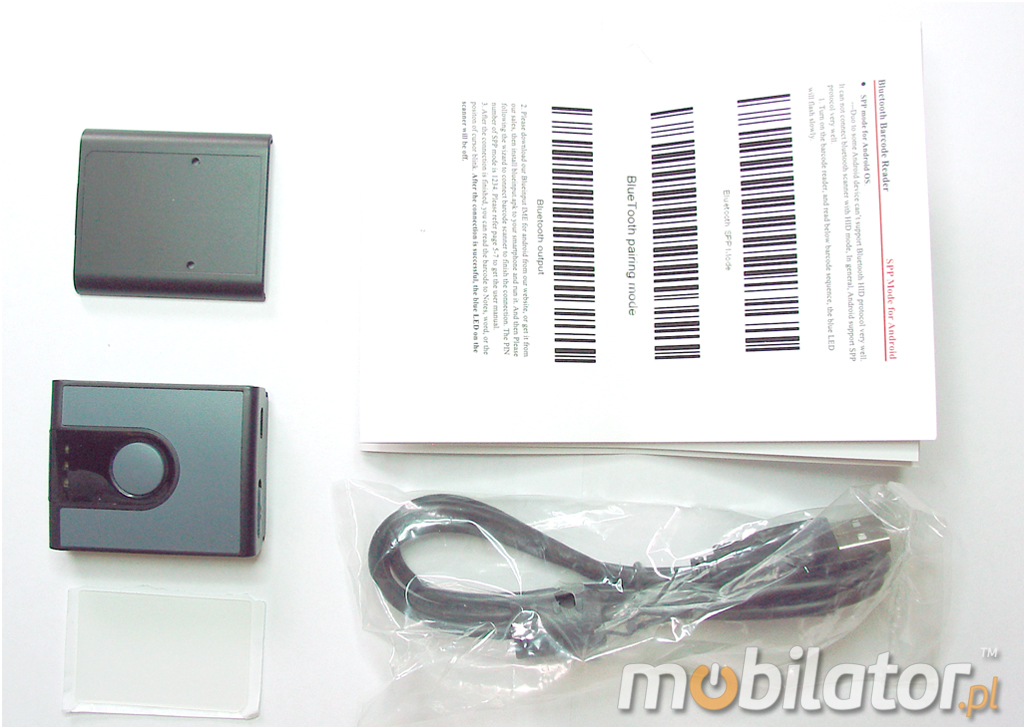

User Manual, MicroUSB cable for charging, self-adhesive mounting bracket
|
|
Resistance |
IP 54
|
|

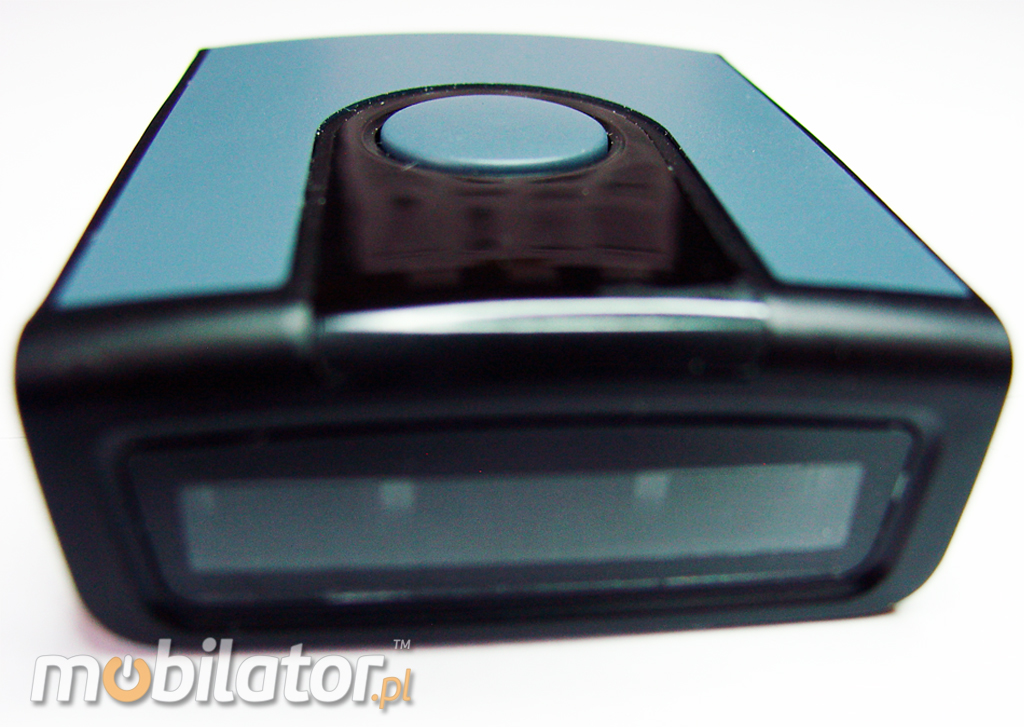

.jpg)
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ...
|
|
|
| Supported Operating Systems: |
Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux |
| Internal memory: |
Memory save more than 10,000 15-bit character barcode can be stored offline |
| Operation Voltage: |
DC: 5V ± 5% |
| Reading indicator: |
1D |
| Dimensions: |
50.2 x 42 x 15mm |
| Weight: |
100 g |
| Battery: |
300 mAh Li-ion |
| Housing material: |
Plastic |
| Scan rate: |
280 times/sec |
| Light source: |
620 nm LED |
| Resolution: |
1024x768 |
| Communication distance: |
10 m |
| Readable codes: |
Code 39, Codabar, Code 128, Interleaved 2 of 5, Code 93, UPC‐A, UPC‐E, EAN13, EAN8, Pharm code, ISBN, ITF14 |
| Sensor: |
1D Linear CCD |
| Scan Angle: |
40⁰ |
| Print Contrast Ratio: |
>20% |
| Scan range: |
Barcode Width: 0.003" (0.085mm) 0.005" (0.127mm) 0.010" (0.254mm) 0.015" (0.381mm) 0.020" (0.508mm) Depth of Filed: 0.98"~7.48" (25~65mm) 0.98"~7.48" (25~150mm) 0.78"~12.20" (20~310mm) 0.98"~7.48" (20~370mm) 0.78"~19.29" (20~490mm) Scan Width: 1.0" (25mm)@ 1.7" (42mm) 2.4" (61mm)@ 3.0" (76mm) 4.2" (107mm)@ 6.0" (152mm) 5.4"(137mm)@8.0"(213mm) 7.0" (178mm)@ 11" (279mm) |
| Cable Type: |
MicroUSB |
| Battery Life: |
6 h |
| Communication: |
Bluetooth 3.0 |
| Interface/ Pro le: |
HID / SPP |
| Operating Temperature: |
-25°C ~ 60°C |
| Storage Temperature: |
-40°C ~ 80°C |
| Relative Humidity: |
5 ~ 95% |
| Resistance IP: |
IP 54 |
| Drop test: |
----- |
| Barcodes 1D: |
Barcodes 1D: |
| 2 of 5 Chinese: |
No |
| 2 of 5 Discrete: |
No |
| 2 of 5 IATA: |
No |
| 2 of 5 Industrial: |
Yes |
| 2 of 5 Interleaved: |
Yes |
| 2 of 5 Matrix: |
Yes |
| 2 of 5 Standard: |
Yes |
| BC - 412: |
No |
| Bookland EAN: |
No |
| Codabar: |
Yes |
| Codabar - NW7: |
No |
| Code - 11: |
Yes |
| Code - 11(USD-8): |
No |
| Code - 32: |
No |
| Code - 39: |
Yes |
| Code - 39 Extended (full ASCII): |
No |
| Code - 39 Trioptic : |
No |
| Code - 93: |
Yes |
| Code - 128 (A, B, C): |
Yes |
| EAN-8: |
Yes |
| EAN-13: |
Yes |
| EAN -128 / UCC-128: |
Yes |
| GS1 DataBar: |
Yes |
| Intelligent Mail: |
No |
| ISBN: |
Yes |
| ISBT - 128: |
No |
| ISSN: |
Yes |
| ITF-6: |
Yes |
| ITF-14: |
Yes |
| KIX code: |
No |
| Matrix 25: |
No |
| MSI: |
No |
| MSI - Plessey: |
Yes |
| Pharmacode - One Track: |
No |
| Pharmacode - Two Track: |
No |
| Planet: |
No |
| Plessey: |
Yes |
| Post - Australian (4-State Postal Code): |
No |
| Post - China (4-State Postal Code): |
No |
| Post - Japanese (4-State Postal Code): |
No |
| Post - Singapore (4-State Postal Code): |
No |
| PostNET: |
No |
| Royal Mail (RM-4SCC): |
No |
| Telepen Code: |
No |
| UK/Plessey: |
No |
| UPC - A: |
Yes |
| UPC - E: |
Yes |
| UPC - E1: |
No |
| Barcodes 2D: |
Barcodes 2D: |
| Aztec: |
No |
| Composite code: |
No |
| DataMatrix: |
No |
| MaxiCode: |
No |
| Micro PDF 417: |
No |
| Micro QR Code : |
No |
| PDF 417: |
No |
| QR Code : |
No |
| RSS: |
RSS-14; RSS-Limited; RSS-Expand; |
| TLC-39: |
No |
