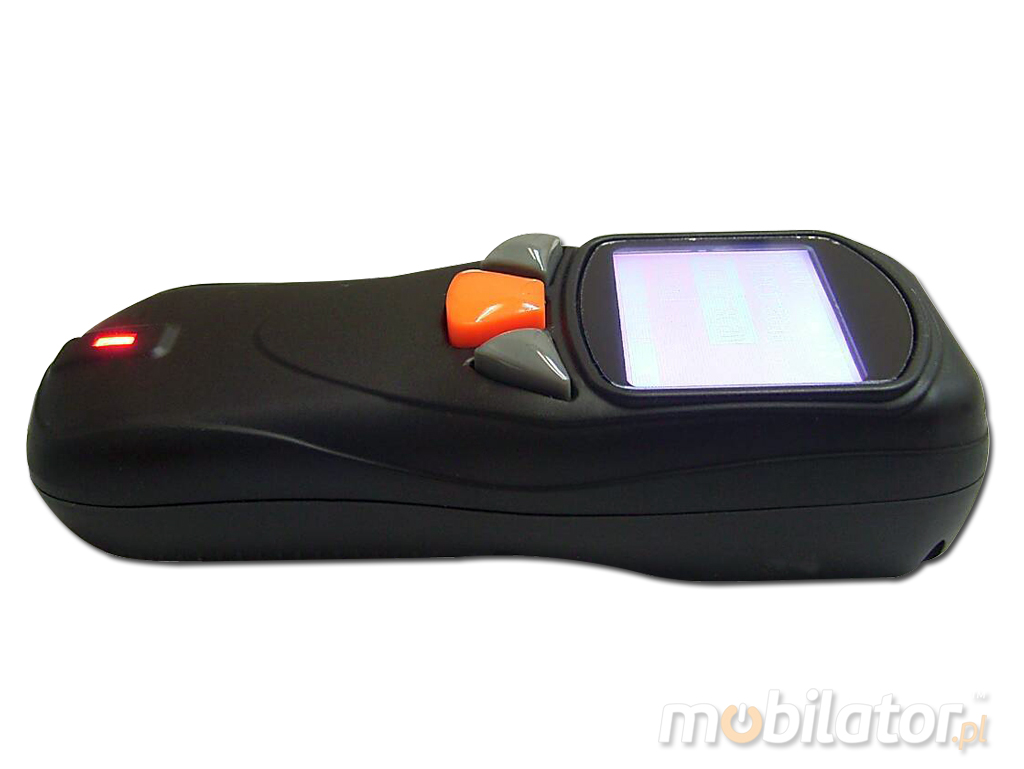

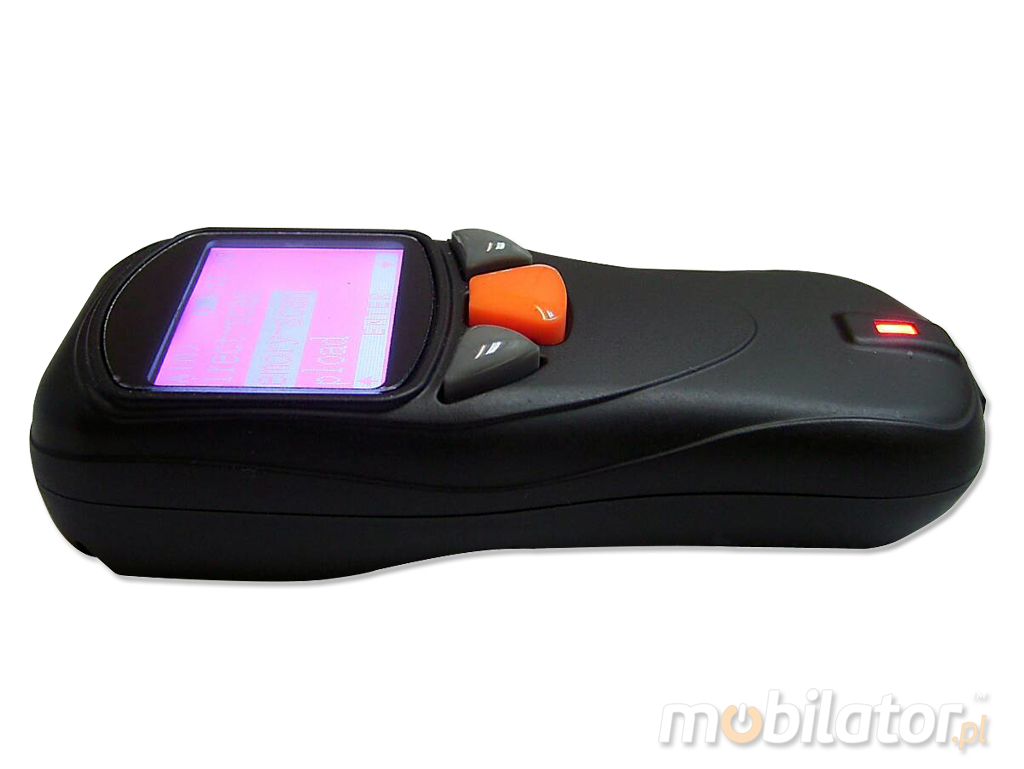

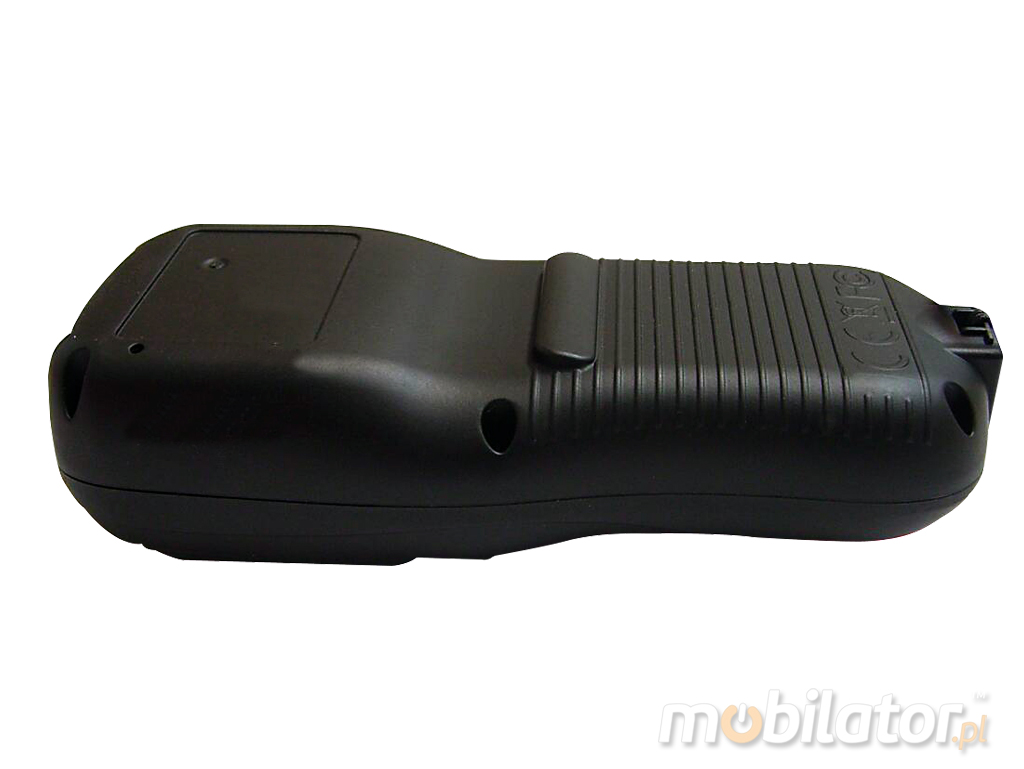

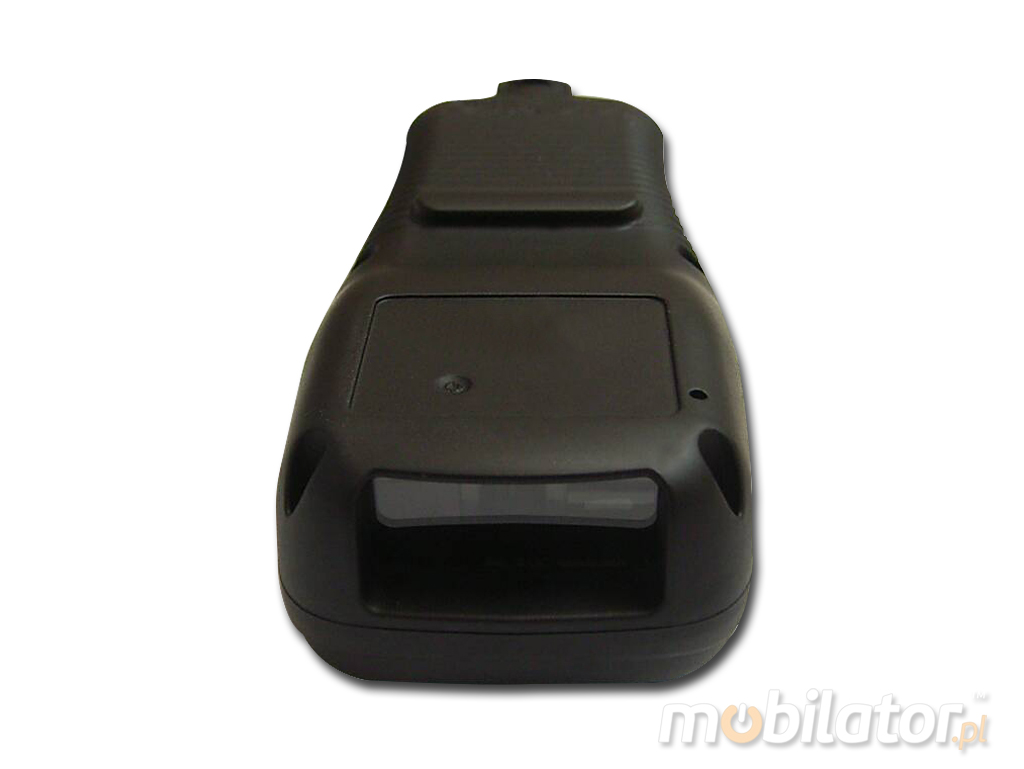

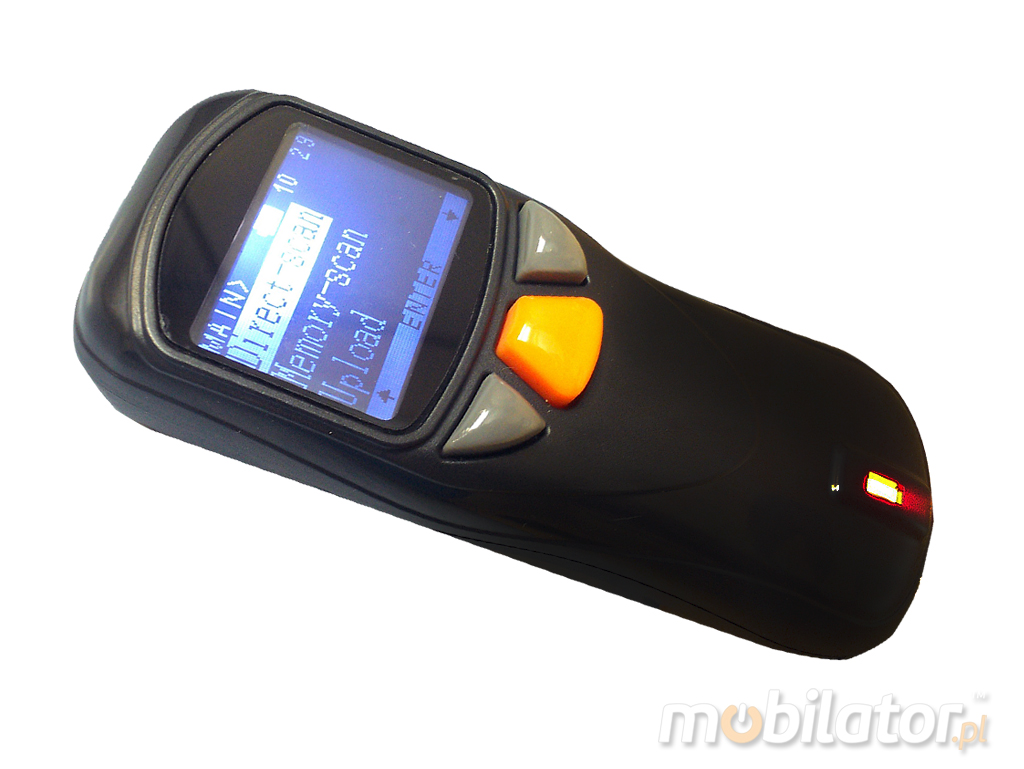

Mini scanner RIOTEC iDC9607A 1D CCD
|
|
The product from the archive - production terminated
|
Compare all versions
|
.jpg)
|
The company's RIOTEC new distribution of Mobilator. Company achieved an excellent reputation as a manufacturer of bar code scanners. Due to the high position of the products in the high-tech won the trust of many customers around the world.
|
|
|
|
The bar code scanner is a device that allows read with barcodes from boxes or devices. Business accessories RIOTEC porduktu guarantee high quality and serve for many years without any loss of quality.
|
|
Mini reader RIOTEC iDC9607A 1D CCD |
Barcode scanner
|
1D CCD
|
Display
|
LCD (128x64) |
Working time
|
6-8 h
|
Support system
|
Android, iOS, Windows XP, Windows 7, Windows 8, Linux
|
|
Range |
100 m (in open area)
|
|
Communication |
Bluetooth Class 1 (2.4GHz wireless) |
|
Dimensions |
100 X 43 X 27 mm |
Weight
|
72 g +/- 5 g |
|
Other |
The barcode read-out of the display / Built-in Memory |
|
The detailed specification of the configuration available in the "Technical data"
|
|
Unusual, modern, wireless (Bluetooth) mini barcode scanner RIOTEC iDC9607A 1D CCD has been designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc.
 RIOTEC iDC9607A intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing information sczytanych with barcodes.
Barcode Scanner 1D CCD - RIOTEC iDC9607A through Bluetooth module (which ensures proper communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).

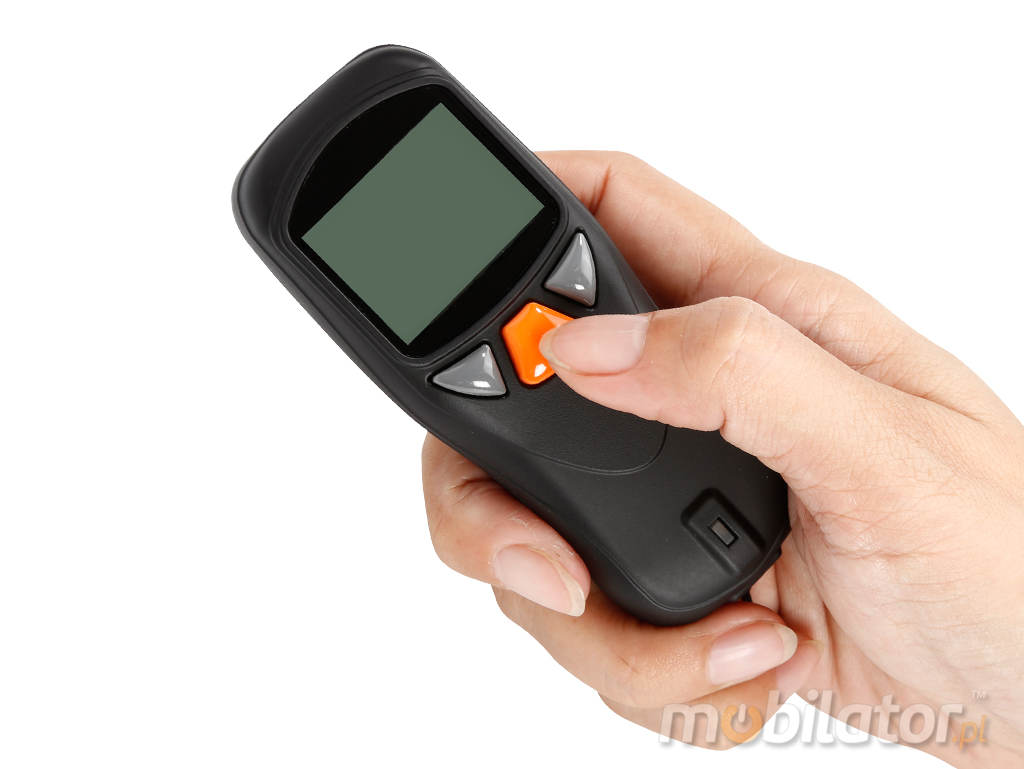

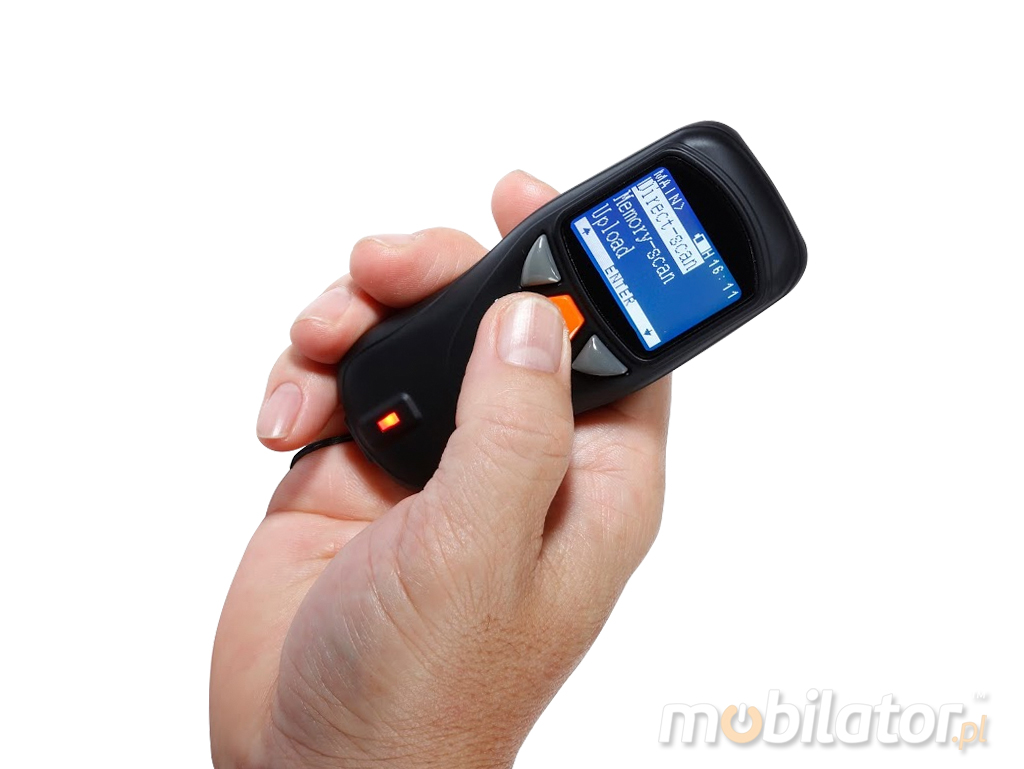

A new generation of mini scanner surprises his appearance. This ergonomic, compact and extremely lightweight barcode reader with an appropriate surface texture provides a good grip and reduces hand fatigue with long hours of work.
 Mini RIOTEC iDC9607A 1D CCD is equipped with a Li-Ion battery with sufficient capacity 900mAh, which allows the scanner to operate for about 6 hours in scan mode.
 The scanner has an additional function of read-out bar codes straight from the screens and displays. With built-in internal memory scanner can operate in trybyi (offline) and without konieczo¶ci connect the device, it even remembers 65,000 barcodes.

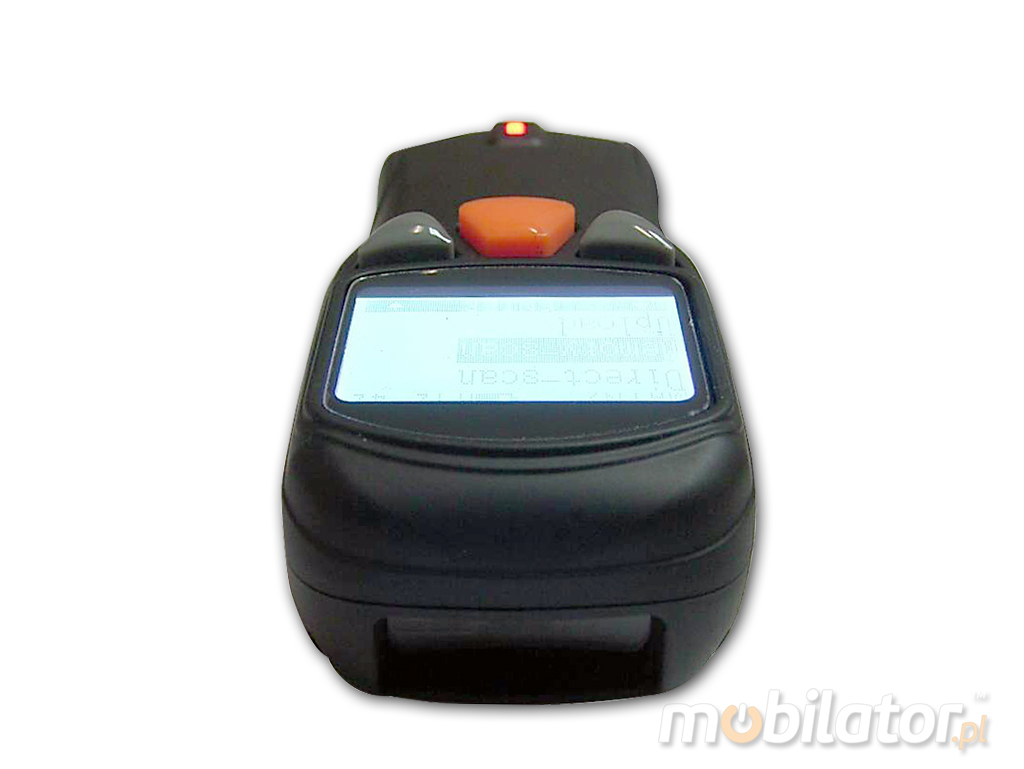

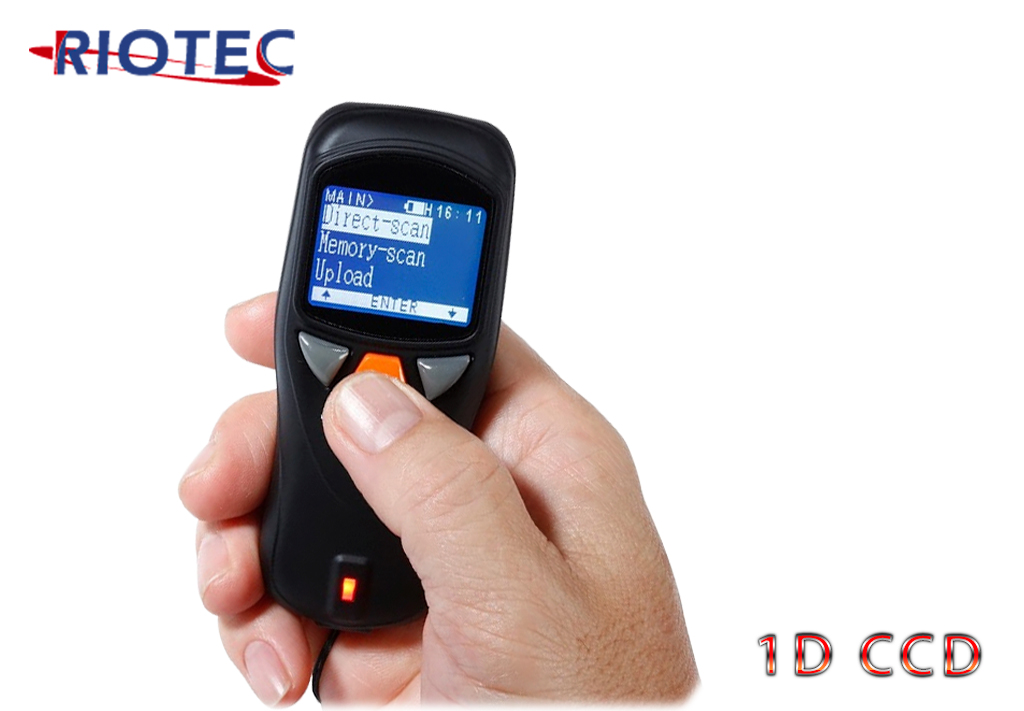

Summary mini barcode scanner has a built-in four-line LCD display (128x64) monochrome, so that we can check the status of the scanner on a regular basis and read data from barcodes in real-time.
|
Mini scanner has a built-in barcode reader, 1D CCD, which is connecting to a Bluetooth device provides information on, among others, the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.
 Designed to be tailored it different applications, wireless (Bluetooth) barcode scanner can be compatible with dry systems as Android, , Windows XP, Windows 7, Windows 8, Linux. Users can transmit data in real time to PCs or mobile devices.
|
|
Portable (radio and bluetooth-arid) barcode readers through the use of laser read-out techniques are convenient and easy to use and offer a wealth of configuration parameters. Enable automatic operation and manual. Read the codes with different contrasts with a distance of several centimeters. Thanks to the wireless communications offer coverage up to 100m from the computer.
.jpg)

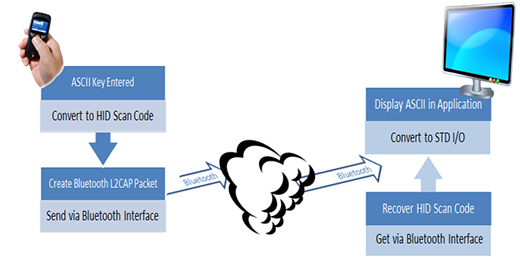

The device uses the HID interface
HID is the go-to profile for Bluetooth-enabled user-input devices like mice, keyboards, and joysticks. It’s also used for a lot of modern video game controllers, like WiiMotes or PS3 controllers.
Bluetooth’s HID profile is actually a riff on the HID profile already defined for human input USB devices. Just as SPP serves as a replacement for RS-232 cables, HID aims to replace USB cables (a much taller task!).
Supported Bluetooth profiles SPP system.
If you’re replacing a serial communication interface (like RS-232 or a UART) with Bluetooth, SPP is the profile for you. SPP is great for sending bursts of data between two devices. It’s is one of the more fundamental Bluetooth profiles (Bluetooth’s original purpose was to replace RS-232 cables after all).

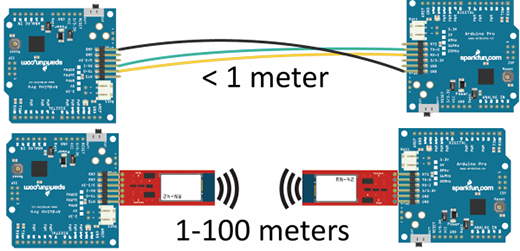

Using SPP, each connected device can send and receive data just as if there were RX and TX lines connected between them. Two Arduinos, for example, could converse with each other from across rooms, instead of from across the desk.
|
|
|
|
|
Application
For RIOTEC iDC9607A manufacturer recommends widely used in situations where it is necessary to fast and mobile identification of goods in trade, logistics, transport, freight forwarding, industrial sector, financial and public sectors.
|
|
Pharmacy
For RIOTEC iDC9607A manufacturer recommends widely used in situations where it is necessary to fast and mobile identification of goods in trade, logistics, transport, freight forwarding, industrial sector, financial and public sectors.
|
|
Trade
The device is used for fast read-out bar codes. Certainly can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Mini barcode reader Allows you to quickly update the inventory with the help of Bluetooth wireless data transfer.
|
|
Logistics and transport
Small scanner will find all kinds of use including in transport - a portable and super light barcode reader for fast identification.
|
|
|
Barcode readers allow you to read and send data to a computer stored in the barcode. We offer the highest quality devices work flawlessly even in harsh industrial environments..jpg) .jpg)
After scanning the coded data you can upload them to your computer or portable database. Mobile, quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes.
The bar code scanner can be connected to almost any device of computer technology - via the USB port.
RIOTEC iDC9607A 1D CCD
|
Display
|
LCD (128x64) |
Mechanical
|
Height: 27 mm
Lenght: 100 mm
Width: 43 mm
Weight: 72g
|
Electrical
|
5 V/DC ± 5% |
Scan Preformace
|
Sensor Type:1D CCD Ultra-long range CCD engine
Scan Speed: up to 300 scan/sec
Resolution: 3 mils
Scan Angle:
Pitch ±60° @ 0° Roll and 0° Skew
Roll ±30° @ Pitch and 0° Skew
Skew ±60° @ Roll and 0° Pitch
Contrast: ≧ 30%
|
Barcode Type
|
EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey |
|
Memory |
1MB (can save 65,000 sets more EAN 13 barcode)
|
|
Battery |
3.7V 900mAh Li-Ion battery
Workin time : more than 10,000 scans when fully chargedna³adowaniu ok.6h
Charge Time: 4-5 h
|
|
Communication |
BT Class 1 (2.4GHz wireless)
Distance: up to 100m (in open area)
|
Scan Range
|
UPCA (13mil): 50mm~620mm
EAN13 (13mil): 50mm~610mm
|
Housing color
|
black |
|
Accessories |
User manual, Mini USB cable for charging
|
|
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ...
|
|
|
Compare all versions
| Supported Operating Systems: |
Android, iOS, Windows XP, Windows 7, Windows 8, Linux |
| Internal memory: |
1 MB (can save 65,000 sets more EAN 13 barcode) |
| Operation Voltage: |
5 V/DC ± 5% |
| Reading indicator: |
1D CCD |
| Dimensions: |
100 x 43 x 27 mm |
| Weight: |
72 g |
| Battery: |
900 mAh 3.7V Li-Ion |
| Housing material: |
Plastic |
| Scan rate: |
300 scan/sec |
| Light source: |
610nm ~ 640nm Red LED |
| Resolution: |
3 mil |
| Communication distance: |
100m (in open area) |
| Readable codes: |
EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey |
| Sensor: |
Ultra-long range CCD engine |
| Scan Angle: |
Pitch ±60° @ 0° Roll and 0° Skew Roll ±30° @ Pitch and 0° Skew Skew ±60° @ Roll and 0° Pitch |
| Print Contrast Ratio: |
≧ 30% |
| Scan range: |
UPCA (13mil): 50mm~620mm EAN13 (13mil): 50mm~610mm |
| Cable Type: |
MiniUSB |
| Battery Life: |
6 - 8 h |
| Communication: |
Bluetooth Class 1 (2.4GHz) |
| Interface/ Pro le: |
HID / SPP |
| Operating Temperature: |
0°C ~ 50°C |
| Storage Temperature: |
-10°C ~ 60°C |
| Relative Humidity: |
20% ~ 95% relative humidity, non-condensing |
| Resistance IP: |
- |
| Drop test: |
- |
| Barcodes 1D: |
Barcodes 1D: |
| 2 of 5 Chinese: |
No |
| 2 of 5 Discrete: |
No |
| 2 of 5 IATA: |
No |
| 2 of 5 Industrial: |
Yes |
| 2 of 5 Interleaved: |
Yes |
| 2 of 5 Matrix: |
Yes |
| 2 of 5 Standard: |
No |
| BC - 412: |
No |
| Bookland EAN: |
No |
| Codabar: |
Yes |
| Codabar - NW7: |
No |
| Code - 11: |
Yes |
| Code - 11(USD-8): |
No |
| Code - 32: |
No |
| Code - 39: |
Yes |
| Code - 39 Extended (full ASCII): |
No |
| Code - 39 Trioptic : |
No |
| Code - 93: |
Yes |
| Code - 128 (A, B, C): |
Yes |
| EAN-8: |
Yes |
| EAN-13: |
Yes |
| EAN -128 / UCC-128: |
No |
| GS1 DataBar: |
Yes |
| Intelligent Mail: |
No |
| ISBN: |
Yes |
| ISBT - 128: |
No |
| ISSN: |
Yes |
| ITF-6: |
Yes |
| ITF-14: |
Yes |
| KIX code: |
No |
| Matrix 25: |
No |
| MSI: |
Yes |
| MSI - Plessey: |
Yes |
| Pharmacode - One Track: |
No |
| Pharmacode - Two Track: |
No |
| Planet: |
No |
| Plessey: |
Yes |
| Post - Australian (4-State Postal Code): |
No |
| Post - China (4-State Postal Code): |
No |
| Post - Japanese (4-State Postal Code): |
No |
| Post - Singapore (4-State Postal Code): |
No |
| PostNET: |
No |
| Royal Mail (RM-4SCC): |
No |
| Telepen Code: |
No |
| UK/Plessey: |
No |
| UPC - A: |
Yes |
| UPC - E: |
Yes |
| UPC - E1: |
No |
| Barcodes 2D: |
Barcodes 2D: |
| Aztec: |
No |
| Composite code: |
No |
| DataMatrix: |
No |
| MaxiCode: |
No |
| Micro PDF 417: |
No |
| Micro QR Code : |
No |
| PDF 417: |
No |
| QR Code : |
No |
| RSS: |
No |
| TLC-39: |
No |
