Industrial Winmate E430T-3C
|
|
The product from the archive - production terminated
|
Compare all versions
Founded in 1996 in Taiwan, the company Winmate achieved an excellent reputation as a manufacturer of industrial LCD displays and laptops. Due to the high position of the products in the high-tech, have won many awards in tests conducted around the world.
|
|
|
Winmate E430T |
|
• |
TI Cortex A8 OMAP DM3730 1.0GHz |
|
• |
Windows CE 6.0 |
|
• |
High quality 4.3" Display Pro-Cap |
|
• |
The lightness and mobility |
|
• |
Rubberized corners
|
|
• |
IP67 | IP66 (with readers)
|
|
• |
MIL-STD-810G | MIL-STD-810F |
|
• |
Many wireless options |
|
• |
Robust battery
|
|
• |
Flexible warranty
|

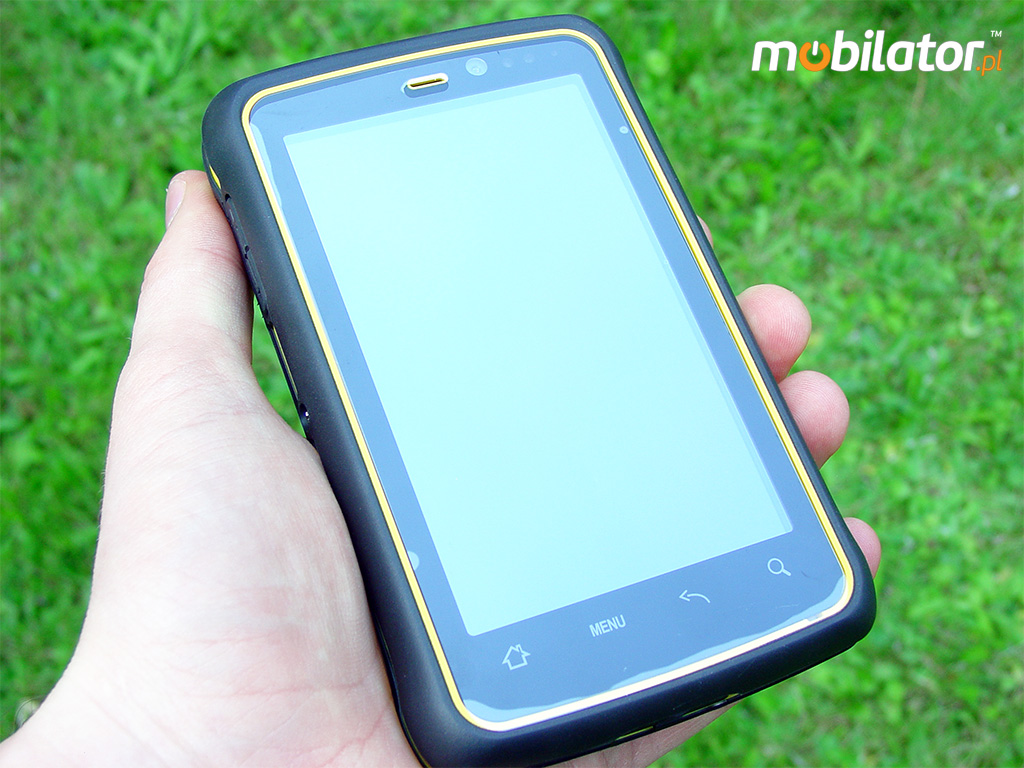

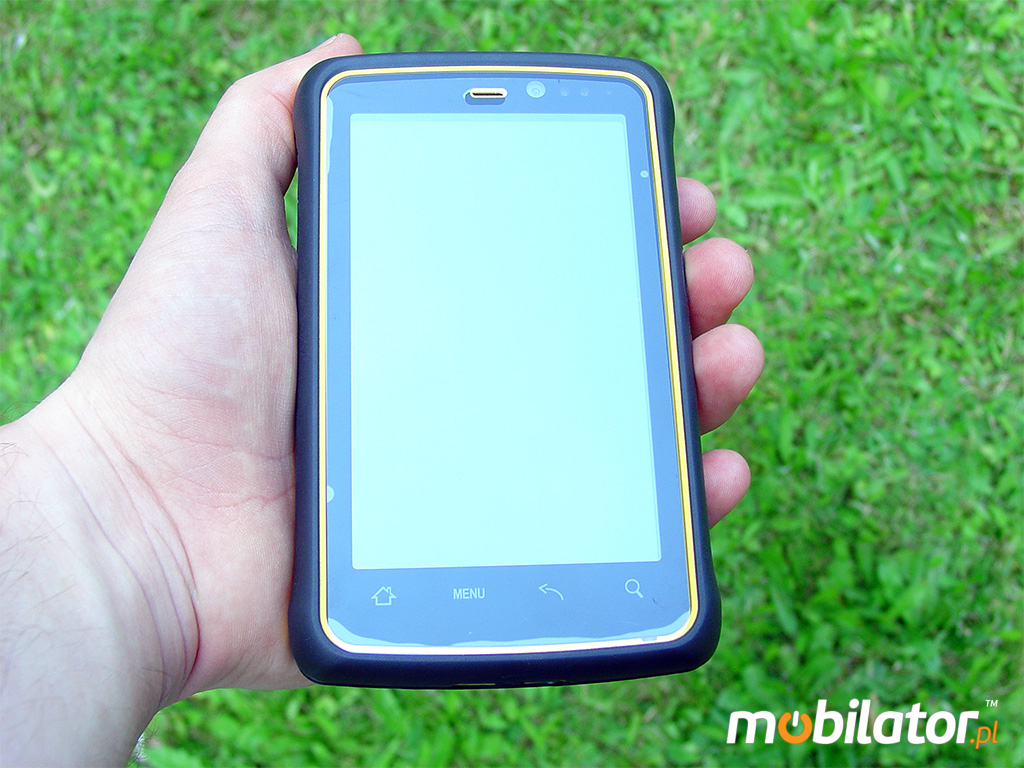

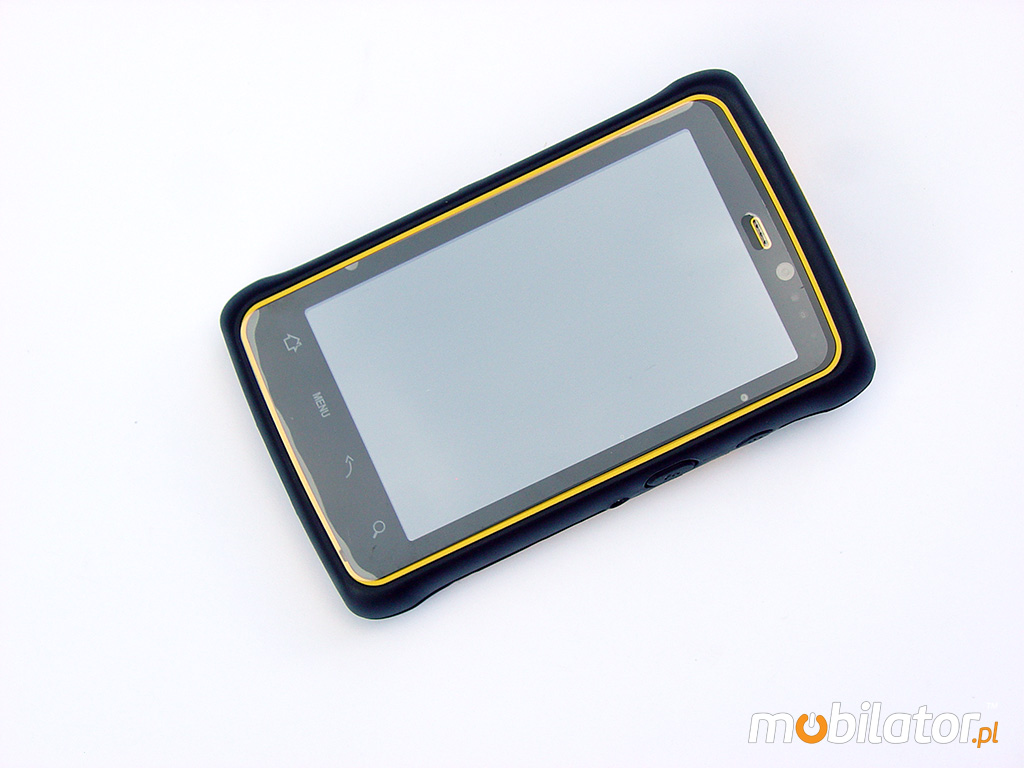

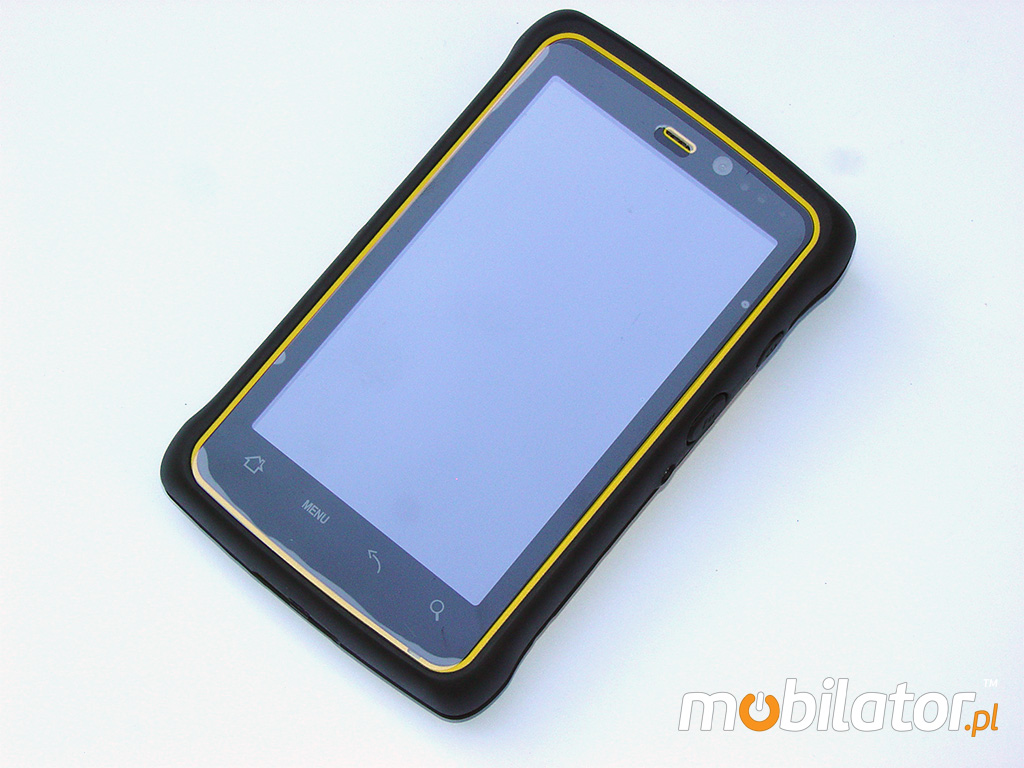

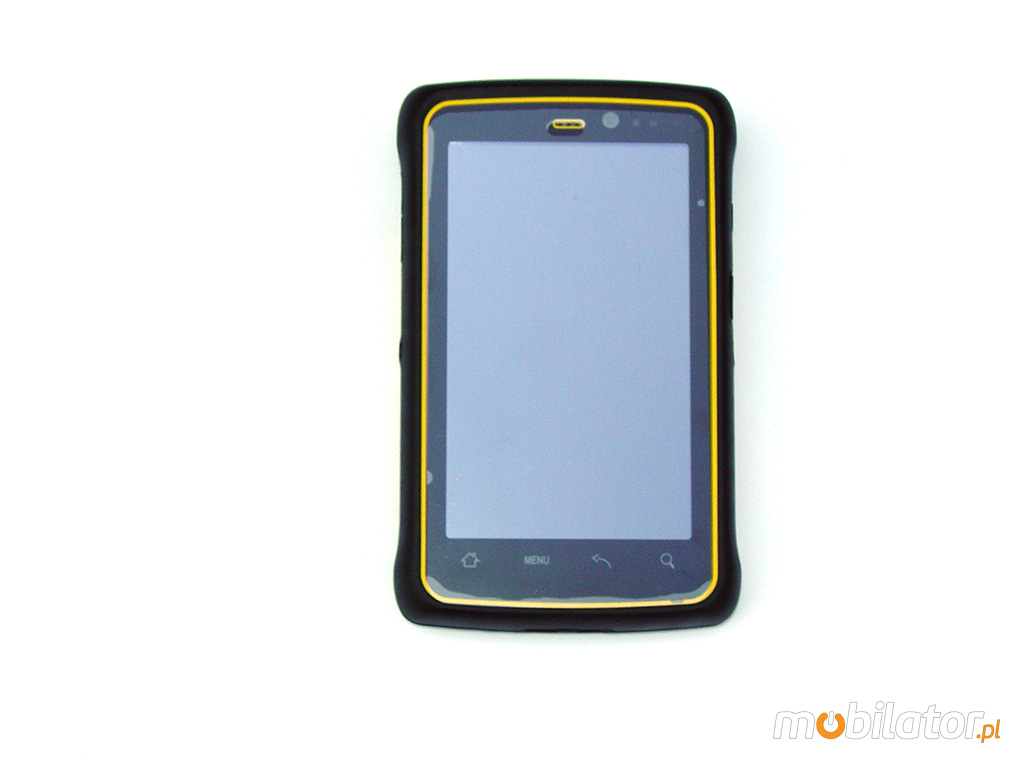

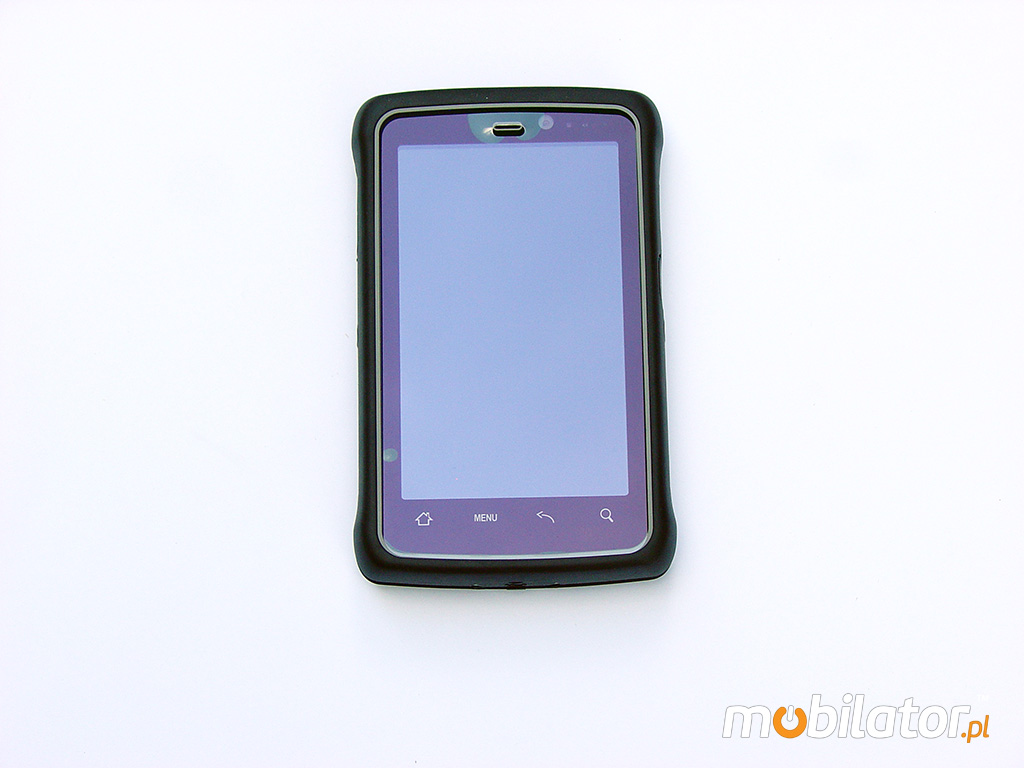

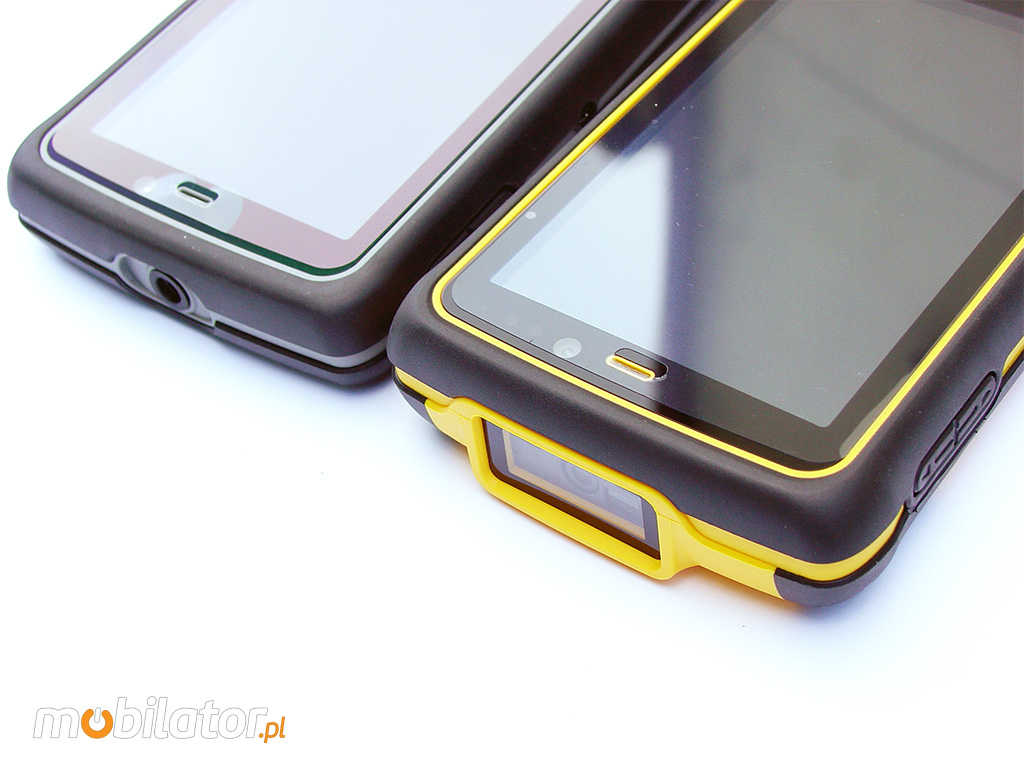

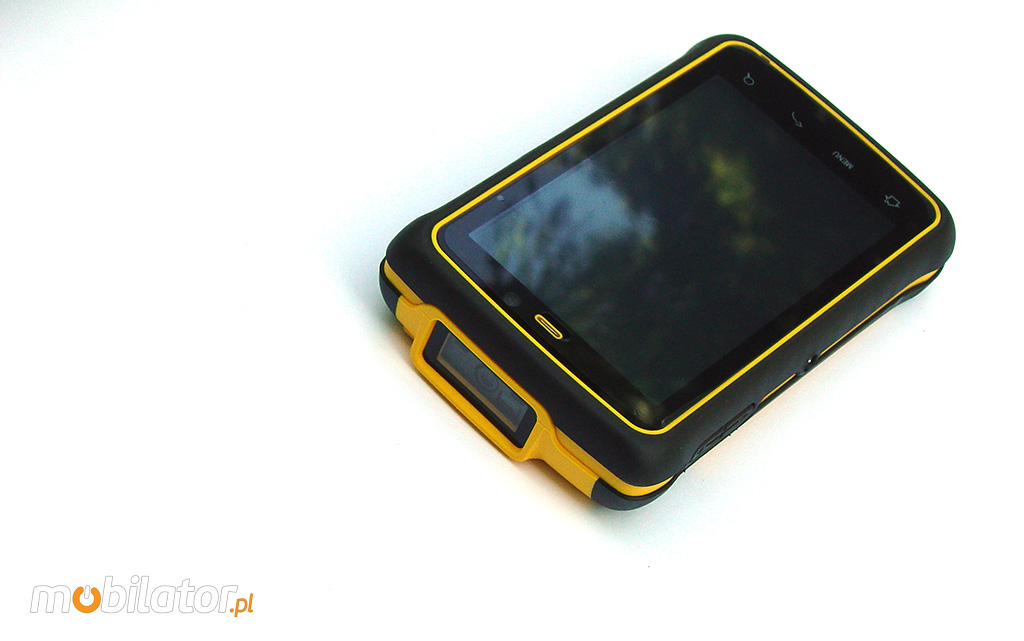

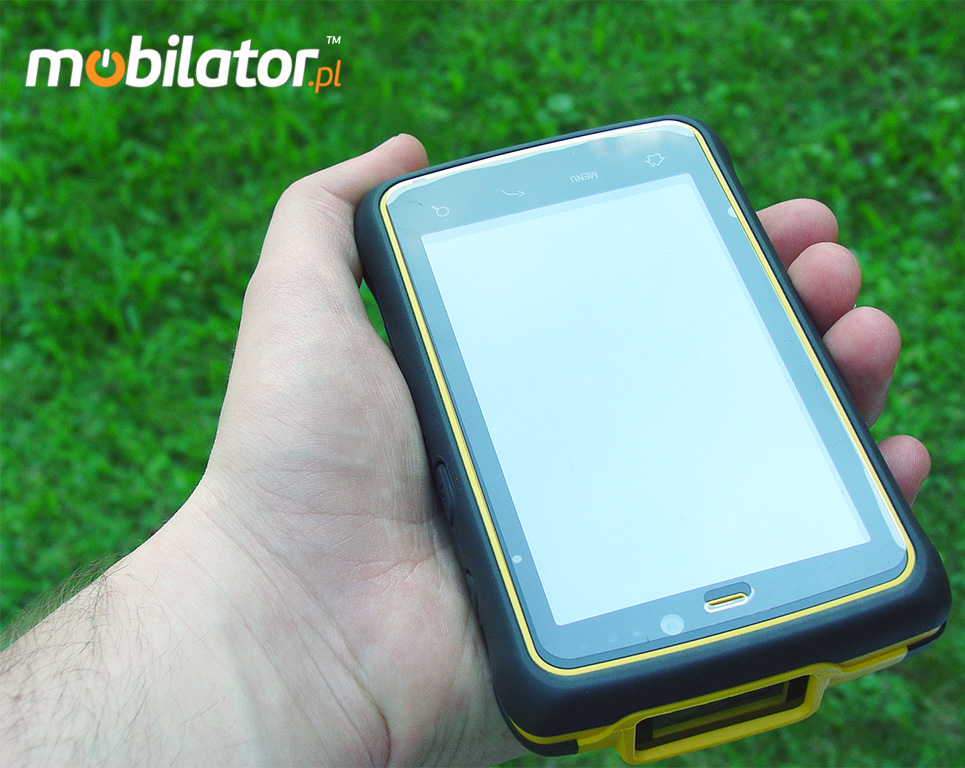

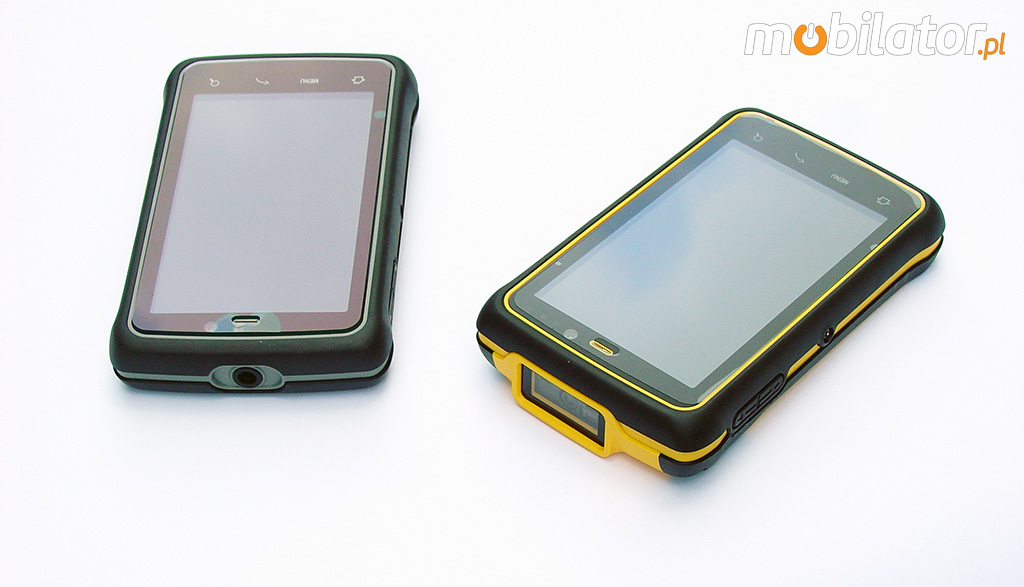

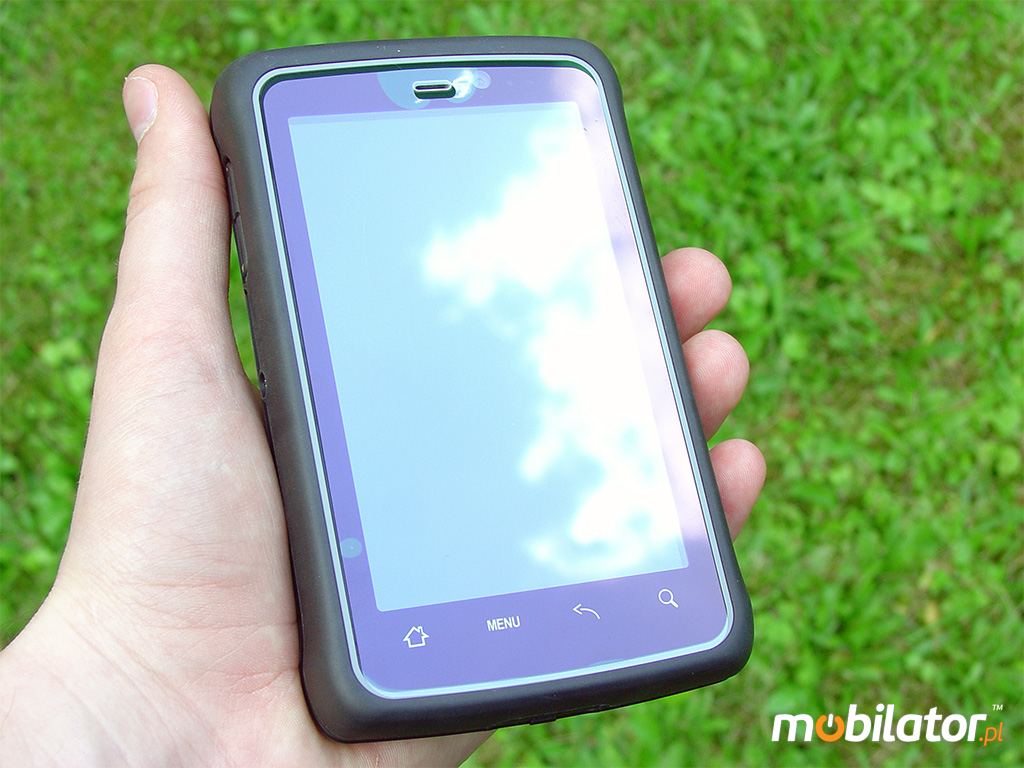

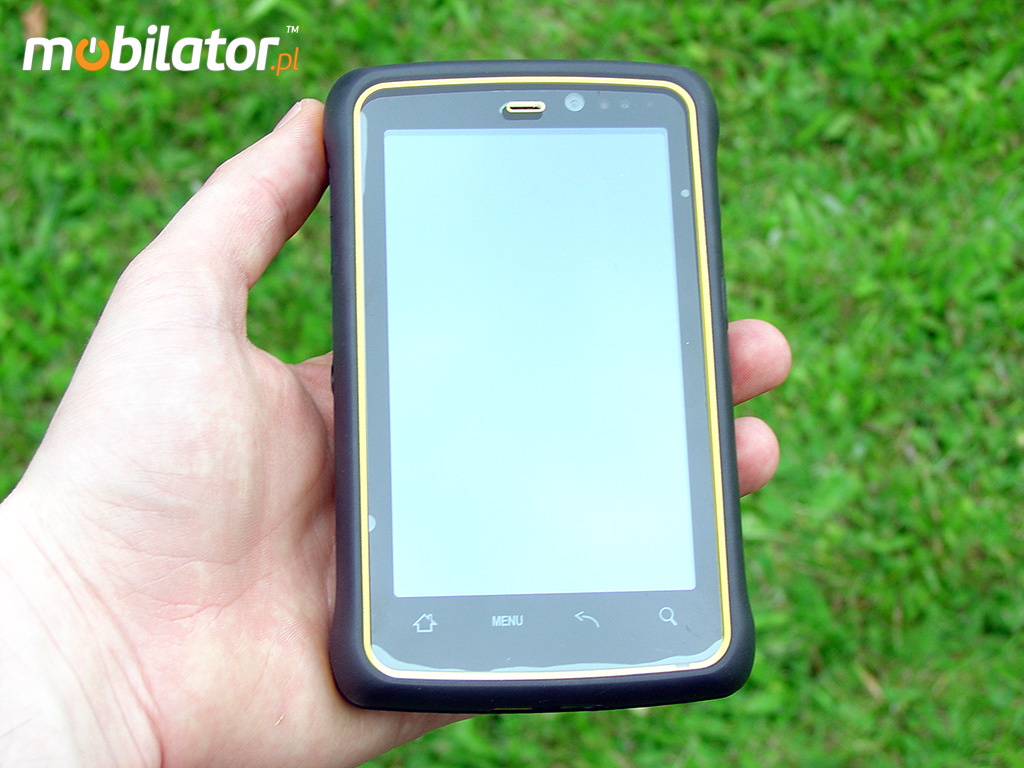

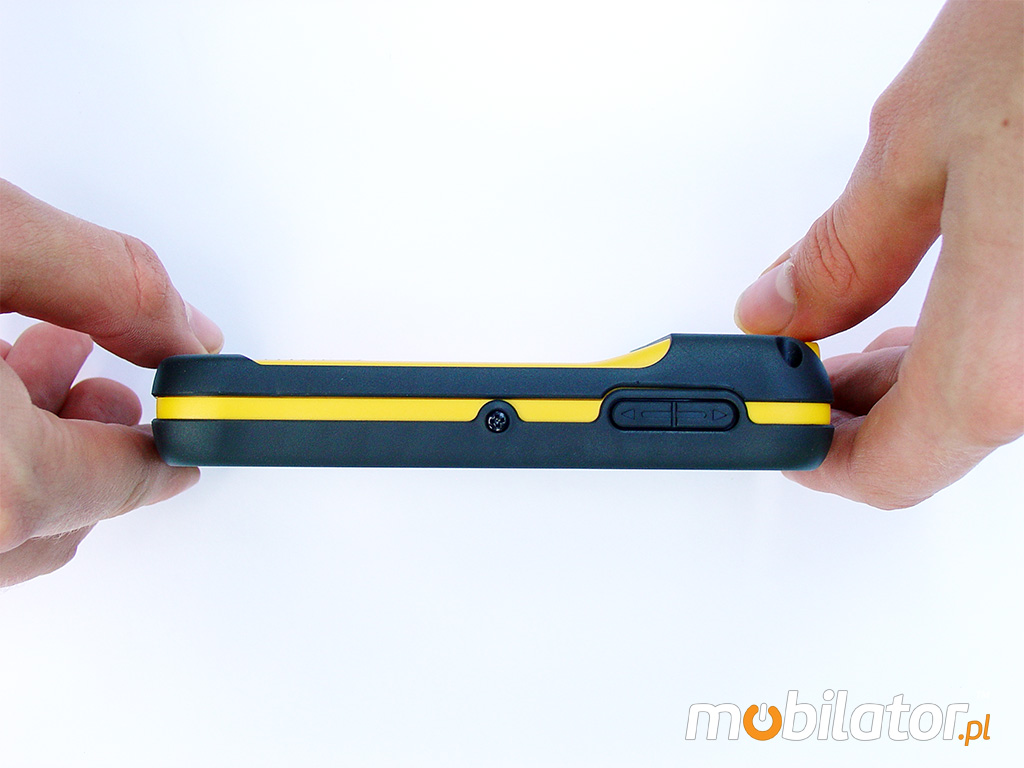

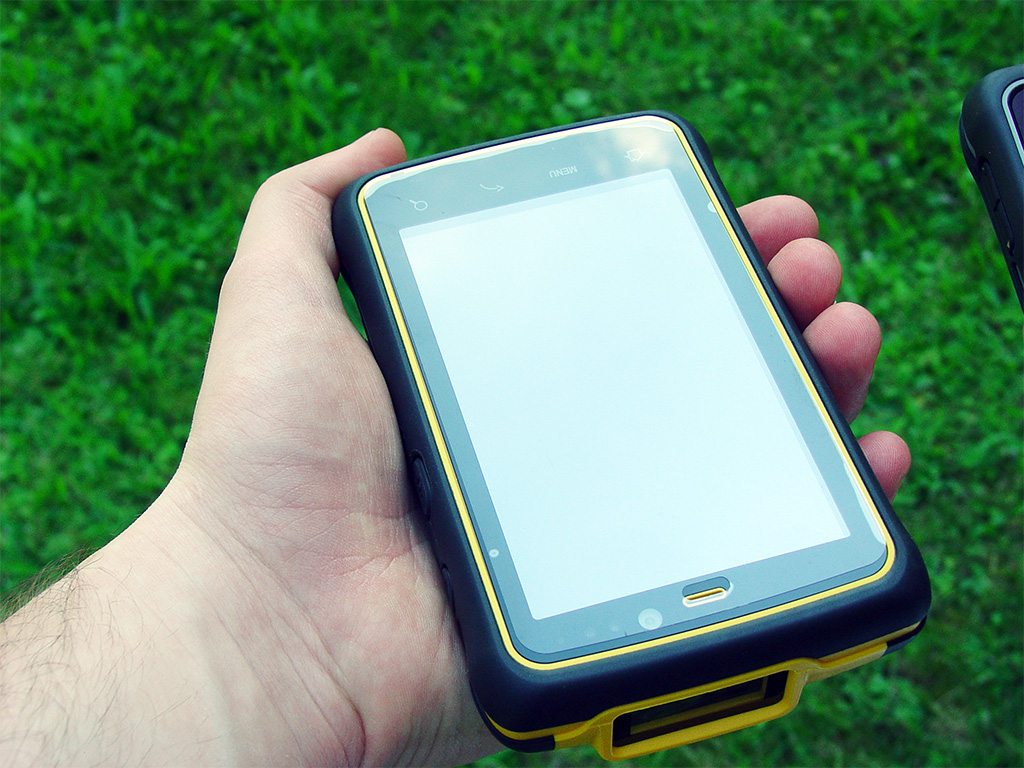

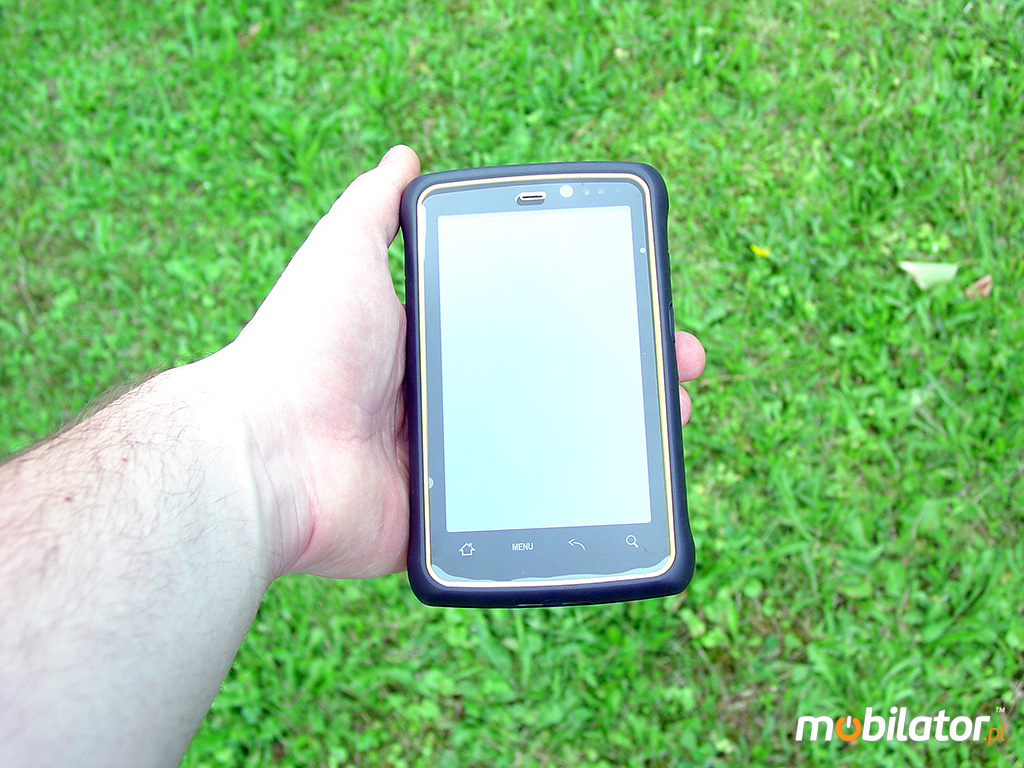

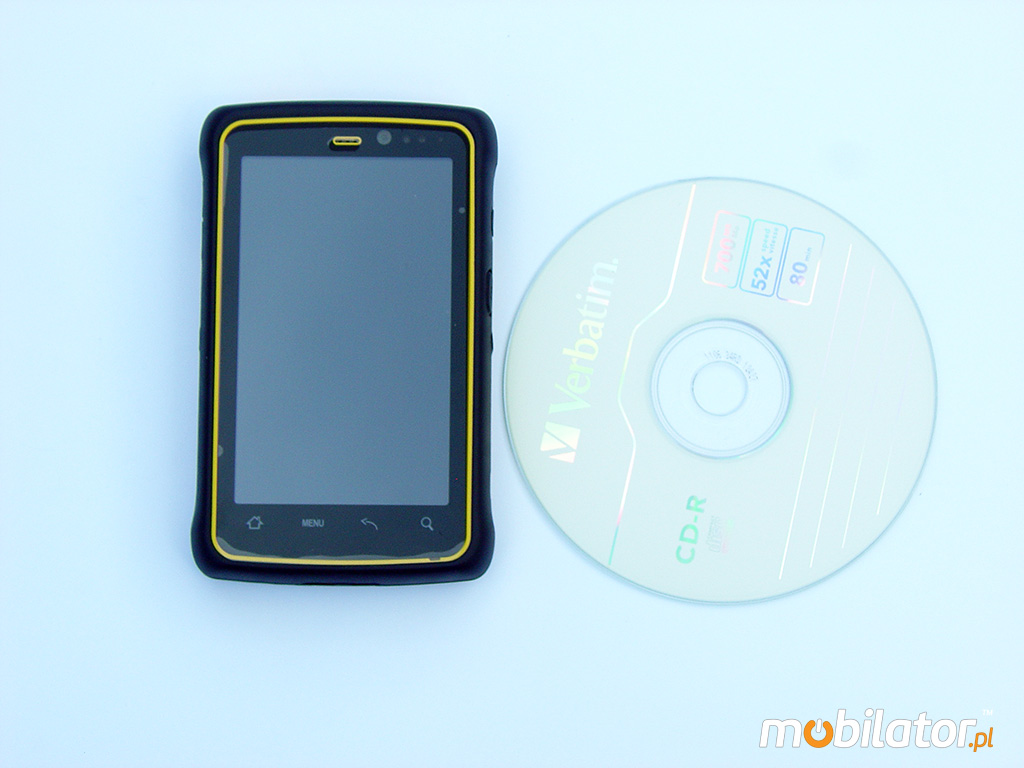

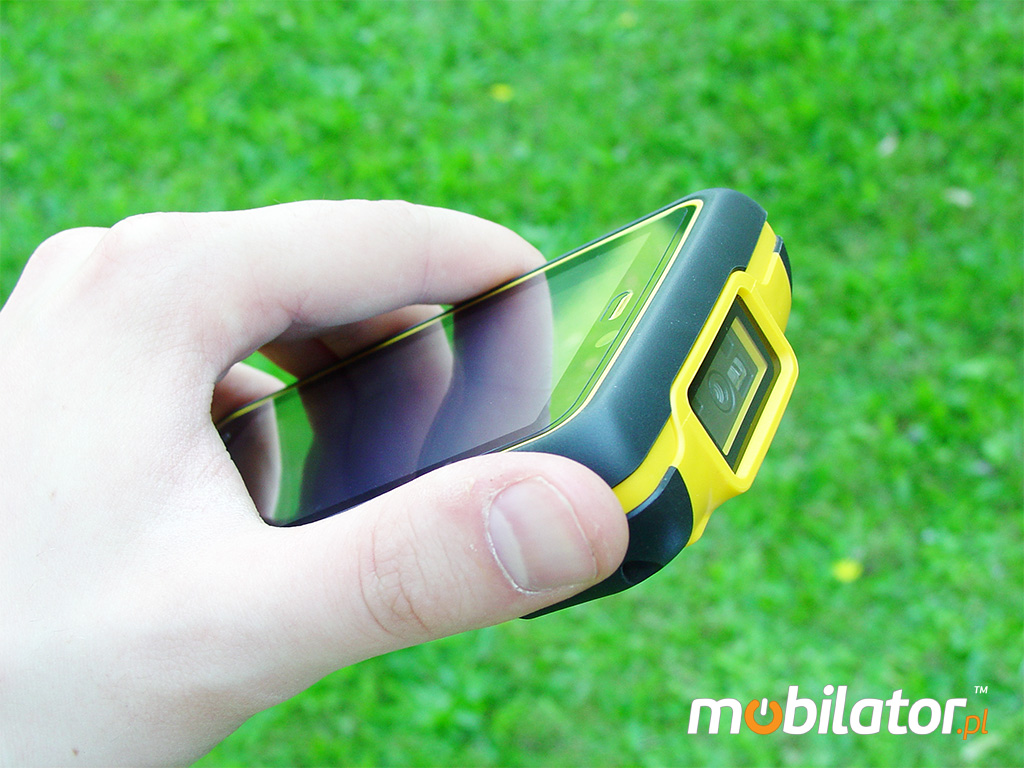

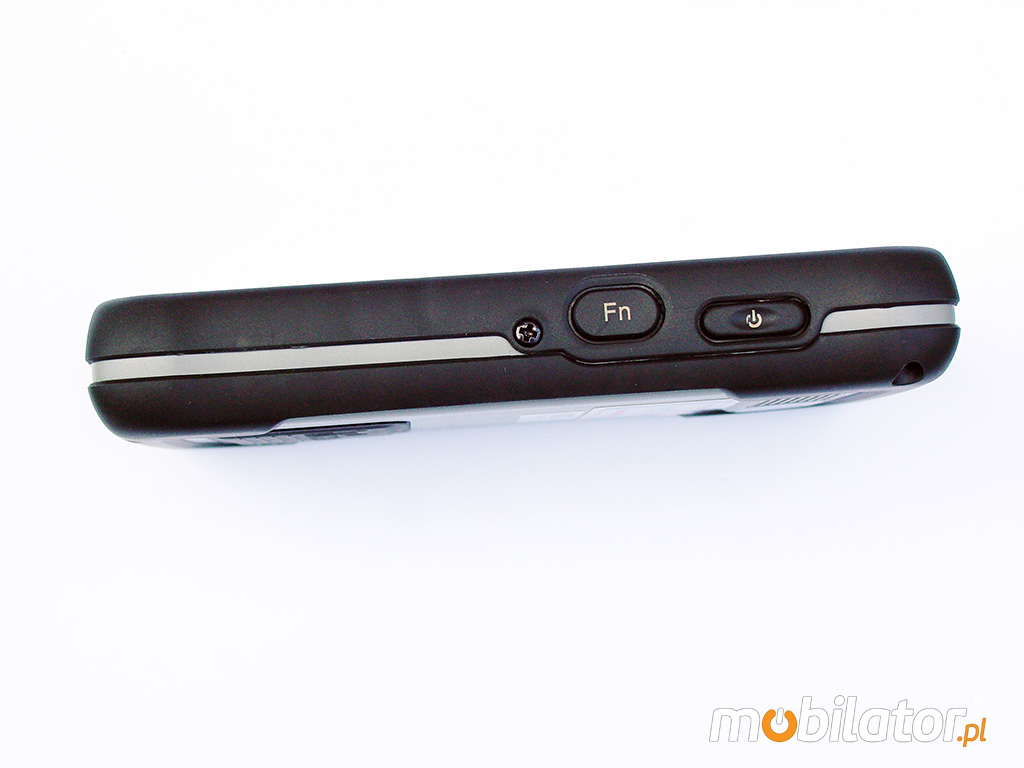

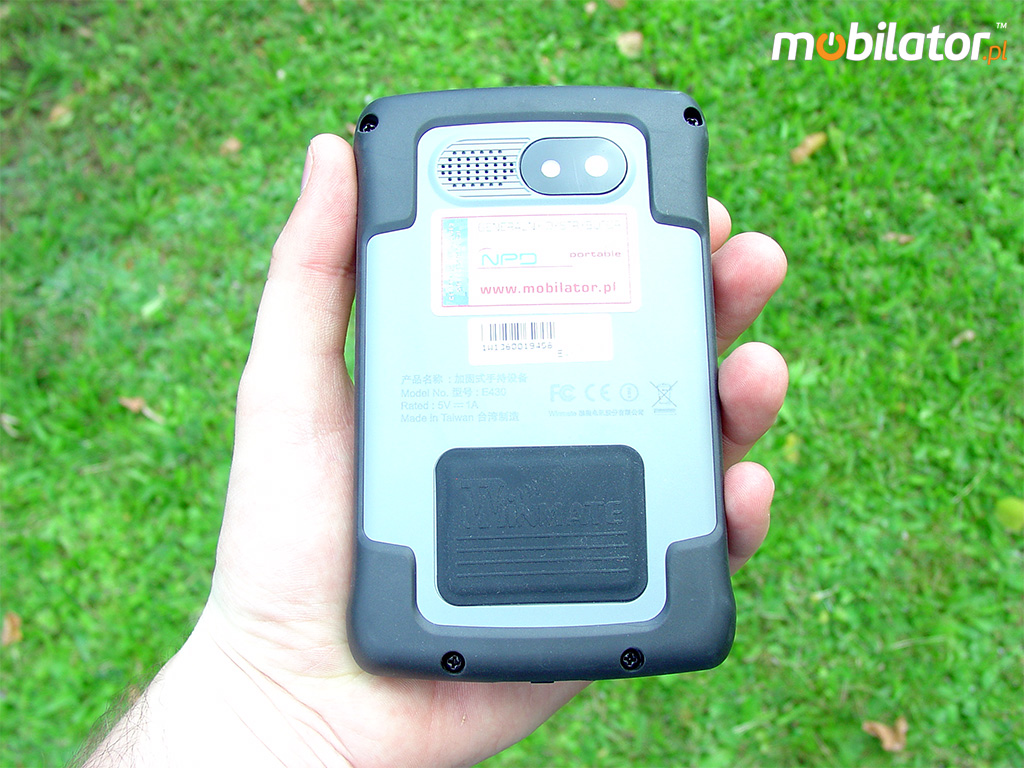

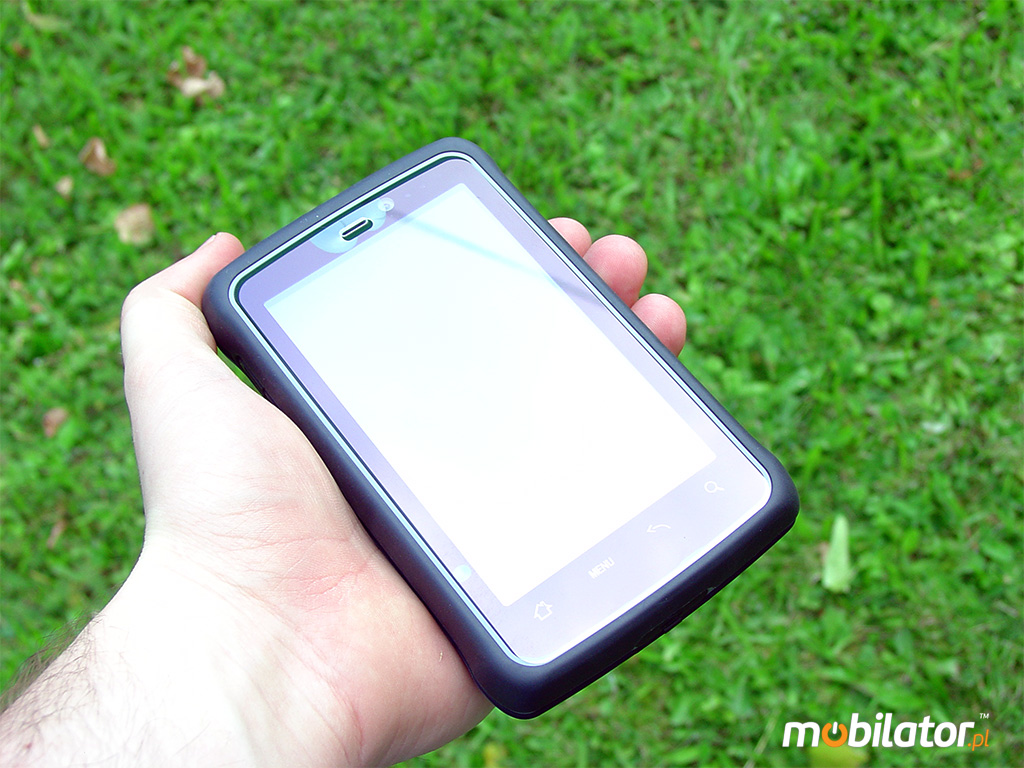

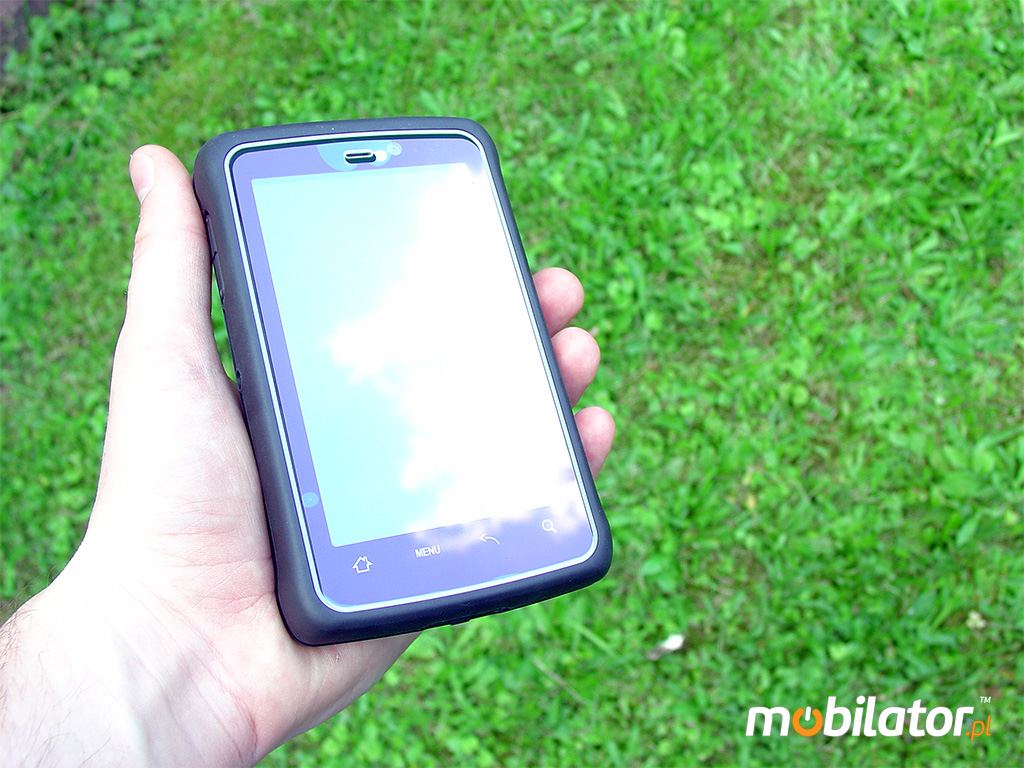

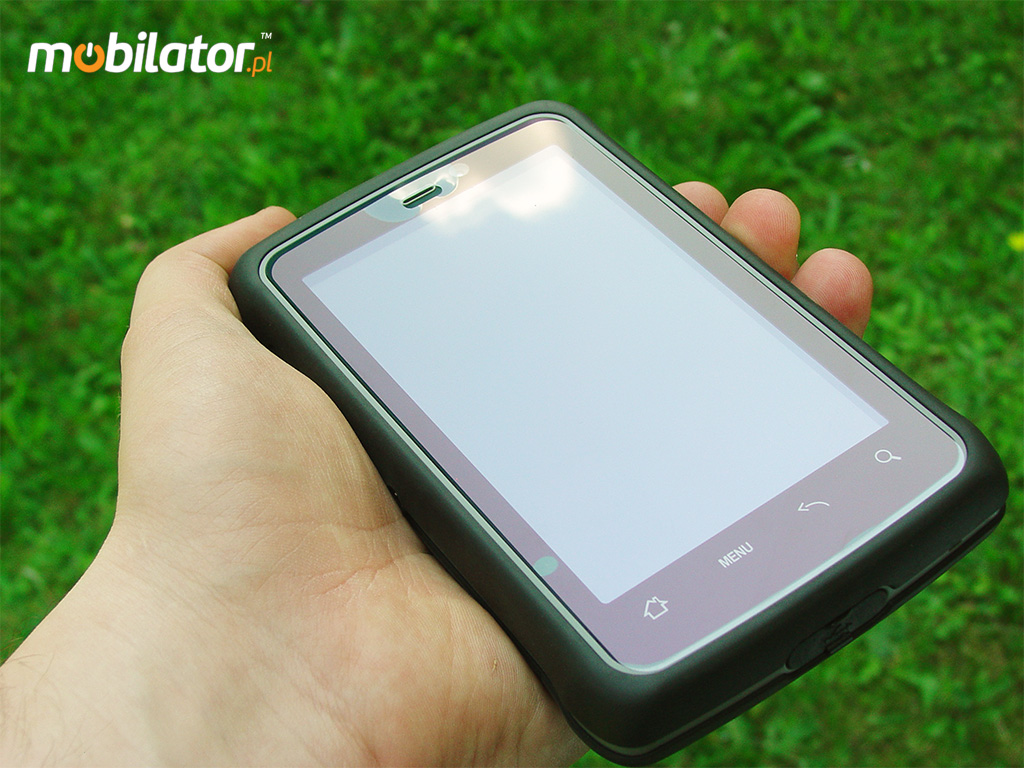

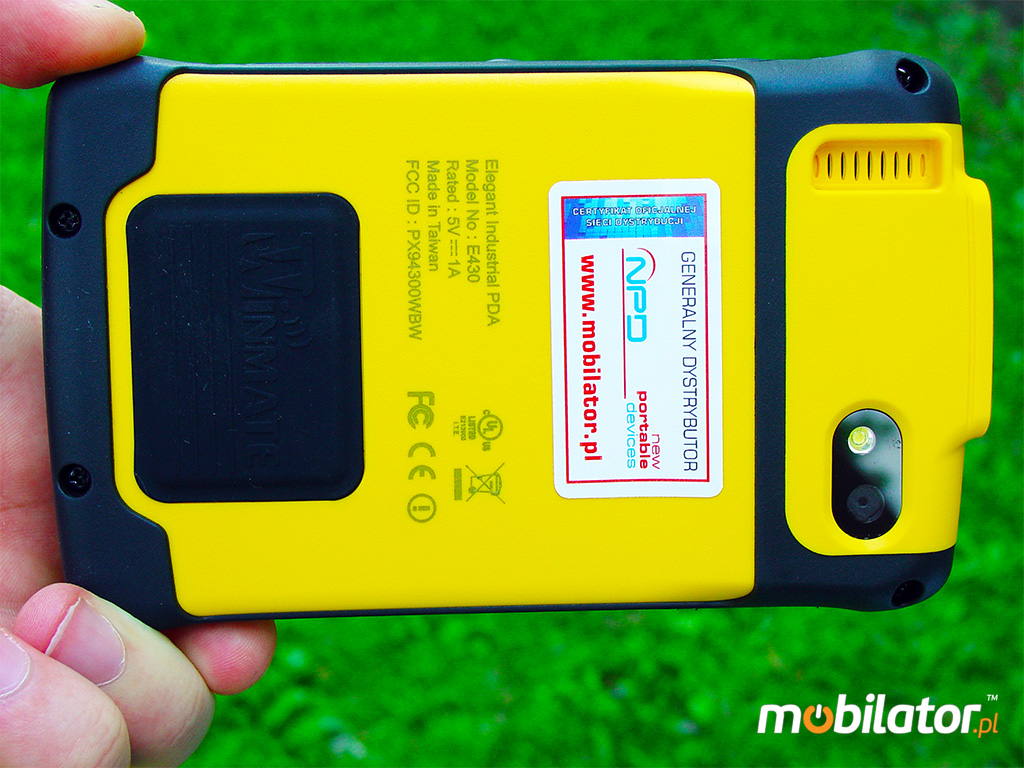

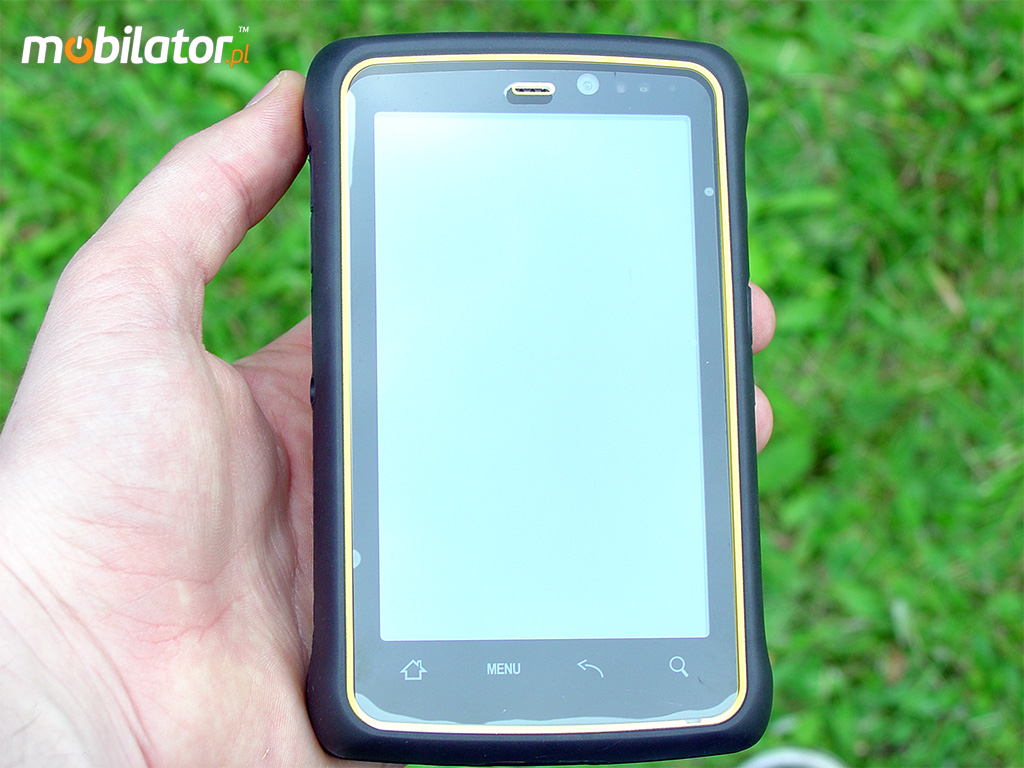

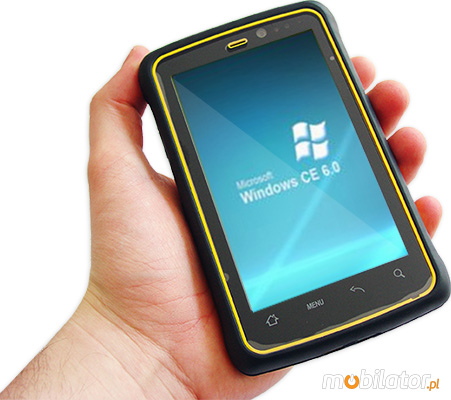

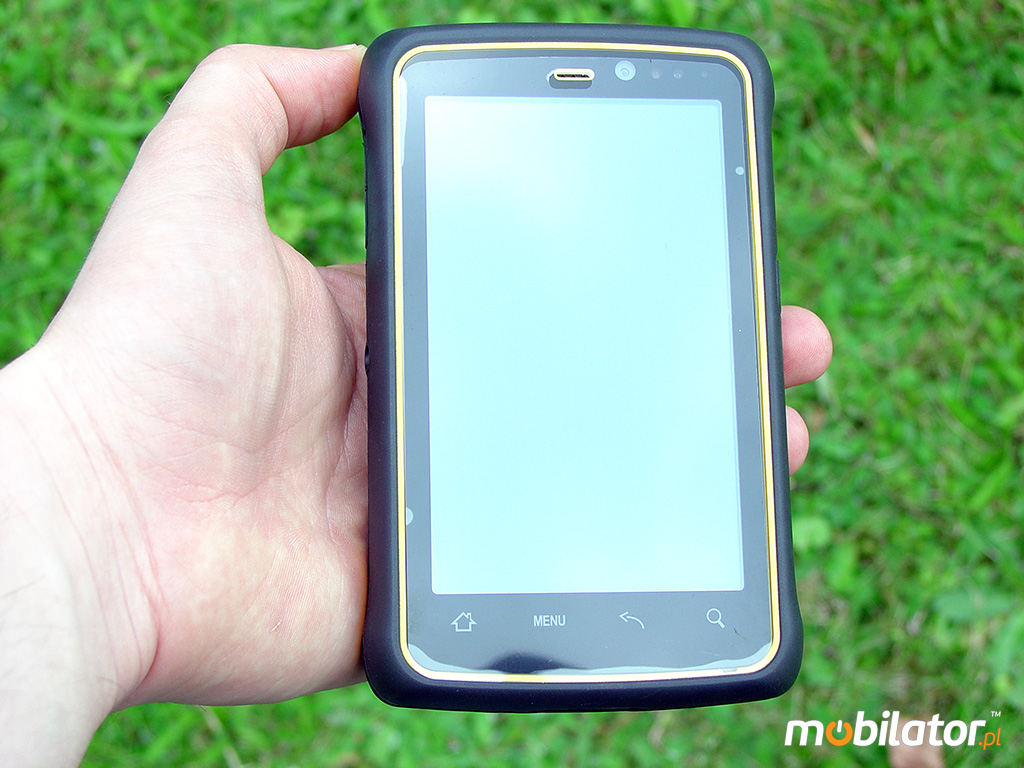

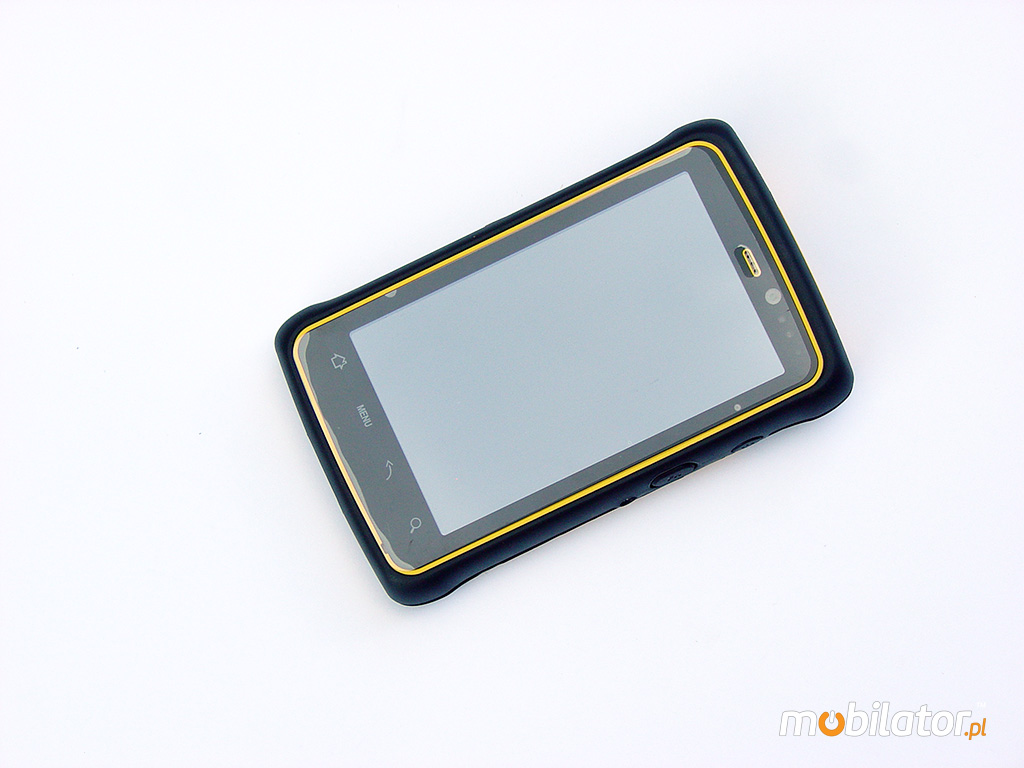

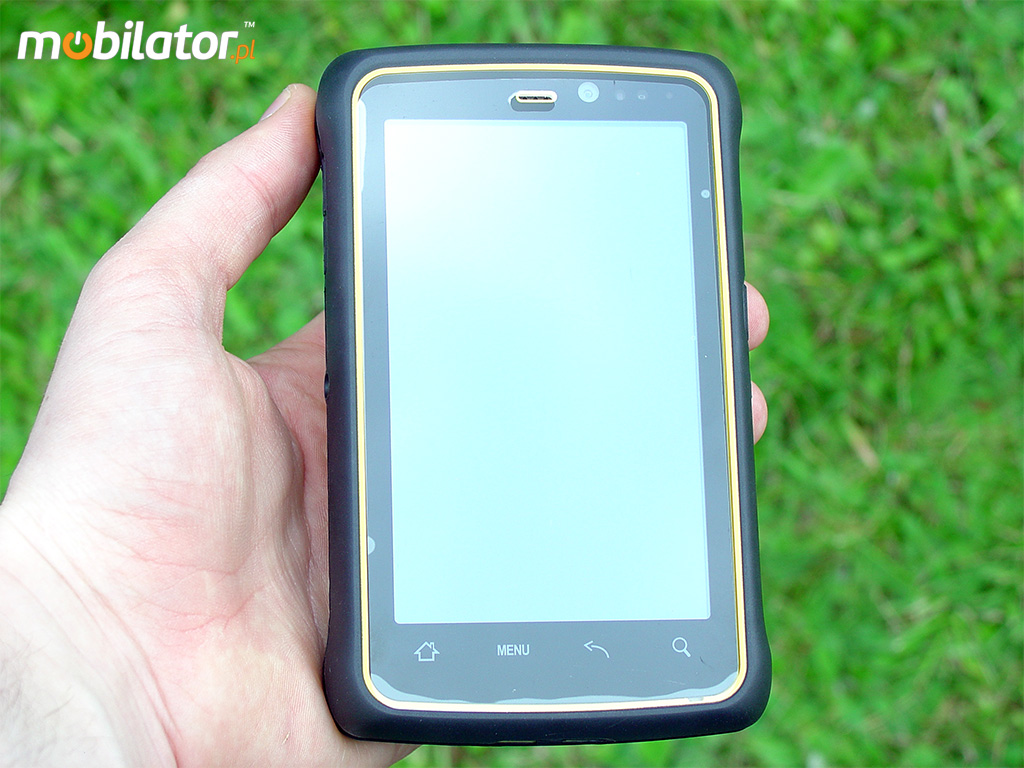

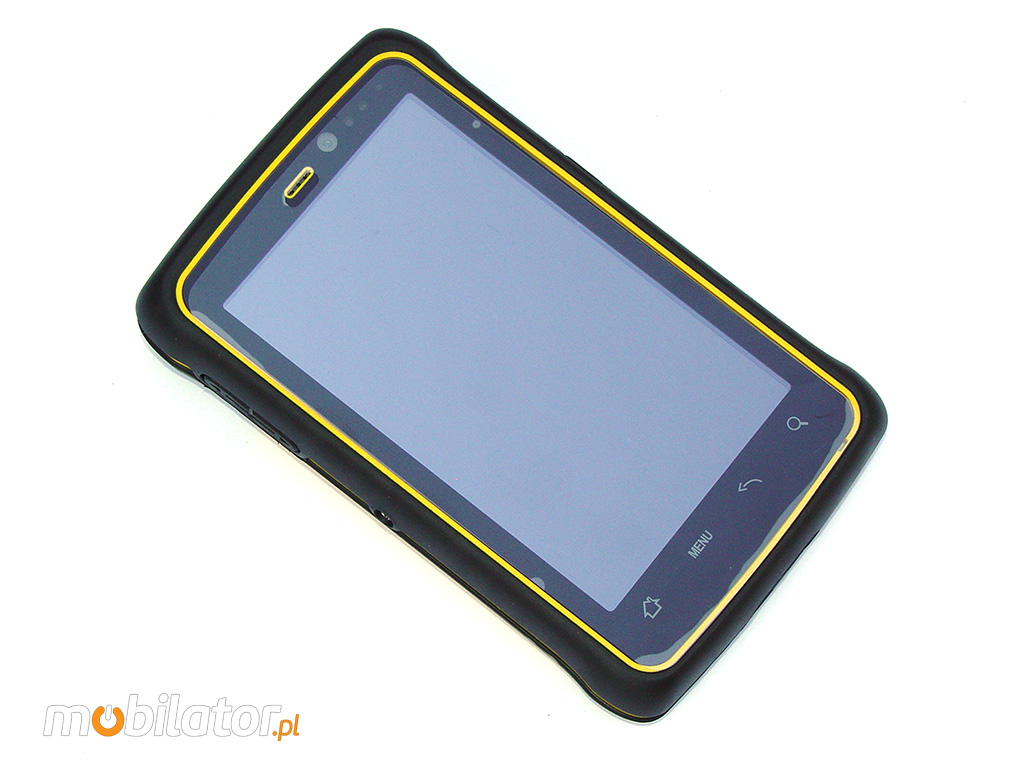

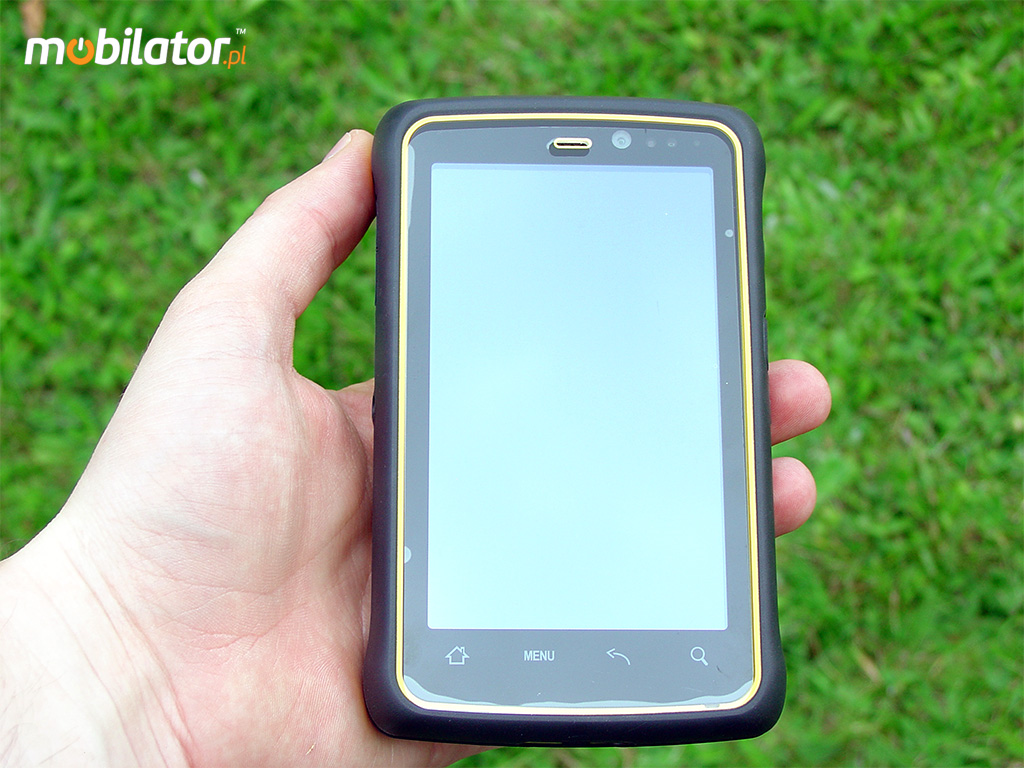

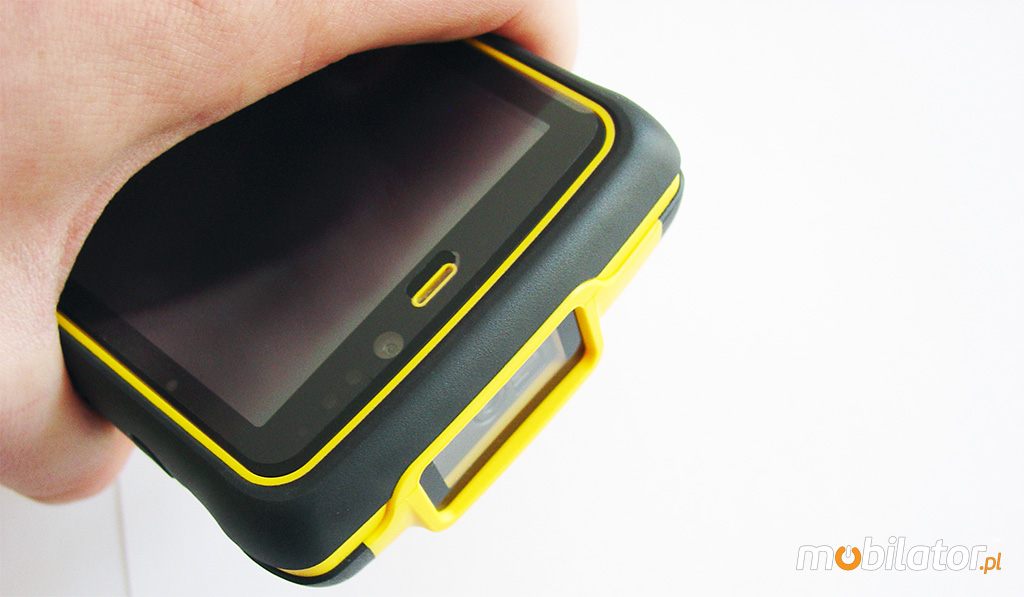

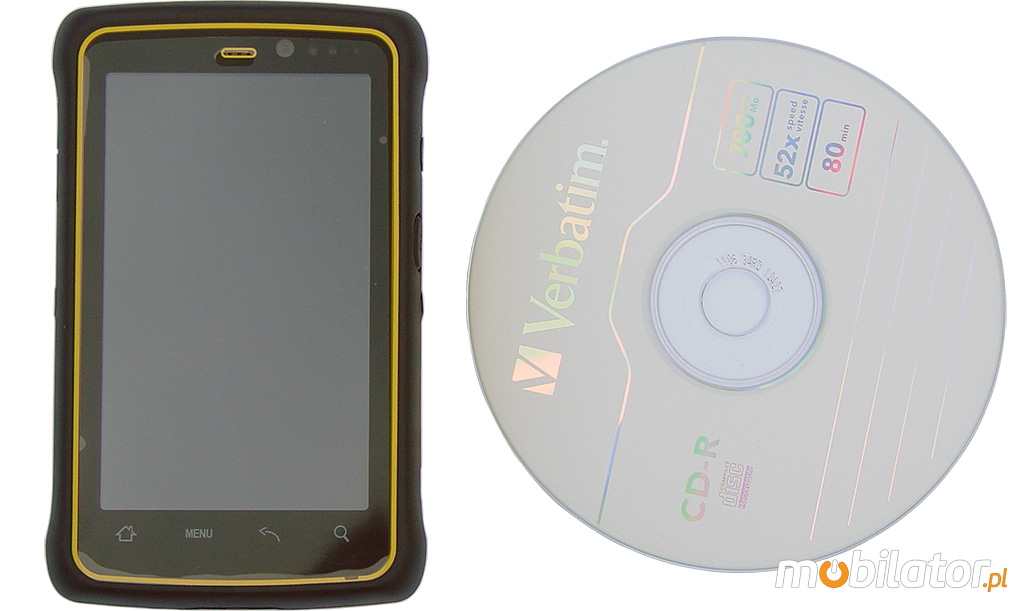

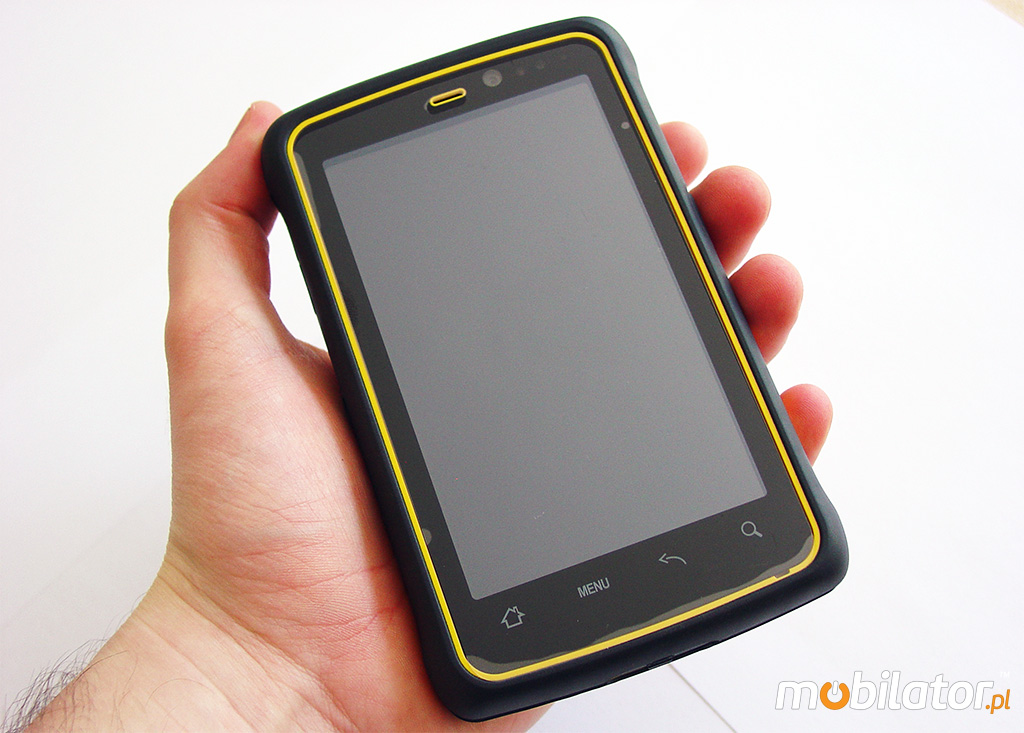

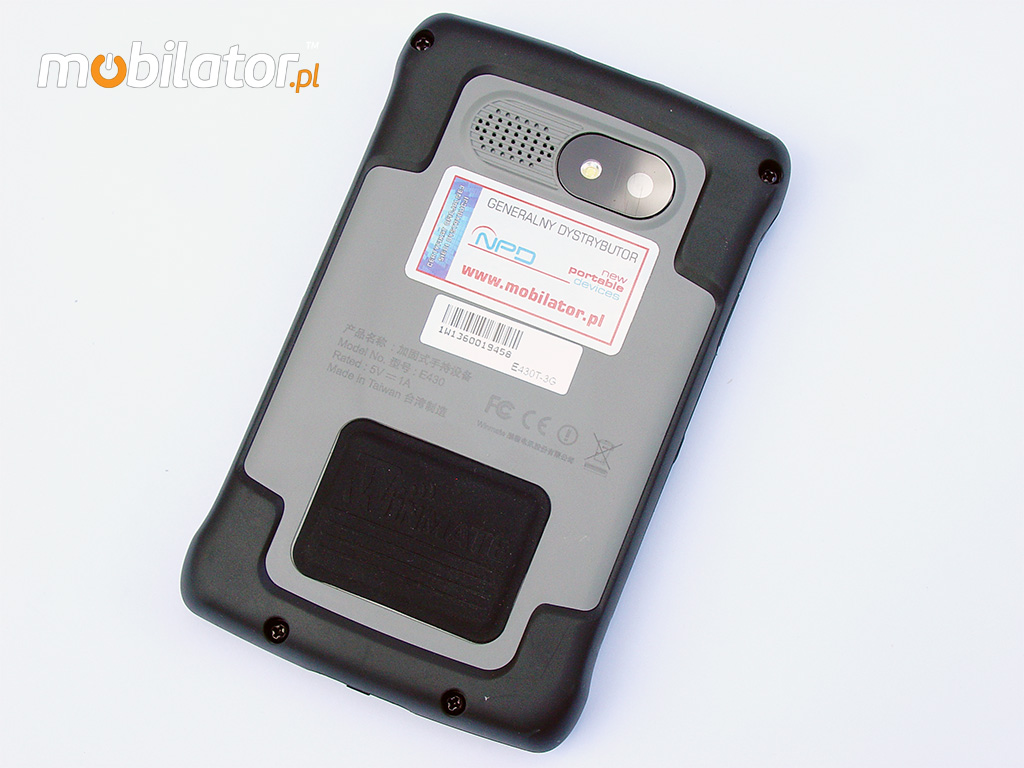

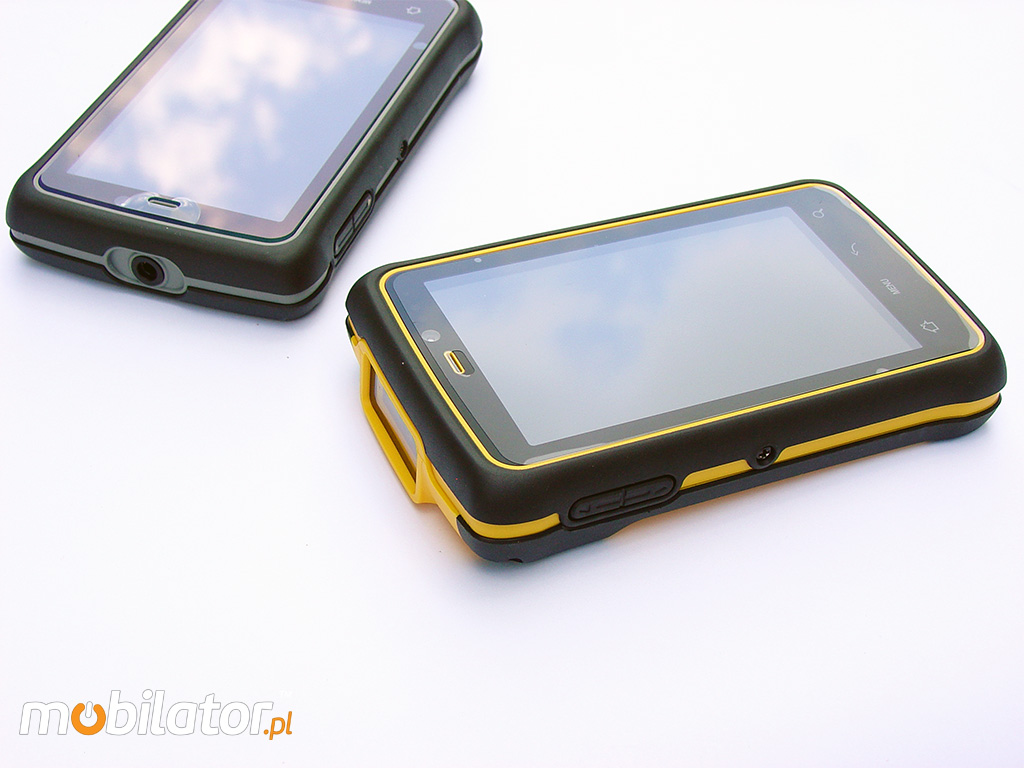

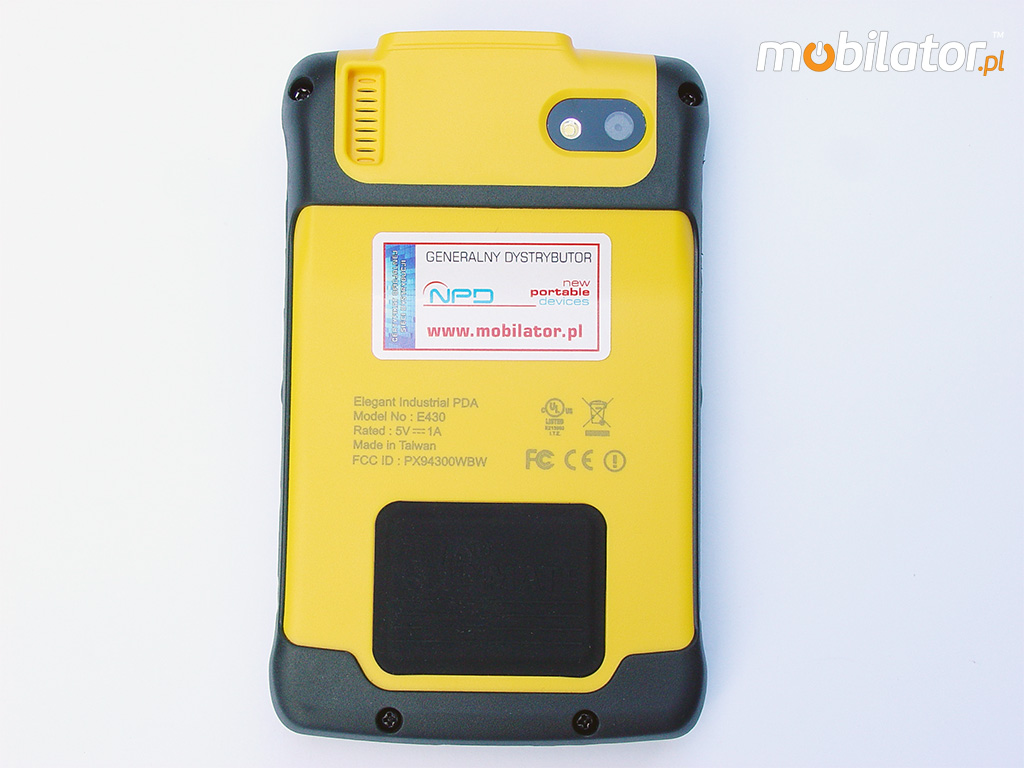

While from upfront the Winmate E430 looks like just another modern smartphone, take it in your hands or look at it from the side or back, and it's instantly obvious that this device is built to last and take a good bit of abuse. The body is made of ABS plastic with rubberized bumper areas and overmolding offering not only an attractive look, but also extra protection along the sides and corners. Physical controls are at a minimum. Like all devices with procap digitizers, the E430 is operated almost exclusively via touch. While our review device came in an attractive yellow and black, Winmate also offers the E430 in white with light-blue moldings, likely geared towards applications in healthcare settings.
|
System specifications
|
|
Processor |
TI Cortex A8 OMAP DM3730 1.0GHz |
|

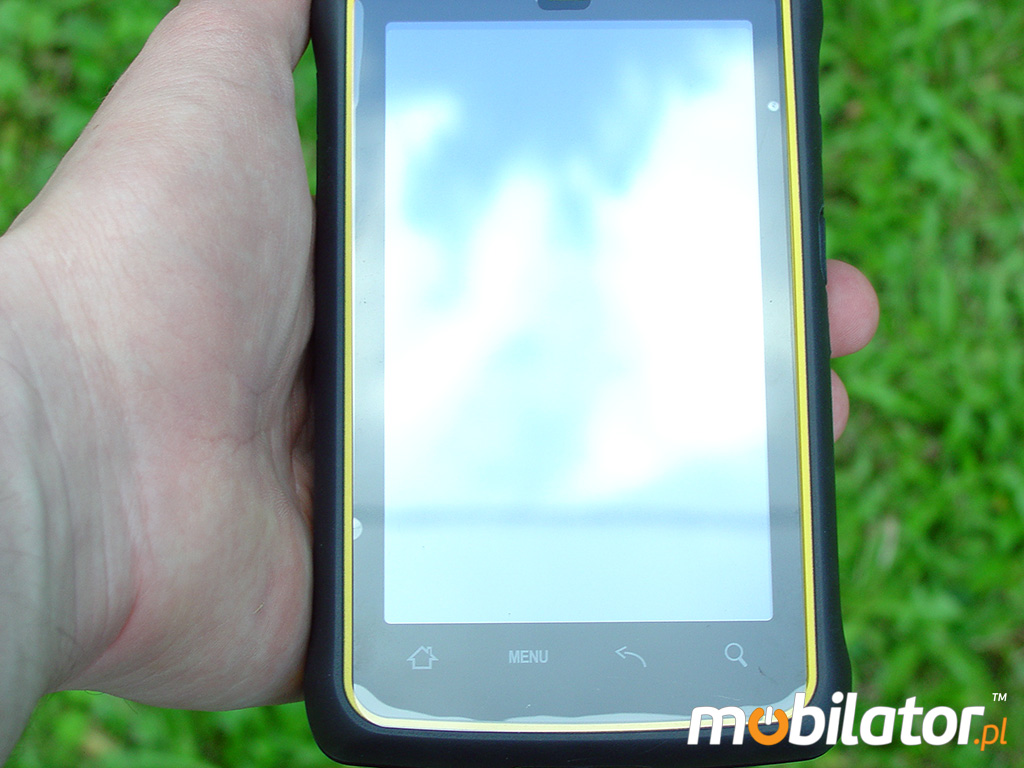

Display |
4.3" (480x800) capacitve (Pro-Cap) : multi-touch |
RAM
|
512MB SDRAM |
ROM
|
512MB NAND flash |
|
Connectors |
Micro USB : Micro SD (max.32GB) |
|
|
SIM
|
|
Audio |
Microphone : Speaker 1.2W |
|
|
3.5mm Jack |
|
Battery |
3.7V 2600mAh Li-Ion (1S1P) |
|

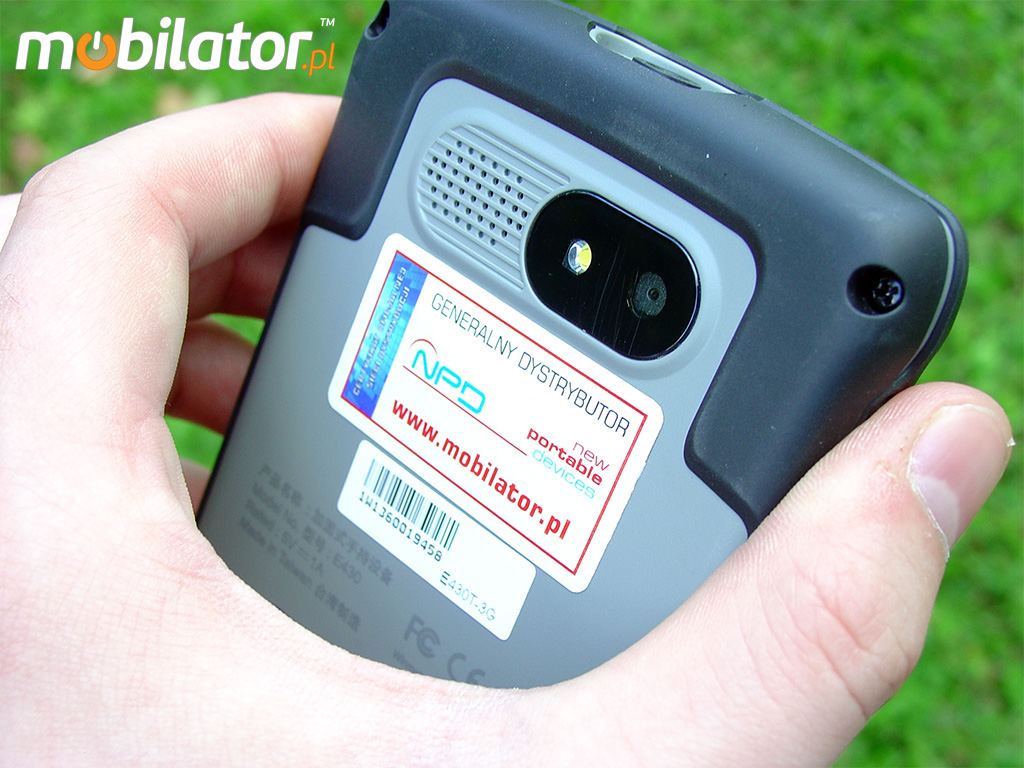

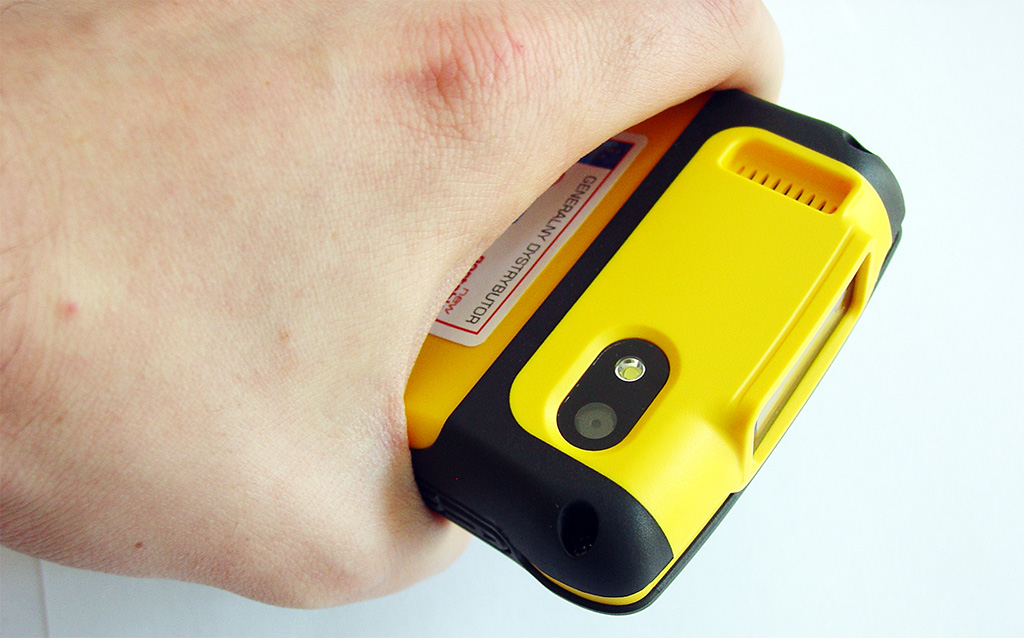

Camera |
Front: 2Mpx
|
|
|
Rear: 5Mpx + Dioda LED |
|
Sensors |
light : proximity : gravity |
|
|
3-axis acceleration : 3-axis magnetic field |
|
Readers |
RFID (optional) : 1D (optional) : 1D/2D (optional) : IR (optional)
|
|
Modules |
WiFi : Bluetooth V2.1+EDR : GPS : 3.5G |

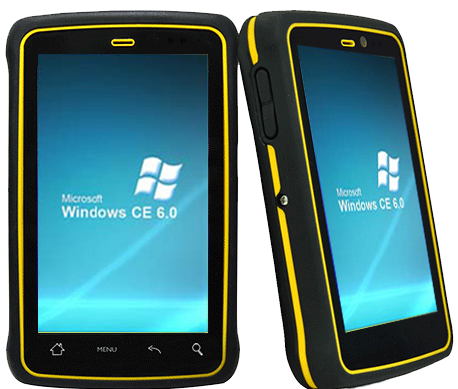

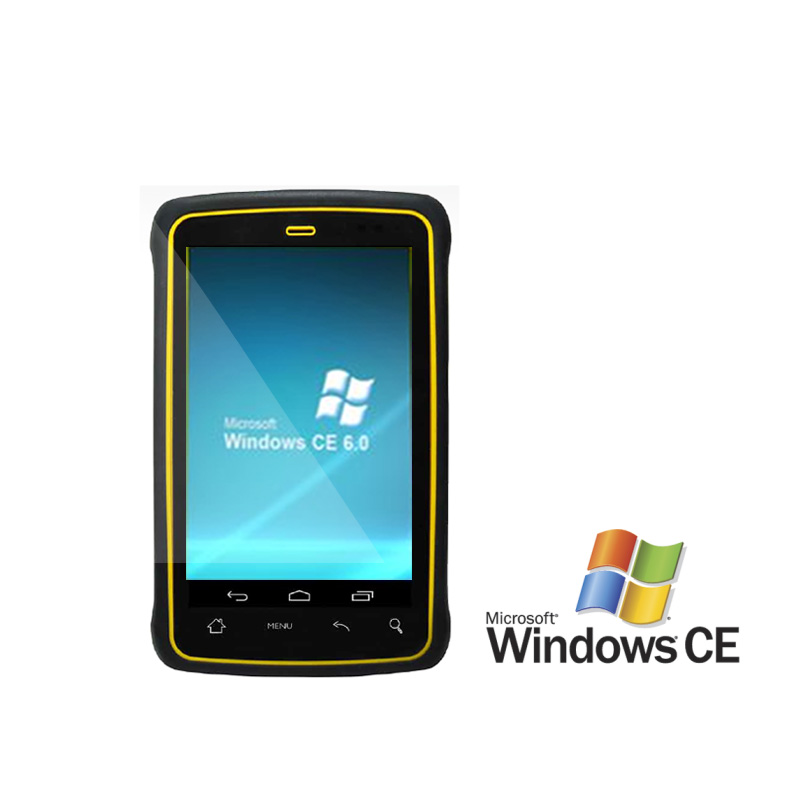

Operating System
|
Microsoft® Windows CE 6.0 Pro Runtime
|
Return to "Available hardware configurations"
|
Standard - 3G
|
 |
HF RFID
|
 |
|
IR |
|
|
1D |
 |
1D / 2D
|
|
|
|
Refer to the "Available hardware configurations" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form. |
 |
|

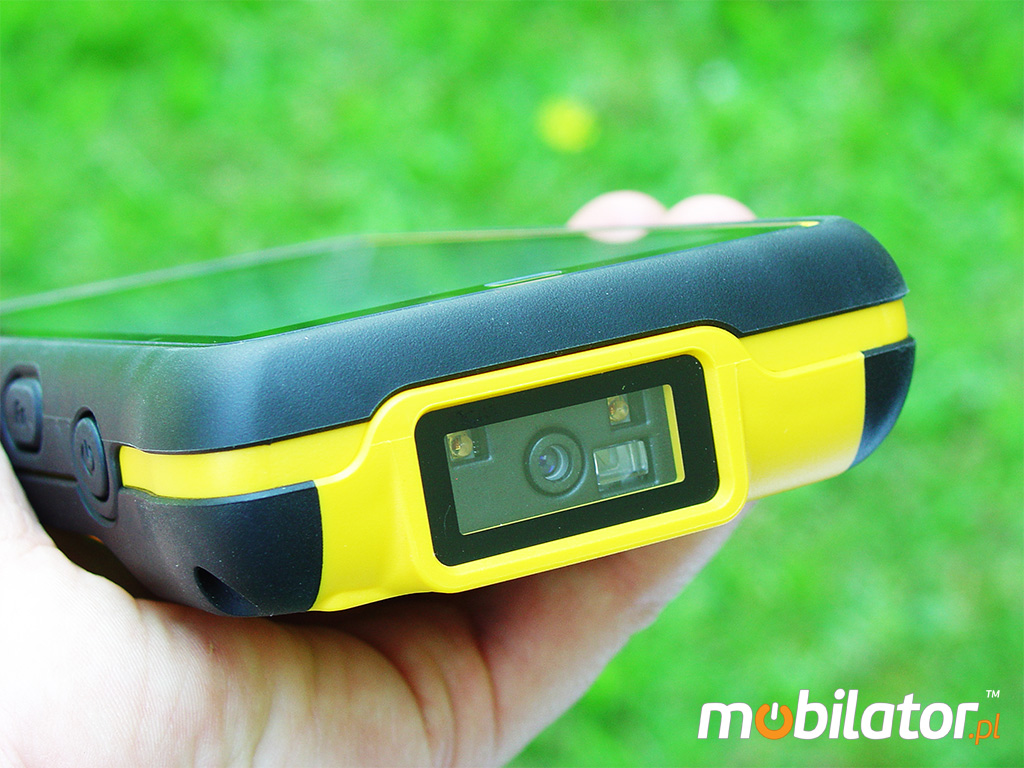

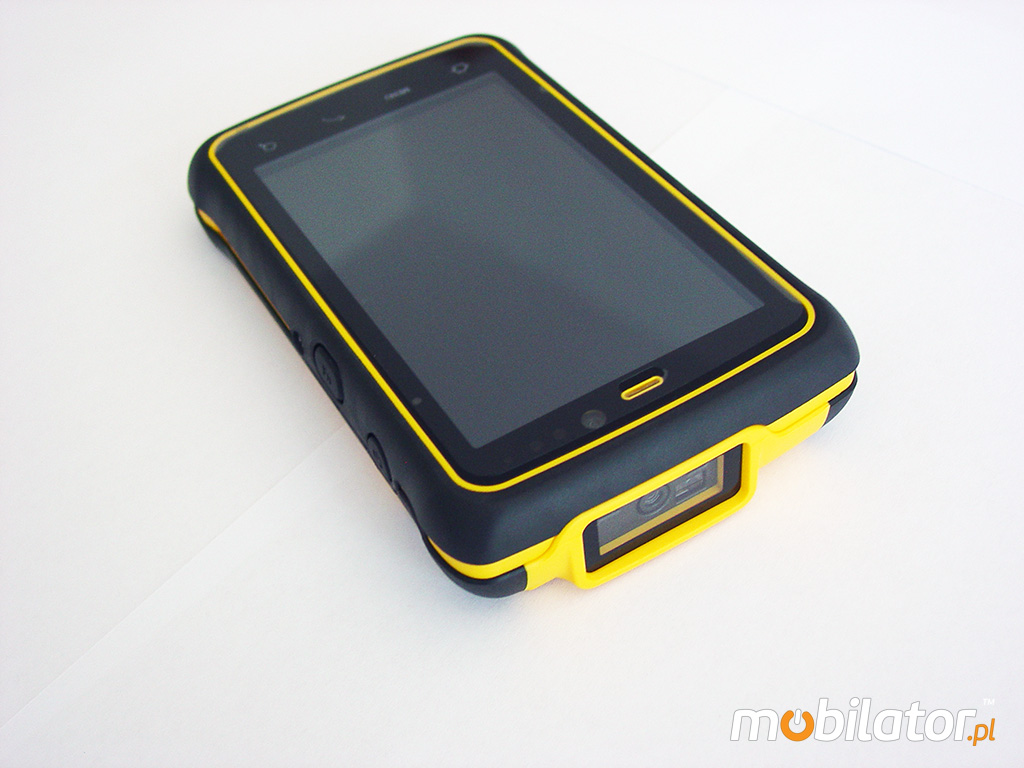

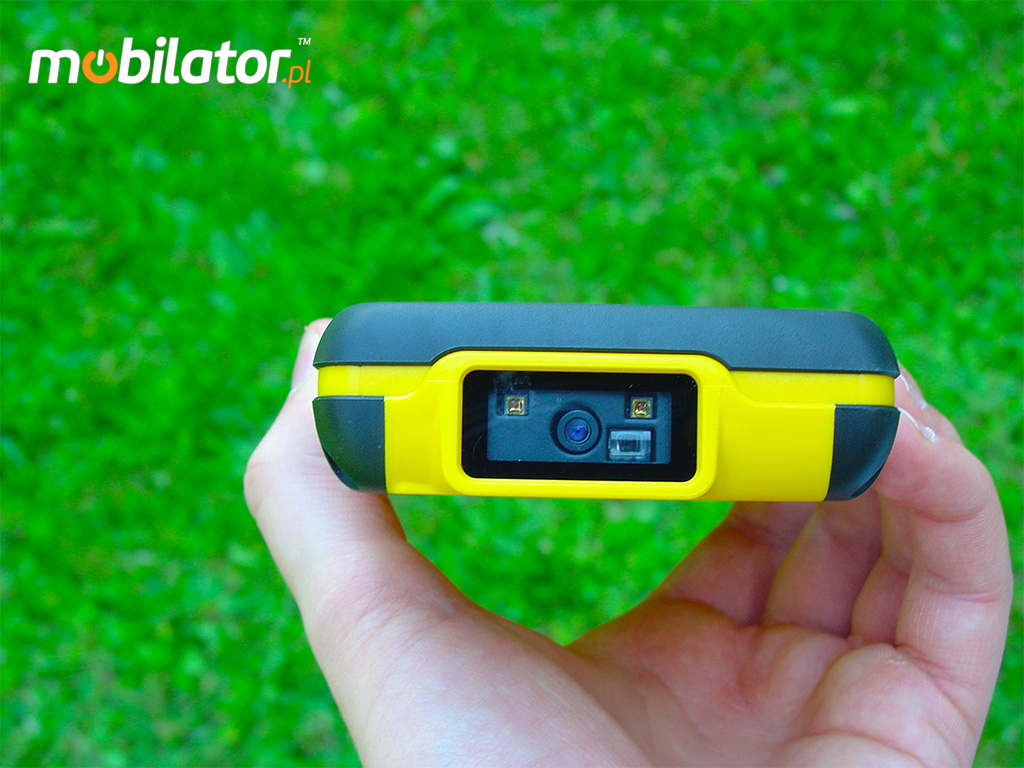

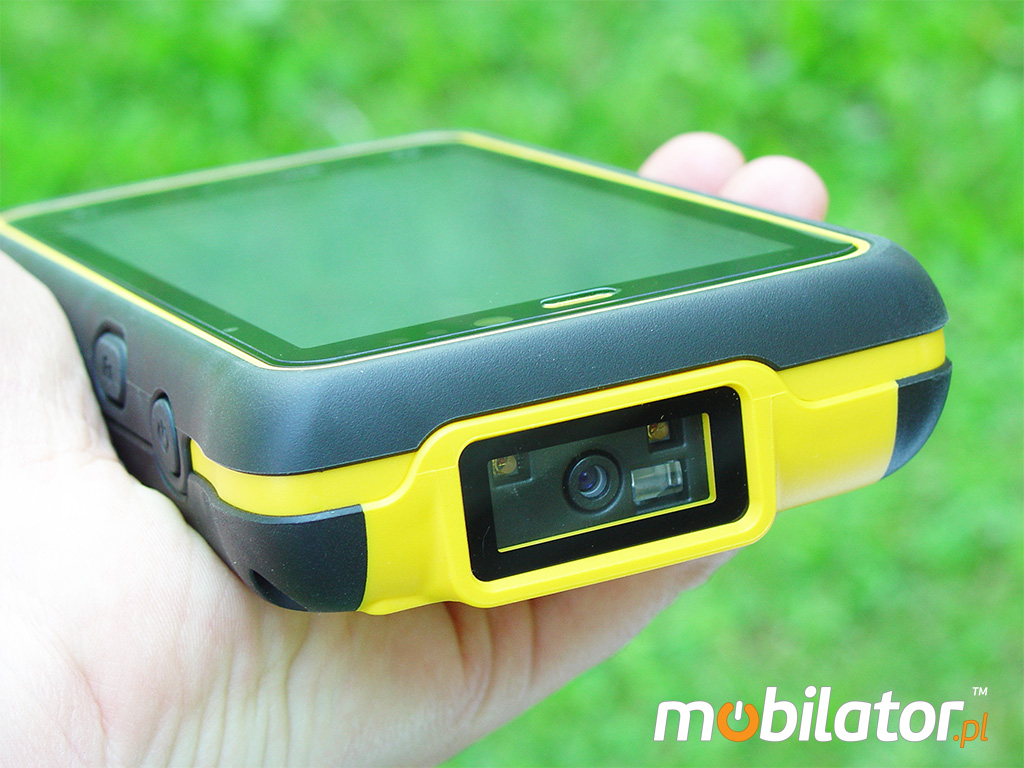

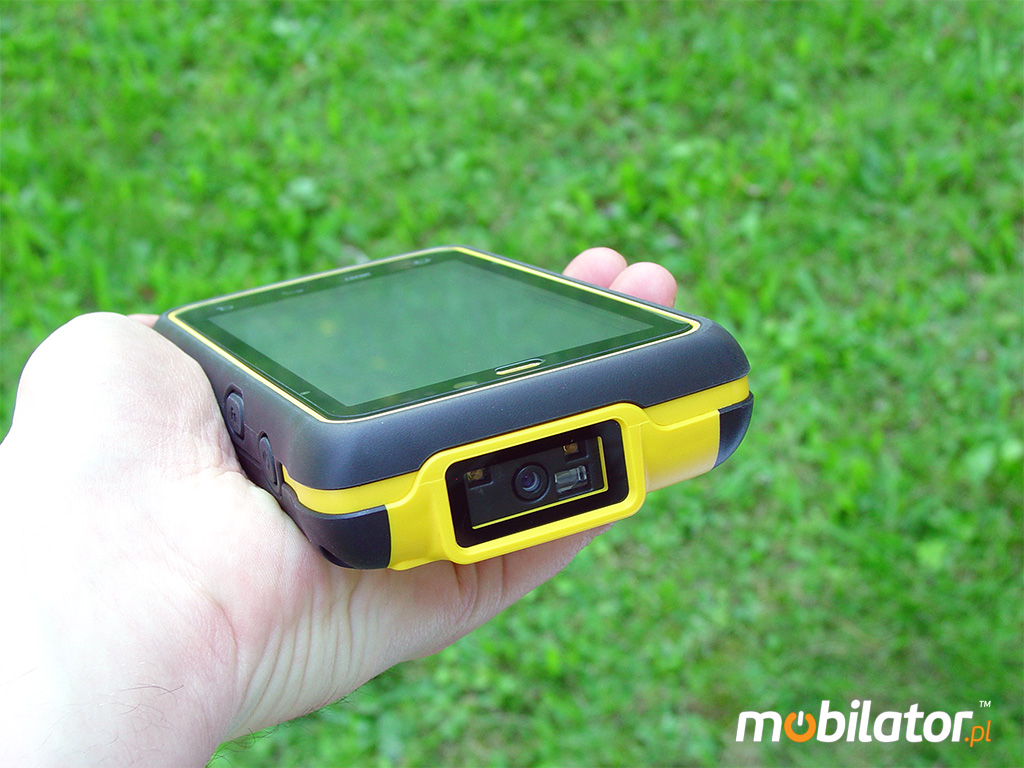

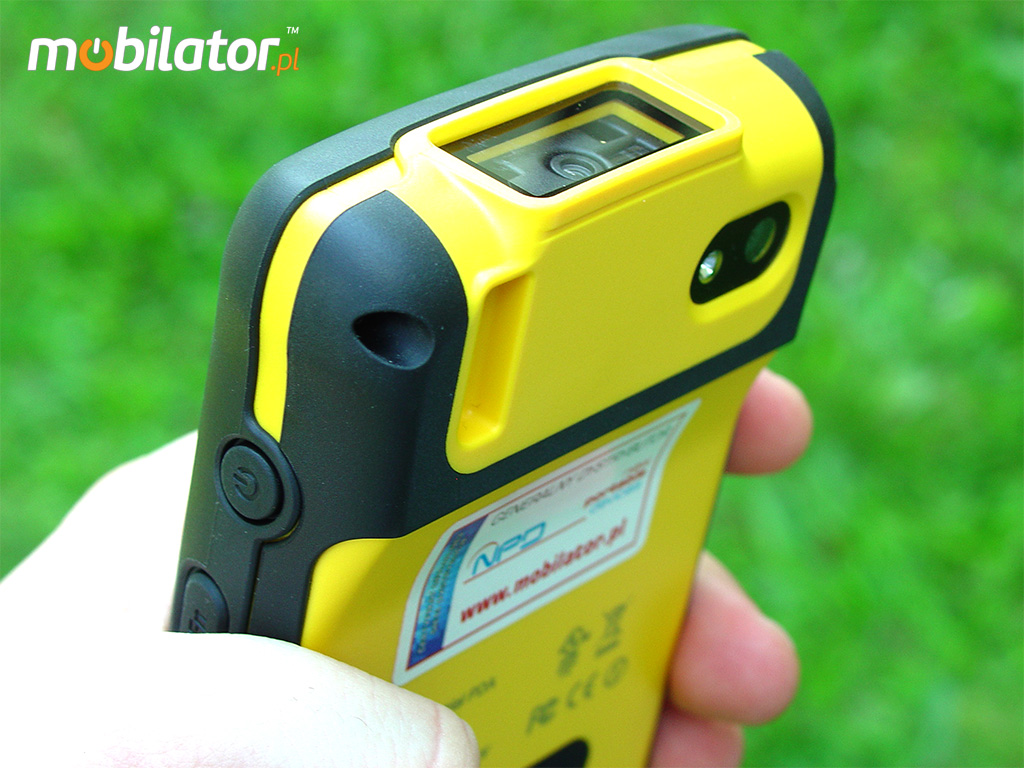

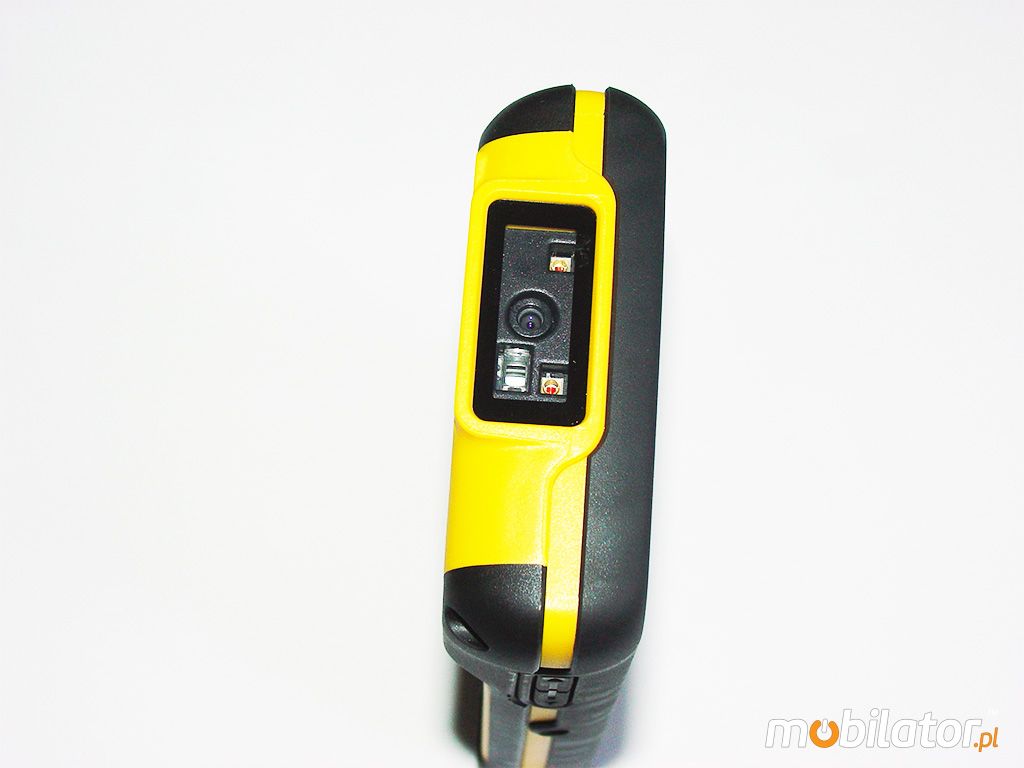

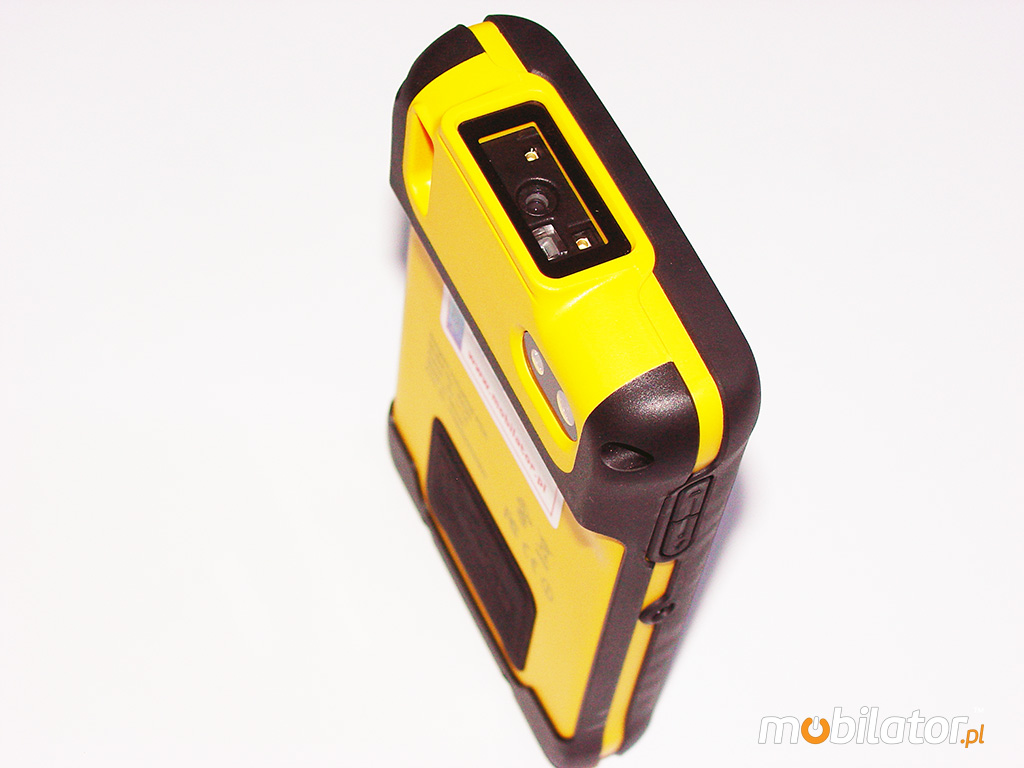

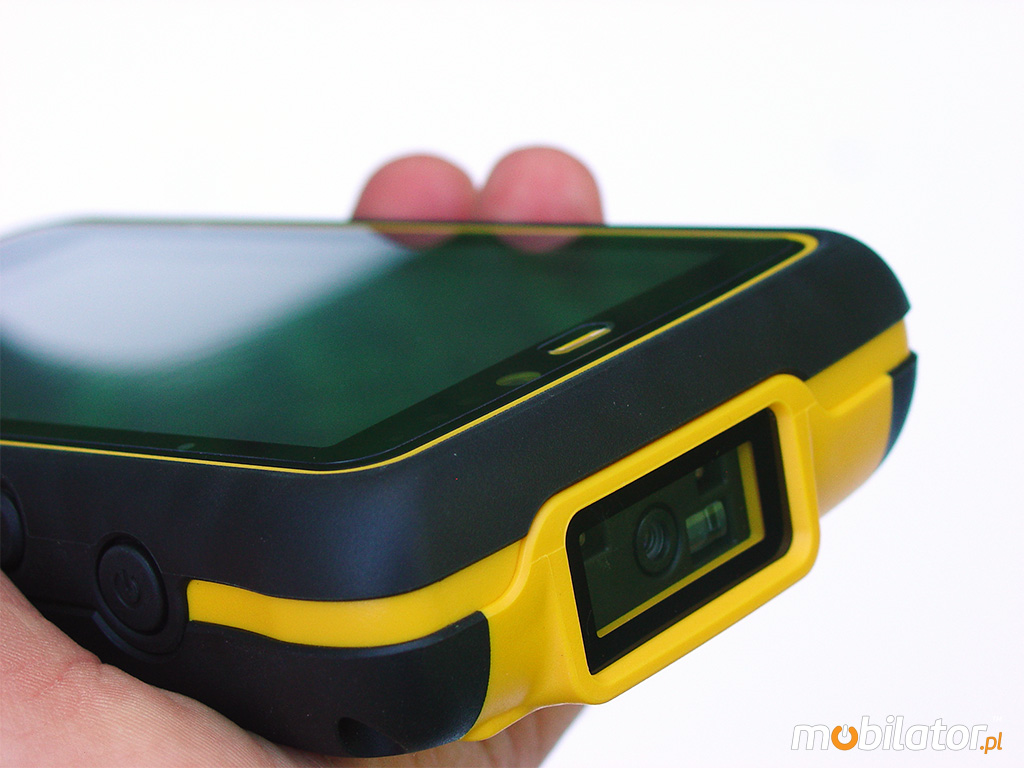

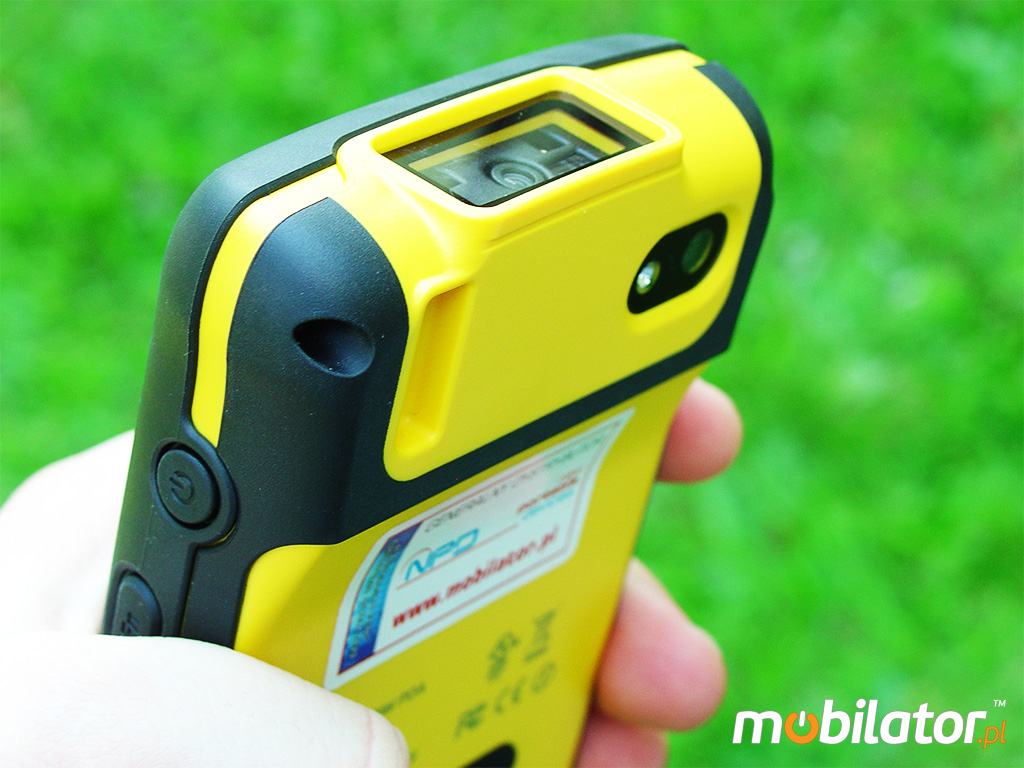

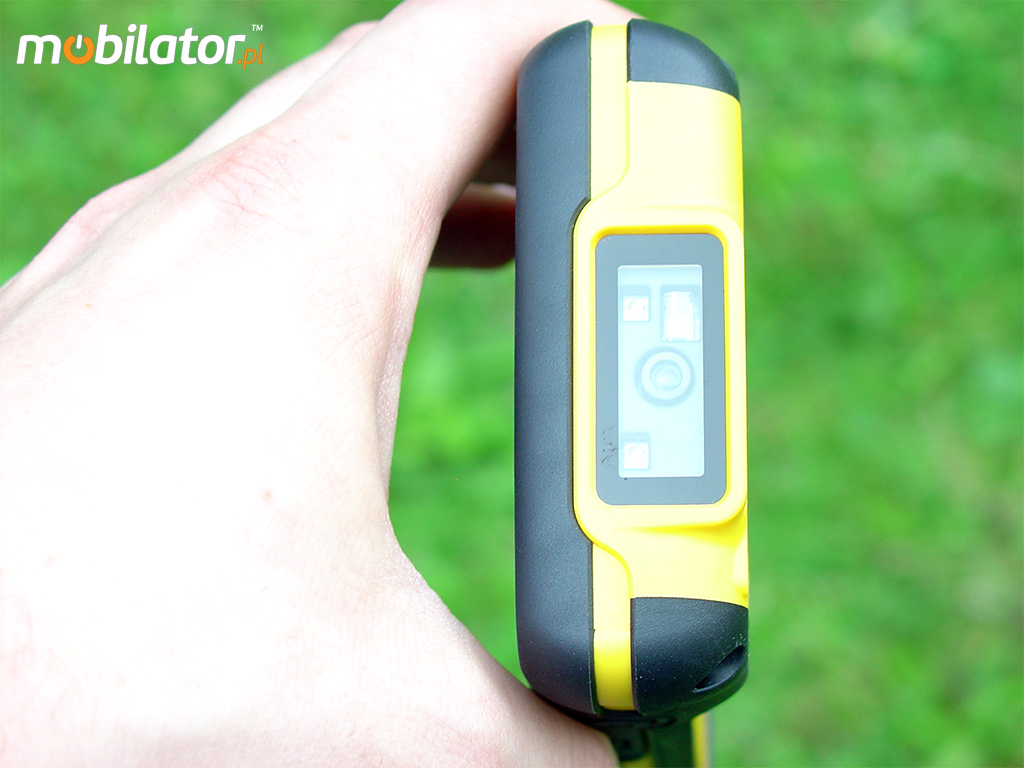

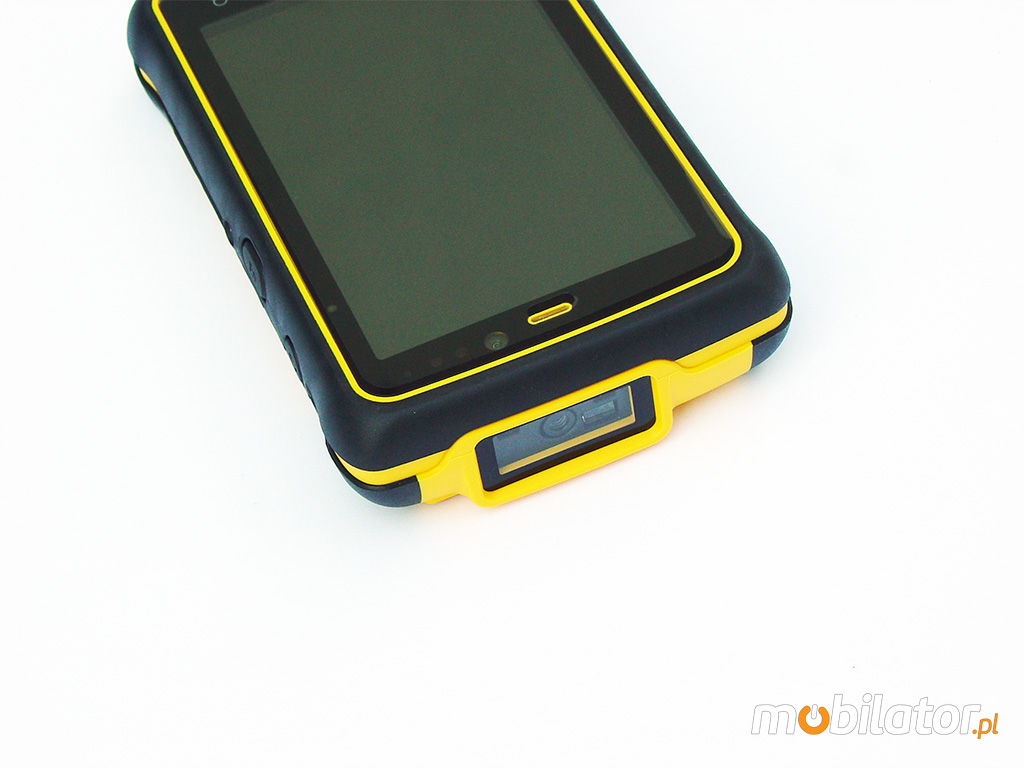

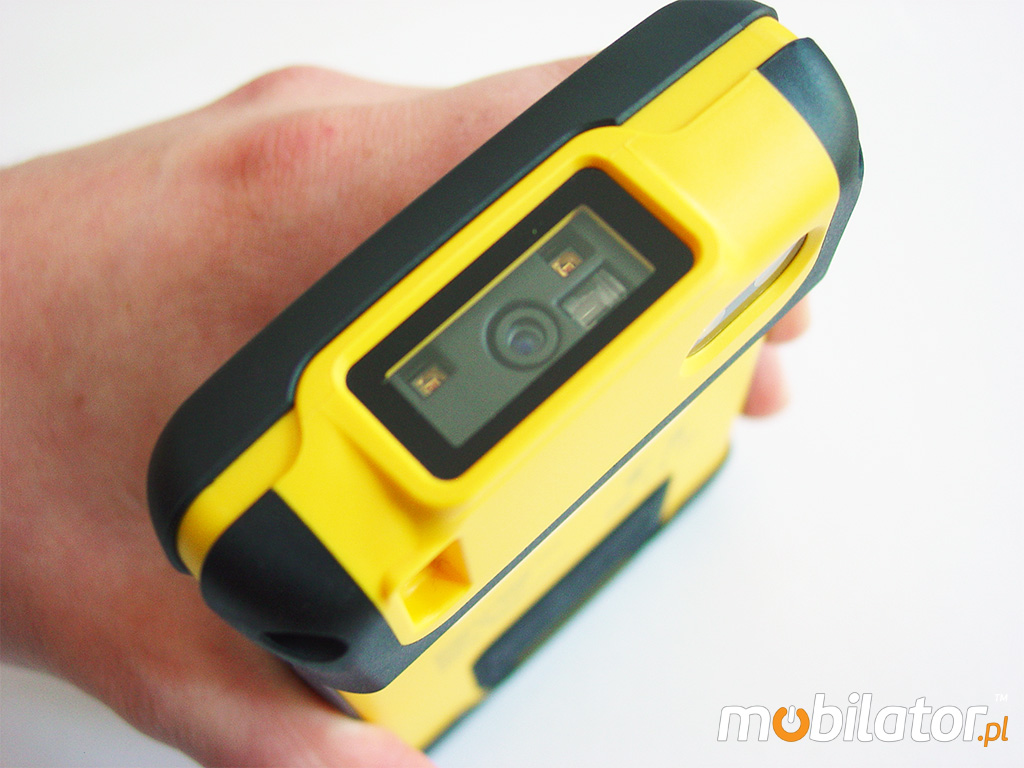

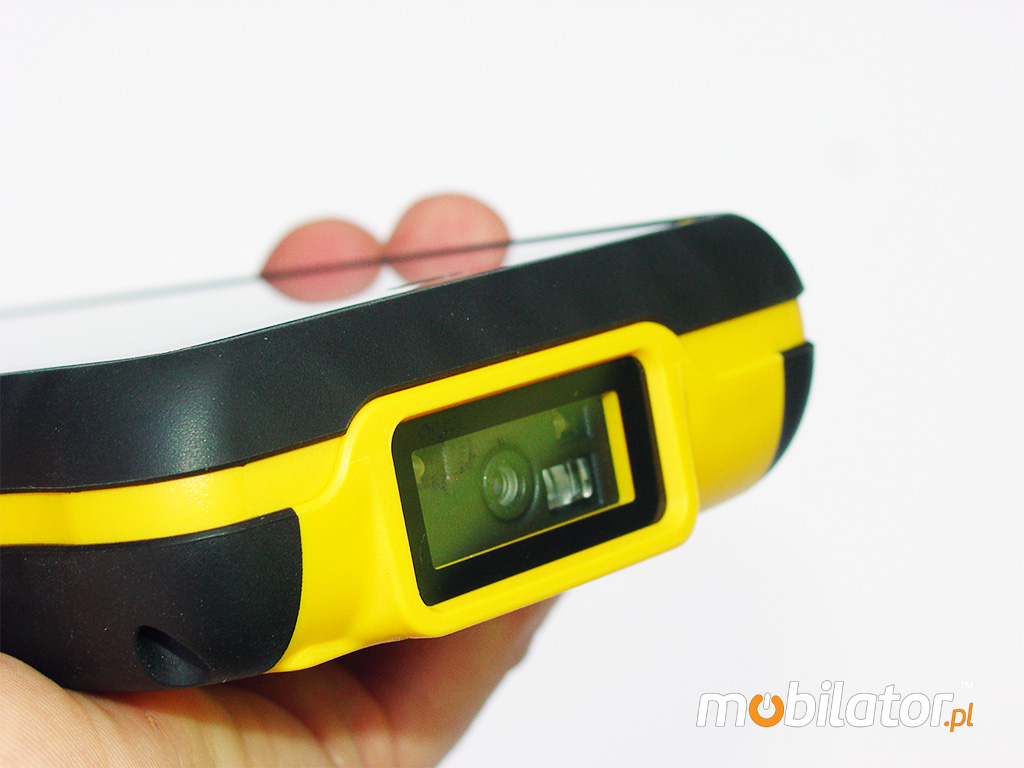

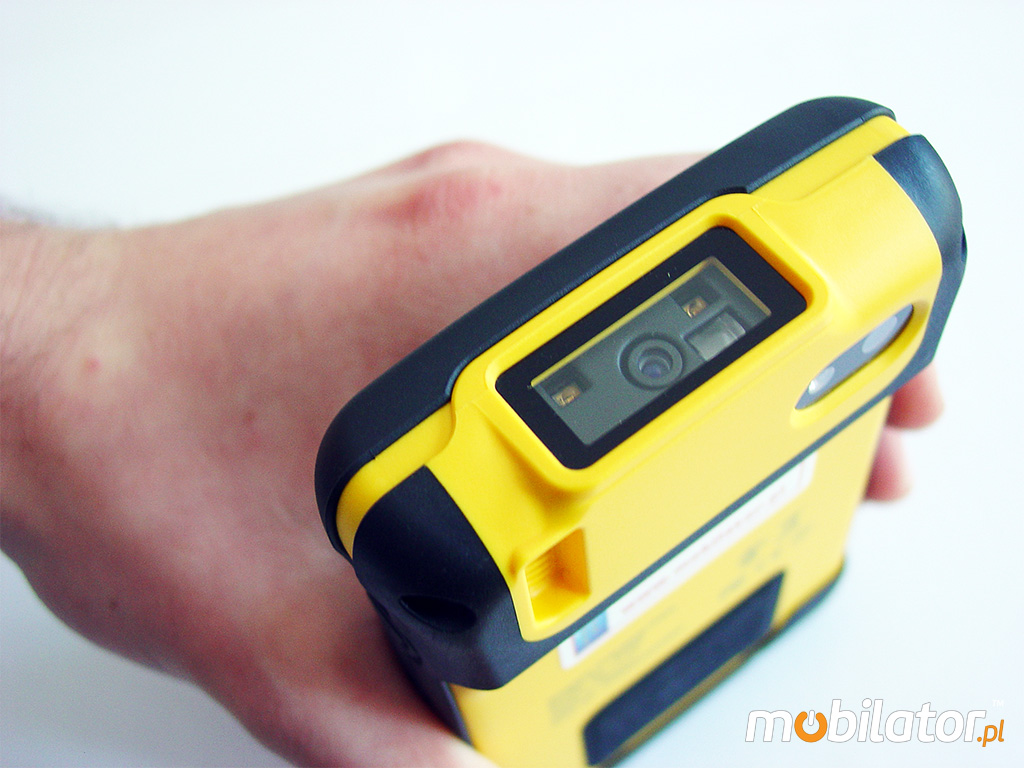

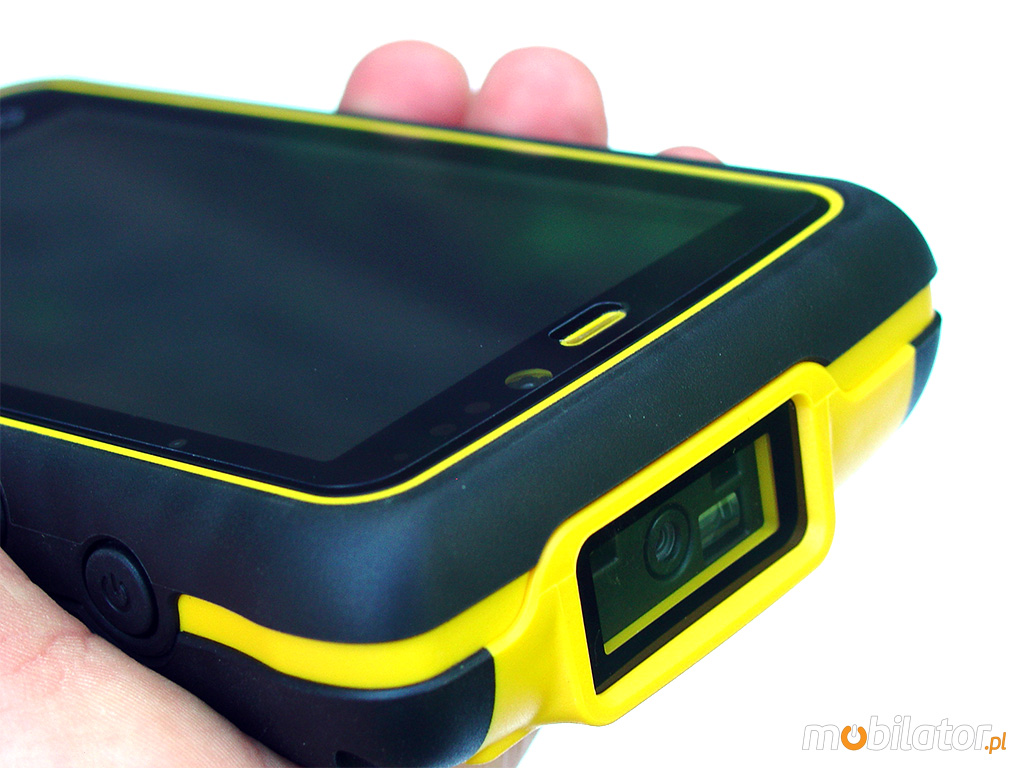

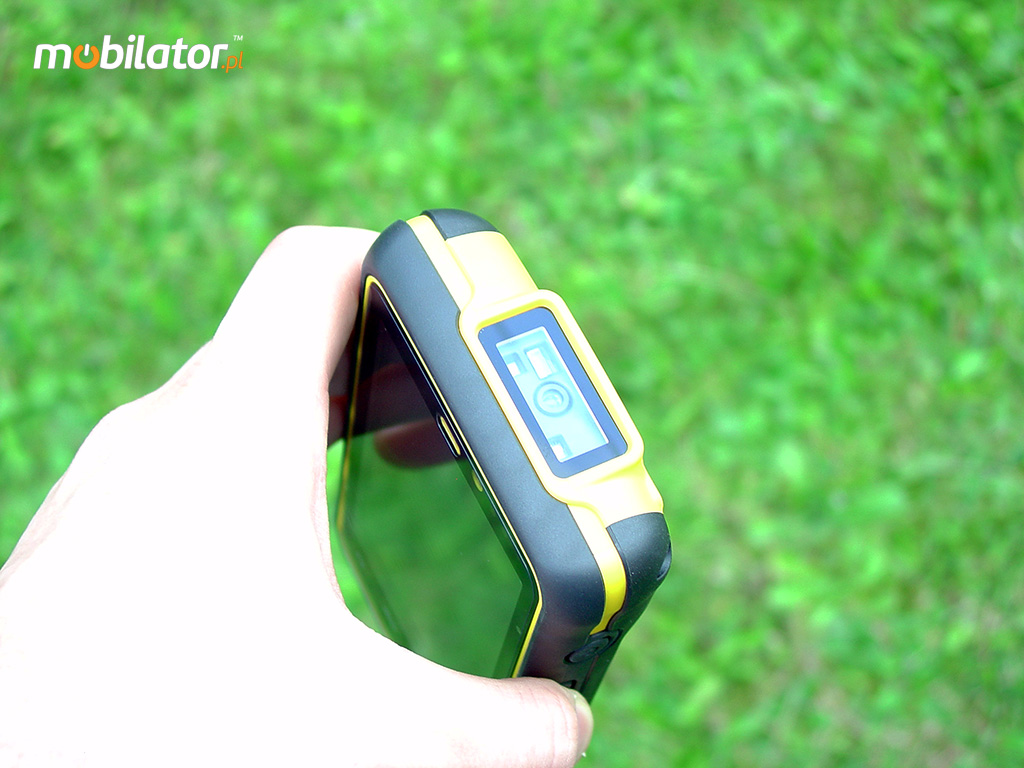

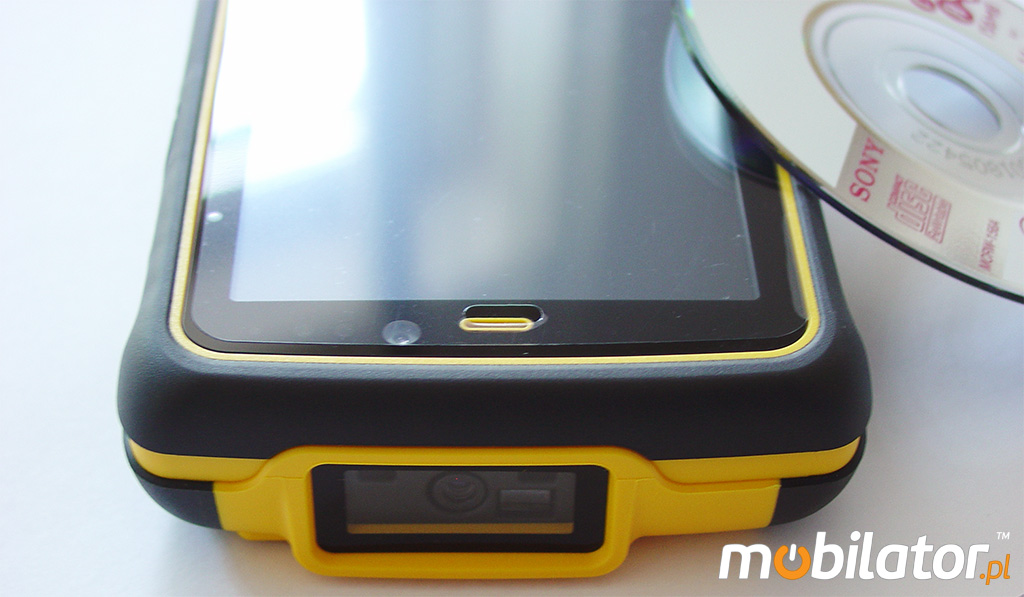

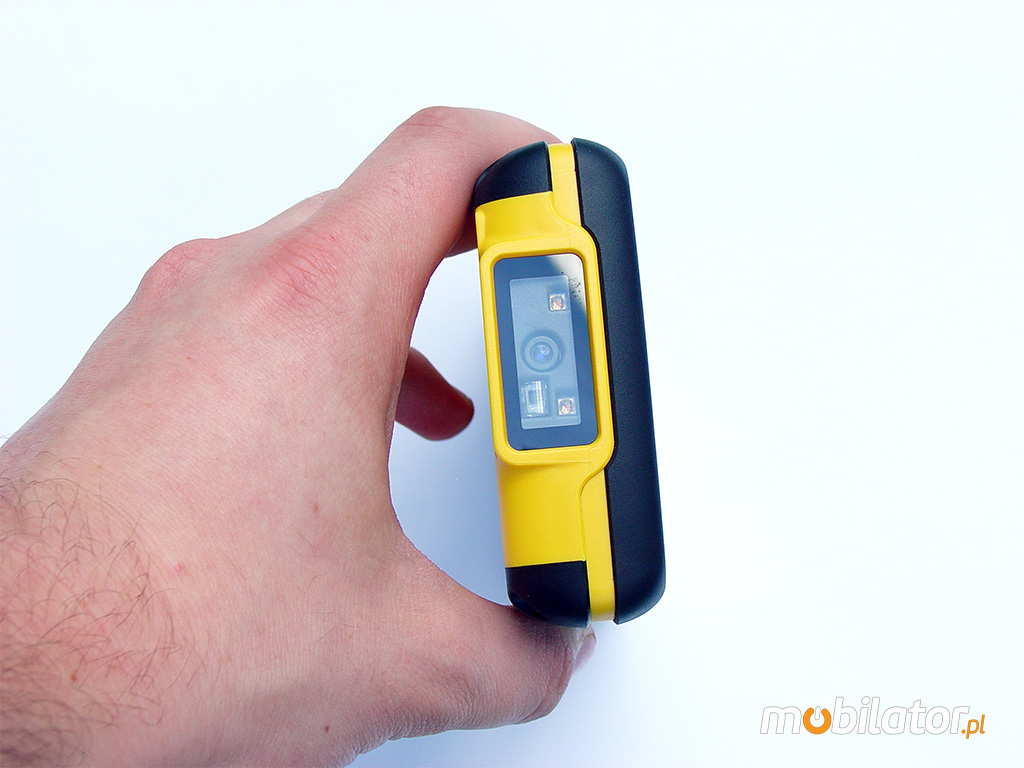

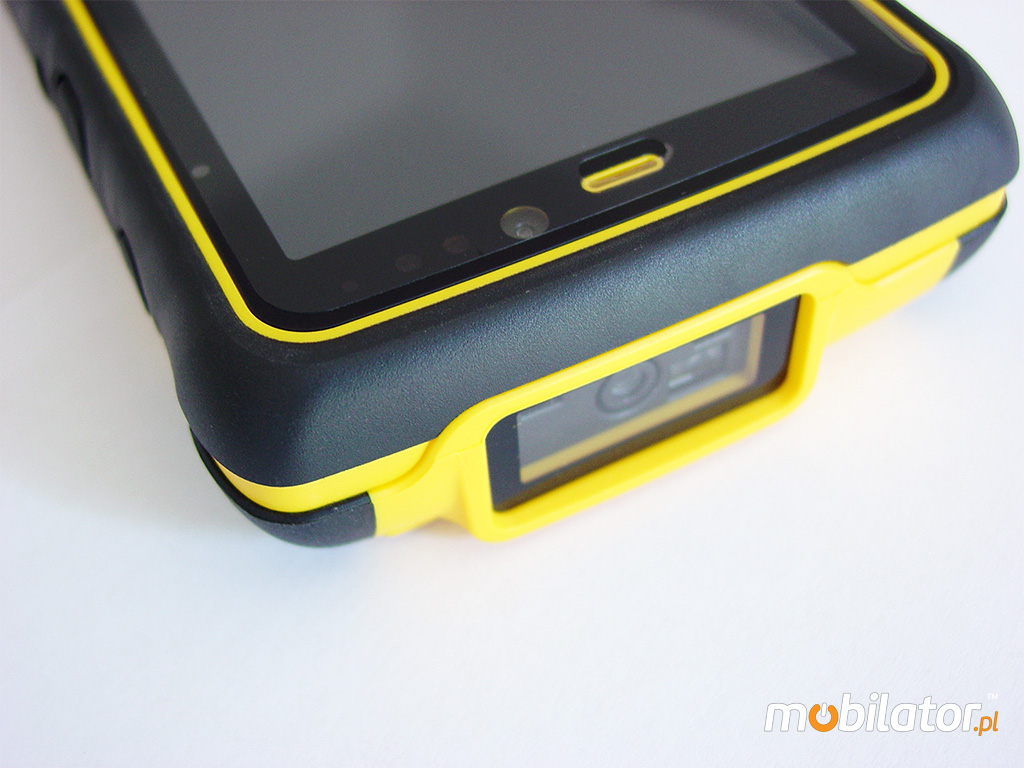

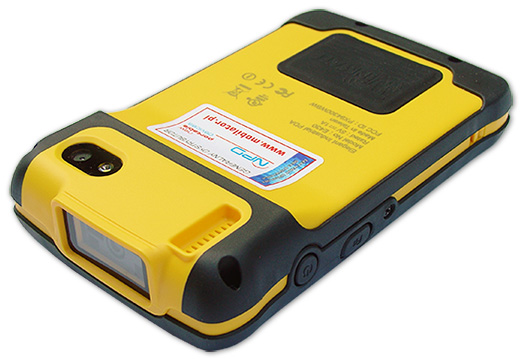

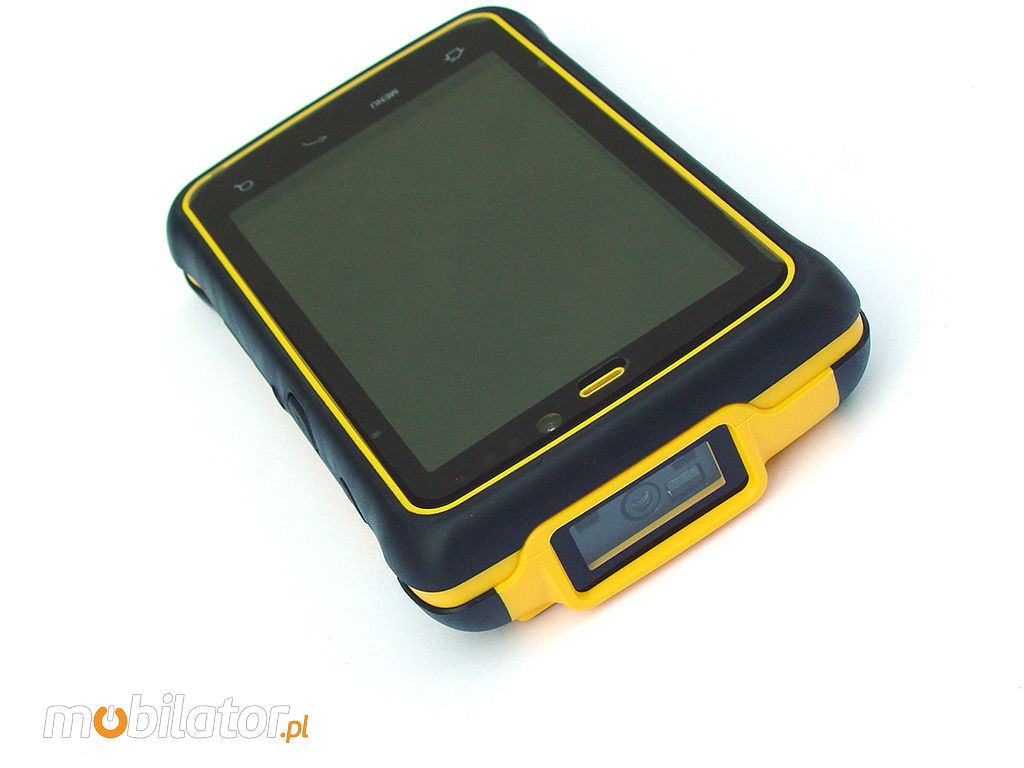

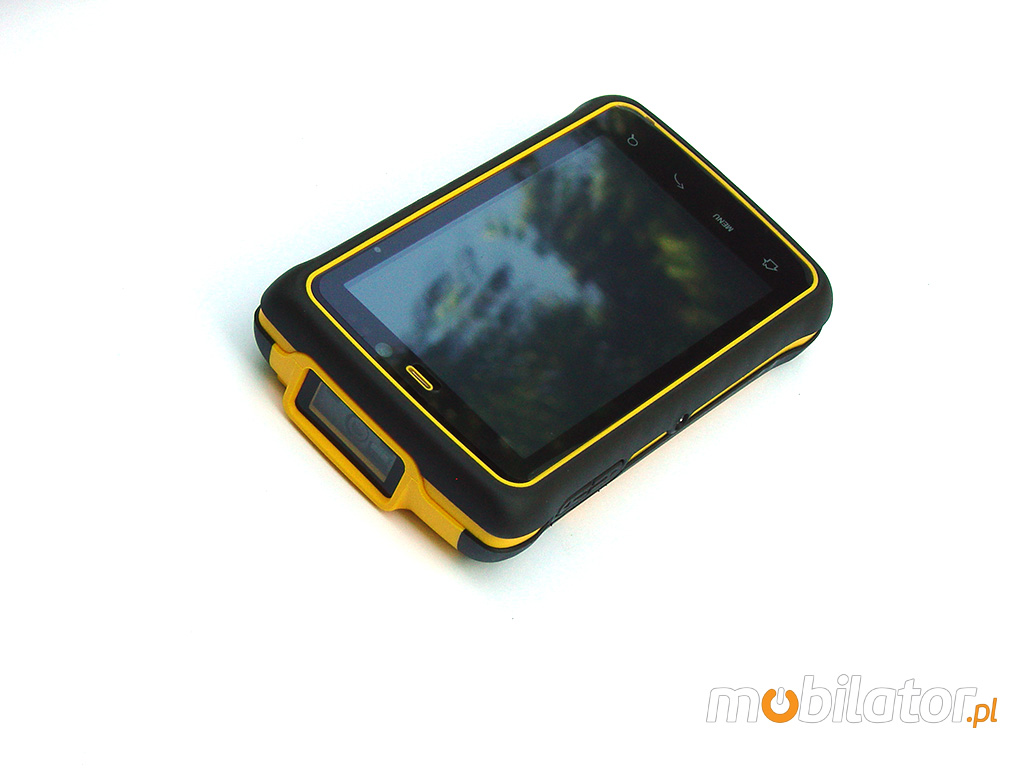

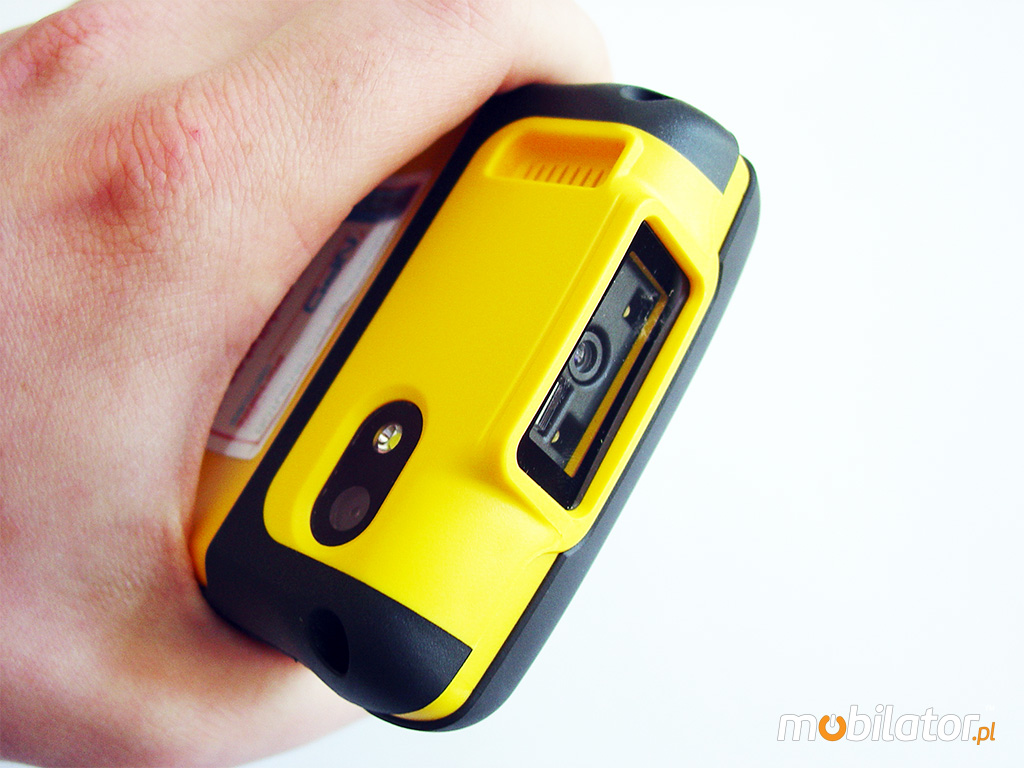

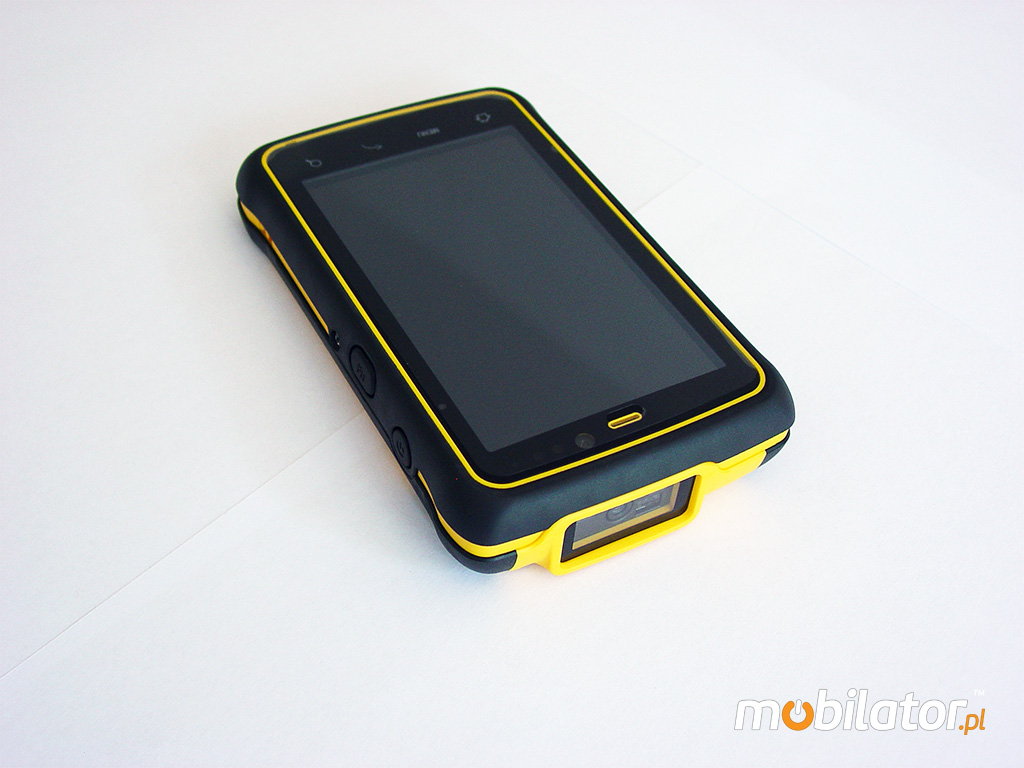

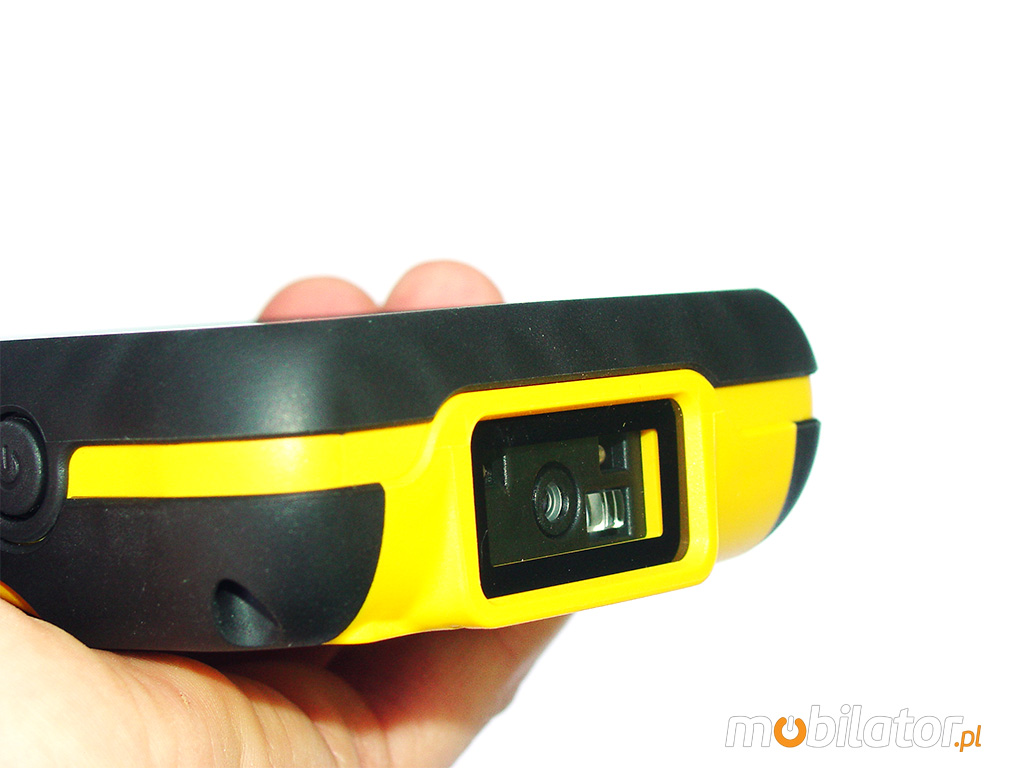

Barcode Scanner (optional)
Quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large scope of the reading of the data collector collects data Winmate exactly what helps to increase the speed and productivity. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.
1D Laser
|
JAN/UPC/EAN incl. addon, Codabar/NW-7, Code 11, Code 39,Code 93, Code 128, GS1-128(EAN-128),GS1 DataBar (RSS), IATA, Industrial2of5,Interleaved 2of5, ISBN-ISMN-ISSN,Matrix 2of5, MSI/ Plessey, S-Code, Telepen,Tri-Optic, UK/Plessey• Postal code: Chinese Post, Korean PostalAuthoritycode |

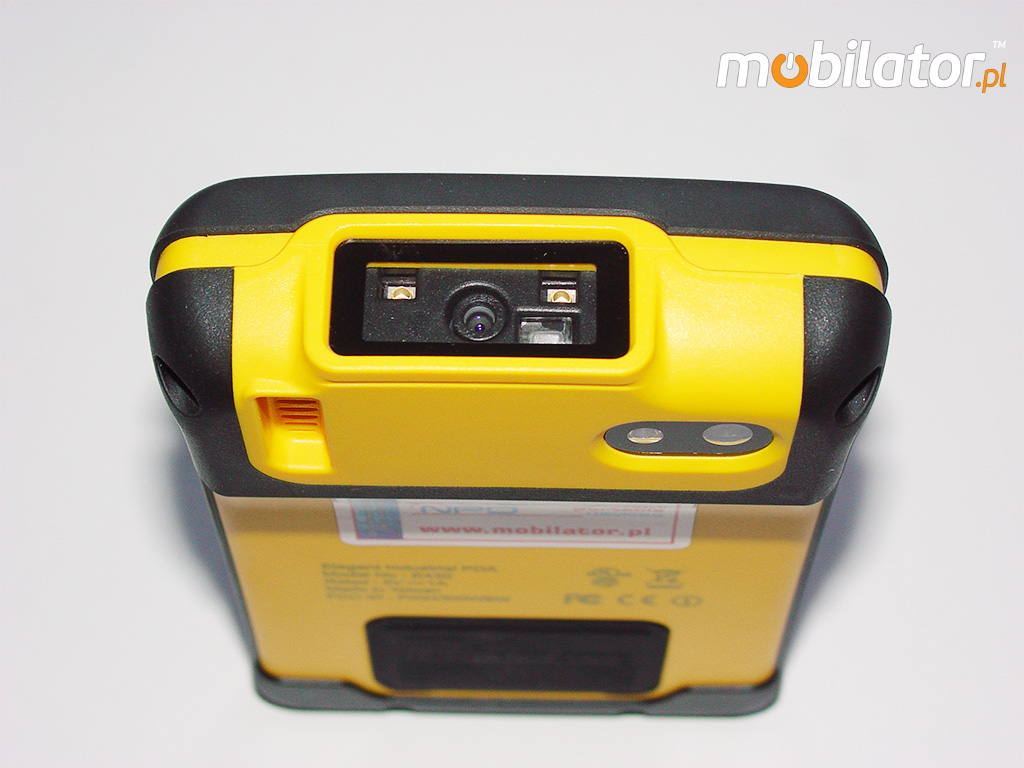

2D CMOS
|
QRCode, DataMatrix, PDF417 Maxicode,Aztec |
|

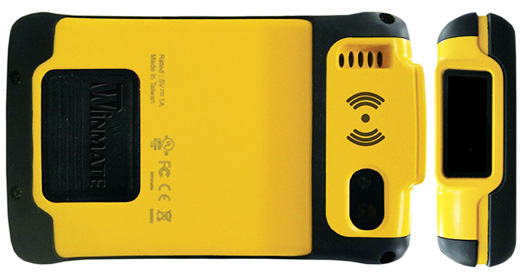

RFID (optional)
RFID Technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading information from special tags that are attached to the objects followed by radio. Depending on the type of tag changes the amount of information that can be stored as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.
.jpg)
Modules and Wireless Networks
RFID
|
HF:13.56M (ISO14443A Protocol) - (optional)
|
|
IR |
Odbiornik & Nadajnik IR (DLT 645 protocol) - (optional) |
|
WiFi |
Tak - 802.11 a/b/g/n (factory)
|
|
Bluetooth |
Tak - Bluetooth Class2.1 with EDR (factory) |
|
GPS |
Tak - U-Blox Neo6Q (factory) |
|
WCDMA |
2100/900MHz (WCDMA, HSDPA, HSUPA, GPRS , EDGE) |
Return to "Available hardware configurations"
|
|
|
|

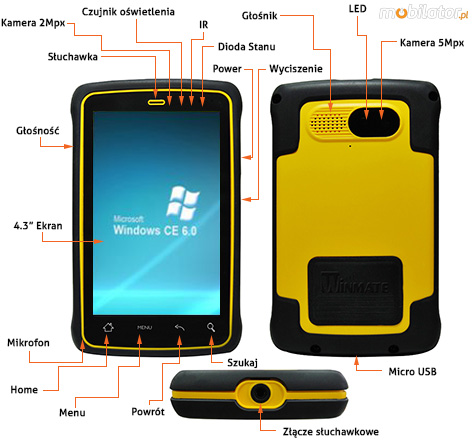

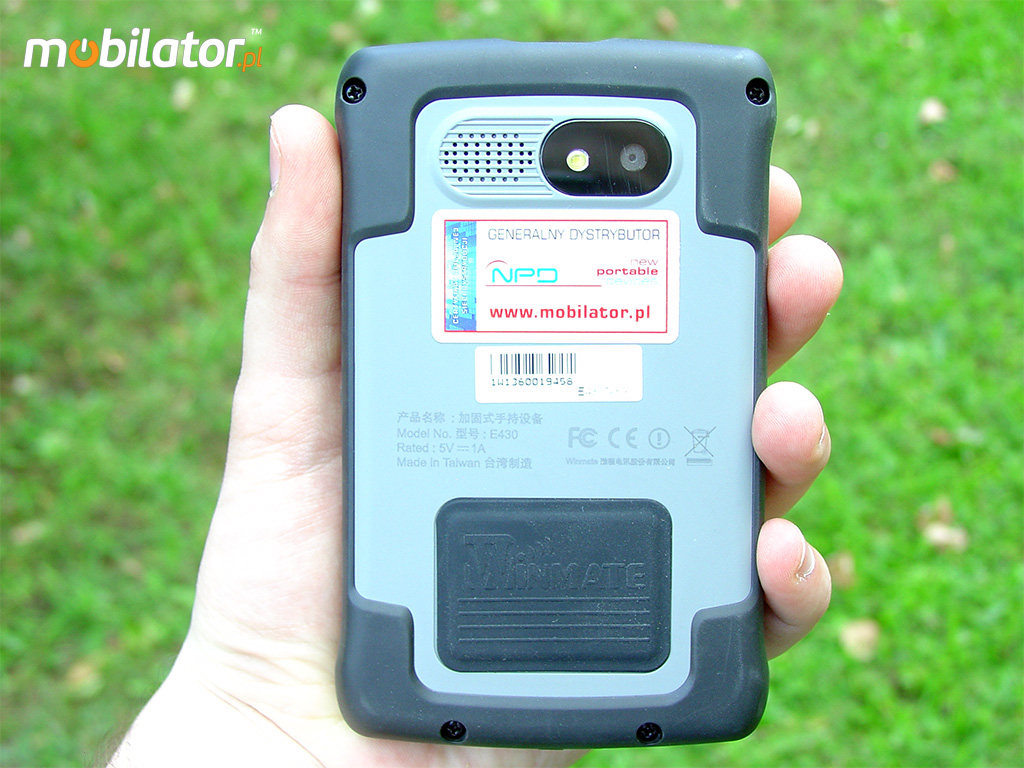

Winmate E430T is equipped with one USB port and Micro SD card. The possibility of recording two cameras allow 2Mpx and 5Mpx. And thanks to the 3G device can connect to the Internet at any time. Navigating the complex facilitates efficient GPS module, which is equipped in each model Winmate E430T. 1D/2D barcode scanner and RFID / IR is available in select configurations to select the appropriate version in the menu "Available hardware configurations".
.jpg)
|

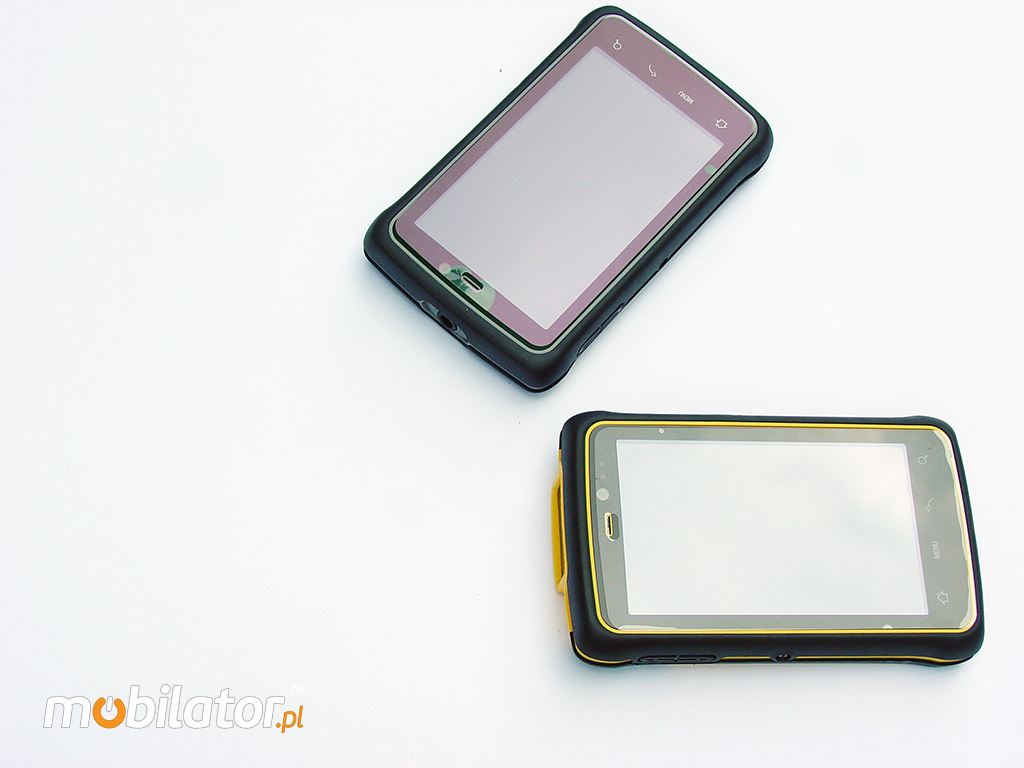

E430T (Standard/3G)
|
E430T (1D/2D/RFID/HF/IR)
|
|

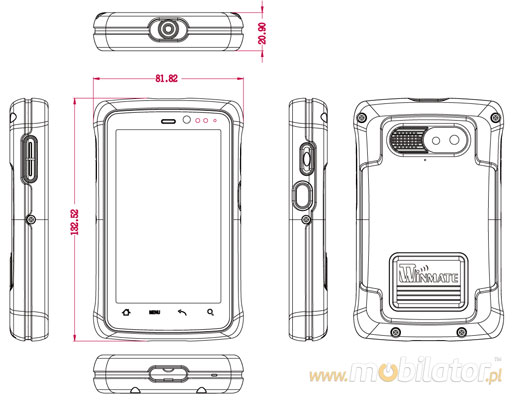

Dimensions |
132.2x82x21.2mm |
132.2x82x21.5mm |
|
Weight |
232g |
240g |
|
|
|
|
Operating |
-30°C ~ +60°C |
|
Storage |
-40°C ~ +70°C |
|
Charging |
10° ~ 45°C |
|
Humidity |
95% non-condensing |
Dust & Water
|
IP67 |
|
(versions with readers) |
IP66 |
|
Vibration |
MIL-STD-810G M514.6 |
|
(versions with readers) |
MIL-STD-810F M514.5 |
|
Drop |
Multiple drops to concrete 5ft./1.5m over the range of operating temperatures |
|
(versions with readers) |
Multiple drops to concrete 4ft./1.2m over the range of operating temperatures |
|
Regulatory |
CE, FCC, CCC, UL |
|
(versions with readers) |
CE, FCC, UL |
IP67 Resistance
Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.
|
The first digit [x]
Protection against solid objects |
|
The second digits [y]
Protection against liquids |
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from object not greater than 12mm in diamete |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from water projected from a nozzle |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
|
|
|
 |
7
|
|
Protection against immersion |
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water |
|
|
Hardware configurations
|
If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories. |
|
|
Compare all versions
| Durability: |
MIL-STD 810G |
| Humidity: |
95% non-condensation |
| Waterproof: |
IP 67 |
| Weight: |
|
| Temperature: |
Operating temperature: -30°C - 60°C
Storage temperature: -40°C - 70°C
Charging temperature: 10°C do + 40°C |
| Shock: |
MIL-STD-810G Metod 516.6 |
| Vibration: |
MIL-STD-810G Metod 514.6 |
| Drop: |
MIL-STD-810G Metod 516.6 |
| Sand and dust: |
IP 67 |
| 1D barcode scanner (reader): |
No - (available in other configurations) |
| 2D barcode scanner (reader): |
No - (available in other configurations) |
| RFID scanner (reader): |
No - (available in other configurations) |
| Magnetic card reader (MSR): |
No |
| Microchip card reader: |
No |
| Docking station connector: |
No |
| VESA standard – holders and mounts support: |
No |
| COM port: |
No |
| Dispaly: |
4.3'' TFT WVGA (480x800) capacitive (Pro-Cap) |
| Brightness: |
400nits |
| Contrast: |
800:1 |
| Touch screen: |
Yes - capacitive (Pro-Cap) Multi Touch |
| Graphics card: |
-------- |
| Swivel Hinge: |
-------- |
| VGA out: |
-------- |
| TV Out: |
No |
| TV Tuner: |
----- |
| Processor: |
ARM® Cortex™ - A8 Core DM3730 1000MHz |
| Chipset: |
-------- |
| BIOS: |
-------- |
| Memory: |
512MB MDDR |
| Hard Drive: |
512MB NAND Flash |
| Flash Memory: |
|
| Battery: |
Li-Ion battery 2600 mAh (1S1P) : 5V/1A : USB Adapter |
| Working time on battery: |
up to 8h |
| HotSwap battery: |
No |
| Fast battery replacement ability: |
No |
| Size: |
132.2 x 82 x 21.2mm - 230g |
| Casing material: |
ABS plastic with rubberized bumper areas and overmolding |
| Fanless casing: |
Yes |
| Operating System: |
Yes - Microsoft® Windows CE 6.0 Pro Runtime |
| LAN: |
-------- |
| WLAN: |
Yes - WiFi b/g/n |
| Bluetooth: |
Yes - Bluetooth (2.1+ EDR) |
| WAN: |
Yes - (WCDMA, HSDPA, HSUPA, GPRS , EDGE) |
| GPS: |
Yes - U-Blox Neo6Q |
| Flash Card Reader: |
Yes - micro SD (max. 32GB) |
| CD/DVD: |
----- |
| Camera: |
Yes - Rear Camera 5Mpx + LED Flash |
| Audio: |
1.2W |
| Seciurity: |
Gum case |
| In/Out: |
USB (typ B) : audio output |
| Keyboard: |
No |
| Additional Navigation Devices : |
Yes - Function keys | Switch, Starting scanner, Volume |
| Color: |
black-yellow |
| Optional accessories: |
Car holder, Car charger, Mobile Printer, Hand Strap, Office Charging Docking, Soft Case Holster |
| Other: |
Optional warranty up to 3 years : Receiver&Transmitter IR (optional) |
