Industrial Winmate E430RM4

Industrial Winmate E430RM4

Data update: 2019-10-09

guarantee 1 year (opt.2)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated

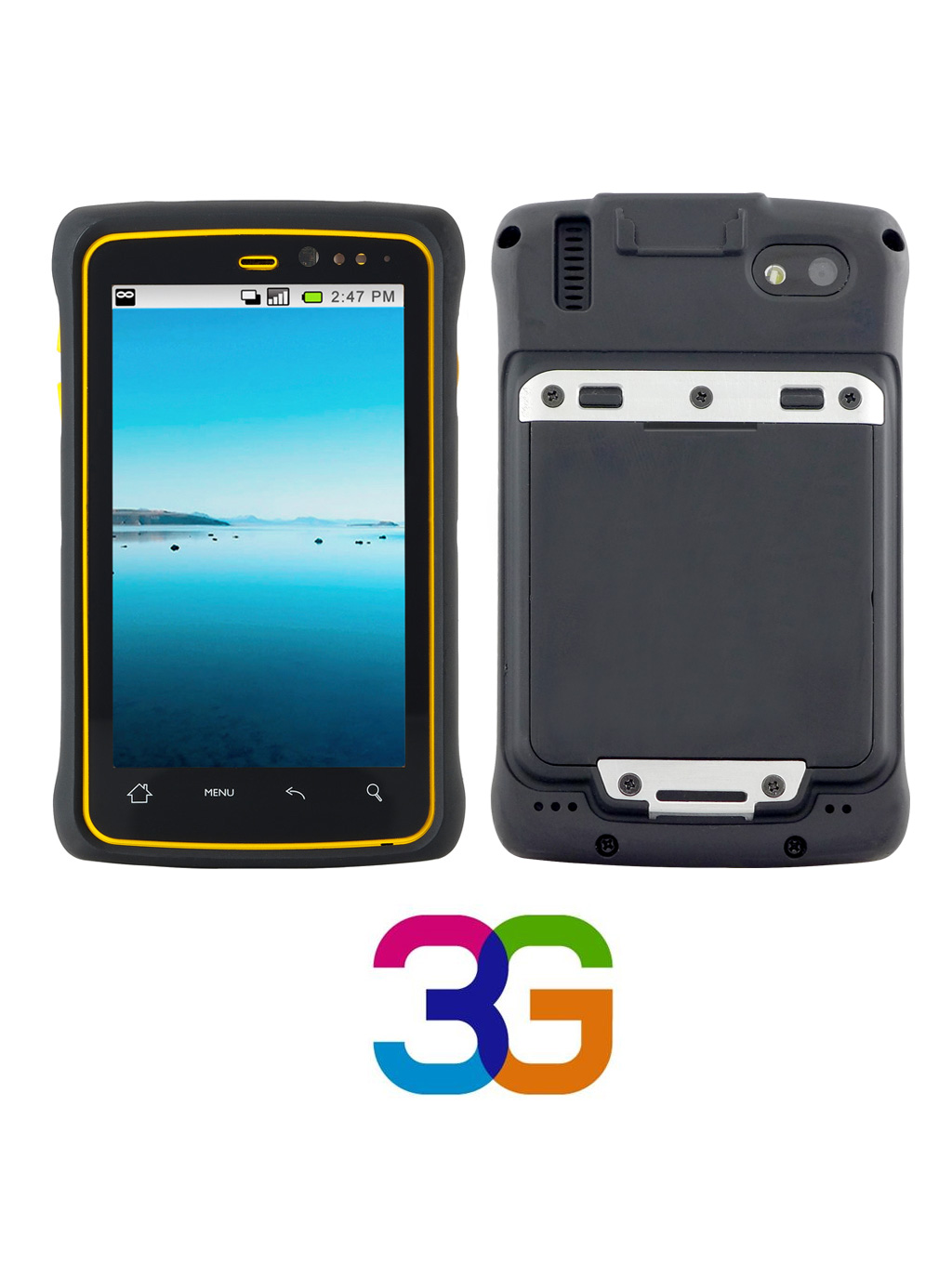

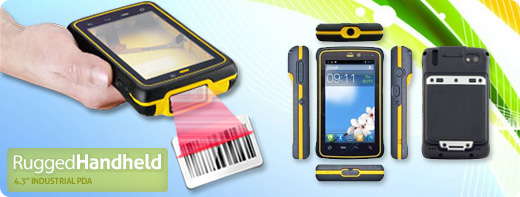

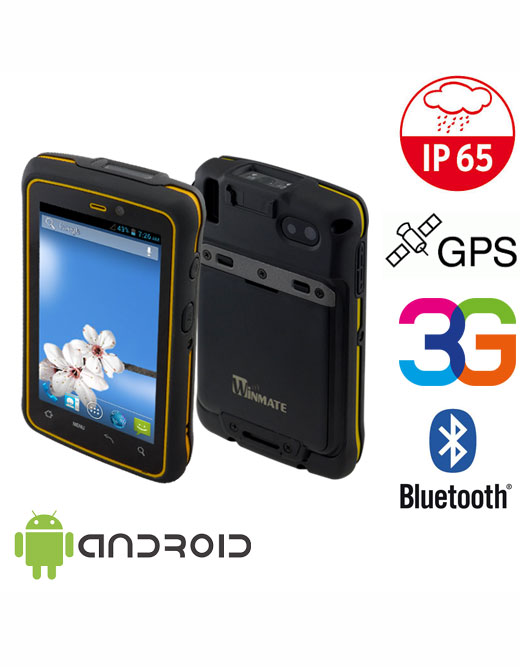

winmate e430rm4 3G 1D 2D RFID

Founded in 1996 in Taiwan, the company Winmate achieved an excellent reputation as a manufacturer of industrial LCD displays and laptops. Due to the high position of the products in the high-tech, have won many awards in tests conducted around the world.

Description

kolektor danych winmate e430rm4

Android 4.2
Multiple wireless communications option
Support for RFID and 1D/2D Barcode Reader
Robust battery
Industry and military standards

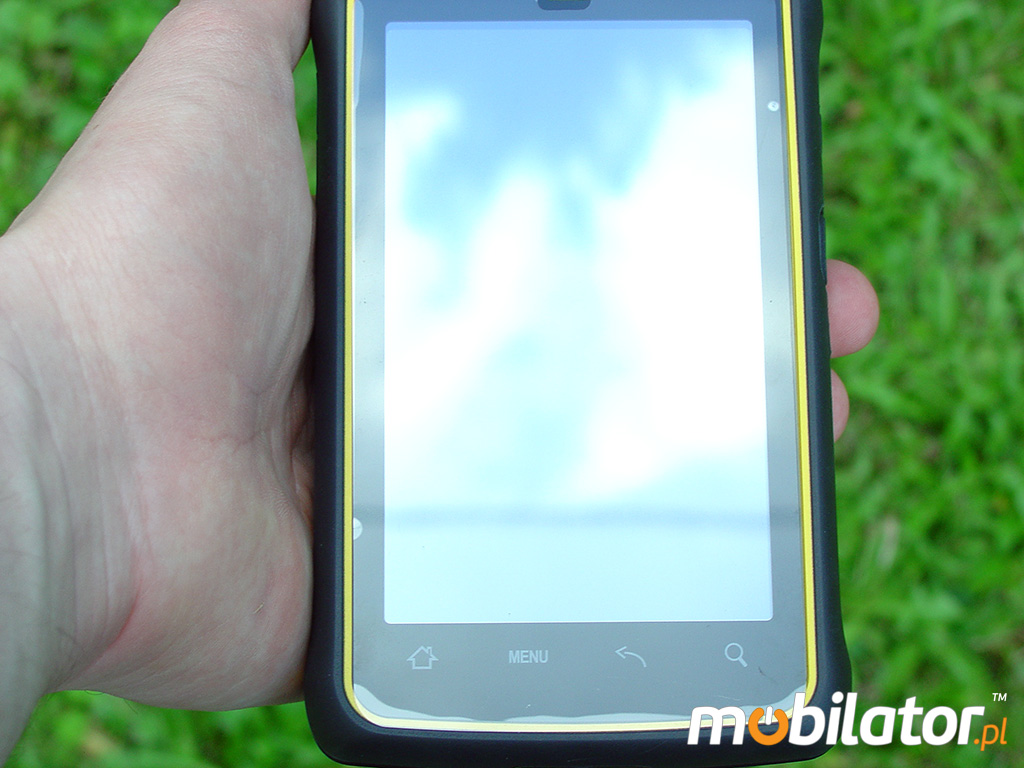

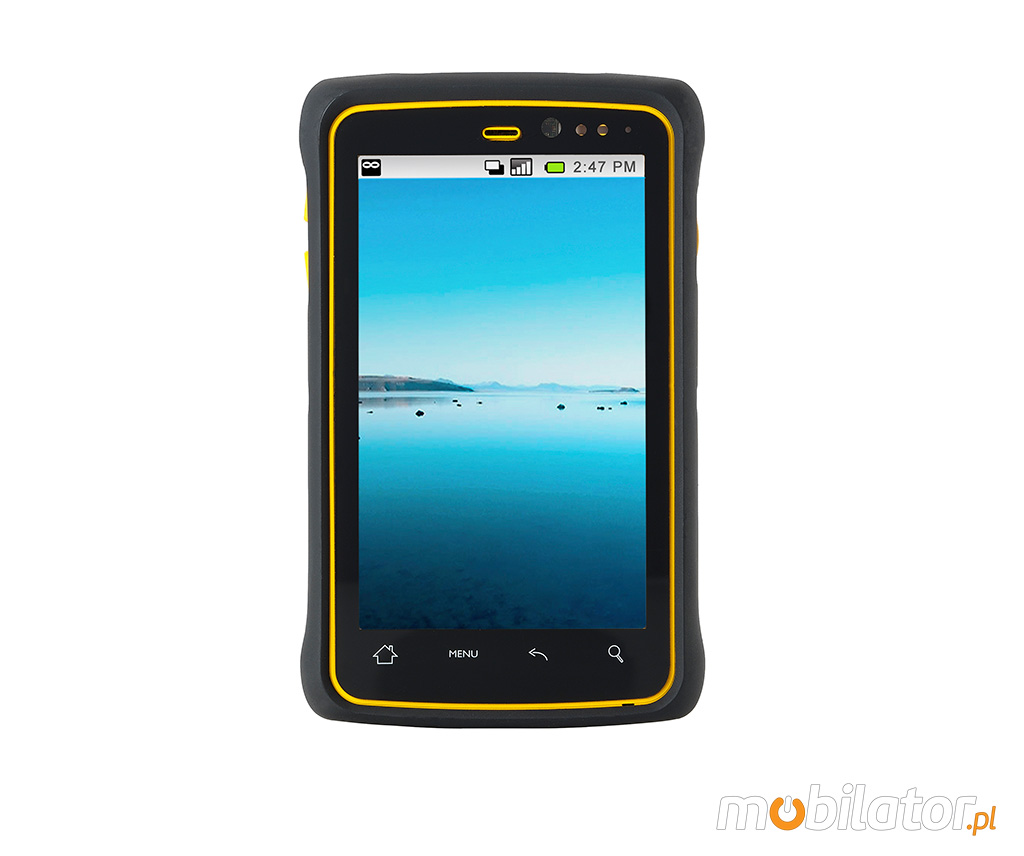

With its Android 4.2 platform, 1D/2D scanner, RFID reader, dual cameras, sunlight-readable 4.3-inch capacitive touchscreen, and a user replaceable battery design, the E430RM4 rugged handheld streamlines data collection and operations in any field application.

Specification
Processor ARM®Cortex™ - A7 Quad Core 1.5Ghz
Display 4.3" (480x800) Capactive : Multi-touch
RAM 1GB SDRAM
ROM
4GB eMMC
Connectors Micro USB : SIM : Micro SD (max. 32GB)
Audio Built-in Microphone : Earphone : Speaker 1.2W
Keys Volume +- | Power | Define button
  Home | Menu | ESC | Search
Battery 3900 mAh Li-Ion (1S2P)
Camera Front: 2Mpx
  Rear: 8Mpx + LED
Sensors Light, Proximity, G-Sensor, Digital Compass
Readers (optional)
RFID HF : 1D : 1D/2D : 1D
Modules WiFi : Bluetooth V3.0 + EDR : 3G
Operating system
Android 4.2 (multi-language)
Refer to the "Select version for yourself" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

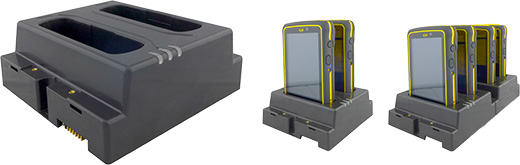

Accesory

One difference between consumer devices and those designed for deployment in enterprise and vertical markets that's often overlooked is the availability of supporting accessories and peripherals. For consumer devices, all that's available may be a USB charging cable — definitely not a solution that would work for rugged equipment customers. Winmate knows that and offers not only a dedicated dual battery charger that shows charging level, but also a clever daisy chainable charging dock.

winmate e430rm4 umpc mobilator

The collection and processing of data

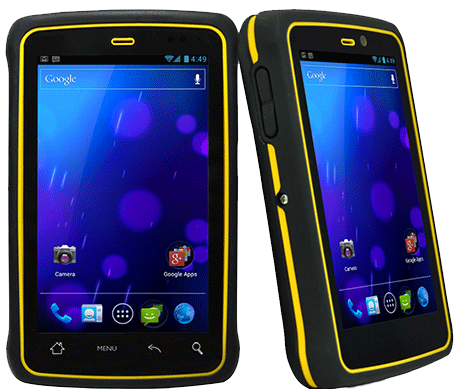

winmate e430rm4 kolektor danych kolektory danych 1D 2D IP65

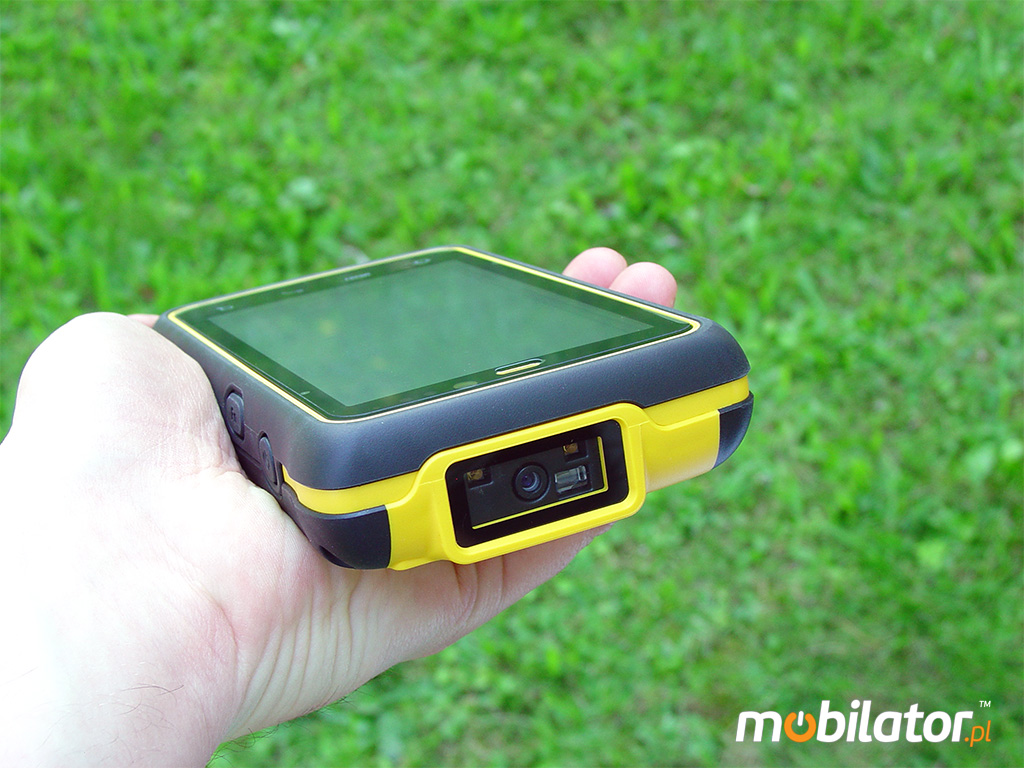

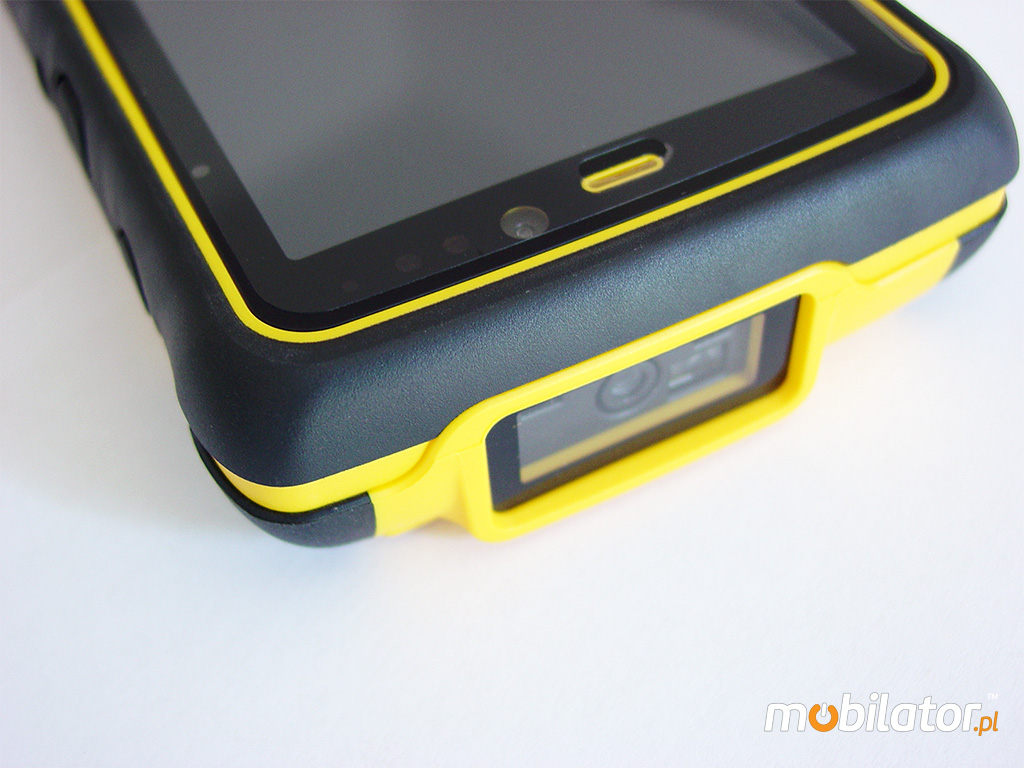

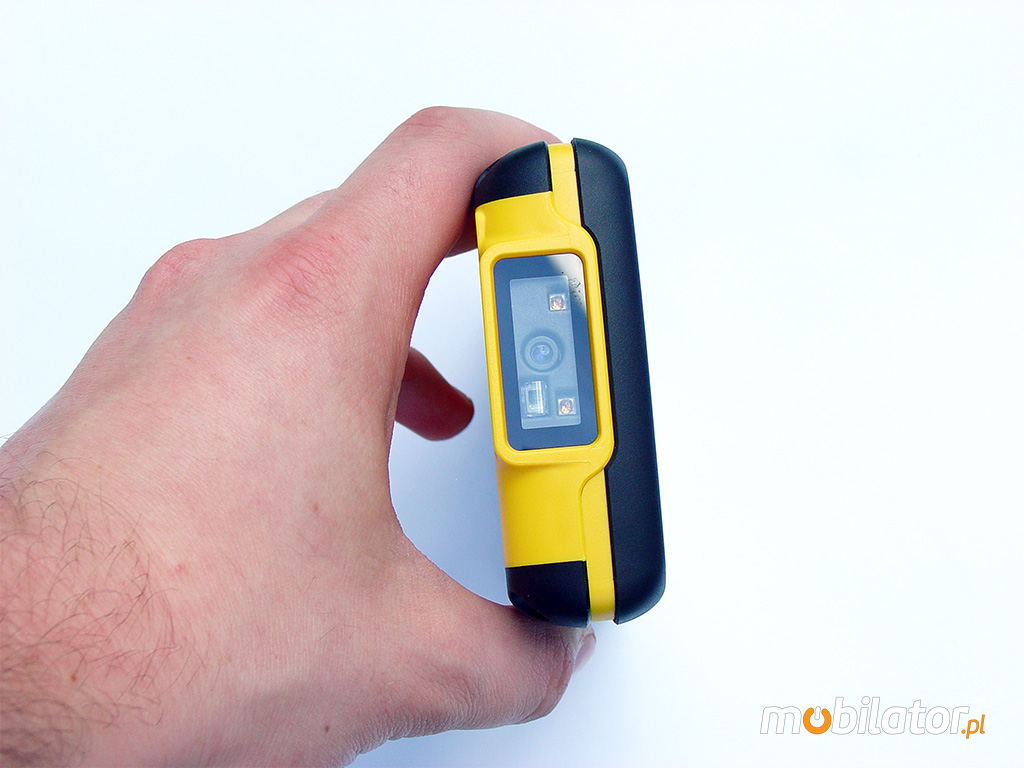

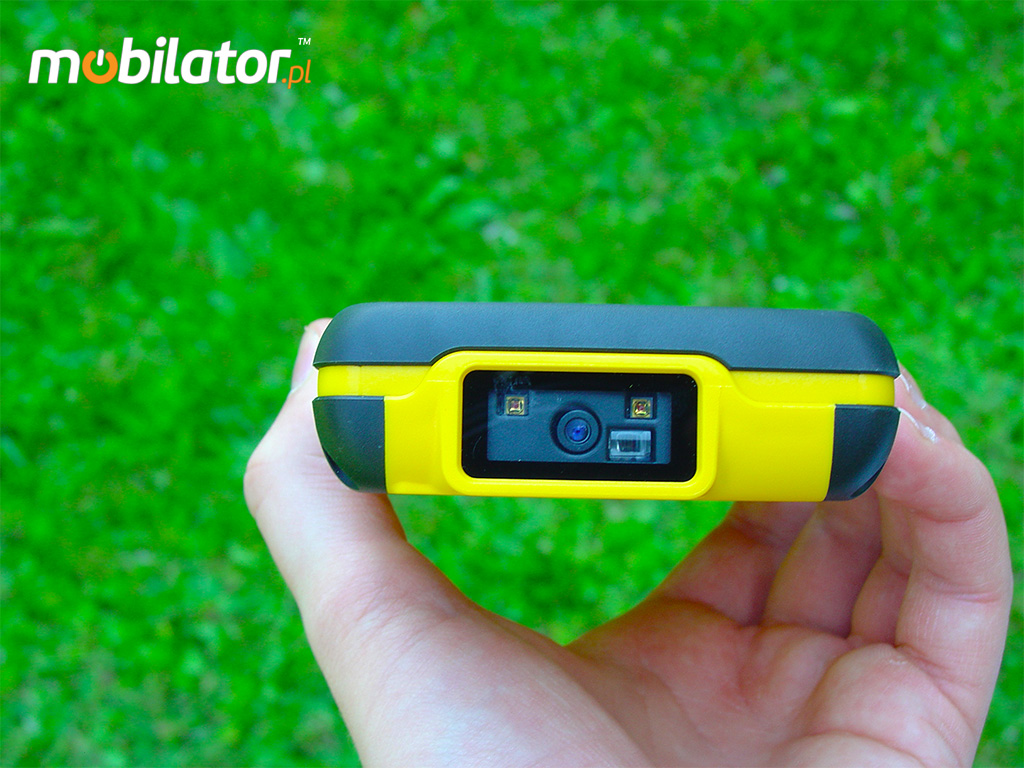

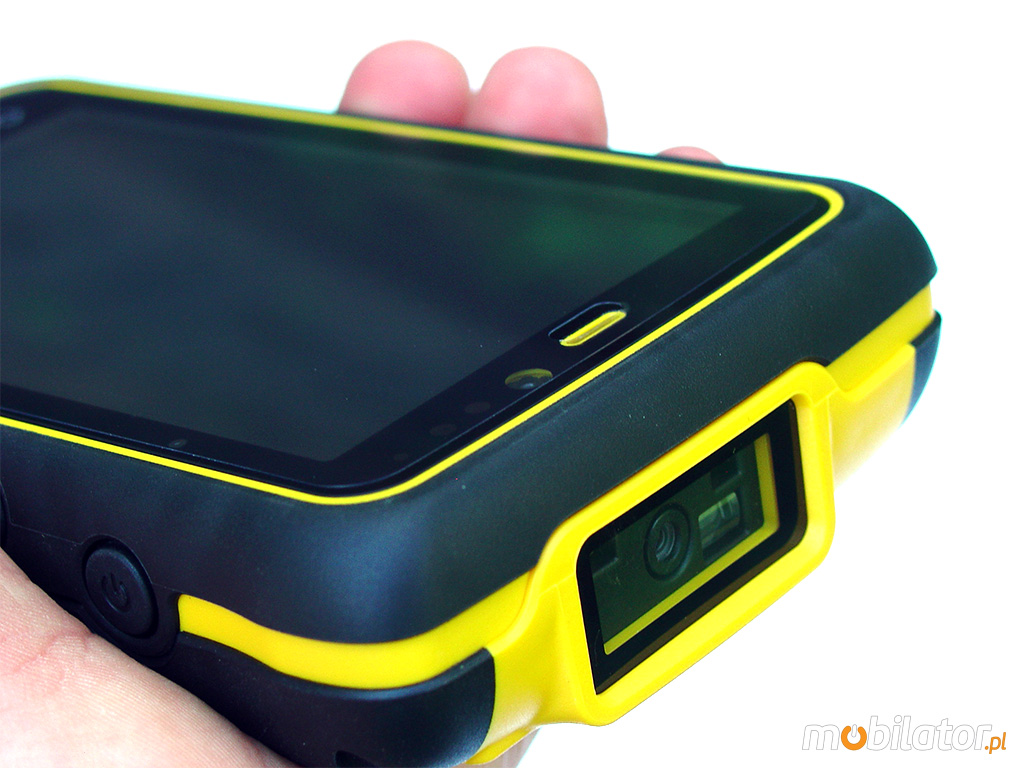

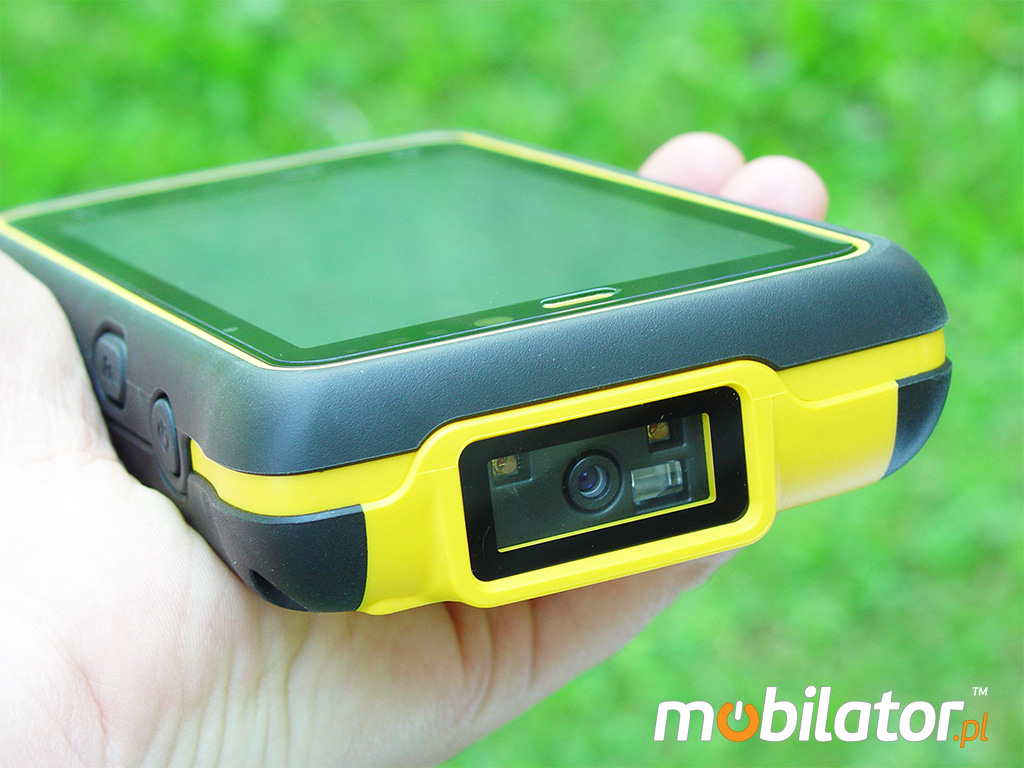

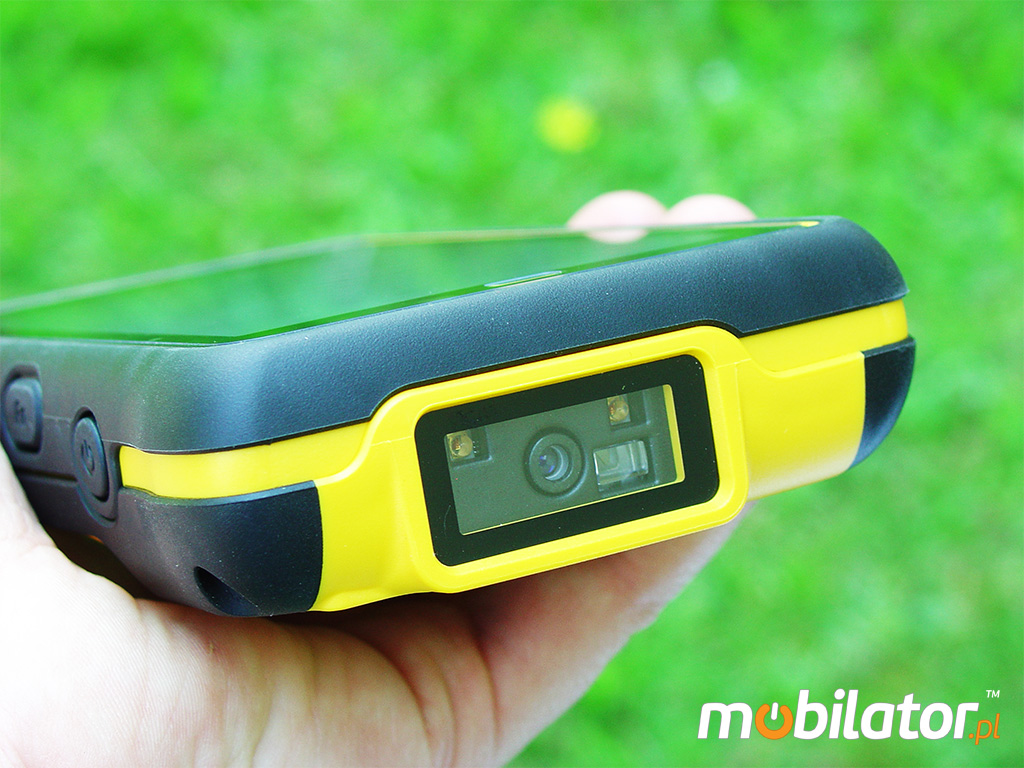

Barcode Scanner (optional)

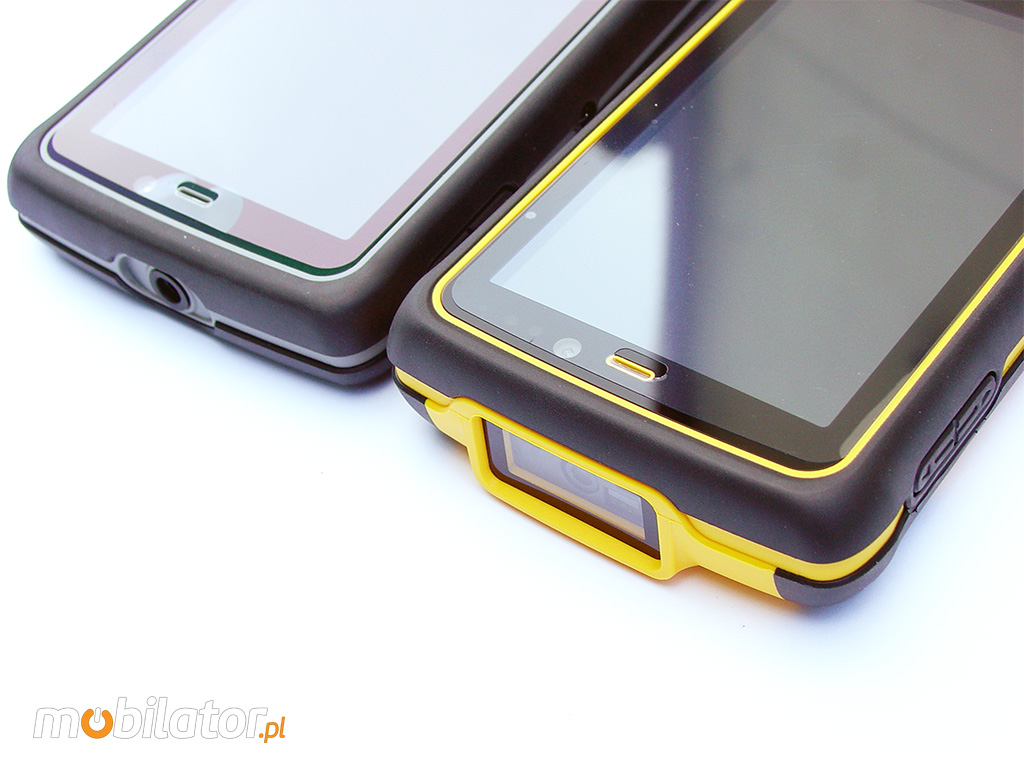

Unlike consumer smartphones that may be able to scan using their integrated cameras, professional quality devices such as E430RM4 use industrial grade scanners. Depending on the intended use, Winmate offers standard 2D scanner for indoor/outdoor use, or a Motorola 2D scanner with extended symbology support. From retail and healthcare to warehouse and logistics, Winmate E430RM4 with various options of the scan engine can boost productivity and efficiency immediately.

  1D 1D/2D
Model Opticon MDL-1000
Motorola SE4500
Scanner type
1D (LASER)
1D (LASER) | 2D (CMOS)
Codes (1D)
JAN/UPC/EAN incl. add on, Codabar/•NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128(EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5,Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/PlesseyPostal code: Chinese Post, Korean Postal Authority UPC/EAN, Code 128, Code 39,Code 93, Code 11, Interleaved 2 of5, Discrete 2 of 5, Codabar, MSI,Chinese 2 of 5, Matrix 2 of 5, Korean3 of 5, Postal codes, GS1 DataBar, Composite
Codes (2D) no support
QR Code, Data Matrix, PDF417, Maxicode, Aztec

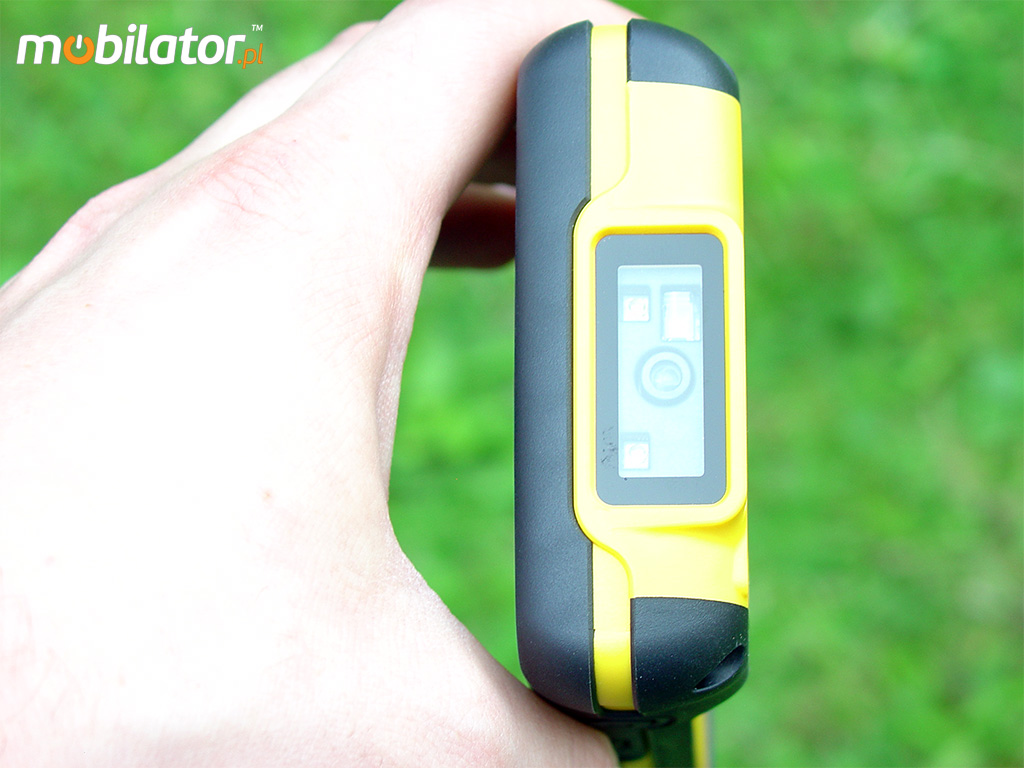

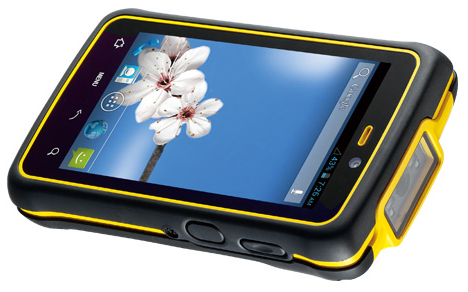

winmate e430rm4 barcode scanner czytnik kodów kreskowych

go top... do góry menu… menu

RFID (optional)

RFID technology worldwide has aroused great interest. They are expected to solve the many problems with fast and unmistakable identification of people and equipment. Its development is more turbulent than being gradually implemented barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.



  RFID HF
Frequency 13.56 Mhz
ISO 15693
TI HF-I Plus
TI HF-I Pro
NXPI-Code SLI
ISO 14443-A
NXP Mifare_One (S50_4byte)
NXP Mifare_One (S50_7byte)

NXP Mifare_One (S70_4byte)
NXP Mifare_UltraLight
NXP Mifare_UltraLight C
ISO 18092(R/W)
SONY Felica Lite s
SONY Felica Lite

czytnik RFID winmate e430rm4 gps wcdma Bluetooth wifi umpc

Modules and Wireless Networks

RFID HF
13.56Mhz
WiFi 802.11 a/b/g/n
Bluetooth Bluetooth Class 3.0 + EDR
GPS Wbudowany (u-blox NEO-6Q)
3G GSM / GPRS / EDGE / WCDMA / HSDPA / HSUPA

go top... do góry menu… menu

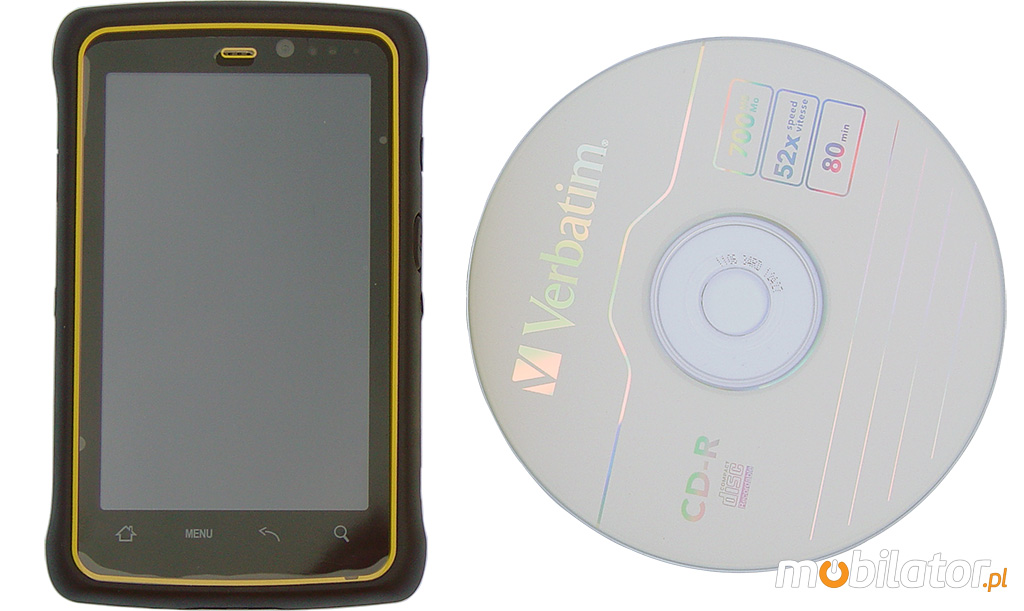

Minimalism



winmate e430Rm4 android 4.2 industry colektor data umpc




In addition to standard Bluetooth and Wi-Fi, the E430RM4 handheld offers optional GPS and 3G asset tracking and real-time data transfer. Whether indoor or outdoor, the E430RM4 handheld provides a wide of robust communications options.

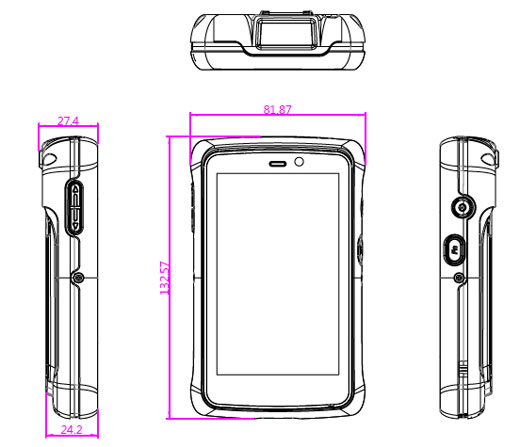

winmate e430rm4 umpc mobilator.pl android 4.2



go top... do góry menu… menu

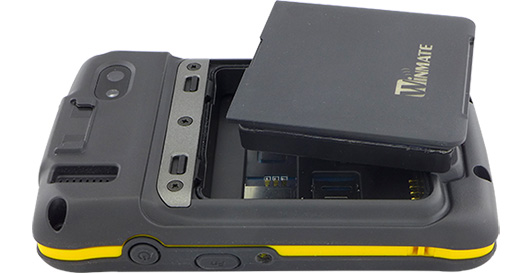

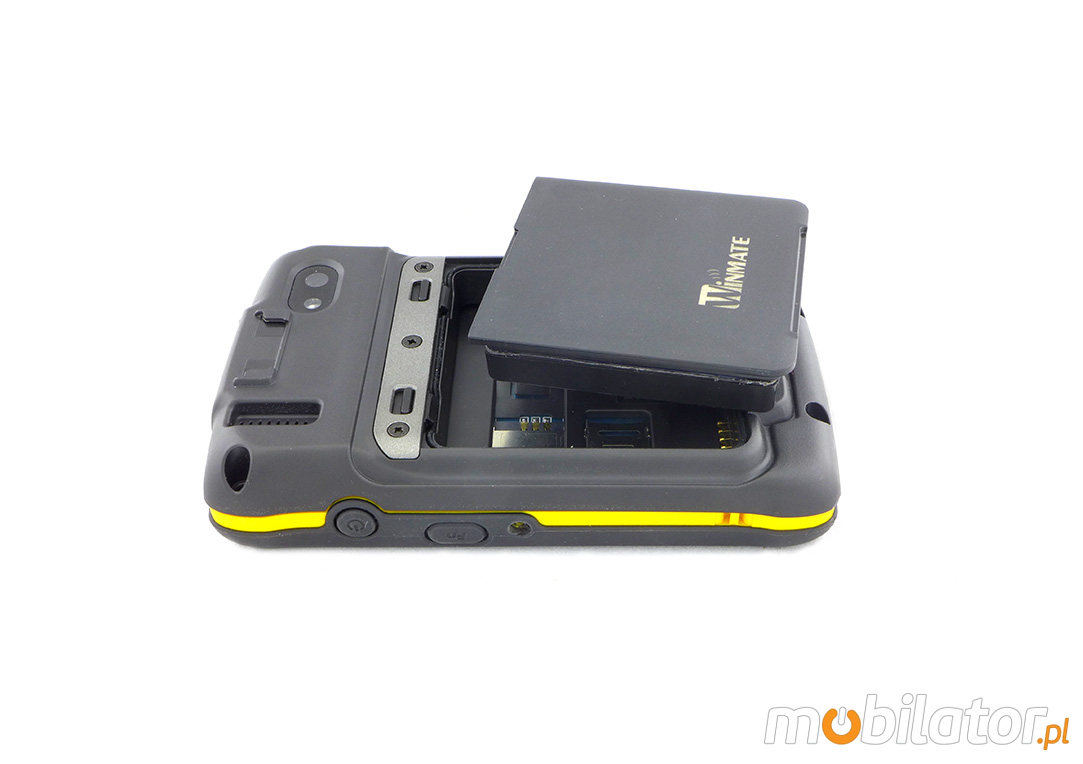

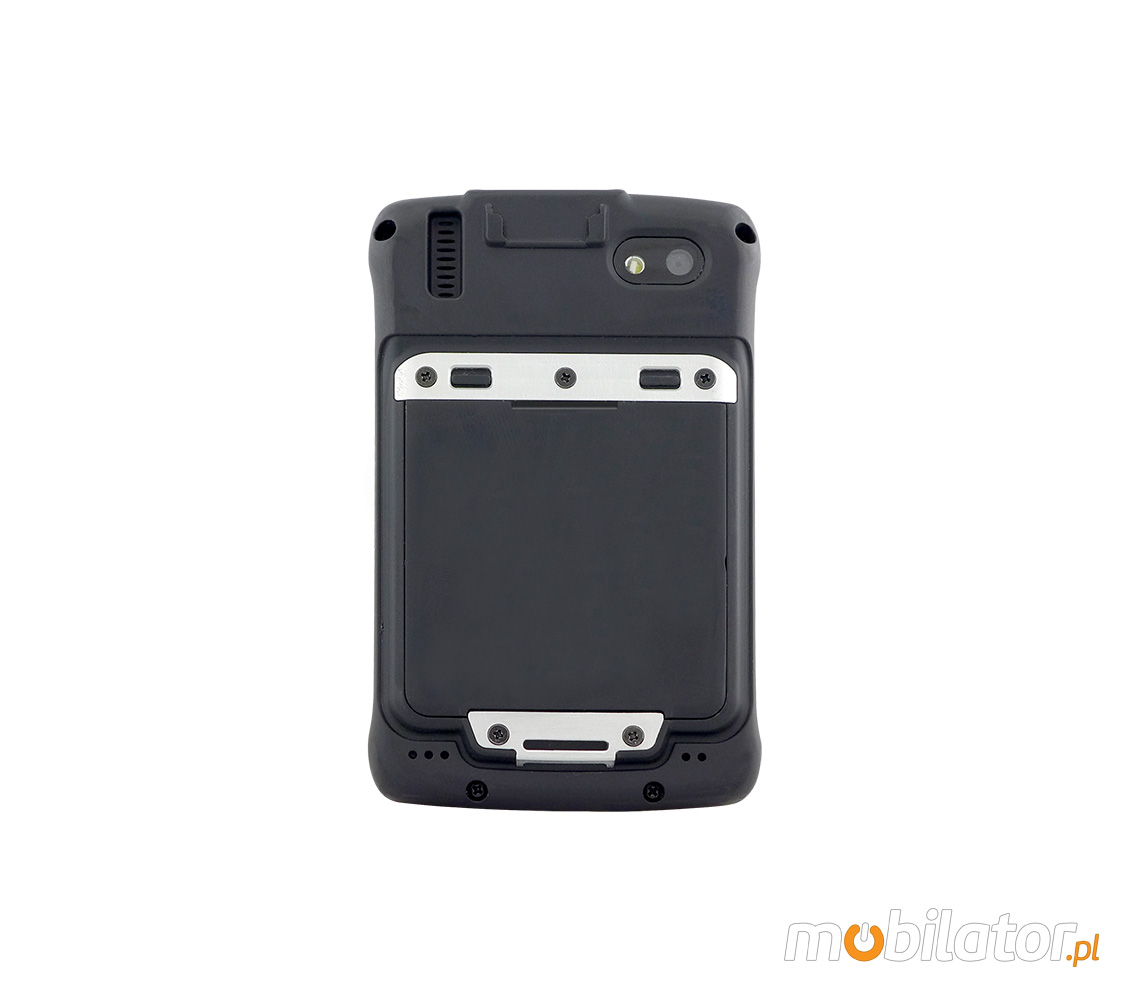

Fast battery replacement

szybka wymiana baterii e430rm4 fast battery change

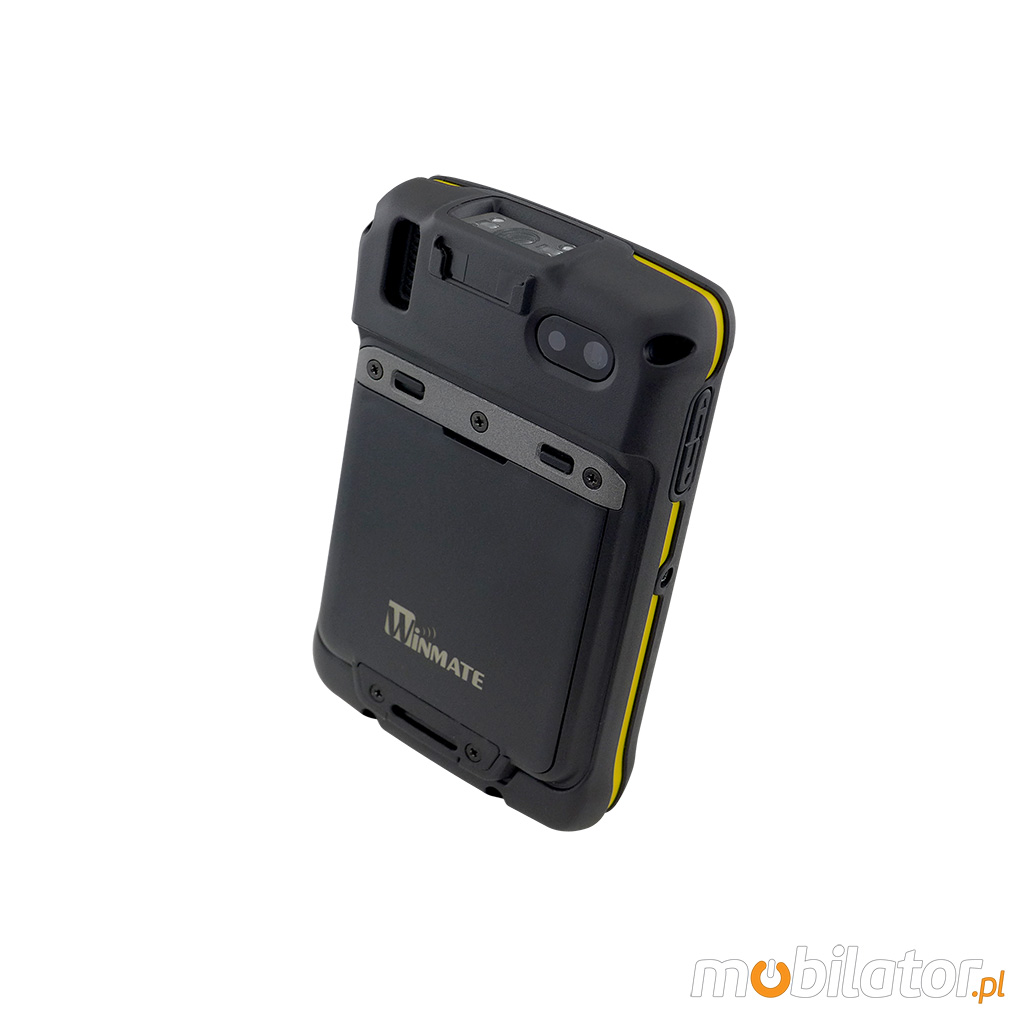

Featuring a user replaceable battery design with simple latch system, E430RM4 handheld can support continual operation on the field without down time. The replaceable battery also features high capacity at 3900mAh for extended use.

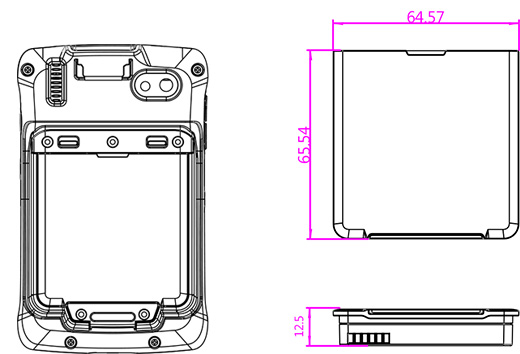

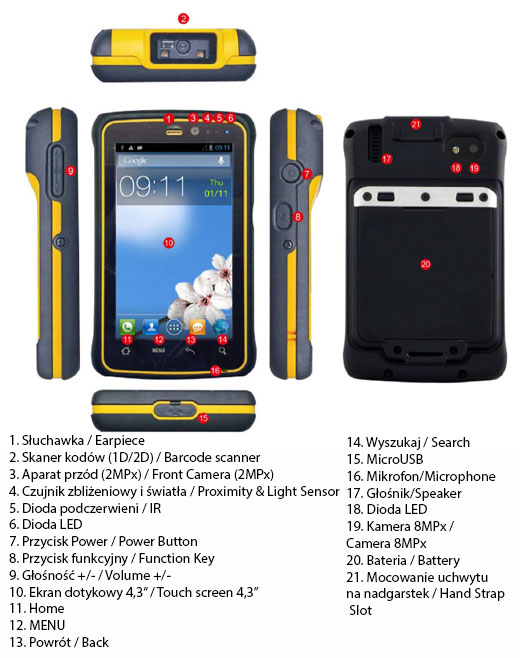

draw winmate e430rm4 rear tyl



Resistance

Standards

Operating temperature

-10°C -- +50°C (Battery)

-20°C -- +60°C (AC)

Storage temperature -30°C -- +70°C
Humidity 95% non-condensation
Dust IP6x (dust)
Water IPx6 (water)
Vibration MIL-STD-810G M514.6
Drop MIL-STD-810G Method 516.6, 4 ft, Free to concrete
Regulatory CE, FCC, UL, CCC

go top... do góry menu… menu

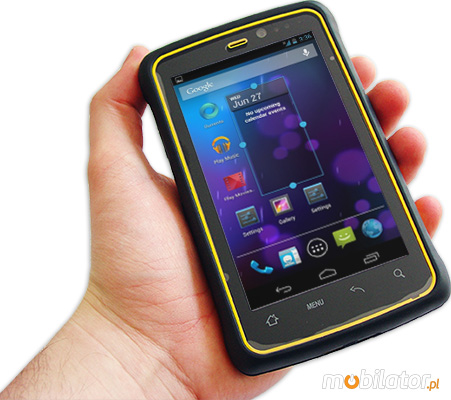

winmate e430rm4 hand rubberized data collector 1d 2d rfid umpc

Odporno¶æ sprzêtowa IP65

Sealed to IP65, the E430RM4 handheld is built to withstand harsh environments, protected against water and dust. Compliant with MIL-STD-810G, it can operate in extreme temperatures ranging from -10°C to 60°C and endure shock, vibration and 4-foot drops.

The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids
Complete protectionm against contact, Protection from infiltration of dust
6

5

Protection from water projected from a nozzle


Winamte E430RM4

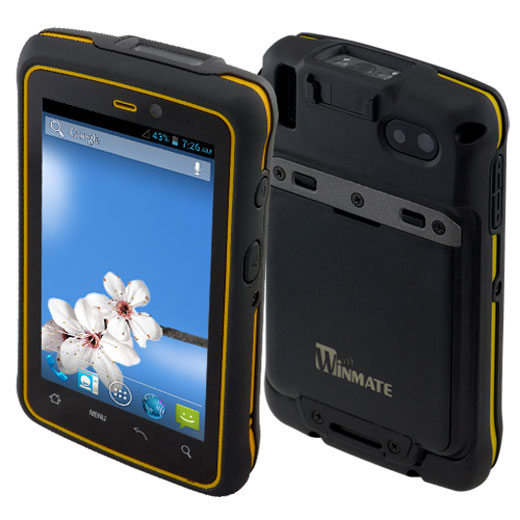

winmate e430rm4 umpc mobilator android nfc rfid 1d 2d
