Founded in 1996 in Taiwan, the company Winmate achieved an excellent reputation as a manufacturer of industrial LCD displays and laptops. Due to the high position of the products in the high-tech, have won many awards in tests conducted around the world.
|
|

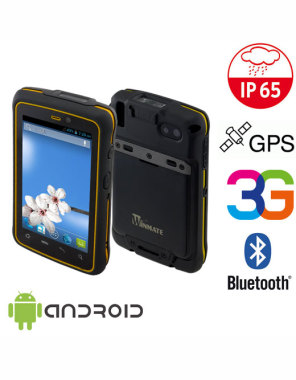

With its Android 4.2 platform, 1D/2D scanner, RFID reader, dual cameras, sunlight-readable 4.3-inch capacitive touchscreen, and a user replaceable battery design, the E430RM4 rugged handheld streamlines data collection and operations in any field application. |
|
|||||||||||||||||||||||||||||||||||||||
AccesoryOne difference between consumer devices and those designed for deployment in enterprise and vertical markets that's often overlooked is the availability of supporting accessories and peripherals. For consumer devices, all that's available may be a USB charging cable — definitely not a solution that would work for rugged equipment customers. Winmate knows that and offers not only a dedicated dual battery charger that shows charging level, but also a clever daisy chainable charging dock.
The collection and processing of data |
Barcode Scanner (optional)Unlike consumer smartphones that may be able to scan using their integrated cameras, professional quality devices such as E430RM4 use industrial grade scanners. Depending on the intended use, Winmate offers standard 2D scanner for indoor/outdoor use, or a Motorola 2D scanner with extended symbology support. From retail and healthcare to warehouse and logistics, Winmate E430RM4 with various options of the scan engine can boost productivity and efficiency immediately.
|
go top...
|
| RFID HF | |
| Frequency | 13.56 Mhz |
|
ISO 15693 |
TI HF-I Plus TI HF-I Pro NXPI-Code SLI |
|
ISO 14443-A |
NXP Mifare_One (S50_4byte) NXP Mifare_One (S50_7byte) NXP Mifare_One (S70_4byte) NXP Mifare_UltraLight NXP Mifare_UltraLight C |
|
ISO 18092(R/W) |
SONY Felica Lite s SONY Felica Lite |
.jpg)
|
RFID HF |
13.56Mhz |
| WiFi | 802.11 a/b/g/n |
| Bluetooth | Bluetooth Class 3.0 + EDR |
| GPS |
Wbudowany (u-blox NEO-6Q) |
| 3G | GSM / GPRS / EDGE / WCDMA / HSDPA / HSUPA |
.jpg)
In addition to standard Bluetooth and Wi-Fi, the E430RM4 handheld offers optional GPS and 3G asset tracking and real-time data transfer. Whether indoor or outdoor, the E430RM4 handheld provides a wide of robust communications options.
.jpg)
.jpg)
Featuring a user replaceable battery design with simple latch system, E430RM4 handheld can support continual operation on the field without down time. The replaceable battery also features high capacity at 3900mAh for extended use.
.jpg)
|
||||||||||||||||||
|
||||||||||||||||||
Winamte E430RM4
|
menu…  |
| Durability: | MIL-STD 810G |
| Humidity: | 95% non-condensation |
| Waterproof: | IP 65 |
| Weight: | |
| Temperature: | Operating temperature: -10°C - 50°C (Bateria) / -20°C - 60°C (AC) Storage temperature: -40°C - 70°C |
| Shock: | MIL-STD-810G Metod 516.6 |
| Vibration: | MIL-STD-810G Metod 514.6 |
| Drop: | MIL-STD-810G Metod 516.6 |
| Sand and dust: | IP 65 |
| 1D barcode scanner (reader): | none (available in other configurations) |
| 2D barcode scanner (reader): | none (available in other configurations) |
| RFID scanner (reader): | none (available in other configurations) |
| Magnetic card reader (MSR): | No |
| Microchip card reader: | No |
| Docking station connector: | No |
| VESA standard – holders and mounts support: | No |
| COM port: | No |
| Dispaly: | |
| Brightness: | 400nit |
| Contrast: | 800:1 |
| Touch screen: | Touch Projective Capacitive Multi-Touch |
| Graphics card: | -------- |
| Swivel Hinge: | -------- |
| VGA out: | -------- |
| TV Out: | -------- |
| TV Tuner: | -------- |
| Processor: | ARM®Cortex™ Quad Core - A7 1.5Ghz |
| Chipset: | -------- |
| BIOS: | -------- |
| Memory: | 1GB SDRAM |
| Hard Drive: | 4GB eMMC |
| Flash Memory: | |
| Battery: | 3900 mAh Li-Ion (1S2P) 5V/1A Adapter USB Adapter |
| Working time on battery: | 12-15hr (Backlight at 10% duty cycle, default level, idle) |
| HotSwap battery: | No |
| Fast battery replacement ability: | Tak |
| Size: | 132.2 x 82 x 25.7 mm 260g |
| Casing material: | plastic |
| Fanless casing: | Yes |
| Operating System: | Android 4.2 |
| LAN: | -------- |
| WLAN: | Yes - 802.11 a/b/g/n |
| Bluetooth: | Yes - Bluetooth V3.0+EDR |
| WAN: | Yes - 3.75G |
| GPS: | Yes - Built-in |
| Flash Card Reader: | microSD (max.32GB) |
| CD/DVD: | -------- |
| Camera: | Front: 2Mpx Rear: 8Mpx + LED + Autofocus |
| Audio: | Built-in Microphone : Earphone : Speaker 1.2W |
| Seciurity: | Gum case |
| In/Out: | 1x - Micro USB : 1x - SIM : 1x - Micro SD |
| Keyboard: | No |
| Additional Navigation Devices : | Function keys: Volume - + Power button Function button |
| Color: | black-yellow |
| Optional accessories: | 1D/2D Barcode scanner RFID Car holder Car charger Optional warranty up to 3 years |
| Other: | Sensors: Light Sensor Proximity Sensor G-sensor Digital Compass |
CURRENT PRICE |
|
| 2130.93 € | Net |
| 2621.04€ | Gross |
