Industial PanelPC MobiBOX 19 - i3 v.1
Compare all versions
|
Industrial Panel PC
Industrial Panel PC are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation.
|
|
|
MTouch
|

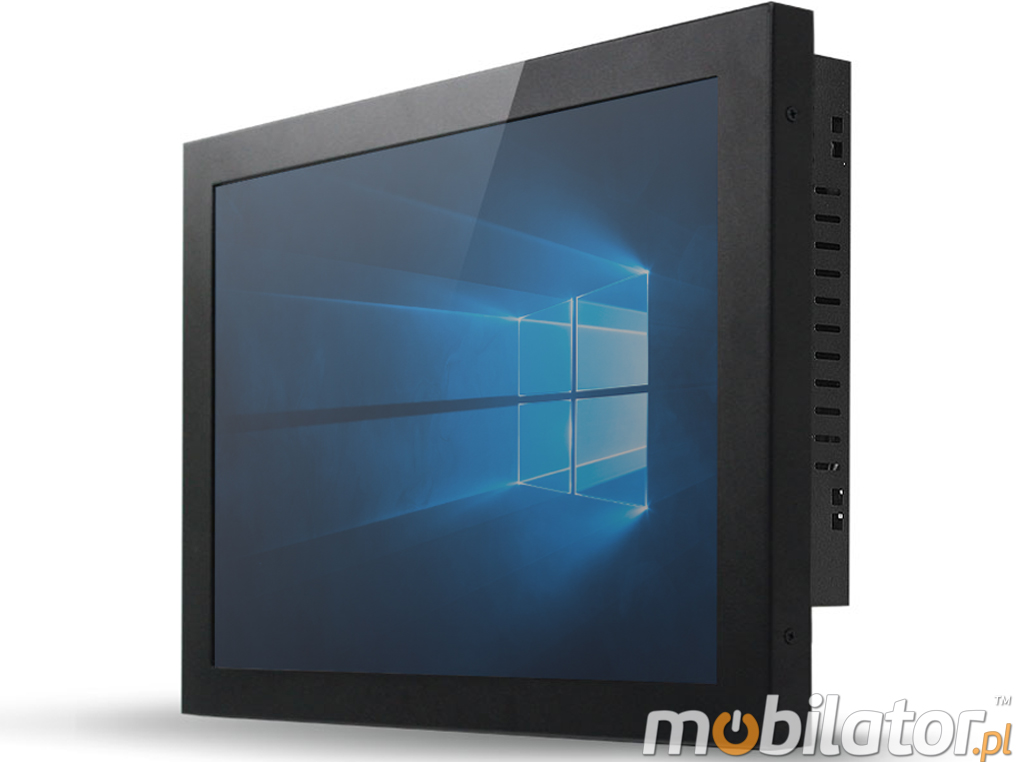

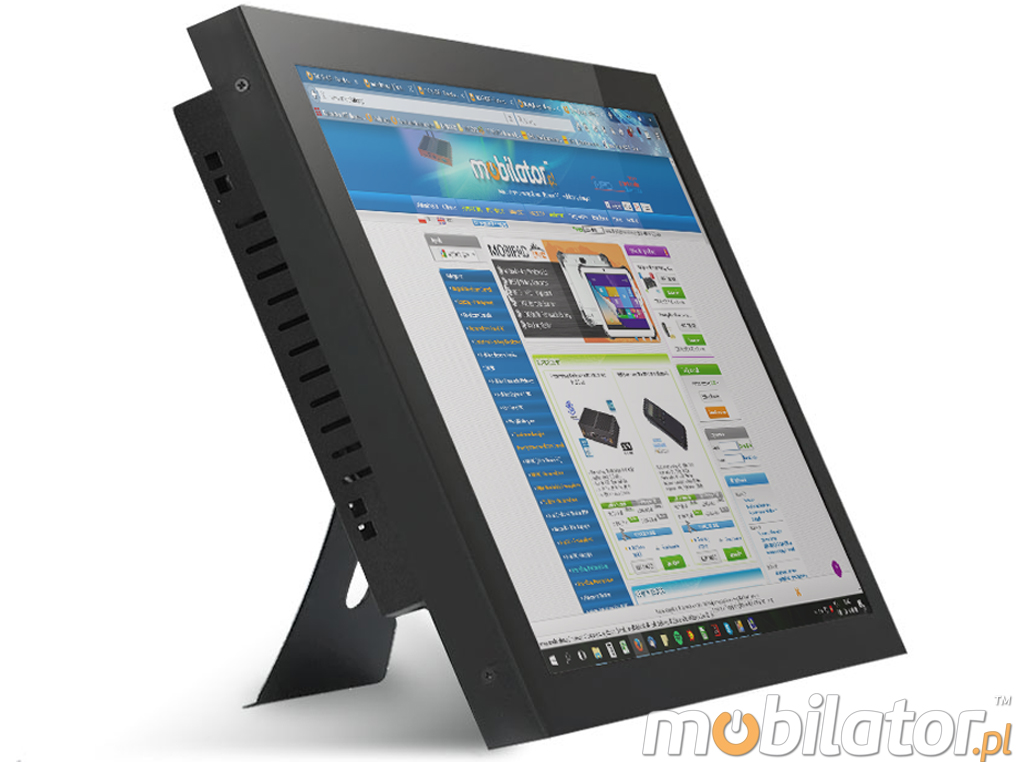

Industial PanelPC MobiBOX 19 i3 v.1
|
|
.jpg)
|
 |
CPU: Intel® Core™ i3-4160 Processor (3M Cache, 3.60 GHz)
|
|
|
Memory: 2GB RAM
|
|
|
Disk: 32GB SSD / HDD (optoin) |
|
|
System: Windows 10 / Windows 8.1/8 / Windows 7 / Windows XP / Linux
|
|
|

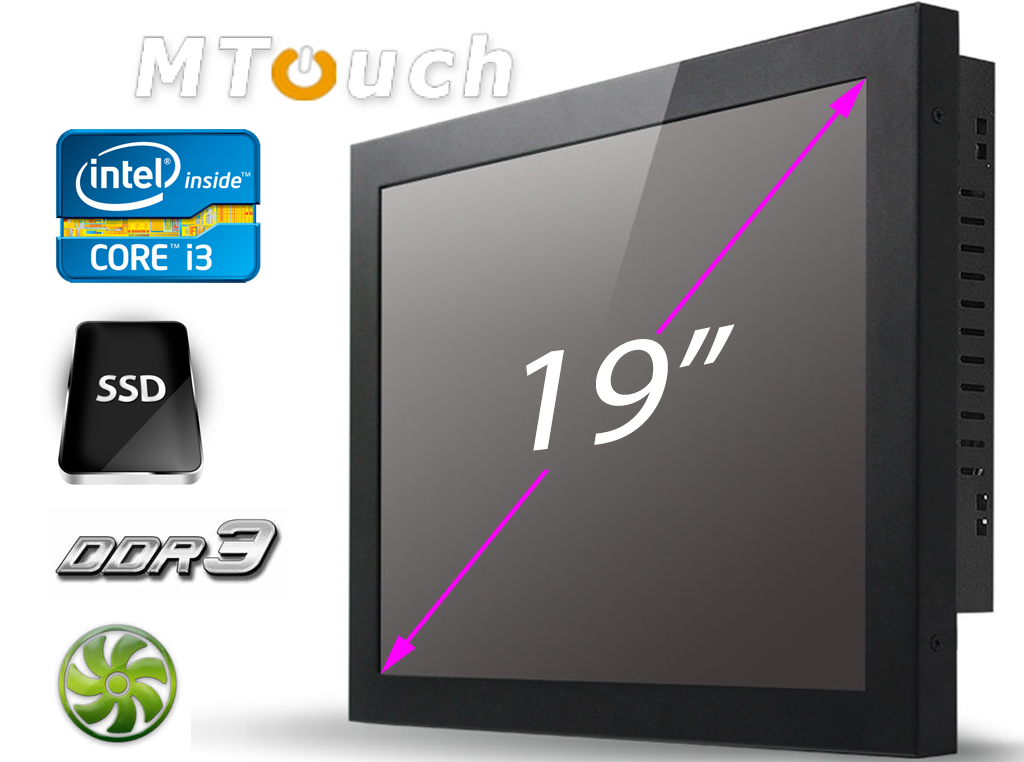

Screen: 19" / 1280x1024 / 4:3 / 5 - Wire Resistive
|
|
.png)
|
Expansion cards: 2 x Mini PCI Express
|
|
|
Detailed specification of the configuration available in the "Technical data"
|
Using the latest technology Panel PC is designed for continuous multitasking operating with low power consumption (40 W). An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Core i3 processor family, Intel chipsets and DDR3 memory. Integrated Intel®HD Graphics video graphics card and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB SSD to 512GB SSD (320GB to 1TB HDD option).
Dimensions:
Housing dimension are 427 x 350 x 55 mm Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 13 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Cooling:
Industial PanelPC MobiBOX 19 i3 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
The computer panel MobiBOX 19 i3 uses a proven method of cooling. It takes place mainly through the fan mounted inside the enclosure. Making industrial Panel PC is faster and more efficiently cooled. |
|
Communication:
Industial PanelPC MobiBOX 19 i3 standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as 3G.
.jpg)

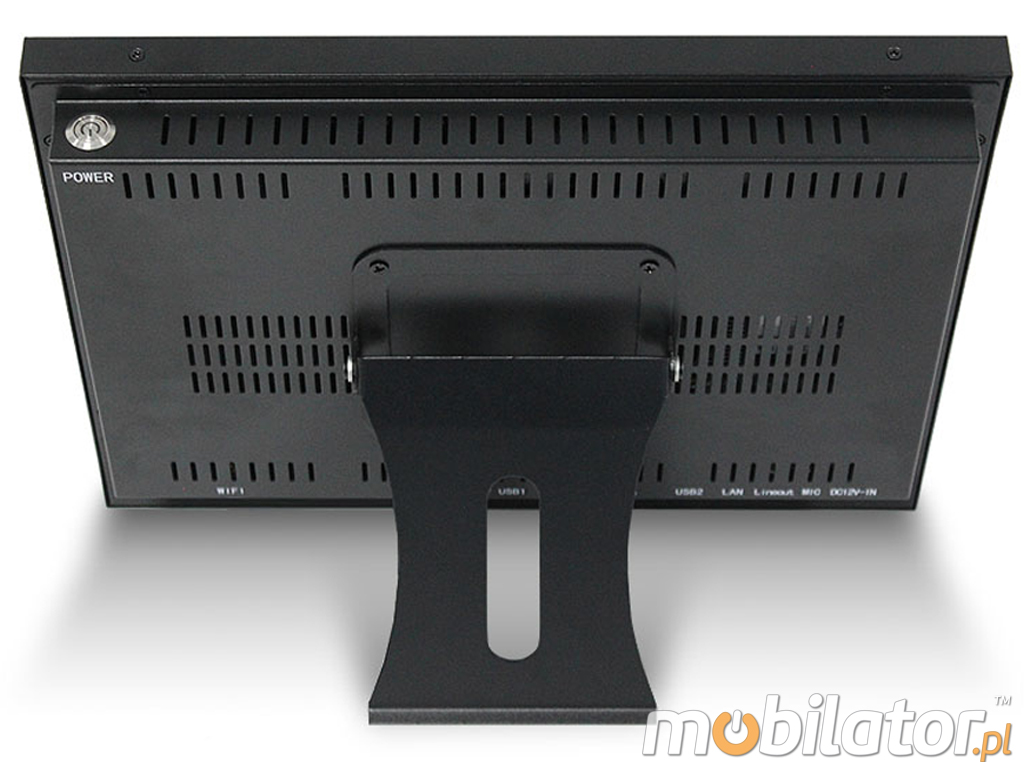

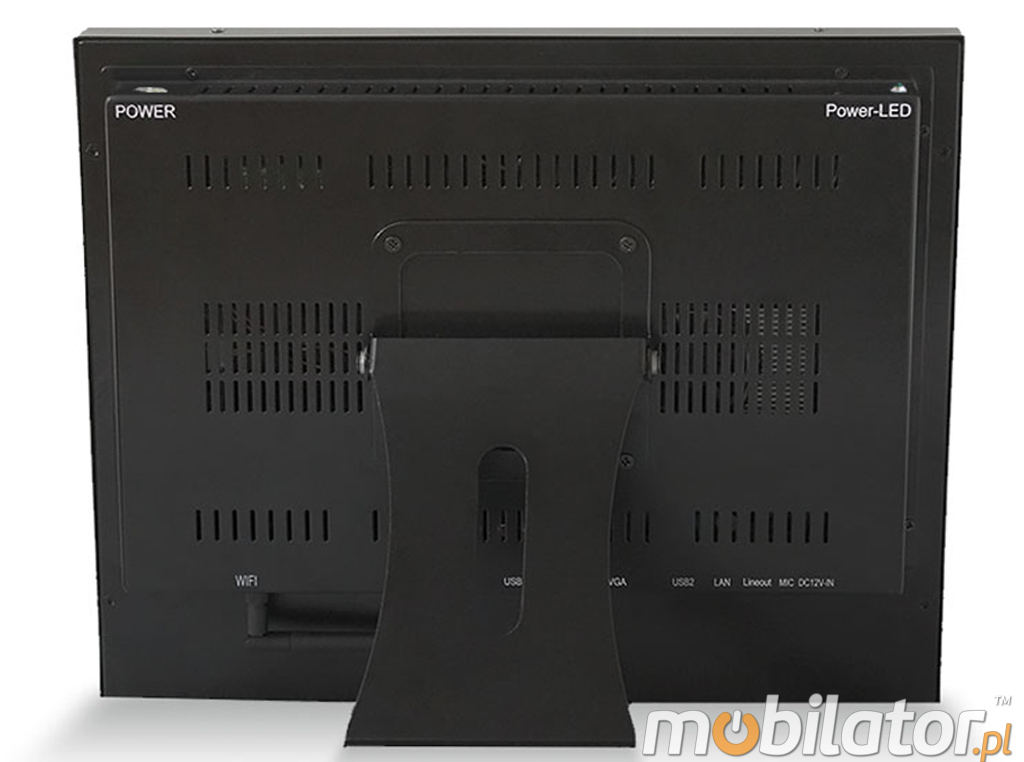

Connector:
Integrated IntelRTL8111E LAN 1xRJ 1000M-45, WiFi module allows you to connect the device to the network. The computer is equipped with: one LAN connector, one COM ports (RS232), one VGA, one HDMI output, four USB 2.0 ports, one audio out, one microphone input, and a power DC-in.
|
1. Antena WI-FI |
5. VGA
|
9. Mic
|
|
2. COM (RS-232) |
6. 2 x USB 2.0 |
10. DC-in |
|
3. 2 x USB 2.0 |
7. LAN (RJ 45) |
|
|
4. HDMI |
8. Audio
|
|
|
|

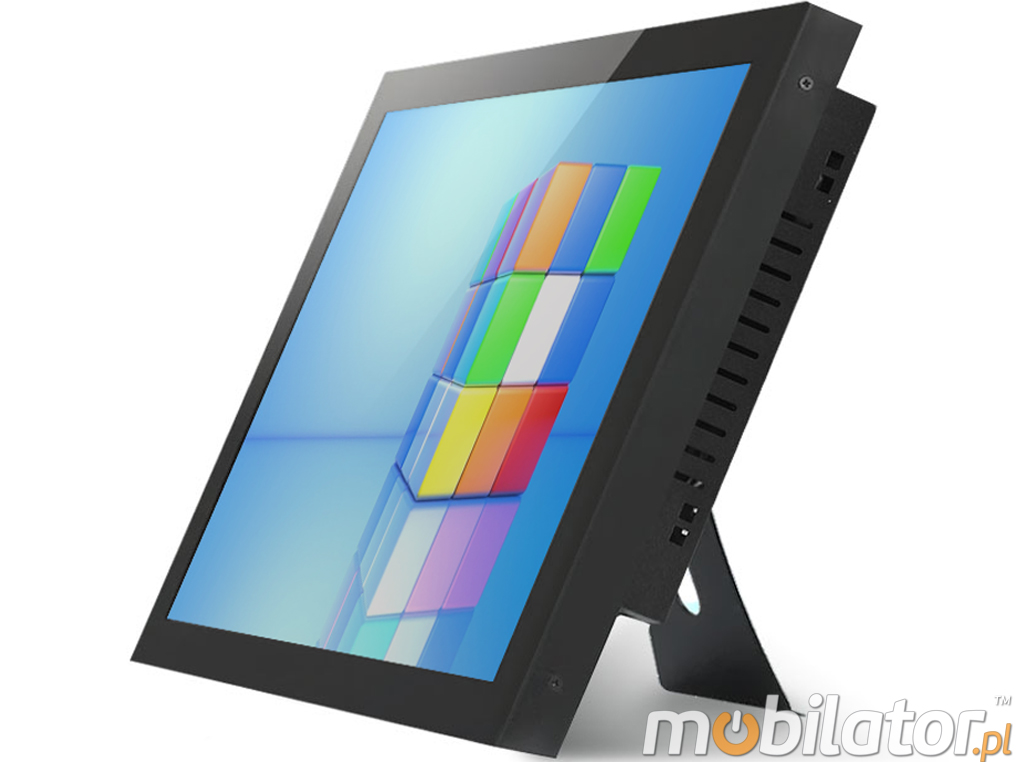

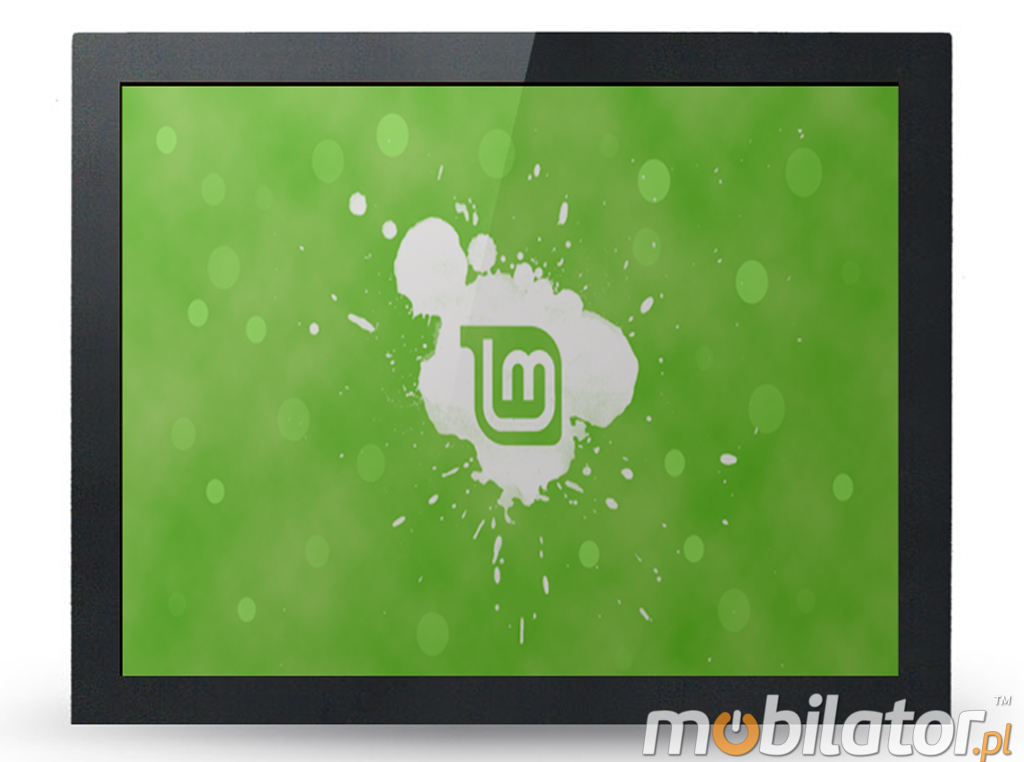

Industial PanelPC MobiBOX 19 i3 has a water-resistant front panel and scratch resistant LED screen. With 1280x1024 resolution and high brightness of 300 cd/m2, screen of "5 wire resistive" type with high sensitivity to touch, offers the user a clear picture and ease of use.
.jpg)
Resistive screen
A resistive touchscreen comprises of several layers, out of which the flexible plastic and glass layers are two important electrically resistive layers. The front surface of resistive touchscreen panel is a scratch-resistant plastic with coating of a conductive material (mostly Indium Tin Oxide, ITO), printed underside. The second important layer is either made of glass or hard plastic and is also coated with ITO. Both the layers face each other and are separated with a thin gap in between. An electrical resistance is created between both the layers in such a way that charge runs from top to bottom in one layer and side-to-side in another. When a finger or stylus tip presses down on the outer surface, both the ITO films meet. It is the measure of the resistance of both the layers at point of contact, which leads to get an accurate measurement of the touch position. The accuracy also relies on the evenness of the coating of ITO on both the layers.
Resistive screen ensures good visibility, which falls quite firmly in the sun. This type of screen as opposed to a capacitive screen, allows you to use handwriting (stylus comes in handy here).
5-WIRE RESISTIVE SCREENS
The 5-wire Resistive Touch Screen is the preferred solution for applications requiring durability and reliability. Similar to the 4-wire technology, the 5-wire touch screen also consists of a conductive glass bottom layer and conductive top film layer. The fundamental difference between the two is, in the 5-wire construction, all the electrodes are on the bottom layer and the top layer acts as a voltage-measuring probe. With this structure, the touch screen may still work properly even when the top layer is slightly scratched or damaged. The result is an accurate, durable and reliable touch screen that offers a higher touch life.
Resistive screens are very durable and can be used in a variety of environments. This type of screen is recommended for demanding point-of-sale systems, restaurant systems, industrial controls, and other workplace applications.
|
|
Industial PanelPC MobiBOX 19 i3 is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial front panel and aluminum housing protects the display from the outside against mechanical damage, drops of water, sand and dust. MobiBOX 19 i3 is the best solution for extreme applications in dust or moisture.
.jpg)
|
Operating Temp
|
-10-60 °C |
|
Operating Humidity |
0%-80%
|
|
Industrial Panel PCs with MTouch companies are based on the efficient two-core processors and high-quality components.

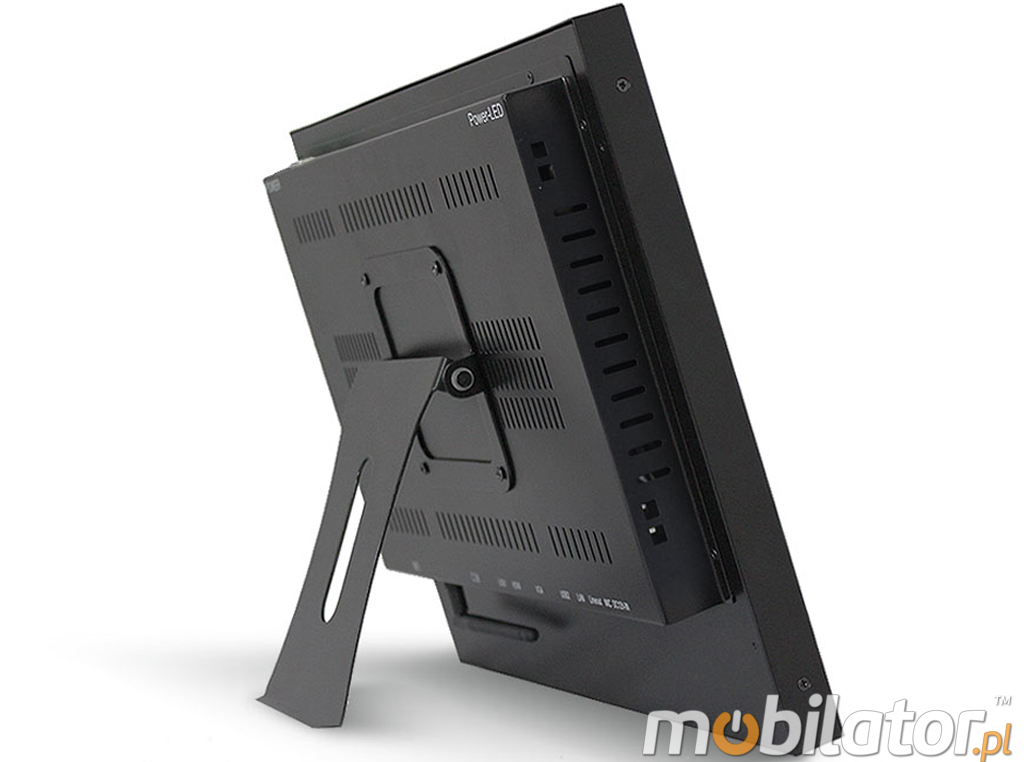

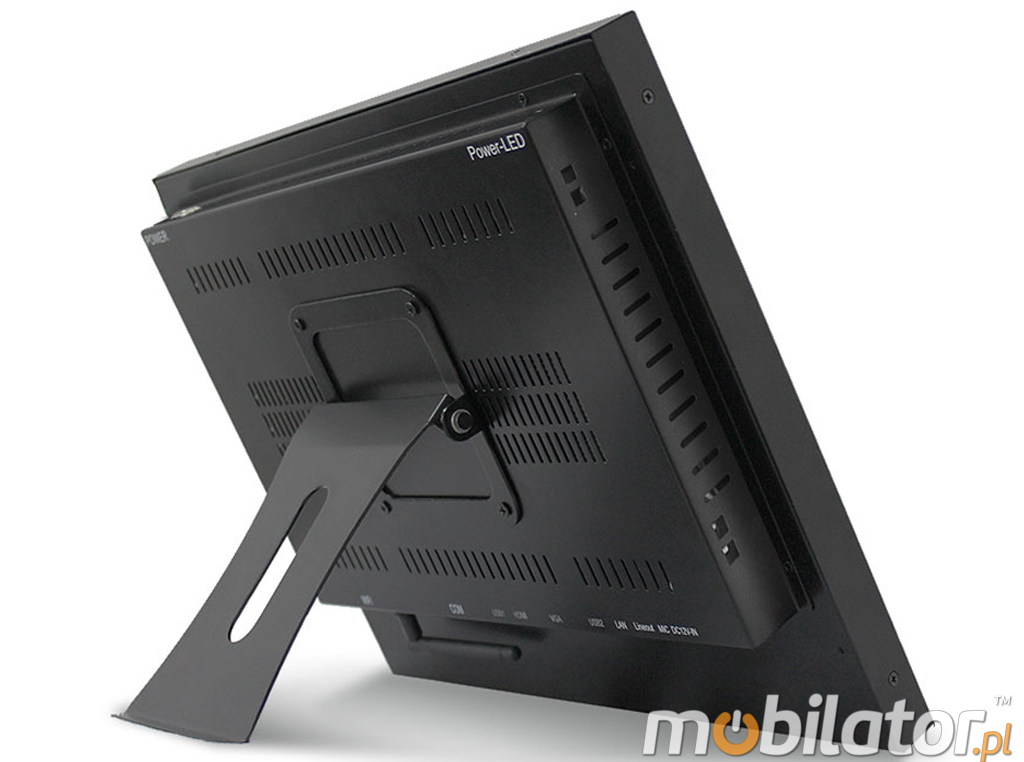

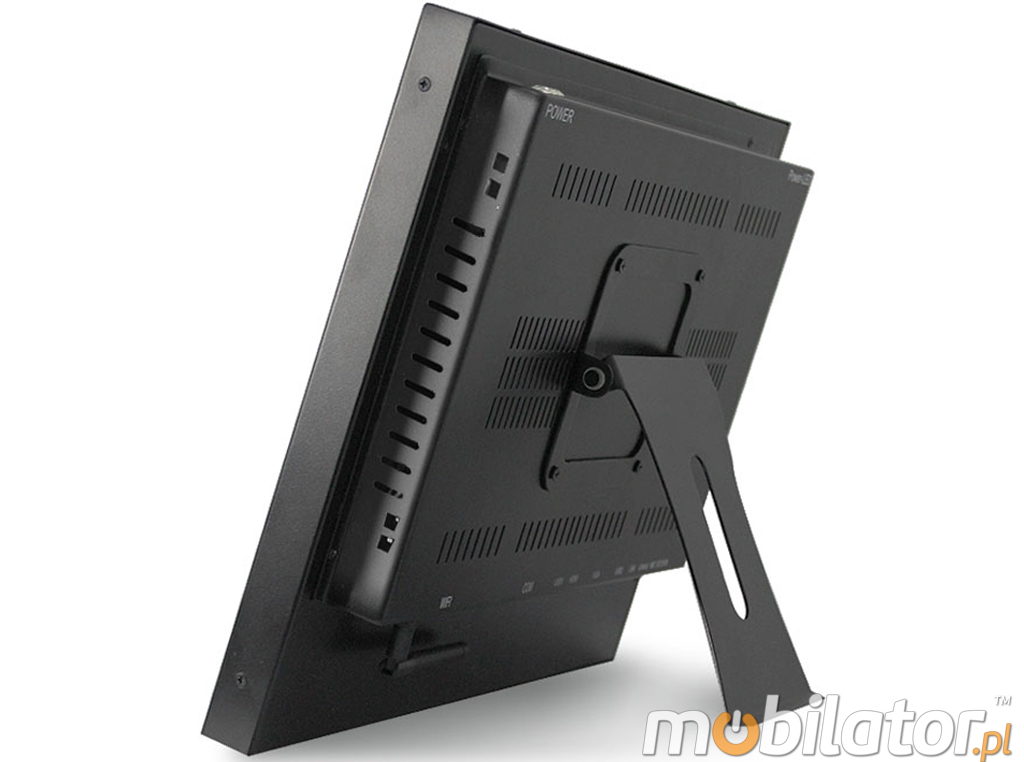

Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
.jpg)
Areas of use of industrial panel computers.
.jpg)
|
Trade
Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register), factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Industrial Panel PC through COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
Transport & Automotive
Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 12V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
go top…  menu…
|
go top… menu…
Display
|
Screen: 19"
Resolution: 1280 x 1024
Type: 5 - Wire Resistive |
Resistance IP
|
-
|
Communication
|
Wi-FI
3G (option)
|
|
Dimensions
|
Height: 350 mm
Width: 55 mm
Length: 427 mm
|
|
Weight |
13 kg
|
|
Processor |
Intel® Core™ i3-4160 Processor (3M Cache, 3.60 GHz)
|
Chipset
|
Intel H81
|
Memory RAM
|
2GB (optional up to 8GB) |
Graphics Card
|
Intel® HD Graphics
|
Sound Card
|
Realtek ALC662 |
Network Card
|
Intel RTL8111E 1000M Lan |
|
Ports & interfaces |
1 x COM(RS232)
4 x USB 2.0
1 x HDMI
1 x VGA
1 x LAN RJ45
1 x Audio
1 x Mic
1 x DC-in
|
|
|
|
|
Compare all versions
| Screen size: |
19" |
| Resolution: |
1280x1024 |
| Aspect ratio: |
4:3 |
| Touchscreen: |
Resistive Type 5-Wire |
| Chipset: |
Intel H81 |
| CPU Support: |
Intel® Core™ i3-4160 (3M Cache, 2x3.60 GHz) |
| Installed CPU: |
Intel® Core™ i3-4160 (3M Cache, 2x3.60 GHz) |
| Memory Support: |
up to 8GB (max); |
| Installed Memory: |
2 GB |
| Graphic Card: |
Intel HD Graphics |
| Audio: |
Realtek ALG662 6 sound track audio frequency |
| Storage (HDD) Support: |
32 - 512 GB SSD / 320 - 1TB HDD |
| Installed Storage (HDD): |
32 GB S-ATA SSD |
| CD/DVD Drive: |
----- |
| LAN: |
Realtek RTL 8111E, 10/100/1000Mbit 1 x RJ45 Port |
| Wireless LAN card: |
Yes |
| Bluetooth: |
----- |
| 3G: |
----- |
| 4G LTE: |
|
| GPS: |
----- |
| TV Tuner: |
----- |
| Watch Dog Timer: |
----- |
| Ports - front panel: |
----- |
| Ports - rear panel: |
1x COM(RS-232) / 4x USB 2.0 / 1x HDMI / 1x VGA / 1xLAN / 1x Audio / 1x MIC / 1x DC-in |
| Ports - left panel: |
----- |
| Ports - right panel: |
----- |
| Power: |
12V DC-in |
| Supported OS: |
Microsoft Windows: XP/Vista/7/8/8.1; Linux |
| Installed OS: |
----- |
| Dimensions: |
427 x 350 x 55 mm |
| Weight: |
13 kg |
| Expansion: |
----- |
| Fanless: |
No |
| Humidity: |
10%~ 80% |
| Temp: |
-10°C ~ 60°C |
| Storage Temp: |
-30°C ~ 60°C |
| IP Norm: |
Front panel |
| IP Level (back panel): |
----- |
| IP Level (front panel): |
----- |
| Dual display: |
Yes |
| Response time touch-panel (ms): |
5 |
| Contrast Ratio: |
1000:1 |
| Brightness: |
300 cd/m2 |
| Viewing Angle: |
H170/170 V160/160 |
| Backlight MTBF: |
LED |
| Color Resolution: |
16.7 M |
| Surface hardness (display): |
----- |
| Touch Life(contacts): |
more than 35 000 000 times |
| Housing material: |
Metal |
| Mounting VESA: |
Yes |
| Folding Bracket (for office type working): |
Yes |
| Power Consumption: |
40 W |
| Others: |
Housing color: Black |
| Anti-vibration: |
----- |
| Anti-shock: |
----- |
| RFID scanner (reader): |
----- |
| Barcode reader: |
|
Compare all versions
