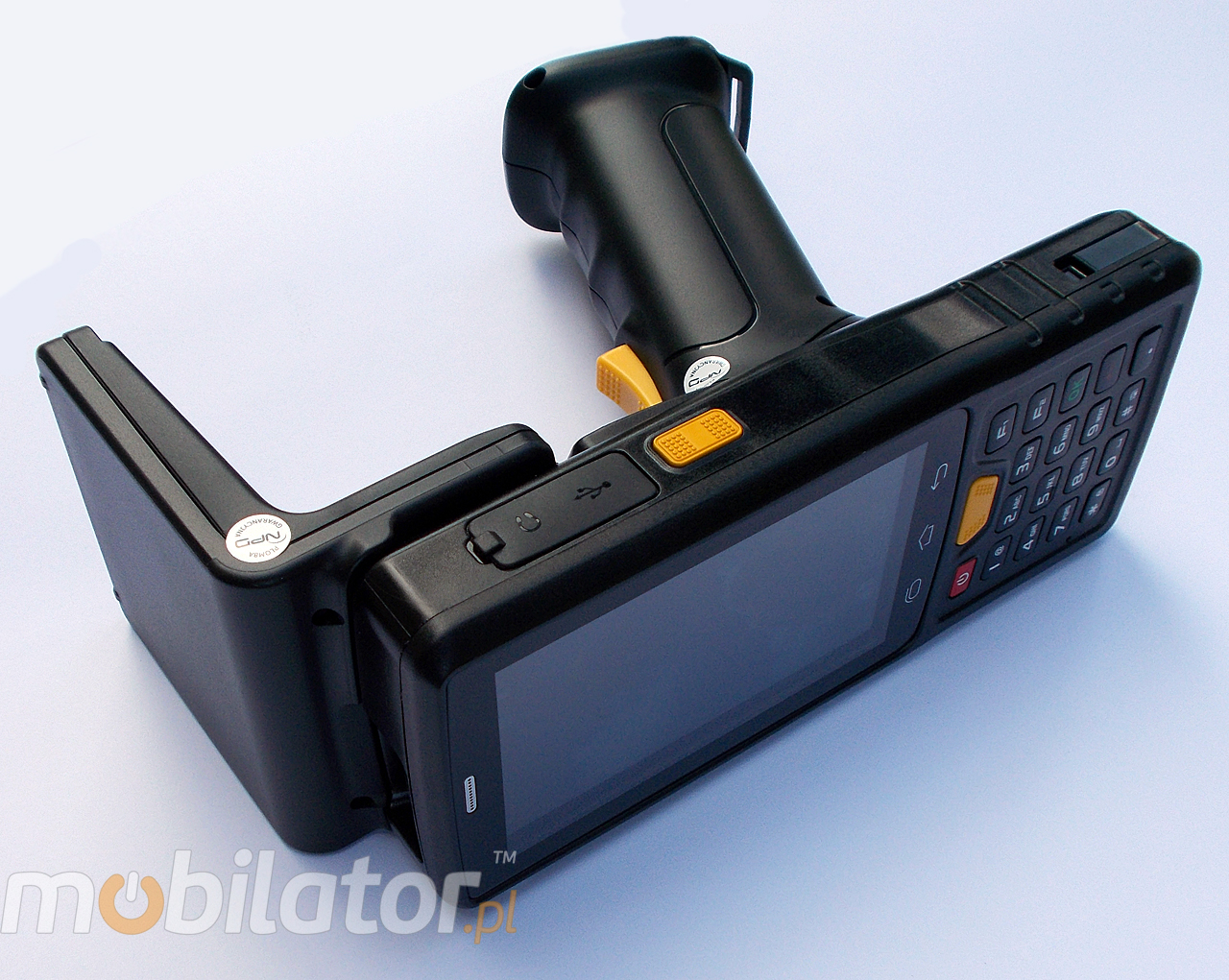

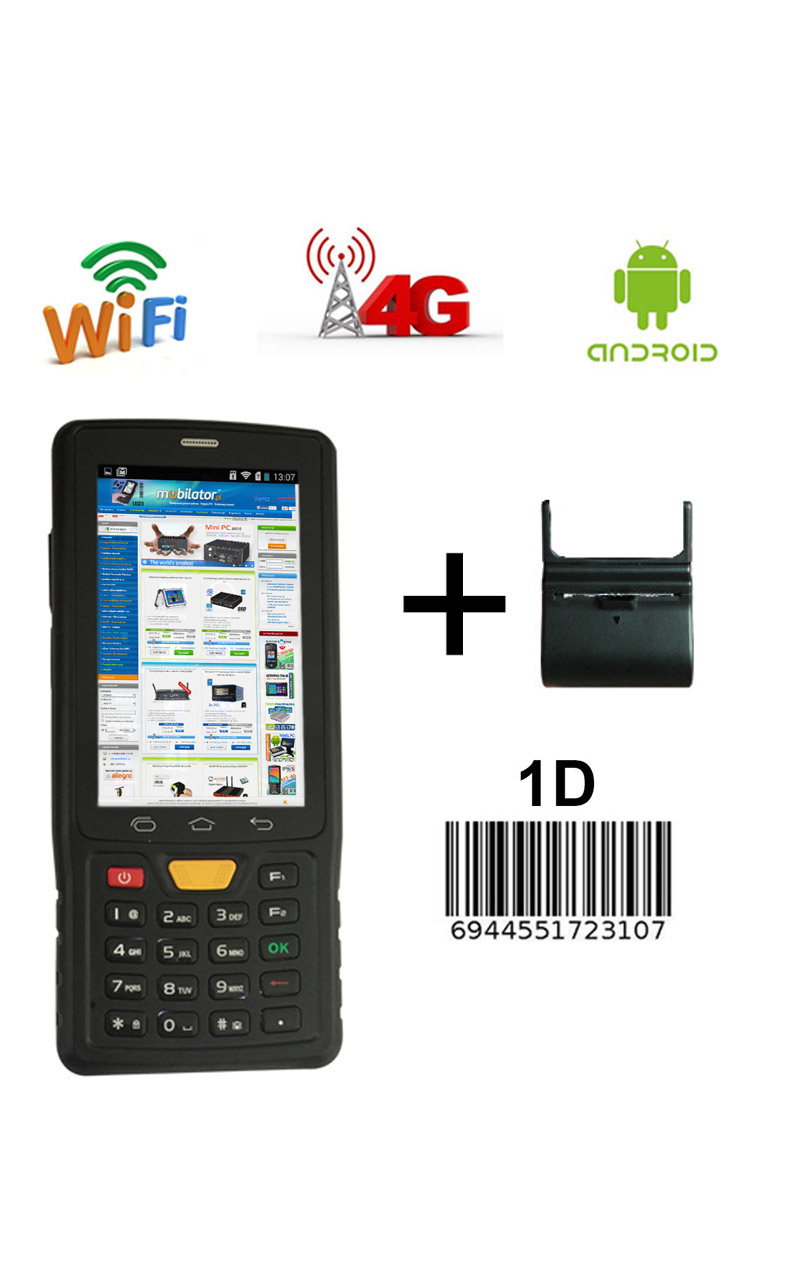

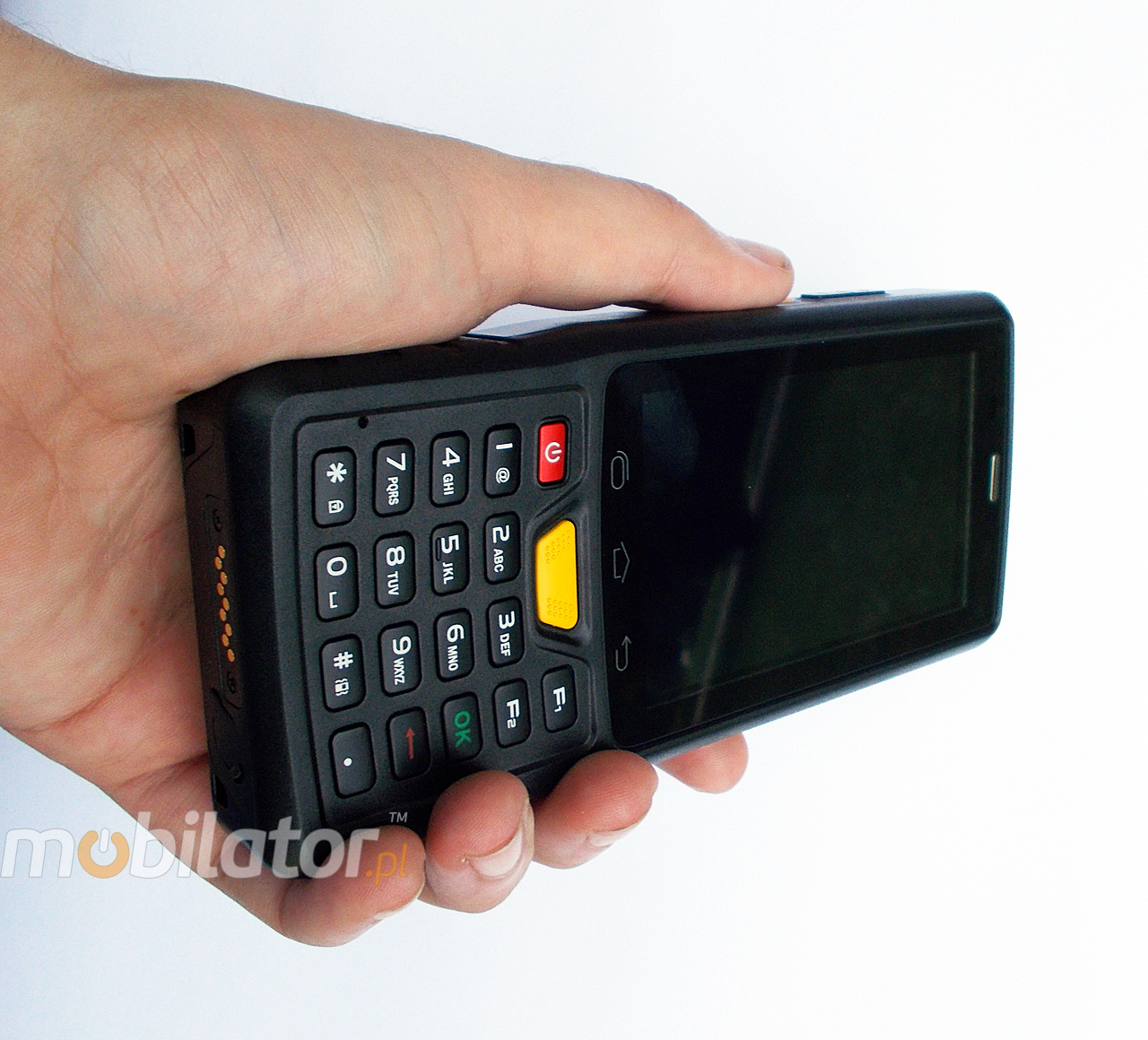

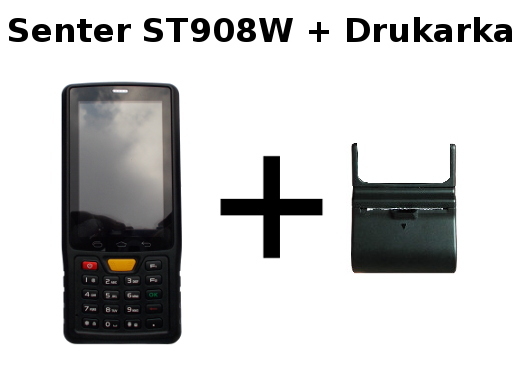

Industrial Collector Senter ST908W-1D(Laser Zebra) + Printer
|
|
The product from the archive - production terminated
|
Compare all versions

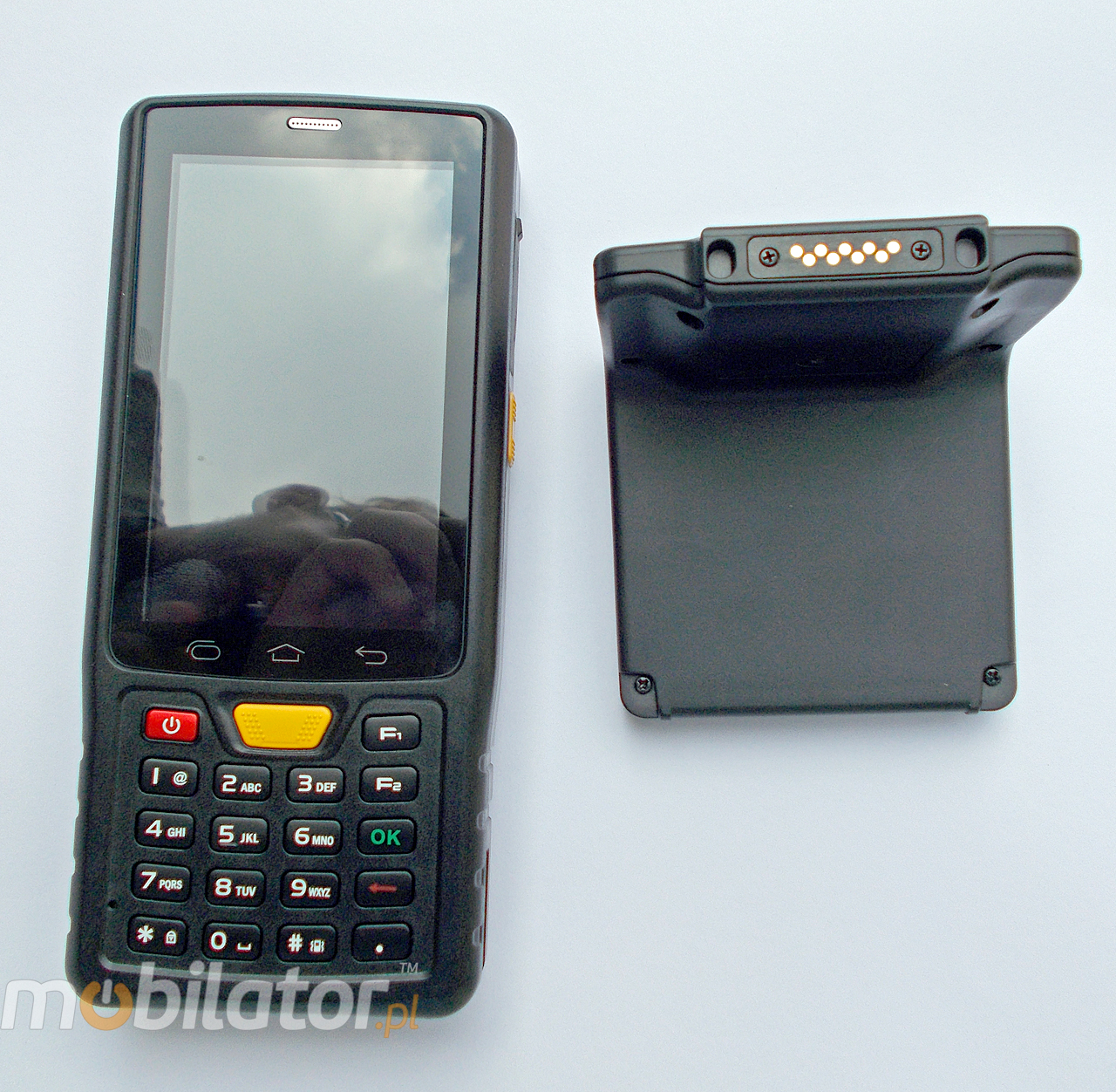

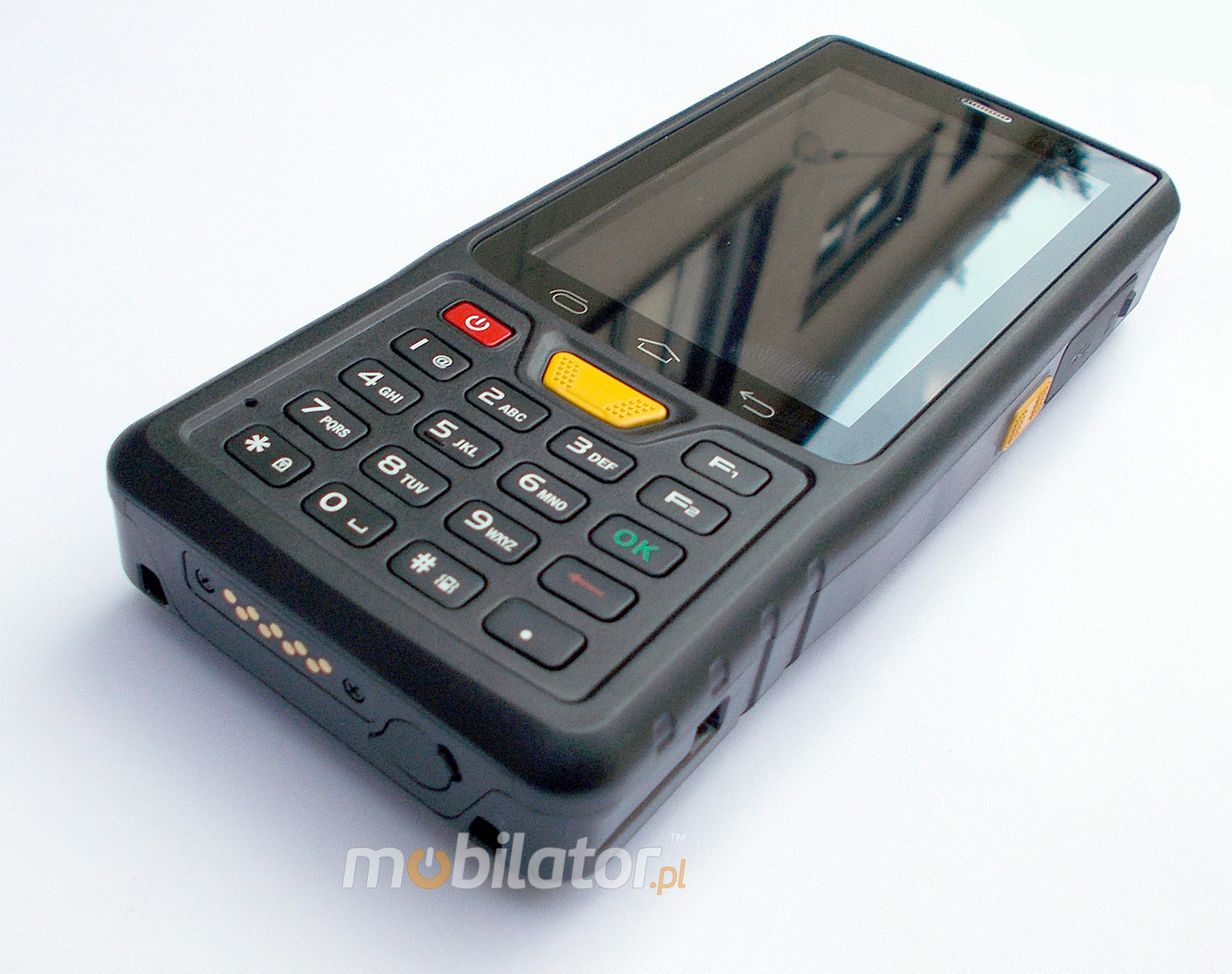

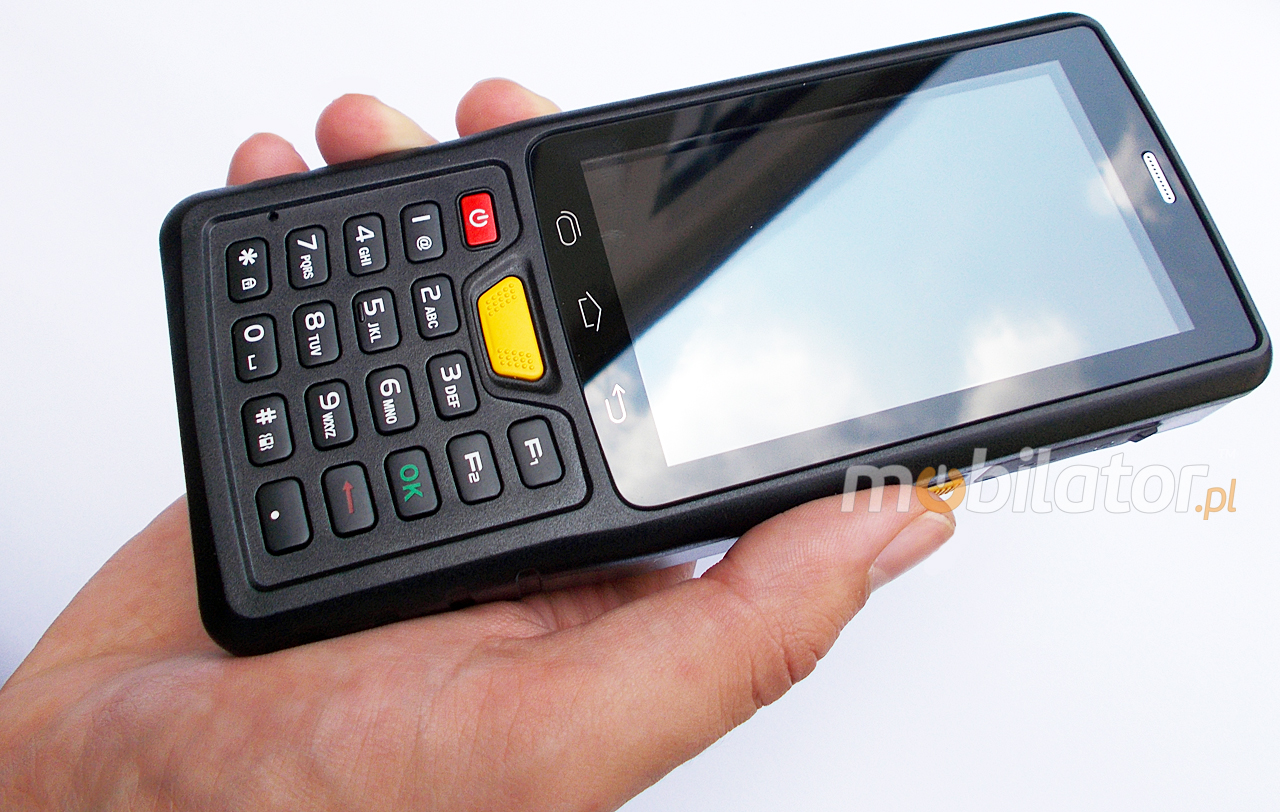

Senter ST908W has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP65 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.
|
|
.jpg)
|
Processor |
Qualcomm Snapdragon 200 MSM8625Q - Quad (4x) 1.2Ghz |
|
PCB |
Qualcomm Adreno 203 |
|
Display |
4" (800x480) IPS LCD : capacitive |
|
RAM |
2GB |
|
ROM |
16GB |
|

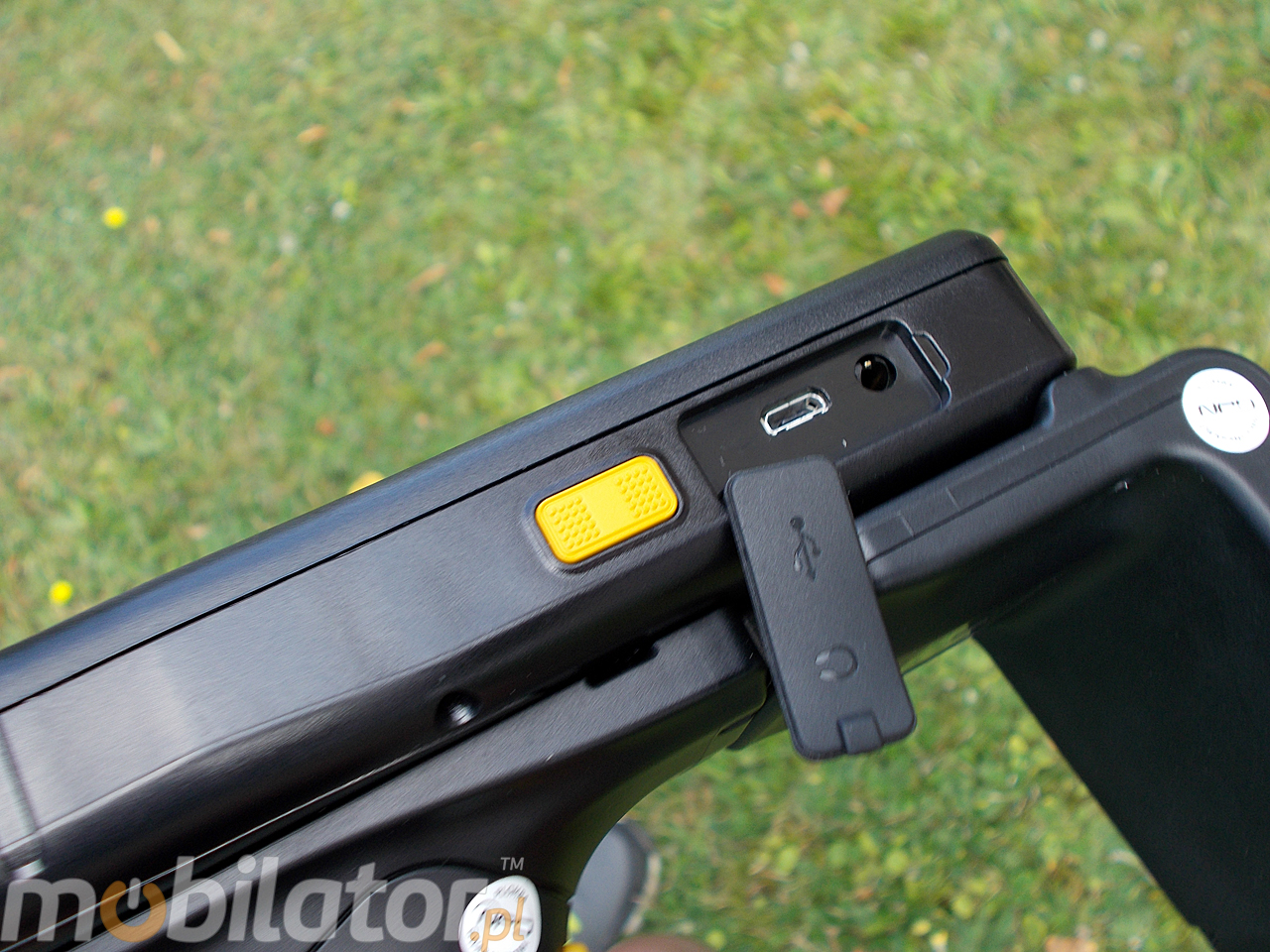

Connectors |
MicroSD : Mini USB |
|
GPS |
GPS + A-GPS |
|
Audio |
AudioJack : Speaker : Microphone |
|
Camera |
8Mpx (Auto-Focus + LED Flash) |
|
Battery |
3.7V 3800mAh Li-Ion |
|

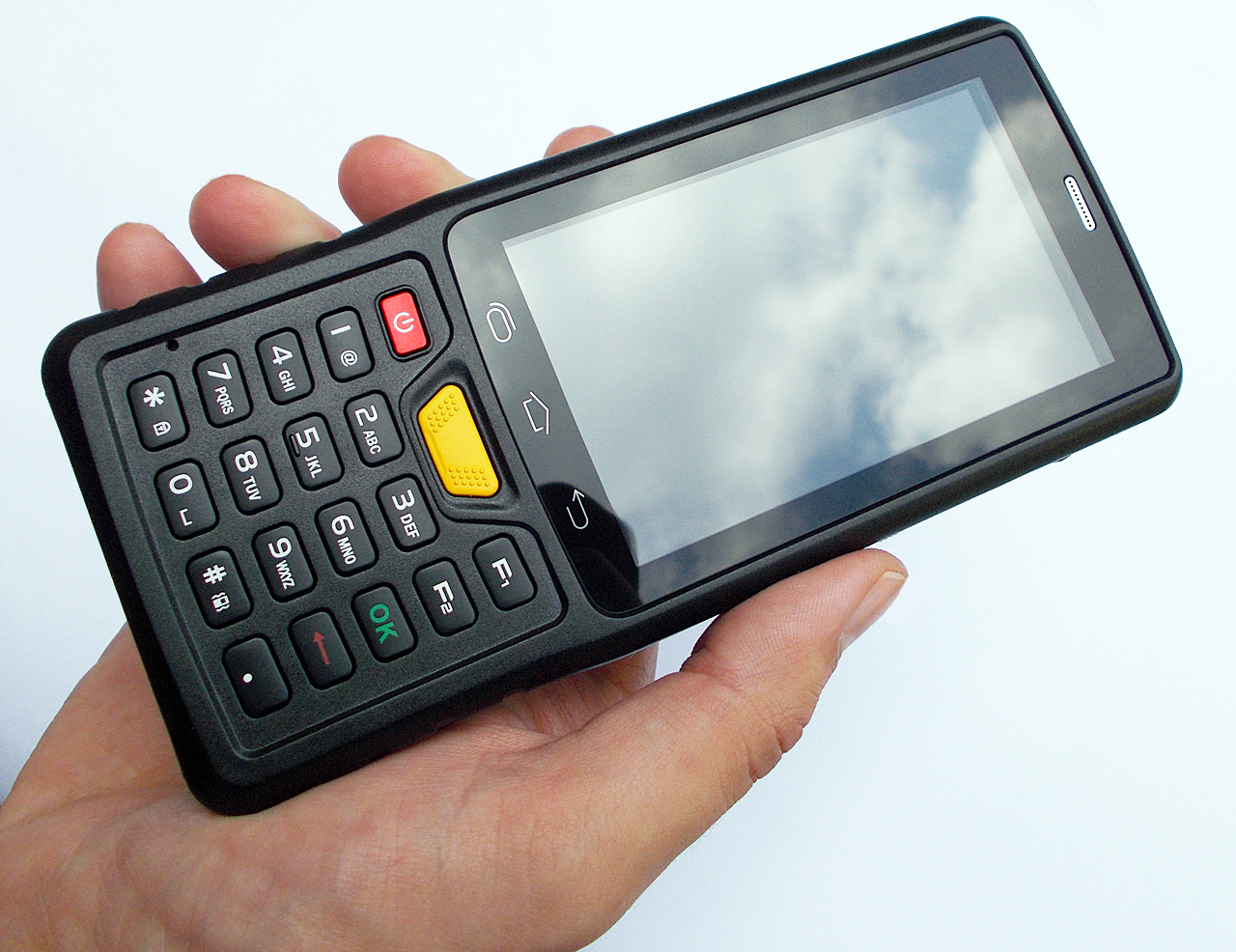

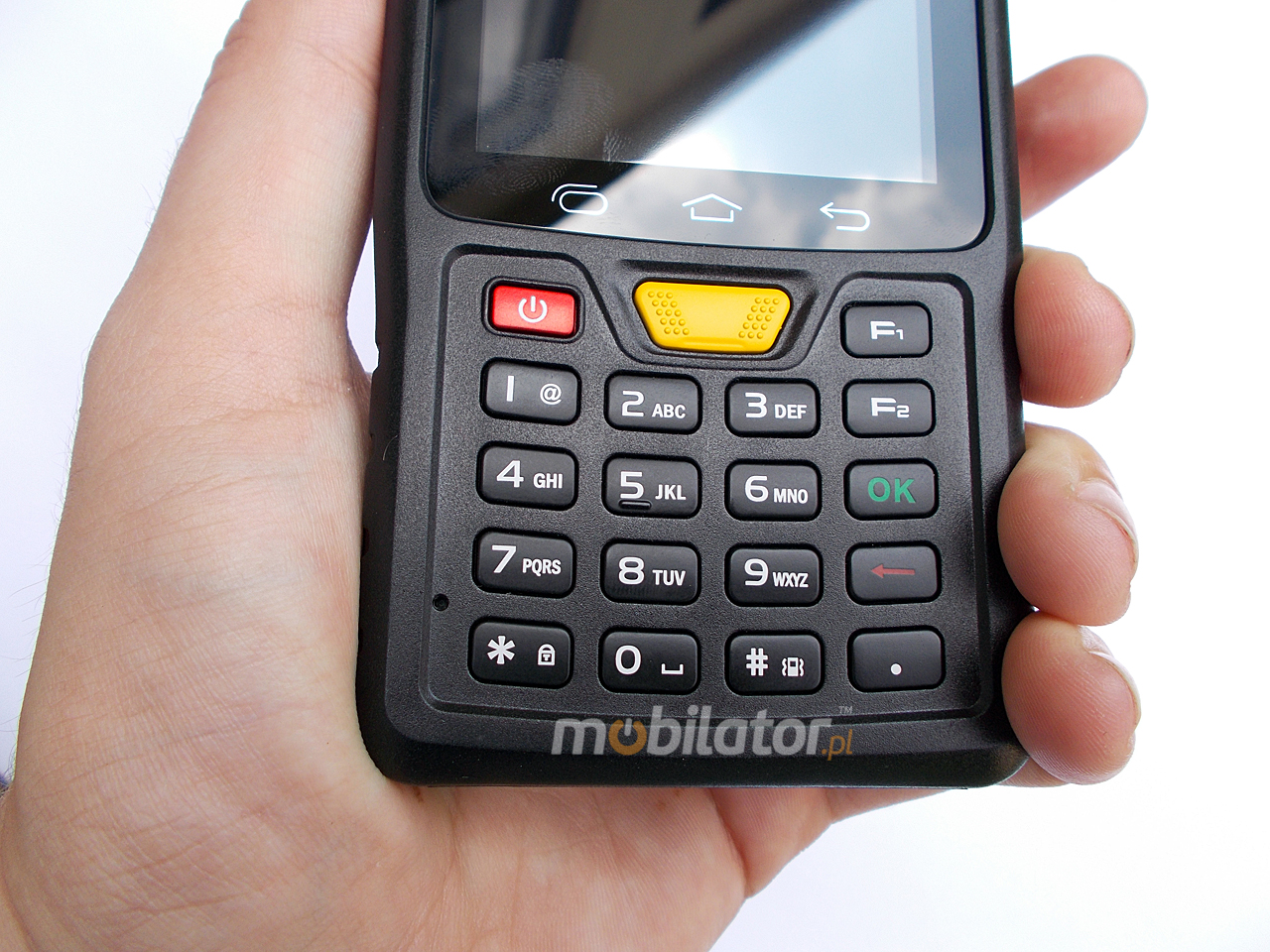

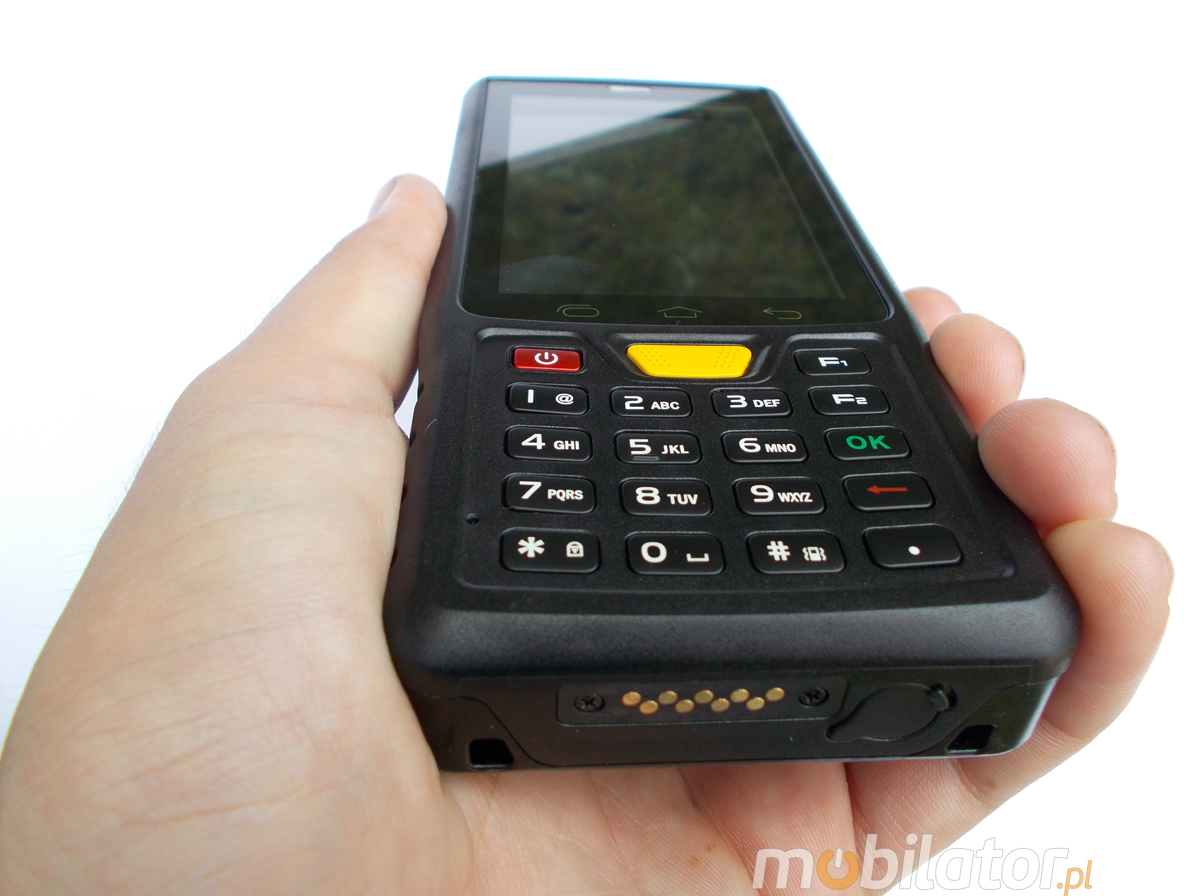

Keyboard |
Numeric (+function keys) + On-Screen |
|
Environment |
Android 5.1 |
Modules (factory)
|
4G LTE WCDMA : WiFi : Bluetooth V4.0 : GPS+A-GPS |
|
Dimensions |
168 × 75 × 26mm- 350g + Printer
|
|
Resistance |
IP65 |
Readers (optional)
|
RFID UHF (865-868MHz) - 2,8-4m |
1D - Zebra EM1350 (LASER) |
|
|
|
1D - Honeywell: N4313 (LASER) |
|
|
|
1D/2D - Honeywell N6603 (LASER) |
|
|
1D/2D - Newland EM3096 (CMOS) |
|
|
|
|
|
|
Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form. |
 |
Select a version for yourself
Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".
Porównaj wszystkie wersje
|
|
v.1 |
v.2 |
v.3 |
v.4 |
v.5 |
v.6 |
v.7 |
|
1D Honeywell N4313 |
— |
✔ |
— |
— |
— |
✔ |
— |
|
1D Zebra EM1350 |
— |
— |
✔ |
— |
— |
— |
✔ |
|
2D Honeywell N6603 |
— |
— |
— |
✔ |
— |
— |
— |
|
2D Newlands EM3096 |
— |
— |
— |
— |
✔ |
— |
— |
|
RFID UHF |
— |
— |
— |
— |
— |
✔ |
✔ |
|
Drukarka/Printer |
— |
— |
— |
— |
— |
— |
— |
|
|
v.8 |
v.9 |
v.10 |
v.11 |
v.12 |
v.13 |
|
1D Honeywell N4313 |
— |
— |
— |
— |
— |
— |
|
1D Zebra EM1350 |
— |
— |
✔ |
✔ |
— |
— |
|
2D Honeywell N6603 |
✔ |
— |
— |
— |
✔ |
— |
|
2D Newlands EM3096 |
— |
✔ |
— |
— |
— |
✔ |
|
RFID UHF |
— |
✔ |
— |
✔ |
✔ |
✔ |
|
Drukarka/Printer |
✔ |
— |
✔ |
✔ |
✔ |
✔ |
do góry…  menu…
|
|
|

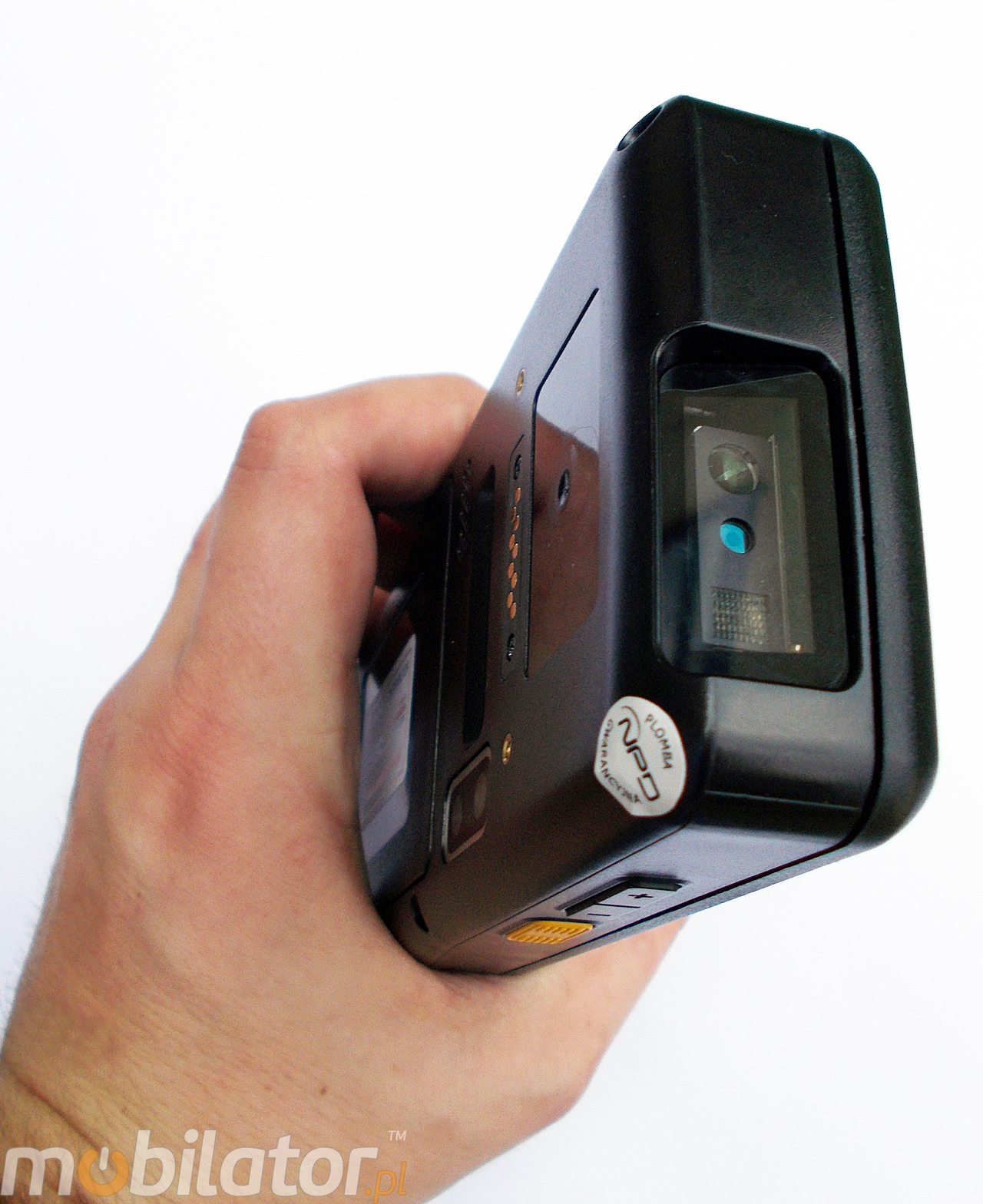

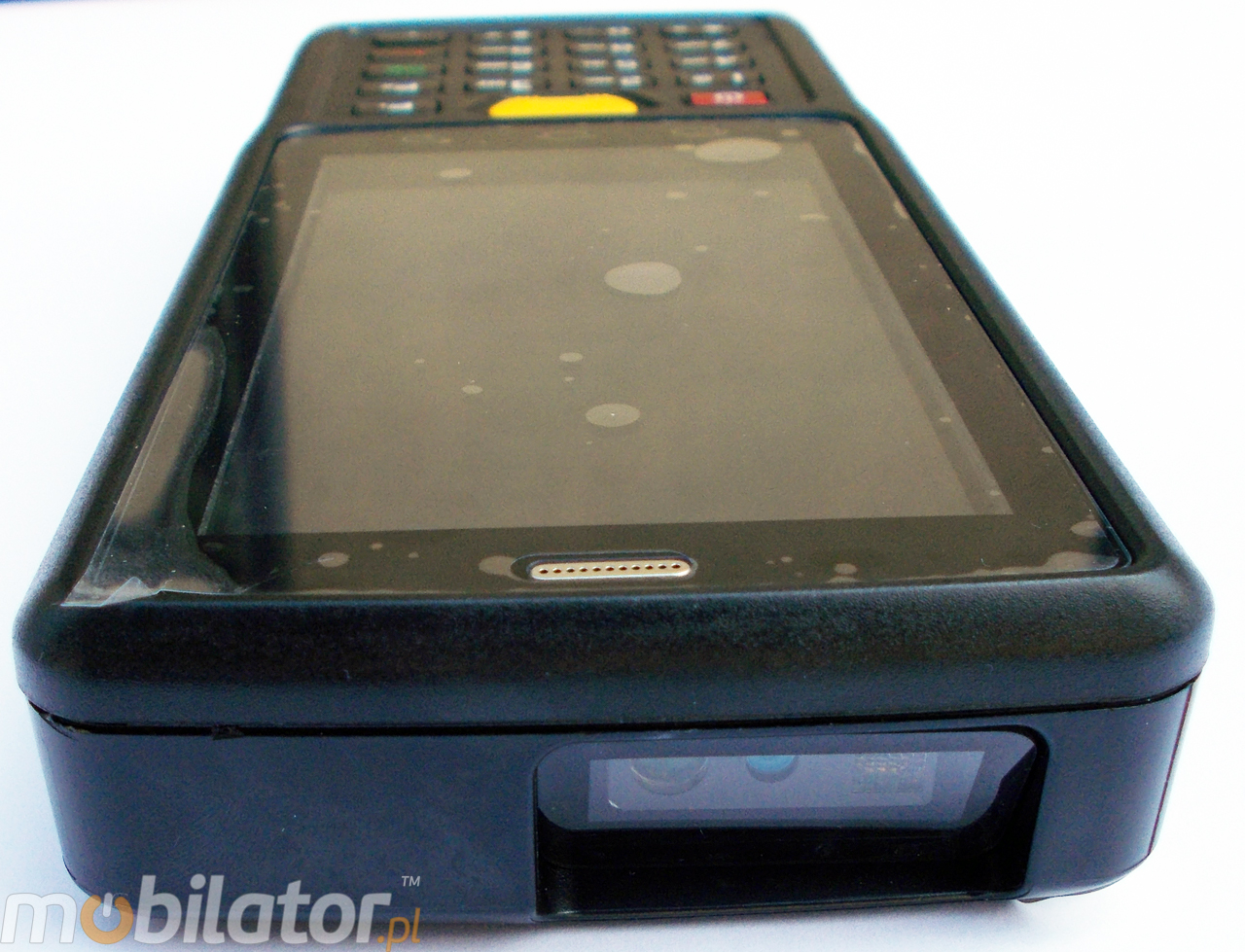

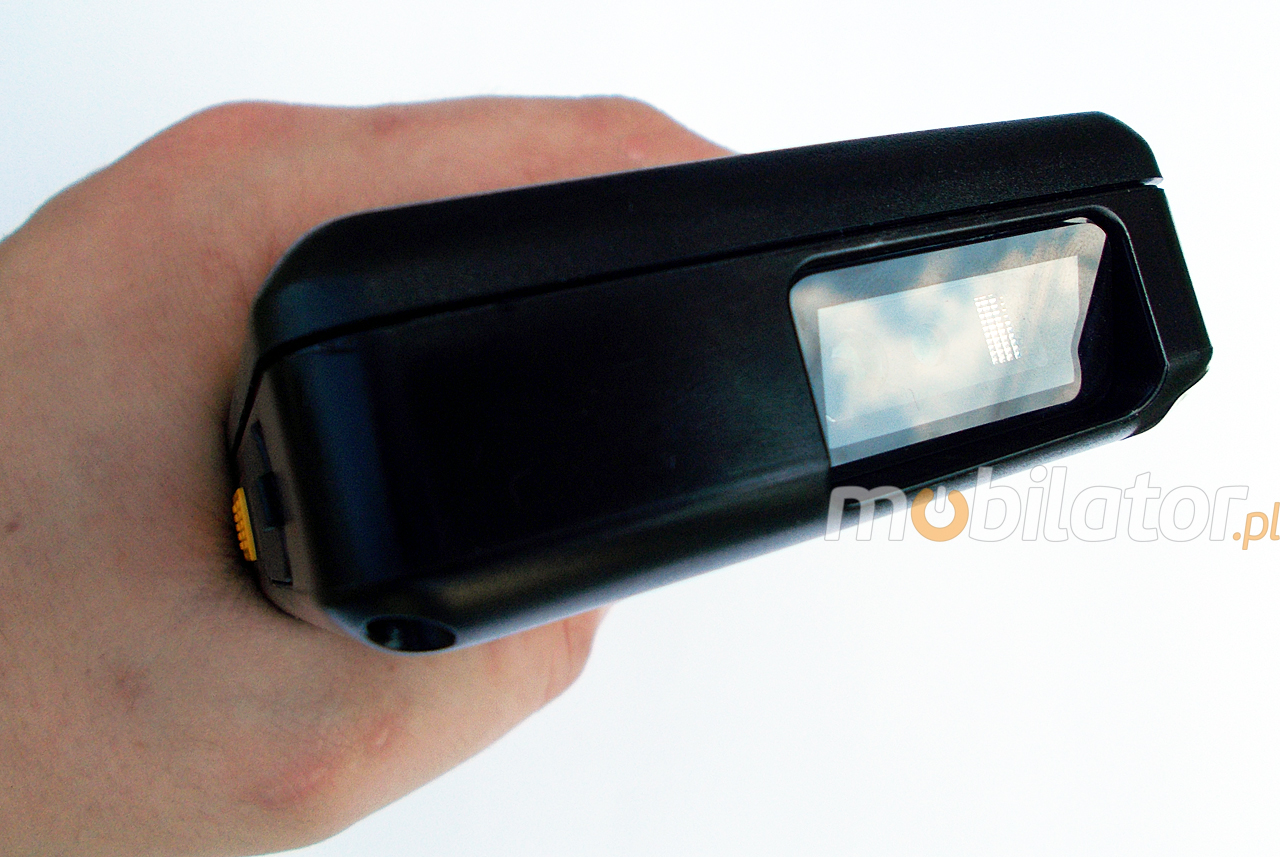

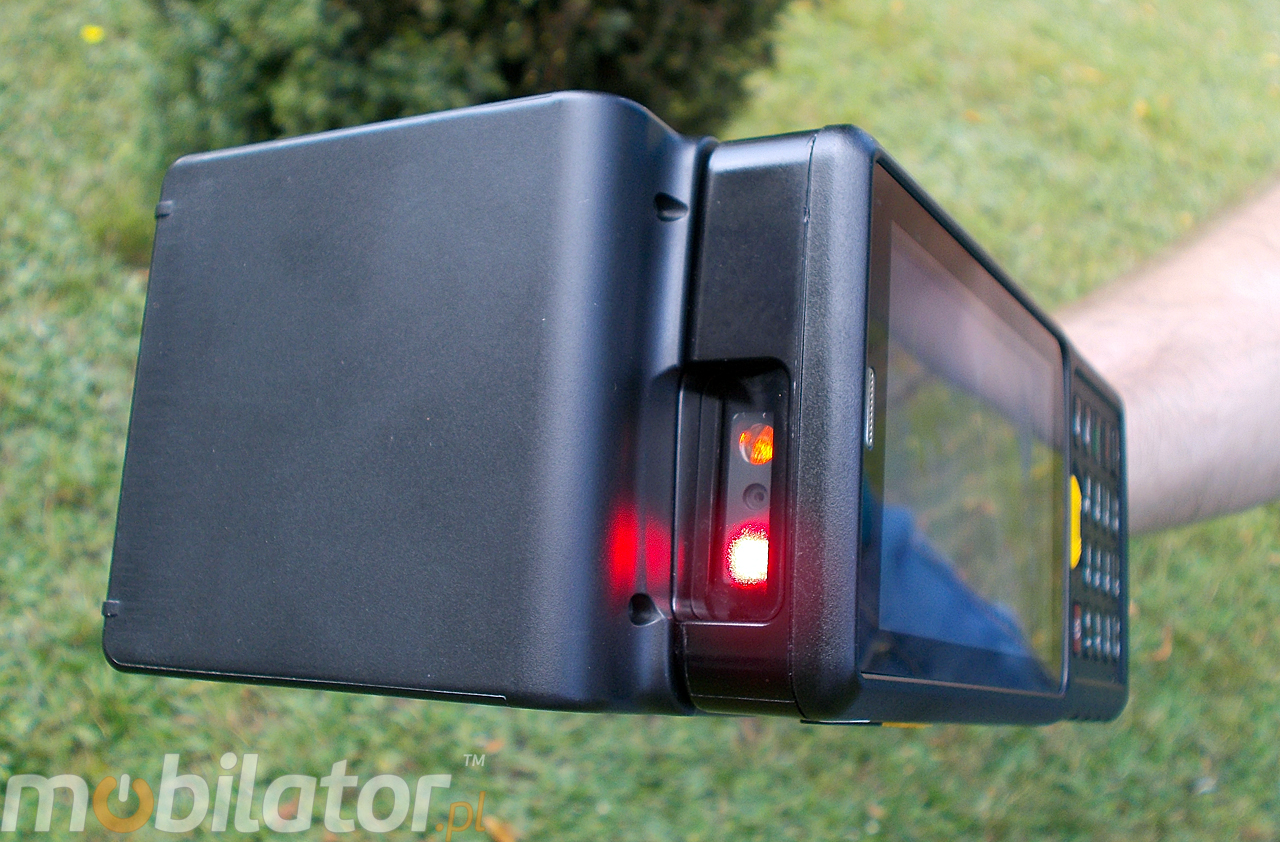

Barcode Scanner
Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.
|
1D |
1D / 2D |
|
Honeywell N4313 (LASER) |
Honeywell N6603 (LASER) |
|
Zebra : EM1350 (Laser) |
Newland: EM3096 (CMOS) |
|
|
.jpg)
|

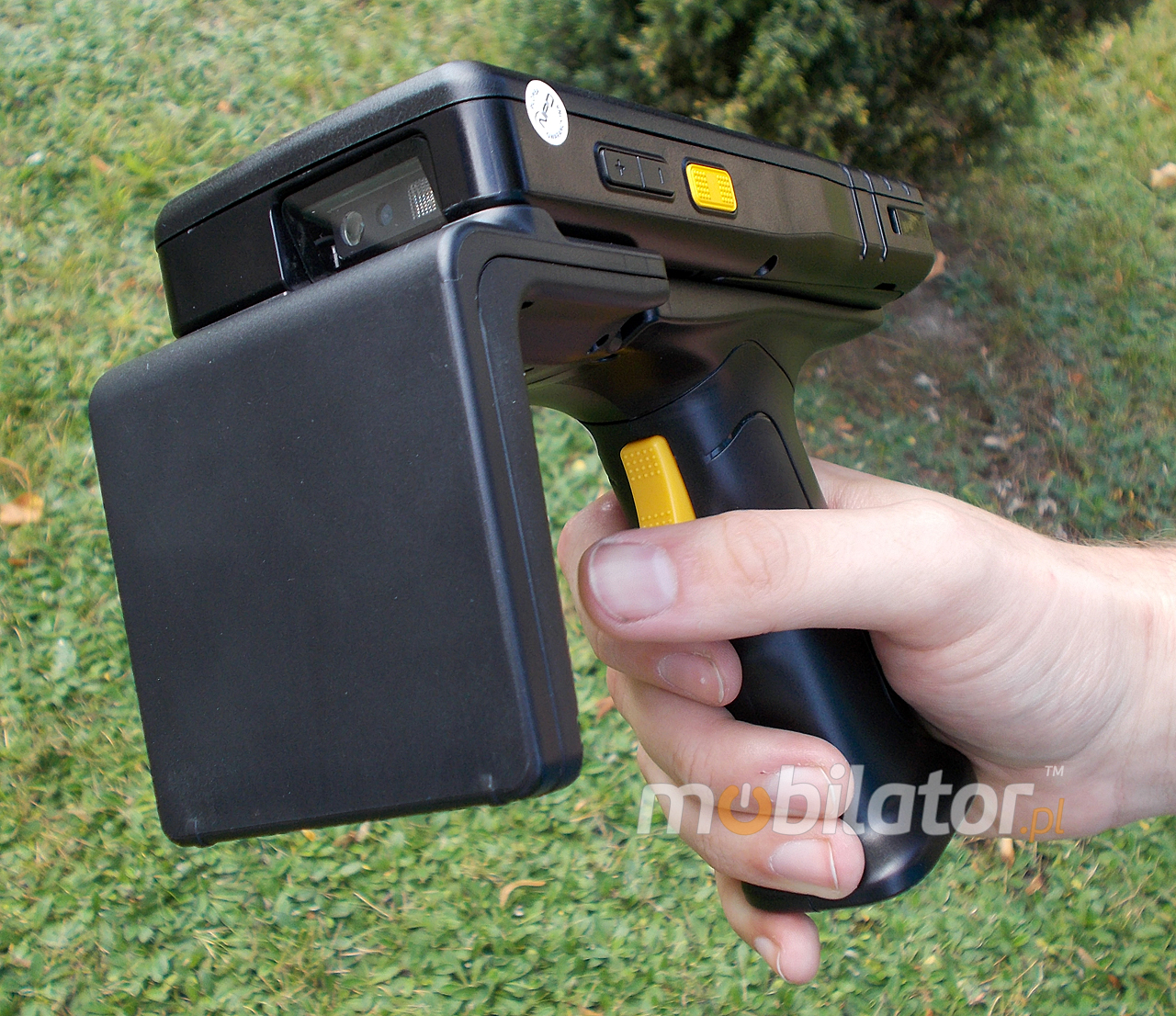

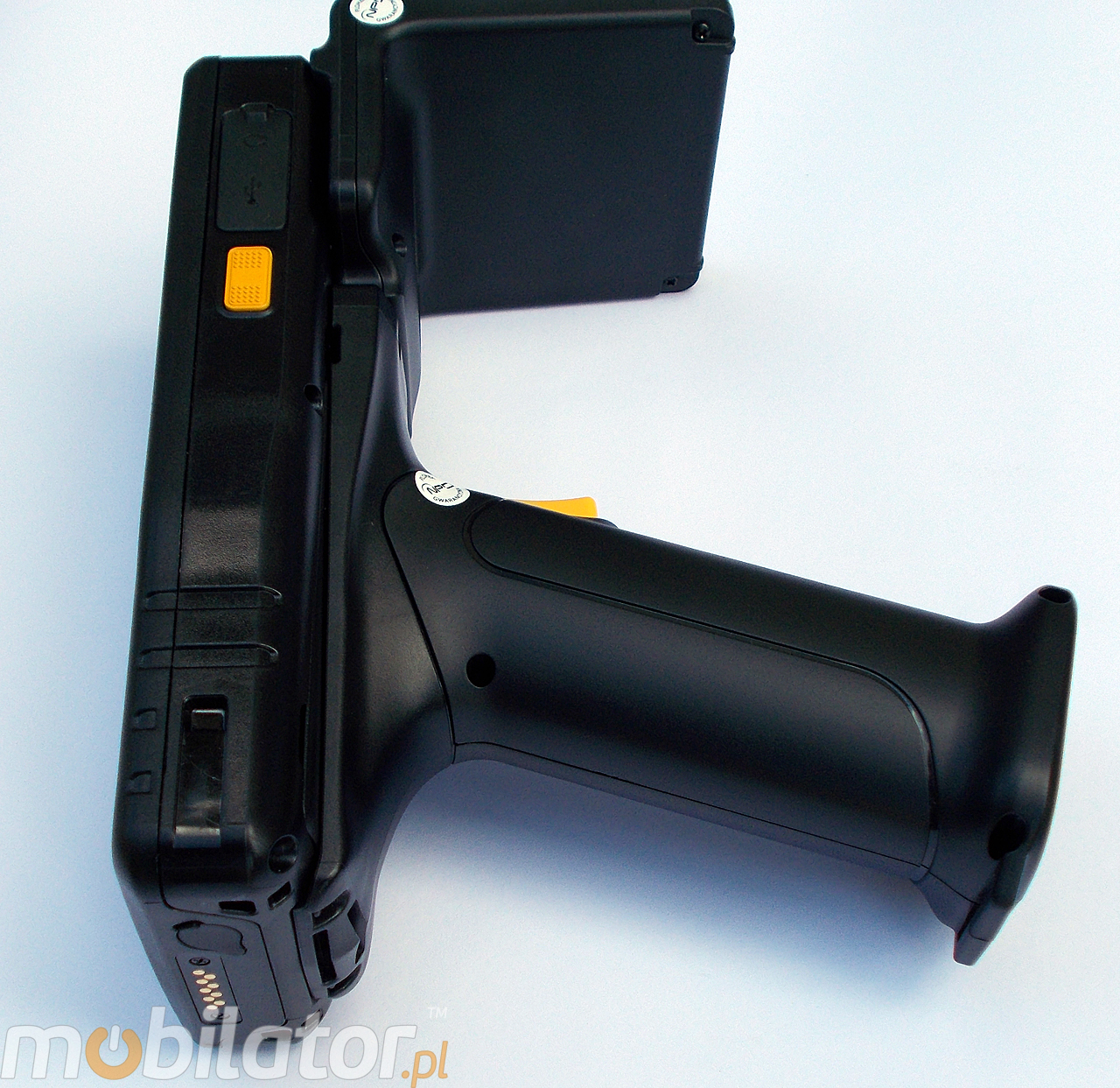

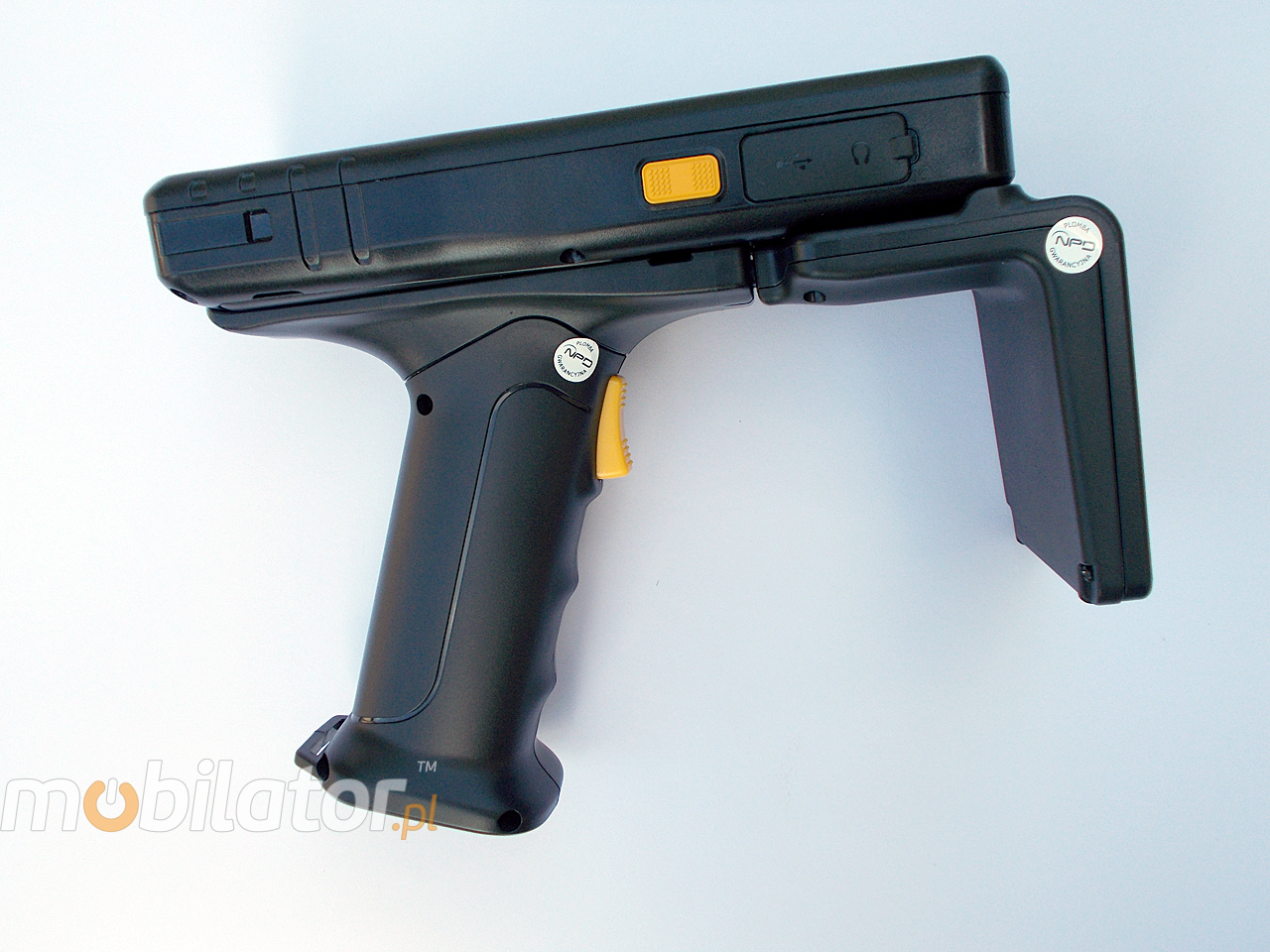

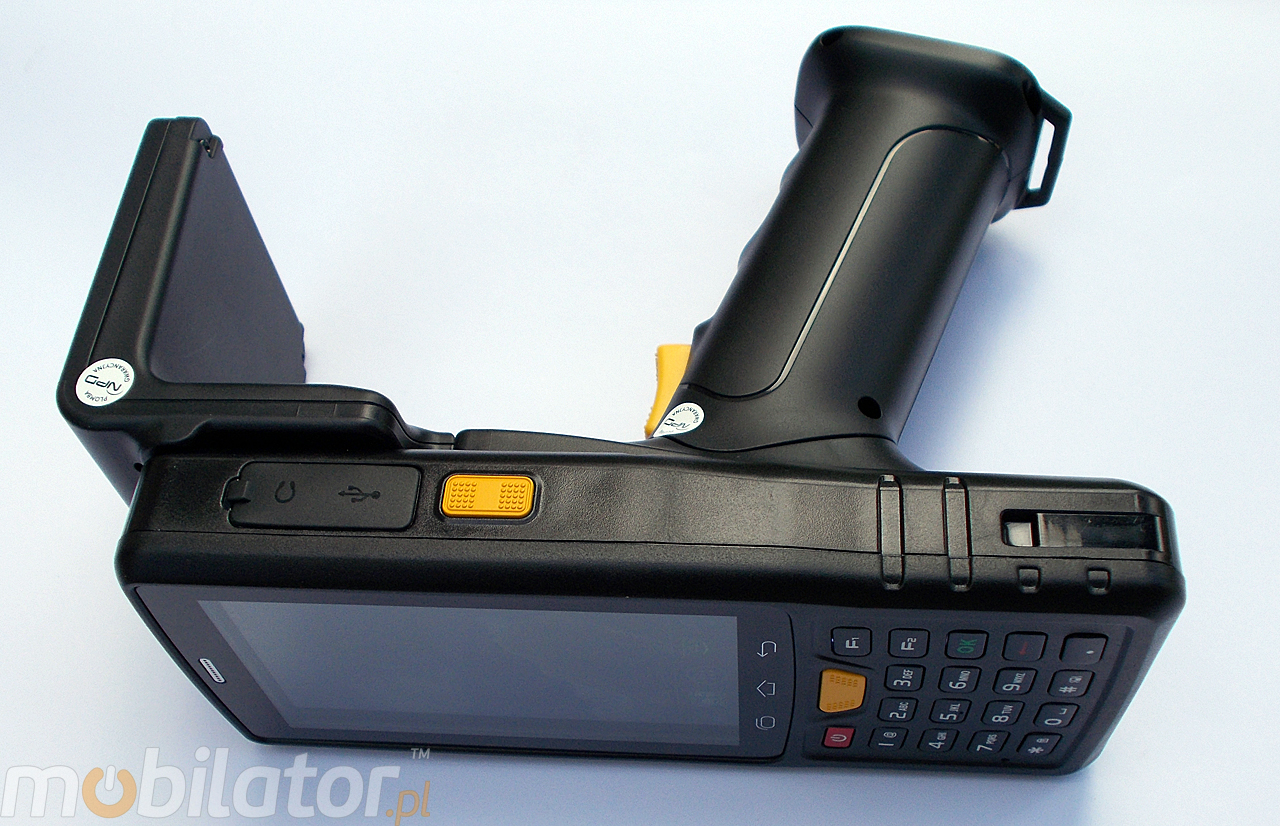

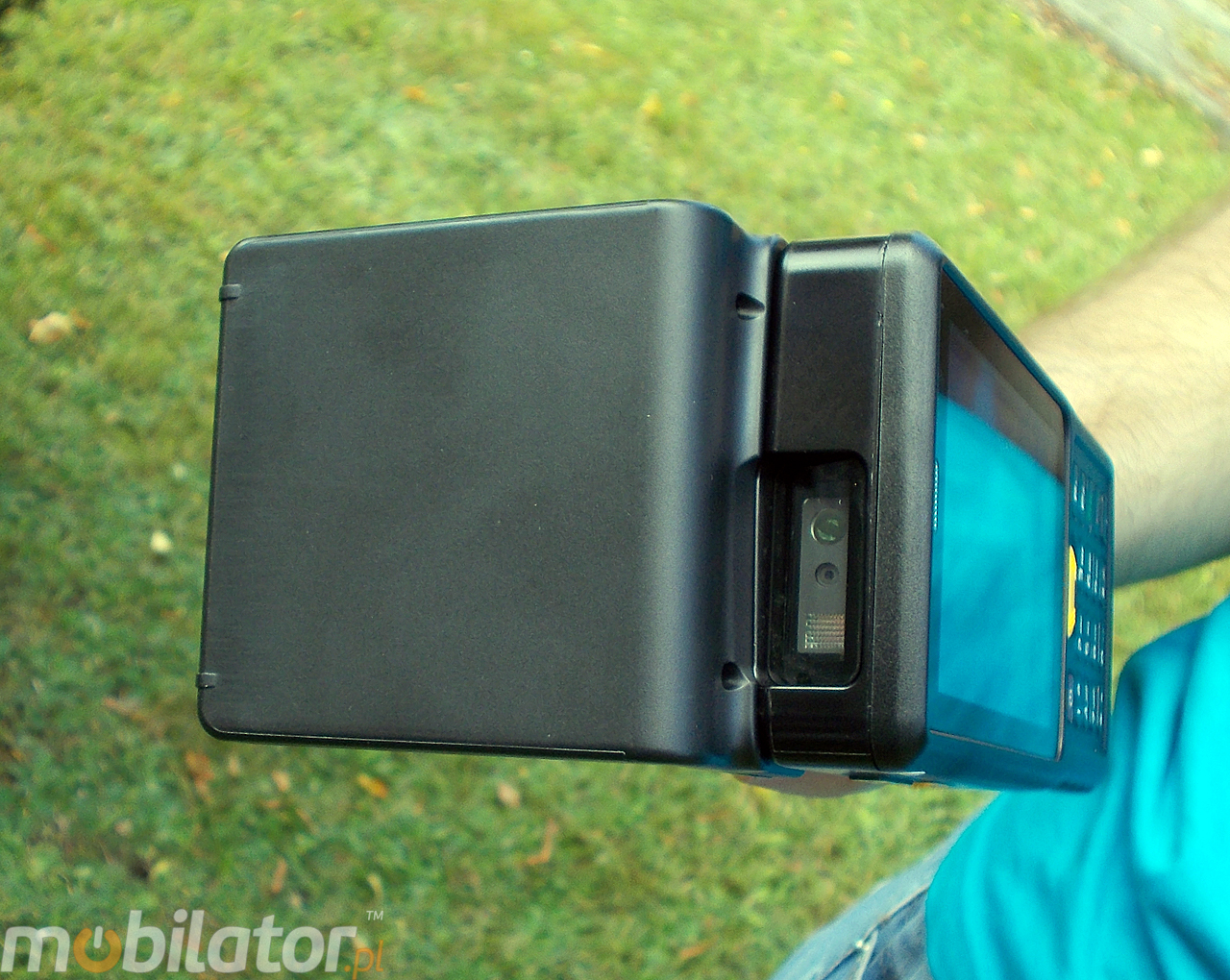

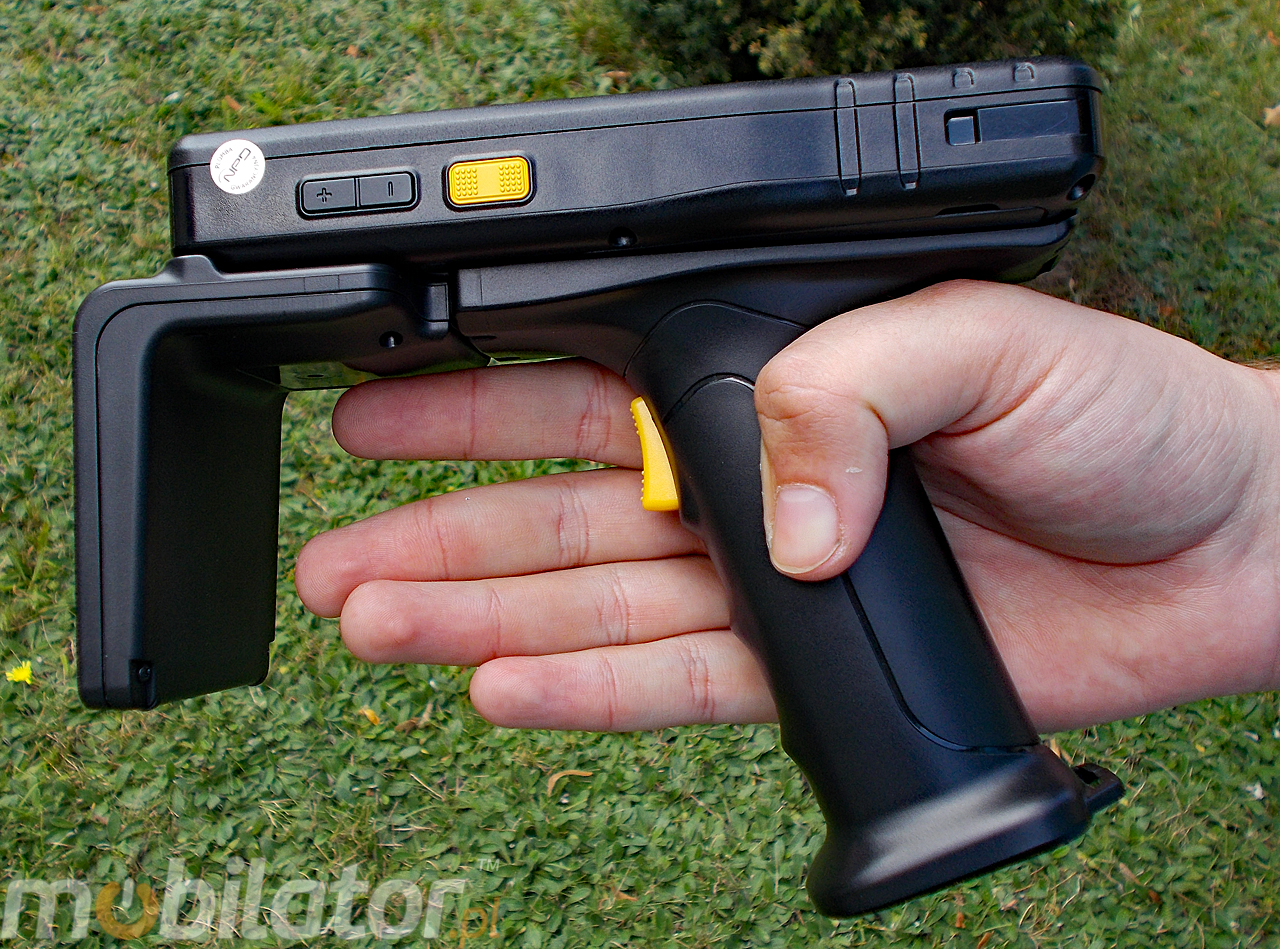

RFID

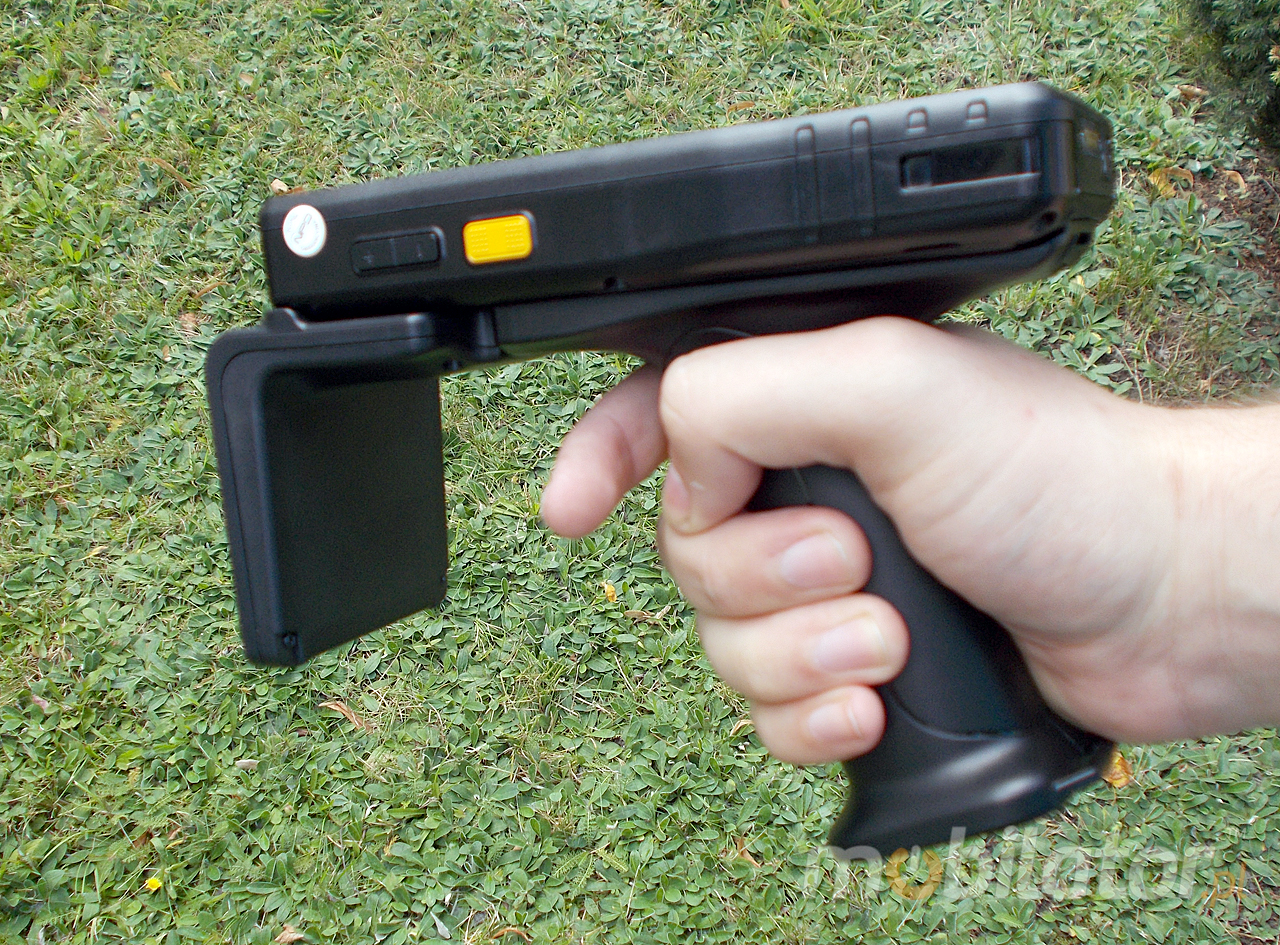

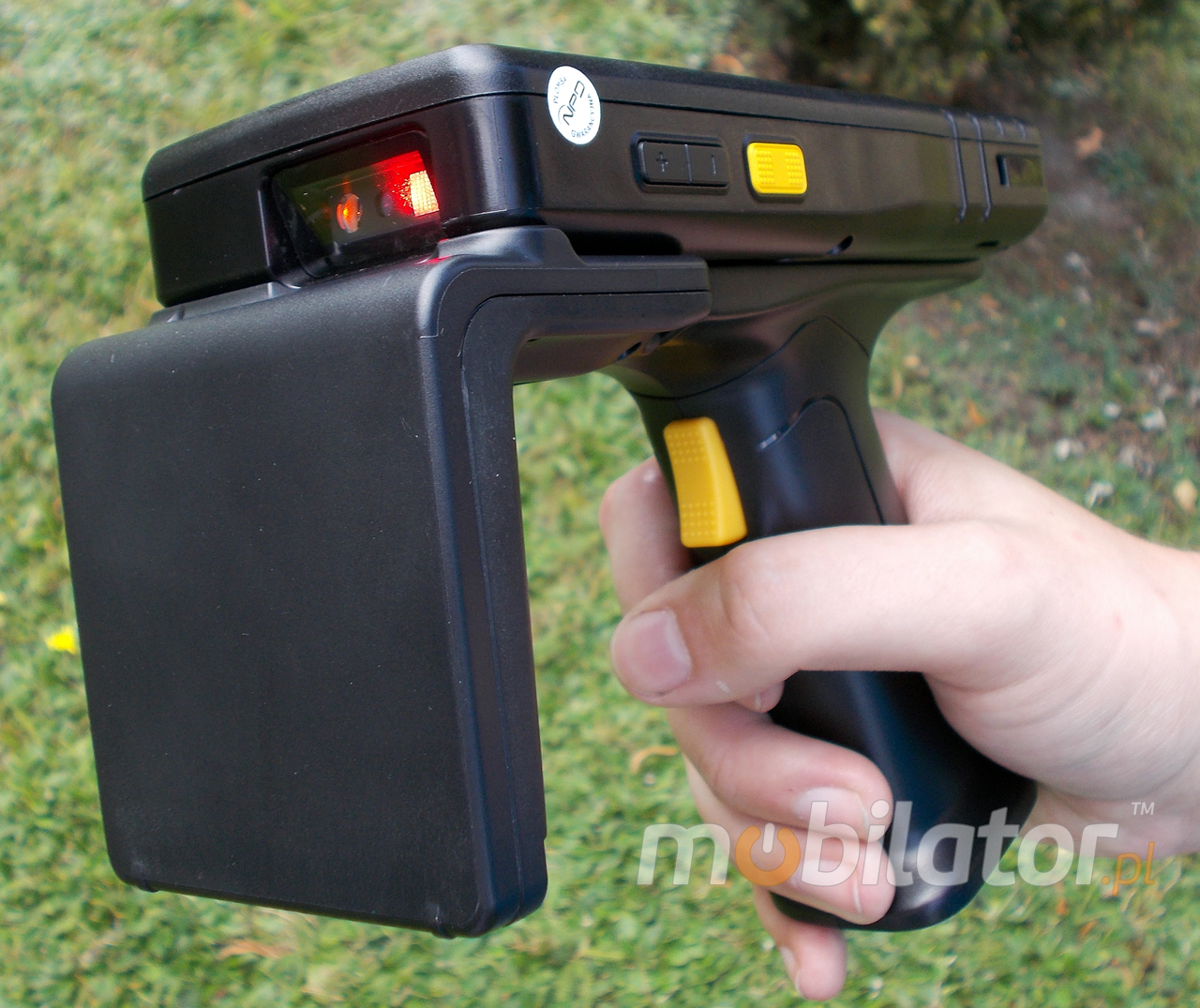

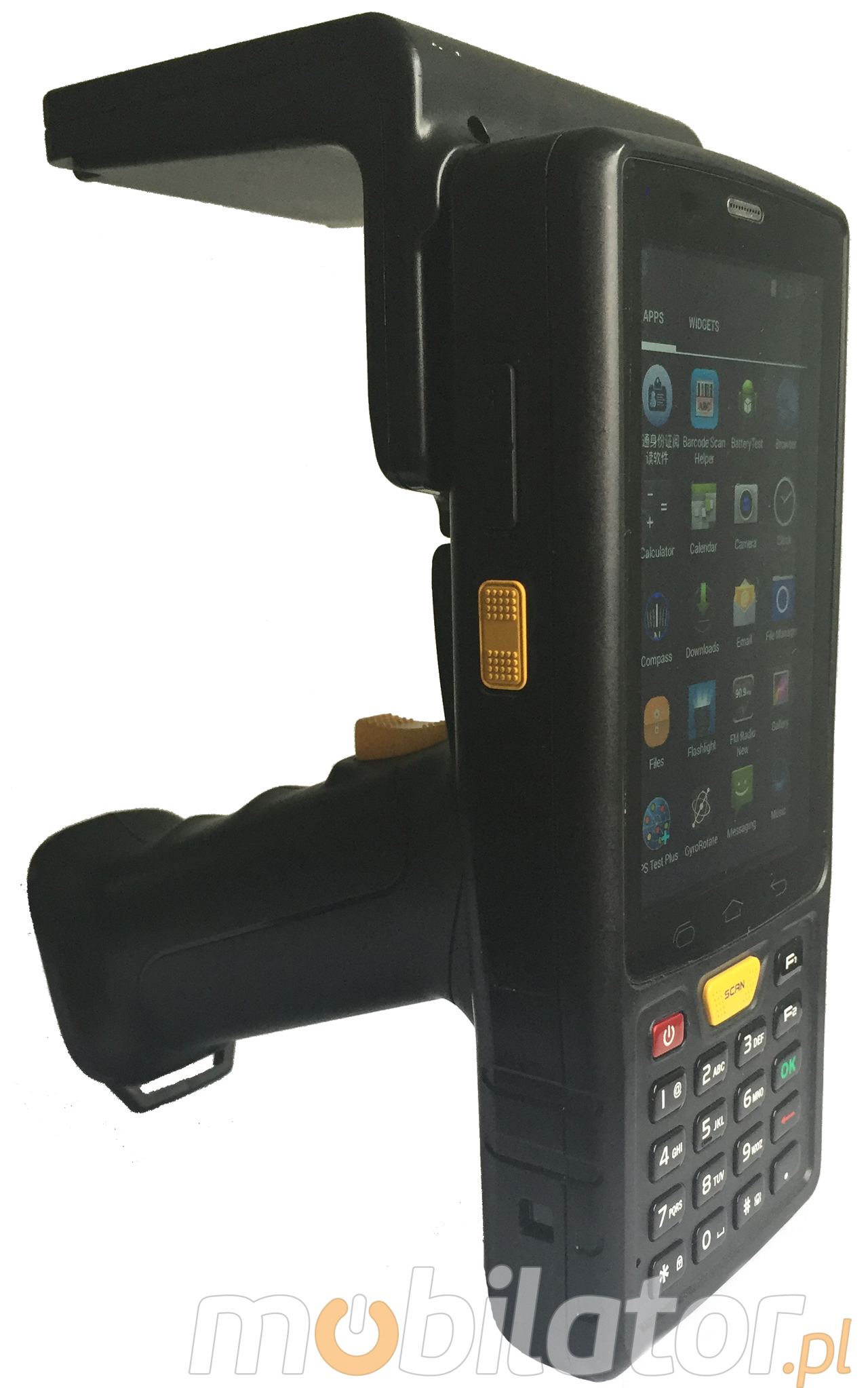

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.
UHF
865-868Mhz |
|
UHF (EPC C1 GEN2/ISO 18000-6C /ISO18000-6B) - (2,8-4m) |

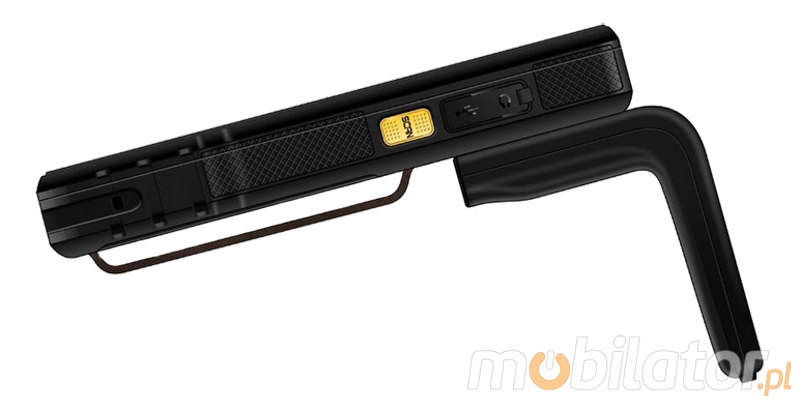

RFID UHF (840-960Mhz)
.jpg)
In the UHF (Ultra High Frequency) band, where RFID tags work according to the principles of the electromagnetic coupling, the most popular technology at the moment is the one based on the ISO 18000-6C protocol, best known as EPC Class 1 Gen 2 or for short Gen 2. The EPC Class 1 Gen 2 standard was proposed by the private organization EPCGlobal and then adopted in 2006 as the ISO 18000-6C standard by the International Standards Organization (ISO). The EPC Class 1 Gen 2 standard was created to address some issues of previous UHF RFID standards conceived for logistics applications (such as the ISO 18000-6a and the ISO 18000-6b). The new standard was developed specifically to track fluxes of goods between different companies and across all world regions with good read performance in environments with a high density of tags.
.jpg)
go top... menu…
|
|
|
Applicable standards
|
Operating |
-30°C -- +50°C |
|
Storage |
-40°C -- +60°C |
|
Humidity |
5% - 95% RH | non-condensing |
|
Dust |
IP6x (dust) |
|
Water |
IPx5 (water) |
|
Drop |
Multiple drops to concrete 4ft./1.2m the entire operation range |
go top... menu…
.jpg)
IP65 Resistance
IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from solid objects greater than 50mm in diameter |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from splashed water |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection from water projected from a nozzle |
|
|
|
 |
7
|
|
Protection against immersion |
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water |
go top... menu…
|
|
|
|
.jpg)
When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 4G LTE module used in Senter adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.
|
WiFi |
802.11b/g/n |
|
GPS |
High sensitivity receiver : A-GPS |
|
Bluetooth |
Bluetooth V4.0 |
|
4G LTE / WCDMA |
2G:GSM 900/1800/1900 B2/B3/B8
3G:WCDMA: 850/1900/2100 B1/B2/B5
4G:LTE_ FDD: 1800/2100/2600 B1/B3/B7
LTE_TDD :2555-2655MHz/:2300-2400MHz B41/B40 |
|
|
The ability to make voice calls |

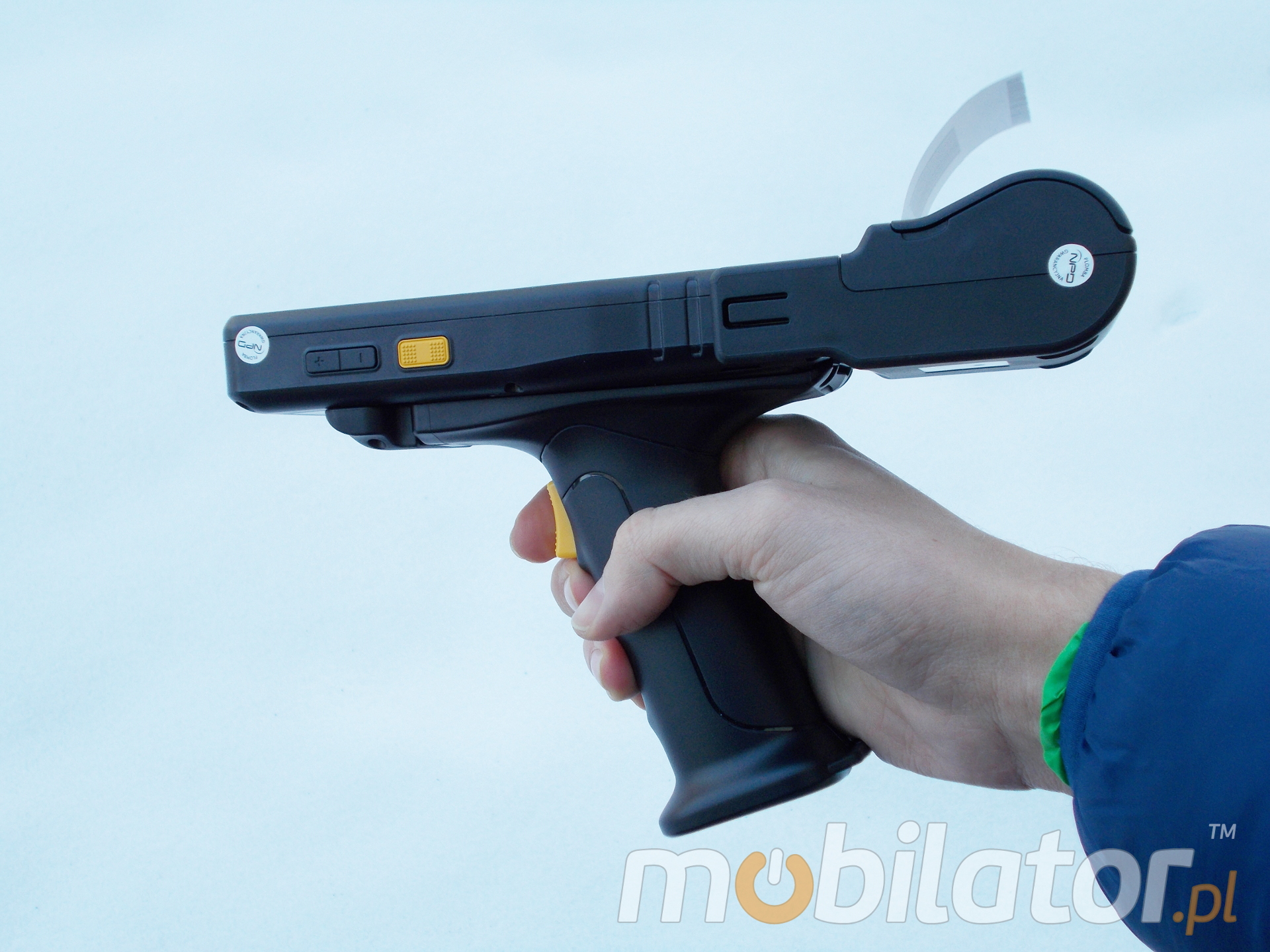

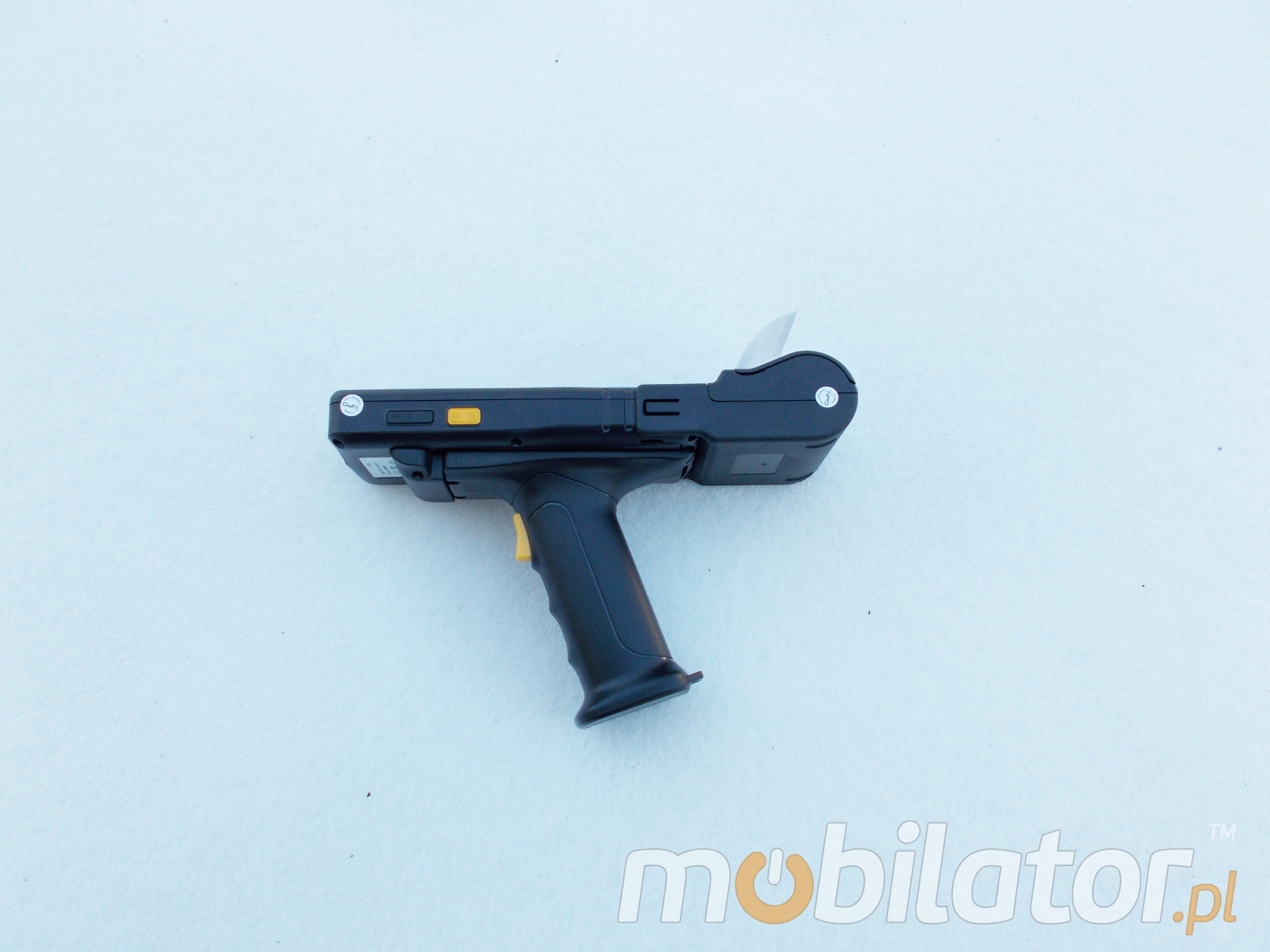

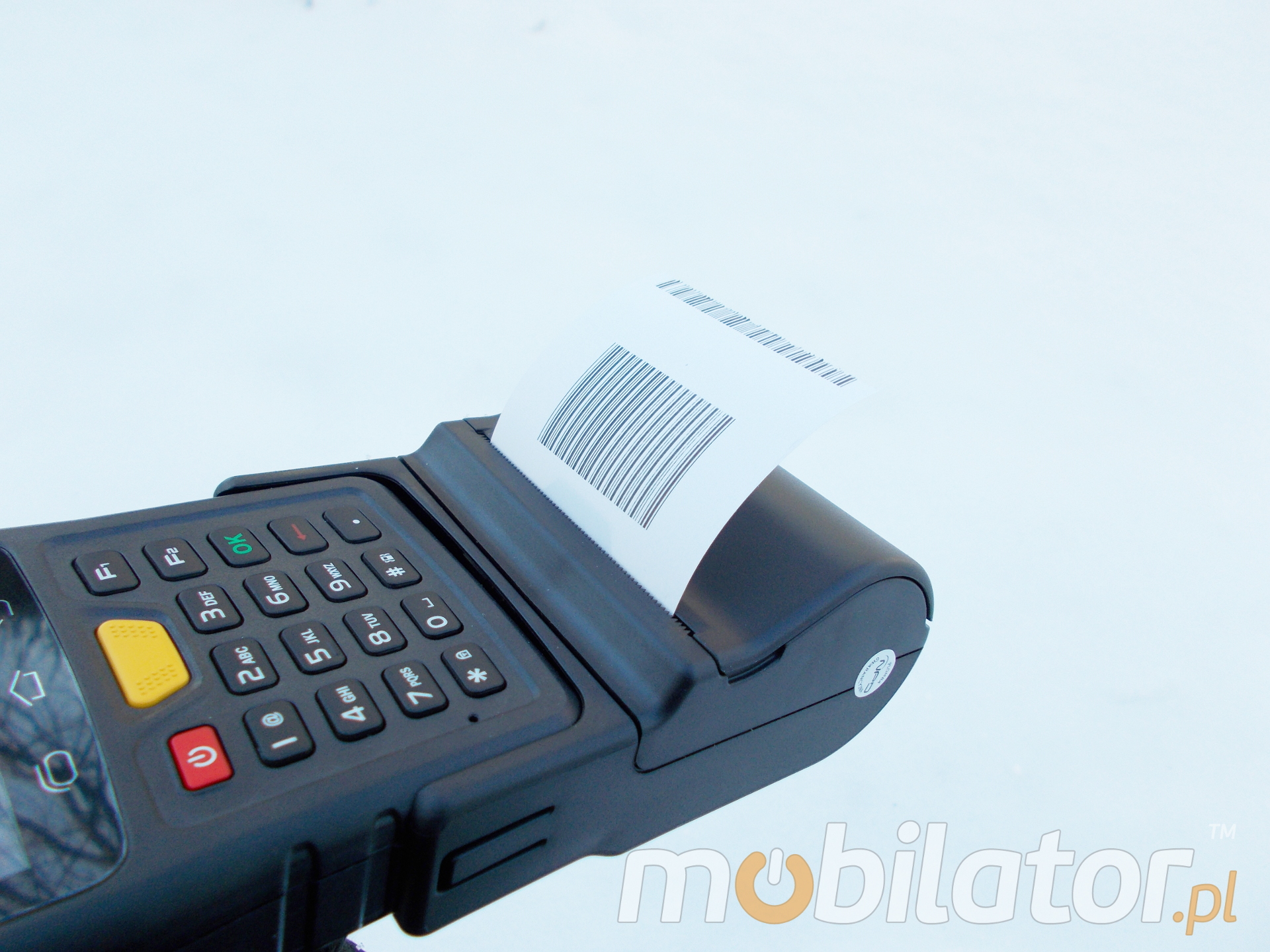

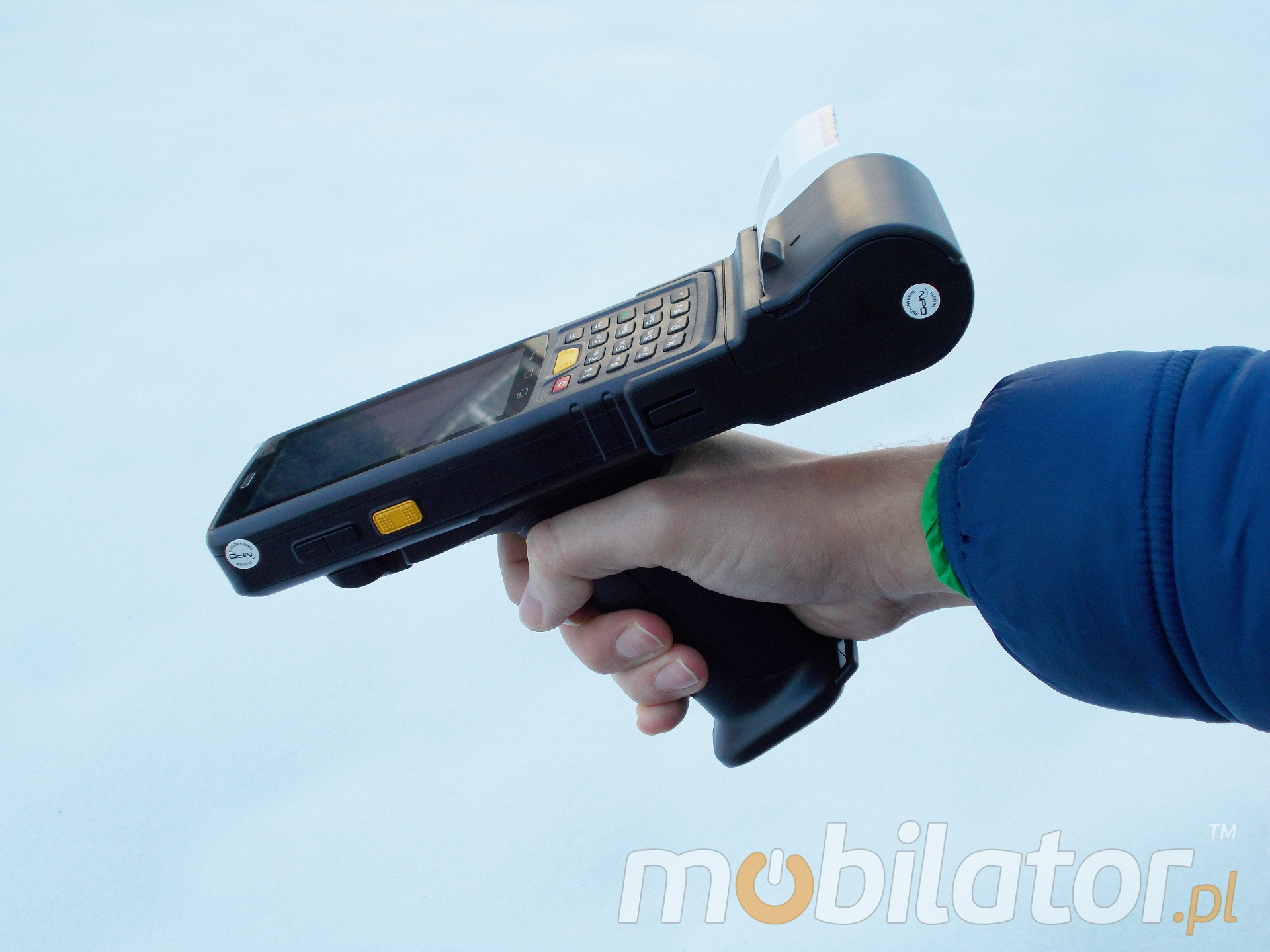

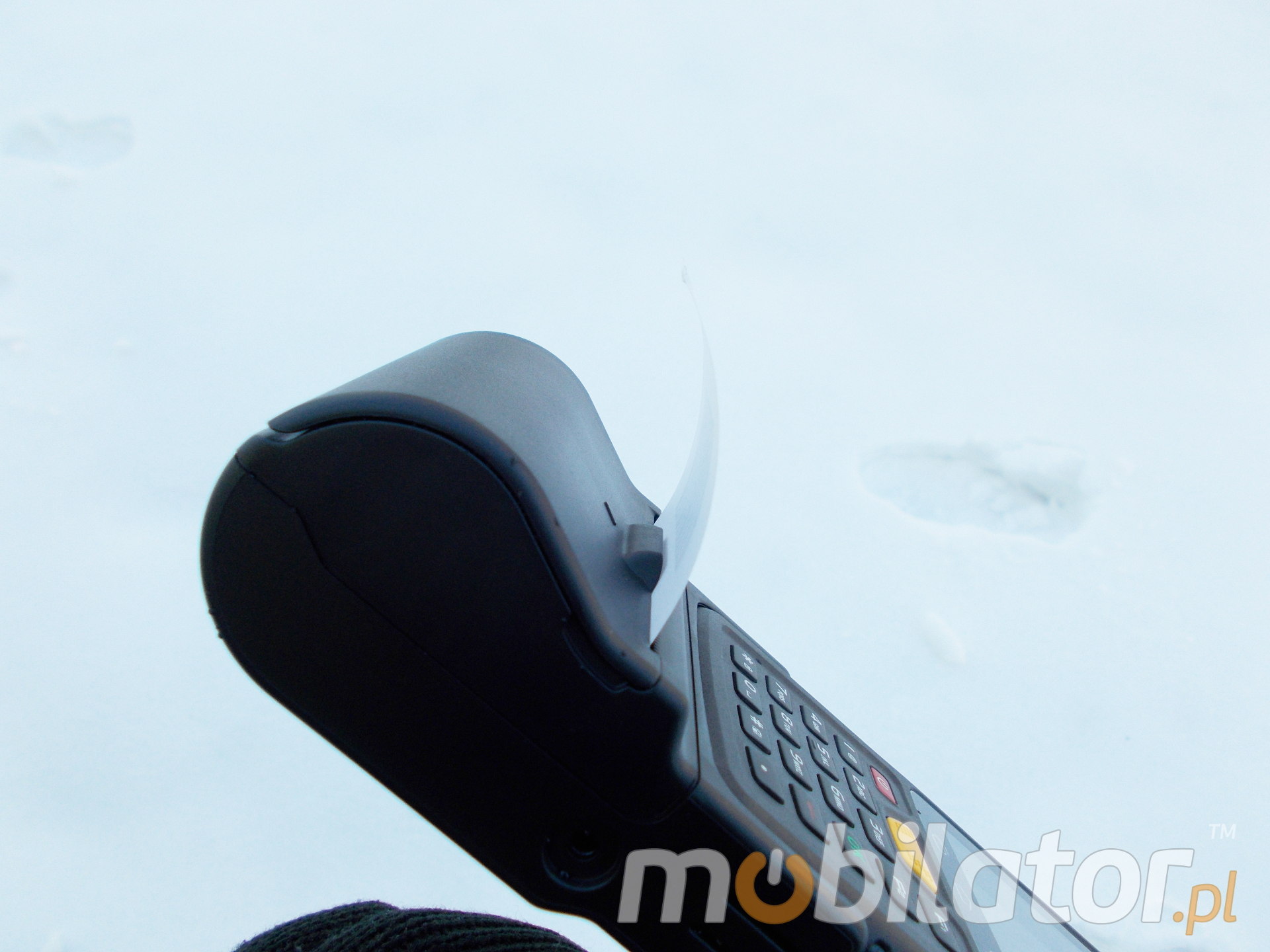

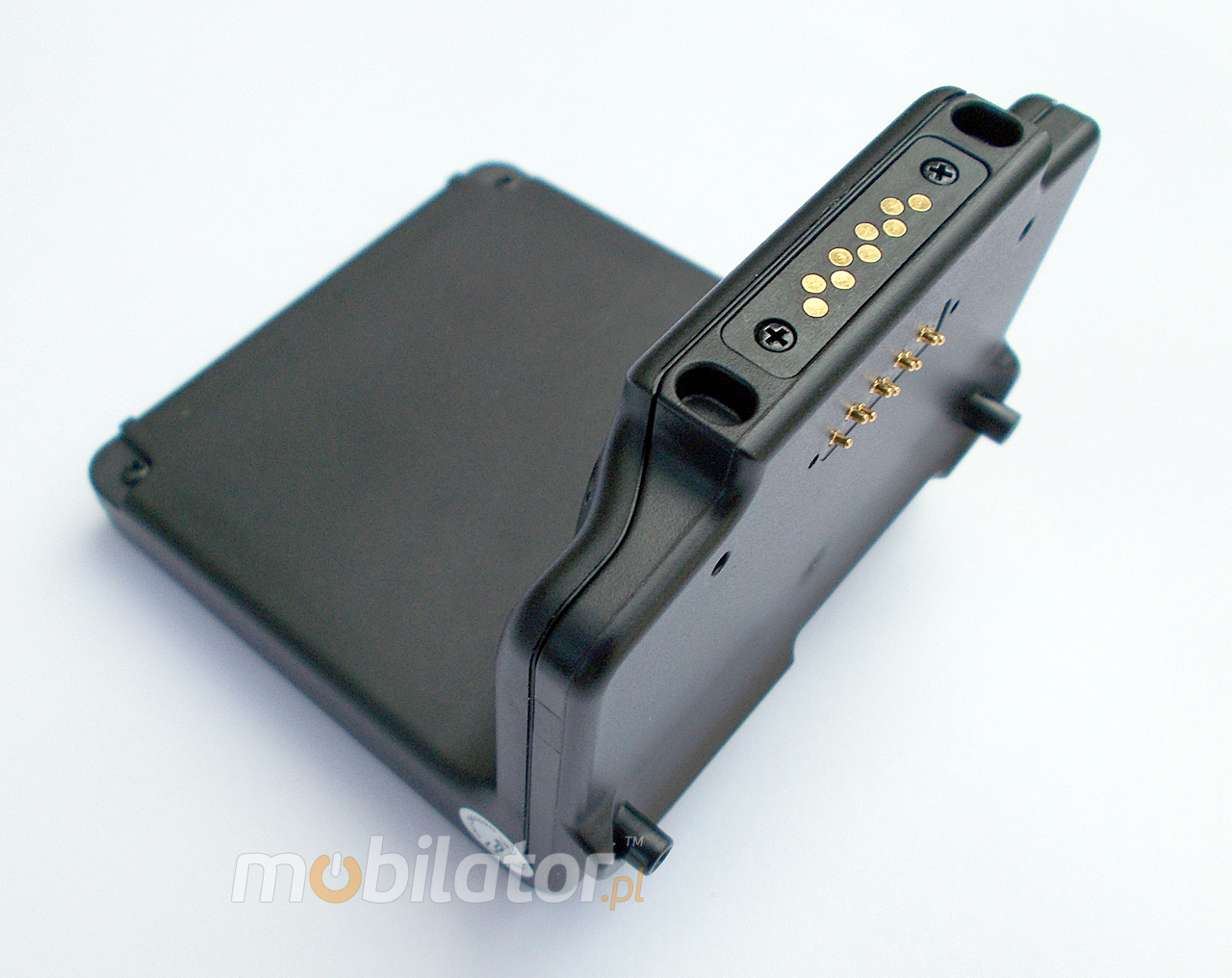

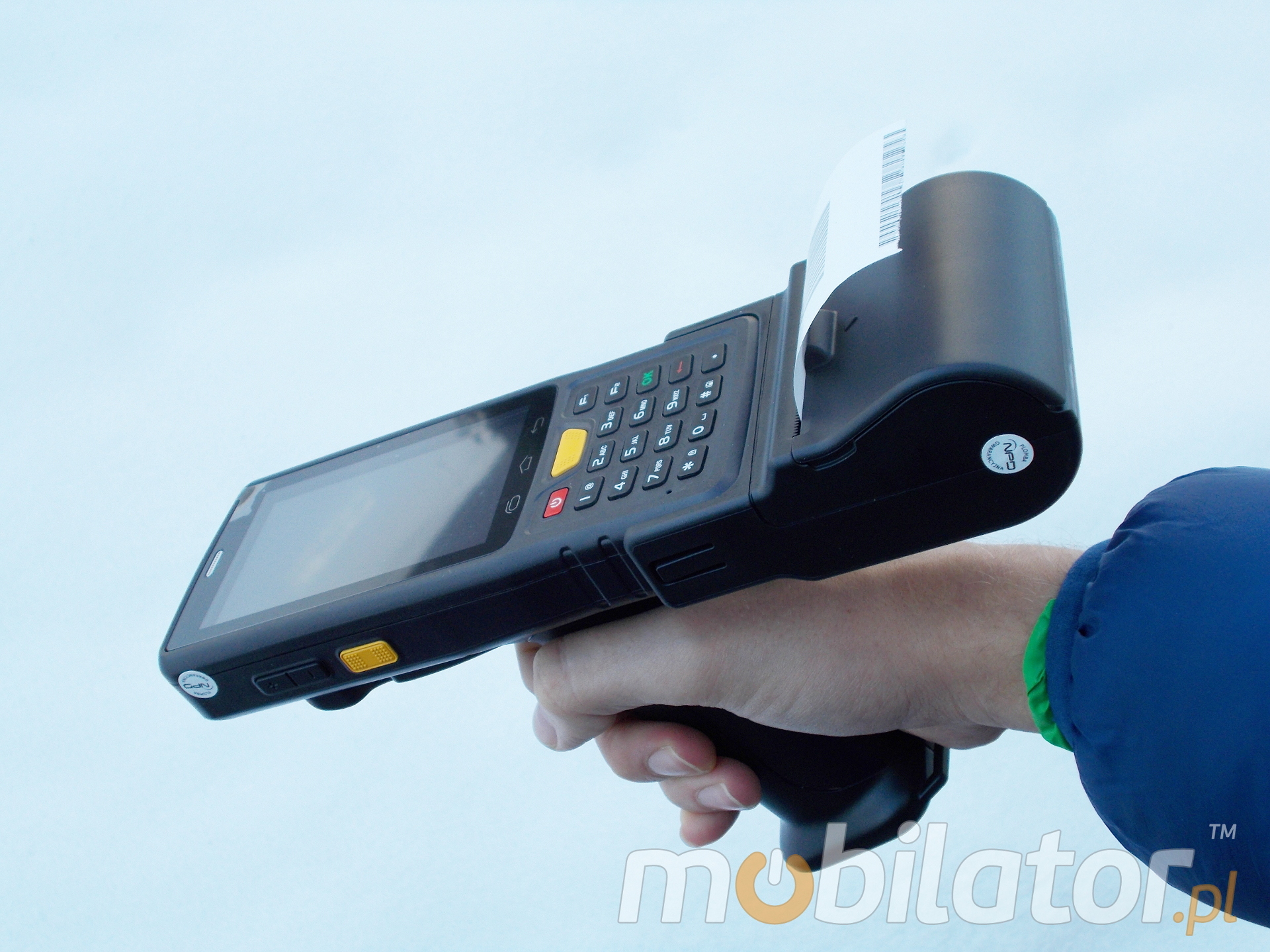

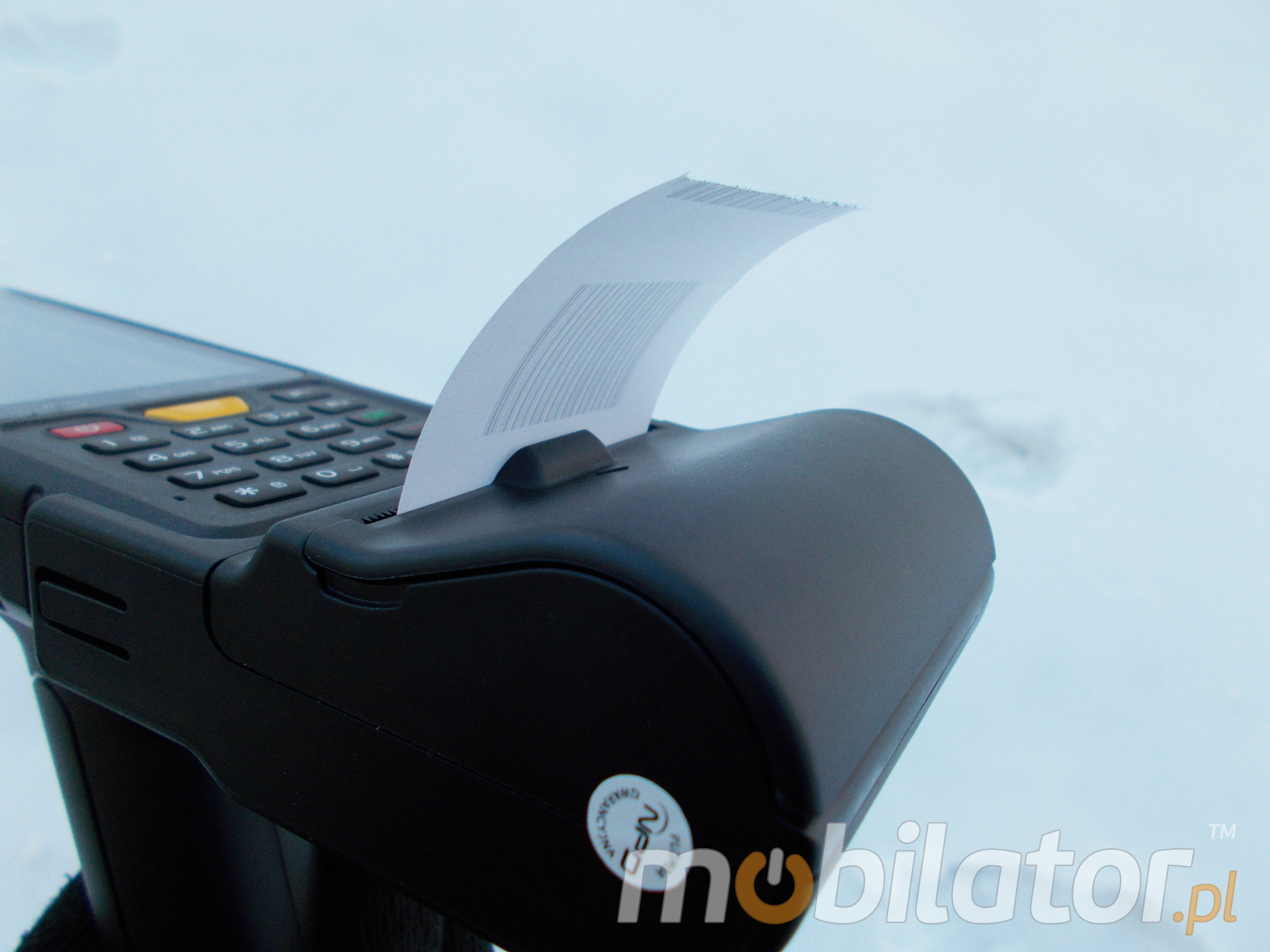

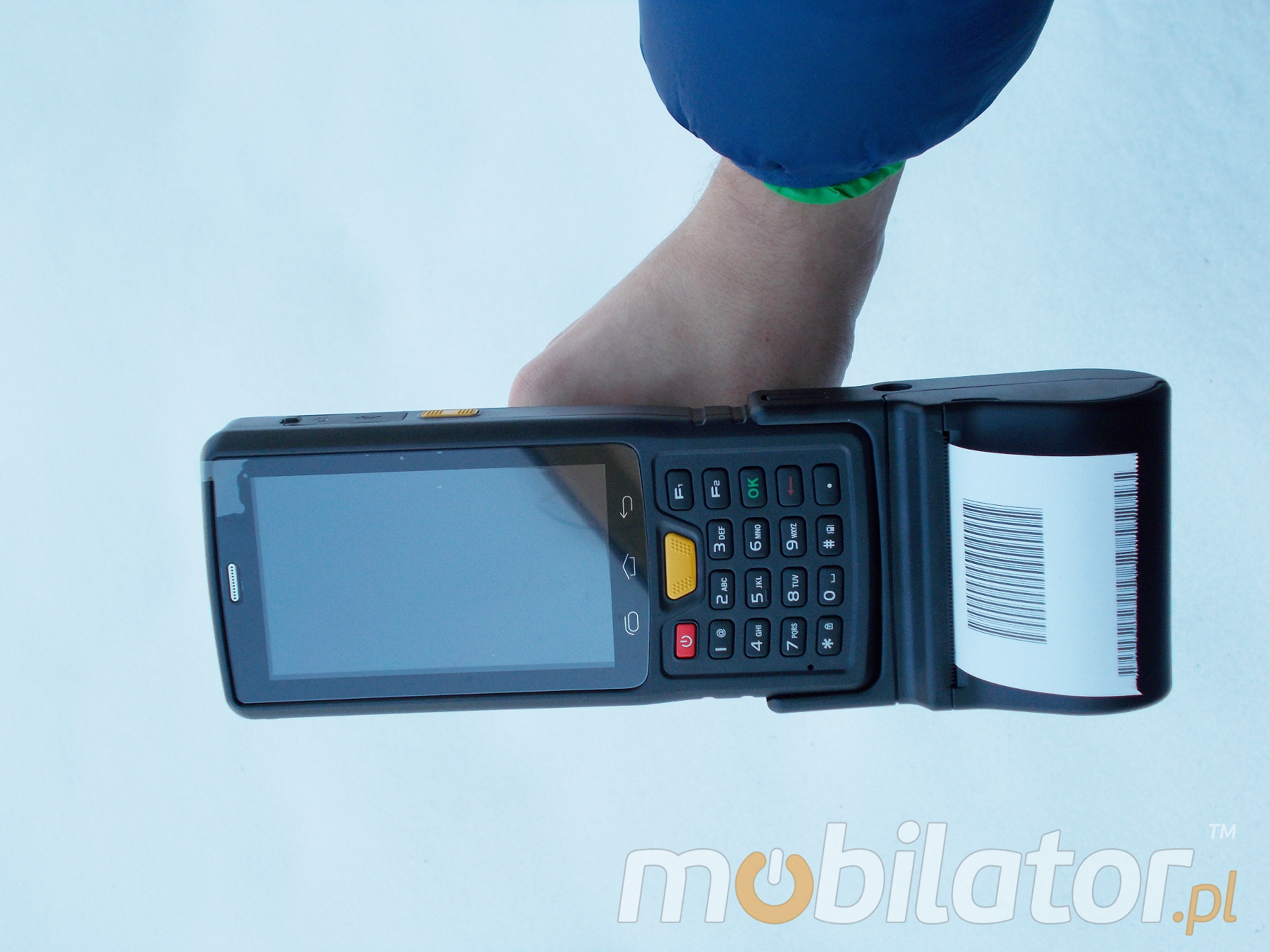

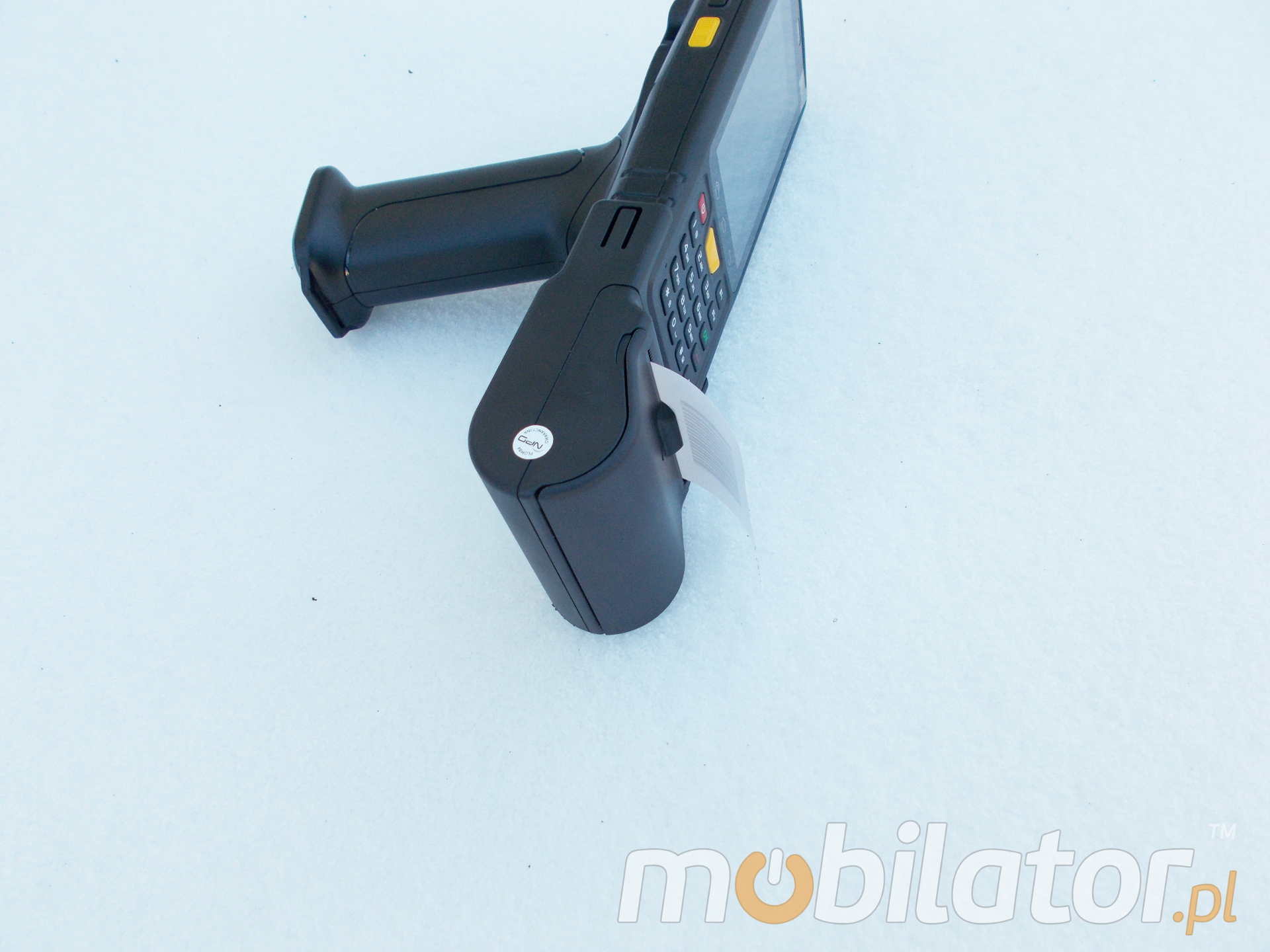

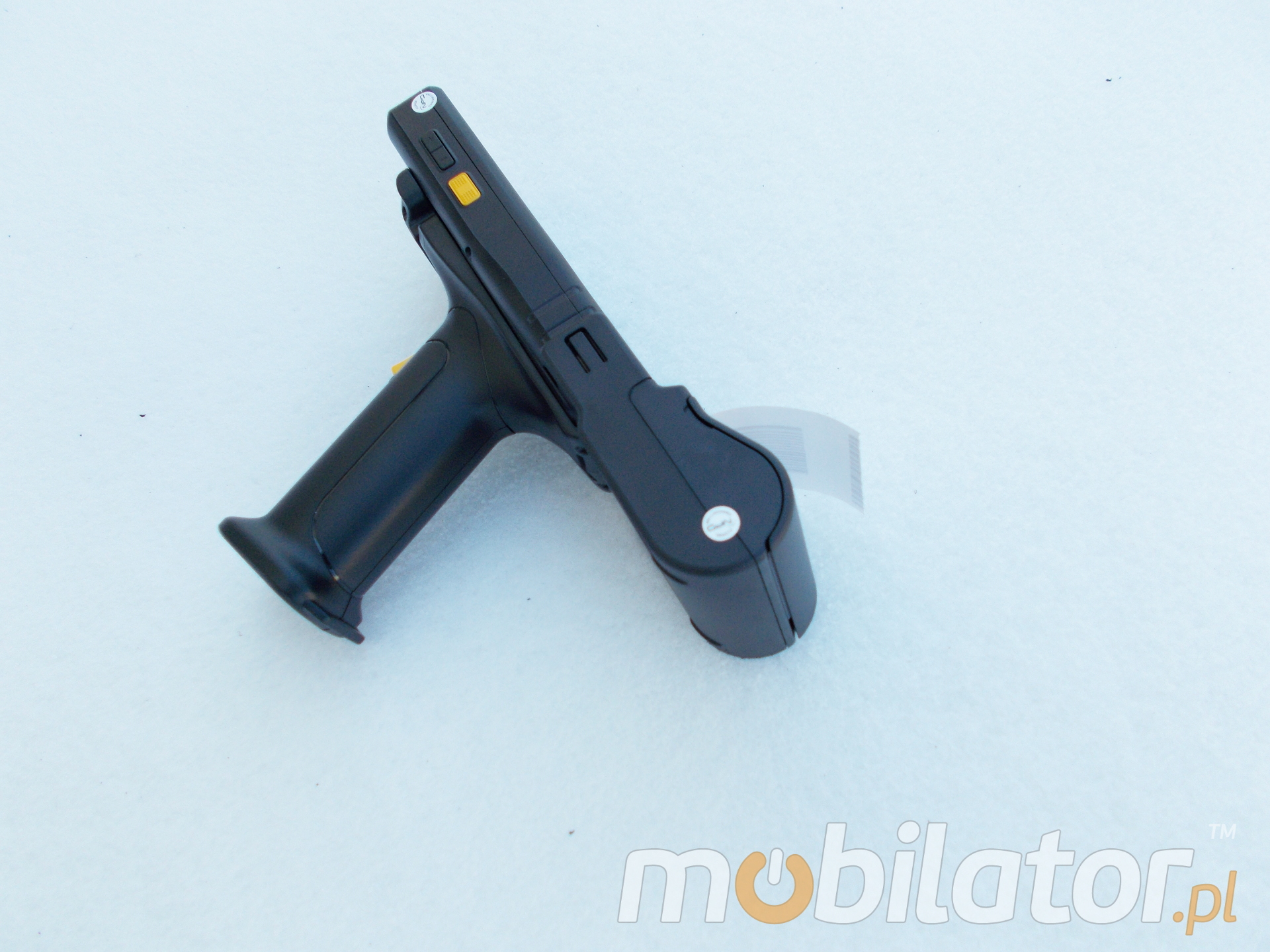

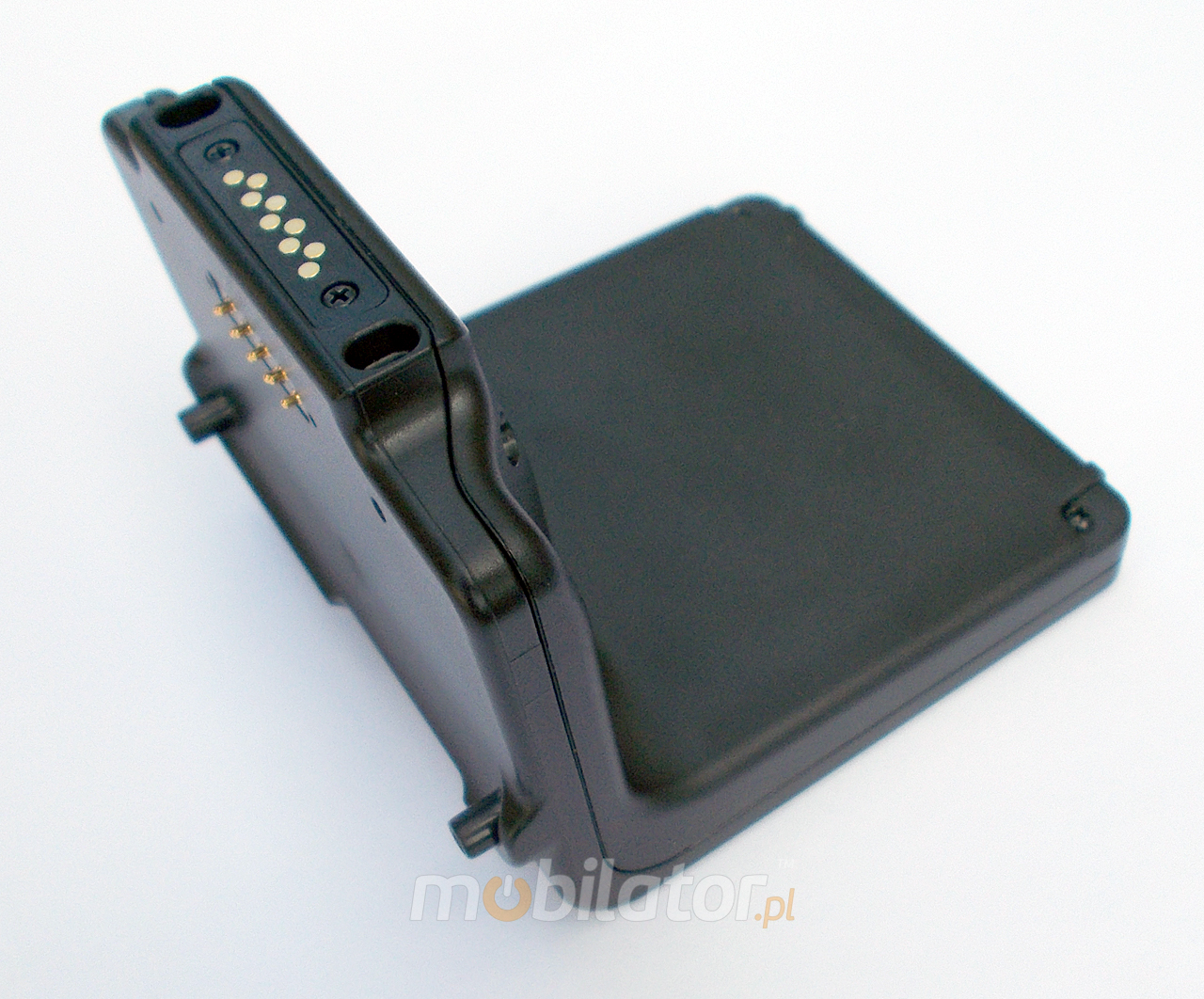

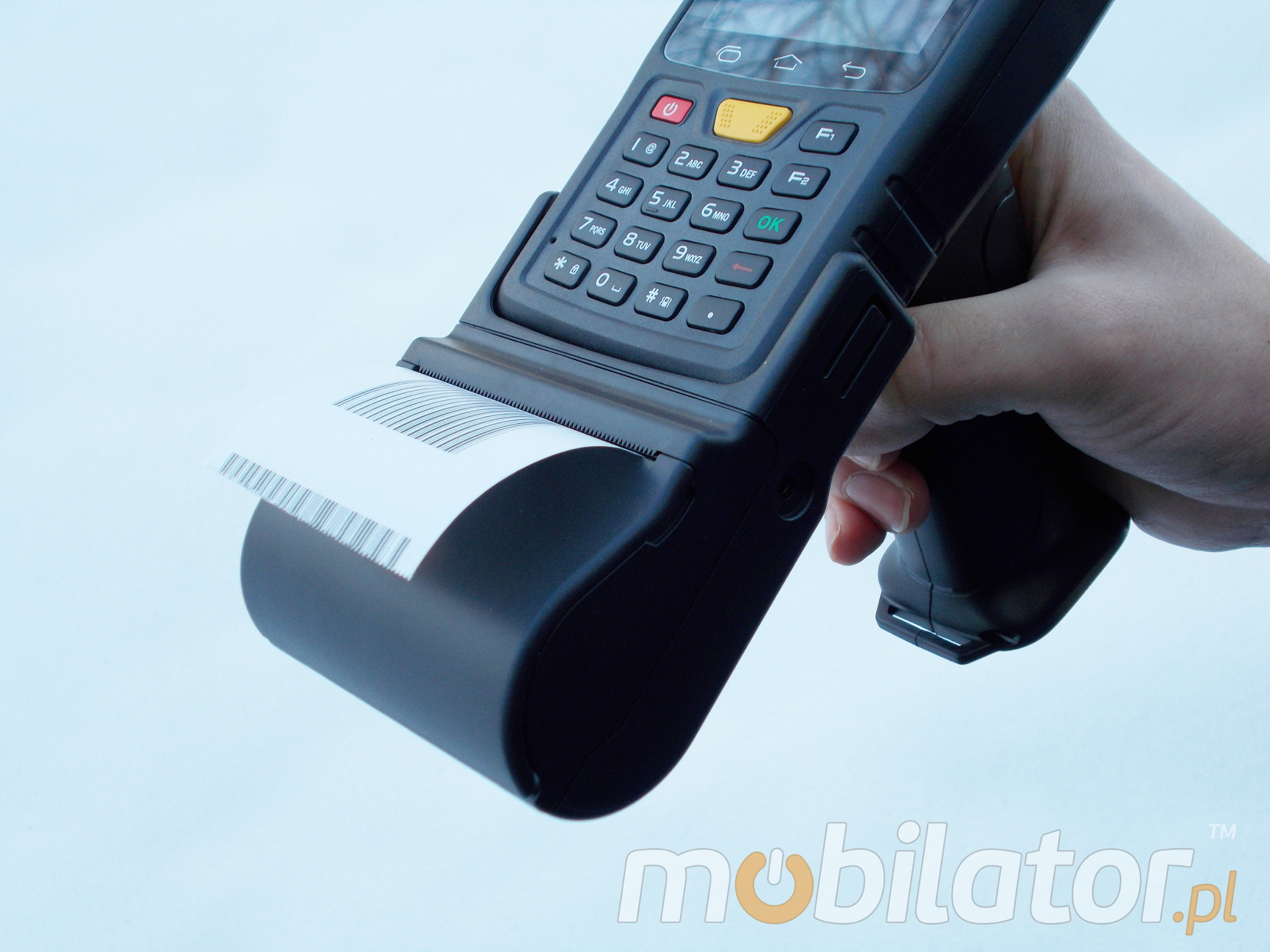

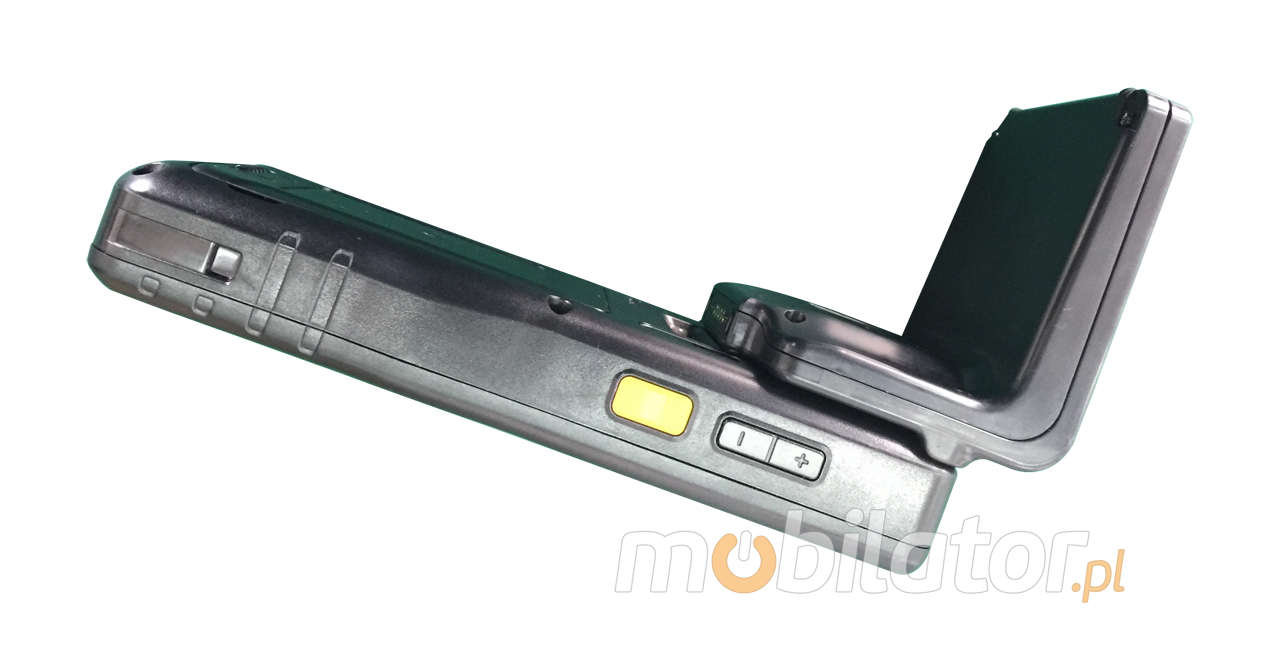

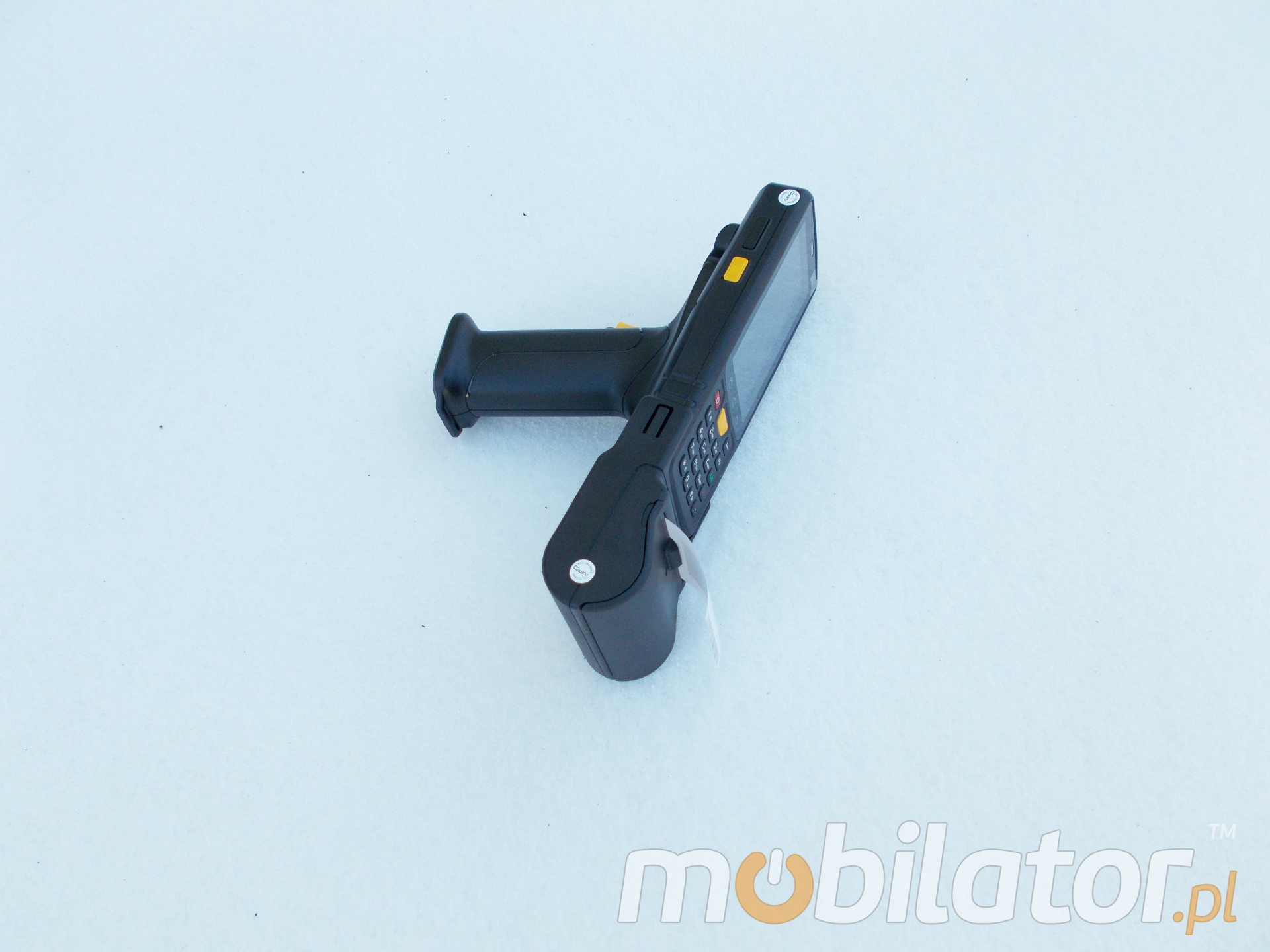

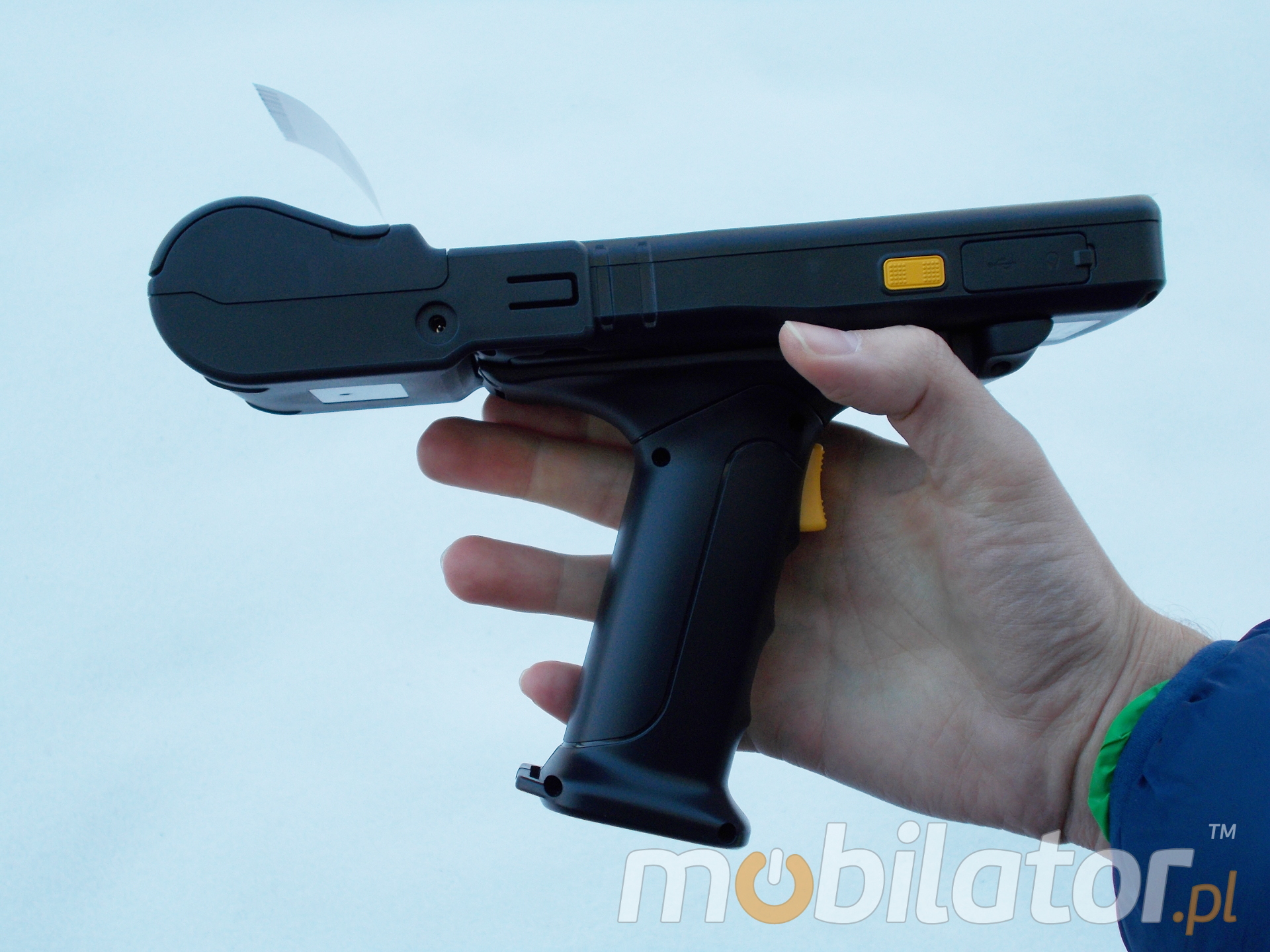

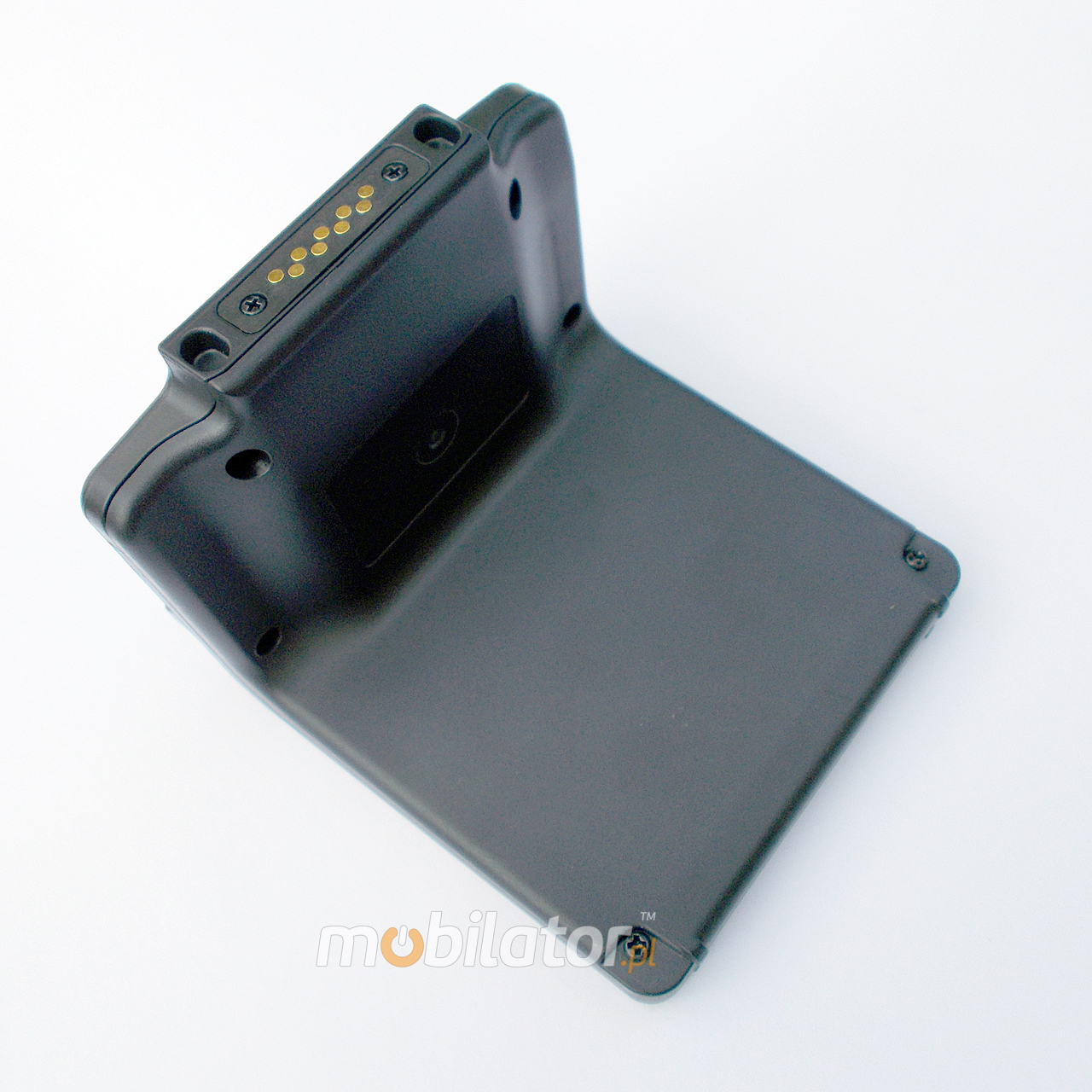

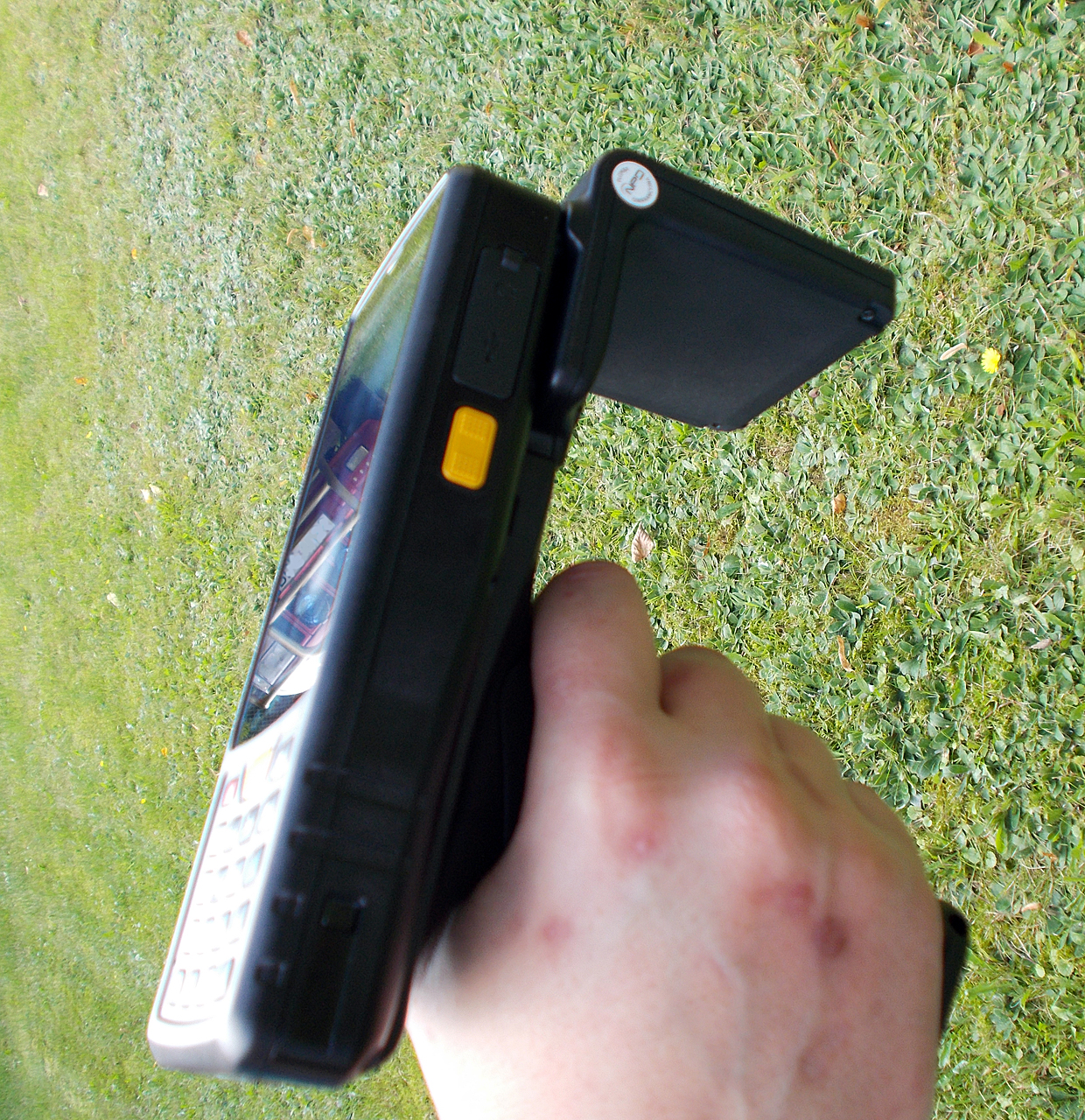

Thermal Printer Module
In the current version is located thermal printer module specailly designed and adapt for Data Collector ST908W. Portable, mobile printer module produced by Senter makes possible to printing among others receipts or confimations.
.jpg)
Printer module is very easy to use, the same like paper loading method. Print is perform on thermal paper and it characterized by fast and hight quality printing. These attributes makes that printer is very attractive addition to device produced by Senter company.
|
Printing method |
Thermal Printer
|
|
Resolution |
8 dots/mm | 384 do/linie |
|
Printing speed |
about 85mm/s |
|
Paper width |
58mm |
|
Pirnting width |
48mm |
Paper Roll Diameter
|
30mm
|
Paper Thickness
|
0.06-0.08mm
|
Paper Loading Method
|
"Manual feed"
|
Barcodes
|
Code39, Code128, EAN13, QRcode
|
RAM Memory
|
16K
|
|
Printer buffer |
4K |
Drukowana Czcionka
|
Size: 12*24 dots
|
|
Characters |
32 |
Weight
|
21g
|
Dimension
|
68 x 24 x 26mm |
|
Power |
5DC/2-3A |
go top... menu…
|
|
|
|

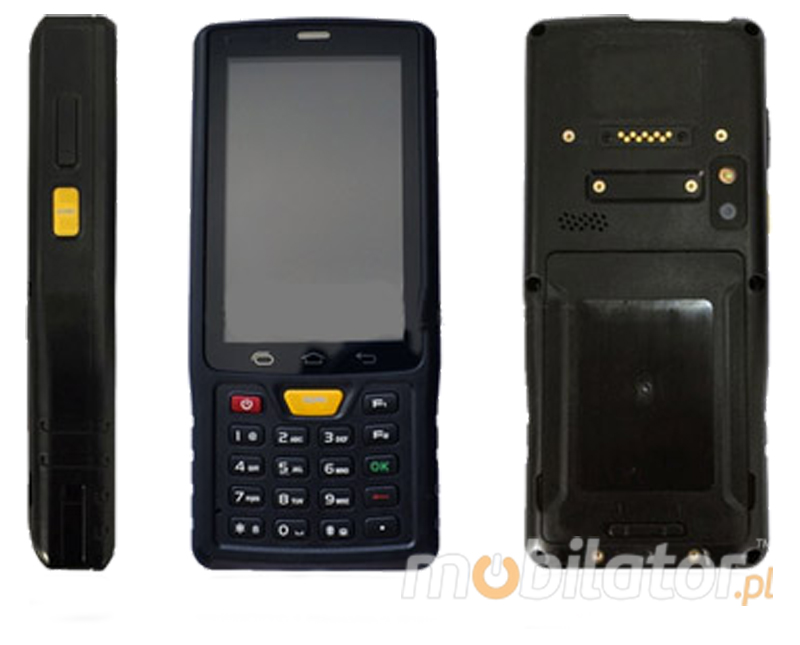

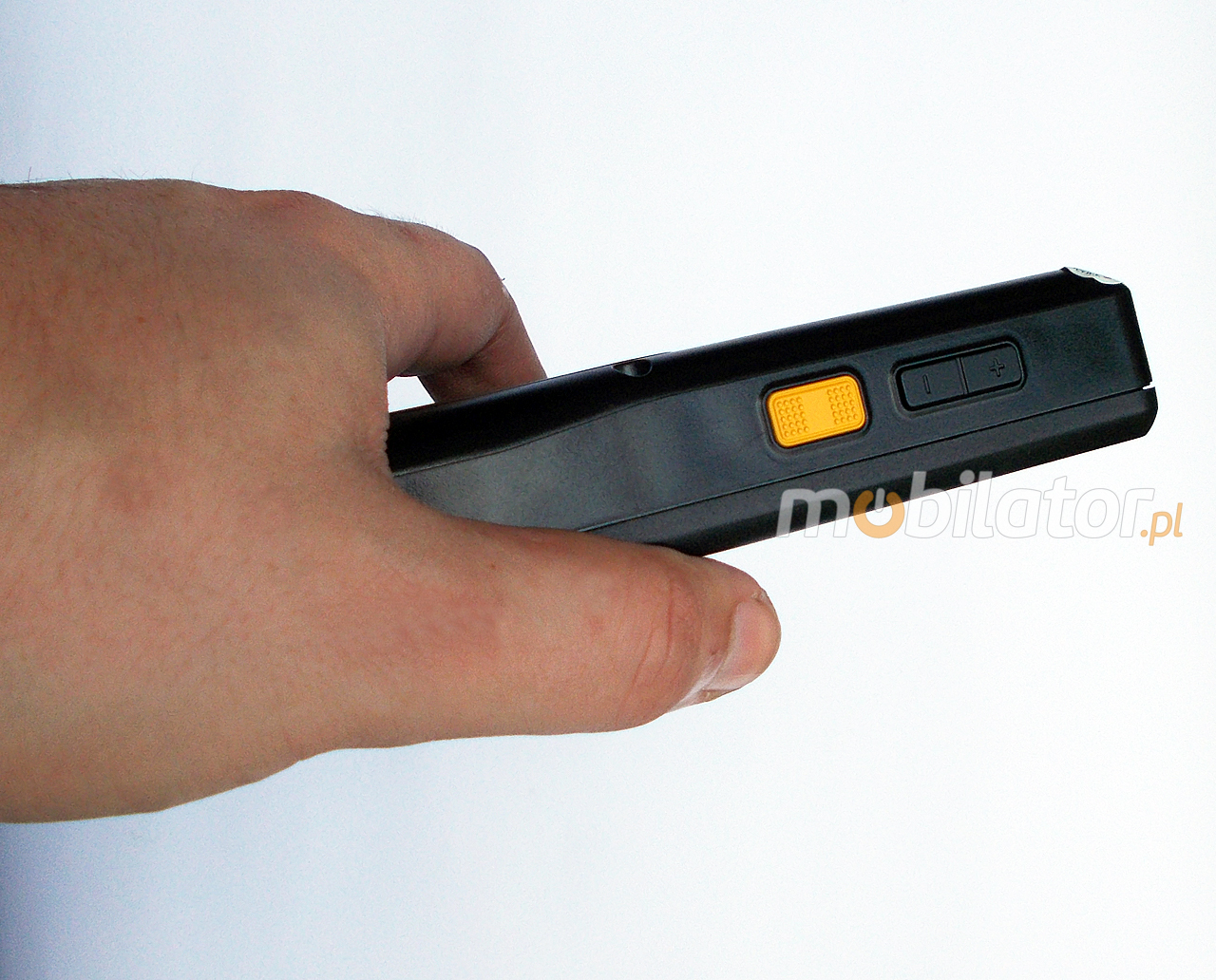

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have ST308W. The device weighs just 350g and its dimensions (168 x 75 x 26mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that ST908W is in a group of devices which enjoy great popularity in the European market in the industrial segment.
|
|
Dimensions |
168 × 75 × 26mm |
|
Weight |
350g |

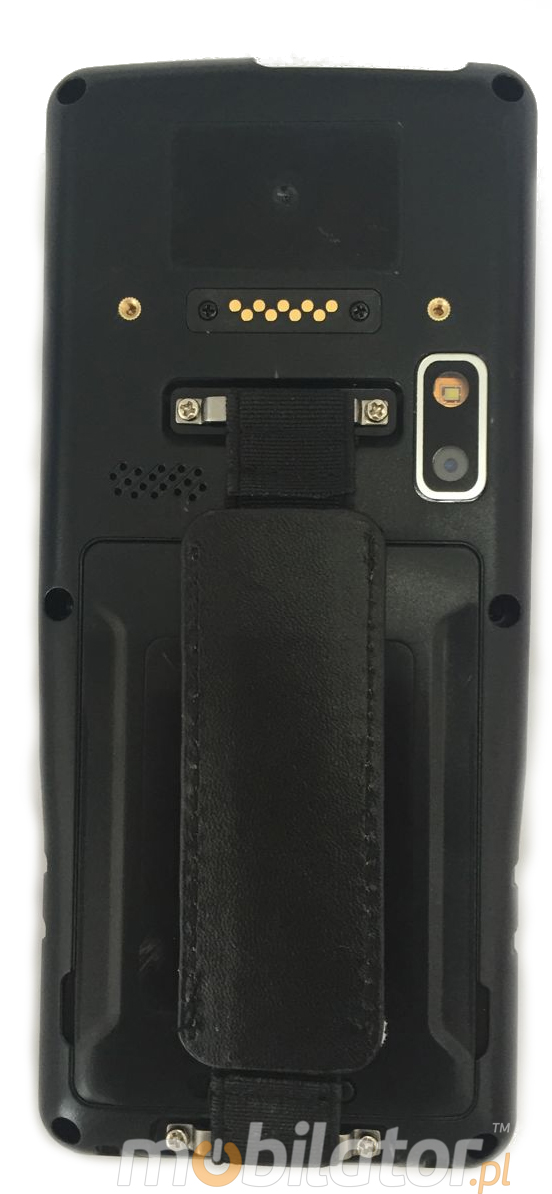

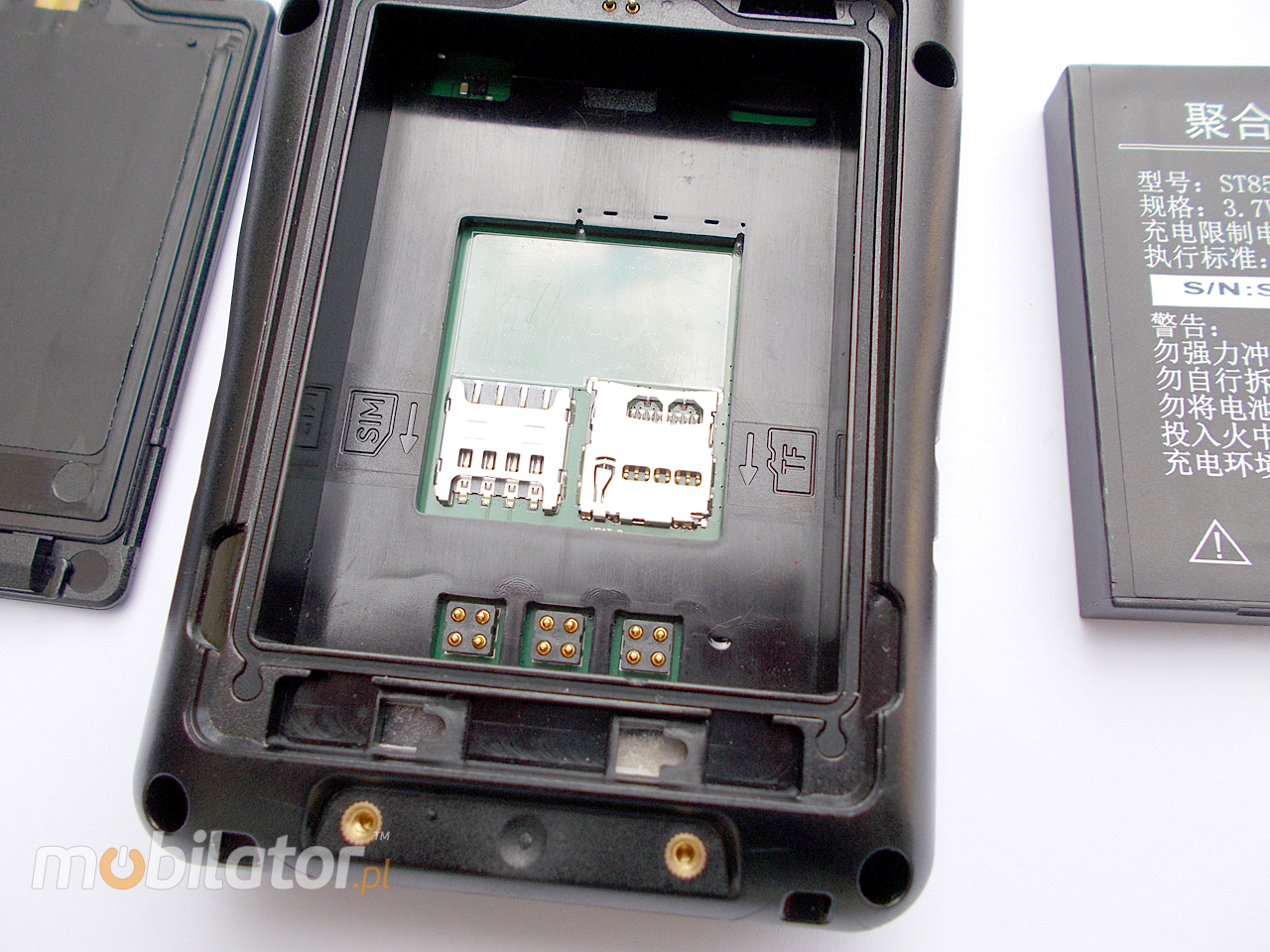

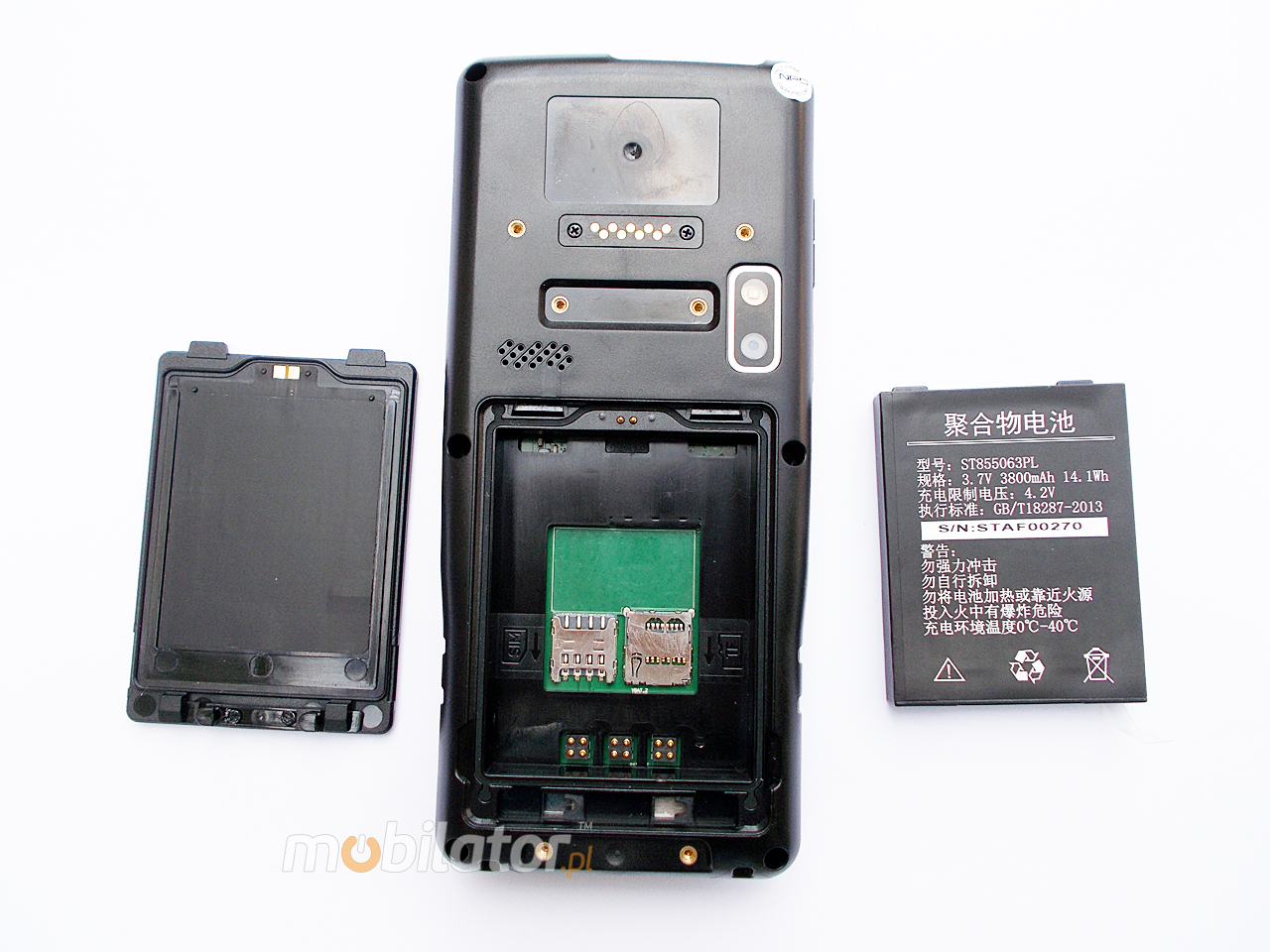

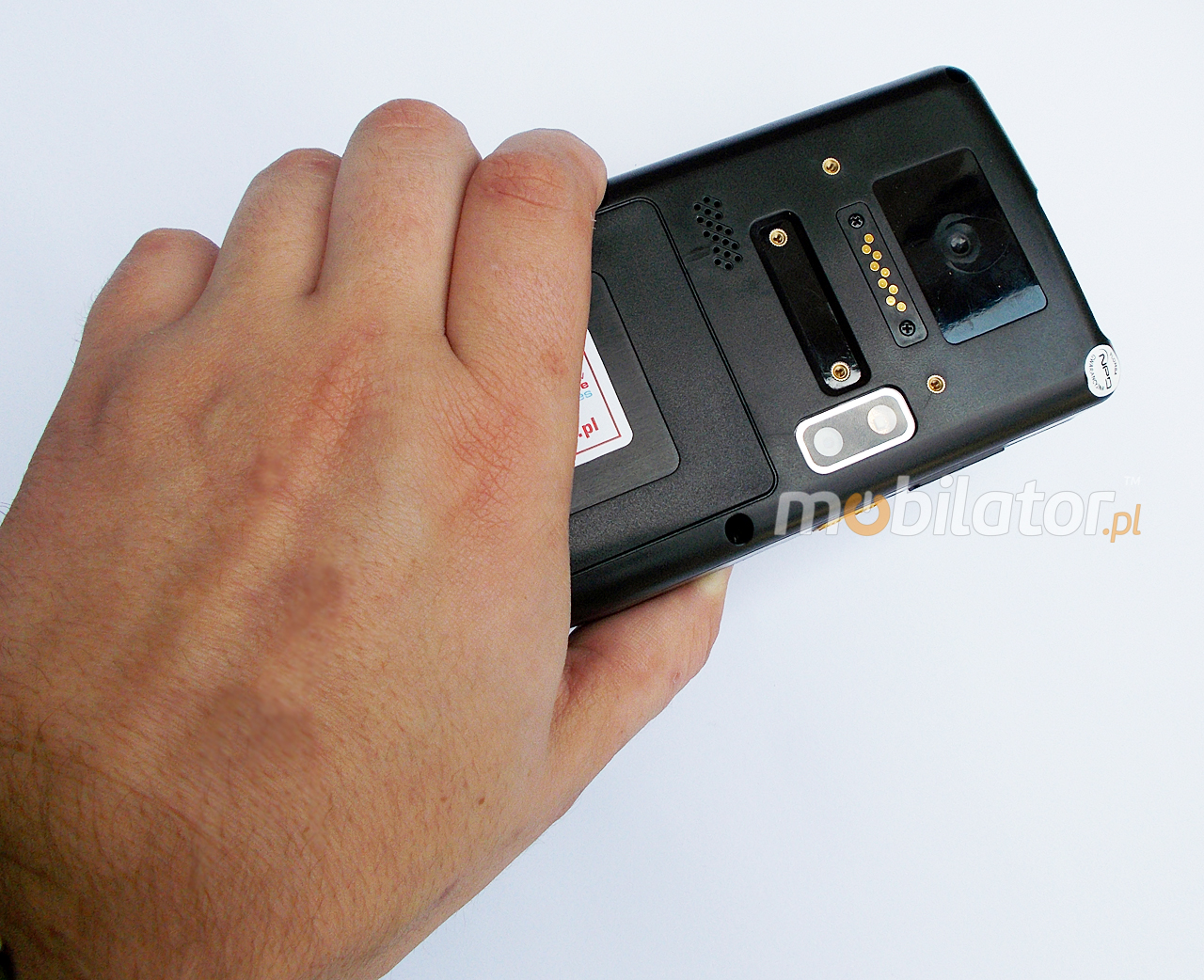

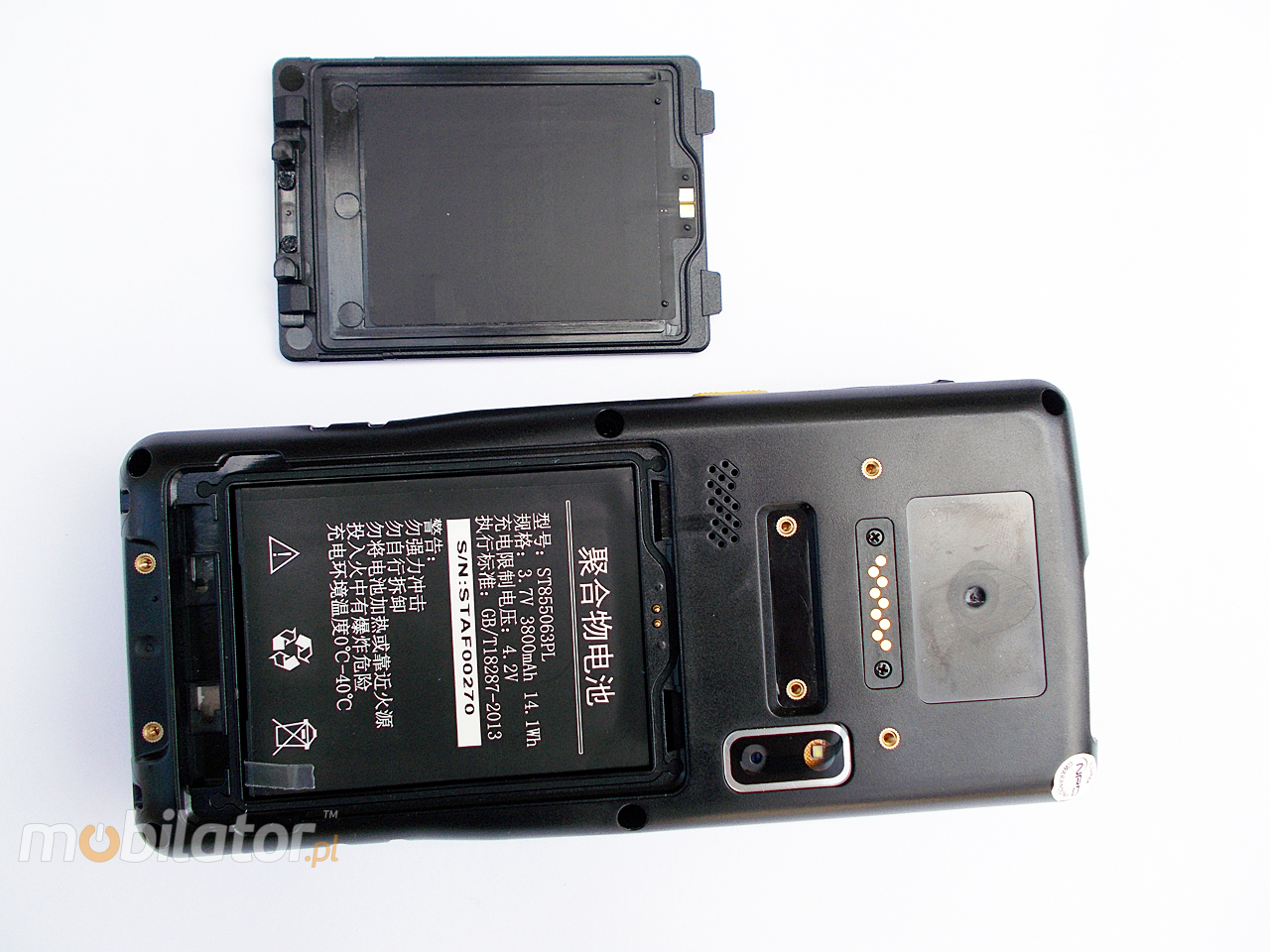

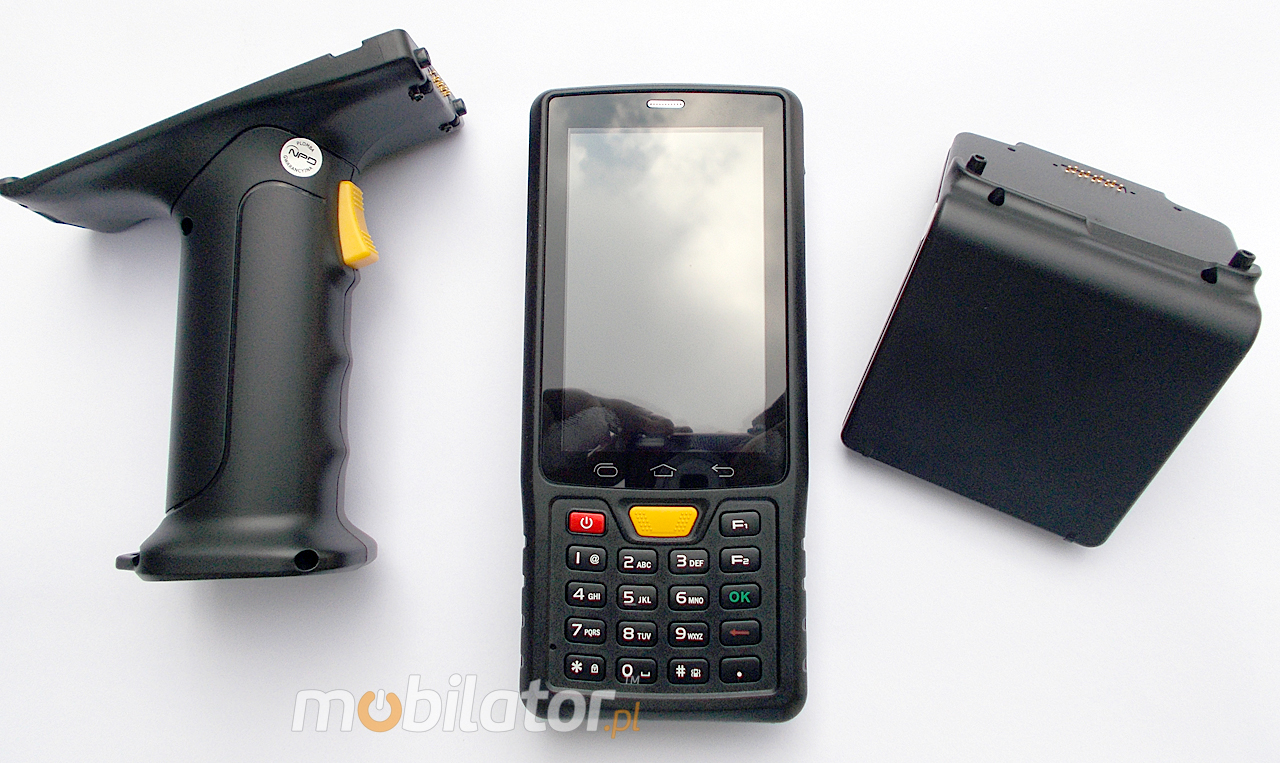

Quick change battery
Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.
.jpg)
go top... menu…
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ...
|
Compare all versions
| Durability: |
IP65 |
| Humidity: |
95% |
| Waterproof: |
IP65 |
| Weight: |
|
| Temperature: |
Operating temperature: -30°C -- +50°C
Storage temperature: -40°C -- +60°C |
| Shock: |
----- |
| Vibration: |
----- |
| Drop: |
1.2 meters |
| Sand and dust: |
IP65 |
| 1D barcode scanner (reader): |
1D (Laser Zebra1350) |
| 2D barcode scanner (reader): |
----- |
| RFID scanner (reader): |
----- |
| Magnetic card reader (MSR): |
----- |
| Microchip card reader: |
----- |

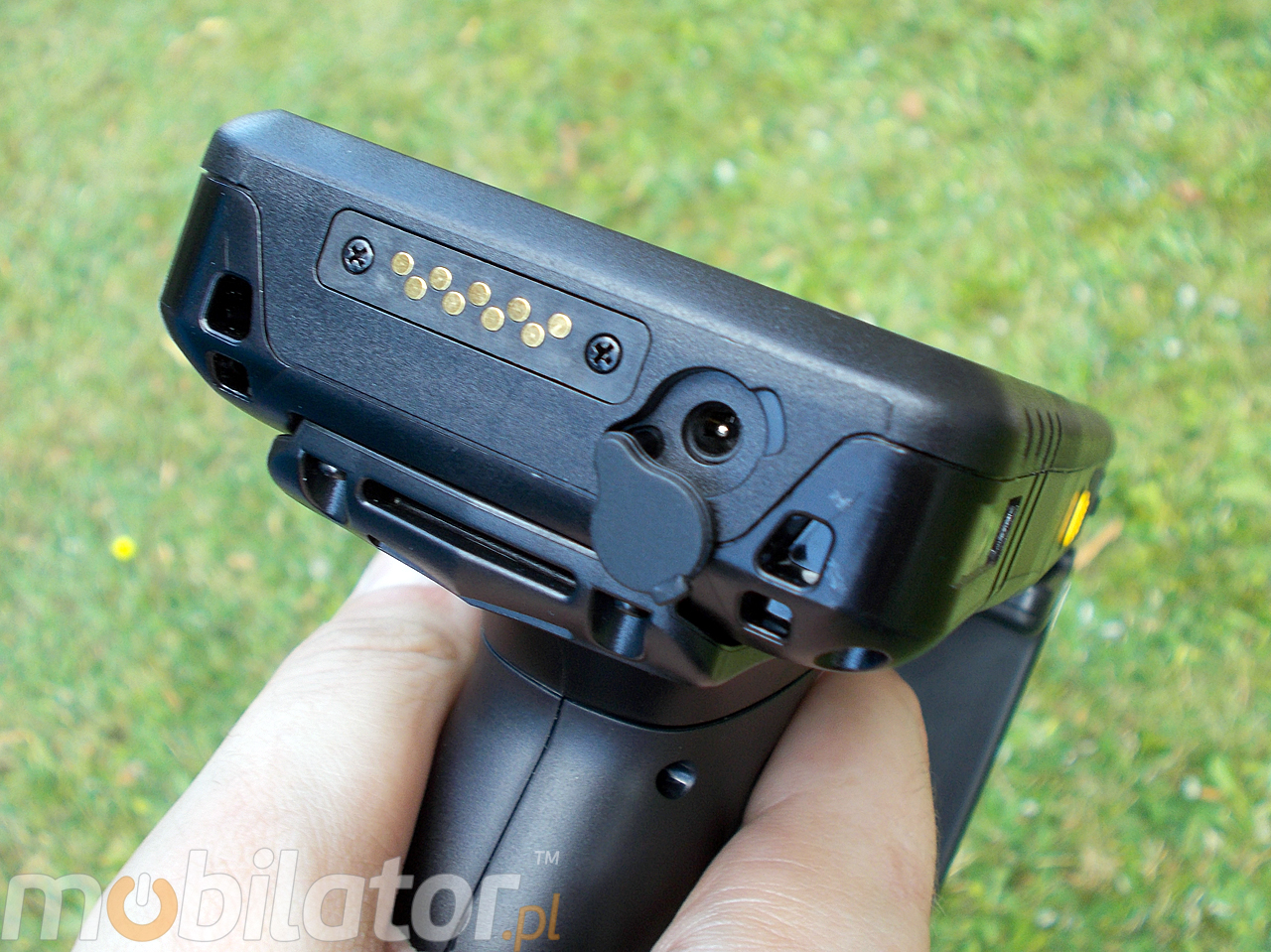

| Docking station connector: |
----- |
| VESA standard – holders and mounts support: |
----- |
| COM port: |
----- |
| Dispaly: |
4" (800x480) IPS LCD : capacitive |
| Brightness: |
400nits |
| Contrast: |
800:1 |
| Touch screen: |
Tak |
| Graphics card: |
Qualcomm Adreno 203 |
| Swivel Hinge: |
----- |
| VGA out: |
No |
| TV Out: |
----- |
| TV Tuner: |
----- |
| Processor: |
Qualcomm Snapdragon 200 MSM8625Q - Quad (4x) 1.2Ghz |
| Chipset: |
----- |
| BIOS: |
----- |
| Memory: |
2GB |
| Hard Drive: |
16GB |
| Flash Memory: |
Yes |
| Battery: |
3.7V 3800mAh Li-Ion |
| Working time on battery: |
9-11 hours |
| HotSwap battery: |
----- |
| Fast battery replacement ability: |
Yes |
| Size: |
168 × 75 × 26mm- 350g + printer |
| Casing material: |
high quality plastic and rubber |
| Fanless casing: |
Yes |
| Operating System: |
Android 5.1 |
| LAN: |
No |
| WLAN: |
802.11 b/g/n |
| Bluetooth: |
Bluetooth 4.0 |
| WAN: |
4G LTE WCDMA |
| GPS: |
Built-in + A-GPS |
| Flash Card Reader: |
microSD (max. 32GB) |
| CD/DVD: |
----- |
| Camera: |
Yes - 8Mpx (Auto-Focus + LED Flash) |
| Audio: |
AudioJack : Built-in Speaker : Microphone |
| Seciurity: |
----- |

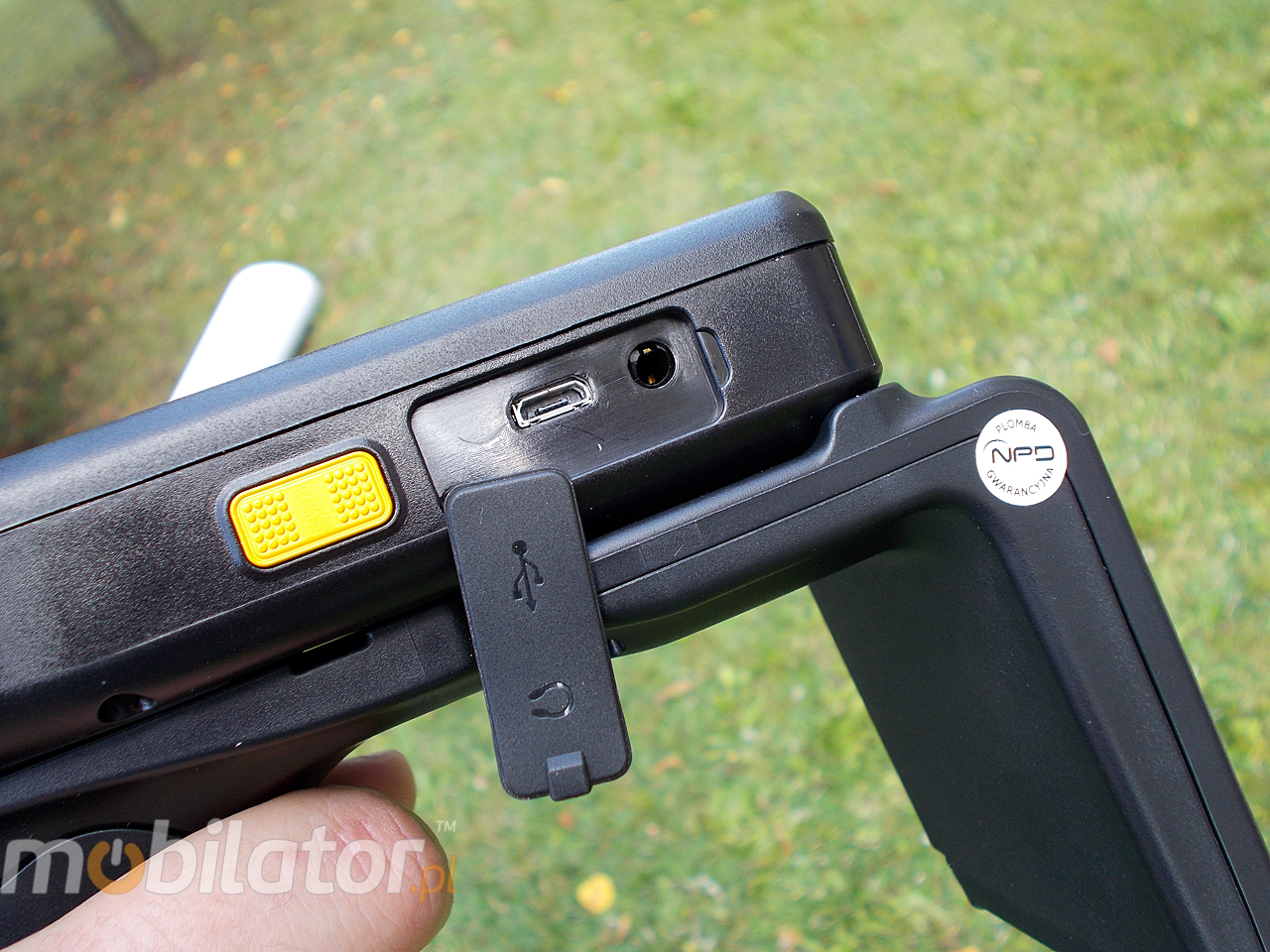

| In/Out: |
micro USB (support OTG), AudioJack, Mirco SD card slot (max.32GB) |
| Keyboard: |
Numeric (+ function keys) : On-screen |
| Additional Navigation Devices : |
----- |
| Color: |
yellow-black |

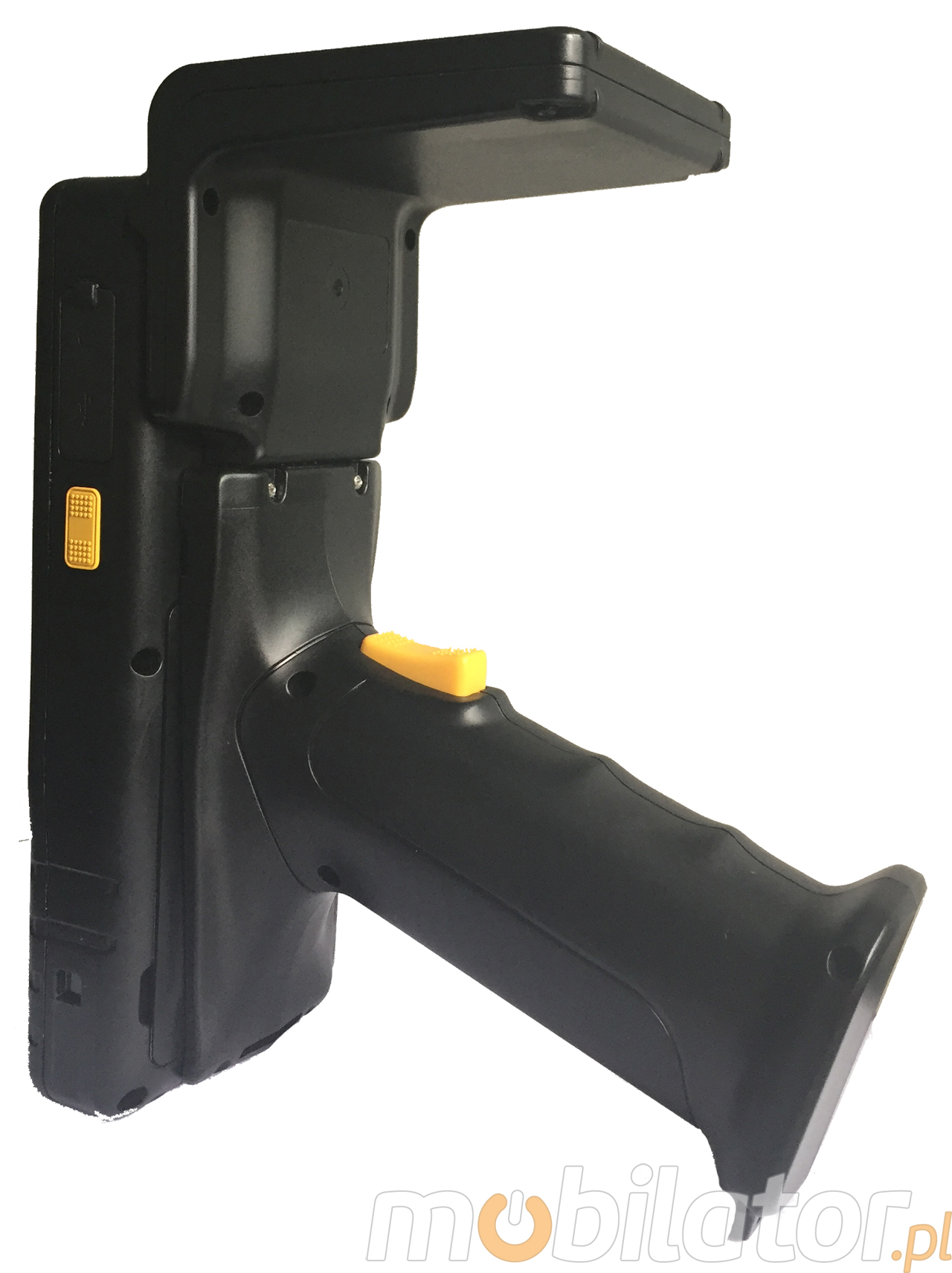

| Optional accessories: |

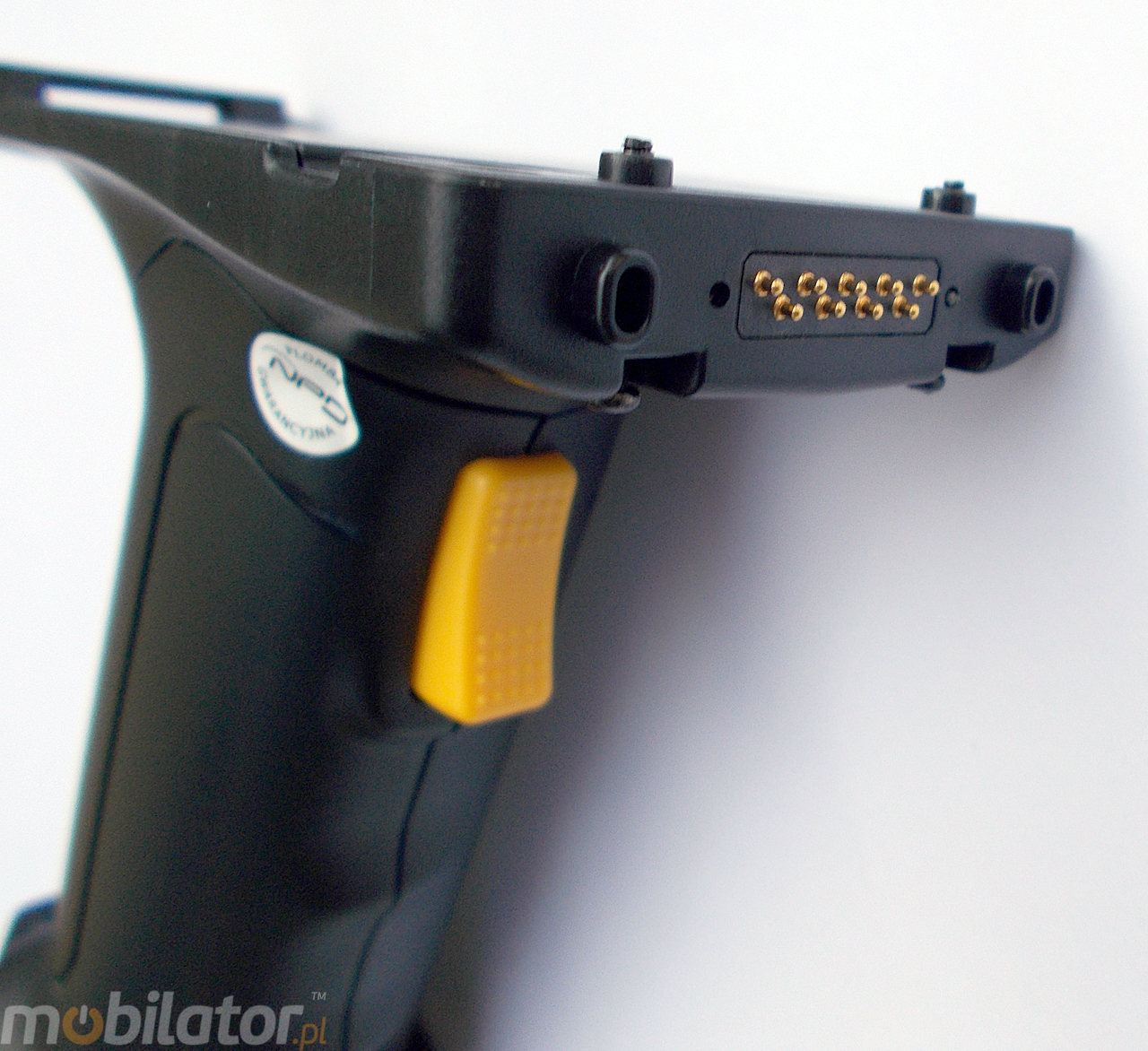

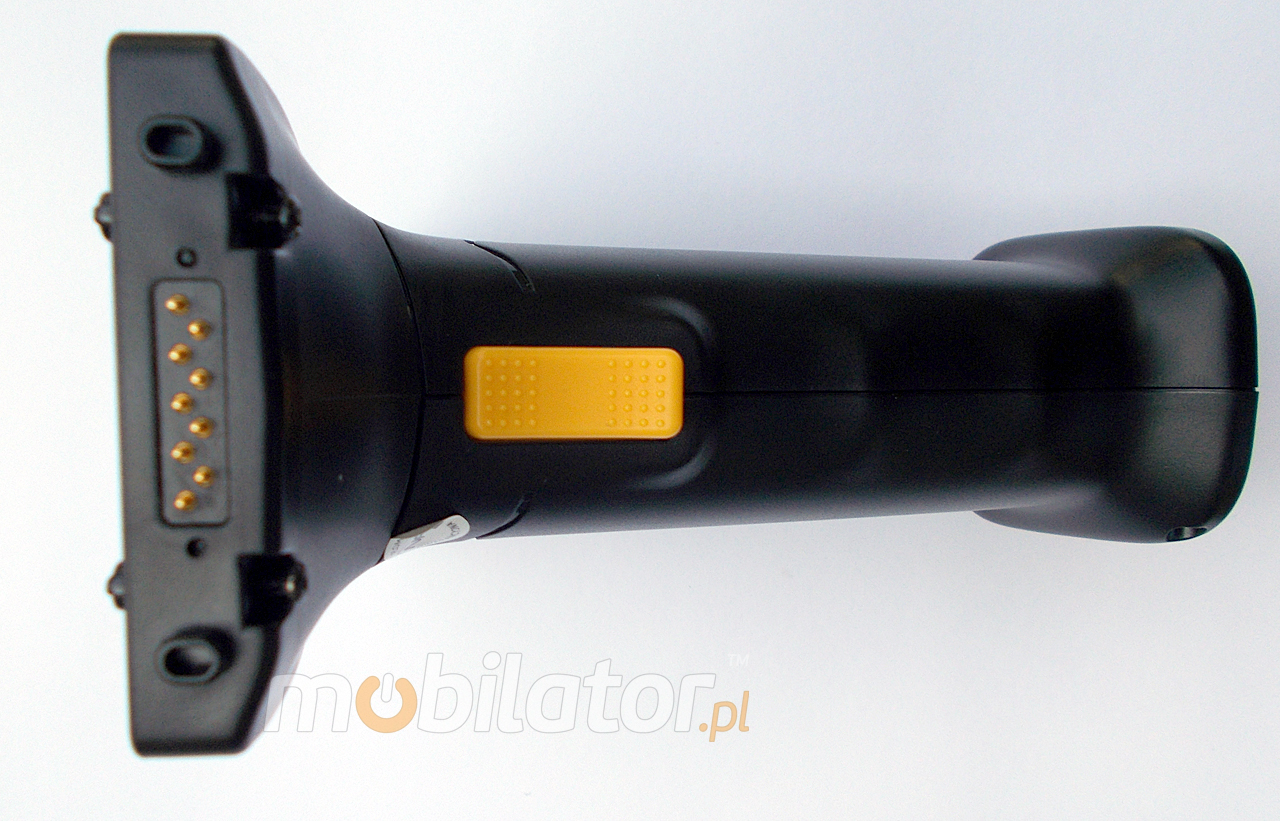

Hand Strap

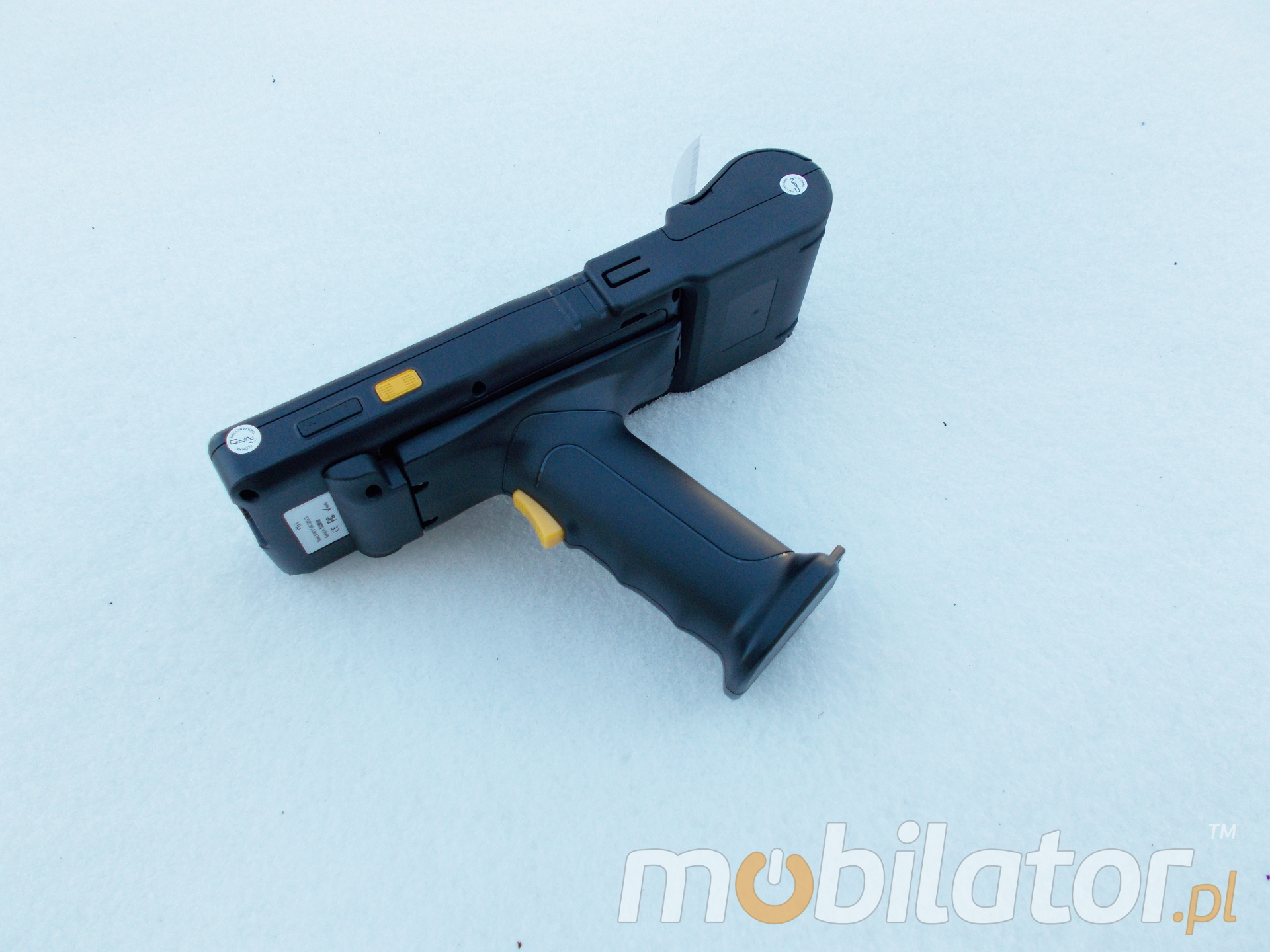

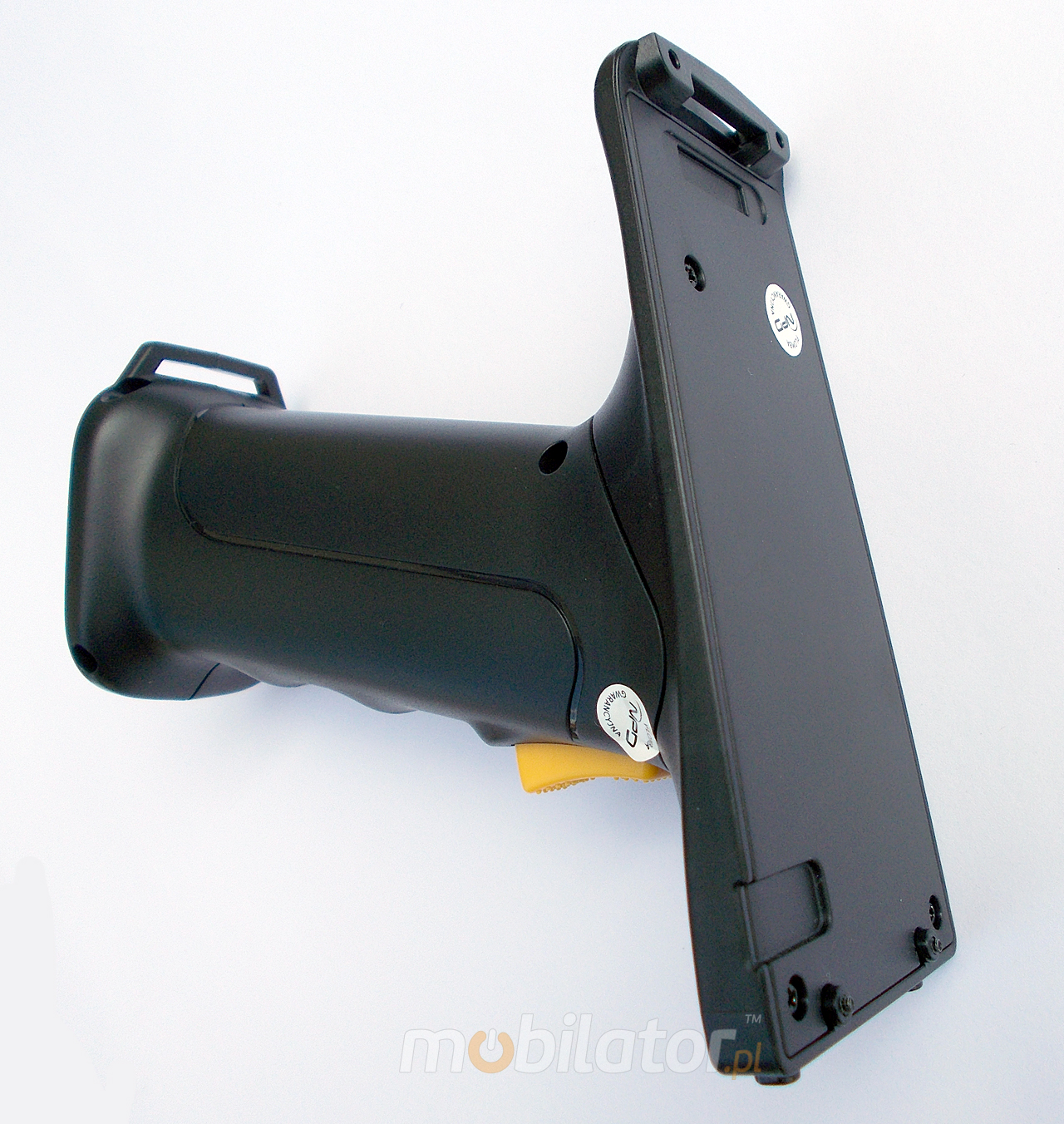

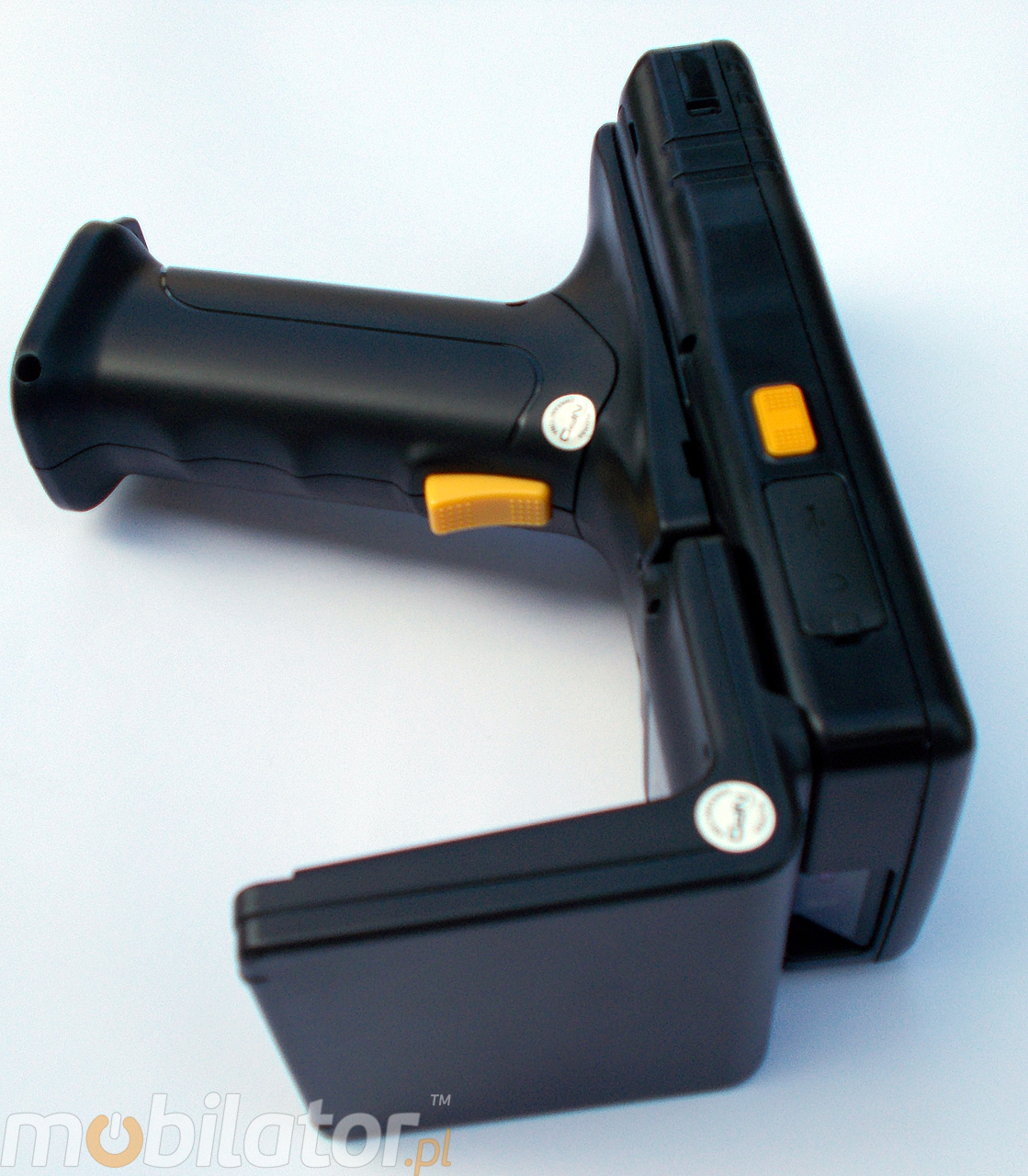

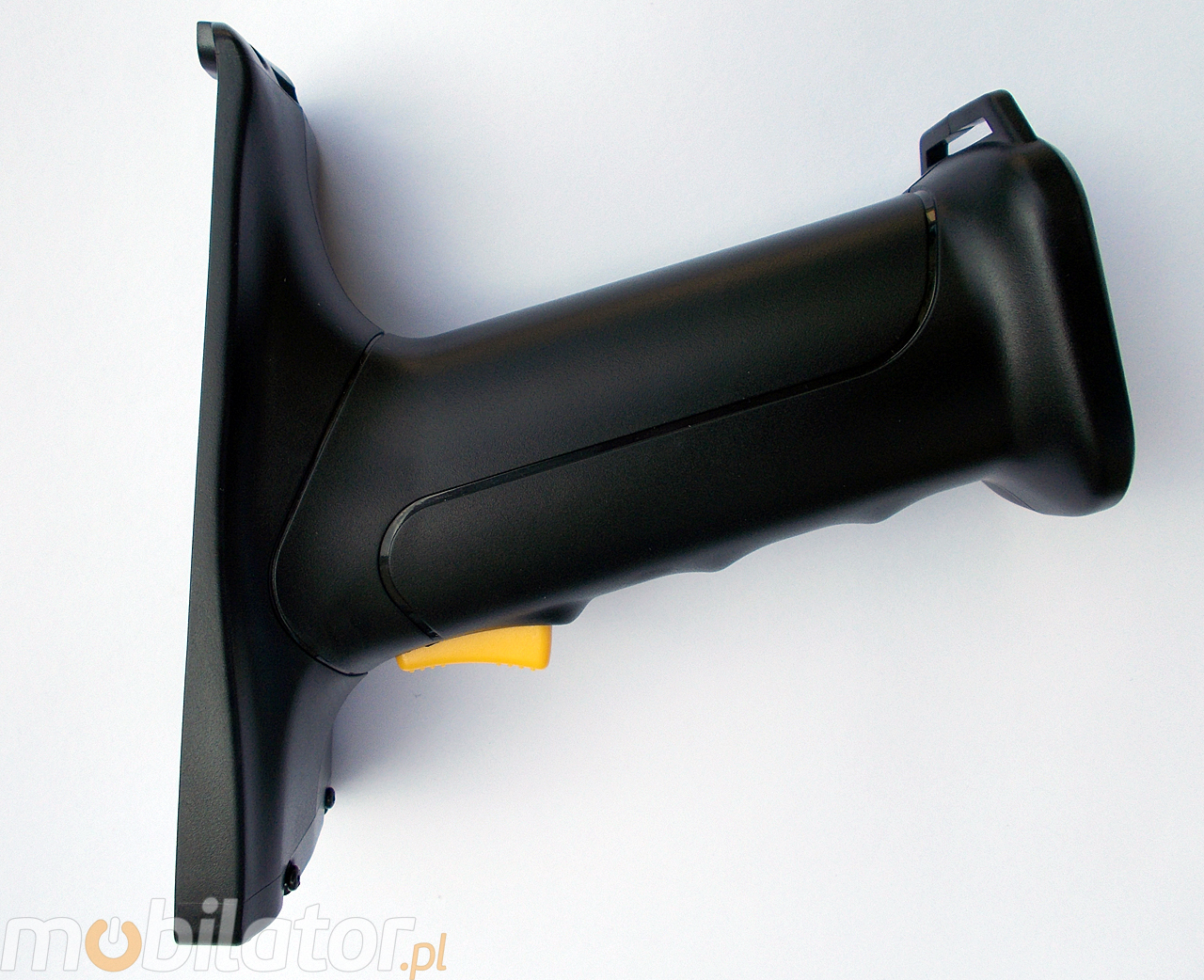

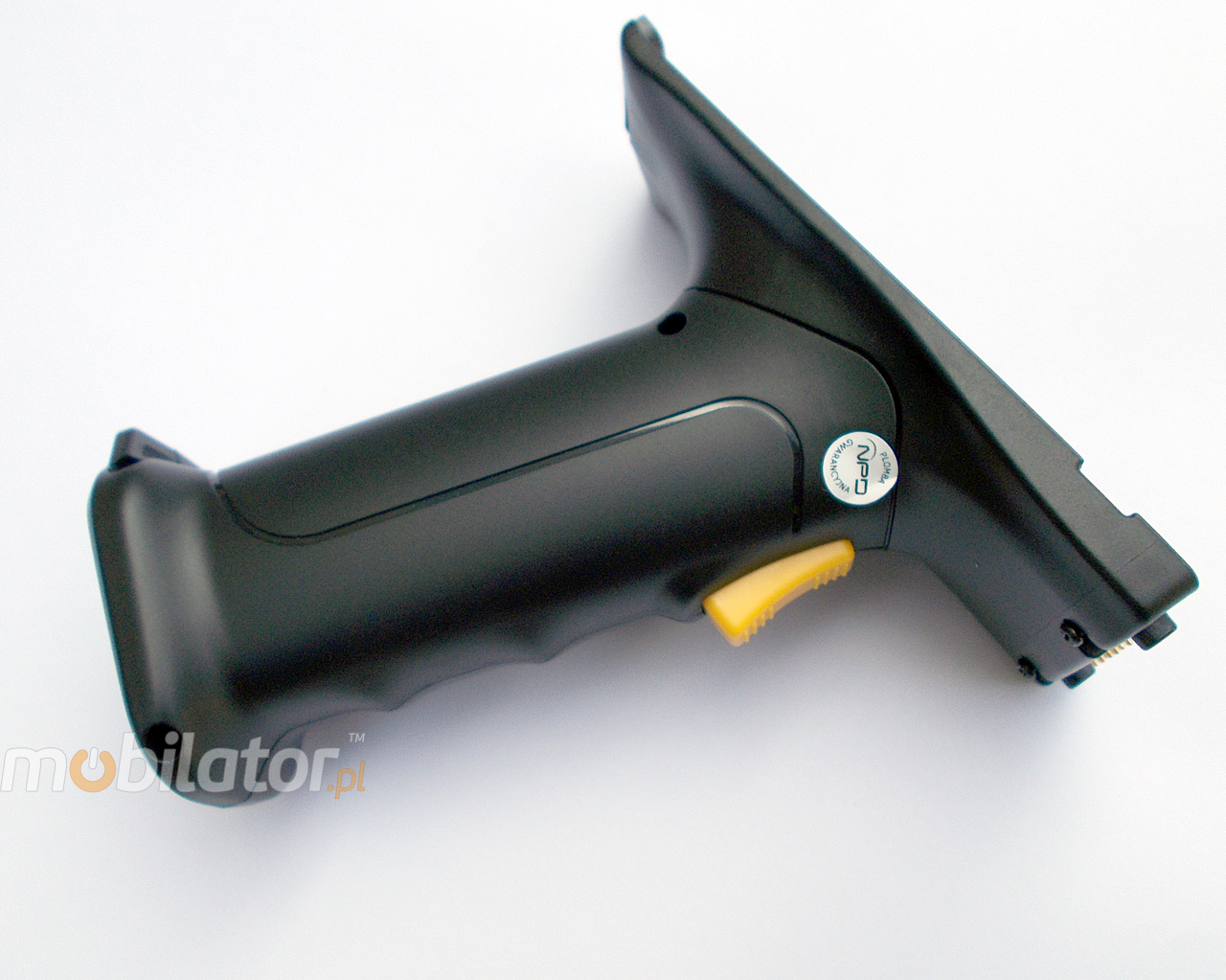

Pistol Grip |
| Other: |
Charger : USB Cable | Thermal Printer |
