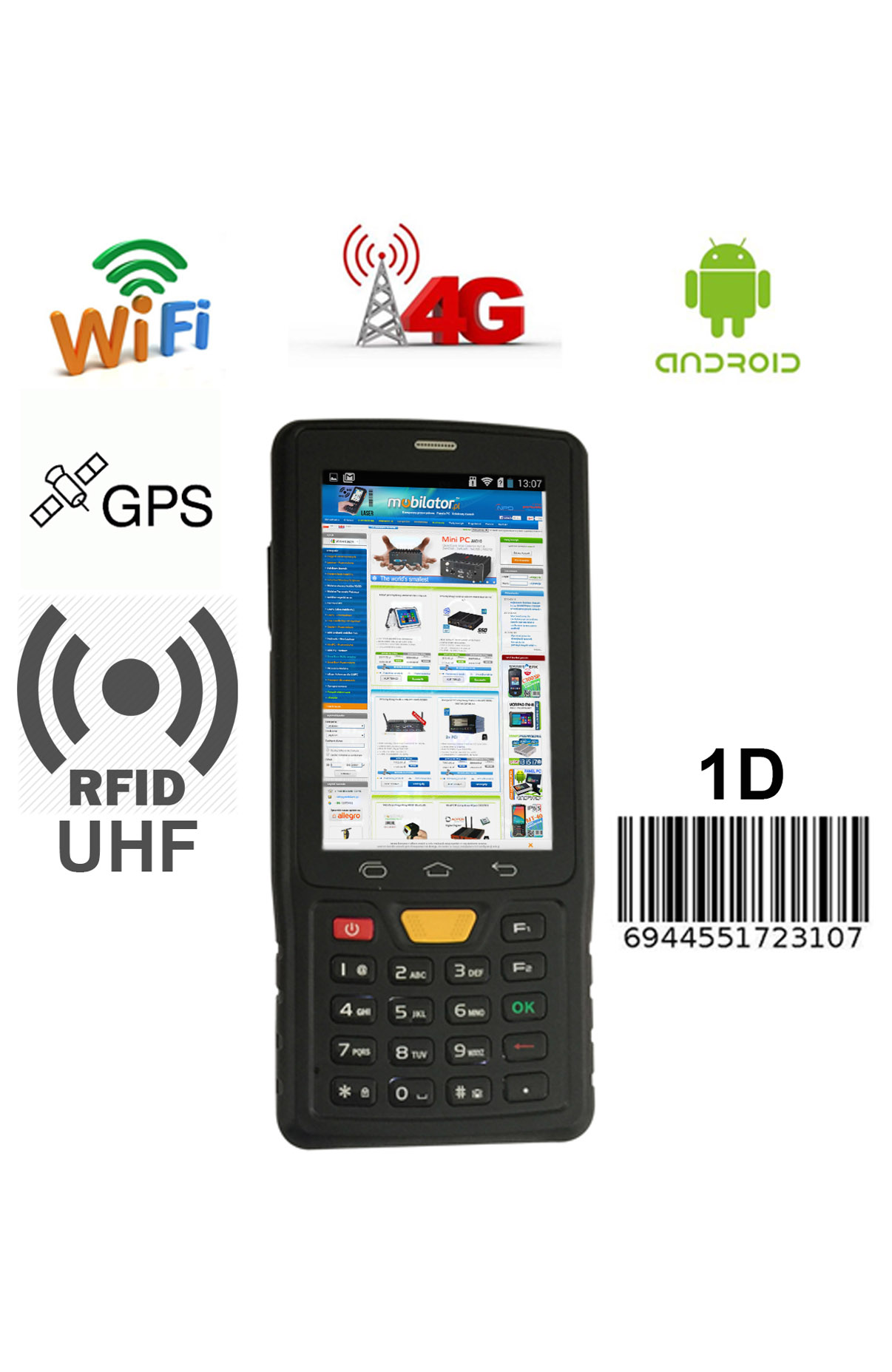

Industrial Data Collector Senter ST908W-1D(MOTO) + RFID UHF + High GPS

Industrial Data Collector Senter ST908W-1D(MOTO) + RFID UHF + High GPS

Data update: 2019-09-05

guarantee 1 year (opt.2)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated



Compare all versions

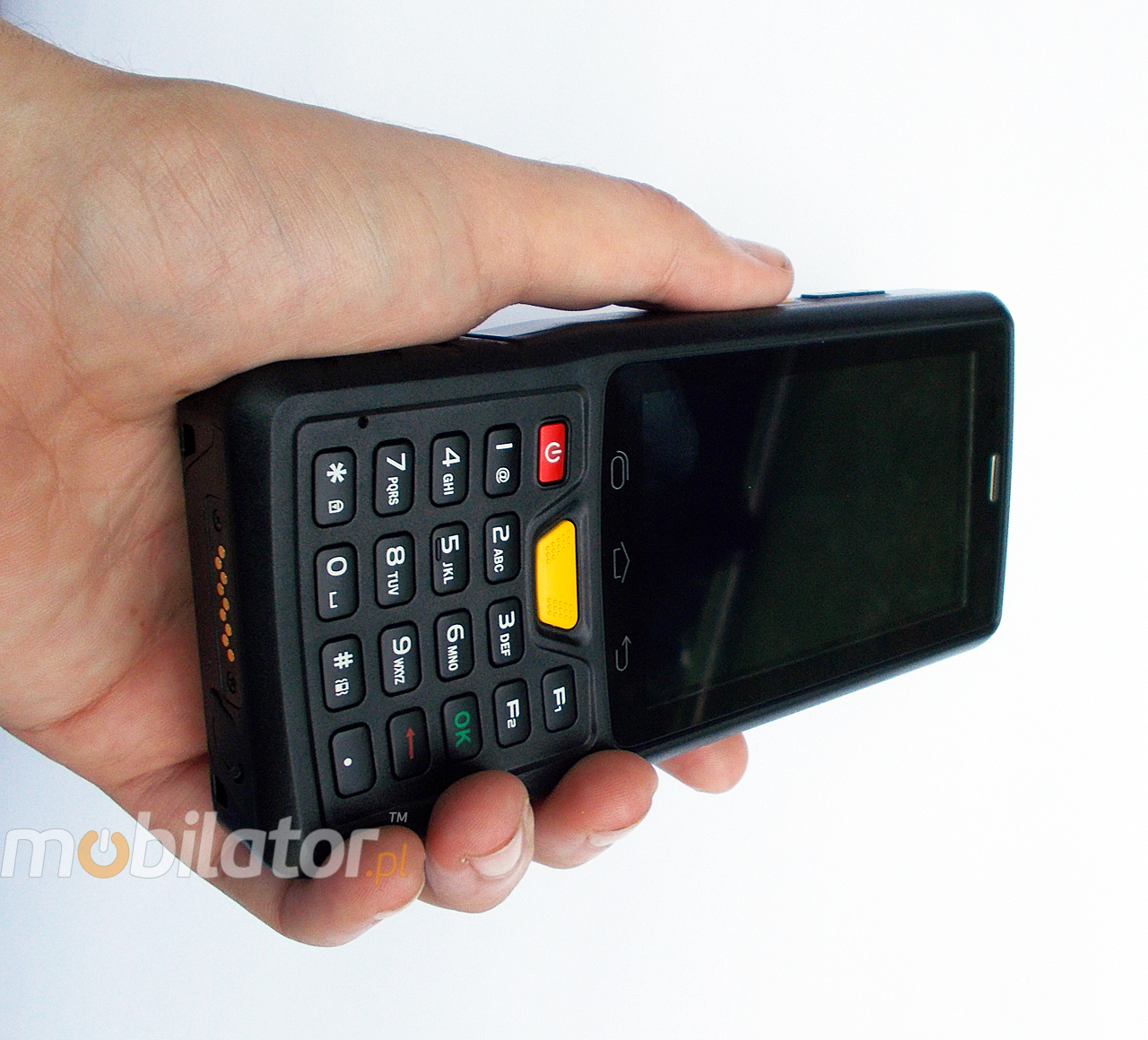

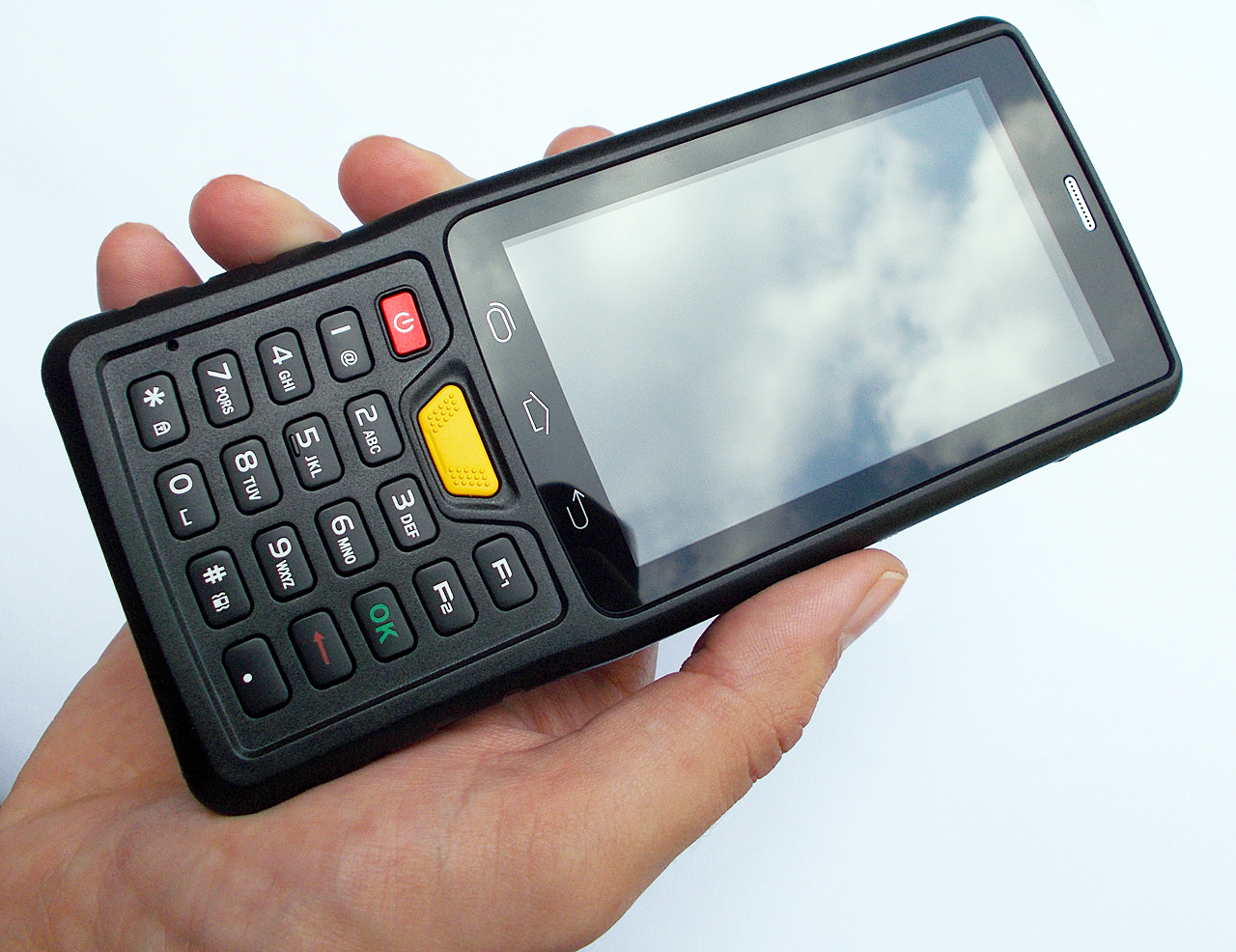

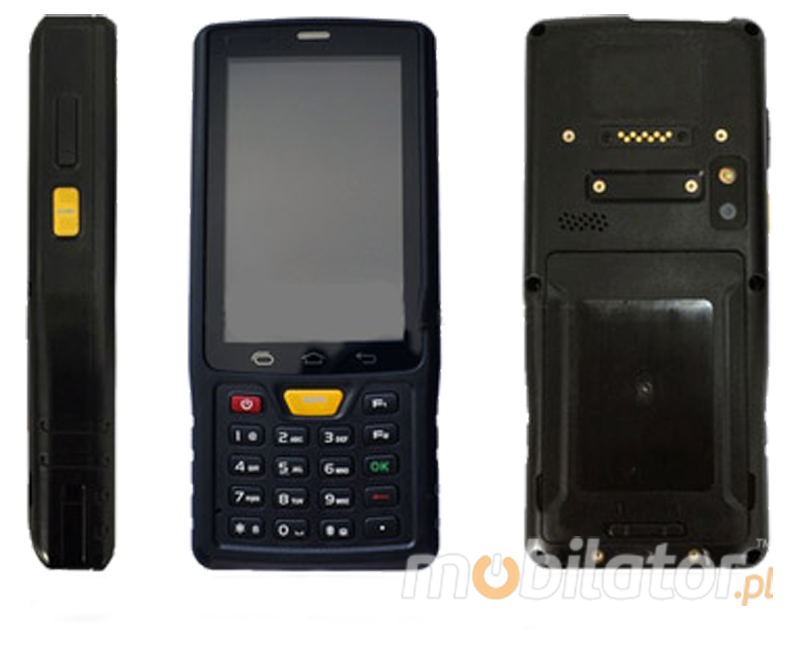

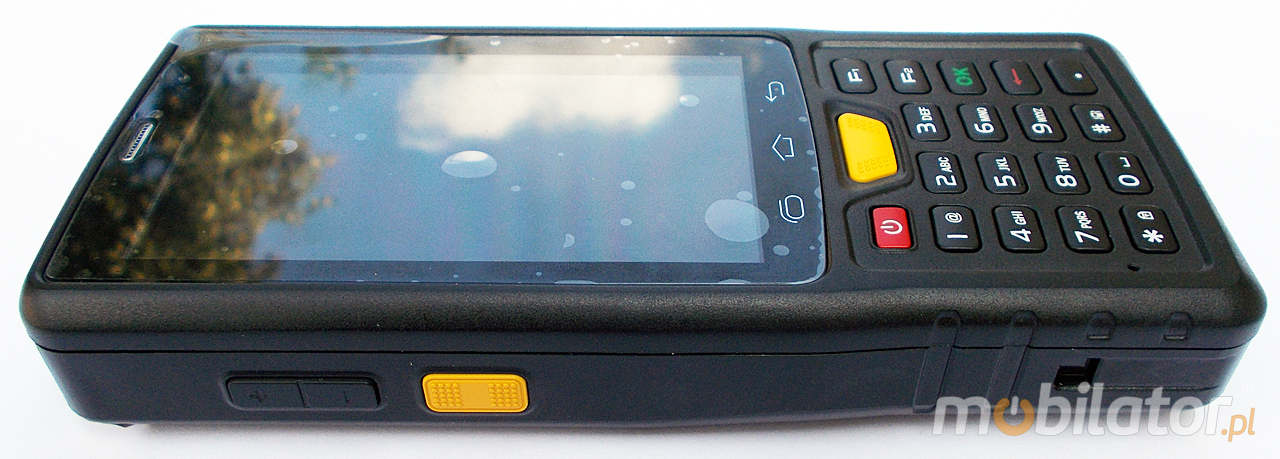

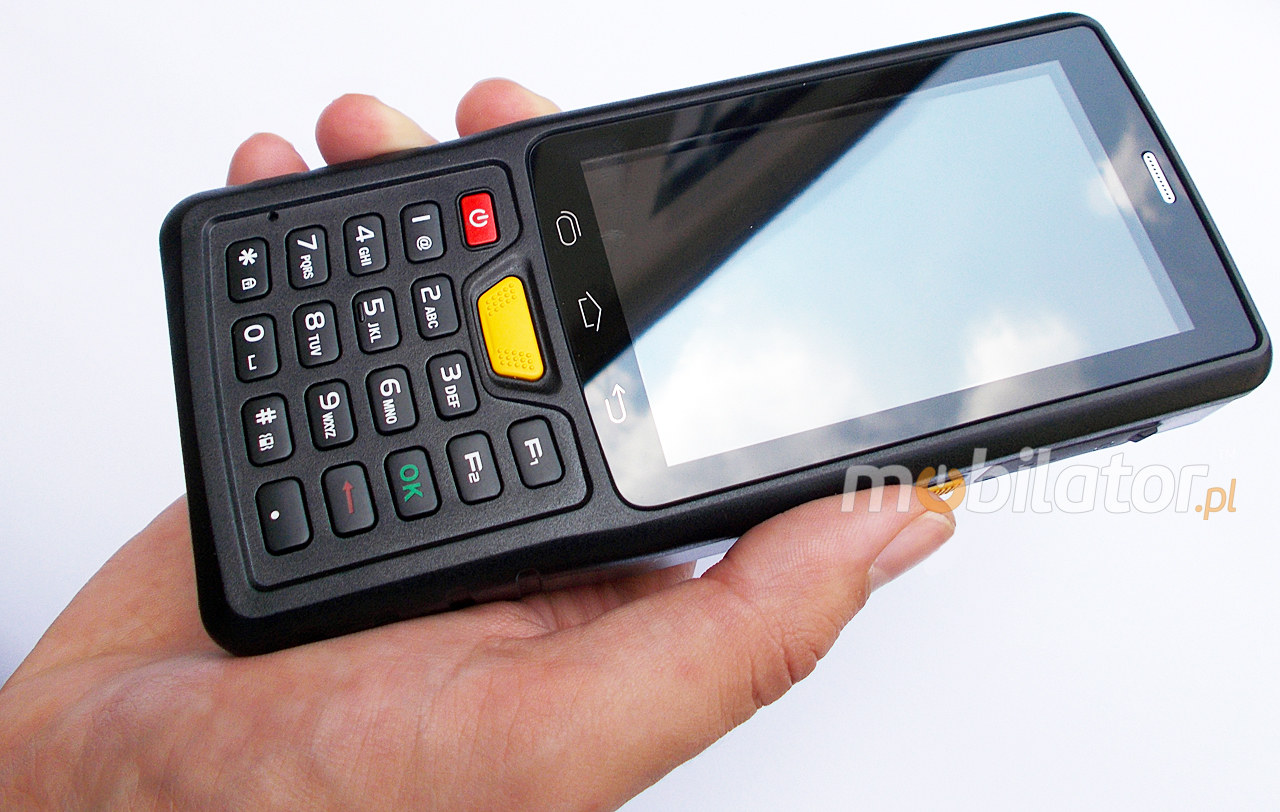

Senter ST908W has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP65 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.



Description

senter ST908W tablet przemyslowy 4 cale 8gb indrustrial tablets

 Processor  Qualcomm Snapdragon 200 MSM8625Q - Quad (4x) 1.2Ghz
 PCB  Qualcomm Adreno 203
 Display  4" (800x480) IPS LCD :  capacitive
 RAM  2GB
 ROM  16GB
 Connectors  MicroSD : Mini USB
 GPS  GPS + UBLOX Neo 6M (High precision <2,5m)
 Audio  AudioJack : Speaker : Microphone
 Camera  8Mpx (Auto-Focus + LED Flash)
 Battery  3.7V 3800mAh Li-Ion

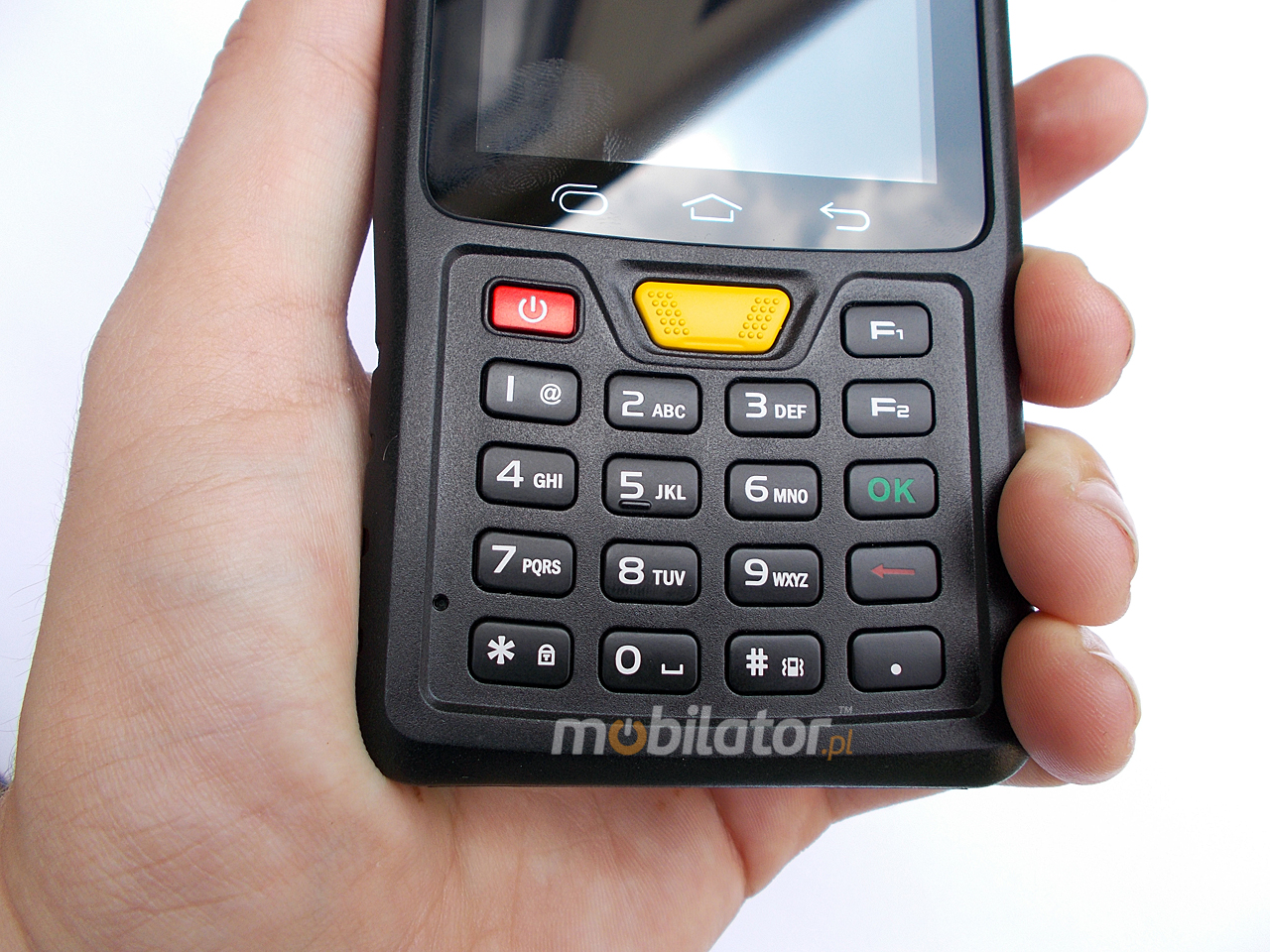

 Keyboard  Numeric (+function keys) + On-Screen
 Environment  Android 5.1
 Modules (factory)
  4G LTE WCDMA : WiFi : Bluetooth  V4.0 : GPS+A-GPS
 Dimensions  168 × 75 × 26mm- 350g
 Resistance  IP65
 Readers  1D (Laser - Symbol SE955) : RFID UHF (865-868MHz) - 2,8-4m
 Readers (optional)
 - 1D - Honeywell: N4313 (LASER)

  1D/2D - MOTOROLA: SE4710 (CMOS)
Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

Select a version for yourself

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".


 Standard
 1D (Laser - Honeywell N4313)
 1D(Laser - Motorola SE955)

1D (Laser-Zebra EM1350)

NFC RFID

 RFID UHF (2,8-4m)
 2D (Motorola SE4710) 2D (Newland EM3096)
 with Printer
v.0
 - - - - - - - -
v.0.1 - - - - - - - -
v.0.2 - - - - - - - -
v.1 - - - - - - - -
v.1.Z
 - - - - - - -
v.4 - - - - - - - -
v.7 - - - - - - - -
v.8 - - - - - - -
v.8.Z
 - - - - - -
v.9 - - - - - - -
v.10 - - - - - - -
v.11
 - - - - - - - -
v.12
 - - - - - - -
v.1.P
 - - - - - - -
v.4.P - - - - - - -
v.8.P - - - - - -
v.12.P - - - - - -

do góry… do góry menu… menu

The collection and processing of data

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

1D 1D / 2D
Honeywell N4313 (LASER) MOTOROLA: SE4710 (CMOS)
MOTROLA: SE955 (LASER)

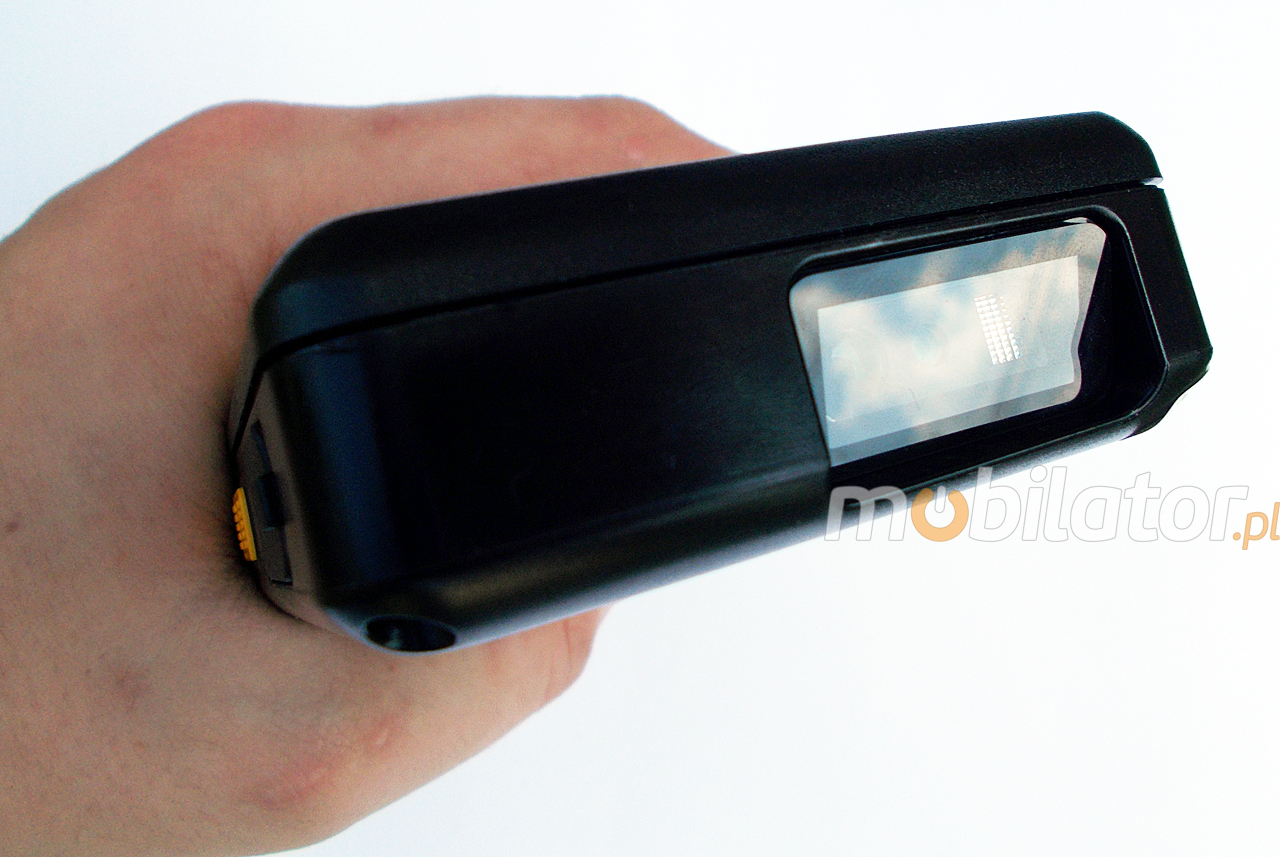

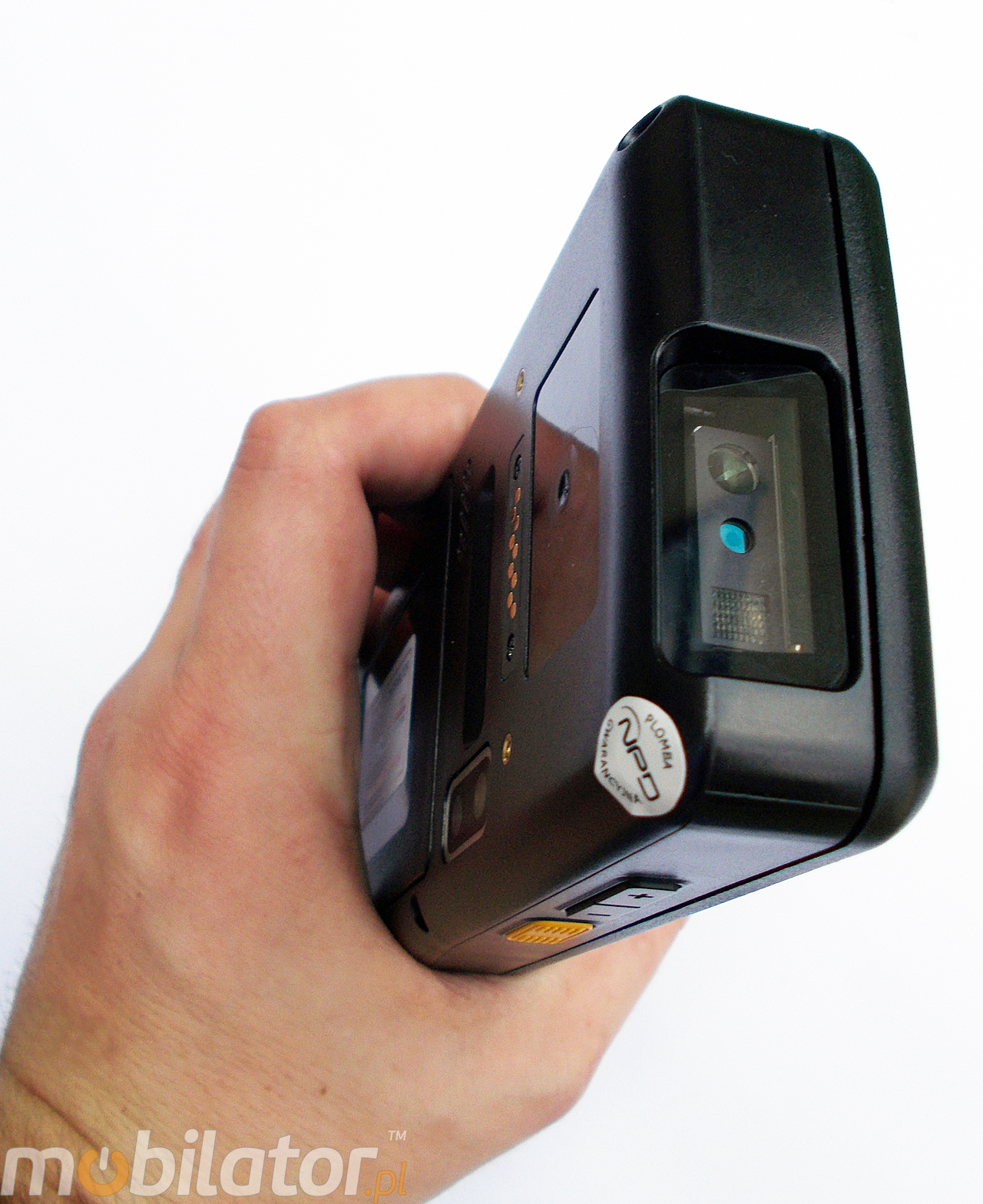

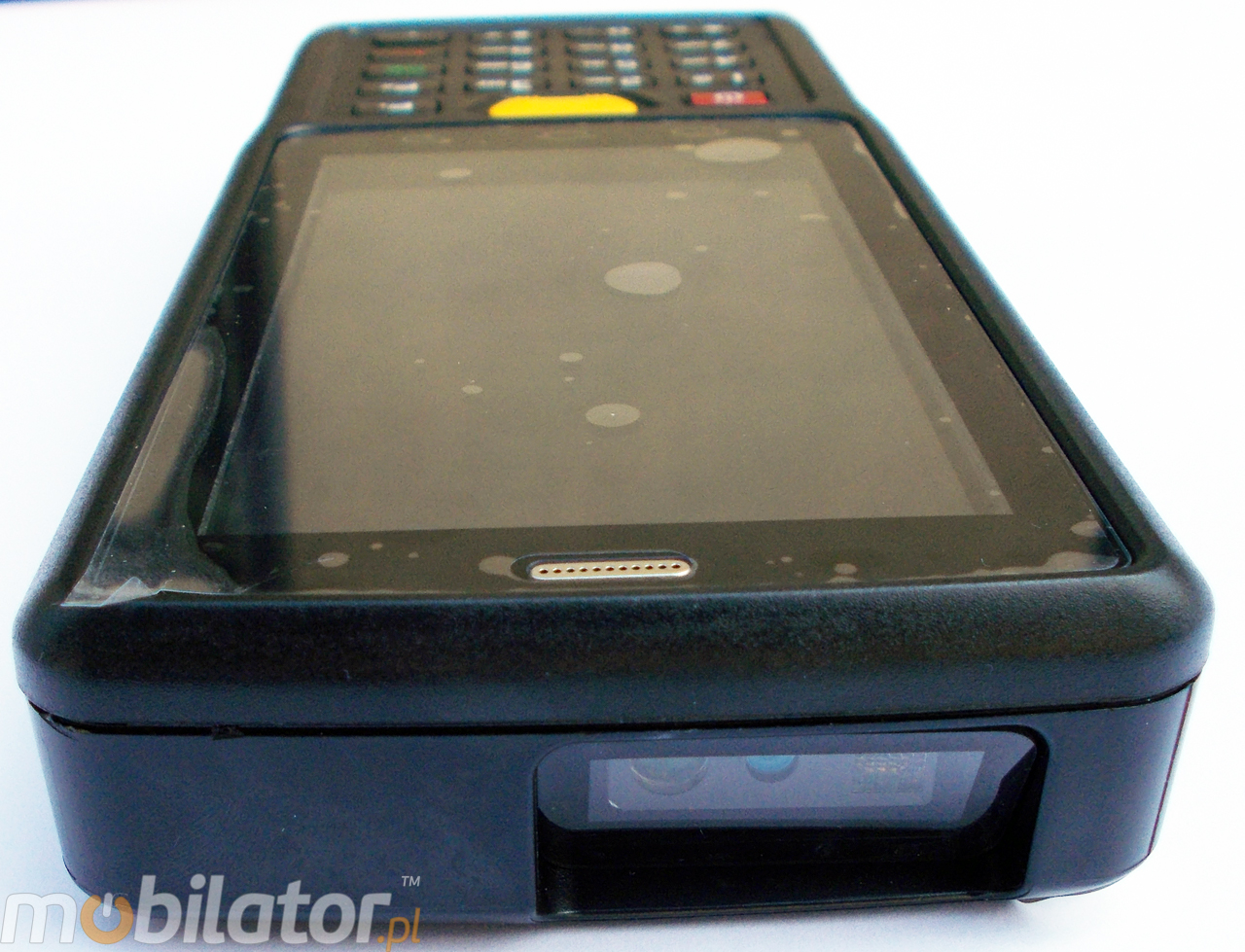

senter ST908W 1d 2d barcode scanner

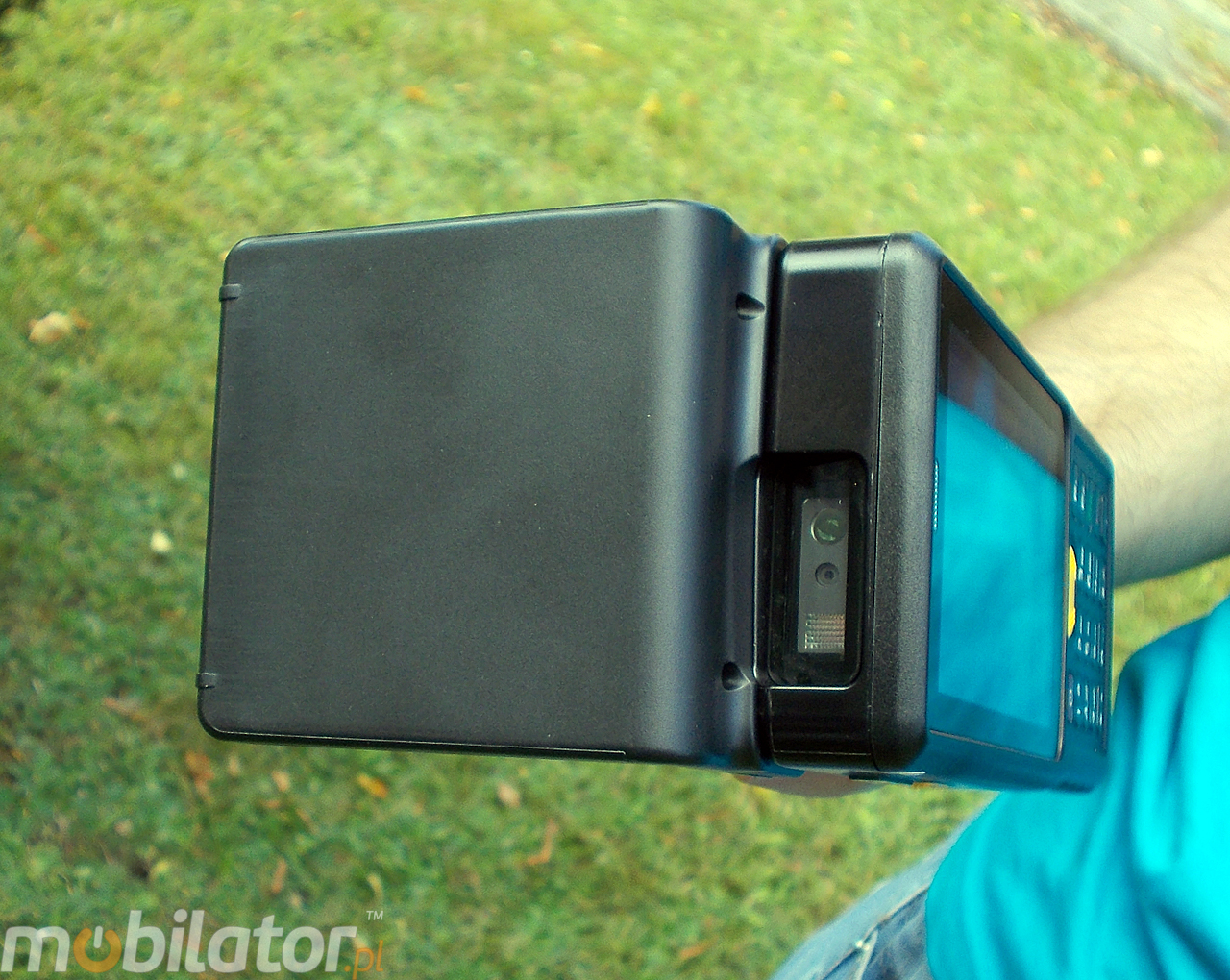

RFID

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of  products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

UHF
865-868Mhz
UHF  (EPC C1 GEN2/ISO 18000-6C /ISO18000-6B) - (2,8-4m)

RFID UHF (840-960Mhz)

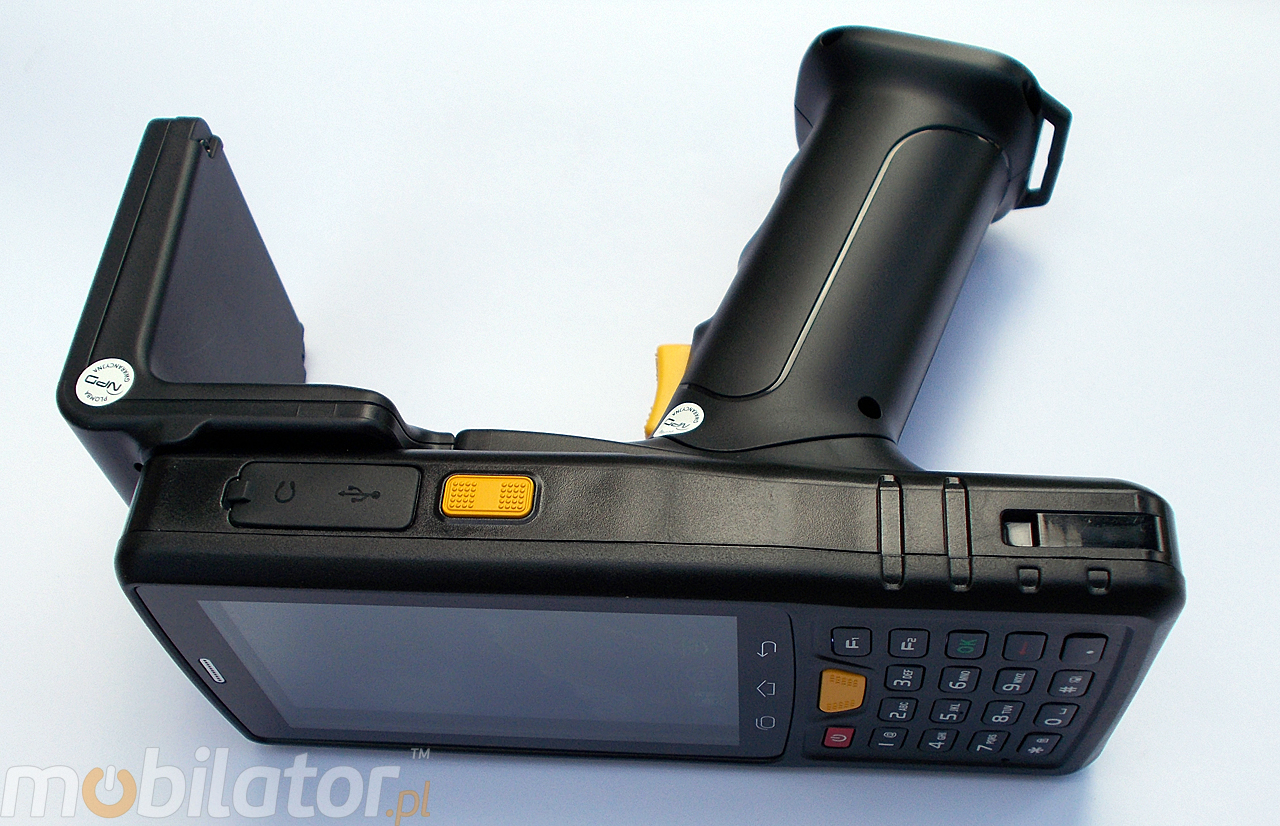

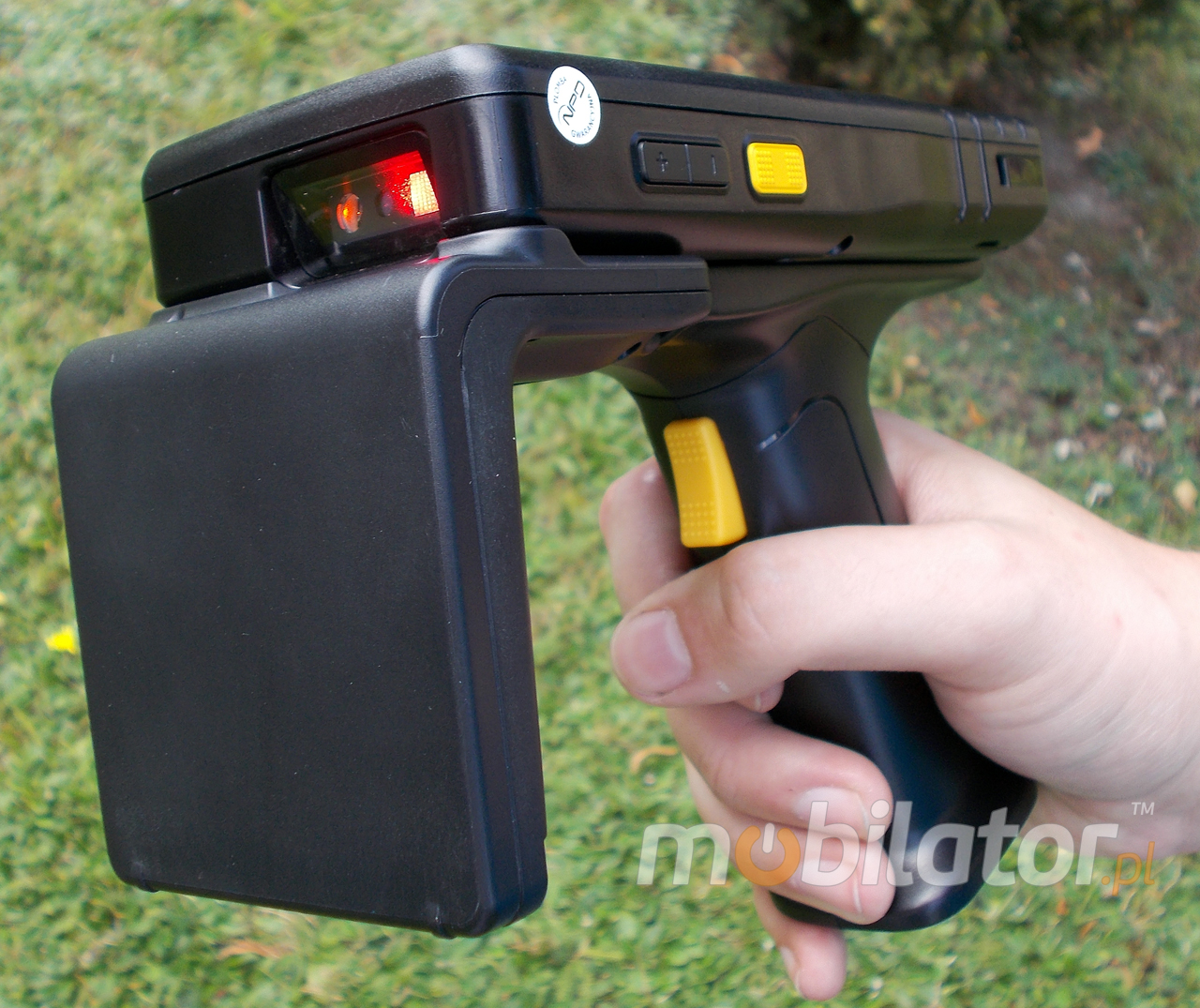

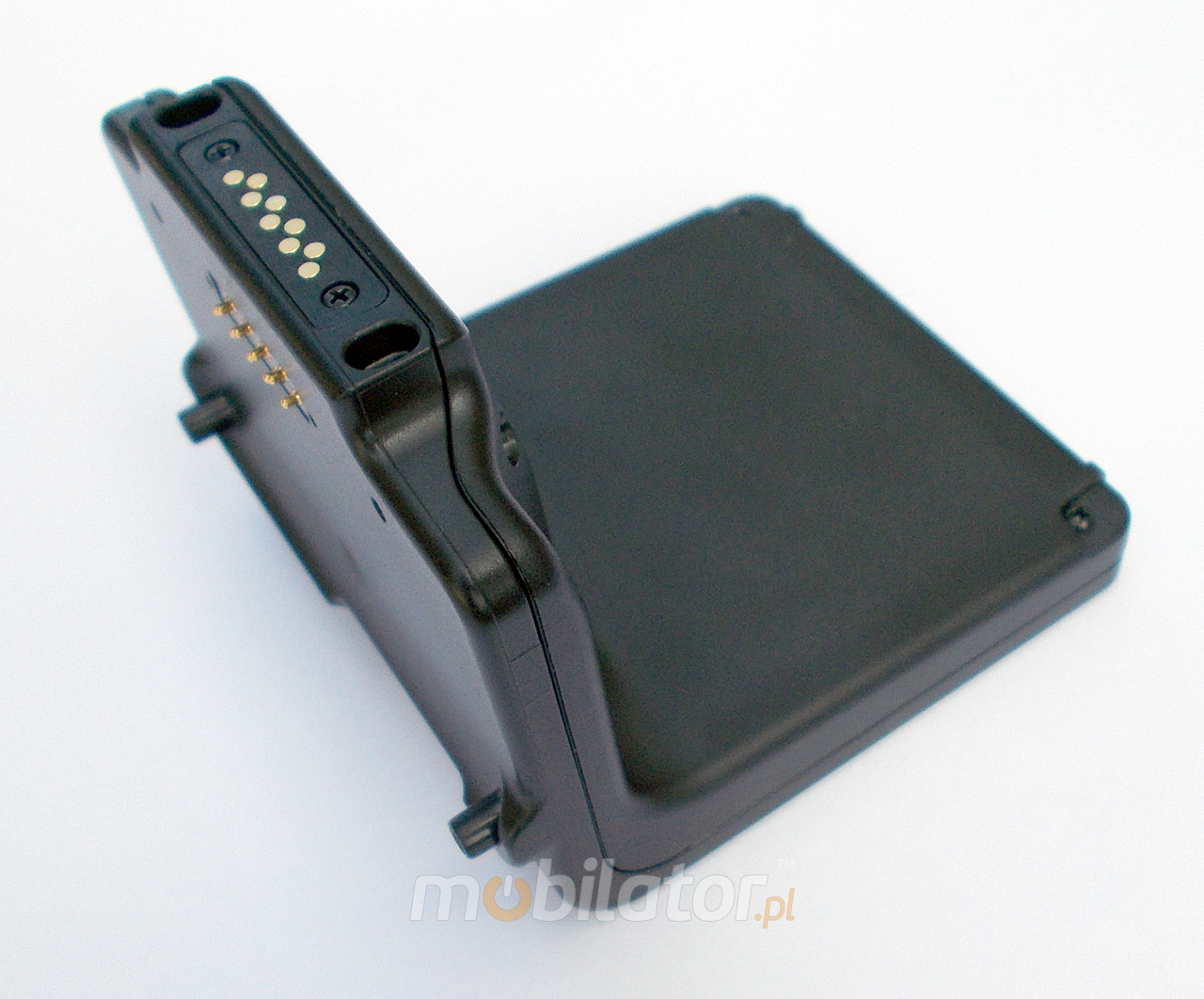

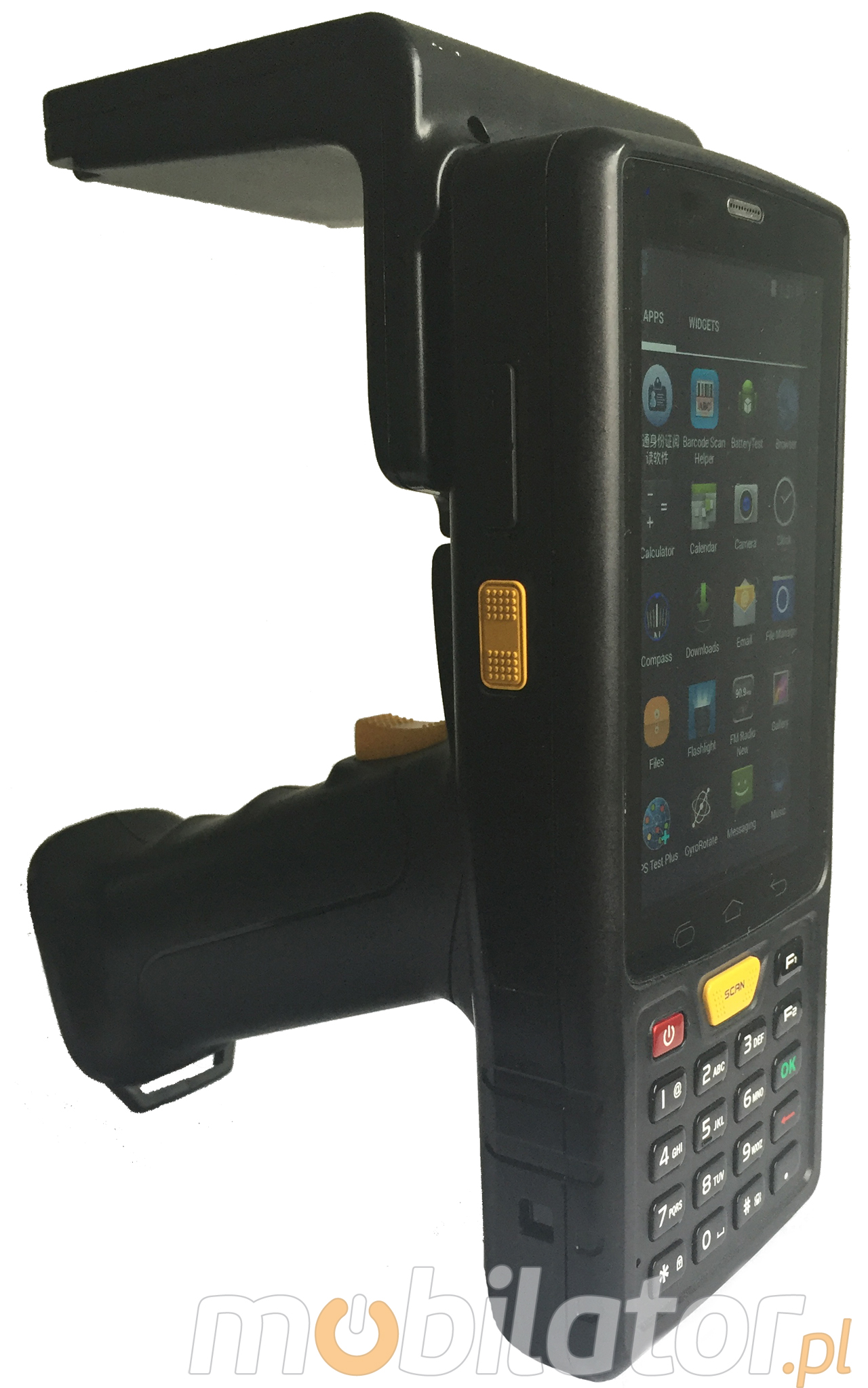

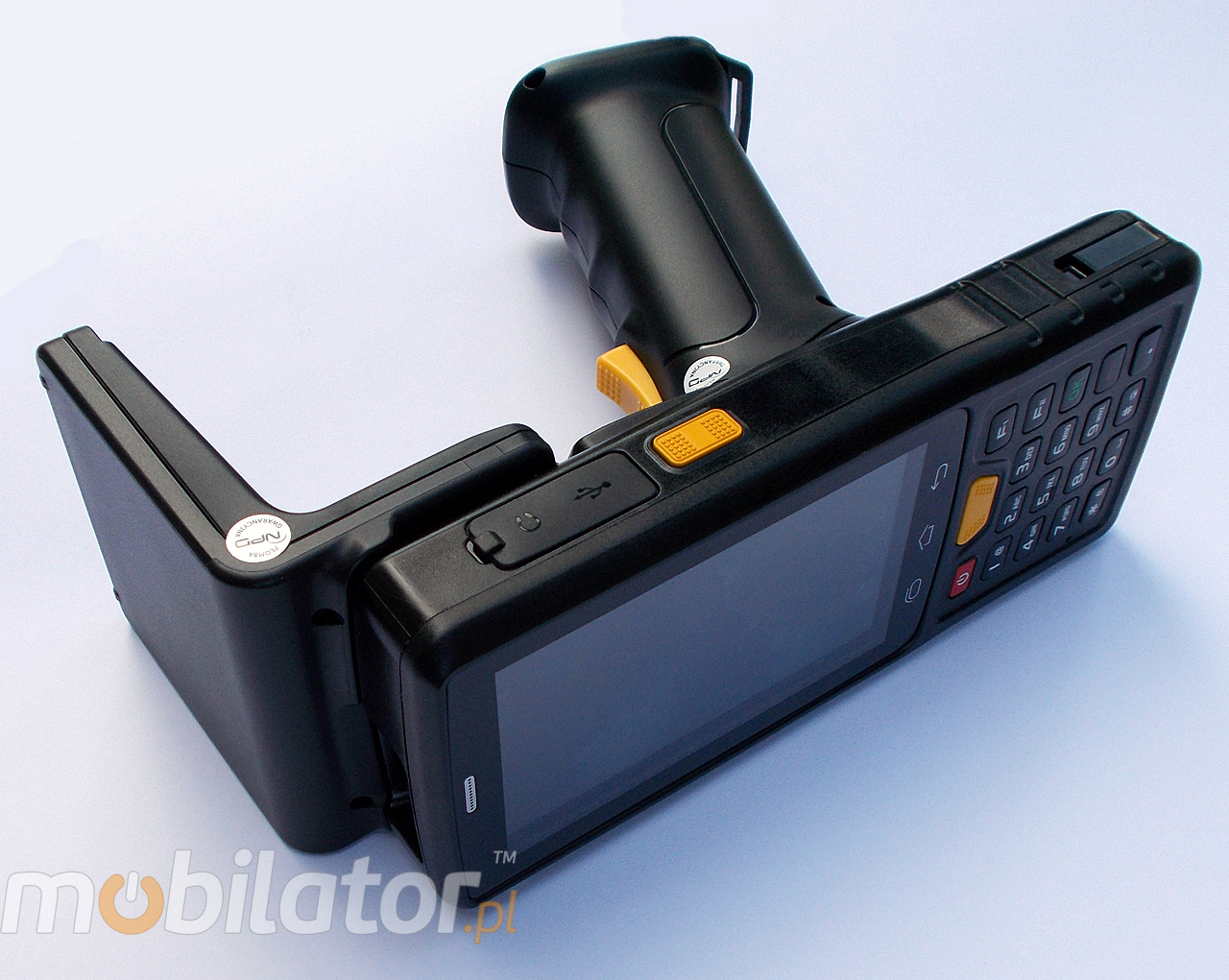

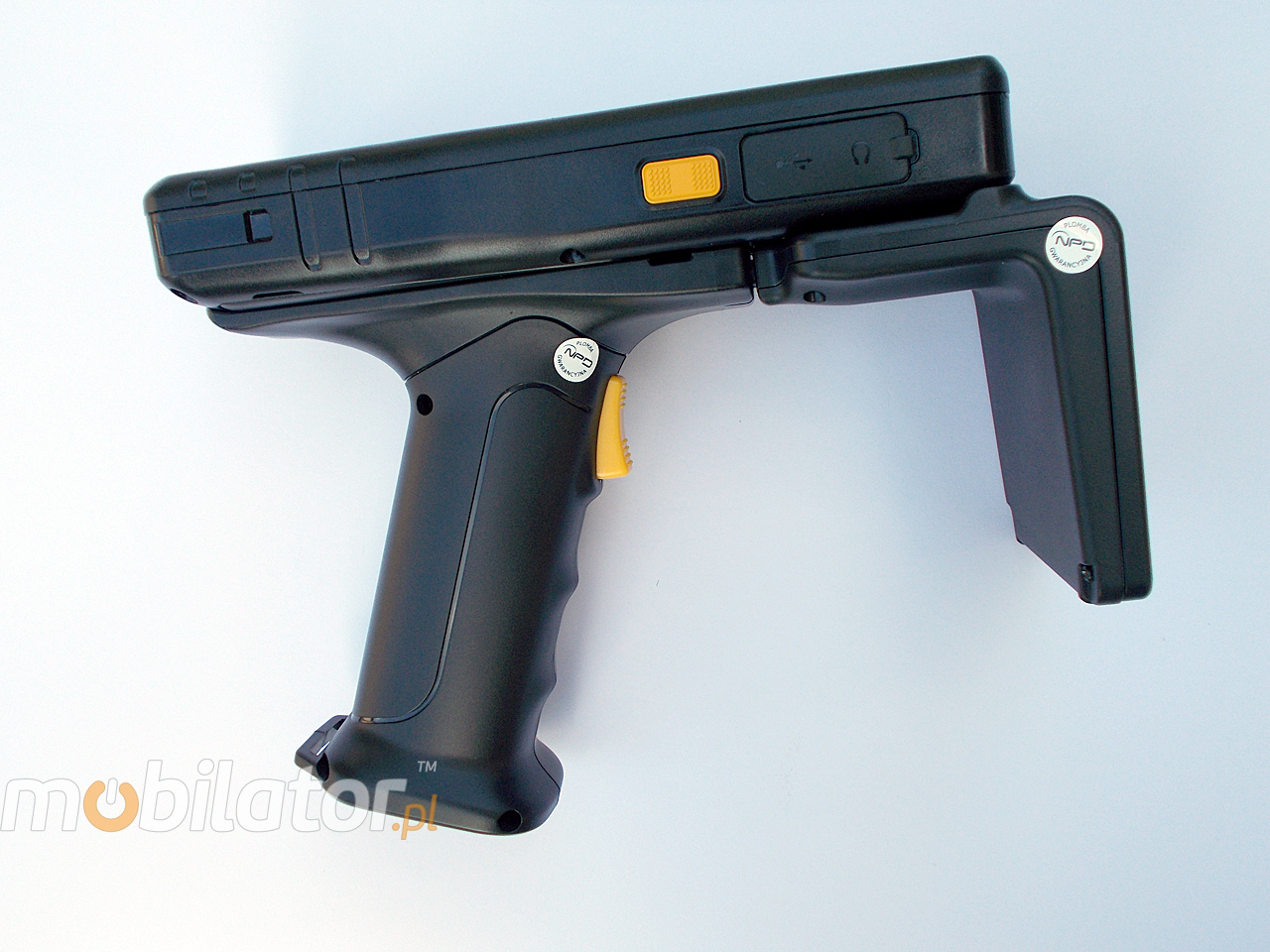

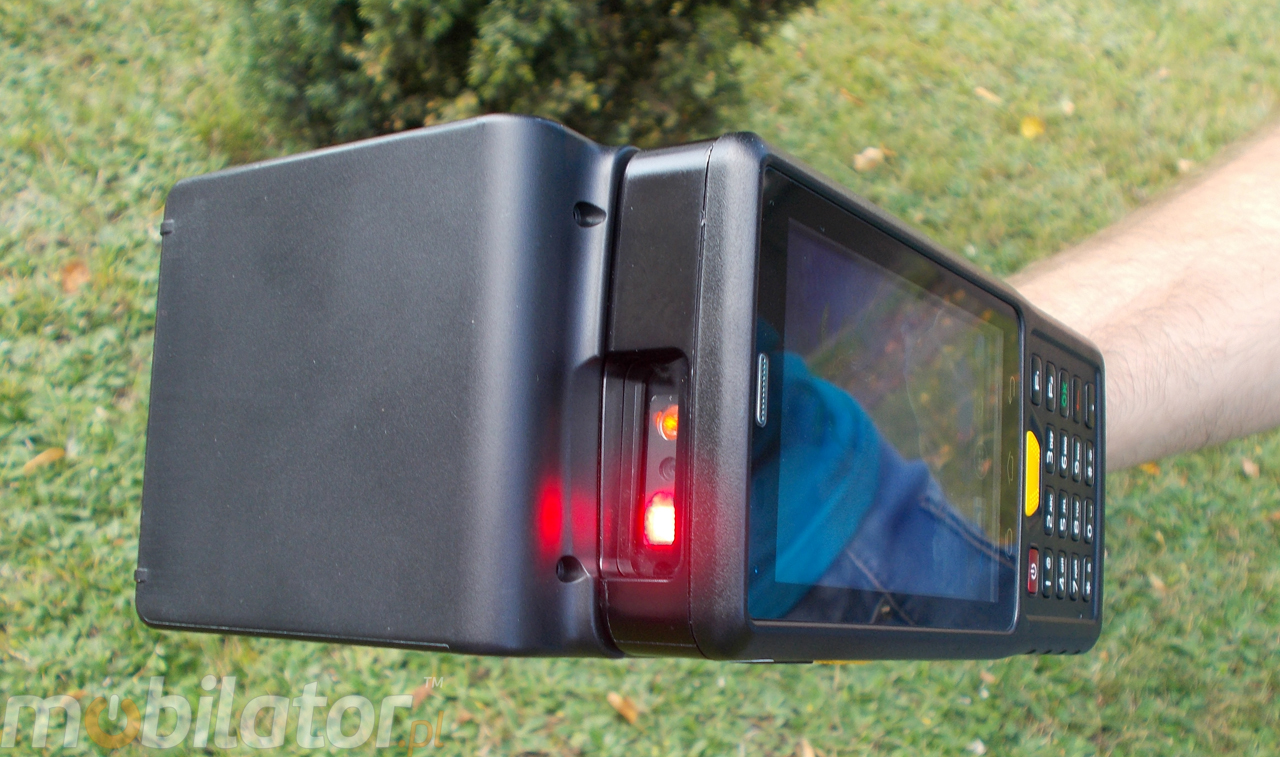

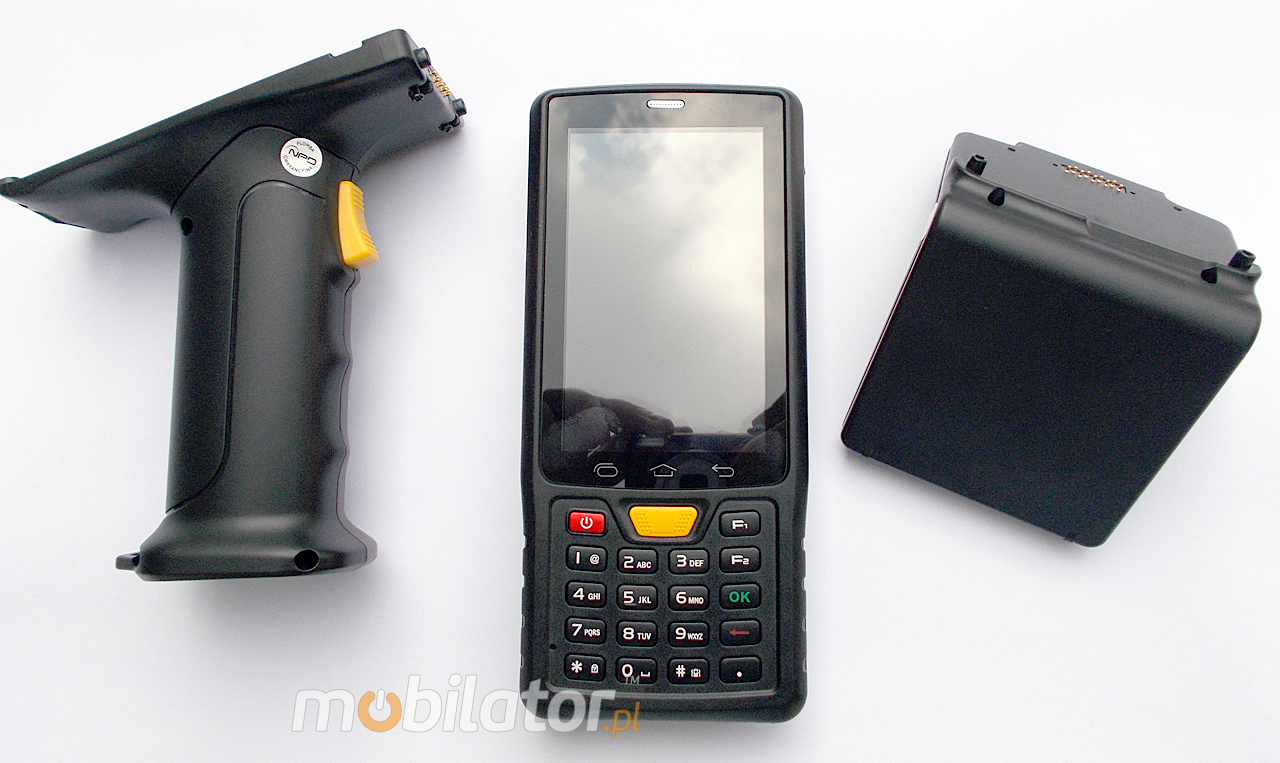

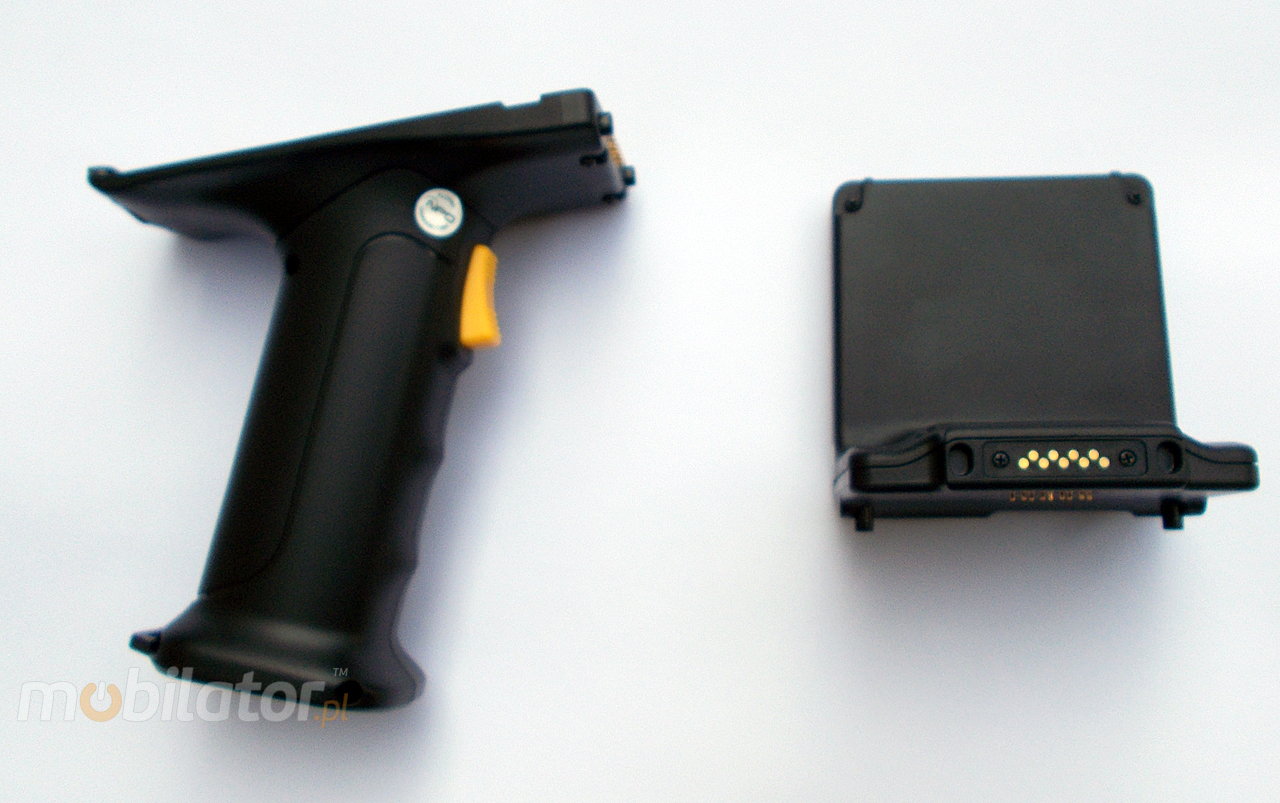

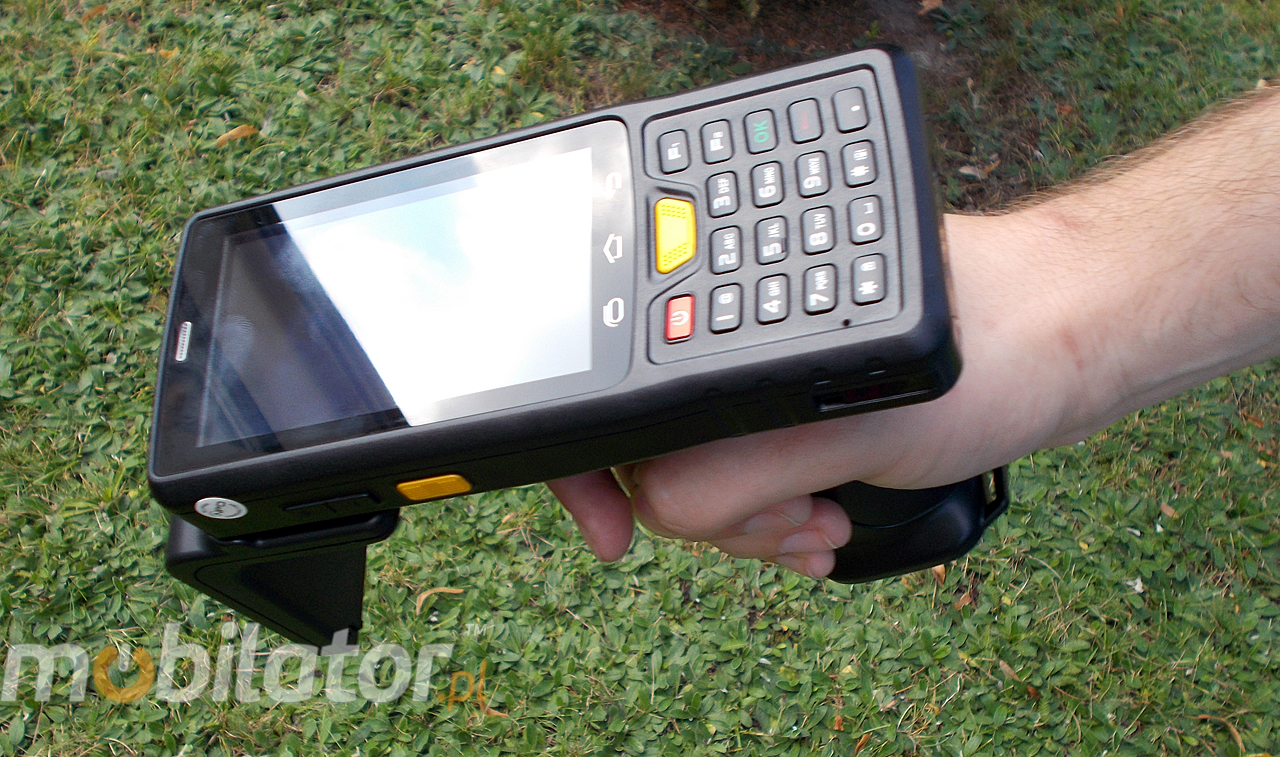

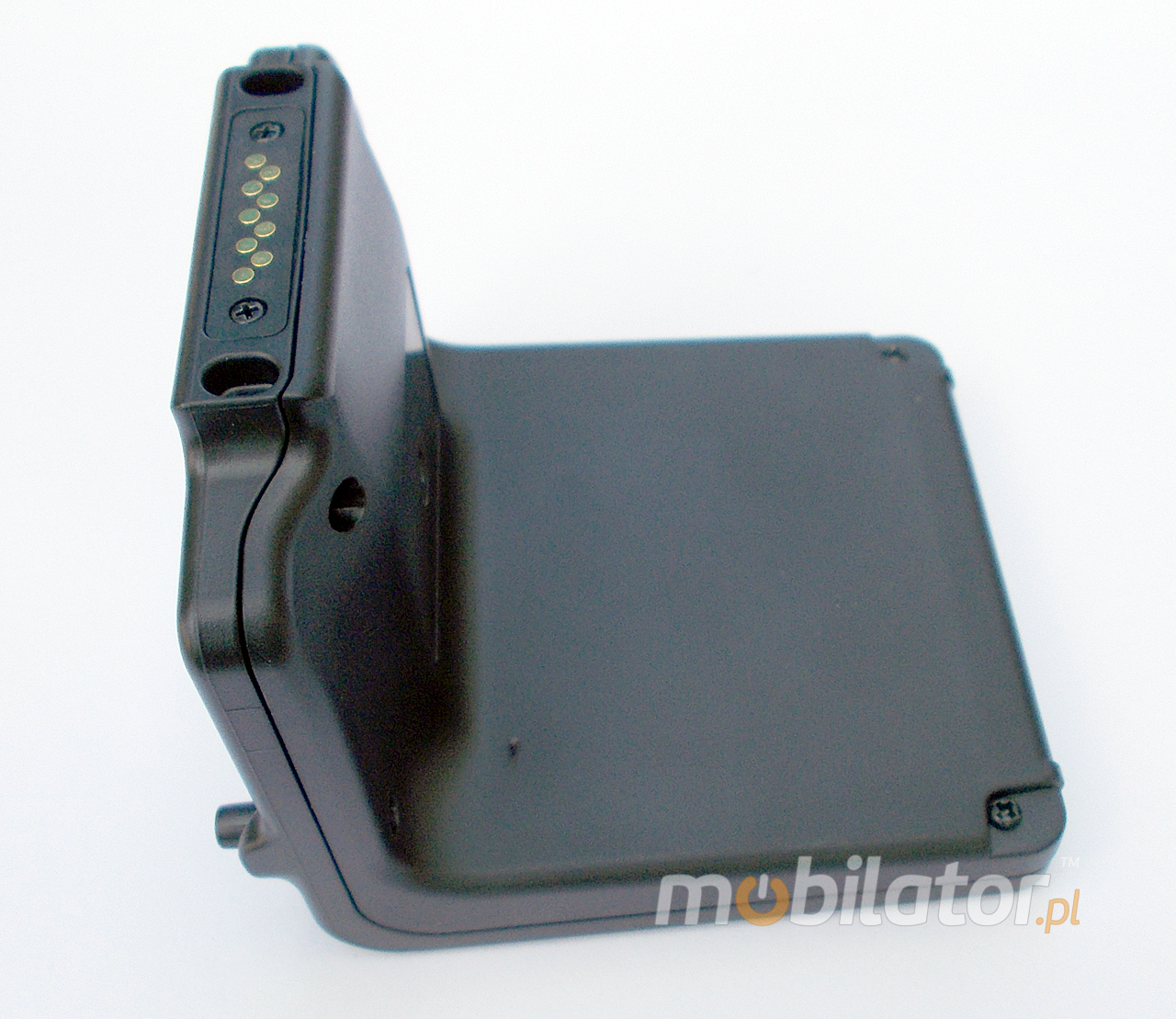

Senter ST908W rfid uhf 1d 2d barcode scanner

In the UHF (Ultra High Frequency) band, where RFID tags work according to the principles of the electromagnetic coupling, the most popular technology at the moment is the one based on the ISO 18000-6C protocol, best known as EPC Class 1 Gen 2 or for short Gen 2. The EPC Class 1 Gen 2 standard was proposed by the private organization EPCGlobal and then adopted in 2006 as the ISO 18000-6C standard by the International Standards Organization (ISO).  The EPC Class 1 Gen 2 standard was created to address some issues of previous UHF RFID standards conceived for logistics applications (such as the ISO 18000-6a and the ISO 18000-6b). The new standard was developed specifically to track fluxes of goods between different companies and across all world regions with good read performance in environments with a high density of tags.

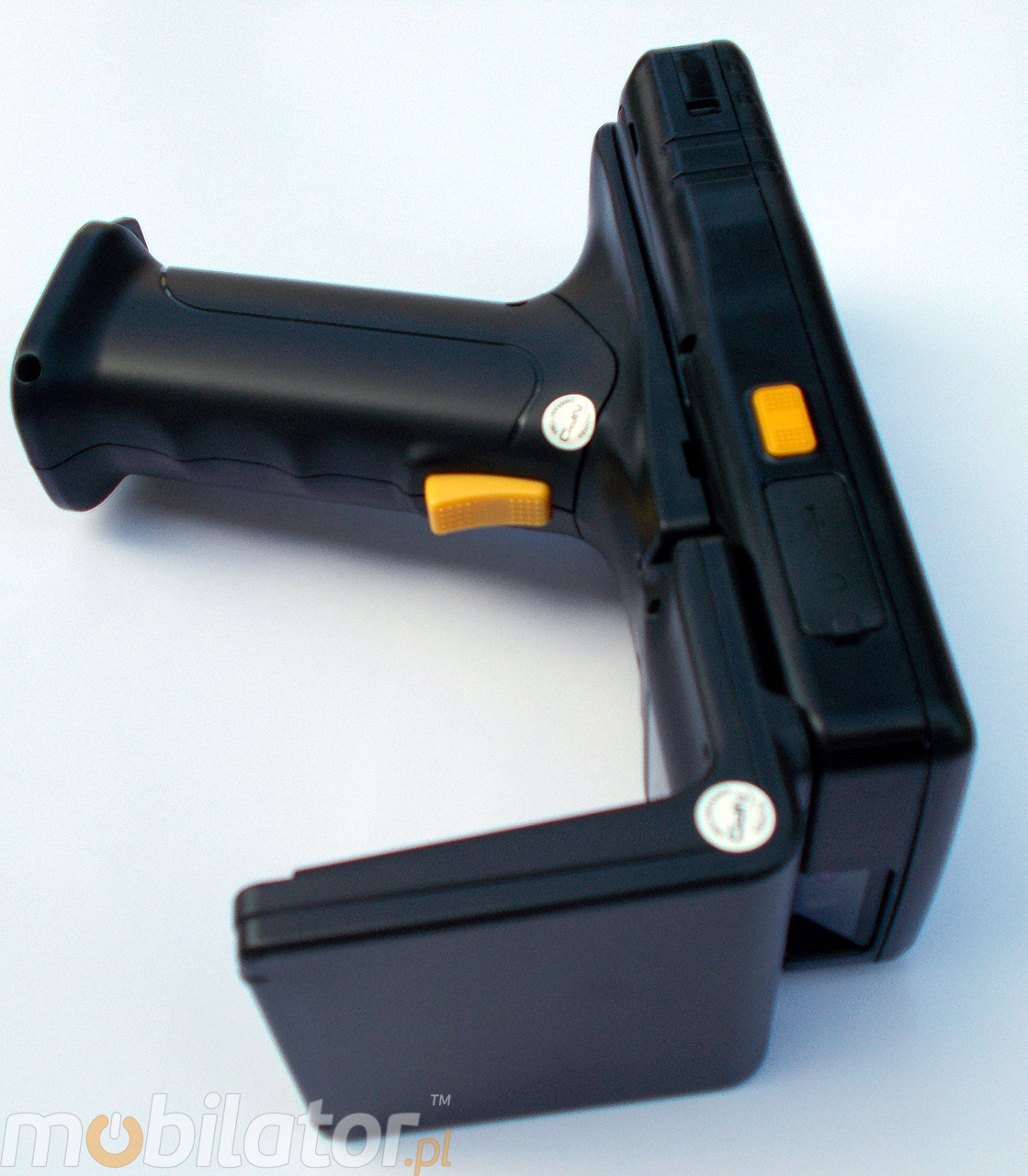

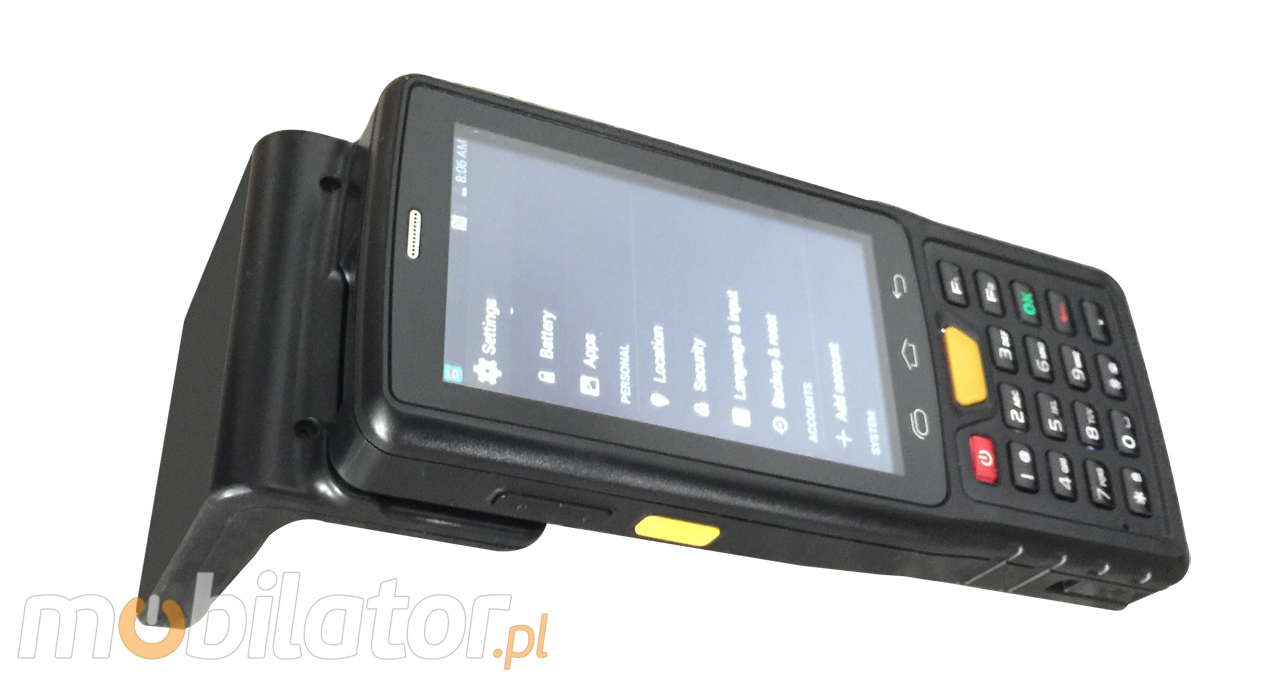

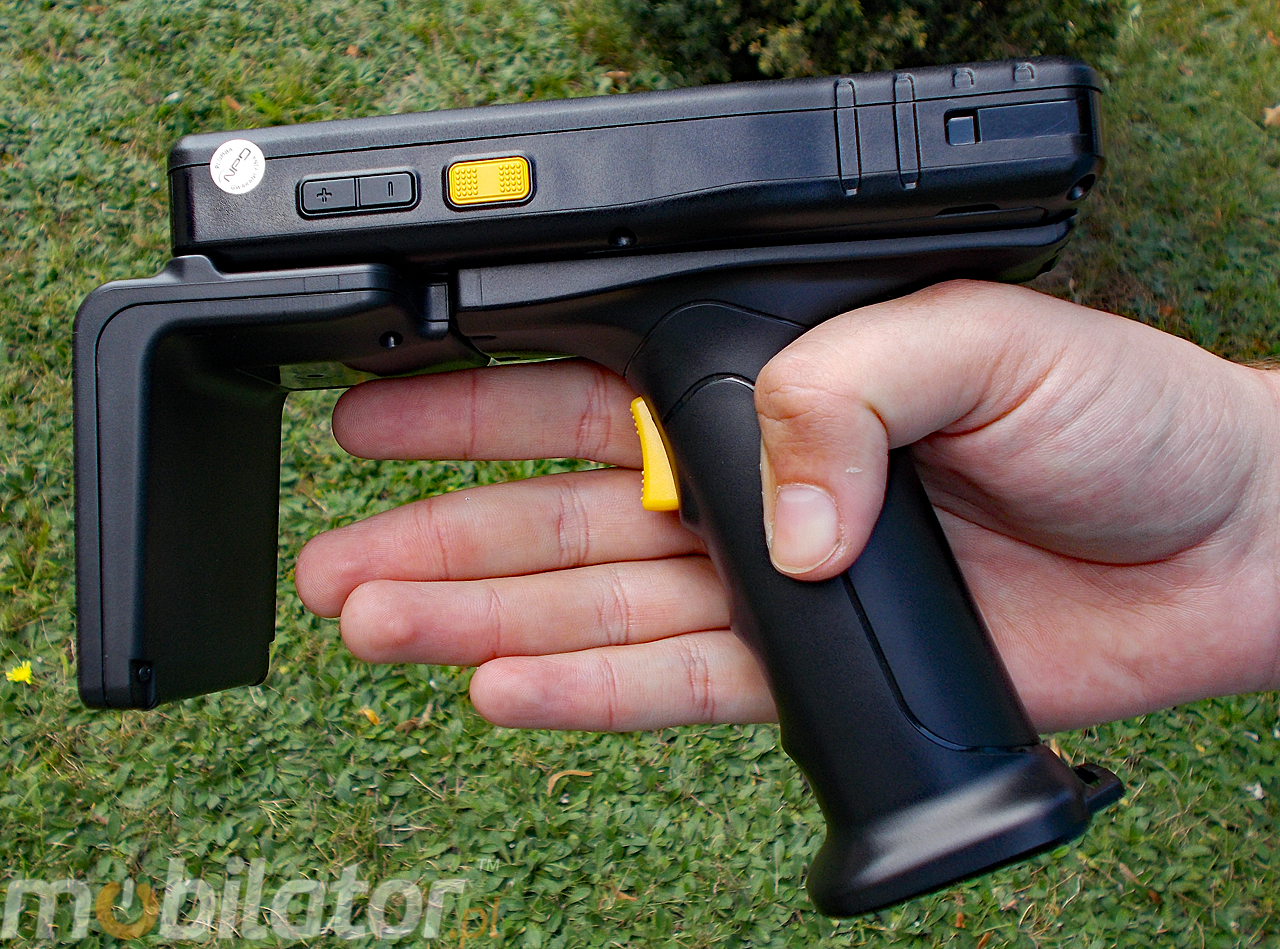

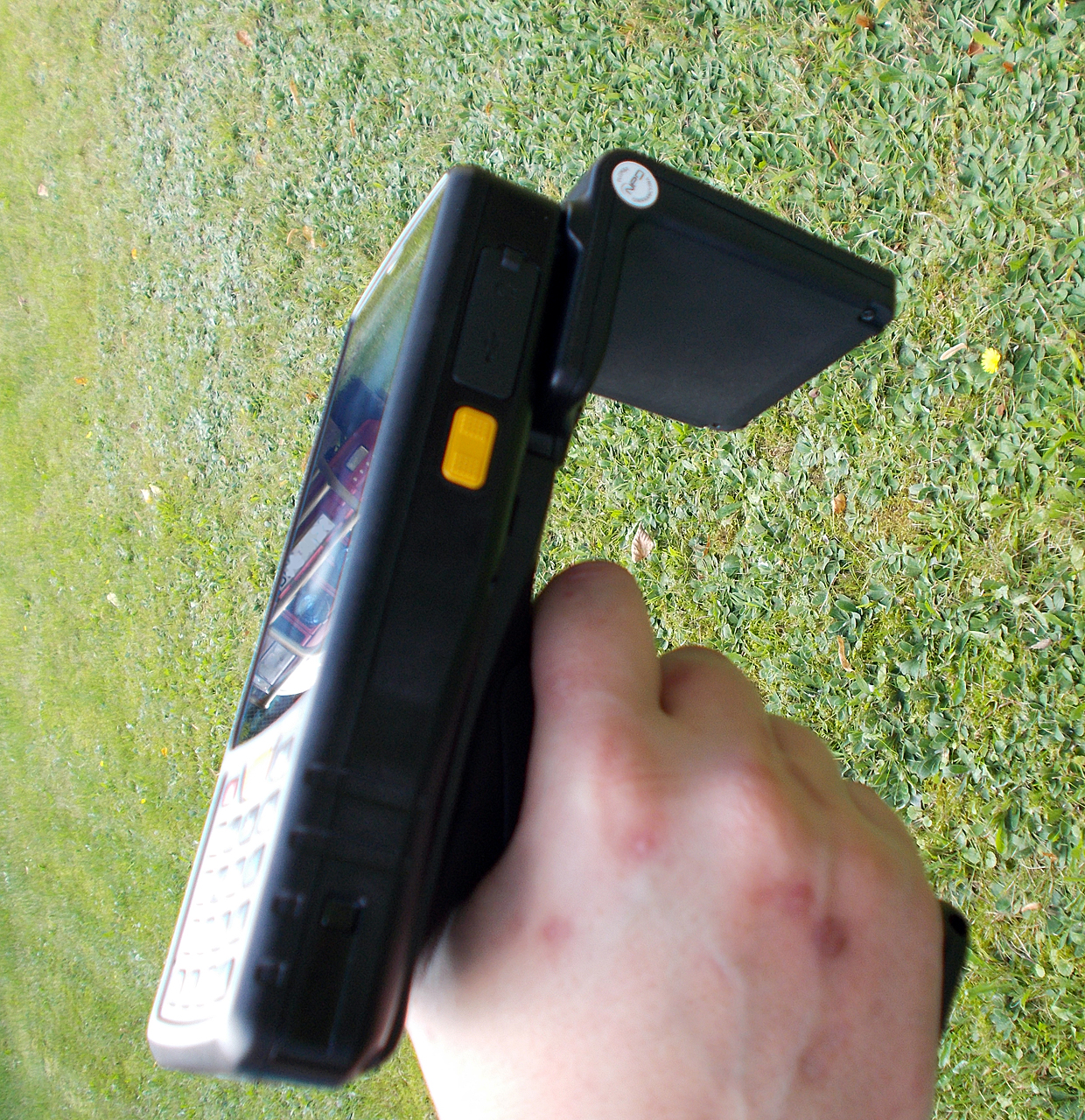

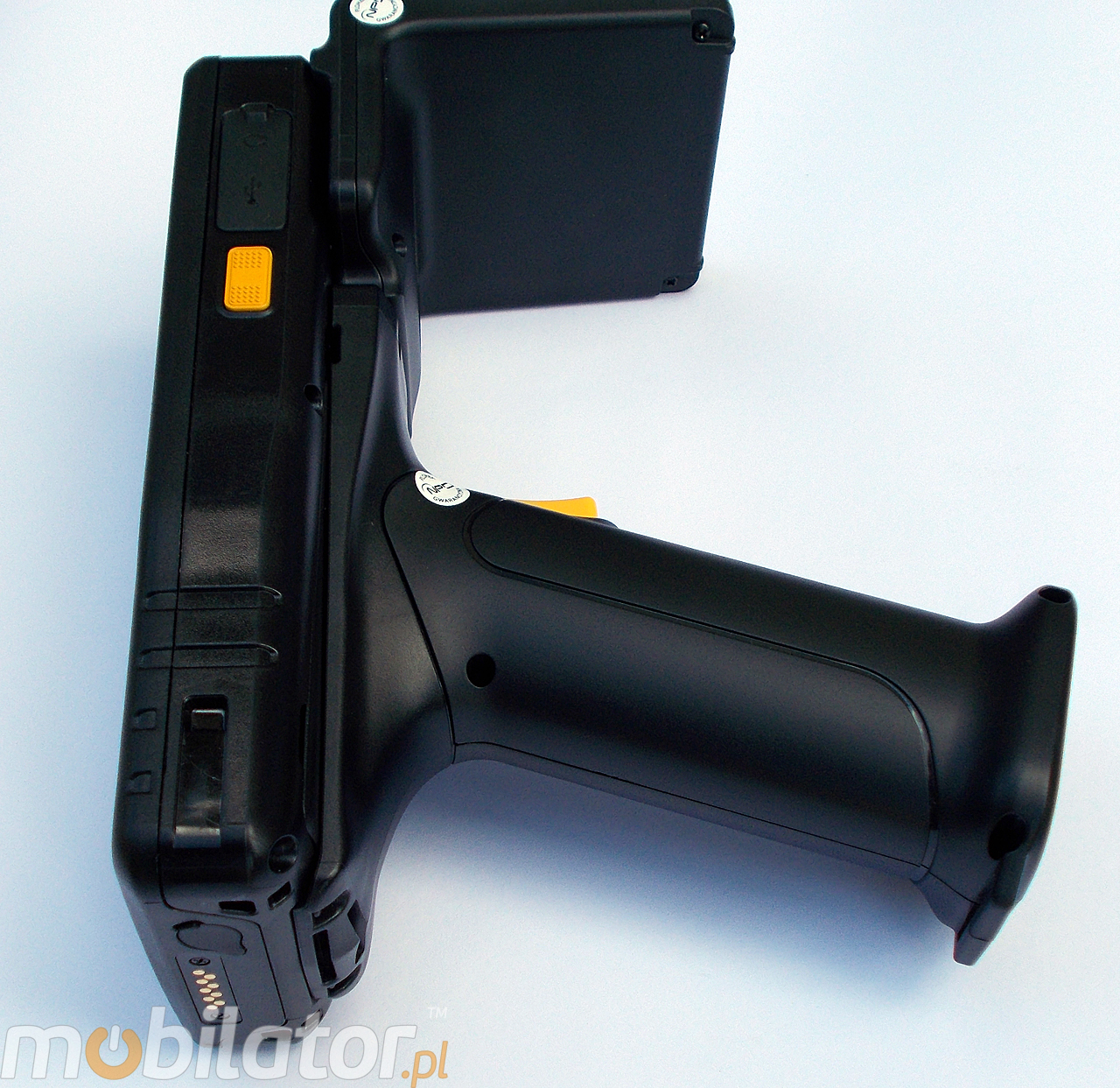

senter ST908W rfid uhf

go top... do góry menu… menu



Resitance

Applicable standards

Operating -30°C -- +50°C
Storage -40°C -- +60°C
Humidity 5% - 95% RH | non-condensing
Dust IP6x (dust)
Water IPx5 (water)
Drop Multiple drops to concrete 4ft./1.2m the entire operation range

go top... do góry menu… menu

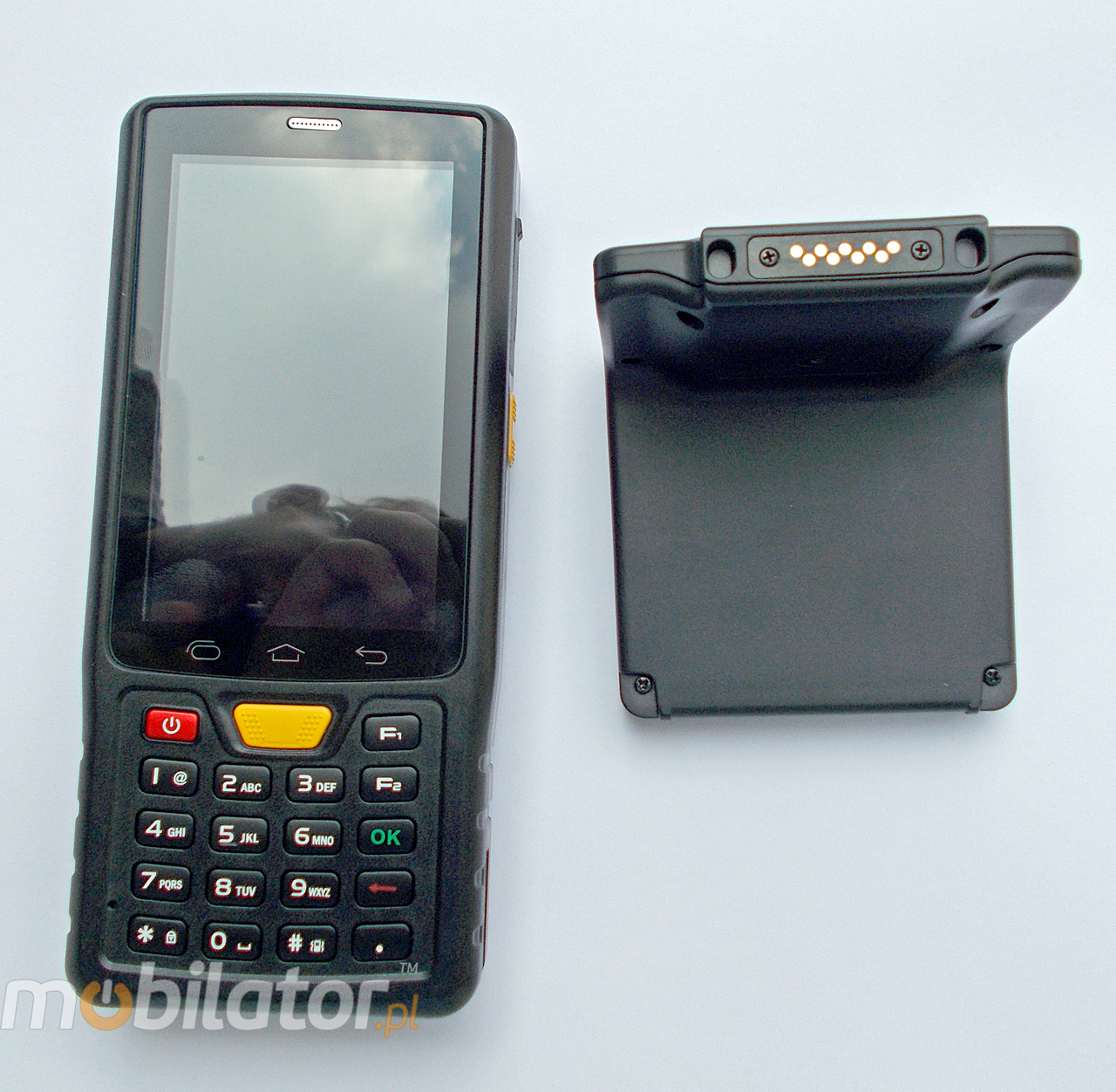

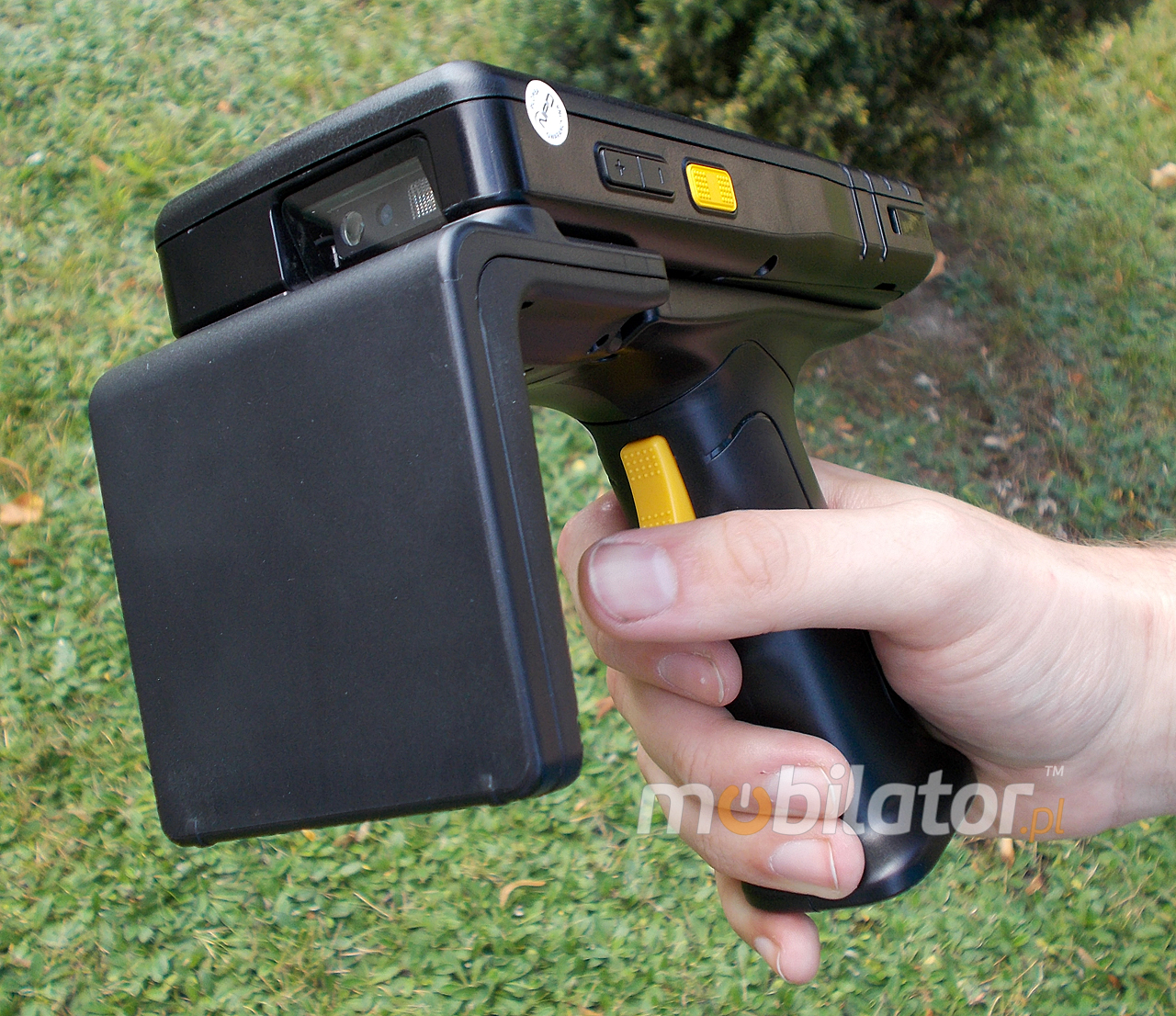

senter ST908W uhf rfid 1d 2d

IP65 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection
0

0
No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1

Protection from dripping water
Protection from solid objects greater than 50mm in diameter
2

2
Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3
Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4
Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5
Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6
Protection from water projected from a nozzle


7
Protection against immersion


8

Protection against complete, continuous submersion in water

go top... do góry menu… menu



Modules and Wireless Networks

senter ST908W gprs 3g wcdma hsdpa 4g lte

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 4G LTE module used in Senter  adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

WiFi  802.11b/g/n
GPS  High sensitivity receiver : A-GPS
Bluetooth  Bluetooth  V4.0
4G LTE / WCDMA 2G:GSM 900/1800/1900  B2/B3/B8
3G:WCDMA: 850/1900/2100   B1/B2/B5
4G:LTE_ FDD: 1800/2100/2600   B1/B3/B7
LTE_TDD :2555-2655MHz/:2300-2400MHz B41/B40
   The ability to make voice calls

go top... do góry menu… menu

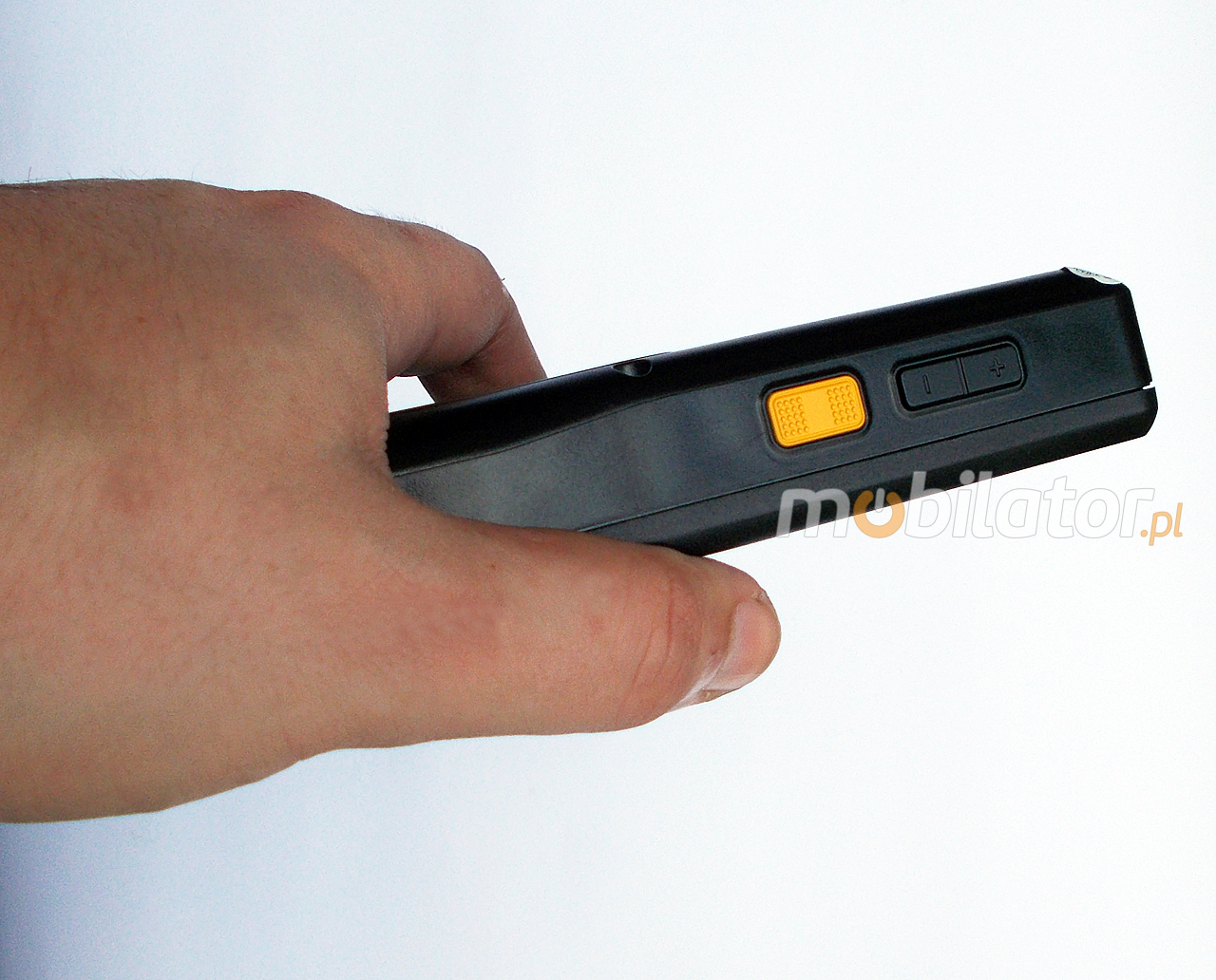

Minimalism

senter ST908W 1d 2d barcode scanner lase micro usb

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have ST308W. The device weighs just 350g and its dimensions (168 x 75 x 26mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that ST908W is in a group of devices which enjoy great popularity in the European market in the industrial segment.
 Dimensions 168 × 75 × 26mm
 Weight 350g

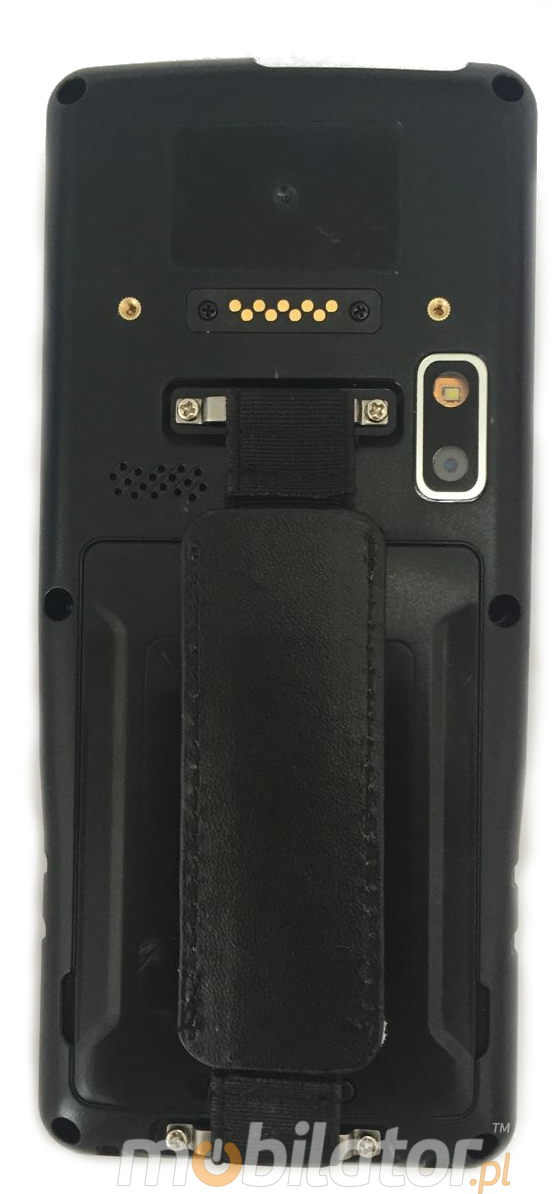

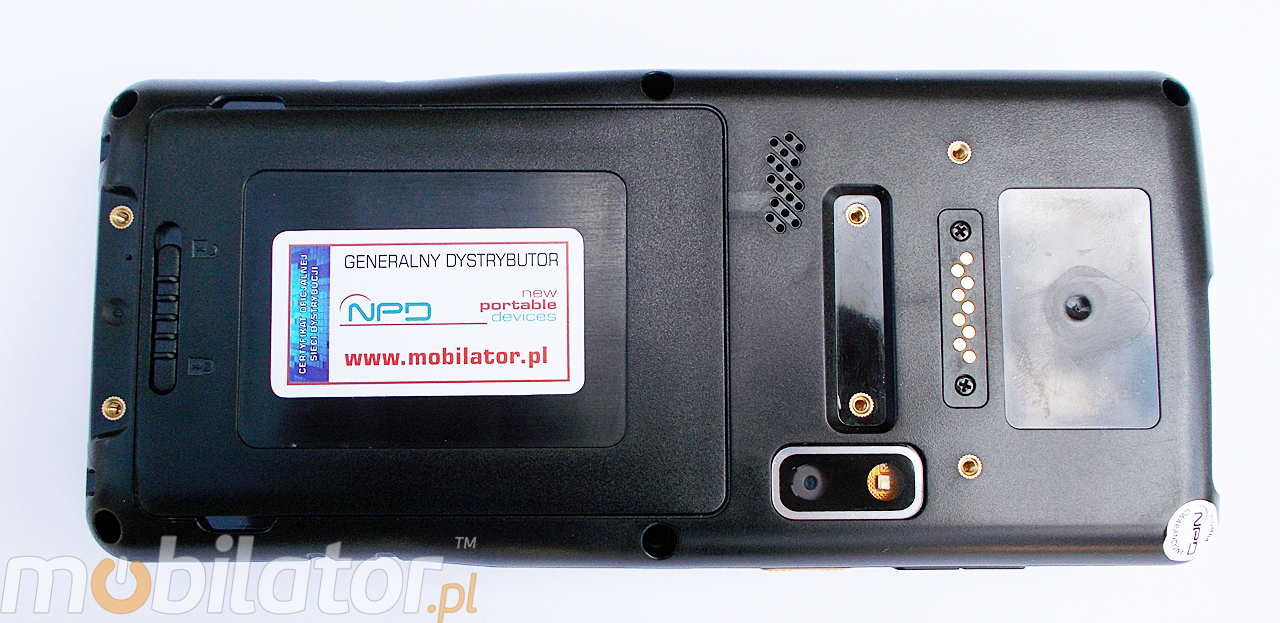

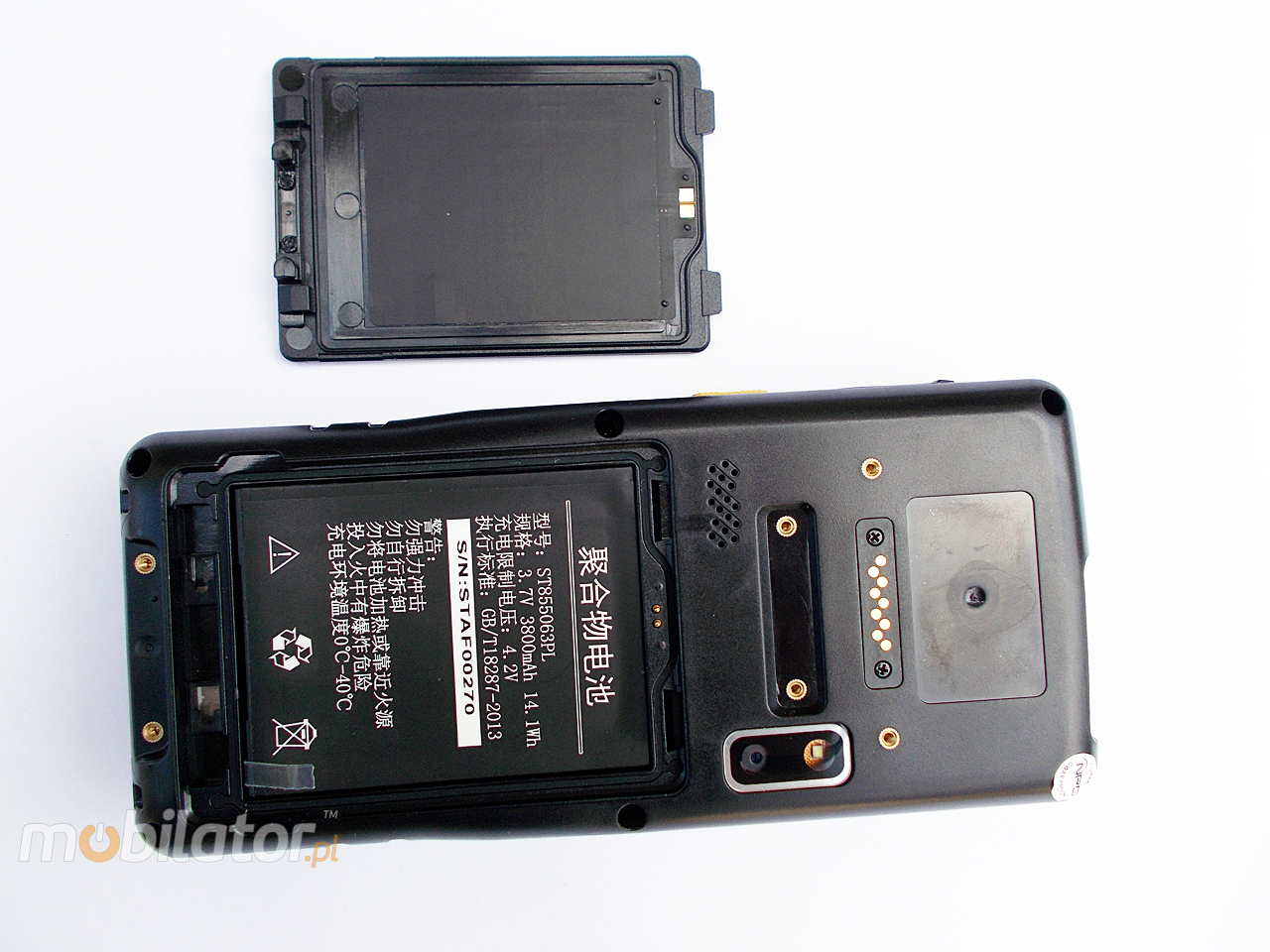

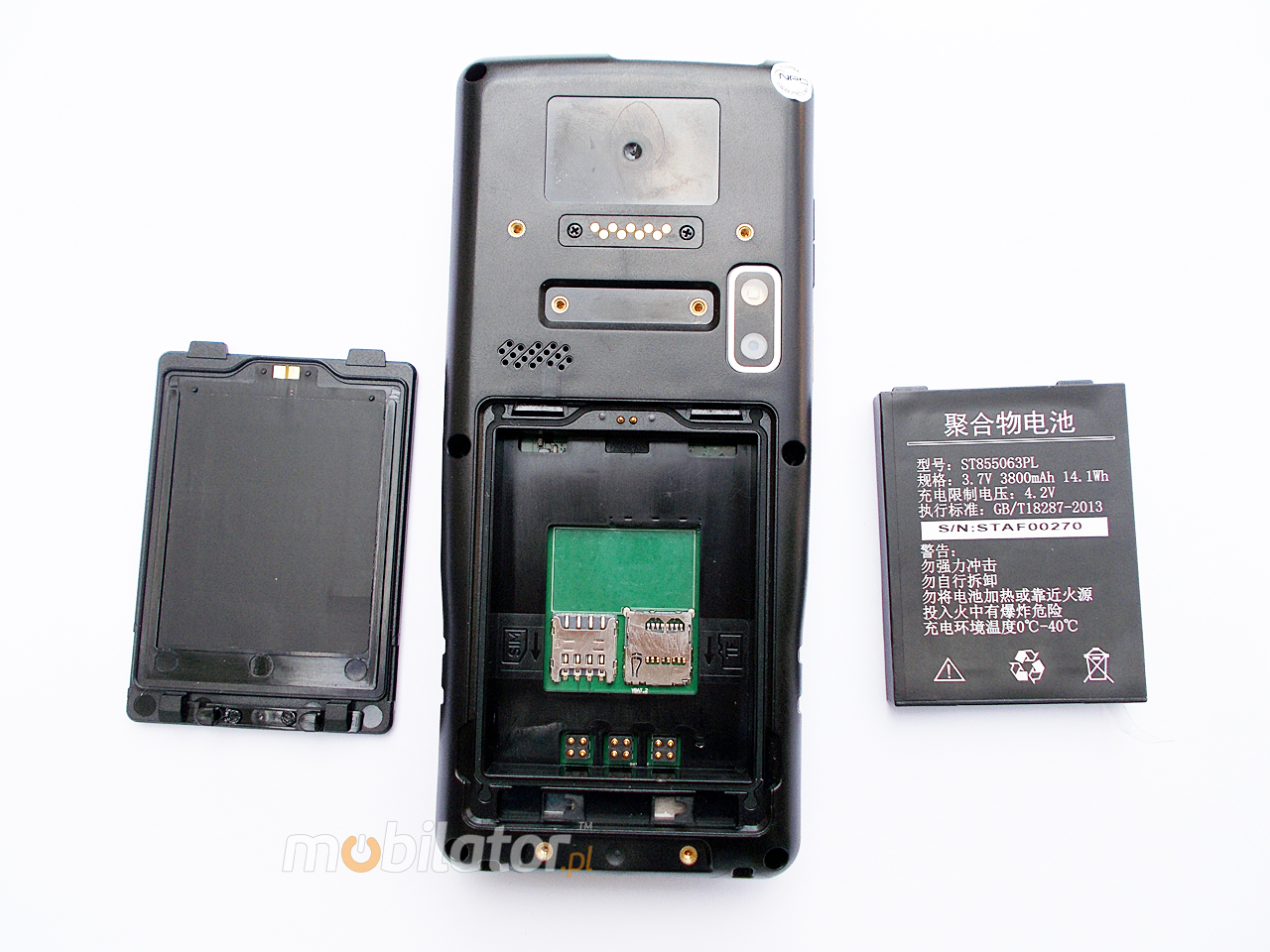

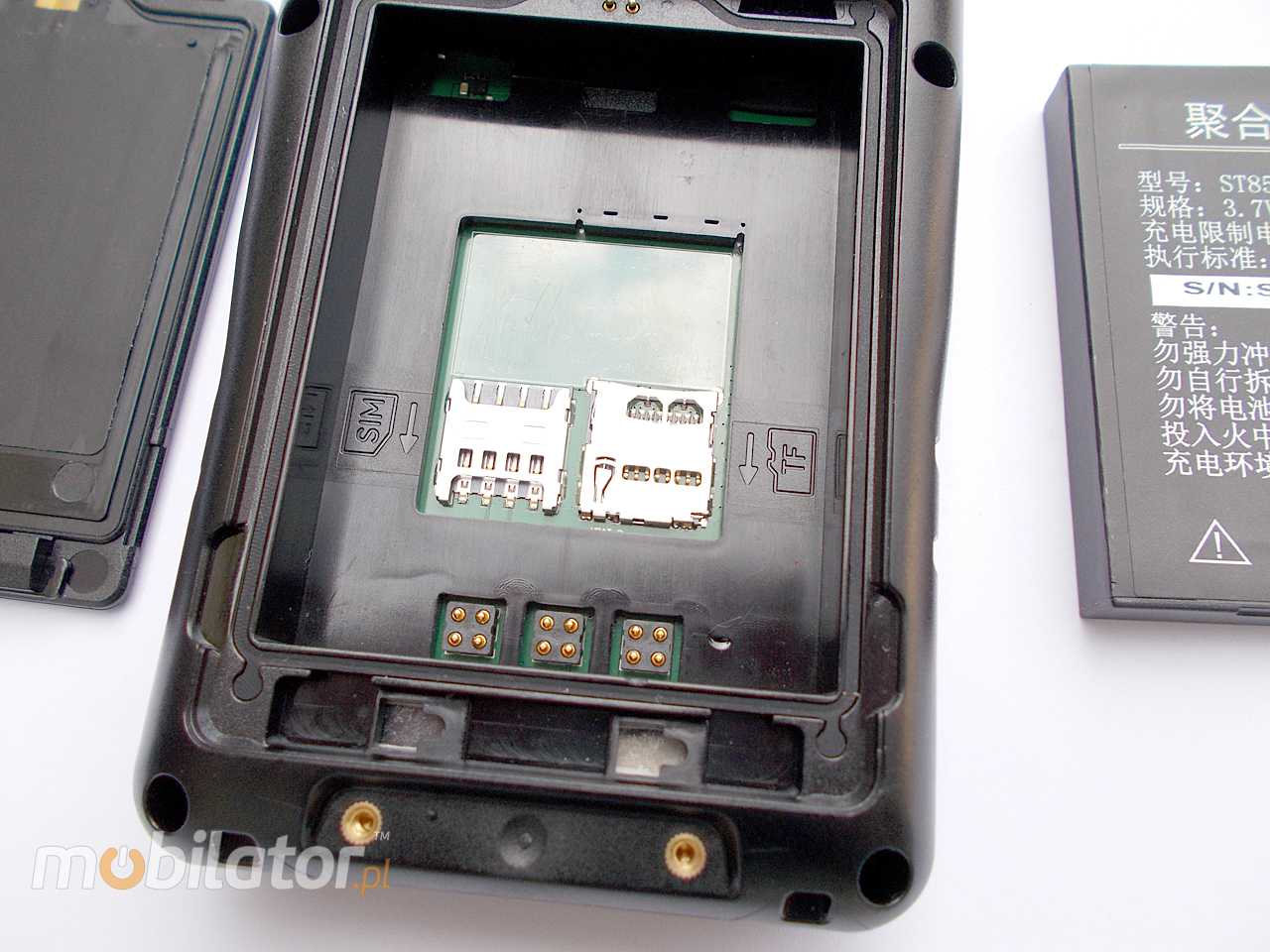

Quick change battery

Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.

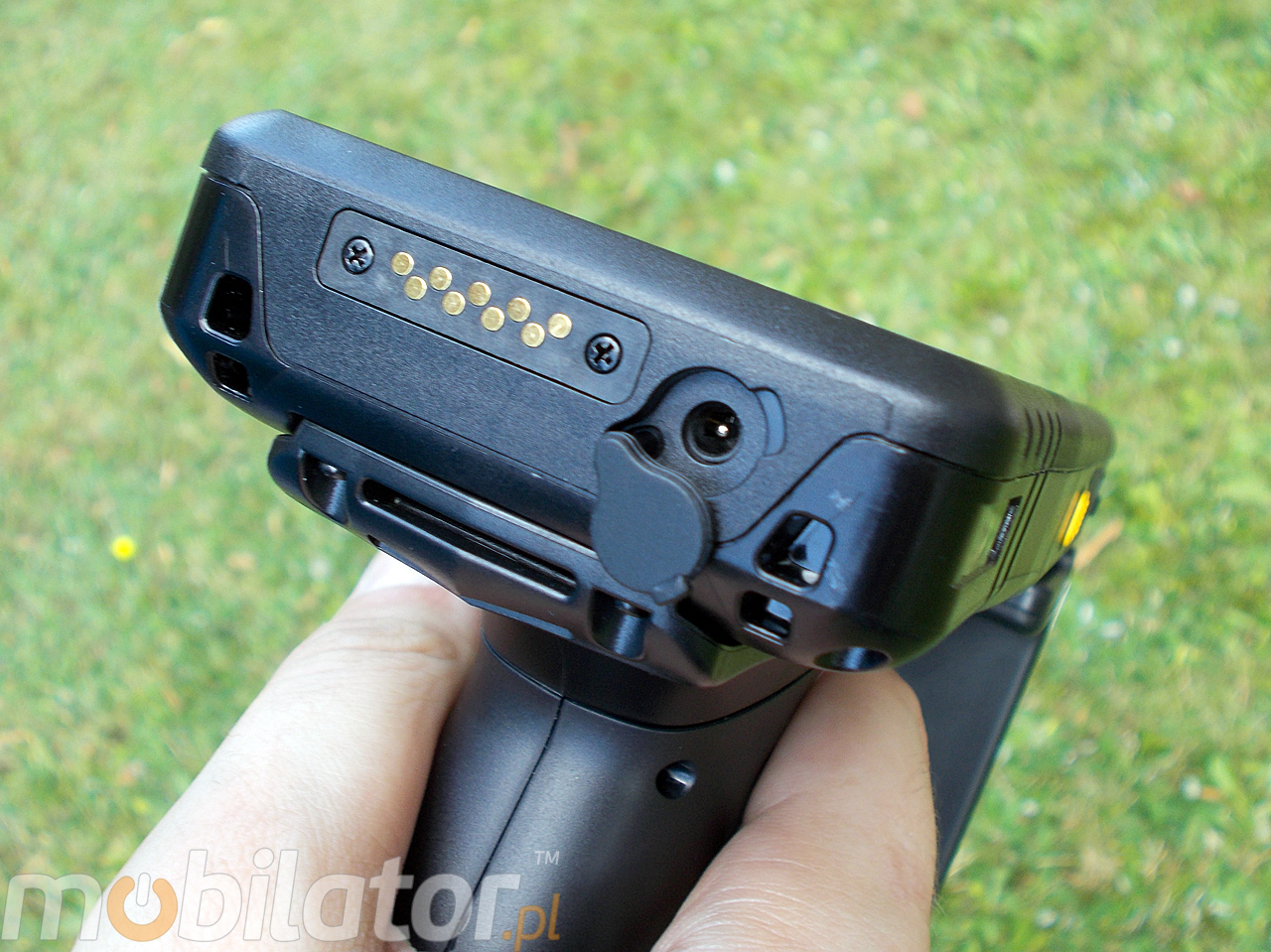

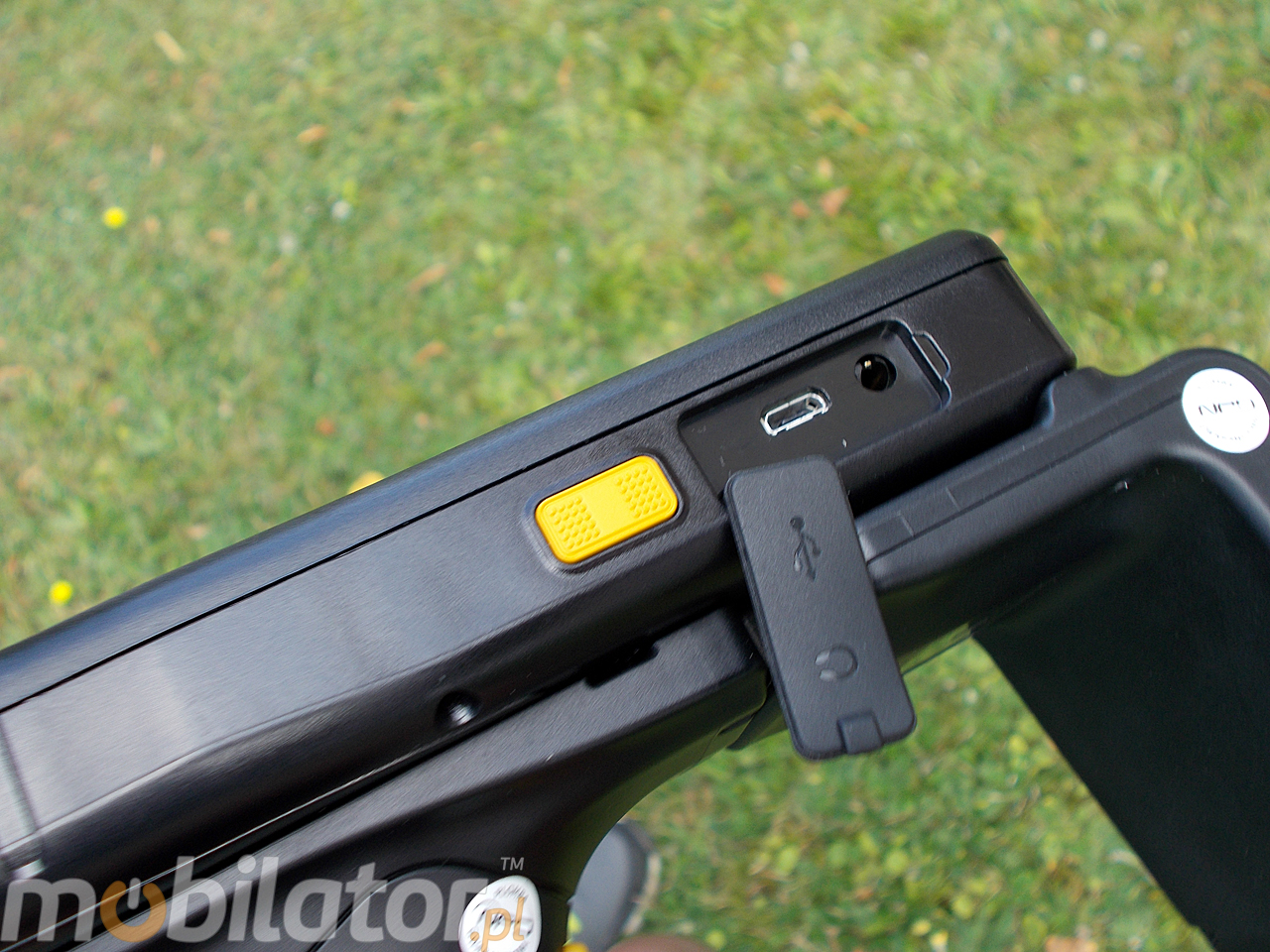

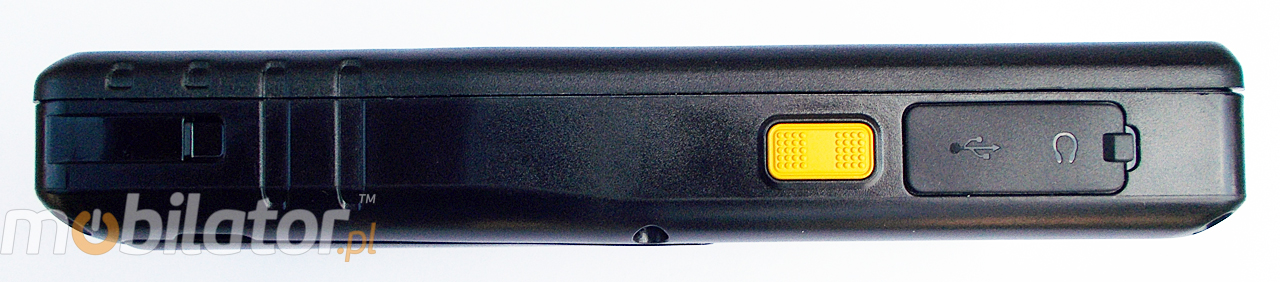

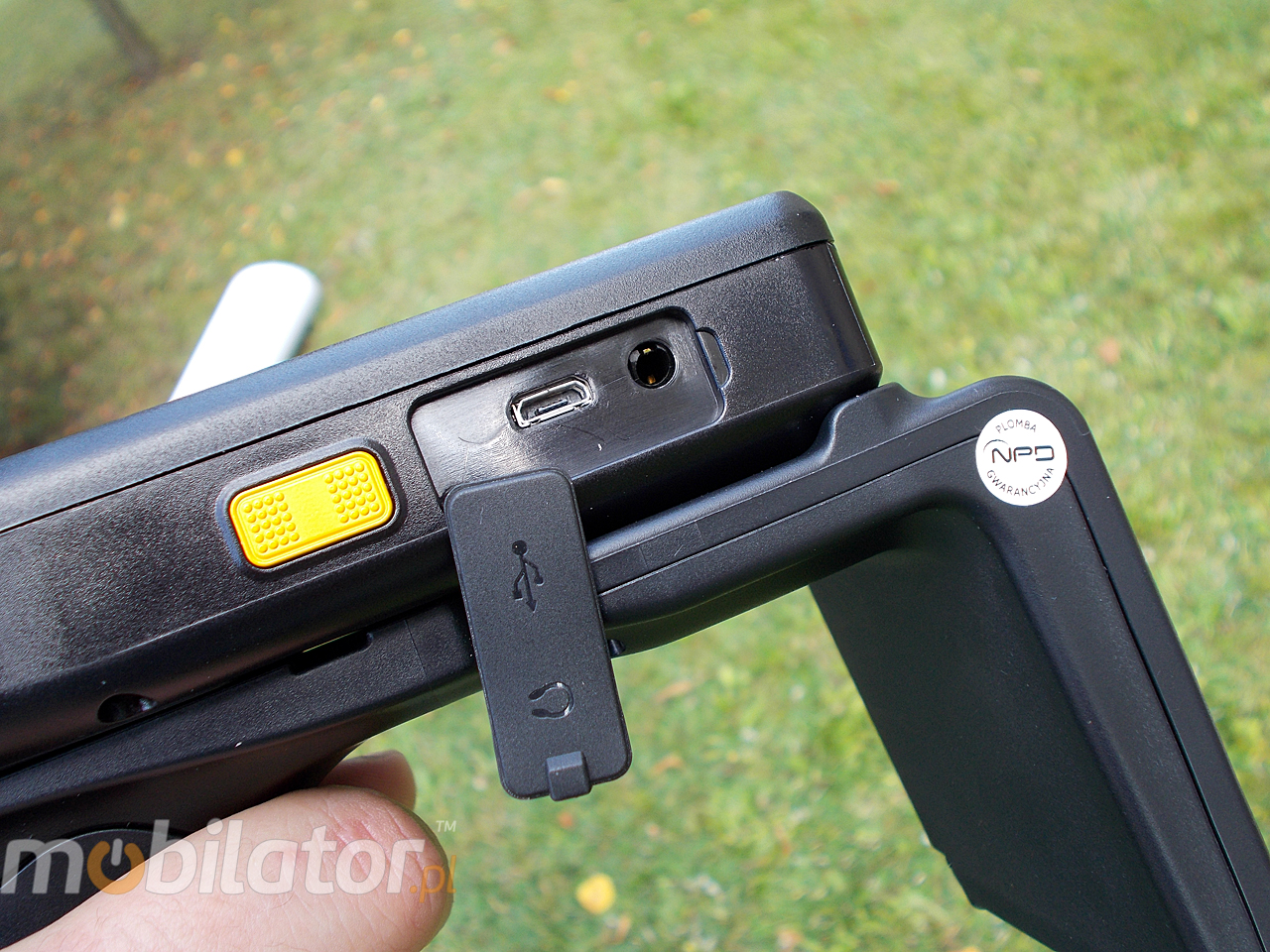

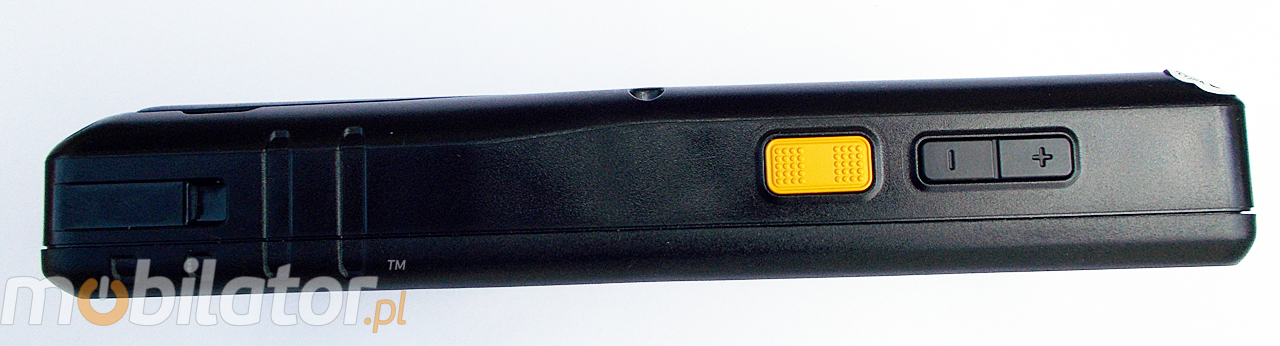

senter ST908W microusb

go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...
