« Back    Home / UMPC - Ruggedized / Archives

Industrial Data Collector MobiPad H9 v.14

Industrial Data Collector MobiPad H9 v.14

Data update: 2016-01-11

guarantee 1 year (opt.2)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated



Compare all versions

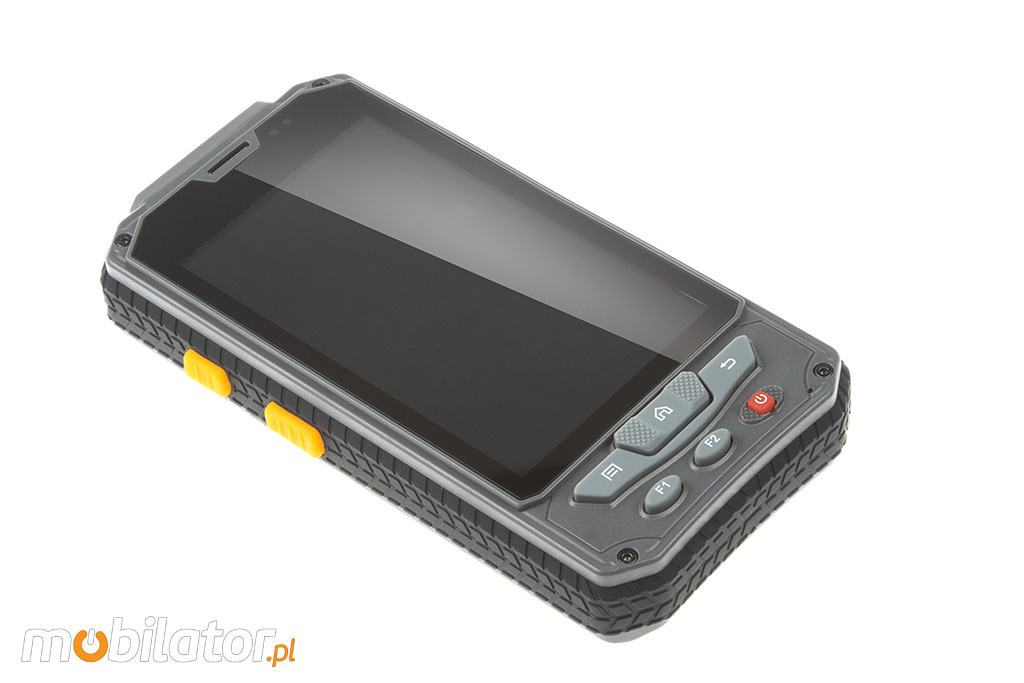

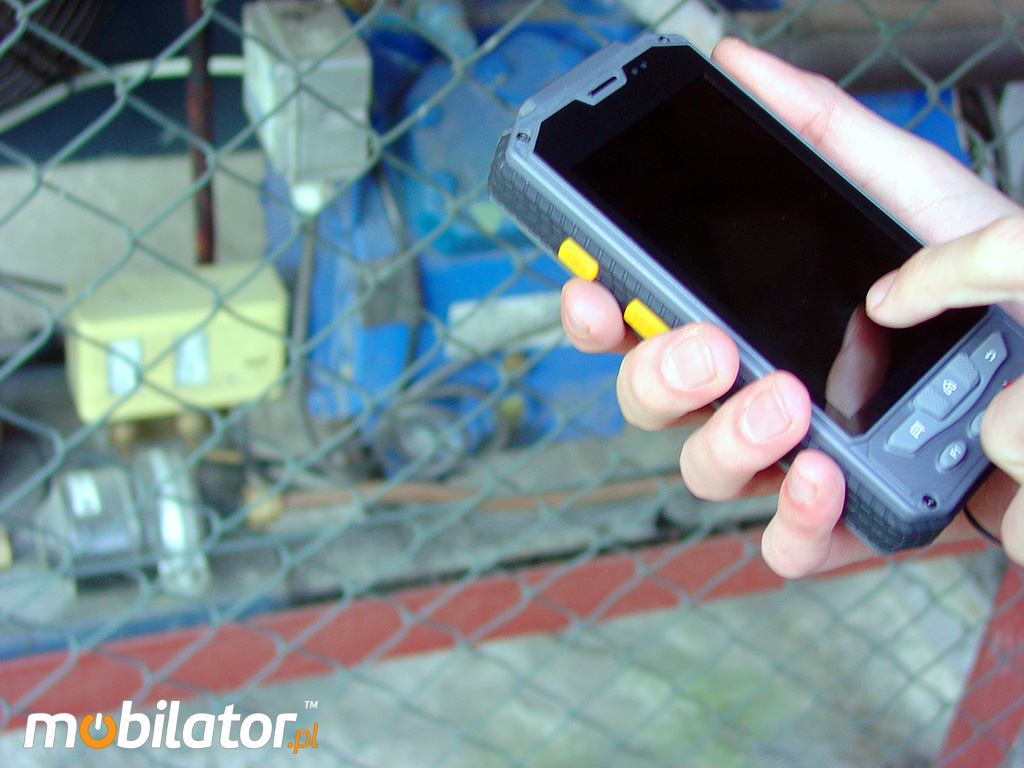

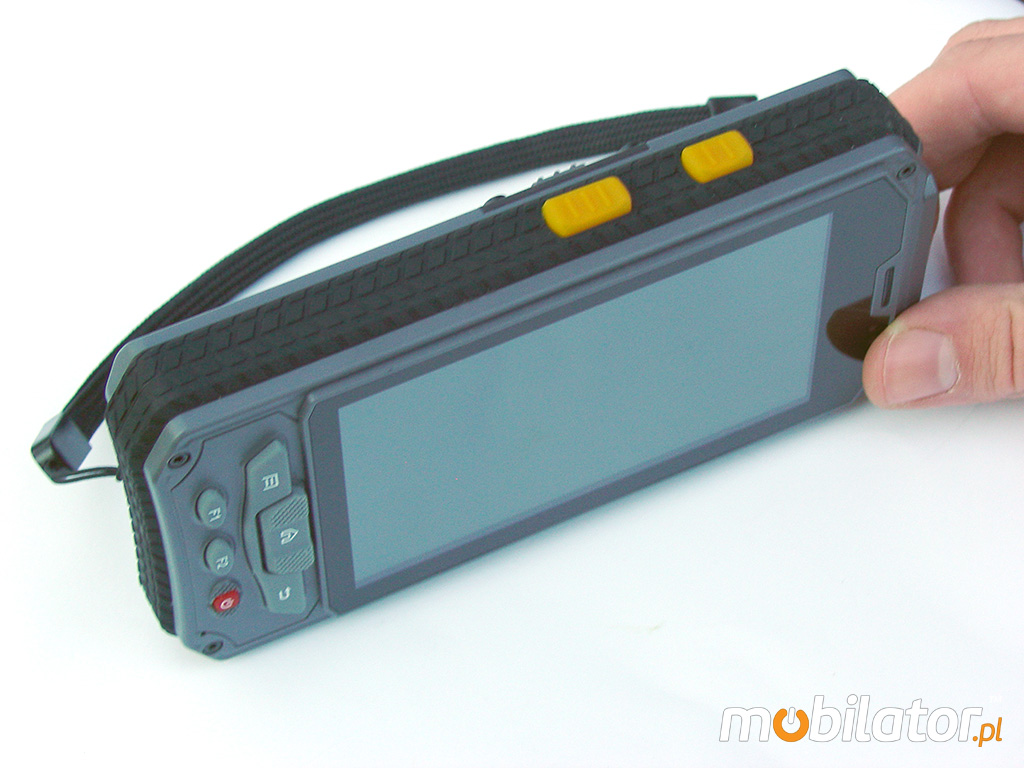

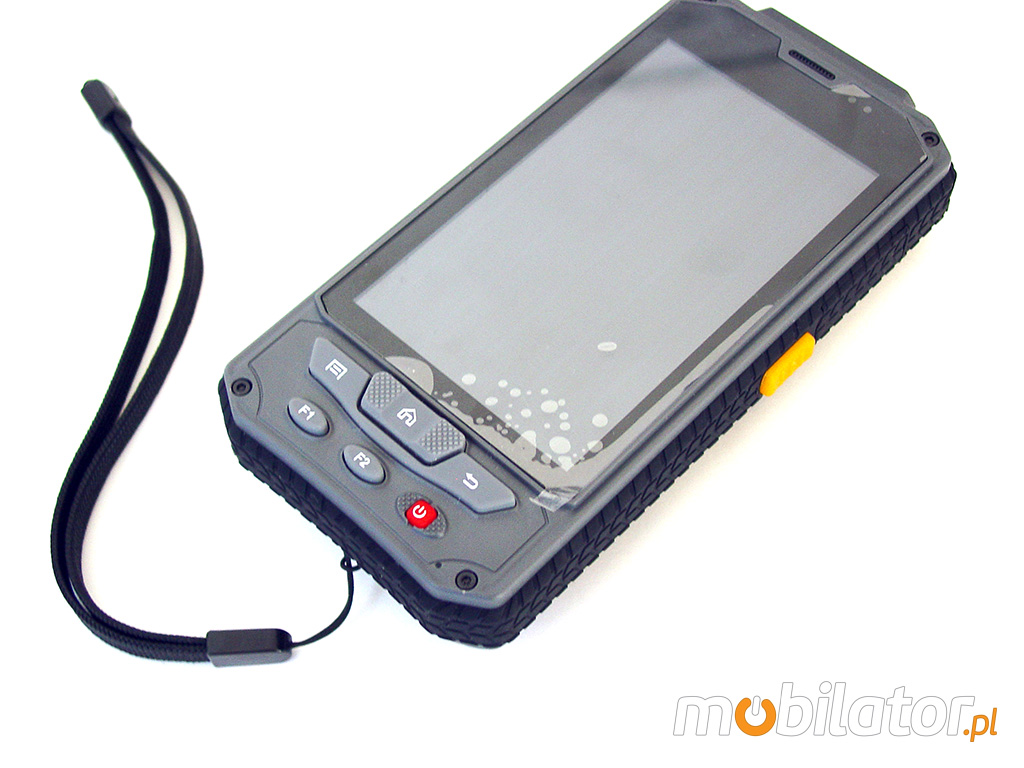

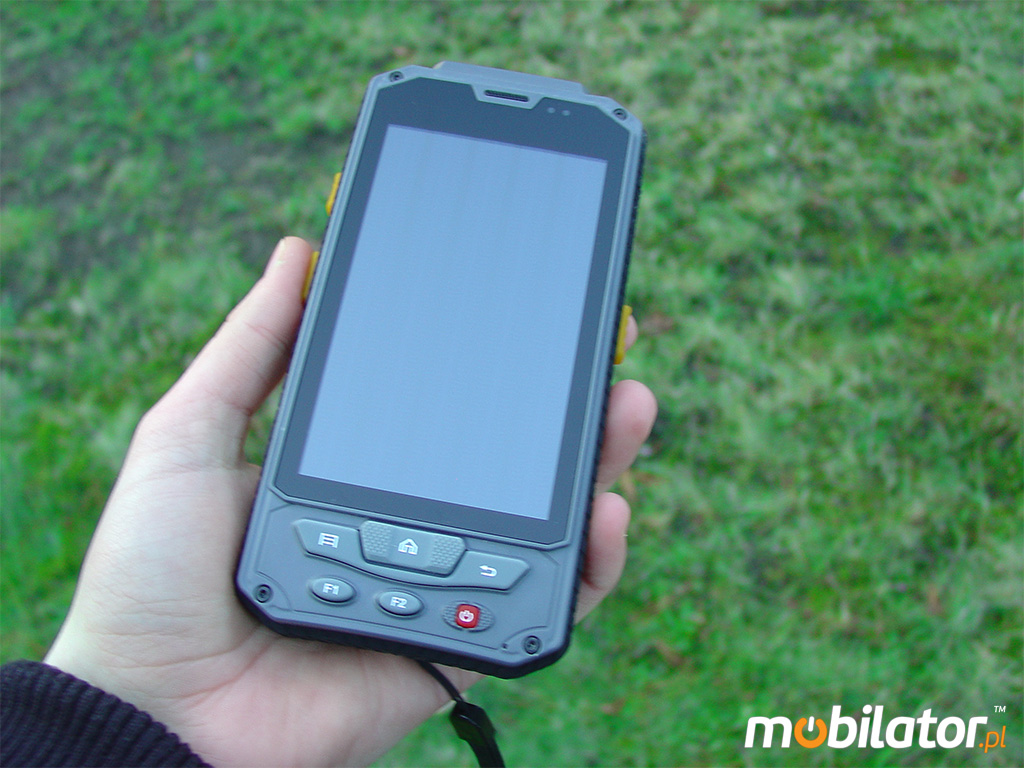

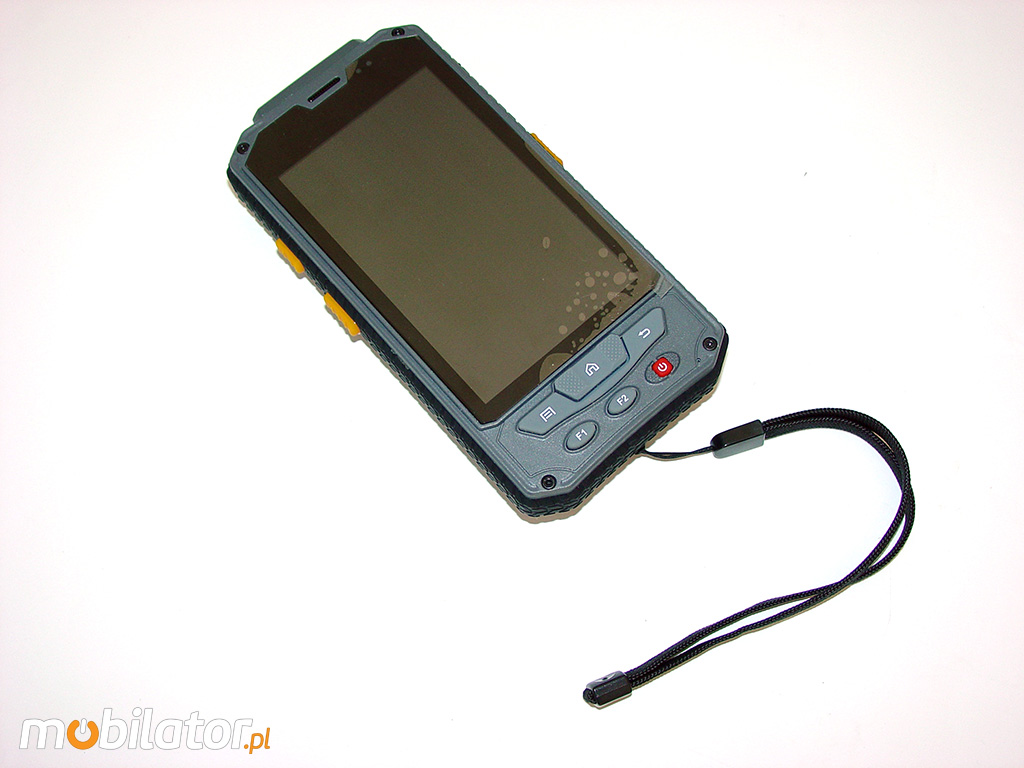

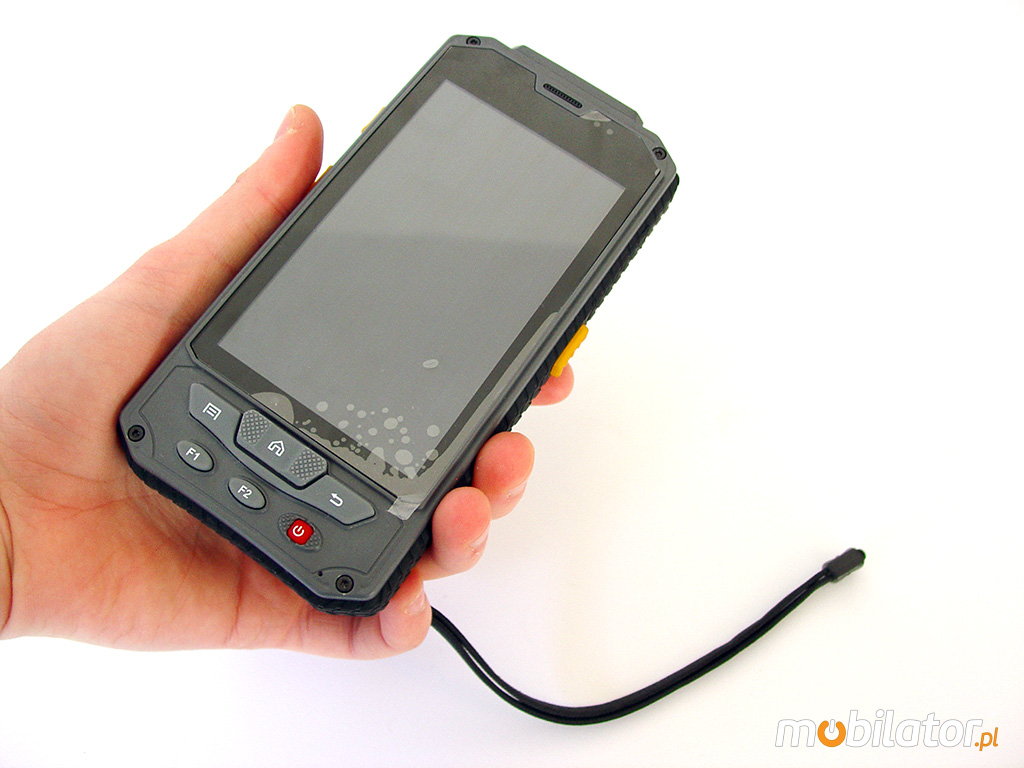

MobiPad H9 has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP65 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.



Description

mobipad h9 kolektor danych 3g smartfon przemyslowy

 Processor  MTK6572 Dual Core 1.0GHz
 Graphics  Mali-400 MP

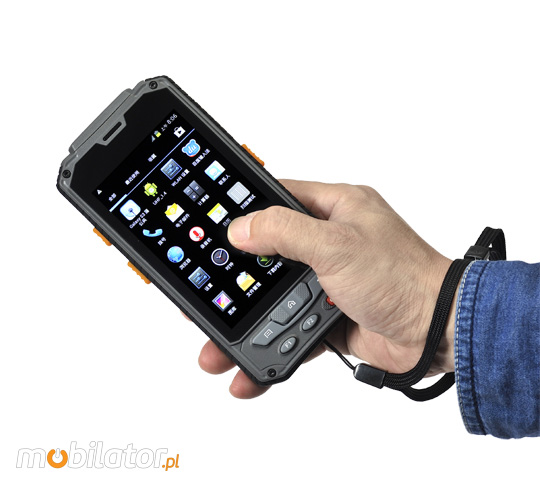

 Display  4.3" IPS (800x480)
 Type of display
  IPS | Sunlight Readable | Capacitive (5-points) | 500:1
 RAM  1GB LPDDR2
 ROM  4GB EMMC

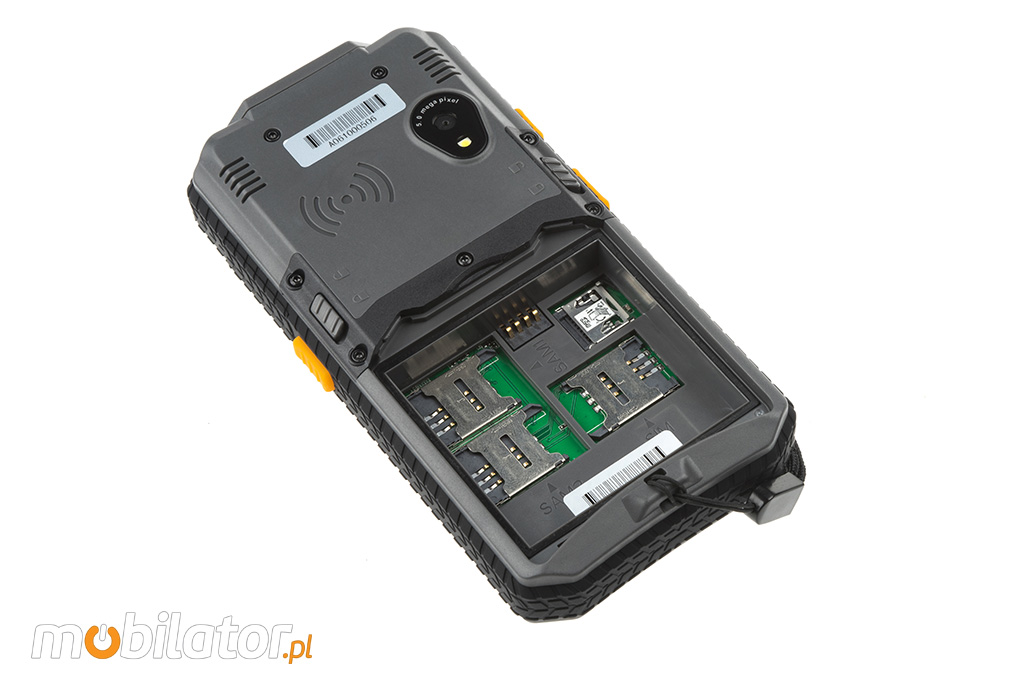

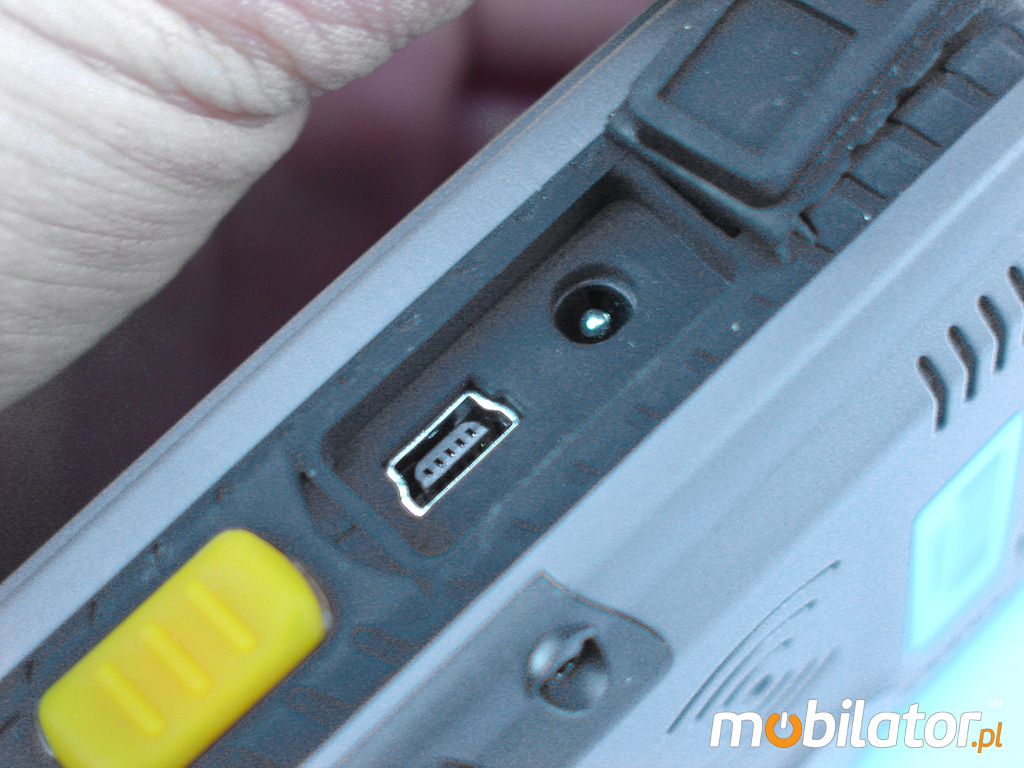

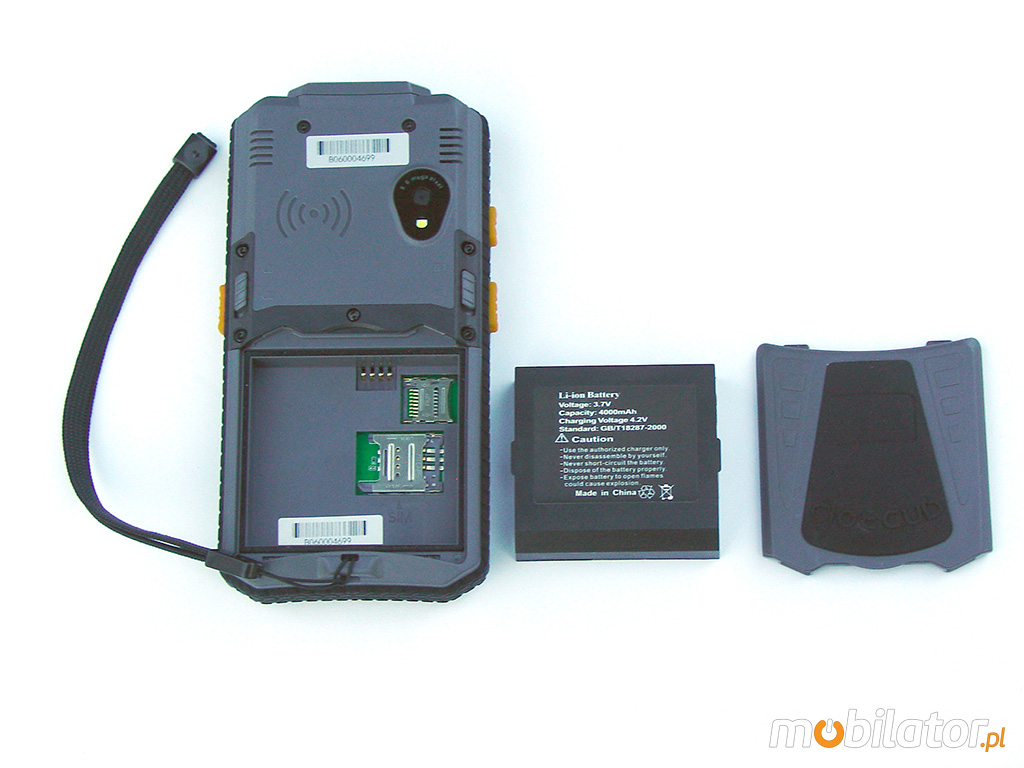

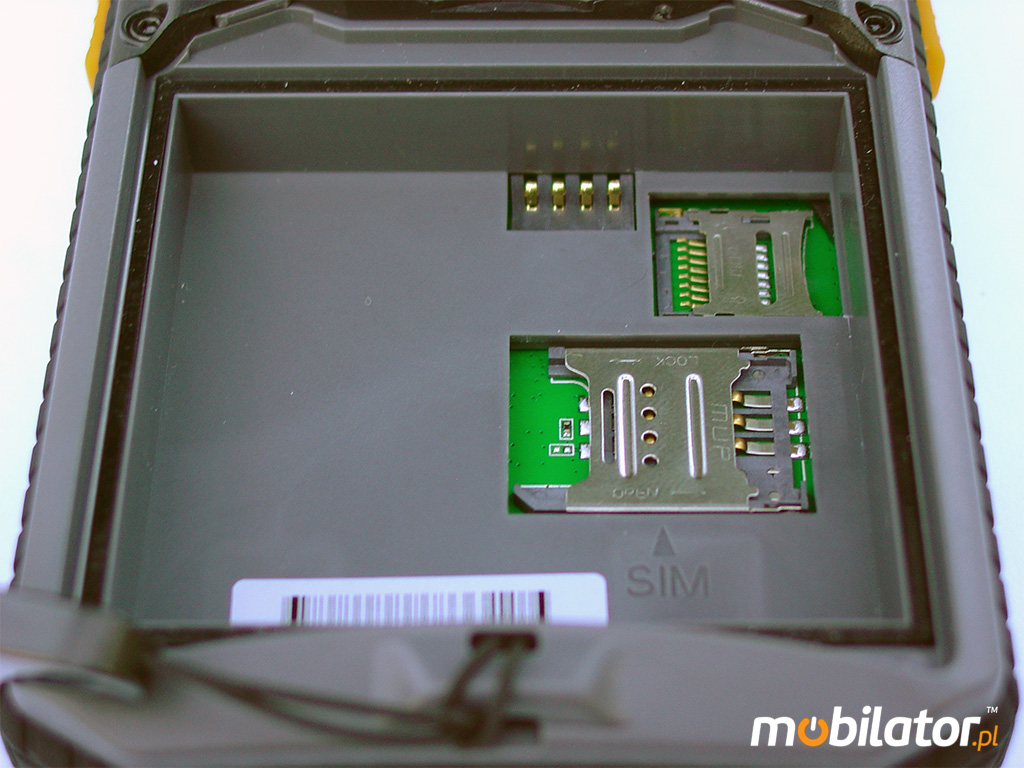

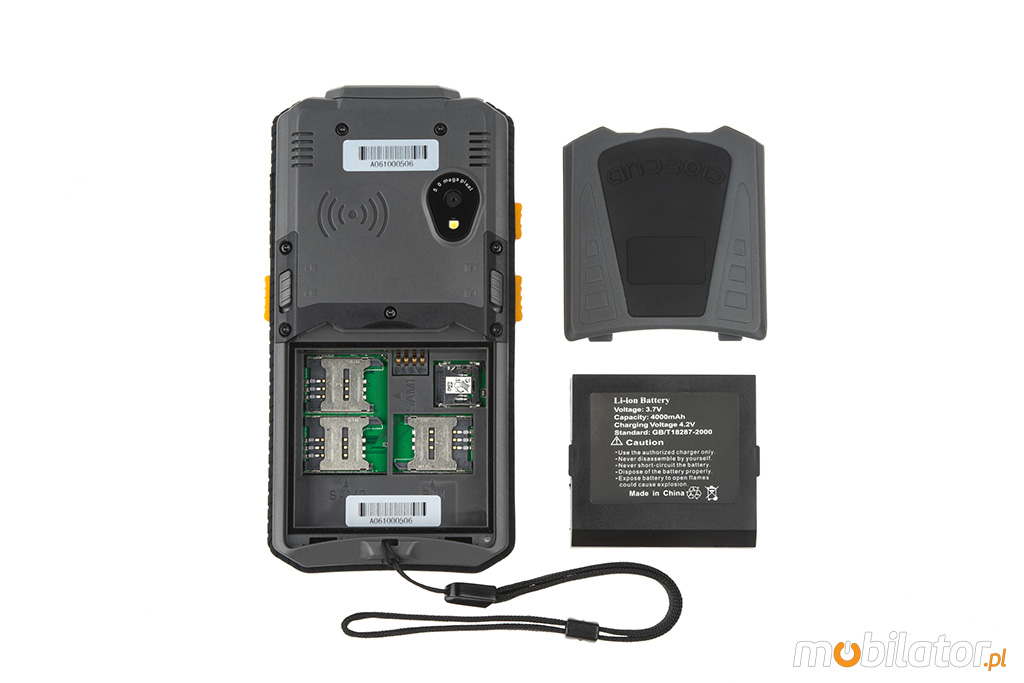

 Connectors  SIM | MicroSD | Mini USB | DC In
 GPS  GPS + A-GPS + EPO
 Audio  Speaker | Microphone

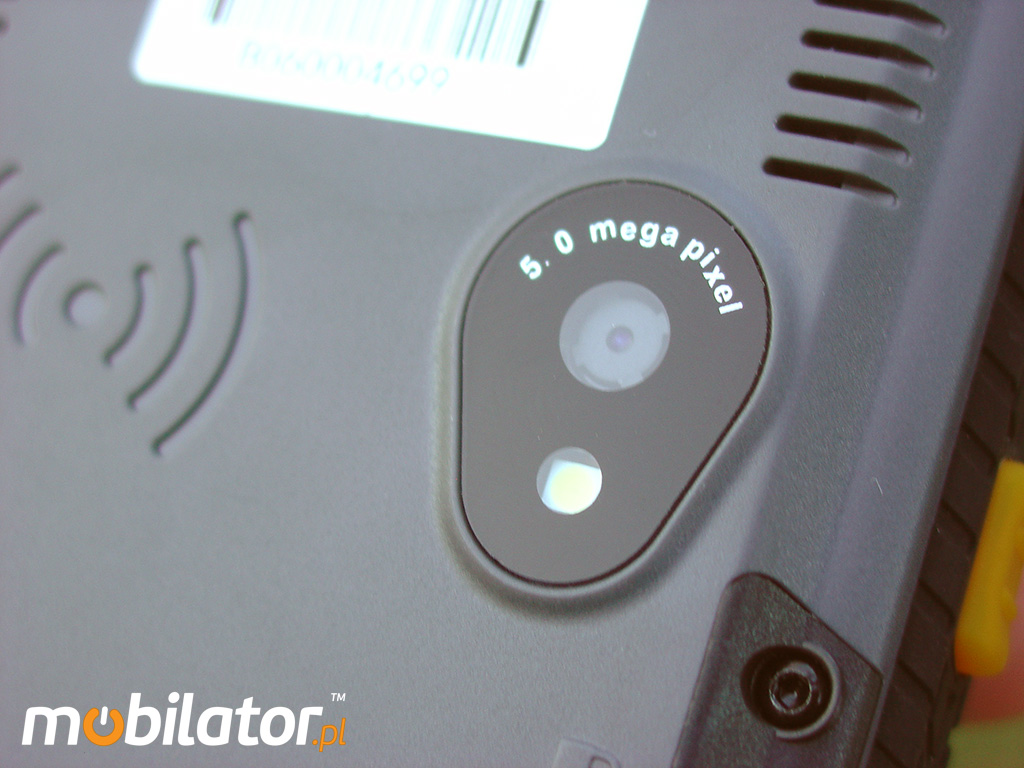

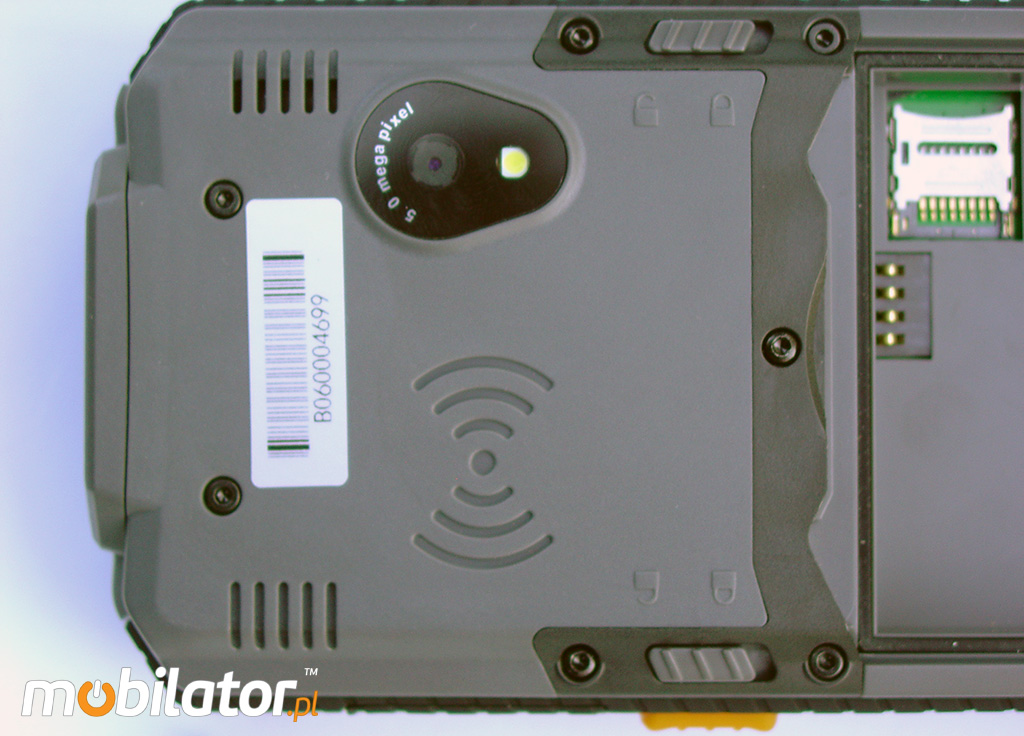

 Camera  5MPX + Dioda Flash

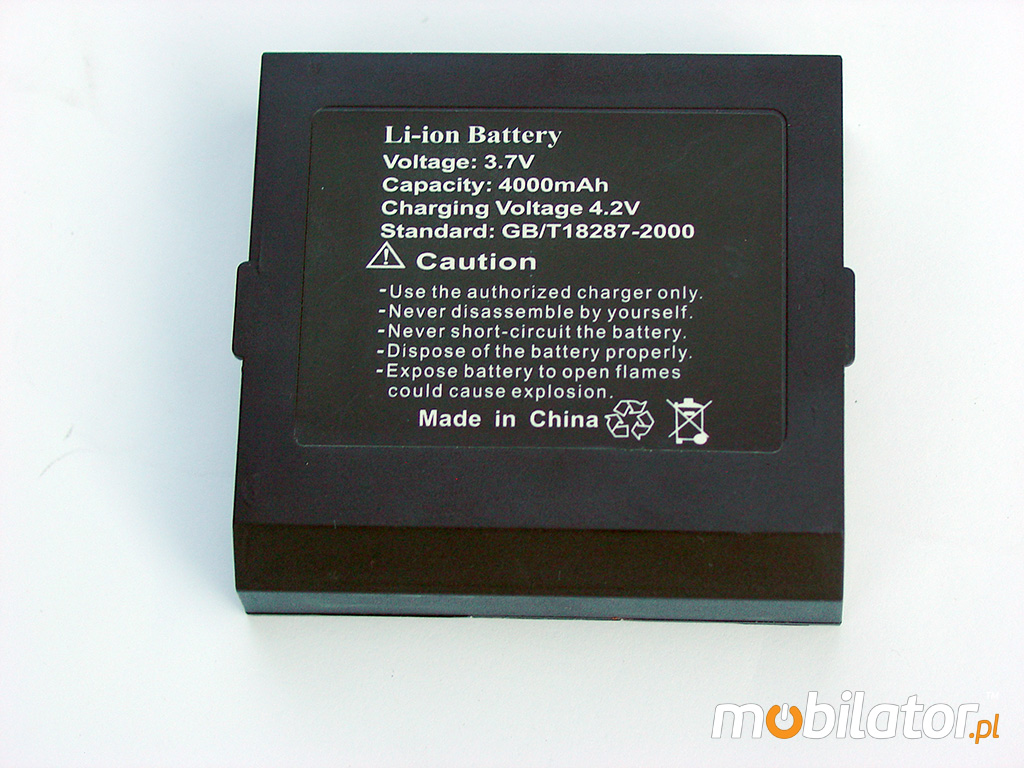

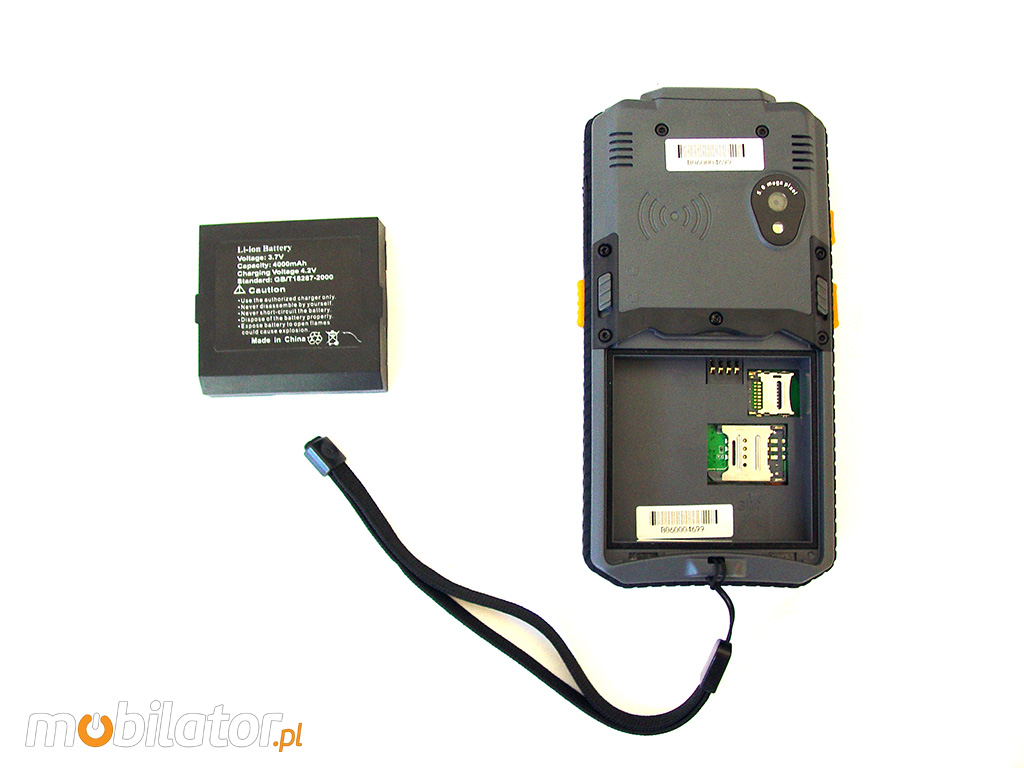

 Battery  3.7V 4000mAh Li-Ion
 Keyboard  Ekranowa | Physical keys

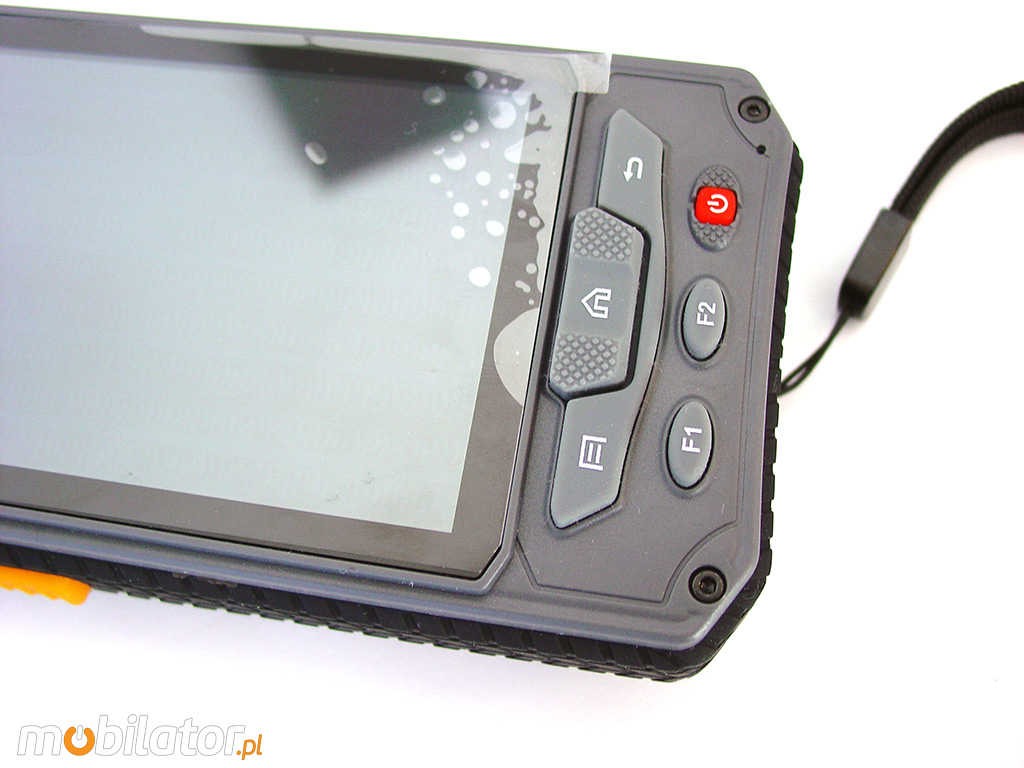

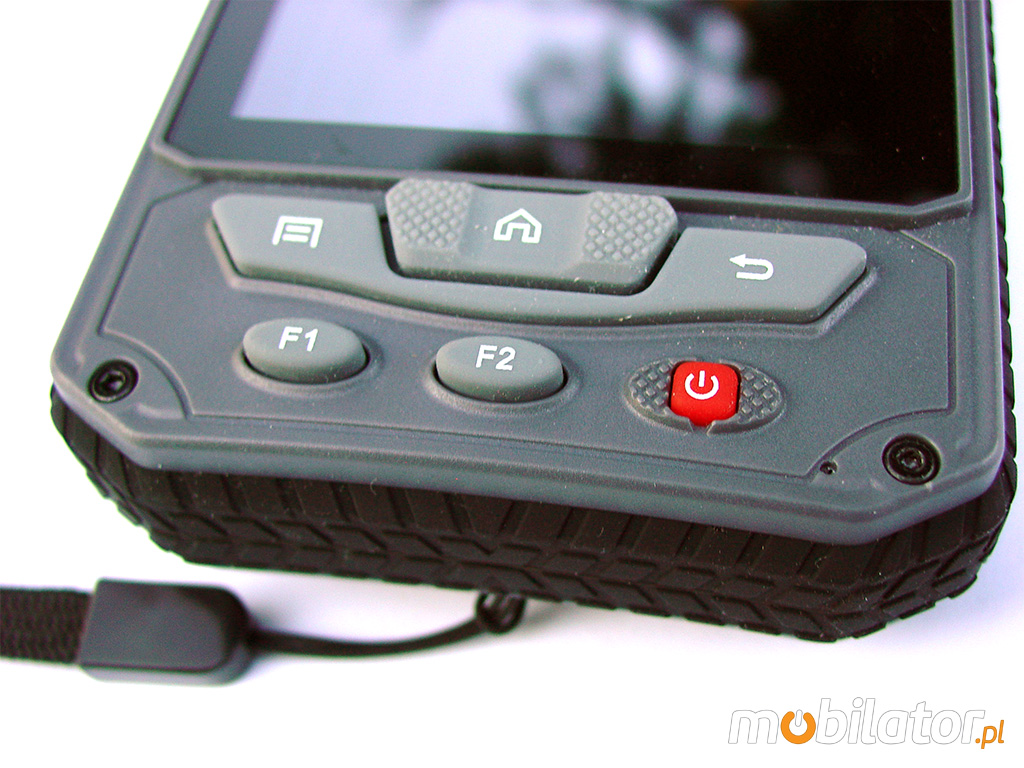

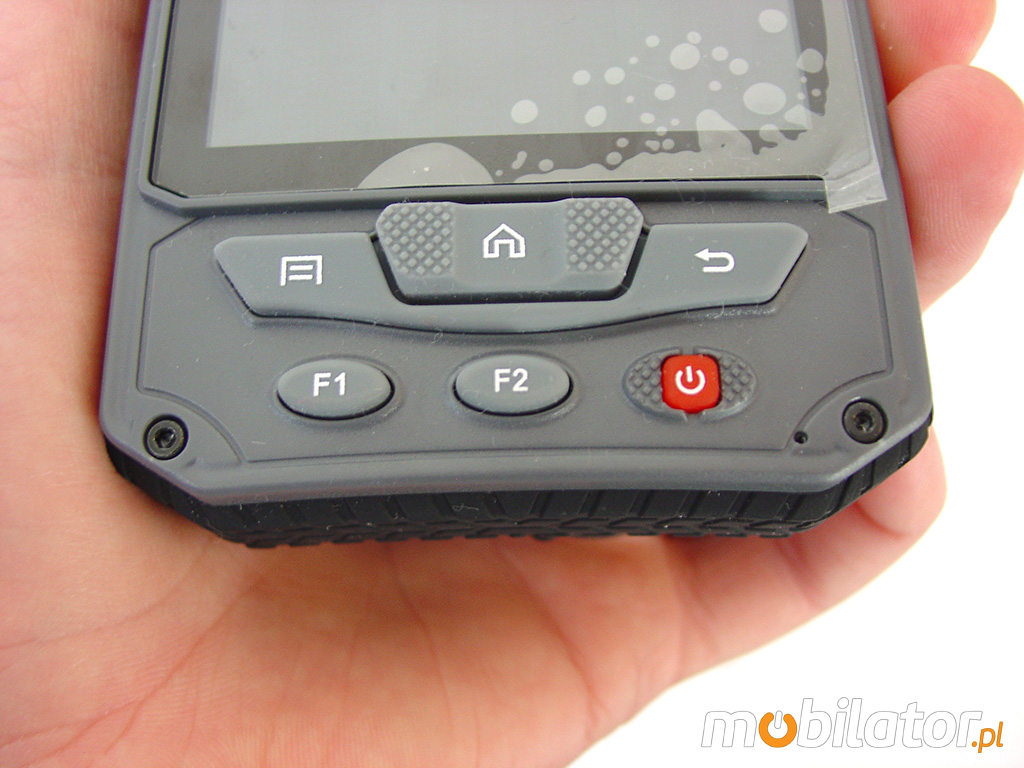

 Physical keys
  Power | Return | Home | 4x - functional keys
 Environment  Android 4.4.2
 2G (GSM)
  850/900/1800/1900MHz
 3G (WCDMA)
  850/2100MHz
 Modules (factory)
  WIFI (b/g/n) | Bluetooth 4.0 | GPS | 2G/3G
 Dimensions  148 x 77.5 x 27mm
 Weight  300g
   IP65
 Readers (optional)
 RFID HF (13.56Mhz) + NFC - 5 CM 1D - MOTROLA SE955 (LASER)

RFID UHF (856-869Mhz) - 1.5 M 2D - MOTOROLA SE-4500 (IMAGER)
    FingerPrint
Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

mobipad h9 sim psam microsd rfid lf hf

Select a version for yourself

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".


 1D (LASER)
 2D (CMOS)
 RFID HF
 FingerPrint RFID UHF
v.1 - - - - -
v.2 - - - -
v.4 - - - -
v.5 - - - -
v.6 - - - -
v.7 - - -
v.9 - - -
v.11 - - - -
v.12 - - -
v.13 - - -
v.14 - - -

go top... do góry menu… menu

The collection and processing of data

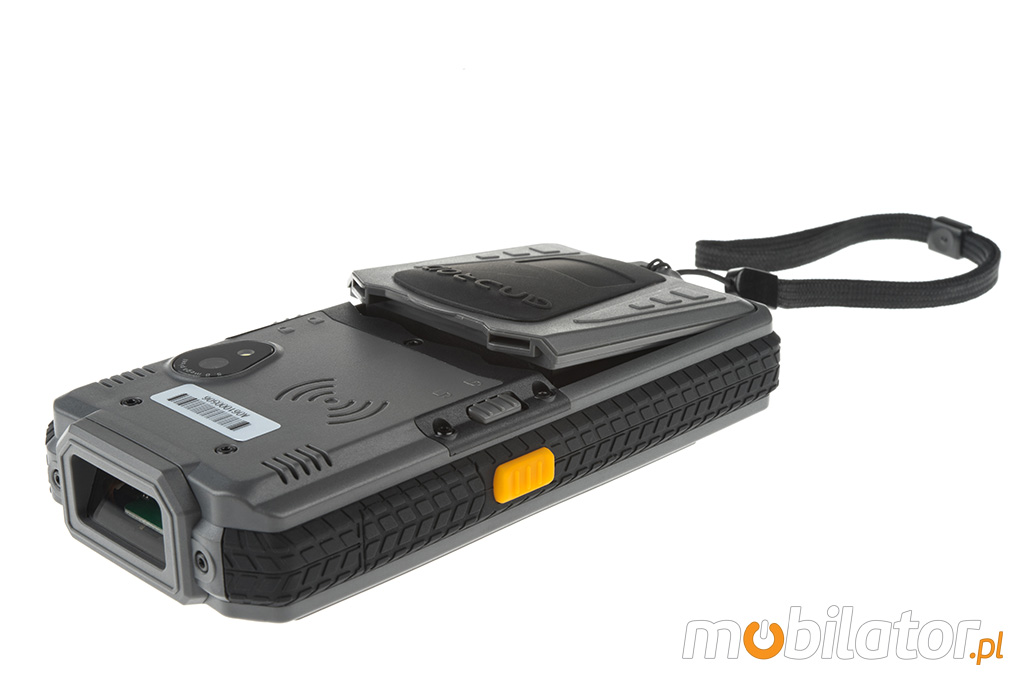

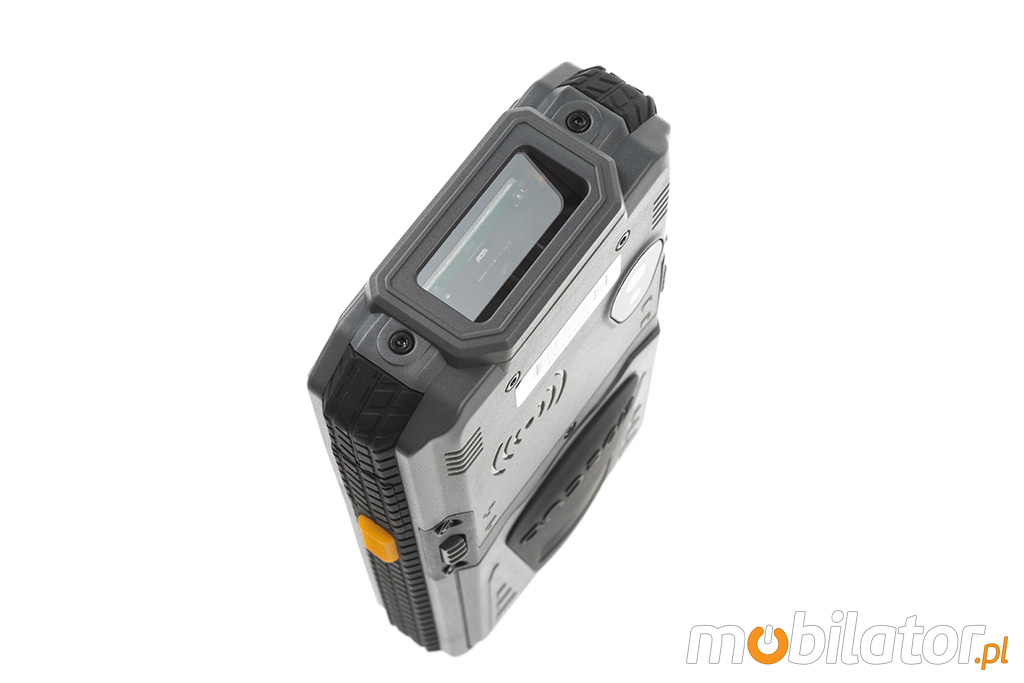

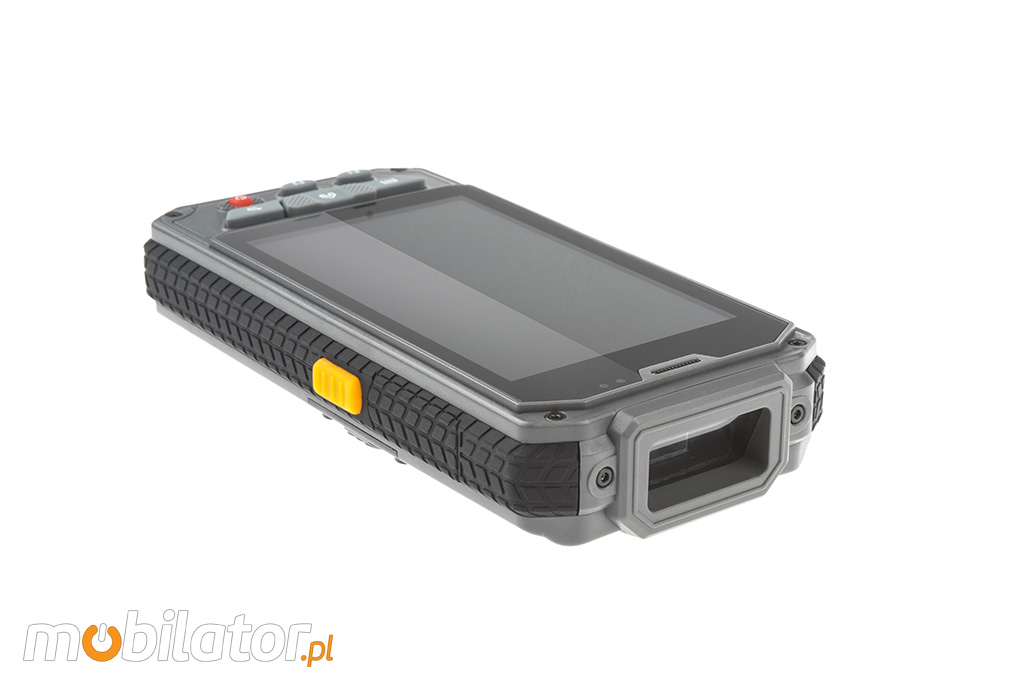

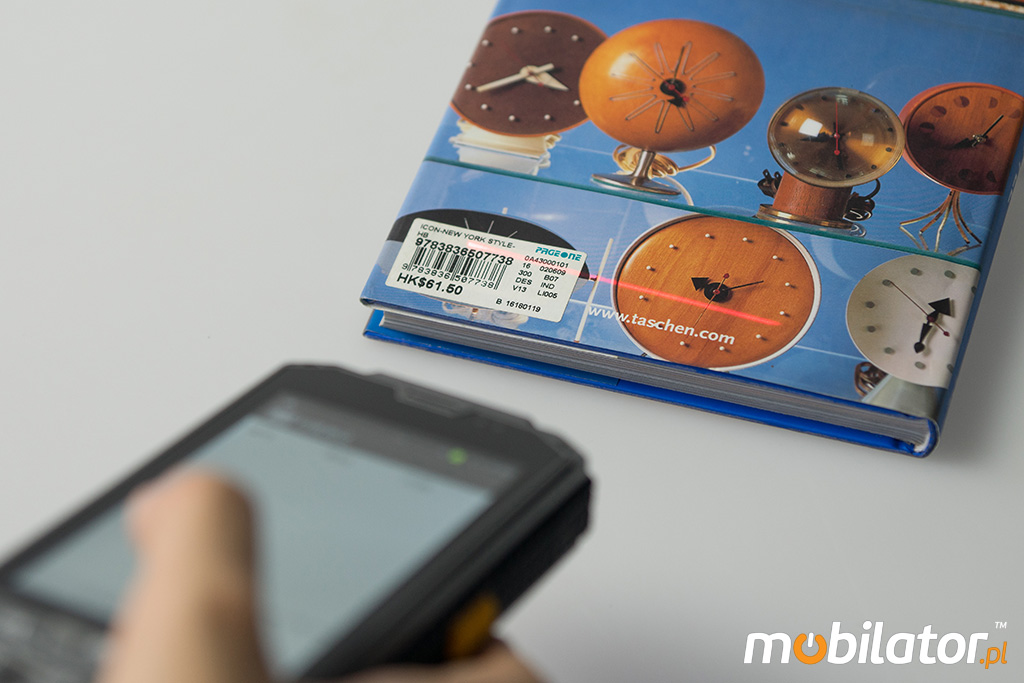

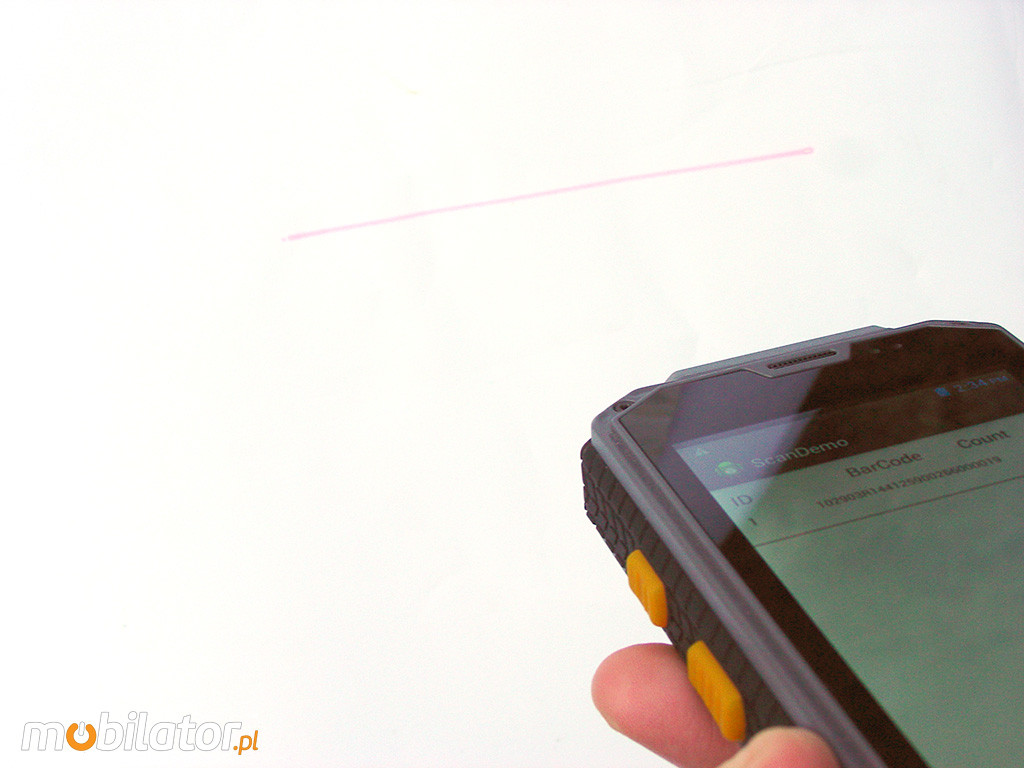

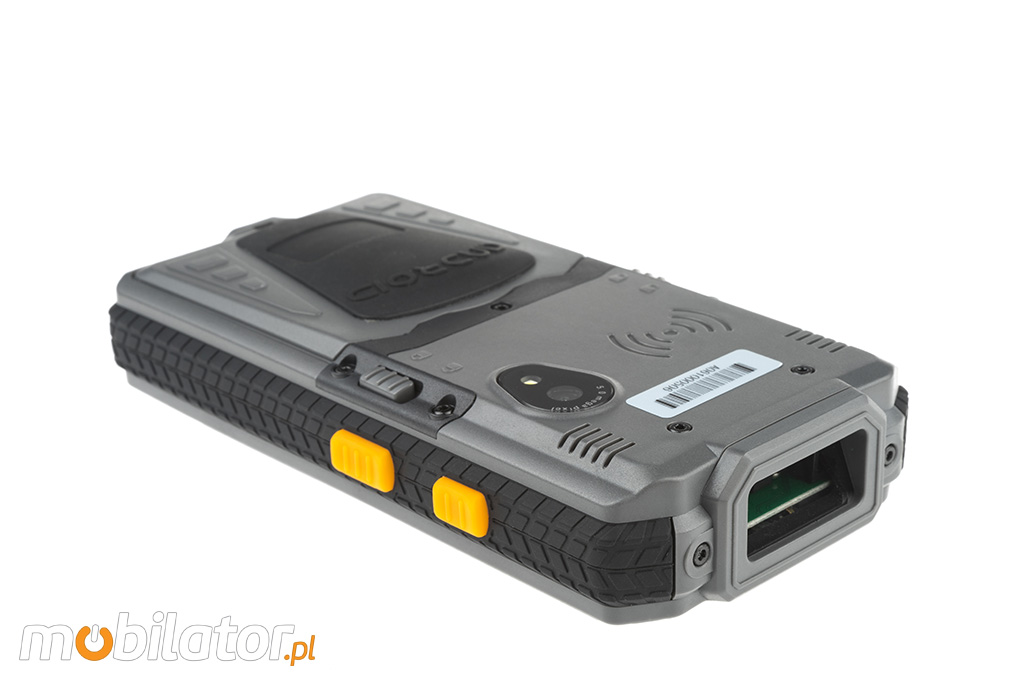

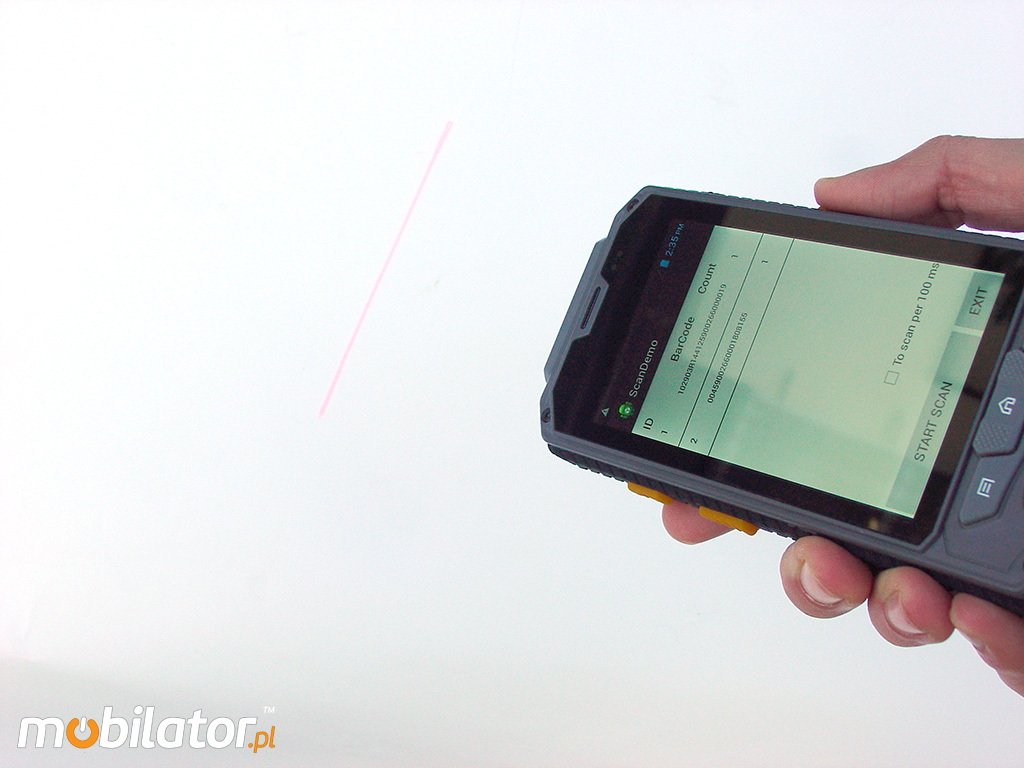

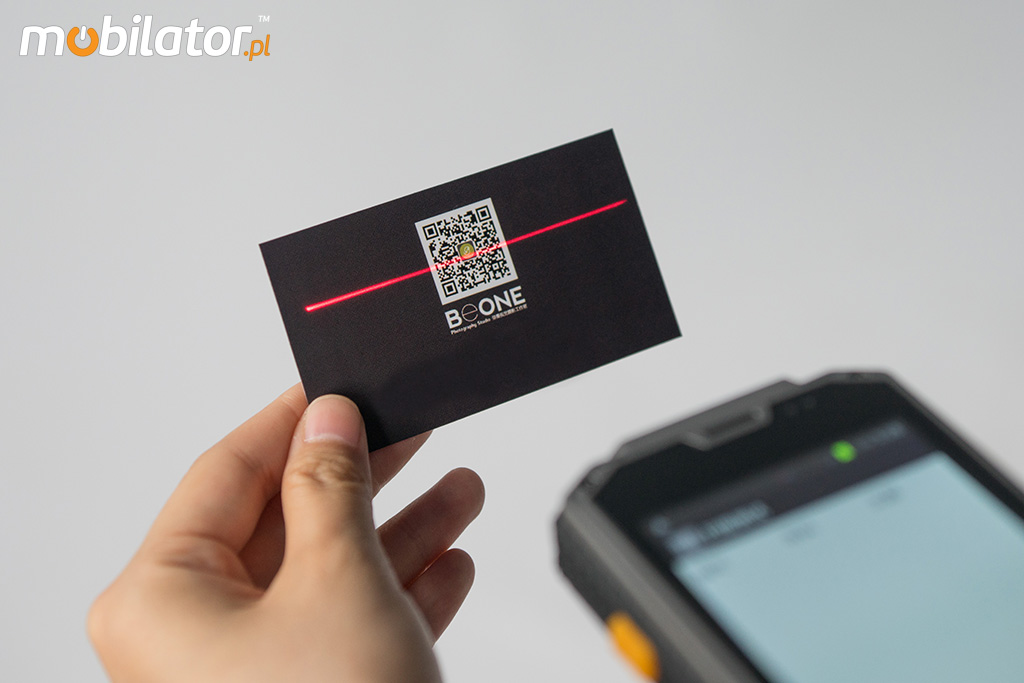

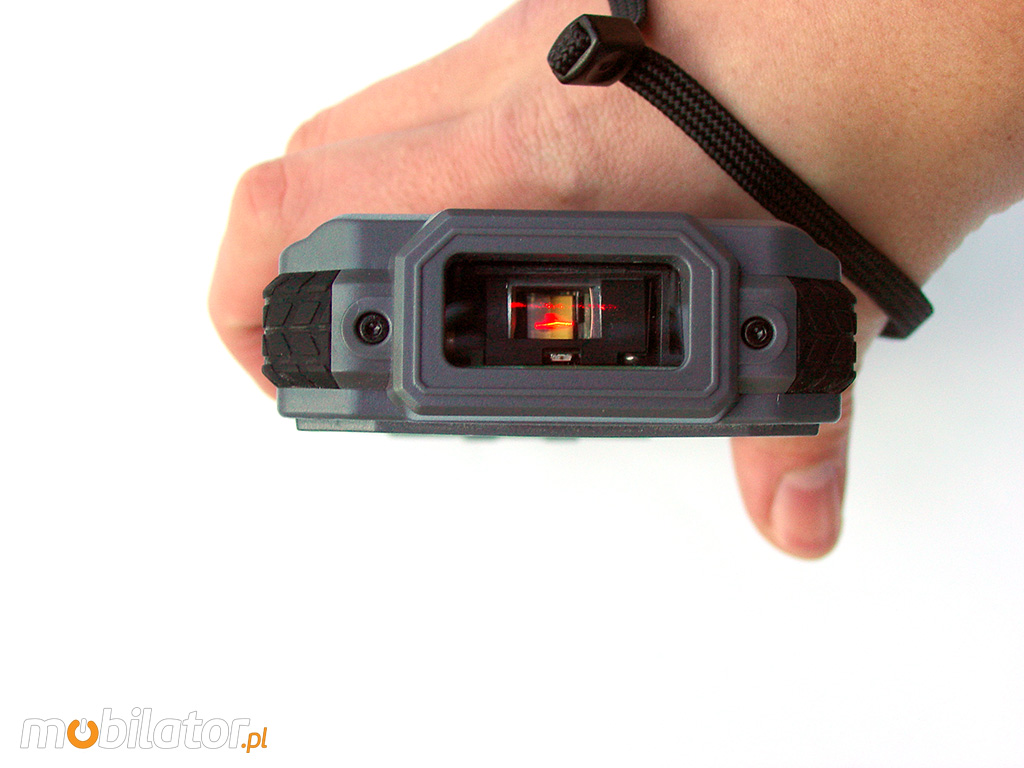

Barcode Scanner

motorola se955 se4500 kolektor danych h9

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

1D 1D / 2D
MOTOROLA: SE955 (LASER) MOTOROLA: SE4500 (2D IMAGER)

skaner kodow kreskowych kolektor tablet przemyslowy h9

  MOTOROLA SE955 (LASER) MOTOROLA SE4500 (2D IMAGER)
1D Code 39, Code 93, Code 128, Code bar, EAN-13, EAN-8, UPC-A, UPC-E, ITF 14, UCC/EAN-128, ITF 25, Matrix 25, EAN-128, ISBN All major codes
2D -

2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX)

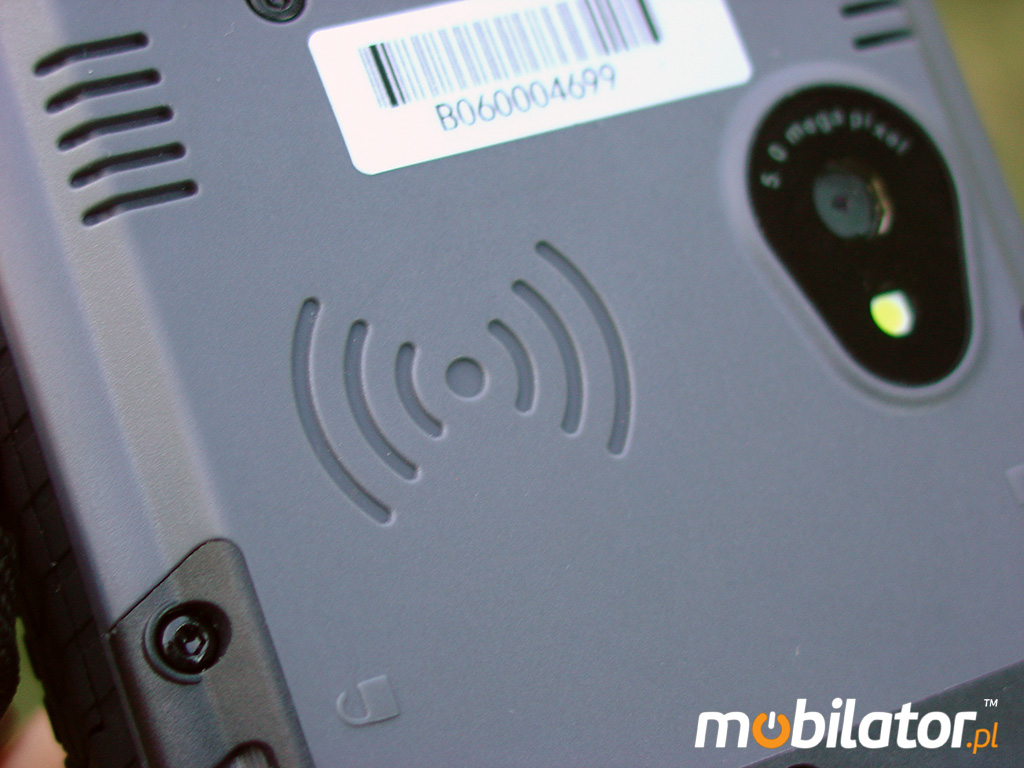

RFID

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of  products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

HF
(13.56Mhz) + NFC
 UHF
(856-869Mhz)
ISO14443A/B MIFARE | ISO15693 EPC C1 GEN2 | ISO18000-6
Mifare One S50/Ultralight/One S70/Pro, Ntag203, AT88RF020, 66CL160S, SR176, SRIX4K, I-code 1/2, TI RFID Tag-it HF-I, EM4135, EM4034

rfid hf 13.56 rfid lf 125khz rfid lf 134.2khz

In the UHF (Ultra High Frequency) band, where RFID tags work according to the principles of the electromagnetic coupling, the most popular technology at the moment is the one based on the ISO 18000-6C protocol, best known as EPC Class 1 Gen 2 or for short Gen 2. The EPC Class 1 Gen 2 standard was proposed by the private organization EPCGlobal and then adopted in 2006 as the ISO 18000-6C standard by the International Standards Organization (ISO).  The EPC Class 1 Gen 2 standard was created to address some issues of previous UHF RFID standards conceived for logistics applications (such as the ISO 18000-6a and the ISO 18000-6b). The new standard was developed specifically to track fluxes of goods between different companies and across all world regions with good read performance in environments with a high density of tags.

  HF UHF
 Frequency 13.56 Mhz 856-869 Mhz
 Reading distance to 5 cm
 to 2 meters

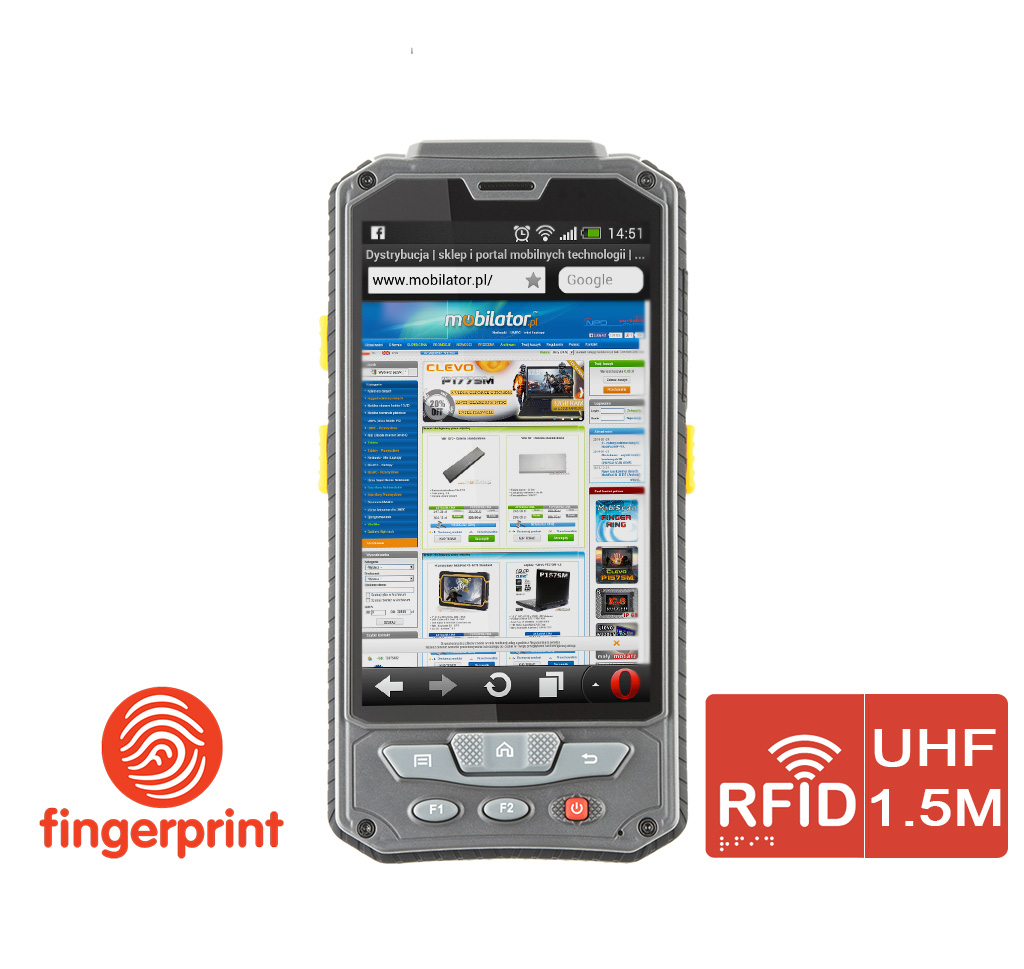

FingerPrint

Fingerscanning, also called fingerprint scanning, is the process of electronically obtaining and storing human fingerprints. The digital image obtained by such scanning is called a finger image.

 Sensors type
 inductive | image size: 256x288 | resolution: 500dpi
 Registration time
 < 3 seconds
 Comparing time
 < 0.1 seconds
 Recognize rate
 > 99.999%
 Capacity 512

mobipad h9 kolektor magazyn wytrzymaly wodoodporny

go top... do góry menu… menu

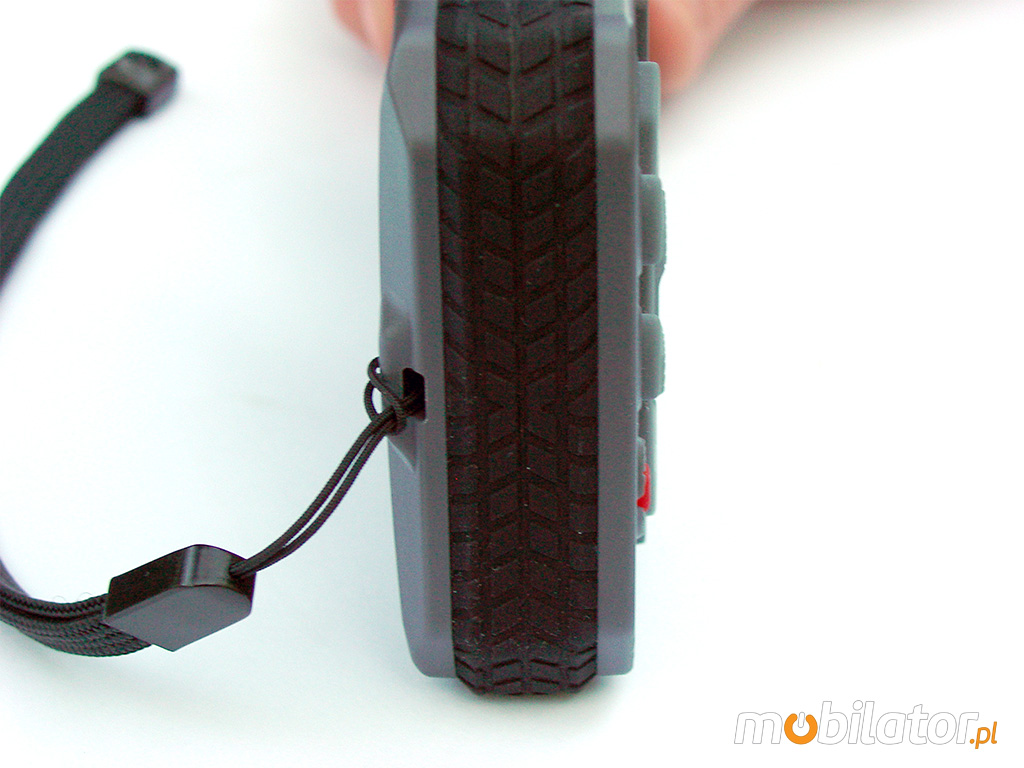

Resistance

Applicable standards

Operating -20°C -- +50°C
Storage -20°C -- +70°C
Humidity 10% - 90% RH | noncondensing
Dust IP6x (dust)
Water IPx5 (water)
Drop Multiple drops to concrete 5ft./1.5m the entire operation range

go top... do góry menu… menu



odpornosc na upadek h9 mobipad ip65

IP65

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

Complete protectionm against contact. Protection from infiltration of dust.
6

5
Protection from water projected from a nozzle.

go top... do góry menu… menu



Modules and Wireless Networks

2g 3g wcdma kolektor danych h9 mobipad

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in H9 adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

kolektor danych mobipad h9 wcdma 3g 2g psam

WIFI  IEEE 802.11b/g/n
GPS  Built-in | A-GPS | EPO
Bluetooth  Bluetooth 4.0
2G/3G  2G 850/900/1800/1900MHz | 3G 850/2100MHz
    The ability to make voice calls

go top... do góry menu… menu

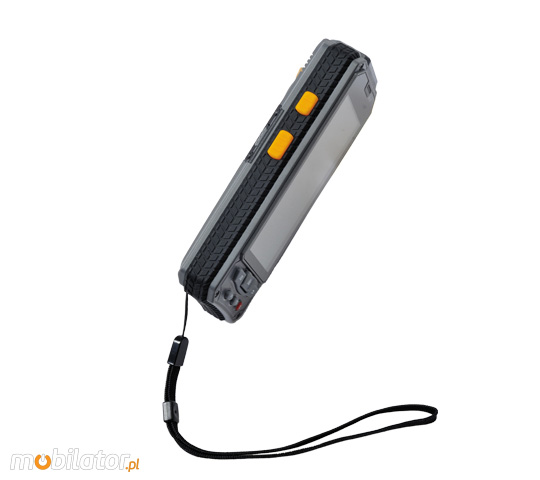

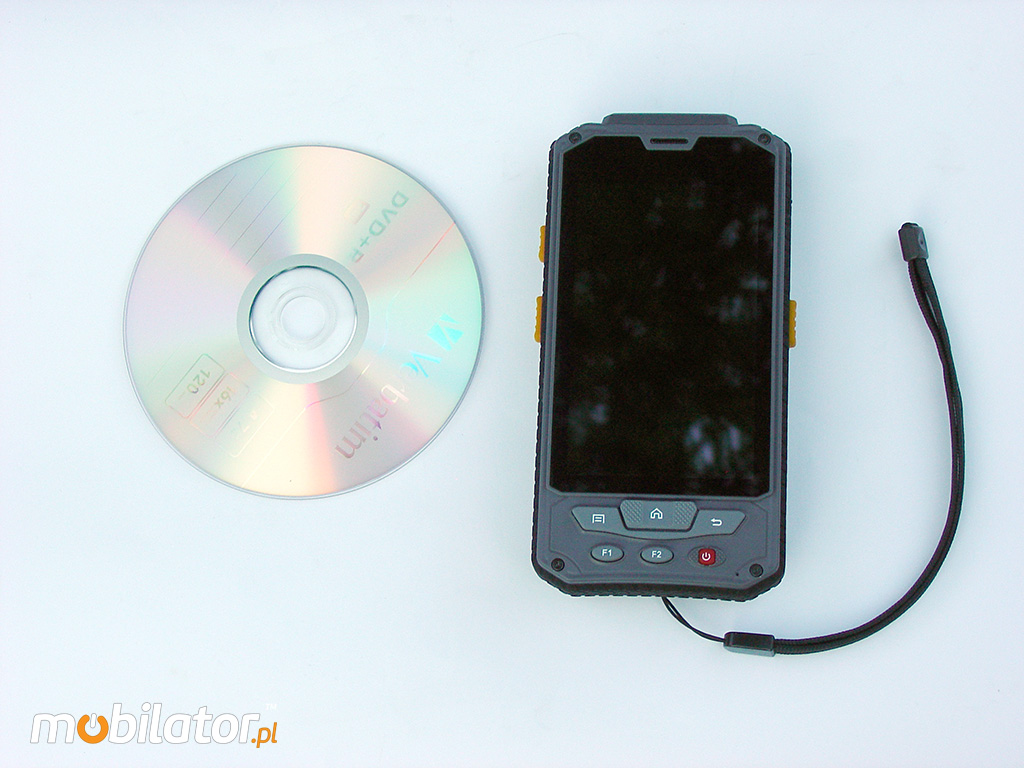

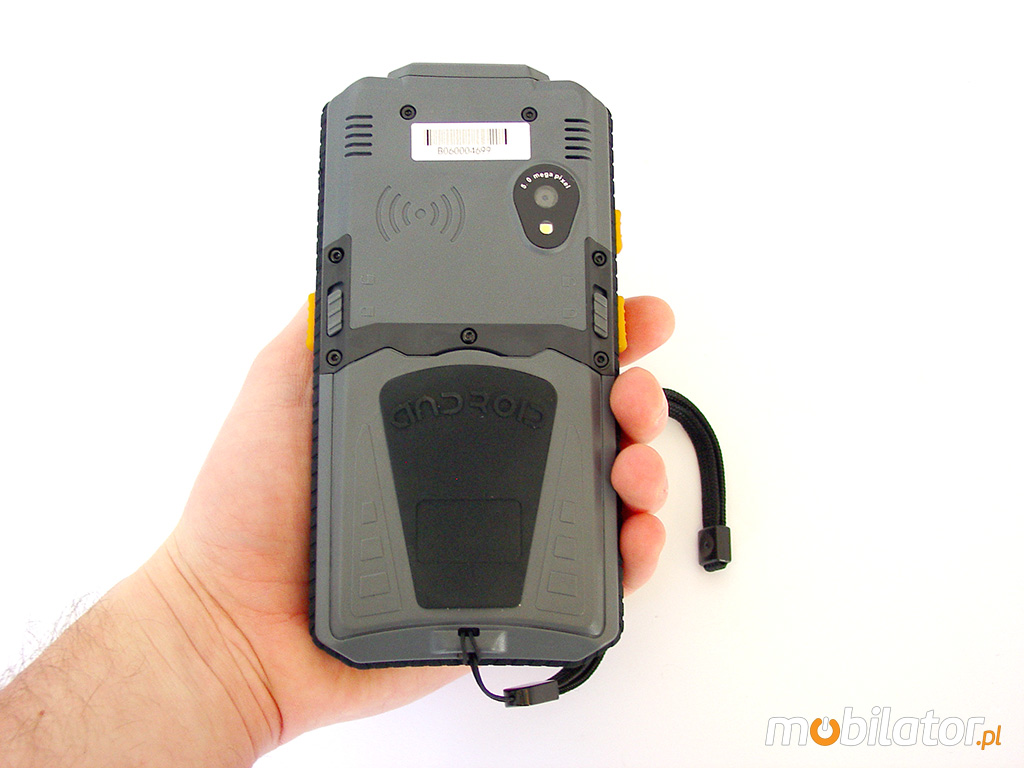

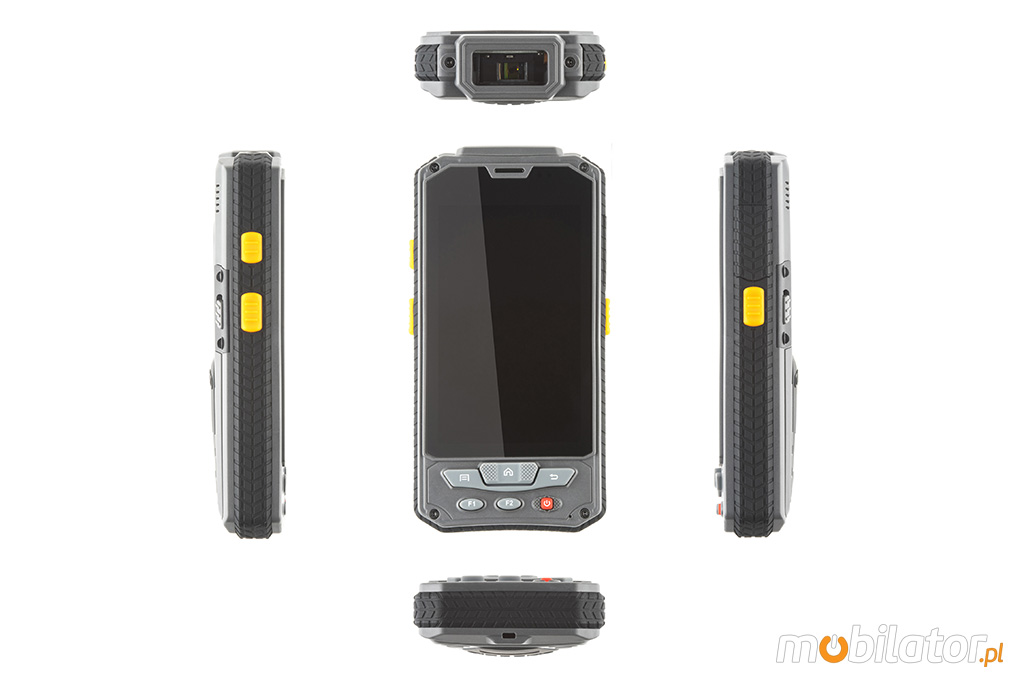

Minimalism

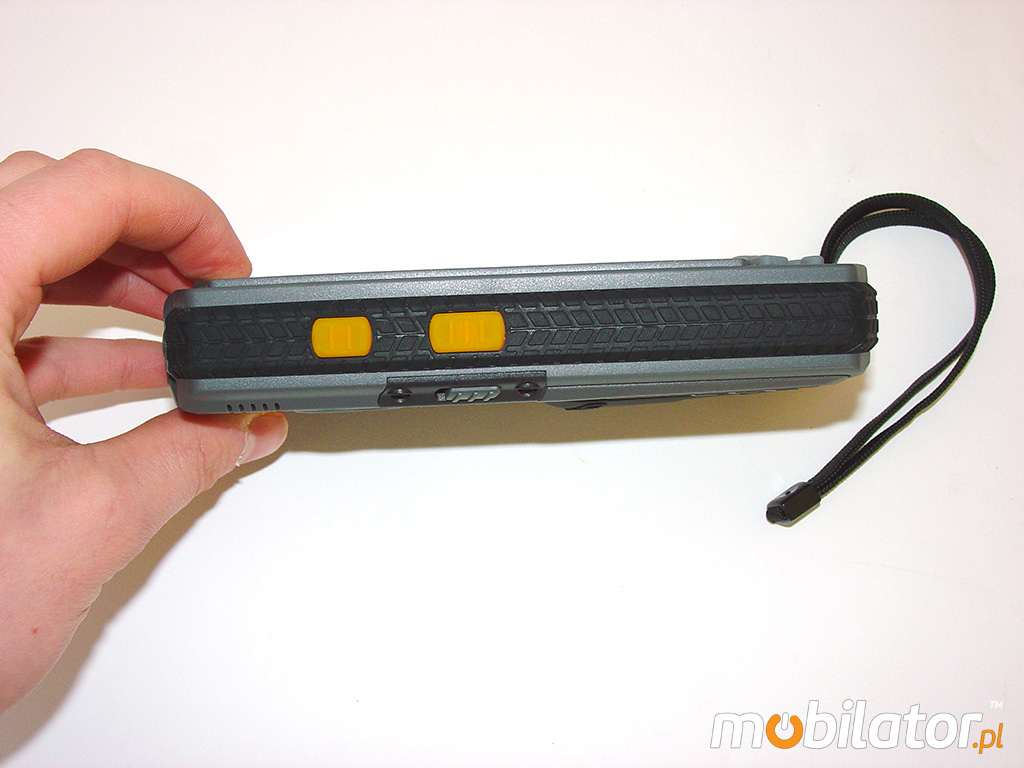

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have H9. The device weighs just 300g and its dimensions (148 x 77.5 x 27mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that MobiPad is in a group of devices which enjoy great popularity in the European market in the industrial segment.
 Dimensions 148 x 77.5 x 27mm
 Weight 300g
more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...



Compare all versions
