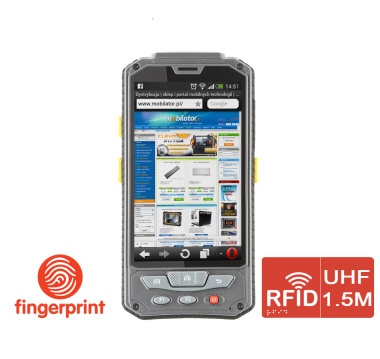

MobiPad H9 has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP65 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.
|
Description |
|
Select a version for yourselfSelect a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".
|
The collection and processing of data |
|||||||||||||||||||||||||
Barcode Scanner
Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.
|
|||||||||||||||||||||||||
RFIDRFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.
In the UHF (Ultra High Frequency) band, where RFID tags work according to the principles of the electromagnetic coupling, the most popular technology at the moment is the one based on the ISO 18000-6C protocol, best known as EPC Class 1 Gen 2 or for short Gen 2. The EPC Class 1 Gen 2 standard was proposed by the private organization EPCGlobal and then adopted in 2006 as the ISO 18000-6C standard by the International Standards Organization (ISO). The EPC Class 1 Gen 2 standard was created to address some issues of previous UHF RFID standards conceived for logistics applications (such as the ISO 18000-6a and the ISO 18000-6b). The new standard was developed specifically to track fluxes of goods between different companies and across all world regions with good read performance in environments with a high density of tags.
FingerPrintFingerscanning, also called fingerprint scanning, is the process of electronically obtaining and storing human fingerprints. The digital image obtained by such scanning is called a finger image.
|
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ... |
Durability: | IP65 |
Humidity: | 10% - 90% RH | non-condensing |
Waterproof: | IP65 |
Weight: | |
Temperature: | Operating temperature: -20°C -- +50°C Storage temperature: -20°C -- +70°C |
Shock: | Multiple drops to concrete 5ft. | 1.5m in the whole temperature range |
Vibration: | ----- |
Drop: | 1.5 meters |
Sand and dust: | IP65 |
1D barcode scanner (reader): | none (available in other versions) |
2D barcode scanner (reader): | none (available in other versions) |
RFID scanner (reader): | RFID UHF (856-869Mhz) EPC C1 GEN2 ISO18000-6 reading distance: 1.5 meters |
Magnetic card reader (MSR): | ----- |
Microchip card reader: | ----- |
Docking station connector: | ----- |
VESA standard – holders and mounts support: | ----- |
COM port: | ----- |
Dispaly: | 4.3" IPS (800x480) Sunlight Readable Capacitive (5-points) |
Brightness: | ----- |
Contrast: | 500:1 |
Touch screen: | Tak |
Graphics card: | Mali-400 MP |
Swivel Hinge: | ----- |
VGA out: | ----- |
TV Out: | ----- |
TV Tuner: | ----- |
Processor: | MTK6572 Dual Core 1.0GHz |
Chipset: | ----- |
BIOS: | ----- |
Memory: | 1GB LPDDR2 |
Hard Drive: | 4GB EMMC |
Flash Memory: | |
Battery: | 3.7V 4000mAh Li-Ion |
Working time on battery: | Working time - depending on usage Standby Time - 360 hours Charging Time - < 4.5 hours |
HotSwap battery: | ----- |
Fast battery replacement ability: | Yes |
Size: | 148 x 77.5 x 27mm 300g |
Casing material: | high quality plastic and rubber |
Fanless casing: | Yes |
Operating System: | Android 4.2.2 |
LAN: | ----- |
WLAN: | IEEE 802.11b/g/n |
Bluetooth: | Bluetooth 4.0 |
WAN: | 2G : 850/900/1800/1900MHz 3G: 850/2100MHz |
GPS: | Built-in A-GPS EPO |
Flash Card Reader: | microSD (max. 32GB) |
CD/DVD: | ----- |
Camera: | Yes - 5Mpx + LED Flash |
Audio: | Speaker | Receiver | Microphone |
Seciurity: | ----- |
In/Out: | SIM | MicroSD | Mini USB | DC In |
Keyboard: | On-Screen | Functional keys |
Additional Navigation Devices : | ----- |
Color: | gray with yellow buttons |
Optional accessories: | ----- |
Other: | FingerPrint Charger | DC Cable | USB Cable | Battery | Rope |
CURRENT PRICE |
|
3662.17 € | Net |
4504.47€ | Gross |
