Operating Panel Fanless Panel PC ITPC-A8 High (WiFi)
|
|
The product from the archive - production terminated
|
Compare all versions
|
.jpg)
|
Products Panel PCs are new distribution Mobilator-a. This innovative device that may be widely used in cars, line production itc. They can be connected to multiple modules, eg. in charge of the engine.
|
|
|
|
Industrial Panel PC
Fanless industrial Panel PC are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable Panel PC uses of heat-pipe technology.
|
|
|
Panel PC
|
Operating Panel Fanless Panel PC ITPC-A8 (WiFi)
|
|
.jpg)
|
 |
CPU: Intel® Celeron™ 1037U (2M Cache, 2 x 1.8GHz)
|
|
|
Memory: 4GB RAM DDRIII SODIMM
|
|
|
Disk: 32GB SSD |
|
|
System: Windows 7
|
|
|
Screen: 8.1" / 800x480 / 4 - Wire Resistive
|
| |
Detailed specification of the configuration available in the "Technical data"
|
Using the latest technology (industrial fanless) Panel PC is designed for continuous multitasking operating with low power consumption (20 W). An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Celeron processor family, Intel chipsets and DDR3 memory. Integrated Intel® HD Graphics video graphics card and HD Audio allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB/64GB SSD or 500GB HDD.
Dimensions:
Housing dimension are 217.5 (W) x 176.5 (L) x 76 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.96 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
.jpg)
Cooling:
Operating Panel Fanless Panel PC ITPC-A8 (WiFi) is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

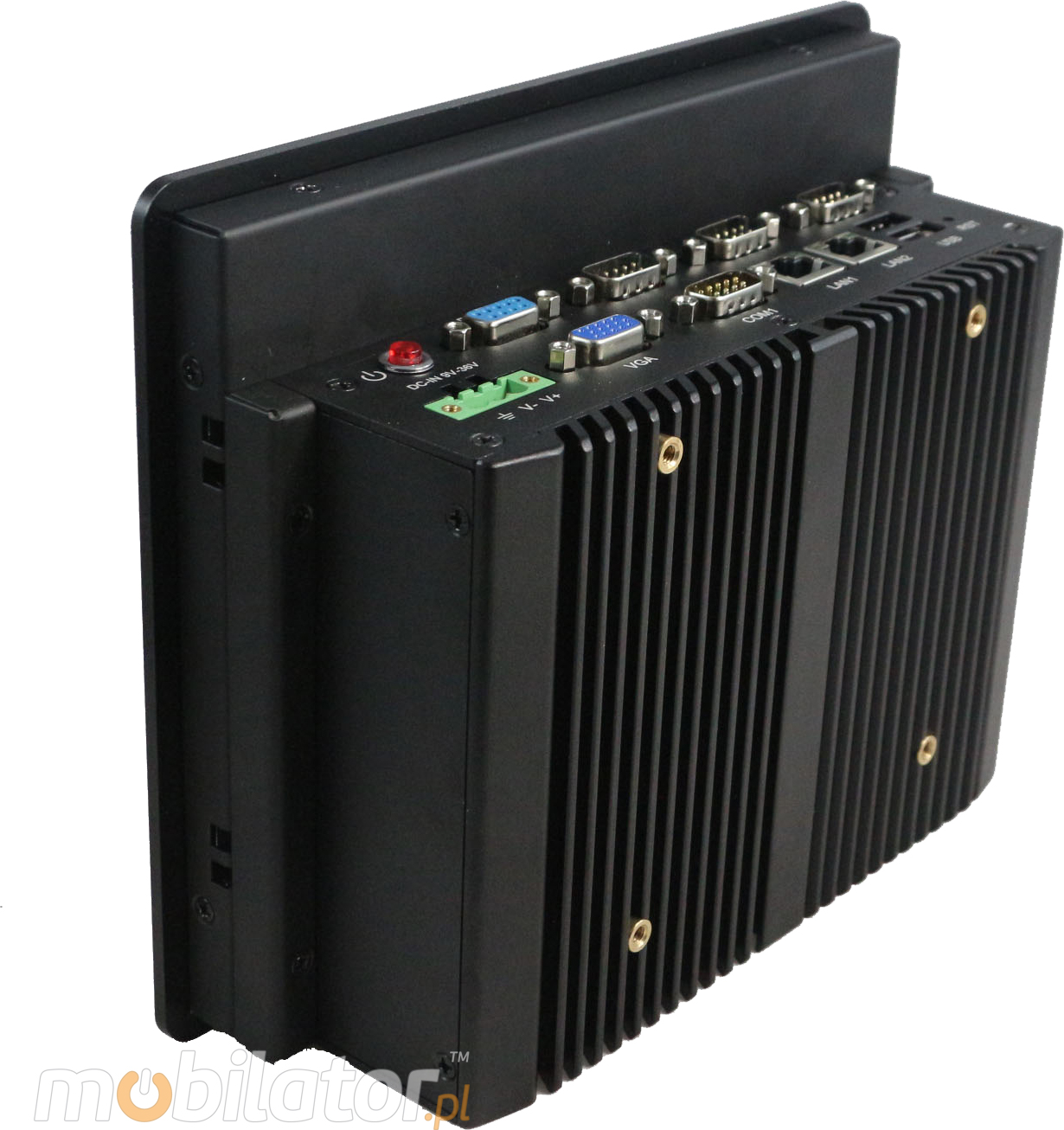

The Operating Panel Fanless Panel PC ITPC-A8 (WiFi) uses a special method of cooling.This cooling takes place mainly by means of housing having a very large surface (longitudinal lamels, ribs) for heat dissipation - thanks such cooling - industrial Panel PC is faster and more efficiently cooled. |
|
.jpg)
Connector:

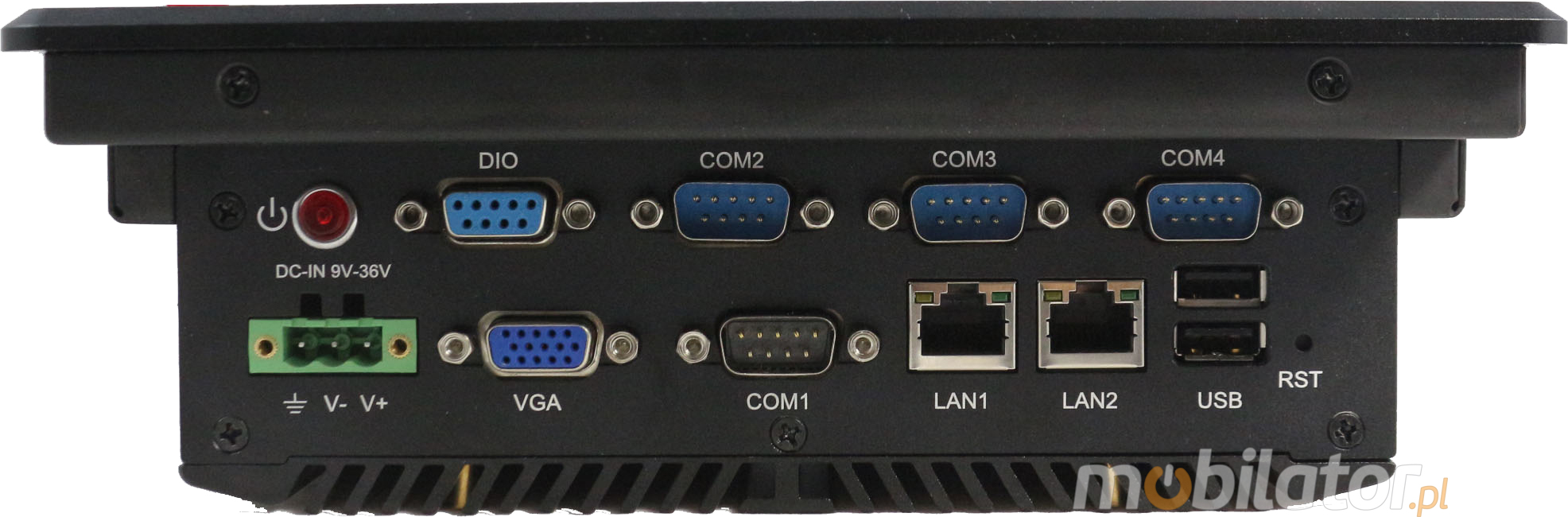

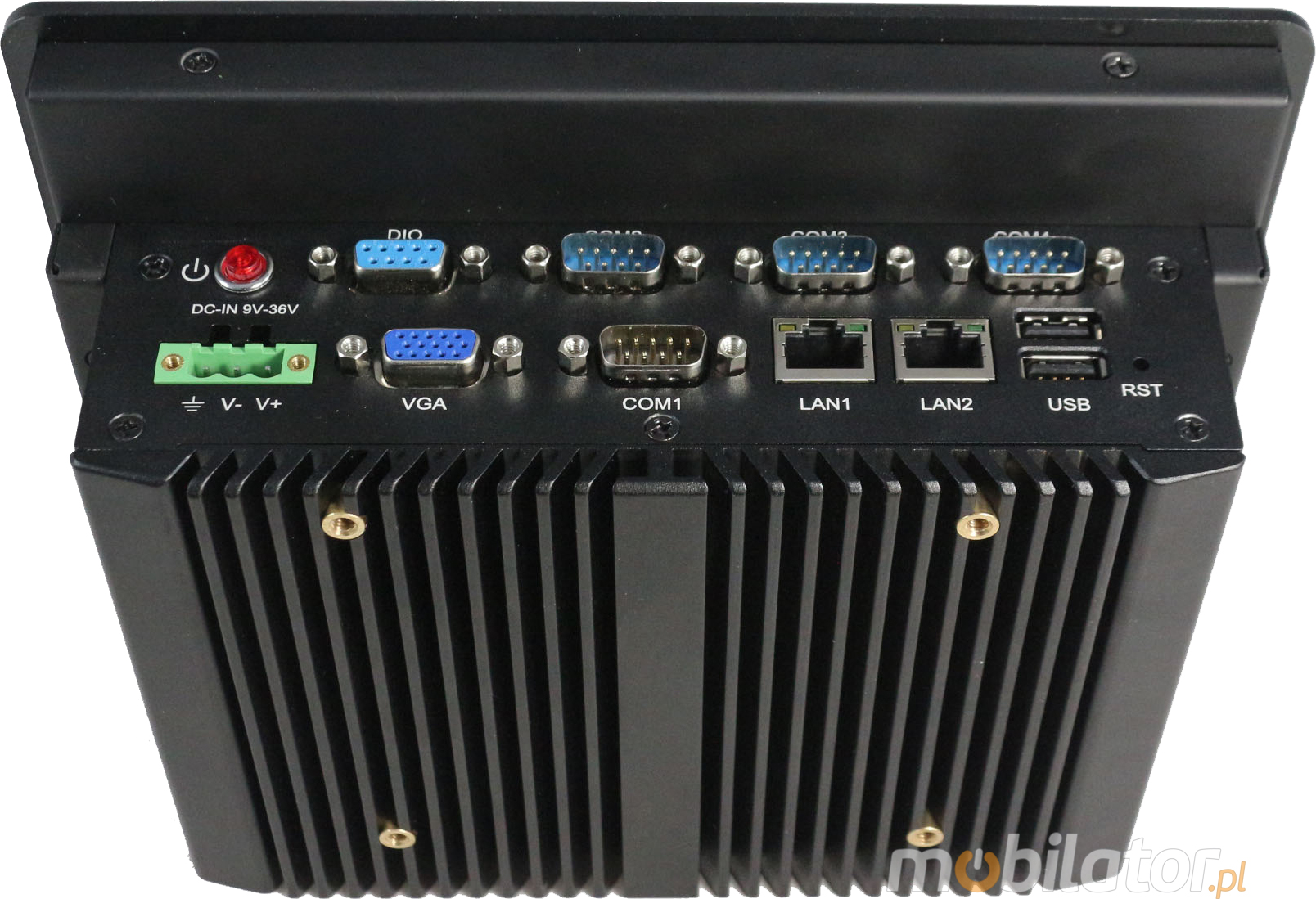

Integrated IntelRTL8111E LAN 2xRJ-45 1000M and WiFi module allows you to connect the device to the network. The computer is equipped with: two LAN connector, four COM ports (RS232) (COM1 can be support RS422/485), two USB 2.0 ports, one VGA output, one GPIO input/output.
|
.jpg)
|

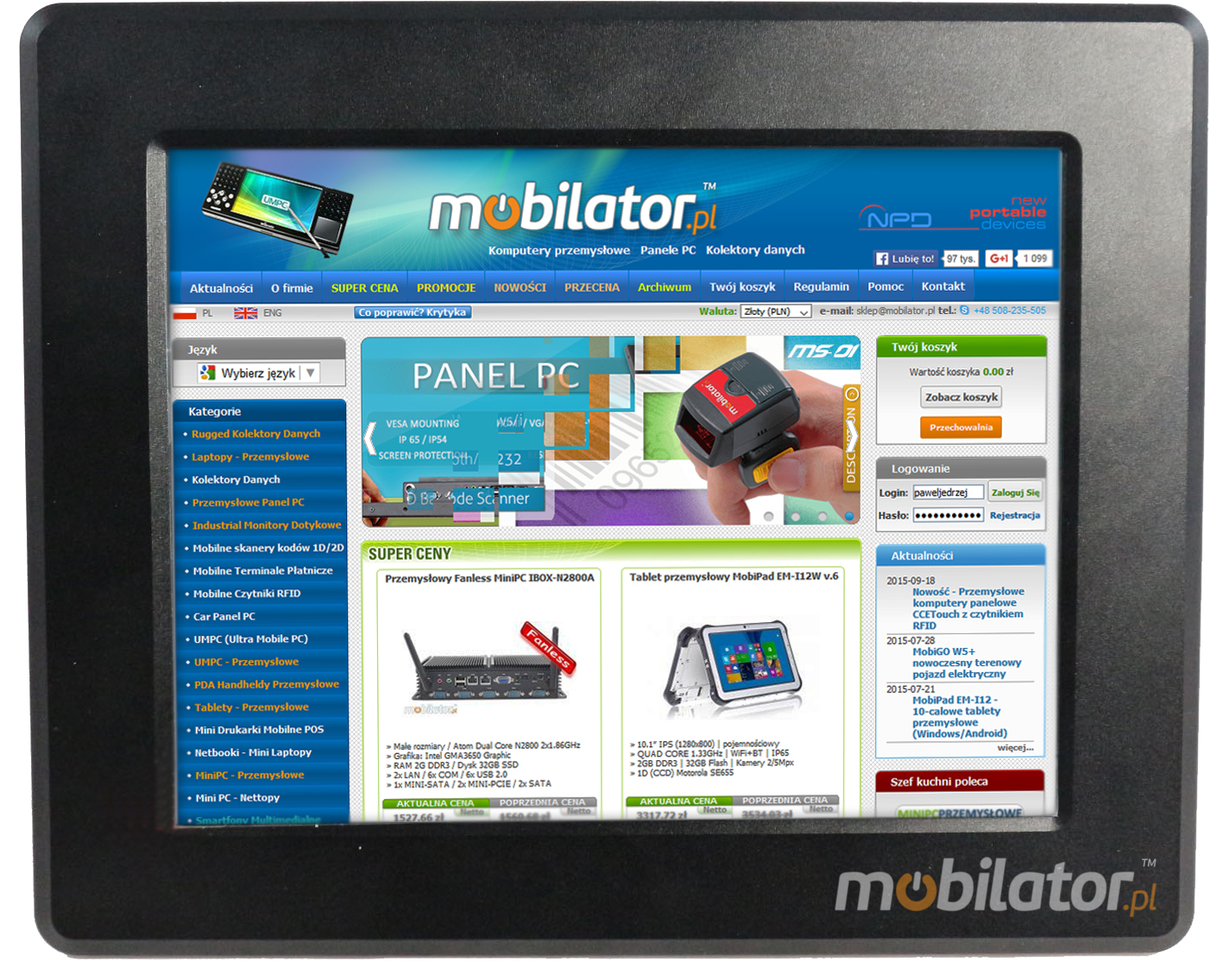

Operating Panel Fanless Panel PC ITPC-A8 (WiFi) has a scratch resistant TFT LCD. With 800x480 resolution and high brightness of 400 cd/m2, screen of "4 wire resistive" type with high sensitivity to touch, offers the user a clear picture and ease of use.
.jpg)
Resistive screen
A resistive touchscreen comprises of several layers, out of which the flexible plastic and glass layers are two important electrically resistive layers. The front surface of resistive touchscreen panel is a scratch-resistant plastic with coating of a conductive material (mostly Indium Tin Oxide, ITO), printed underside. The second important layer is either made of glass or hard plastic and is also coated with ITO. Both the layers face each other and are separated with a thin gap in between. An electrical resistance is created between both the layers in such a way that charge runs from top to bottom in one layer and side-to-side in another. When a finger or stylus tip presses down on the outer surface, both the ITO films meet. It is the measure of the resistance of both the layers at point of contact, which leads to get an accurate measurement of the touch position. The accuracy also relies on the evenness of the coating of ITO on both the layers.
Resistive screen ensures good visibility, which falls quite firmly in the sun. This type of screen as opposed to a capacitive screen, allows you to use handwriting (stylus comes in handy here).
4-WIRE RESISTIVE SCREENS
The 4-wire Resistive Touch Screen is the preferred solution for applications requiring durability and reliability. 4-wire touch screen consists of a conductive glass bottom layer and conductive top film layer. The fundamental difference between the two is, in the 4-wire construction, all the electrodes are on the bottom layer and the top layer acts as a voltage-measuring probe. With this structure, the touch screen may still work properly even when the top layer is slightly scratched or damaged. The result is an accurate, durable and reliable touch screen that offers a higher touch life.
Resistive screens are very durable and can be used in a variety of environments. This type of screen is recommended for demanding point-of-sale systems, restaurant systems, industrial controls, and other workplace applications.
|
Applicable standards and tests carried out.
Operating Panel Fanless Panel PC ITPC-A8 (WiFi) is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial panel and aluminum housing protects the display from the outside against mechanical damage, drops of water, sand and dust. ITPC-A8 is the best solution for extreme applications in dust or moisture.
.jpg)
|
| Operating Temp |
-20-65 °C |
| Operating Humidity |
10%-98% |
.jpg) |
.jpg)
Operating Panel Fanless Panel PC ITPC-A8 (WiFi) companies are based on the efficient two-core processors and high-quality components.
Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
.jpg)
.jpg)
|
Trade
Fanless Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register), factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Industrial Panel PC four COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
Transport & Automotive
Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 9~36V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
|
go top…  menu…
Display |
Screen: 8.1"
Resolution: 800 x 480
Type: 4 - Wire Resistive |
| Resistance IP |
-
|
| Communication |
Wi-FI
|
|
Dimensions
|
Height: 176.5 mm
Width: 76 mm
Length: 217.5 mm
|
| Weight |
2.96 kg |
| Processor |
Intel Celeron Dual Core 1037U (2x 1.8GHz) |
| Chipset |
NM70 |
| Memory RAM |
4GB DDR3 |
| Graphics Card |
Intel® HD Graphics |
| Sound Card |
HD Audio |
| Network Card |
Intel RTL8111E 1000M Lan |
| Ports & interfaces |
4 x COM(RS232)
1 x 9-36V DC-in
2 x USB2.0
2 x RJ-45
1 x VGA
1 x GPIO
|
|
|
.jpg)
|
|
Compare all versions
| Screen size: |
8.1" |
| Resolution: |
800 x 480 |
| Aspect ratio: |
----- |
| Touchscreen: |
Resistive Type 4-Wire |
| Chipset: |
NM70 |
| CPU Support: |
Intel® Celeron™ Processor 1037U (2 x 1.8GHz) |
| Installed CPU: |
Intel® Celeron™ Processor 1037U (2 x 1.8GHz) |
| Memory Support: |
DDRIII SODIMM |
| Installed Memory: |
4GB DDR3 |
| Graphic Card: |
Intel® HD Graphics |
| Audio: |
HD Audio |
| Storage (HDD) Support: |
SSD, HDD |
| Installed Storage (HDD): |
32 GB SSD |
| CD/DVD Drive: |
----- |
| LAN: |
Realtek RTL 8111E, 1000Mbit 2 x RJ45 Port |
| Wireless LAN card: |
Yes |
| Bluetooth: |
----- |
| 3G: |
----- |
| 4G LTE: |
|
| GPS: |
----- |
| TV Tuner: |
----- |
| Watch Dog Timer: |
0~255 sec. |
| Ports - front panel: |
----- |
| Ports - rear panel: |
Power ON/OFF;
2 x USB 2.0;
2 x RJ-45 LAN;
4 x RS-232 COM;
1 x VGA;
1 x GPIO |
| Ports - left panel: |
----- |
| Ports - right panel: |
----- |
| Power: |
9~36V DC-IN |
| Supported OS: |
Microsoft Windows 7 |
| Installed OS: |
----- |
| Dimensions: |
217.5 x 176.5 x 76 mm |
| Weight: |
2.96 kg |
| Expansion: |
----- |
| Fanless: |
Yes |
| Humidity: |
10%~ 98% |
| Temp: |
-20°C ~ 65°C |
| Storage Temp: |
-40°C ~ 85°C |
| IP Norm: |
----- |
| IP Level (back panel): |
----- |
| IP Level (front panel): |
----- |
| Dual display: |
No |
| Response time touch-panel (ms): |
< 10 |
| Contrast Ratio: |
----- |
| Brightness: |
400 cd/m2 |
| Viewing Angle: |
----- |
| Backlight MTBF: |
LED |
| Color Resolution: |
----- |
| Surface hardness (display): |
----- |
| Touch Life(contacts): |
>50.000.000 times |
| Housing material: |
Aluminum |
| Mounting VESA: |
Pane for carl, Wall, Rack, Stand and Arm VESA 100mm x 100mm |
| Folding Bracket (for office type working): |
No |
| Power Consumption: |
20 W |
| Others: |
----- |
| Anti-vibration: |
----- |
| Anti-shock: |
----- |
| RFID scanner (reader): |
----- |
| Barcode reader: |
|
