Industrial PC panels are integrated devices consisting of a PC computer and a touch monitor. Due to their design, they can work even under severe conditions prevailing in industrial environments, such as high humidity, high dustiness, contact with water or very low or high temperatures. These panels are characterized by high efficiency and stability of operation in all conditions.













Specifications and parameters







Performance
Processor	ARM Cortex-A53 (4x 1.5GHz)
Graphics card	Mali400MP2 GPU
Operating system	Android 6.0
RAM	2GB
Drive	8GB eMMC
Display
Screen	15.6" (1920x1080)
Touch screen	Capacitive
Brightness	400cd/m²
Contrast	1000:1
Response time	5ms
Hardness	—
Interfaces
Communication	Wi-Fi

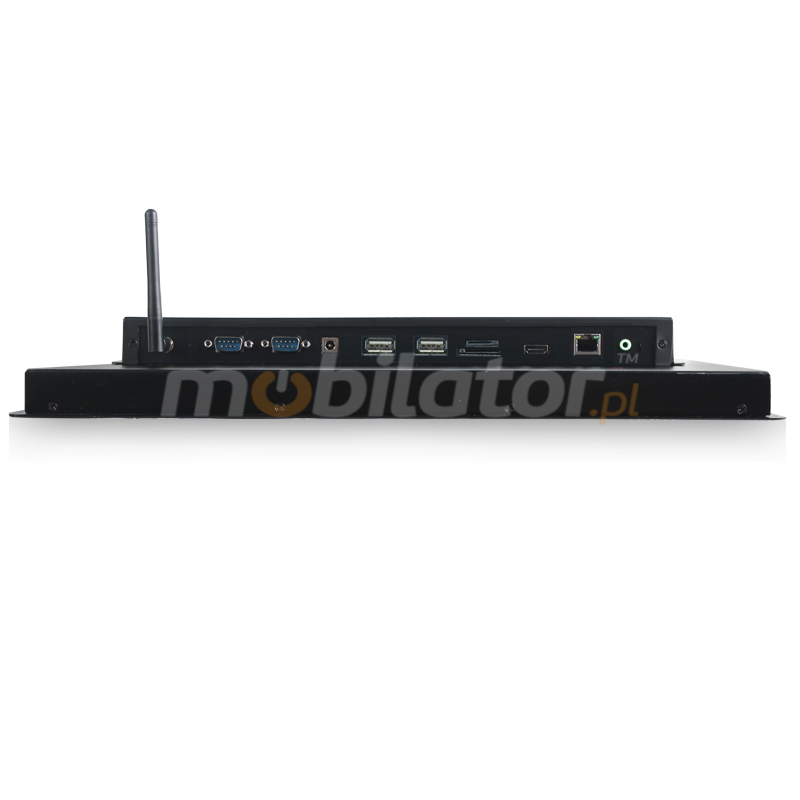

Connectors	HDMI / VGA / RJ45 / 2x USB 2.0 / RS232 / Audio / DC 12V
Memory card	SD
SIM card	1* SIM
Other
Protection	IP65 (front panel)

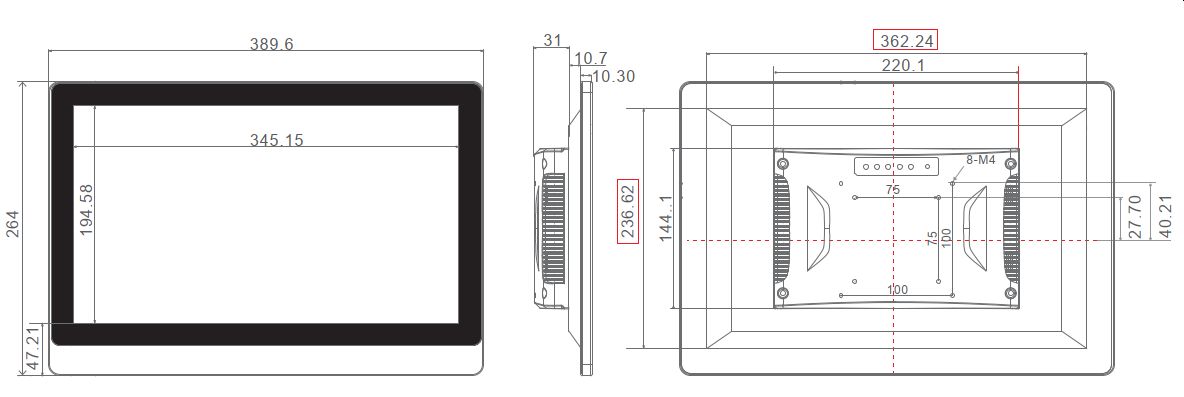

Dimensions	389,6mm x 264mm x 52mm
Weight	5kg









The dust-proof industrial PC panel uses an efficient and energy-saving ARM Cortex 53 processor. In its interior there are four cooperating cores enabling more efficient processing of many tasks at the same time. Shared cache memory in which a multi-level hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory. Improved graphics card technology allows you to enjoy movies at full resolution and HD quality.













Display and touch

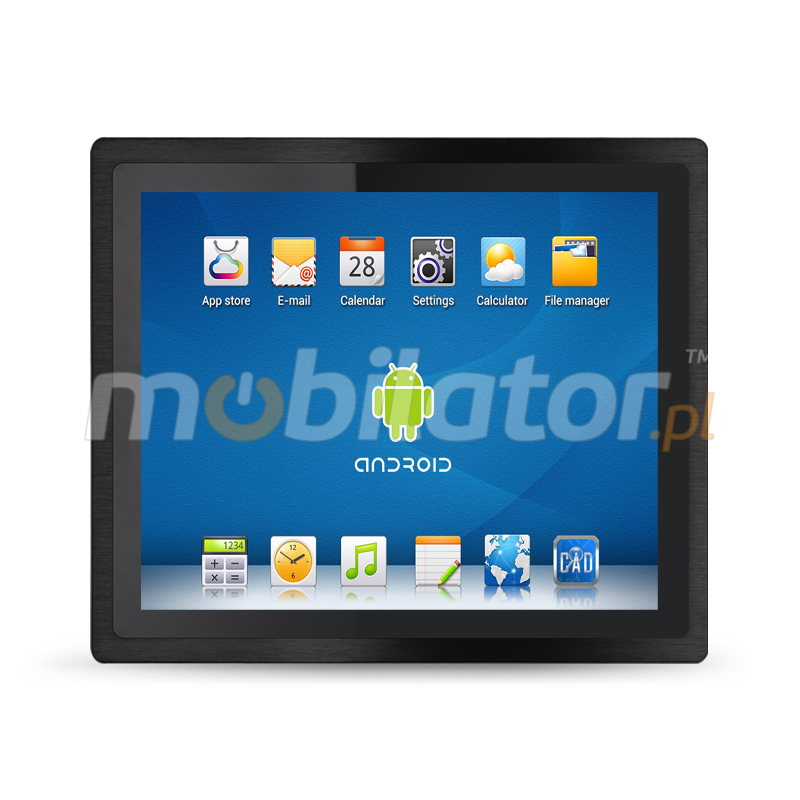

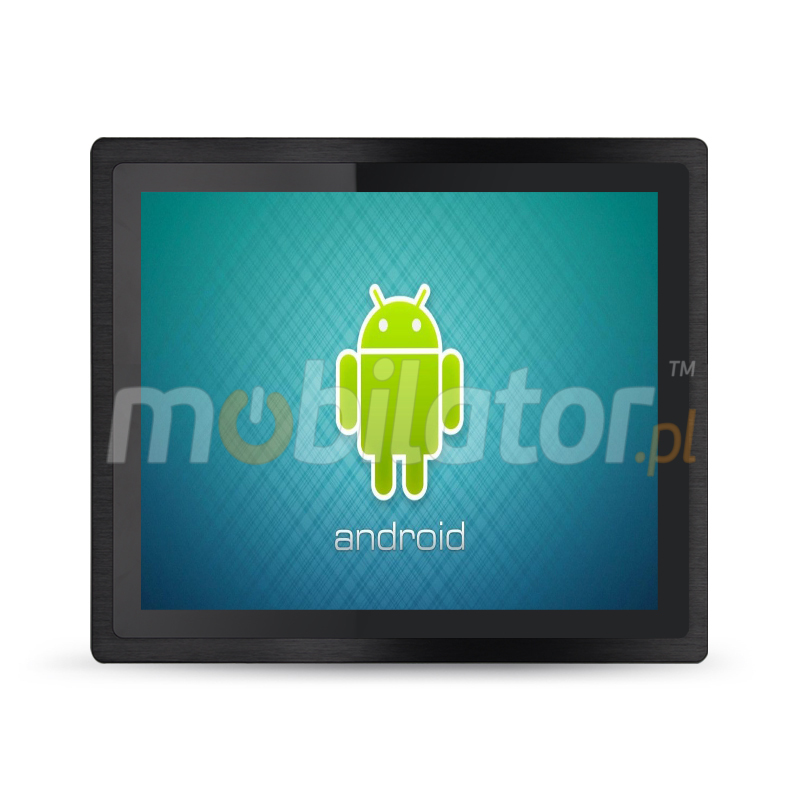

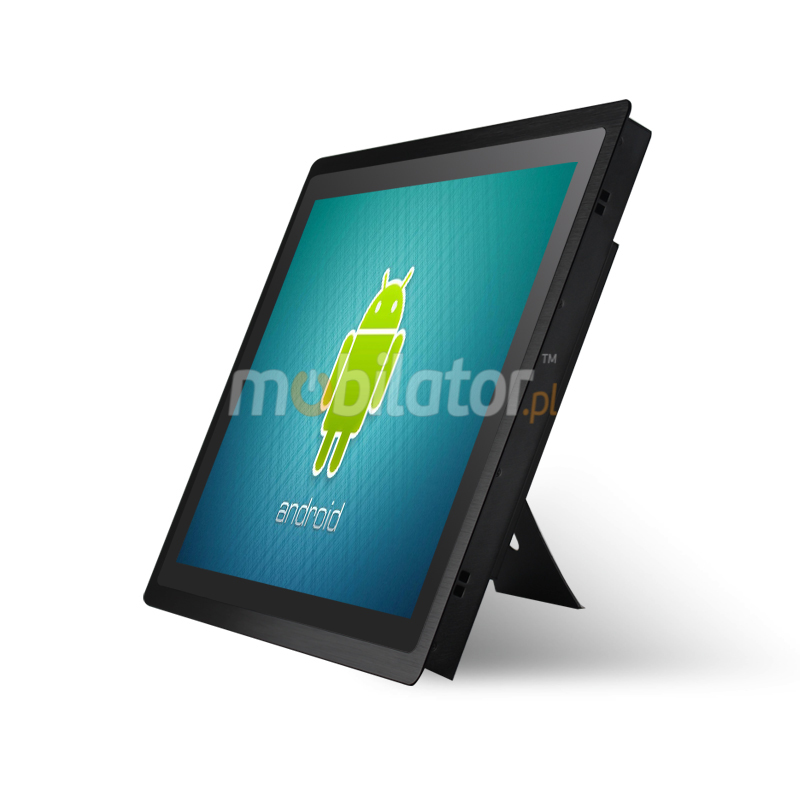

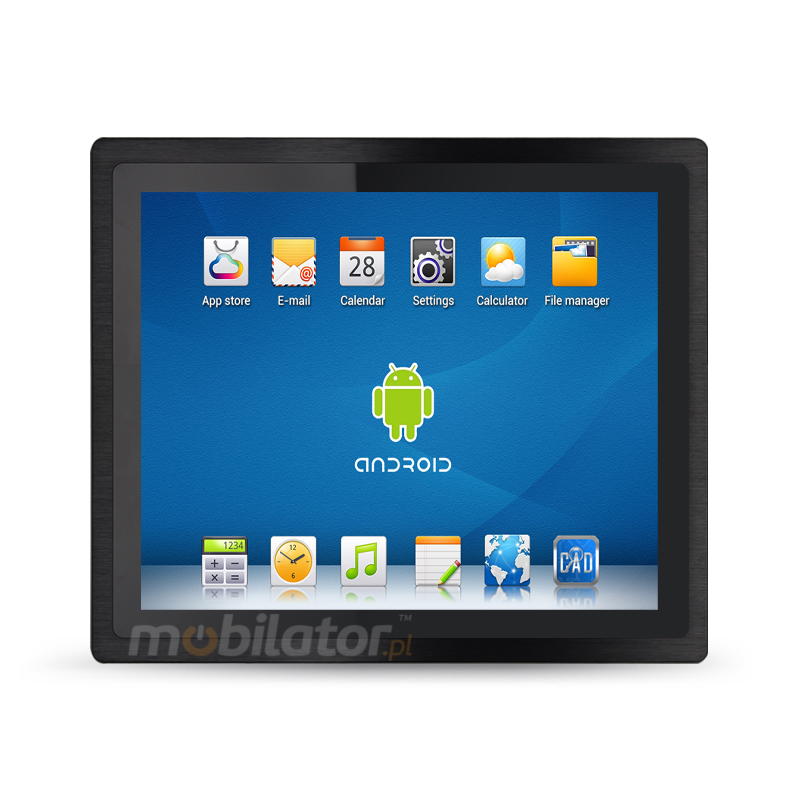

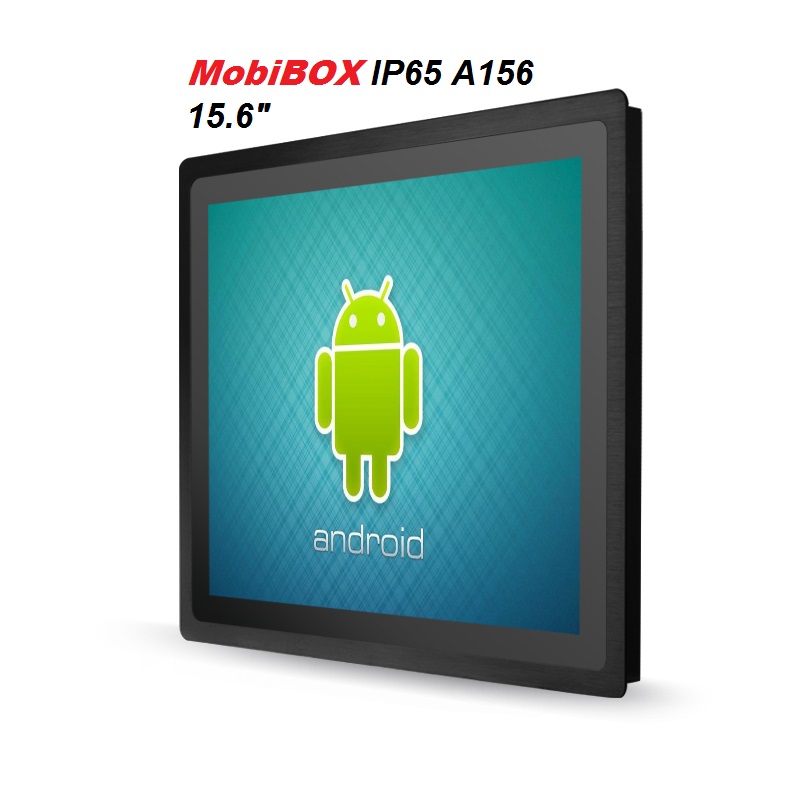

Amplified, waterproof industrial computer MobiBOX IP65 A156 has a water-resistant and scratch-proof 15.6" LCD screen 1920x1080 resolution offers good image quality, and high brightness in the 400 cd/m² range gives better color saturation and contrast and allows significantly improved visibility even in the case of incident.





CAPACITIVE SCREEN





In the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our screen with a few fingers at once.











up…   menu…



Resistance and protection







PROTECTION STANDARD IP65





IP norm (International Protection Rating) determines the degree of protection provided by the housing of an electrical device against such factors as: access to dangerous parts inside the housing, penetration of foreign solids and splashing or immersion. The first characteristic number means that the housing protects people against access to dangerous parts located inside the device, and at the same time provides protection against penetration of foreign solids. The second characteristic digit means that the housing provides protection against the effects of water penetration.





IP6X (front panel)	Protection against access to dangerous parts with wire. Dustproof protection.
IPX5 (front panel)	Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.











EXtreme temperatures





PanelPC MobiBOX IP65 A156 is adapted for continuous operation in both very low and high temperatures in the range from -10 ° C to 60 ° C. If the device is switched off, it can already handle temperatures between -30 ° C and 60 ° C. In addition, the durable PanelPC is perfect for rooms with increased humidity, ensuring proper functioning even in the case of 90% relative humidity.





Work temp.	-10°C to 60°C
Storage temp.	-30°C to 60°C
Humidity	10% - 90%





up…   menu…



Communication and connectors







WIreless Wi-Fi network





The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. The shockproof industrial panel MobiBOX IP65 A156 has been equipped with standards - 802.11n, which allows transfer of files at a dizzying speed of up to 150 Mb/s.





Standards	802.11a/b/g/n
Frequencies	2.4GHz | 5GHz







Connectors and interfaces











up…   menu…



Application



trade and services

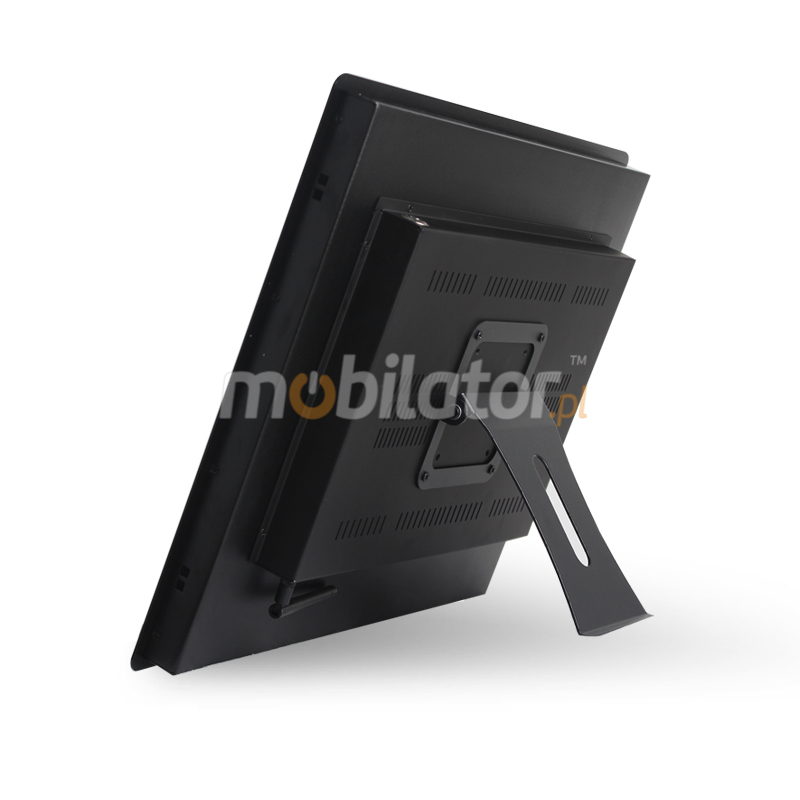

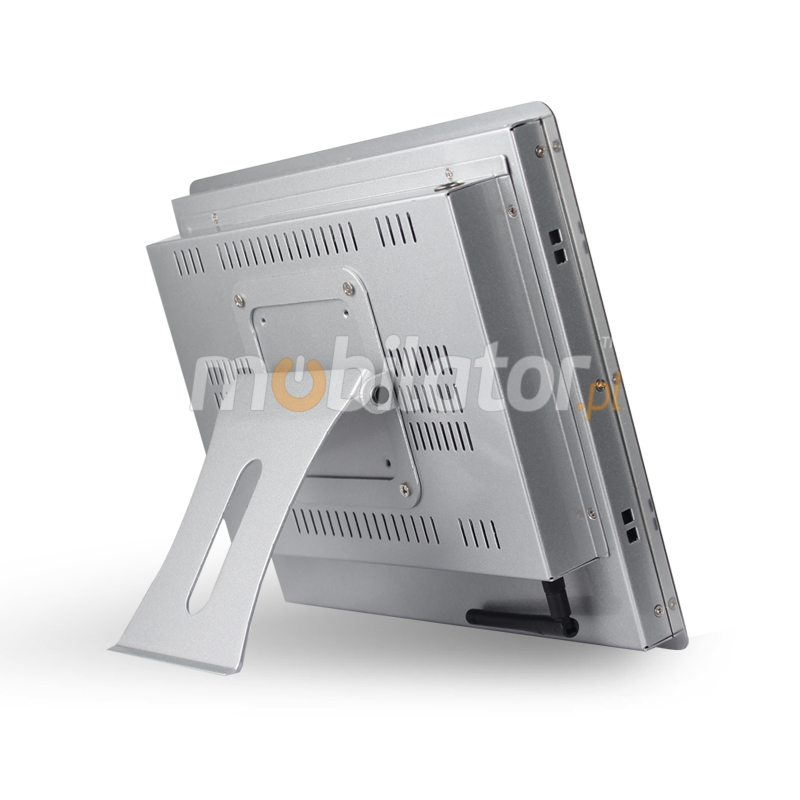

Waterproof and dustproof PC Panel is widely used primarily in the commercial industry, for example for controlling the sales system, displaying product information on monitors or advertising on large screens. With the VESA holder in the housing there are many possibilities for its assembly, eg in stores (at the cash register) in factory halls, in a car delivering products, etc. It will certainly be used in all types of retail chains.





warehouse and management





The industrial panel computer thanks to the RS232 interface can be used to connect many devices in the warehouse and facilitate their control. And its rugged housing is ideally suited to the harsh conditions prevailing in such rooms. No dust or dirt will prevent him from working, he will work without complaints even in a large dusty and dirty environment.





Transport and motorization





Panel computers can be used in transport by adapting it to work on 12V power supply. Then Panel PC can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. Thanks to the integrated monitor, these panels perform very well in vehicles where mobility and the small size of the device are important.
