Industrial PC panels are integrated devices consisting of a PC computer and a touch monitor. Due to their design, they can work even under severe conditions prevailing in industrial environments, such as high humidity, high dustiness, contact with water or very low or high temperatures. These panels are characterized by high efficiency and stability of operation in all conditions.
up…
menu…
Specifications and parameters
| Performance |
| Processor |
Dual core Cortex-A72+ Quad Core Cortex-A53 |
| Graphics card |
Mali-T864 GPU Dual-channel 4gen |
| Operating system |
Android 7.1 |
| RAM |
4GB DDR3L |
| Drive |
SSD: 32 GB |
| Display |
| Screen |
19" (1280x1024) |
| Touch screen |
capacitive |
| Brightness |
330cd/m² |
| Screen ratio |
4:3 |
| View angle |
89/89/89/89 |
|
Touch screen
lifetime
|
>50.000.000 |
| Interfaces |
| Communication |
802.11a/b/g/n | Bluetooth 4.0 |
| Connectors |
2x USB 2.0 | 2x COM | 1x LAN | 1x SD and SIM | 1x HDMI |
DC 12V |
| Other |
| Dimensions |
451 x 380 x 63mm |
| Weight |
5.9 kg |
| Casing material |
Aluminum alloy |
* Optional equipment, available only in specific versions of the device.
The dust-proof industrial PC panel uses an efficient and energy-saving Dual core Cortex-A72+ Quad Core Cortex-A53 processor. In its interior there are two cooperating cores enabling more efficient processing of many tasks at the same time. Shared cache memory in which a multi-level hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory. Improved graphics card technology allows you to enjoy movies at full resolution and HD quality.
up… menu…
Display and touch
Amplified, waterproof industrial computer MobiTouch 19RKK4A has a water-resistant and scratch-proof 19" LED screen 1280x1024 resolution offers good image quality, and high brightness in the 330 cd/m² range gives better color saturation and contrast and allows significantly improved visibility even in the case of incident The display of the resistive type provides the user with a clear image and ease of use by touch.
capacitive Screen (available in lta version)
The capacitive screen consists of a glass coating that is covered with an insulator. Touching the surface of the touch pad with your finger causes a disturbance in the flow of electric current. This display provides very good visibility under industrial conditions. The panel can be operated with one finger or conductive material (special glove). This type of screen provides support for multi-touch technology, which is a clear convenience during work. This is due to the fact that a large number of electrodes allows accurate detection of many points of touch. You do not have to use a stronger pressure for capacitive screens, because you only need to lightly brush the screen with your finger to make the device react.
up… menu…
Resistance and protection
Quality of materials
Panel PC has a high quality casing made from aluminum alloys. It is a very crucial component of cooling system thanks to openings allowing air flow inside casing, specially important in a passive system. Overall design concentrates on simplicity and functionality which are in high demand amongst professionals.
EXtreme temperatures
PanelPC MobiTouch 19RKK4A is adapted for continuous operation in both very low and high temperatures in the range from -10 ° C to 60 ° C. If the device is switched off, it can already handle temperatures between -30 ° C and 70 ° C. In addition, the durable PanelPC is perfect for rooms with increased humidity, ensuring proper functioning even in the case of 80% relative humidity.
| Work temp. |
-10°C do 60°C |
| Storage temp. |
-30°C do 70°C |
| Humidity |
10% - 80% |
up… menu…
Communication and connectors
WIreless Wi-Fi network
The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. The shockproof industrial panel MobiTouch 19RKK4A has been equipped with standards - 802.11n, which allows transfer of files at a dizzying speed of up to 150 Mb/s.
| Standards |
802.11a/b/g/n |
| Frequencies |
2.4GHz | 5GHz |

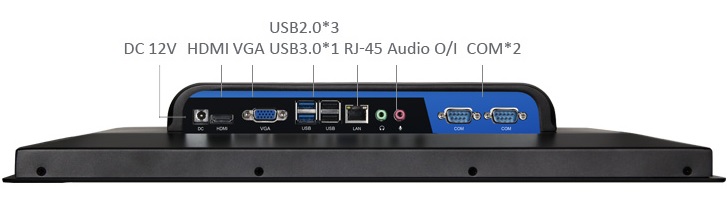

Connectors and interfaces

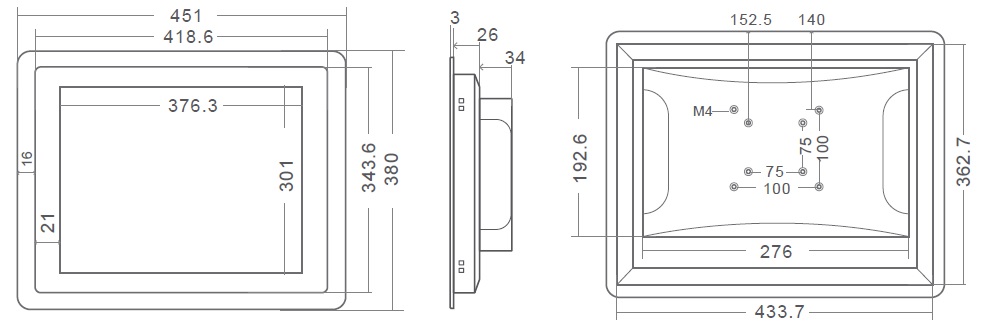

Dimensions
Application
trade and services
PC Panel is widely used primarily in the commercial industry, for example for controlling the sales system, displaying product information on monitors or advertising on large screens. With the VESA holder in the housing there are many possibilities for its assembly, eg in stores (at the cash register) in factory halls, in a car delivering products, etc. It will certainly be used in all types of retail chains.
warehouse and management
The industrial panel computer thanks to the RS232 interface can be used to connect many devices in the warehouse and facilitate their control. And its rugged housing is ideally suited to the harsh conditions prevailing in such rooms. No dust or dirt will prevent him from working, he will work without complaints even in a large dusty and dirty environment.
.jpg)
Transport and motorization
Panel computers can be used in transport by adapting it to work on 12V power supply. Then Panel PC can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. Thanks to the integrated monitor, these panels perform very well in vehicles where mobility and the small size of the device are important.
up… menu…
Available versions and accessories
Industrial Panel MobiTouch 19RKK4A is offered in several versions adapted to different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.
