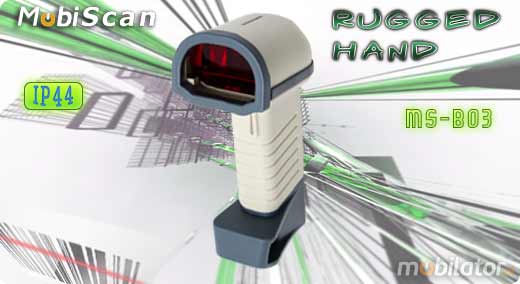

MobiScan Rugged Hand MS-B03
|
|
The product from the archive - production terminated
|
|

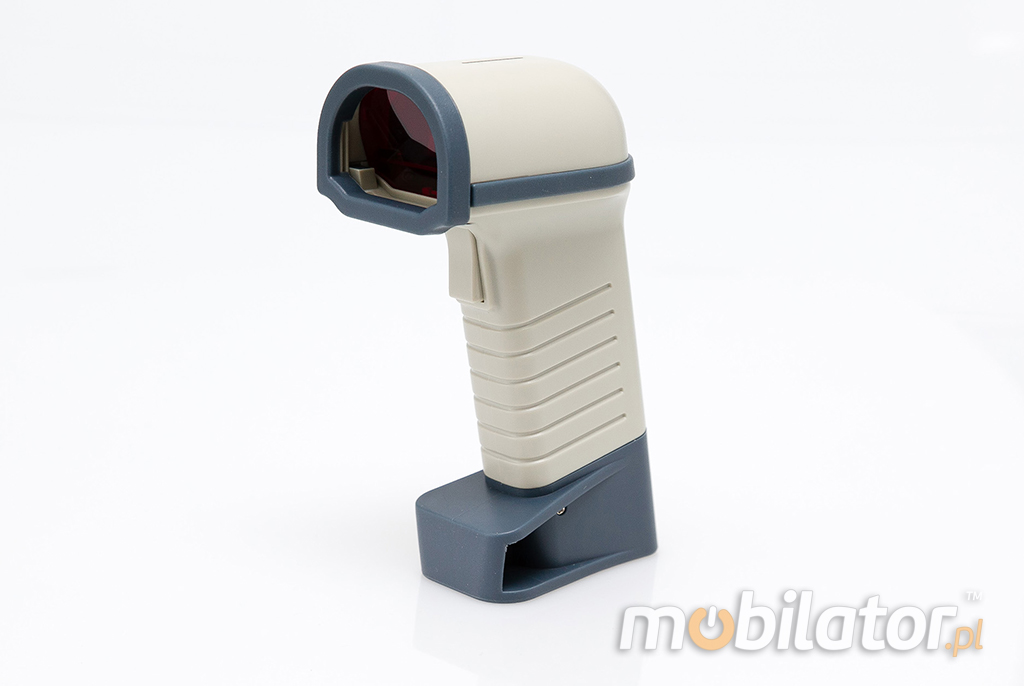

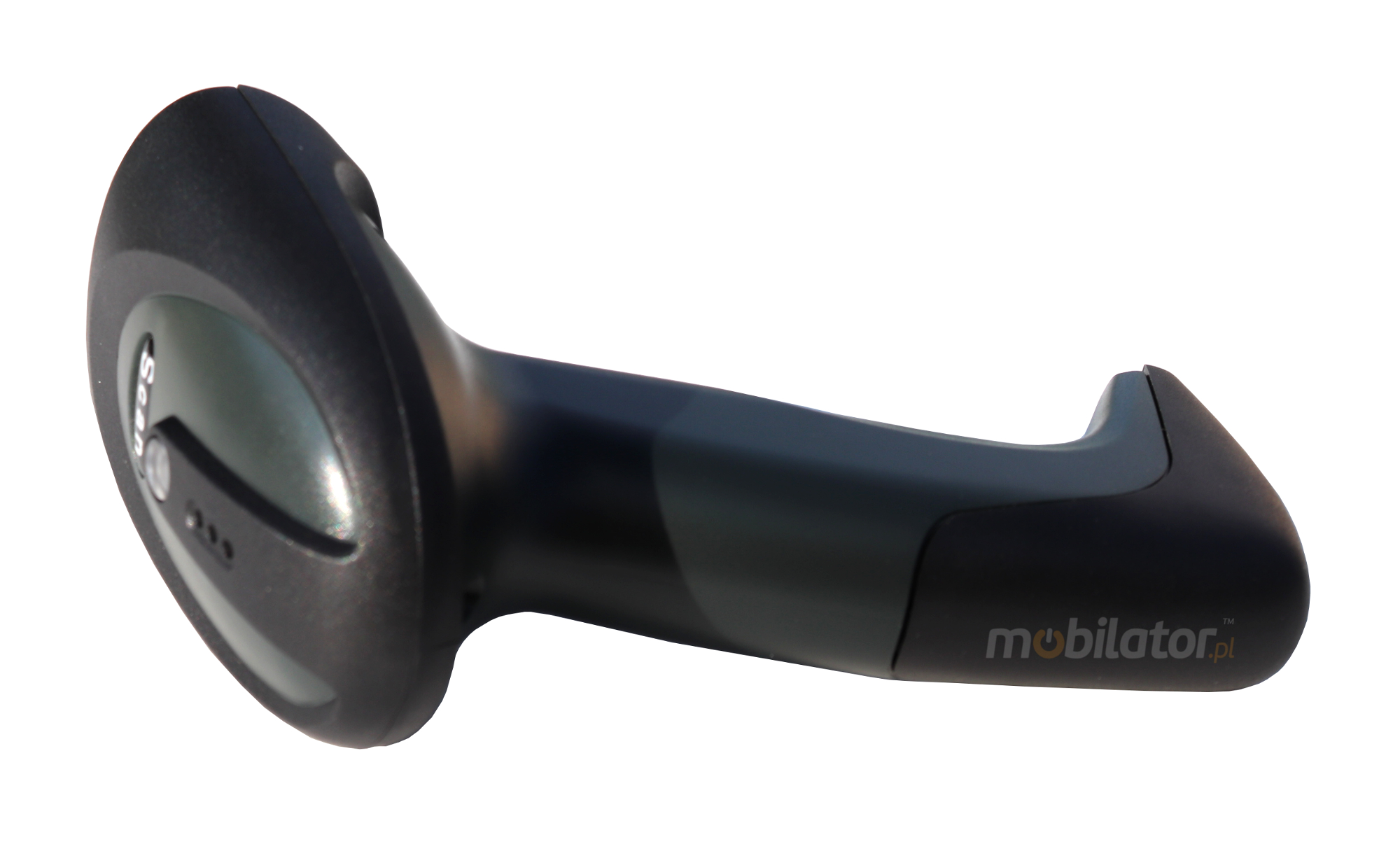

.jpg)
|
The company's MobiScan new distribution of Mobilator. Company achieved an excellent reputation as a manufacturer of bar code scanners. Due to the high position of the products in the high-tech won the trust of many customers around the world.
|
|
|
|
The bar code scanner is a device that allows data read barcodes from boxes, equipment, documents and all the places where these codes were implemented. MobiScan products are of high quality and the ability to trouble-free operation for many years.
|
|
MobiScan Rugged Hand MS-B03 |
Barcode Scanner
|
1D Laser
|
Working time
|
6-8 h (Standby up to 40h) |
Support system
|
Android(OTG), iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux
|
|
Range |
10-40 m |
|
Communication |
Wireless 2.4G USB receiver
|
|

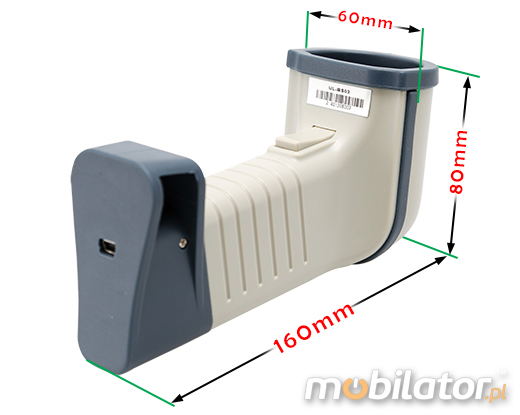

Dimensions |
80 x 60 x 160mm
|
Weight
|
240g |
|
Other |
Beep and LED
|
|
The detailed specification of the configuration available in the "Technical data"
|
|
Unusual, modern, wireless (2.4G) barcode scanner Rugged Hand MobiScan MS-B03 is designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc.
 MS-B03 intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing information sczytanych with barcodes.

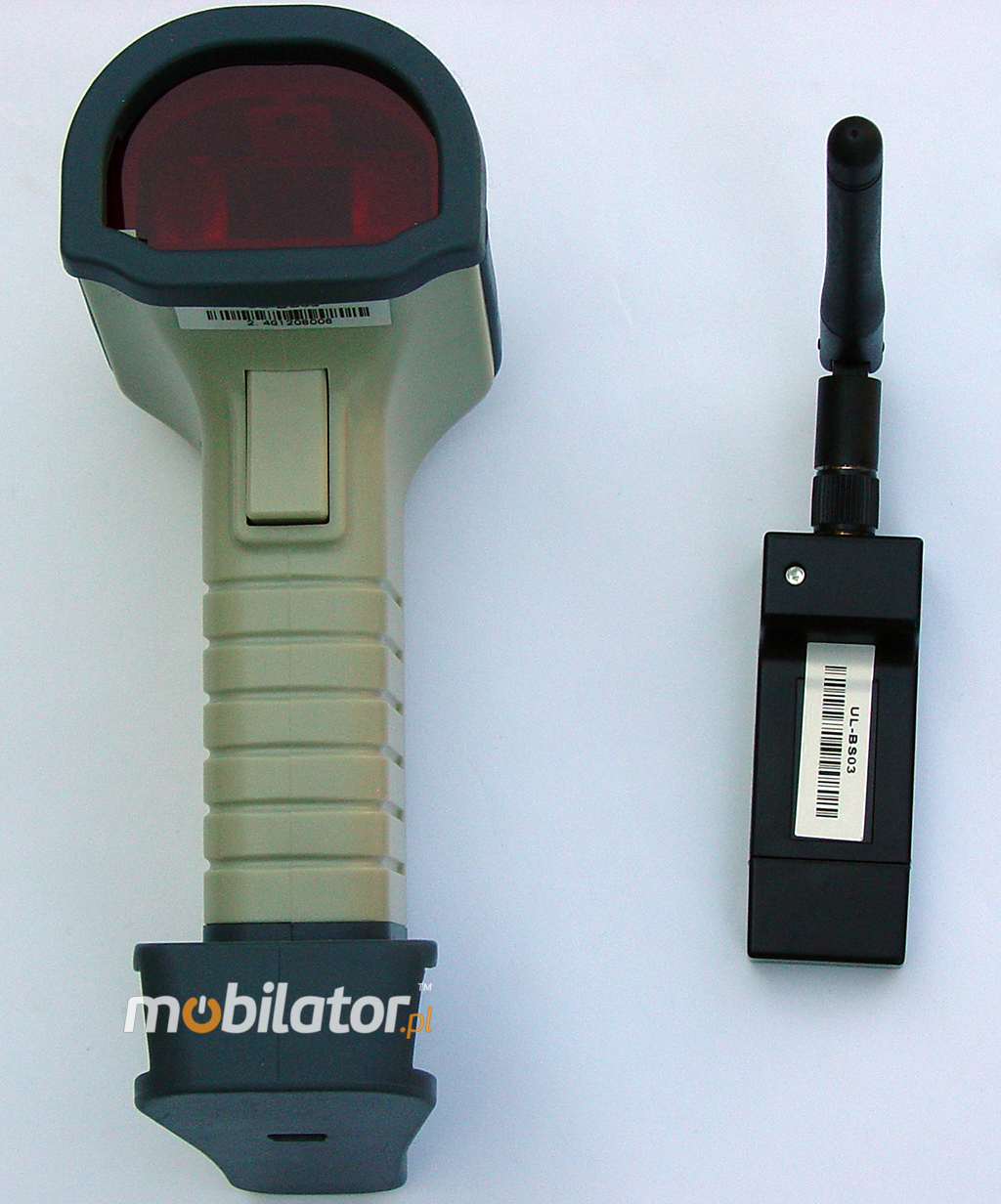

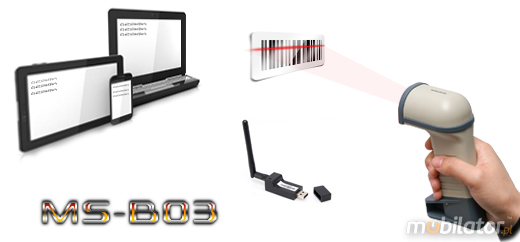

Scanner 1D Laser Barcode Scanner - MobiScan Rugged Hand MS-B03 thanks module to Wireless 2.4G USB receiver (which ensures proper communication) IS compatible with mobile devices, data collectors and computers running on different operating systemch (Look : Descriptions of "Communication" - below).
.jpg)

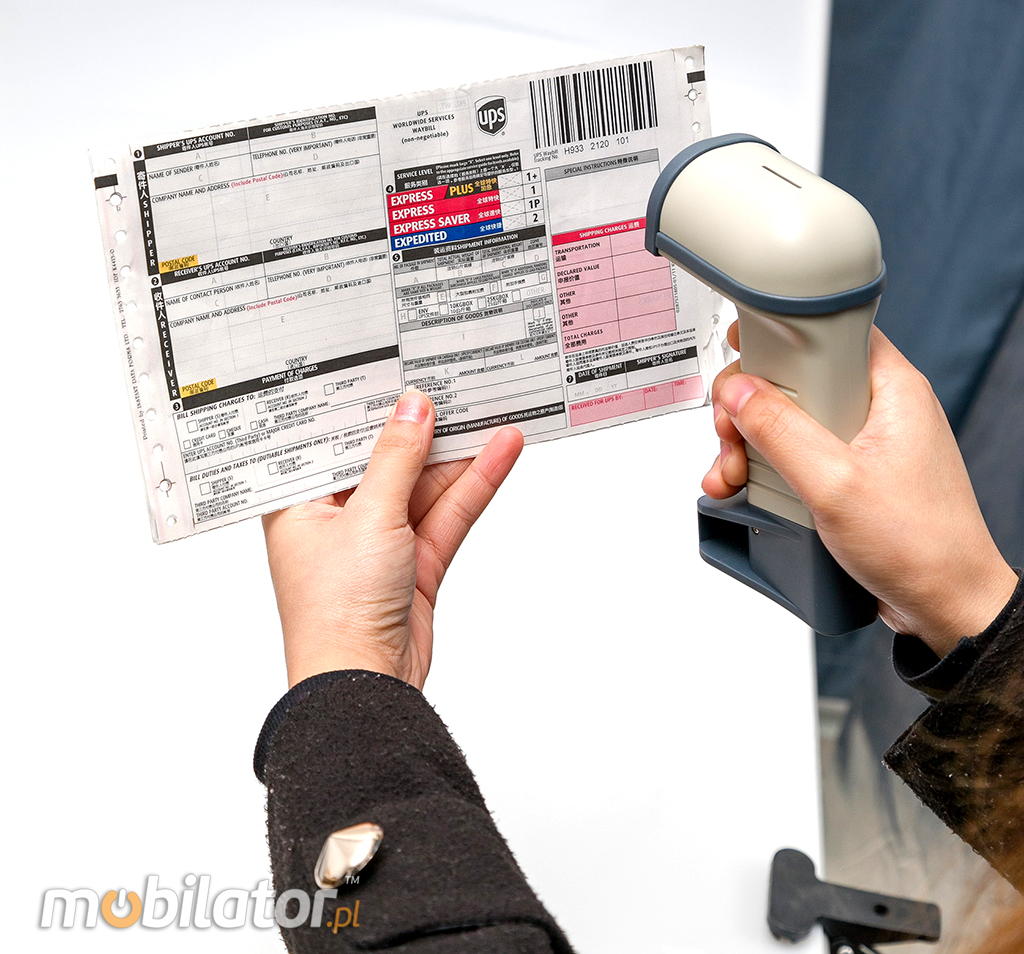

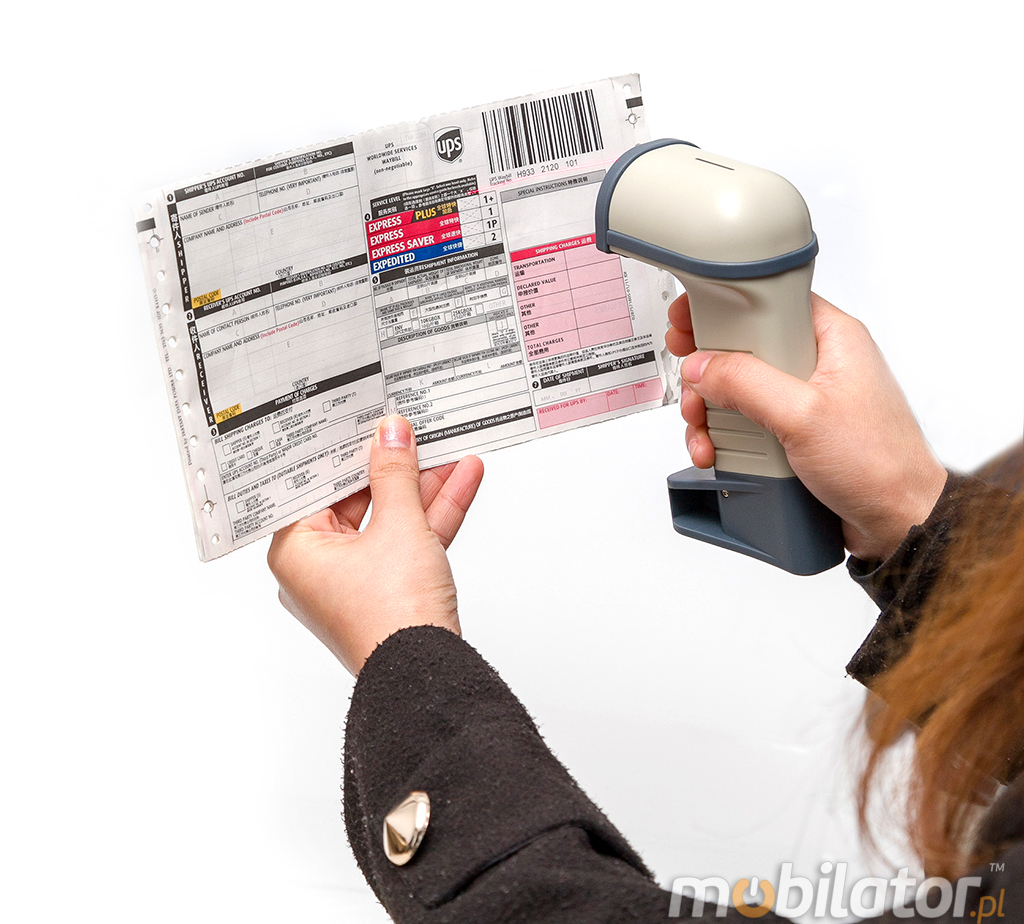

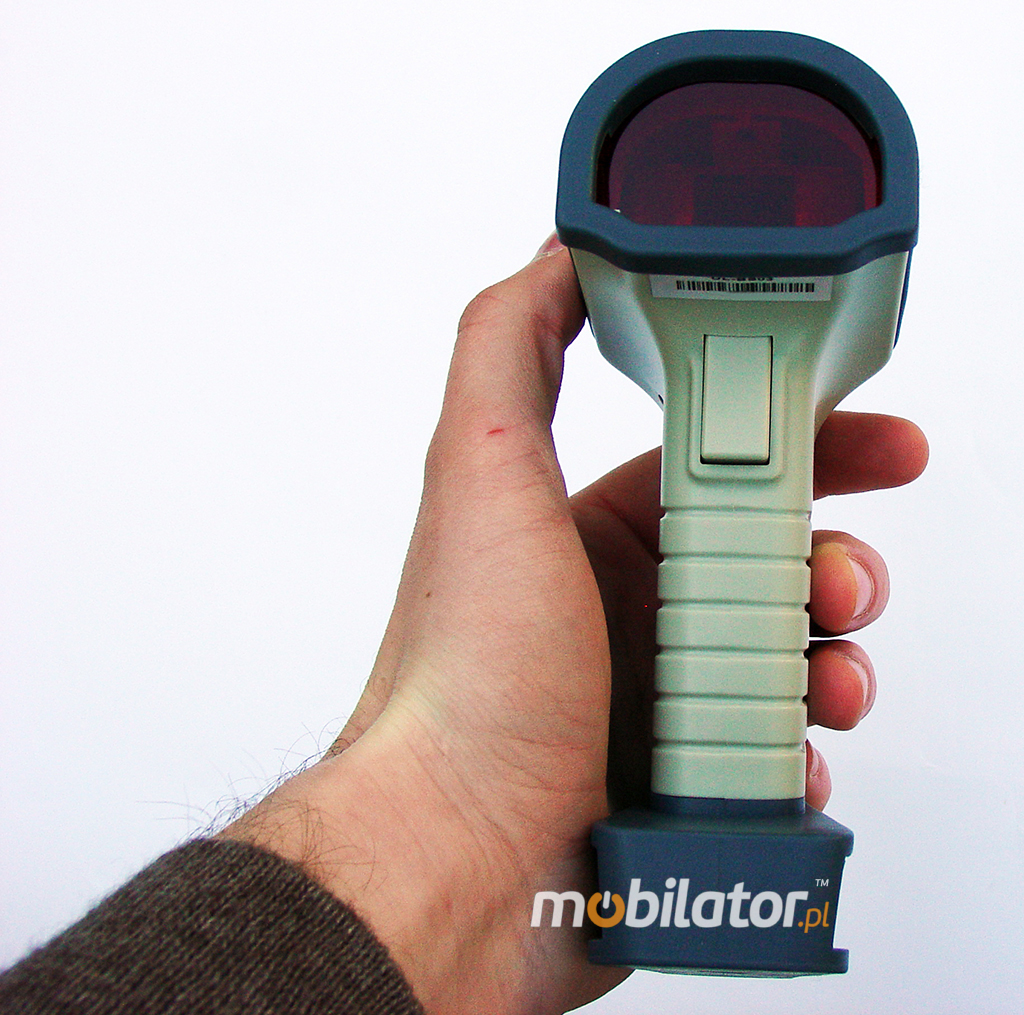

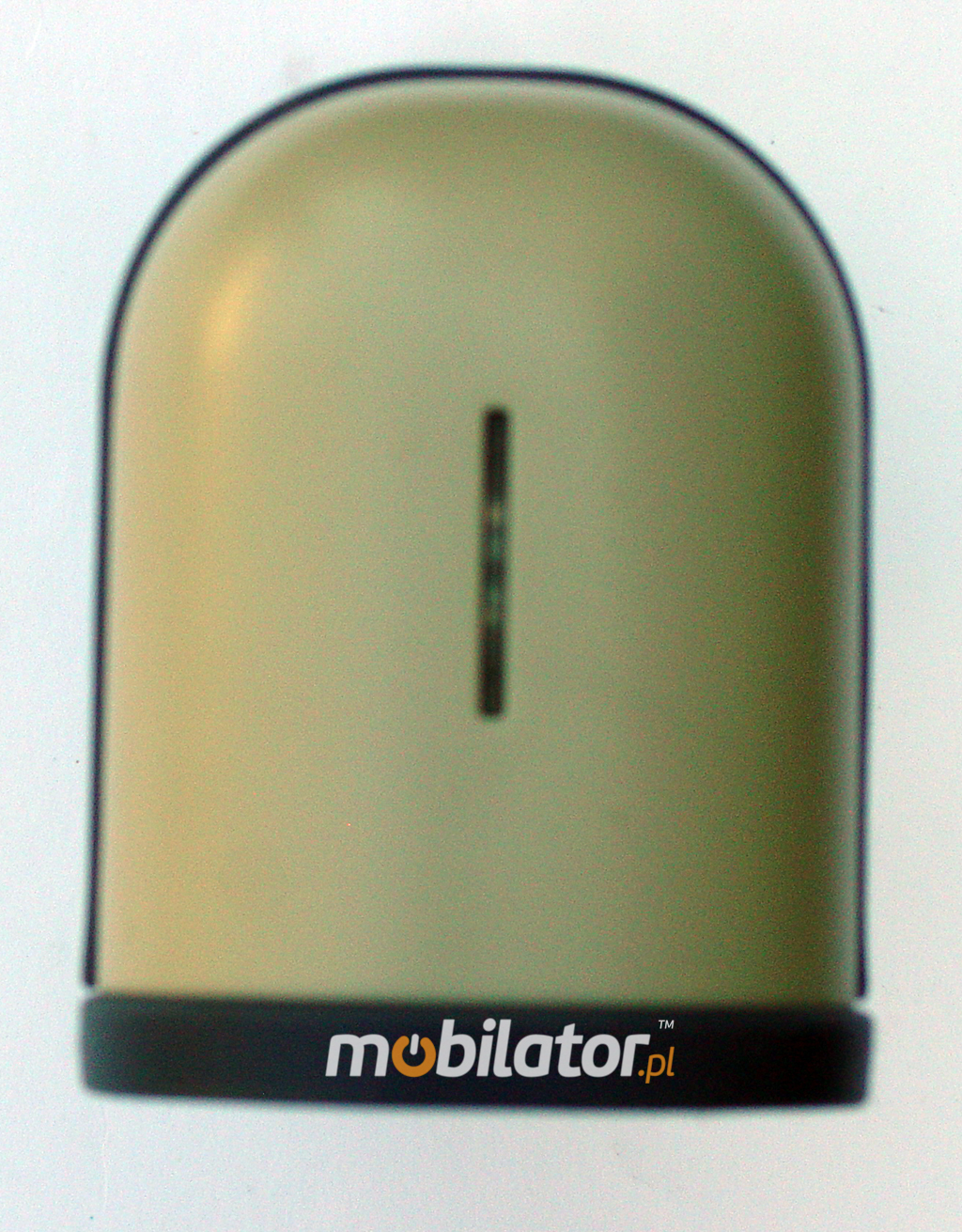

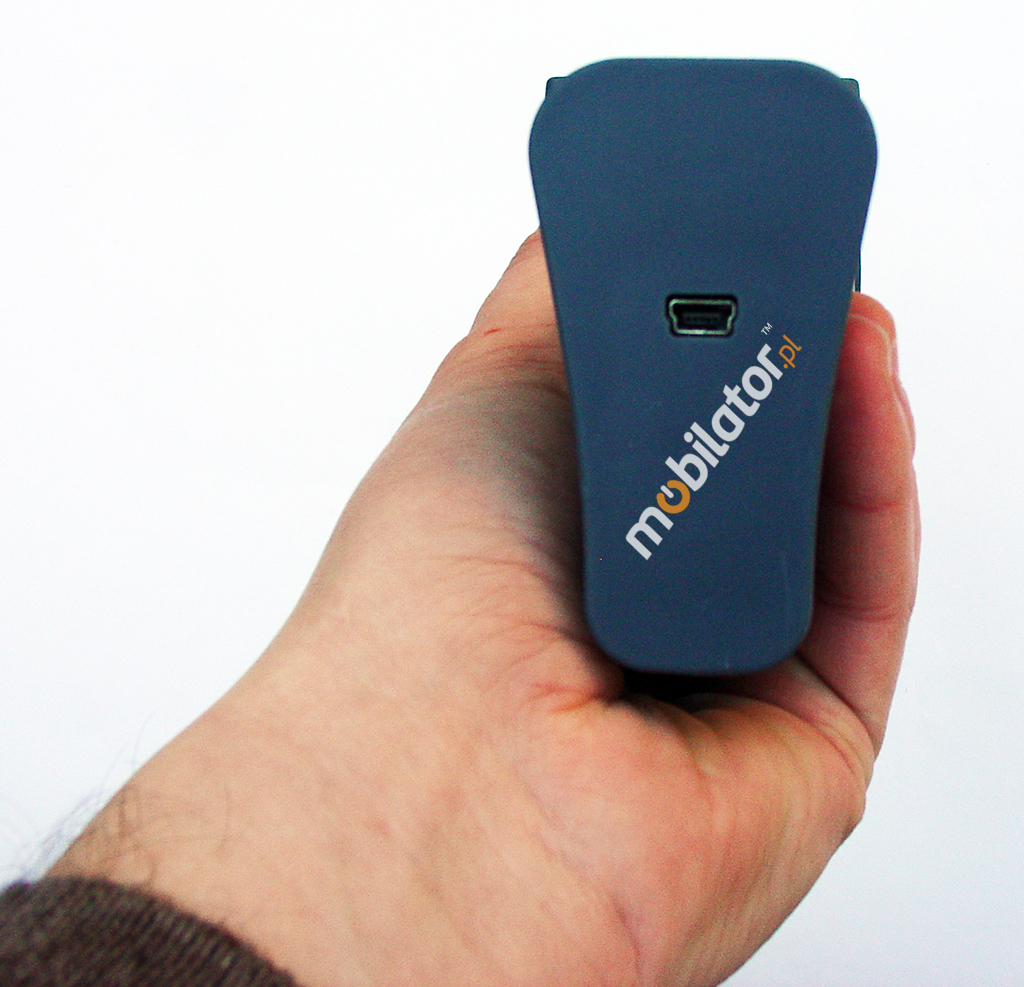

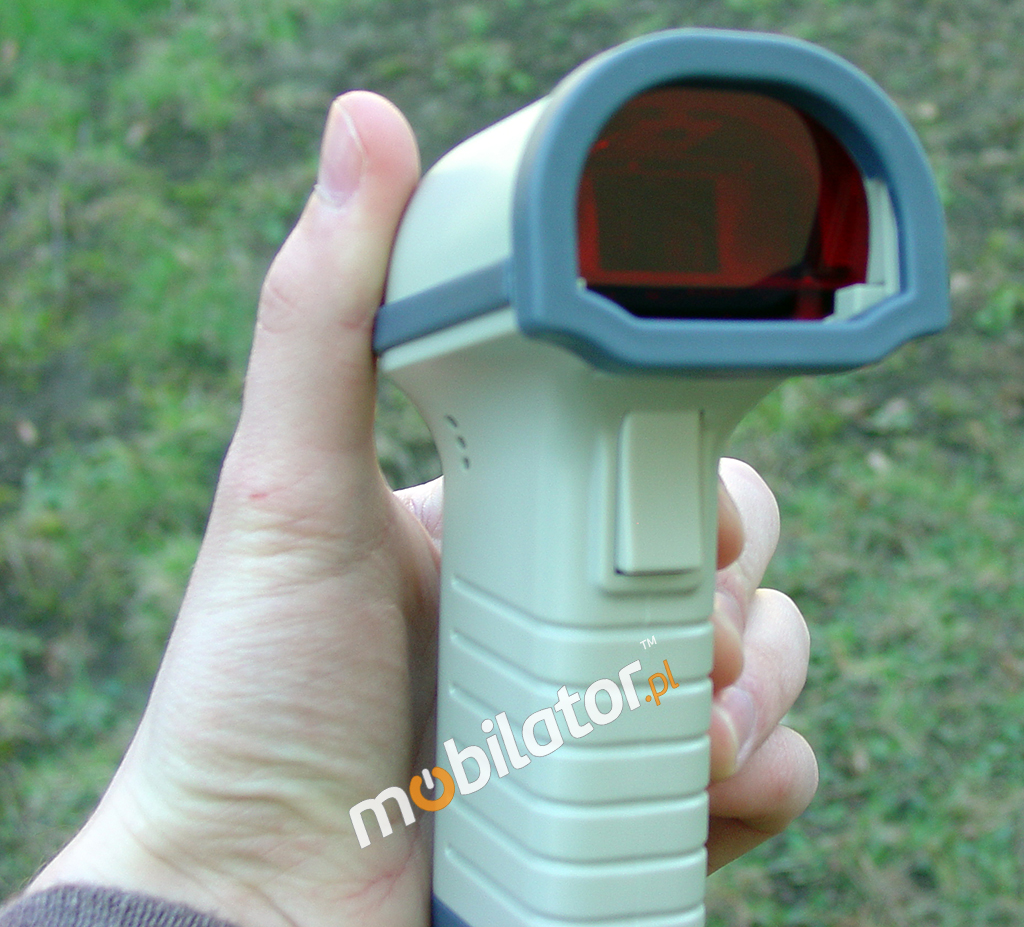

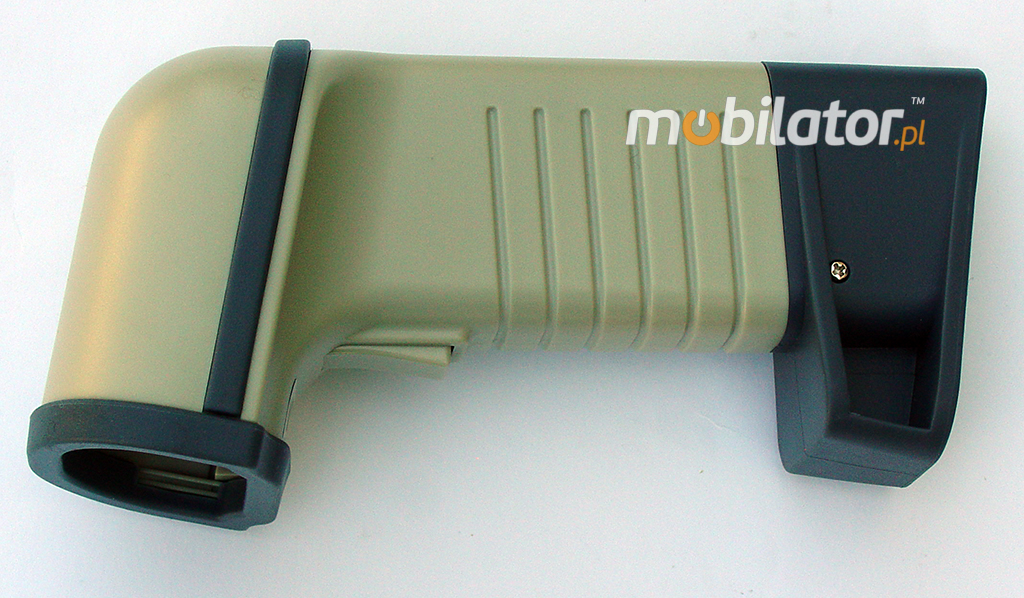

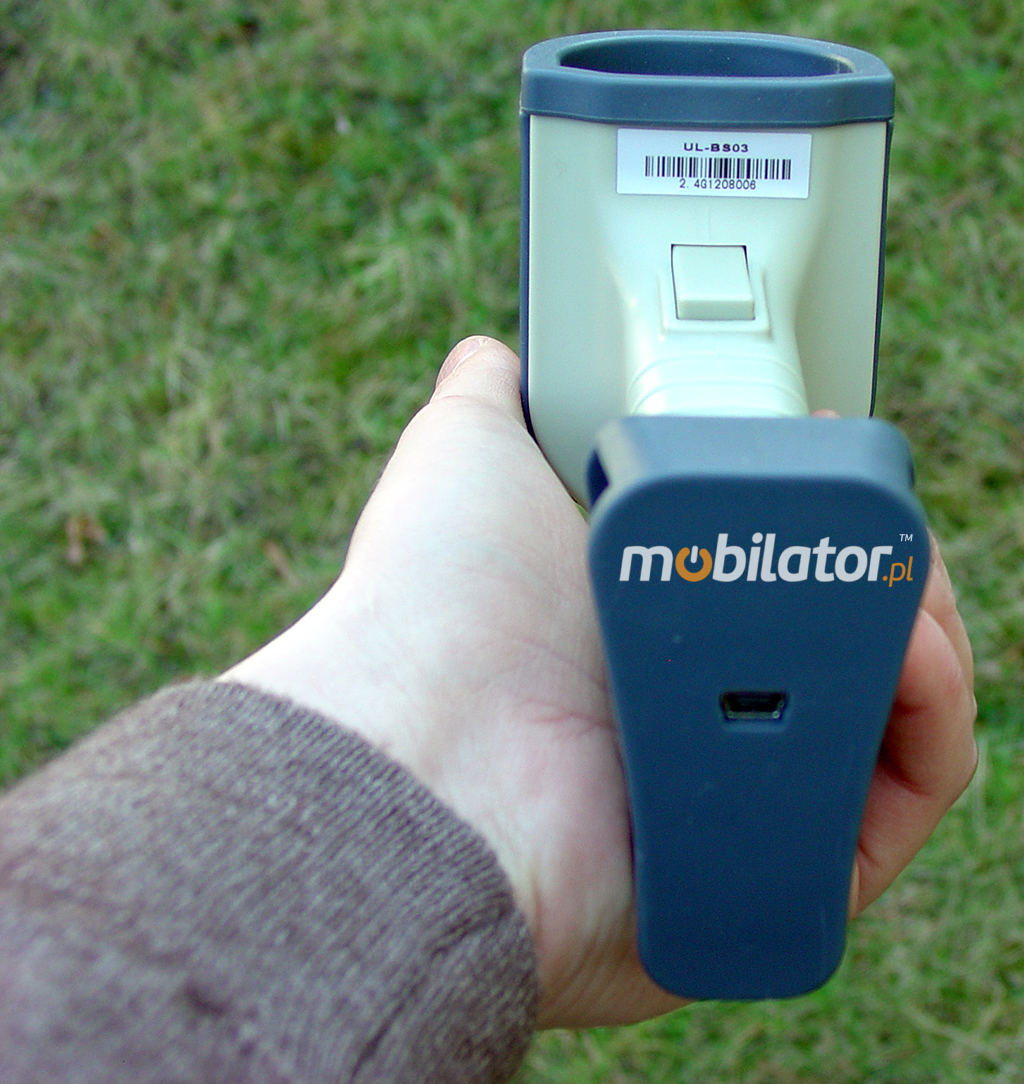

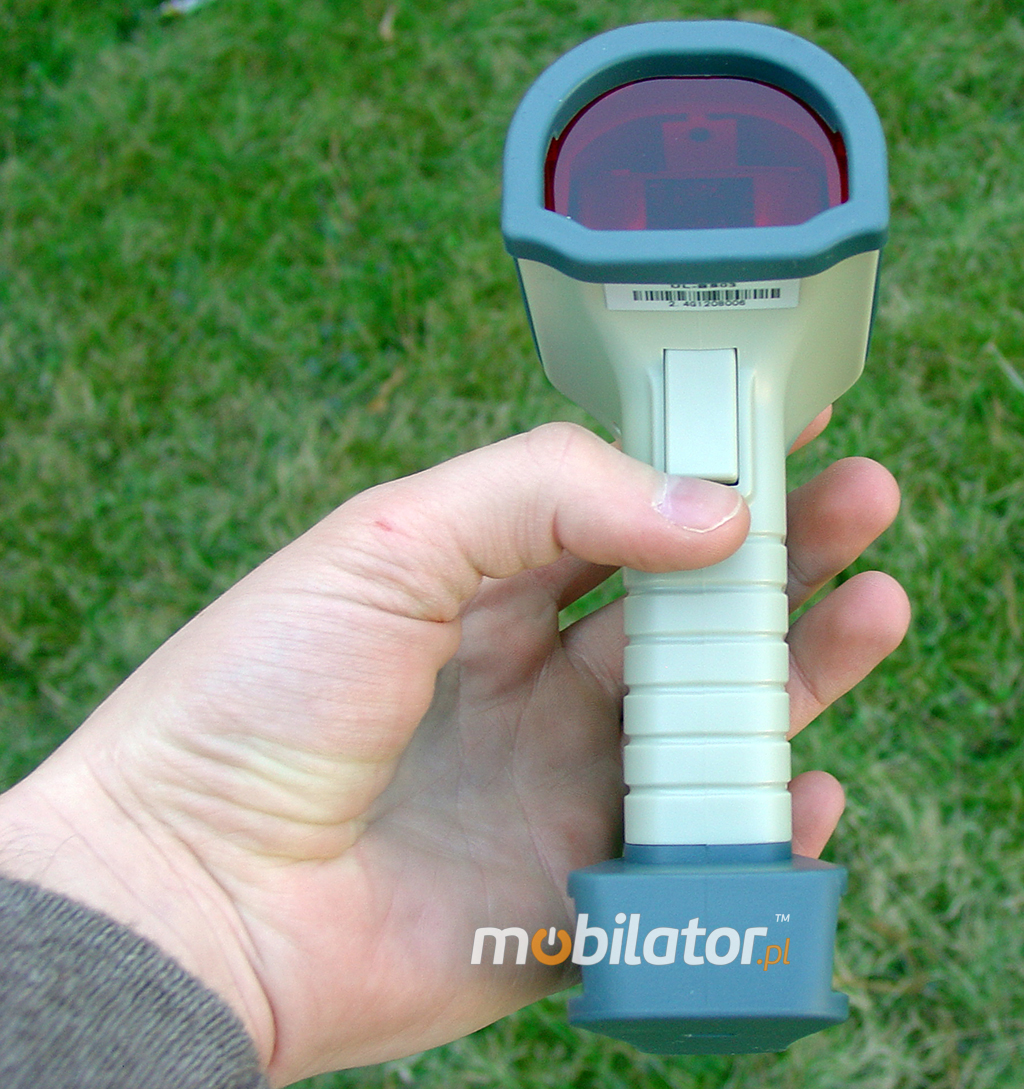

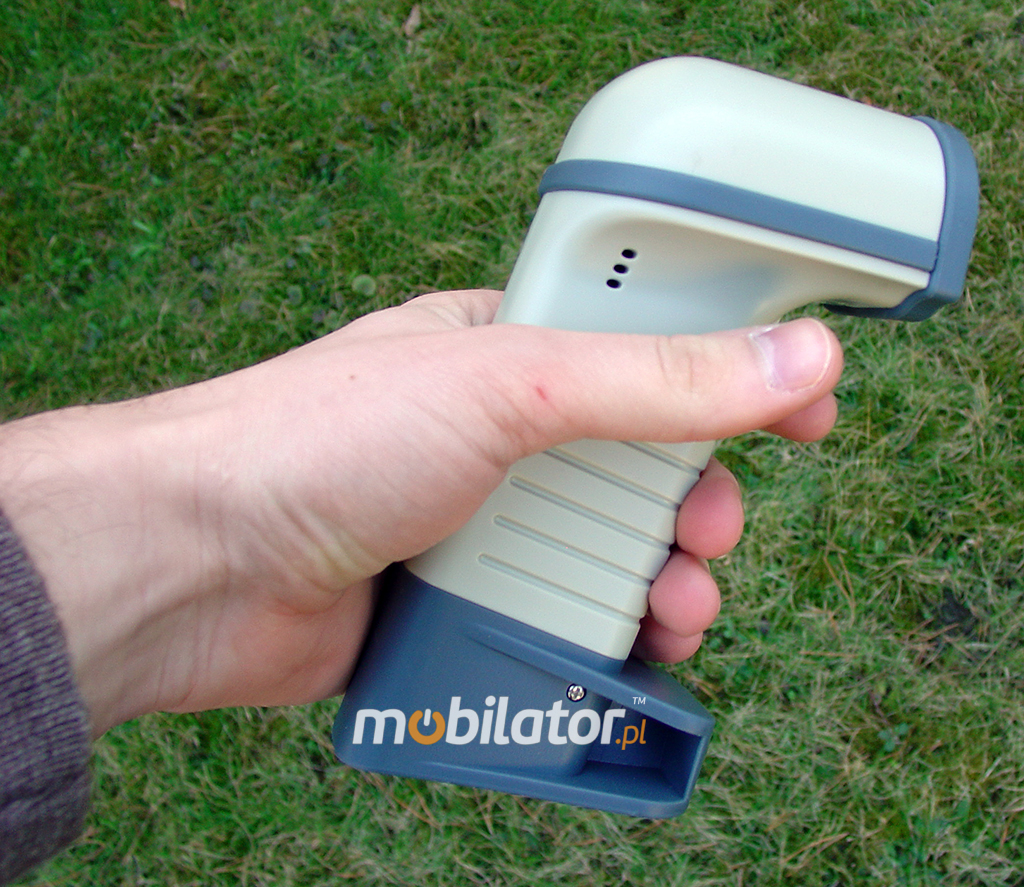

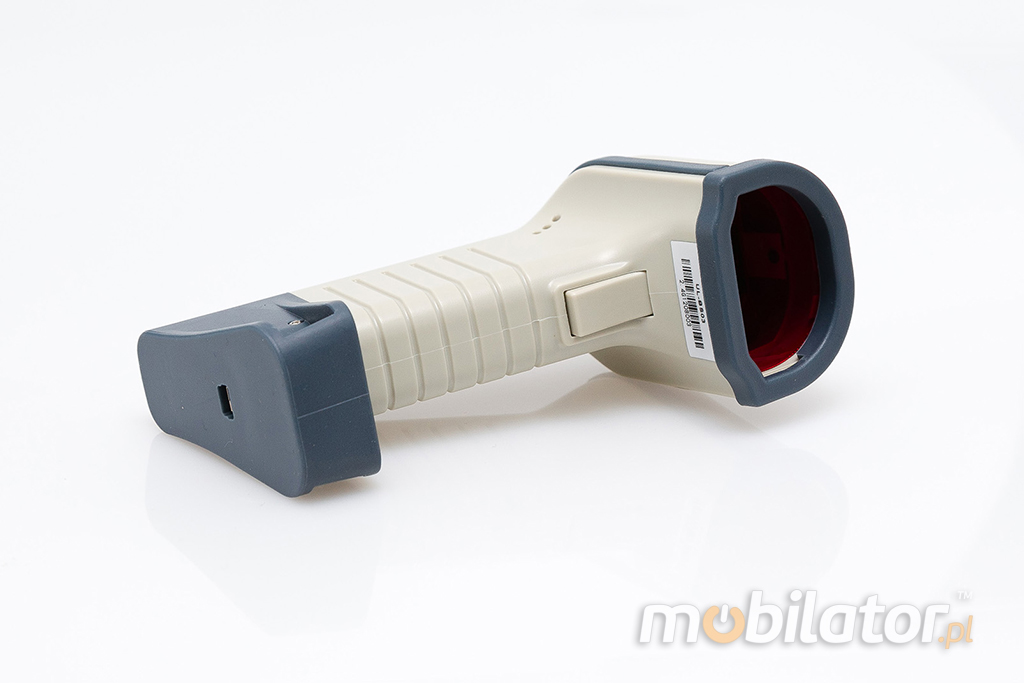

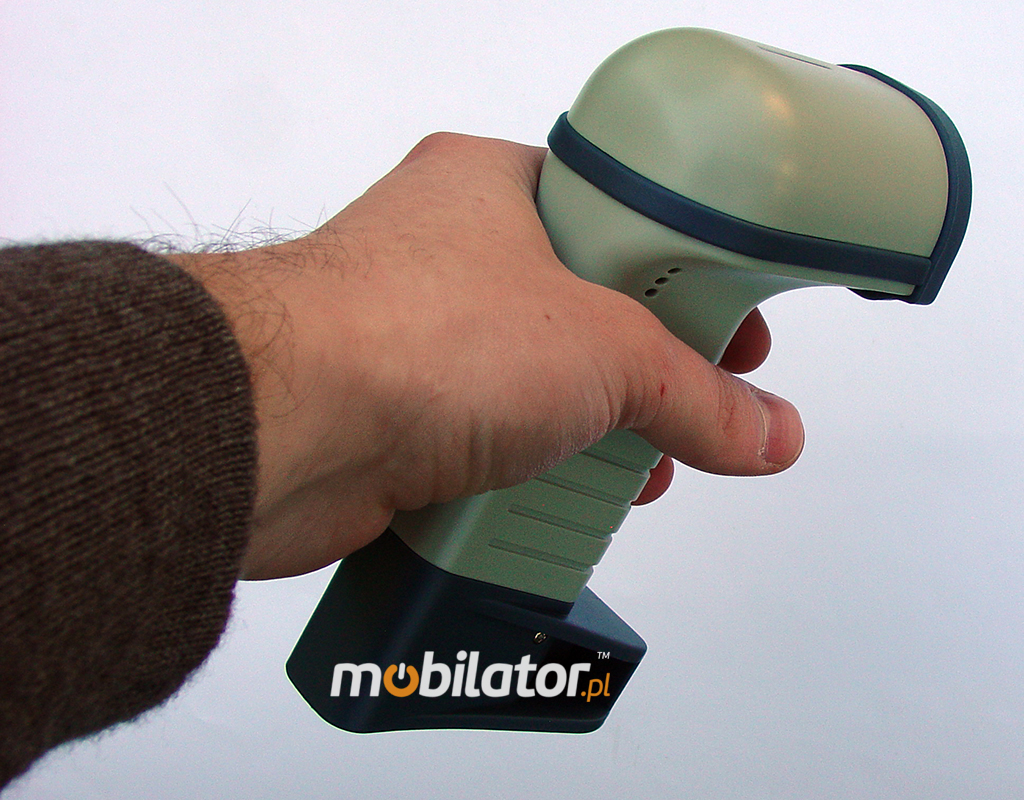

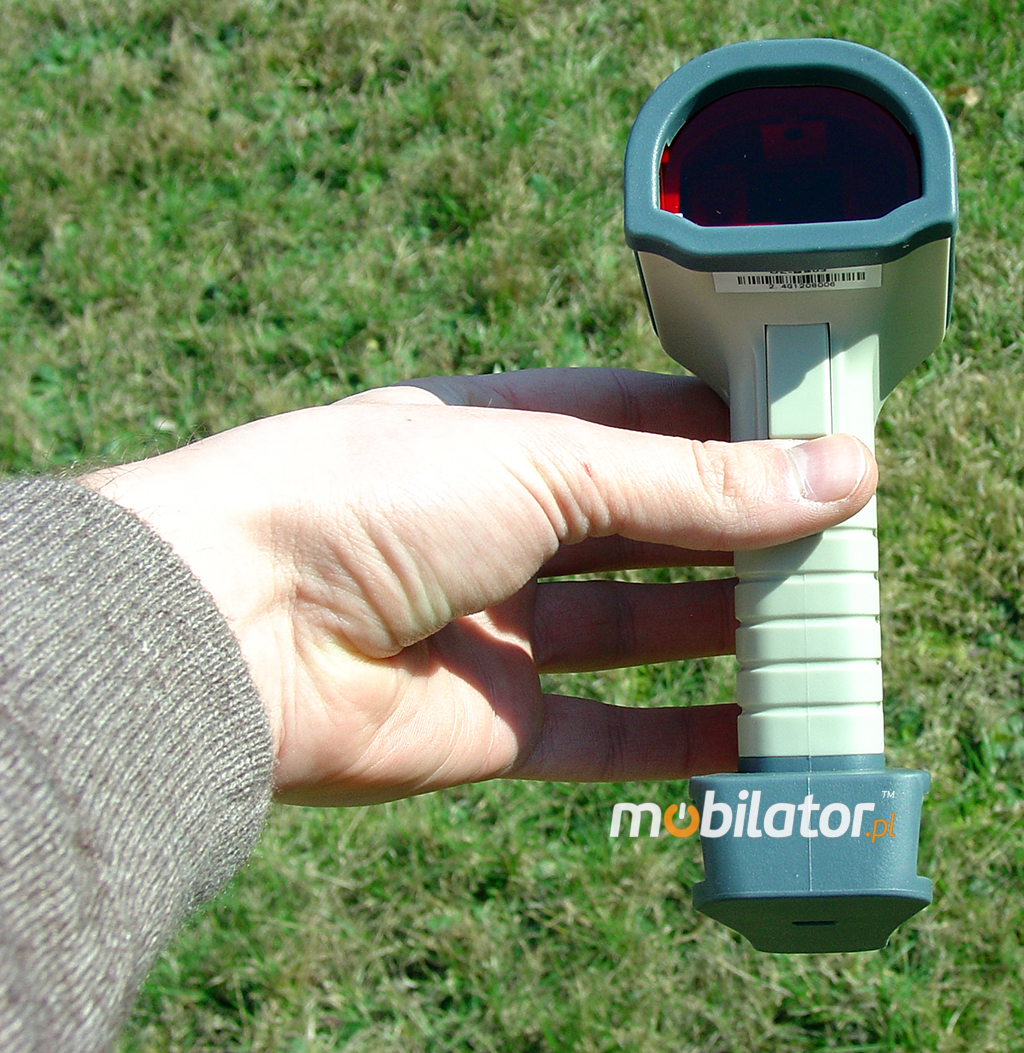

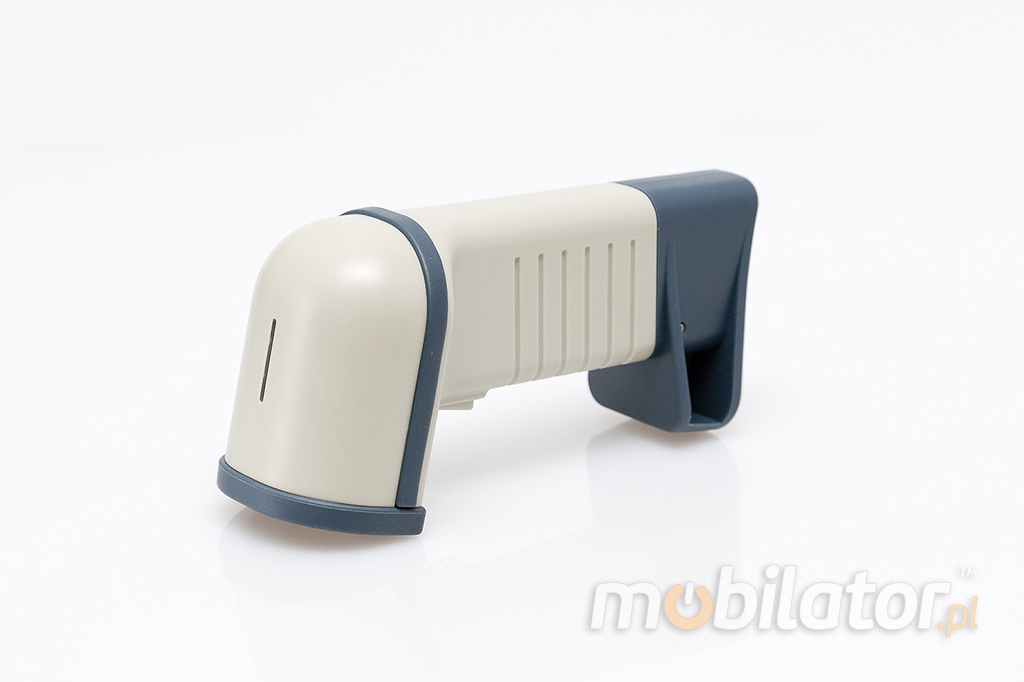

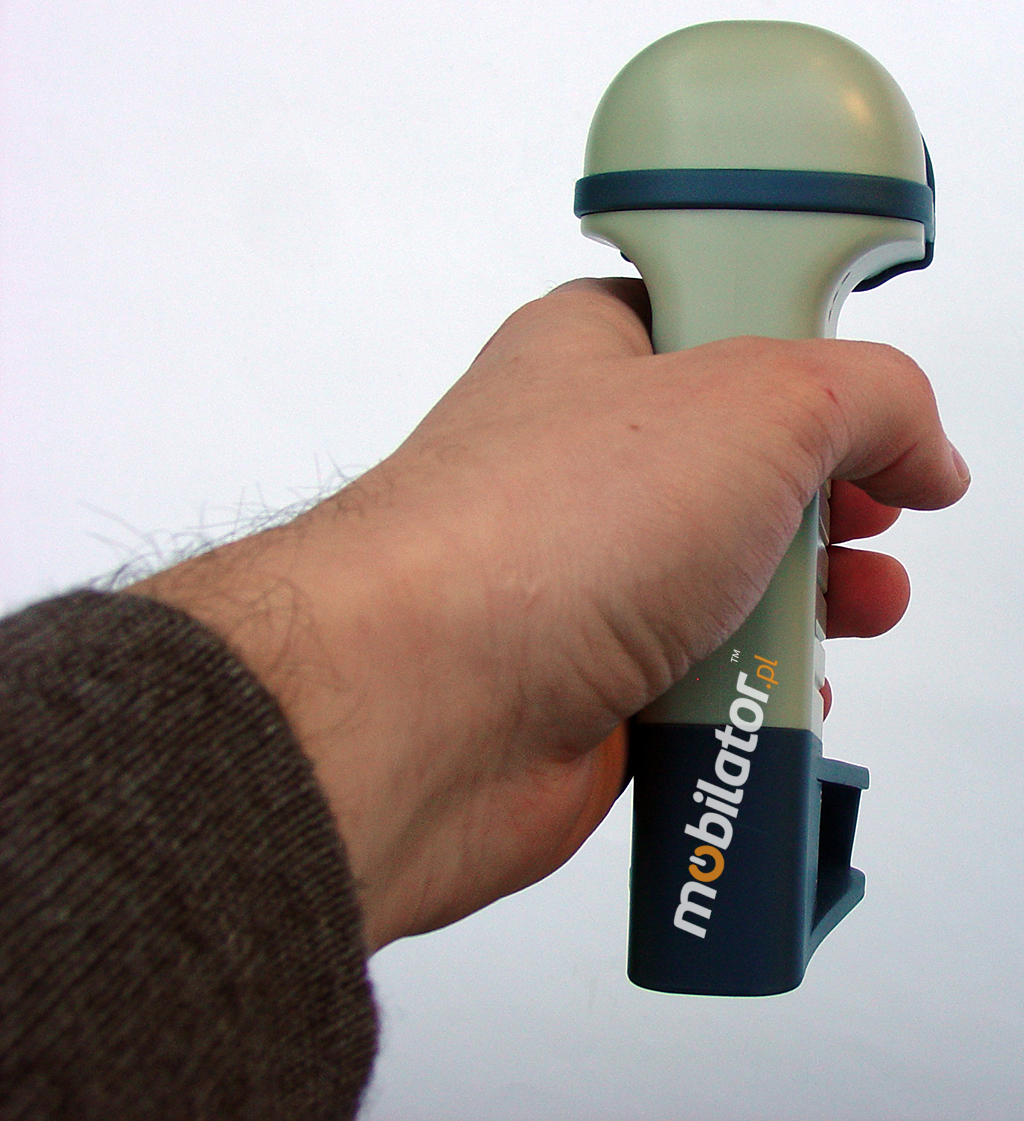

 A new generation of scanner surprises his appearance. This ergonomic, compact and lightweight barcode reader with an appropriate surface texture provides a good grip and reduces hand fatigue with long hours of work.

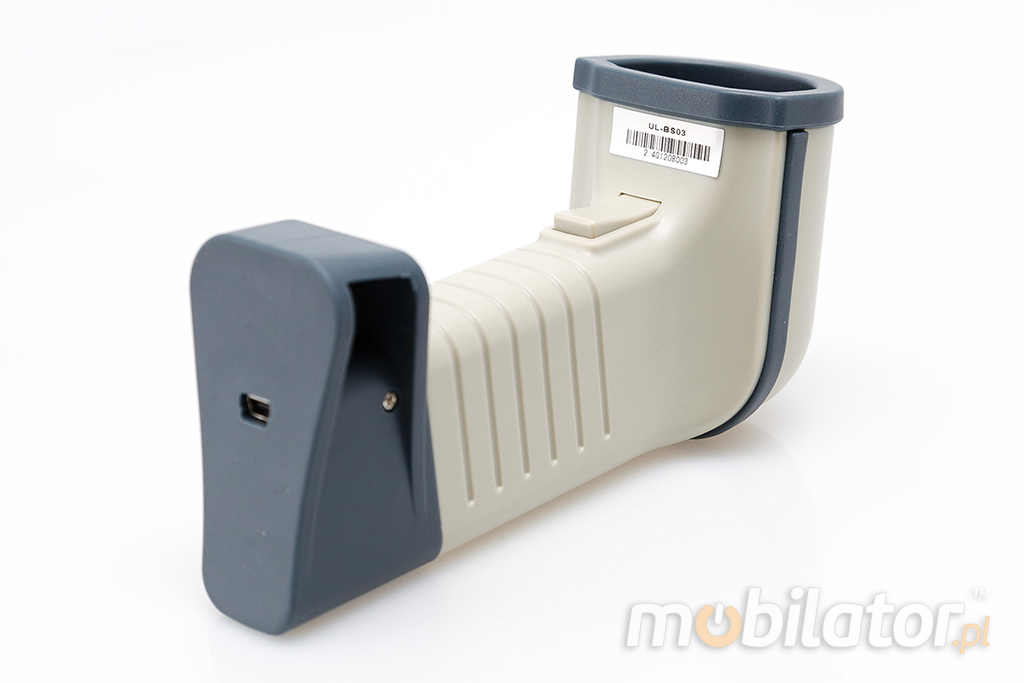

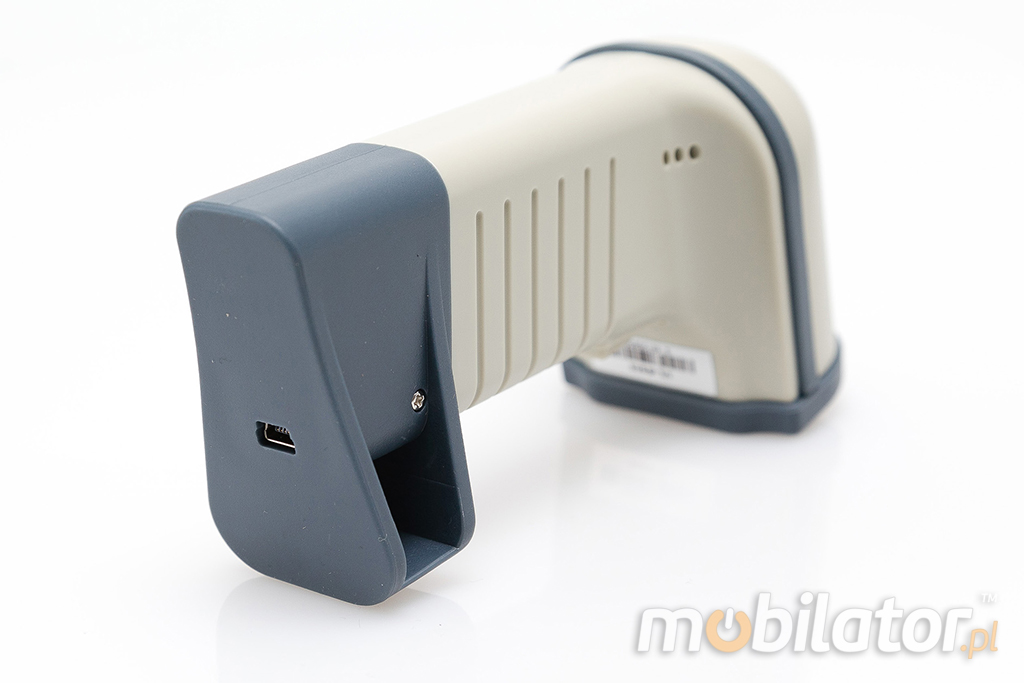

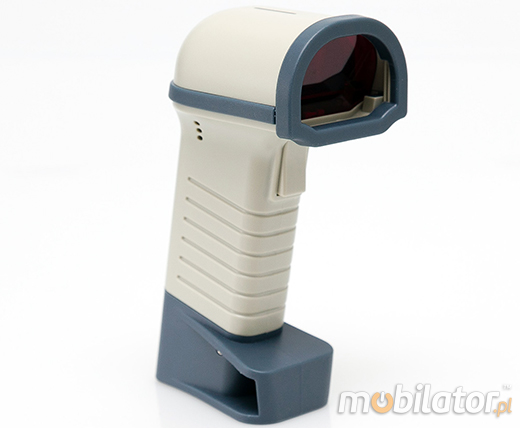

.jpg) MobiScan Rugged Hand MS-B03 is equipped with a Li-Ion battery with sufficient capacity 1800mAh, which allows the scanner to work about 6-8 hours in scan mode or leave it on standby for 40 hours.
|
.jpg)

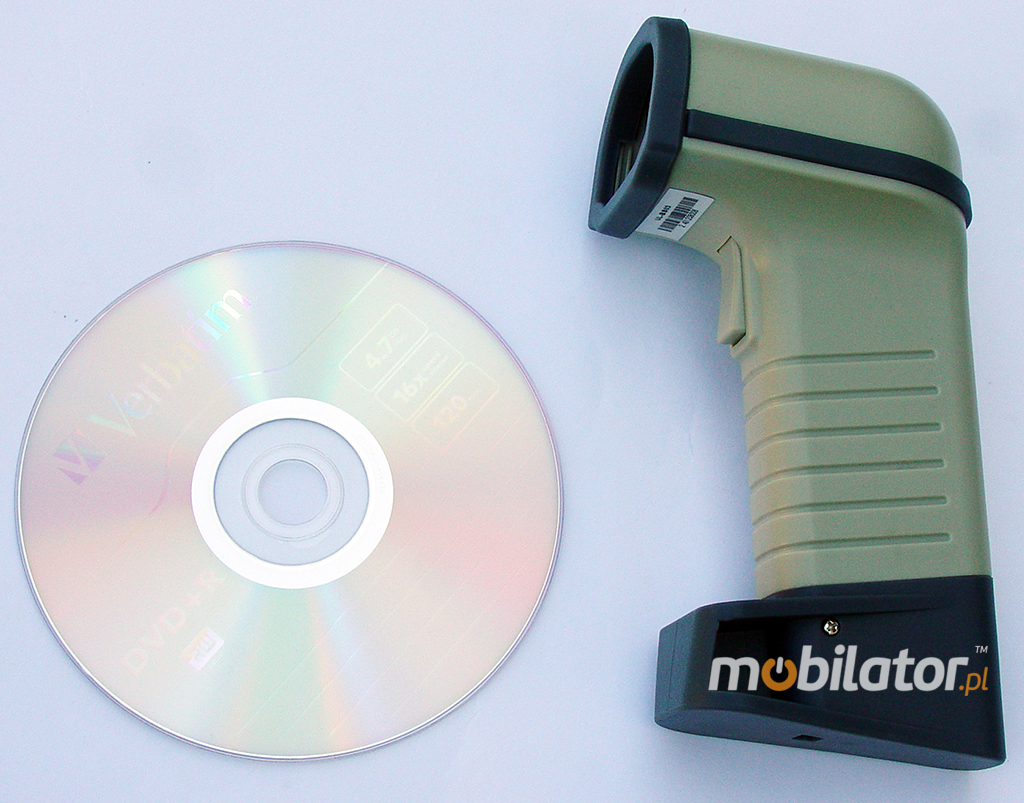

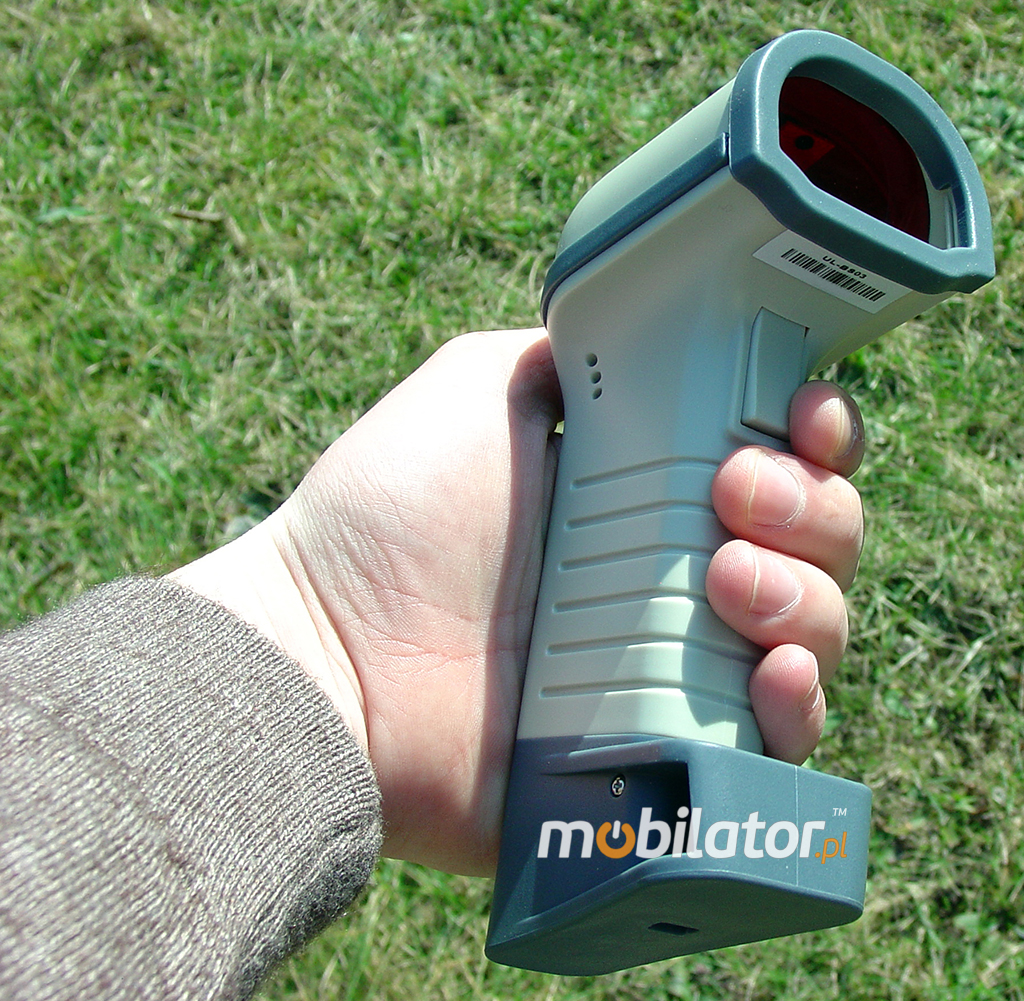

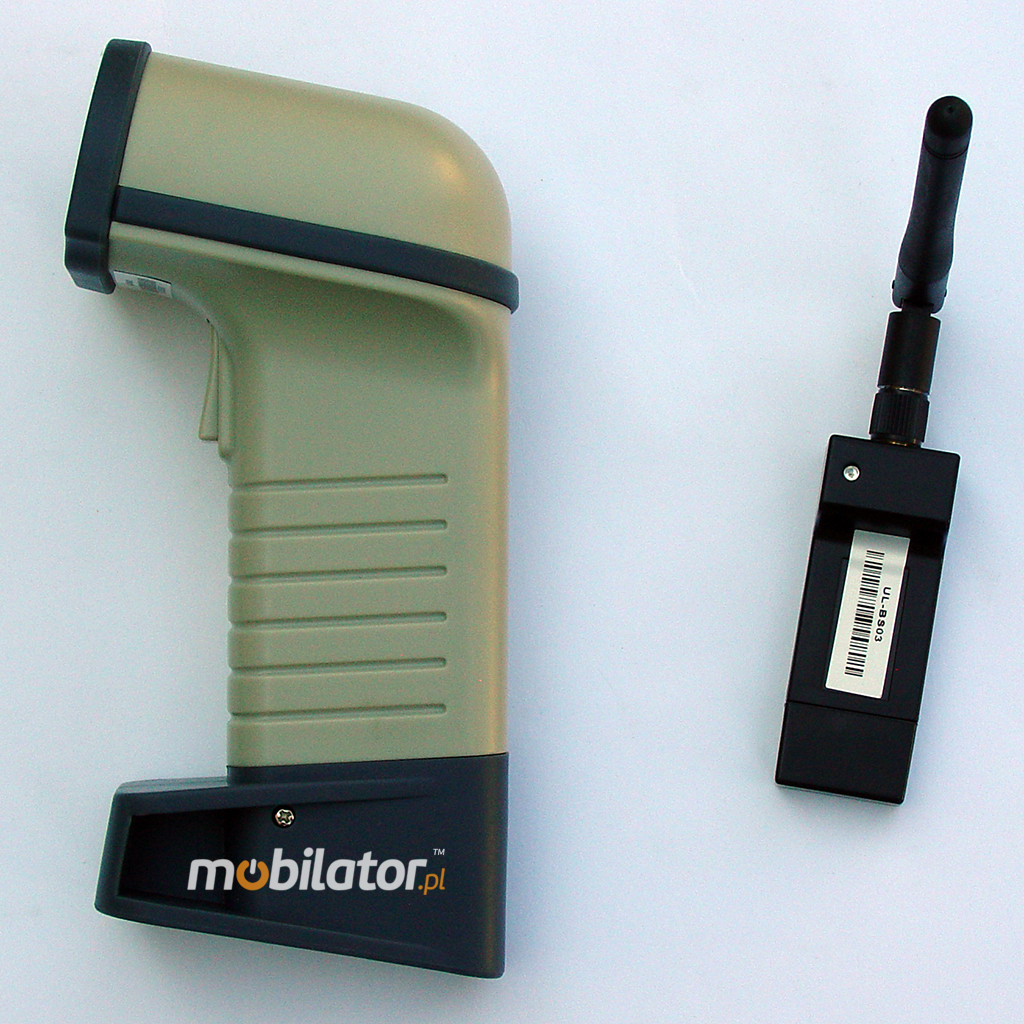

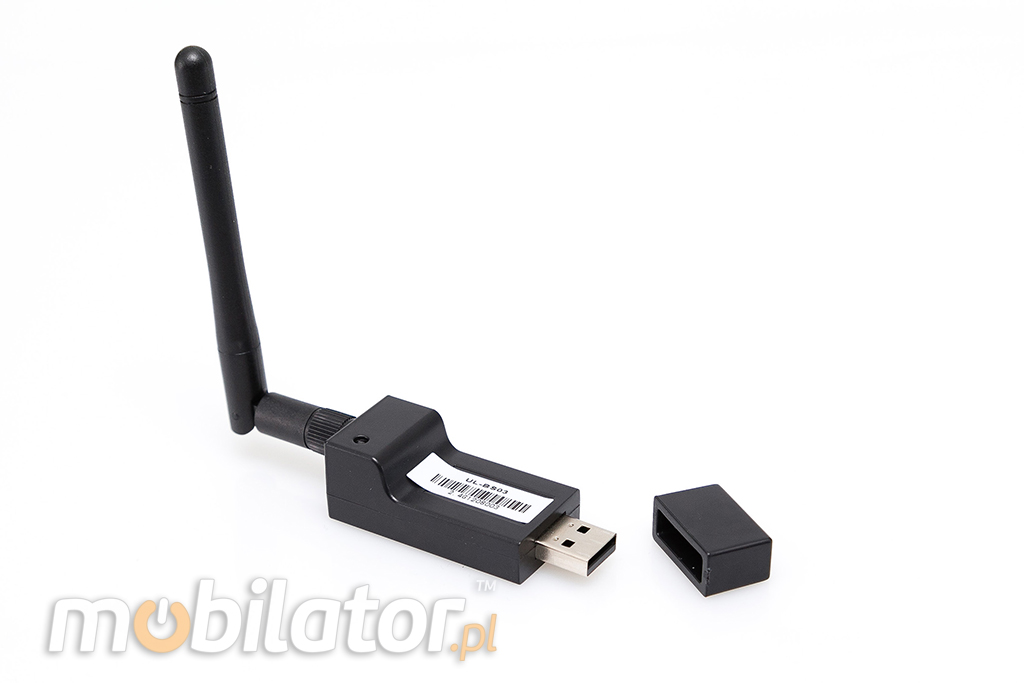

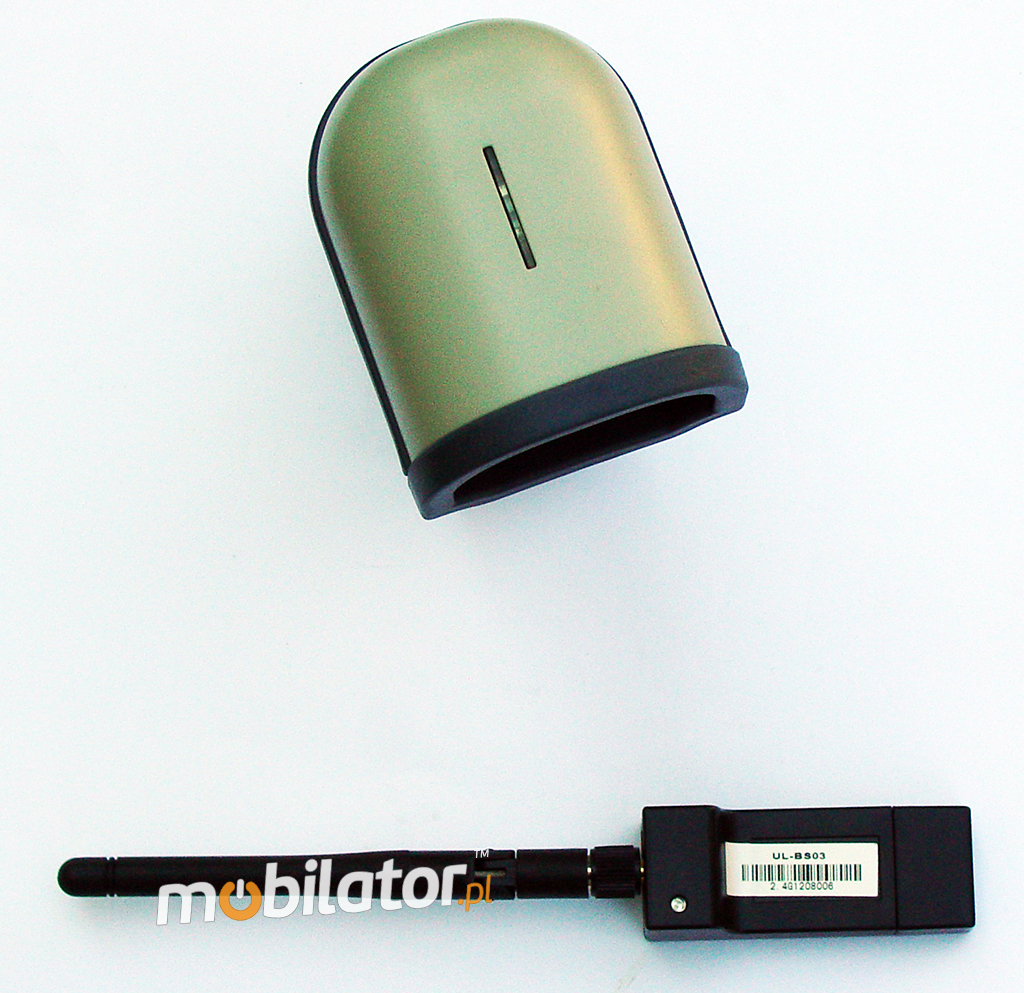

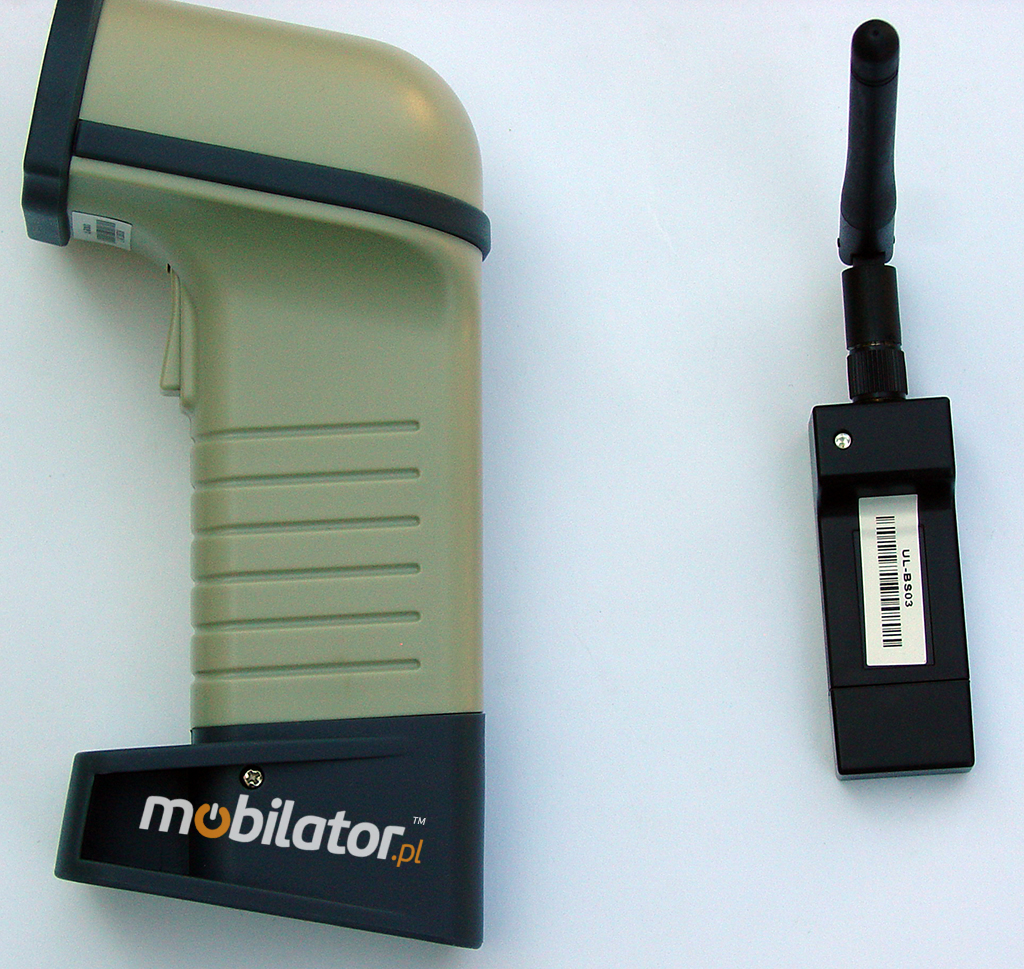

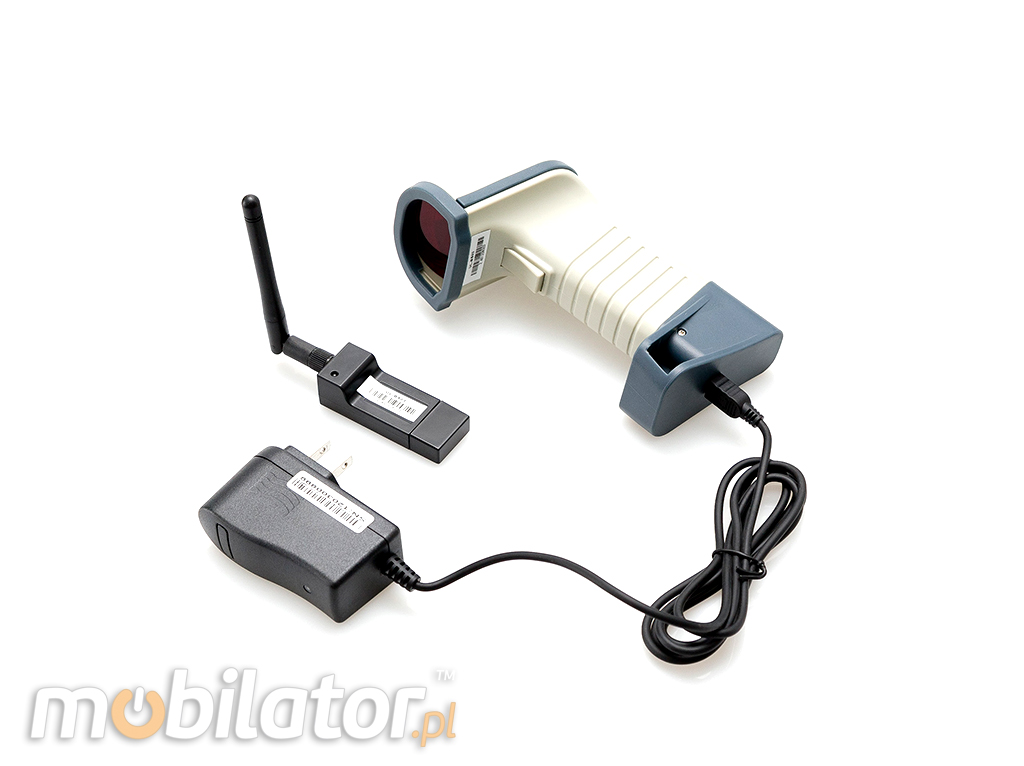

The present device has a built - 1D LASER barcode reader that connecting via Wireless 2.4G USB receiver with your device. It provides information such as the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.

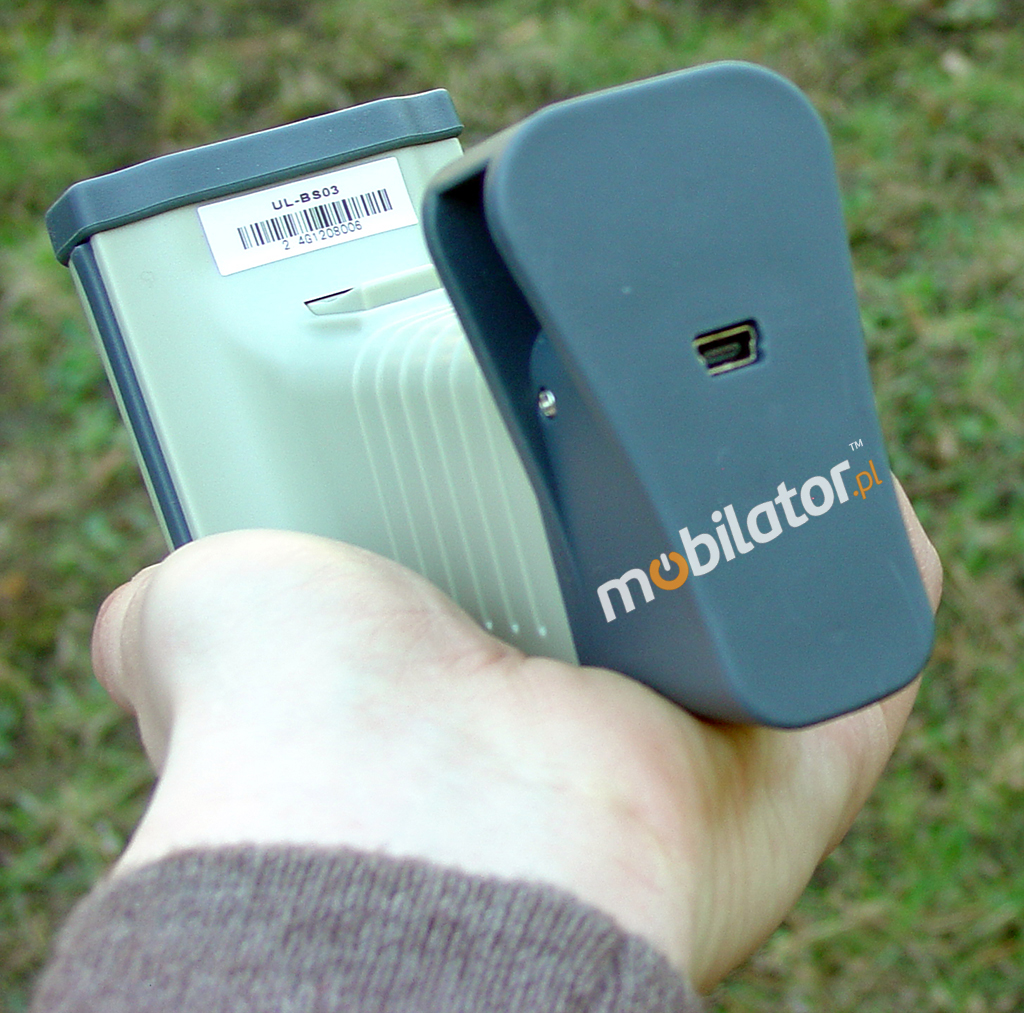

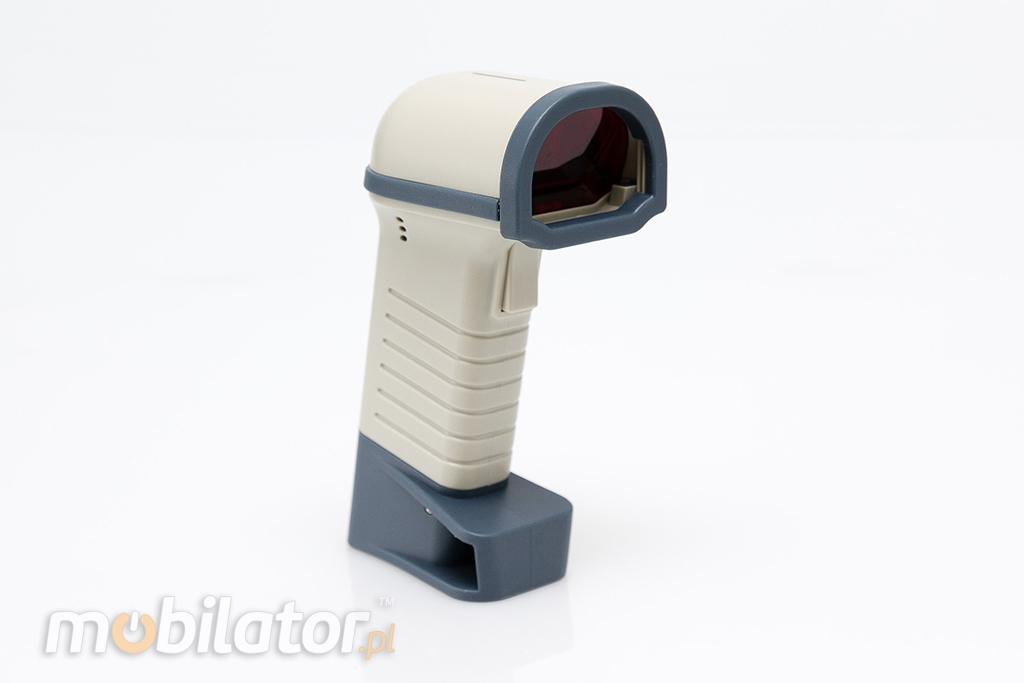

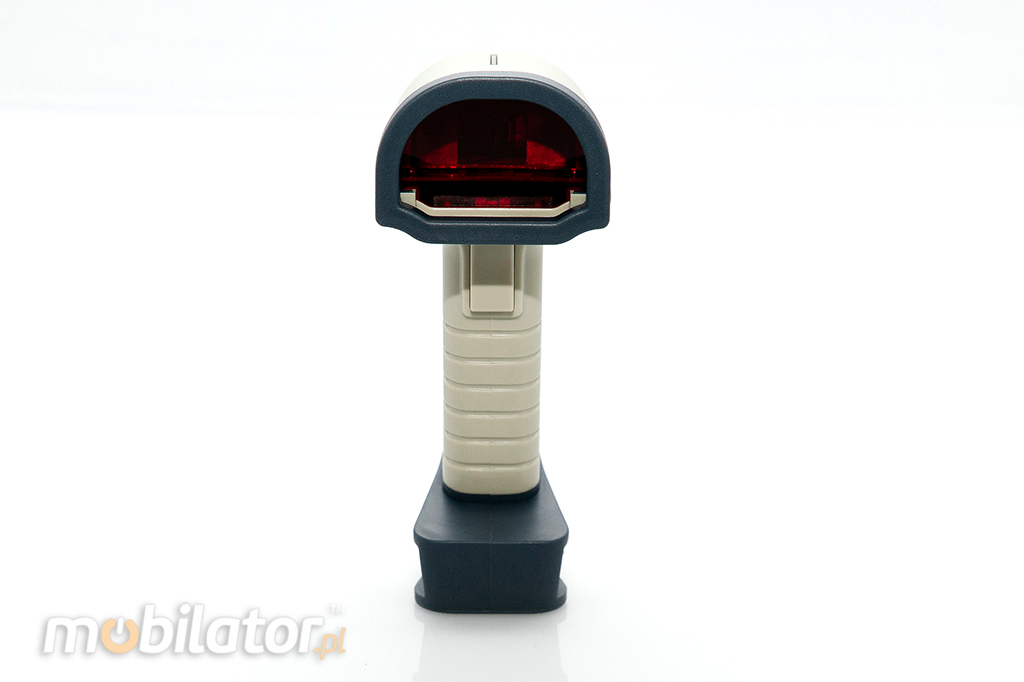

.jpg) Designed to be tailored to different applications, wireless (2,4G) barcode scanner can be compatible with Android(OTG), iOS, Windows CE, Windows XP, Windows 7, Windows 8 and Linux. Users can send data directly to a PC or in real time to mobile devices.
|
|
Portable (radio) barcode readers using laser technology are comfortable and easy to use, with wide possibilities to set parameters. Enable automatic operation and manual. Read codes with different contrasts with a distance of several centimeters. The use of wireless communication (2,4) offer a range of up to 10 - 40m from the computer.
|
|
|
|
|
|
Operating |
0° to 50°C |
|
Operating Humidity |
10% do 90%
|
|
Dust |
IP4x (obiect > 1mm) |
|
Water |
IPx4 (splashed water) |
|
Drop |
Drops to concrete 4,9ft./1.5m |

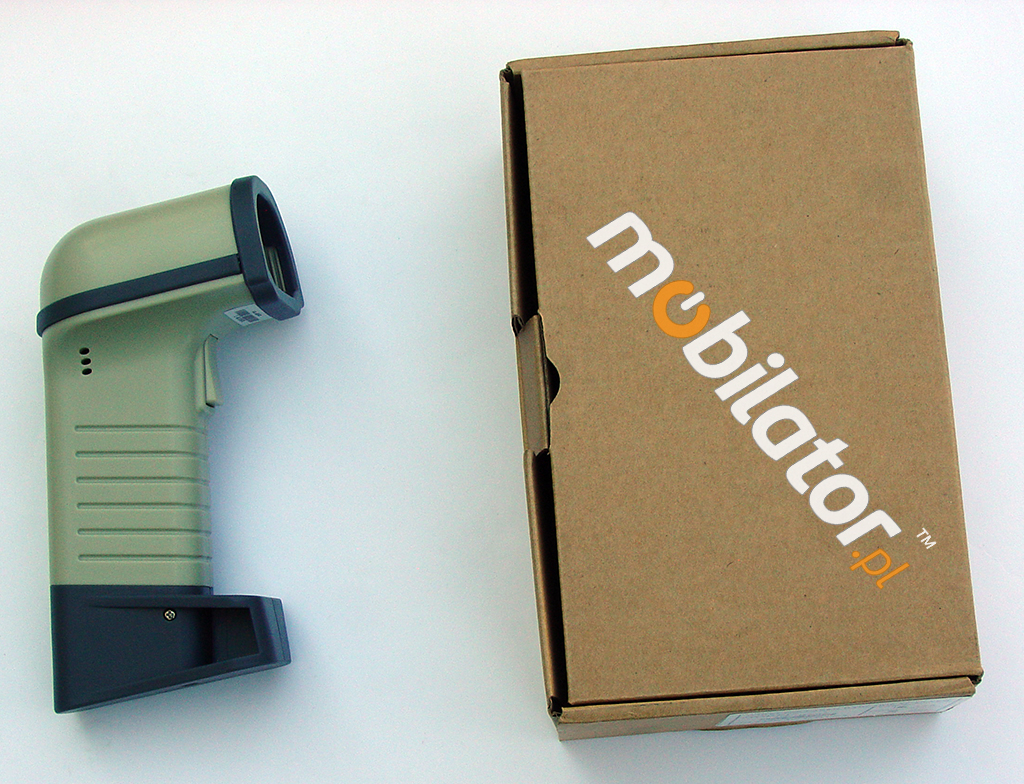

.jpg)

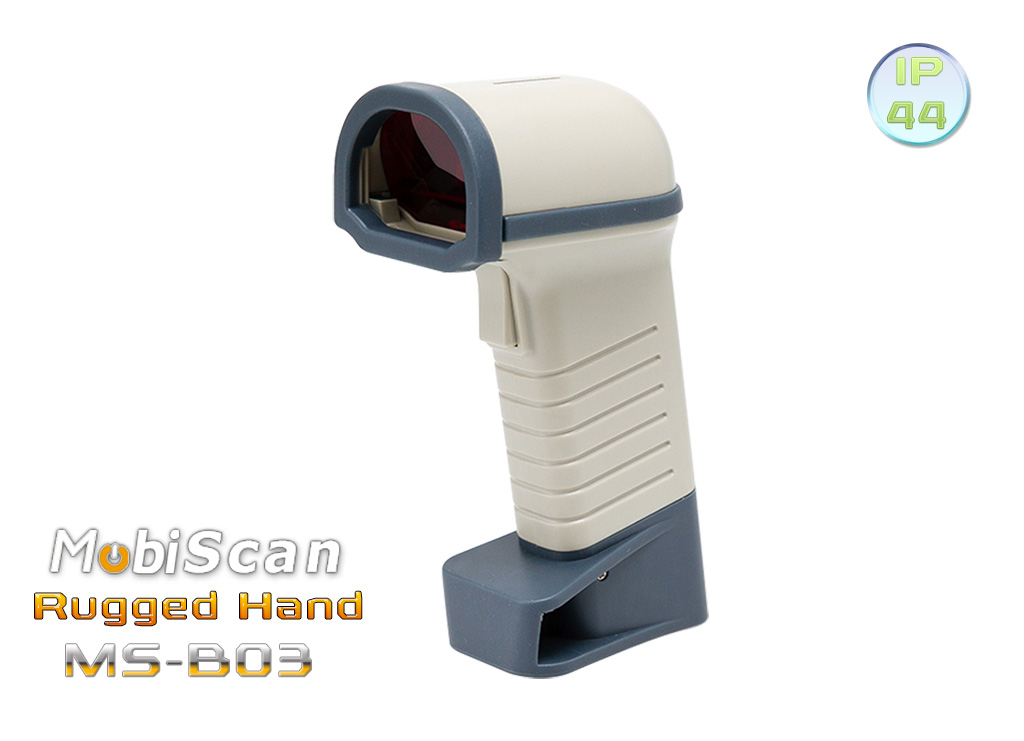

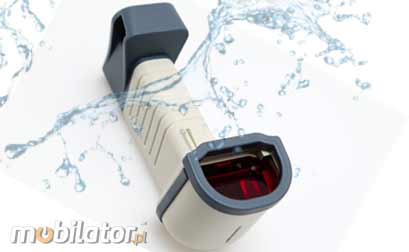

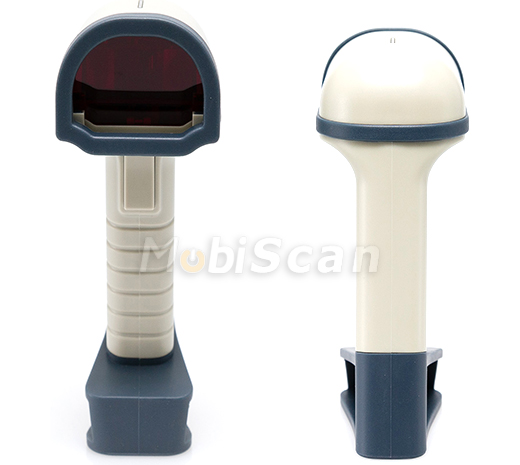

IP44 Resistance
.jpg) Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.
The first digit [x]
Protection against solid objects
|
|
The second digits [y]
Protection against liquids
|
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from object not greater than 12mm in diamete |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from water projected from a nozzle |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
|
|
|
 |
7
|
|
Protection against immersion
|
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water
|
|
Application
MobiScan Rugged Hand MS-B03, which the manufacturer recommends widely used in situations where it is necessary to rapidly identify the goods in commerce, logistics, transport, shipping, industrial, financial and public sectors.
|
|
Pharmacy
MS-B03 allows you to quickly identify and enter prescriptions into the database. With a small, mobile, lightweight design is easy to carry and effectively accepting orders.
|
|
Trade
The device is used for fast read-out bar codes. Certainly can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Barcode reader Allows you to quickly update the inventory with the help of wireless data transfer.
|
|
Logistics and transport
Scanner will find all kinds of use including in transport - a portable and super light barcode reader for fast identification. |
|
|
Barcode readers allow you to in the bar code read and send to your database. We offer high quality device for reading bar codes that work flawlessly even in the harshest industrial environments.
After scanning the coded data can be transferred to a computer or a portable database. Such a rapid and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes.
MobiScan Rugged Hand MS-B03
|
|
Mechanical |
Height: 160 mm
Lenght: 60 mm
Width: 80 mm
Weight: 240g
|
|
Electrical |
Voltage: DC 5V ± 5 %
Working current:: 75mA
Receiver power supply : DC 5V
|
|
Scan Performance |
Sensor Type: 650nm Laser
Light Source: 635nm Laser
Resolution: 0.10 - 0.825mm
Scan Rate: 78 Scans/sec max.
Width of Window: 60mm na 30mm , 98mm na 100mm
Illumination: 5000Lux (maks. )
Depth of Field: 10 ~ 420mm
|
|
Baterry Power |
Li-ion 1800mA
Working Time: 6-8h
Standby time: do 40h
|
|
Barcode Type |
All standard 1D and RSS codes.
UPC/EAN/JAN, Code 39, Code 39 Full ASCII, Code 11, Matrix 25, Code 128, Code 32, Code 93, Interleave 25, Industrial 25, CODABAR/NW7, MSI/PLESSEY, Italian Pharmmacy
|
|
Communication |
Wireless 2.4G USB receiver
Frequency : 2.4G
Transmission Rate: 256K
Range: 10- 40 m
|
Zakres skanowania
|
0~50cm |
|
Resistance |
IP 44 |
|
Housing color |
Blue-grey / Black-orange
|
|
Accessories |

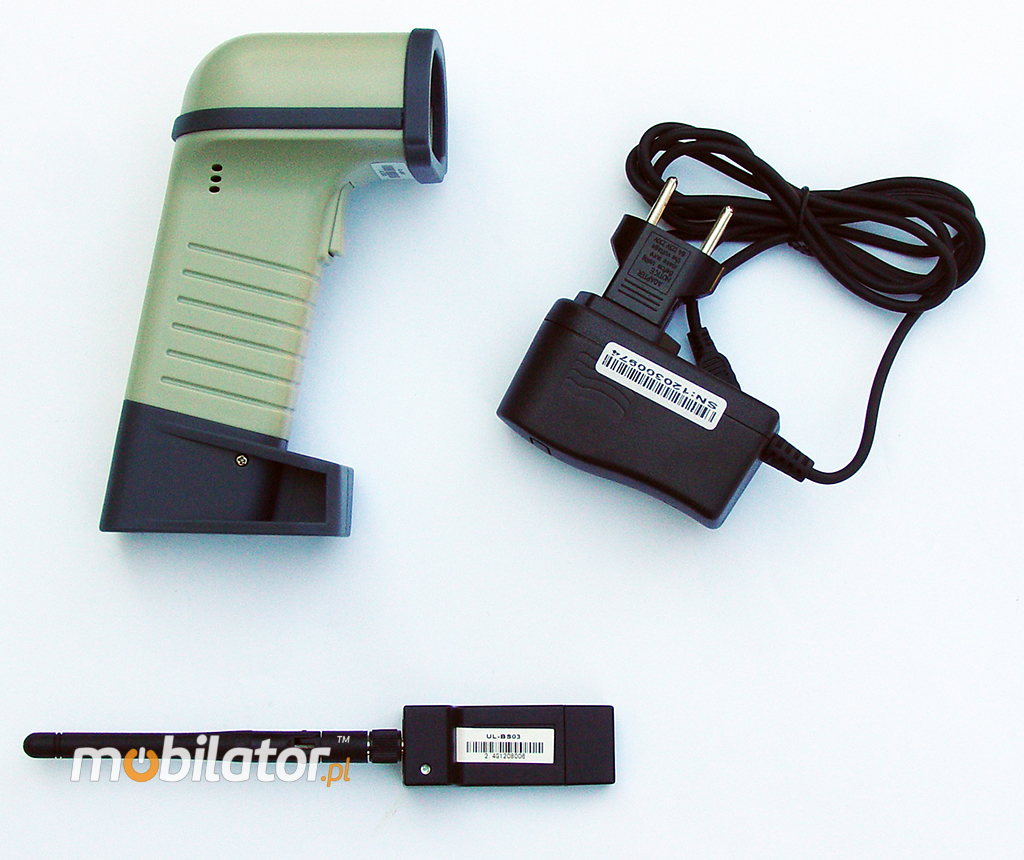

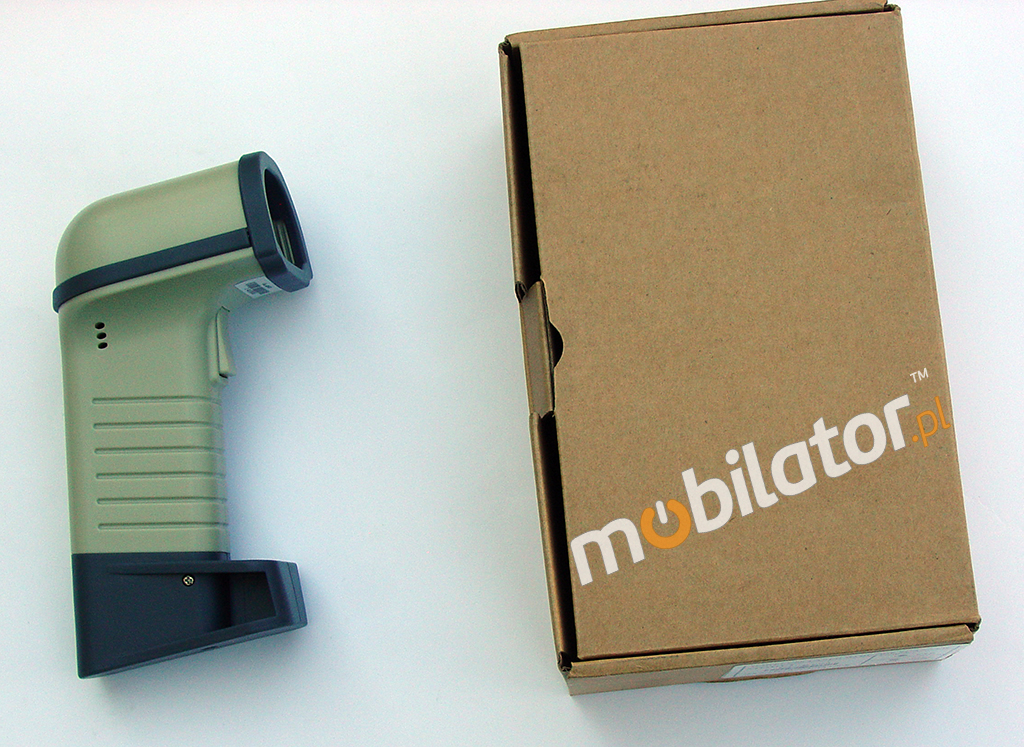

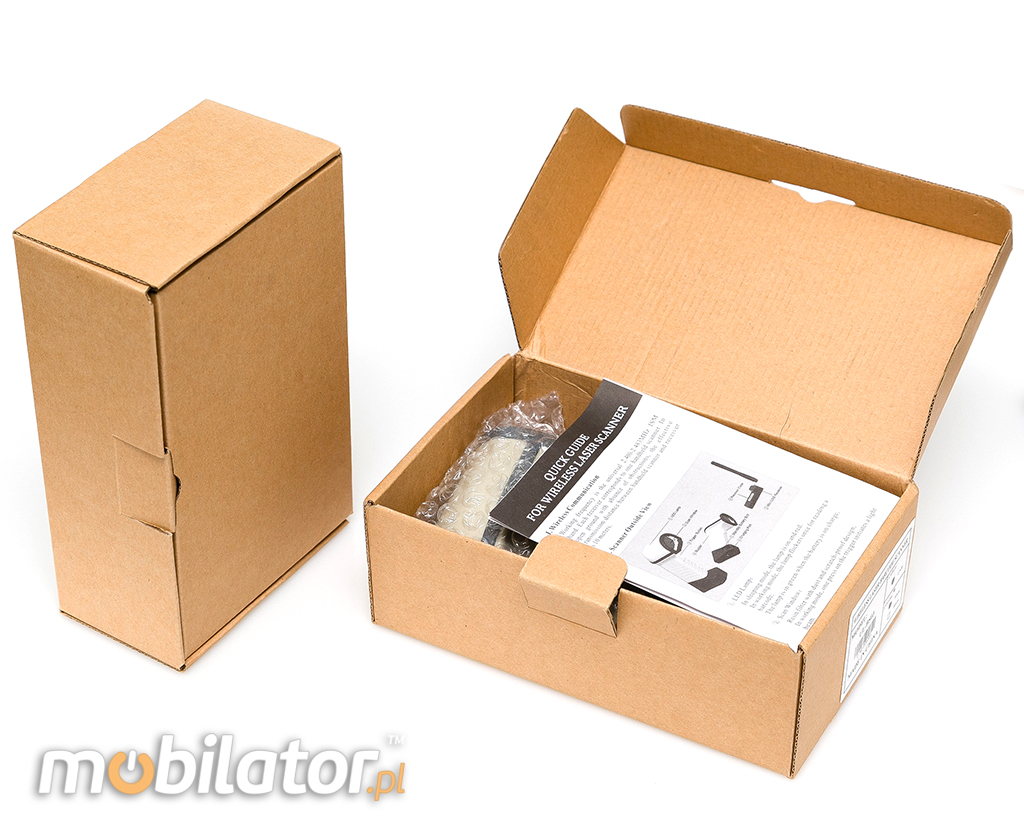

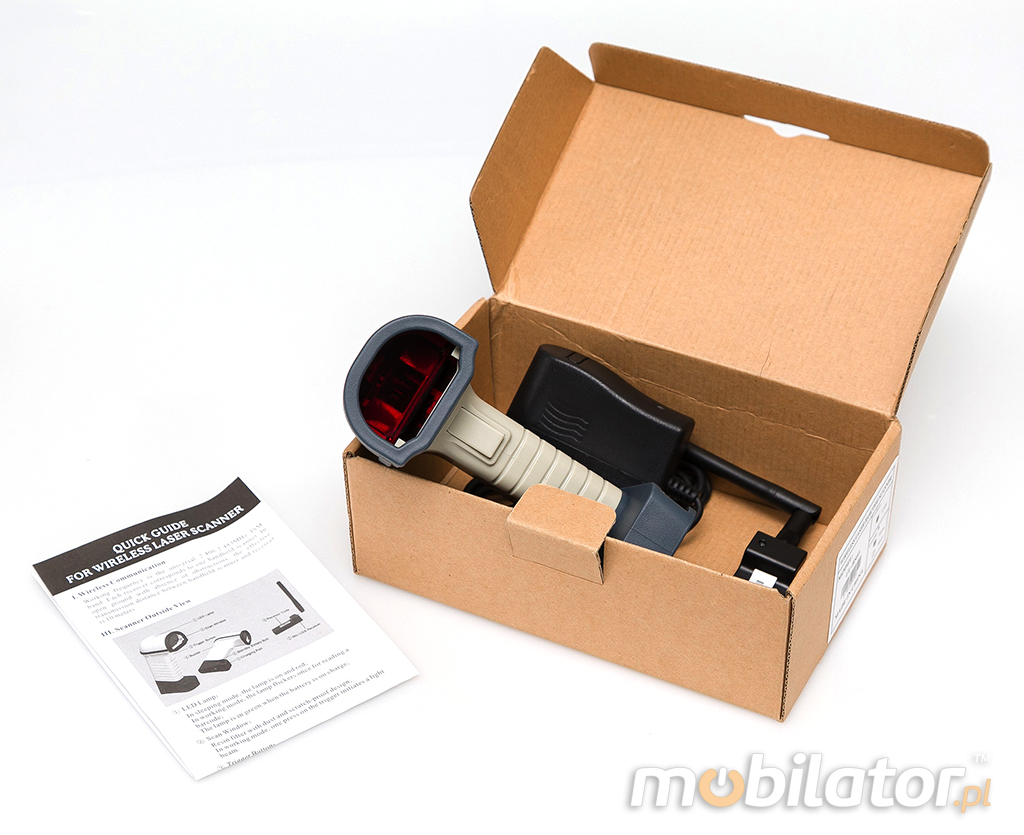

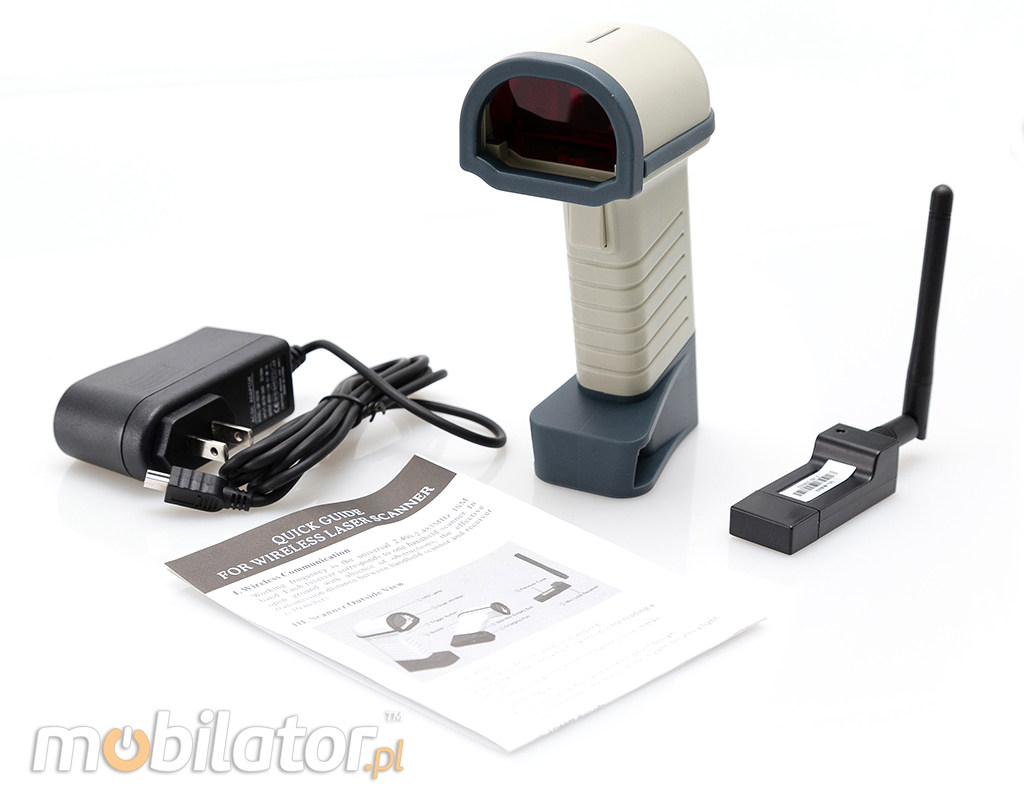

User manual, Power adapter, Wireless 2.4G adapter
|
|

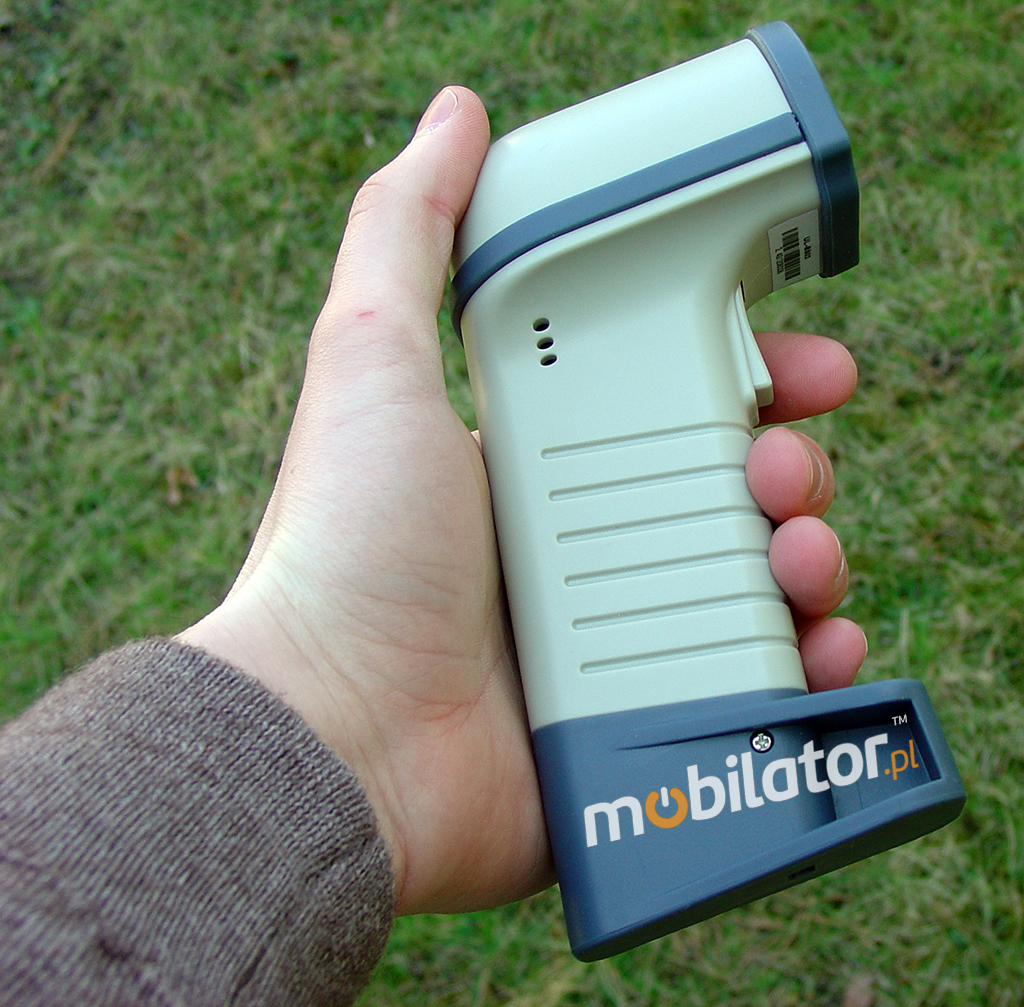

.jpg)
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ...
|
|
|
| Supported Operating Systems: |
Android (OTG), iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux |
| Internal memory: |
- |
| Operation Voltage: |
5V - DC |
| Reading indicator: |
1D LASER |
| Dimensions: |
80 x 60 x 160 mm |
| Weight: |
240 g |
| Battery: |
1800 mAh Li-ion |
| Housing material: |
ABS Rubber & plastic |
| Scan rate: |
78 scans/sec |
| Light source: |
635 nm Laser |
| Resolution: |
0.10 - 0.825 mm |
| Communication distance: |
10 - 40 m |
| Readable codes: |
All standard 1D and RSS codes. UPC/EAN/JAN, Code 39, Code 39 Full ASCII, Code 11, Matrix 25, Code 128, Code 32, Code 93, Interleave 25, Industrial 25, CODABAR/NW7, MSI/PLESSEY, Italian Pharmmac |
| Sensor: |
650 nm Laser |
| Scan Angle: |
- |
| Print Contrast Ratio: |
- |
| Scan range: |
0～50 cm |
| Cable Type: |
MiniUSB |
| Battery Life: |
6 - 8 h |
| Communication: |
Wireless 2.4 G USB receiver |
| Interface/ Pro le: |
- |
| Operating Temperature: |
0 ~ 50⁰C |
| Storage Temperature: |
-20 ~ 60⁰C |
| Relative Humidity: |
10 ~ 95% |
| Resistance IP: |
IP44 |
| Drop test: |
Drops to concrete 4.9 ft / 1.5 m |
| Barcodes 1D: |
Barcodes 1D: |
| 2 of 5 Chinese: |
No |
| 2 of 5 Discrete: |
No |
| 2 of 5 IATA: |
Yes |
| 2 of 5 Industrial: |
Yes |
| 2 of 5 Interleaved: |
Yes |
| 2 of 5 Matrix: |
No |
| 2 of 5 Standard: |
Yes |
| BC - 412: |
No |
| Bookland EAN: |
Yes |
| Codabar: |
Yes |
| Codabar - NW7: |
No |
| Code - 11: |
Yes |
| Code - 11(USD-8): |
No |
| Code - 32: |
Yes |
| Code - 39: |
Yes |
| Code - 39 Extended (full ASCII): |
Yes |
| Code - 39 Trioptic : |
No |
| Code - 93: |
Yes |
| Code - 128 (A, B, C): |
Yes |
| EAN-8: |
Yes |
| EAN-13: |
Yes |
| EAN -128 / UCC-128: |
Yes |
| GS1 DataBar: |
No |
| Intelligent Mail: |
No |
| ISBN: |
Yes |
| ISBT - 128: |
No |
| ISSN: |
No |
| ITF-6: |
No |
| ITF-14: |
No |
| KIX code: |
No |
| Matrix 25: |
Yes |
| MSI: |
Yes |
| MSI - Plessey: |
No |
| Pharmacode - One Track: |
No |
| Pharmacode - Two Track: |
No |
| Planet: |
No |
| Plessey: |
No |
| Post - Australian (4-State Postal Code): |
No |
| Post - China (4-State Postal Code): |
Yes |
| Post - Japanese (4-State Postal Code): |
No |
| Post - Singapore (4-State Postal Code): |
No |
| PostNET: |
No |
| Royal Mail (RM-4SCC): |
No |
| Telepen Code: |
No |
| UK/Plessey: |
No |
| UPC - A: |
Yes |
| UPC - E: |
Yes |
| UPC - E1: |
No |
| Barcodes 2D: |
Barcodes 2D: |
| Aztec: |
No |
| Composite code: |
No |
| DataMatrix: |
No |
| MaxiCode: |
No |
| Micro PDF 417: |
No |
| Micro QR Code : |
No |
| PDF 417: |
No |
| QR Code : |
No |
| RSS: |
No |
| TLC-39: |
No |
