MobiScan Rugged Hand MS-B03
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/mobiscan-rugged-hand-ms-b03-produkt-86155.html

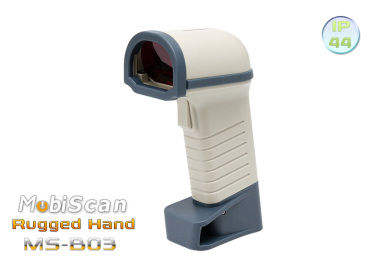

MobiScan Rugged Hand MS-B03

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych

The company's  MobiScan  new distribution of Mobilator. Company achieved an excellent reputation as a manufacturer of bar code scanners. Due to the high position of the products in the high-tech won the trust of many customers around the world.

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych



The bar code scanner is a device that allows data read barcodes from boxes, equipment, documents and all the places where these codes were implemented. MobiScan products are of high quality and the ability to trouble-free operation for many years.

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych

MobiScan Rugged Hand MS-B03
Barcode Scanner
1D Laser
Working time
6-8 h (Standby up to 40h)
Support system
Android(OTG), iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux
Range 10-40 m
Communication Wireless 2.4G USB receiver
Dimensions 80 x 60 x 160mm
Weight
240g
Other  Beep and LED

The detailed specification of the configuration available in the "Technical data"



Description


Unusual, modern, wireless (2.4G) barcode scanner Rugged Hand MobiScan MS-B03 is designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc.

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowychMS-B03 intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing information sczytanych with barcodes.

Scanner 1D Laser Barcode Scanner - MobiScan Rugged Hand MS-B03 thanks module to  Wireless 2.4G USB receiver (which ensures proper communication) IS compatible with mobile devices, data collectors and computers running on different operating systemch (Look : Descriptions of "Communication" - below).

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowychA new generation of scanner surprises his appearance. This ergonomic, compact and lightweight barcode reader with an appropriate surface texture provides a good grip and reduces hand fatigue with long hours of work.

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowychMobiScan Rugged Hand MS-B03 is equipped with a Li-Ion battery with sufficient capacity 1800mAh, which allows the scanner to work about 6-8 hours in scan mode or leave it on standby for 40 hours.



Communication

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych

The present device has a built - 1D LASER barcode reader that connecting via Wireless 2.4G USB receiver  with your device. It provides information such as the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowychDesigned to be tailored to different applications, wireless (2,4G) barcode scanner can be compatible with Android(OTG), iOS, Windows CE, Windows XP, Windows 7, Windows 8 and Linux. Users can send data directly to a PC or in real time to mobile devices.


MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych



Portable (radio) barcode readers using laser technology are comfortable and easy to use, with wide possibilities to set parameters. Enable automatic operation and manual. Read codes with different contrasts with a distance of several centimeters. The use of wireless communication (2,4) offer a range of up to 10 - 40m from the computer.

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych



MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych




Application

Standards and Tests

 Operating 0°  to 50°C
 Operating Humidity 10% do 90%
 Dust IP4x (obiect > 1mm)
 Water IPx4 (splashed water)
 Drop Drops to concrete 4,9ft./1.5m

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych

IP44 Resistance

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowychDegrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.

The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids
No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8

Protection against complete, continuous submersion in water

Application

MobiScan Rugged Hand MS-B03, which the manufacturer recommends widely used in situations where it is necessary to rapidly identify the goods in commerce, logistics, transport, shipping, industrial, financial and public sectors.

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych



MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych
Pharmacy

MS-B03 allows you to quickly identify and enter prescriptions into the database. With a small, mobile, lightweight design is easy to carry and effectively accepting orders.

Trade

The device is used for fast read-out bar codes. Certainly can be applied in all kinds of commercial networks.

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych
MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych

Magazine

Barcode reader Allows you to quickly update the inventory with the help of  wireless data transfer.

Logistics and transport

Scanner will find all kinds of use including in transport - a portable and super light barcode reader for fast identification.

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych





Specifications

Barcode readers allow you to in the bar code read and send to your database. We offer high quality device for reading bar codes that work flawlessly even in the harshest industrial environments.

After scanning the coded data can be transferred to a computer or a portable database. Such a rapid and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes.

MobiScan Rugged Hand MS-B03
 Mechanical

Height: 160 mm

Lenght: 60 mm

Width: 80 mm

Weight: 240g

 Electrical

Voltage: DC 5V ± 5 %

Working current:: 75mA

Receiver power supply : DC 5V

 Scan Performance

Sensor Type: 650nm Laser

Light Source: 635nm Laser

Resolution: 0.10 - 0.825mm

Scan Rate: 78 Scans/sec max.

Width of Window: 60mm na 30mm , 98mm na 100mm

Illumination: 5000Lux (maks. )

Depth of Field: 10 ~ 420mm

 Baterry Power

Li-ion 1800mA

 Working Time: 6-8h

Standby time: do 40h

 Barcode Type All standard 1D and RSS codes.
UPC/EAN/JAN, Code 39, Code 39 Full ASCII, Code 11, Matrix 25, Code 128, Code 32, Code 93, Interleave 25, Industrial 25, CODABAR/NW7, MSI/PLESSEY, Italian Pharmmacy
 Communication

Wireless 2.4G USB receiver

Frequency : 2.4G

Transmission Rate: 256K

Range: 10- 40 m

 Zakres skanowania
0~50cm
 Resistance IP 44
 Housing color Blue-grey / Black-orange
 Accessories

User manual, Power adapter, Wireless 2.4G adapter

MobiScan Rugged Hand MSB03 Bluetooth 2.0  MOBISCAN MS-B03 Skaner 1D Laser Bezprzewodowy Bluetooth 2.0 Poręczny MobiSCAN IP44  Kompatybilny Windows Android  mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Supported Operating Systems: Android (OTG), iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux
Internal memory: -
Operation Voltage: 5V - DC
Reading indicator: 1D LASER
Dimensions: 80 x 60 x 160 mm
Weight: 240 g
Battery: 1800 mAh Li-ion
Housing material: ABS Rubber & plastic
Scan rate: 78 scans/sec
Light source: 635 nm Laser
Resolution: 0.10 - 0.825 mm
Communication distance: 10 - 40 m
Readable codes: All standard 1D and RSS codes. UPC/EAN/JAN, Code 39, Code 39 Full ASCII, Code 11, Matrix 25, Code 128, Code 32, Code 93, Interleave 25, Industrial 25, CODABAR/NW7, MSI/PLESSEY, Italian Pharmmac
Sensor: 650 nm Laser
Scan Angle: -
Print Contrast Ratio: -
Scan range: 0~50 cm
Cable Type: MiniUSB
Battery Life: 6 - 8 h
Communication: Wireless 2.4 G USB receiver
Interface/ Prole: -
Operating Temperature: 0 ~ 50⁰C
Storage Temperature: -20 ~ 60⁰C
Relative Humidity: 10 ~ 95%
Resistance IP: IP44
Drop test: Drops to concrete 4.9 ft / 1.5 m
Barcodes 1D: Barcodes 1D:
2 of 5 Chinese: No
2 of 5 Discrete: No
2 of 5 IATA: Yes
2 of 5 Industrial: Yes
2 of 5 Interleaved: Yes
2 of 5 Matrix: No
2 of 5 Standard: Yes
BC - 412: No
Bookland EAN: Yes
Codabar: Yes
Codabar - NW7: No
Code - 11: Yes
Code - 11(USD-8): No
Code - 32: Yes
Code - 39: Yes
Code - 39 Extended (full ASCII): Yes
Code - 39 Trioptic : No
Code - 93: Yes
Code - 128 (A, B, C): Yes
EAN-8: Yes
EAN-13: Yes
EAN -128 / UCC-128: Yes
GS1 DataBar: No
Intelligent Mail: No
ISBN: Yes
ISBT - 128: No
ISSN: No
ITF-6: No
ITF-14: No
KIX code: No
Matrix 25: Yes
MSI: Yes
MSI - Plessey: No
Pharmacode - One Track: No
Pharmacode - Two Track: No
Planet: No
Plessey: No
Post - Australian (4-State Postal Code): No
Post - China (4-State Postal Code): Yes
Post - Japanese (4-State Postal Code): No
Post - Singapore (4-State Postal Code): No
PostNET: No
Royal Mail (RM-4SCC): No
Telepen Code: No
UK/Plessey: No
UPC - A: Yes
UPC - E: Yes
UPC - E1: No
Barcodes 2D: Barcodes 2D:
Aztec: No
Composite code: No
DataMatrix: No
MaxiCode: No
Micro PDF 417: No
Micro QR Code : No
PDF 417: No
QR Code : No
RSS: No
TLC-39: No


CURRENT PRICE
646.52 € Net
795.22€ Gross
