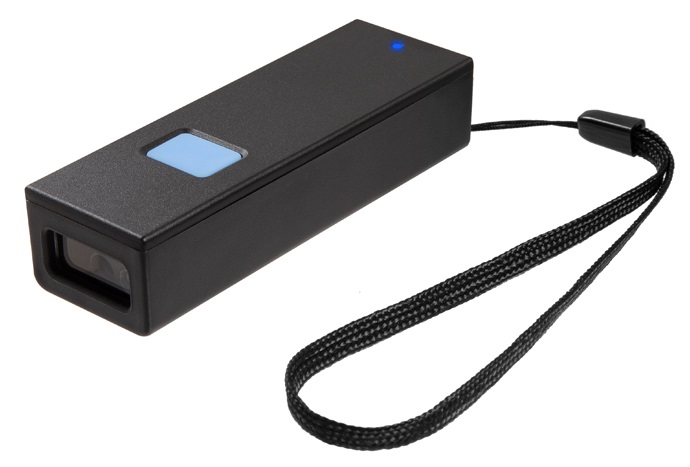

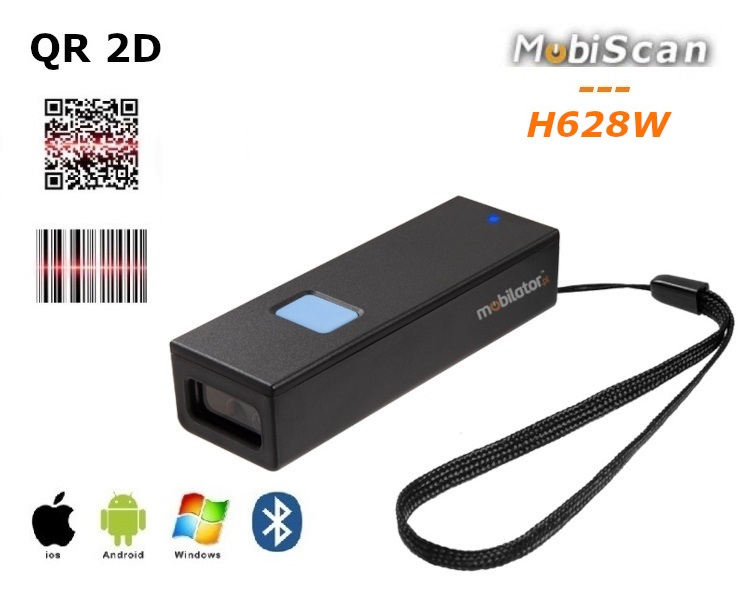

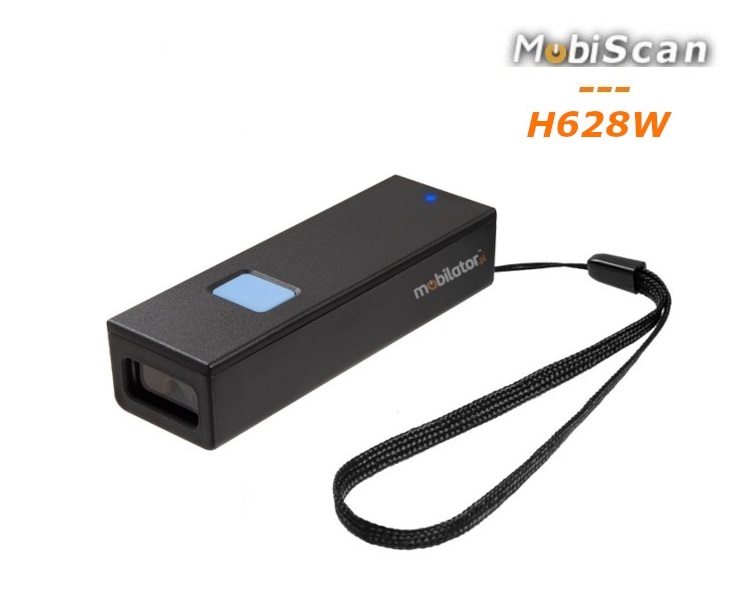

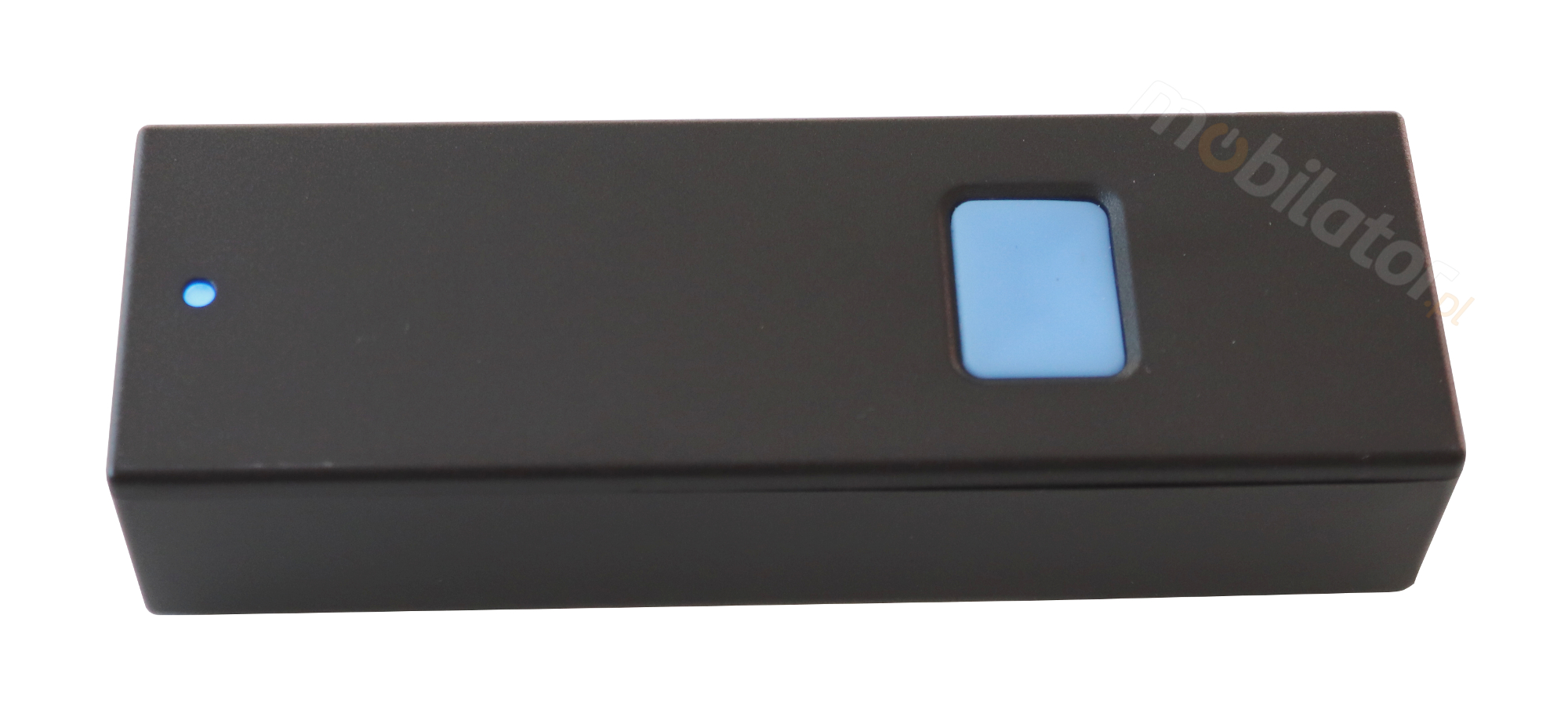

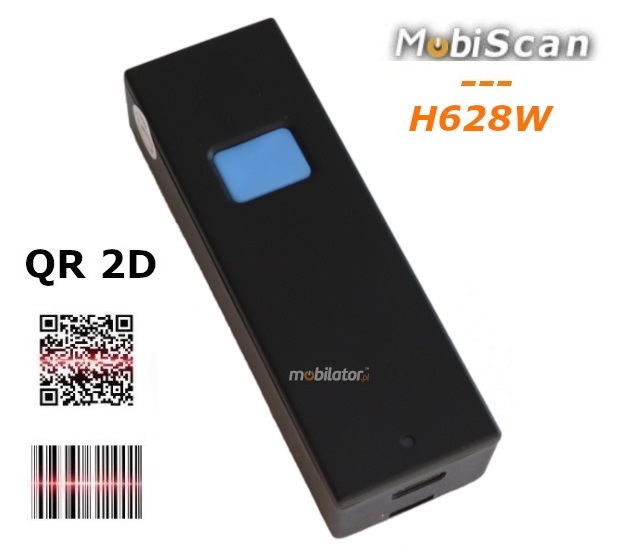

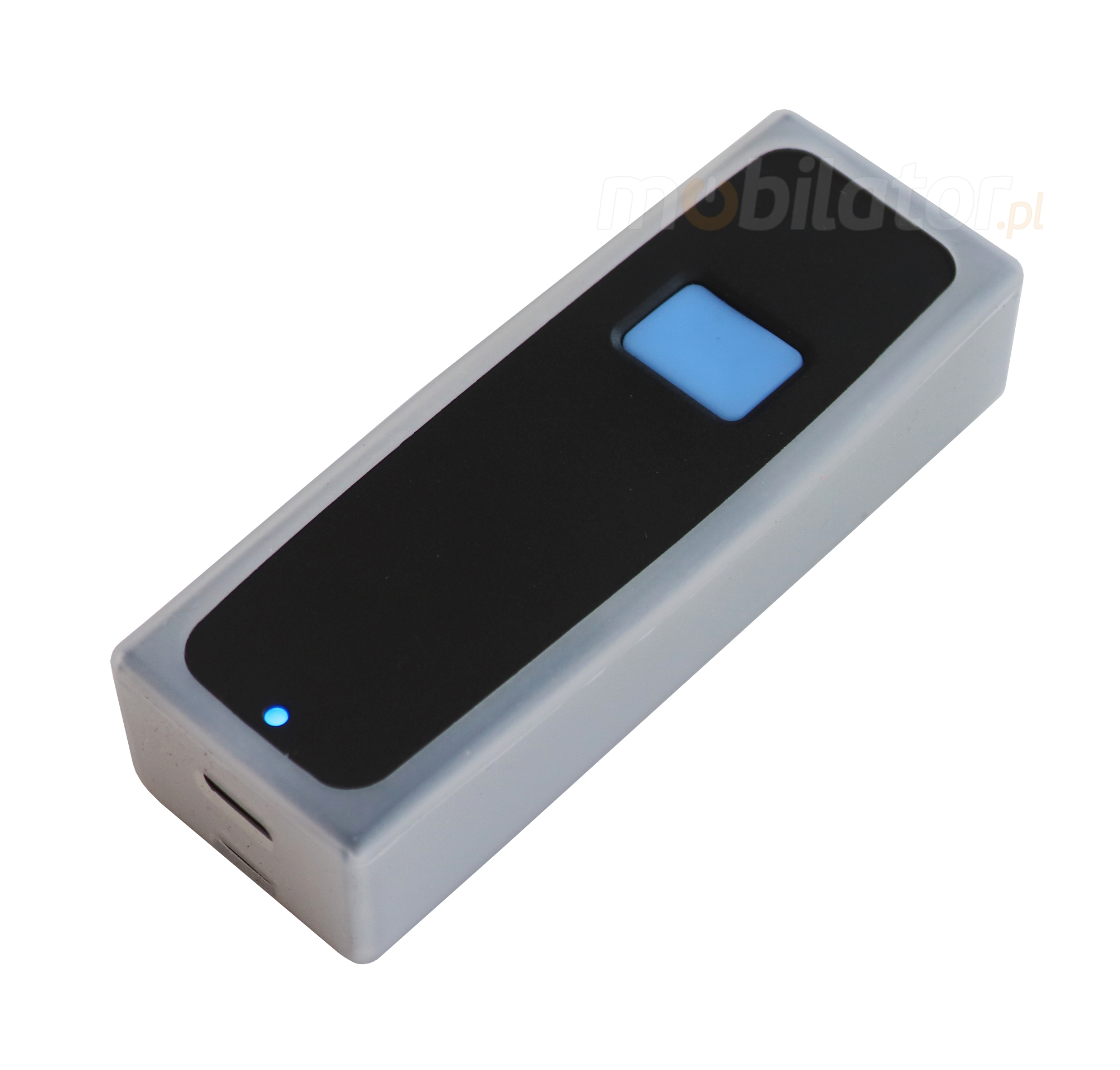

MobiScan H628W - mobile mini 1D barcode and 2D QR code scanner, connectivity via Bluetooth and Wireless 2.4GHz, 1.8m fall
|
|
| CURRENT PRICE |
| 84.39 € |
Net |
| 103.80 € |
Gross |
|
Compare all versions
|
|
The company's MobiScan new distribution of Mobilator. Company achieved an excellent reputation as a manufacturer of bar code scanners. Due to the high position of the products in the high-tech won the trust of many customers around the world.
|
|
|
|
The bar code scanner is a device that allows read with barcodes from boxes or devices. Business accessories MobiScan H628W porduktu guarantee high quality and serve for many years without any loss of quality.
|
| MobiScan H628W |
| Barcode scanner |
640*480 2D CMOS 30fps |
| Working time |
10h (continuously working) |
| Support system |
Android, iOS, POS, Windows XP, Windows 7, Windows 8, Windows 9, Windows 10, Linux, MAC |
| Range |
50m BT and 100m 2.4GHz RF |
| Communication |
Bluetooth + 2.4GHz RF + USB |

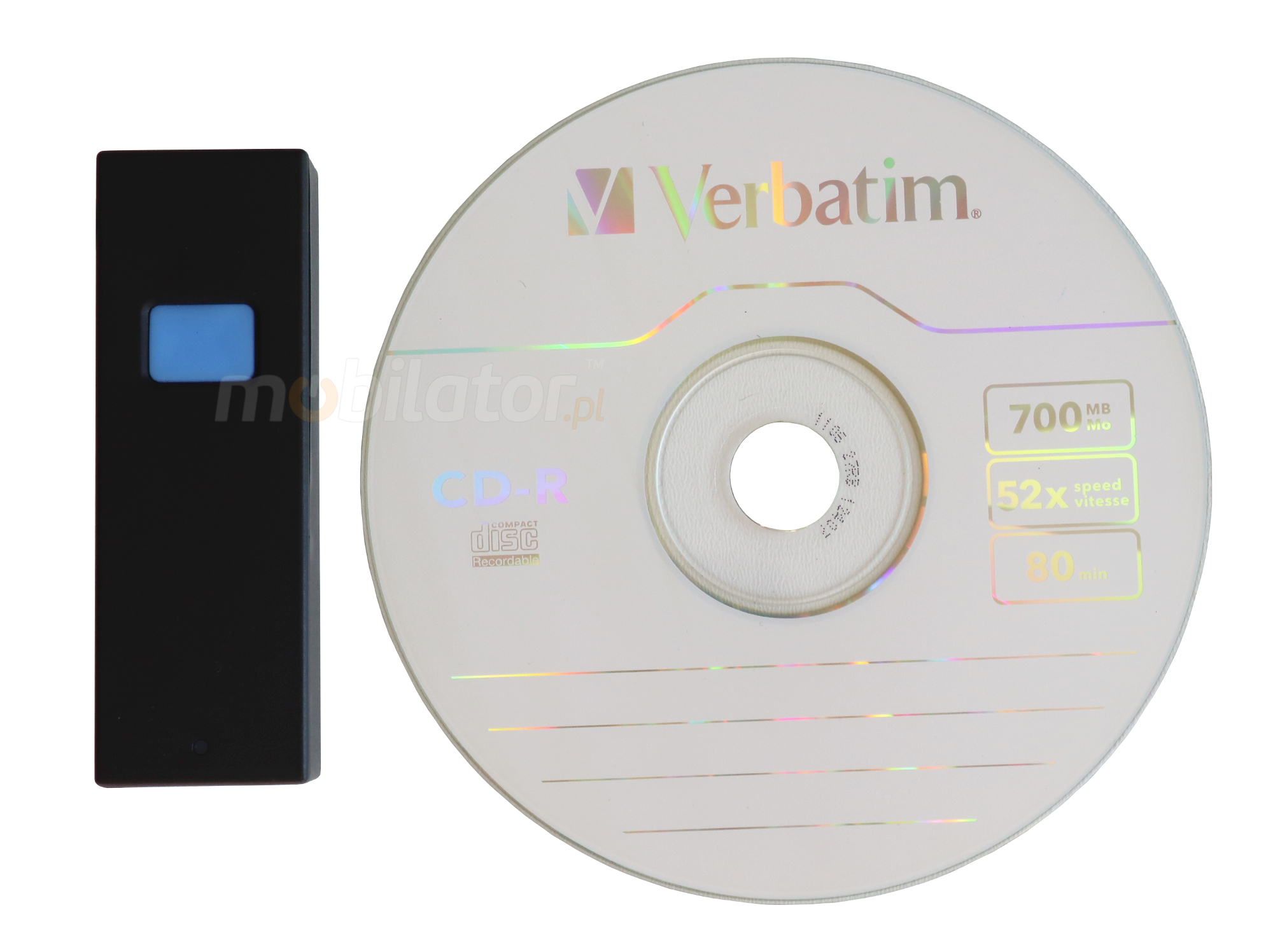

| Dimensions |
88x30x20mm |
| Weight |
40g |
| |
|
| |
The detailed specification of the configuration available in the "Technical data" |
|
|

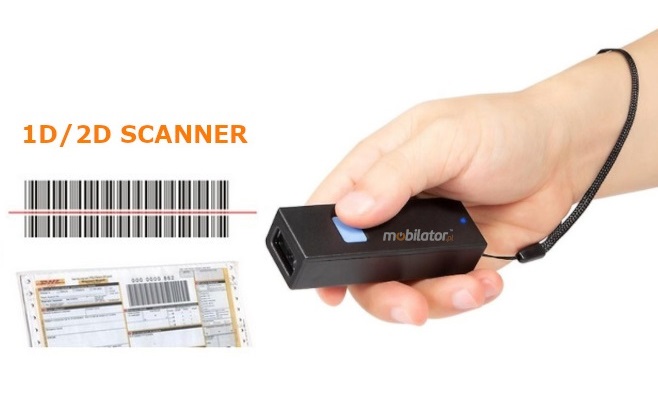

MobiScan H628W is small size and powerful new generation barcode scanner. It design for picking and sorting application ,enable your operator to free hand and improve operational efficiency in your warehouse,distribution center and retail store. You never need setting an item down to check paper work order or picking up handheld scanner. Operator even no need to put heavy pakage to the desktop for scan ,it will save more time and physical strength. Compare with common wired handheld scanner, MobiScan H628W wearable scanner can increase 15% -30% productivity !
MobiScan H628W intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers and logistics, quality controllers and inspectors of manufacturing processes and all those who need to work cataloging and storing the information read from the barcode .

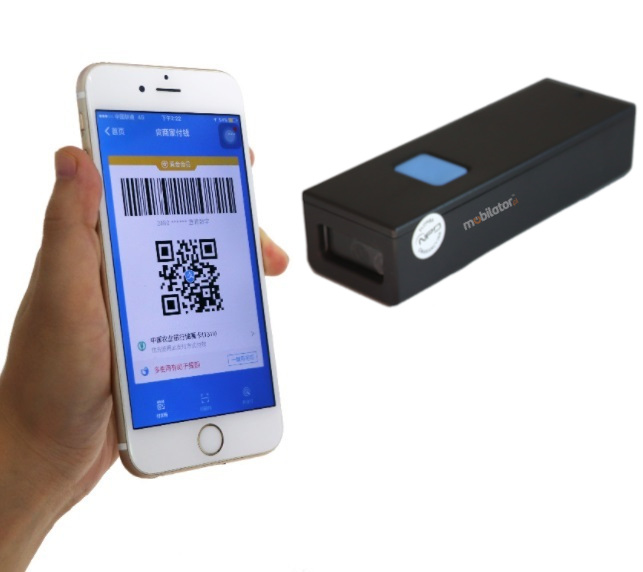

2D Barcode Laser Scanner - MobiScan H628W through Bluetooth module (which provides reliable communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).
 FingerRing wearable ring scanner enable operator to move package ,products and materials,helping to increase more efficiency, It is very comfortable to wear it in whole working day ,with high performance laser scan engine ,even poor printed barcode can be read.The rugged rubber shell make daily use reliable even in the roughest environments.
 MobiScan H628W is equipped with a battery with sufficient capacity 800mAh, which allows the scanner to work about 10 hours in scan mode (continuously working).
|
| The present device has a built-1D/2D barcode reader that connecting via Bluetooth with your device. It provides information such as the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data. |
|
Designed to be tailored to different applications, wireless (Bluetooth) barcode scanner can be compatible with Android, iOS, Windows 7, Windows 8, Windows 9, Windows 10 and Linux. Users can send data directly to a PC or in real time to mobile devices.
Portable (radio and bluetooth-arid) barcode readers using laser technology are comfortable and easy to use, with wide possibilities to set parameters. Enable automatic operation and manual. Read codes with different contrasts with a distance of several centimeters. The use of wireless communication (Bluetooth or radio) offer a range of up to 50m from the computer.
The device uses the HID interface
To scanner devices need to use the right software to a Bluetooth port collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.
If we have the right scanner (USB HID) - when barcode in fact our introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswaæ text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.
Bluetooth Low Energy (BLE)
Bluetooth Low Energy is a wireless, low-power personal area network that operates in the 2.4 GHz ISM band. Its goal is to connect devices over a relatively short range. BLE was created with IoT applications in mind, which has particular implications for its design. For example, IoT devices tend to be constrained and require extended battery use, so BLE favors low power consumption over continuous data transfer. In other words: when not in use, it goes into sleep mode to conserve energy.
Supported Bluetooth profiles SPP system.
SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment).
Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .
|
|
|
|
Compliance standards and tests performed
| Work Temp. |
-20° do 50°C |
| Storage Temp. |
-40° do 70°C |
| Humidity |
5% do 95% |
| Light Immunity |
0~100,000Lux |
| Drop |
Multiple Drop 1.8m |
go top…  menu…
Resistance IP41
The IP Code, International Protection Marking. IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC).
do góry… menu…
|
MobiScan H628W - mini barcode scanner 1D/2D - Ring - Bluetooth which the manufacturer recommends widely used in situations where it is necessary to rapidly identify the goods in commerce, logistics, transport, shipping, industrial, financial and public sectors.
Accessories

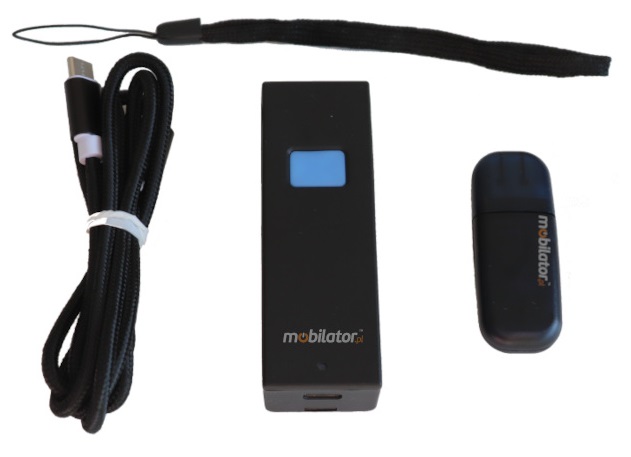

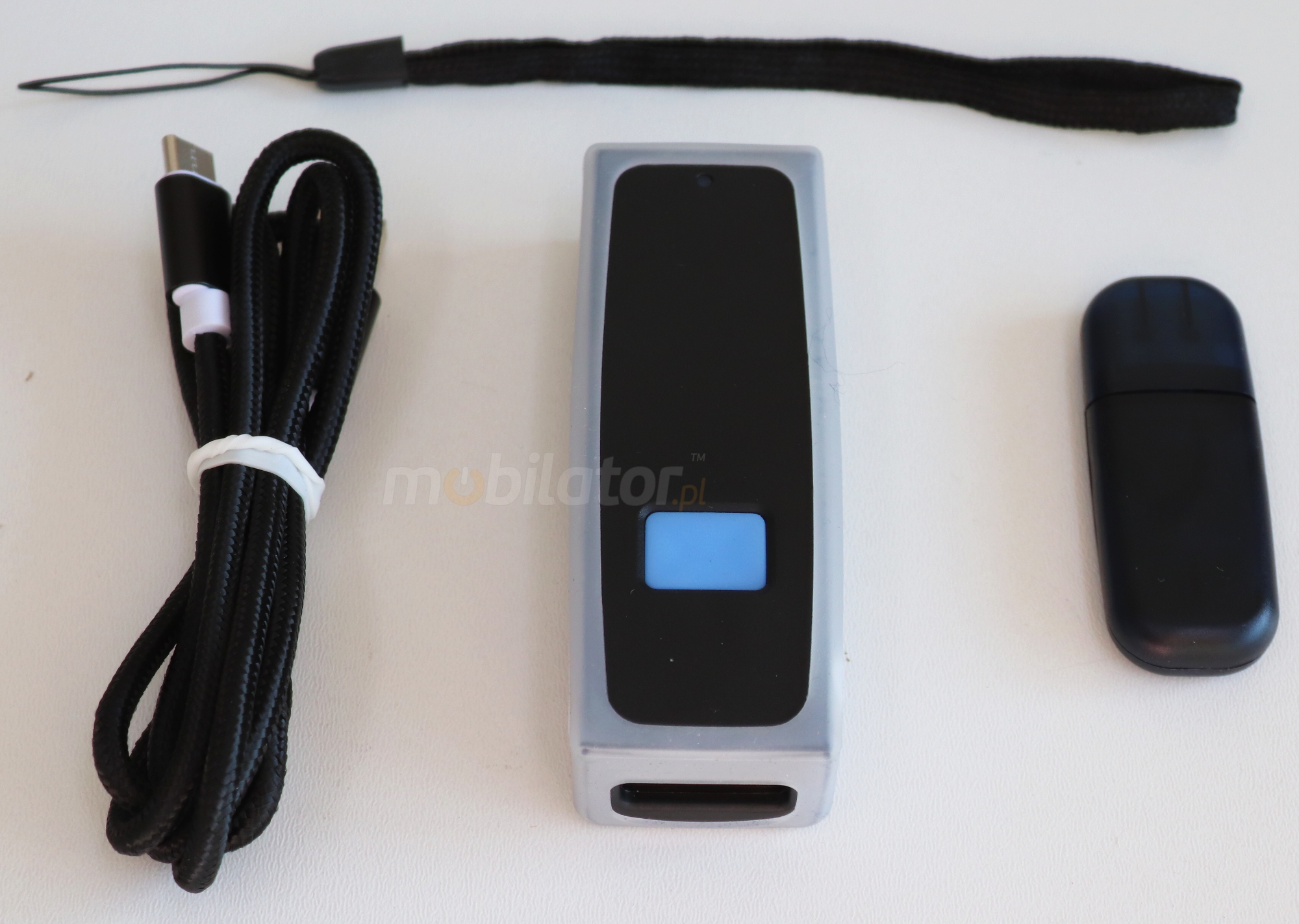

MobiScan H628W comes standard with USB cable and 2.4GHz Data Receiver.
Application
|
|
Pharmacy

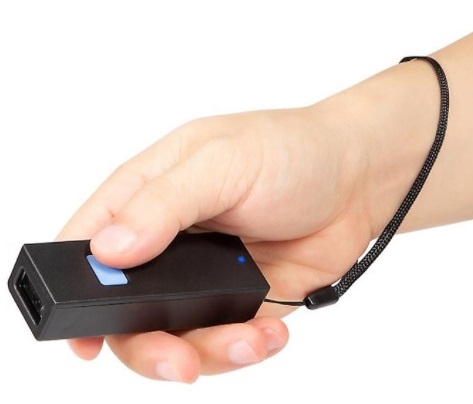

It allows you to quickly identify and enter prescriptions into the database. With a small and lightweight design is easy to carry around in your pocket thus increases the efficiency of the orders received.
|
|
Trade
The device used to quickly read bar codes. Certainly can be applied to any kind of trade.
|
|
|
|
Magazine
Mini barcode reader allows you to quickly update the inventory with the help of Bluetooth wireless data transfer.
|
|
Logistics and transport
Scanner certainly will also use all kinds of transport as a barcode reader to help you quickly identify the goods.
|
|
|
Barcode readers allow you to in the bar code read and send to your database. .jpg) We offer high quality device for reading bar codes that work flawlessly even in the harshest industrial environments.
After scanning the coded data can be transferred to a computer or a portable database. Such a rapid and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes.
.jpg)

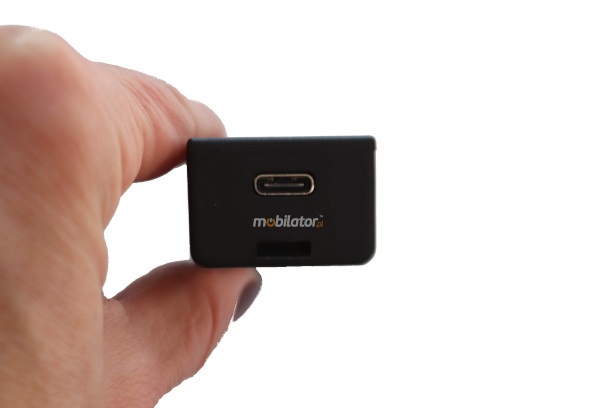

The bar code scanner can be connected to almost any device of computer - via USB.
| MobiScan H628W - mini 2D barcode scanner |
| Dimensions |
88 x 30 x 20mm
Weight: 40g
|
| Electrical |
Working Voltage: DC 5±10%VDC
Power: 190mA(working), 7mA(standby), 5uA(sleep)
|
| Scan Performance |
Sensor: 1D/2D, 640*480 CMOS 30fps
Scan Rate: 30fps
Scan Angle: Rotation360°,tilt±55°,skew±55°
Resolution: 4mil
Range: 35-260mm
Light Source: 625±10nm Visible red LED，white LED
Min. Contrast: 25%
|
| Baterry Power |
800mAH
Continuously work: 10 hours
Charge time: 3-4 hours
|
| Barcode Type |
2D: QR, Micro QR, PDF417, Micro PDF417, DataMatrix , AZTEC etc.
1D: Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey etc.
|
| Communication |
Bluetooth 4.0 (HID+SPP+BLE) + 2.4GHz RF + USB
With 50m distance BT and 100m 2.4GHz
|
| Mechanical |
Memory Size: 16MB. store 10K barcodes
Indication: Buzzer & LED &Vibration
1.8m drop test
Material: ABS+PC
|
| Accessories |
User manual, USB cable and 2.4GHz Data Receiver
|
|
more photos in "Gallery"...
specification of this version is available in the "Specifications"...
|
|
|
Compare all versions
| Supported Operating Systems: |
Android, iOS, Windows XP, Windows 7, Windows 8, Windows 9, Windows 10, Linux, MAC |
| Internal memory: |
16MB |
| Operation Voltage: |
Working Voltage: DC 5±10%VDC / Power: 190mA(working), 7mA(standby), 5uA(sleep) |
| Reading indicator: |
1D/2D |
| Dimensions: |
88 x 30 x 20mm |
| Weight: |
40g |
| Battery: |
800mAh |
| Housing material: |
ABS+PC |
| Scan rate: |
30fps |
| Light source: |
625±10nm, Visible red LED, white LED |
| Resolution: |
4mil |
| Communication distance: |
50m BT, 100m 2.4GHz |
| Readable codes: |
2D: QR, Micro QR, PDF417, Micro PDF417, DataMatrix , AZTEC etc. 1D: Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey etc. |
| Sensor: |
640x480 2D CMOS 30fps |
| Scan Angle: |
Rotation 360°,tilt ±55°,skew ±55° |
| Print Contrast Ratio: |
Min. Contrast: 25% |
| Scan range: |
35-260mm |
| Cable Type: |
USB |
| Battery Life: |
10h (continuously working) |
| Communication: |
Bluetooth 4.0 + 2.4GHz RF + USB |
| Interface/ Pro le: |
HID + BLE + SPP |
| Operating Temperature: |
-20°C ~ 50°C |
| Storage Temperature: |
-40°C ~ 70°C |
| Relative Humidity: |
5% ~ 95%, non-condensing |
| Resistance IP: |
IP41 |
| Drop test: |
1.8m drop |
| Barcodes 1D: |
Barcodes 1D: |
| 2 of 5 Chinese: |
No |
| 2 of 5 Discrete: |
No |
| 2 of 5 IATA: |
No |
| 2 of 5 Industrial: |
Yes |
| 2 of 5 Interleaved: |
Yes |
| 2 of 5 Matrix: |
Yes |
| 2 of 5 Standard: |
Yes |
| BC - 412: |
No |
| Bookland EAN: |
No |
| Codabar: |
Yes |
| Codabar - NW7: |
No |
| Code - 11: |
Yes |
| Code - 11(USD-8): |
No |
| Code - 32: |
No |
| Code - 39: |
Yes |
| Code - 39 Extended (full ASCII): |
No |
| Code - 39 Trioptic : |
No |
| Code - 93: |
Yes |
| Code - 128 (A, B, C): |
Yes |
| EAN-8: |
Yes |
| EAN-13: |
Yes |
| EAN -128 / UCC-128: |
Yes |
| GS1 DataBar: |
Yes |
| Intelligent Mail: |
No |
| ISBN: |
Yes |
| ISBT - 128: |
No |
| ISSN: |
No |
| ITF-6: |
Yes |
| ITF-14: |
Yes |
| KIX code: |
No |
| Matrix 25: |
No |
| MSI: |
No |
| MSI - Plessey: |
Yes |
| Pharmacode - One Track: |
No |
| Pharmacode - Two Track: |
No |
| Planet: |
No |
| Plessey: |
Yes |
| Post - Australian (4-State Postal Code): |
No |
| Post - China (4-State Postal Code): |
No |
| Post - Japanese (4-State Postal Code): |
No |
| Post - Singapore (4-State Postal Code): |
No |
| PostNET: |
No |
| Royal Mail (RM-4SCC): |
No |
| Telepen Code: |
No |
| UK/Plessey: |
No |
| UPC - A: |
Yes |
| UPC - E: |
Yes |
| UPC - E1: |
No |
| Barcodes 2D: |
QR, Micro QR, PDF417, Micro PDF417, DataMatrix , AZTEC etc. |
| Aztec: |
Yes |
| Composite code: |
No |
| DataMatrix: |
Yes |
| MaxiCode: |
No |
| Micro PDF 417: |
Yes |
| Micro QR Code : |
Yes |
| PDF 417: |
Yes |
| QR Code : |
Yes |
| RSS: |
No |
| TLC-39: |
No |
