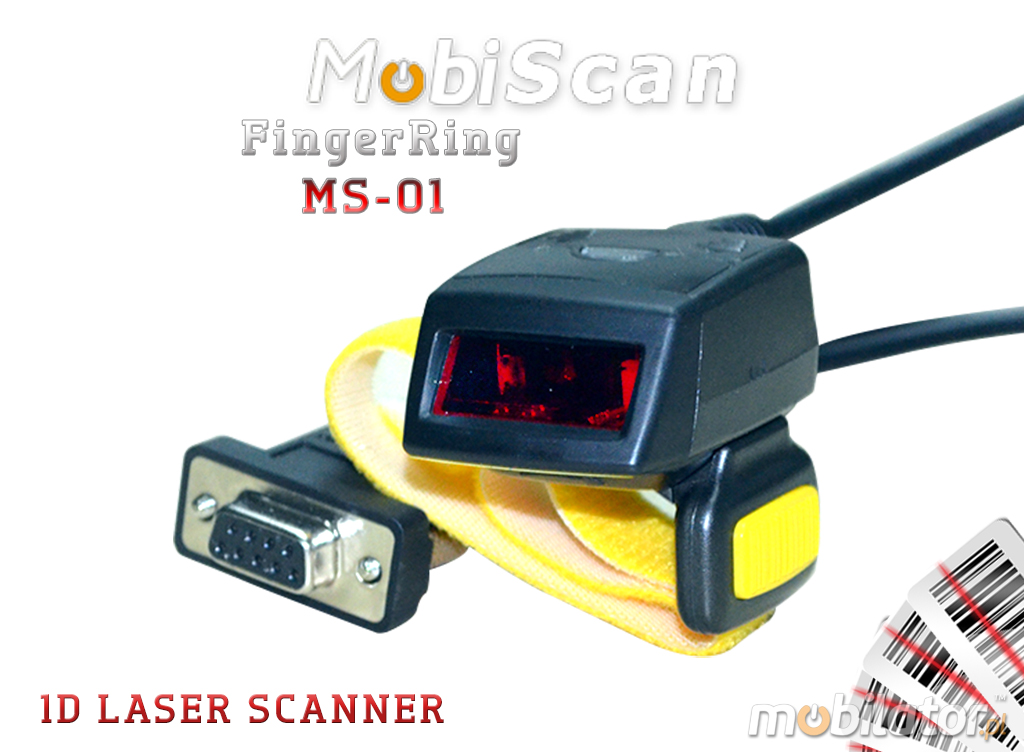

MobiScan FingerRing MS01 RS232
|
|
The product from the archive - production terminated
|
Compare all versions
|
|
The company's MobiScan new distribution of Mobilator. Company achieved an excellent reputation as a manufacturer of bar code scanners. Due to the high position of the products in the high-tech won the trust of many customers around the world.
|
|
|
|
Barcode scanner is a device that allows you to read the barcode from the box or equipment. Business accessories MobiScan guarantee high product quality and serve for many years without loss qualitand ability to trouble-free operation for many years.
|
|
MobiScan FingerRing MS01 RS232 |
Barcode scanner
|
1D |
|
Support system |
Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux |
|
Communication |
Cable RS232/USB |
|
Dimensions |
51.59 x 39.88 x 43.9 mm
|
Weight
|
50g |
|
Other |
none |
|
The detailed specification of the configuration available in the "Technical data" |
|
Unusual, modern mini scanner (RS232) barcodes MobiScan FingerRing MS01 232 has been designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc.
.jpg) FingerRing MS01 intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, steady sellers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing information sczytanych with barcodes.

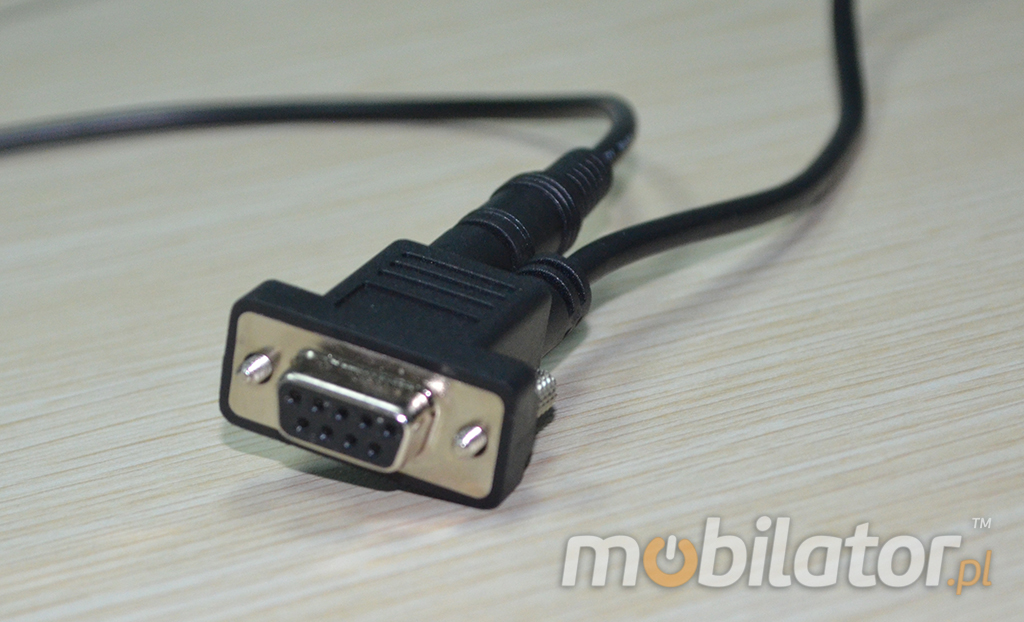

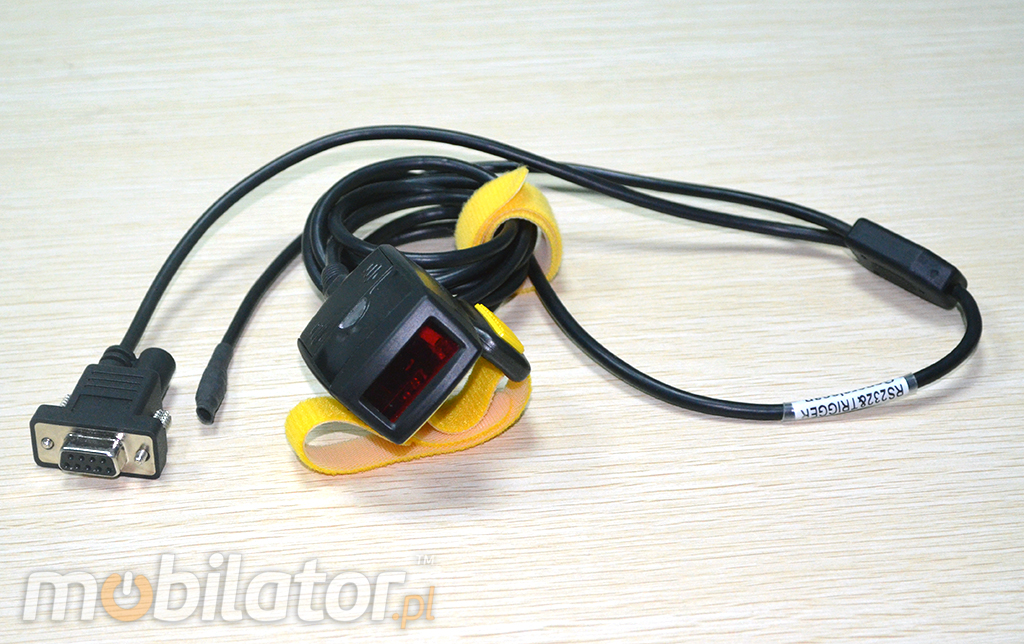

1D Barcode Scanner - MobiScan MS-01 by connector RS 232 (which ensures proper communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).

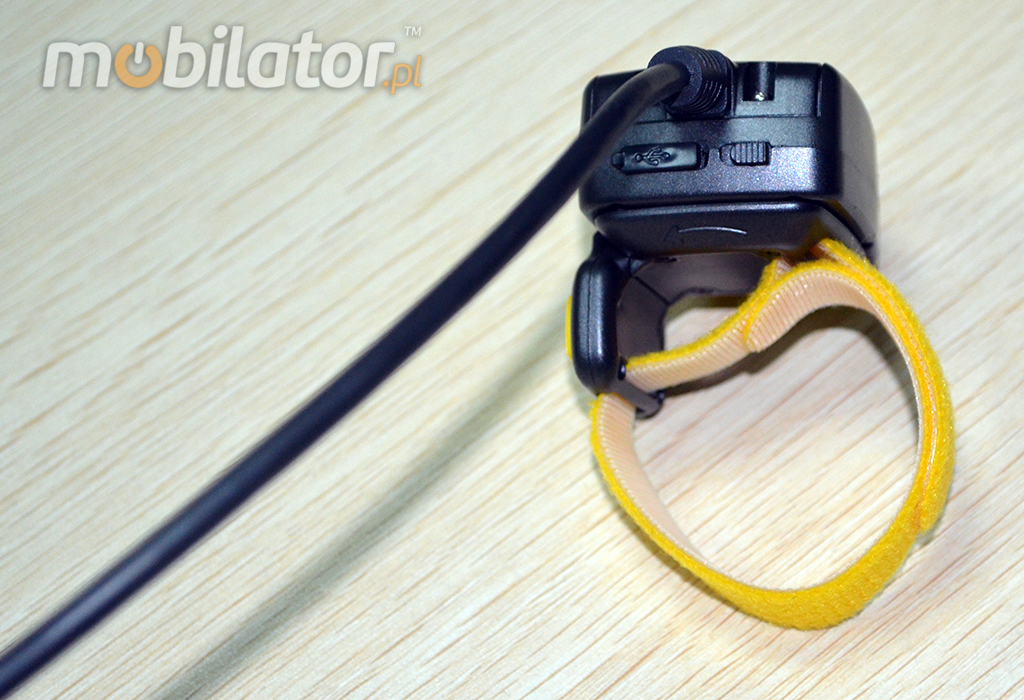

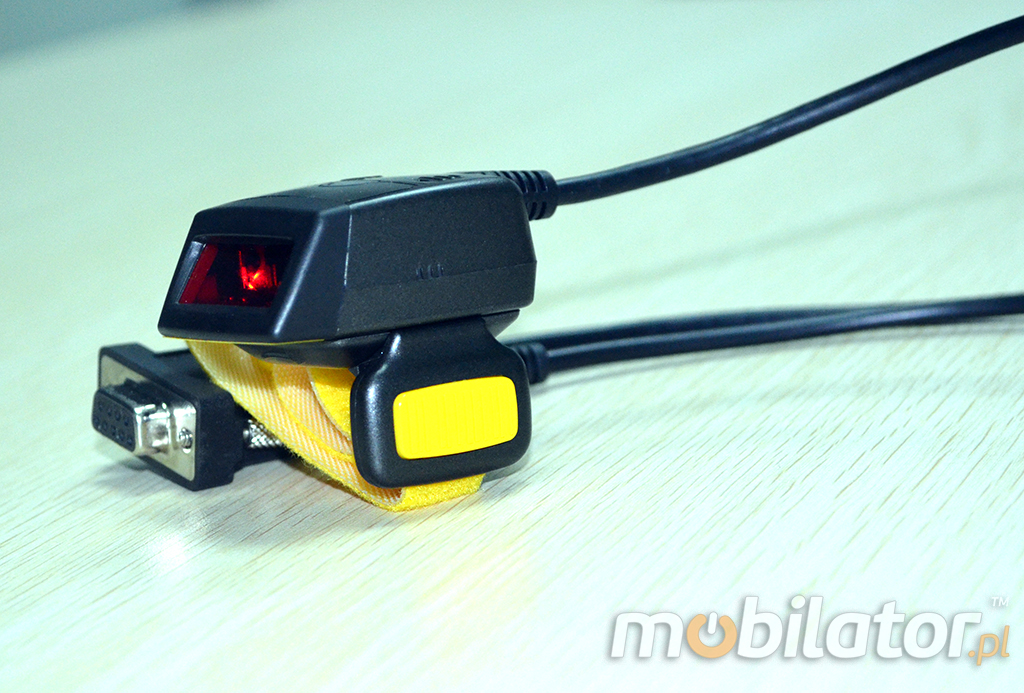

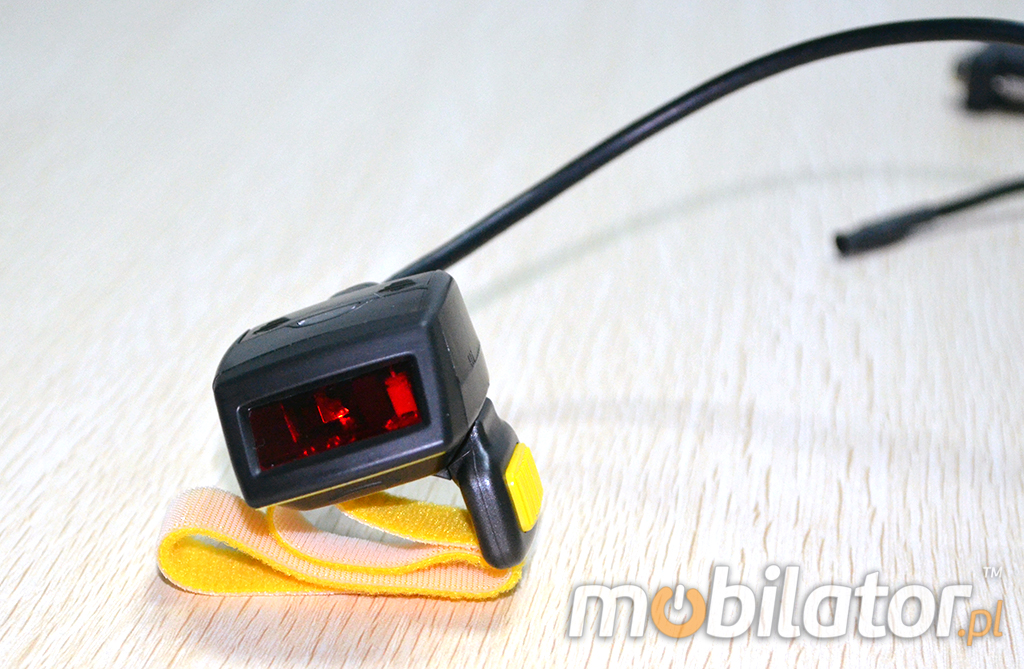

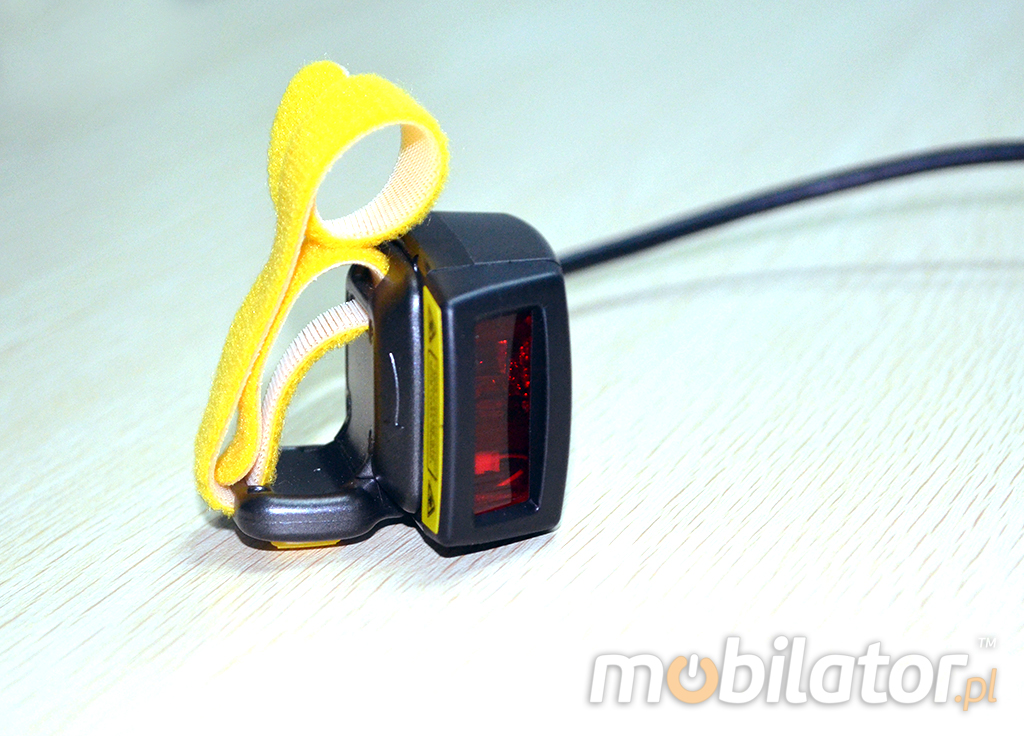

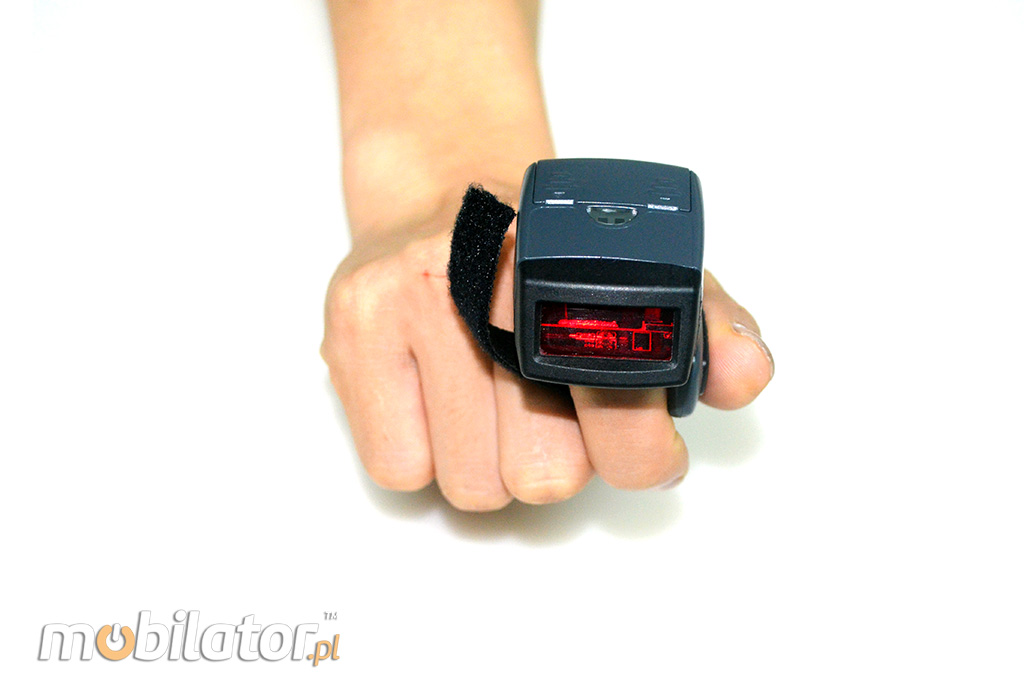

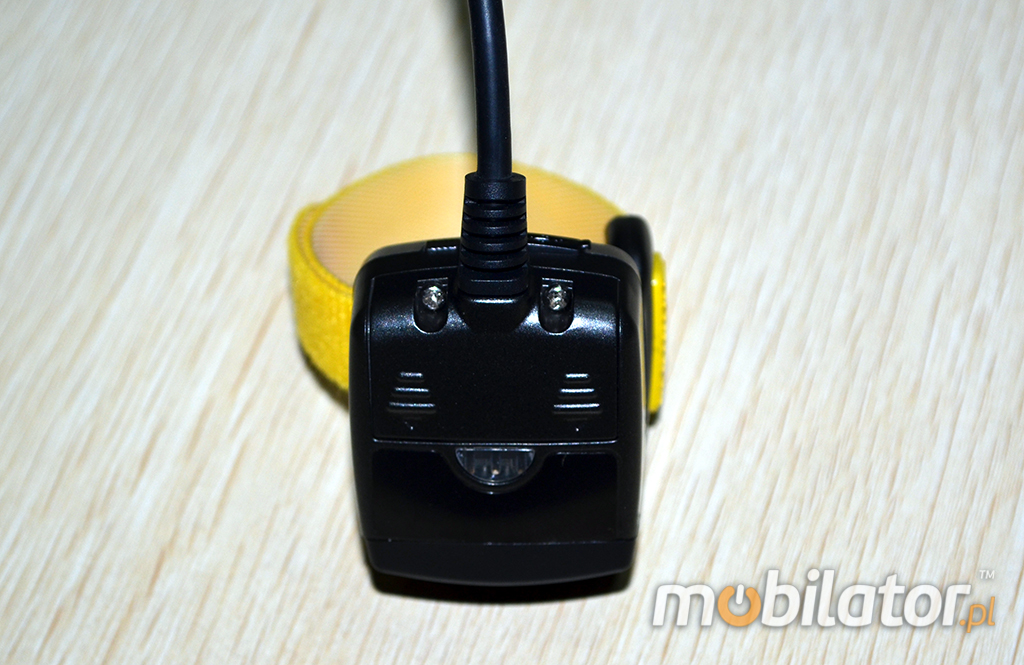

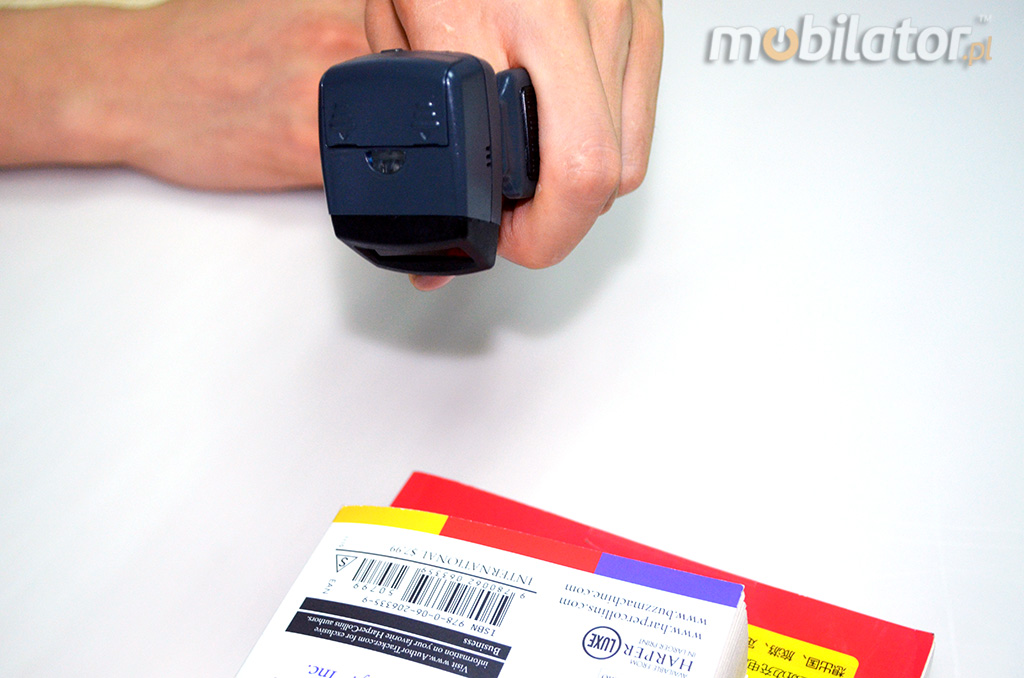

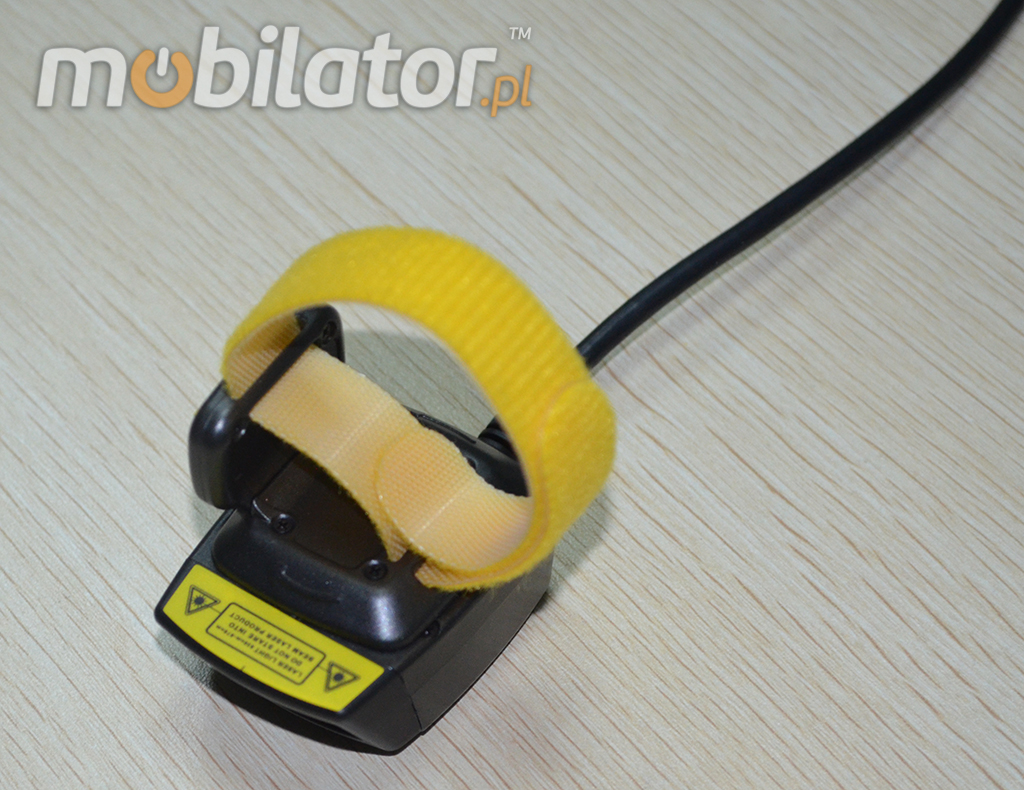

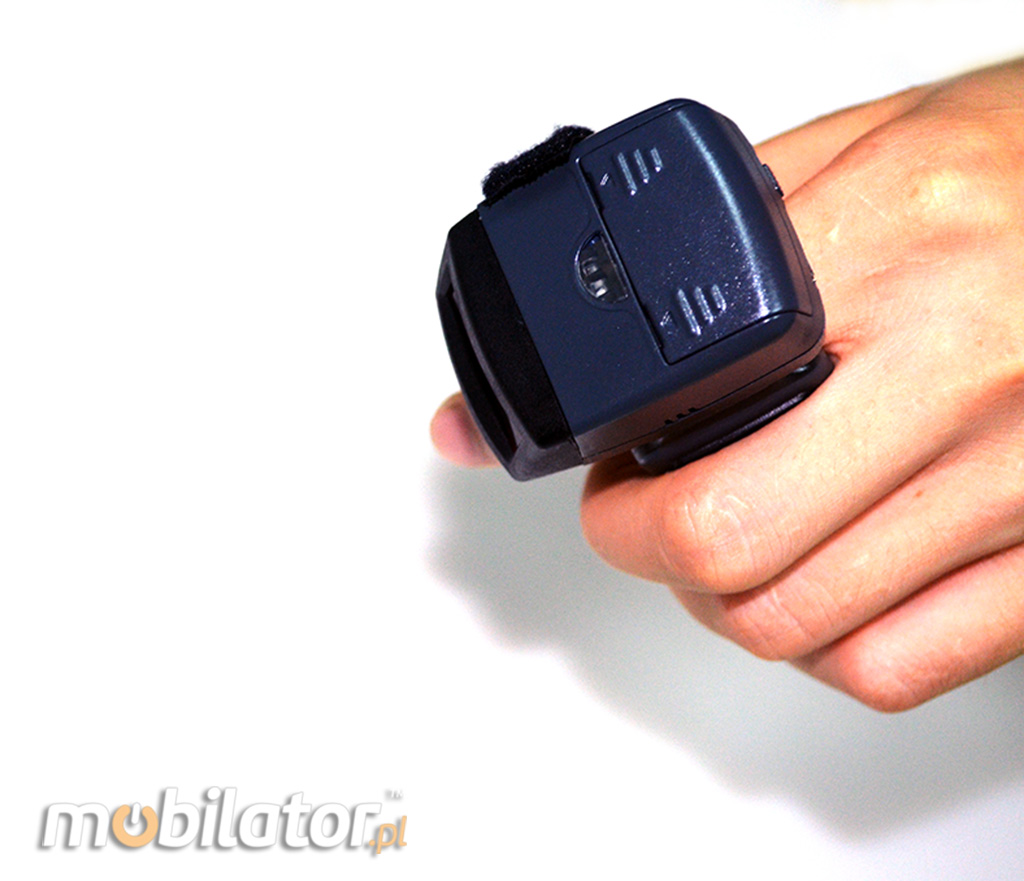

 A new generation of mini scanner surprises his appearance, like a box of matches, which was at the bottom of the ring engaged with the device used to impose on the index finger. This ergonomic, compact and extremely lightweight barcode reader with an appropriate surface texture provides a good grip and reduces hand fatigue with long hours of work.
.jpg) |

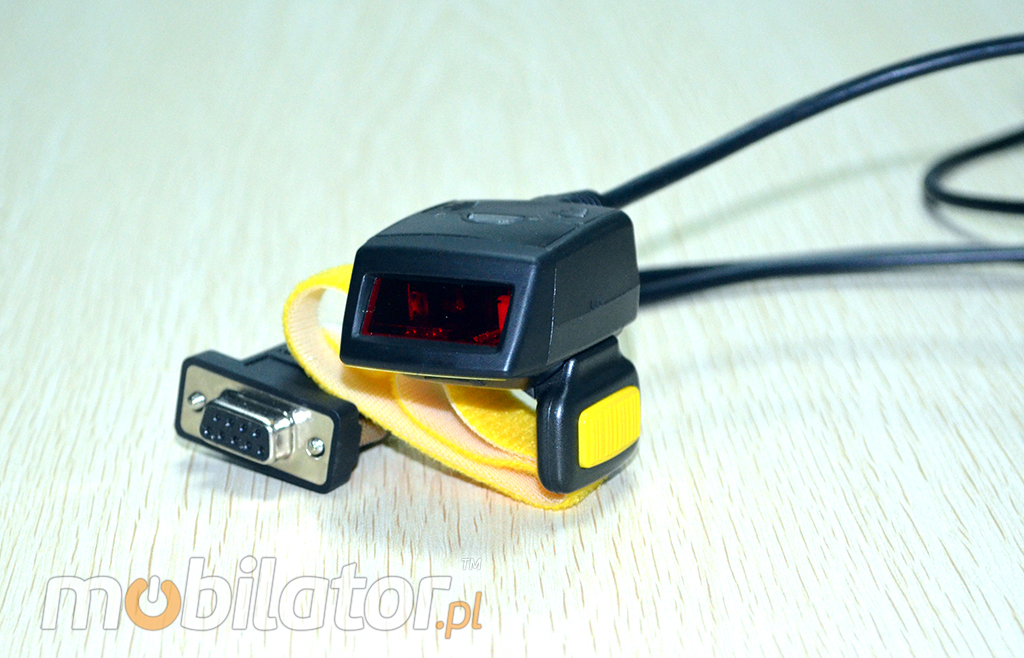

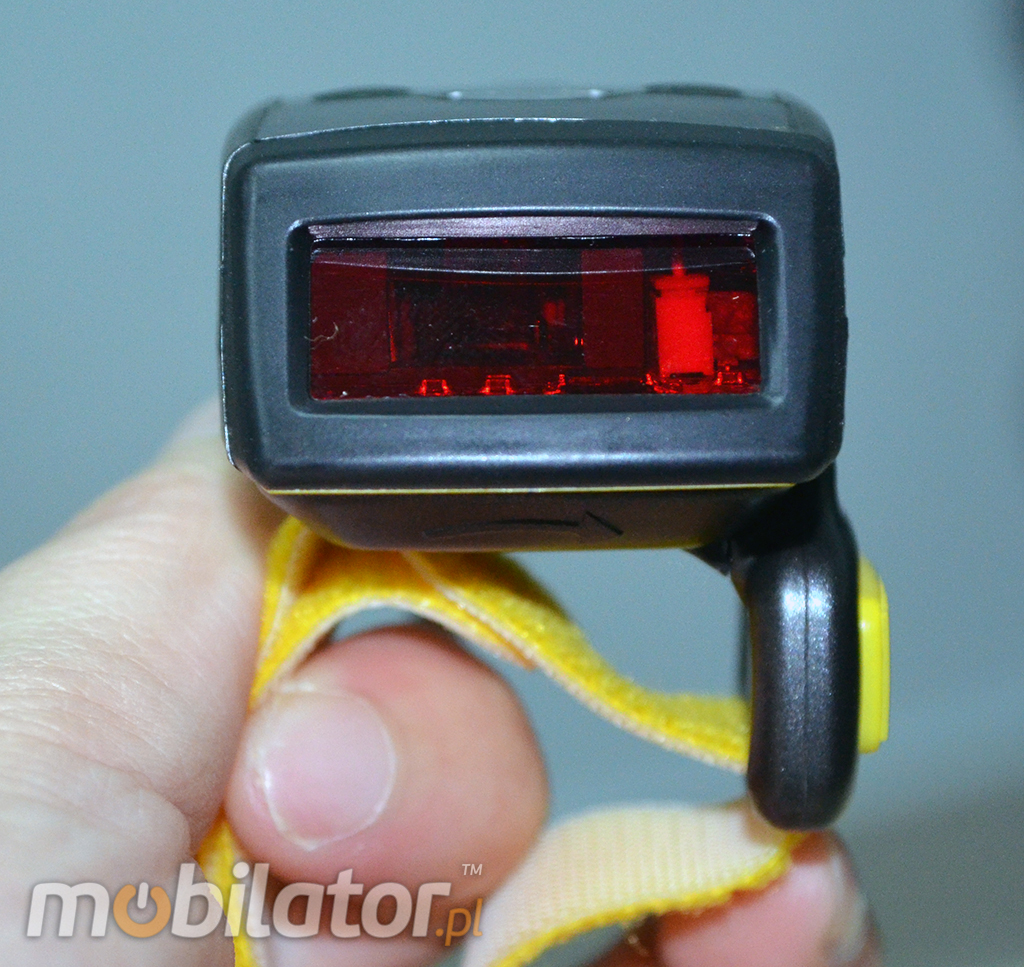

.jpg) Mini scanner has a built-in barcode reader, 1D Laser, which is connecting via RS232 port device provides information on, among others, the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data. |
|

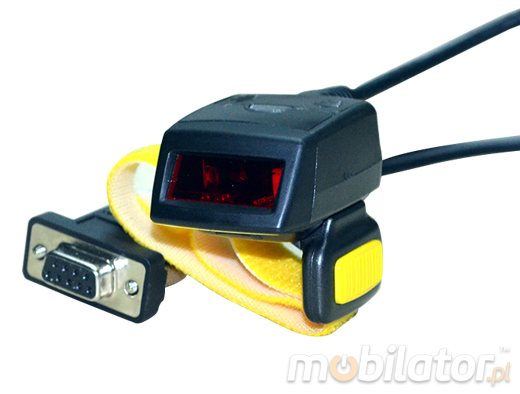

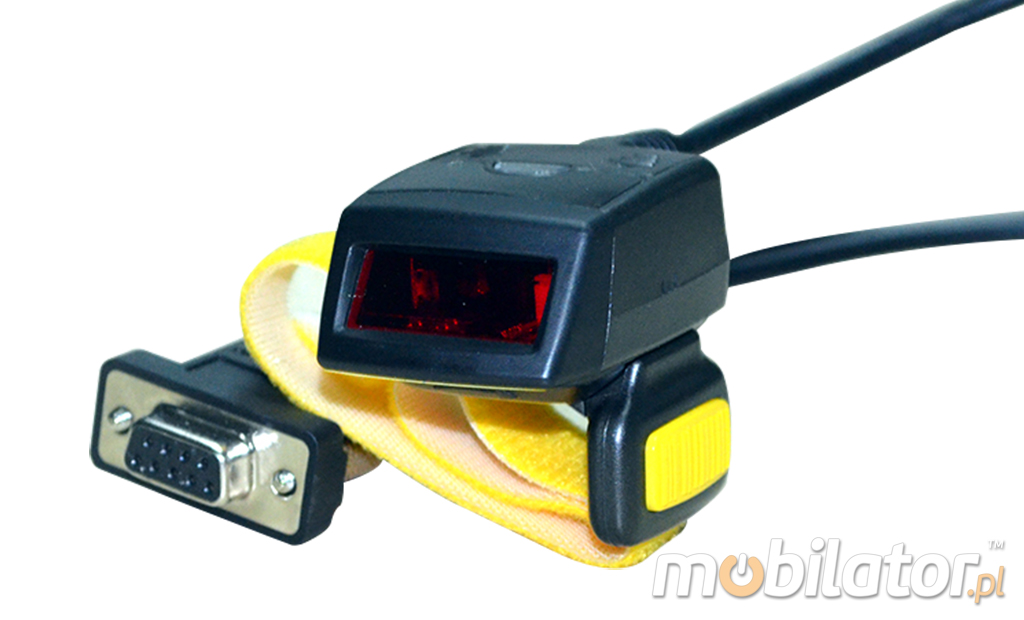

MobiScan FingerRing MS01 RS232
.jpg)
Designed to be tailored to different applications, wired (RS232) barcode scanner can be compatible with systems such as Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux. Users can transmit data in real time to PCs or mobile devices.

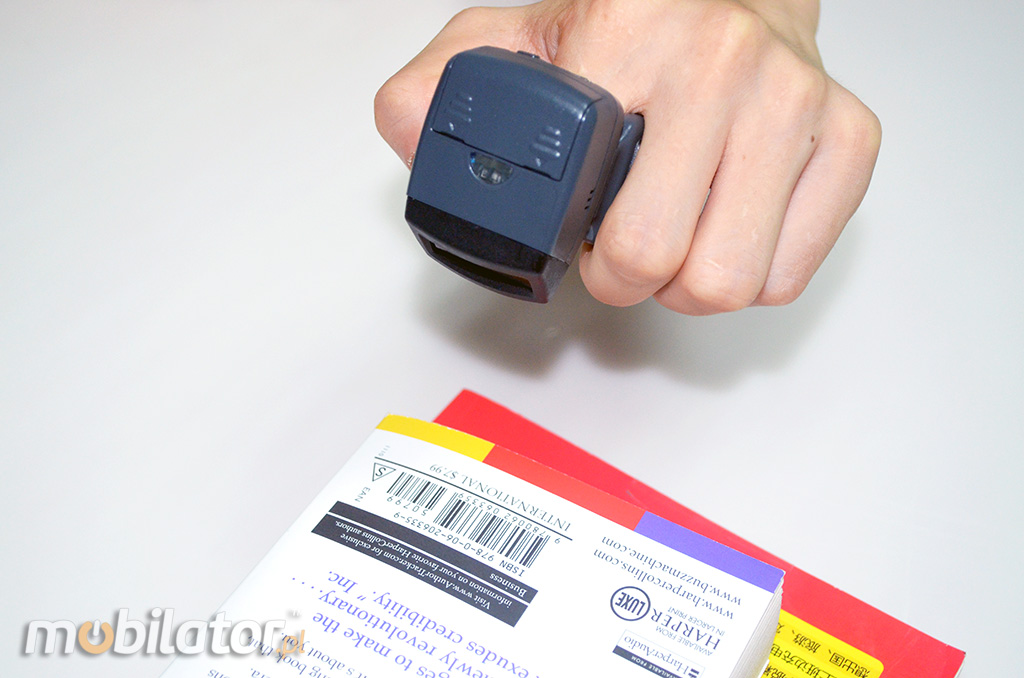

Stationary (RS232) barcode readers through the use of laser read-out techniques are convenient and easy to use and offer a wealth of configuration parameters. Enable automatic operation and manual. Read the codes with different contrasts with a distance of several centimeters. By using wire communication RS232 connector coverage to 1.5 m from the computer.
.jpg)
|
|
|
|
|
|
FingerRing MS01, Which the manufacturer recommends widely used in Situations where it is Necessary is a rapidly identify the goods in commerce, logistics, transportation, shipping, industrial, financial and public sectors.
|
|
Pharmacy
MS-01 allows quick identification and introduction of prescriptions to the database. With a small, lightweight construction is designed to effectively accepting orders.
|
|
Trade
The device is used for fast read-out bar codes. Certainly will be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Mini barcode reader allows you to quickly update the inventory with the help of wired data transfer (RS232).
|
|
Logistics and transport
RING scanner will find all kinds of application also in transport - as stationary and super lightweight barcode reader for fast identification.
|
|
|
Barcode readers allow you to in the bar code read and send to your database. We offer high quality device for reading bar codes that work flawlessly even in the harshest industrial environments..jpg)
After scanning the coded data can be transferred to a computer or a portable database. Such a rapid and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics p.jpg) rocesses.

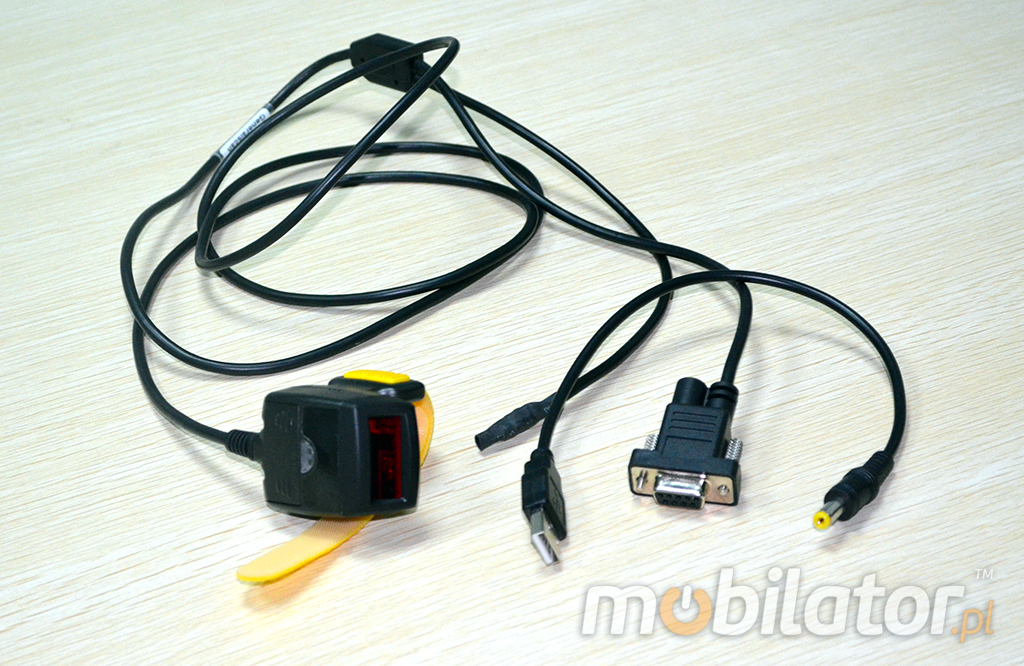

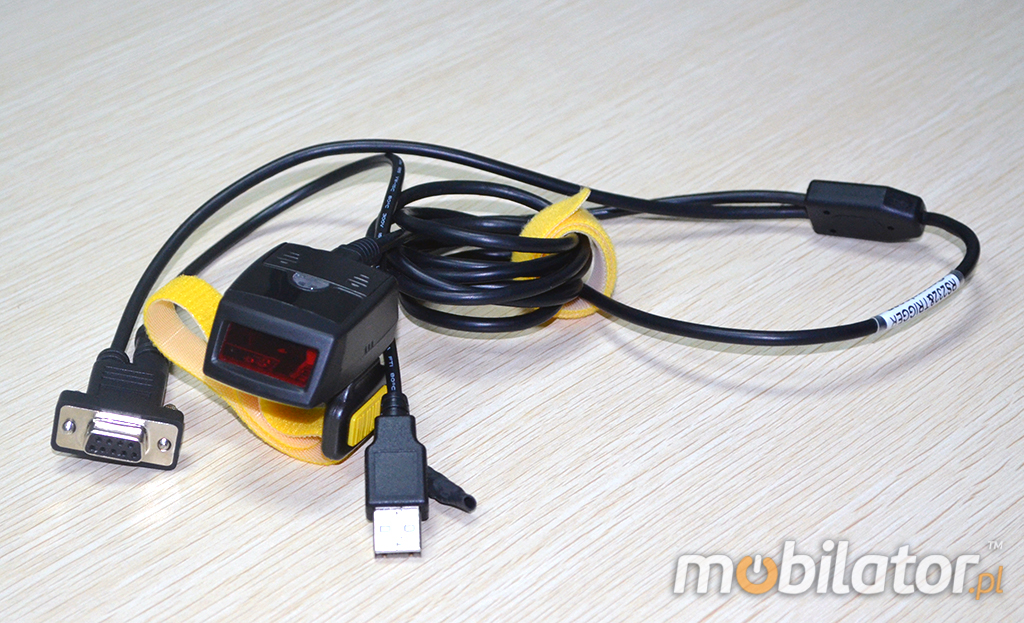

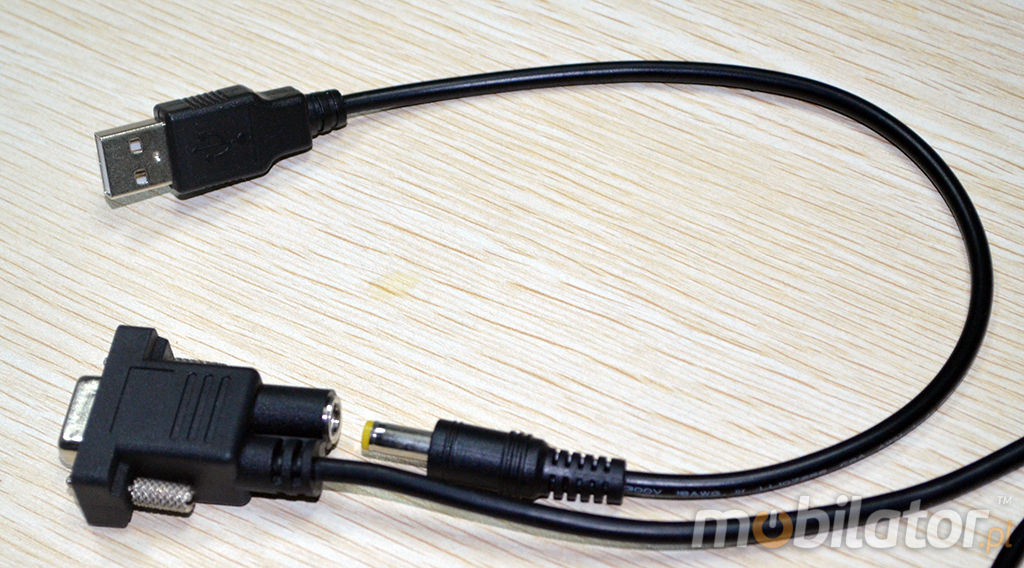

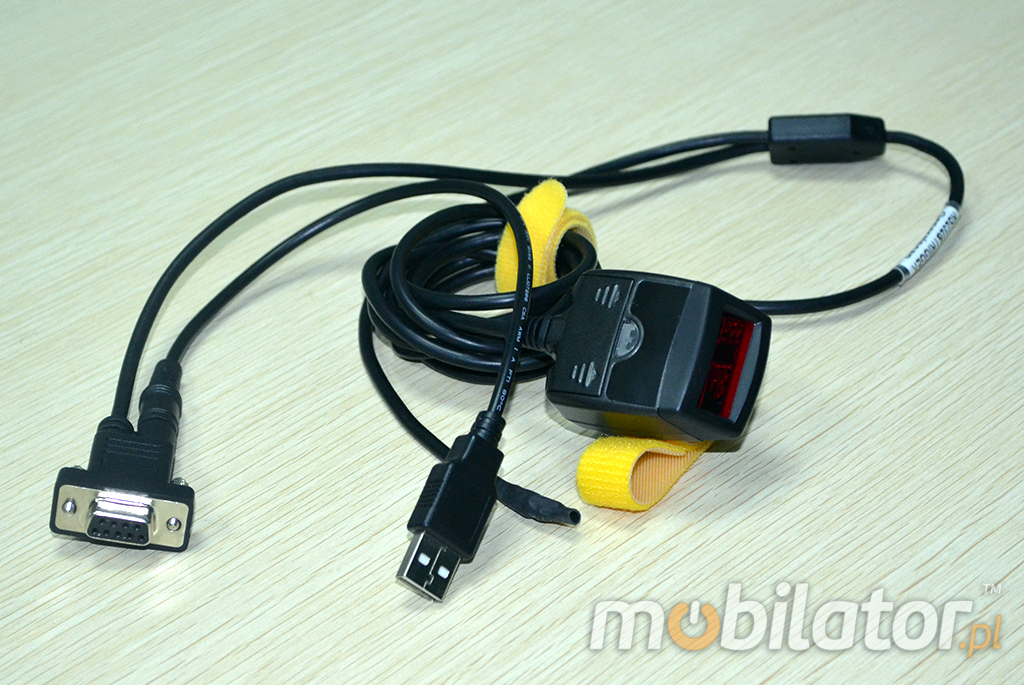

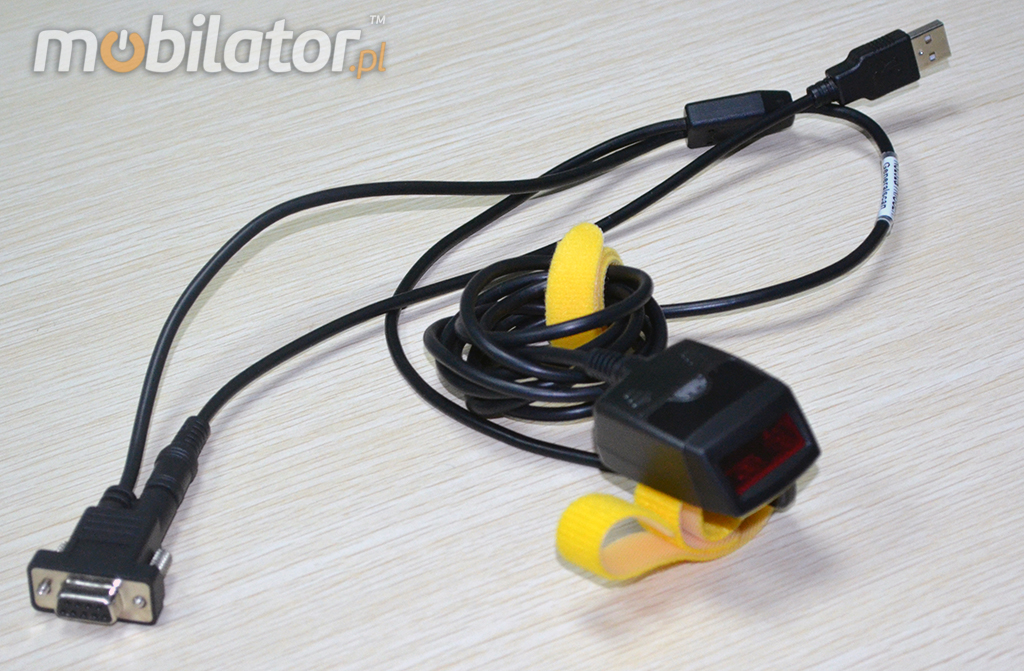

The bar code scanner can be connected to almost any device of computer - via USB or RS232.
MobiScan FingerRing MS01
|
Mechanical
|
Height: 43.9 mm
Width: 39.88 mm
Lenght: 51.59 mm
Weight: 50g
|
|
Electrical |
Power: DC5V
Typical: 85mA DC5V
|
Scan Performance
|
Sensor Type: Laser Diod 650nm
Scan Rate: 100 times
Scan Angle: 50⁰, 65⁰, 35⁰(Skew,Pitch,Roll)
Contrast: >20%
Decode Speed: 100 times per second
|
|
Barcode Type |
UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN Code39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128, Code 93, Code11(USD-8), MSI.Plessey, UK/Plessey, UCC/EAN 128, China Post, GS1 DataBar (formerly RSS) variants |
|
Communication |
Cable RS232 / USB
|
|
Scan Range |
(1mil= 0,0254 mm) 4mil: 42-75 mm
5 mil: 40-105 mm 10mil: 10-250 mm
15mil: 23-380 mm 20mil: 35-490 mm
30mil : 30-650 mm 55mil : 75-90 mm |
|
Accessories |

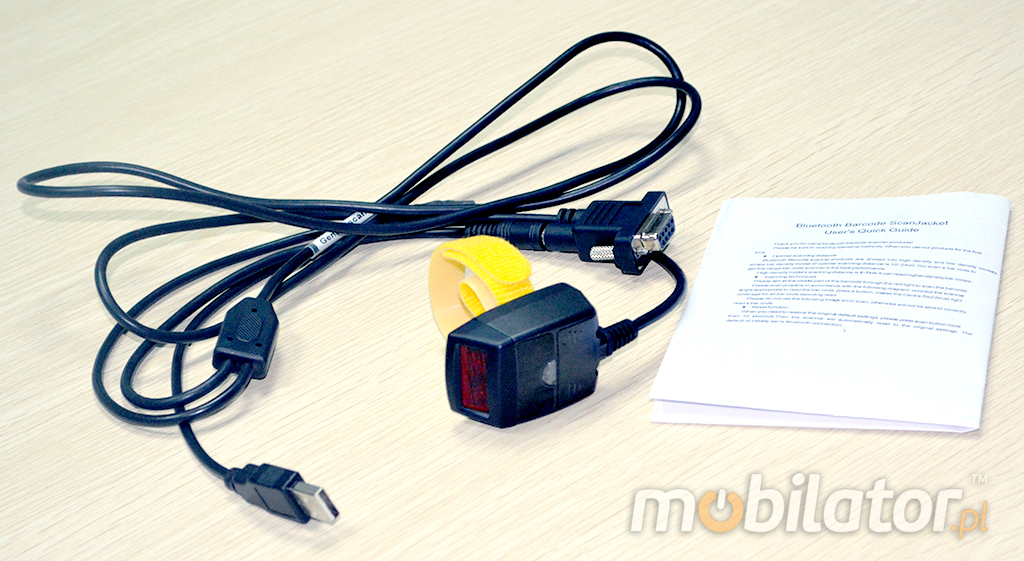

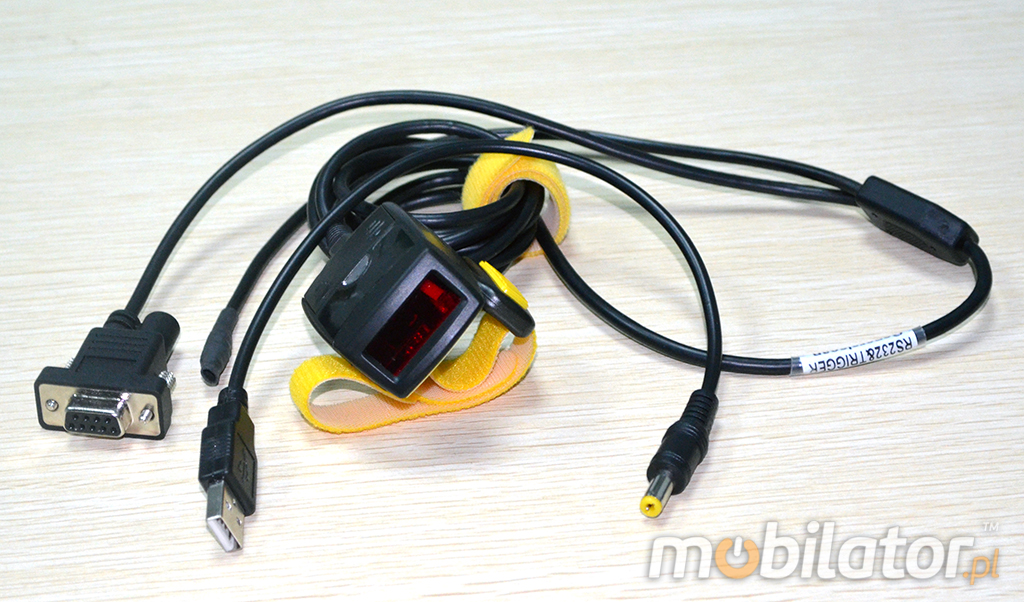

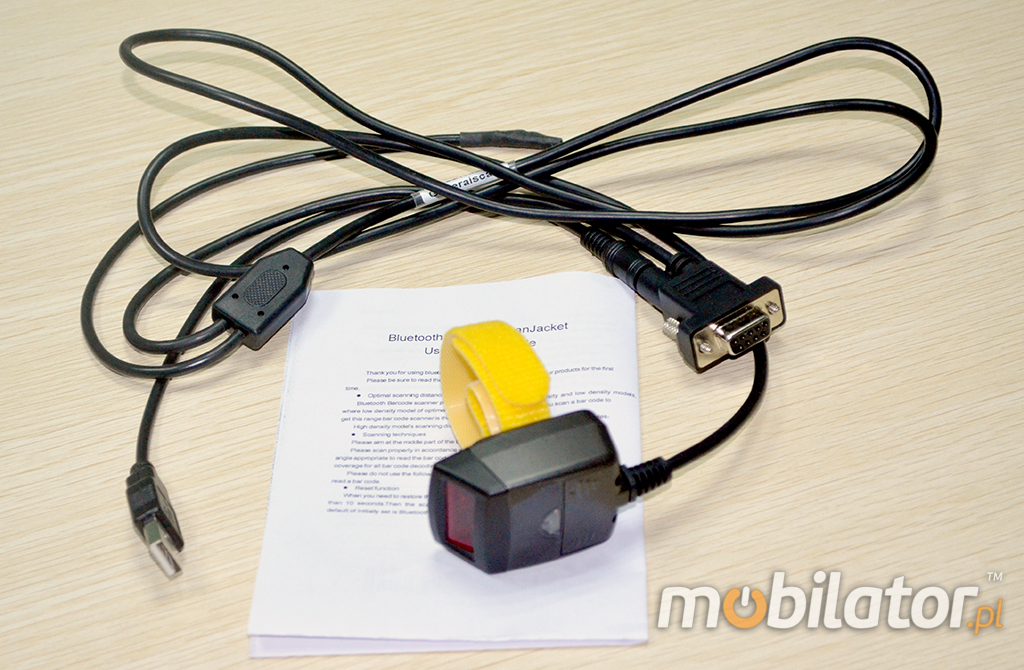

User Manual, finger rest, cable RS232/USB |
|
more photos in "Gallery"...
specification of this version is available in the "Specifications"...
|
|
|
Compare all versions
| Supported Operating Systems: |
Android, iOS, Windows CE, Windows XP, Windows 7, Windows 8, Linux |
| Internal memory: |
- |
| Operation Voltage: |
5V - 85mA - DC |
| Reading indicator: |
1D LASER |
| Dimensions: |
51.59 x 39.88 x 43.9 mm |
| Weight: |
50 g |
| Battery: |
- |
| Housing material: |
Plastic |
| Scan rate: |
100 times per second |
| Light source: |
Laser Diod 650 nm |
| Resolution: |
- |
| Communication distance: |
- |
| Readable codes: |
UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN Code39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128, Code 93, Code11(USD-8), MSI.Plessey, UK/Plessey, UCC/EAN 128, China Post, GS1 DataBar (formerly RSS) variants |
| Sensor: |
Laser Diod 650 nm |
| Scan Angle: |
50⁰, 65⁰, 35⁰(Skew,Pitch,Roll) |
| Print Contrast Ratio: |
>20% |
| Scan range: |
(1mil= 0,0254 mm) 4mil: 42-75 mm 5 mil: 40-105 mm 10mil: 10-250 mm 15mil: 23-380 mm 20mil: 35-490 mm 30mil : 30-650 mm 55mil : 75-900 mm |
| Cable Type: |
USB, RS232 |
| Battery Life: |
- |
| Communication: |
RS232 |
| Interface/ Pro le: |
Cable connection |
| Operating Temperature: |
0°C ~ 50°C |
| Storage Temperature: |
-20°C ~ 60°C |
| Relative Humidity: |
5% ~ 90%, non-condensing |
| Resistance IP: |
- |
| Drop test: |
- |
| Barcodes 1D: |
Barcodes 1D: |
| 2 of 5 Chinese: |
No |
| 2 of 5 Discrete: |
No |
| 2 of 5 IATA: |
No |
| 2 of 5 Industrial: |
Yes |
| 2 of 5 Interleaved: |
Yes |
| 2 of 5 Matrix: |
Yes |
| 2 of 5 Standard: |
No |
| BC - 412: |
No |
| Bookland EAN: |
No |
| Codabar: |
No |
| Codabar - NW7: |
Yes |
| Code - 11: |
Yes |
| Code - 11(USD-8): |
Yes |
| Code - 32: |
Yes |
| Code - 39: |
Yes |
| Code - 39 Extended (full ASCII): |
Yes |
| Code - 39 Trioptic : |
Yes |
| Code - 93: |
Yes |
| Code - 128 (A, B, C): |
Yes |
| EAN-8: |
Yes |
| EAN-13: |
Yes |
| EAN -128 / UCC-128: |
No |
| GS1 DataBar: |
No |
| Intelligent Mail: |
No |
| ISBN: |
Yes |
| ISBT - 128: |
No |
| ISSN: |
Yes |
| ITF-6: |
No |
| ITF-14: |
No |
| KIX code: |
No |
| Matrix 25: |
No |
| MSI: |
Yes |
| MSI - Plessey: |
Yes |
| Pharmacode - One Track: |
No |
| Pharmacode - Two Track: |
No |
| Planet: |
No |
| Plessey: |
No |
| Post - Australian (4-State Postal Code): |
No |
| Post - China (4-State Postal Code): |
Yes |
| Post - Japanese (4-State Postal Code): |
No |
| Post - Singapore (4-State Postal Code): |
No |
| PostNET: |
No |
| Royal Mail (RM-4SCC): |
No |
| Telepen Code: |
No |
| UK/Plessey: |
Yes |
| UPC - A: |
Yes |
| UPC - E: |
Yes |
| UPC - E1: |
No |
| Barcodes 2D: |
Barcodes 2D: |
| Aztec: |
No |
| Composite code: |
No |
| DataMatrix: |
No |
| MaxiCode: |
No |
| Micro PDF 417: |
No |
| Micro QR Code : |
No |
| PDF 417: |
No |
| QR Code : |
No |
| RSS: |
No |
| TLC-39: |
No |
