« Back    Home / MiniPC Industry / Archives

Minimaker BBPC-K05 (i7-6500U) v.6 - Powerful modern resistant minipc with additional cooling (Intel Core i7), 6x COM RS232 and 2x LAN

Minimaker BBPC-K05 (i7-6500U) v.6 - Powerful modern resistant minipc with additional cooling (Intel Core i7), 6x COM RS232 and 2x LAN

Data update: 2021-03-02

guarantee 2 years

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product Configurator

The product from the archive - production terminated



Compare all versions

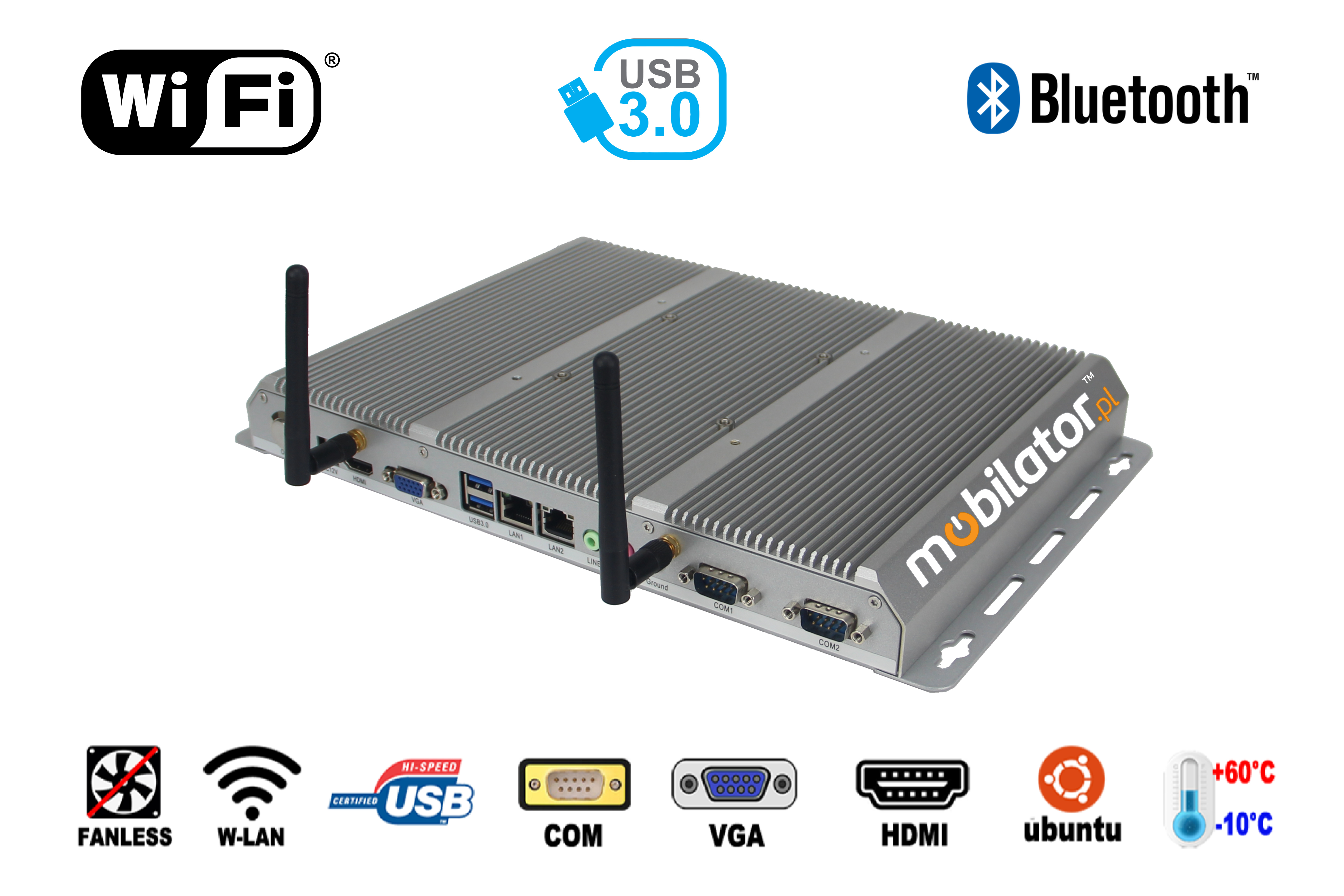

Minimaker BBPC-K05 (i7-6500U)  - Powerful modern resistant minipc with additional cooling (Intel Core i7), 6x COM RS232 and 2x LAN


Small dimensions industrial computers excel in environments where dust, dirt and moisture predominate. They are ideal for applications requiring quiet operation. Small and reliable MiniPC use heat-pipe technology and aluminum fins for passive cooling. The robust mini Industrial Computer Minimaker BBPC-K05 (i7-6500U) is a device designed for all industrial and non-continuous applications requiring continuous operation - 24 hours, 7 days a week.


Small dimensions
The compact housing means that the Mini PC will fit wherever you need it and is easy to carry.
Lightweight design
The computer's weight does not exceed 2.2 kg, so it can be conveniently carried in a bag or backpack.



Efficent components
The Intel i7 6500U dual - core CPU provides improved device performance.

Wireless network
The mini PC can be connected to nearby wireless networks by equipping it with an optional Wi-Fi module.




Quick start
A modern SSD drive will increase the speed of application programs and ensure quiet computer operation.
Passive cooling
The use of passive cooling in the Mini PC ensures silent operation and slows dust deposition.






Optional equipment, available only in other versions of the device.

go up… do góry menu… menu



SPECIFICATION



Performance
Processor Intel DualCore i7 6500U (2.5 GHz)
Graphics card Intel HD Graphics
Operating system Linux Ubuntu
RAM 16GB DDR3 SODimm
Drive 256GB SSD
Interfaces
Connectivity

Wi-Fi

Bluetooth

LAN -  10/100/1000 Mbps

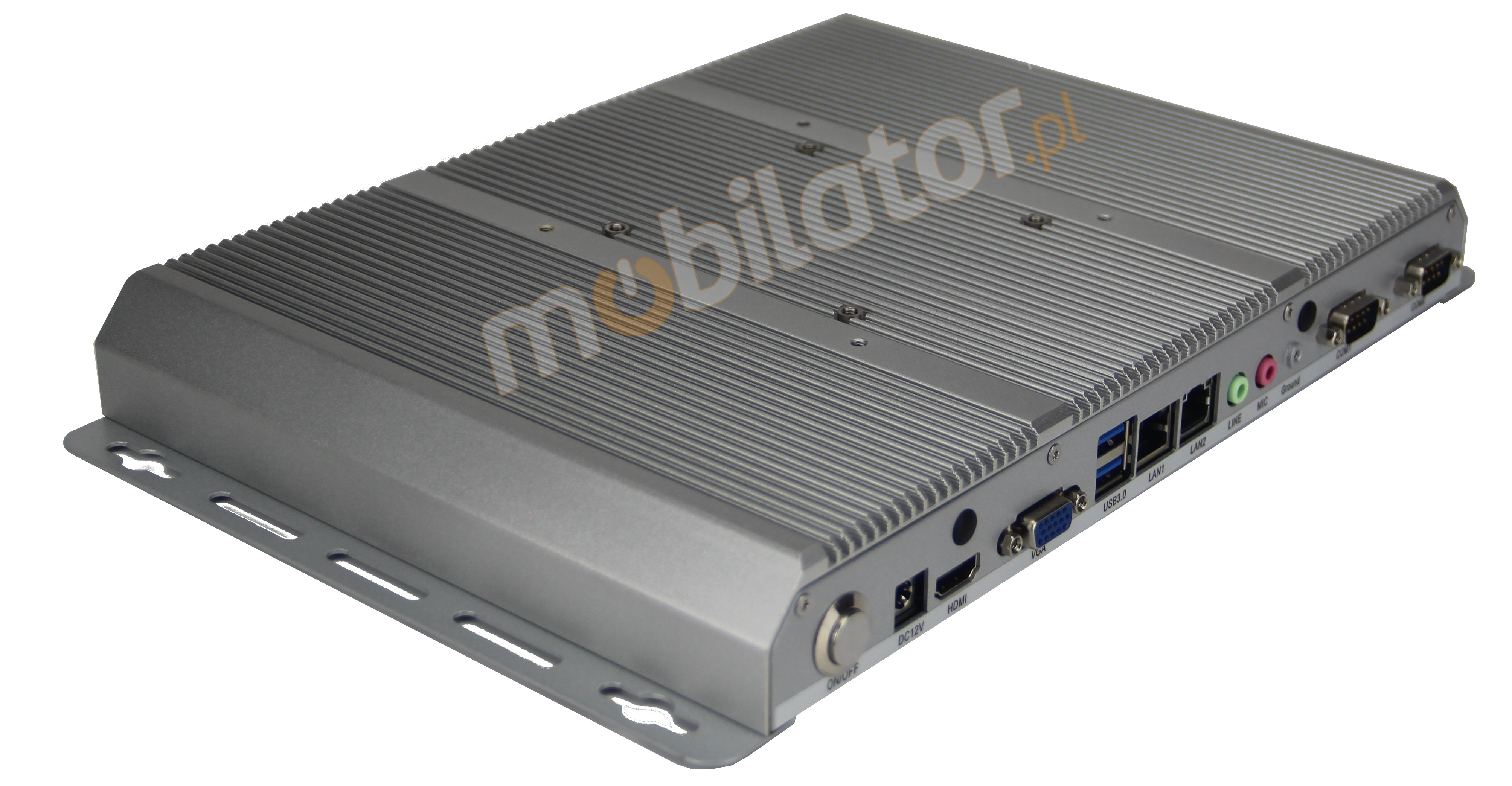

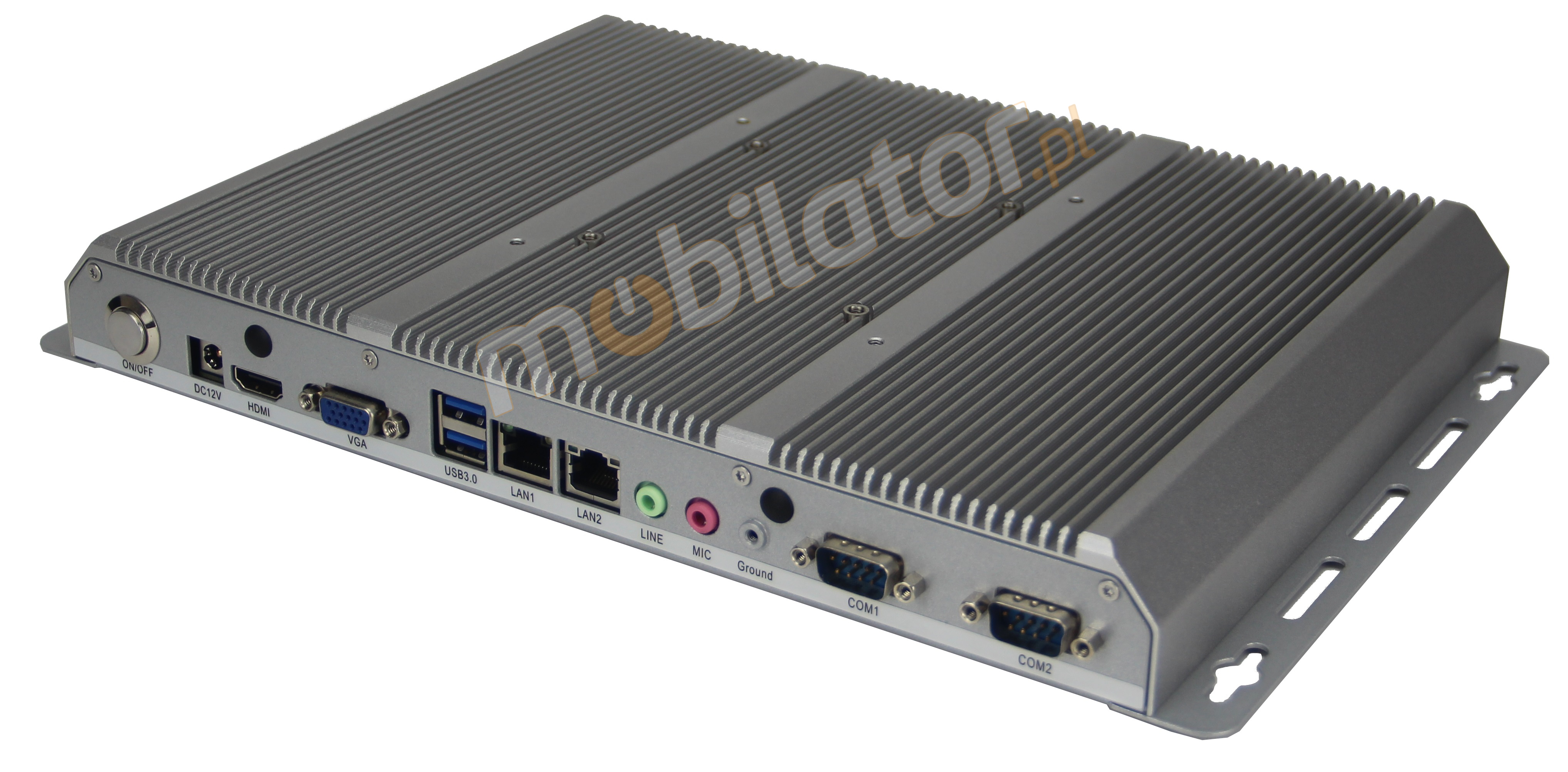

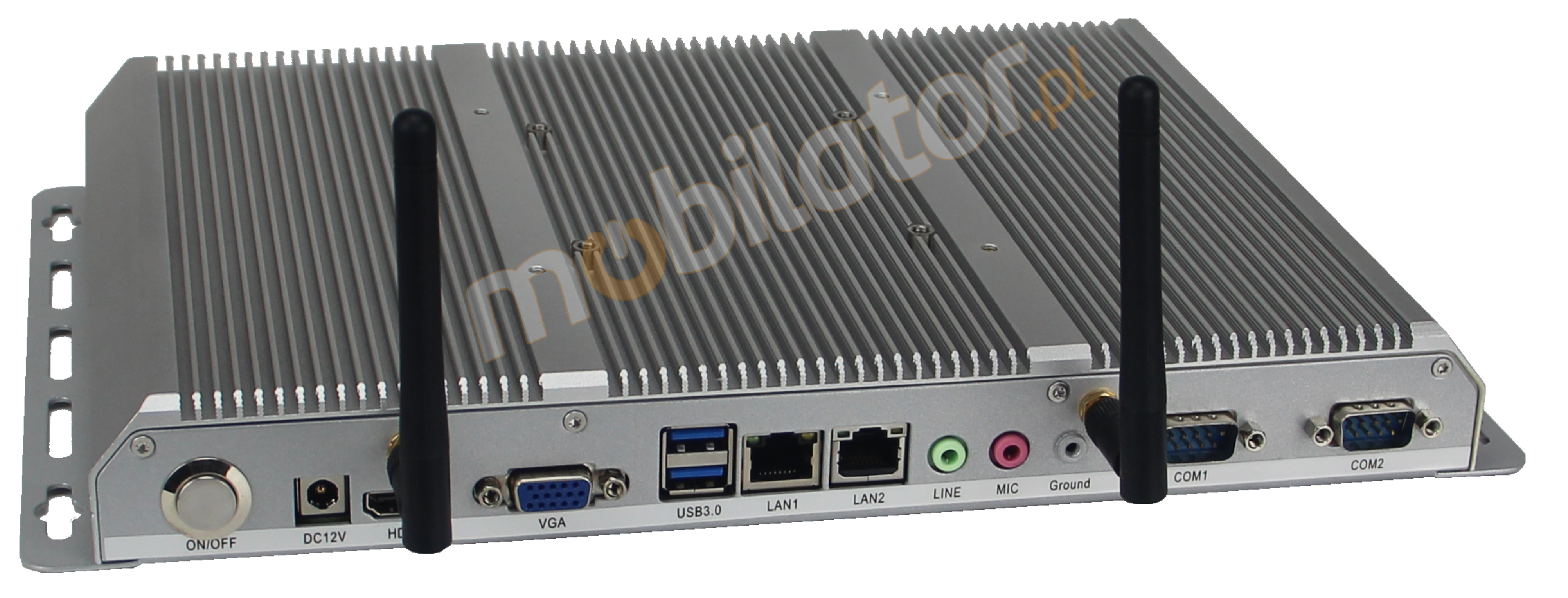

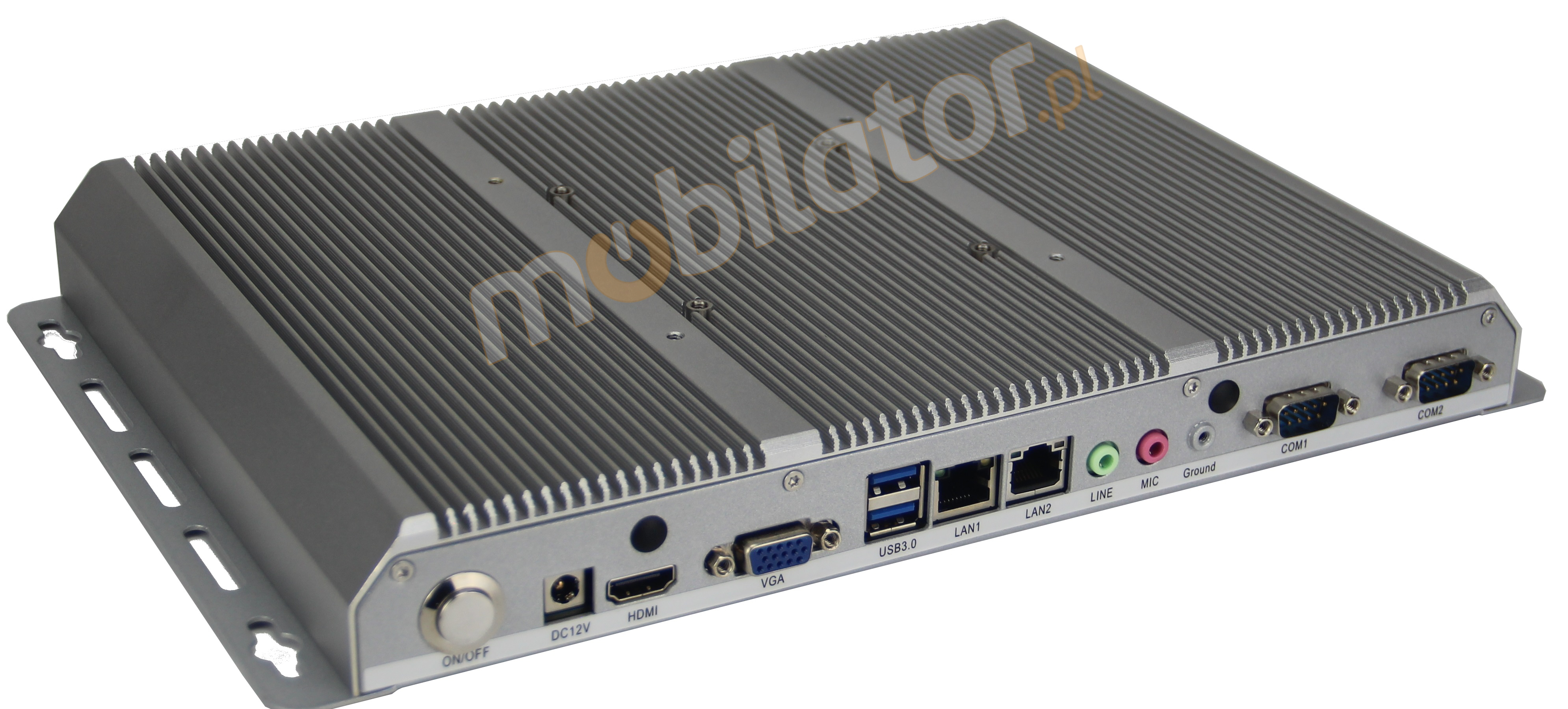

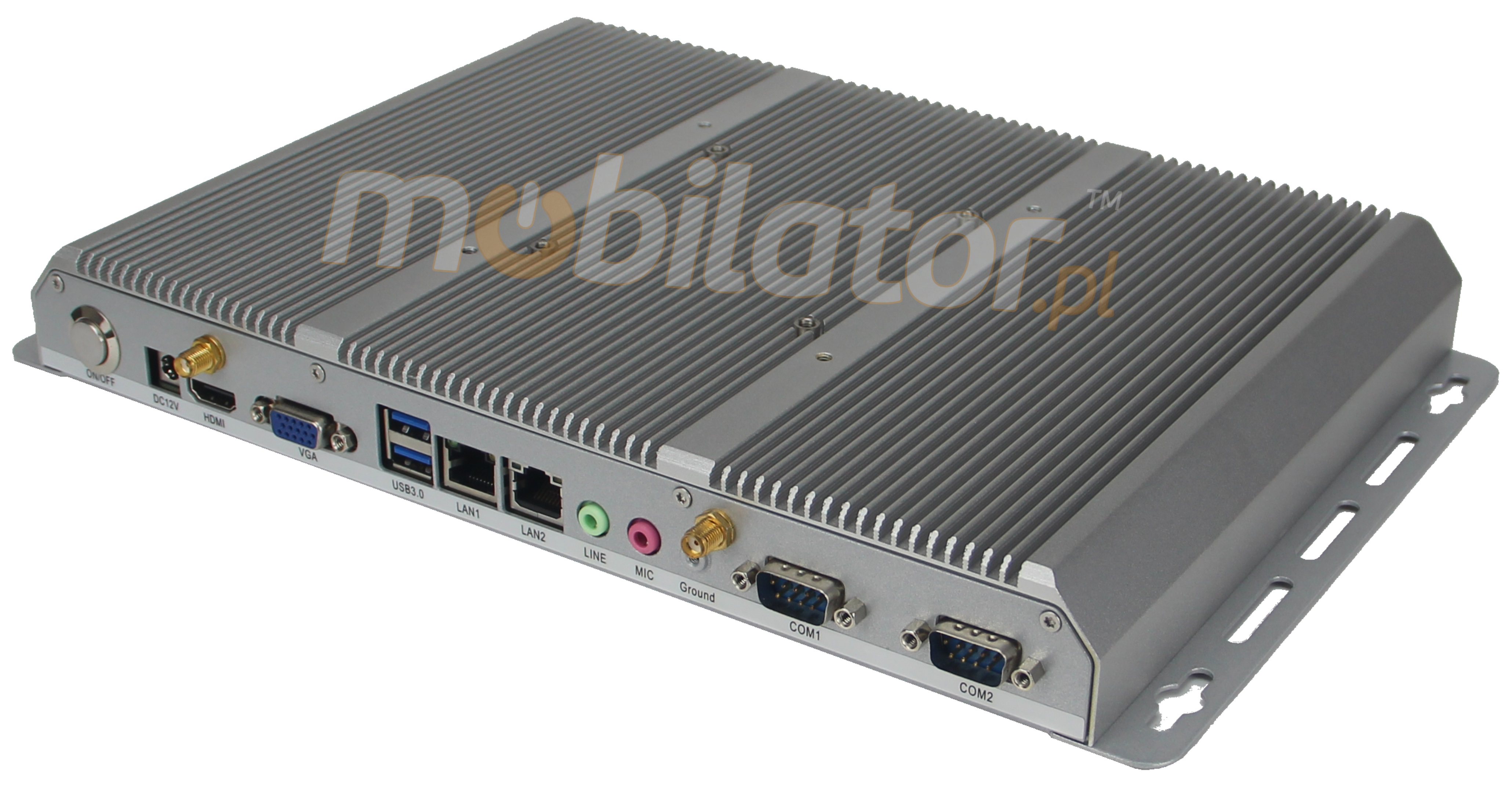

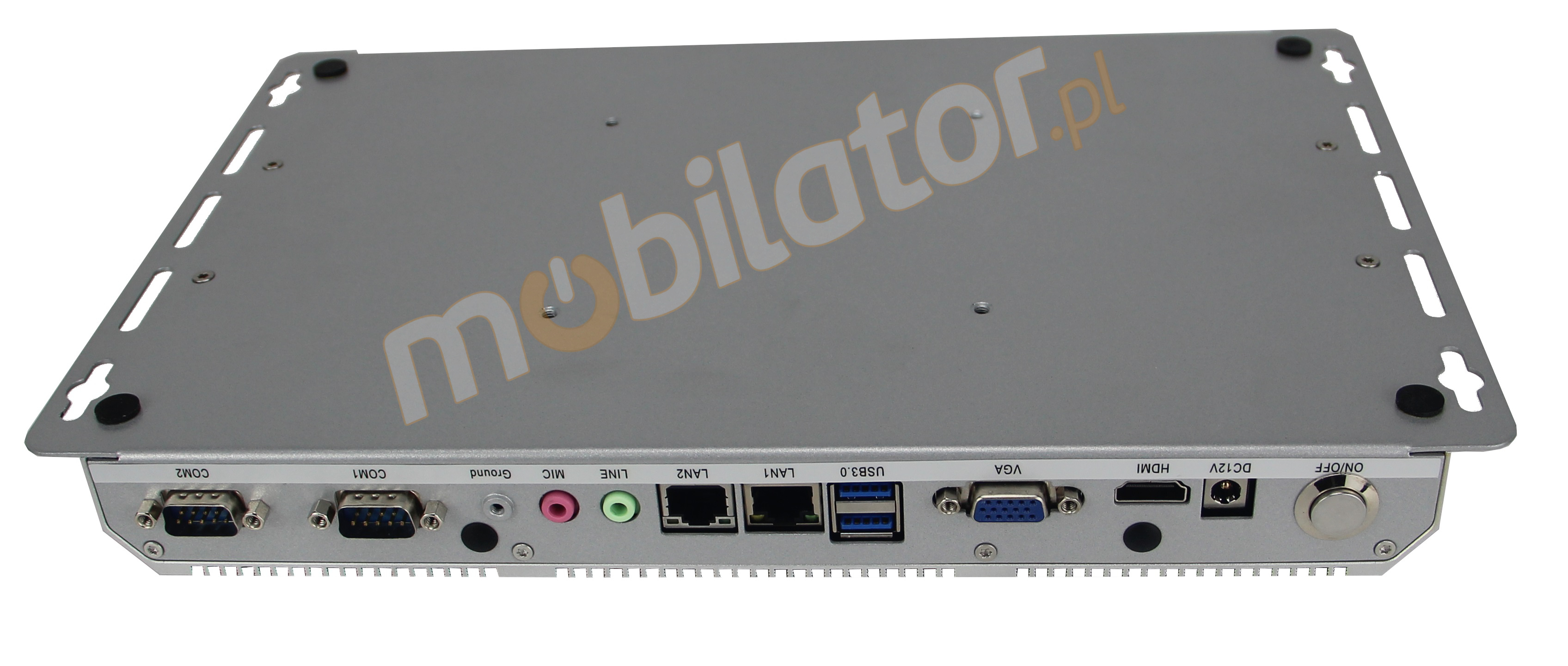

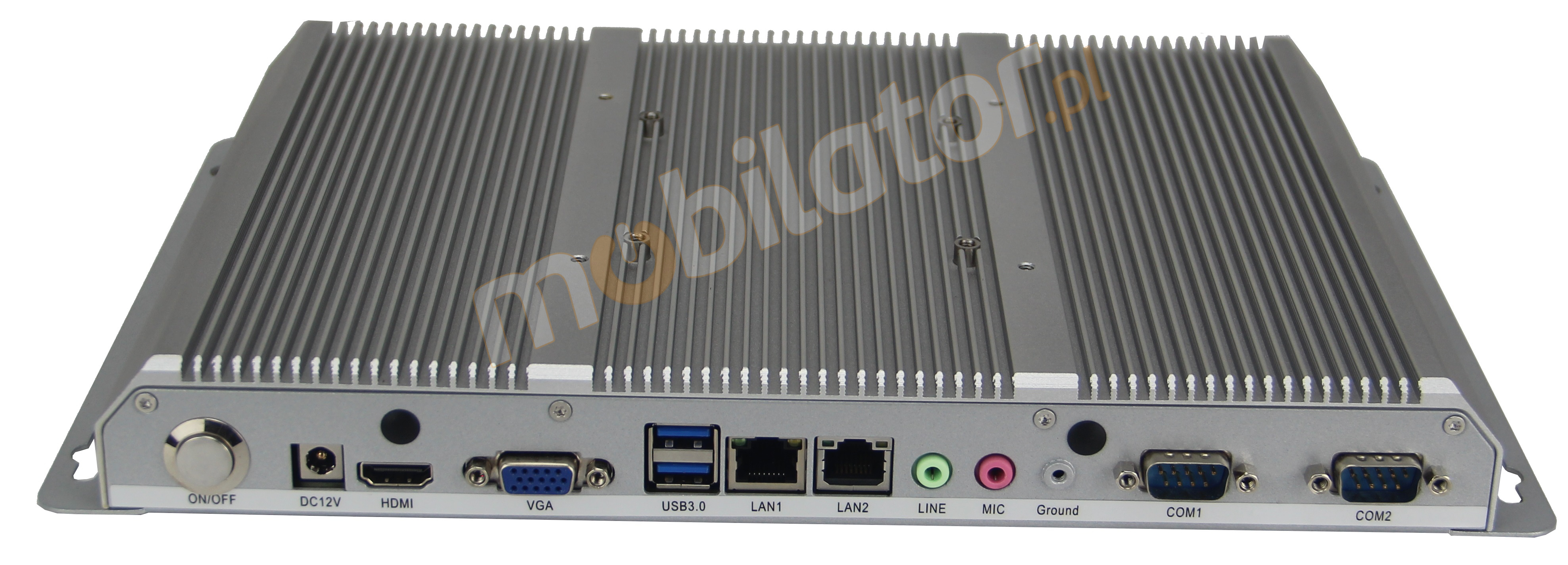

Front panel

Power On/Off / 2x USB 2.0 / 2x Lan  / HDMI / VGA  / Audio / Mic /

DC IN 12 V / 2x COM

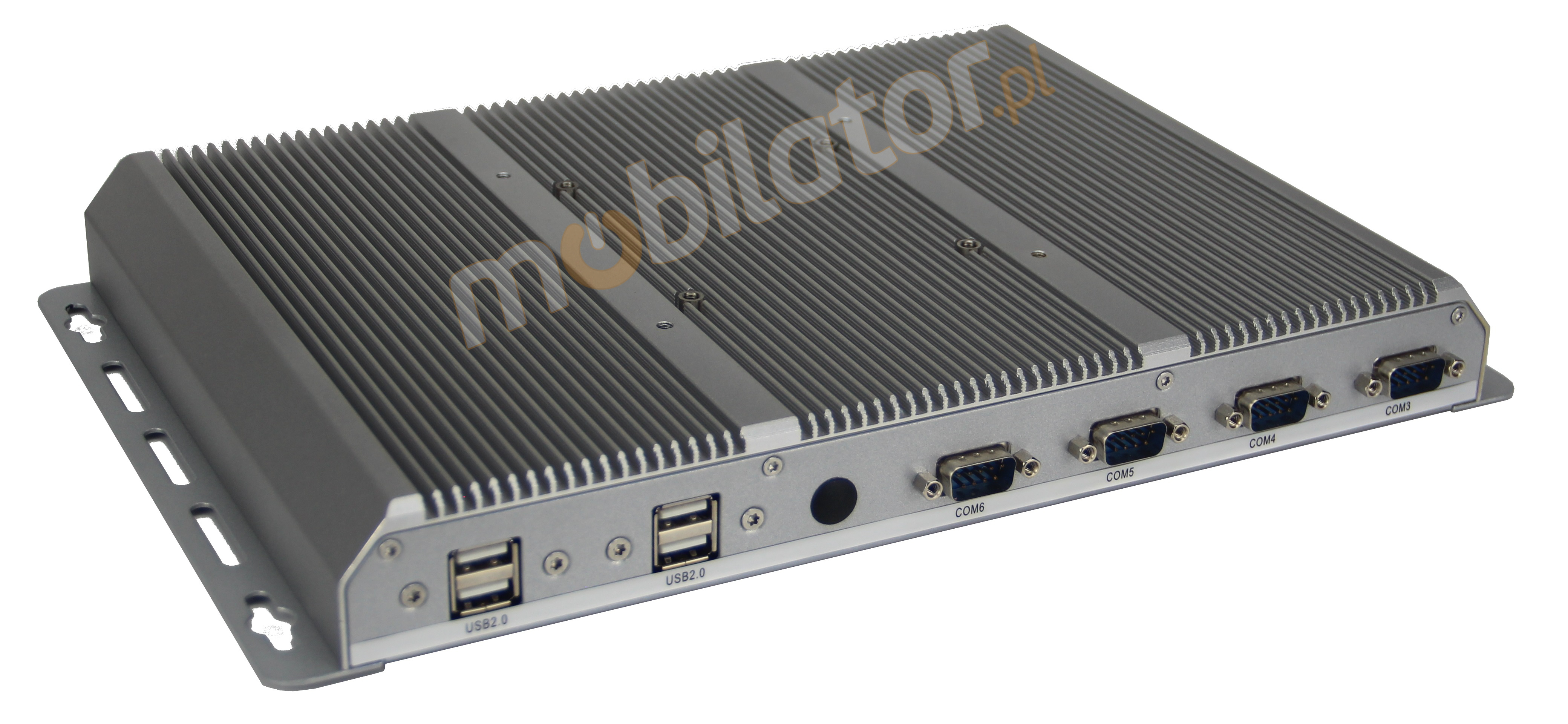

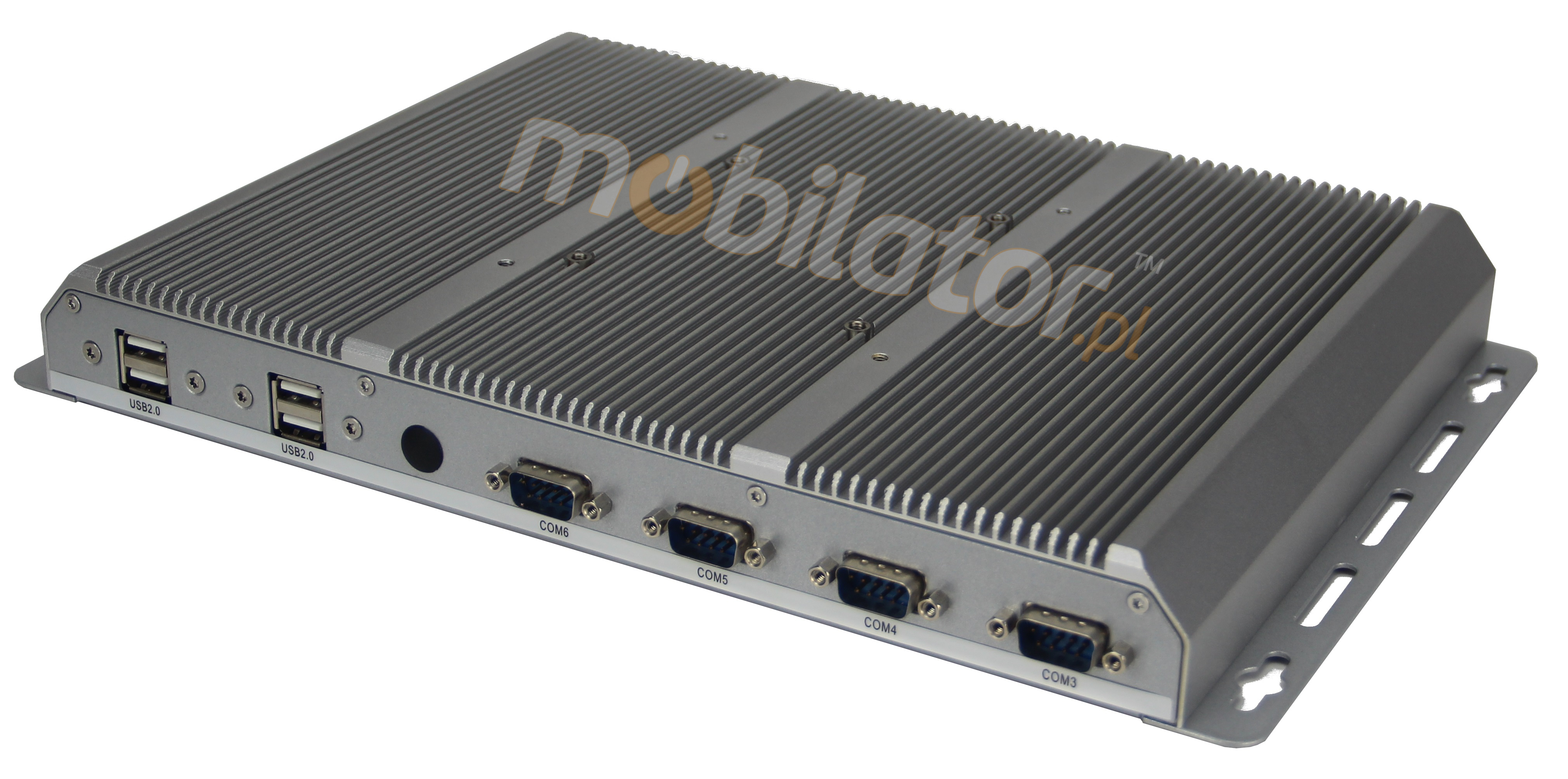

Rear panel

4x COM /4x USB 2.0

Other
Available colors Silver
Dimensions 322mm x 210mm x 36.2mm
Weight 2.20 kg
* Optional equipment, available only in other versions of the device.

EFFICIENT PROCESSOR

The industrial mini-computer  Minimaker BBPC-K05 (i7-6500U) uses an efficient and energy-saving Intel i7 6500U processor. Inside it there are two cooperating cores enabling more efficient processing of many tasks at the same time. The shared cache memory in which the multilevel hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory.

INTERFACES

Minimaker BBPC-K05 (i7-6500U)  - Powerful modern resistant minipc with additional cooling (Intel Core i7), 6x COM RS232 and 2x LAN

Minimaker BBPC-K05 (i7-6500U)  - Powerful modern resistant minipc with additional cooling (Intel Core i7), 6x COM RS232 and 2x LAN

DIMENSIONS

Minimaker BBPC-K05 (i7-6500U)  - Powerful modern resistant minipc with additional cooling (Intel Core i7), 6x COM RS232 and 2x LAN

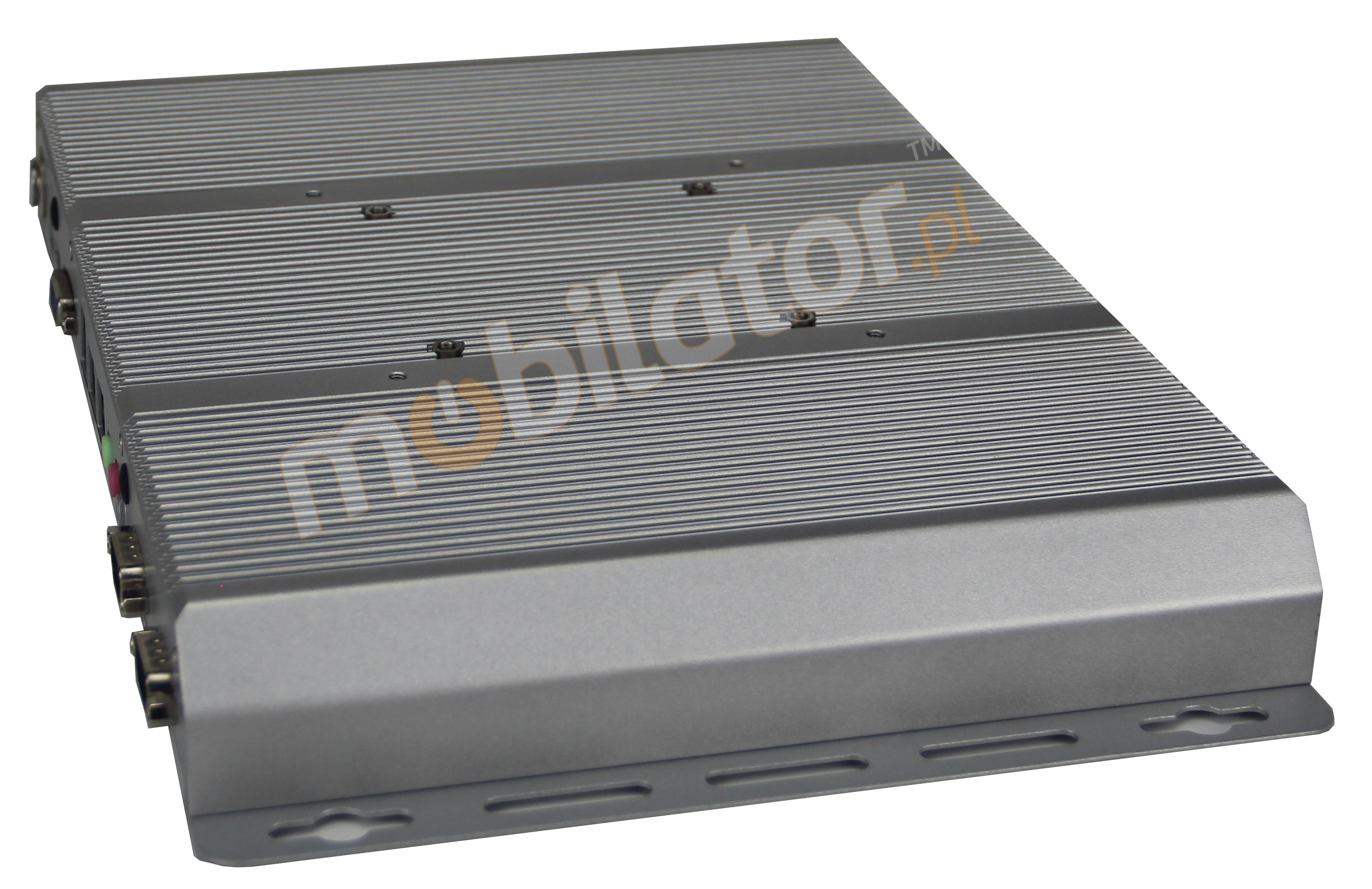

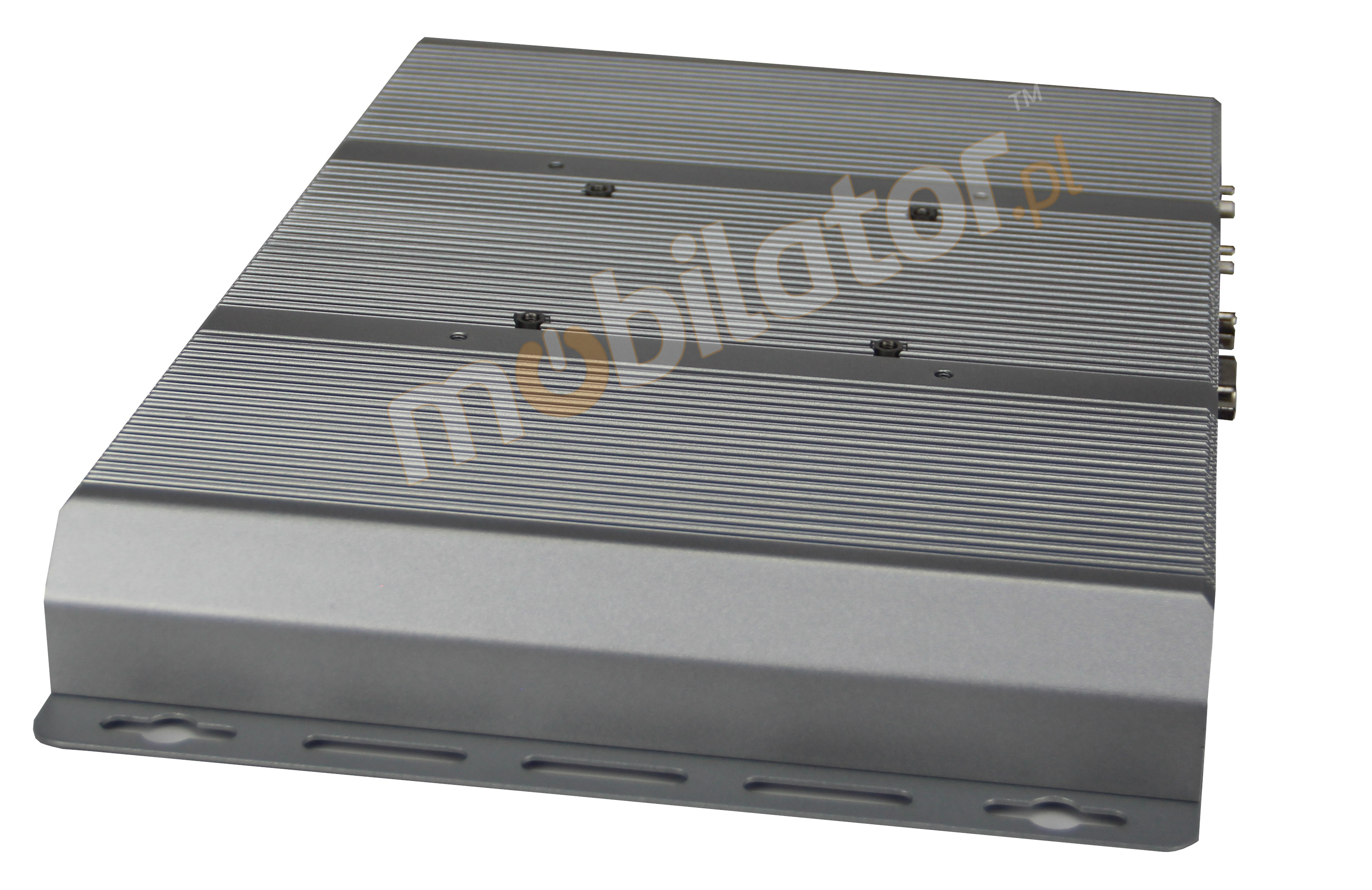

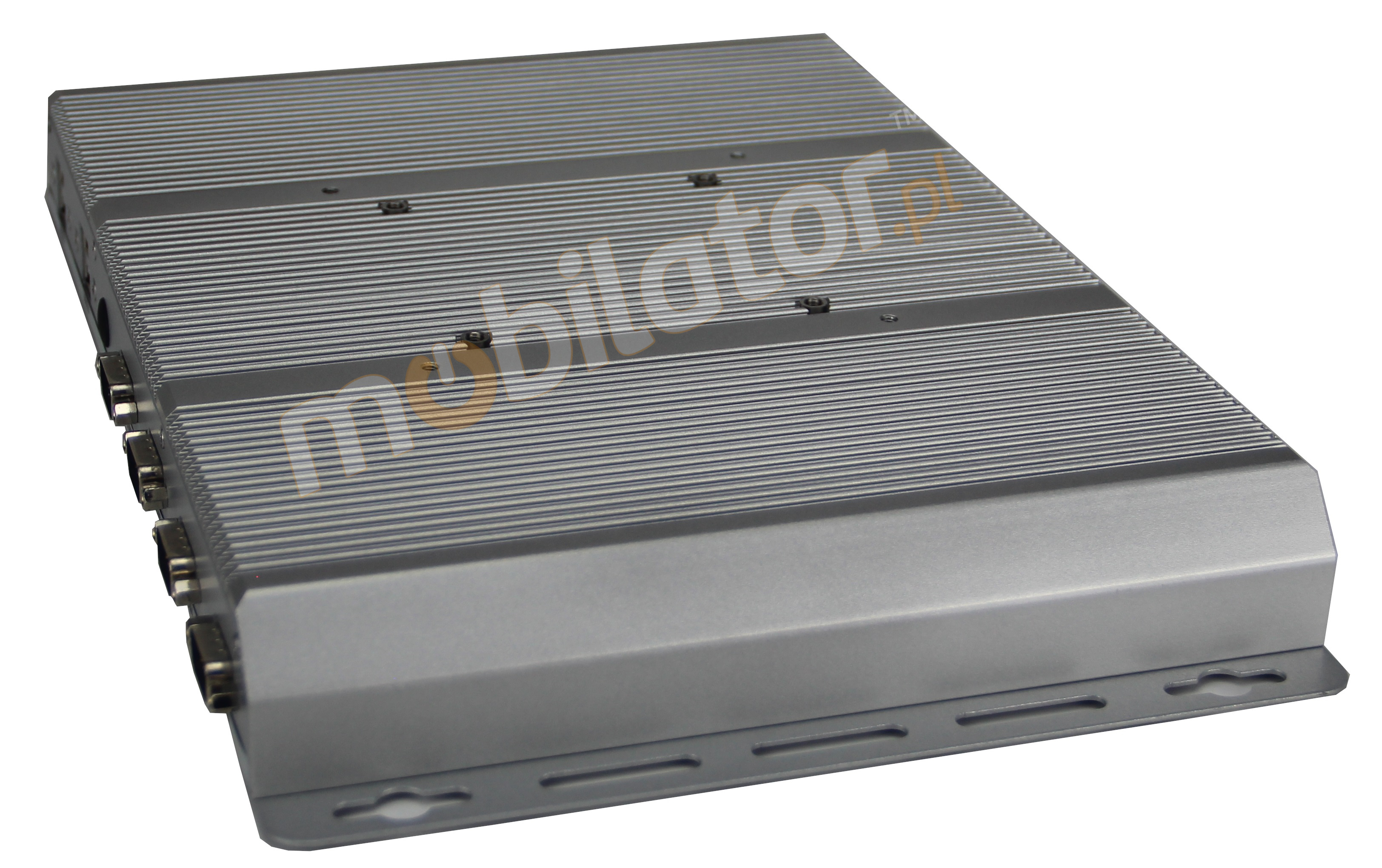

Passive cooling

The industrial Mini PC uses a proven cooling system, based only on solid elements, mainly heat sinks. The system uses the phenomenon of metals passing thermal energy into the environment - there are no additional moving elements in the form of eg fans. This solution ensures noiseless operation, lower failure rate and greater protection against dust and other dirt while reducing the amount of energy consumed.

Minimaker BBPC-K05 (i7-6500U)  - Powerful modern resistant minipc with additional cooling (Intel Core i7), 6x COM RS232 and 2x LAN

Active Cooling (option)

In the industrial Mini PC it is possible to purchase additional active cooling. Active cooling enables a much faster reduction of temperatures to lower values ​​than in the case of passive cooling. We recommend buying additional cooling if your computer is loaded.





Minimaker BBPC-K05 (i7-6500U)  - Powerful modern resistant minipc with additional cooling (Intel Core i7), 6x COM RS232 and 2x LAN

go up do góry menu… menu



RESISTANCE



Temperatures

Minimaker BBPC-K05 (i7-6500U) is designed for continuous operation in both very low and high temperatures ranging from -10 ° C to 50 ° C. If the device is switched off, it can already handle temperatures in the range of -20 ° C to 60 ° C.



Work temp. -10°C — 50°C
Storage temp. -20°C — 60°C
Humidity 10% — 90%


Mechanical damage

The passive cooling system used in the Minimaker BBPC-K05 (i7-6500U) combined with the non-disk SSD make this computer very resistant to various types of mechanical injuries. An additional advantage of industrial computers is a solid construction made of high quality aluminum and specially designed in such a way that in addition to high efficiency in heat dissipation, it can also resist any external damage.

go up do góry menu… menu



CONNECTION

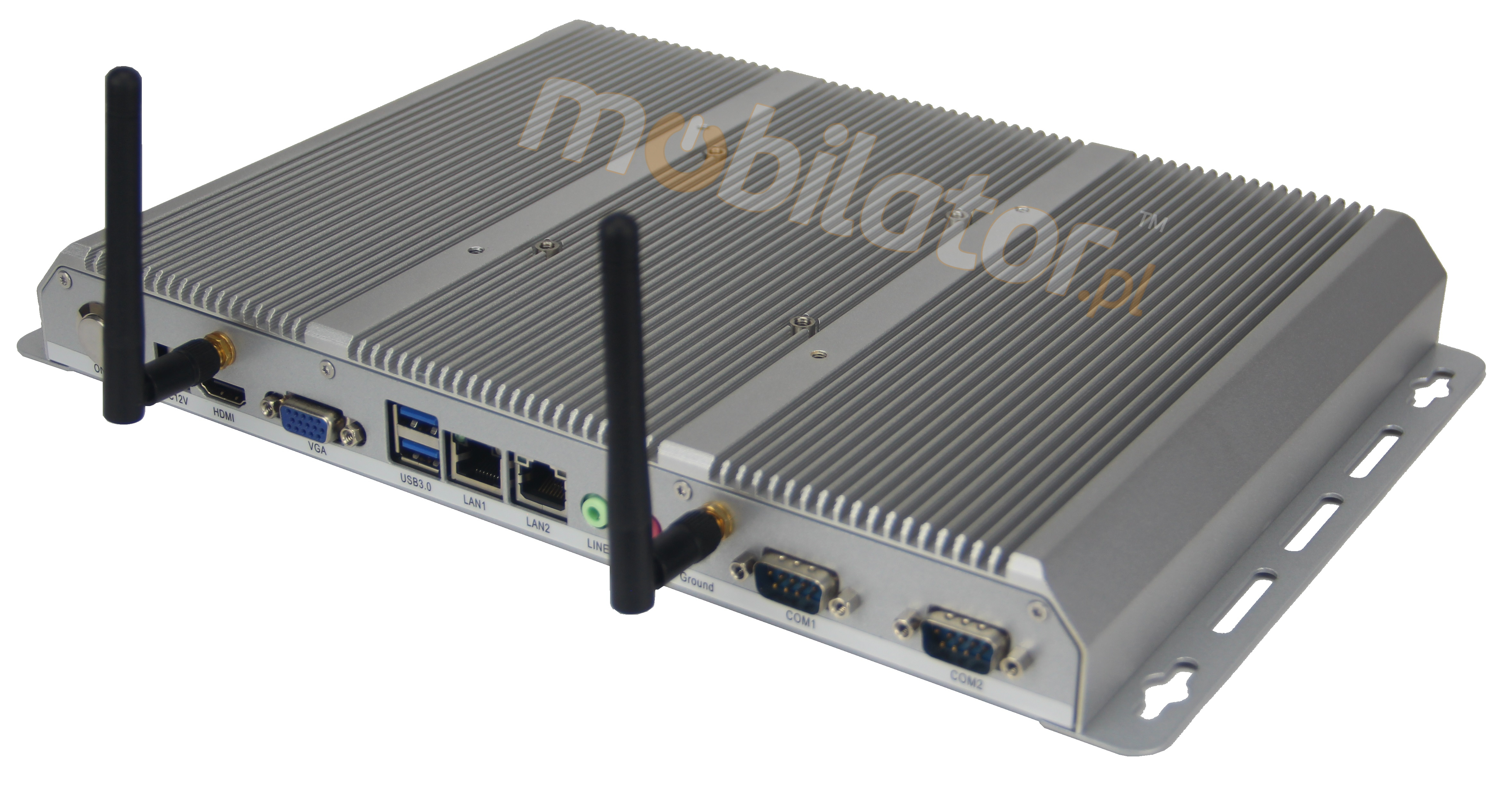

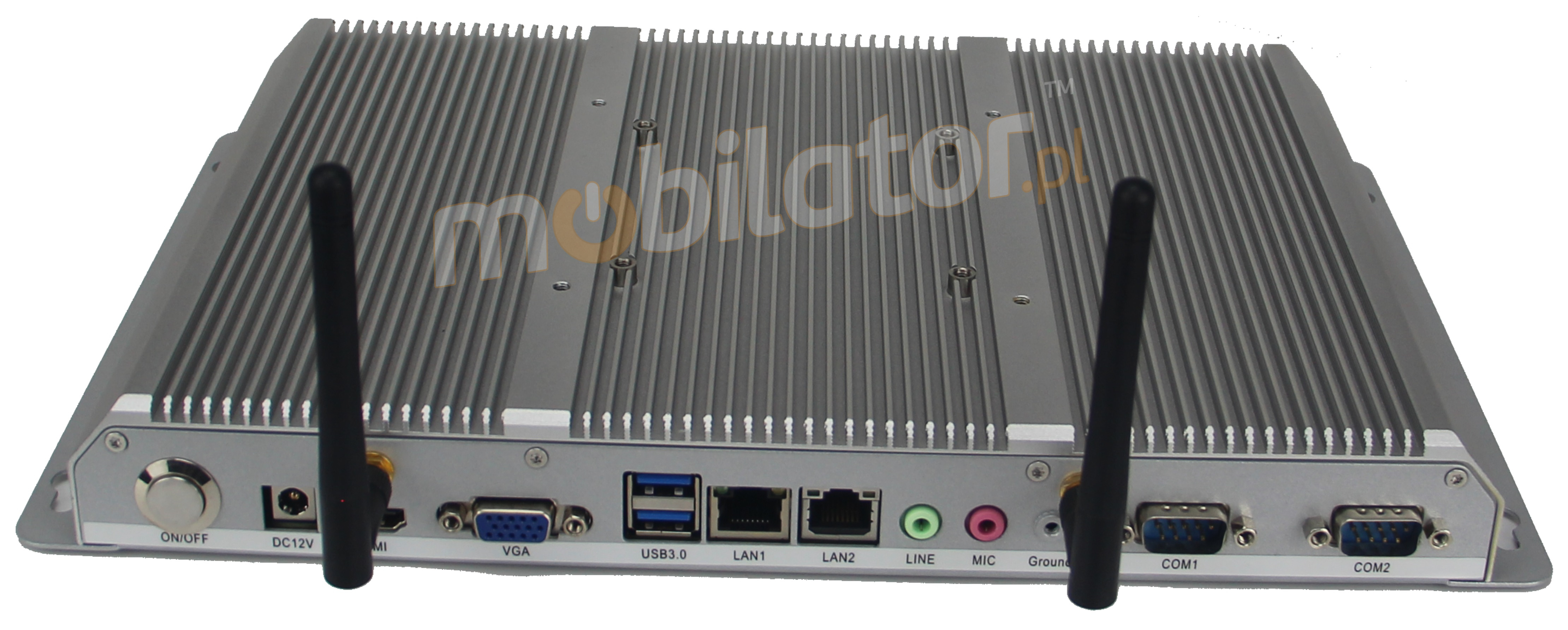

Wireless network

The dual-band Wi-Fi+Bluetooth module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. Industrial Minimaker BBPC-K05 (i7-6500U) has been equipped the standard of  - 802.11n, which allows transfer of files at a dizzying speed of up to 300 Mb / s.



Minimaker BBPC-K05 (i7-6500U)  - Powerful modern resistant minipc with additional cooling (Intel Core i7), 6x COM RS232 and 2x LAN





WIRED LAN NETWORK

The Minimaker BBPC-K05 (i7-6500U) has built-in one Intel network adapter that can work in a fast Gigabit Ethernet network.



Minimaker BBPC-K05 (i7-6500U)  - Powerful modern resistant minipc with additional cooling (Intel Core i7), 6x COM RS232 and 2x LAN

go up do góry menu… menu



APPLICATIONS



Trade and services

Minimaker BBPC-K05 (i7-6500U)  - Powerful modern resistant minipc with additional cooling (Intel Core i7), 6x COM RS232 and 2x LAN

Mini PC is an ideal tool to support us in the implementation of many activities in the field of trade, small dimensions increase the possibility of its adaptation to activities such as issuing invoices or preparing documentation, which in turn allows us to convenient and optimal sales management. The VESA holder mounted to the housing provides many installation options, eg in stores (at the cash register, under the desktop, behind the LCD / LED monitor), in factory halls or in a delivery truck.

Minimaker BBPC-K05 (i7-6500U)  - Powerful modern resistant minipc with additional cooling (Intel Core i7), 6x COM RS232 and 2x LAN

Minimaker BBPC-K05 (i7-6500U)  - Powerful modern resistant minipc with additional cooling (Intel Core i7), 6x COM RS232 and 2x LAN



Warehouse and logistics

Thanks high performance an industrial computer can be used to connect multiple devices in a warehouse and make their management much easier. Its rugged casing and the fanless cooling system are ideal for harsh environments in such rooms. The solid construction guarantees long-lasting work, even in environments with high dustiness and dirt.


Minimaker BBPC-K05 (i7-6500U)  - Powerful modern resistant minipc with additional cooling (Intel Core i7), 6x COM RS232 and 2x LAN


Transport and motorization

A small industrial computer can be used in transport thanks to the ability to work on 12V power supply. Then the mini computer can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. It allows you to inform the driver about the current state of the vehicle, transfer its current location to the management center, display information for passengers, etc. It performs well in vehicles where small dimensions are important.


Minimaker BBPC-K05 (i7-6500U)  - Powerful modern resistant minipc with additional cooling (Intel Core i7), 6x COM RS232 and 2x LAN


go up do góry menu… menu



VERSIONS

Minimaker BBPC-K05 (i7-6500U)  - Powerful modern resistant minipc with additional cooling (Intel Core i7), 6x COM RS232 and 2x LAN

The industrial mini-computer Minimaker BBPC-K05 (i7-6500U) is offered in several versions to suit different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.




 v.1v.2v.3v.4v.5v.6v.7v.8v.9v.10
Wifi + Bluetooth
32GB SSD
64GB SSD
128GB SSD
256GB SSD
500GB HDD
1TB HDD
2TB HDD
4GB RAM
8GB RAM
16GB RAM



Compare all versions
