The bar code scanner is a device that allows read with barcodes from boxes or devices. Business accessories RIOTEC porduktu guarantee high quality and serve for many years without any loss of quality.
|
|
|||||||||||||||||||||||
Description
Summary mini barcode scanner has a built-in four-line LCD display (128x64) monochrome, so that we can check the status of the scanner on a regular basis and read data from barcodes in real-time.
|
Communication |
Mini scanner has a built-in barcode reader, 1D CCD, which is connecting to a Bluetooth device provides information on, among others, the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.
|
|
Portable (radio and bluetooth-arid) barcode readers through the use of laser read-out techniques are convenient and easy to use and offer a wealth of configuration parameters. Enable automatic operation and manual. Read the codes with different contrasts with a distance of several centimeters. Thanks to the wireless communications offer coverage up to 100m from the computer.
The device uses the HID interface
|
|
|
|
||||||||||||||||||||||||||||||||||||
| Supported Operating Systems: | Android, iOS, Windows XP, Windows 7, Windows 8, Linux |
| Internal memory: | 1 MB (can save 65,000 sets more EAN 13 barcode) |
| Operation Voltage: | 5 V/DC ± 5% |
| Reading indicator: | 1D CCD |
| Dimensions: | 100 x 43 x 27 mm |
| Weight: | 72 g |
| Battery: | 900 mAh 3.7V Li-Ion |
| Housing material: | Plastic |
| Scan rate: | 300 scan/sec |
| Light source: | 610nm ~ 640nm Red LED |
| Resolution: | 3 mil |
| Communication distance: | 100m (in open area) |
| Readable codes: | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey |
| Sensor: | Ultra-long range CCD engine |
| Scan Angle: | Pitch ±60° @ 0° Roll and 0° Skew Roll ±30° @ Pitch and 0° Skew Skew ±60° @ Roll and 0° Pitch |
| Print Contrast Ratio: | ≧ 30% |
| Scan range: | UPCA (13mil): 50mm~620mm EAN13 (13mil): 50mm~610mm |
| Cable Type: | MiniUSB |
| Battery Life: | 6 - 8 h |
| Communication: | Bluetooth Class 1 (2.4GHz) |
| Interface/ Pro le: | HID / SPP |
| Operating Temperature: | 0°C ~ 50°C |
| Storage Temperature: | -10°C ~ 60°C |
| Relative Humidity: | 20% ~ 95% relative humidity, non-condensing |
| Resistance IP: | - |
| Drop test: | - |
| Barcodes 1D: | Barcodes 1D: |
| 2 of 5 Chinese: | No |
| 2 of 5 Discrete: | No |
| 2 of 5 IATA: | No |
| 2 of 5 Industrial: | Yes |
| 2 of 5 Interleaved: | Yes |
| 2 of 5 Matrix: | Yes |
| 2 of 5 Standard: | No |
| BC - 412: | No |
| Bookland EAN: | No |
| Codabar: | Yes |
| Codabar - NW7: | No |
| Code - 11: | Yes |
| Code - 11(USD-8): | No |
| Code - 32: | No |
| Code - 39: | Yes |
| Code - 39 Extended (full ASCII): | No |
| Code - 39 Trioptic : | No |
| Code - 93: | Yes |
| Code - 128 (A, B, C): | Yes |
| EAN-8: | Yes |
| EAN-13: | Yes |
| EAN -128 / UCC-128: | No |
| GS1 DataBar: | Yes |
| Intelligent Mail: | No |
| ISBN: | Yes |
| ISBT - 128: | No |
| ISSN: | Yes |
| ITF-6: | Yes |
| ITF-14: | Yes |
| KIX code: | No |
| Matrix 25: | No |
| MSI: | Yes |
| MSI - Plessey: | Yes |
| Pharmacode - One Track: | No |
| Pharmacode - Two Track: | No |
| Planet: | No |
| Plessey: | Yes |
| Post - Australian (4-State Postal Code): | No |
| Post - China (4-State Postal Code): | No |
| Post - Japanese (4-State Postal Code): | No |
| Post - Singapore (4-State Postal Code): | No |
| PostNET: | No |
| Royal Mail (RM-4SCC): | No |
| Telepen Code: | No |
| UK/Plessey: | No |
| UPC - A: | Yes |
| UPC - E: | Yes |
| UPC - E1: | No |
| Barcodes 2D: | Barcodes 2D: |
| Aztec: | No |
| Composite code: | No |
| DataMatrix: | No |
| MaxiCode: | No |
| Micro PDF 417: | No |
| Micro QR Code : | No |
| PDF 417: | No |
| QR Code : | No |
| RSS: | No |
| TLC-39: | No |
CURRENT PRICE |
|
| 931.44 € | Net |
| 1145.67€ | Gross |
.jpg)

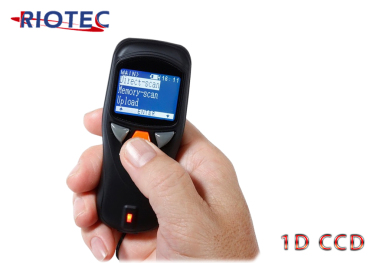

RIOTEC iDC9607A intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing information sczytanych with barcodes.
Mini RIOTEC iDC9607A 1D CCD is equipped with a Li-Ion battery with sufficient capacity 900mAh, which allows the scanner to operate for about 6 hours in scan mode.
The scanner has an additional function of read-out bar codes straight from the screens and displays. With built-in internal memory scanner can operate in trybyi (offline) and without konieczości connect the device, it even remembers 65,000 barcodes.
Designed to be tailored it different applications, wireless (Bluetooth) barcode scanner can be compatible with dry systems as Android, , Windows XP, Windows 7, Windows 8, Linux. Users can transmit data in real time to PCs or mobile devices.
