Rugged Laptop - Algiz XRW (3G)
|
|
The product from the archive - production terminated
|
Compare all versions
Handheld is a manufacturer of rugged PDAs and mobile computers. Handheld and partners worldwide deliver complete mobility solutions to businesses in industries such as logistics, forestry, public transportation, construction, military and security.
|
|

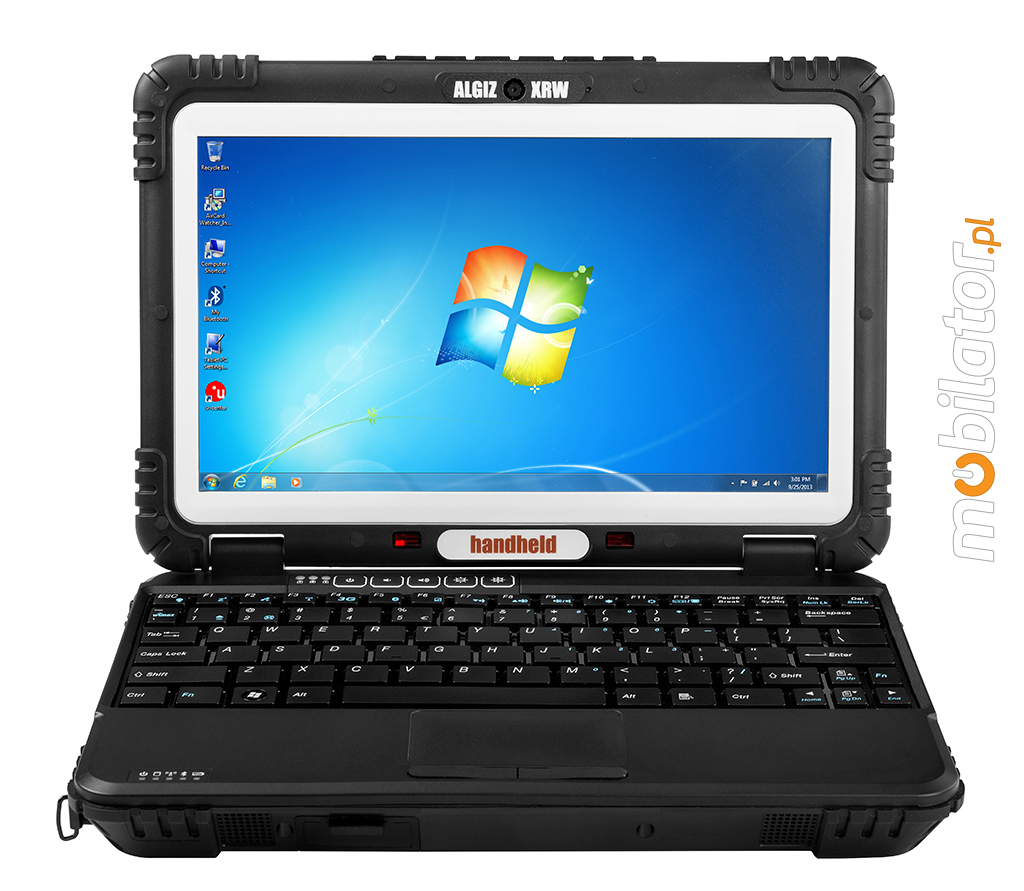

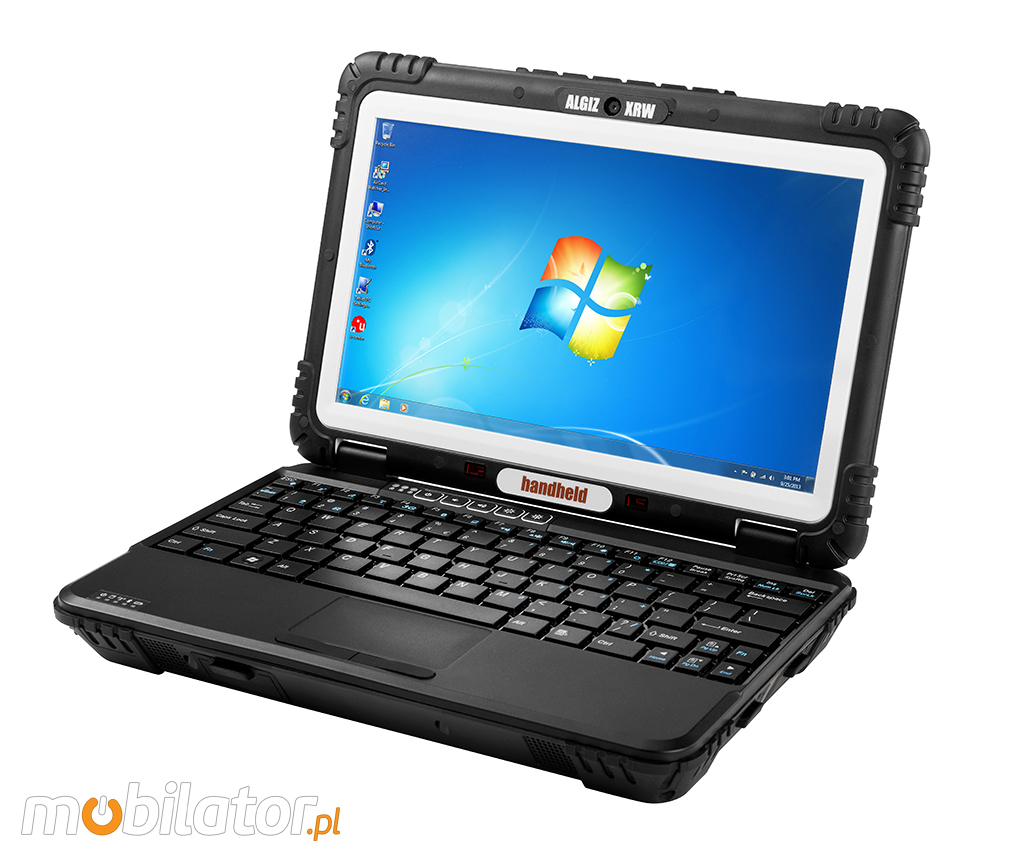

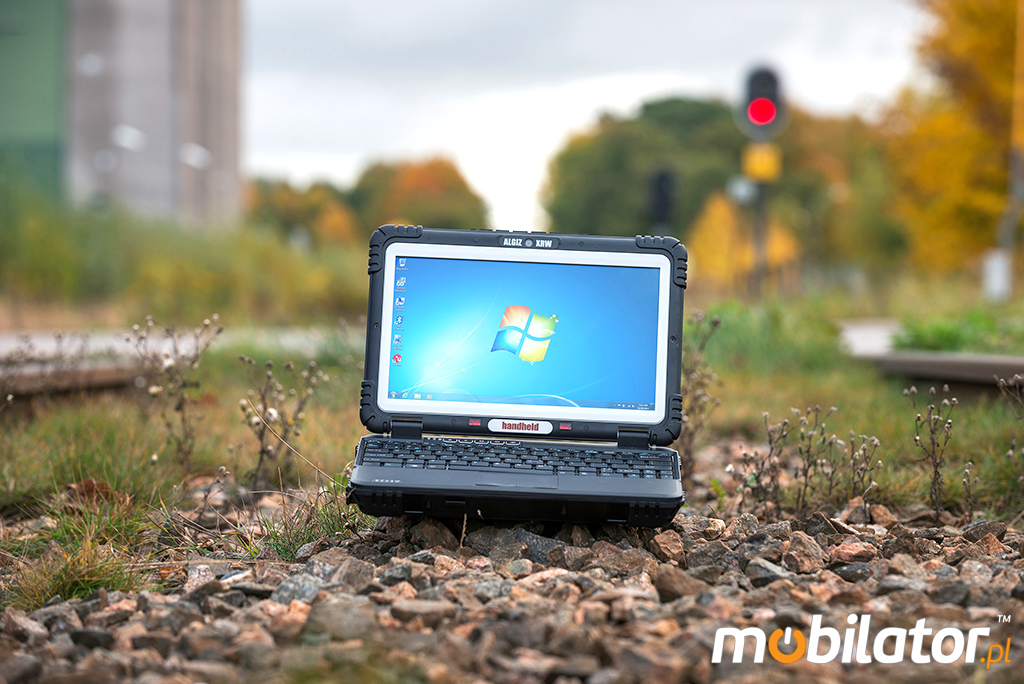

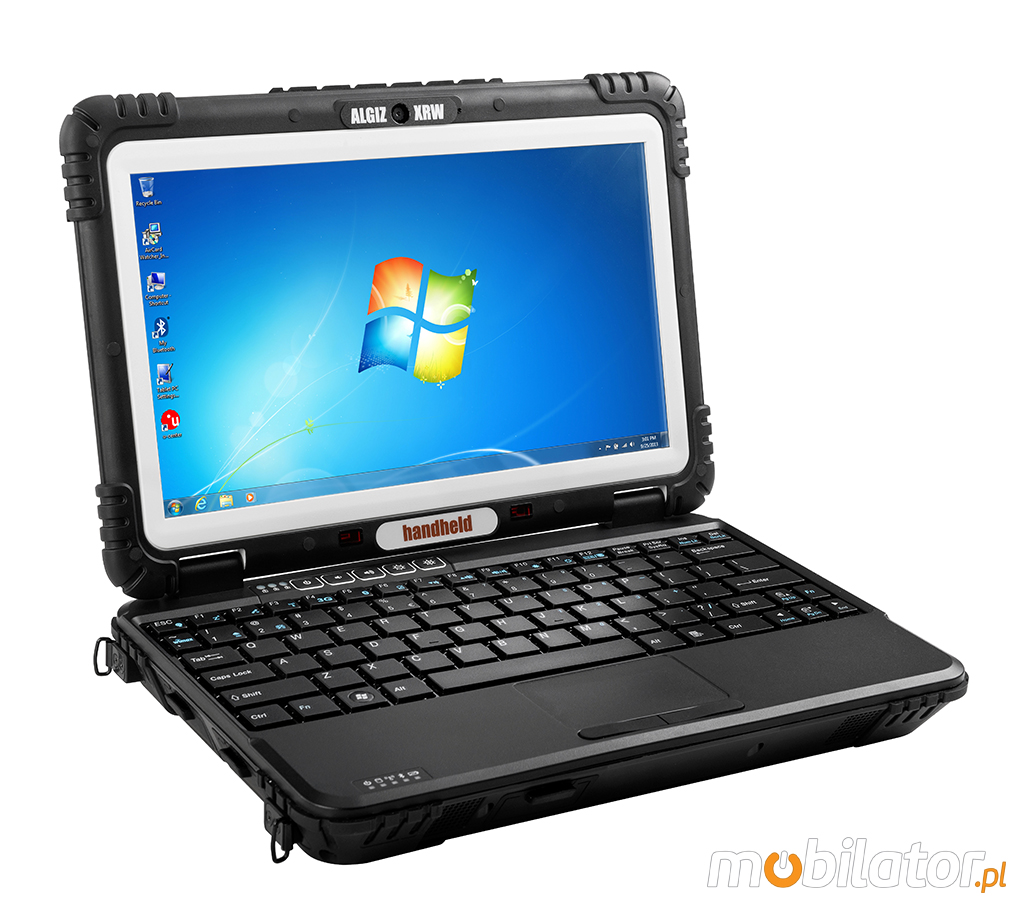

The Algiz XRW® represents a revolutionary step in mobile computing. This ultra rugged Notebook combines unprecedented performance in the field with a slim, lightweight and compact design which is unique to the market. |
|
Processor |
Intel® Atom™ N2600 1.6 GHz Dual Core |
|
Display |
10.1” (1366x768) TouchScreen : LED : MaxView™ Technology |
|
RAM |
4GB |
Hard Drive
|
128 GB SSD |
|
Connectors |
2x USB 2.0 port : RS-232 : LAN : 1x SD Slot: VGA : Docking Connector |
|
Built-in speaker and microphone : Input Mic : Speaker Jack : Receiver (Audio In) |
|
Camera |
2Mpx (Auto-Focus) |
|
Battery |
5200 mAh (57.72 Wh) - working time 8h |
|
Keyboard |
English (factory), French, Spanish, Italian, German, Nordic languages (Optional) |
Operating System
|
Microsoft Windows 7 Ultimate (English) |
Modules
|
802.11 b/g/n : BT v2.0 + EDR : U-Blox® GPS : WWAN Gobi™ 3000 |
|
Dimensons |
260 mm x 178 mm x 40 mm (10.2” x 7.0” x 1.6”) - 1.6kg |
|
Resistance |
IP65 : MIL-STD-810G : IEC60529 |
Warranty
|
24 months (3/5 years optional)
|
|
|
Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form. |
 |
.png)
go top...  menu…
|
|
|
Mobility
First of all, the Algiz XRW delivers the productivity you need. It has afull keyboard and a 10.1-inch touchscreen with MaxView™ screentechnology. It comes with a fast and powerful 1.6 GHz Dual Core Intel®Atom™ processor. It includes a 128 GB solid state disk and 4 GB of DDR3RAM and runs Microsoft Windows 7 Ultimate, just like the PCs in the office,but you can do your work in the field under almost any conditions.
.png)
Rugged magnesium alloy

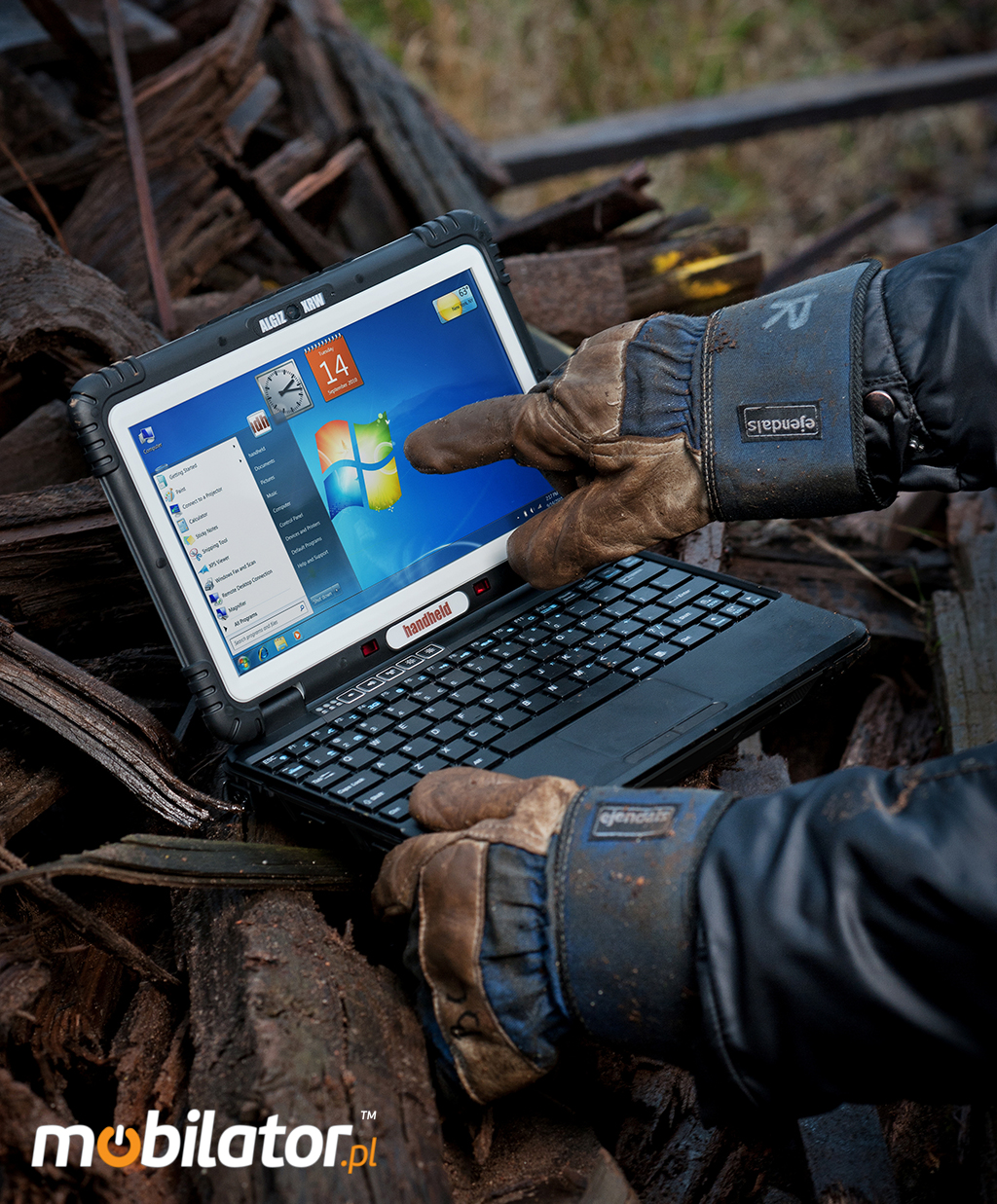

This powerful performer offers ultra-rugged toughness. The “XRW” stands for “eXtreme Road Warrior,” and this device lives up to its name.Its keyboard and mouse-touchpad, illuminated by two led lights, arefully sealed, and it carries an overall IP65 rating against sand, dustand water. It meets stringent MIL-STD-810G military standards forwithstanding humidity, vibration, drops and extreme temperatures. Thisrugged computing tool, with its take-it-anywhere functionality comes inan impressively portable package. The compact, slim Algiz XRW weighsin at only 1.6 kg.
Anti Shock SSD
Computers Handheld Series XRW companies are characterized by high resistance to shock, drop and vibration. The special construction, fixing the screen and disk protects against data loss.
Spill-resistance fluids
Keyboard, touchpad and switches XRW series are resistant to spillage of liquids. The design of notebook protects against the ingress of fluid into the sensitive parts inside the computer.
|
|
go top... menu…
|
|
|
|
The Algiz XRW features a built-in 2-megapixel autofocus camera that allows video conferencing in the field. And viewing information on the 10.1-inch screen is easy under any conditions with the unique MaxView™ technology that provides spectacular visibility even in direct-sunlight conditions. You can quickly back up field data using an SD card in the provided slot, and you can choose from multiple connectivity options using two USB 2.0 ports and one RS232. And the Algiz XRW offers an optional Kensington lock for in-the-field security.
With a rugged tool as advanced as the Algiz XRW, you won’t sacrifice performance when you head out into the field.
Applicable standards
Operating
|
-33C -- +63°C |
• Method 501.5 Procedure II
• Method 502.5 Procedure II |
Storage
|
-40°C -- +71°C |
• Method 501.5 Procedure I
• Method 502.5 Procedure I, III |
|
Humidity |
95% RH temp. cycle 30 °C / 60 °C |
• Method 507.5 |
|
Dust |
IP6x (dust) |
• IEC60529 |
|
Water |
IPx5 (water) |
• IEC60529 |
|
Drop |
26 drops from 1.22 m (4 ft)
|
• Method 516.6 Procedure IV |
|
Altitude |
4572 m (15.000 ft) |
• 30 °C (86 °F) |
|
Regulatory |
CE, MIL-STD-810G |
go top... menu…
IP65 Resistance
IP level is a classification of different degrees of protection of electrical equipment which are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, such as dust. It's mainly about access of foreign bodies inside. The second digit is a degree of protection against water.
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from solid objects greater than 50mm in diameter |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from splashed water |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection from water projected from a nozzle |
|
|
|
 |
7
|
|
Protection against immersion |
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water |
go top... menu…
|
|
|
|
Once you’re in the field, the Algiz XRW presents an array of mobile capabilities. It has integrated GPS functionality, Bluetooth for short-range wireless connection to other equipment, and 802.11 b/g/n WLAN if you have a local network you'd like to sync with. An optional 3G modem can provide high-speed GSM/UMTS/EVDO data transmission. The Algiz XRW comes with optional Gobi™ 3000 technology – which means you'll be able to work on your choice of wireless frequency anywhere in the world. And you can put in a full day's work, with a 57.72Wh battery.
|
WiFi |
802.11 b/g/n |
|
GPS |
U-Blox® GPS
• WAAS/EGNOS/MSAS-capable
• High sensitivity
|
|
Bluetooth |
Bluetooth v2.0 + EDR |
WWAN
|
Gobi™ 3000-ready
• HSPA+ 850/900/1900/2100/AWS MHz
• Quad-band GSM/GPRS/EDGE –850/900/1800/1900 MHz
• CDMA EVDO Rev. A – 800/1900 MHz |
go top... menu…
|
|
 We offer two versions of the laptop industry Algiz XRW. If you want to buy a notebook with a 3G module, click on the link model is given below. The default layout of the keys is the English keyboard. If you are interested in a keyboard with a different arrangement of keys, refer to the list of available keyboards in the "Technical data" and take into account the background information in the order. Each laptop in its price comes with Genuine Windows 7 Ultimate in English.
|
|
|
Standard |
3G |
128GB SSD
|
 |
|
|
4GB RAM |
|
|
WiFi
|
|
|
Bluetooth
|
|
|
GPS
|
|
|
|
3G |
|
|
Windows 7 Ultimate (ENG)
|
|
|
|
|
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ...
|
Compare all versions
| Durability: |
IP65 : MIL-STD-810G : IEC60529 : 4572 m (15.000 ft) 30 °C (86 °F) |
| Humidity: |
Method 507.5, 95% RH temp cycle
30 °C/60 °C |
| Waterproof: |
IEC60529 (IP65) |
| Temperature: |
Operating: -33 °C to 63 °C (-27.4 °F to 145.4 °F)
MIL-STD-810G, Method 501.5 Procedure II
MIL-STD-810G, Method 502.5 Procedure IIStorage: -40 °C to 71 °C (-40 °F to 159.8 °F)
MIL-STD-810G, Method 501.5 Procedure I
MIL-STD-810G, Method 502.5 Procedure I, III |
| Shock: |
MIL-STD-810G |
| Vibration: |
MIL-STD-810G |
| Drop: |
26 drops from 1.22 m (4 ft), Free to Concrete
Method 516.6 Procedure I |
| Sand and dust: |
IP65 |
| 1D barcode scanner (reader): |
----- |
| 2D barcode scanner (reader): |
----- |
| RFID scanner (reader): |
----- |
| Magnetic card reader (MSR): |
----- |
| Microchip card reader: |
----- |
| Docking station connector: |
Tak - Docking Connector (Contact Pin Type) |
| VESA standard – holders and mounts support: |
----- |
| COM port: |
Yes - RS232 |
| Dispaly: |
10.1” (1366x768) TouchScreen : LED : MaxView™ Technology |
| Brightness: |
1100 nits |
| Contrast: |
----- |
| Touch screen: |
Yes - capacitive |
| Graphics card: |
Build-In (Frequency: 400 MHz) |
| Swivel Hinge: |
No |
| VGA out: |
VGA Connector |
| TV Out: |
No |
| TV Tuner: |
No |
| Processor: |
Intel® Atom™ N2600 1.6 GHz Dual Core |
| Chipset: |
----- |
| BIOS: |
----- |
| Memory: |
4 GB |
| Hard Drive: |
128GB SSD |
| Battery: |
5200 mAh (57.72 Wh) |
| Working time on battery: |
8 hours |
| HotSwap battery: |
No |
| Fast battery replacement ability: |
Yes |
| Size: |
260 mm x 178 mm x 40 mm (10.2” x 7.0” x 1.6”) - 1.6kg |
| Casing material: |
|
| Fanless casing: |
Yes |
| Operating System: |
Microsoft Windows 7 Ultimate (English) - factory |
| LAN: |
Ethernet 10/100/1000 LAN |
| WLAN: |
802.11 b/g/n |
| Bluetooth: |
Bluetooth v2.0 + EDR |
| WAN: |
Yes - Gobi™ 3000-ready
HSPA+ 850/900/1900/2100/AWS MHz
Quad-band GSM/GPRS/EDGE –850/900/1800/1900 MHz
CDMA EVDO Rev. A – 800/1900 MHz |
| GPS: |
Yes - U-Blox® GPS
WAAS/EGNOS/MSAS-capable |
| Flash Card Reader: |
Yes - SD/SDXC |
| CD/DVD: |
----- |
| Camera: |
Yes - 2 Megapixel (Auto-Focus) |
| Audio: |
Built-in speaker and microphone : Input Mic : Speaker Jack : Receiver (Audio In) |
| Seciurity: |
TPM |
| In/Out: |

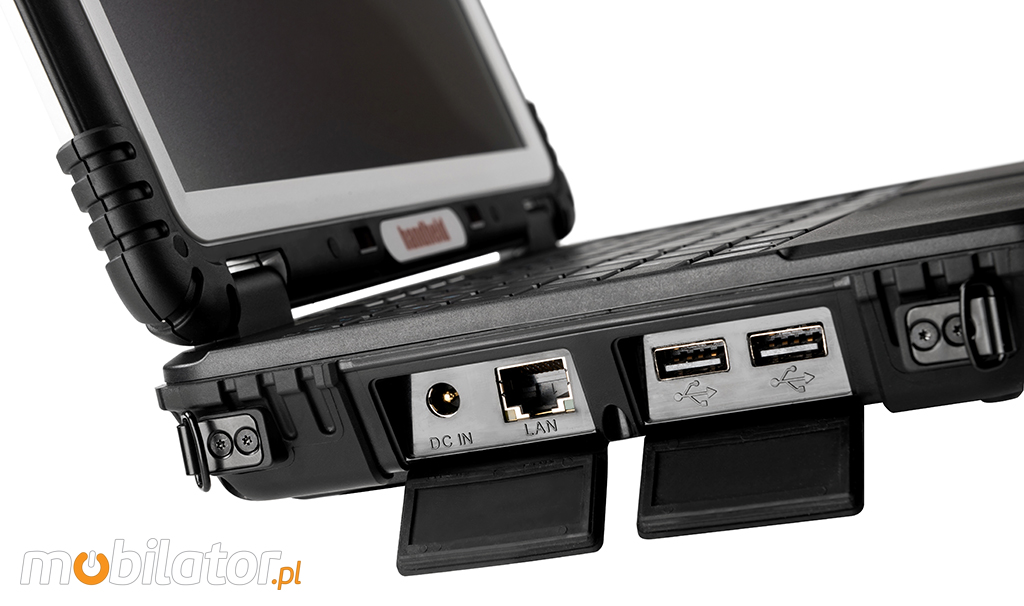

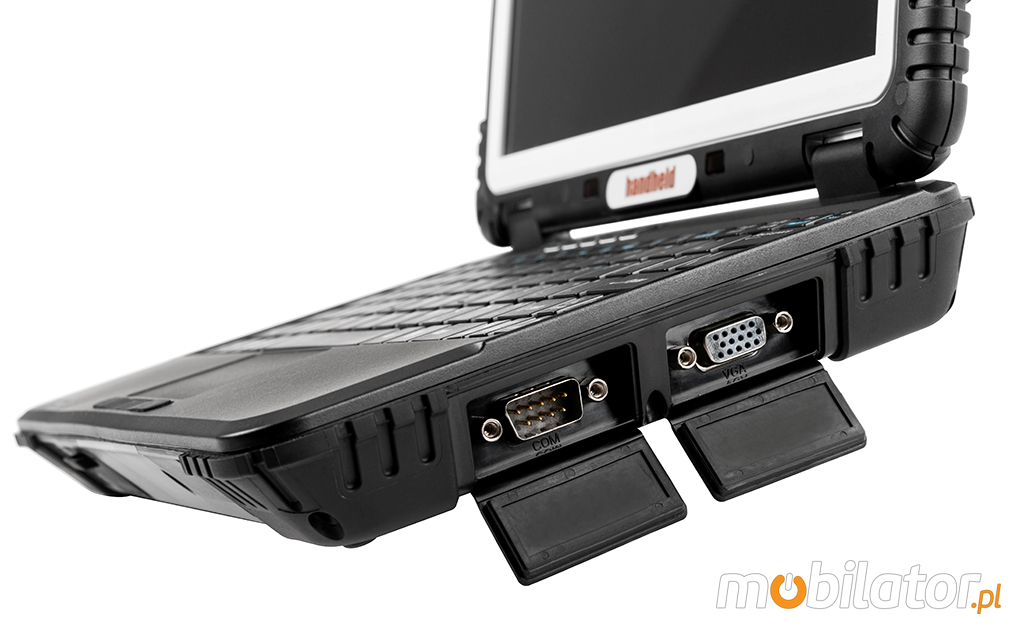

2x USB 2.0 port : 1x 9-pin serial RS-232 port : 1x RJ45 for Ethernet 10/100/1000 LAN : 1x DC power input : 1x SD Slot, SDXC : 1x VGA : Docking Connector (Contact Pin Type) : Dual Speaker/Mic : Microphone input jack : Headset Jack : Receiver (Audio In) |
| Keyboard: |
Keyboard with touch pad.
English(factory)
French, Spanish, Italian, German, Nordic languages (optional)
Keyboard illuminated by 2 LEDs |
| Additional Navigation Devices : |
----- |
| Color: |
black-metallic |
| Optional accessories: |

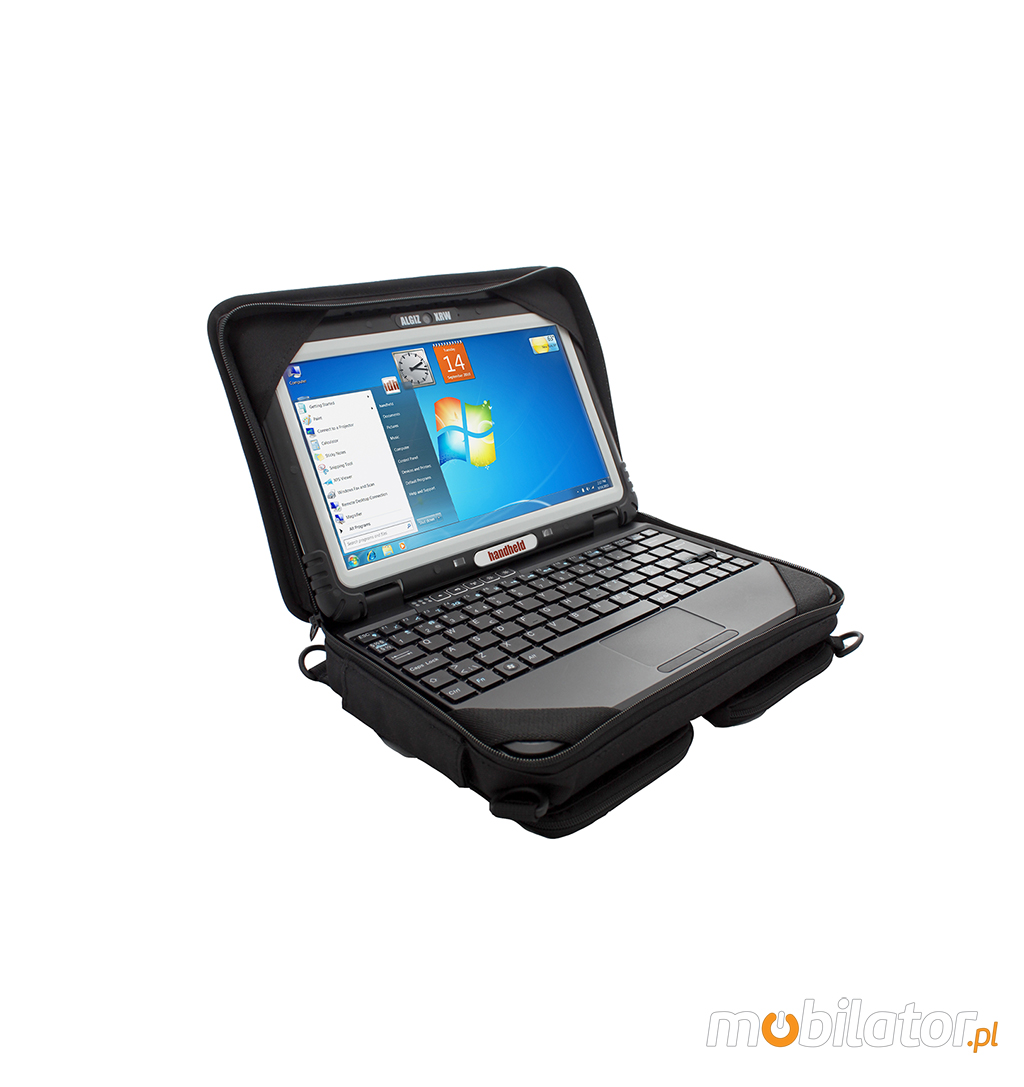

Battery 5200 mAh : Carry Case Pro : Screen Protecotr Film 10.1- inches |
| Other: |
----- |
Compare all versions
