Rugged Laptop - Algiz XRW (3G)
e-mail: sklep@mobilator.pl
phone: +48 791-242-901
www.mobilator.pl/laptop-przemyslowy--algiz-xrw-3g-produkt-86236.html

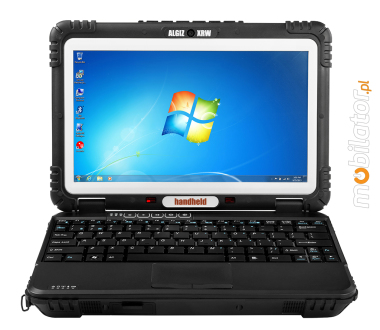

Rugged Laptop - Algiz XRW (3G)

tablet przemysłowy Algiz XRW ultra rugged ip65 industrial woodoporny handheld

handheld group algiz xrw

Handheld is a manufacturer of rugged PDAs and mobile computers. Handheld and partners worldwide deliver complete mobility solutions to businesses in industries such as logistics, forestry, public transportation, construction, military and security.



Description

 notebook industrial rugged rs232

The Algiz XRW® represents a revolutionary step in mobile computing. This ultra rugged Notebook combines unprecedented performance in the field with a slim, lightweight and compact design which is unique to the market.

industrial notebook dual core rs232 lan wifi for work

 Processor  Intel® Atom™ N2600 1.6 GHz Dual Core
 Display  10.1” (1366x768) TouchScreen :  LED :  MaxView™ Technology
 RAM  4GB
 Hard Drive
 128 GB SSD
 Connectors  2x USB 2.0 port : RS-232 : LAN : 1x SD Slot: VGA : Docking Connector

 Built-in speaker and microphone : Input Mic : Speaker Jack : Receiver (Audio In)
 Camera  2Mpx (Auto-Focus)
 Battery  5200 mAh (57.72 Wh) - working time 8h
 Keyboard  English (factory), French, Spanish, Italian, German, Nordic languages (Optional)
 Operating System
 Microsoft Windows 7 Ultimate (English)
 Modules
 802.11 b/g/n : BT v2.0 + EDR :  U-Blox® GPS : WWAN Gobi™ 3000
 Dimensons  260 mm x 178 mm x 40 mm (10.2” x 7.0” x 1.6”) - 1.6kg
 Resistance  IP65 : MIL-STD-810G : IEC60529
 Warranty
 24 months (3/5 years optional)
Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

algiz xrw handhel group rugged notebook pda palmtop

go top... do góry menu… menu

Designed to work

Mobility

First of all, the Algiz XRW delivers the productivity you need. It has afull keyboard and a 10.1-inch touchscreen with MaxView™ screentechnology. It comes with a fast and powerful 1.6 GHz Dual Core Intel®Atom™ processor. It includes a 128 GB solid state disk and 4 GB of DDR3RAM and runs Microsoft Windows 7 Ultimate, just like the PCs in the office,but you can do your work in the field under almost any conditions.

industrial laptop touchscreen ekran 10 cali algiz xrw microsd pda

Rugged magnesium alloy

This powerful performer offers ultra-rugged toughness. The “XRW” stands for “eXtreme Road Warrior,” and this device lives up to its name.Its keyboard and mouse-touchpad, illuminated by two led lights, arefully sealed, and it carries an overall IP65 rating against sand, dustand water. It meets stringent MIL-STD-810G military standards forwithstanding humidity, vibration, drops and extreme temperatures. Thisrugged computing tool, with its take-it-anywhere functionality comes inan impressively portable package. The compact, slim Algiz XRW weighsin at only 1.6 kg.

laptop rugged resistance ip65 pda palmptop magnesium norma ip
Anti Shock SSD

Computers Handheld Series XRW companies are characterized by high resistance to shock, drop and vibration. The special construction, fixing the screen and disk protects against data loss.

algiz xrw rs232 vga palmtop laptop przemysłowy pda

Spill-resistance fluids

Keyboard, touchpad and switches XRW series are resistant to spillage of liquids. The design of notebook protects against the ingress of fluid into the sensitive parts inside the computer.

laptop rugged palptop pda kensington lock

go top... do góry menu… menu



Unbelievable resistance

The Algiz XRW features a built-in 2-megapixel autofocus camera that allows video conferencing in the field. And viewing information on the 10.1-inch screen is easy under any conditions with the unique MaxView™ technology that provides spectacular visibility even in direct-sunlight conditions. You can quickly back up field data using an SD card in the provided slot, and you can choose from multiple connectivity options using two USB 2.0 ports and one RS232. And the Algiz XRW offers an optional Kensington lock for in-the-field security.

algiz xrw temperatures laptop rugged industrial palmptop droptest

With a rugged tool as advanced as the Algiz XRW, you won’t sacrifice performance when you head out into the field.

Applicable standards

 Operating
 -33C -- +63°C Method 501.5 Procedure II
Method 502.5 Procedure II
 Storage
 -40°C -- +71°C Method 501.5 Procedure I
Method 502.5 Procedure I, III
 Humidity  95% RH temp. cycle 30 °C / 60 °C Method 507.5
 Dust  IP6x (dust) IEC60529
 Water  IPx5 (water) IEC60529
 Drop  26 drops from 1.22 m (4 ft)
Method 516.6 Procedure IV
 Altitude  4572 m (15.000 ft) 30 °C (86 °F)
 Regulatory CE, MIL-STD-810G

go top... do góry menu… menu

accesories algiz xrw 10 cali laptop rugged

IP65 Resistance

IP level is a classification of different degrees of protection of electrical equipment which are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, such as dust. It's mainly about access of foreign bodies inside. The second digit is a degree of protection against water.

No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from solid objects greater than 50mm in diameter
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection from water projected from a nozzle


7

Protection against immersion


8


Protection against complete, continuous submersion in water

go top... do góry menu… menu

Modules and Wireless Networks

pda industrial milstd handheld

Once you’re in the field, the Algiz XRW presents an array of mobile capabilities. It has integrated GPS functionality, Bluetooth for short-range wireless connection to other equipment, and 802.11 b/g/n WLAN if you have a local network you'd like to sync with. An optional 3G modem can provide high-speed GSM/UMTS/EVDO data transmission. The Algiz XRW comes with optional Gobi™ 3000 technology – which means you'll be able to work on your choice of wireless frequency anywhere in the world. And you can put in a full day's work, with a 57.72Wh battery.

 WiFi  802.11 b/g/n
 GPS  U-Blox® GPS
WAAS/EGNOS/MSAS-capable
High sensitivity
 Bluetooth  Bluetooth v2.0 + EDR
 WWAN
 Gobi™ 3000-ready
• HSPA+ 850/900/1900/2100/AWS MHz
• Quad-band GSM/GPRS/EDGE –850/900/1800/1900 MHz
• CDMA EVDO Rev. A – 800/1900 MHz

algiz xrw gps 3g windows 7 laptop industrial pda

go top... do góry menu… menu

Available configurations

handheld group algiz xrw pda industrial laptop 10inchesWe offer two versions of the laptop industry Algiz XRW. If you want to buy a notebook with a 3G module, click on the link model is given below. The default layout of the keys is the English keyboard. If you are interested in a keyboard with a different arrangement of keys, refer to the list of available keyboards in the "Technical data" and take into account the background information in the order. Each laptop in its price comes with Genuine Windows 7 Ultimate in English.

  Standard 3G
 128GB SSD
 4GB RAM
 WiFi
 Bluetooth
 GPS
 3G
 Windows 7 Ultimate (ENG)

 go top... do góry menu… menu

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...


Durability: IP65 : MIL-STD-810G : IEC60529 : 4572 m (15.000 ft) 30 °C (86 °F)
Humidity: Method 507.5, 95% RH temp cycle
30 °C/60 °C
Waterproof: IEC60529 (IP65)
Temperature: Operating: -33 °C to 63 °C (-27.4 °F to 145.4 °F)
MIL-STD-810G, Method 501.5 Procedure II
MIL-STD-810G, Method 502.5 Procedure II

Storage: -40 °C to 71 °C (-40 °F to 159.8 °F)
MIL-STD-810G, Method 501.5 Procedure I
MIL-STD-810G, Method 502.5 Procedure I, III
Shock: MIL-STD-810G
Vibration: MIL-STD-810G
Drop: 26 drops from 1.22 m (4 ft), Free to Concrete
Method 516.6 Procedure I
Sand and dust: IP65
1D barcode scanner (reader): -----
2D barcode scanner (reader): -----
RFID scanner (reader): -----
Magnetic card reader (MSR): -----
Microchip card reader: -----
Docking station connector: Tak - Docking Connector (Contact Pin Type)
VESA standard – holders and mounts support: -----
COM port: Yes - RS232
Dispaly: 10.1” (1366x768) TouchScreen : LED : MaxView™ Technology
Brightness: 1100 nits
Contrast: -----
Touch screen: Yes - capacitive
Graphics card: Build-In (Frequency: 400 MHz)
Swivel Hinge: No
VGA out: VGA Connector
TV Out: No
TV Tuner: No
Processor: Intel® Atom™ N2600 1.6 GHz Dual Core
Chipset: -----
BIOS: -----
Memory: 4 GB
Hard Drive: 128GB SSD
Battery: 5200 mAh (57.72 Wh)
Working time on battery: 8 hours
HotSwap battery: No
Fast battery replacement ability: Yes
Size: 260 mm x 178 mm x 40 mm (10.2” x 7.0” x 1.6”) - 1.6kg
Casing material:
Fanless casing: Yes
Operating System: Microsoft Windows 7 Ultimate (English) - factory
LAN: Ethernet 10/100/1000 LAN
WLAN: 802.11 b/g/n
Bluetooth: Bluetooth v2.0 + EDR
WAN: Yes - Gobi™ 3000-ready
HSPA+ 850/900/1900/2100/AWS MHz
Quad-band GSM/GPRS/EDGE –850/900/1800/1900 MHz
CDMA EVDO Rev. A – 800/1900 MHz
GPS: Yes - U-Blox® GPS
WAAS/EGNOS/MSAS-capable
Flash Card Reader: Yes - SD/SDXC
CD/DVD: -----
Camera: Yes - 2 Megapixel (Auto-Focus)
Audio: Built-in speaker and microphone : Input Mic : Speaker Jack : Receiver (Audio In)
Seciurity: TPM
In/Out: 2x USB 2.0 port : 1x 9-pin serial RS-232 port : 1x RJ45 for Ethernet 10/100/1000 LAN : 1x DC power input : 1x SD Slot, SDXC : 1x VGA : Docking Connector (Contact Pin Type) : Dual Speaker/Mic : Microphone input jack : Headset Jack : Receiver (Audio In)
Keyboard: Keyboard with touch pad.
English(factory)
French, Spanish, Italian, German, Nordic languages (optional)
Keyboard illuminated by 2 LEDs
Additional Navigation Devices : -----
Color: black-metallic
Optional accessories: Battery 5200 mAh : Carry Case Pro : Screen Protecotr Film 10.1- inches
Other: -----


CURRENT PRICE
8902.71 € Net
10950.33€ Gross
