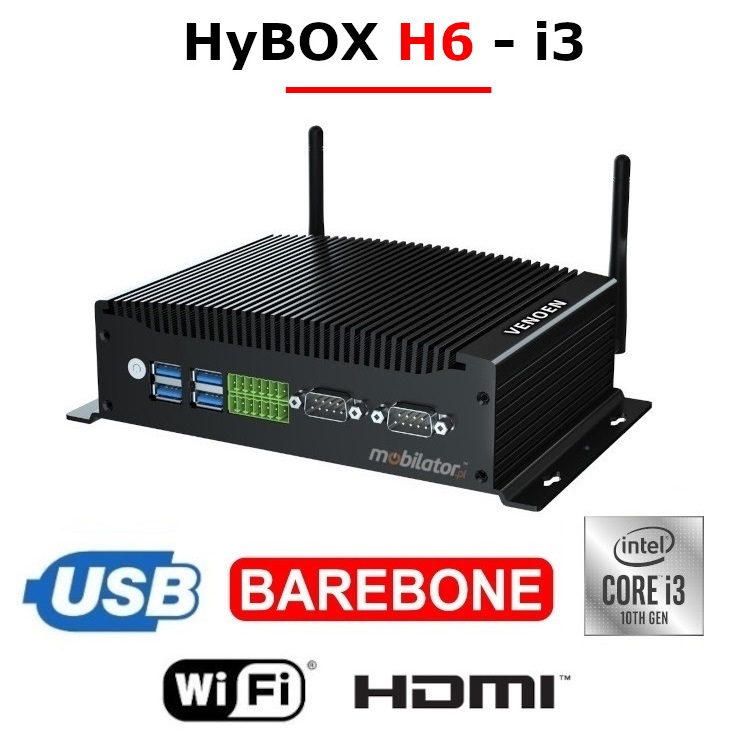

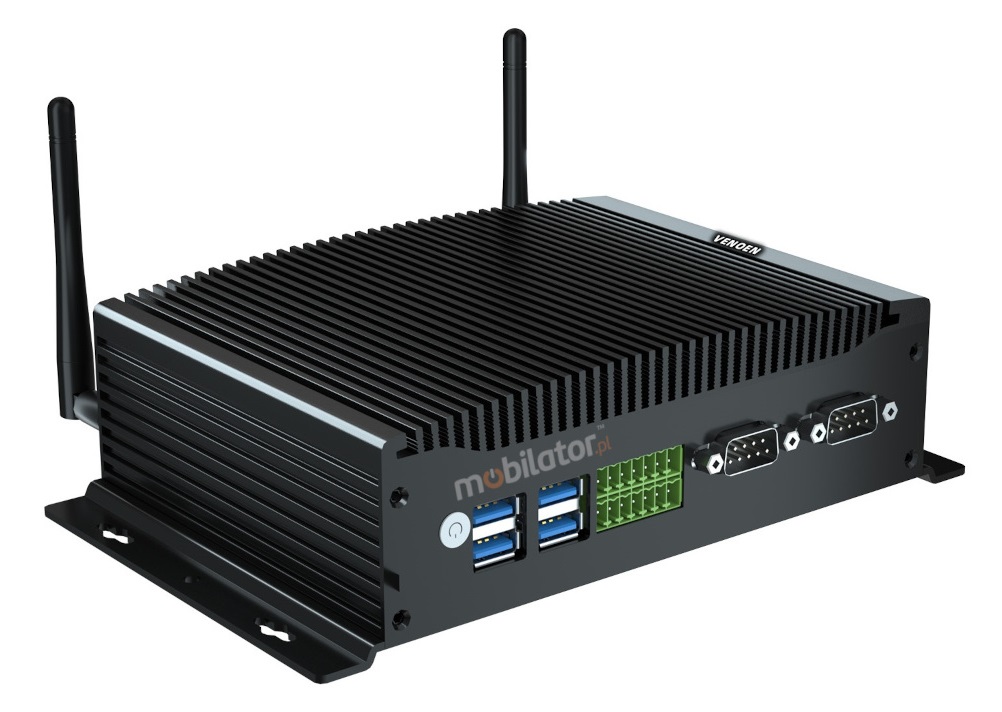

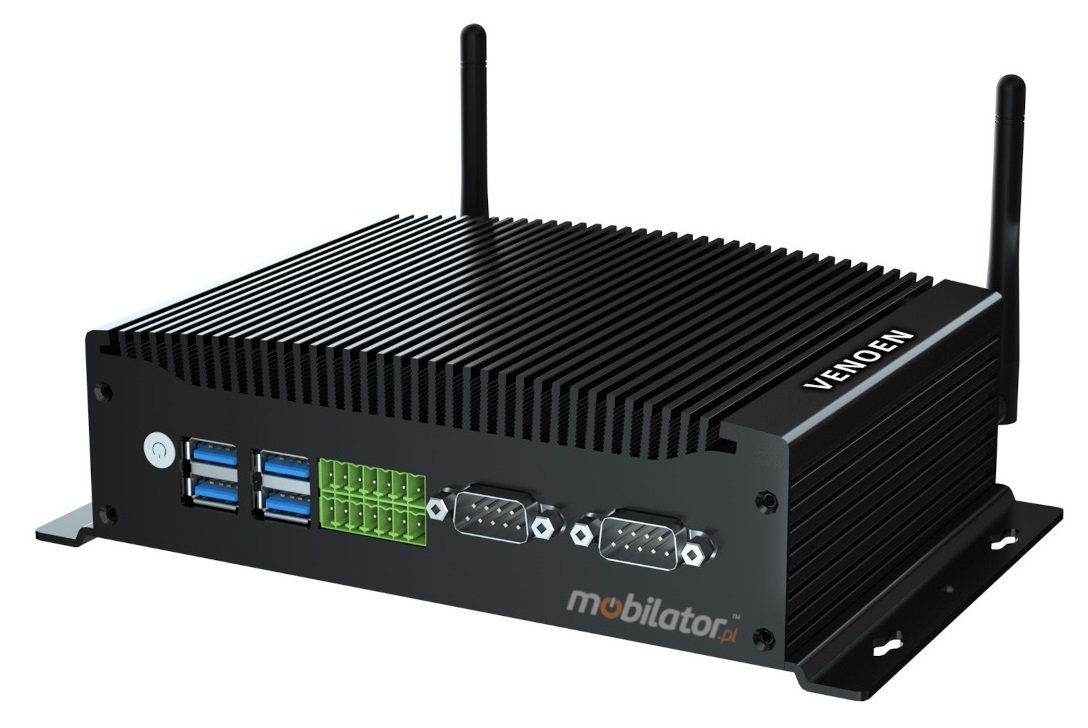

HyBOX H6 - i3 Barebone - Powerful fanless miniPC with WiFi, modern Intel Core i3 processor, with 2x LAN, 2x HDMI, 1x DP, 6x USB inputs ideal for a warehouse (3 YEAR WARRANTY)
Small dimensions industrial computers excel in environments where dust, dirt and moisture predominate.They are ideal for applications requiring quiet operation.Small and reliable MiniPC use heat-pipe technology and aluminum fins for passive cooling.The robust mini Industrial Computer HyBOX H6 - i3 is a device designed for all industrial and non-continuous applications requiring continuous operation - 24 hours, 7 days a week.
Small dimensions
The compact housing means that the Mini PC will fit wherever you need it and is easy to carry.
Lightweight design
The computer's weight does not exceed 1.50 kg, so it can be conveniently carried in a bag or backpack.
Efficent components
The Intel Core i3-10110U dual-core CPU provides improved device performance.
Wireless network
The mini PC can be connected to nearby wireless networks by equipping it with an Wi-Fi module.
Quick start *
A optional SSD drive will increase the speed of application programs and ensure quiet computer operation.
Passive cooling
The use of passive cooling in the Mini PC ensures silent operation and slows dust deposition.
* Optional equipment, available only in other versions of the device.
SPECIFICATION
HyBOX H6 - i3
Processor
Intel Core i3-10110U (2x 2.10GHz)
Operation system
Support for Windows 10/11, WES 10, Linux
RAM
No *
Drive
No *
Graphic card
Intel UHD Graphics 620
Connectivity
WLAN: 1x M.2 (E Key) 2230 Bay Support Wifi model + Bluetooth model
1x M-PCIE (51.0mm × 30.0mm) for 3/4G module
LAN: 2x RJ45, Realtek 8168/8111(1000M)

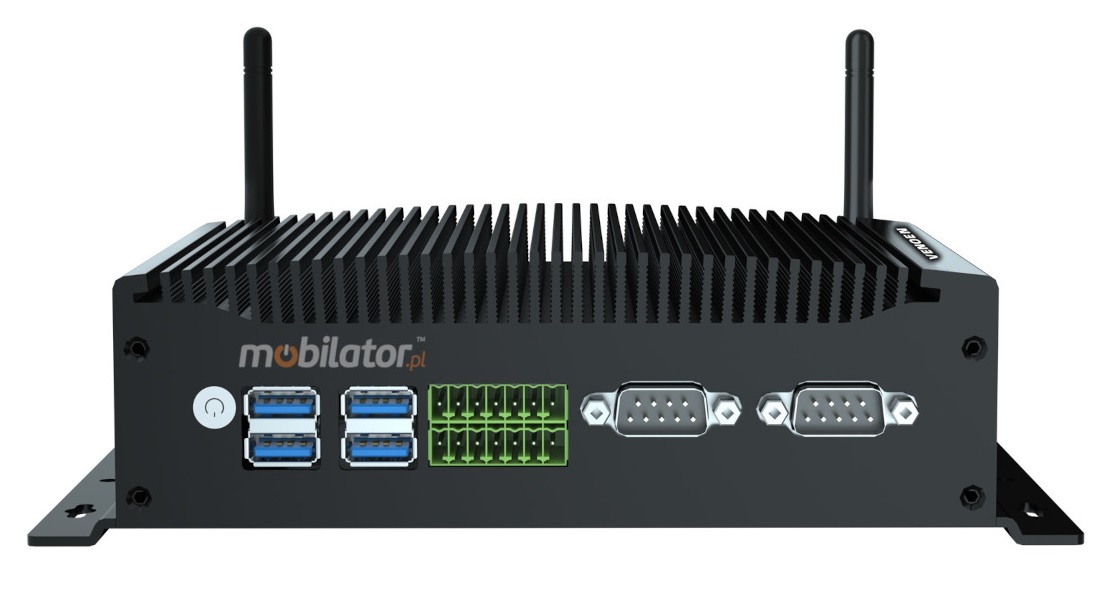

Front panel
Power | 4x USB 3.0 | 14 Pin GPIO | 2x DB9 COM

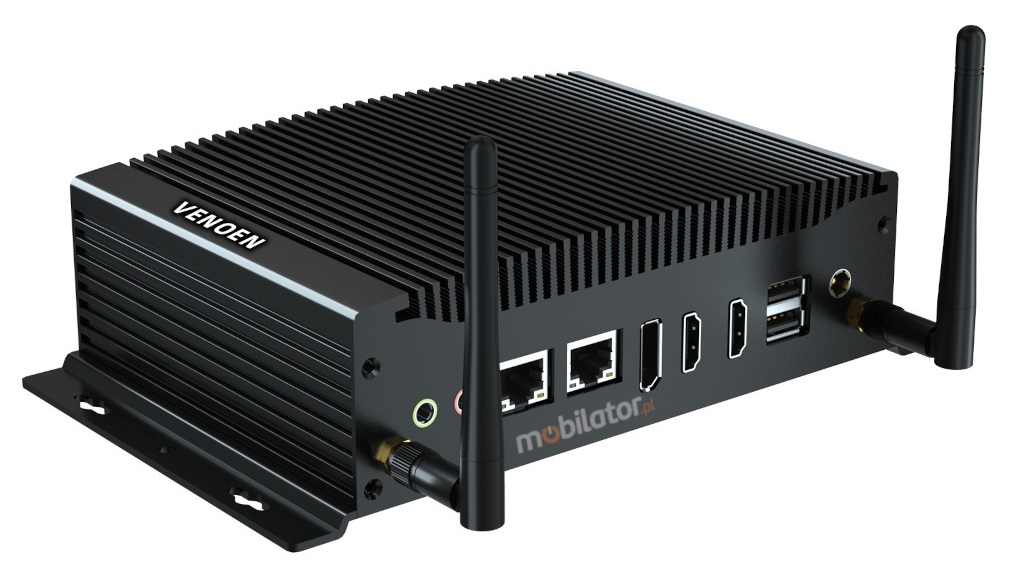

Rear panel

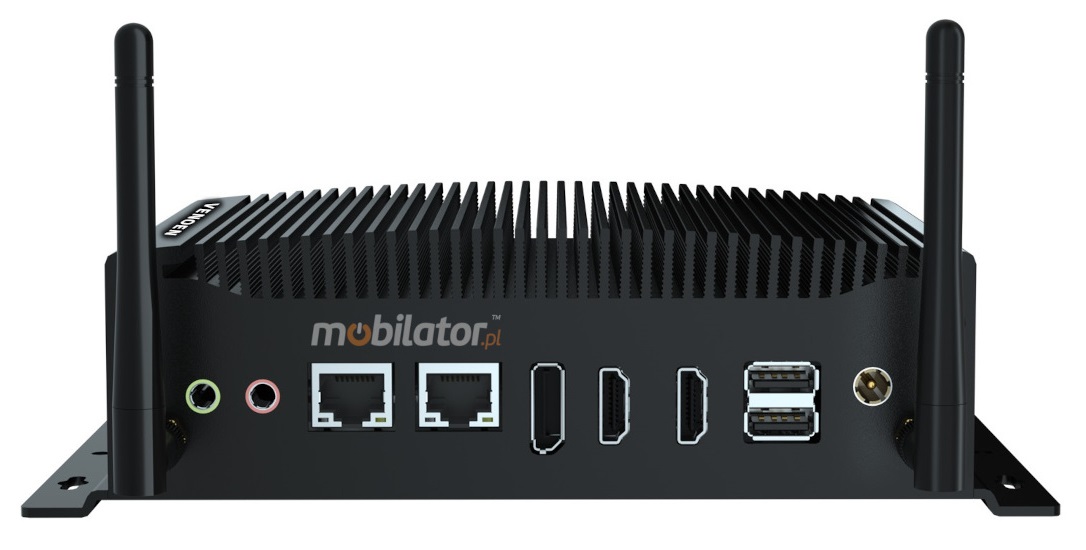

2x RJ-45 LAN | 1x DP | 2x HDMI | 2x USB 2.0 | MIC | Speaker | DC 12V
Available colors
Black
Material
Aluminum Alloy
Dimensions
230 x 185 x 50 mm
Weight
1.50 kg
Warranty
3 years warranty
* Optional equipment, available only in other versions of the device.

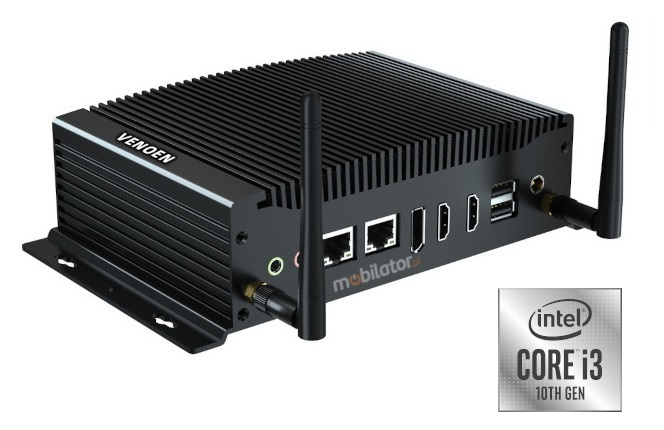

The industrial mini-computer HyBOX H6 - i3 uses an efficient and energy-saving Intel Core i3-10110U processor. Inside it there are two cooperating cores enabling more efficient processing of many tasks at the same time. The shared cache memory in which the multilevel hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory.

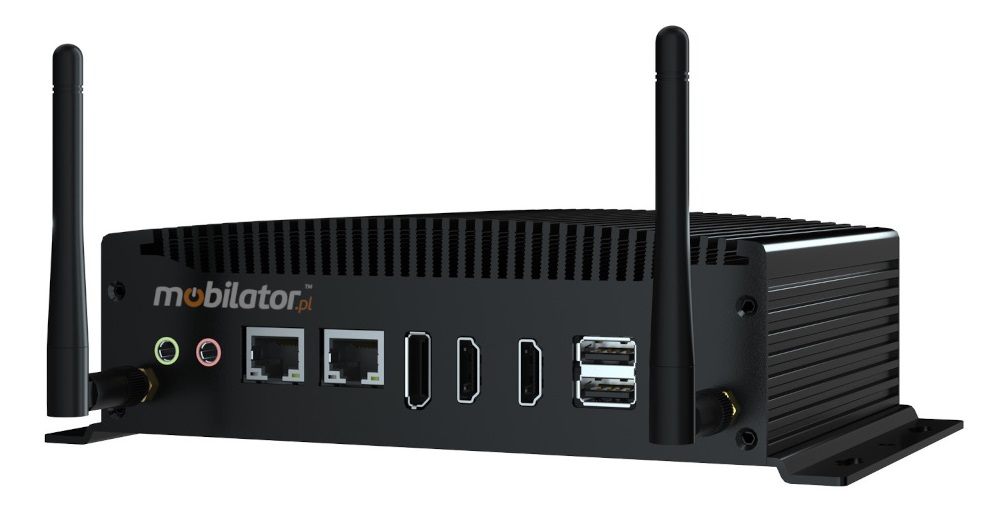

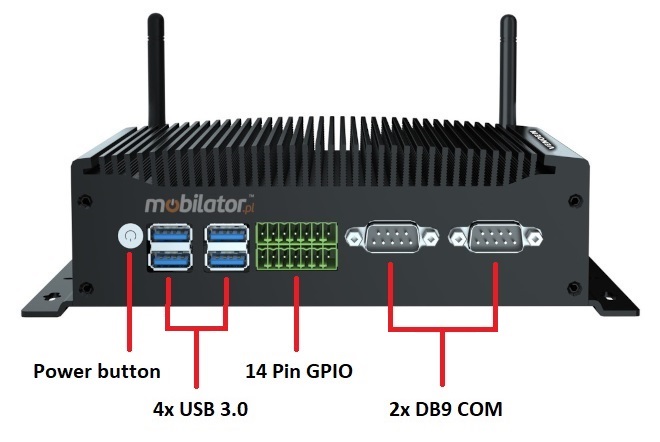

Interfaces

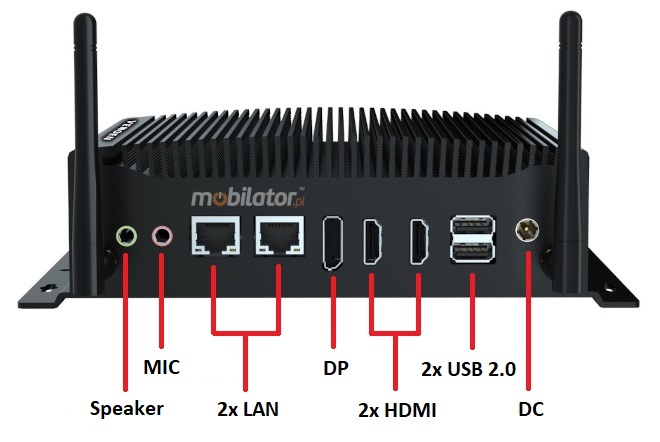

*Illustrative image, Connectors: 2x RJ-45 LAN | 1x DP | 2x HDMI | 2x USB 2.0 |
4x USB 3.0| 14 Pin GPIO| 2x DB9 COM| MIC | Speaker | DC 12V| Power

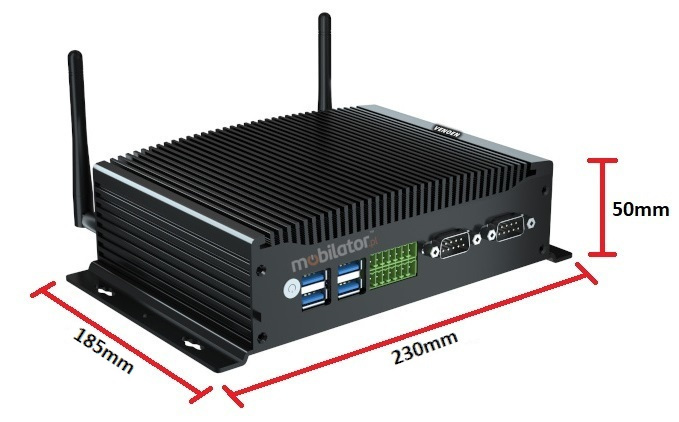

Dimensions

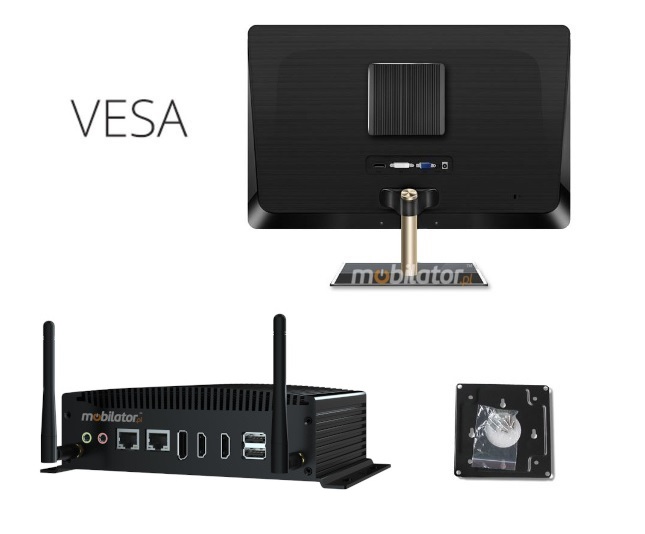

Thanks to the small dimensions of the MiniPC, the is versatile for use at home, in the office and in the industry, for example in the production hall. It's literally everywhere, and thanks to the VESA mount it can be mounted on the back of the monitor to optimize the job.
Dimensions
230 x 185 x 50 mm
Weight
1500g
Passive coolong
The industrial Mini PC uses a proven cooling system, based only on solid elements, mainly heat sinks.The system uses the phenomenon of metals passing thermal energy into the environment - there are no additional moving elements in the form of eg fans.This solution ensures noiseless operation, lower failure rate and greater protection against dust and other dirt while reducing the amount of energy consumed.

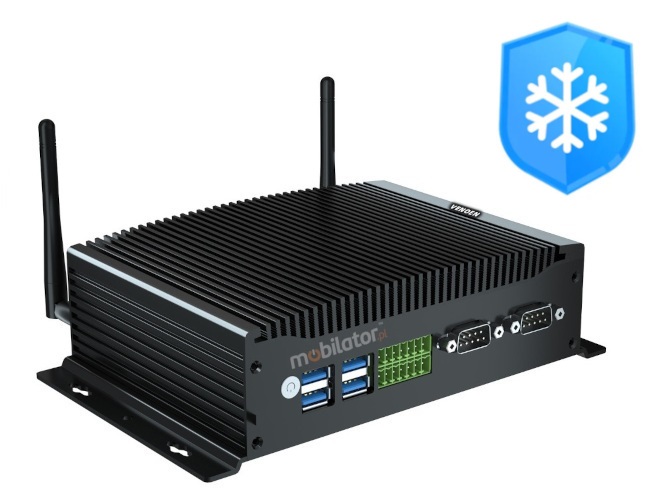

HyBOX H6 - i3 is designed for continuous operation in both very low and high temperatures ranging from 0°C to 50°C.If the device is switched off, it can already handle temperatures in the range of -20°C to 70°C.
Work temp.
0°C to 50°C
Storage temp.
-20°C to 70°C
Mechanical damage
The passive cooling system used in the MiniPC HyBOX H6 - i3combined with the non-disk SSD (optional) make this computer very resistant to various types of mechanical injuries.An additional advantage of industrial computers is a solid construction made of high quality aluminum and specially designed in such a way that in addition to high efficiency in heat dissipation, it can also resist any external damage.
The Dual Band Wi-Fi Module (M.2 -E Key- 2230 Bay) provides high-speed network access wherever you can connect to secured or open Wi-Fi networks. It is a convenient solution for people who have a router and a wireless network at their place of work or residence, which can be used without any additional charges.
Wired LAN Network
The HyBOX H6 device has a built-in Realtek 8168/8111 network card. The industrial miniPC has been equipped with a technology standard - Realtek Gigabit, which allows you to transfer files at a dizzying speed of up to 1000 Mb/s.
Mini PC is an ideal tool to support us in the implementation of many activities in the field of trade, small dimensions increase the possibility of its adaptation to activities such as issuing invoices or preparing documentation, which in turn allows us to convenient and optimal sales management.The VESA holder mounted to the housing provides many installation options, eg in stores (at the cash register, under the desktop, behind the LCD / LED monitor), in factory halls or in a delivery truck.

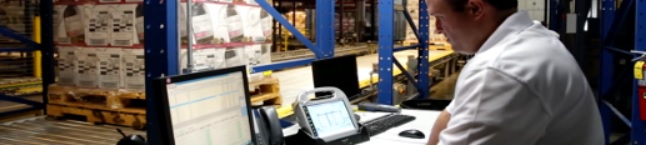

Warehouse and logistics

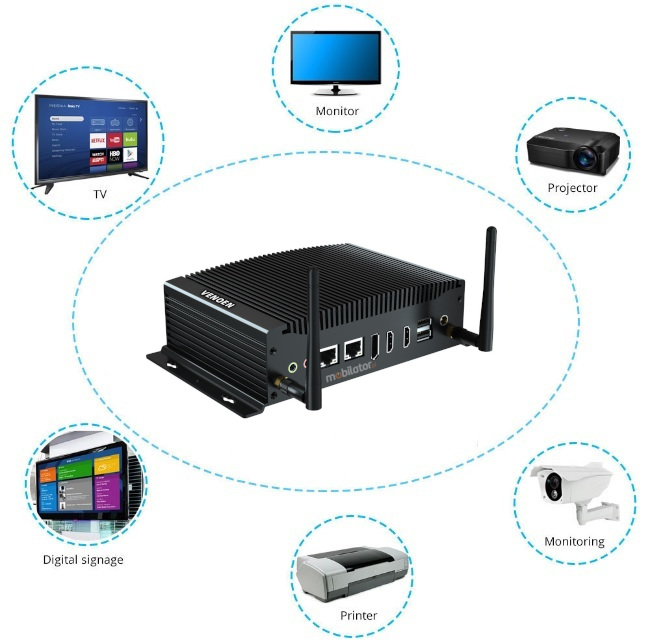

Thanks high performance an industrial computer can be used to connect multiple devices in a warehouse and make their management much easier. Its rugged casing and the fanless cooling system are ideal for harsh environments in such rooms. The solid construction guarantees long-lasting work, even in environments with high dustiness and dirt.
Transport and motorization
A small industrial computer can be used in transport thanks to the ability to work on 12V power supply.Then the mini computer can be used in passenger cars, buses, trams, taxis, trains and even in airplanes.It allows you to inform the driver about the current state of the vehicle, transfer its current location to the management center, display information for passengers, etc. It performs well in vehicles where small dimensions are important.
The industrial mini-computer HyBOX H6 - i3 is offered in several versions to suit different needs.By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below.
Others:
Color Black
Chipset:
Intel Chipset
CPU Support:
Intel Core
Installed CPU:
Intel Core i3-10110U (2x 2.10GHz)
Memory Support:
DDR4 (max. 64GB)
Installed Memory:
-----
Graphic Card:
Intel UHD Graphics 620
Storage (HDD) Support:
SSD or HDD
Installed Storage (HDD):
-----
CD/DVD Drive:
-----
LAN:
2x RJ45, Realtek 8168/8111(1000M)
Wireless LAN card:
2230
Bluetooth:
No
3G:
-----
4G LTE:
-----
TV Tuner:
-----
Watch Dog Timer:
No
Front Panel (ports):
Power | 4x USB 3.0 | 14 Pin GPIO | 2x DB9 COM
Rear Panel (ports):
2x RJ-45 LAN | 1x DP | 2x HDMI | 2x USB 2.0 | MIC | Speaker | DC 12V
