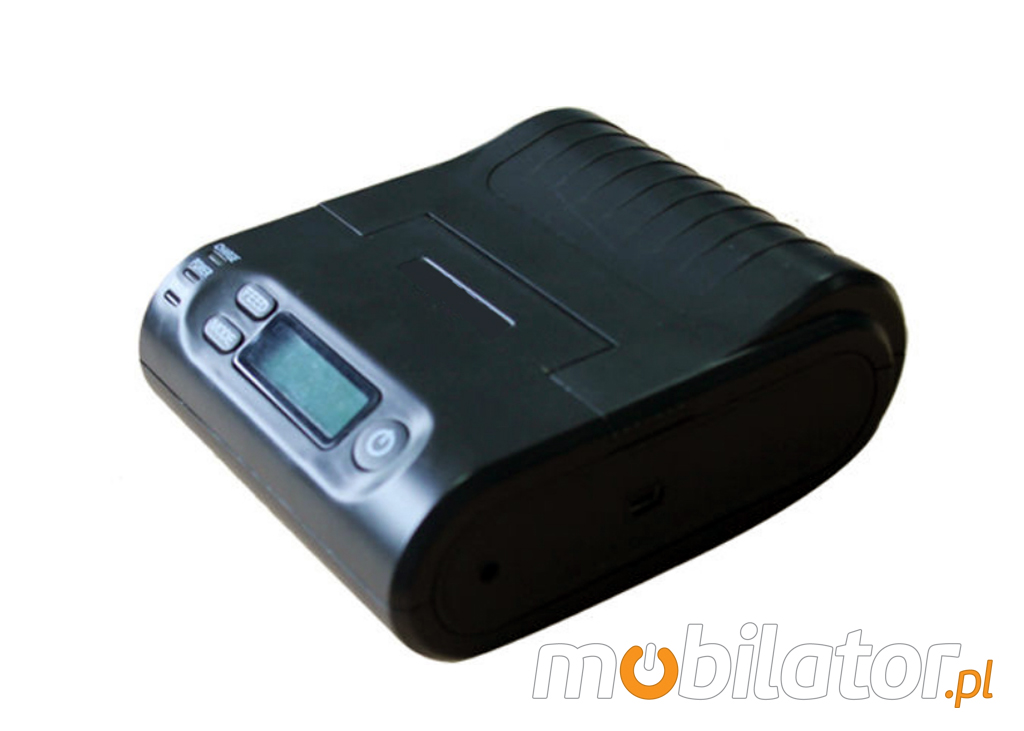

Mobile printer MobiPrint MP-T7
|
|
The product from the archive - production terminated
|
Compare all versions
|
|
Brand MobiPrint is a new distribution in Mobilator. Under this brand we are selling portable mini printer manufactured by companies who have achieved recognition of clients due to high quality of products in the segment of high-tech.
|
.jpg)
|
|
|

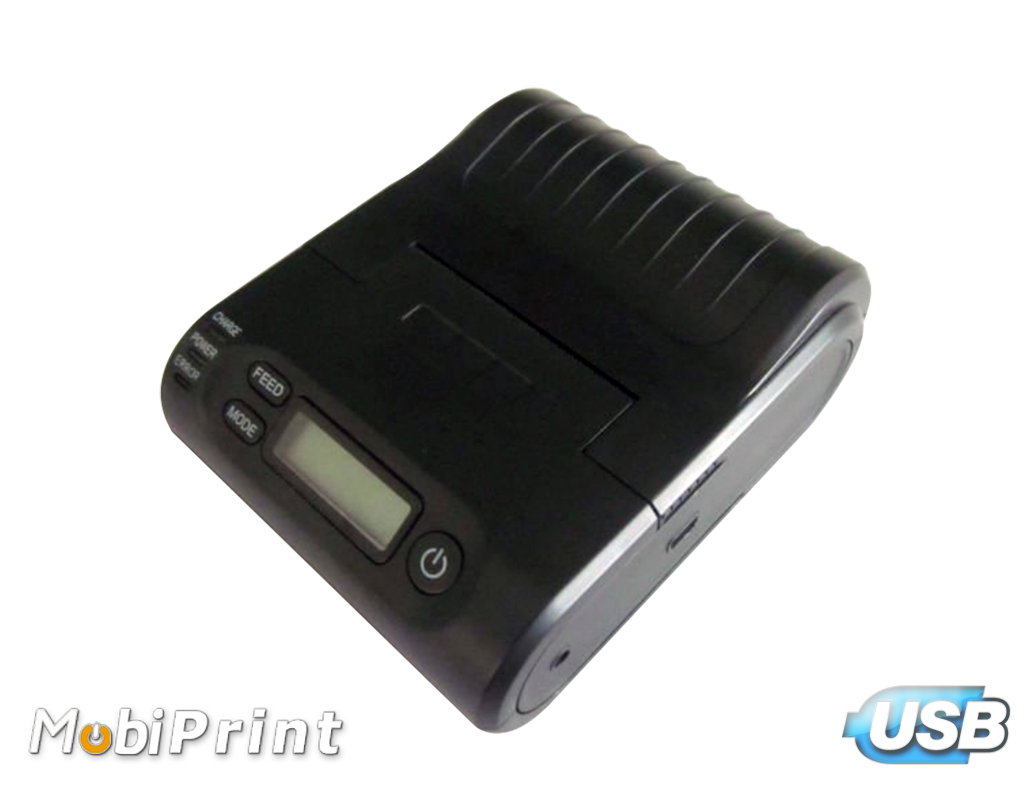

Portable Mobile Printer series MobiPrint is a lightweight device used to print receipts, invoices or labels in places where it is not possible to use large desktop printers. Depending on the client's needs - printers are available with different wireless interfaces (depending on model): Bluetooth and WiFi and wired USB and RS232.
|
|
MobiPrint MP-T7 |
Printing Method
|
Dot Matrix
|
Resolution
|
240 dots/line
|
|
Support system |
Windows CE , Windows Mobile , Windows XP, Windows 7 , Windows 8
|
|
Distance |
USB cable (1,2m) |
|
Communication |
USB
|
|
Dimensions |
103 mm x 99 mm x 46 mm
|
Weight
|
516g |
|
Other |
None
|
|
The detailed specification of the configuration available in the "Technical data"
|
|
Modern, wired (USB) DotMatrix printer MobiPrint MP-T7 was designed with users in mind, for which it is necessary to print invoices, receipts or labels in places where there is no access to the electricity grid, transportation and mobile commerce, at events, etc.
 Portable printers MOBIPRINT MP-T7 has a simple paper loading, ease of use, print quality, fast printing, printing on plain paper roll. These properties make the lightweight portable printers are used in a variety of mobile applications.
DotMatrix Printer - MOBIPRINT MP-T7 through Bluetooth module (which ensures proper communication) is compatible with mobile devices, data collectors and computers running under different operating systems (see the text "Communication" - below).

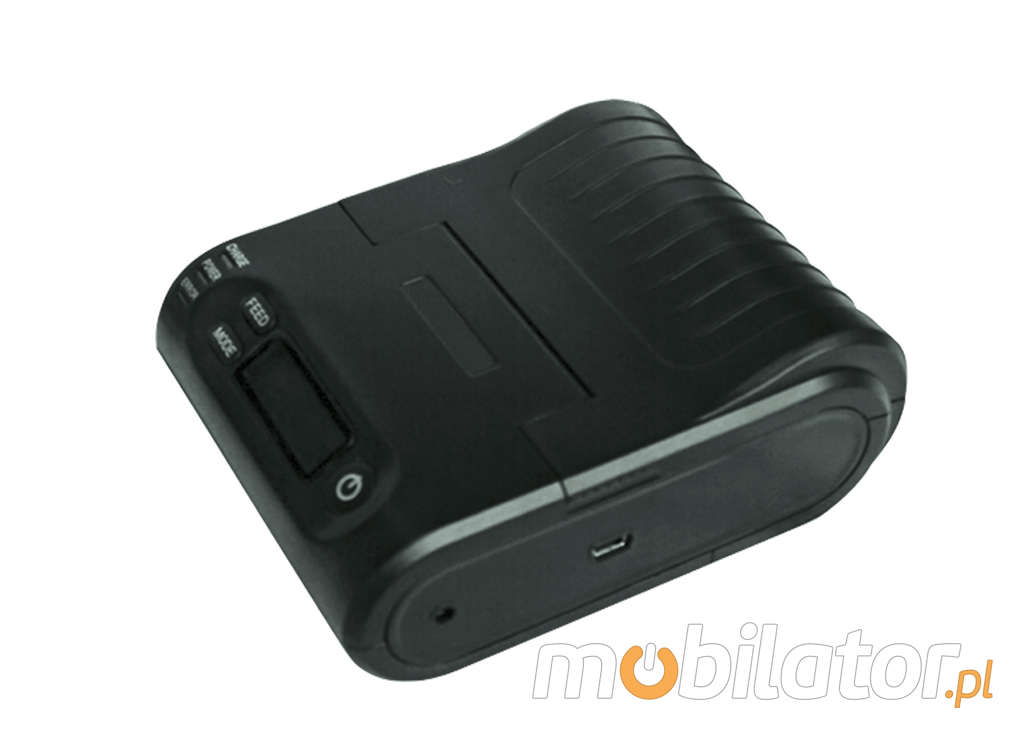

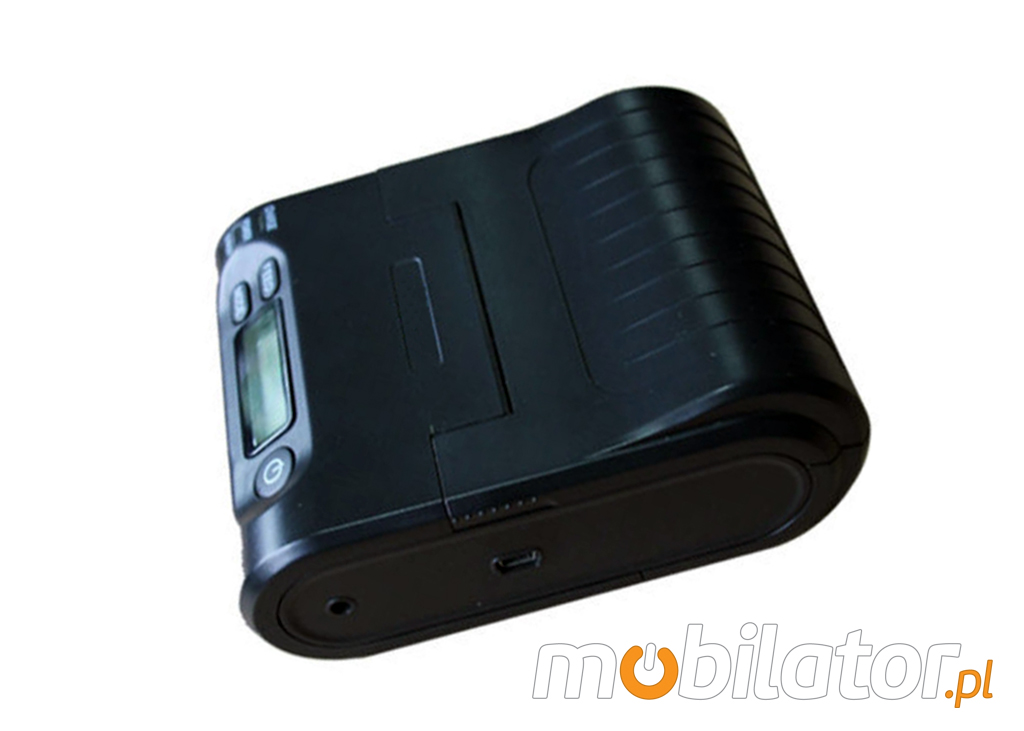

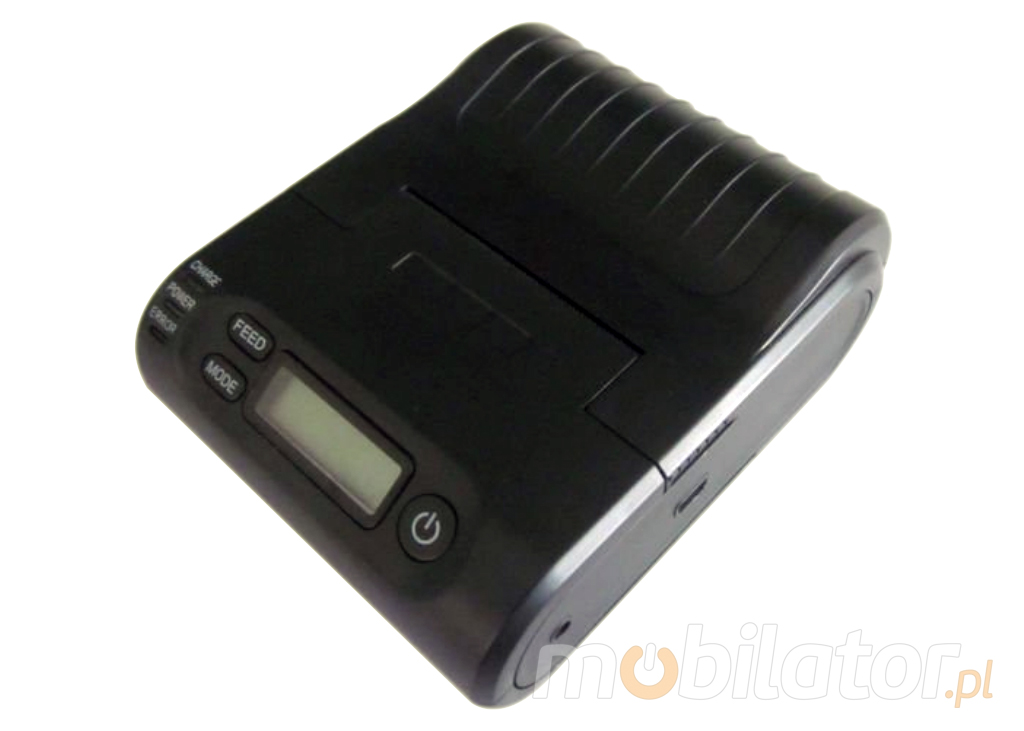

.jpg) A new generation of mini printer surprises his appearance. This ergonomic, compact and extremely lightweight dotmatrix printer dimensions (103 mm x 99 mm x 46 mm) and weight only 516g, allows complete mobility.
.jpg)

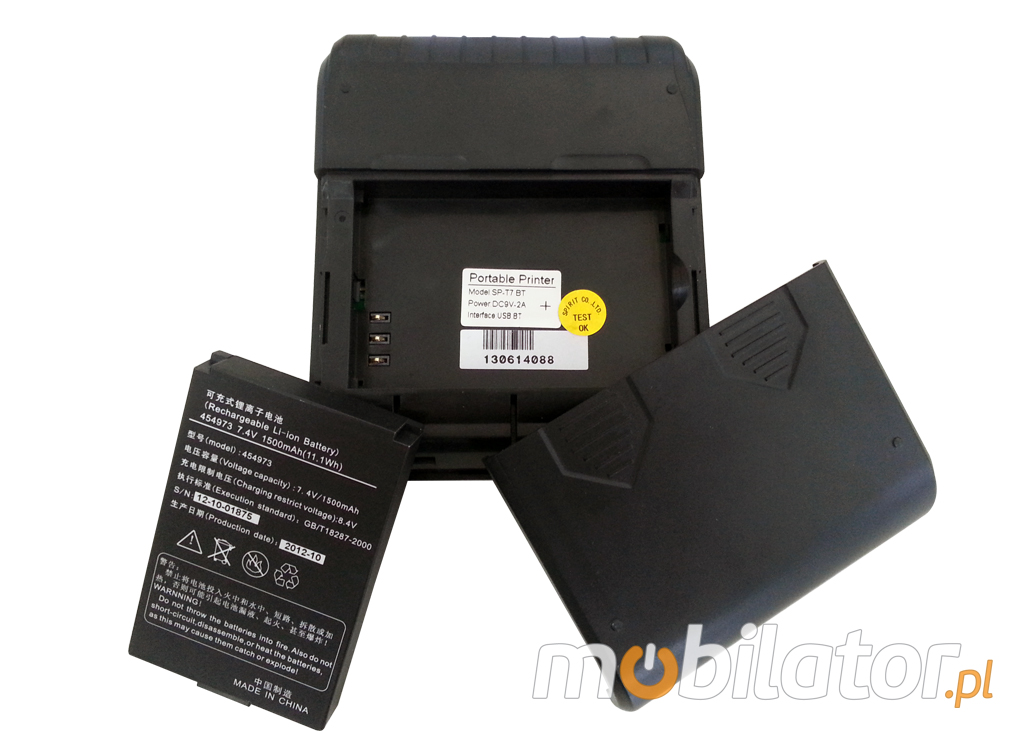

MobiPRINT MP-T7 is equipped with a Li-Ion battery with sufficient capacity - 1500mAh, allowing you to work up to 35 minutes in continuous printing or left in standby mode for 15 days.

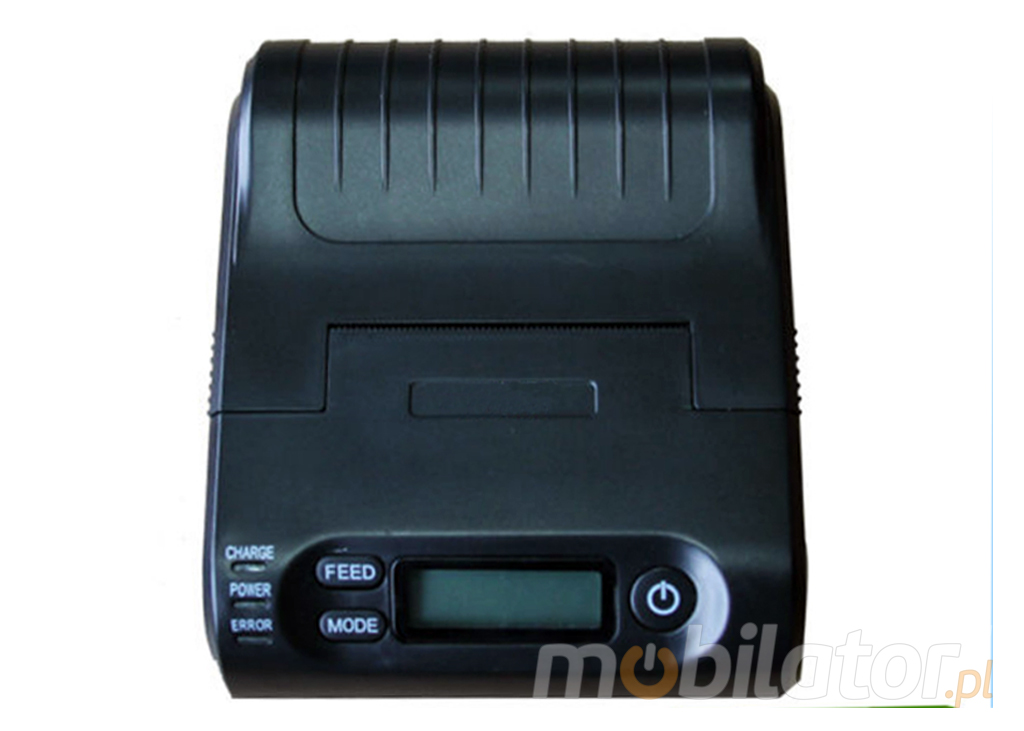

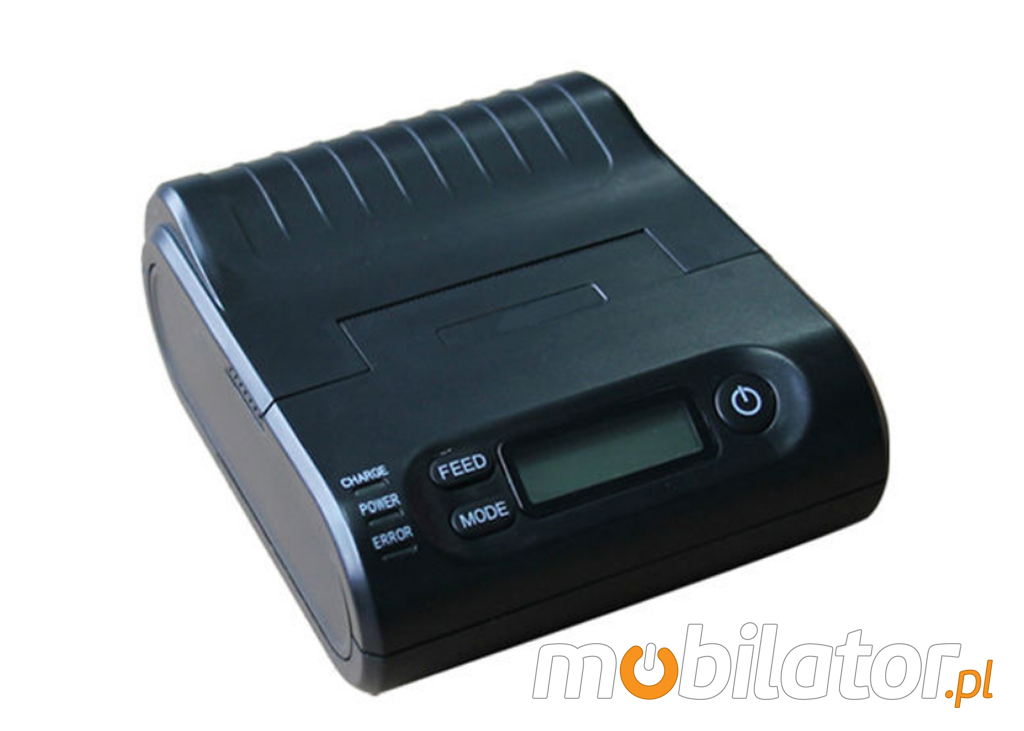

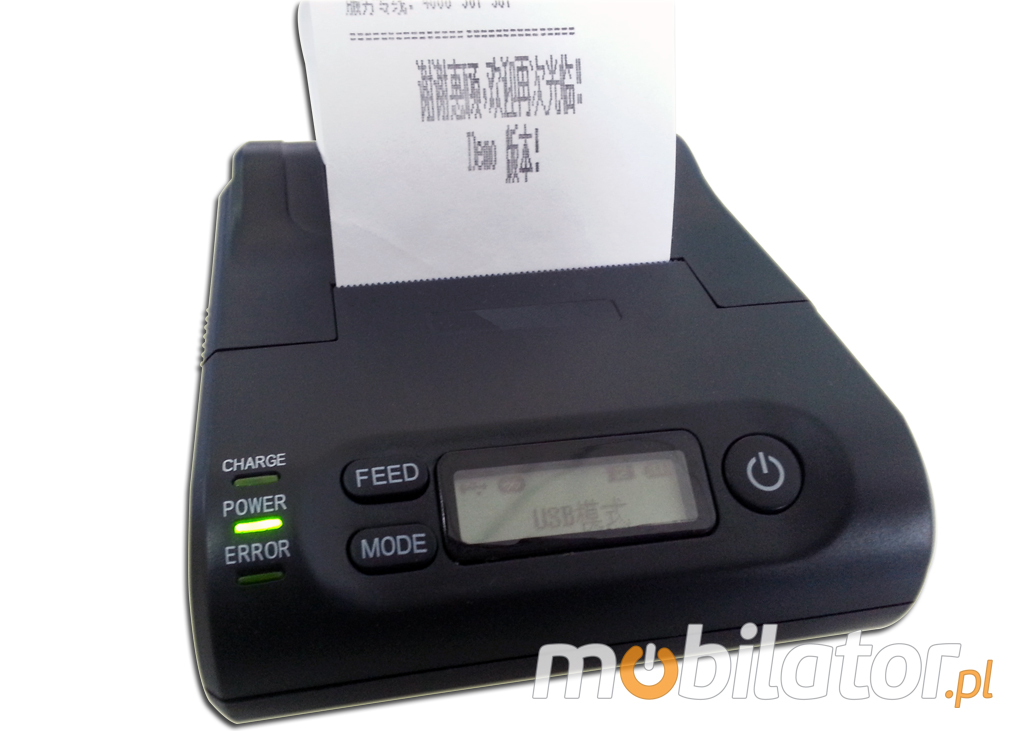

Easy loading paper roll "Drop-In & Print", high quality printing, fast printing (up to 5.5 mm / s), printing on rolls of plain paper with a width of 58mm makes the printer is used in various applications mobilnych. Printer stands out also on the front panel, on which is placed a display and LED indicate battery charge status, current or confirm the connection to the appropriate devices (Smatphone, tablet, PC, etc). This multiplicity of functions makes the printer easy to use and ideal for field work through a Bluetooth module.
The printer is easy to use, among other things due to the use of very high-quality EPSON mechanism for easy paper loading. The printer is operating in a wide range of temperatures and humidity. The small dimensions allow you to use the printer in a confined work area, providing high-quality prints.
|
 Designed to be tailored to different applications, wired (USB) Mobile printer may be compatible with systems such as Android(printer model MP-T7 BT), iOS(printer model MP-T7I), Windows CE, Windows Mobile, Windows XP, Windows 7, Windows 8 Users can send data to the printer in real time with PCs or mobile devices (for PC operating systems such as Windows printer can be connected only via RS232).
For printers deliver MobiPRINT SDK which greatly facilitates the integration of printers. MobiPrint developed a set of tools for developers SDK for Windows CE, Windows Mobile 5.0/6.0, Symbian, Blackberry, Android and iOS.
|
|
Portable (USB) mobile printers by using dotmatrix printing methods are convenient and easy to use and offer a wealth of configuration parameters. Print fonts with different contrasts in depending of used paper roll. Thanks to the wired communication range of connection offer up to 1,2m from the device .
The printer has one basic communication interfaces:interface wired - mini USB port.
|
|
|
|
|
Standards and Tests
Compact, portable printer MobiPrint MP-T7 through rugged and robust construction resistant to dust and water, small size, light weight, and battery-powered is ideal for mobile applications.
|
Operating Temp
|
0-50 °C |
|
Operating Humidity |
10%-80%
|
|
Dust |
IP5x(dust) |
|
Water |
IPx3(stream of water)
|
|
Drop |
Withstands multiple drops of 1,2 m |
go top…  menu…
Resistance IP53
 Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.
g
go top… menu…
The first digit [x]
Protection against solid objects
|
|
The second digits [y]
Protection against liquids
|
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from object not greater than 12mm in diamete |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from water projected from a nozzle |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
|
|
|
 |
7
|
|
Protection against immersion
|
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water
|
|
Application
For MobiPrint MP-T7 manufacturer recommends widely use in situations where it is necessary to the need for rapid and mobile print a receipt or confirmation of the purchased goods in trade, logistics, transport, freight forwarding, industrial sector, financial and public sectors.
|
|
Pharmacy
The printer is ideally suited for use in pharmacies, for printing the valuation of drugs for physicians to print prescriptions, referrals, orders, etc. It can be used as a portable printer (home visits) and to cooperate with the medical laboratory apparatus and measuring devices and control print graphs.
|
|
Trade
The device is used for high speed printing of receipts, confirmations and invoices. Certainly will be applied in all kinds of commercial networks, resteurants, hotels, etc.
|
|
|
|
Magazine
Mini printer allows for quick and wired printing with confirmation of receipt of goods from the warehouse.
|
|
Logistics and transport
Little Printer will find all kinds of application also in transport.
|
|
|
.jpg) Move the printer allows you to send her the necessary data from your computer to print. We offer the highest quality devices work flawlessly even in harsh industrial environments.
MobiPrint MP-T7 BT
|
Print
|
Printing Method: Dot Matrix
Printing Speed: 5.5mm/s
Resolution:240 dots/line
EffectivePrinting Width: 48mm
|
Character
|
Character Set: ASCII, GB18030 (Chinese), BIG5
Print Font: Codepage: 7*9,
Chinese: 16x16; 12*12
Character per Line: 40
|
Paper Spec
|
Paper Type: Plain paper
Paper Width: 57.5± 0.5mm
Paper Roll Diameter:40mm(max.)
Roll Core Inner Diameter: 13 m m(min.)
Paper Thickness: 0.06~0.08mm
|
Paper Supply Method
|
Semi-auto paper loading
|
Reliability
|
MCFB: 1 million lines
TPH: 1.5 million lines
|
|
Emulation |
ESC/POS |
|
Sensor |
Paper End Sensor |
|
Interface |
USB / Bluetooth
|
|
Power Supply |
DC 9V/2A |
|
Battery |
Battery Power: 1500 mAh, 7.4V
Type: Li-ion
Battery Charge: 35m continuous printing
|
|
Physical |
Printer Dimension: 103 mm x 99 mm x 46 mm
Weight: 516g
Color: black
|
|
IP Resistance |
IP53
|
|
Accessories |
Battery,Charger USB Cable,CD Driver,Leather Case and Paper-roll
Option: vehicle charger
|
|
Barcode |
1D: EAN-13, EAN-8, UPC-A, UPC-E, CODE39, CODE93, CODE128, CODABAR, INTERLEAVED 25 |
|
more photos in "Gallery"...
specification of this version is available in the "Specifications"...
|
|
|
Compare all versions
| Other: |
|
| Printing Method: |
Dot Matrix |
| Printing Speed: |
5.5mm/s |
| Resolution: |
240 dots/line |
| Effective Printing Width: |
48mm |
| Character Set: |
ASCII, GB18030 (Chinese), BIG5 |
| Print Font: |
Codepage: 7x9, Chinese: 16x16; 12x12 |
| Character per Line: |
40 |
| Paper Type: |
Plain paper |
| Paper Width: |
57.5± 0.5mm |
| Paper Roll Diameter: |
40mm (max.) |
| Roll Core Inner Diameter: |
13mm (min.) |
| Paper Thickness: |
0.06~0.08mm |
| Ribbon Cassette: |
ERC09 |
| Paper Supply Method: |
Semi-auto paper loading |
| Printer Mechanism: |
EPSON Brand |
| MCBF (Mean Cycle Between Failure): |
1 million lines |
| TPH: |
1.5 million lines |
| Smart Card: |
- |
| MSR: |
- |
| Barcode: |
1D: EAN-13, EAN-8, UPC-A, UPC-E, CODE39, CODE93, CODE128, CODABAR, INTERLEAVED 25 |
| Emulation: |
ESC/POS |
| Sensor: |
Paper End Sensor |
| Interface: |
USB |
| Button: |
Power, Feed, Mode |
| Indicator: |
Power, Feed, Mode |
| LCD: |
Yes |
| Display Content: |
Yes |
| Memory: |
Flash: 512kb; RAM: 128kb |
| Receive Buffer Size: |
32K |
| Multi-languages: |
46 codepages |
| Supported System - Drivers: |
IWindows 98 / ME / 2000 / NT / XP / 2003 Server / Vista / Win7 / Win8 / Linux |
| Supported System - SDK: |
Windows CE / Windows Mobile 5.0/6.0 / Symbian / Blackberry / Android / iOS |
| Working on the cable - Systems: |
IWindows 98 / ME / 2000 / NT / XP / 2003 Server / Vista / Win7 / Win8 |
| Working wireless - Systems: |
- |
| Setup Software: |
support set bitmap download, baud rate, font, speed, density, password, black mark, Bluetooth etc. |
| Power Supply (Adapter): |
DC9V/2A |
| Battery Power: |
7.4V,1.5A rechargeable Li-ion battery |
| Battery Duration: |
35m continuous printing |
| Charge Time: |
less than 3 hours |
| Battery Duration: |
360 hours |
| Auto Cutter: |
- |
| Weight: |
516g |
| Printer Dimension: |
103 mm x 99 mm x 46 mm |
| Color: |
Black |
| Operating Temp: |
0-50 °C |
| Storage Temp: |
-20-60°C |
| Operating Humidity: |
10%-80% |
| Storage Humidity: |
10%-90% |
| Accessories: |
Battery,Charger USB Cable,CD Driver,Leather Case and Paper-roll Option: vehicle charger |
| Resistance IP: |
IP53 |
