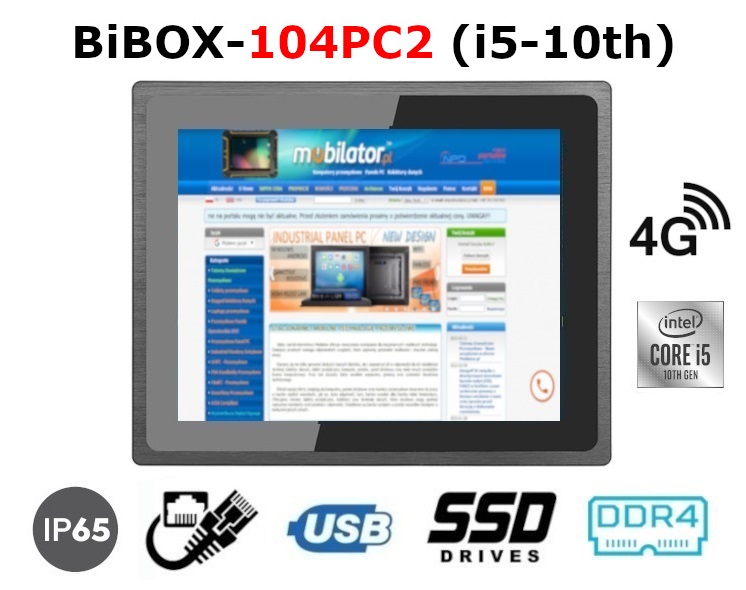

BiBOX-104PC2 (i5-10th) v.4 - Rugged industrial panel computer (water and dust resistance) with 512 GB SSD, 16GB RAM and 4G, 2xLAN, 4xUSB technology

BiBOX-104PC2 (i5-10th) v.4 - Rugged industrial panel computer (water and dust resistance) with 512 GB SSD, 16GB RAM and 4G, 2xLAN, 4xUSB technology

Data update: 2024-11-04

guarantee 1 year

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
14 - 20 workdays

Product Configurator

CURRENT PRICE
984.91
Net
1211.45
Gross



Compare all versions

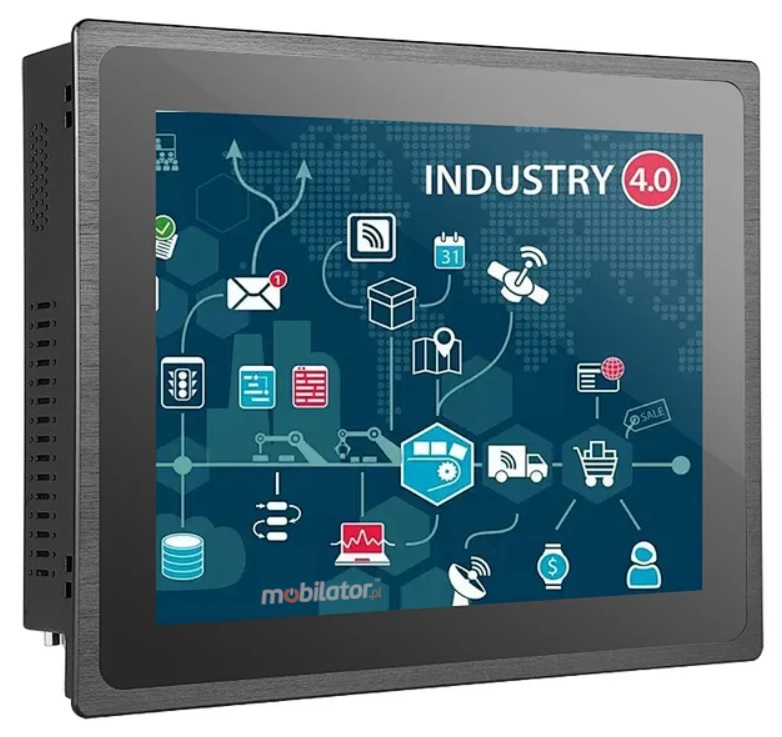

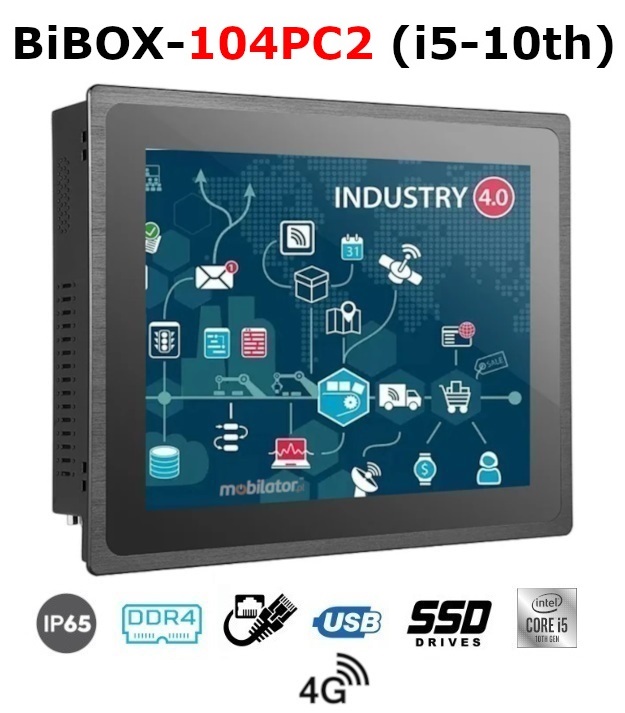

BiBOX-104PC2 (i5-10th) 2xLAN - Industrial PanelPC with modern i5-10210U processor with 4G module











Industrial PC panels are integrated devices consisting of a PC computer and a touch monitor. Due to their design, they can work even under severe conditions prevailing in industrial environments, such as high humidity, high dustiness, contact with water or very low or high temperatures. These panels are characterized by high efficiency and stability of operation in all conditions.






Efficient cooling
The housing with notches used in the panel ensures good air exchange inside the device
Quick start
A modern SSD drive will increase the speed of applications and programs and ensure quiet computer operation.
Efficient
Powerful Intel Core i5-10210U processor
improvesthe&device's
performance.
Bright Screen
The display with 350 nits brightness makes the picture much more vivid and better readable when used outside in the sun.
Wireless network
The panel can be connected to nearby wireless networks by equipping it with an optional Wi-Fi module.
Capacitive screen

The capacitive screen allows precise handling and gentle on-screen movement.

up… do góry   menu… menu



Specifications and parameters








Performance
Processor

Intel® Core i5-10210U (i5-10th)

Quad Core, 4 x 1.60 GHz, Turbo 4.20 GHz

Graphics card Integrated HD Graphics
Operating system Support for Windows 7/8/10, Linux, Ubantu
RAM 16 GB DDR4
Drive 512 GB SSD
Display
Screen 10.4" (1024x768)
Touch screen 10 Points Projected Capacitive Touch Screen
Brightness 350 nits
Screen ratio 4:3
Response time 15ms
Contrast ratio 800:1
View angle 80°/80°/70°/75° (R/L/U/D)
Interfaces
Communication  4G | WiFi + Bluetooth*
Connectors

2x LAN | 4x USB | 1x VGA | 1x EAR

2x RS232 | 1x HDMI  | DC 12V

Other
Software license WINDOWS 10 PRO license*
Dimensions 264.4 x 211.8 x 48.6 mm
Weight 5 kg
Casing material Metal


* Optional equipment, available only in specific versions of the device.








The industrial PC panel uses an efficient and energy-saving Intel® Core i5-10210U (i5-10th). In its interior there are four cooperating cores enabling more efficient processing of many tasks at the same time. Shared cache memory in which a multi-level hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory. Improved graphics card technology allows you to enjoy movies at full resolution and HD quality.

BiBOX-104PC2 (i5-10th) 2xLAN - Rugged touch screen with HD quality and IP65 durability



up… do góry   menu… menu

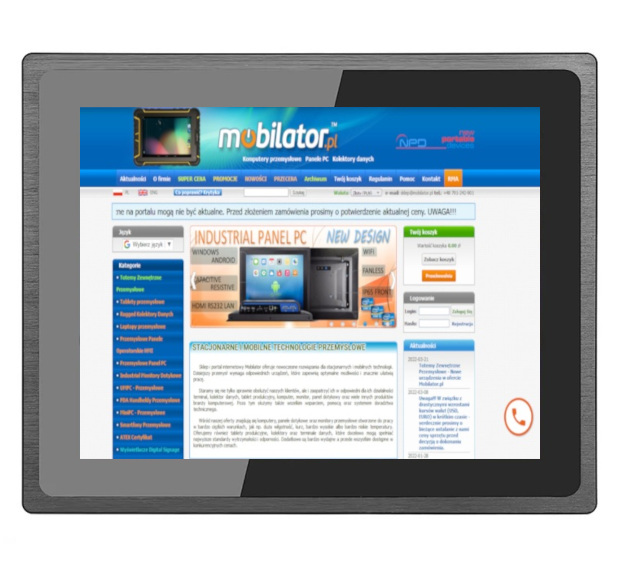

Display and touch





Amplified, metal industrial computer BiBOX-104PC2 (i5-10th) has a water-resistant and scratch-proof 10.4" screen. 1024x768 resolution offers good image quality, and high brightness of the screen 350 nits provides better color saturation and contrast and allows significantly improved visibility even in the case of incident. The display of the resistive type provides the user with a clear image and ease of use by touch.






capacitive Screen







The capacitive screen consists of a glass coating that is covered with an insulator. Touching the surface of the touch pad with your finger causes a disturbance in the flow of electric current. This display provides very good visibility under industrial conditions. The panel can be operated with one finger or conductive material (special glove). This type of screen provides support for multi-touch technology, which is a clear convenience during work. This is due to the fact that a large number of electrodes allows accurate detection of many points of touch. You do not have to use a stronger pressure for capacitive screens, because you only need to lightly brush the screen with your finger to make the device react.



BiBOX-104PC2 (i5-10th) 2xLAN - Modern capacitive touch screen

up… do góry   menu… menu



Resistance and protection








Quality of materials

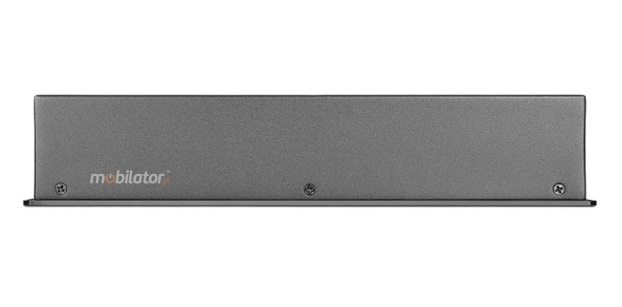

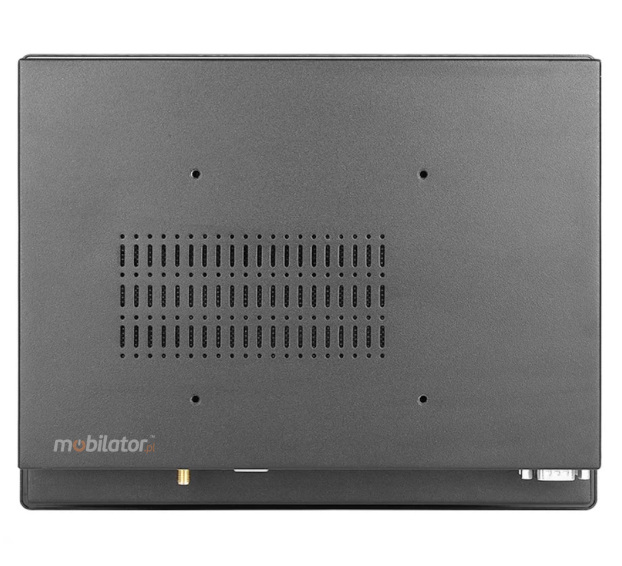

The panel PC has a good-quality metal casing. It is an important element of the cooling system thanks to specially designed cutouts that facilitate air circulation inside the housing. The overall design of the device is focused on simplicity and functionality, appreciated among professionals, as an accessory the panel can be equipped with passive cooling.

BiBOX-104PC2 (i5-10th) 2xLAN - housing made of metal, efficient cooling, i5-10210U processor







EXtreme temperatures






PanelPC BiBOX-104PC2 (i5-10th) is designed for continuous operation both at very low and high temperatures in the range from -10°C to 60°C. If the device is turned off, it can handle temperatures ranging from -20°C to 70°C. In addition, the durable PanelPC is perfect for rooms with increased humidity, ensuring proper functioning even in the case of 95% relative air humidity. It is also possible to purchase additional fanless cooling.





Work temp. -10°C to 60°C
Storage temp. -20°C to 70°C
Humidity 5% - 95% Non-Condensing

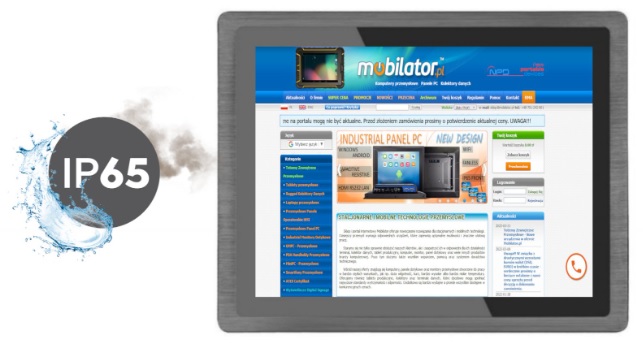

BiBOX-104PC2 (i5-10th) 2xLAN - Waterproof, dustproof, IP65 protection standard





IP65 Protection






IP65 front case. The IP standard defines the degree of protection provided by the enclosure of an electrical device against such factors as: access to dangerous parts inside the enclosure, penetration of foreign matter, splashing or immersion.



IP6X No ingress of dust, complete protection against contact. A vacuum must be applied. Test duration of up to 8 hours based on air flow.
IPX5 Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.

up… do góry   menu… menu



Communication and connectors








WIreless Wi-Fi network (optional)







The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. The shockproof industrial panel BiBOX-104PC2 (i5-10th) has been equipped with standards - 802.11n, which allows transfer of files at a dizzying speed of up to 150 Mb/s.







BLUETOOTH COMMUNICATION (optional)






Bluetooth enables wireless short-range communication between various electronic devices, such as the keyboard, computer, laptop, palmtop, mobile phone and many others. In the fourth version of this standard, energy consumption was reduced considerably, at the expense of lower transfer costs, and real operating coverage increased.





4g module







4G technology is based on a radio network with fast transmission and the rare occurrence of downtime or transfer errors. The main distinguishing feature of the 4G from its predecessor (3G) is the speed of transfer between devices. The fourth generation network offers 100 Mb / s of mobile internet speed and 25 Mb / s of packet transfer. Technology enables users, including: extremely fast radio networks, Internet access, personalized telephony, and access to modern media and games services.

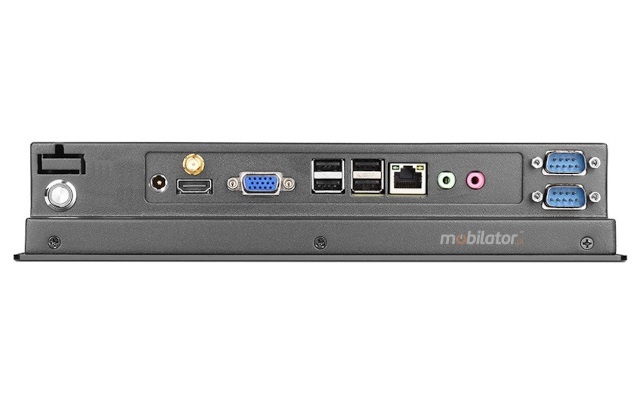

Connectors and interfaces







BiBOX-104PC2 (i5-10th) - connectors 2xLAN, 4xUSB, 1xHDMI, 2xRS232, communication

* Illustrative image, Connectors: 2x LAN | 4x USB | 1x VGA | 1x EAR 2x RS232 | 1x HDMI  | DC 12V

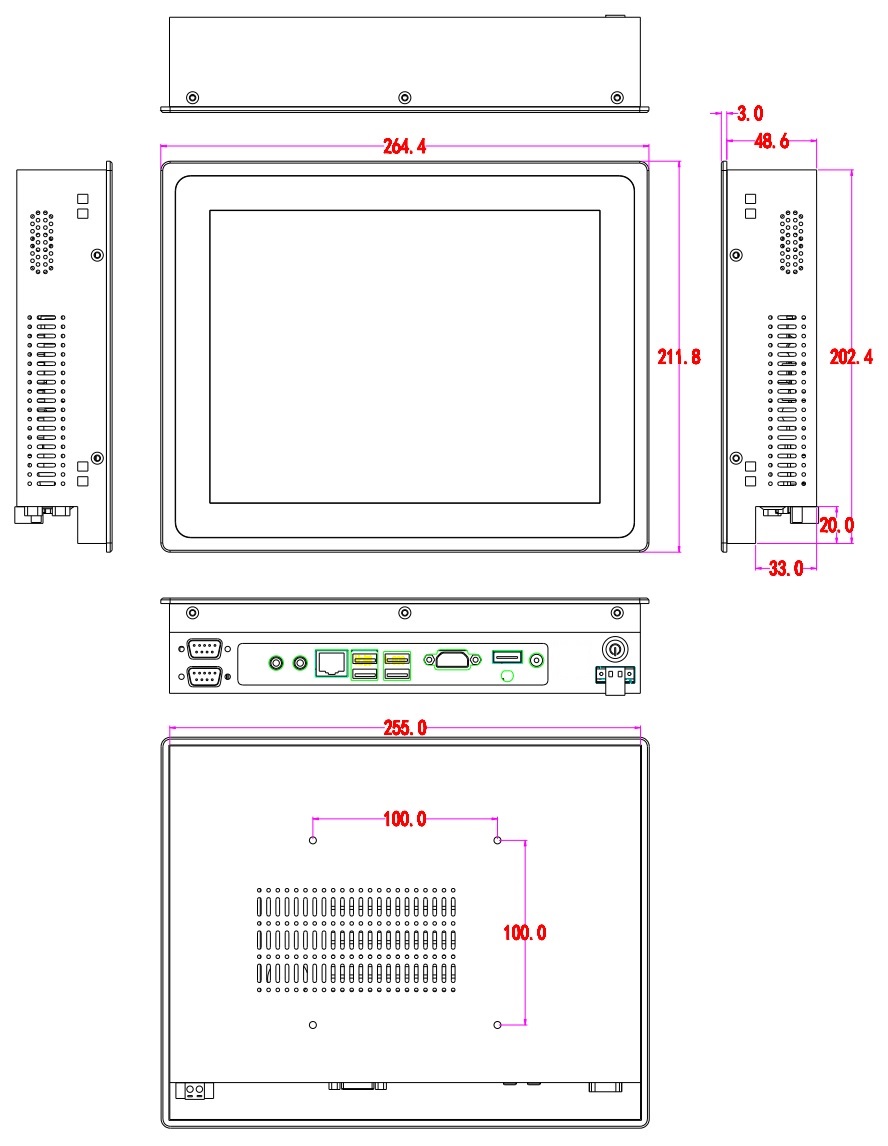

Dimensions










BiBOX-104PC2 (i5-10th) 2xLAN - dimensions Modern, solidly made PanelPC, i5-10210U processor









Application






BiBOX-104PC2 (i5-10th) 2xLAN - 10 inch resistant panel ideal for industry, e.g. for work in a cold room. 4G module







trade and services






PC Panel is widely used primarily in the commercial industry, for example for controlling the sales system, displaying product information on monitors or advertising on large screens. With the VESA holder in the housing there are many possibilities for its assembly, eg in stores (at the cash register) in factory halls, in a car delivering products, etc. It will certainly be used in all types of retail chains.






warehouse and management






The industrial panel computer thanks to the RS232 interface can be used to connect many devices in the warehouse and facilitate their control. And its rugged housing is ideally suited to the harsh conditions prevailing in such rooms. No dust or dirt will prevent him from working, he will work without complaints even in a large dusty and dirty environment.






Transport and motorization






Panel computers can be used in transport by adapting it to work on 12V power supply. Then Panel PC can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. Thanks to the integrated monitor, these panels perform very well in vehicles where mobility and the small size of the device are important.





up… do góry   menu… menu



Available versions







Industrial Panel PC BiBOX-104PC2 (i5-10th) is offered in several versions adapted to different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.

 v.1v.2v.3v.4v.5v.6v.7
WiFi + BT
4G
4 GB RAM
8 GB RAM
16 GB RAM
64 GB SSD
128 GB SSD
256 GB SSD
512 GB SSD
Licencja WINDOWS 10 PRO



Compare all versions
