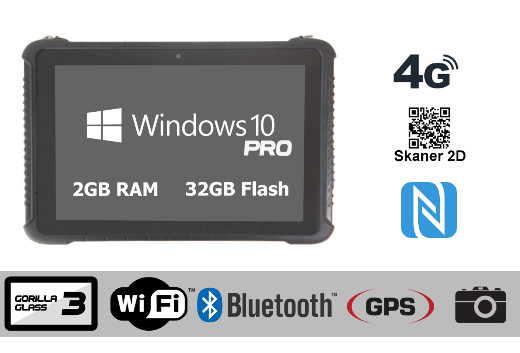

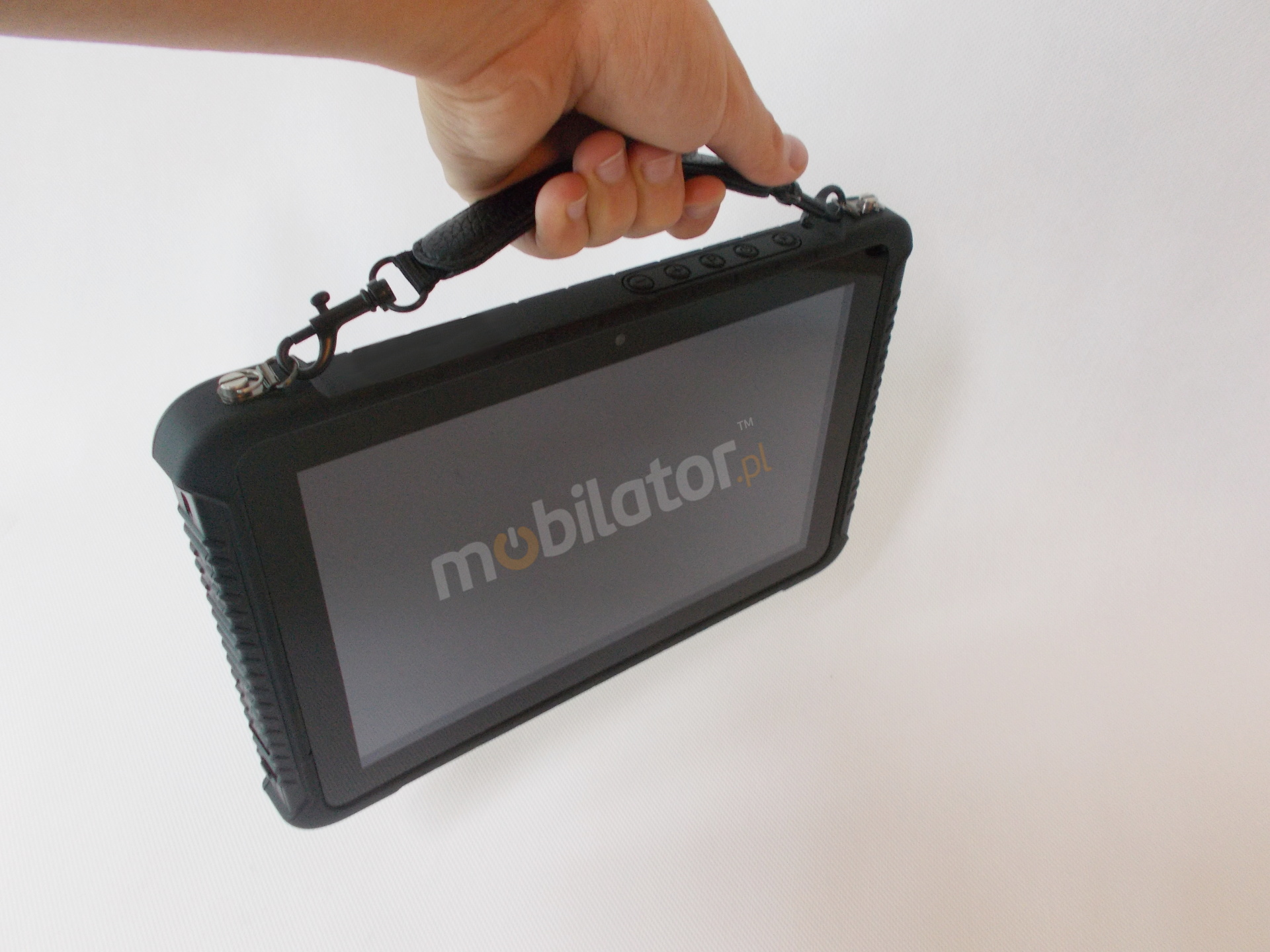

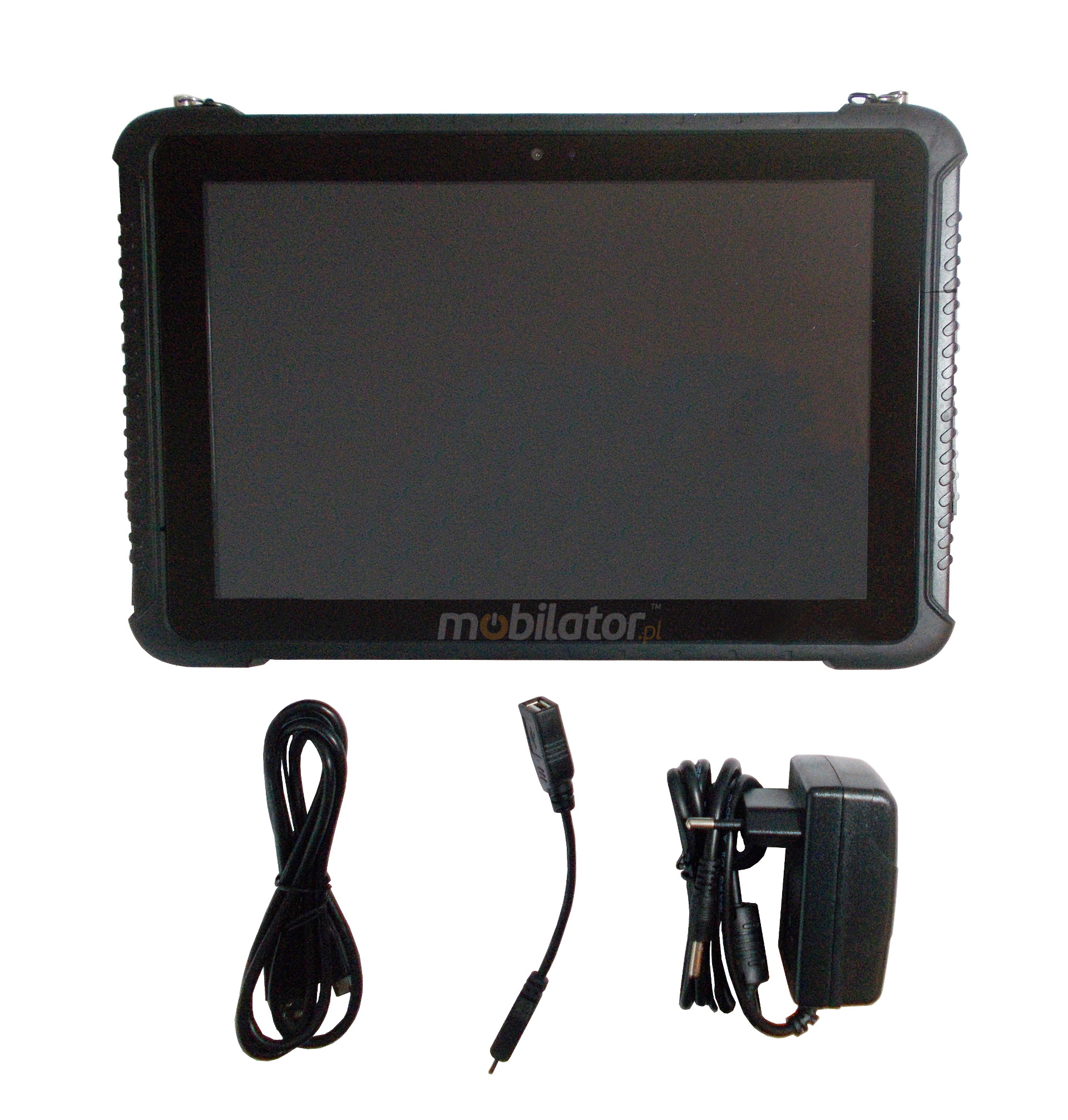

Industrial tablet Emdoor I16H, its 10 inch tablet adapted to work in harsh environment. Device passed specialist tests and obtain high norms of durable and resistant like IP65, MIL-STD-810G and drop up to 1.0m
.jpg)
To produce rugged industrial tablet used high quality materials. Inside of device mounted professional modules and components makes that device is not only durable but also very efficient.
|
Specification of device is on the bottom of this description. To find more details click on "Tecnical data" overlap.
|
 |

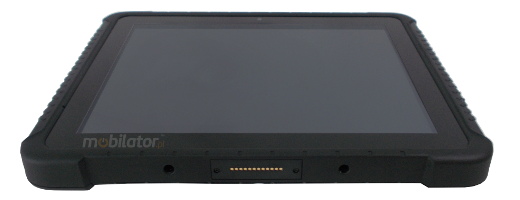

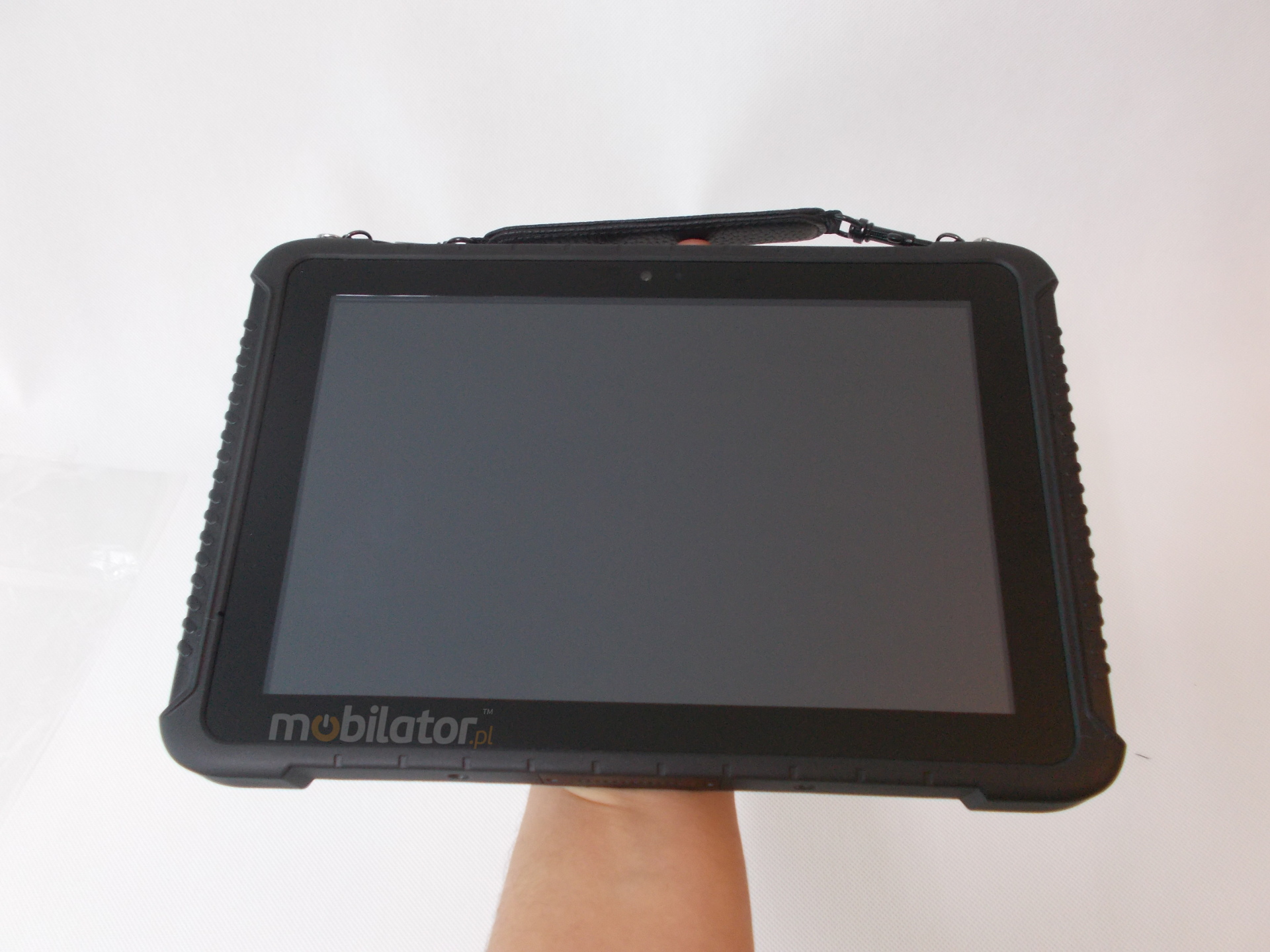

10 inch IPS display with resolution 1280 x 800 pixels show high quality image, making possible to comfortable work for eyes. To ensure better protection, screen is secure by hardened glass pane GorillaGlass3. Thanks this solution display becomes resistant against scratch and tension.
.jpg)

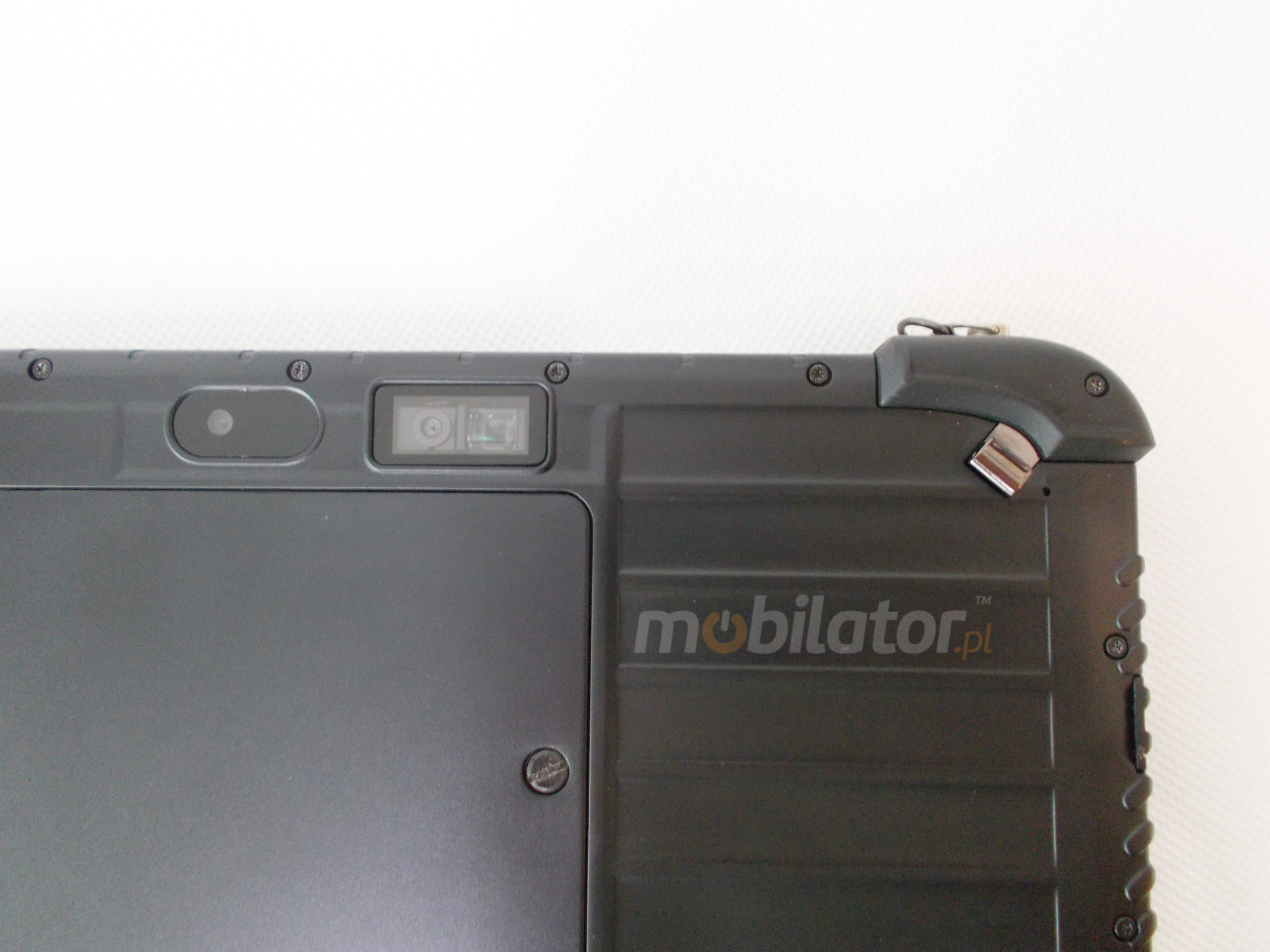

Barcode scanner, its one of the basic industrial modules increase effinency of work i places where barcodes are using. Thanks technology development modern readers are more efficent and precise. In waterproof industrial Emdoor I16H tablet can be mount one of the top barcode scanner, for example Honeywell N3680.
1D Motorola SE655(optional)
|
Type of scanner
|
1D
|
Type of matrix
|
CCD
|
Type of reading barcodes
|
1D
|
Support barcodes
|
Majority 1D codes
|
2D Honeywell N3680
|
|
Type of scanner |
2D
|
|
Type of matrix |
CMOS
|
|
Type of reading barcodes |
1D and 2D
|
Support barcodes |
Interleaved 2 of 5, Aztec Code, Korea Post, China Post (Hong Kong 2 of 5), Matrix 2 of 5 Chinese Sensible (Han Xin) Code, MaxiCode Codabar, MicroPDF417, Codablock A, MSI Codablock F, NEC 2 of 5, Code 11, Postal Codes - 2D, Code 128 Postal Codes - Linear, Code 32 Pharmaceutical (PARAF), PDF417, Code 39, GS1 DataBar Omnidirectional Code 93, QR Code, Data Matrix Straight 2 of 5 IATA (two-bar start/stop) EAN/JAN-13, Straight 2 of 5 Industrial (three-bar start/stop), EAN/JAN-8, TCIF Linked Code 39 (TLC39), GS1 Composite Codes, UPC-A, GS1 DataBar Expanded, UPC-A, GS1 DataBar Limited UPC-A/EAN-13 with Extended Coupon Code, GS1 DataBar Omnidirectional, UPC-E0, GS1 Emulation, UPC-E1, GS1-128
|
.jpg)
NFC (Near Field Communication), its a wireless communication standard that allows to data transfers up to several centimeters. This technology is slowly becoming a standard and appears in a growing number of devices, expecially mobile.
NFC
|
Reading distance
|
up to 4 cm |
|
Frequency |
13.56 MHz |
Support standards
|
ISO14443 A/B | ISO15693 |
One of the important element which strengthens construction of the shockproof tablet Emdoor I16H is hardened glass GorillaGlass3 providing better protection of display. This solution makes that screen is less susceptible for scratch and tension relative to normal glass.
IP65 norm is granted to devices which pass series of specialist tests exploring their durability for dust and water. IP norm consist of two digitals. First means the level of dust resistance, second to water.
Full specification of IP norms.
The first digit [x]
Protection against solid objects |
|
The second digits [y]
Protection against liquids |
|
No special protection
|
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from object not greater than 12mm in diamete |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from water projected from a nozzle |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
|
|
|
 |
7
|
|
Protection against immersion
|
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water |
MIL-STD-810G its a military rugged rate. During extremal tests, devices pass through endurance tests. Equipment which have this rate are much more durable to environmental factors like temperature, humidity, vibration and drop.
Rugged rate
|
Military standard
|
MIL-STD-810G
|
Operate temperature
|
-20°C -- +60°C |
Storage temperature
|
-30C -- +70°C |
Humidity
|
95%
|
Drop
|
1.0m
|
.jpg)
Dustproof tablet Emdoor I16H might be equipped with a number of wired and wireless data transferable comonents and accurate location. In standard device has WiFi and Bluetooth for easy data transfer and high accuracy GPS to determine your possition. Additional build-in 3G module(after set SIM card to slot) making possible to wireless connection to Internet.
Available modules
|
|
3G |
WCDMA (900 / 2100 MHz), HSDPA 7.2Mbps, HSUPA 5.76Mbps |
|
4G |
FDD LTE: Band 1/2/3/4/5/7/8/20 |
|
GPS |
GPS, support Beidou |
|
WiFi |
Dual band 802.11 a/b/g/n |
|
Bluetooth |
Bluetooth 4.0 |
LAN adapter
|
Yes
|
Camera
|
Front: 2Mpx, Rear: 5Mpx
|
|
Type of installed modules depends of chosen version of device. Table with all available options is on the bottom of this description.
|
|
.jpg)
Strengthened tablet Emdoor I16H was design with mind to meet the needs of the widest possible audience. Professional parts like processor, high prerformance RAM memory, fast Flash and expanded communication module makes that industrial rugged tablet I16H meet the most demanding tasks.

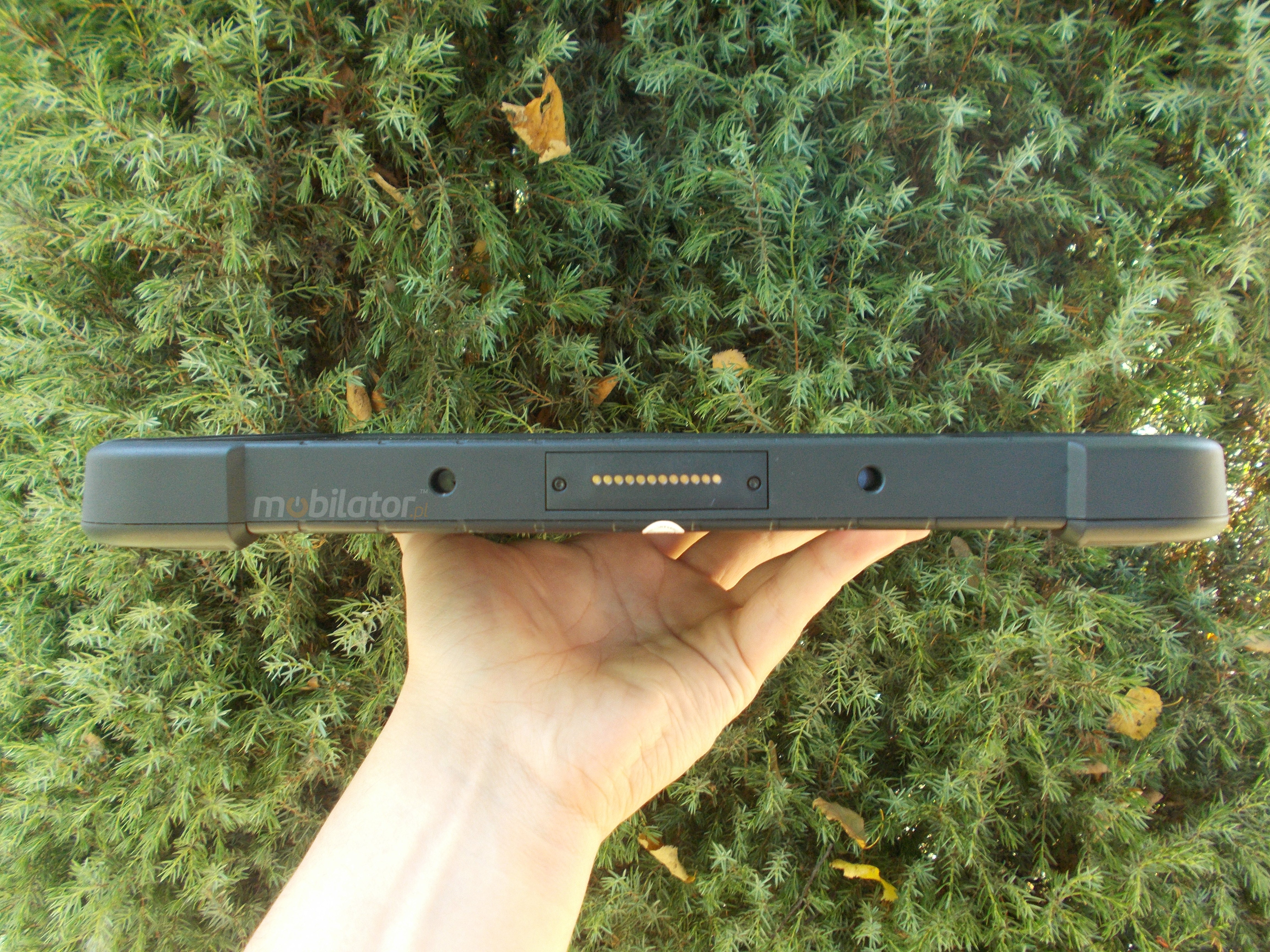

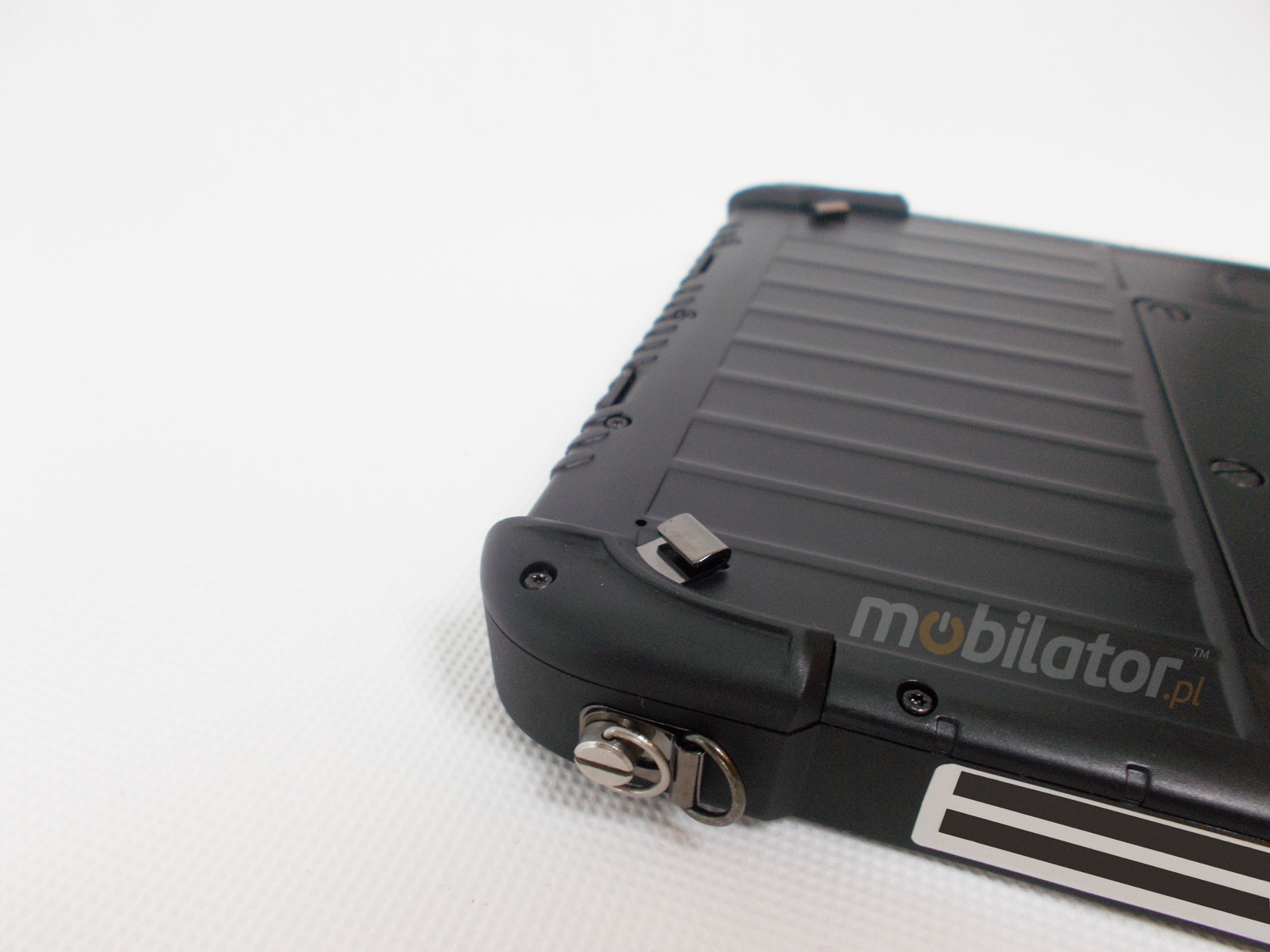

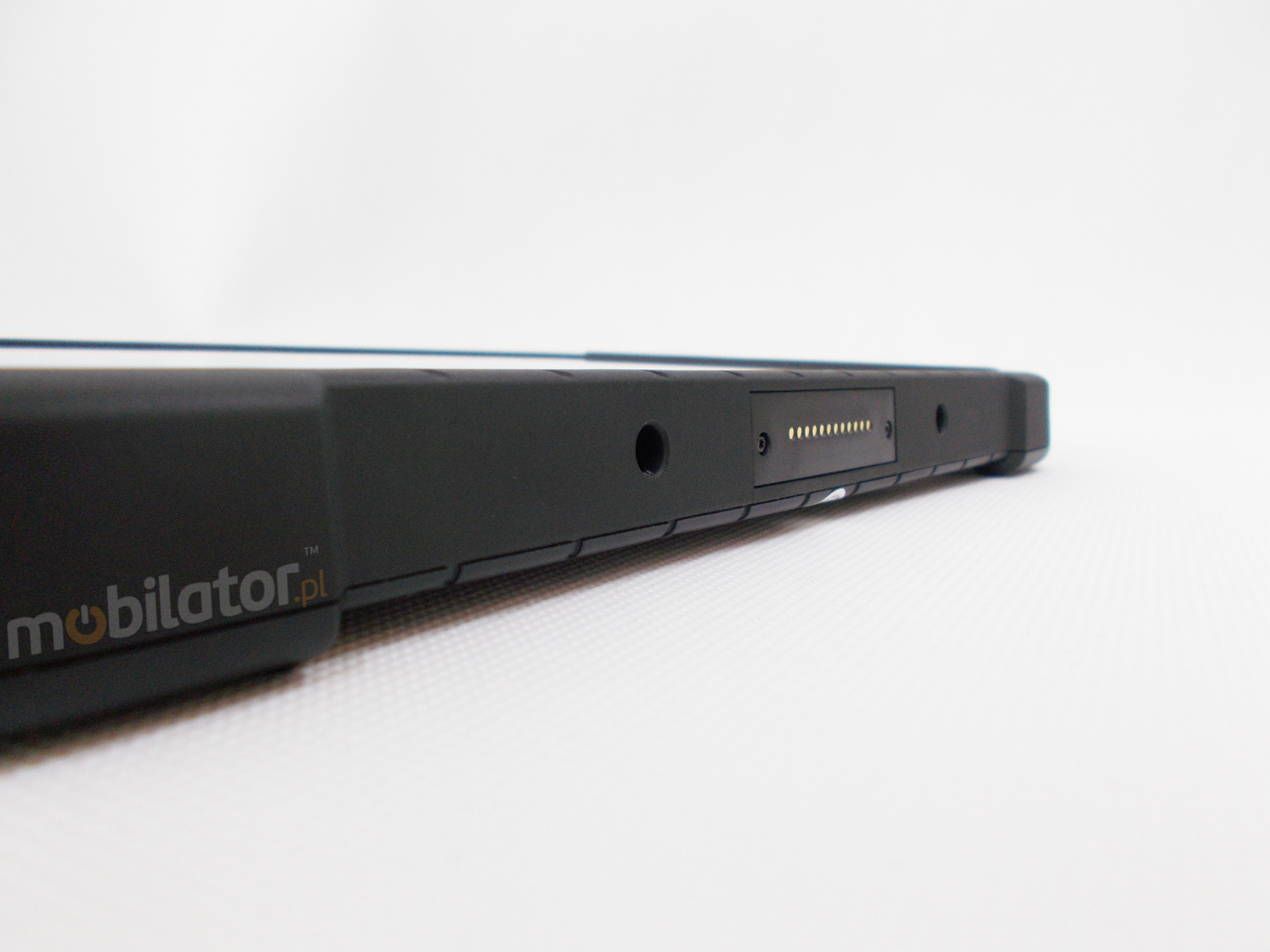

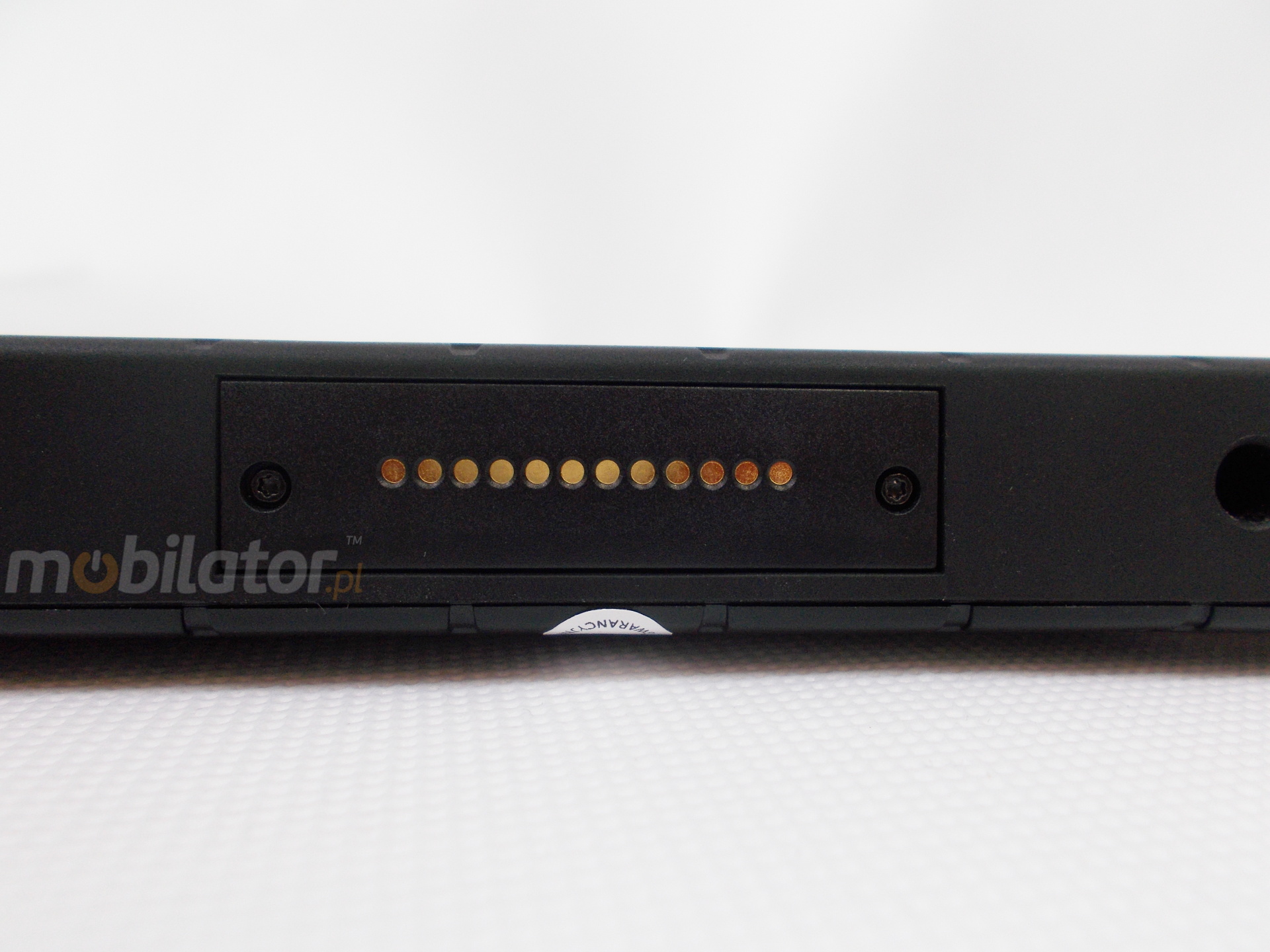

Equipped with additional expansion connectors, docking connector and functional keys makes that utility and mulittasking of device increase. In cooperation with enhanced housing of the Emdoor I16H tablet which provides to high resistant against water, dust and fall whole product become much more attractive.
|
Physical features |
|
Dimensions |
280 x 187 x 22mm
|
|
Weight |
1014g
|
Trade and Services
 Sales representatives often offer more produtcs so its difficult to have all of them with You. In this situation thanks rugged tablet all products, their prices, availability and apperance can be present by mobile vendor.
Architecture
 Hard conditions on the construction site its a nightmare for miost devices. High pollination an other adverse environmental factors make it almost impossible for them to work. This does not apply to the industrial tablet Emdoor I16H, which thanks rugged rates can handle them in extreme conditions.
Industry
It's another area where Emdoor I16H will take full advantage of its potential. High level of humidity, temperature fluctations, water and dust will not interfere with his work. Extremely durable makes that tablet can be use in places with hard conditions, for example in cold room and sawmill.
Warehouse
Efficient and functional data collection device are the basis of all modern warehouses. Installed barcode scanner in Emdoor i16H tablet is one of the best readers used today allowing You to conveniently and quick scan your assortment.
We offer a number of additional enhancement accessories and operating systems for the Emdoor I16H tablet to further enhance iits functionality and comfort of work. Below You find list with all available accessories. Point the mouse at the picture to read short description or click it to move to the full description.
*product does not contain any elements in the kit,
except products marked with star...
Table below presents techical data of this device. Type of installed modules depends of chosen version. Look at table with device's versions on the bootom of description.
More details about acctually chosen version You can find in "Technical data" overlap which is on the top of description.
|
Display |
|
Size and resolution |
10.1 (1280x800) |
|
Type of display |
LCD |
|
Type of touch |
Capacitive (10-point) |
|
Protection |
Gorilla Glass 3
|
|
Screen ratio |
16:10 |
|
Brightness |
280 cd/m2 |
|
Processor |
|
Model |
Intel® Atom™ Processor Z8350 |
|
Timing |
1.33 - 1.92GHz |
|
Cores |
4
|
|
Graphic |
Model
|
Intel HD Graphic
|
|
RAM memory |
|
Capacity |
2GB | 4GB(optional)
|
|
Type of memory |
DDR3L
|
|
Flash memory |
|
Capacity |
32GB | 64GB(optional)
|
|
Type of memory |
EMMC
|
Camera
|
Front
|
2Mpx
|
Rear
|
5Mpx
|
|
Operating system |
Windows
|
Windows 10 with Bing(optional) | Windows 10 Pro(factory)
|
|

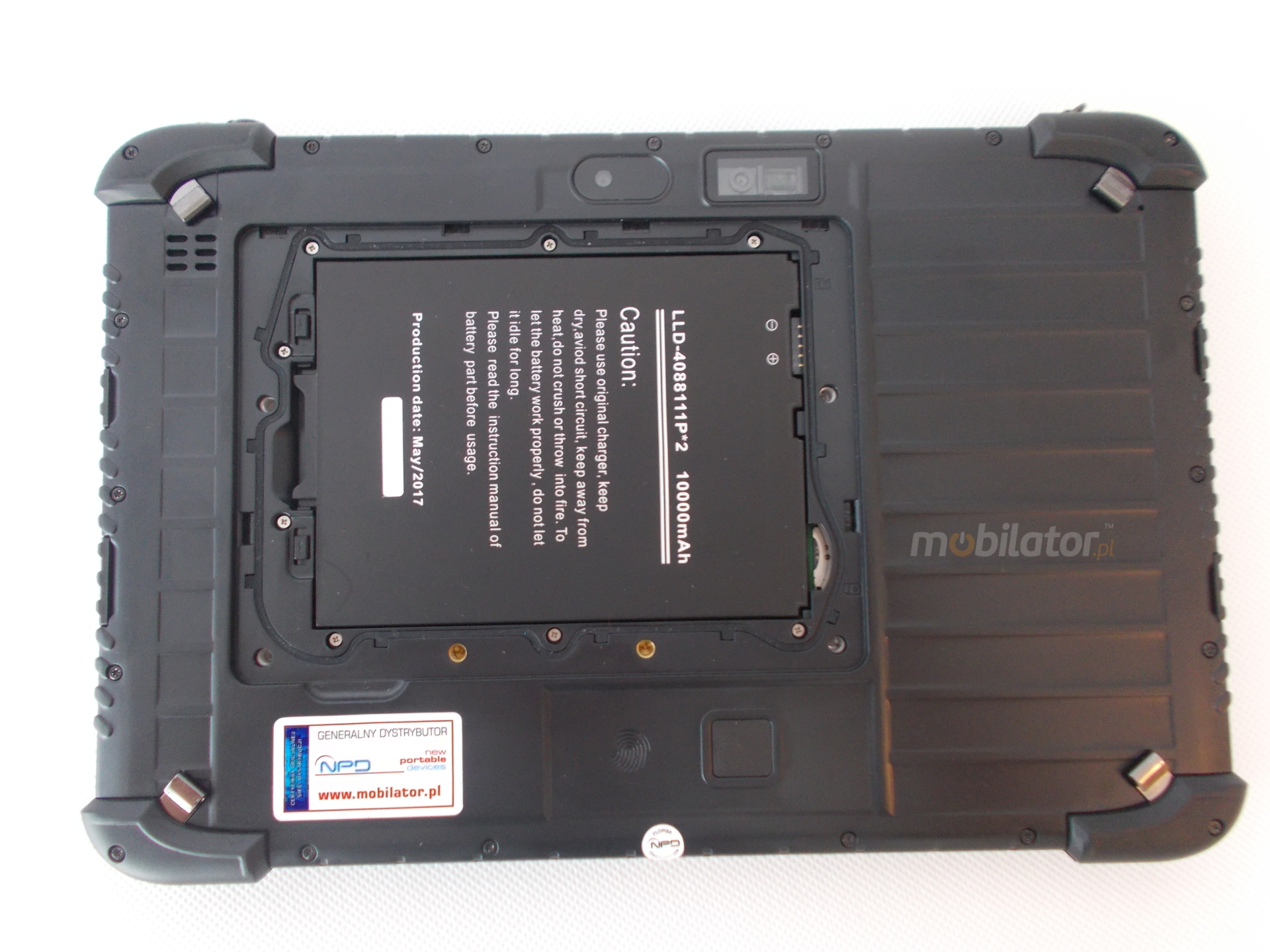

Battery |
|
Capacity |
10000mAh
|
|
Tension |
3.7V
|
|
Type of battery |
Li-Ion
|
|

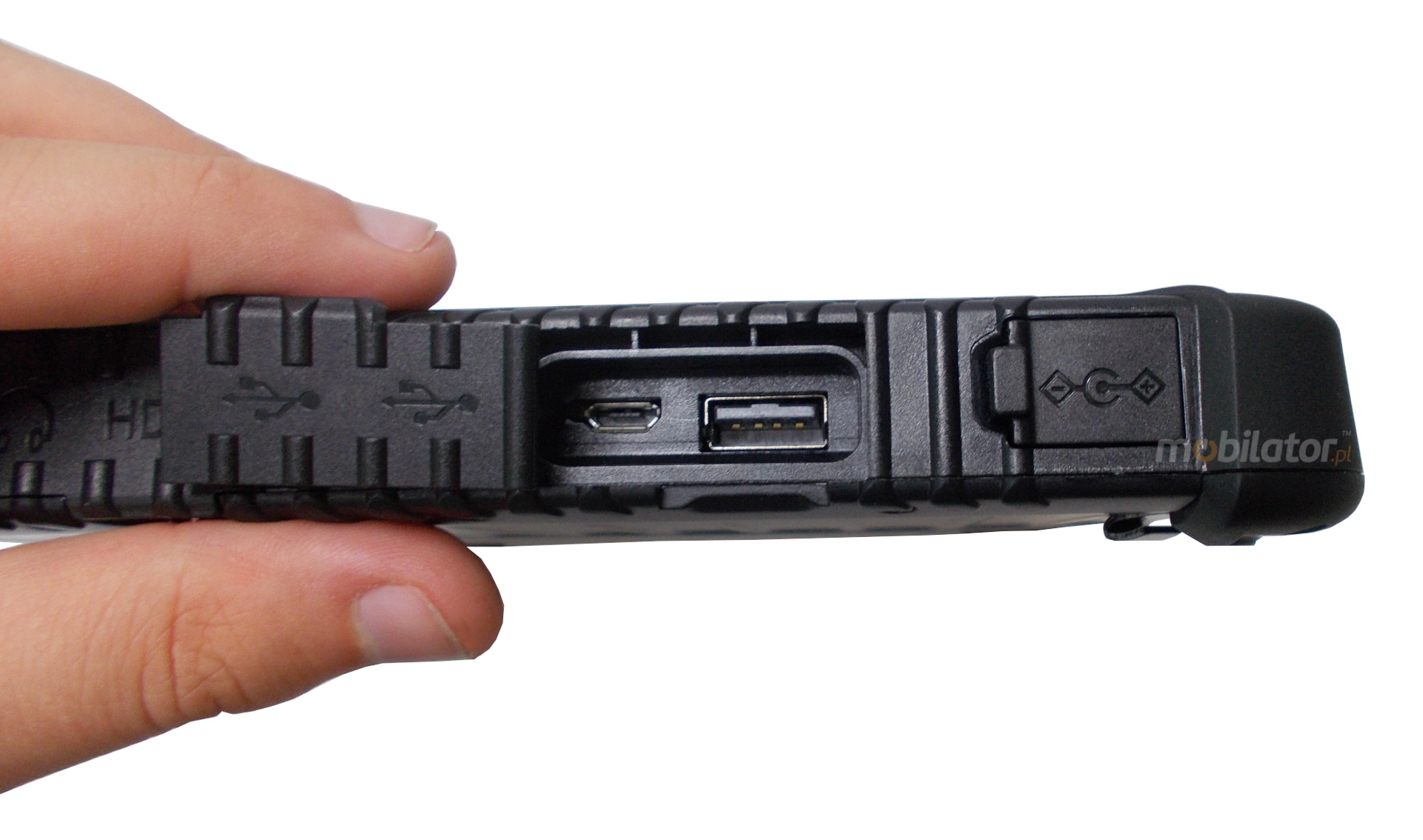

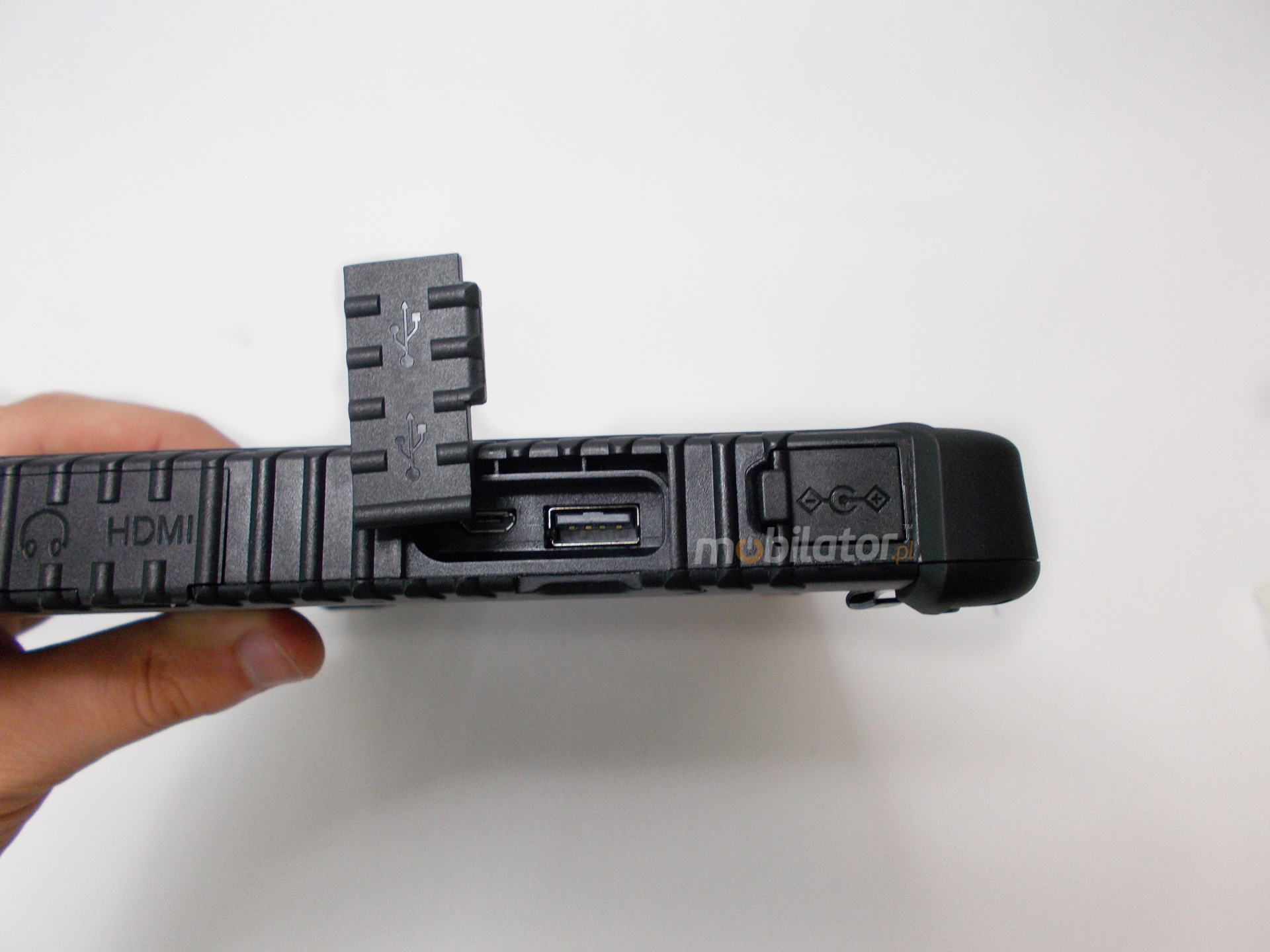

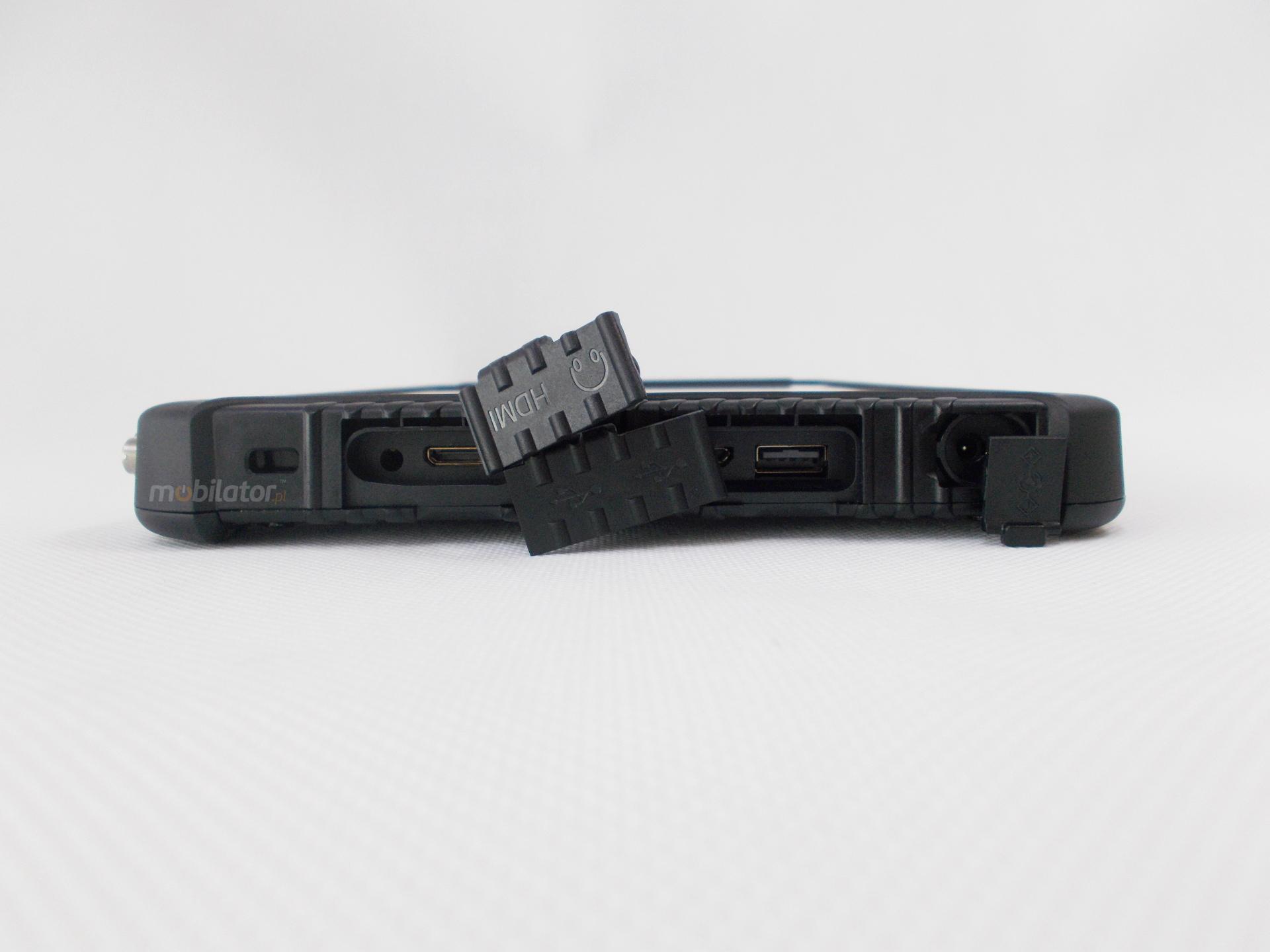

I/O ports |
|
Image |

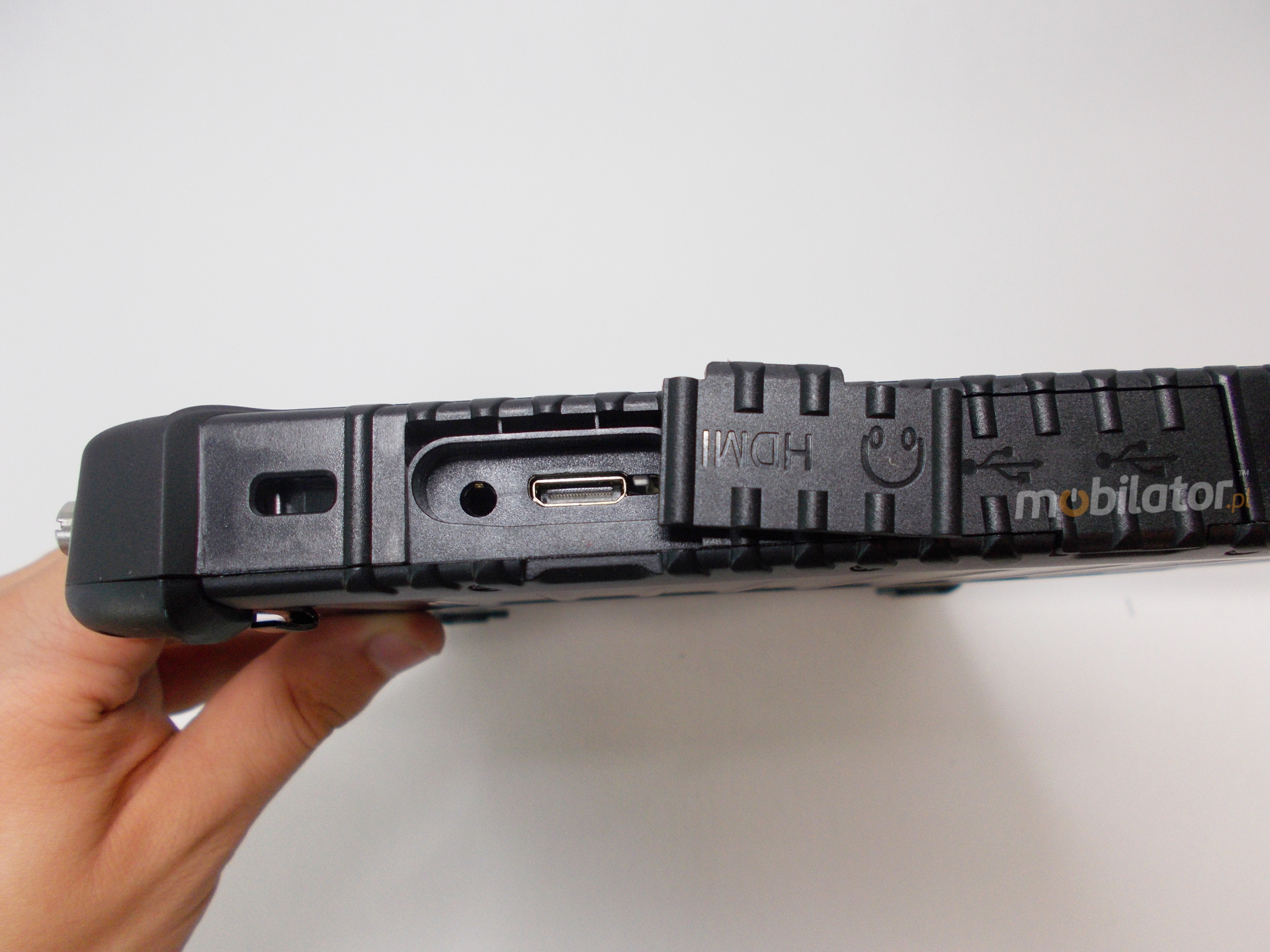

HDMI 1.4a Typu C |
|
Network and communication |

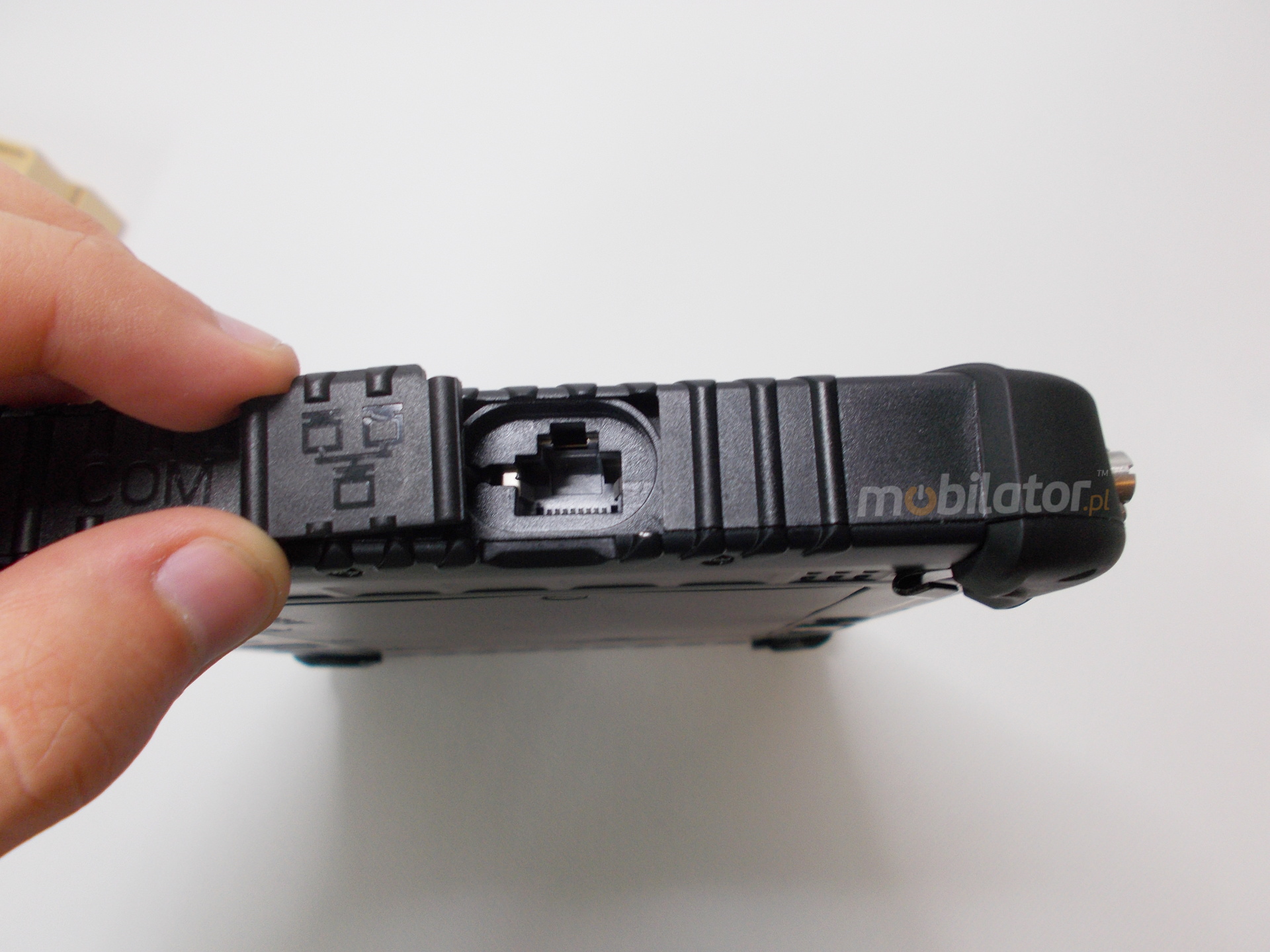

SIM card slot | LAN | WiFi | Bluetooth |
|
Data transfer |

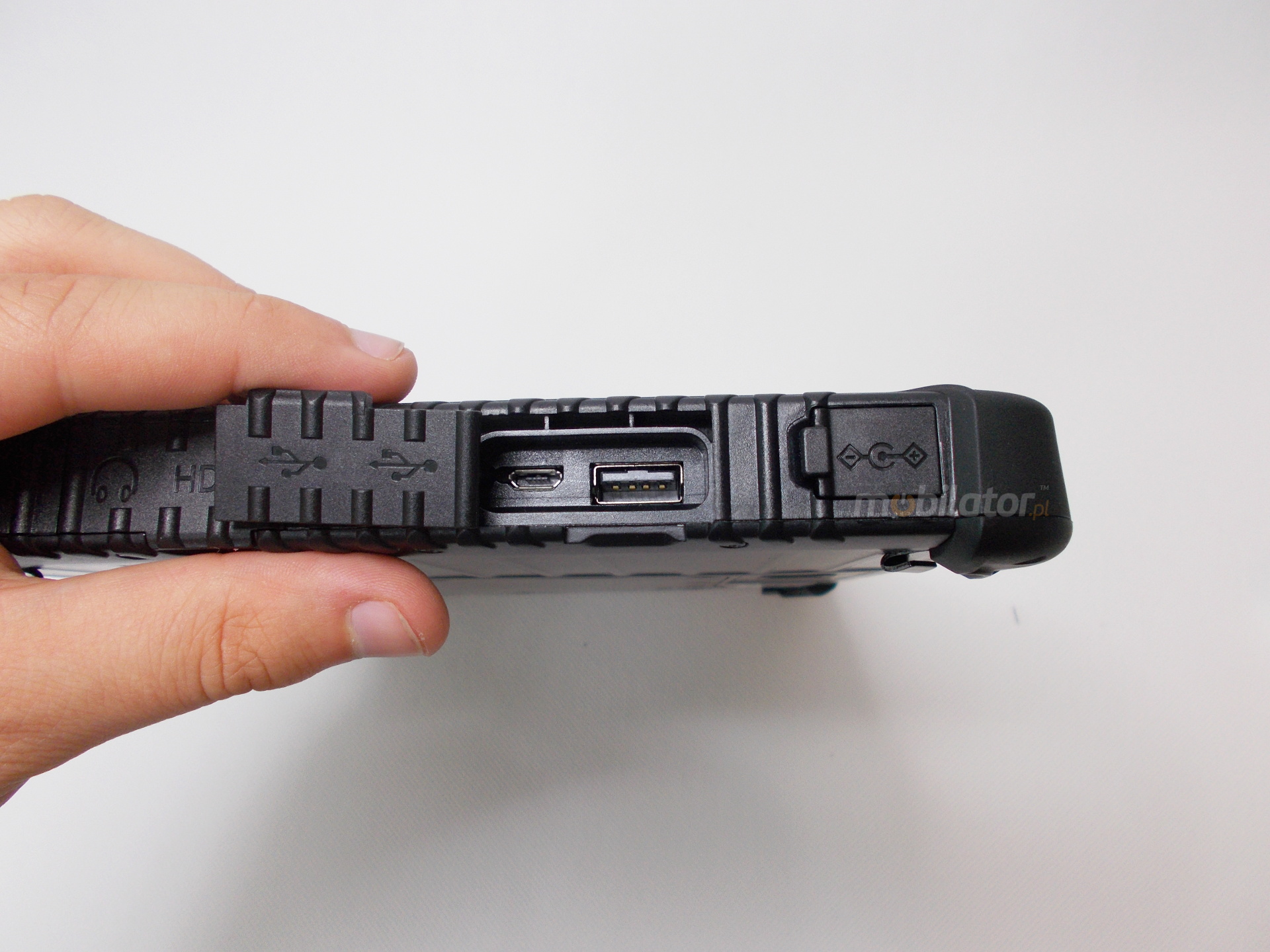

SD card slot | USB 2.0 | MicroUSB |
Audio
|
Microphone | AudioJack | Speaker |
|
Other |

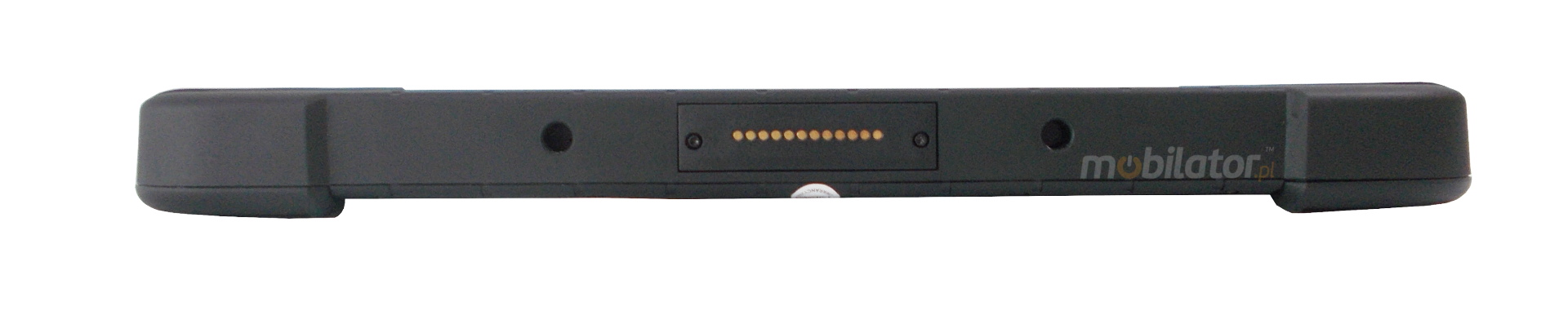

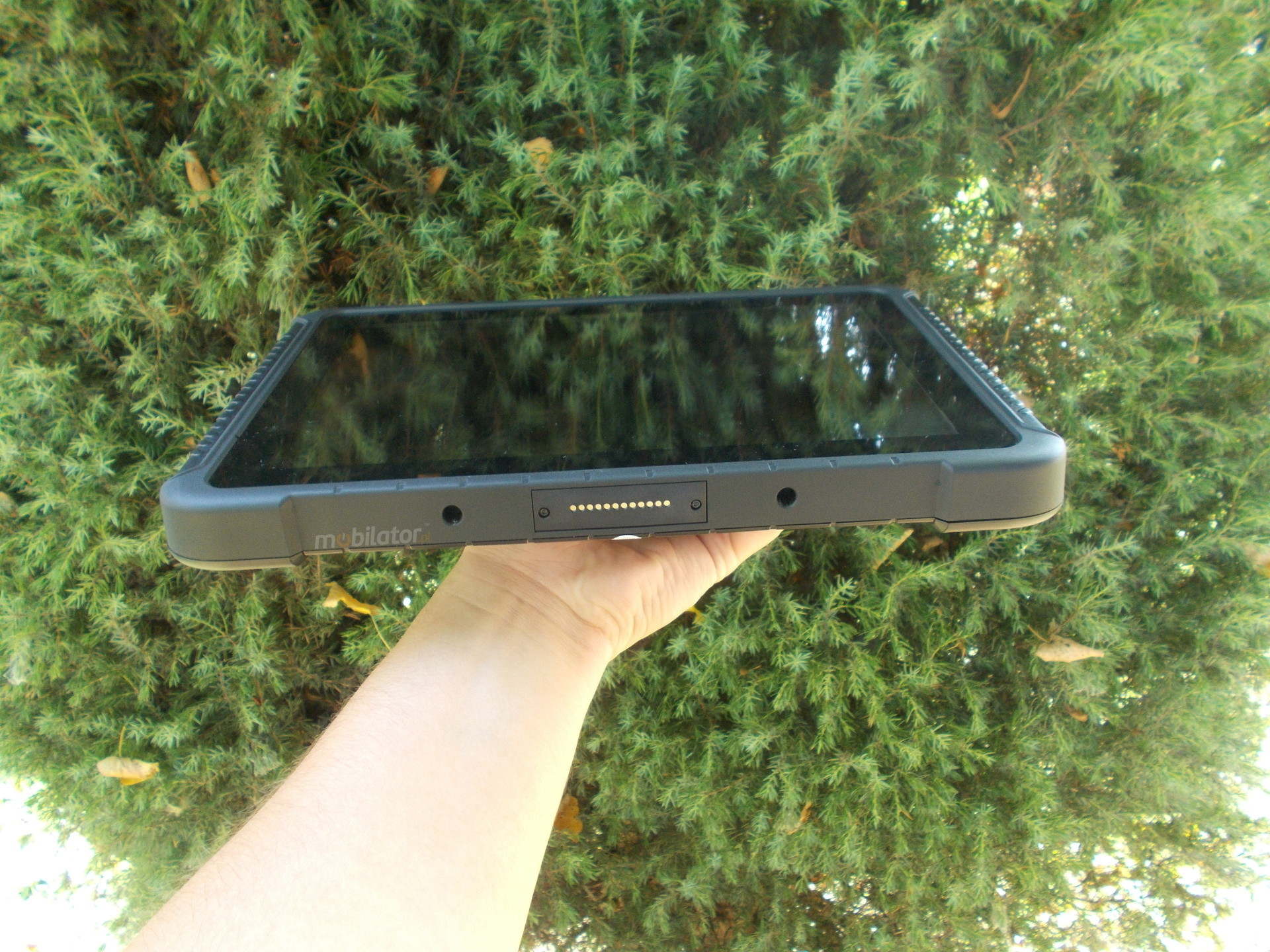

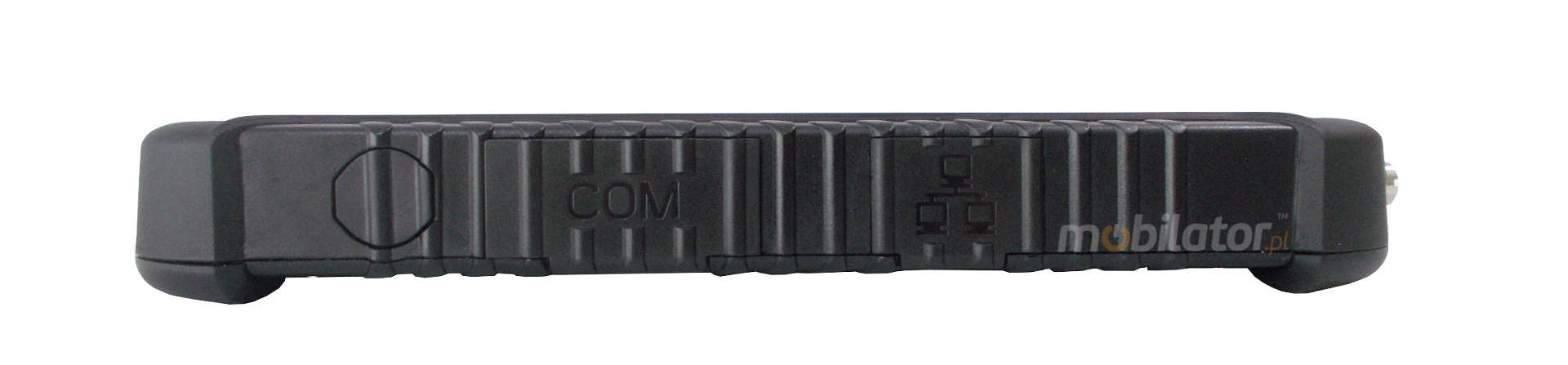

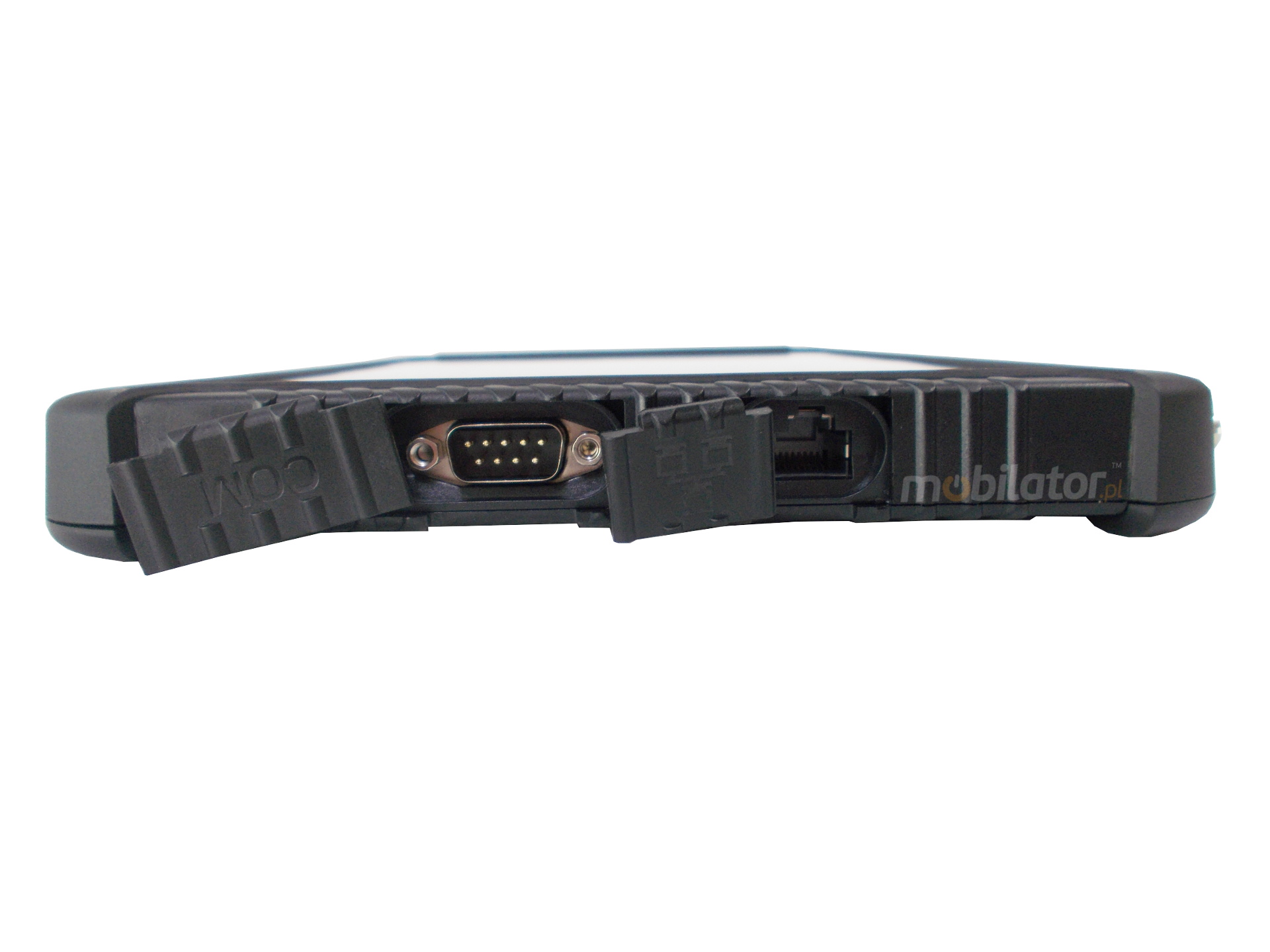

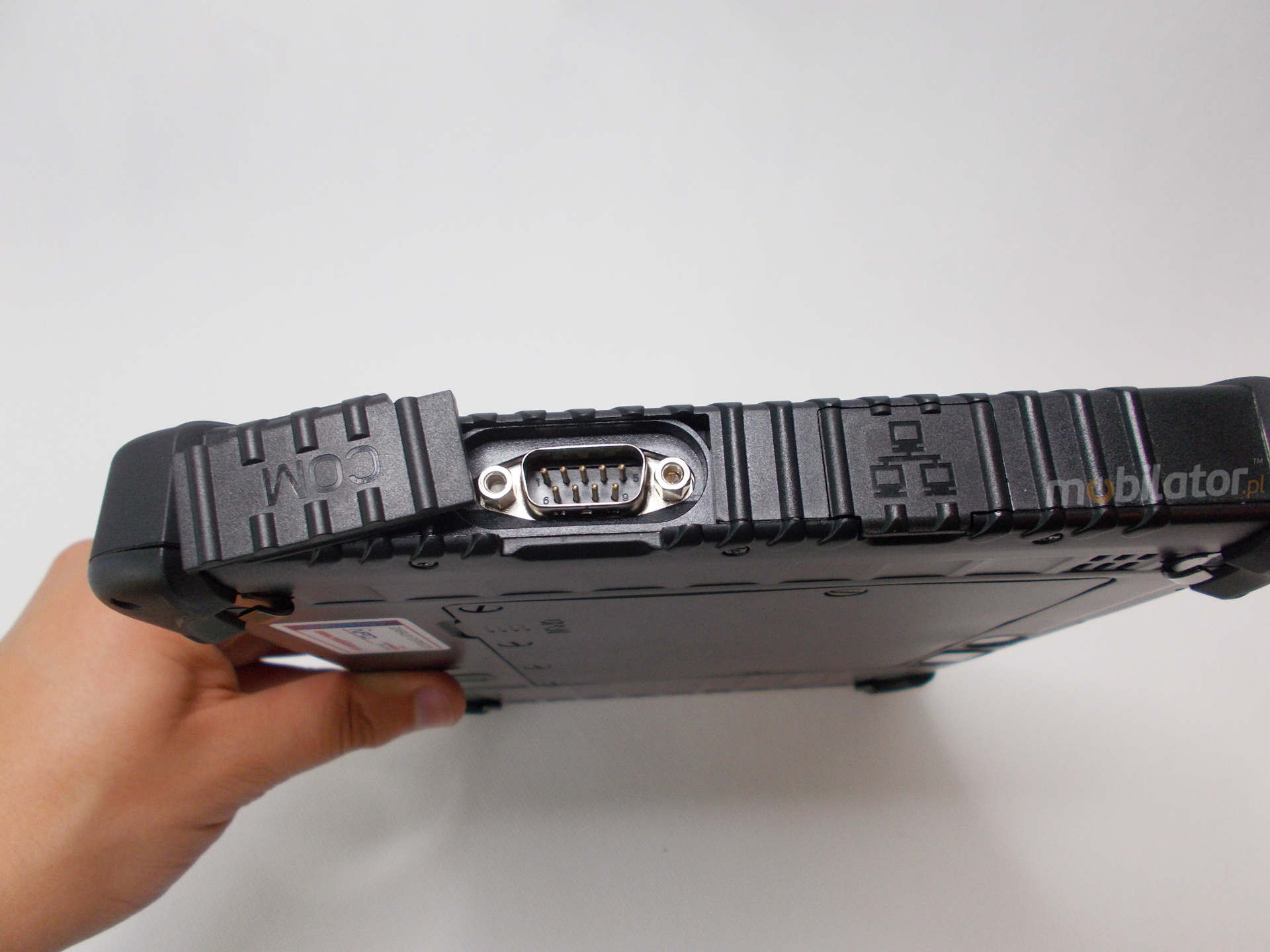

COM port | Docking | DC In |
|
Modules |
|
3G |
WCDMA (900 / 2100 MHz), HSDPA 7.2Mbps, HSUPA 5.76Mbps |
|
4G |
FDD LTE: Band 1/2/3/4/5/7/8/20 |
|
NFC |
13.56 MHz | ISO14443 A/B | ISO15693 |
|
Positioning |
GPS, support Beidou |
|
Data input |
Keyboard
|
On screen
|

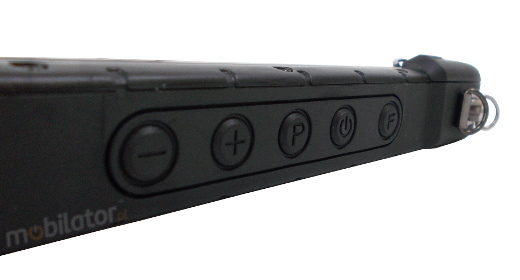

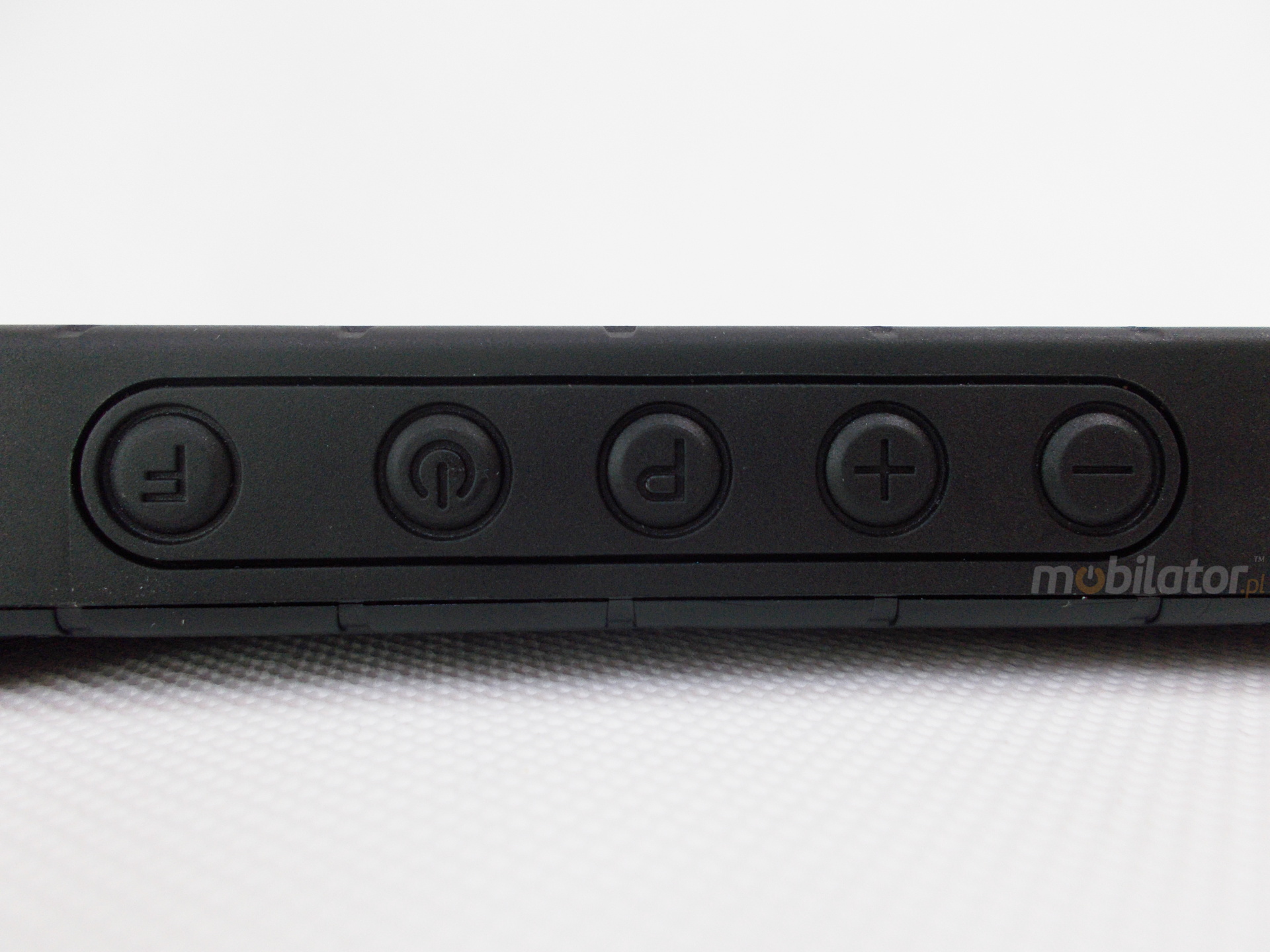

Functional keys
|
Volume control | Scanner | Power
|
|
Reader |
Scanner 1D
|
1D Motorola SE655(optional)
|
Scanner 2D
|
2D Honeywell N3680
|
|
Size |
|
Weight |
1014g
|
|
Dimensions |
280 x 187 x 22mm
|
|
Certyfications |
|
Level of security |
IP65
|
|
Military standard |
MIL-STD-810G
|
Additional
|
CE | RoHS
|
|
Other optional |
Accessory |
Docking station | Battery | Charger | Stylus |
|

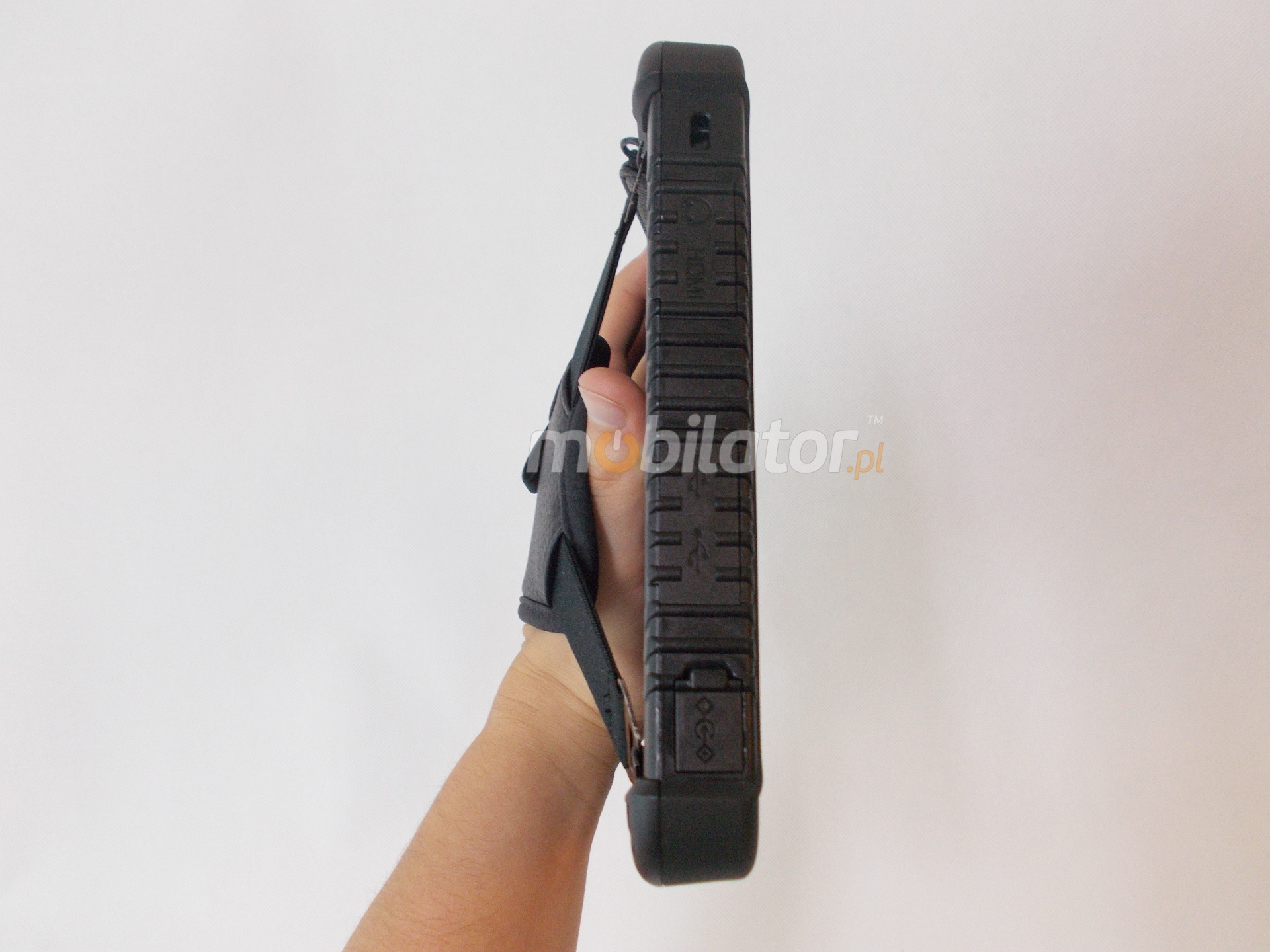

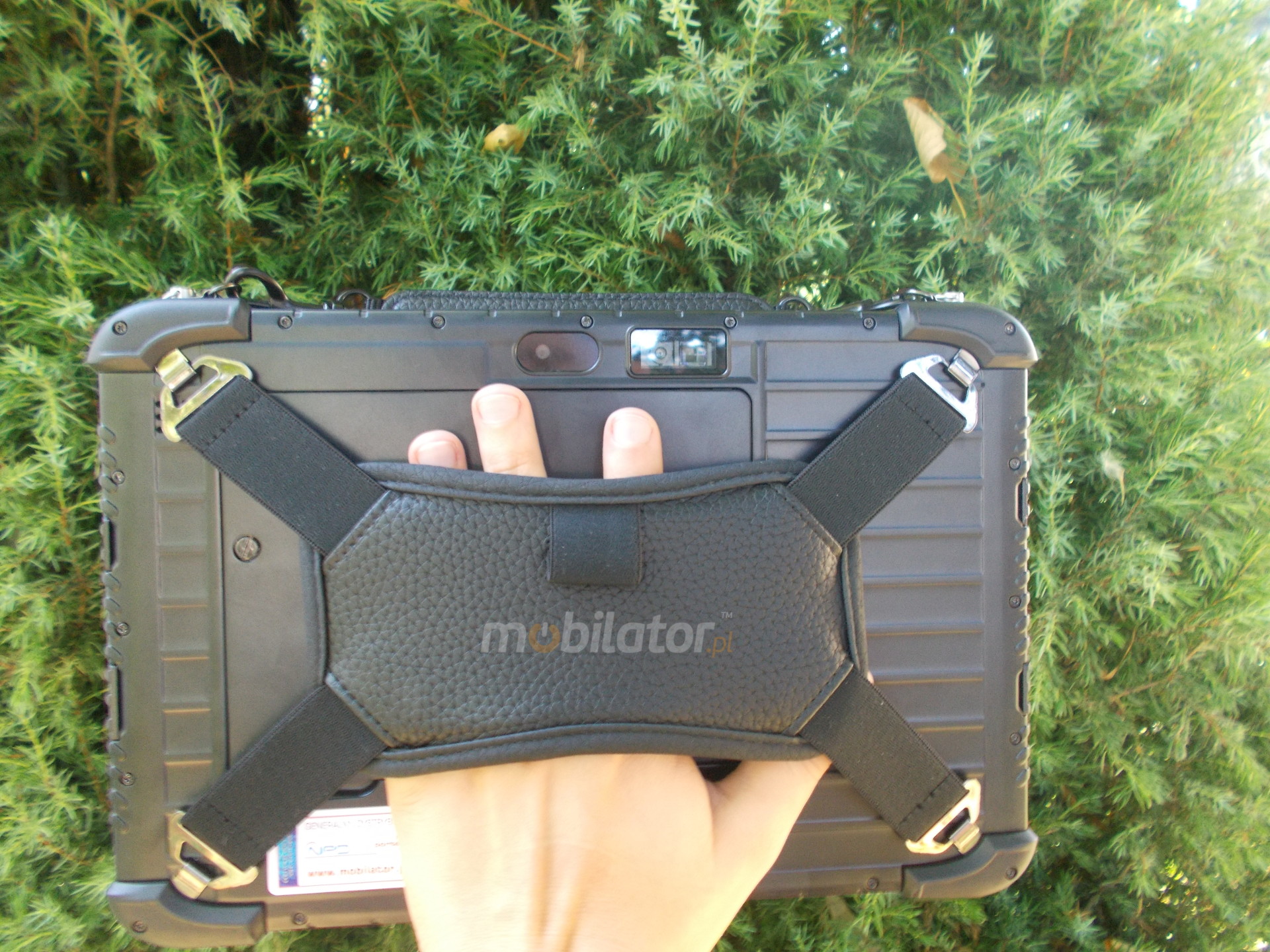

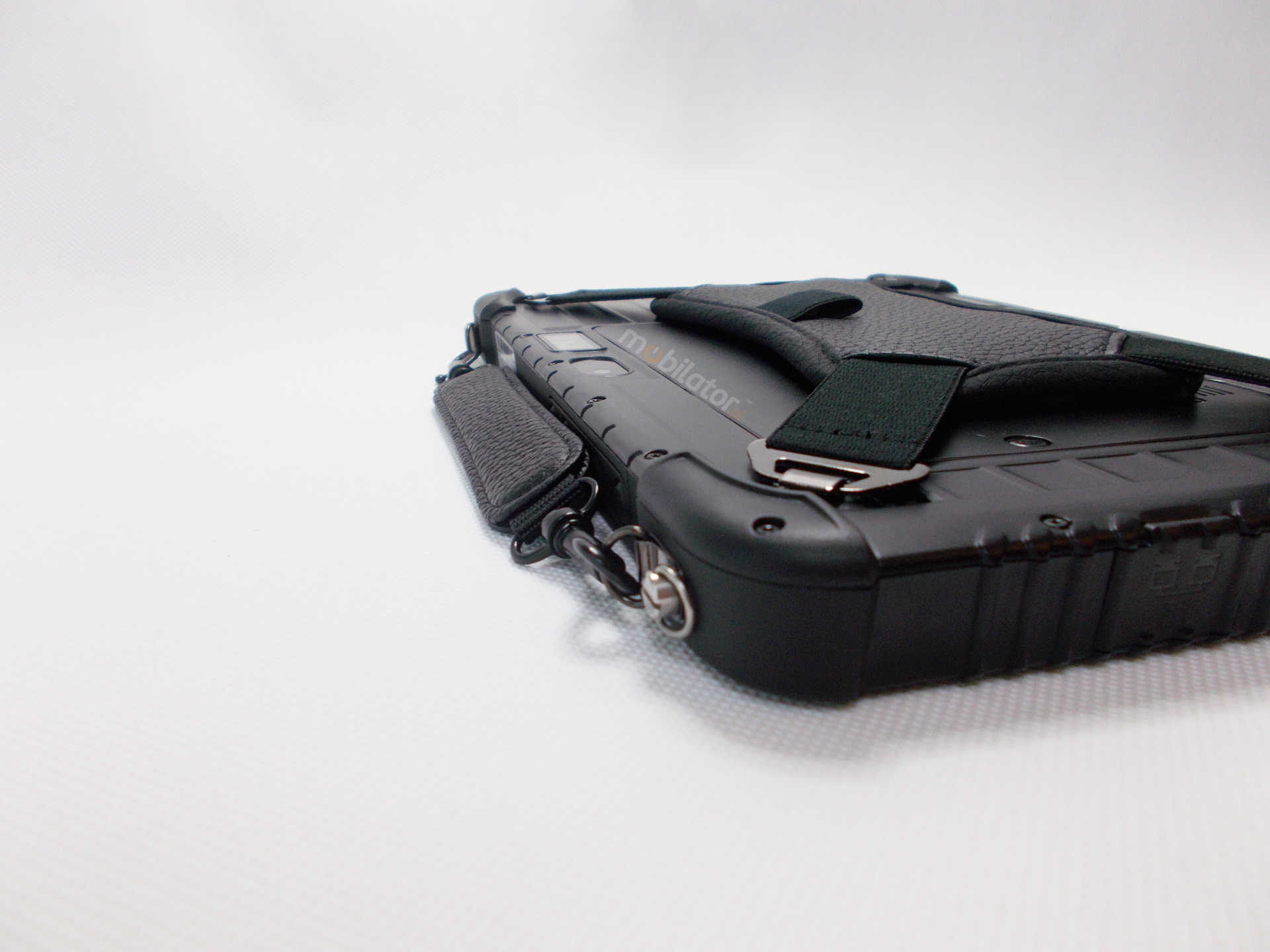

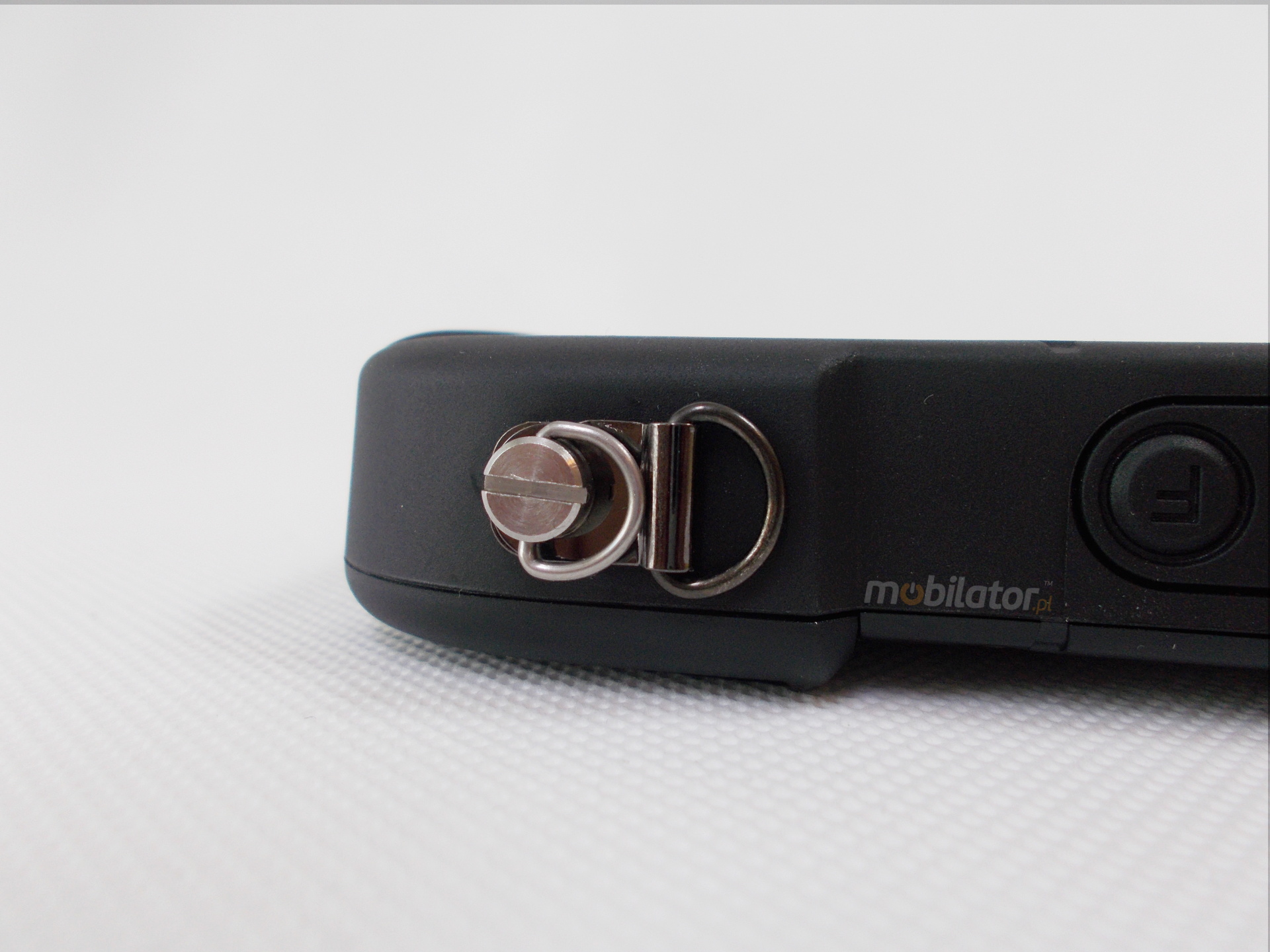

Wrist strap | Shoulder strap | Shoulders strap |
|
Suitcase holder | Car holder short and long |
*license of Windows 10 is included only in chosen versions...
 reinforced, rugged construction,
resistance to dust and water (IP65),
MIL-STD-810G resistance standard,
efficient and comfortable work,
tempered glass Gorilla Glass 3,
large selection of accessories,
good value for money.
|
News
PL
eng
.png)
.png)
.png)
.png){kind=logo}
.jpg){kind=small}
.png){kind=small}
.jpg "Docking station for Emdoor's industrial rugged tablets make possible to charge battery inside of device and additional one in the same time. To improve functionality there is three USB ports and one RJ-45.")

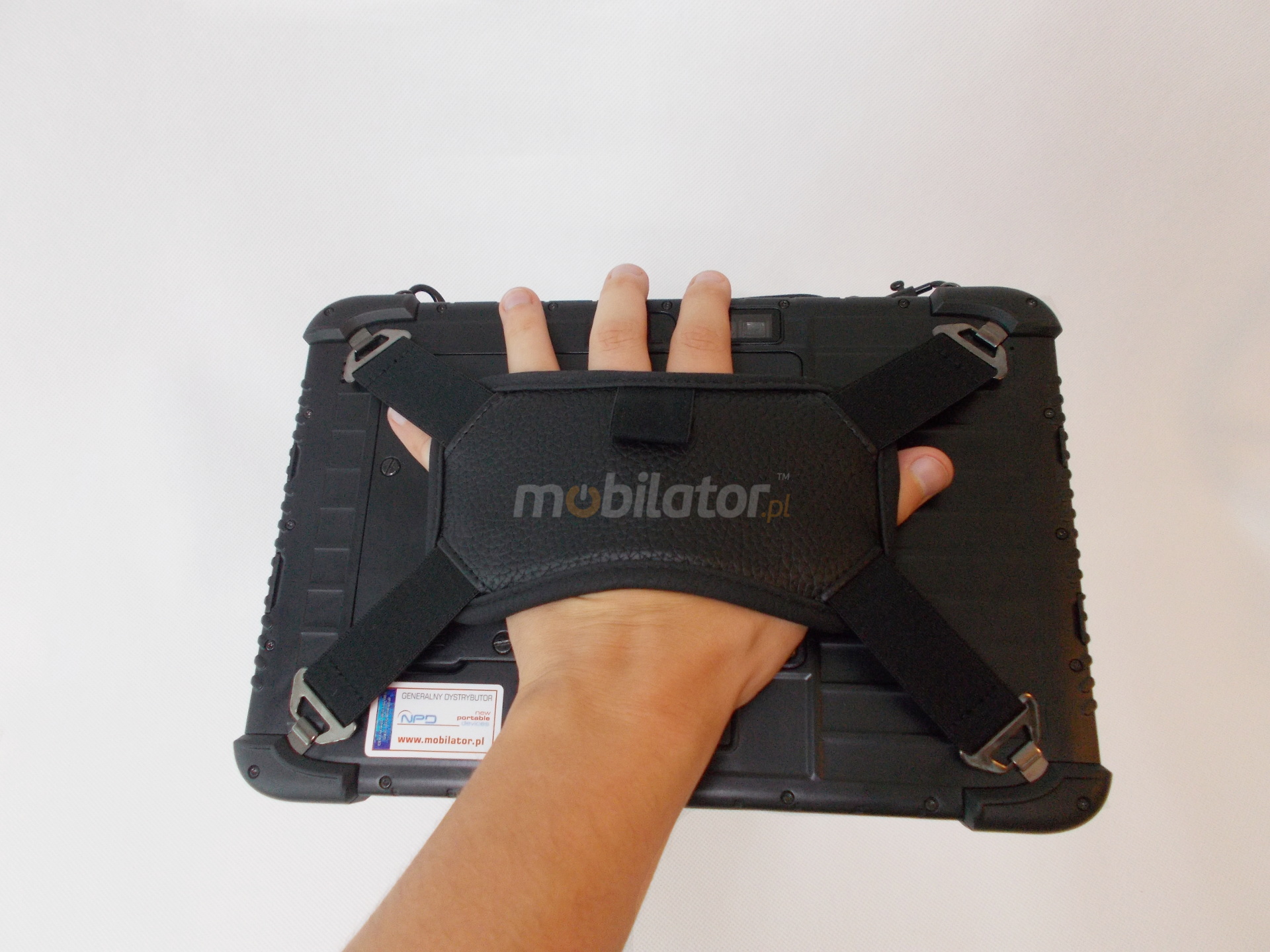

.JPG "Tablet's holder makes that handling your device is much easier. Additional in situation when holder is used possibility that tablet going to drop is reduced.")
