Reinforced Waterproof Industrial Panel PC CCETouch CCETPC10AN v.1
|
|
The product from the archive - production terminated
|
Compare all versions
|
Industrial Panel PC
Industrial Panel PC are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation.
|
|
|
CCETouch
|

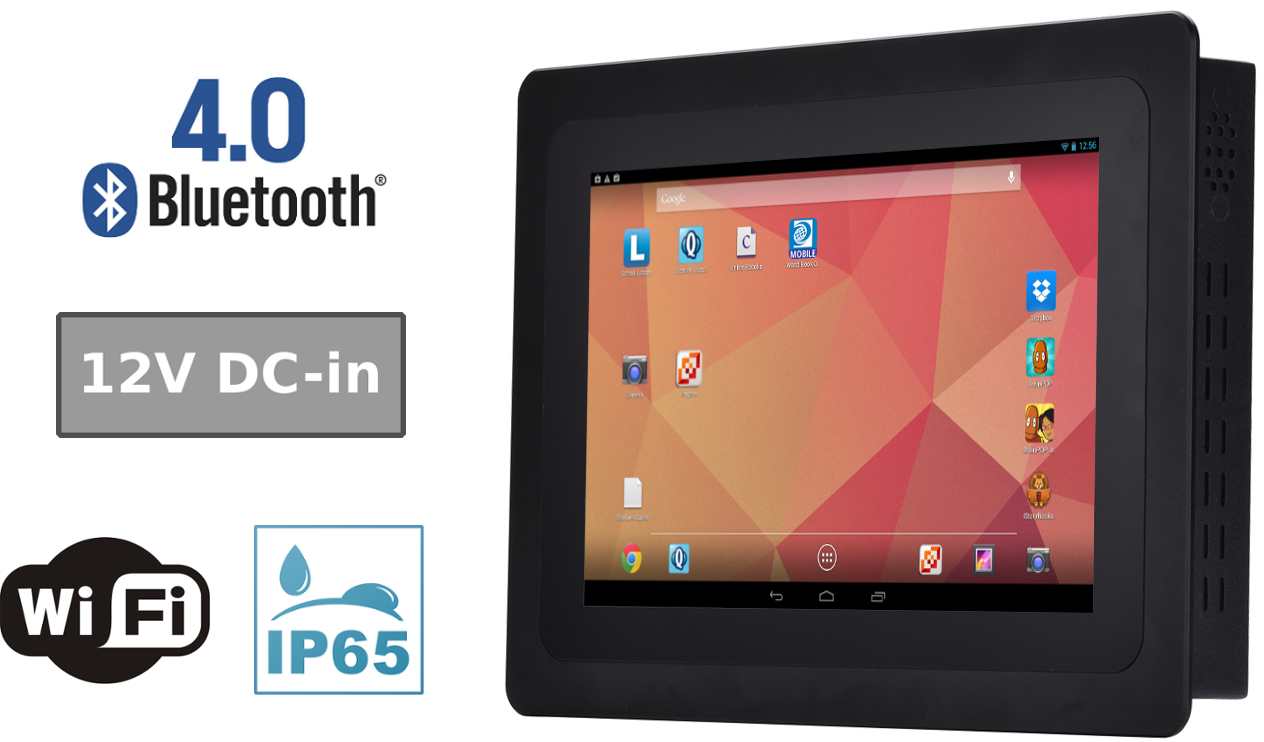

Reinforced Waterproof Panel Industrial Computer CCETouch CCETPC10AN v.1
|
|
(1).jpg)
|
 |
CPU: ARM Cortex A17 (4x 1.8GHz)
|
|
|
RAM: 2GB
|
|
|
Flash memory: 8GB |
|
.png)
|
System: Android 6.0
|
|
|
Screen: 10.1" / 1280x800 / 10 - point Capacitive
|
|
.png)
|
Expansion cards: Bluetooth, Wi-Fi
|
|
|
Detailed specification of the configuration available in the "Technical data"
|
Using the latest technology Panel PC is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities, through the use of ARM Cortex processor family and 2GB of RAM. Integrated ARM Mali video graphics card and audio allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 8GB to 16GB, which can be extended with a Micro SD card.
Dimensions:

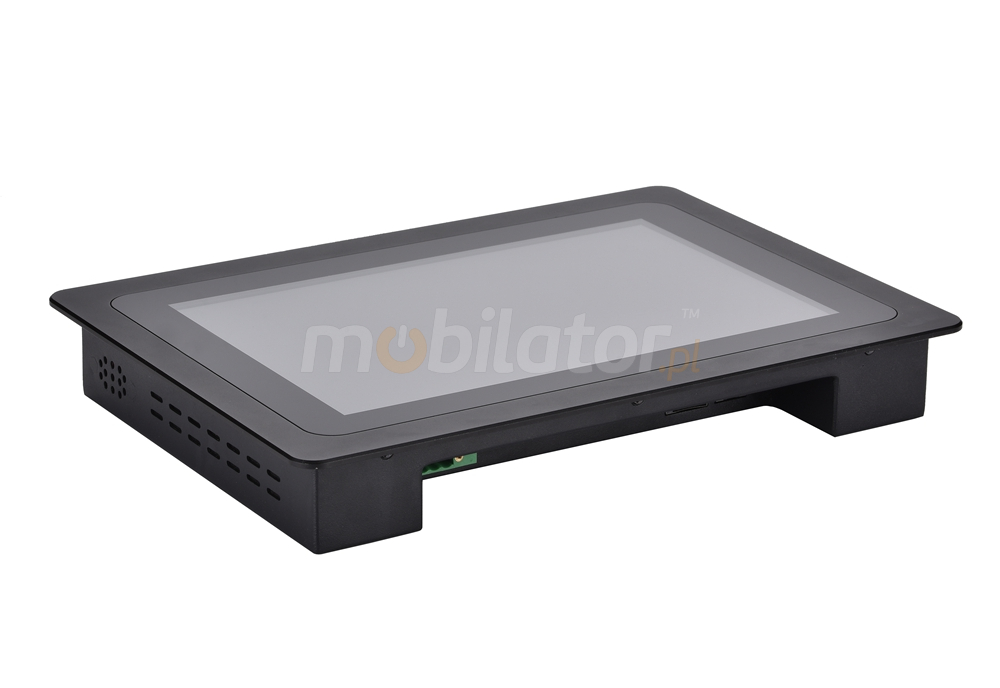

Housing dimension are 290 x 206 x 38 mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
.PNG)
Cooling:
Reinforced Waterproof Panel Industrial Computer CCETouch CCETPC10AN is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
Reinforced Waterproof Panel Industrial Computer CCETouch CCETPC10AN uses a proven method of cooling. It takes place mainly through the fan mounted inside the enclosure. Making industrial Panel PC is faster and more efficiently cooled. |
|
Communication:
Reinforced Waterproof Panel Industrial Computer CCETouch CCETPC10AN standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as 4G.
.jpg)

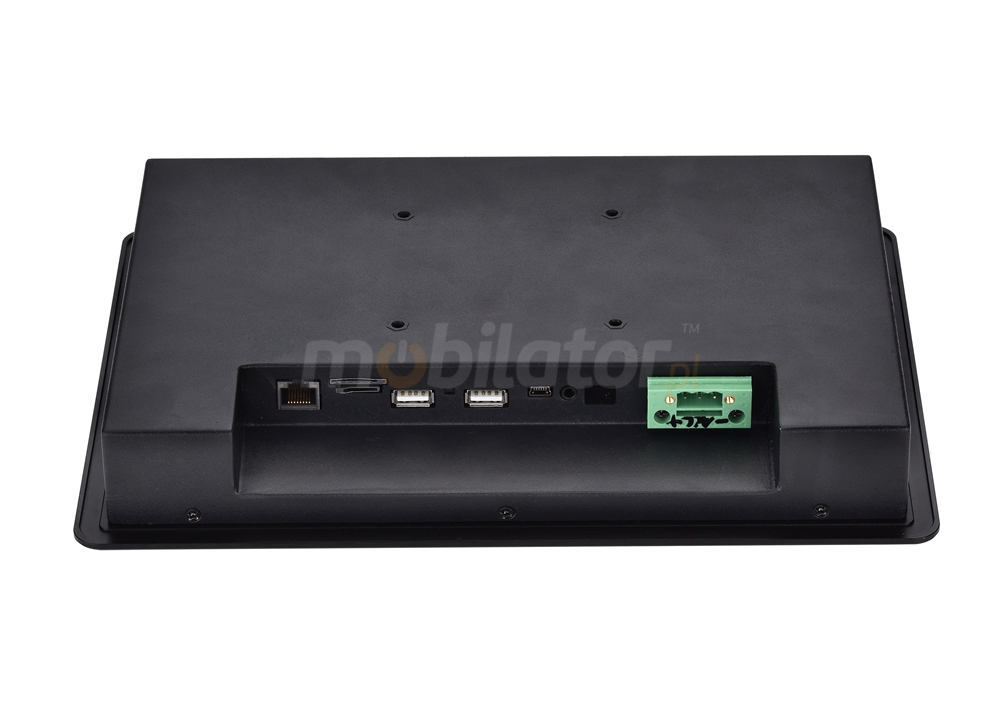

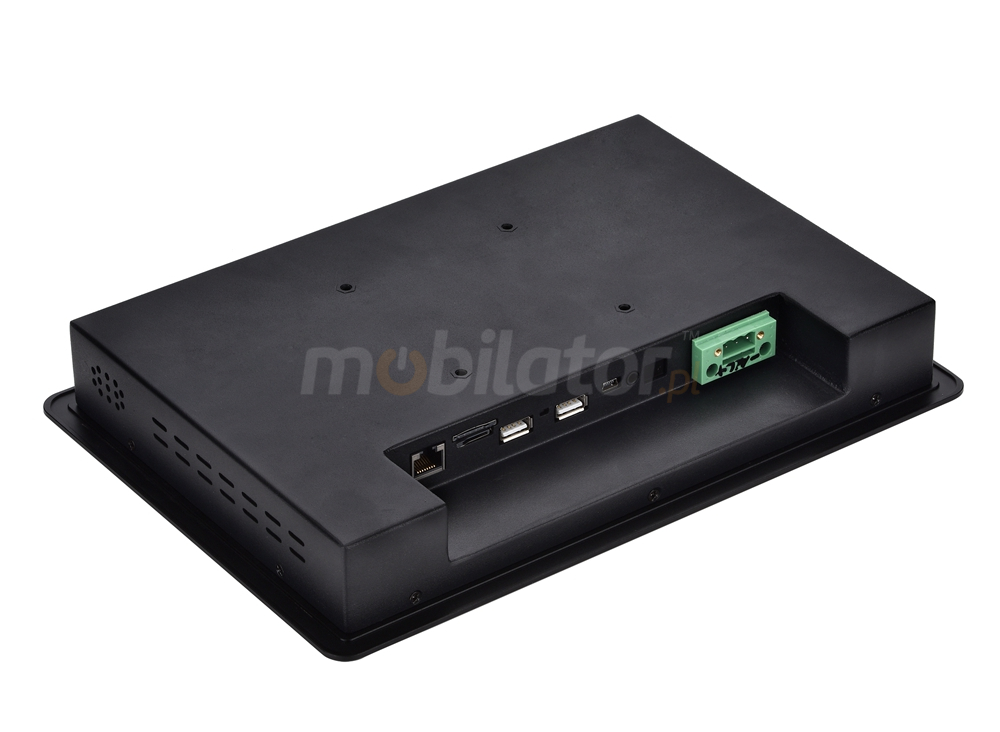

Connector:
Integrated network card and Wi-Fi module allows you to connect the device to the network. The computer is equipped with: one LAN connector, one RS232 interface, one Mini USB (OTG) port, two USB 2.0 ports, one audio, one Micro SD slot and a power DC-in.
1. LAN RJ-45
|
5. USB 2.0 |
9. DC-in |
2. SIM (4G optional)
|
6. Micro USB (OTG)
|
|
3. Micro SD
|
7. Audio |
|
4. USB 2.0
|
8. RS232
|
|
|
|

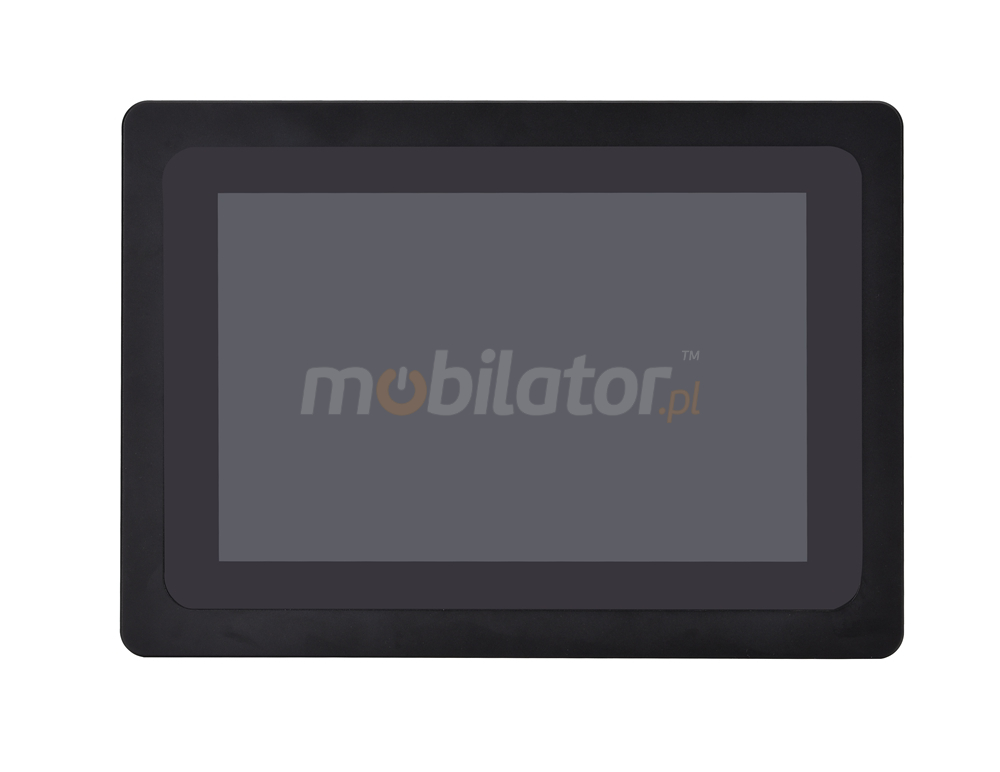

Reinforced Waterproof Panel Industrial Computer CCETouch CCETPC10AN has a water-resistant front panel and scratch resistant LED screen. With 1280x800 resolution and high brightness of 350 cd/m2, screen of "10 point capacitive" type with high sensitivity to touch, offers the user a clear picture and ease of use.
.jpg)
Capacitive screen
Operation of this type of screen is a bit more complex than the resistive screens, but the comfort of their use is much higher. In the corners of the screen capacitive electrodes are placed emitting weak electric field. If you touch the display, the intensity produced before the field changes, and the system will calculate respectively, where the disturbance occurred.
The image on the capacitive screen is clearly visible both indoors and outdoors. Particularly noteworthy here precise identification of the touch system, because this is a very high level, although many here depends on the materials used in the construction of the screen. The downside may be items that responds to a capacitive display as a list is very limited.
Using capacitive screens do not have to wrestle because it only requires a light touch of the screen with your finger to the unit responded appropriately.
|
|

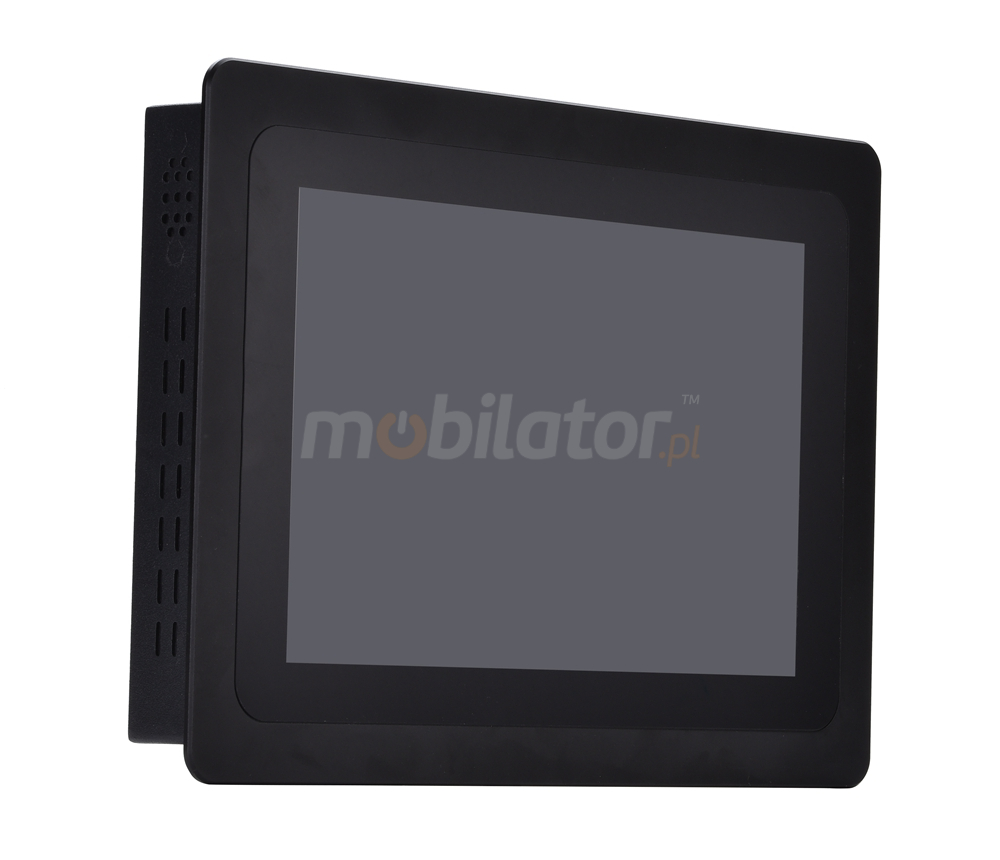

Reinforced Waterproof Panel Industrial Computer CCETouch CCETPC10AN is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial aluminum IP65 housing protects the display from the outside against mechanical damage, drops of water, oil, sand and dust. Operator Panel Reinforced Waterproof Panel Industrial Computer CCETouch CCETPC10AN is the best solution for extreme applications in dust or moisture.
.jpg)
Operating Temp
|
0-60 °C |
|
Operating Humidity |
10%-80%
|
|
Dust |
IP6x(dust) |
|
Water |
IPx5(drops of water)
|
|
|
Resistance IP65 (front panel)
The IP Code, International Protection Marking. IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC).
go top…  menu…
The first digit [x]
Protection against solid objects
|
|
The second digits [y]
Protection against liquids
|
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from object not greater than 12mm in diamete |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from water projected from a nozzle |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
|
|
|
 |
7
|
|
Protection against immersion
|
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water
|
.jpg)
Industrial Panel PCs with MTouch companies are based on the efficient two-core processors and high-quality components.
Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
.jpg)
Areas of use of industrial panel computers.
.jpg)
|
Trade
Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register), factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Industrial Panel PC through COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
Transport & Automotive
Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 12V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
go top… menu…
|
|
|
v.1
|
v.2 |
v.3
|
|
PoE |
- |
 |
- |
|
8V-36V DC ITPS |
- |
- |
|
|
|
go top… menu…
Display
|
Screen: 10.1"
Resolution: 1280 x 800
Type: 10 - point capacitive
|
Resistance IP
|
IP65 - front panel
|
Communication
|
Wi-Fi
Bluetooth
|
|
Dimensions
|
Height: 206 mm
Width: 38 mm
Length: 290 mm
|
|
Weight |
3kg
|
|
Processor |
ARM Cortex A17
|
Chipset
|
----
|
Memory RAM
|
2GB
|
Graphics Card
|
ARM Mali-T764
|
|
Ports & interfaces |
1 x RS-232
2 x USB 2.0
1 x Mini USB (OTG)
1 x Micro SD
1 x LAN RJ45
1 x Audio
1 x DC-in |
|
|
|
|

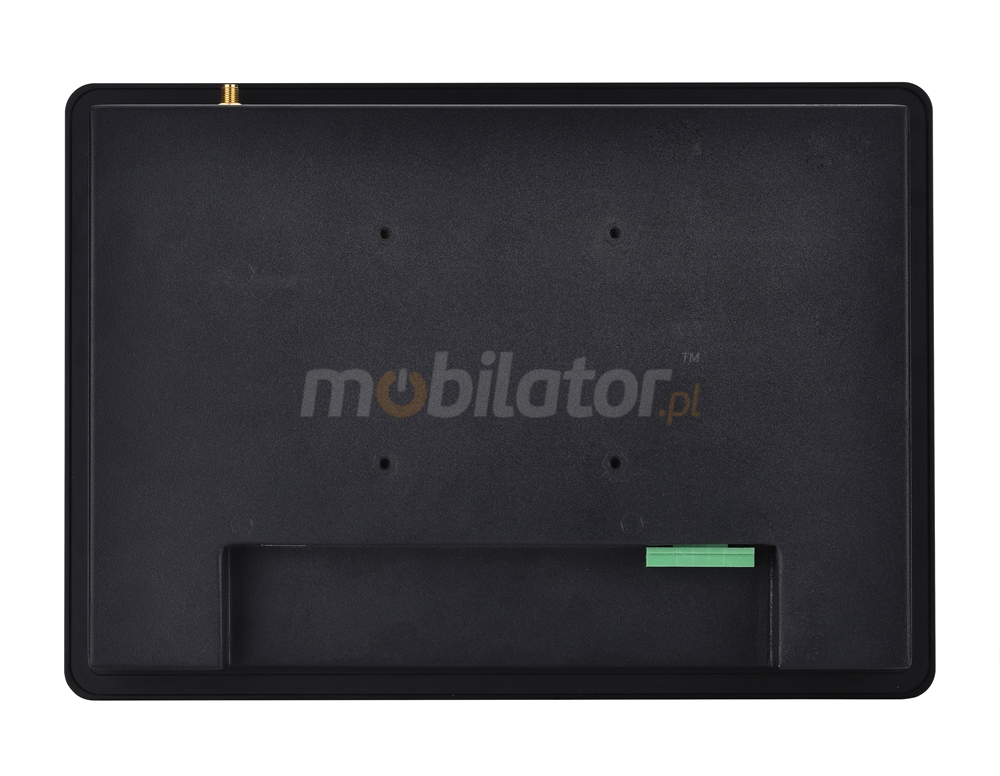

VESA MOUNT BRACKET
Robust and sturdy grip, allows mounting on the wall.
CHECK
|
.png)
|
POWER OVER ETHERNET
With PoE technology you can power the device using the RJ-45 LAN port.
CHECK
|
 |
8V-36V ITPS Board
Allows to connect the panel, for example, in a bus, truck, etc.
CHECK
|
.png) |
Z£¡CZE HDMI
Optional HDMI connector.
SPRAWD¬
|
|
|
Compare all versions
| Screen size: |
10.1" |
| Resolution: |
1280 x 800 |
| Aspect ratio: |
16:9 |
| Touchscreen: |
10-point Capacitive |
| Chipset: |
----- |
| CPU Support: |
ARM Cortex A17 (4x 1.8 GHz) |
| Installed CPU: |
ARM Cortex A17 (4x 1.8 GHz) |
| Memory Support: |
up to 4GB (max); |
| Installed Memory: |
2GB |
| Graphic Card: |
ARM Mali-T764 |
| Audio: |
----- |
| Storage (HDD) Support: |
8GB / 16GB NAND Flash |
| Installed Storage (HDD): |
8GB Flash |
| CD/DVD Drive: |
----- |
| LAN: |
Yes |
| Wireless LAN card: |
Yes |
| Bluetooth: |
Bluetooth 4.0 |
| 3G: |
----- |
| 4G LTE: |
|
| GPS: |
----- |
| TV Tuner: |
----- |
| Watch Dog Timer: |
Support watchdog software |
| Ports - front panel: |
1x RS-232
2x USB 2.0
1x Mini USB (OTG)
1x LAN
1x Audio
1x DC-in |
| Ports - rear panel: |
----- |
| Ports - left panel: |
----- |
| Ports - right panel: |
----- |
| Power: |
12V DC-in |
| Supported OS: |
Android 6.0 |
| Installed OS: |
Android 6.0 |
| Dimensions: |
290 x 268 x 38mm |
| Weight: |
3kg |
| Expansion: |
Uchwyt VESA |
| Fanless: |
Yes |
| Humidity: |
10%~ 80% |
| Temp: |
0°C ~ 60°C |
| Storage Temp: |
-20°C ~ 85°C |
| IP Norm: |
IP65 (front panel) |
| IP Level (back panel): |
----- |
| IP Level (front panel): |
IP65 |
| Dual display: |
Nie |
| Response time touch-panel (ms): |
25 |
| Contrast Ratio: |
800:1 |
| Brightness: |
350 cd/m2 |
| Viewing Angle: |
89°/89°/89°/89° |
| Backlight MTBF: |
LED |
| Color Resolution: |
16.7 M |
| Surface hardness (display): |
6H |
| Touch Life(contacts): |
----- |
| Housing material: |
Aluminum Alloy |
| Mounting VESA: |
Yes |
| Folding Bracket (for office type working): |
----- |
| Power Consumption: |
----- |
| Others: |
Housing color: Black |
| Anti-vibration: |
----- |
| Anti-shock: |
----- |
| RFID scanner (reader): |
----- |
| Barcode reader: |
----- |
