Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21 Barebone
Compare all versions
|
Industrial Fanless
Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.
Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
|
|
Housing dimensions are 148 (W) x126,5 (L) x48,5 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and optional 2GB/4GB/8GB DDR3L memory. Disks optional offer free space 32GB/64GB/128GB/256GB SSD .
Porównaj wszystkie wersje | | v.0 | v.1 | v.2 | v.3 | v.4 | v.5 | v.6 | | 2GB RAM | — | ✔ | — | — | — | — | — | | 4GB RAM | — | — | ✔ | ✔ | — | ✔ | — | | 8GB RAM | — | — | — | — | ✔ | — | ✔ | | 32GB SSD | — | ✔ | — | — | — | — | — | | 64GB SSD | — | — | ✔ | — | — | — | — | | 128GB SSD | — | — | — | ✔ | — | ✔ | — | | 256GB SSD | — | — | — | — | ✔ | — | ✔ | | 3G | — | — | — | — | — | ✔ | — | | 4G | — | — | — | — | — | — | ✔ |
.jpg)
|
|

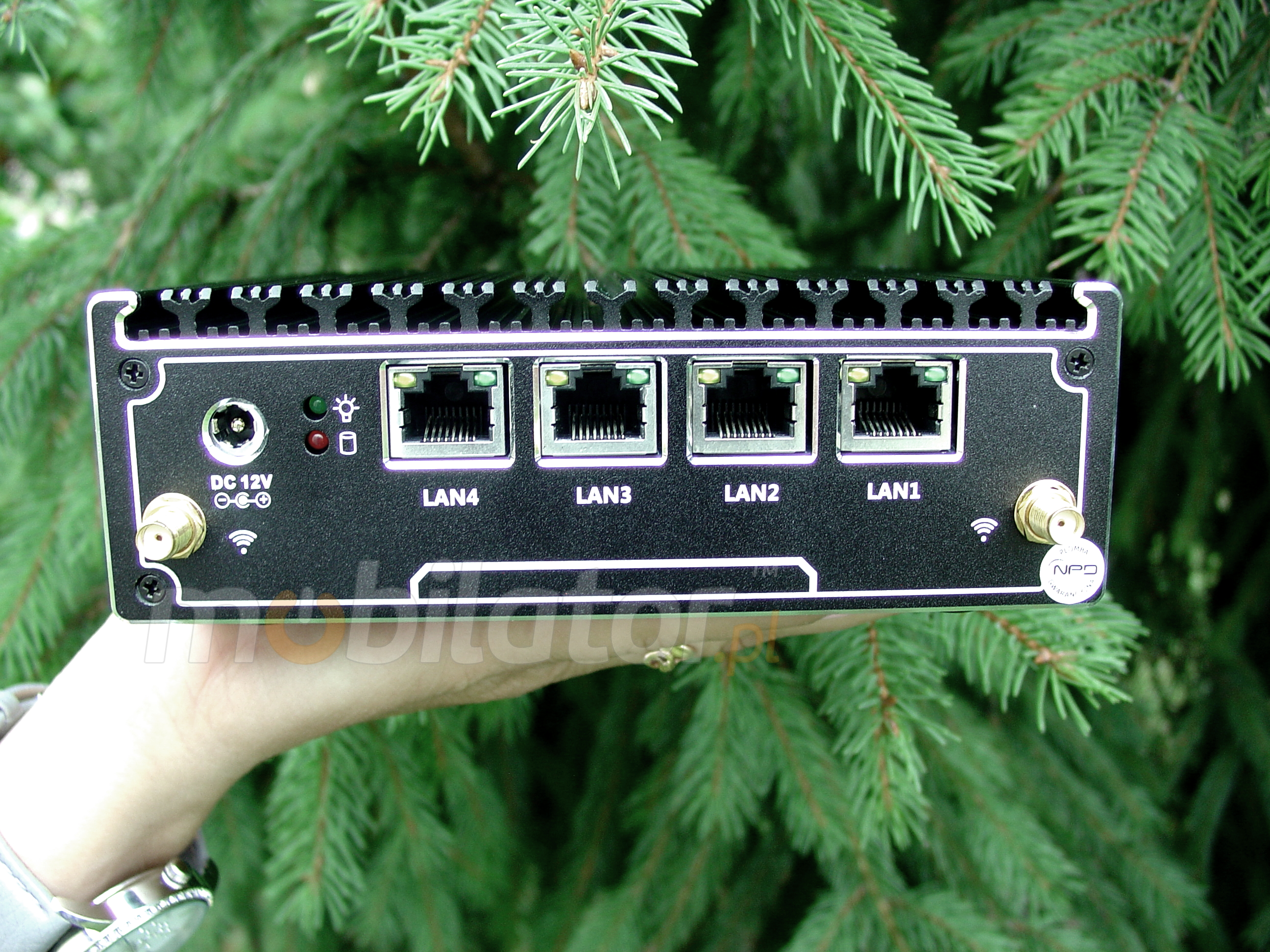

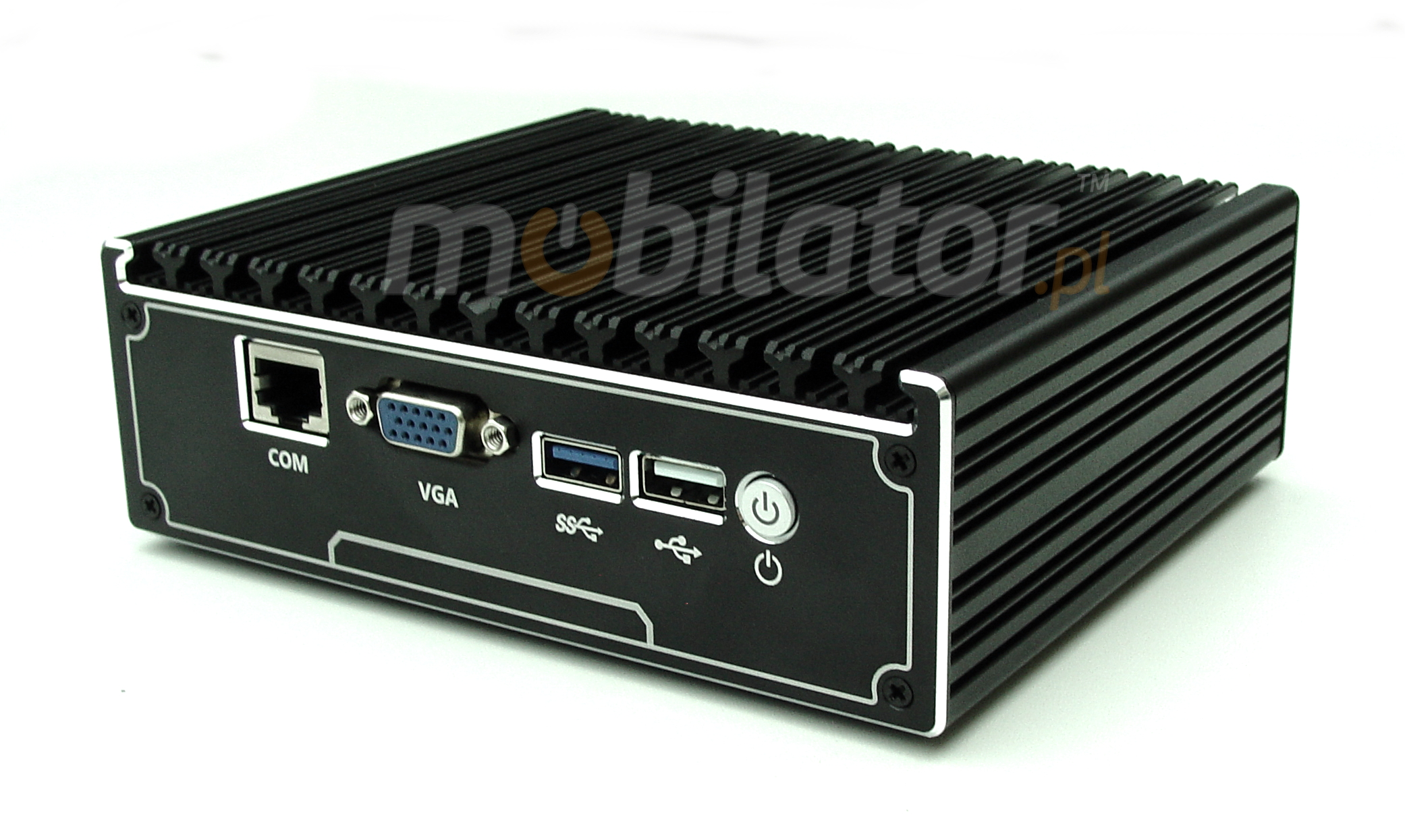

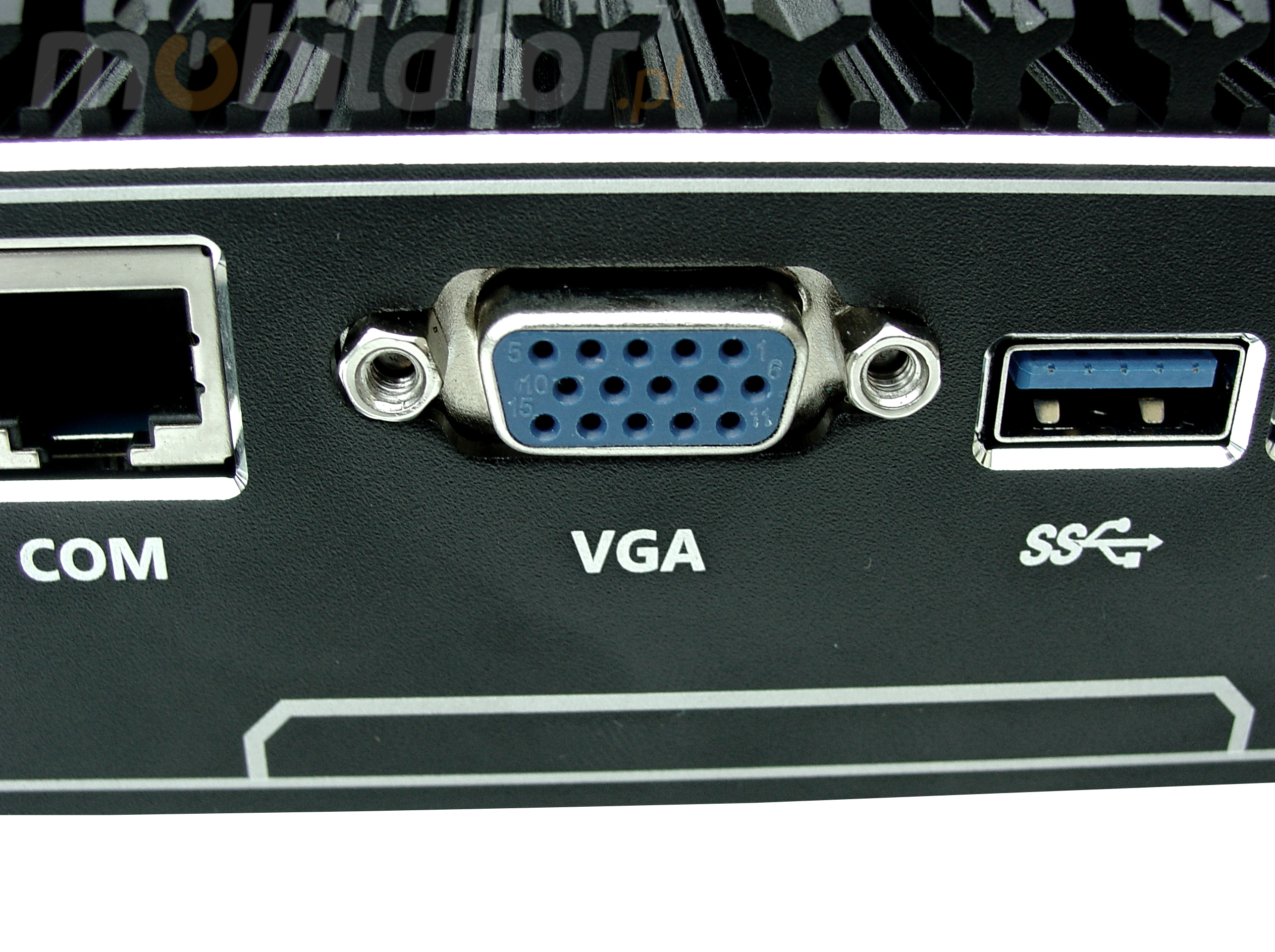

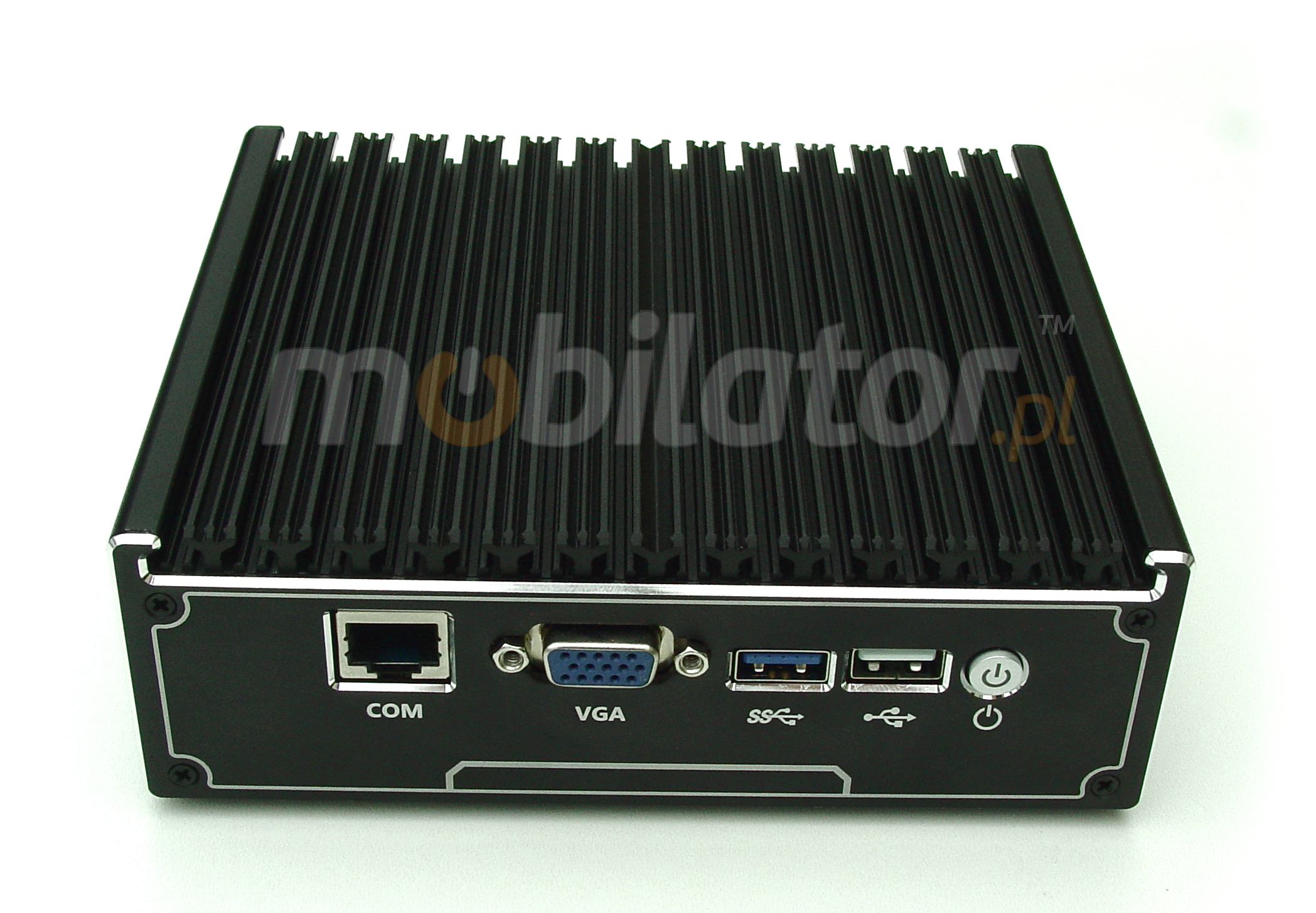

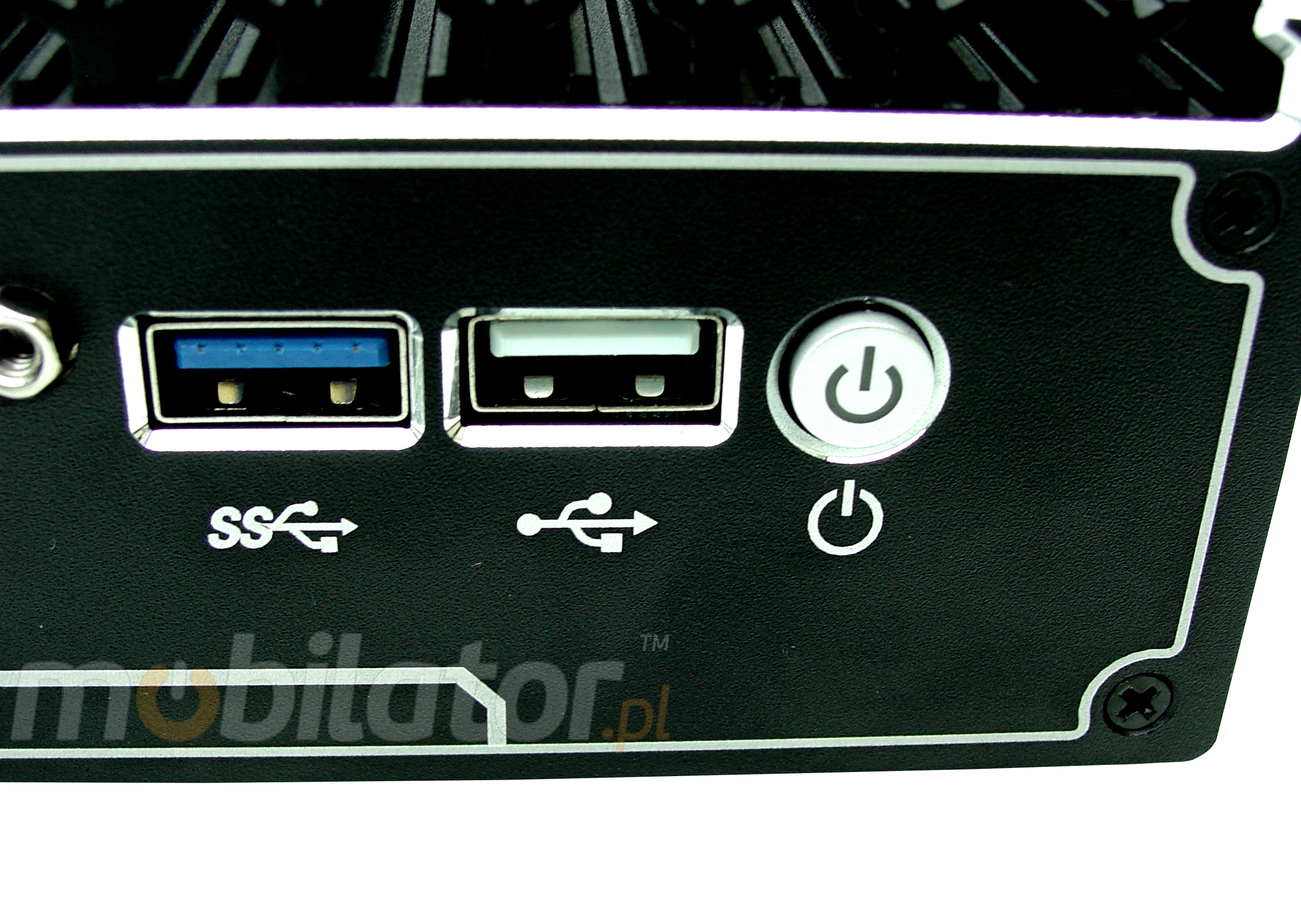

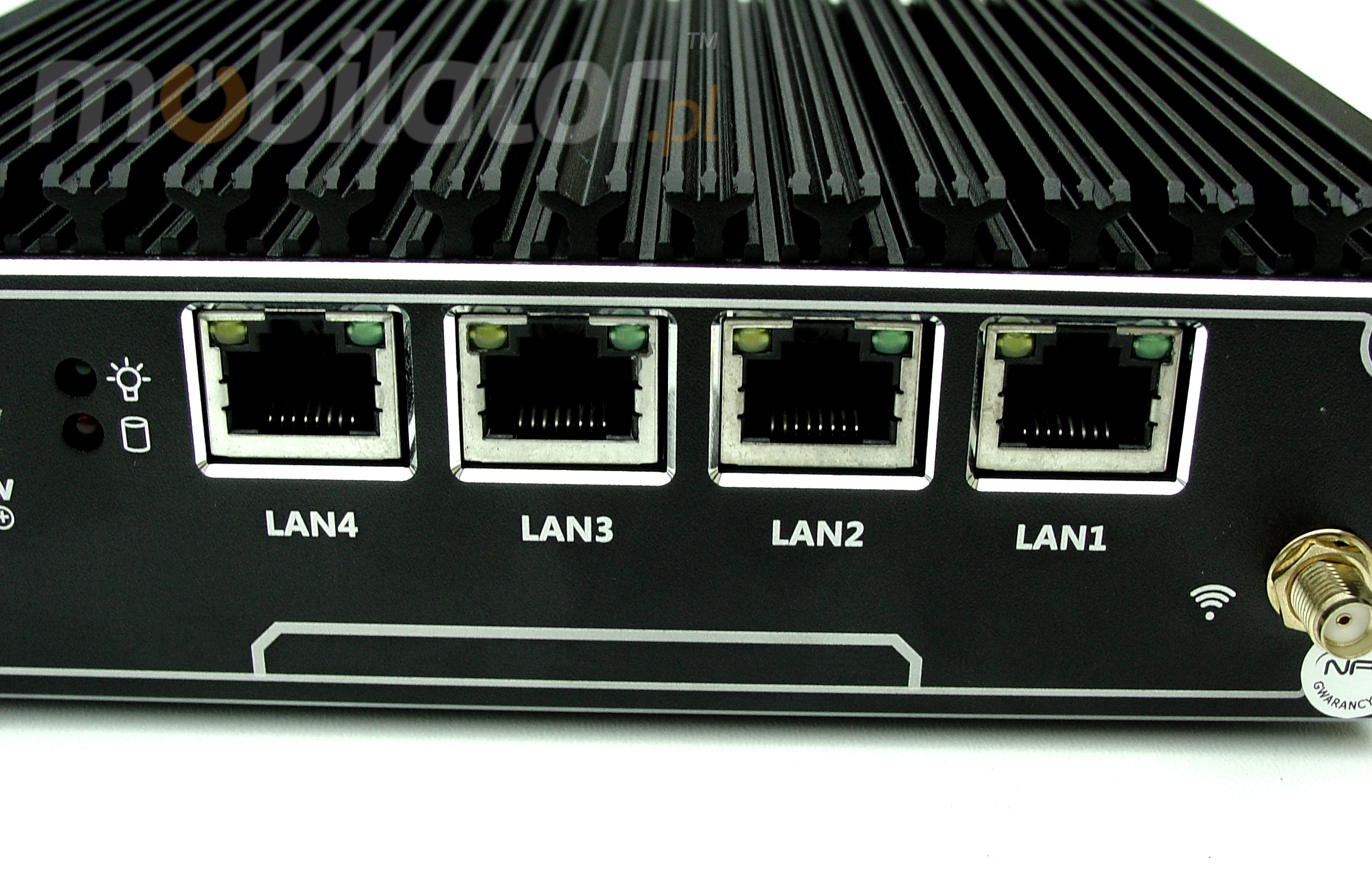

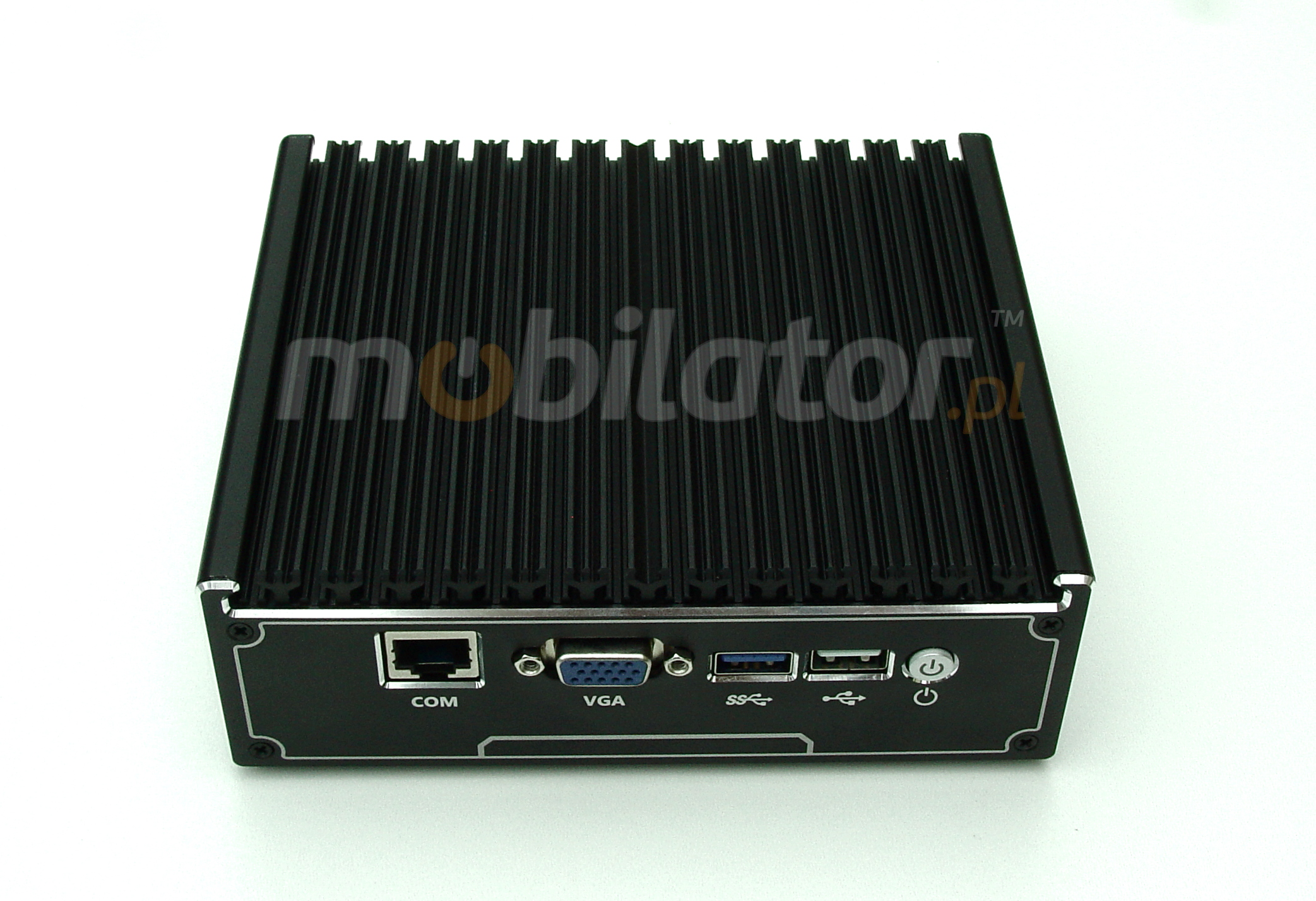

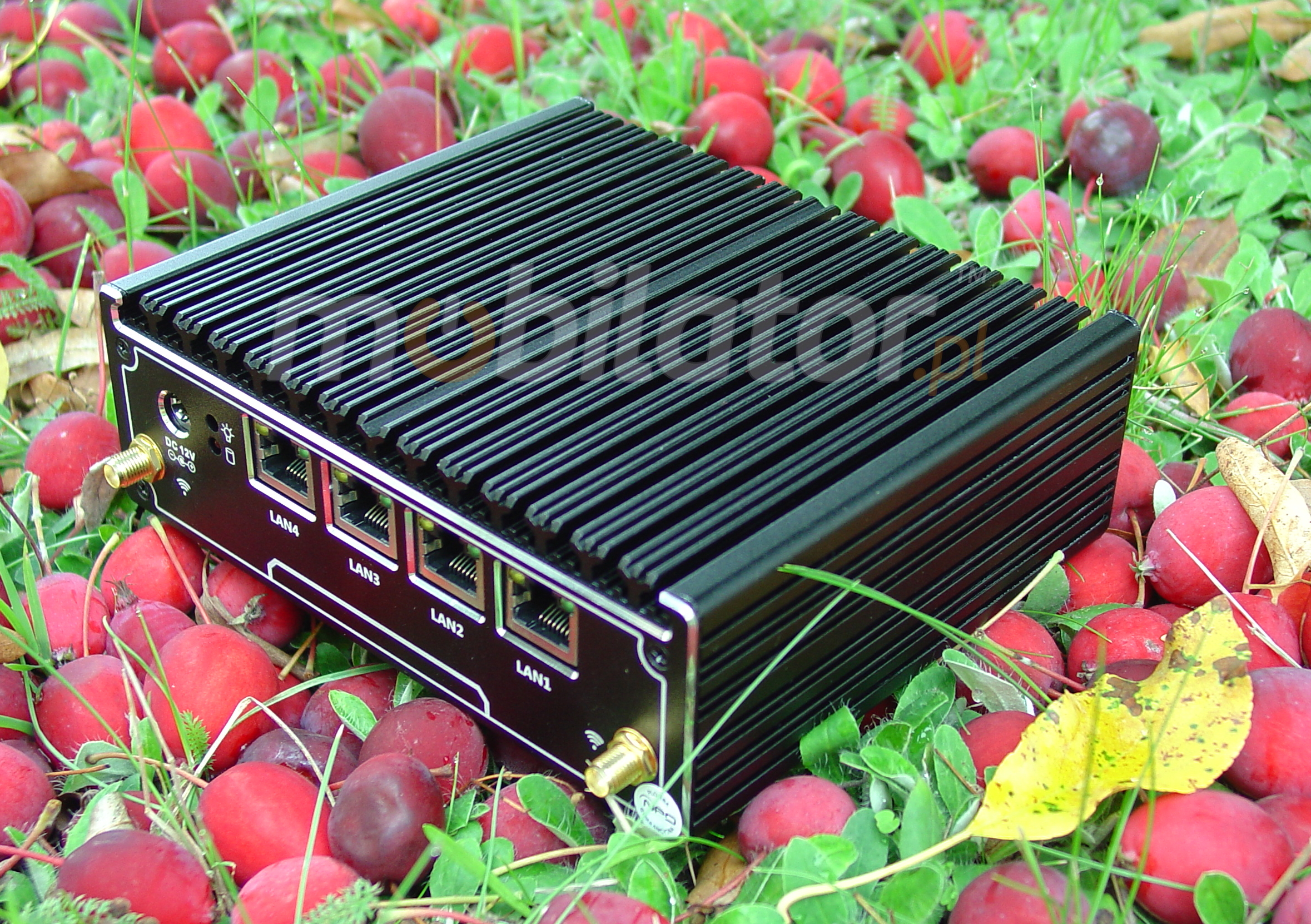

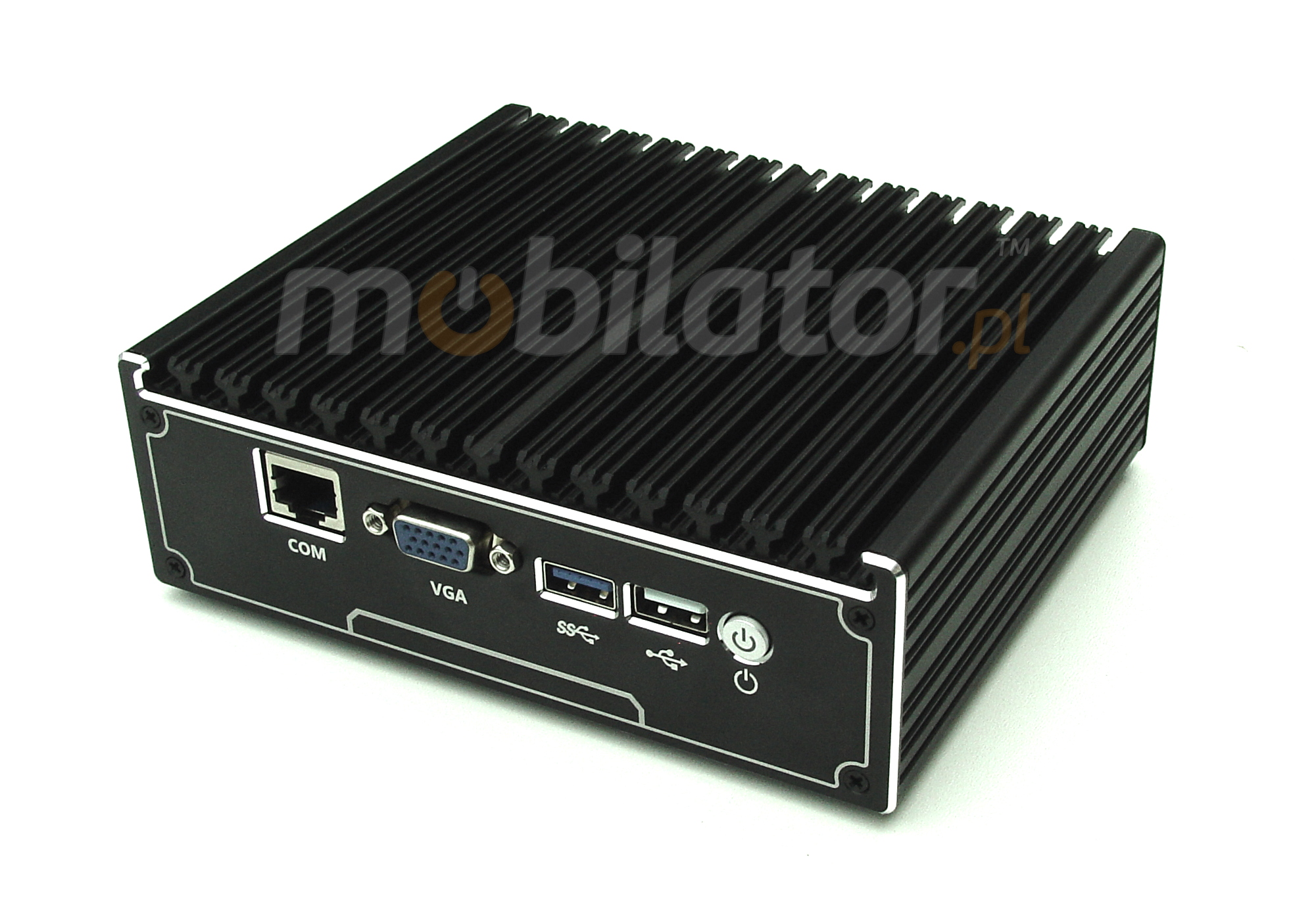

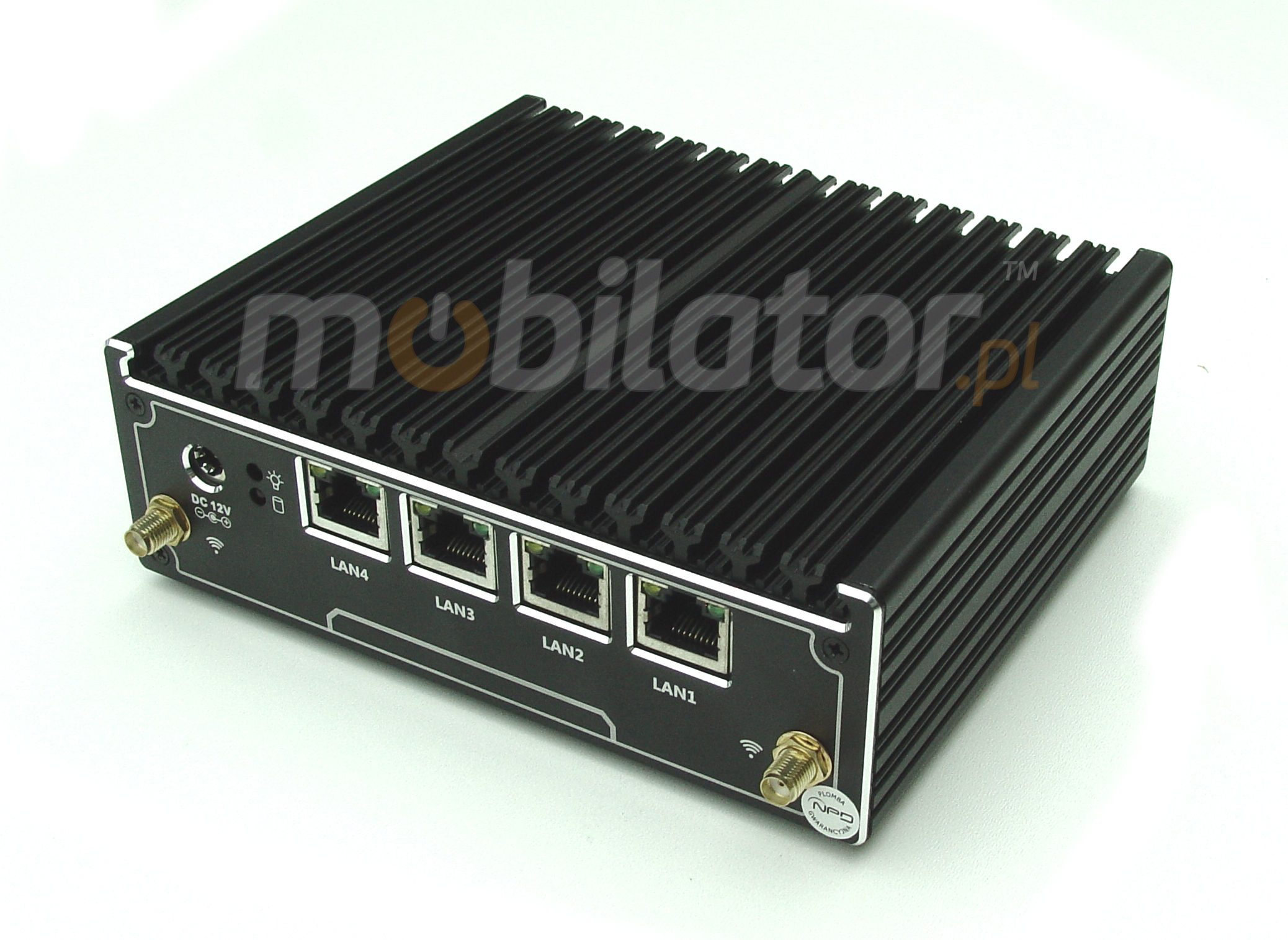

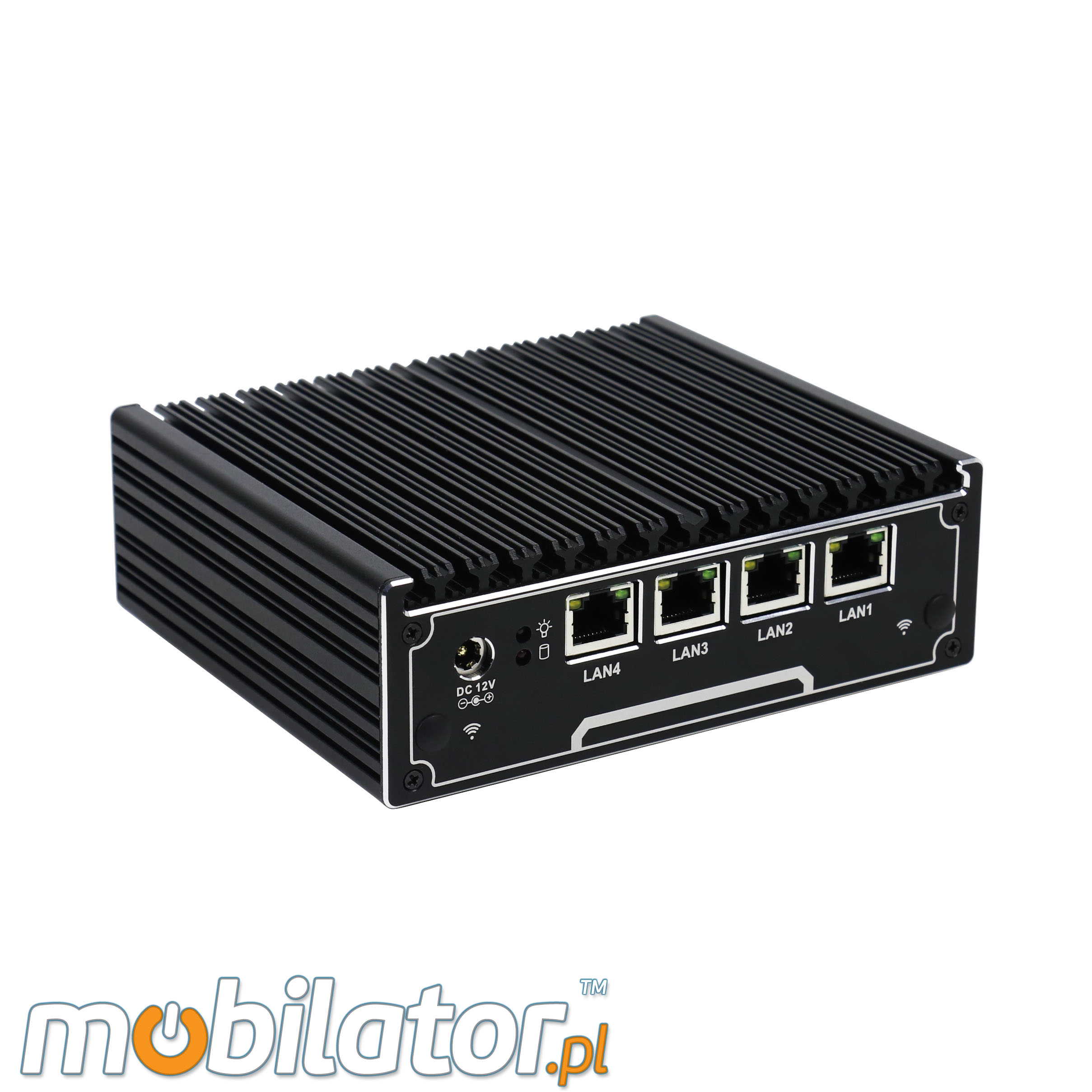

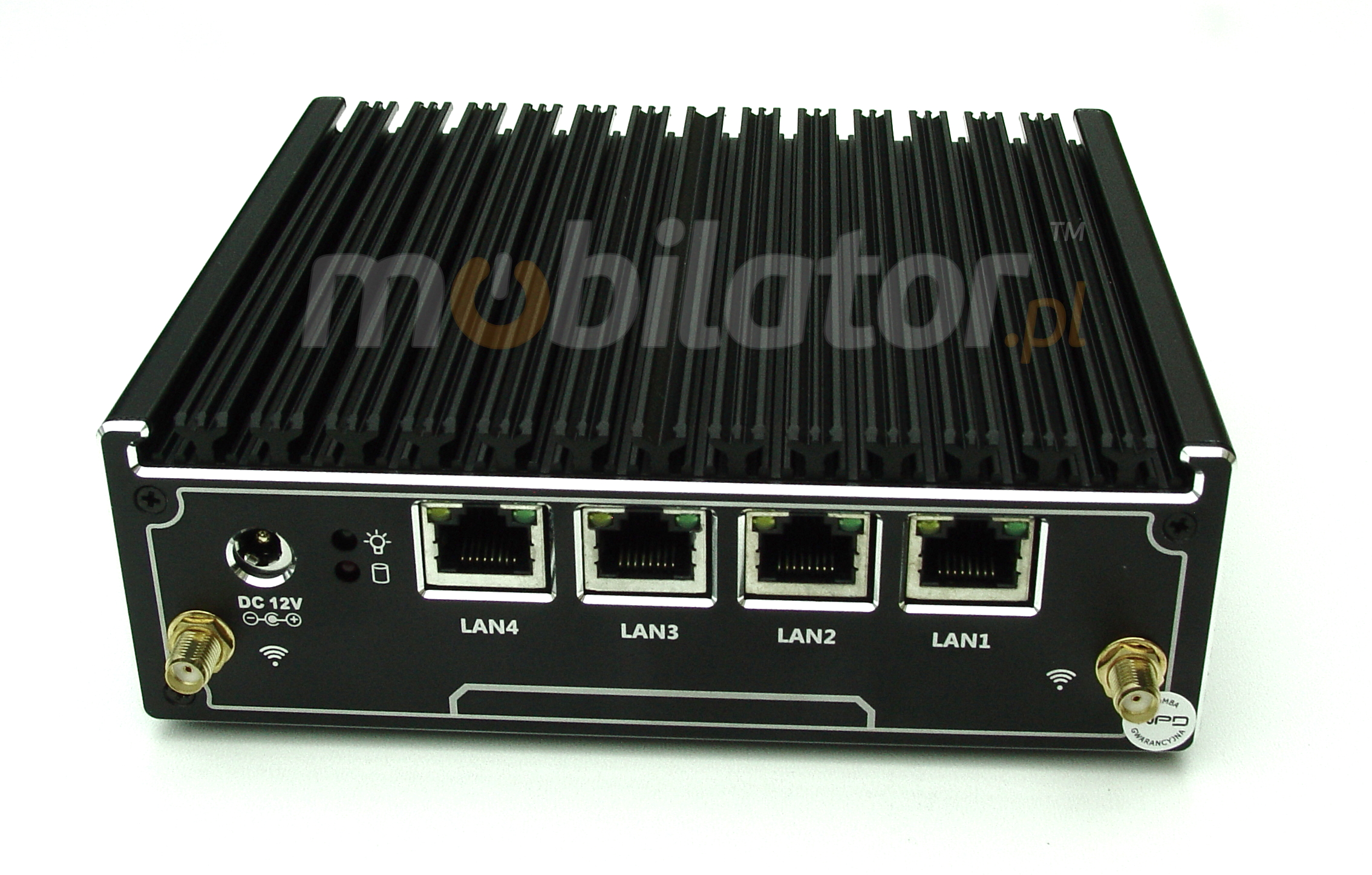

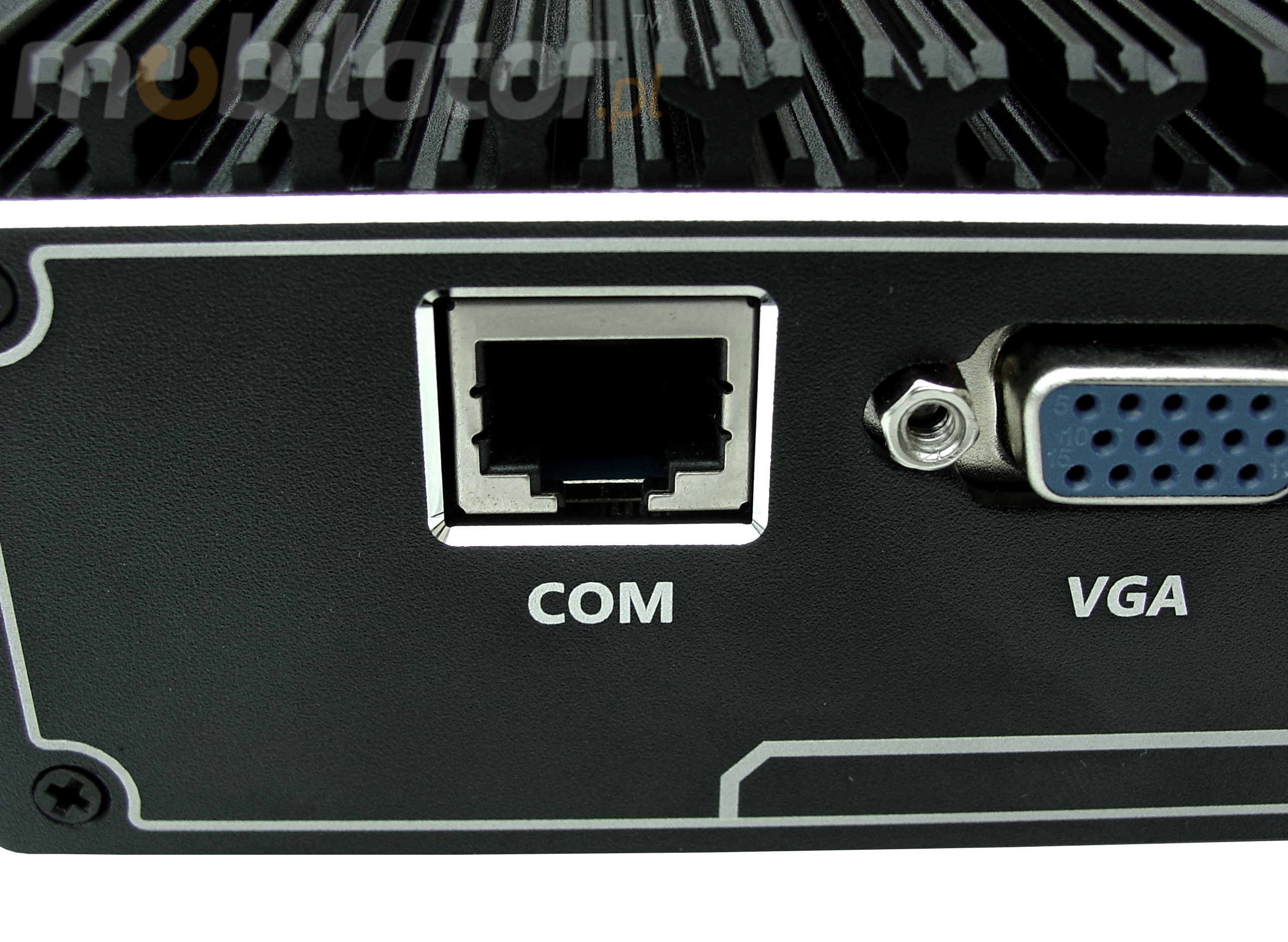

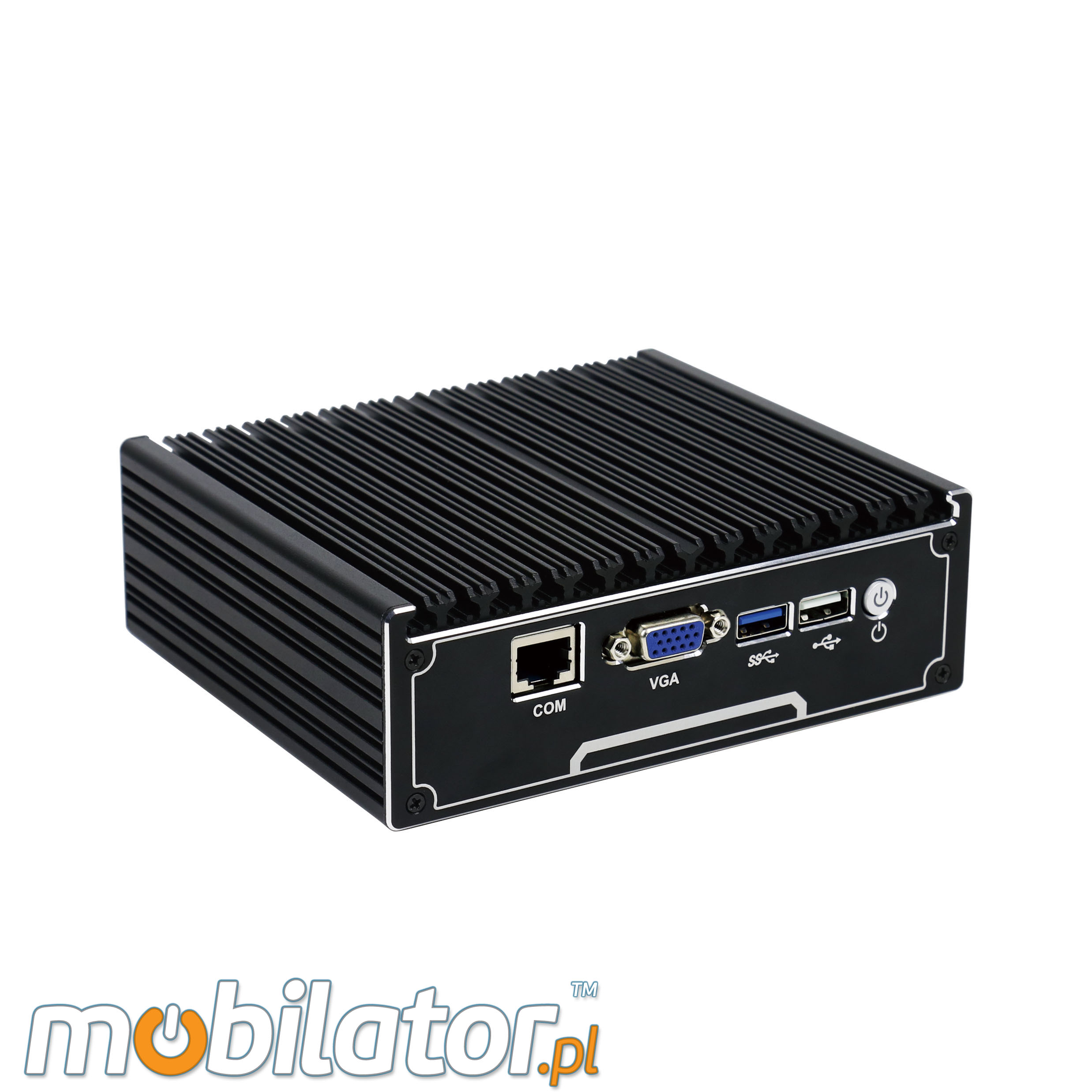

Integrated card - Intel 82583V 10/100/1000M LAN allow connection to the network. The computer is equipped with: four LAN ports, one USB 2.0 port, one USB 3.0 port, one COM RJ-45 port, one VGA port.
.jpg)
.jpg)
|
|
Cooling

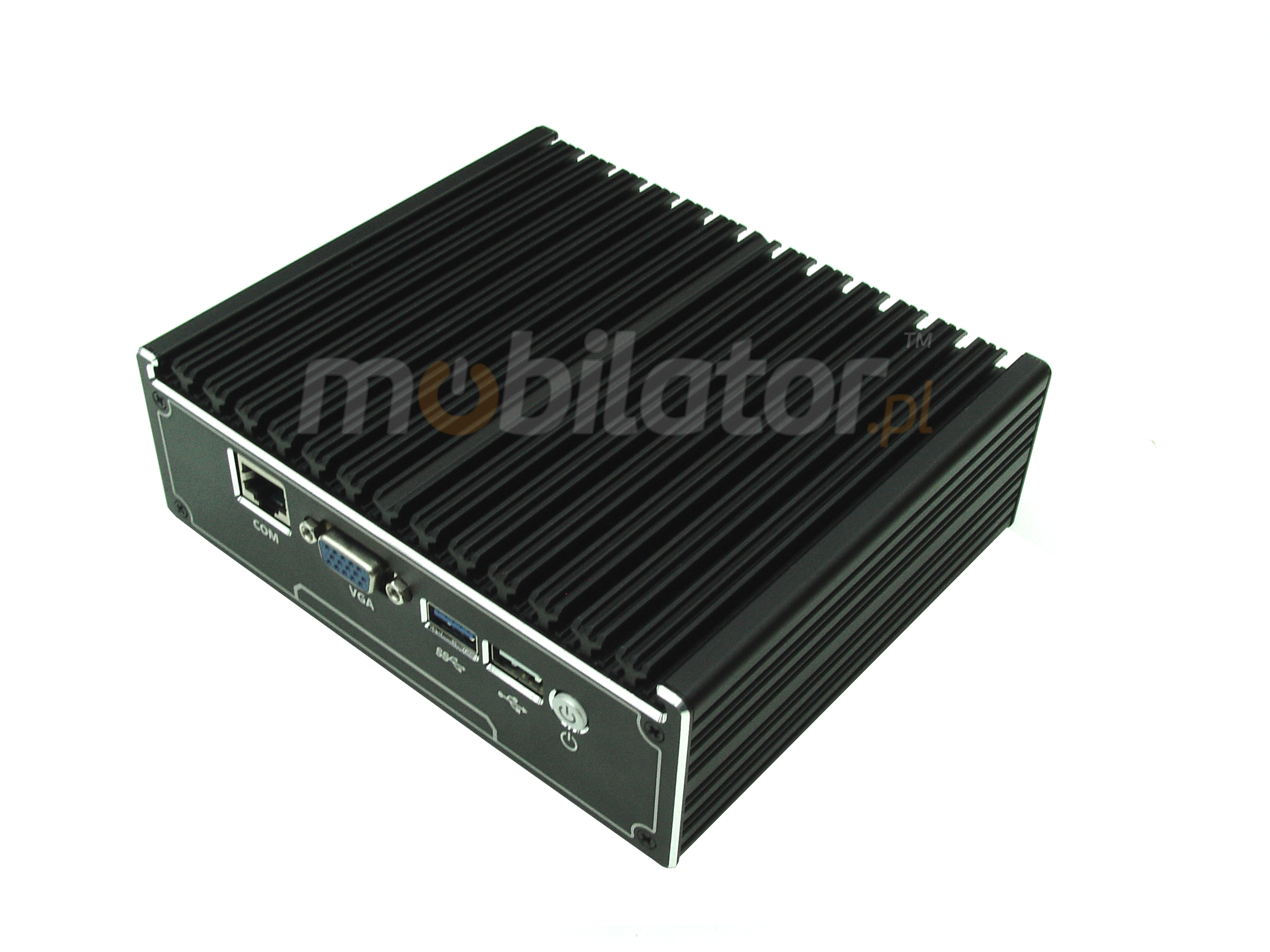

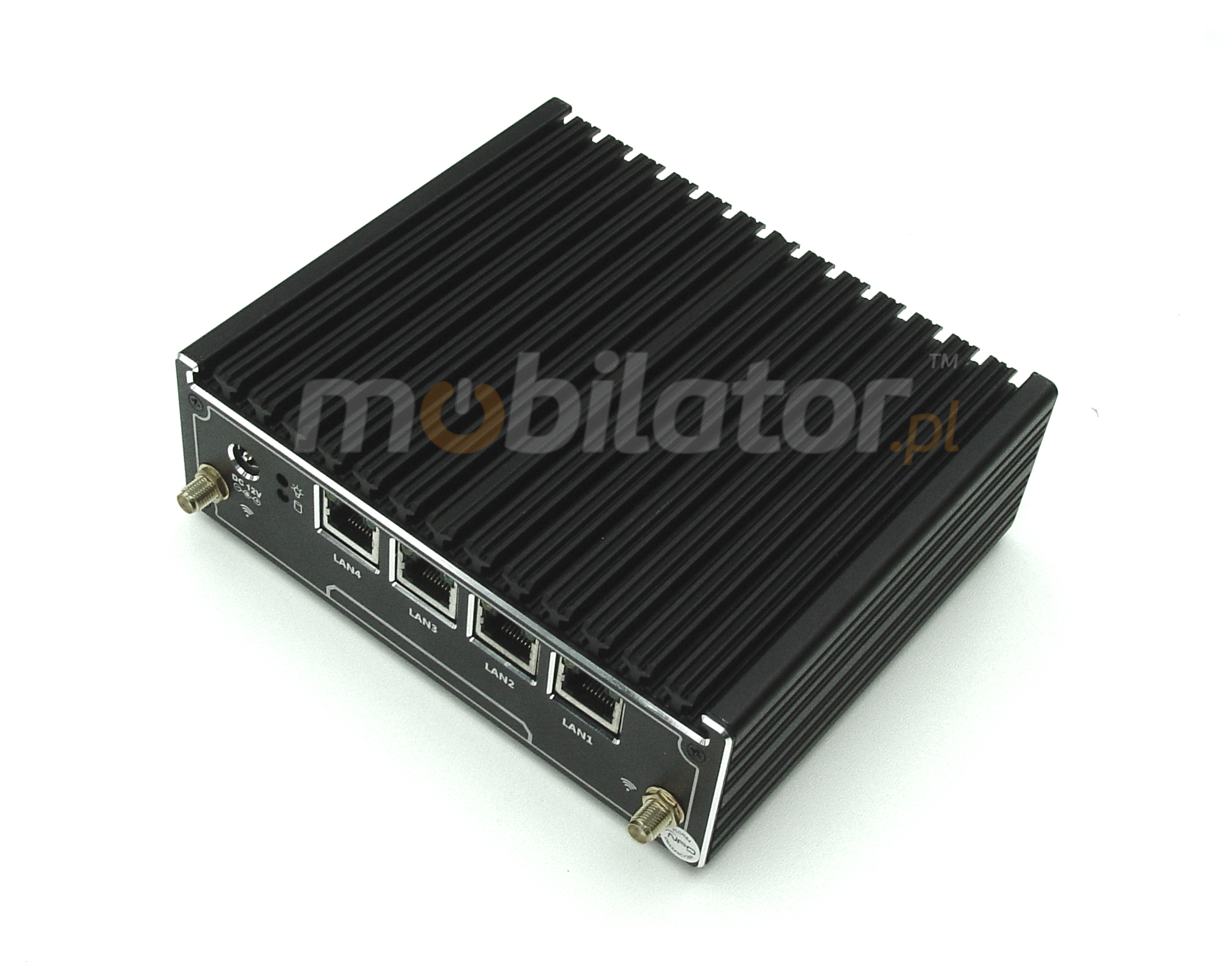

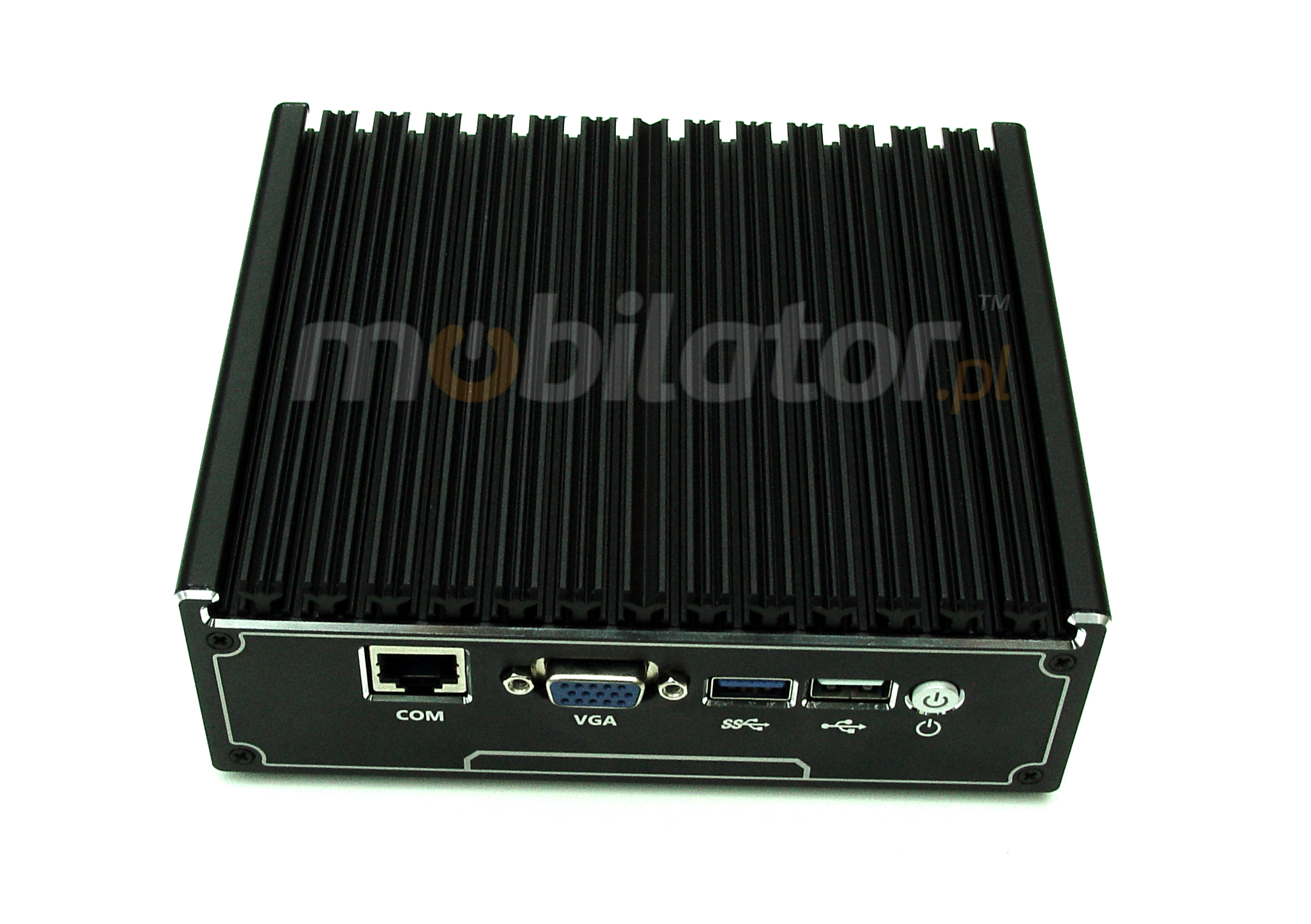

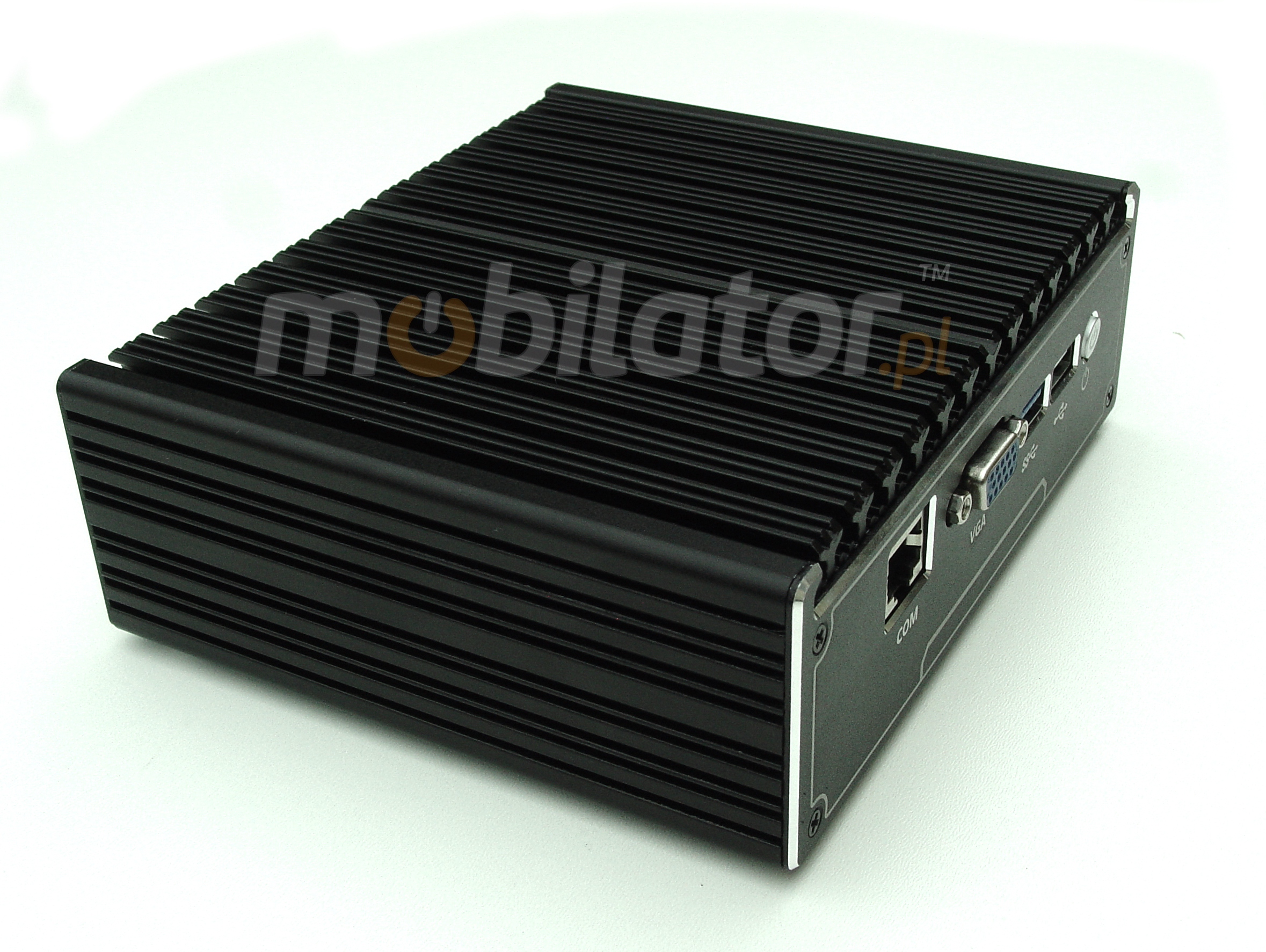

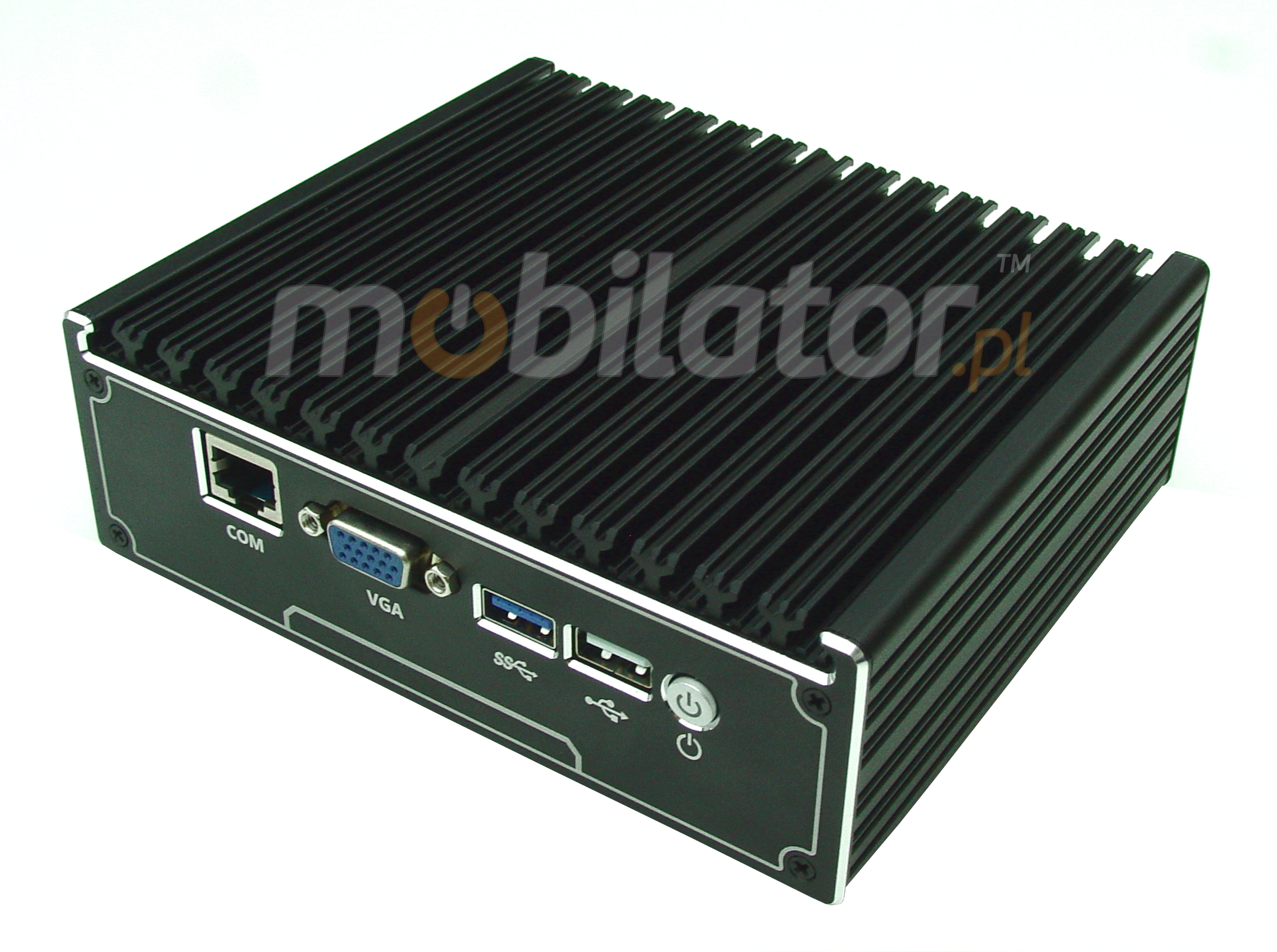

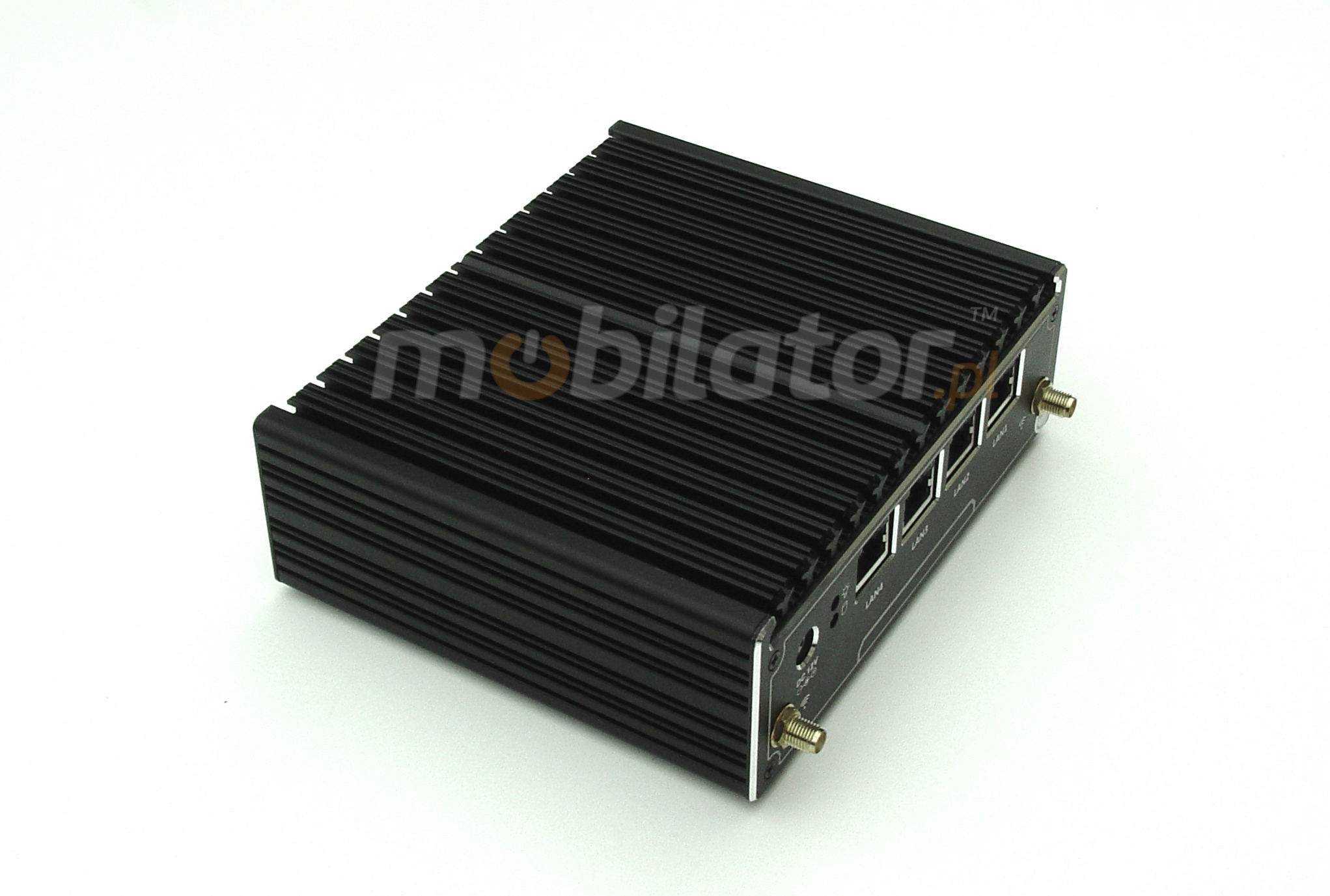

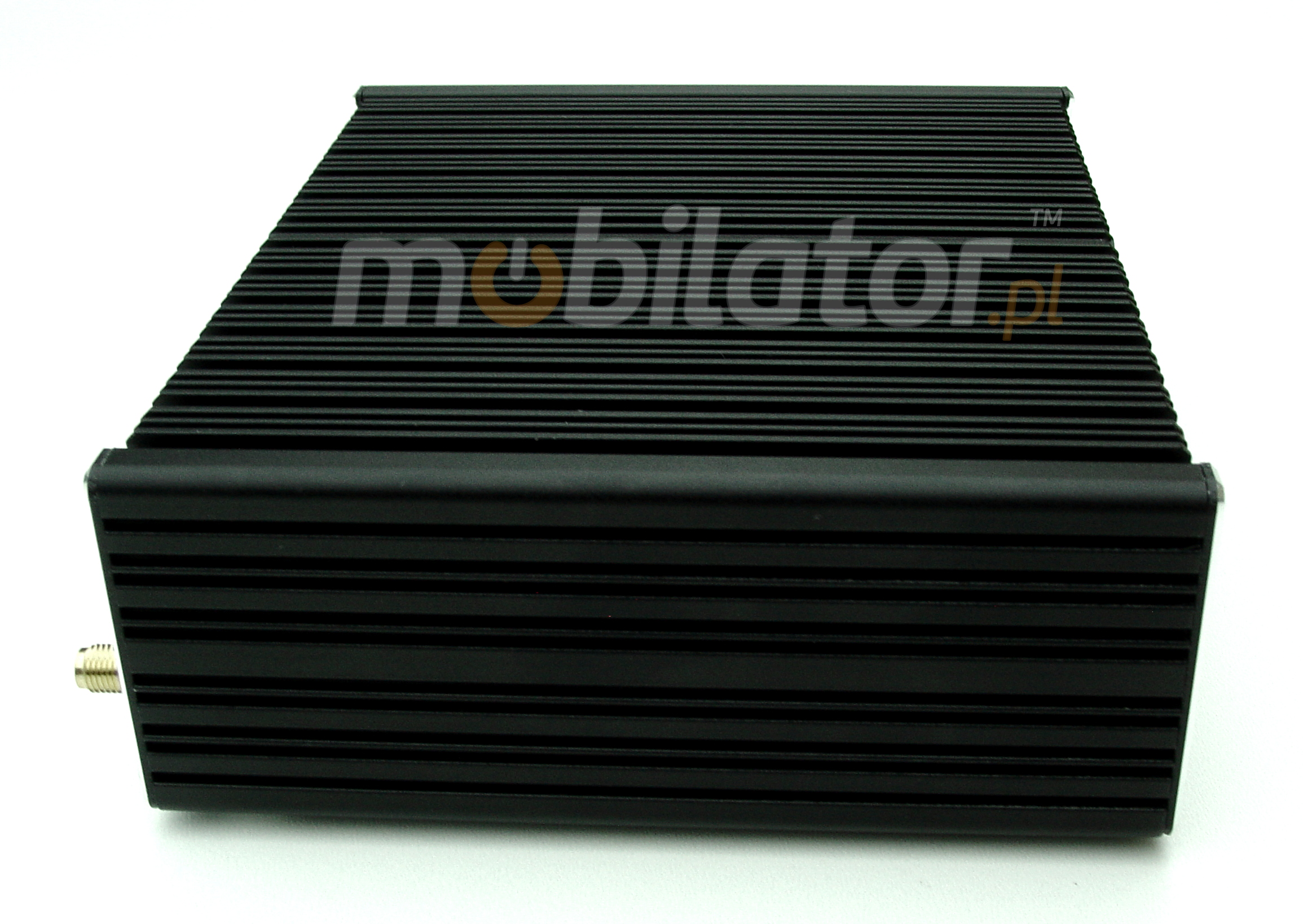

The Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.
go top…  menu…
|
|
|
|

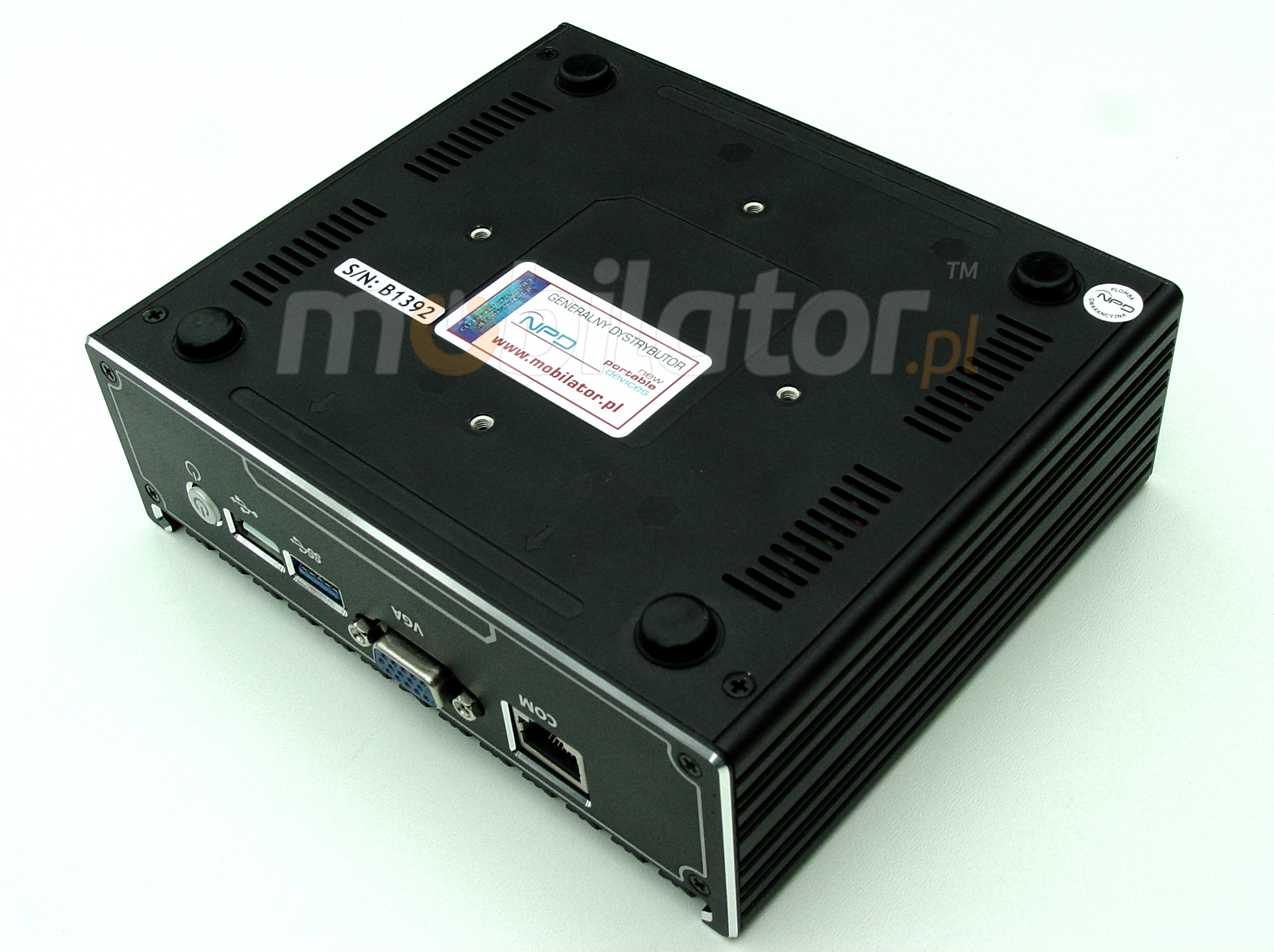

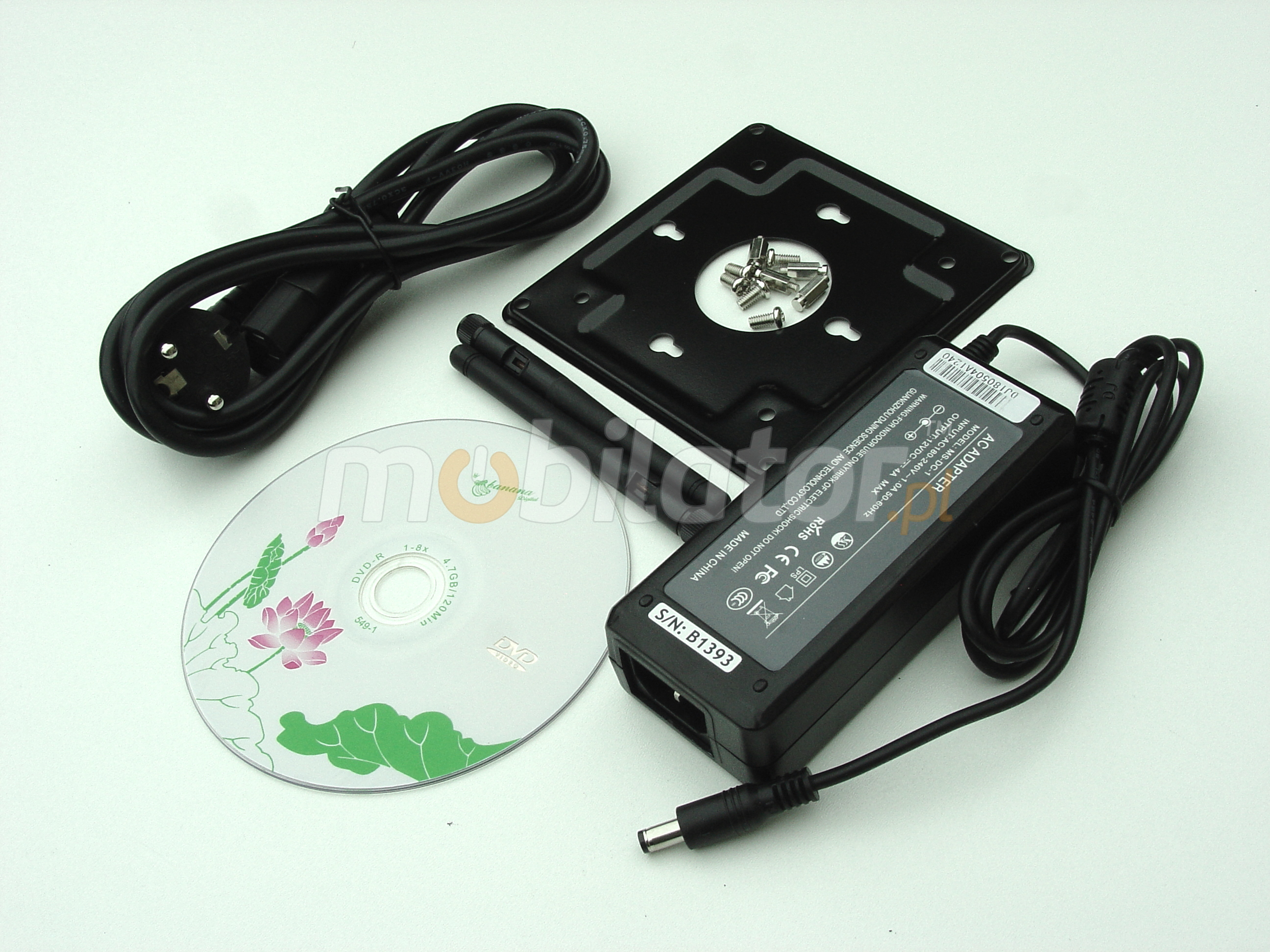

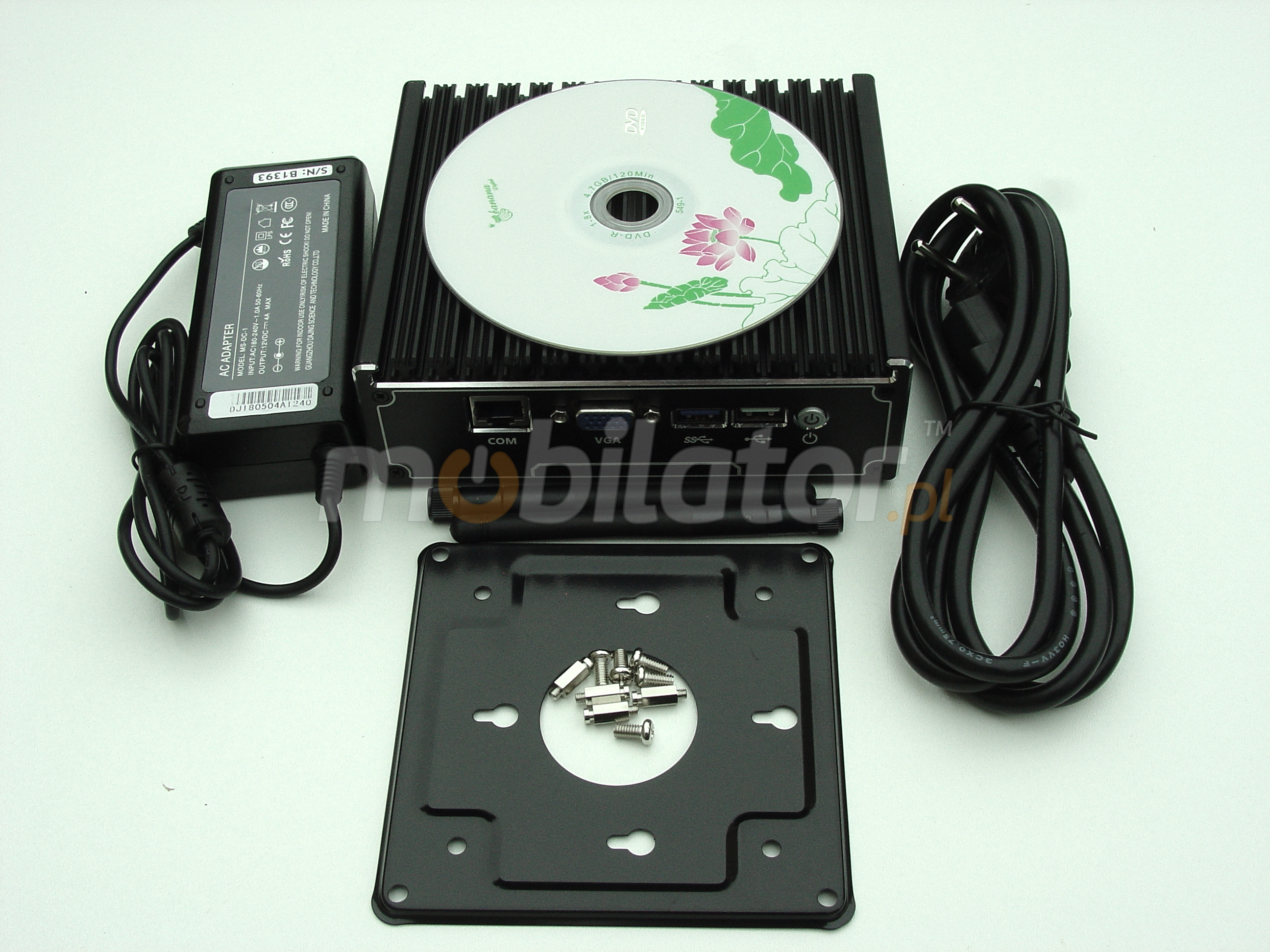

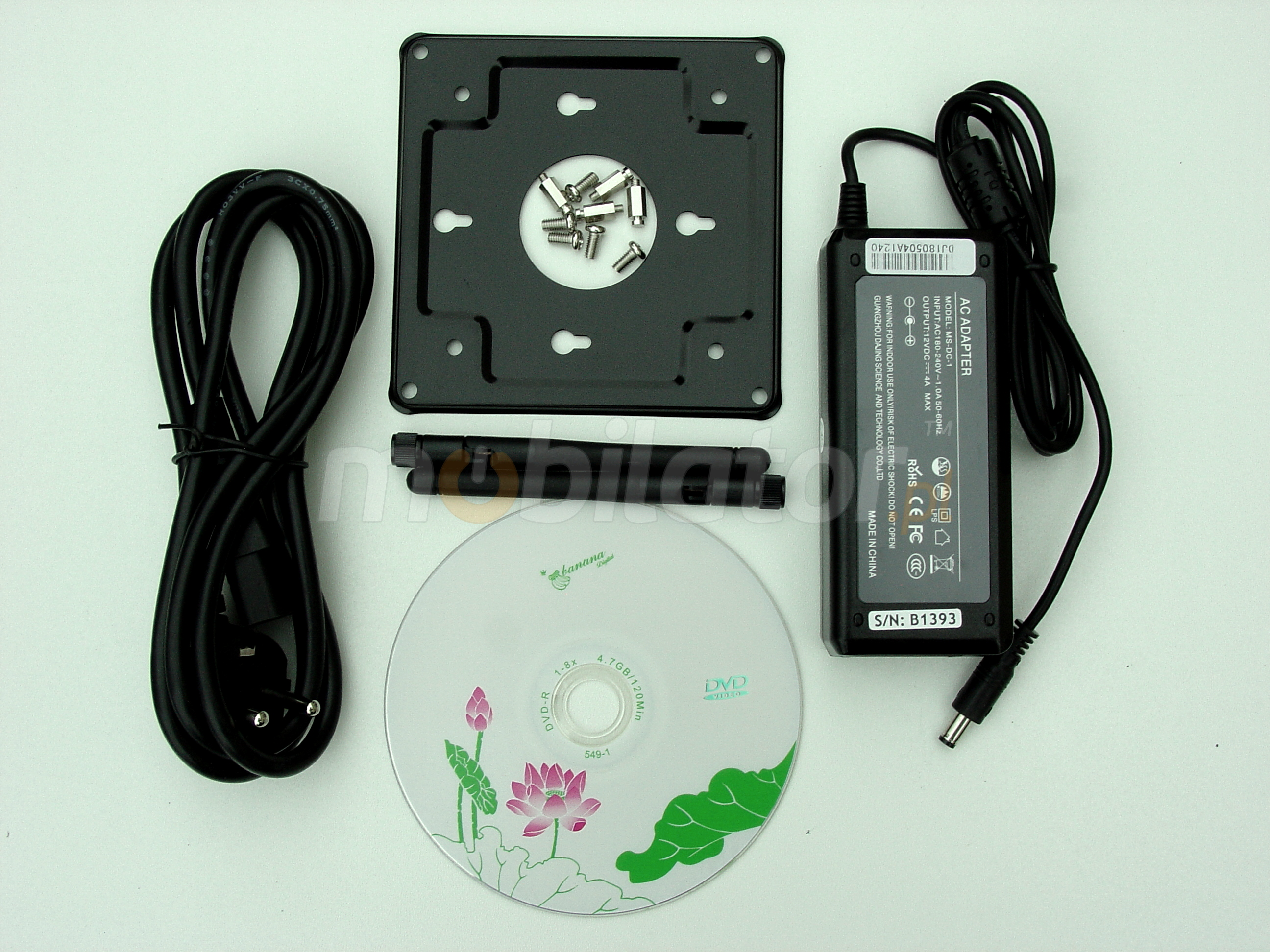

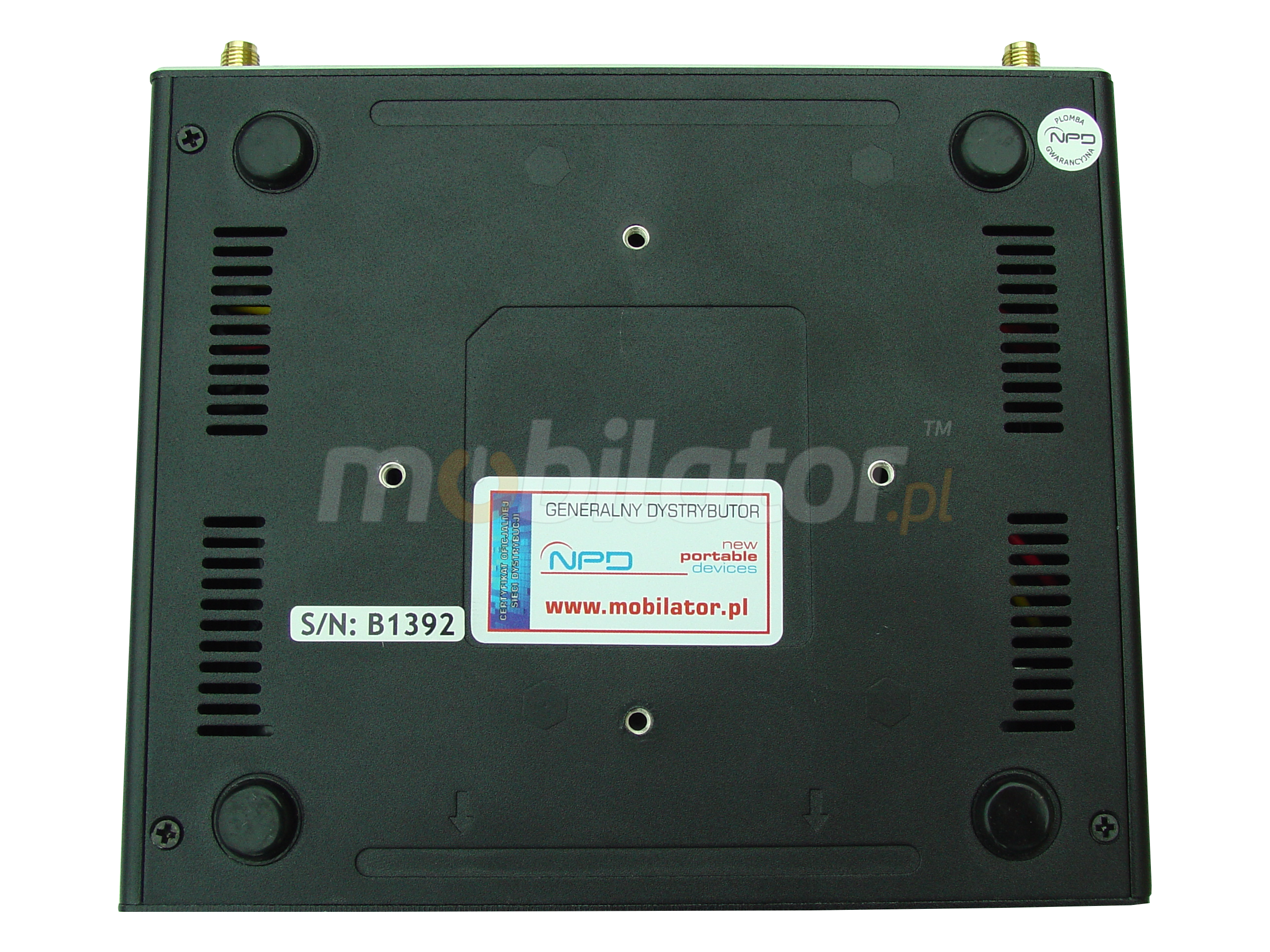

Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21 are based on high-performance quad core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages.jpg) of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
.jpg)

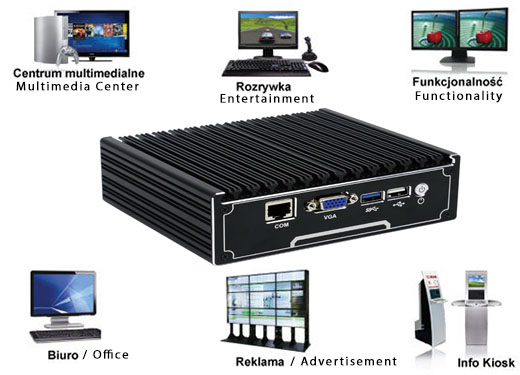

Areas of use of industrial MiniPC
.jpg)
Digital Engine
.jpg)
|
Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
|
|
|
|
Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21 by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
.jpg)
Strengthened Mini Industrial Computer Fanless MiniPC IBOX-NM21 can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
.jpg)
|
|
Dimension
|
H: 48,5 mm
L: 126,5 mm
W: 148 mm
|
Processor
|
Intel Celeron J1900 quad core 2.0GHZ
|
Chipset
|
Intel express chipset |
RAM Memory
|
-
|
Graphic Card
|
Integrated HD Graphic card
|
Sound Card
|
-----
|
WLAN
|
Intel WG82583 10/100M/1000M Lan
|
|
Connectors |

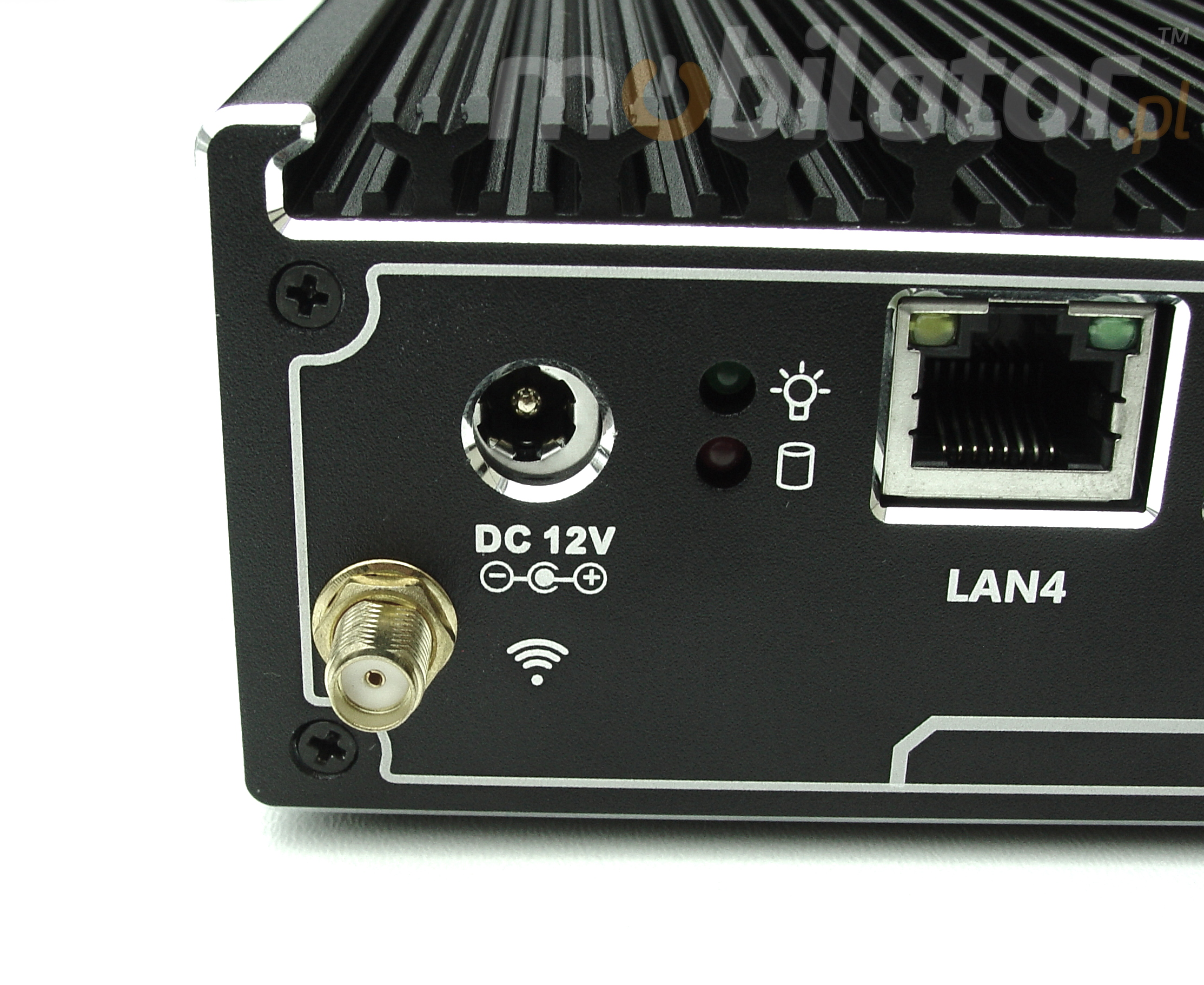

1x 12V D-IN
1x USB 2.0
1x USB 3.0
4x RJ-45 LAN
1x RJ-45 COM (RS232)
|
|
|
.jpg)
|
|
Compare all versions
| Others: |
Colour Black |
| Chipset: |
Intel express chipset |
| CPU Support: |
----- |
| Installed CPU: |
Intel Celeron J1900 Quad Core (4x2.0GHZ) |
| Memory Support: |
DDR3L (max.8GB) SO-DIMM |
| Installed Memory: |
----- |
| Graphic Card: |
Integrated HD Graphic card |
| Storage (HDD) Support: |
SSD/HDD
mSATA |
| Installed Storage (HDD): |
----- |
| CD/DVD Drive: |
----- |
| LAN: |
Intel 82583 10/100/1000M Lan |
| Wireless LAN card: |
----- |
| Bluetooth: |
----- |
| 3G: |
----- |
| 4G LTE: |
|
| TV Tuner: |
----- |
| Watch Dog Timer: |
----- |
| Front Panel (ports): |

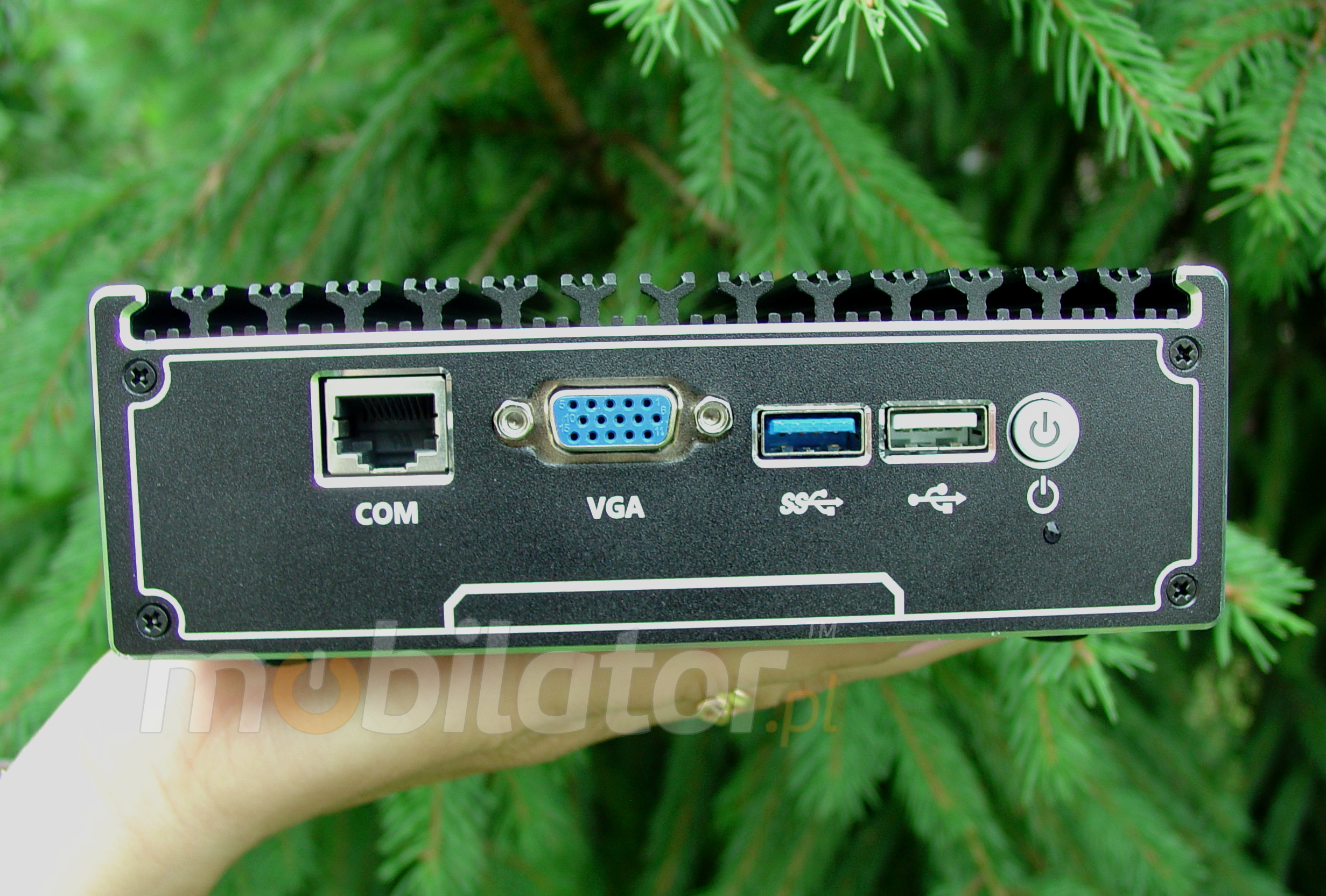

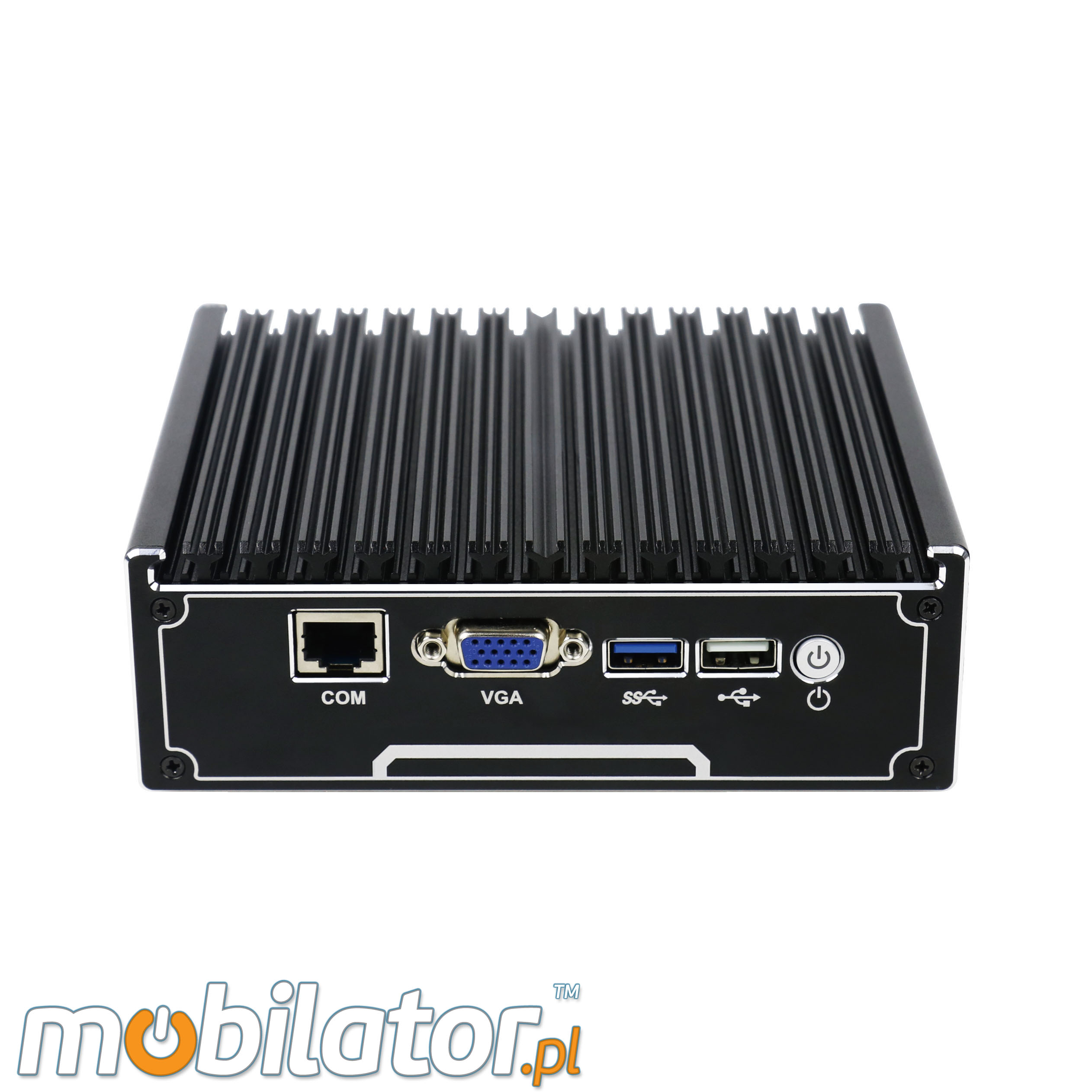

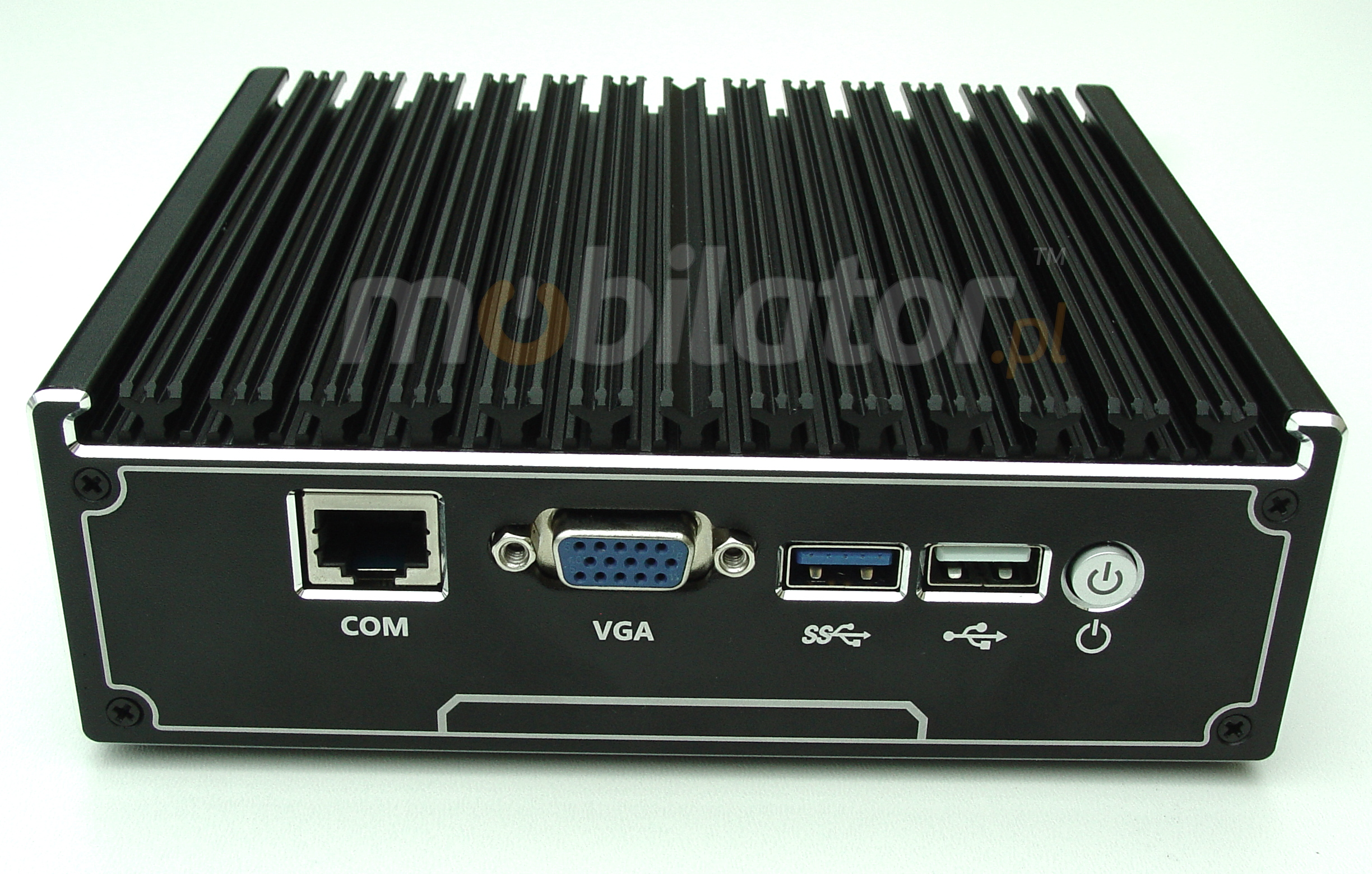

1*USB3.0, 1*USB2.0, 1*Power switch，1*VGA, 1*RJ45 COM |
| Rear Panel (ports): |

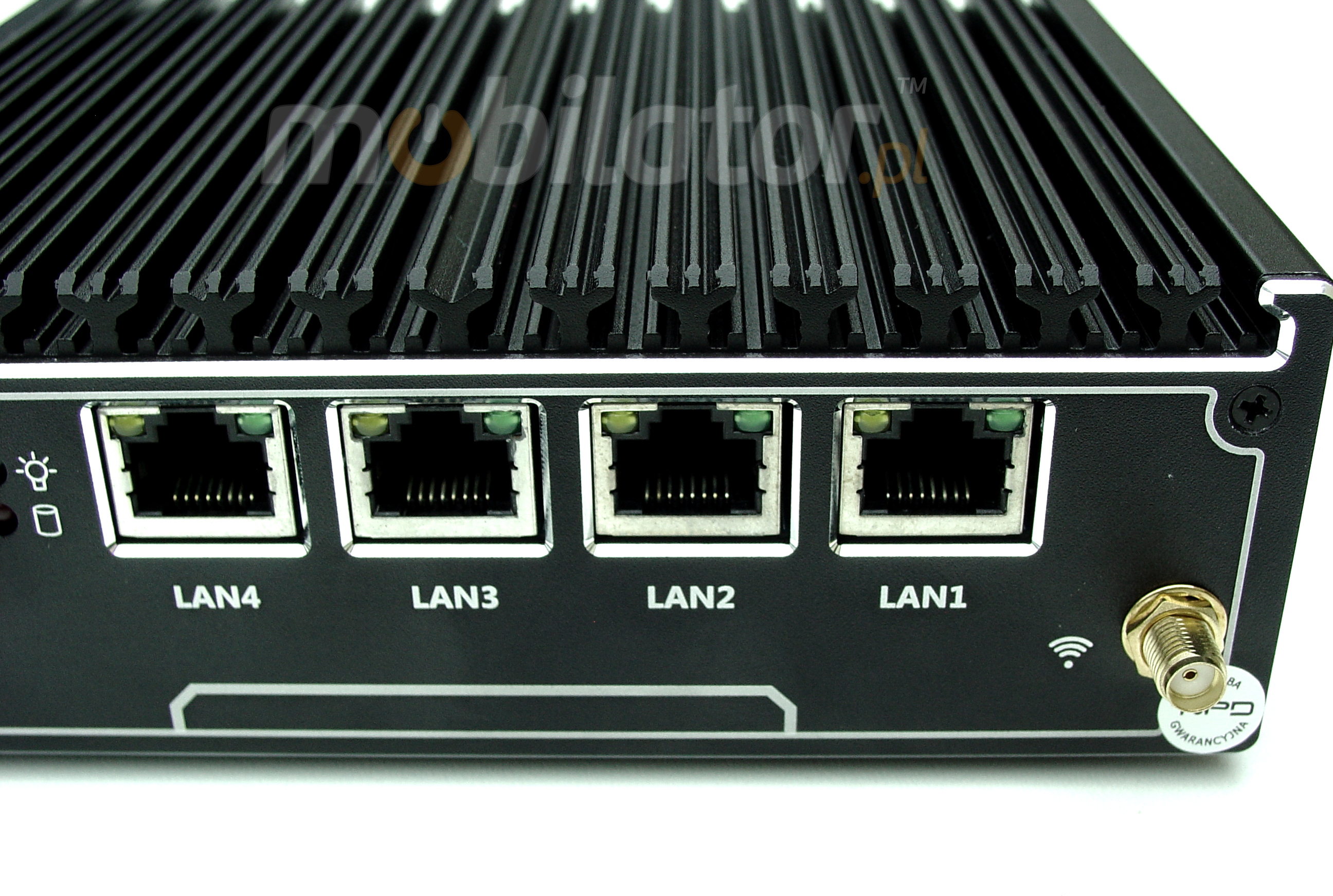

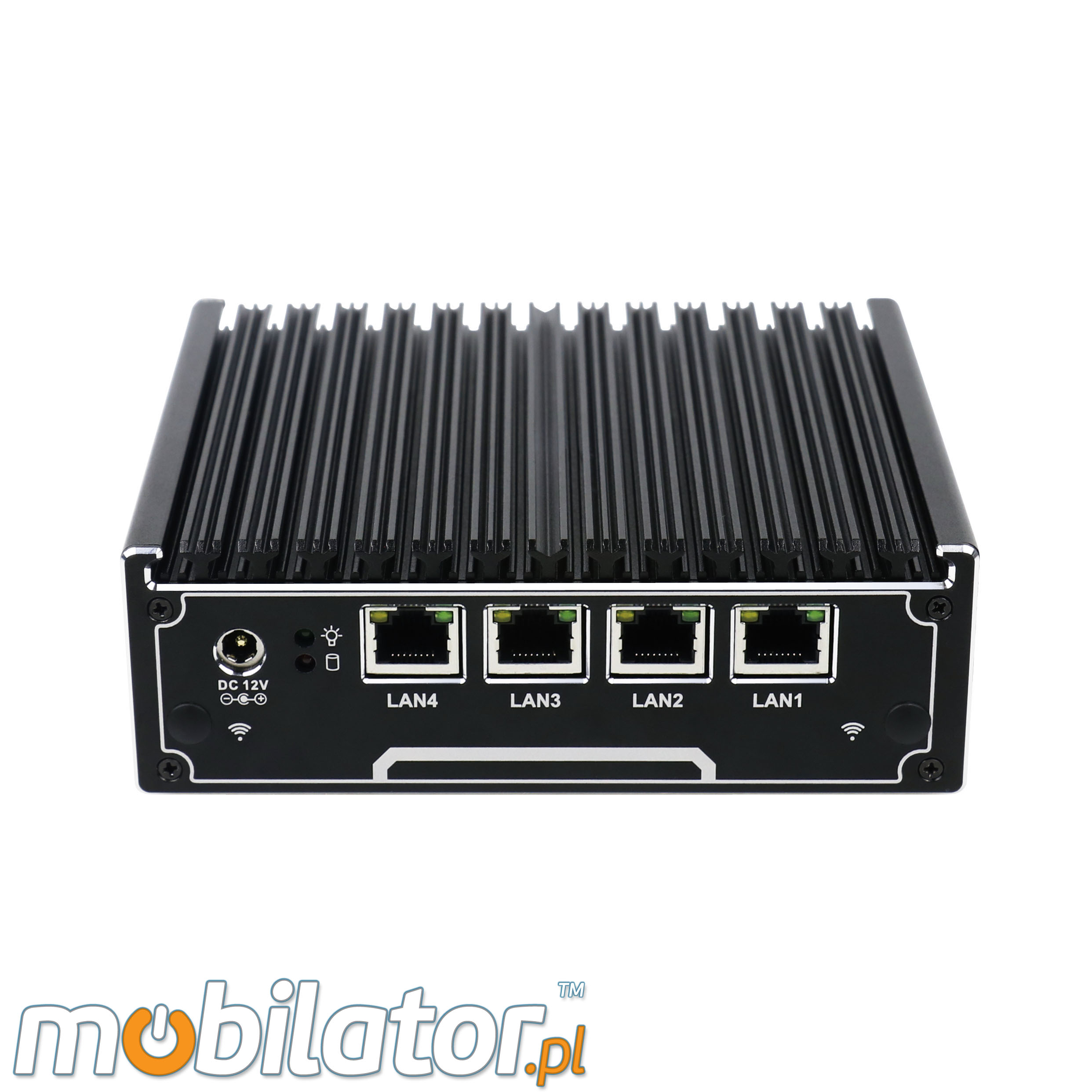

4*RJ45 1000M LAN, 1*DC 12V input, |
| Power: |
12V |
| Supported OS: |
Microsoft Windows: 7/8/8.1/10, Linux |
| Installed OS: |
----- |
| Dimensions: |
148 x 126,5 x 48,5 mm |
| Weight: |
1000g |
| Expansion: |
----- |
| Fanless: |
Yes |
| Humidity: |
0 ~ 95% |
| Temp: |
-10 ～60℃ |
| IP Norm: |
----- |
| Storage temperature: |
-10 ~ 60℃ |
