Strengthened Mini Industrial Computer Fanless MiniPC IBOX-6002 v.5
Compare all versions
|
Industrial Fanless
Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.
MiniPC IBOX-6002 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
|
|
Housing dimensions are 200 (W) x 234 (L) x64.5 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 4GB DDR3L memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 128GB SSD .
.jpg)
|
|
Integrated cards - Intel RTL8111E 1000M Lan and 4G module allows connection to the network. The computer is equipped with: two LAN port, one VGA port,one HDMI port, six COM ports, one LPT port, two PS/2 ports, eight USB 2.0 ports, and a built-in connector on the motherboard: one SATA port, one Mini-PCIE connector,one GPIO connector, one SIM Card slot and one LVDS connector.

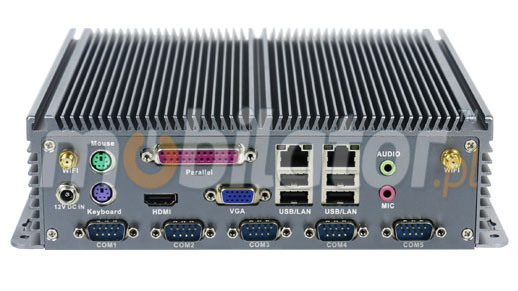

BACK:
.jpg)

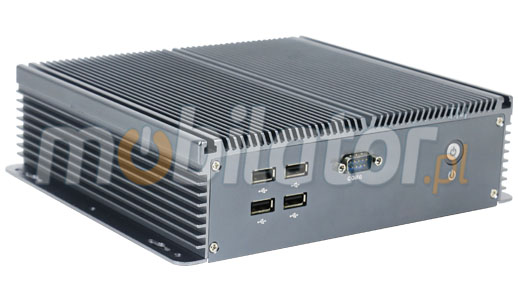

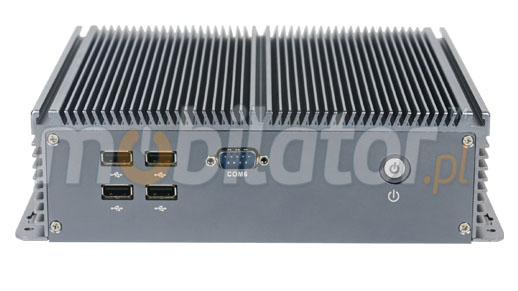

FRONT:
.jpg)
|
|
Cooling
The Strengthened Mini Industrial Computer Fanless MiniPC IBOX-6002 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.
go top…  menu…
|
|
|
|
Strengthened Mini Industrial Computer Fanless MiniPC IBOX-6002 are based on high-performance four-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages.jpg) of these devices are: small size, performance and energy efficiency. An extra pair of brackets or the use of a VESA holder increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
Areas of use of industrial MiniPC
Digital Engine
.jpg)
|
Trade
Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
|
|
|
|
Magazine
Strengthened Mini Industrial Computer Fanless MiniPC IBOX-6002 by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
Transport and cars
MiniPC IBOX-6002 can be used on transport, in cars, through adapting him to operate with a 12V supply. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. It is a small space to mount additional additional hardware.
|
|
|
|
Dimension
|
H: 64.5 mm
L: 234 mm
W: 200 mm
|
Processor
|
Intel Celeron J1900 (4x2.0GHz)
|
Chipset
|
Intel express chipset |
RAM Memory
|
4GB
|
Graphic Card
|
Intel HD Graphics
|
Sound Card
|
Realtek ALC662 |
WLAN
|
Intel RTL8111E Gigabit 1000M Lan |
|
Connectors |
1x wyj¶cie 12V DC Jack
8x USB 2.0
2x RJ-45 LAN
1x VGA
1x HDMI
1x LPT
1x Audio
2x PS/2
6x COM
|
|
|
.jpg)
|
|
|
|
v.0 |
v.1 |
v.0.1 |
v.2 |
v.3 |
v.4 |
v.5 |
|
4GB |
— |
✔ |
✔ |
— |
— |
✔ |
✔ |
|
8GB |
— |
— |
— |
✔ |
✔ |
— |
— |
|
128GB SSD |
— |
✔ |
— |
— |
— |
✔ |
✔ |
|
256GB SSD |
— |
— |
— |
✔ |
— |
— |
— |
|
500GB HDD |
— |
— |
— |
— |
✔ |
— |
— |
|
3G |
— |
— |
— |
— |
— |
✔ |
— |
|
4G |
— |
— |
— |
— |
— |
— |
✔ |
|
64GB SSD |
— |
— |
✔ |
— |
— |
— |
— |
Compare all versions
| Others: |
Color Black
4G |
| Chipset: |
Intel express chipset |
| CPU Support: |
----- |
| Installed CPU: |
Intel Celeron J1900 Quad Core (4x2.0GHZ) |
| Memory Support: |
DDR3L (max. 8GB) |
| Installed Memory: |
4GB DDR3L |
| Graphic Card: |
Intel HD Graphics |
| Storage (HDD) Support: |
SSD/HDD |
| Installed Storage (HDD): |
128GB SSD |
| CD/DVD Drive: |
----- |
| LAN: |
Intel RTL8111E 1000M Lan |
| Wireless LAN card: |
----- |
| Bluetooth: |
----- |
| 3G: |
4G |
| 4G LTE: |
|
| TV Tuner: |
----- |
| Watch Dog Timer: |
0 ~ 255 sec |
| Front Panel (ports): |
4x USB2.0,1xCOM(RS232), Power ON/OFF |
| Rear Panel (ports): |
4x USB2.0
1x HDMI
5x COM(RS232)
2x LAN
2xPS/2
DC-IN 12
1x LPT
1x VGA
1x Audio
1x Mic |
| Power: |
12V |
| Supported OS: |
Microsoft Windows: 7/8/8.1/10, Linux |
| Installed OS: |
----- |
| Dimensions: |
234 x 200 x 64.5 mm |
| Weight: |
2000g |
| Expansion: |
----- |
| Fanless: |
Yes |
| Humidity: |
0 ~ 95% |
| Temp: |
-10 ～60℃ |
| IP Norm: |
----- |
| Storage temperature: |
-20 ~ 70℃ |
