Durable Computer Industrial Fanless MiniPC IBOX-NM31C i3 WiFi v.3
Compare all versions
|
Industrial Fanless
Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

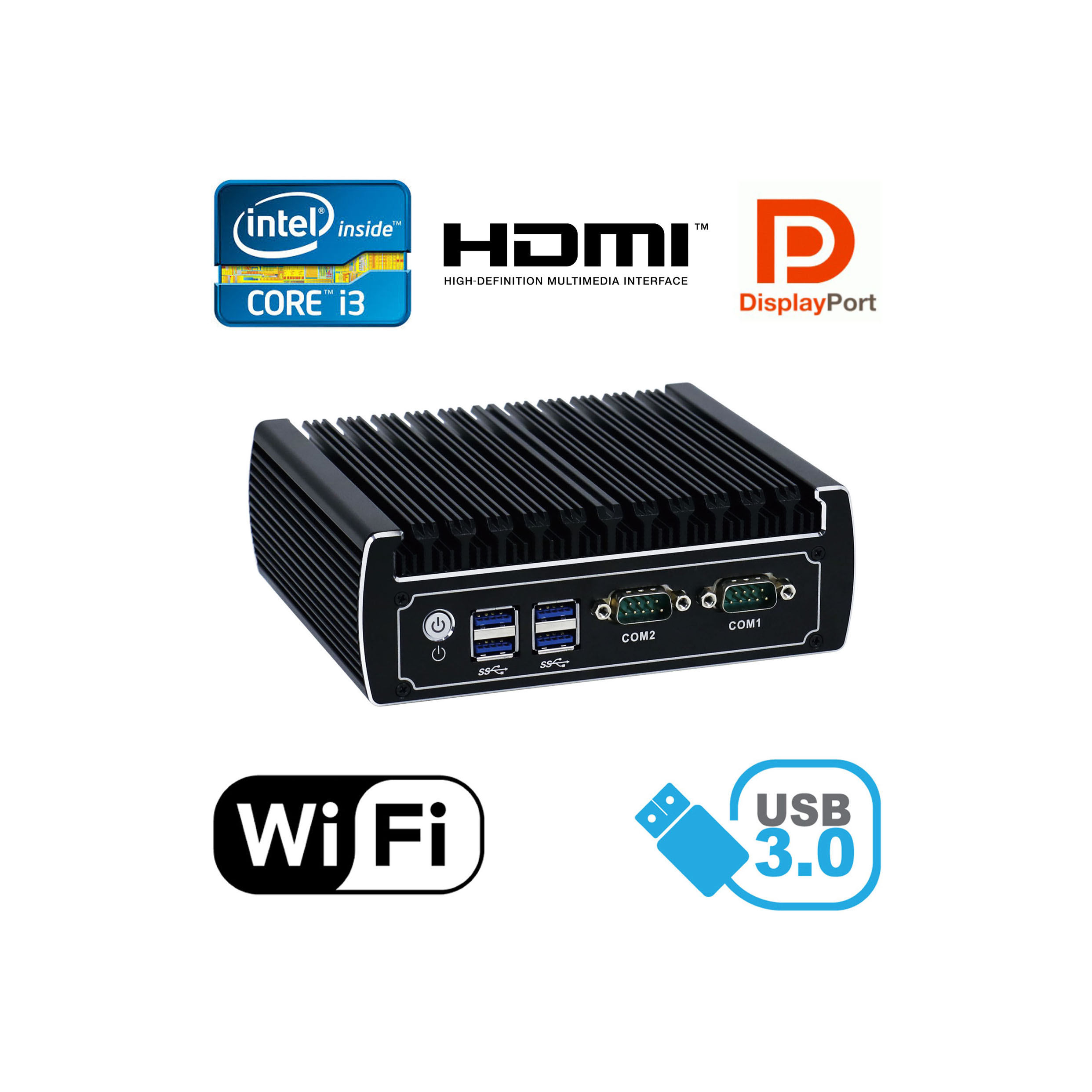

Durable Computer Industrial Fanless MiniPC IBOX-NM31C i3 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.
|
|
Housing dimensions are 155 (W) x126,5 (L) x52,5 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and 8GB DDR4 memory. Integrated Integrated Intel HD Graphics 520 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 500GB HDD.
Porównaj wszystkie wersje
|
|
v.0 |
v.1 |
v.2 |
v.3 |
v.4 |
v.5 |
v.6 |
|
4GB RAM |
— |
✔ |
— |
— |
— |
✔ |
✔ |
|
8GB RAM |
— |
— |
✔ |
✔ |
— |
— |
— |
|
16GB RAM |
— |
— |
— |
— |
✔ |
— |
— |
|
128GB SSD |
— |
✔ |
— |
— |
— |
✔ |
✔ |
|
256GB SSD |
— |
— |
✔ |
— |
✔ |
— |
— |
|
500GB HDD |
— |
— |
— |
✔ |
— |
— |
— |
|
3G |
— |
— |
— |
— |
— |
✔ |
— |
|
4G |
— |
— |
— |
— |
— |
— |
✔ |
.jpg)
|
|

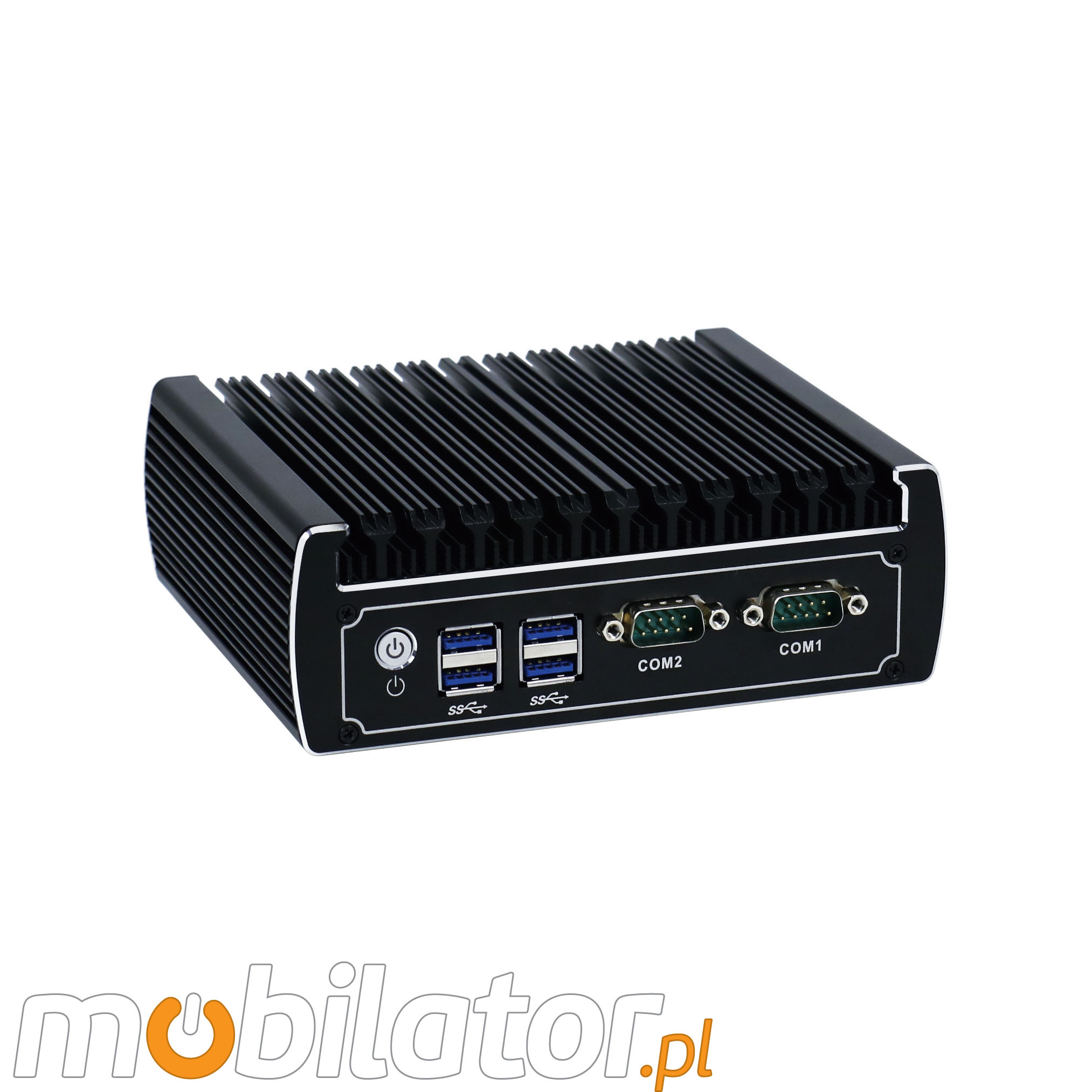

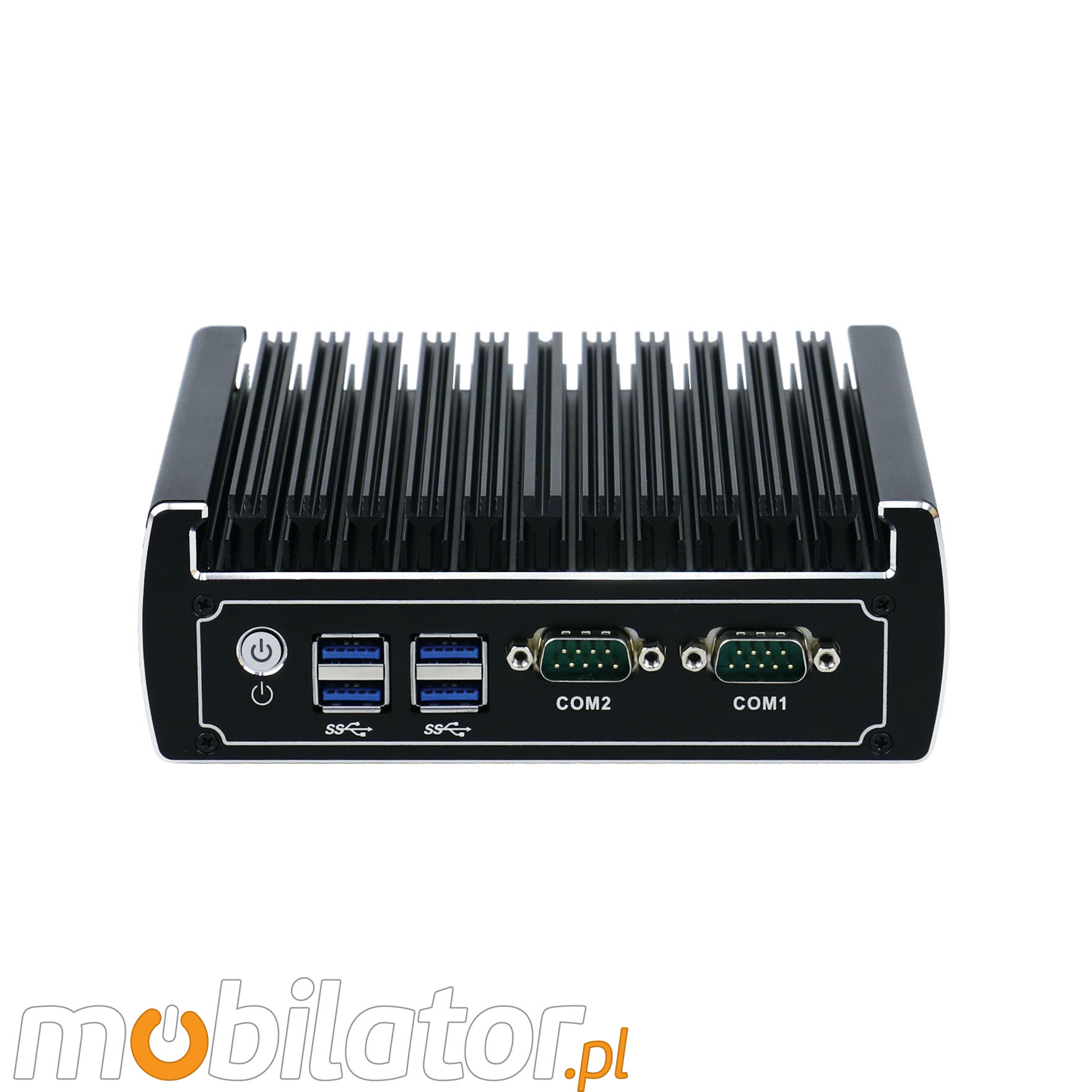

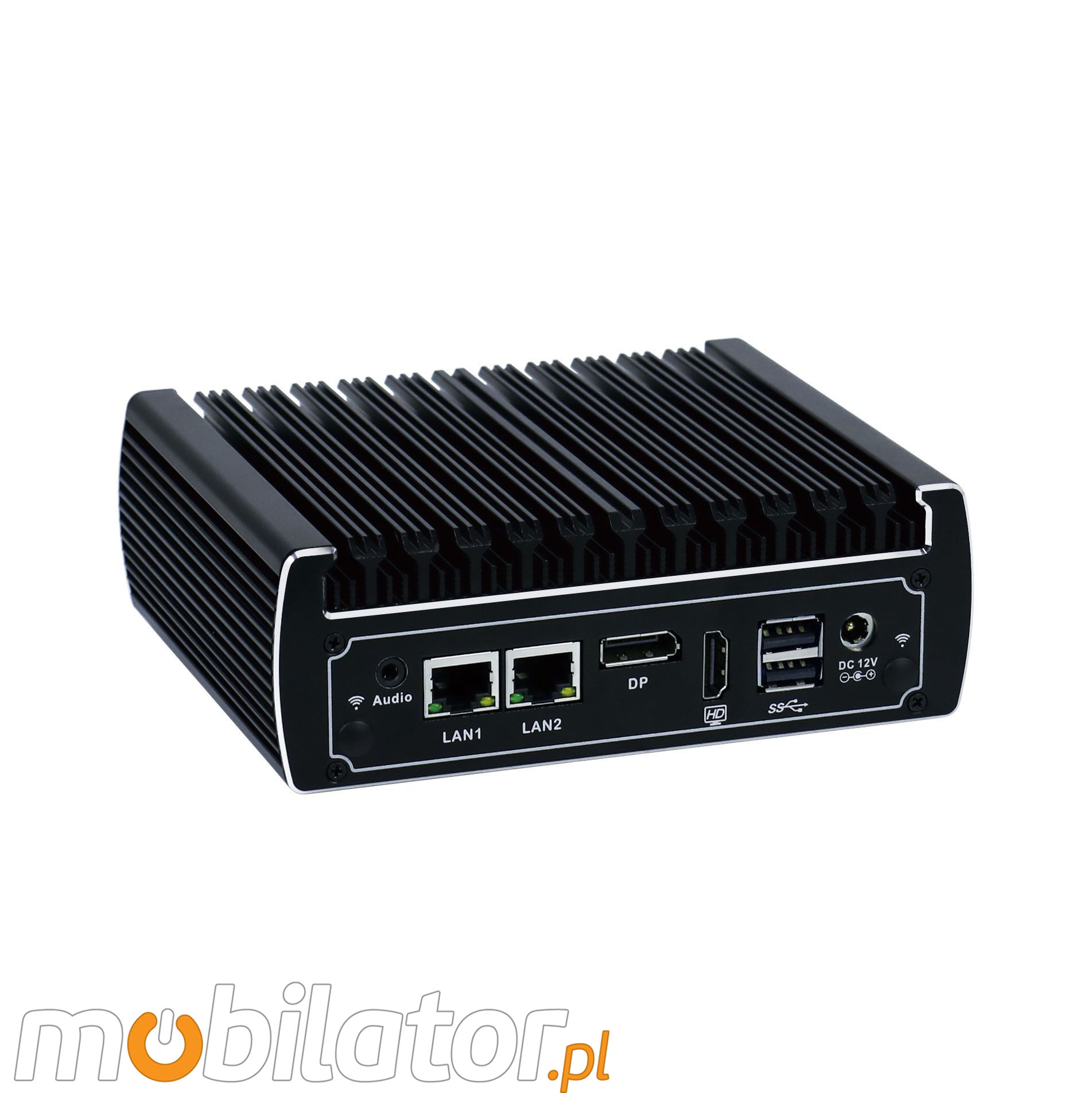

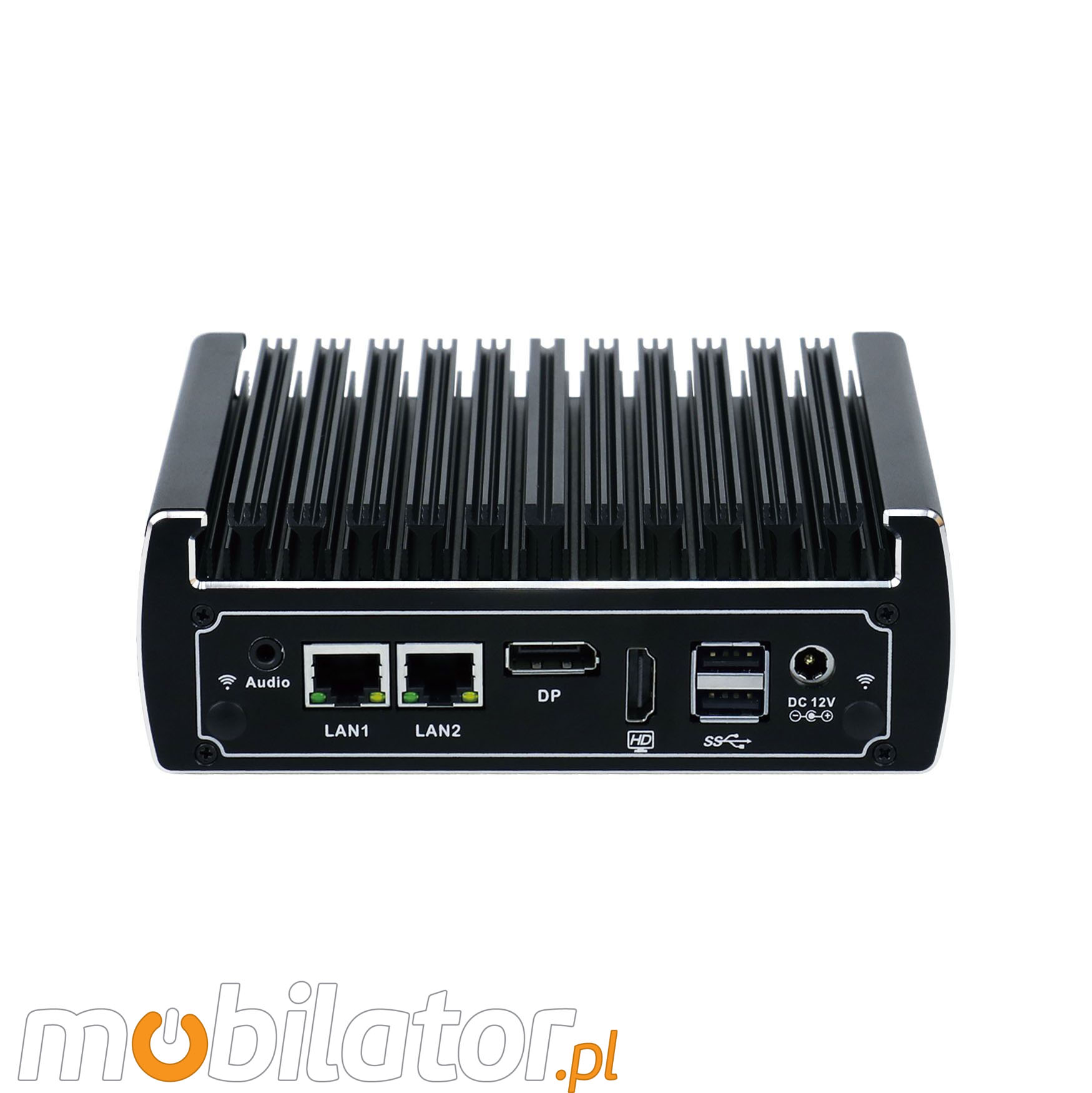

Integrated card - RTL8111E 10/100/1000M and WiFi module allow connection to the network. The computer is equipped with: two LAN ports, one HDMI port, one DP port, two USB 2.0 ports, four USB 3.0 ports, two COM RS232 ports.
.jpg)
.jpg)
.jpg)
|
|
The Durable Computer Industrial Fanless MiniPC IBOX-NM31C i3 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.
go top…  menu…
|
|
|
|
Durable Computer Industrial Fanless MiniPC IBOX-NM31C i3 are based on high-performance dual-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages.jpg) of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
.jpg)
Areas of use of industrial MiniPC
.jpg)
Digital Engine
.jpg)
|
Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
|
|
|
|
Durable Computer Industrial Fanless MiniPC IBOX-NM31C i3 by USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
.jpg)
Durable Computer Industrial Fanless MiniPC IBOX-NM31C i3 can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
.jpg)
|
|
Dimension
|
H: 52,5 mm
L: 126,5 mm
W: 155 mm
|
Processor
|
Intel Core i3 6100U dual core 2.3GHZ
|
Chipset
|
Intel Chipset |
RAM Memory
|
8GB
|
Graphic Card
|
Integrated Intel HD Graphics 520
|
Sound Card
|
Realtek ALC662 |
WLAN
|
RTL8111E 10/100/1000M
|
|
Connectors |
1x 12V D-IN
4x USB 3.0
2x USB 2.0
2x RJ-45 LAN
1x HDMI
2x COM (RS232)
1x DP
1x Audio/Mic
|
|
|
.jpg)
|
|
Compare all versions
| Others: |
Colour Black |
| Chipset: |
Intel express chipset |
| CPU Support: |
----- |
| Installed CPU: |
Intel Core i3 6100U (2x 2.3GHZ) |
| Memory Support: |
DDR4 (max.16GB) 1866/2133MHz SO-DIMM |
| Installed Memory: |
8GB |
| Graphic Card: |
Integrated Intel HD Graphics 520 |
| Storage (HDD) Support: |
SSD/HDD
mSATA |
| Installed Storage (HDD): |
500GB HDD |
| CD/DVD Drive: |
----- |
| LAN: |
RTL8111E 10/100/1000M |
| Wireless LAN card: |
Yes - 802.11 b/g/n |
| Bluetooth: |
----- |
| 3G: |
----- |
| 4G LTE: |
|
| TV Tuner: |
----- |
| Watch Dog Timer: |
----- |
| Front Panel (ports): |
4x USB3.0
1x COM(RS232)
Power ON/OFF
|
| Rear Panel (ports): |
DC-IN 12V,
2x RJ-45 LAN
2x USB2.0
1xHDMI
1xBR
1xAUDIO/MIC |
| Power: |
12V |
| Supported OS: |
Microsoft Windows: 7/8/8.1/10, Linux |
| Installed OS: |
----- |
| Dimensions: |
155 x 126,5 x 52,5 mm |
| Weight: |
1600g |
| Expansion: |
----- |
| Fanless: |
Yes |
| Humidity: |
0 ~ 95% |
| Temp: |
-10 ～50℃ |
| IP Norm: |
----- |
| Storage temperature: |
-10 ~ 50℃ |
Compare all versions
