UMPC - Noahpad EL-460
|
|
The product from the archive - production terminated
|
Design-Concept
The NoahPad is one of the most innovative UMPC. Noahpad UMPC is designed specifically with the modern day computer users in mind. As technologies continue to advance and the spheres of our a  ctivities continue to expand, individuals are connected to one another more closely than ever before. However, unconsciously, people are increasingly chained to their desks as they enjoy the convenience of managing all aspects of lives through computers. In light of this, Noahpad UMPC endeavors to bring computer users the benefits of the modern day technologies without compromising on individual freedom. Noahpad UMPC offers a compact and user-centered design so that it may be carried anywhere and used in a position that the users are most comfortable with. It is the ultimate balance between utility and sleekness.
Small size and light weight to fit school bag. ?Over 10 ho  ur using time with external battery pack, AC plug is not necessary. ? 30 GB HDD and SD slot provide big storage. ?Built in WiFi and Bluetooth and external 3.5G to get necessary knowledge everywhere. ? Microphone for recording in classroom and speaks for play back. ?More than 50 function keys, most of the functions can be activated by a single pres.
Roommate

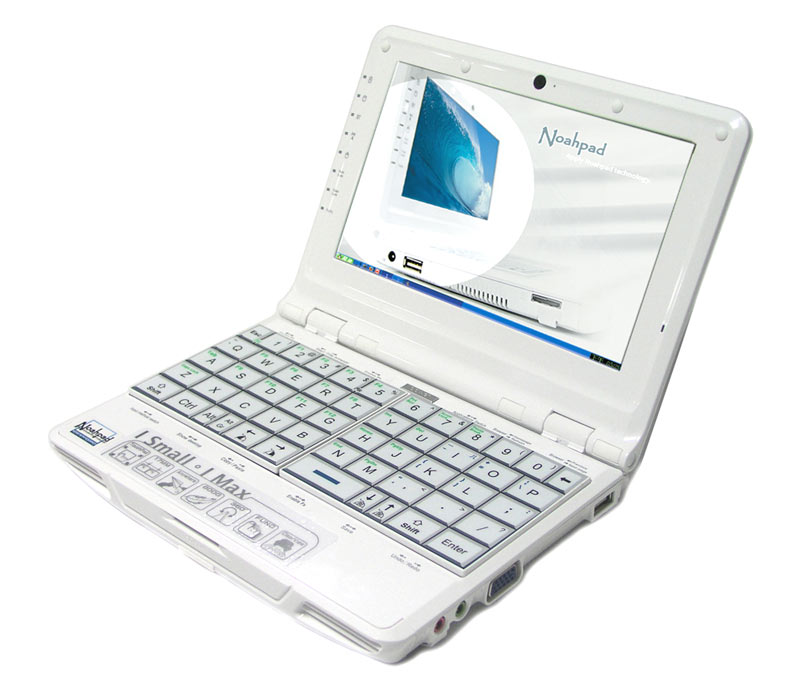

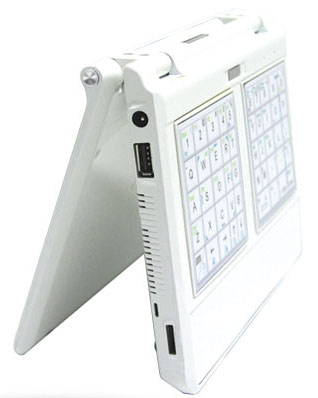

Double operation modes for any comfortable pose  anywhere. To lift panel into laptop mode and use like a laptop computer. Or, to fold down the panel into palmtop mode. Mini sizes with 7” screen but to display big 10” windows. Dual large touch pads, to control cursor and to scroll the window pages on screen easily. Enjoy digital music and videos for a wide range of multimedia.
Travelmate
Webcam for you to connect with friends with free video calls anywhere via Skype, MSN or others . Large typing keys for your typing e-mail and any documents. RGB outlet to connect with projector. Good to carry outside with compact size,long using time and large storage. Easy for palmtop use with shoulder strap holding the weight .

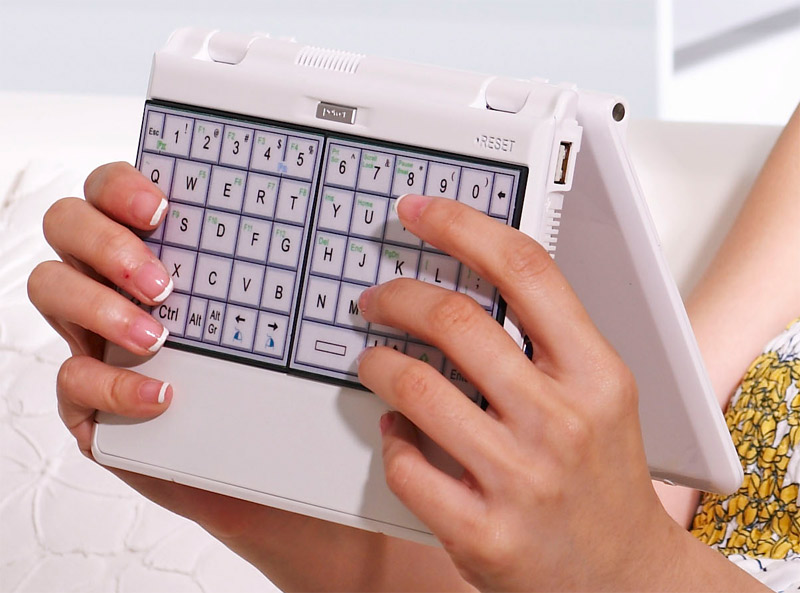

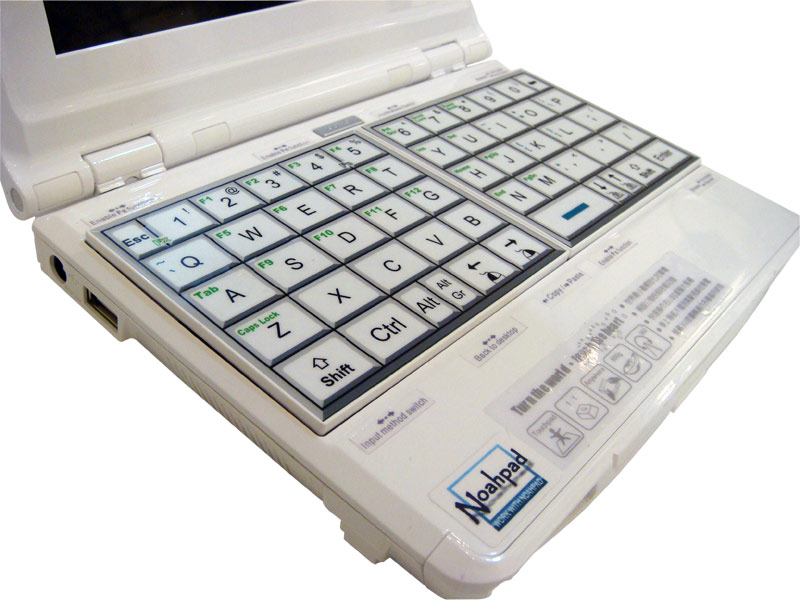

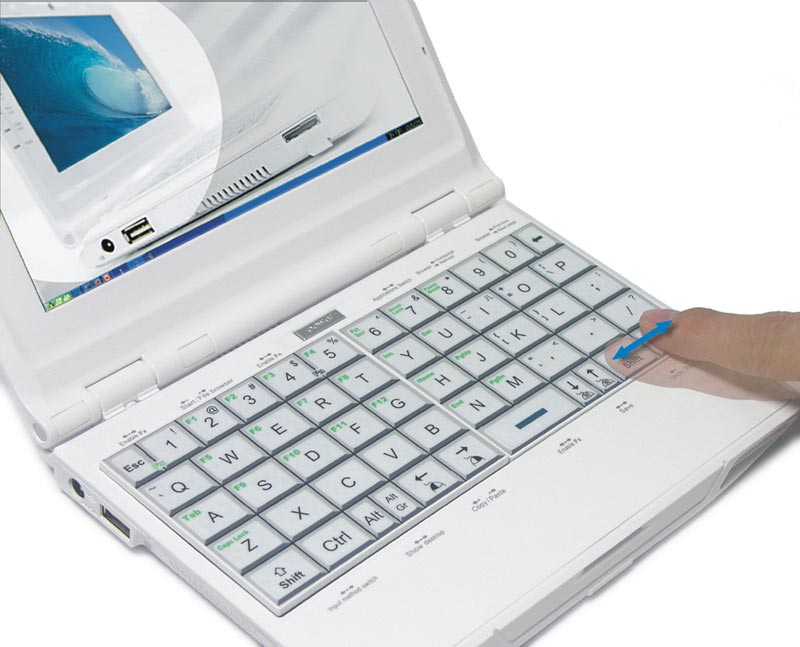

Innovative Keyboard

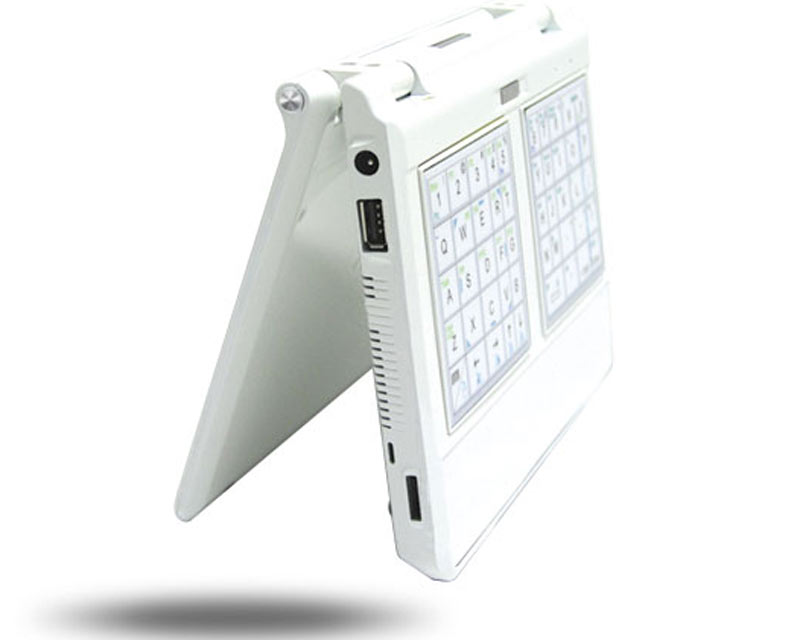

 To most people, mouse is currently the most convenient form of cursor controllers, but it suffers from the disadvantage of poor portability. As a result, notebook computers adopted touchpad instead. Traditional touchpad, however, is not easy to use. On one hand, its limited space requires users to frequently move their fingers back-and-forth. On the other hand, as touchpad is usually located under the keyboard in laptop computers, it often interferes with typing. To address these shortcomings, Noahpad P  C clickable touchpad can act as both a keyboard and a cursor controller. When used as a cursor controller, it provides a touchpad surface of up to 70x 70mm in size, bigger than any touchpad currently equipped in large notebook computers.As such, users can bring the cursor to anywhere on the screen with a single movement of their fingers and can enter any command without mistakes by a simple click, resembling the convenience of a mouse.
NoahPad helps you to be connected anywhere, anytime. It comes with the latest wireless and bluetooth technology. And because its small size and low weight it is the perfect company for traveling, school, uni and friends.
Also the NoahPad could be like your mobile, if you are using a VOIP service like skype. With this new UMC you can talk on the run.

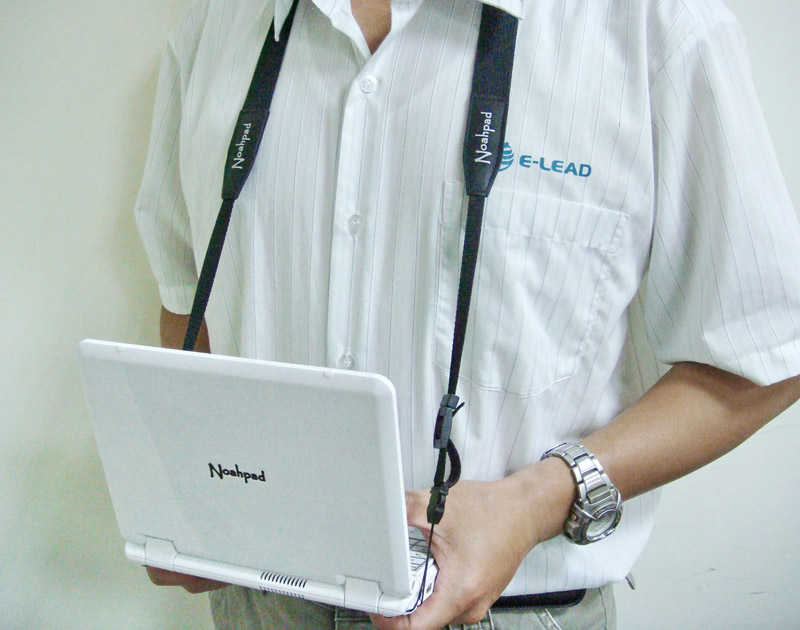

Benefits of Shoulder Strap
It is natural for our arms to get sore after holding things in  our palms for a long time; such is so with simple things like a book, let alone electronic devices. Noahpad UMPC comes with a convenient shoulder strap that will help relieve sore arms and eliminate any worries of users dropping and therefore damaging the computer.
Hang Here, Hang There
Hanging Noahpad UMPC up high is the best way to prevent it from being dirtied or damaged by water. Once the screen is flipped around 360 degrees, Noahpad UMPC can be hung with hangers or the accompanied shoulder strap and work as a multi-media player. Whether you are cooking, bathing or even gardening, simply hang the multi-media player at the appropriate spot and watch your favorite programs.
 After flipping around the screen of Noahpad UMPC and making it stand up, it becomes a fashionable digital photo frame with WiFi, Bluetooth, Internet image telephone, and multi-media functions.
GPS and Information Center in the Vehicle

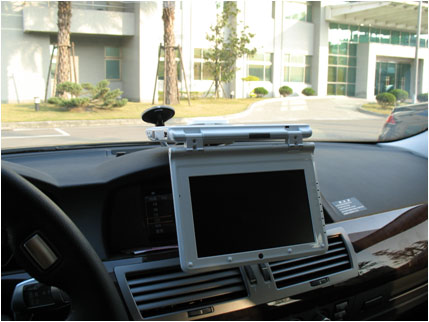

Traditional portable GPS devices tend to have small screens that make read  ing the information very difficult. In-car GPS systems, on the other hand, are usually affixed to the front of a vehicle as such that they create reflections on the windshield and block drivers' view, thus threatening road safety. Noahpad UMPC comes with a specially designed stand; when used along with the computer's rotational feature, it serves as a GPS device with a 7” big screen that is adjustable to avoid blocking drivers' view. (For Noahpad UMPC to function as a GPS device, a separate Bluetooth or USB GPS receiver is required.)
Screen

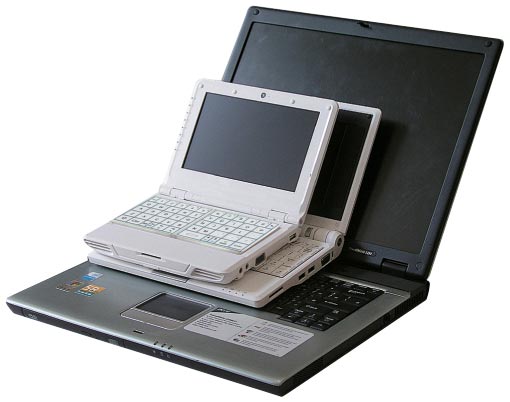

The extent to which the size of computers may be reduced is often limited by the size of the keybo  ard and the screen. If the keyboard becomes too small, it greatly increases the difficulty of typing. Similarly, users often find it taxing on their eyes when browsing on screens that are too small. The conventional 7” 800X480-pixel screen provides a very small window after taking into account the tool bar and the vertical scroll bar around the screen.
Noahpad UMPC uses the virtual screen technology to display portions of the standard 10” window on its 7” screen while maintaining the resolution of 1024X768 pixels. With the unique touchpad controller, users can easily move the window around on the screen, effectively expanding the viewing area from 7” to 10” . The compact size of the screen will no longer mean greater burden on your eyes when browsing.
|
VIDEO
UMPC - Noahpad in action  Using Noahpad  Noahpad - functions demonstration  UMPC_Noahpad  Noahpad - unboxing
| WAN: |
No (Optionally YES - HSDPA modem - through USB) |
| WLAN: |
IEEE 802.11 b/g |
| Bluetooth: |
Bluetooth 2.0 |
| Processor: |
VIA Eden C7 1.0 GHz |
| Memory: |
512 MB DDR2 (max 2GB) |
| Chipset: |
CX700 |
| Dispaly: |
7'' (800x480) TFT LCD (emulation of 10 |
| Graphics card: |
CX700 - integrated |
| Touch screen: |
No |
| Swivel Hinge: |
No |
| Hard Drive: |
1.8” 30 GB |
| BIOS: |
---------- |
| VGA out: |
Yes (D-sub 15pin) |
| LAN: |
YES (OPTION) - through USB cable |
| Camera: |
0.3 Megapixels |
| Audio: |
YES, two stereo speakers |
| Seciurity: |
Kensington lock |
| TV Out: |
No |
| In/Out: |

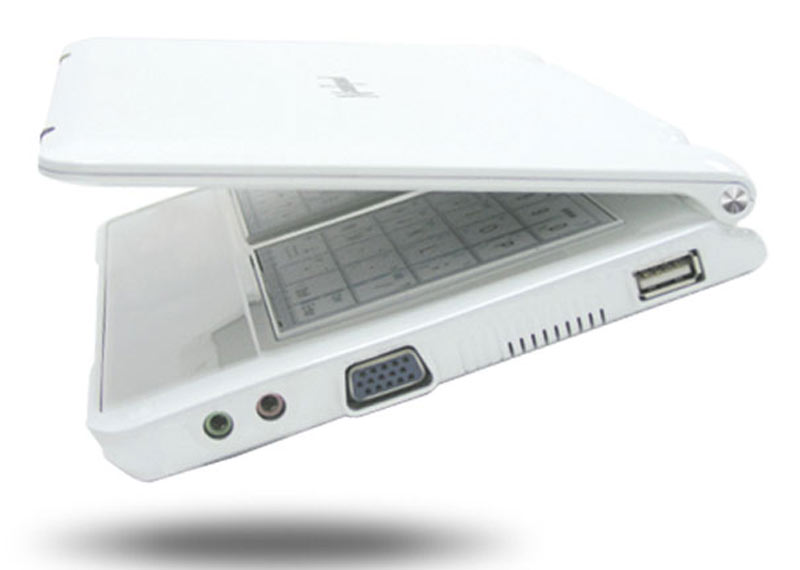

1 x headphones out, 1 x microphone in, 2 x USB 2.0, 1 x mini-VGA, 1 x SD Card Slot |
| Keyboard: |
QWERTY + function keys |
| Additional Navigation Devices : |
Touchpad keyboard |
| Battery: |
Li-Ion (3900mAh) 4 cells |
| Working time on battery: |
2.5-3 hours |
| Size: |
192 x 143 x 28.5 (mm). Weight 800 g |
| CD/DVD: |
No (Optional YES - external - through USB) |
| Operating System: |
No - Optional Windows XP Home / Professional |
| Flash Card Reader: |
Yes (SD) |
| GPS: |
No (Optionally YES - mini GPS external - Bluetooth) |
| TV Tuner: |
No |
| Color: |
White |
| Sensor: |
|
