Payment terminal UROVO i9300 v.1
|
|
The product from the archive - production terminated
|
Compare all versions
.jpg)
|
Shenzhen Technology Co. Urovo. Ltd. is a leading manufacturer of software and a comprehensive supplier of cross-industry solutions. Company UROVO achieved an excellent reputation as a manufacturer of data collectors. Due to the high position of the products in the high-tech enterprise, has won many awards in tests conducted around the world. |
 |
Payment Terminal UROVO i9300

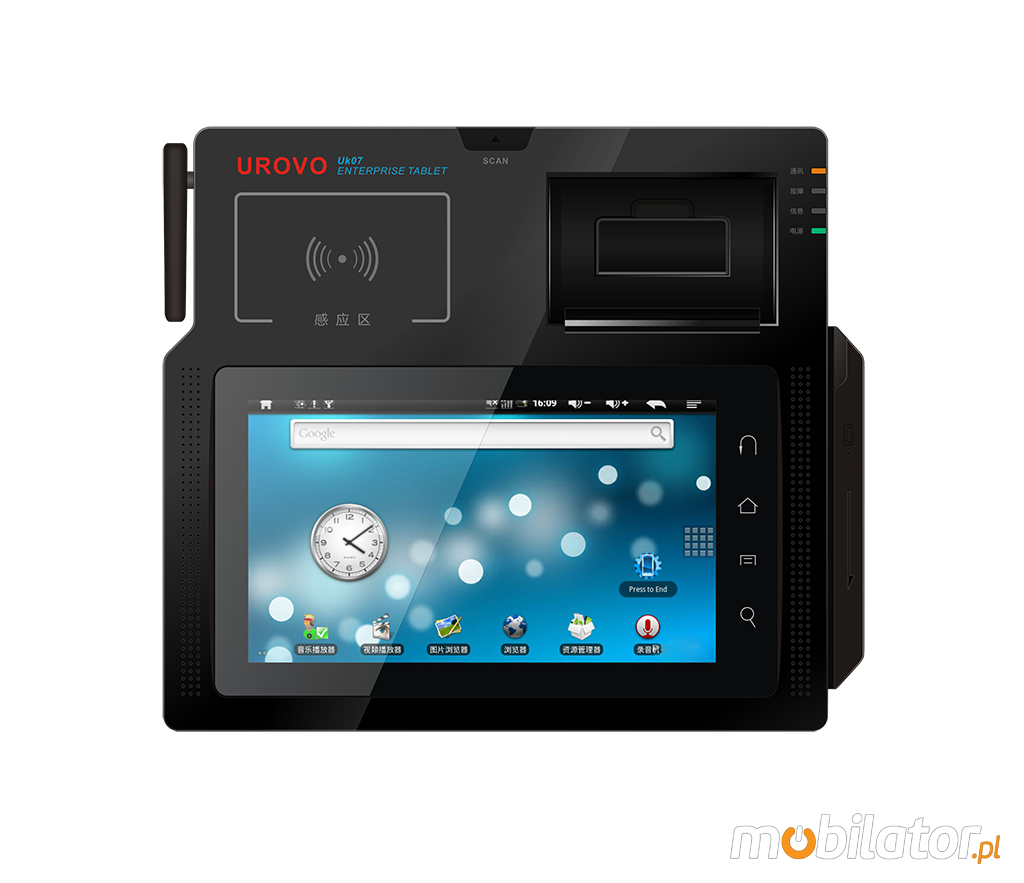

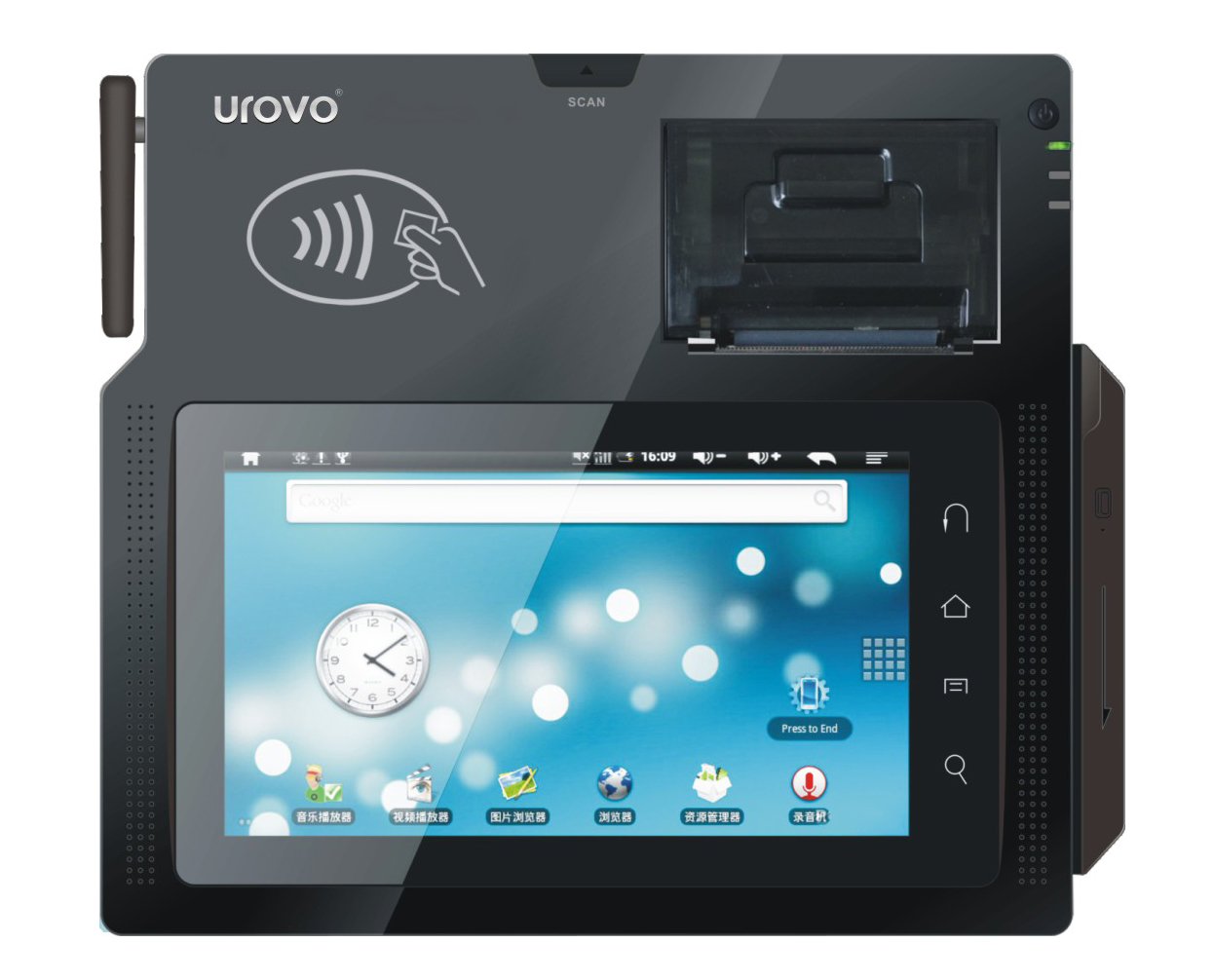

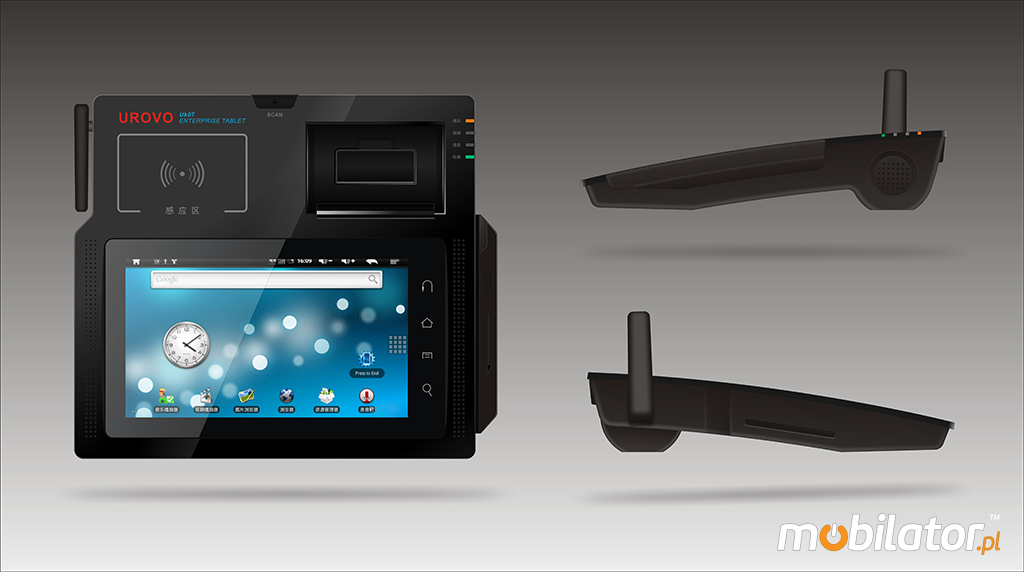

Urovo i9300 is an all-in-one tablet payment terminal, integrated with all functions of traditional handheld POS and tablet PC. Based on Android platform, Urovo i9300 is specially designed for electronic payment application of retail and business field.
|
System specifications
|
Processor |
Samsung Cortex-A8 S5PV210@1GHz |
|
Display |
7" TFT LCD (800 x480) Capacitive : Multi-Touch |
|
RAM |
512MB DDR2 |
|
ROM |
512MB-2G |
|
Connectors |
Serial port (RJ11) : HDMI : Mini USB : USB host : LAN |
|
|
Micro SD/TF (max. 32GB) |
|
|
optional - SIM |
|
Printer |
Built-in Thermal Printer |
|
Audio |
Headphone : Microphone: G³o¶nik (2W) |
|
Battery |
Built-in 2200mAh |
|
|
Emergency Battery (optional) - 1000mAh Lithium |
|
Keyboard |
onscreen : touch buttons - MENU/HOME/ESC/SCAN |
Operating System
|
environment Android 4.0 (multi-language) |
|
Warranty |
12 months (optional 24 months) |
|
|
Refer to the "Available hardware configurations" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form. |
 |
|
Barcode Scanner
Quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. 1D Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large range of reading data collector Urovo i9300 carefully collected data, which helps to increase the rate and efficiency. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.
|
Scan speed: 100±20 scan/sec |
|
1D Laser |
Code 39 : Codebar : Code 128 : Discrete 2 of 5 : IATA 2 of 5 : Interleaved 2 of 5 : Code 93 : UPC A : UPC E0 : EAN 8 : EAN 13 : MSI : EAN 128 : UPC E1 : Trioptic Code 39 : Bookland EAN : Coupon Code : RSS-Limited : RSS-14 : RSS-Expanded |
|
2D Laser |
PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse, Postal Codes: U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
|
|
Modules and Wireless Networks
|
WiFi |
802.11b/g |
|
Bluetooth |
Bluetooth Class2.1 with EDR |
|
WCDMA |
UMTS2100/900MHz : UMTS1900/850MHz : GSM850/900/1800/1900MHz |
|
GSM CS |
GSM CS: UL 9.6kbps/DL 9.6kbps (Just a phone call using headphones) |
|
GPRS/EDGE |
Multi-slot Class12. Class B |
|
WCDMA CS |
UL 64kbps/DL 64kbps |
|
WCDMA PS |
UL 384kbps/DL 384kbps |
|
HSDPA |
DL 3.6Mbps |
|
WAN |
GSM 850/900/1800/1900MHz |
|
GPRS Class 10 |
Multi-slot, DL 85.6 kbps/UL 42.8kbps |
GPRS Class 8
|
Multi-slot, DL 85.6 kbps/UL 21.4kbps |
CDMA 2000
|
CDMA 2000, DMA2000 EV-DO Rev 0, CDMA2000 EV-DO Rev A |
|
Supports |
BC0 (800MHz band), BC1 (1900MHz band) |
CDMA 2000 1X
|
UL/DL: 153.6kbps |
EVDO Rev.0
|
UL 153.6kbps DL 2.4Mbps |
|
EVDO Rev.A |
UL 1.8Mbps DL 3.1Mbps |
go top...  menu…
|
|
|
|
Magnetic Card Reader | IC
Card Readers UROVO the products meet the highest criteria for reading data. Architecture on which are formed readers can effectively protect personal information encoded on the cards. High safety standards allow the use of readers in all types of applications. Safety data reading confirms that the encryption standard ISO 7811. Robust plastic housing, easy integration with existing systems, high-speed read and write magnetic heads make the perfect choice.
Safety
|
Certified to PCI 3.0 Online/Offline : China UnionPay pin-input safety certificate |
|
Magcard |
Triple track (tracks 1, 2, 3) : bi-directional : read life time: 1 milion times : ISO 7811 amplitude: 30% - 200% : read rate: 5-254cm/s |
IC Card
|
Compatible with ISO 7816-3 and EMV 4.2 pay standards : Certfied to UnionPay PBOC 2.0 |
Contactless IC
|
Long effective distance to 50mm (depending on the specific envoirnment) : ISO/IEC 14443 A/MIFARE approved : Support ISO/IEC 14443 B read - write : MiFate Mini : MiFare 1K and MiFare 4K encryption : ISO/IEC 14443A communication: 212kBd, 424kBd, 49kBd : Certified to Unionpay qPBOC 2.0 |
|
|
|
|
Portable thermal printers are designed to work in the field, to print receipts and receipts, providing high-speed printing. A small number of moving parts and a robust design ensure trouble-free operation even in the harshest conditions. The use of thermal printing technology eliminates the need for expensive ink or toner. No matter how many pages are printed pages - ink in the printer does not run out.
Print speed
|
50mm/s ~ 70mm/s |
Resolution
|
203 dpi : 8 dot/mm |
Vitality
|
100M pulses : 50KM |
Paper width
|
58mm |
Paper height
|
48mm |
|
|
|
|

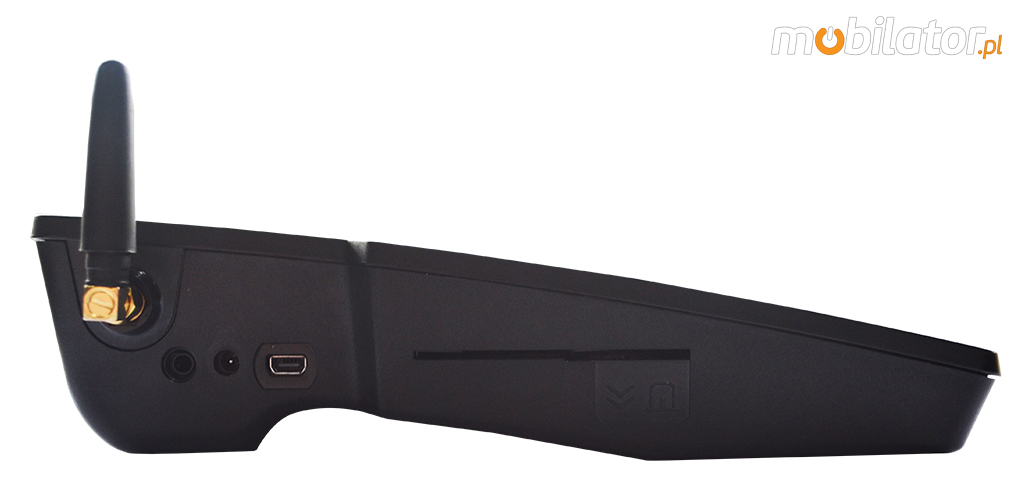

i9300 is equipped with a Mini USB port, microSD card reader / SIM card and audio output mini-jack. Responsible for network communication modules and built-in RJ45 (LAN), RJ11, WiFi and Bluetooth. With HDMI, you can easily display the tablet on another screen.
|
Dimensions |
230x200x60mm |
|
Weight |
500g |
go top... menu…
|
|
Operating |
-10°C -- +55°C |
|
Storage |
-20°C -- +65°C |
Operating Humidity
|
30% -- 85% bez kondensacji |
|
Regulatory |
CCC / CE |
Electrical Safety
|
Certified to Ul60950, CSA C22.2 No.6050, EN60950/IEC950 |
Laser Safety
|
IEC Class 2/FDA Class II, in accordance with IEC60825/EN60825-1 |
|
Hardware configuration
|
If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories. |
|
|
|
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ...
|
Compare all versions
| Durability: |
----- |
| Humidity: |
Operating Humidity: 30%–85% / Storage Humidity: 10%–90% |
| Waterproof: |
----- |
| Weight: |
|
| Temperature: |
Operating (-10°C -- +55°C) / Storage (-20°C -- +65°C) |
| Shock: |
----- |
| Vibration: |
----- |
| Drop: |
----- |
| Sand and dust: |
----- |
| 1D barcode scanner (reader): |
none (available in other configurations) |
| 2D barcode scanner (reader): |
none (available in other configurations) |
| RFID scanner (reader): |
Yes - Support 14443 A / 14443 B approved; Frequency: 10 MHZ ~ 20 MHZ; Reading access time: less than 300 milliseconds |
| Magnetic card reader (MSR): |
Yes - Triple track (tracks 1, 2, 3) : bi-directional : read life time: 1 milion times : ISO 7811 amplitude: 30% - 200% : read rate: 5-254cm/s |
| Microchip card reader: |
Yes - IC Card ( Compatible with ISO7816 standard) |
| Docking station connector: |
No |
| VESA standard – holders and mounts support: |
No |
| COM port: |
No |
| Dispaly: |
7" TFT LCD (800 x480) Capacitive : multi-touch |
| Brightness: |
----- |
| Contrast: |
----- |
| Touch screen: |
Yes - Capacitive multi-touch |
| Graphics card: |
----- |
| Swivel Hinge: |
No |
| VGA out: |
----- |
| TV Out: |
----- |
| TV Tuner: |
----- |
| Processor: |
Samsung Cortex-A8 S5PV210@1GHz |
| Chipset: |
----- |
| BIOS: |
----- |
| Memory: |
NAND/INAND Flash 512M-2G / DDR2 512M RAM |
| Hard Drive: |
512MB + SD/TF Card (possible to mount the sd card max.32GB) |
| Flash Memory: |
|
| Battery: |
Built-in WYPE£NIJ : Emergency Battery (option) - 1000mAh Lithium |
| Working time on battery: |
Dormancy standby time: 100h / Power supply time: 4h / Battery charging time: 4h |
| HotSwap battery: |
No |
| Fast battery replacement ability: |
No |
| Size: |
230mm*200mm*60mm - 500g |
| Casing material: |
----- |
| Fanless casing: |
Yes |
| Operating System: |
Android 4.0 (multi-language) |
| LAN: |
Yes - RJ45 |
| WLAN: |
Yes - WIFI 802.11 b/g : 54MB/sec |
| Bluetooth: |
Yes- Bluetooth Class 2.1 with EDR |
| WAN: |
Yes - 3G + GSM/GPRS | 3G-(option) |
| GPS: |
No |
| Flash Card Reader: |
Yes - SD / TF (max. 32GB) |
| CD/DVD: |
----- |
| Camera: |
Nie |
| Audio: |
Microphone / Headset / Loudspeaker (2W) |
| Seciurity: |
Warranty 12 months | 24 months (option)
CCC : CE | Electrical Safety - UL60950,CSA C22.2 No.6050,EN60950/IEC950 | Laser Safety - IEC Class 2 /FDA Class II,in accordance with IEC60825-/EN60825-1 |
| In/Out: |
Serial port (RJ11) : HDMI : Mini USB : USB host |
| Keyboard: |
Mechanical buttons: Power key Capacitive keypad: MENU/HOME/ESC/SCAN |
| Additional Navigation Devices : |
----- |
| Color: |
czarny |
| Optional accessories: |
----- |
| Other: |
High-speed Thermal printer | 3x PSAM ISO7816 |
