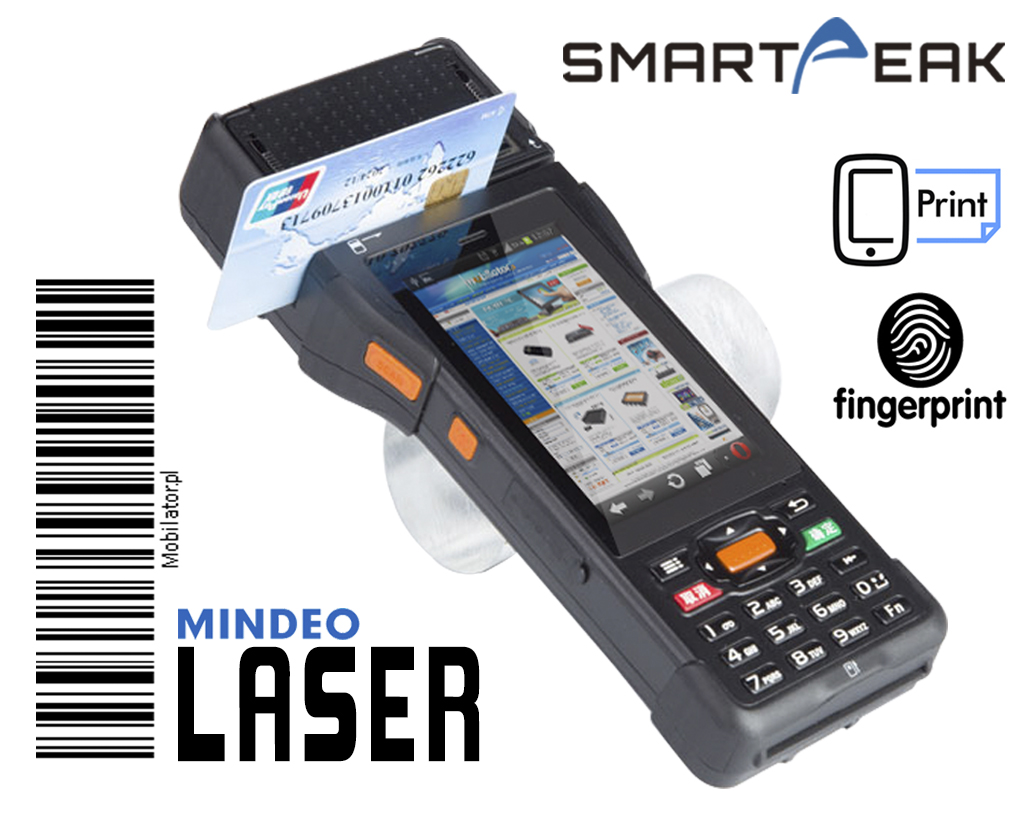

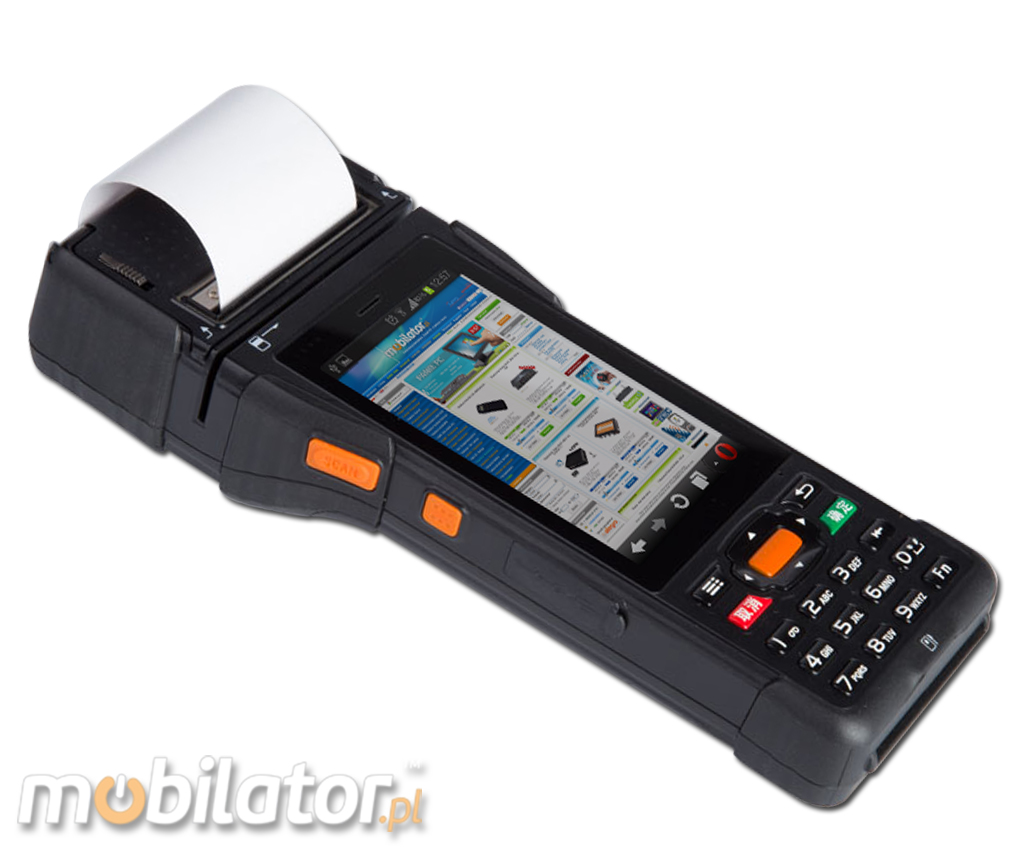

Payment Terminal SMARTPEAK P900SP Android v.3
|
|
The product from the archive - production terminated
|
Compare all versions
Smartpeak P900 SP has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP 54 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.
|
|
|
Processor |
Qualcomm MSM8625Q quad-core 1.2GHz |
|
Display |
4" (800x480) WVGA | IPS | Capacitive | multi-touch
|
|
RAM |
1GB
|
|
ROM |
4GB |
|
Connectors |
MicroSD : Mini USB
|
|
GPS |
GPS | A-GPS
|
|
Audio |
Speaker : Microphone |
|
Camera |
5Mpx
|
|
Battery |
3000 mAh Li-Ion 3.7V |
|
Keyboard |
Numeric (+function keys) + On-Screen
|
|
Environment |
Android 4.1 |
Modules (factory)
|
GSM (GPRS/EDGE) WCDMA (HSDPA) : WiFi : Bluetooth 4.0 : GPS+A-GPS |
|
Dimensions |
226 mm x 89/73 mm x 54/31mm - 620g |
|
Resistance |
IP54 |
Readers (optional)
|
|
1D - MINDEO (LASER) |
|
Sensors |
Gravity sensor, ambient light sensor, proximity sensor |
|
|
|

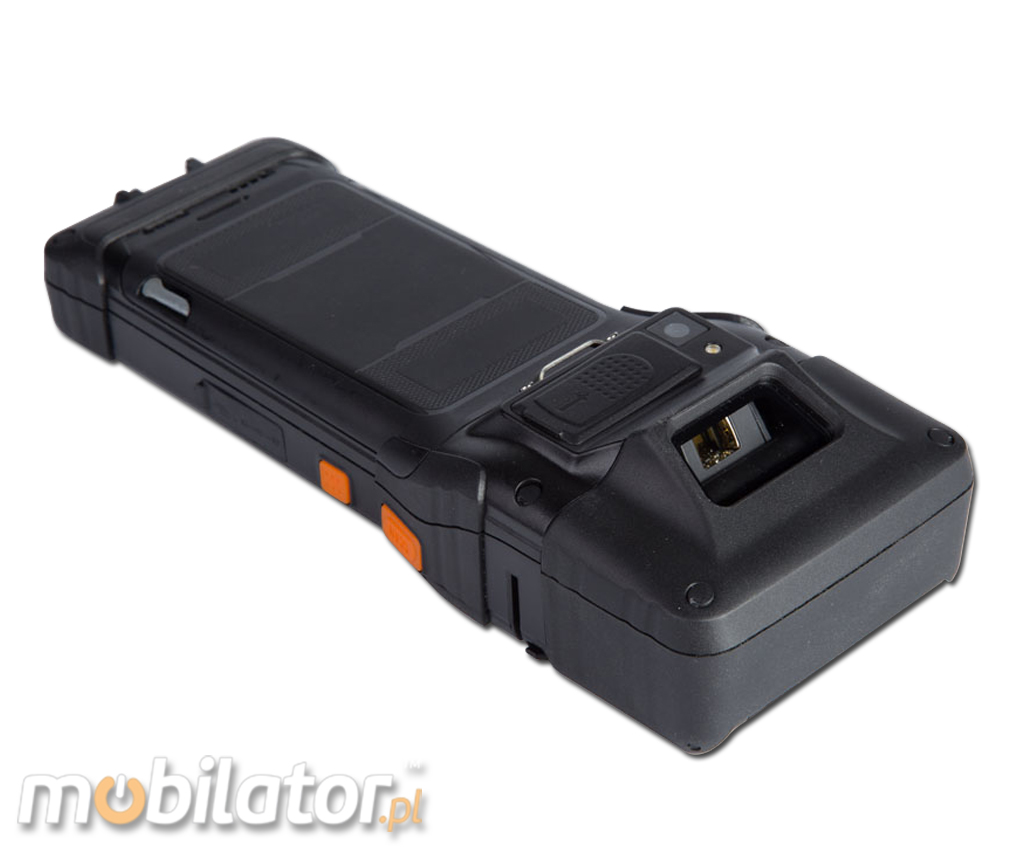

Barcode Scanner
Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

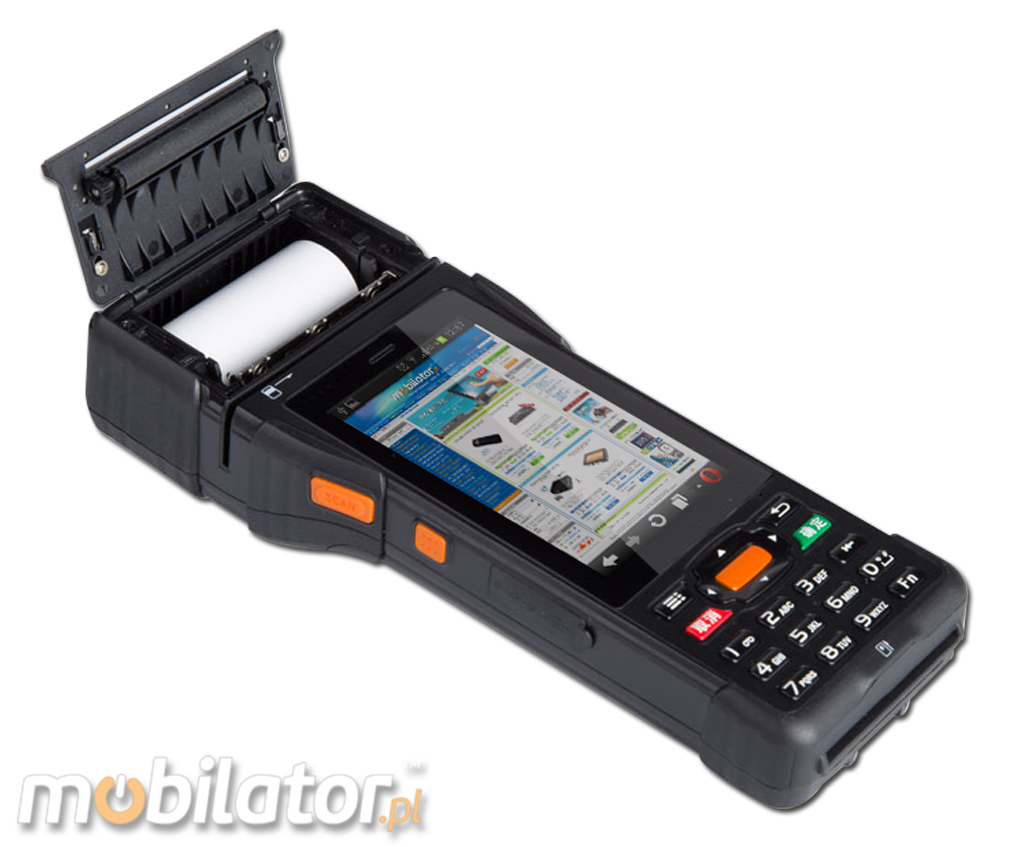

Built-in Thermal Printer
Portable thermal printers designed to work in the field, to print receipts and receipts, ensuring their fast printing. A small number of moving parts and a robust design ensure trouble-free operation even in the most difficult conditions. The use of thermal printing technology eliminates the need for expensive ink cartridges or ribbons. No matter how many pages are printed - in the printer runs out of ink unexpectedly.
Printing Speed
|
18 row/sec, Typical 60mm/sec, Low battery 30mm/sec |
|
Paper Roll Width |
58mm |
Paper Roll diameter
|
30mm |
Printing Width
|
48mm |
|
|

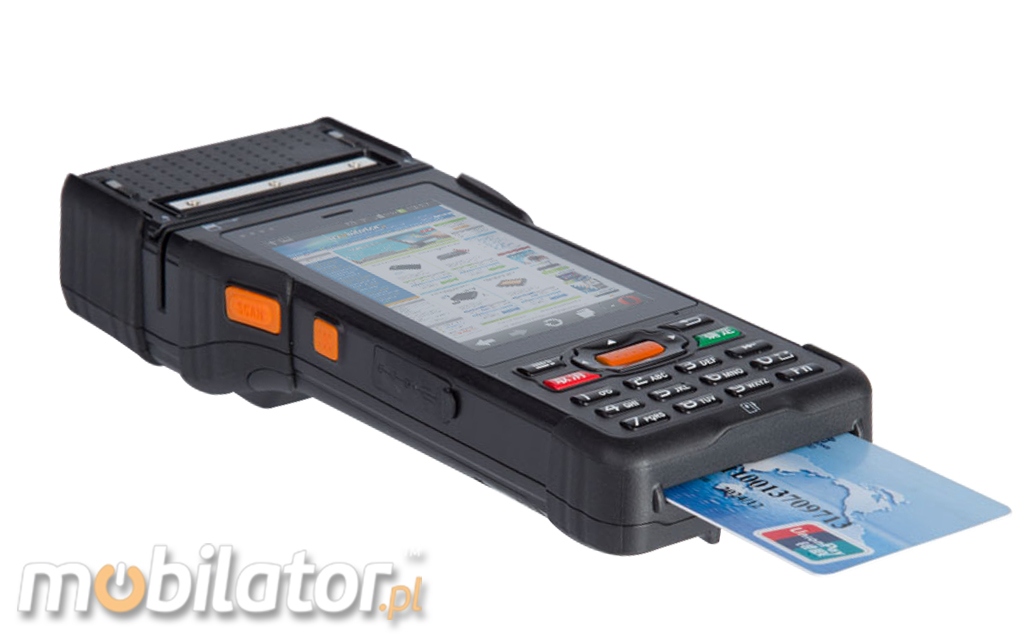

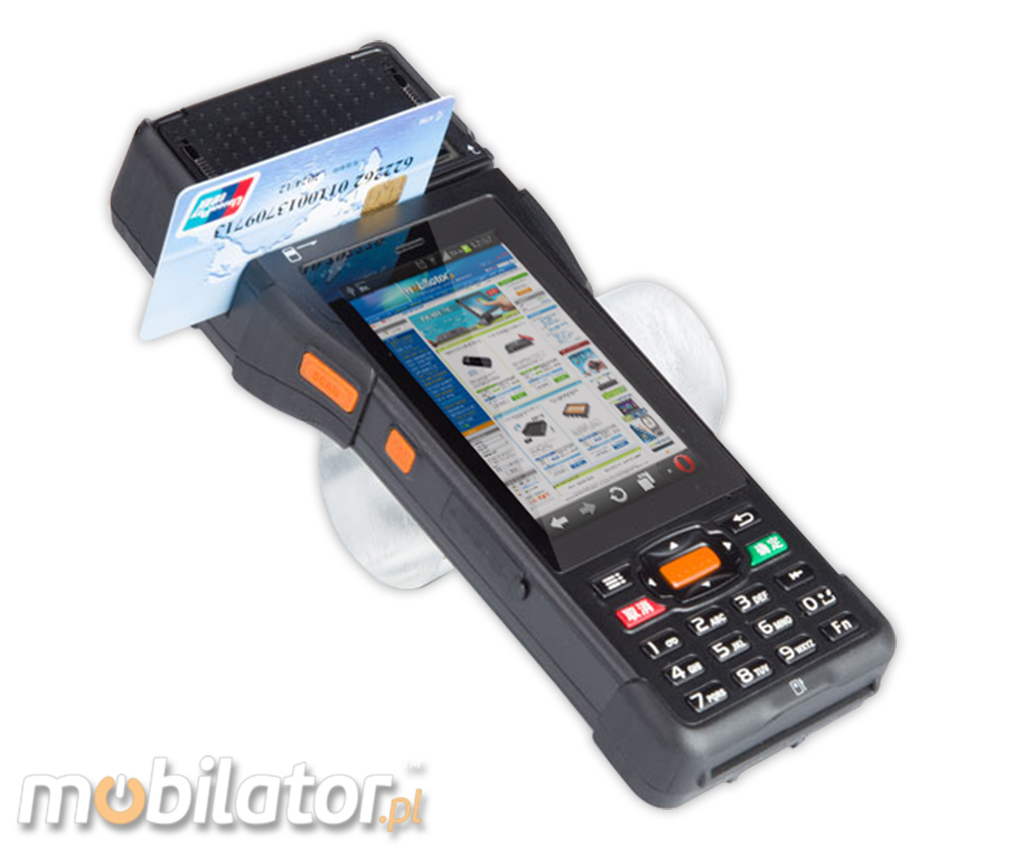

Magnetic Card Reader / IC
Card Readers Smartpeak are the products meet the safety criteria Highest during reading. Architecture on Which readers are created to efficiently protect your personal information encoded on the cards. High safety standards allow readers to use Virtually all types of applications. Read the safety data confirms compliance with the ISO 7816 standard for encryption. Urovo i9000 is equipped with a magnetic card reader (MSR) for reading and encoding cards in accordance with ISO 7811. The robust plastic housing, easy integration with existing systems, fast read and write magnetic heads that make it the perfect choice.
|
Magcard |
Triple track MSR, bi-directional swiping, ISO7811,7812 |
|
SAM card |
1 SAM Solt, ISO7816 |
IC Card
|
1 Slot, Support 1.8V/3V/5V, ISO7816, PBOC and EMV |
|
Karta zbli¿eniowa IC |
13.56MHz, ISO/IEC 14443 Type A/B, qPBOC |
NFC
NFC, or near-field communication, is an easy and intuitive technology that allows you to use your mobile phone for special purposes. An NFC tag can share and link to information such as web pages, social media and all other sorts of other information generally. Other areas where NFC is starting to evolve into are making payments, opening doors secured with contactless locks, logging on to computers and many more. All of these actions have something in common, that is they invoke an action based on you placing your phone (or any other NFC device) near (the N in NFC) the thing you want to read or interact with.
|
NFC |
NFC 13.56Mhz ISO14443 A / B i ISO15693
|
Finger Print
Fingerprint security feature makes our Tablet Becomes even more personal, Allows you to secure the device fingerprint. This is possible through the use of a small fingerprint scanner. Solutions of this kind are very effective at securing devices containing important data and confidential and also allow for easy and quick log-in to the system. It is an ideal solution for business use, when we need to Effectively protect your data.
|
go top...  menu…
|
|
|
Applicable standards
|
Operating |
-20°C -- +60°C |
|
Storage |
-40°C -- +80°C |
|
Humidity |
10% - 90% RH | non-condensing |
|
Dust |
IP5x (dust) |
|
Water |
IPx4 (water) |
|
Drop |
Multiple drops to concrete 4.5ft./1.2m the entire operation range |
go top... menu…
IP54 Resistance
IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from solid objects greater than 50mm in diameter |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from splashed water |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection from water projected from a nozzle |
|
|
|
 |
7
|
|
Protection against immersion |
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water |
go top... menu…
|
|
|
|
When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in Smartpeak P900 SP adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.
|
WiFi |
802.11a b/g/n |
|
GPS |
GPS, supported A-GPS,
|
|
Bluetooth |
Bluetooth 4.0 + EDR; Class II |
|
GSM/3G |
GSM/EDGE：850/900/1800/1900
WCDMA：2100/900
CDMA：800/1900 |
|
|
The ability to make voice calls |
go top... menu…
|
|
|
|

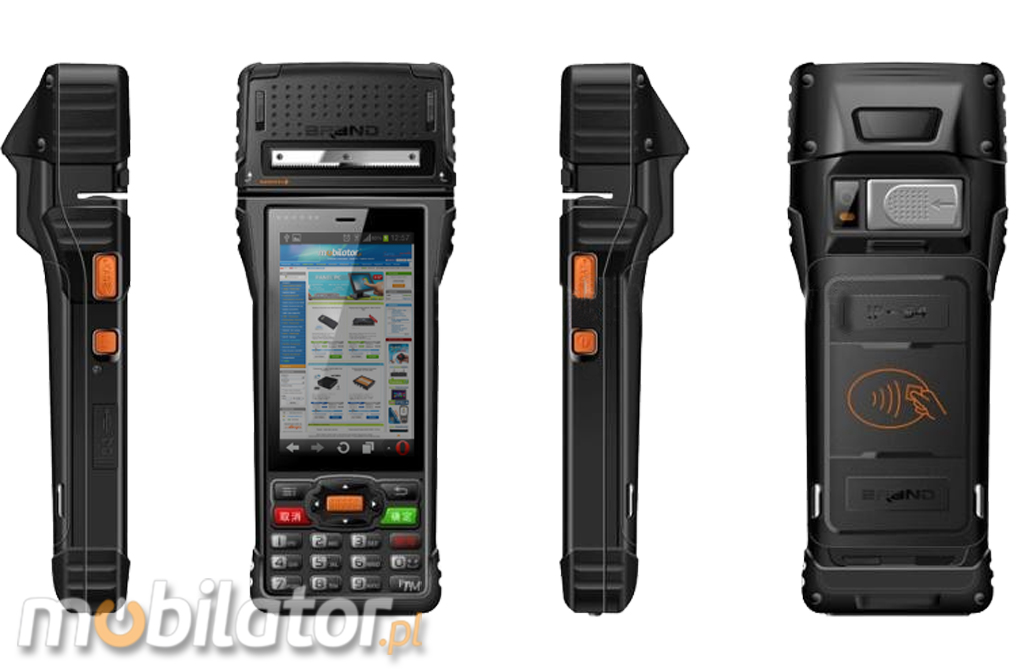

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have P900 SP. The device weighs just 630g and its dimensions (226 x 89/73 x 54/31mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that P900 SP is in a group of devices which enjoy great popularity in the European market in the industrial segment.
.jpg)
|
|
Dimensions |
226 mm x 89/73 mm x 54/31mm |
|
Weight |
620g |
Quick change battery
Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.
go top... menu…
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ...
|
Compare all versions
| Durability: |
IP54 |
| Humidity: |
10 to 90%(no condensation) |
| Waterproof: |
IP54 |
| Weight: |
|
| Temperature: |
Operating temperature: -20°C -- +60°C
Storage temperature: -40°C -- +80°C |
| Shock: |
----- |
| Vibration: |
----- |
| Drop: |
1.2 meter |
| Sand and dust: |
IP54 |
| 1D barcode scanner (reader): |
1D LASER - Mindeo |
| 2D barcode scanner (reader): |
----- |
| RFID scanner (reader): |
Contactless card: 13.56MHz, ISO/IEC 14443 Type A/B, qPBOC |
| Magnetic card reader (MSR): |
Yes - Triple track MSR, bi-directional swiping, ISO7811,7812 |
| Microchip card reader: |
Yes - 1 Slot, Support 1.8V/3V/5V, ISO7816, PBOC and EMV | 13.56MHz, ISO/IEC 14443 Type A/B, qPBOC | 1 SAM Solt, ISO7816 |
| Docking station connector: |
No |
| VESA standard – holders and mounts support: |
----- |
| COM port: |
----- |
| Dispaly: |
4 ", capacitive, multi touch, WVGA (480x800), IPS |
| Brightness: |
350nits |
| Contrast: |
----- |
| Touch screen: |
Tak |
| Graphics card: |
----- |
| Swivel Hinge: |
----- |
| VGA out: |
No |
| TV Out: |
----- |
| TV Tuner: |
----- |
| Processor: |
Qualcomm MSM8625Q Quad-core 1.2GHz |
| Chipset: |
----- |
| BIOS: |
----- |
| Memory: |
1GB |
| Hard Drive: |
4GB |
| Flash Memory: |
|
| Battery: |
3.7V; 3000mAh Li-Ion |
| Working time on battery: |
6h |
| HotSwap battery: |
----- |
| Fast battery replacement ability: |
No |
| Size: |
226 mm x 89/73 mm x 54/31mm - 620g |
| Casing material: |
high quality plastic |
| Fanless casing: |
Yes |
| Operating System: |
Android 4.1 |
| LAN: |
No |
| WLAN: |
802.11 a/b/g/n Built-in Antenna |
| Bluetooth: |
Bluetooth 4.0 + EDR |
| WAN: |
WCDMA/GSM/CDMA2000/CDMA 1X |
| GPS: |
Built-in GPS, support AGPS |
| Flash Card Reader: |
microSD (max. 32GB) |
| CD/DVD: |
----- |
| Camera: |
Yes- 5Mpx |
| Audio: |
Built-in Speaker : Microphone |
| Seciurity: |
----- |
| In/Out: |
mini USB (support OTG), Mirco SD card slot (max.32GB) |
| Keyboard: |
Numeric (+function keys) + On-Screen |
| Additional Navigation Devices : |
----- |
| Color: |
black |
| Optional accessories: |
High-speed Thermal printer |
| Other: |
Factory accessories:
- charger
- hand strap Sensors:
- triaxial gravity
- light sensor
- proximity sensory
- Fingerprint
|
Compare all versions
