« Back    Home / UMPC - Ruggedized / Archives

Industrial Winmate M101B - 3GHF

Industrial Winmate M101B - 3GHF

Data update: 2019-09-06

guarantee 1 year (opt.2)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated



Compare all versions



Winmate has had an impressive history of making successful rugged and embedded products, and just recently we started concentrating more on Industrial grade Rugged Tablet PC market, as we seeing a trend of continual growth in this market. That is why Winmate is introducing the new M101B, a 10.1" rugged tablet PC with superior quad-core processing performance to further grow our lineup of rugged tablets to fit the needs of every industrial application.


Description and version presentation

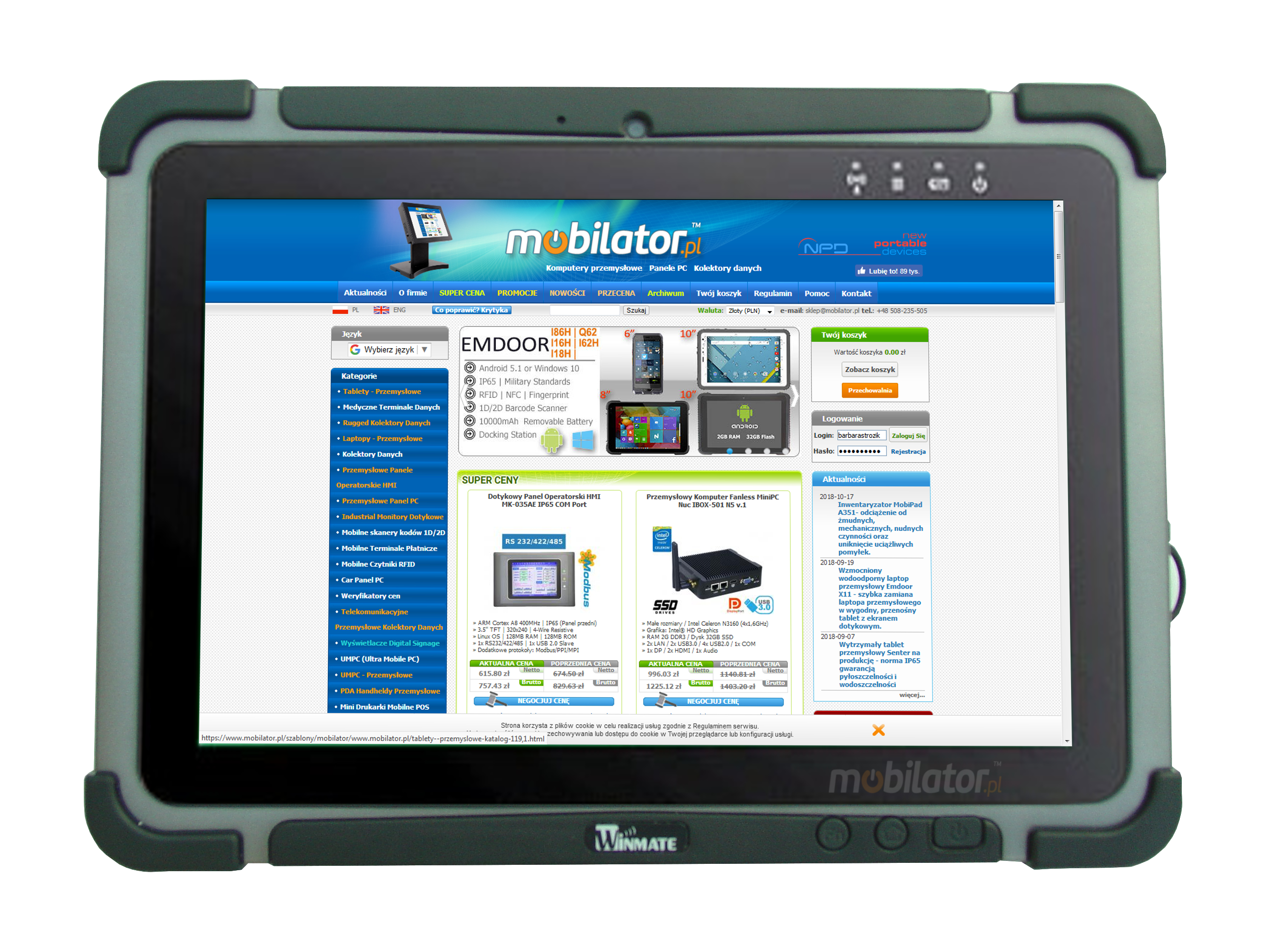

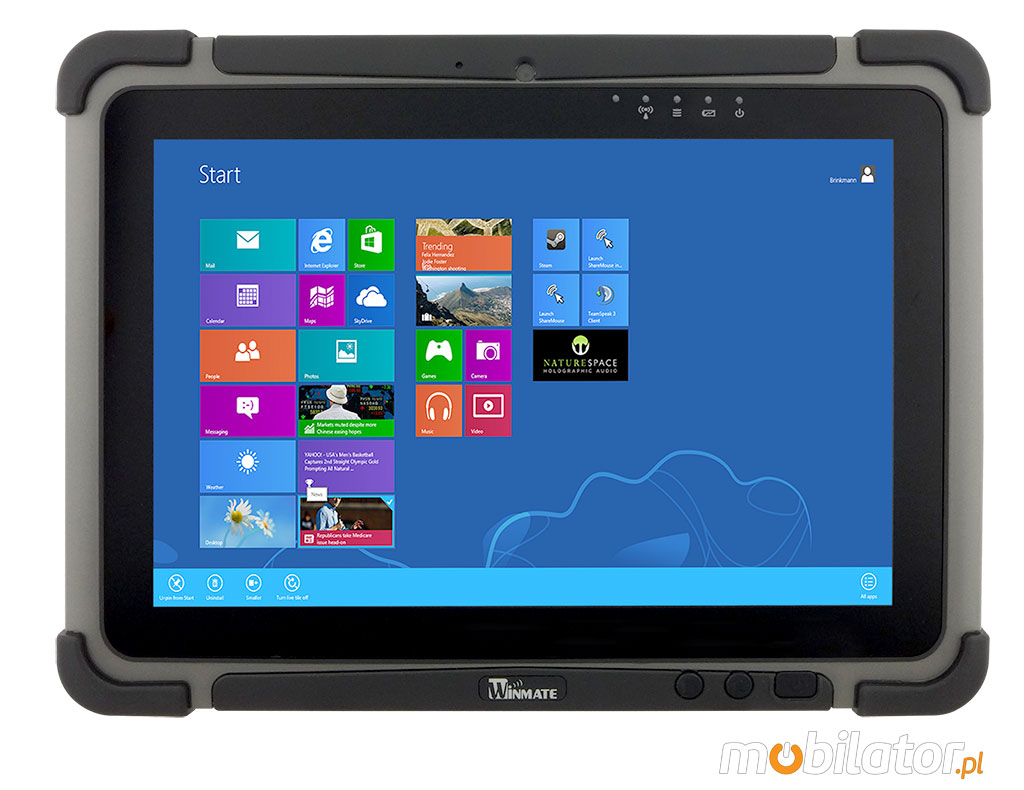

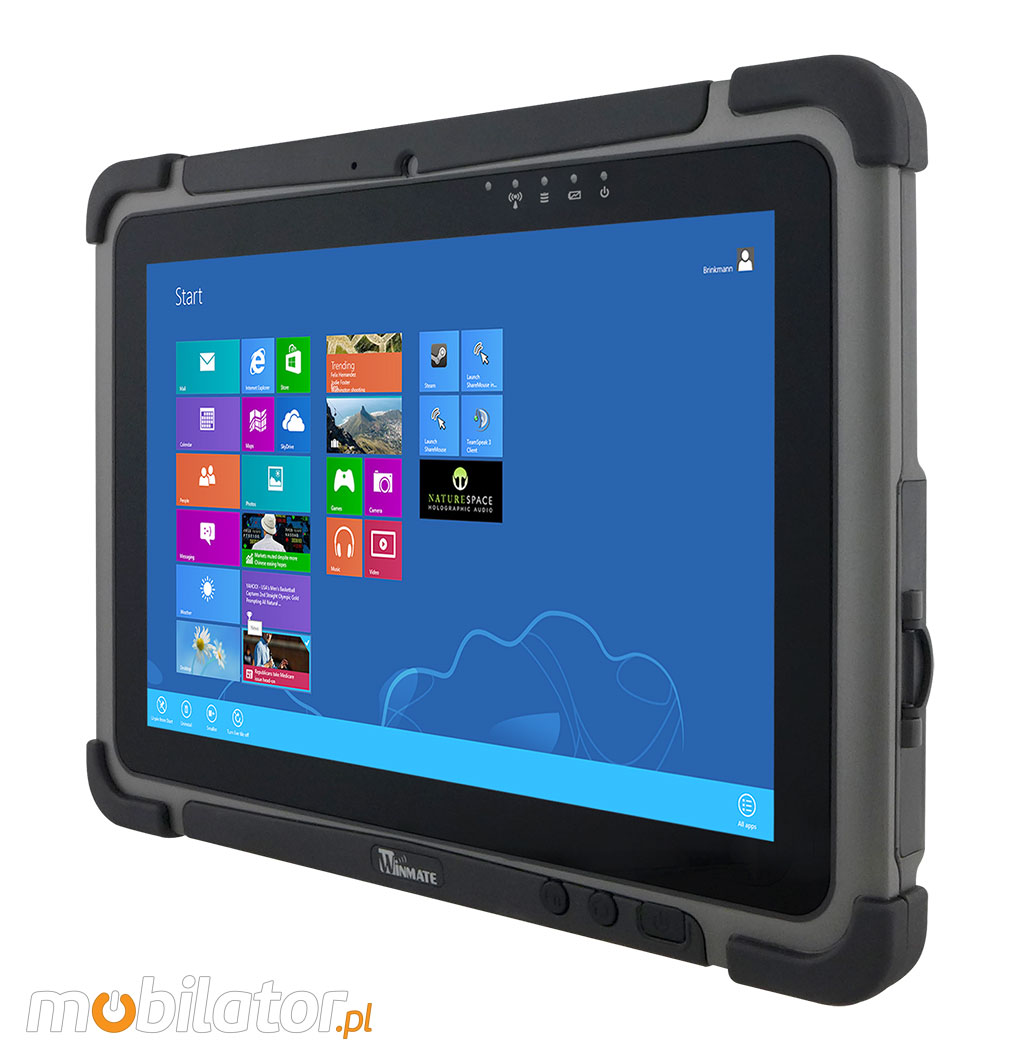

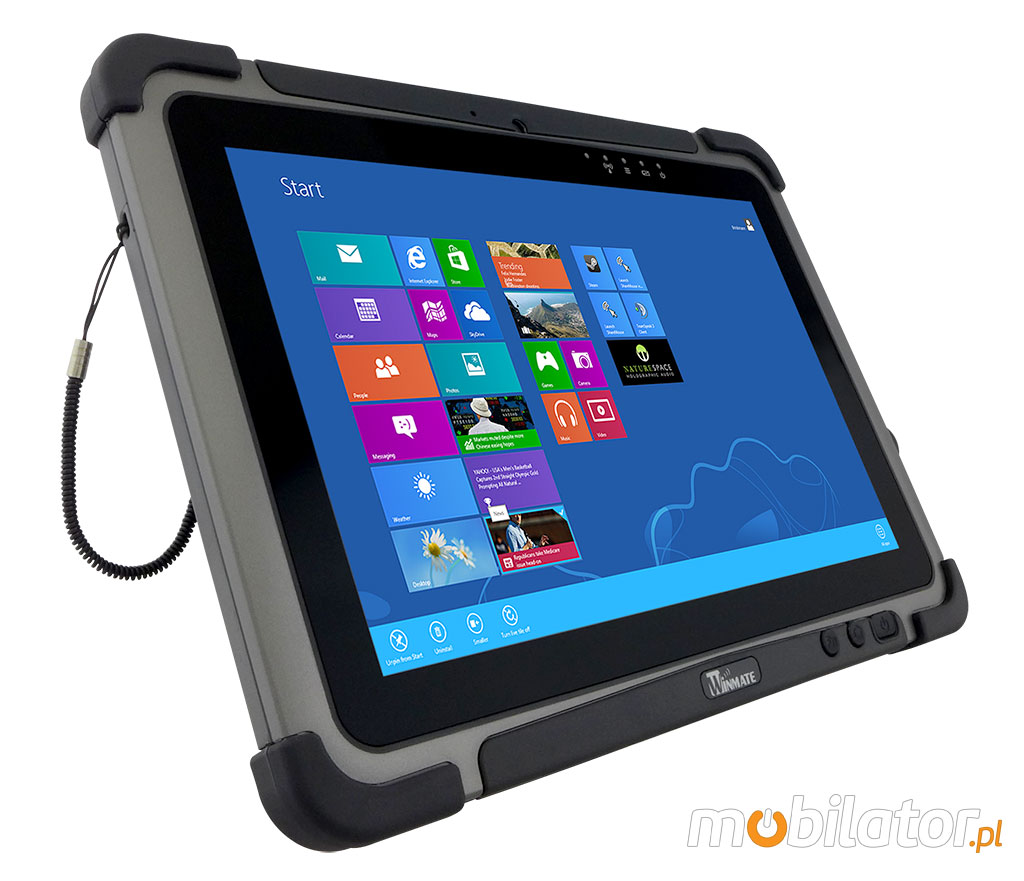

winmate m101b tablet przemyslowy

M101 is offered with the latest Intel® Celeron N2920 1.6GHz quad-core Bay Trail processor to provide high performance and low power consumption, providing extended battery life. It supports with Windows® Embedded 8.1 operating system to fulfill increasing requirement in industrial applications and provides an alternative solution for those between general consumer and extremely rugged application.

 Processor  INTEL N2920 Quad-Core 1.86GHz
 Display  10.1” (1920x1200)
 Display Type
  IPS LED (SUNLIGHT READABLE) :  Pro-Capacitive
 LEDs
  Power | Battery | HDD | RF
 Brightness  700nits
 Contrast  750:1
 Number of colors
  16.7M (6bit + HFRC)
 RAM  4GB SODIMM DDR3L-1600 1.35V
 ROM  64 GB mSATA MLC SSD

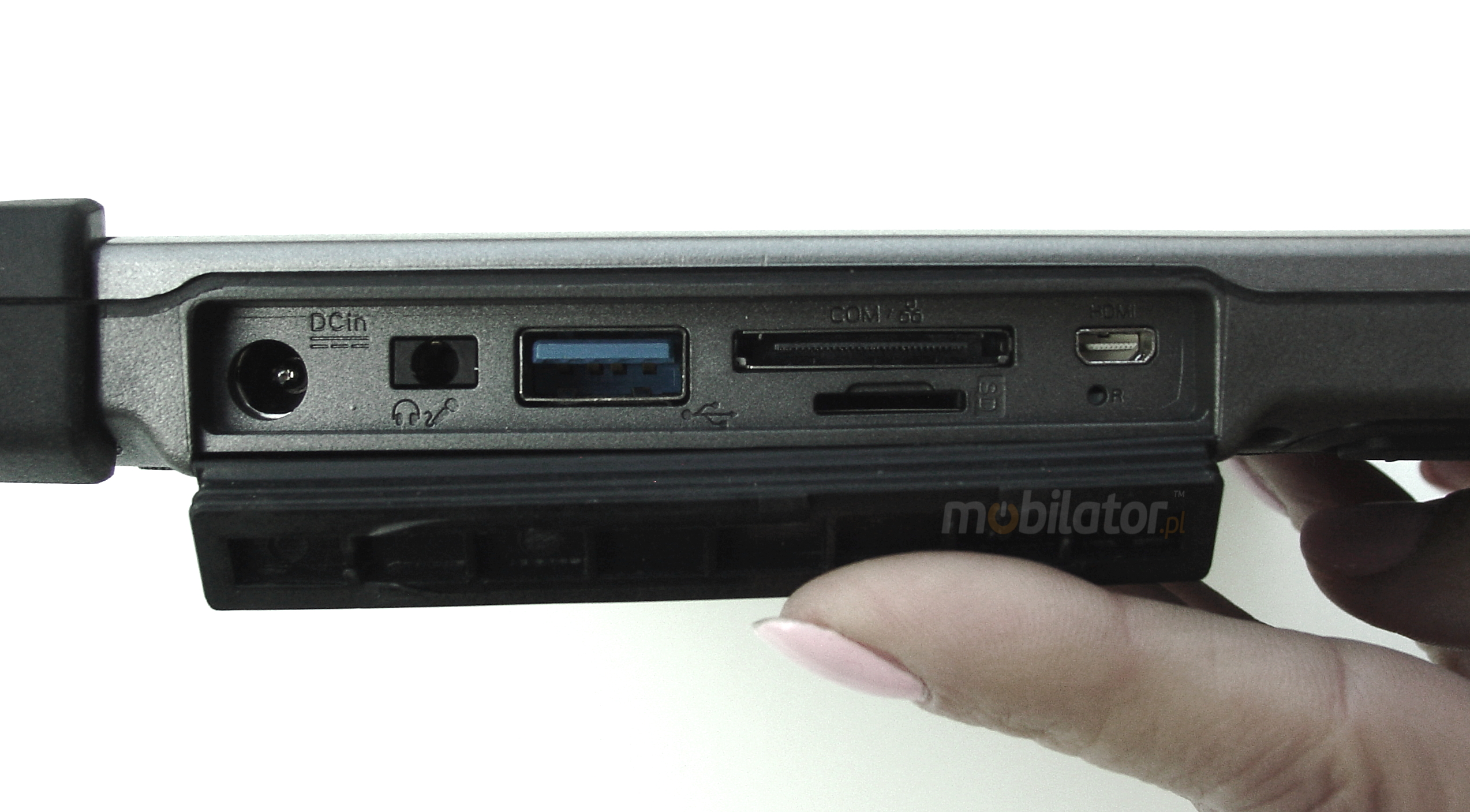

 Connectors  Micro HDMI : LAN/RS232 : SD Card Reader : USB 3.0 : Audio :  DC In
 GPS (factory)  u-Blox Neo-6Q
 Audio  1x - Line out / MIC In | Built-in Microphone | 2x - 1W speakers
 Camera  Front: 2MP | Rear: 5MP + Auto-Focus  + Flash (LED)

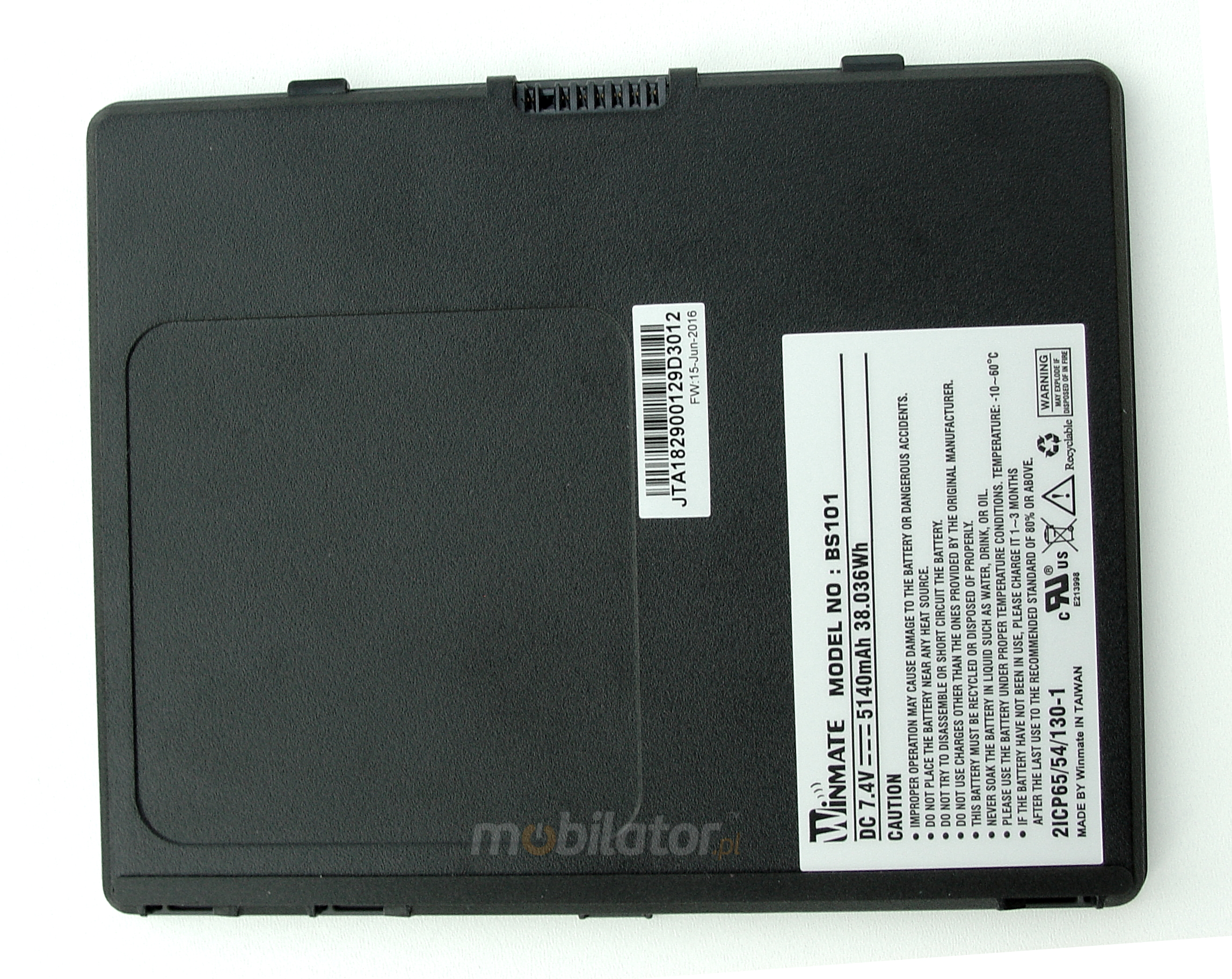

 Baterry  Li-Polymer 7.4V, 5300 mAh
 Baterry (optional)
  Li-Polymer 7.4V, 10600 mAh
 Keyboard  on-Screen : Function keys

 1x - Power | 1x -  Menu | 1x -  Home | Volume | 2x - User-defineable Function Keys
 System (factory)  Windows Embedded 8 Standard
 Modules
  802.11 a/b/g/n : Bluetooth 4.0 Class 1 : u-Blox Neo-6Q : 3G (optional)
 Dimensions
  172 × 81 × 37- 420g
 Resistance  IP65
 Readers (optional)  RFID HF 13.56 Mhz | 1D/2D Barcode Scanner
 Sensors (factory)  Light , G Sensor, Gyrometer, E-Compass
 Certificates  CE, FCC, UL 60950, EN60601
 Warranty
  24 months
Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

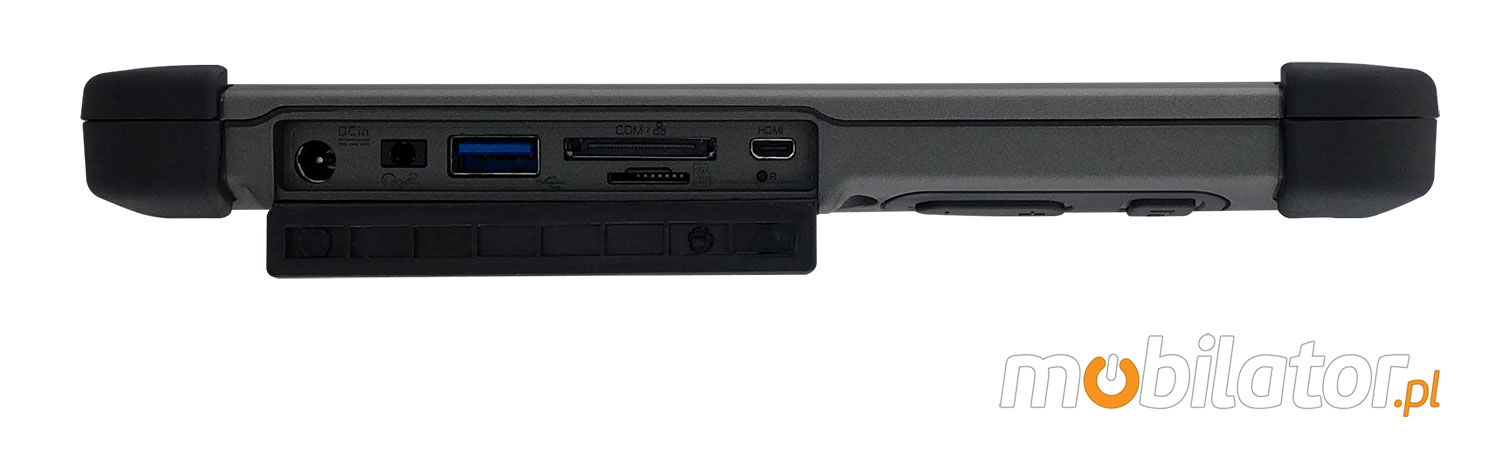

winmate m101b micro hdmi usb 3.0 microphone

Select a version for yourself

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".


 WIFI/BT/GPS
 3G
 RFID HF
 1D/2D
M101B - ST - - -
M101B - 3G - -
M101B - HF - -
M101B - 2D - -
M101B - 3GHF -
M101B - 3G2D -
M101B - 3G2DHF

go top... do góry menu… menu

The collection and processing of data

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

 Model
 Intermec EA30 (1D/2D Imager)
 Light Source
 Highly visible white LED (100lm/W)
 Aimer
 650 nm laser, Class 2
 Scan Rate
 1D Mode - 120fps | 2D Mode - up to 60fps
 Full specifications
 Download - PDF

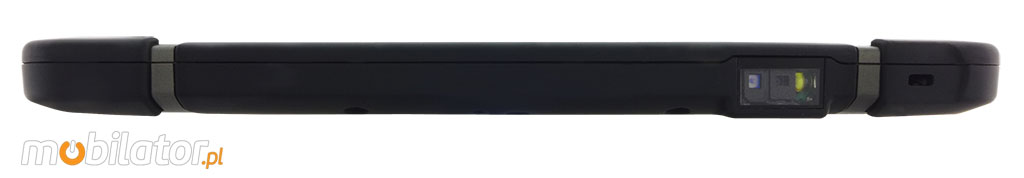

winmate m101b intermec ea30

1D

 EAN/UPC, GS1 Databar, RSS, Code 39, Code 128, UCC/ EAN 128, ISBN, ISBT, Interleaved/Matrix/ Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen, Postal codes
2D Data Matrix, PDF417, Micro PDF 417, Codablock, Maxicode, QR, Aztec, GS1 composite codes

RFID

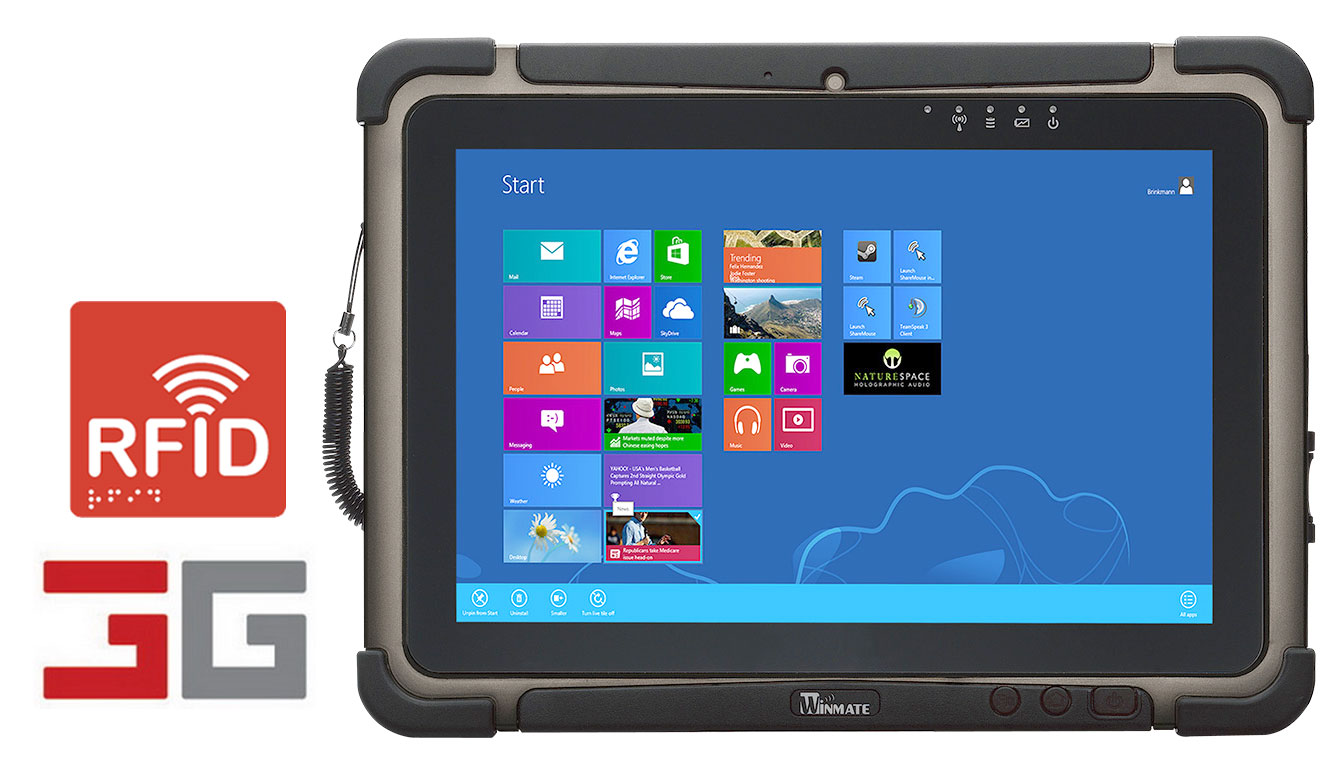

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of  products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

 RFID  HF 13.56 Mhz
 Standards
 ISO15693 (1-5m)
   ISO14443A (MIFARE)

 ISO18092 (NFC)

winmate m101b mifare rfid hf ISO15693 ISO14443A

FC standards cover communications protocols and data exchange formats, and are based on existing radio-frequency identification (RFID) standards including ISO/IEC 14443 and FeliCa.

go top... do góry menu… menu

Resistance

Applicable standards

In terms of device ruggedness, the M101B can withstand a 4-foot drop, and with IP65 sealing, where the first digit "6" means the device is dustproof and the second digit "5" means that the device has the ability to handle low pressure water jets from all directions. The tablet can operate in temperature range of -10° to 50°C, optimized for most industrial deployments. M101B is a sharp looking, sturdy and powerful device that can hold up well against use in harsh environment with its industrial grade rugged design.

 Operating  (AC)
 -20°C -- +60°C
 Operating  (Battery) -10°C -- +50°C
 Battery charging
 0°C -- +40°C
 Operating humidity
 30% - 90% non-condensation
 Shock MIL-STD-810G Method 516.6 Procedure I
 Vibration MIL-STD-810G Method 514.6 Procedure I
 Dust IP6x (dust)
 Water IPx5 (water)
 Drop MIL-STD-810G Method 516.6 -  4ft./1.2m



umpc, tablet, rugged, semi rugged, full rugged, tablet przemys³owy, tablet wojskowy, komputery medyczne, UMPC, MID, HSDPA, 3G, GPS, TABLET Z GSM, I-MOBILE, imobile, i mobile, komputer do autodiagnostyki, komputer do przemys³u, i-mobile Computer made in accordance with the requirements of the U.S. military standard MIL-STD-810G. He keeps working after falling onto concrete from a height of 1.2 meters, is not afraid of vibration, shock, water, mud and temperature changes. Certification C1D2 means that during operation of the tablet will not occur and the spark generating heat sufficient to ignite the vapors contained in the atmosphere of acetylene, hydrogen and other gases (important when operating in the petroleum industry). Operating temperature range from minus 20 to plus 60 degrees Celsius.

go top... do góry menu… menu

IP65 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

Complete protection against contact, Protection against dust deposit
5

5
Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6
Protection from water projected from a nozzle

go top... do góry menu… menu

Modu³es and Wireless Networks

winmate m101b bay trail cpu m101b

Real-time data access to the right information is very important to mobile users. M101 offers optional 3G/LTE, GPS, WiFi 802.11 a/b/g/n, Bluetooth 4.0 which enable users to get connect in the way that best suits their needs. With built-in 5.0 Mega Pixels camera on rear side, users can capture photos, videos, documents instantly, or utilize the front 2.0 Mega Pixel camera for application such as user self video recording, or video communication.

 WIFI  802.11 a/b/g/n
 GPS  U-Blox Neo-6Q
 Bluetooth  Bluetooth 4.0 + Class I
 3G  3G: Sierra MC8090 (optional)
    The ability to make voice calls

bluetooth 4.0 10 inches rfid barcode scanner

go top... do góry menu… menu

Functionality

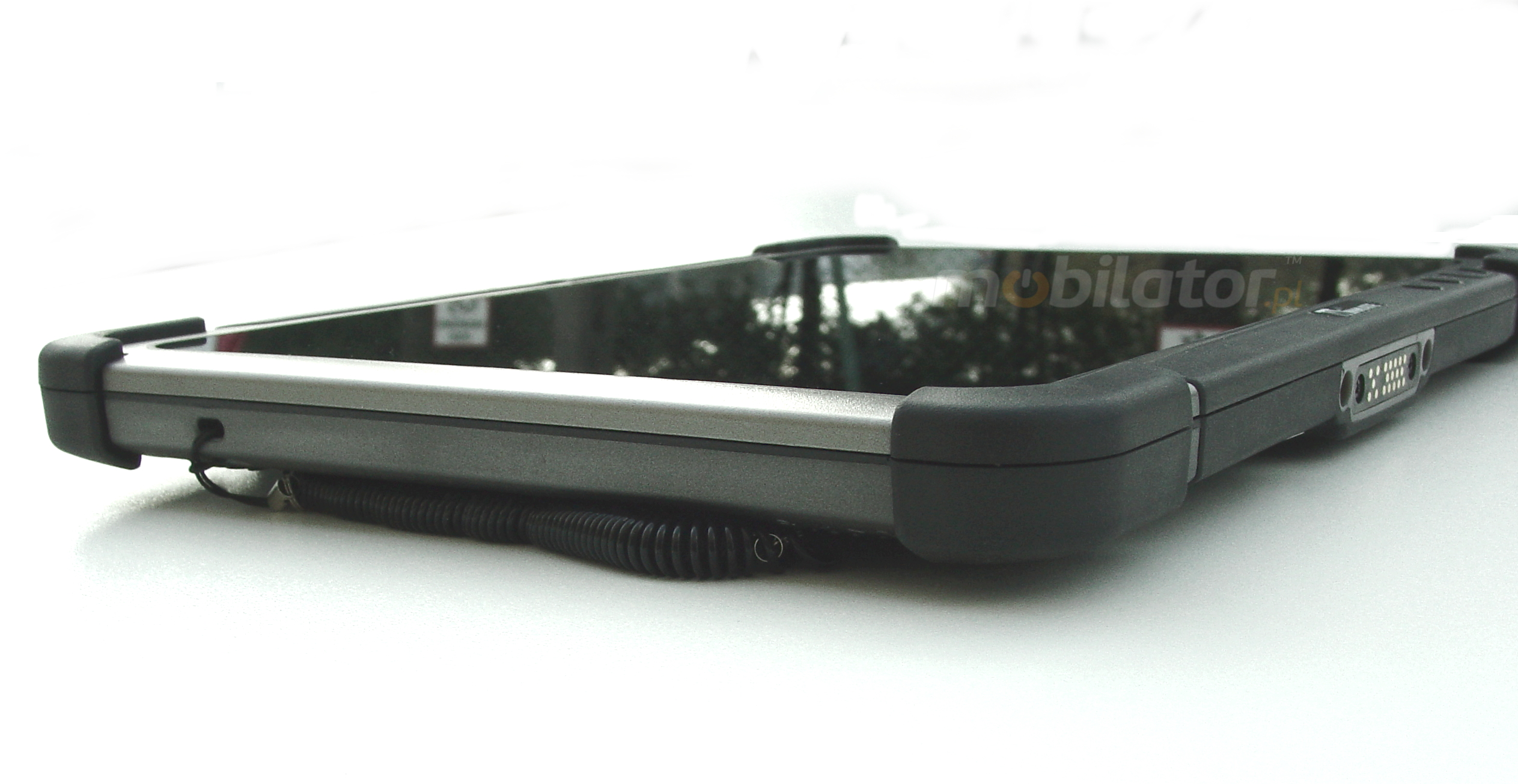

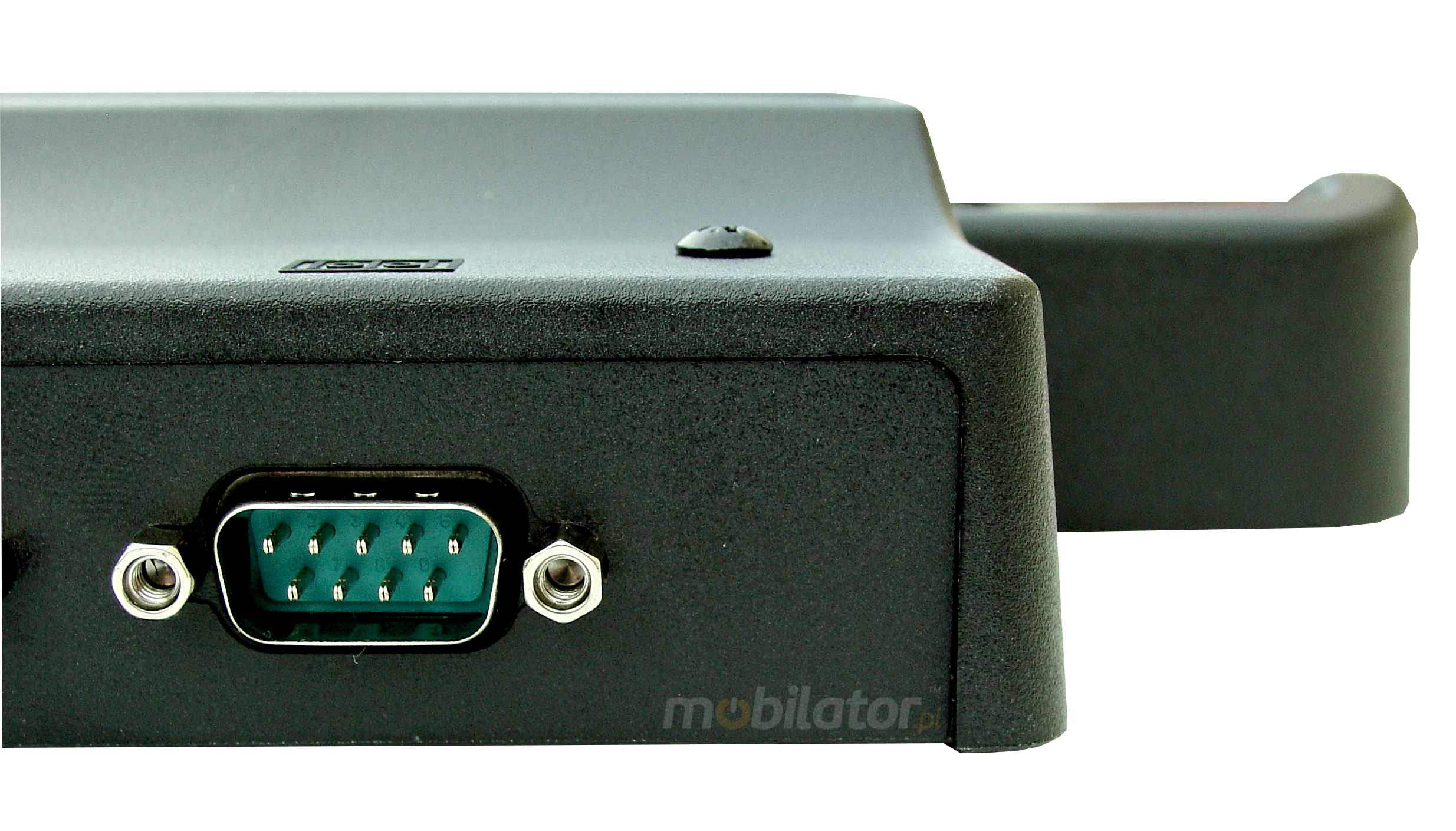

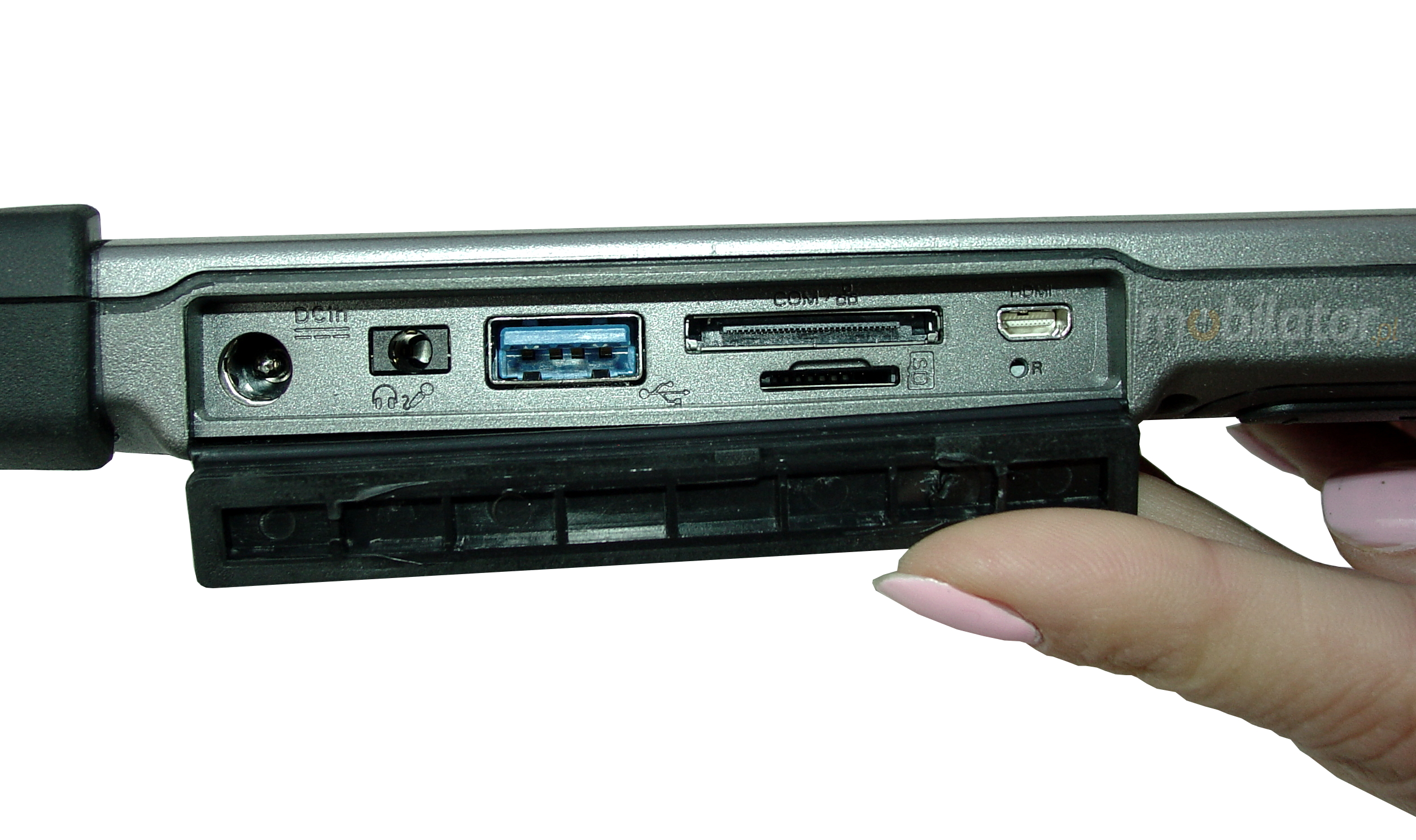

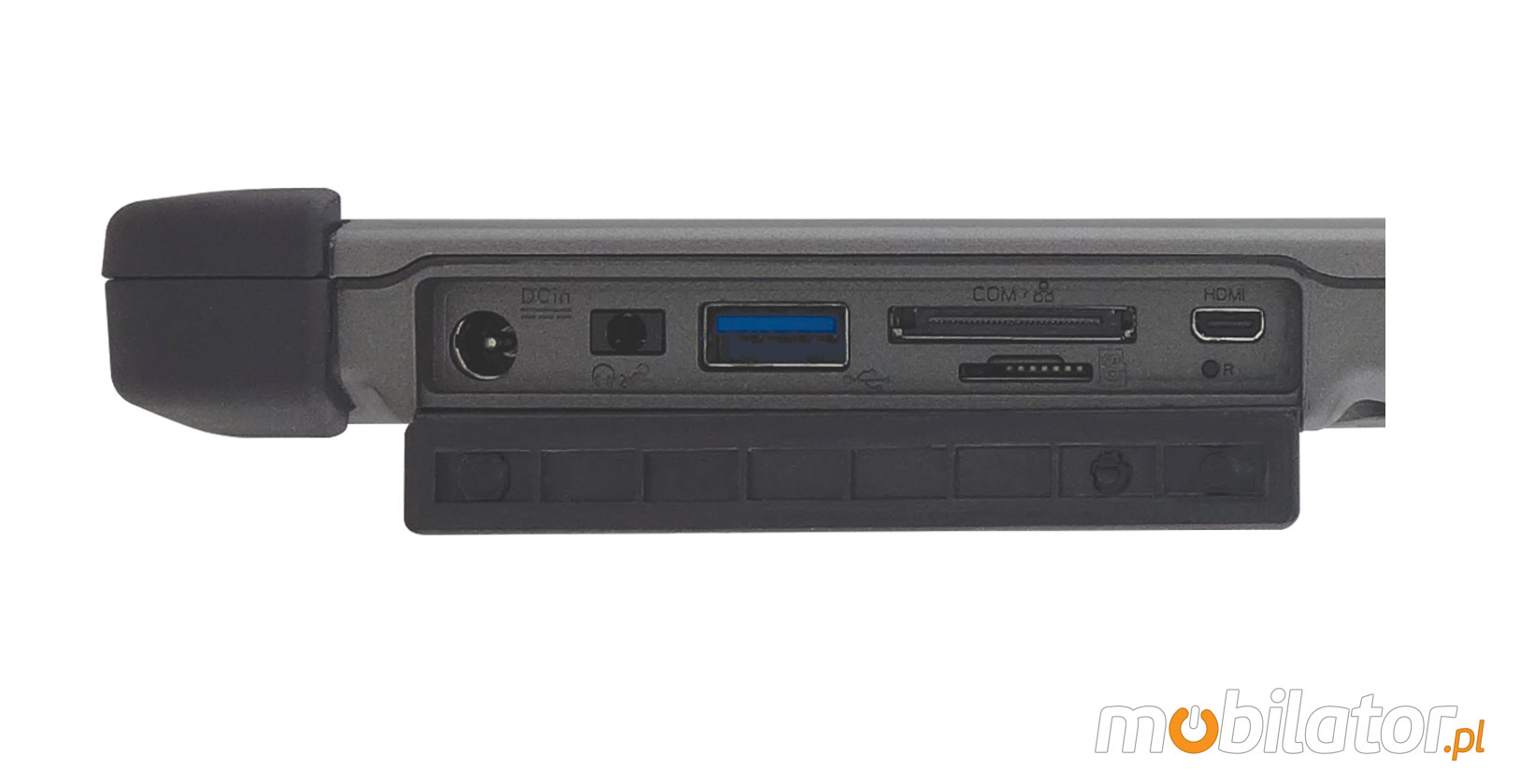

micro hdmi lan rs232 winmate m101b

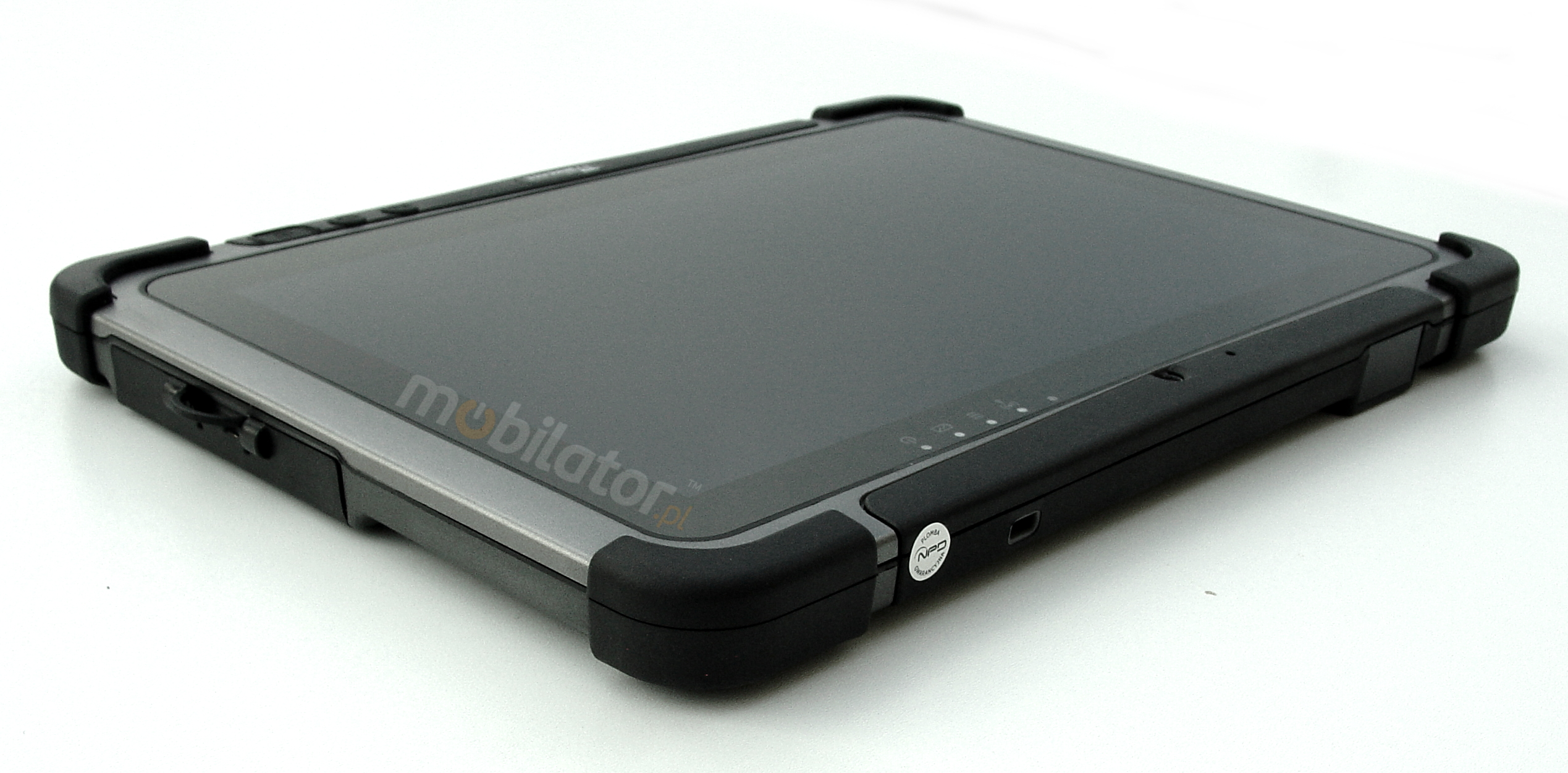

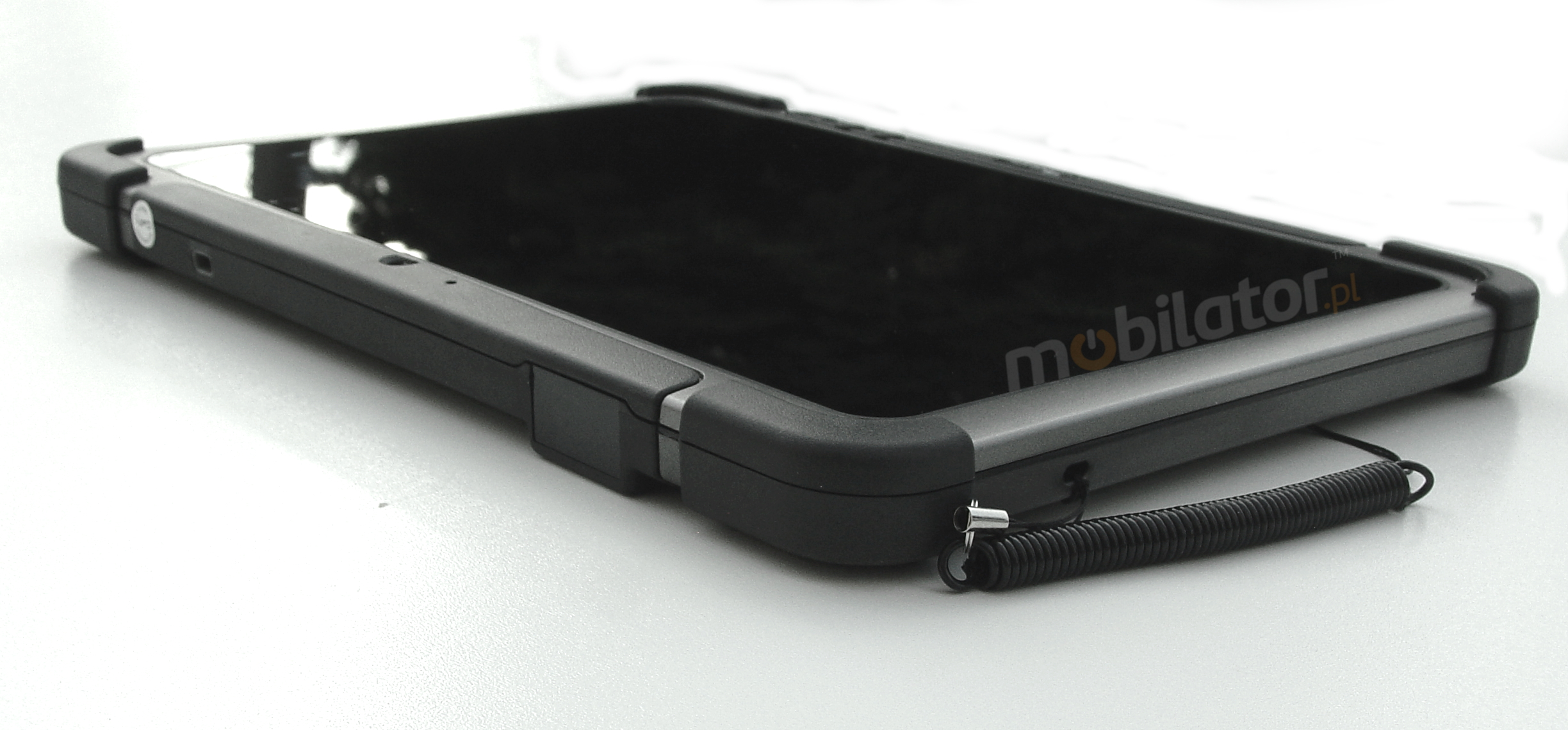

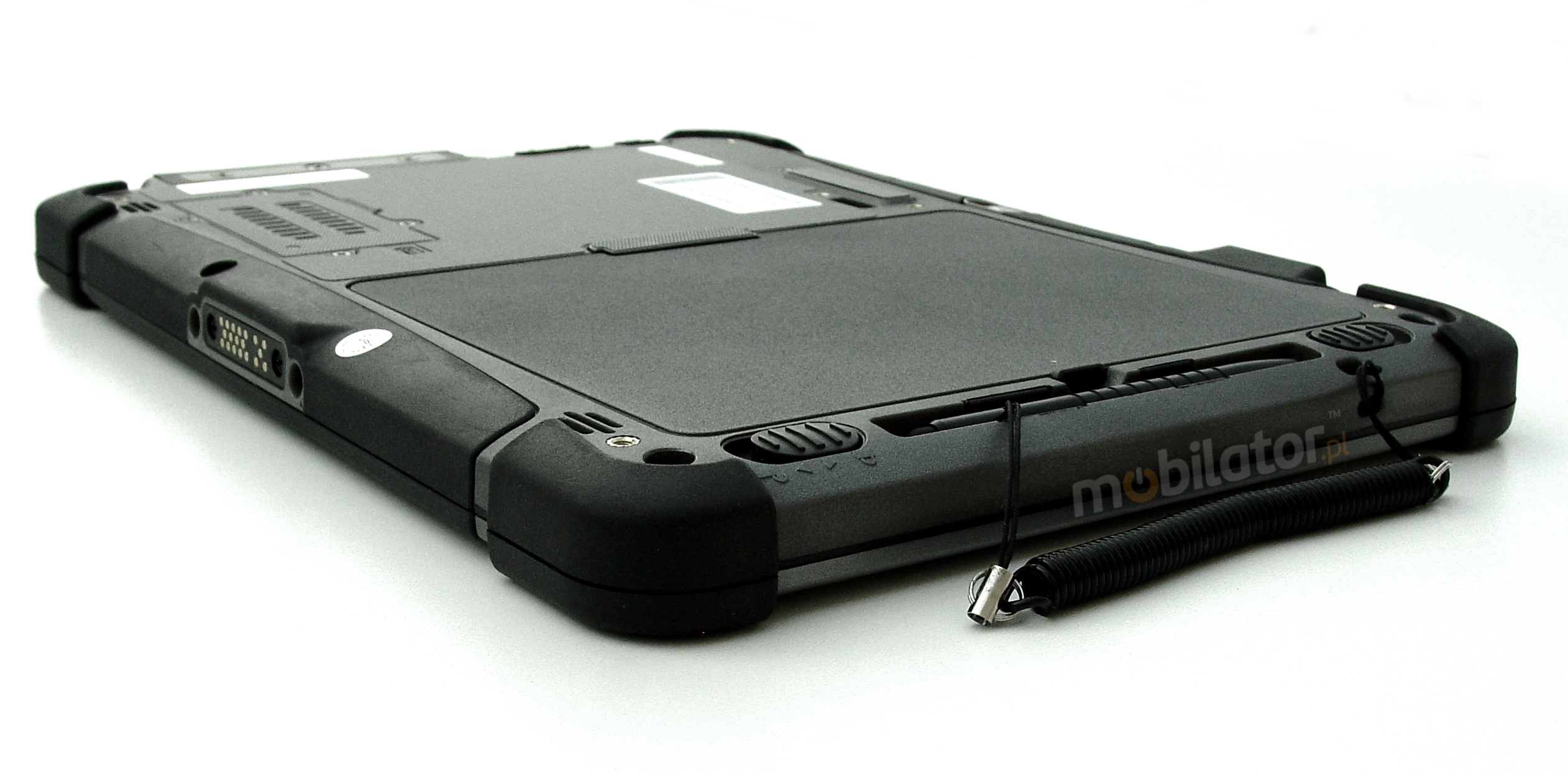

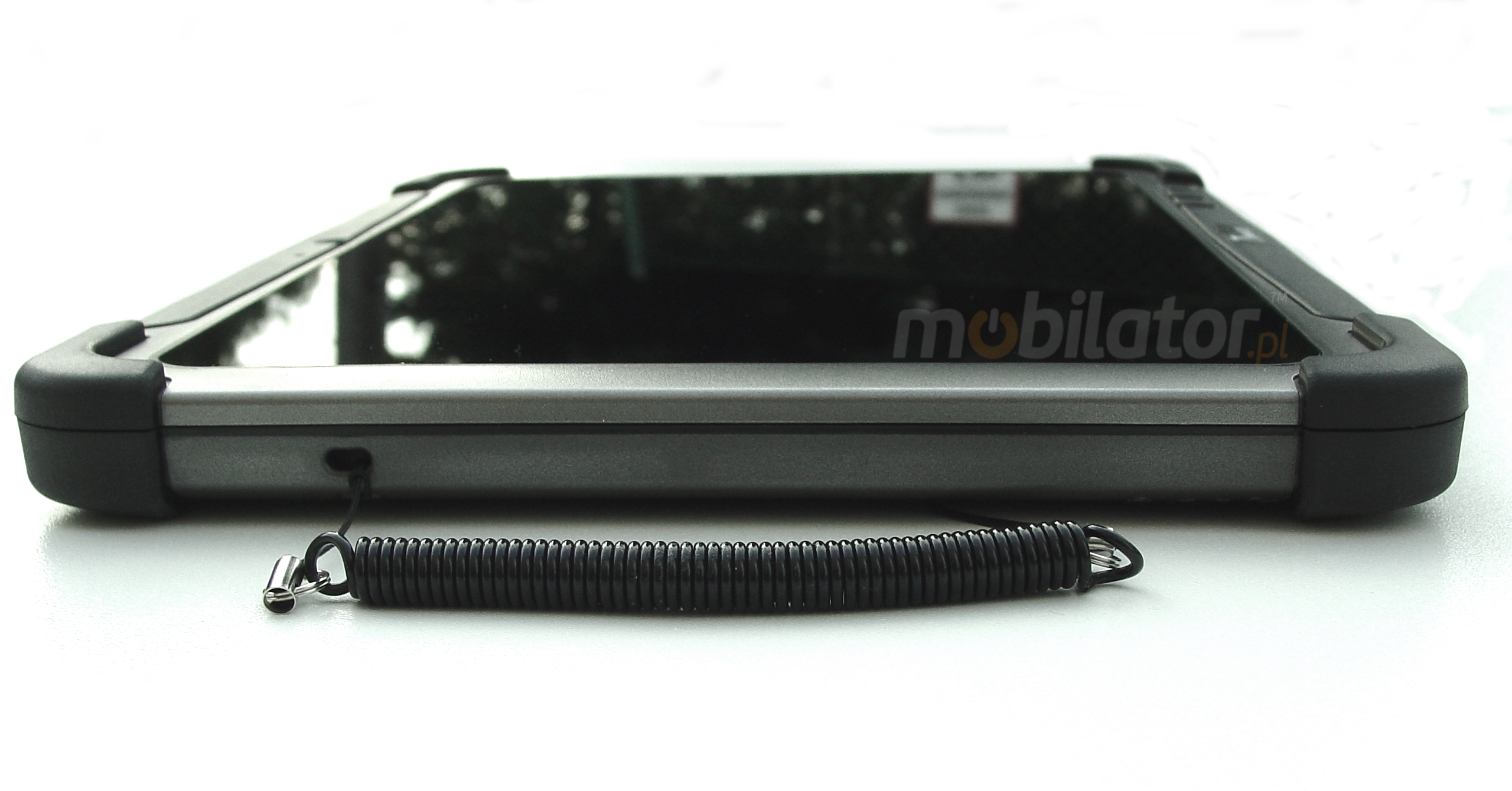

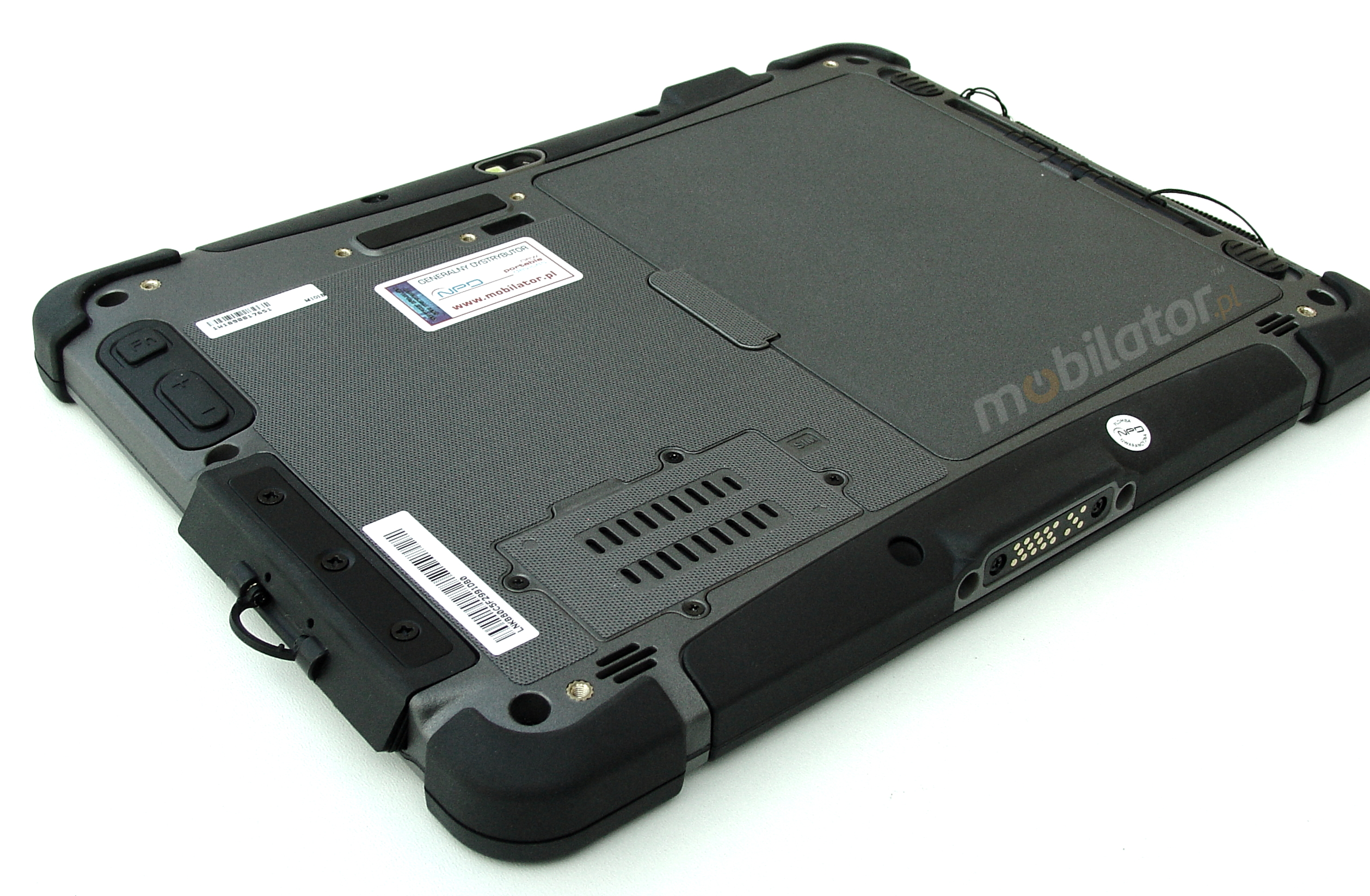

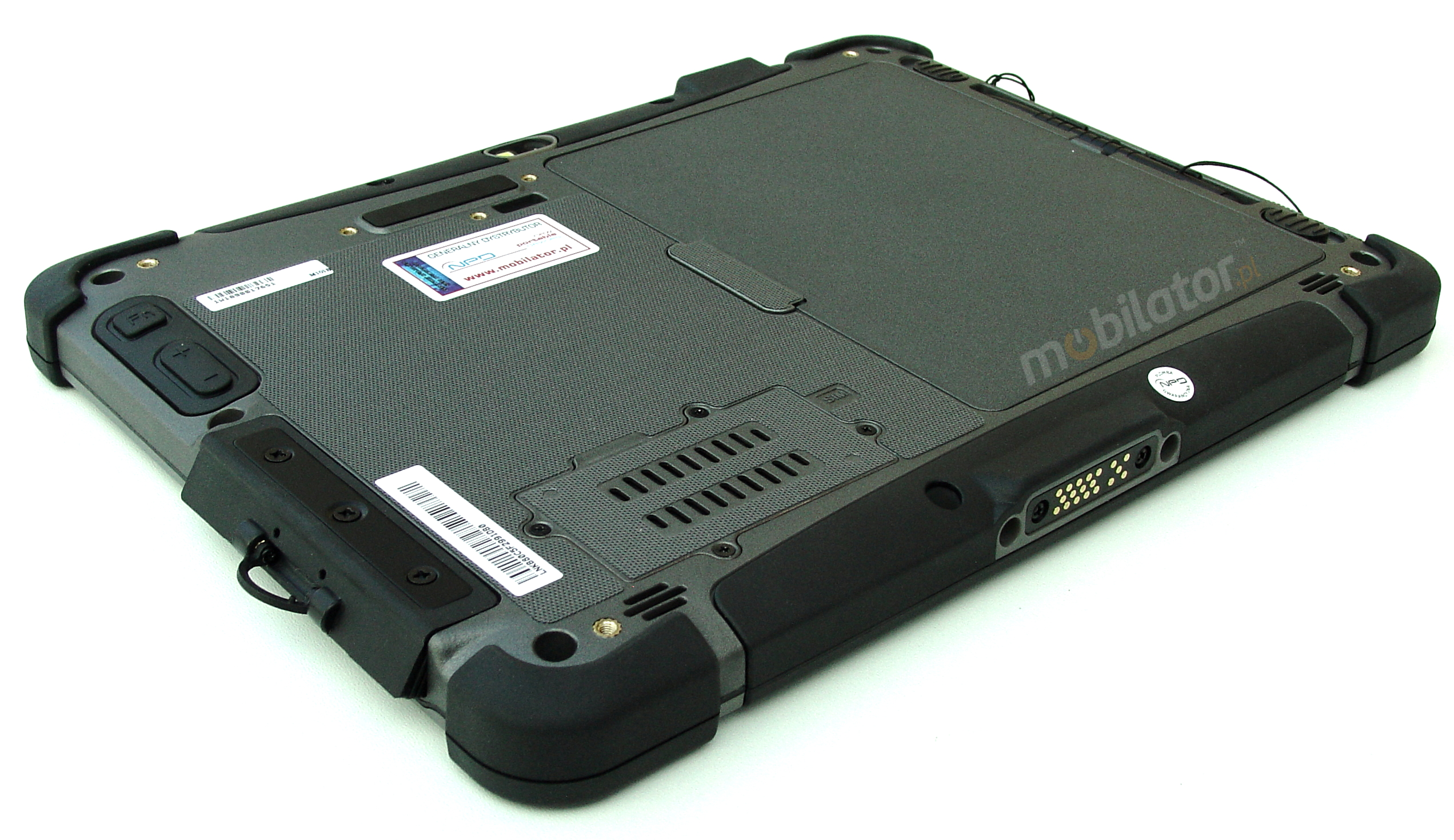

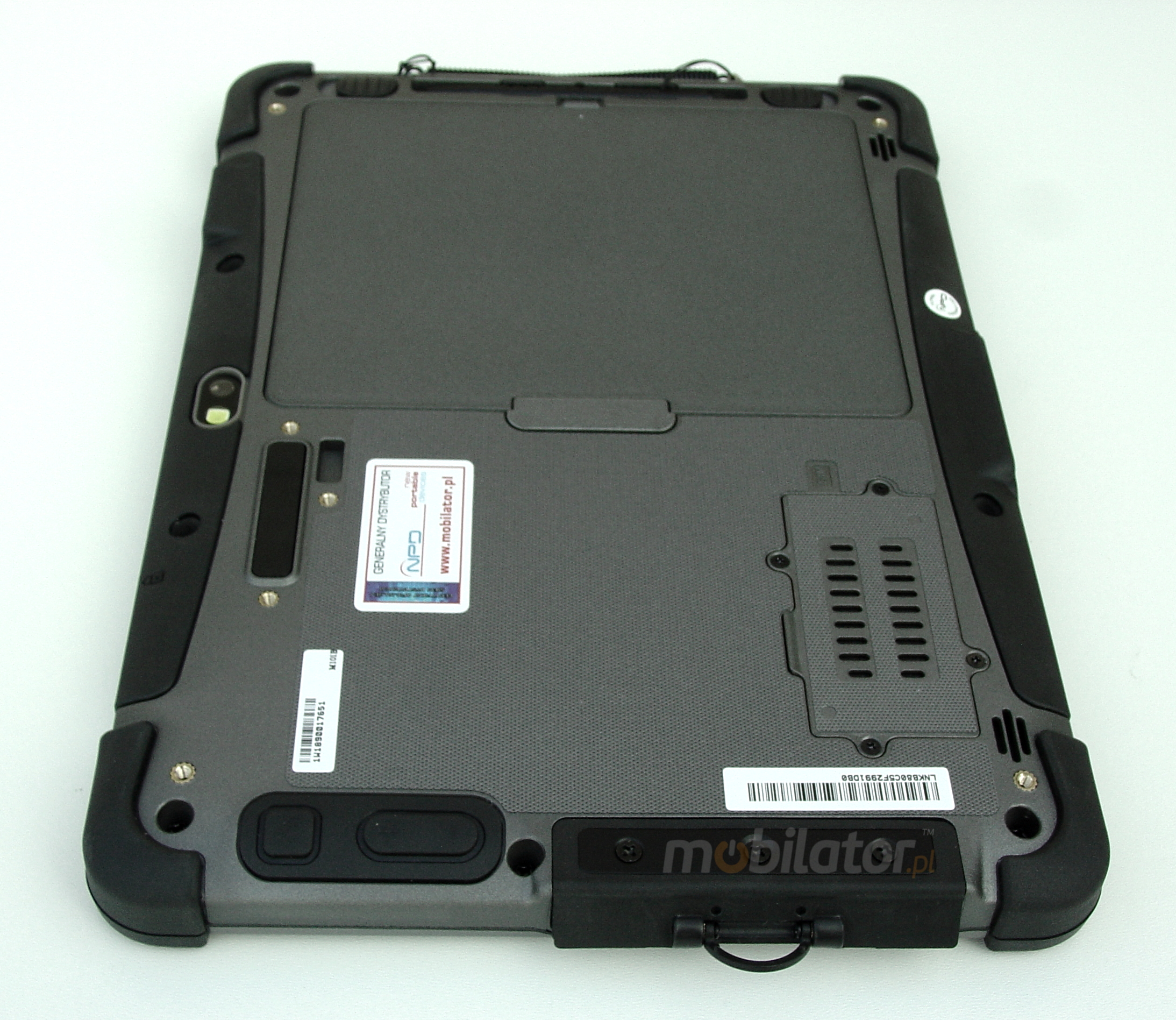

Winmate describes the M101B tablet as "rugged" and with its corner protection it certainly looks much tougher than all those Barbie-thin and fragile consumer tablets. Environmental specs include a 14 to 122 degree Fahrenheit operating temperature range, four foot drop, and IP65 sealing rating. Given Winmate's experience in rugged mobile computing, we assume those are just partial specs.

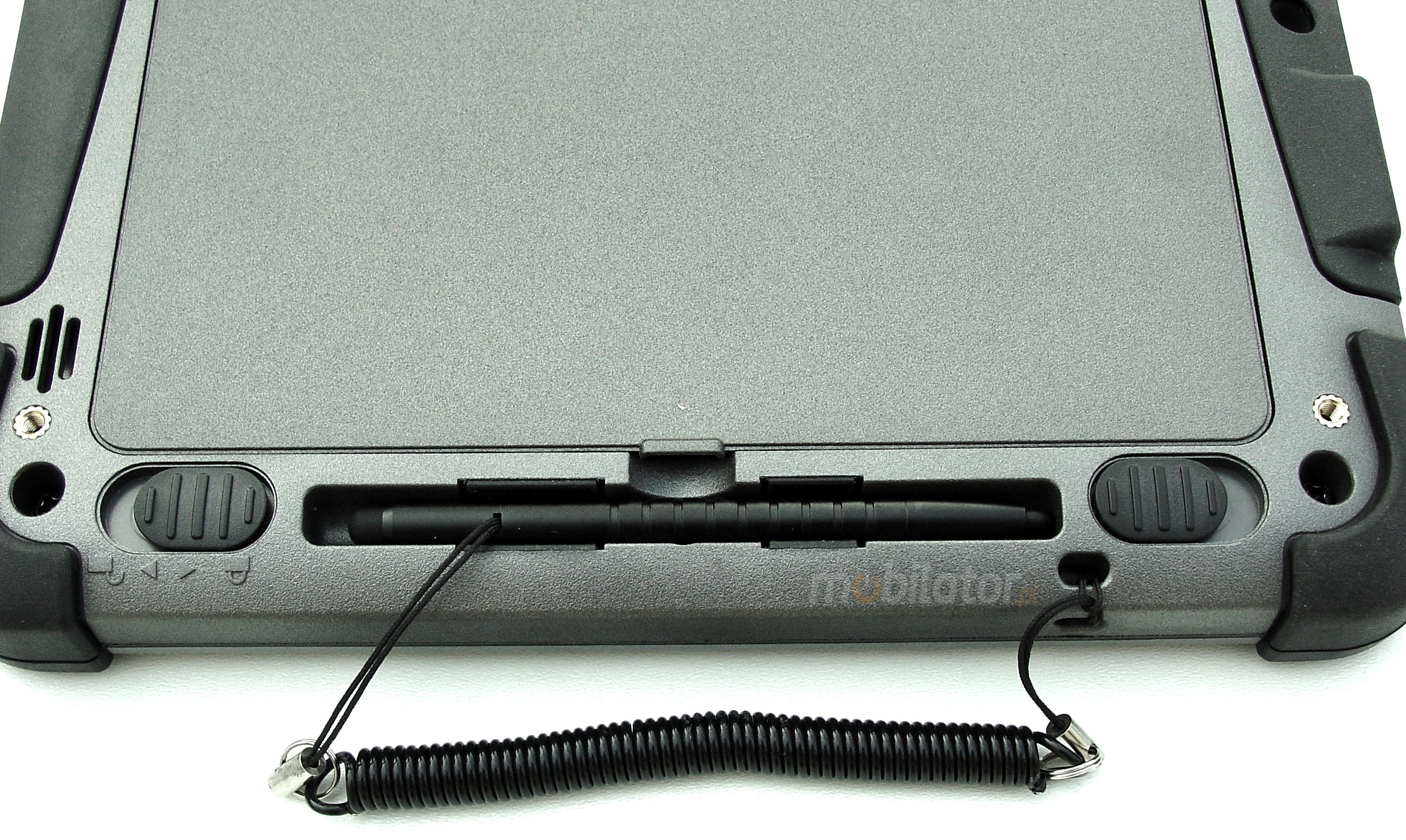

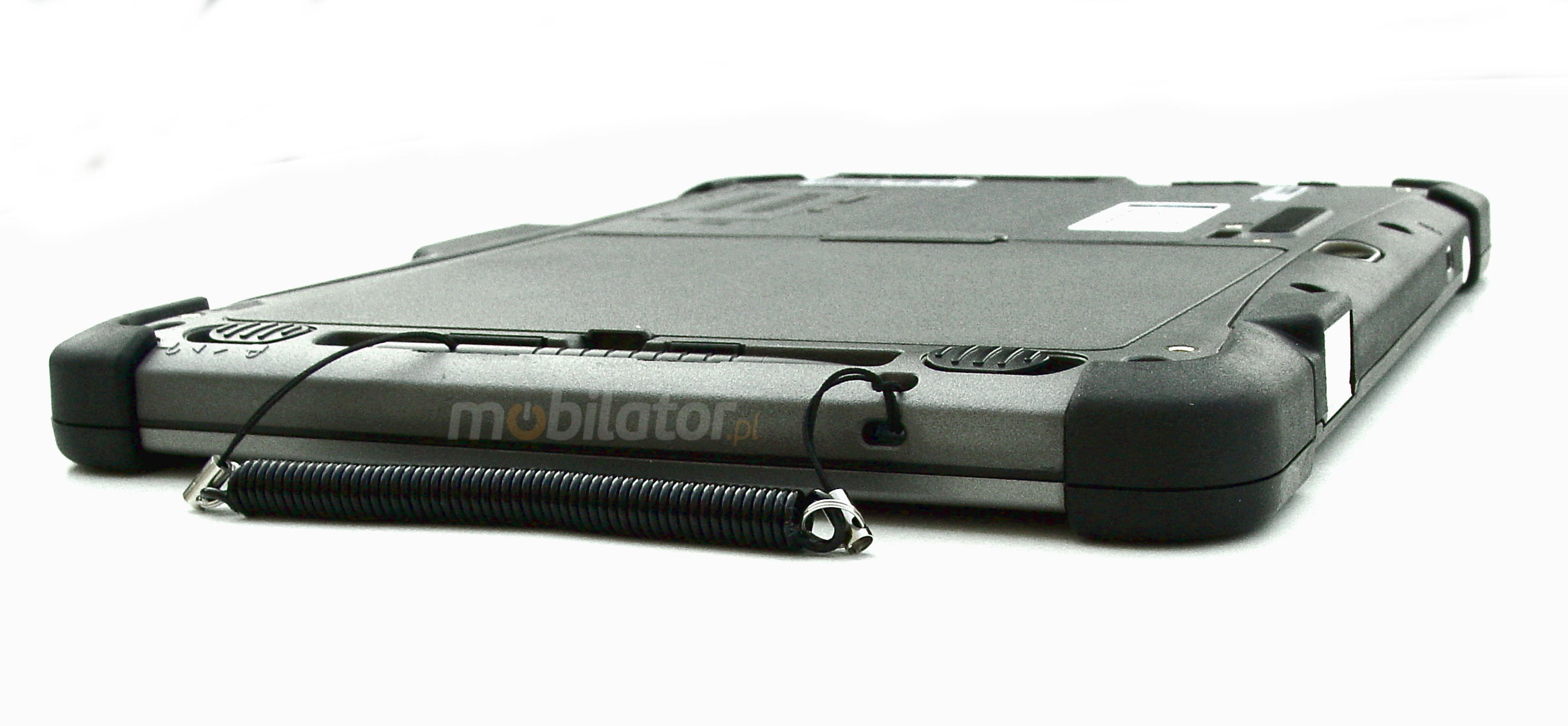

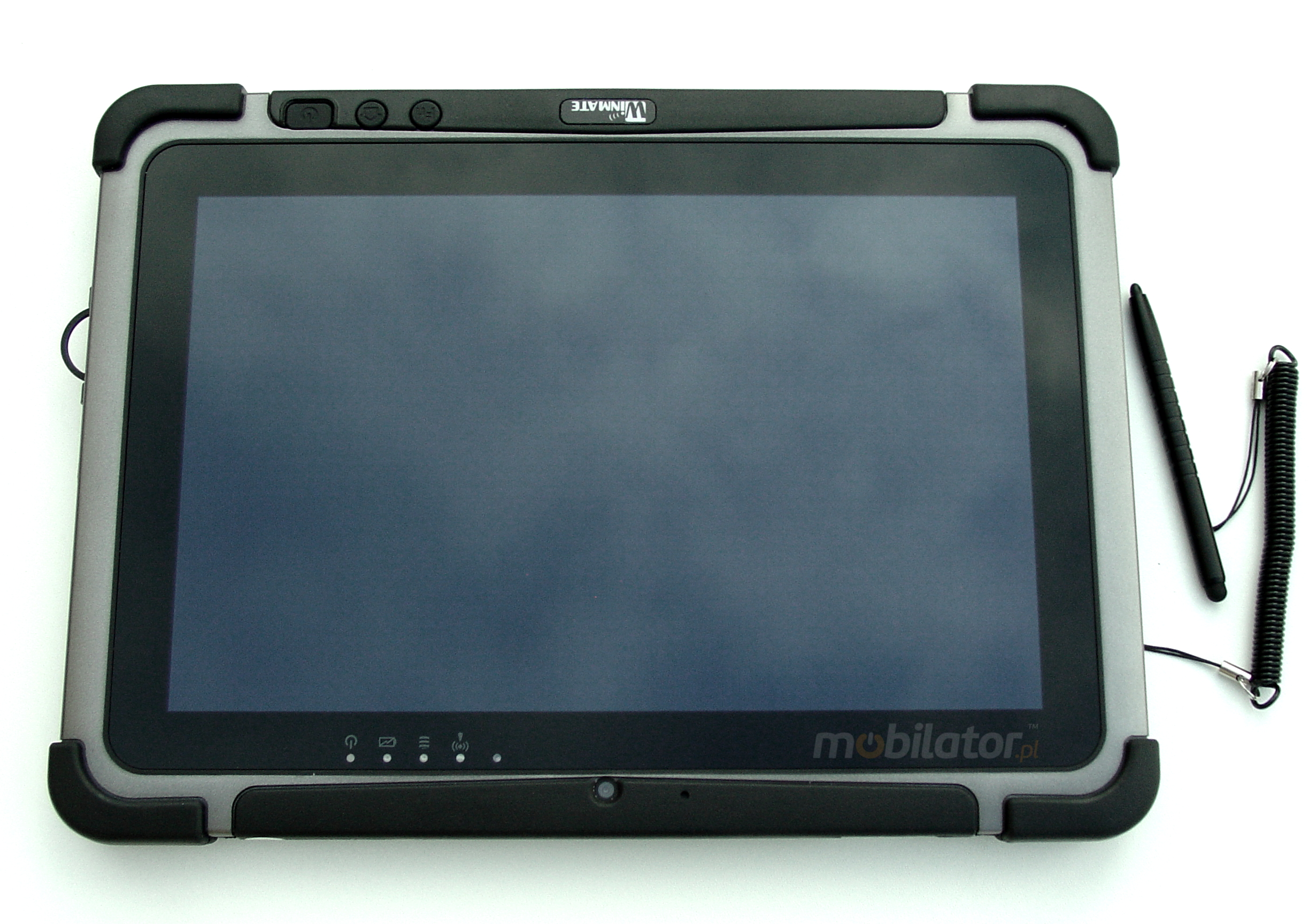

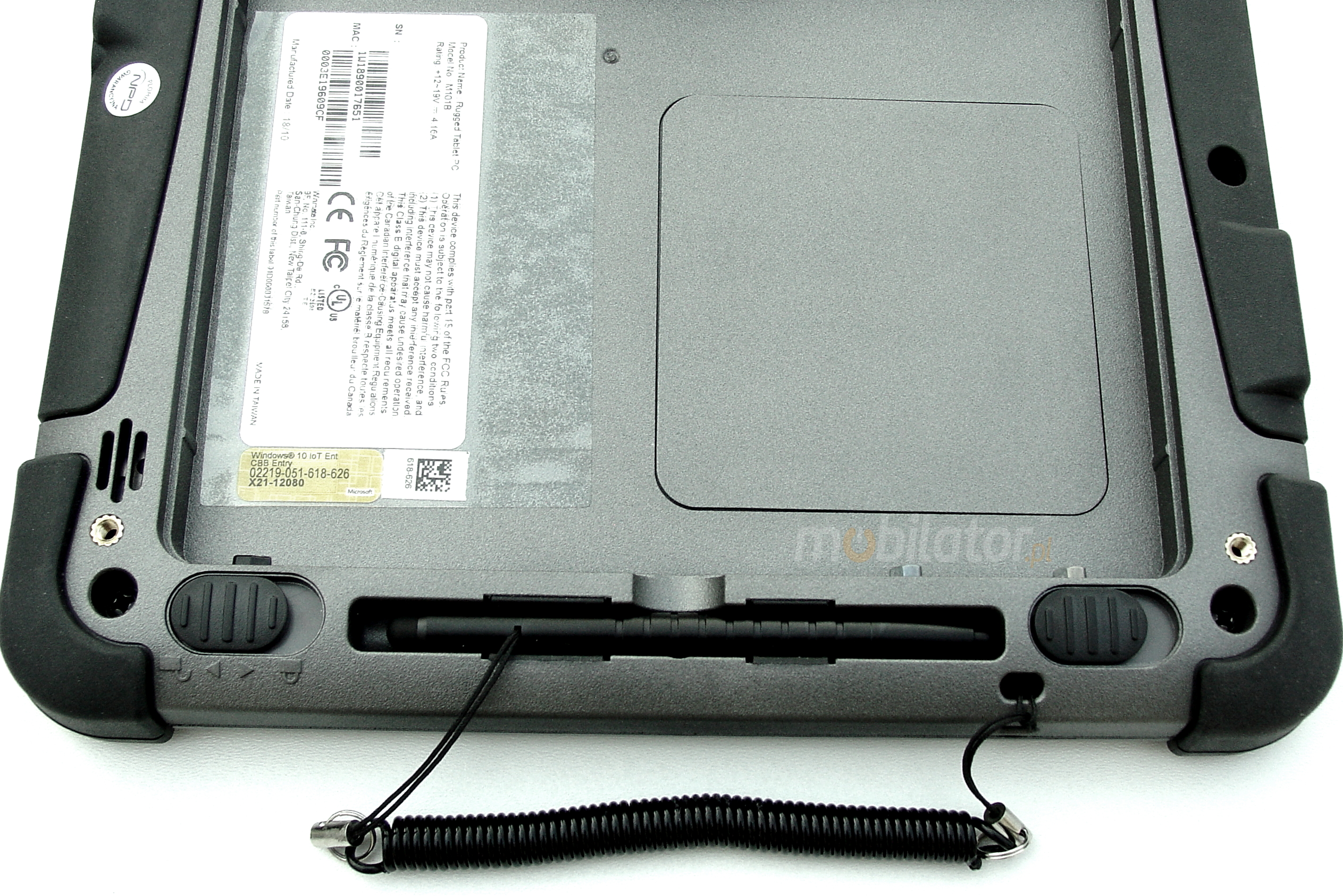

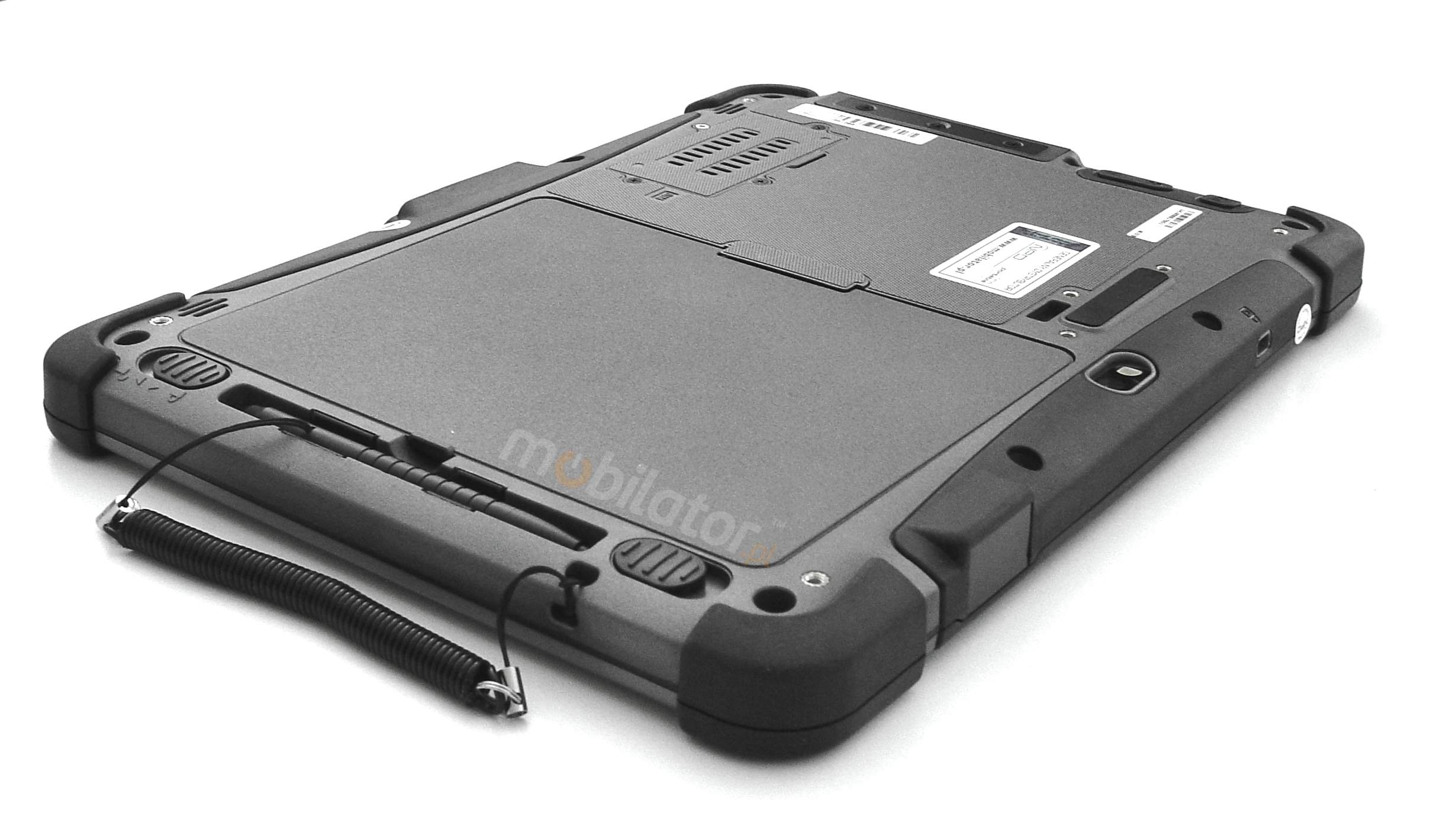

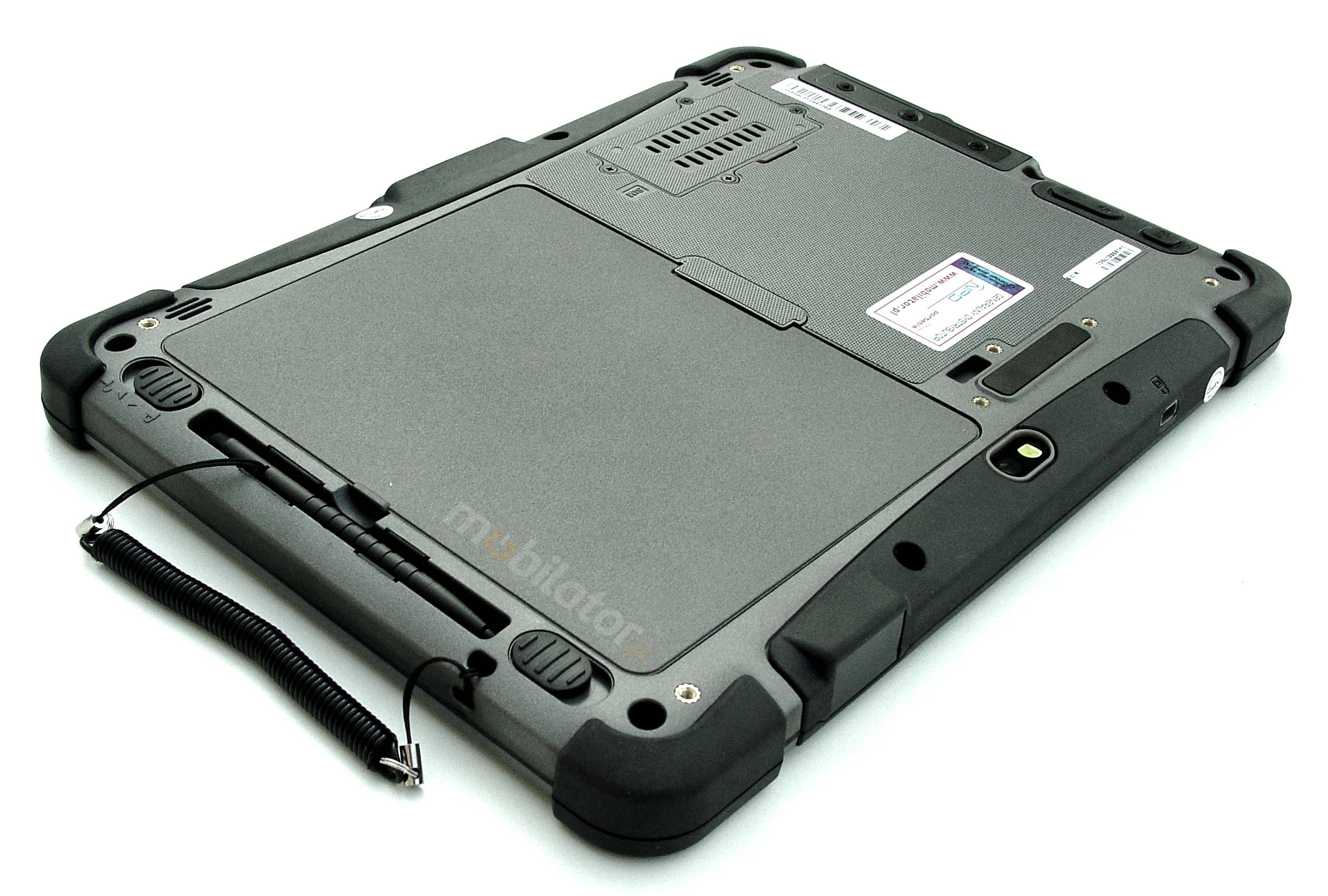

winmate m101b replaceable capacitive stylus function key
 Dimensions 271.8 x 197.2 x 19 mm
 Weights 1.2kg

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...



Compare all versions
