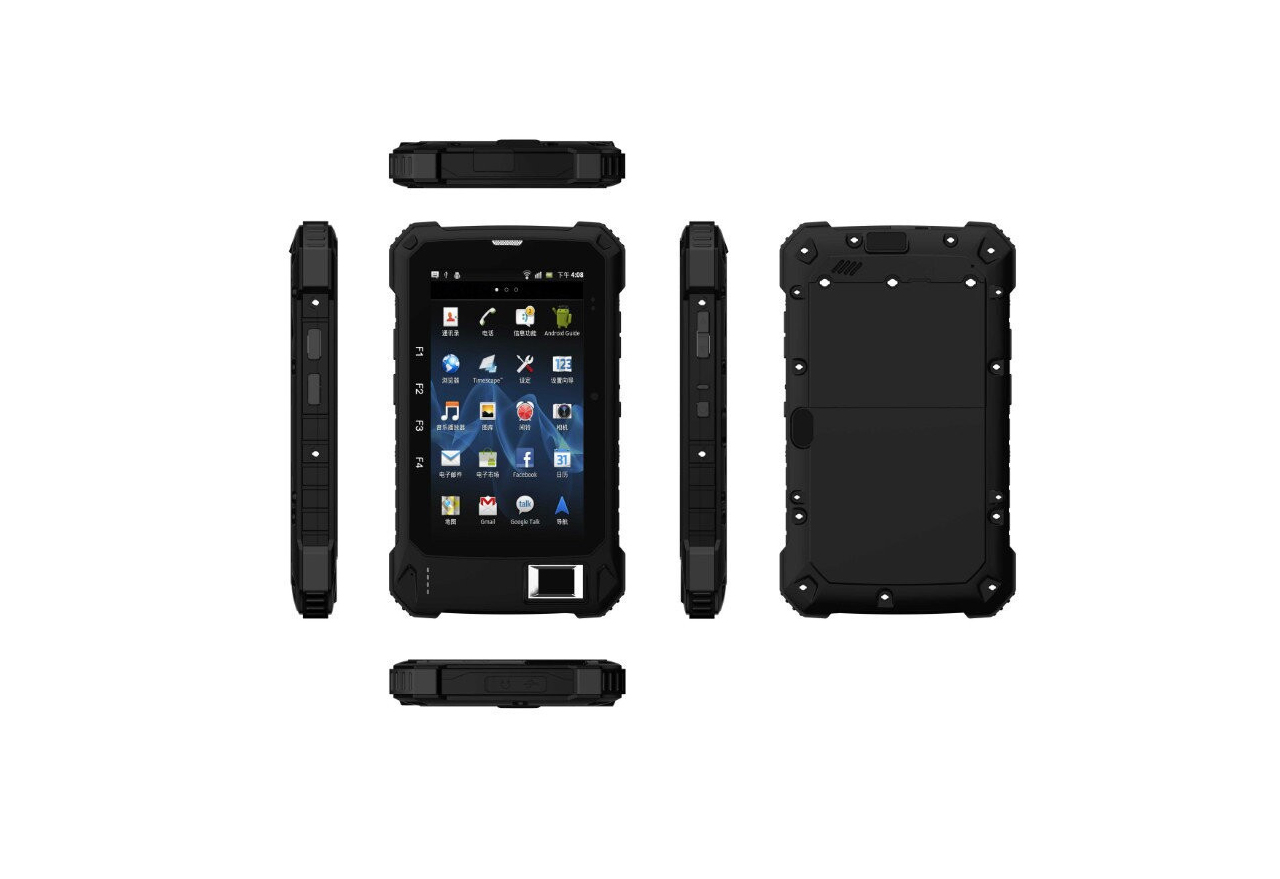

Rugged Tablet MobiPad W96 v.1

Data update: 2016-01-05

guarantee 1 year (opt.2)

Ask about the product

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated

Compare all versions

tablet przemyslowy mobipad w96 ip65

Description
Resistance
The collection and processing of data
Modules and Wireless Networks
Minimalism and comfort

MobiPad W96 adopts the combination of platformization and modular function design concept. It not only has intelligent operation platform, but also has modular functions with flexible configuration. So it can satisfy the customized requirements from different customer.

Description

mobipad w96 rfid hf lf tablet przemysłowy ze skanerem

Processor	MTK8382 Quad Core (4x - 1.3GHz)
Graphics	Mali 400MP
Display	7” (1280x720) IPS
Type of display	Capacitive
Brightness	350nits
Contrast	900:1
RAM	1GB LPDDR2
ROM	8GB EMCP
Connectors (factory)	MicroUSB (OTG) \| Port MicroSD \| Port SIM \| Audio Jack
GPS (factory)	Standard (GPS/EPO/A-GPS)
Audio	Built-in Microphone \| Speaker \| Receiver \| Audio Jack
Camera (FRONT)	2MPx
CAMERA (REAR)	8MPx + Autofocus + Flash
Keyboard	On-Sreen + Functional keys
	Home \| Menu \| Return \| ON/OFF \| Volume \| Scanner Trigger \| Camera Switch
Battery	Li-Poly 7600mAh
	Standby mode - 700h
	Operating mode (depend of usage) - 11h
System	Android 4.4
Modules (factory)	802.11 a/b/g/n \| Bluetooth 4.0 \| 2G/3G (GSM/WCDMA) \| GPS
Weight	222 x 130 x 27.5mm \| 660g
Resistance	IP65
Sensors (factory)	Gravity Sensor \| E-Compass \| Proximity Sensor
Certificates	IP65
Warranty	12 months

Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

Select a version for yourself

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

	v.1	v.2	v.3	v.4
1D/2D	-	-	-
RFID LF	-	-		-
RFID HF	-		-	-

go top… menu…

Resistance

Operating	-30°C -- +70°C
Storage	-40°C -- +80°C
Humidity	90% non-condensing
Dust	IP6x (dust)
Water	IPx5 (water)
Drop	3,93ft./1.2m

Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

Complete protectionm against contact. Protection from infiltration of dust.

Protection against immersion

go top… menu…

The collection and processing of data

Barcode Scanner

IP65 tablet wodoodporny pyloodporny

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

Type of scanner	1D/2D (CMOS)
Model	LVSCAN™ LV3080
2D Supports codes	PDF417、QR Code (QR1/2, Micro)、Data Matrix (ECC200,ECC000,050,080,100,140) Code128、UCC/EAN-128、AIM 128、EAN-8、EAN-13、ISBN/ISSN、UPC-E、UPC-A、Interleaved
1D Supports codes	2 of 5、ITF-6、ITF-14、Matrix 2 of 5、Industrial 25、Standard 25、Code39、Codabar、Code 93、Code 11、Plessey、MSI-Plessey、GS1-DataBarTM(RSS) (RSS-14、RSS-Limited、RSS-Expand)

RFID

IP65 tablet wodoodporny pyloodporny

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

	RFID HF	RFID LF
Frequency	13.56 MHz	125khz
Reading distance	to 3cm	from 3cm to 5cm
Standard	ISO/IEC 15693	EM/TK 4100/4200
	ISO 14443 A/B

go top… menu…

Modules and Wireless Networks

3g 2g mobipad w96 modem

With HSDPA module, you need only insert a SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and customize mobile networks. Also used in internal W96 WCDMA module adapts automatically to transfer and network coverage.

WIFI	802.11 a/b/g/n
GPS (Standard)	Standard
Bluetooth	Bluetooth 4.0 Class 2 (A2DP/HFP)
2G/3G	(2G) 850/900/1800/1900MHz \| (3G) 850/1900/2100MHz
	The ability to make voice call

mobipad w96 przyciski funkcyjne tablet

The latest WiFi wireless module operating in 802.11n provides a very fast and secure communication with the AP tablet such as a router, providing a fast and convenient web browsing, smooth playback of HD video.

go top… menu…

Minimalism and comfort

zlacza otg tablet przemyslowy 7 cali

Will put your old laptop into a briefcase, backpack or travel bag with Senter problem disappears forever, as it weighs only 660g and its dimensions (22 x 13 x 27cm) allow to carry it with you everywhere. With exquisite workmanship and energy efficient it is in the forefront of devices in this segment and is hit on the Europe market in the industrial segment.

Dimensions	222mm x 130mm x 27.5mm
Weight	660g

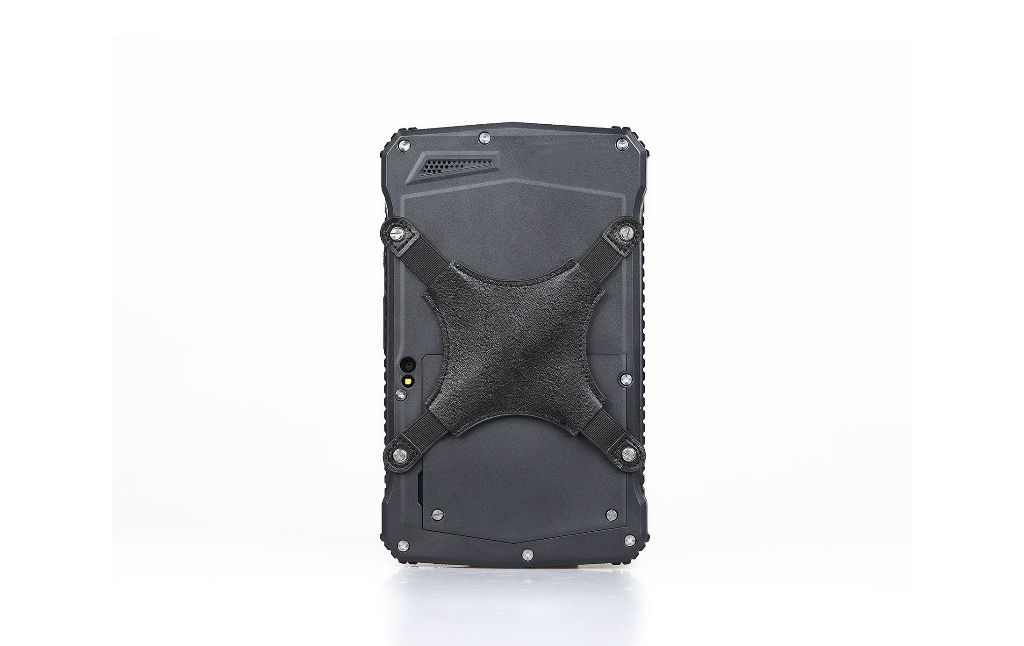

uchwyt na nadgarstek w96 mobipad

go top… menu…

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

Compare all versions

Durability:	IP65
Humidity:	95% non-condensing
Waterproof:	IP65
Weight:
Temperature:	Operating temperature: -30°C -- +70°C Storage temperature: -40°C -- +80°C
Shock:	-----
Vibration:	-----
Drop:	1.2 meters
Sand and dust:	IP65
1D barcode scanner (reader):	none (available in other configurations)
2D barcode scanner (reader):	none (available in other configurations)
RFID scanner (reader):	none (available in other configurations)
Magnetic card reader (MSR):	-----
Microchip card reader:	-----
Docking station connector:	-----
VESA standard – holders and mounts support:	-----
COM port:	No
Dispaly:	7" (1280x720) IPS
Brightness:	350nits
Contrast:	900:1
Touch screen:	Tak
Graphics card:	Mali - 400MP
Swivel Hinge:	-----
VGA out:	-----
TV Out:	-----
TV Tuner:	-----
Processor:	MTK8382 Quad Core (4x - 1.3GHz)
Chipset:	-----
BIOS:	-----
Memory:	1GB LPDDR2
Hard Drive:	8GB EMCP
Flash Memory:
Battery:	Li-Poly 7600mAh
Working time on battery:	Operating time (depending on usage) - 8h Standby time - 800h
HotSwap battery:	No
Fast battery replacement ability:	No
Size:	222 x 130 x 27.5mm 660g
Casing material:	high quality plastic and rubber
Fanless casing:	Yes
Operating System:	Android 4.4
LAN:	-----
WLAN:	IEEE 802.11b/g/n
Bluetooth:	Bluetooth 4.0 Class 2 (A2DP/HFP)
WAN:	GSM/GPRS/EDGE: 850/900/1800/1900MHz WCDMA/HSDPA/HSUPA: 850/1900/2100MHz
GPS:	Standard
Flash Card Reader:	micro SD/TF max. 32GB
CD/DVD:	-----
Camera:	FRONT: 2MPX REAR: 8MPX (Auto Focus+ Flash)
Audio:	Built-in Microphone \| Speaker \| Receiver \| Audio Jack
Seciurity:	IP65
In/Out:	MicroUSB (OTG) \| Port MicroSD \| Port SIM \| Audio Jack
Keyboard:	Ekranowa + Przyciski fizyczne ON/OFF \| Volume \| Camera \| Functional key
Additional Navigation Devices :	-----
Color:	orange-black
Optional accessories:	Tablet holder
Other:	G-Sensor \| Proximity Sensor \| E-Compass

go top...
