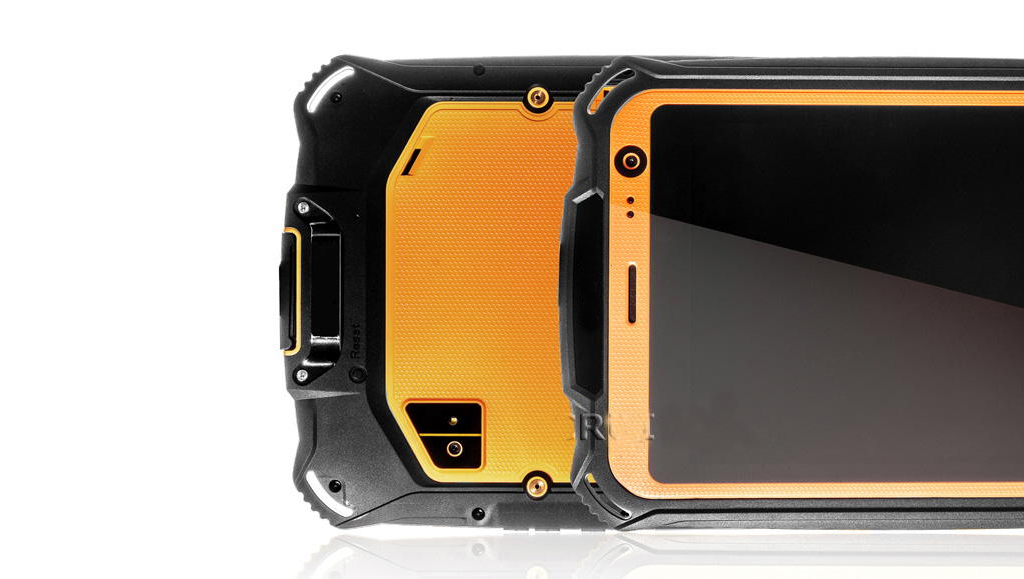

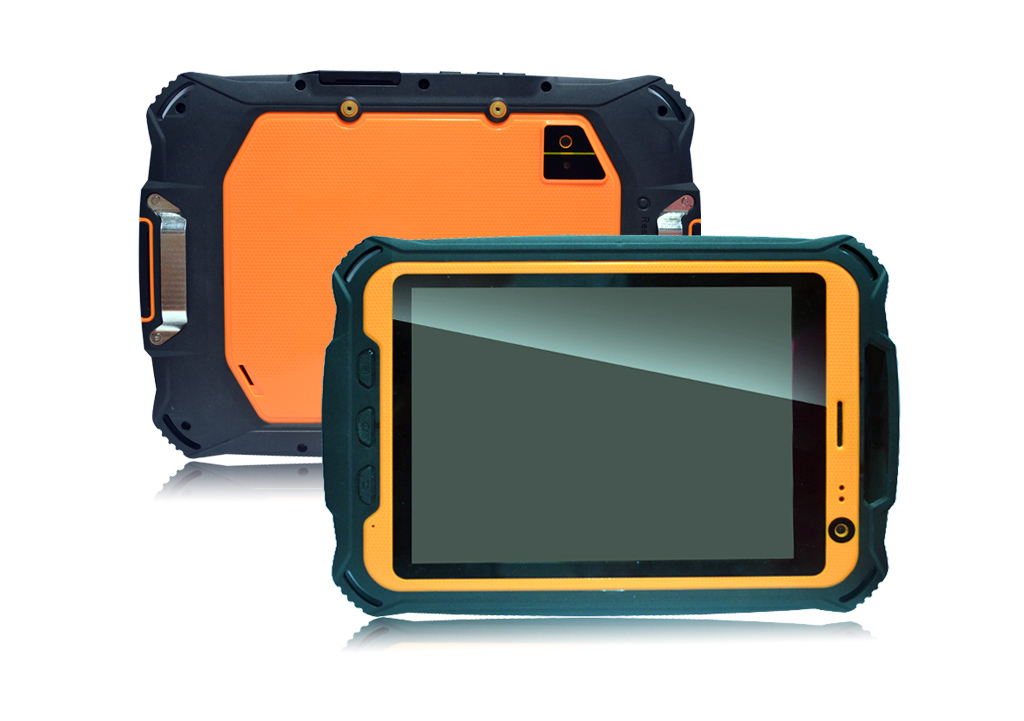

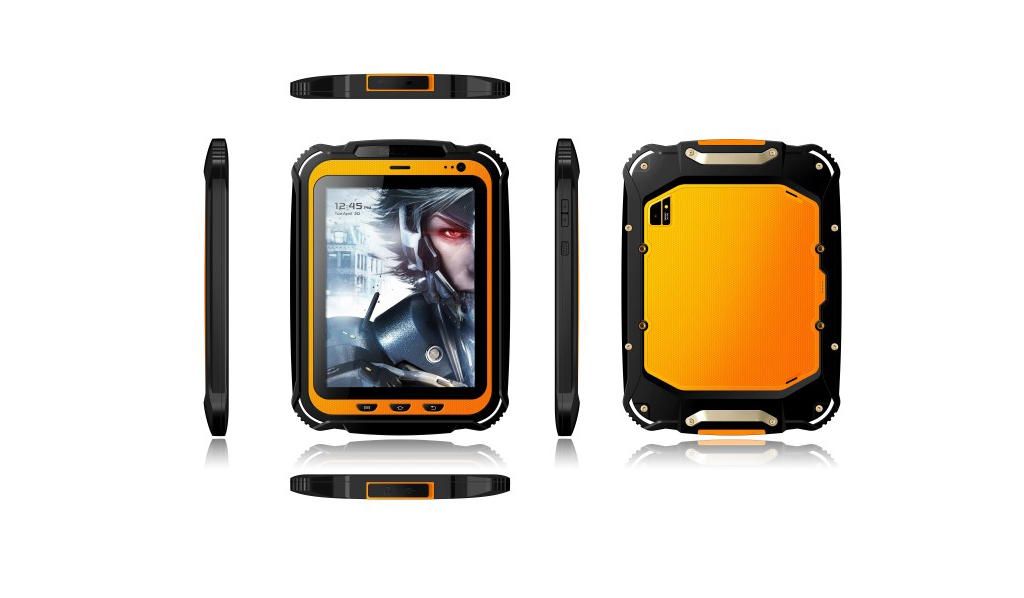

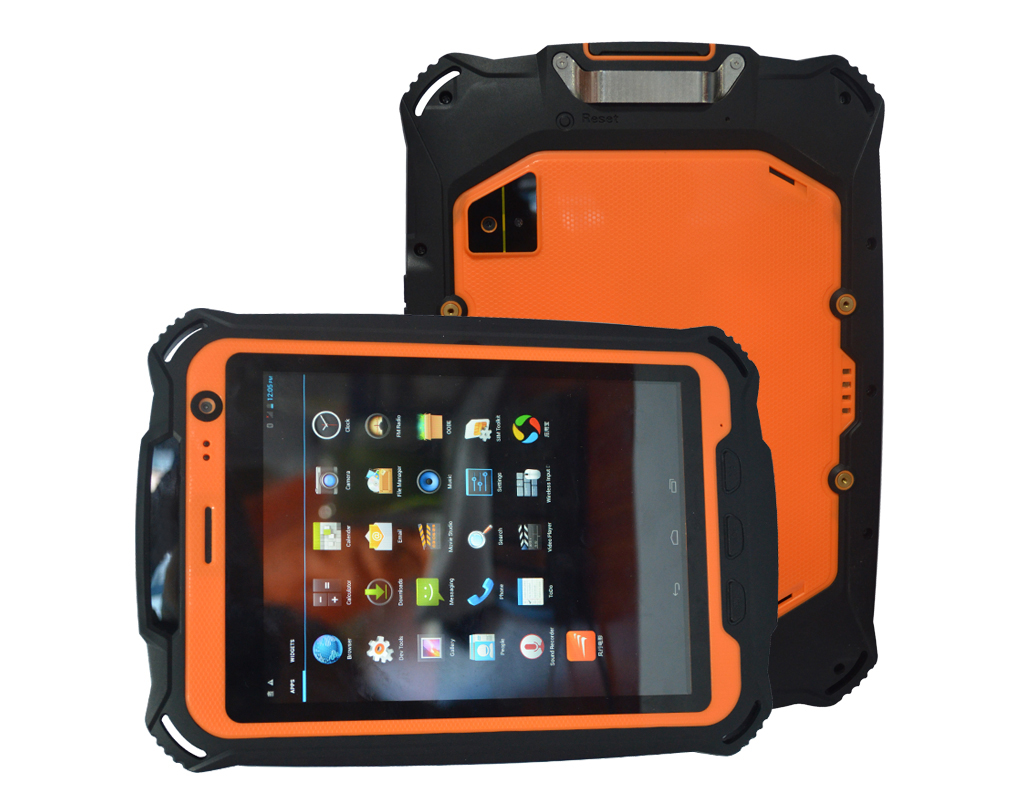

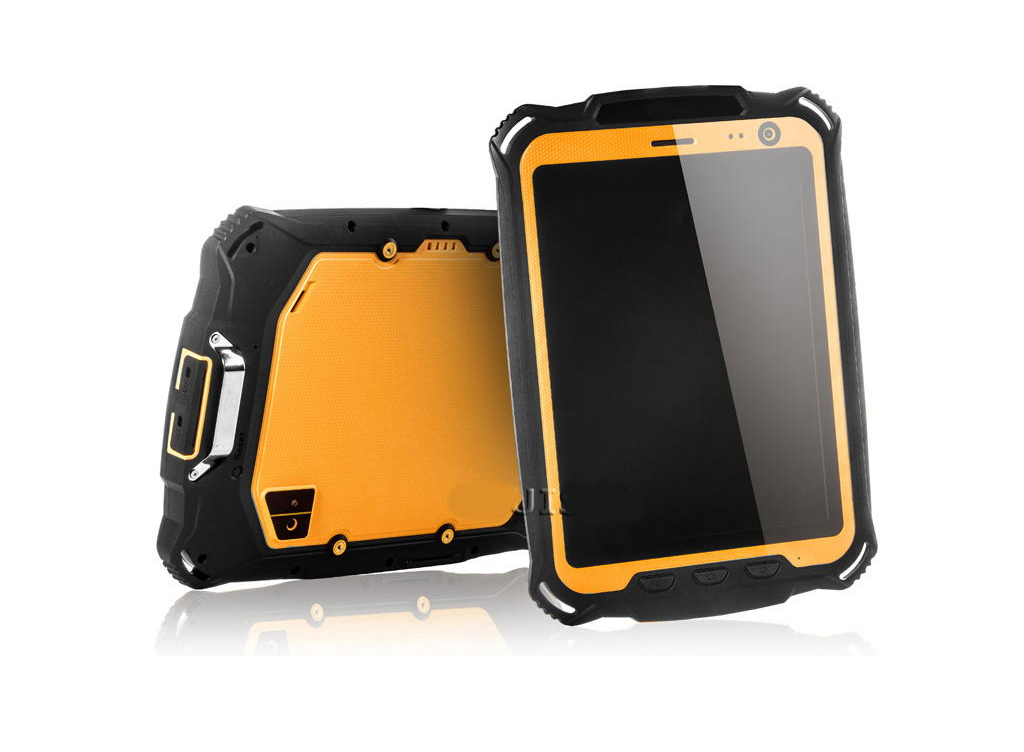

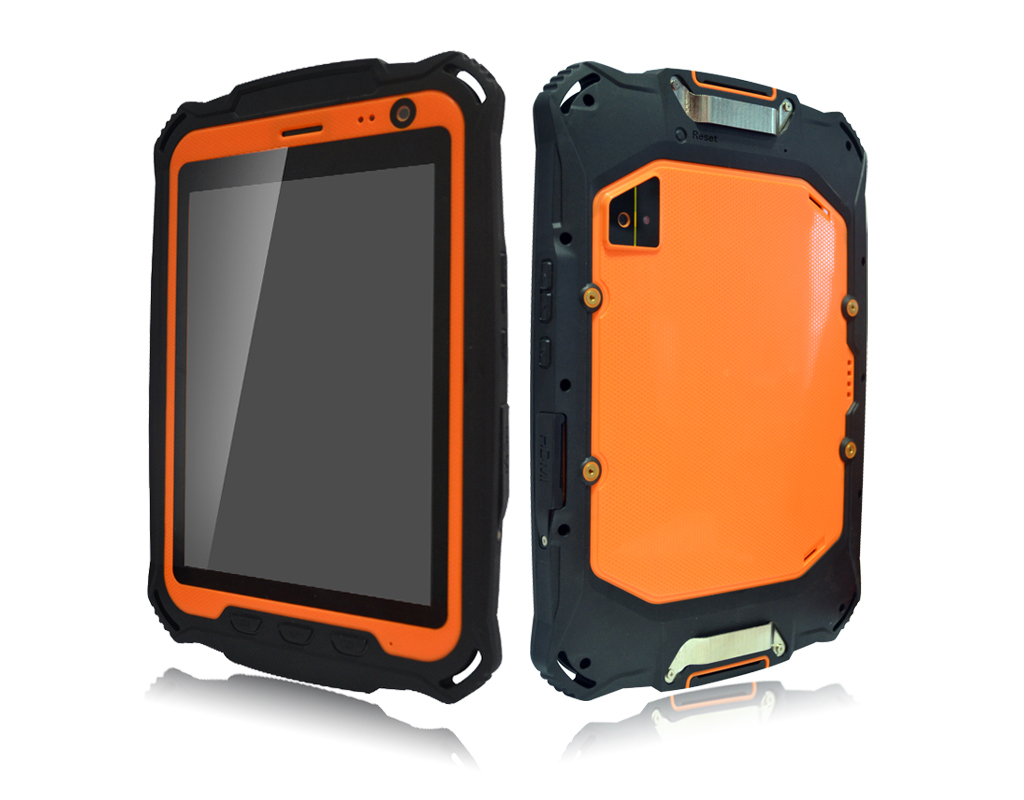

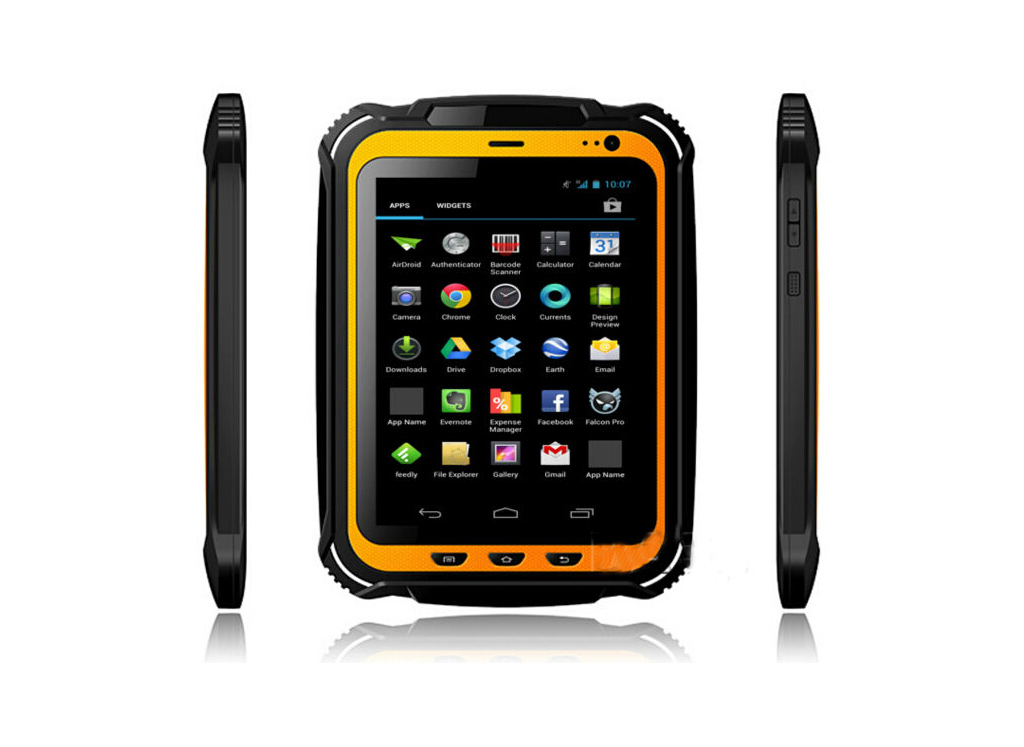

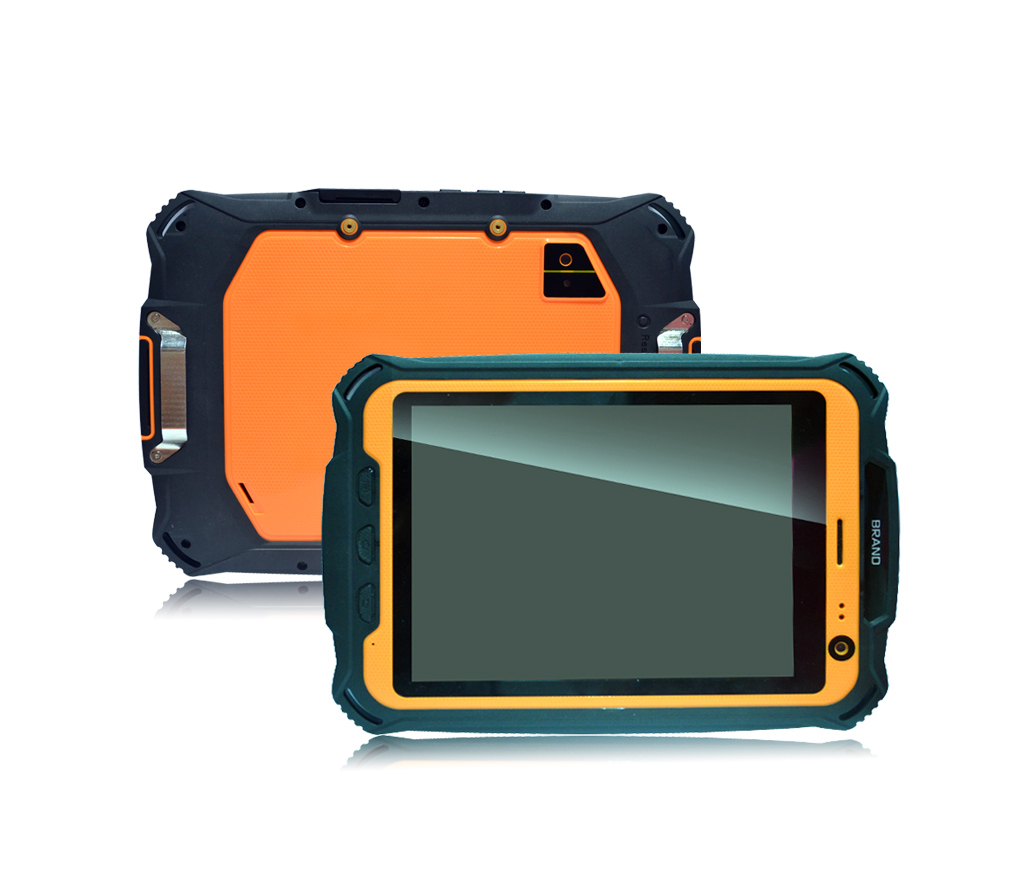

Rugged Tablet MobiPad T1 v.2

Data update: 2019-03-26

guarantee 1 year (opt.2)

Ask about the product

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated

Compare all versions

tablet przemyslowy mobipad t1 ip67

Description
Resistance
The collection and processing of data
Modules and Wireless Networks
Minimalism and comfort

MobiPad T1 adopts the combination of platformization and modular function design concept. It not only has intelligent operation platform, but also has modular functions with flexible configuration. So it can satisfy the customized requirements from different customer.

Description

mobipad t1 rfid hf lf tablet przemysłowy ze skanerem

Procesor	MTK8382 Quad Core (4x - 1.3GHz)
Graphics	Mali - 400MP
Display	7.85” (1024x768) IPS/AFFS \| Tempered Glass \| 5-points\| multi-touch
Type of display	Capacitive
Brightnesss	400nits
Contrast	800:1
RAM	1G LPDDR2
ROM	16GB EMCP

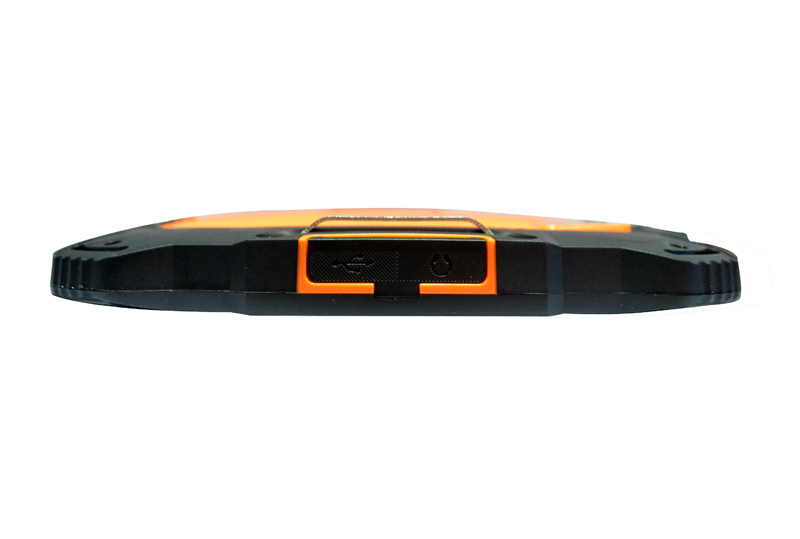

Connectors (factory)	MicroUSB (OTG) \| Port MicroSD \| Port SIM \| Audio Jack \| micro HDMI
GPS (factory)	Standard (GPS/EPO/A-GPS)
Audio	Built-in Microphone \| 2x - Speaker \| Receiver \| Audio Jack
Camera (Front)	2MPx
Camera (Rear)	13MPx + Autofocus + Flash
Keyboard	On-Screen + Physical keys
	Home \| Menu \| Return \| ON/OFF \| Volume \| Reset
Battery	Li-Ion 15000mA
	Standby mode - 1128h
	Operating mode (depends of usage) - 19h
System	Android 4.2.2
Modules (factory)	802.11 a/b/g/n \| Bluetooth 3.0 \| 2G/3G (GSM/WCDMA) \| GPS
Dimensions	244mm x 168mm x 16mm \| 811g
Resistance	IP67
Sensors (factory)	Accelerometer \| G-Sensor \| Light Sensor \| Proximity Sensor
Certificates	CE \| ROHS \| IP67
Warranty	12 months

Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

Select a version for yourself

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

	v.1	v.2	v.3	v.4
RFID LF	-	-	-
RFID HF	-	-		-
NFC	-		-	-

go top… menu…

Resistance

ip67 android tablet przemyslowy

Operating	-20°C -- +60°C
Storage	-40°C -- +80°C
Humidity	5% - 95% non-condensing
Dust	IP6x (dust)
Water	IPx7 (water)
Drop	3,93ft./1.2m

Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

Complete protectionm against contact. Protection from infiltration of dust.

Protection against immersion.

go top… menu…

The collection and processing of data

RFID

IP67 tablet wodoodporny pyloodporny

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

	RFID HF	NFC	RFID LF
Frequency	13.56 MHz	13.56 MHz	125khz
Reading distance	to 3cm	to 3cm	to 3cm
Standard	ISO/IEC 15693	ISO 18092	EM/TK 4100/4200
	ISO 14443 A/B	ISO/IEC 15693
		ISO 14443

go top… menu…

Modules and Wireless Networks

3g 2g mobipad t1 modem

With HSDPA module, you need only insert a SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and customize mobile networks. Also used in internal T1 WCDMA module adapts automatically to transfer and network coverage.

WIFI	802.11 a/b/g/n
GPS (Standard)	Standard
Bluetooth	Bluetooth 3.0
2G/3G	(2G) 850/900/1800/1900MHz \| (3G) 850/1900/2100MHz
	The ability to make voice calls (speaker / audio jack)

tablet z 3g przemysłowy

The latest WiFi wireless module operating in 802.11n provides a very fast and secure communication with the AP tablet such as a router, providing a fast and convenient web browsing, smooth playback of HD video.

go top… menu…

Minimalism and comfort

tablet z hdmi lan mobipad t1

You do not have to worry about whether you will put your old laptop into a briefcase, backpack or travel bag with MobiPad problem disappears forever, as it weighs only 750 and its dimensions (24 x 17.8 x 20cm) allow to carry it with you everywhere. With exquisite workmanship and energy efficient it is in the forefront of devices in this segment and is hit on the Europe market in the industrial segment.

Dimensions	244mm x 168mm x 16mm
Weight	811g

tablet mobipad t1 rozmiary

go top… menu…

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

Compare all versions

Durability:	IP67
Humidity:	5% - 95% non-condensing
Waterproof:	IP67
Weight:
Temperature:	Operating temperature: -20°C -- +60°C Storage temperature: -40°C -- +80°C
Shock:	-----
Vibration:	-----
Drop:	1.2 meters
Sand and dust:	IP67
1D barcode scanner (reader):	-----
2D barcode scanner (reader):	-----
RFID scanner (reader):	NFC (13.56MHz) ISO 18092 ISO/IEC 15693 ISO 14443
Magnetic card reader (MSR):	-----
Microchip card reader:	-----
Docking station connector:	-----
VESA standard – holders and mounts support:	-----
COM port:	No
Dispaly:	7.85” (1024x768) IPS/AFFS \| Toughened Glass \| 5-points \| multi-touch
Brightness:	400nits
Contrast:	800:1
Touch screen:	Tak
Graphics card:	Mali - 400MP
Swivel Hinge:	-----
VGA out:	-----
TV Out:	-----
TV Tuner:	-----
Processor:	MTK8382 Quad Core (4x - 1.3GHz)
Chipset:	-----
BIOS:	-----
Memory:	1GB LPDDR2
Hard Drive:	16GB EMCP
Flash Memory:
Battery:	Li-Ion 15000mA
Working time on battery:	Operating time (depending on usage) - 19h Standby time - 1128h
HotSwap battery:	No
Fast battery replacement ability:	No
Size:	244mm x 168mm x 16mm 811g
Casing material:	high quality plastic and rubber
Fanless casing:	Yes
Operating System:	Android 4.2.2
LAN:	Yes - via an adapter (OTG-> RJ45)
WLAN:	IEEE 802.11b/g/n
Bluetooth:	Bluetooth 3.0
WAN:	GSM/GPRS/EDGE: 850/900/1800/1900MHz WCDMA/HSDPA/HSUPA: 850/1900/2100MHz
GPS:	Standard
Flash Card Reader:	micro SD/TF max. 32GB
CD/DVD:	-----
Camera:	FRONT: 2MPX REAR: 13MPX (Auto Focus+ Flash)
Audio:	Built-in Microphone \| 2x - Speakers \| Receiver \| Audio Jack
Seciurity:	IP67
In/Out:	MicroUSB (OTG) \| Port MicroSD \| Port SIM \| Audio Jack \| micro HDMI
Keyboard:	Ekranowa + Przyciski fizyczne Home \| Menu \| Return \| ON/OFF \| Volume \| Reset
Additional Navigation Devices :	-----
Color:	orange-black
Optional accessories:	Case, Car Charger, Wrist Strap, micro USB (RJ45)
Other:	Accelerometer \| G-Sensor \| Light Sensor \| Proximity Sensor
