« Back    Home / UMPC - Ruggedized / Archives

Rugged Tablet MobiPad EM-I12M v.12

Rugged Tablet MobiPad EM-I12M v.12

Data update: 2017-09-11

guarantee 1 year (opt.2)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated



Compare all versions

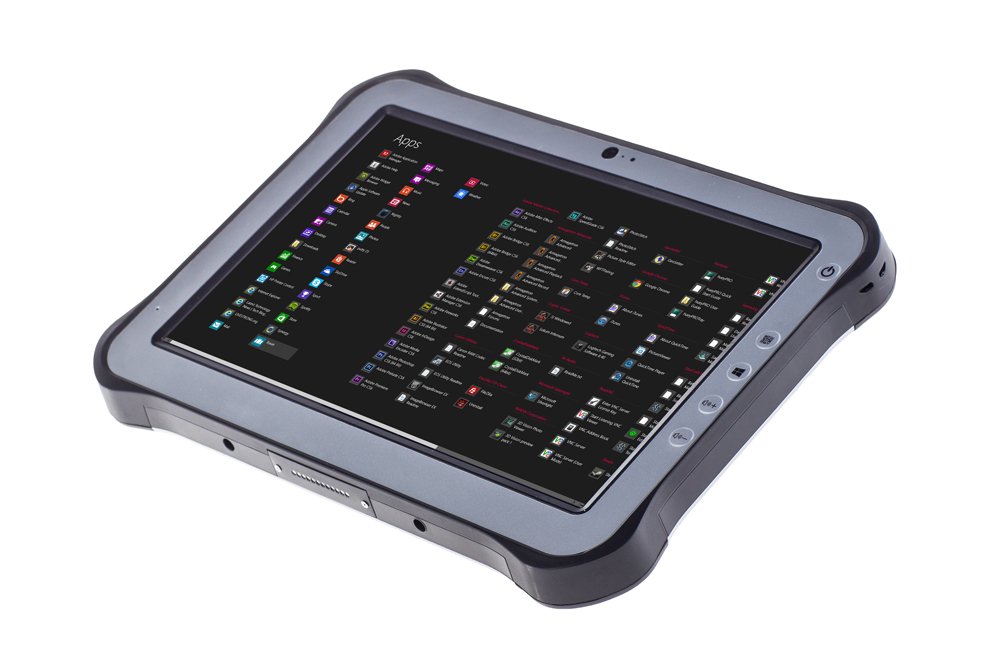

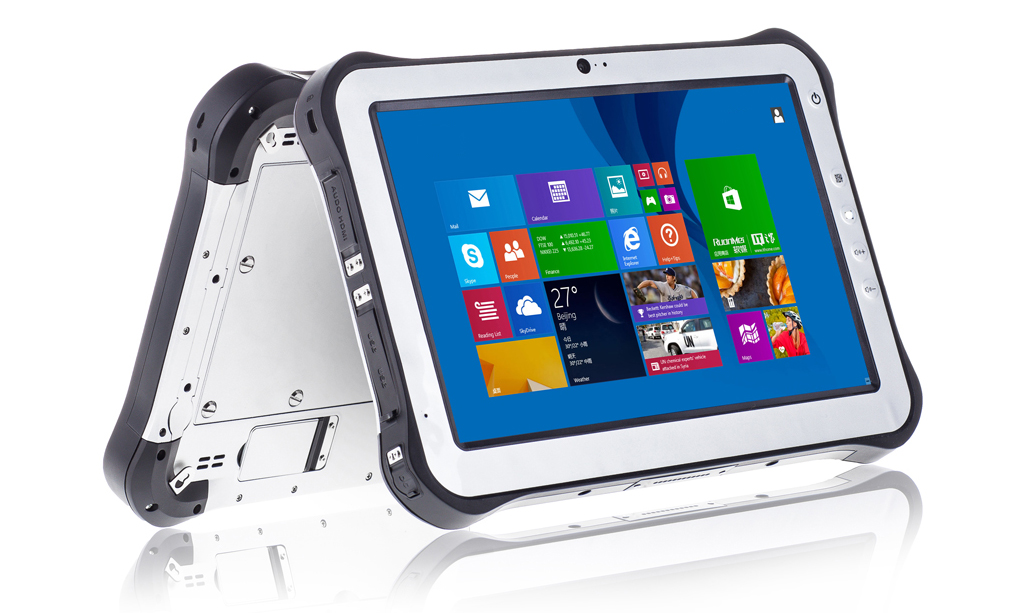

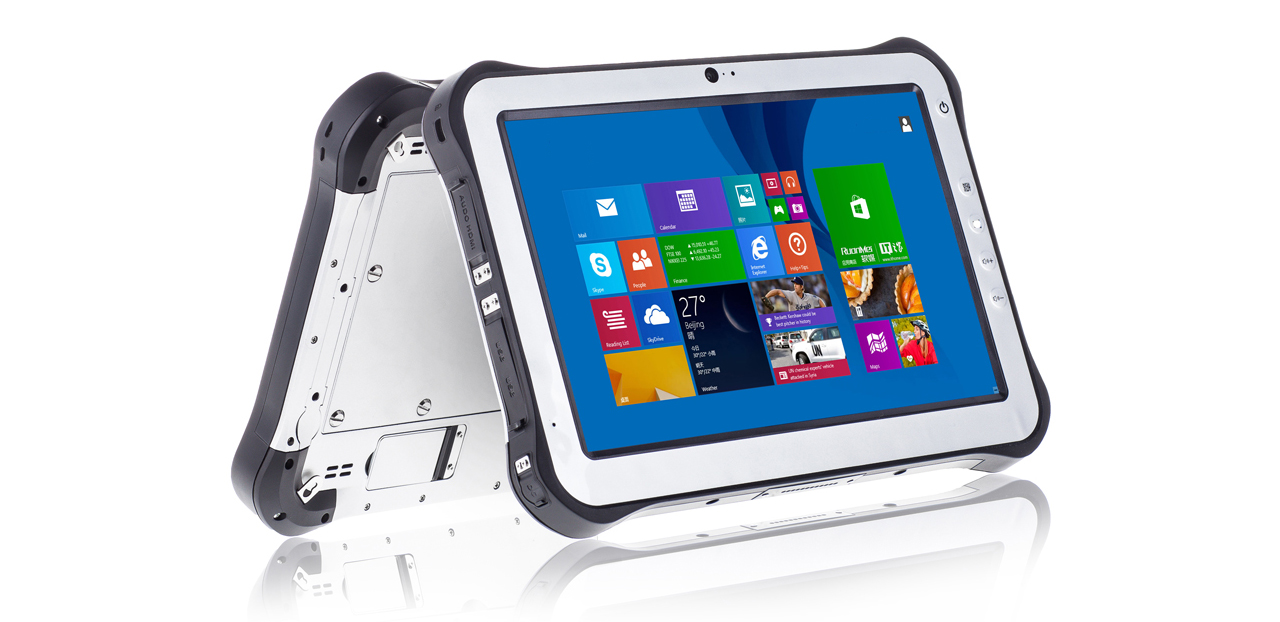

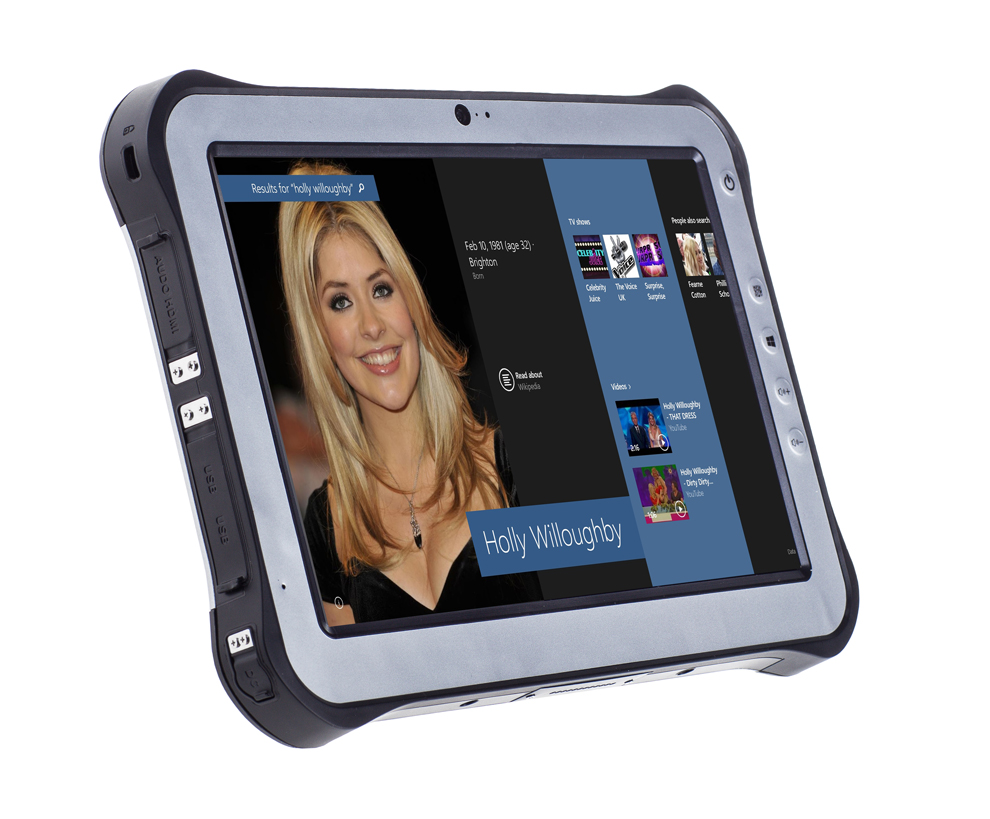

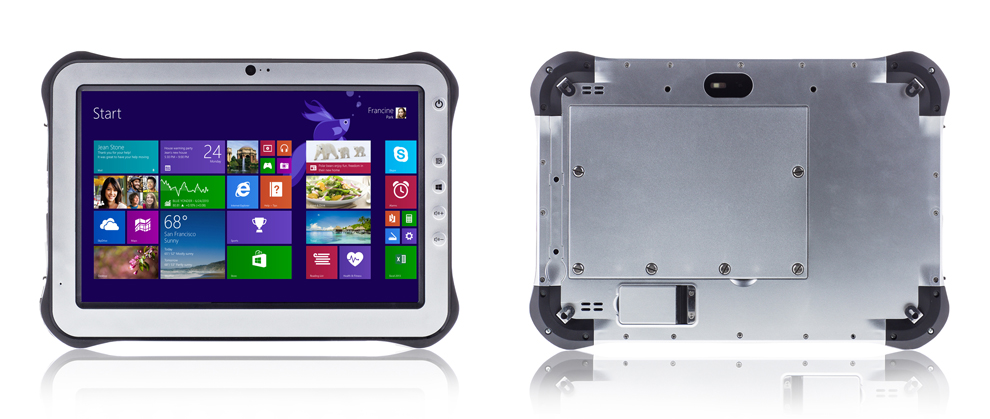

MobiPad I12M is a new proposal 10.1 - inch tablet works with Windows 10. The tablet has a specially designed, reinforced structure, adapted for use in harsh environmental conditions. The device works great when in the home and industrial use.

Description

processor Z8300 10.1 rugged industrial tablet

MobiPad I12M is offered with the latest quad-core Intel® Atom ™ processor Z8300 to ensure the highest performance, low power consumption and long battery life. The tablet works with Windows 10 operating system to meet the growing requirements in industrial applications.

 Processor  Intel® Atom™ Processor Z8300 (QUAD CORE 1.44 - 1.84GHz)
 Graphics  Intel HD Graphic (Gen7)
 Display  10.1” (1280*800) 16:10
 Type of display
 LED | IPS | Gorilla Glass 3 | Capacitive (10-points)
 LED
 Power
 Brightness  400nits
 RAM  2GB DDR3L
 ROM  32GB FLASH

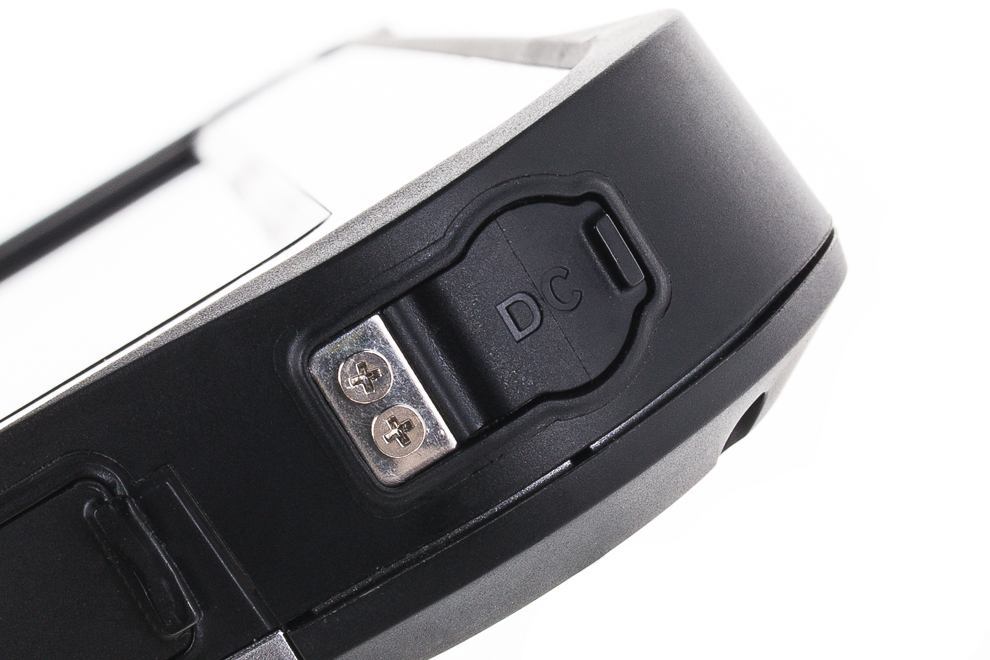

 Connectors  mini HDMI 1.4a | Micro-SD Reader | USB 2.0 | micro USB | Docking | DC In
 GPS  Unicorecomm UM220-III (GPS+Beidou)
 Audio  Built-in Microphone | Audio Jack | 2x - Speaker 0.8W/8Ω
 Camera  FRONT: 2Mpx
   REAR: 5Mpx
 Battery  Li-Poly 3.7V 10000mAh

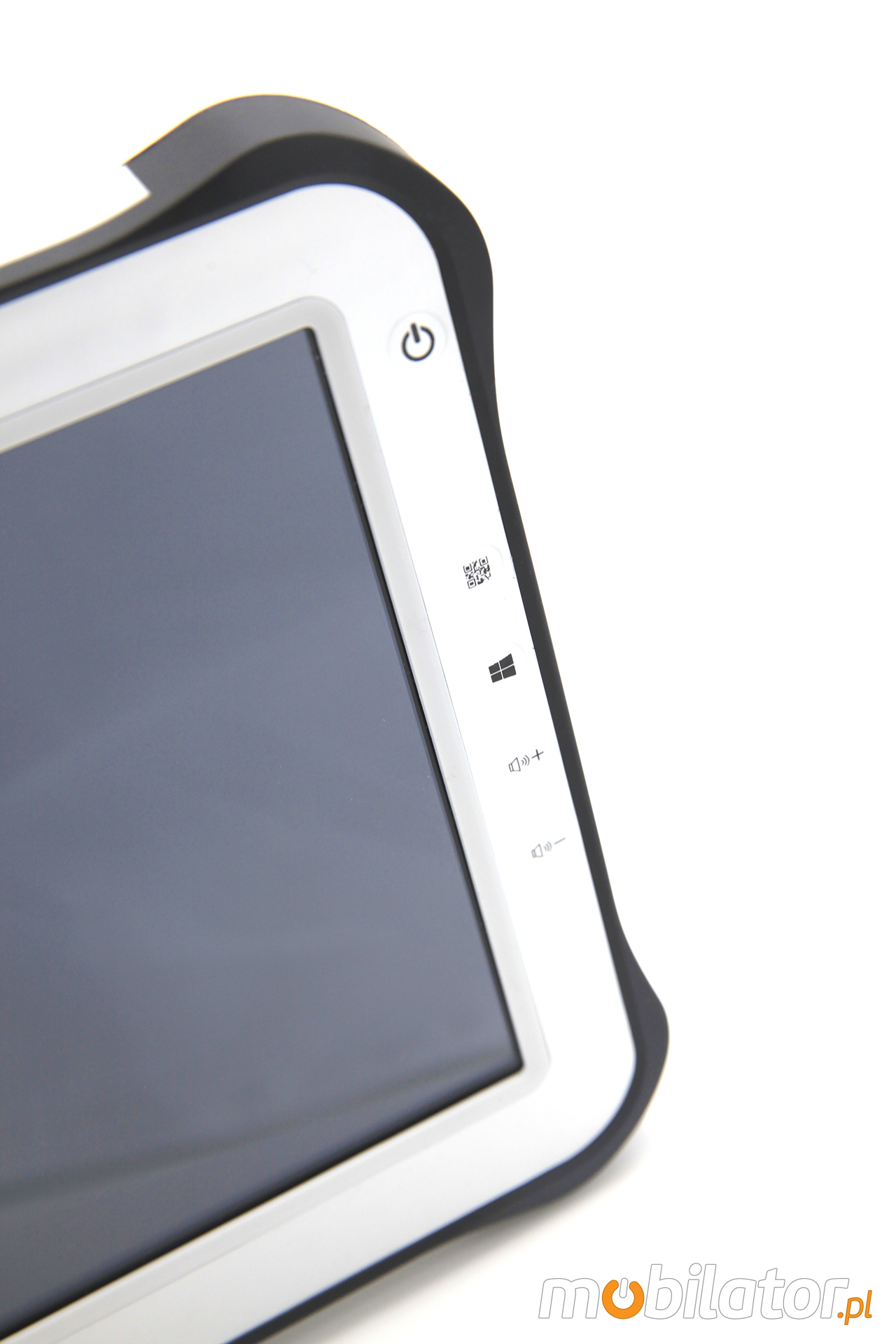

 Keyboard  On-Screen | Functional keys

 Volume + | Volume - | Power | Home | Functional
 OS (factory)  Windows 10 / Windows 10 with Bing
 Modules
 802.11 a/b/g/n : Bluetooth 4.0
 Dimensions  272*195*22mm - 700g (with battery)
 Resistance  IP65
 Readers (optional)
 1D Scanner | 1D/2D Scanner
 Sensors (factory)  G-Sensor | NFC | FingerPrint
 Warranty
 12 months
Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

i12m mobipad rfid uhf hf 3g gsm 4g lte

Select a version for each other

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".

wersje mobipad i12m rugged industrial tablet


v.1
v.2 v.3 v.4 v.5 v.6 v.7 v.8
32GB - - - -
64GB - - - - - -
128GB - - - - - -
4G LTE
- - - - - - -
NFC
- - - - - -
1D (CCD)
- - - - - - -
2D (CMOS)
- - - - - - - -
Fingerprint - - - - - - - -

do góry… do góry menu… menu


v.9 v.10 v.11 v.12 v.13 v.14
32GB - - -
64GB - - - -
128GB - - - - - -
4G LTE
- - -
NFC
1D (CCD)
- - - -
2D (CMOS) - - -
Fingerprint - - -

go top... do góry menu… menu

The collection and processing of data

Barcode Scanner (option)

Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code.With dynamic scanning capabilities and wide range of reading MobiPad device and I12M quickly and accurately retrieves the data, which helps to increase the rate and efficiency.

industrial tablet motorola se4500 se955 newland barcode scanner

 Model
Motorola SE655
Motorola SE4710
 Type of scanner
1D
1D/2D
 Display type
CCD CMOS

industrial tablet rfid 13.56mhz rfid uhf rugged tablet 10.1

NFC

Near field communication (NFC) is a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less.

    NFC
 Frequency 13.56 MHz
 Reading distance
to 4 cm
 Supported standards
 ISO14443 A/B

ISO15693

3g wcdma 4g lte tablet industrial windows 10

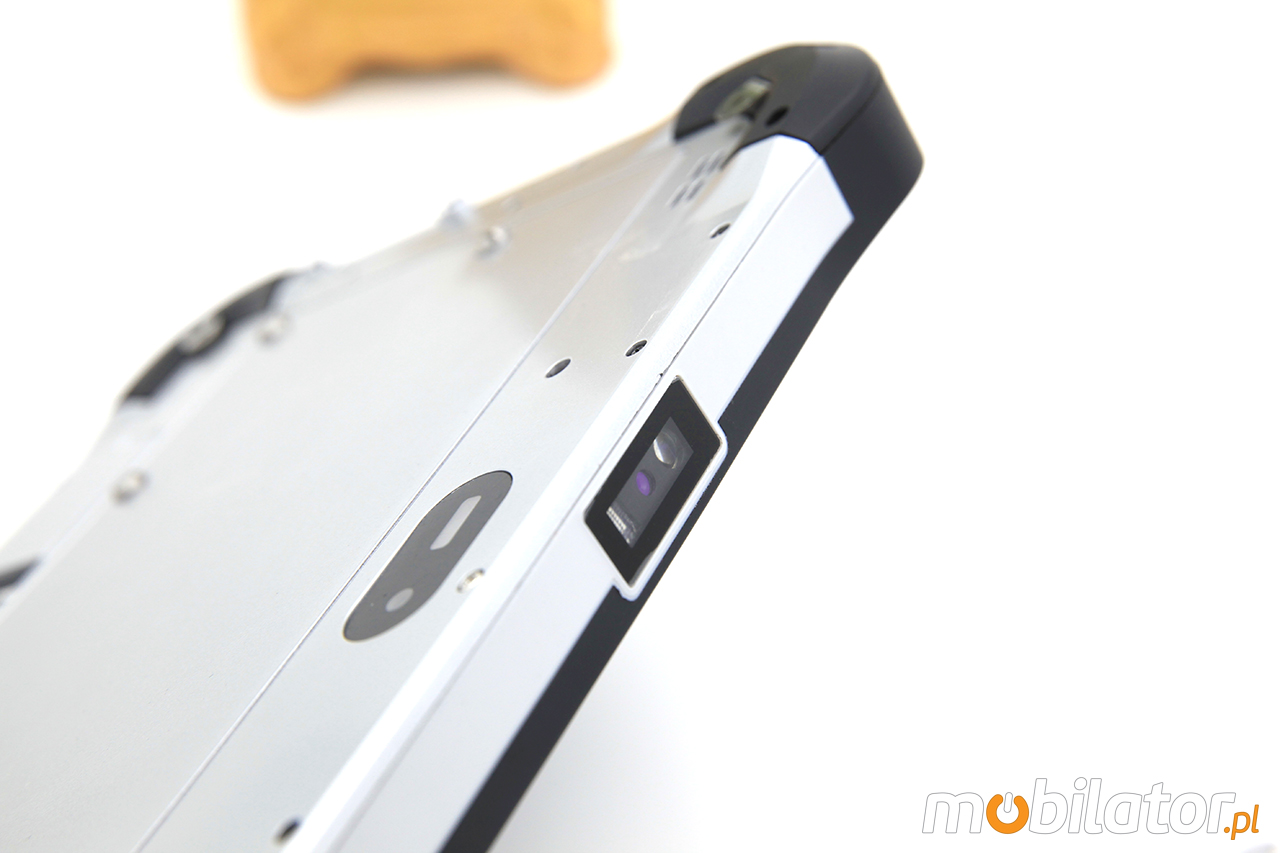

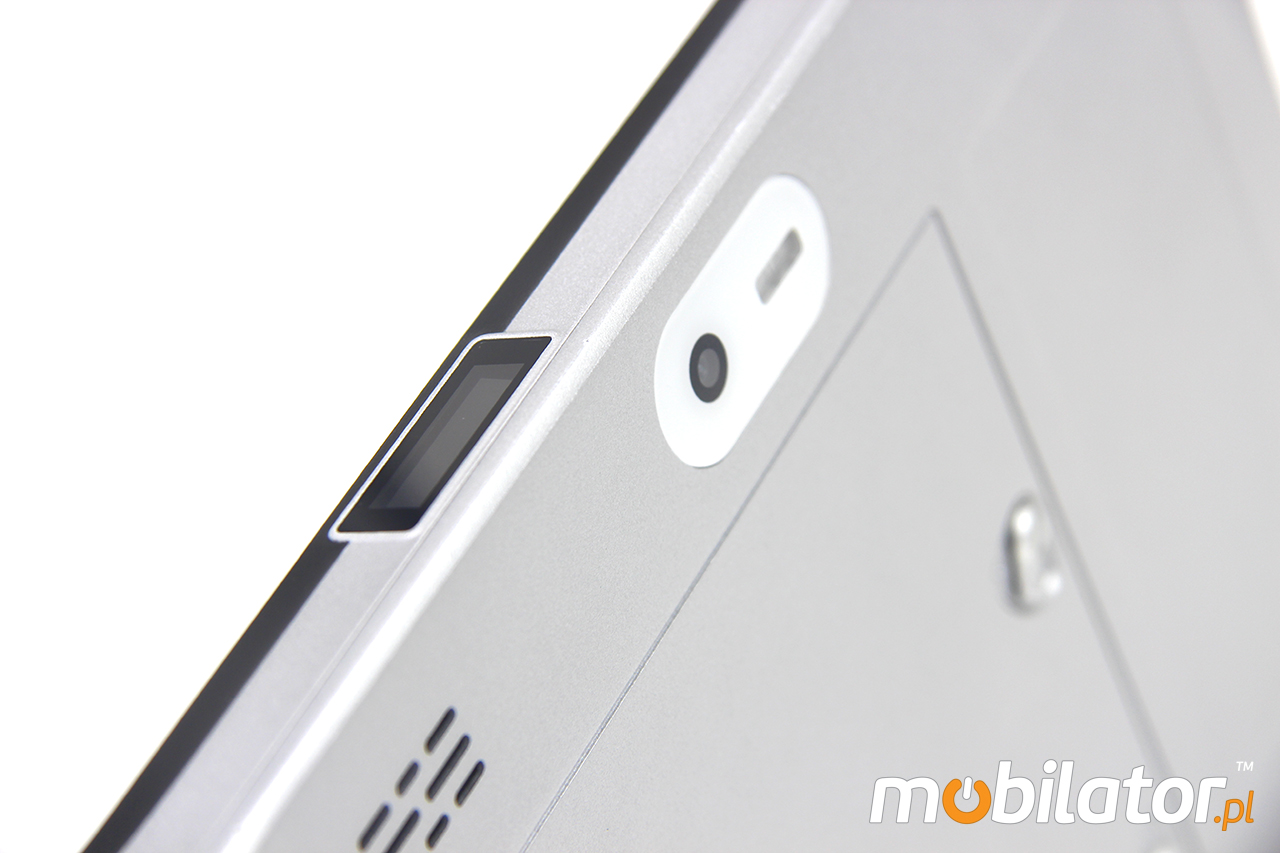

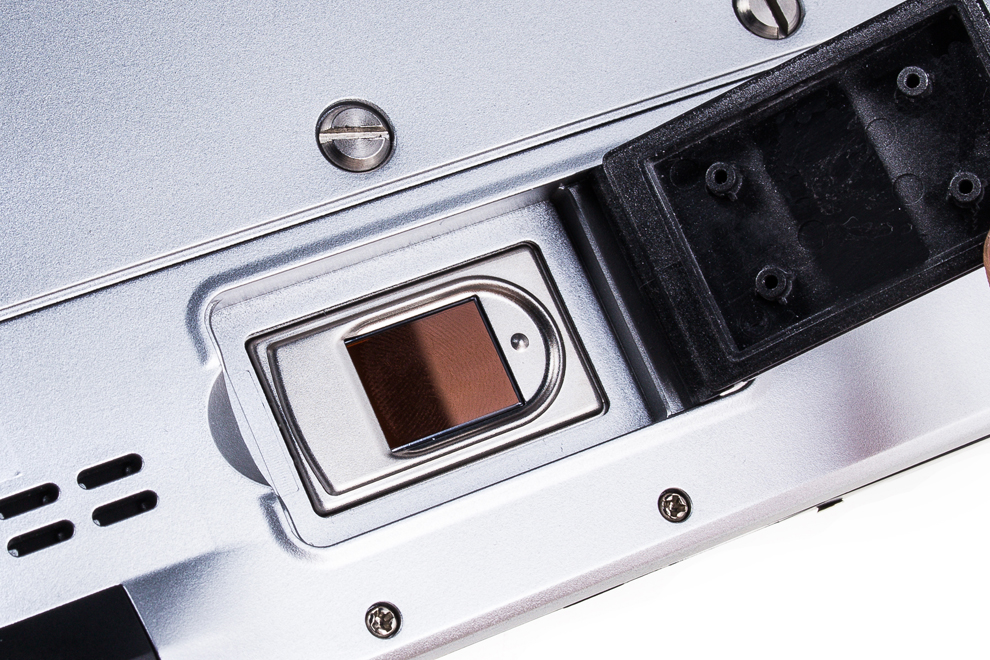

Fingerprint

Fingerprint security feature makes our tablet becomes even more personal, allows you to secure the device fingerprint. This is possible through the use of a small fingerprint scanner. Solutions of this kind are very effective at securing devices containing important data and confidential and also allow for easy and quick log-in to the system. It is an ideal solution for business use, when we need to effectively protect your data.

fingerprint data collector tablet

go top... do góry menu… menu

Resistance and strength

Standards

In terms of device ruggedness, the I12M can withstand a 4-foot drop, and with IP65 sealing, where the first digit "6" means the device is dustproof and the second digit "5" means that the device has the ability to handle low pressure water jets from all directions. The tablet can operate in temperature range of -20° to 60°C, optimized for most industrial deployments. I12M is a sharp looking, sturdy and powerful device that can hold up well against use in harsh environment with its industrial grade rugged design.

 Operating temperature
-10°C -- +50°C
 Storage temperature
-30C -- +70°C
 Dust IP6x | MIL-STD 810G 510.5
 Water IPx5 | IEC529 (JIS C0920) MIL-STD810G 506.5-III
 Drop MIL-STD-810G Method 516.6 -  4ft./1.2m



MIL-STD 810G



Durability is one of the most important factors to consider when choosing mobile solutions, which is why MobiPad ensures that its fully rugged units operate even when dropped onto concrete, or used in harsh environmental conditions such as heat and cold, dust and rain. Rigorous tests that pass MobiPad products ensures that our customers receive products that meet the highest standards of durability and reliability. MobiPad ensures compliance with the most rigorous standards in this area - MIL-STD 810G according to test its products. This standard, set by the US military, is the most widely used international standard.

MIL-STD 810G covers a broad range of tests used to measure equipment reliability:

High Temperature: MIL-STD 810G Method 501.5
This test procedure determines computer's operating performance during exposure to high temperatures. This test differs from the standard test that the computer is evaluated under conditions of elevated temperature.

Low Temperature: MIL-STD 810G Method 502.5
This test procedure determines computer's operating performance during exposure to low temperature. This test differs from the standard test that the computer is evaluated under conditions of low temperature.

Changing Temperatures: MIL-STD 810G Method 503.5
Research on temperature changes is to determine whether the components can withstand sudden changes in the surrounding temperature and do not cause of damage or deterioration in performance.

In this study they are to establish two goals: whether the test item can still be safely operated, and whether it meets the requirements, after being exposed to sudden changes in ambient temperature.

Rain: MIL-STD 810G Method 506.5
Tested rain is conducted in order to determine the resistance to rain and wind-driven rain.

The collapse of MIL-STD 810G Method 516.6
Tests of free fall (shock) are performed to ensure that equipment can withstand relatively infrequent, non-repetitive shocks and vibrations encountered during handling, transportation and collisions.

The standard requires 26 drops from 1.2 m (4 ft) onto plywood.



 Shock 10Hz - 500Hz
 Drop 1.2m

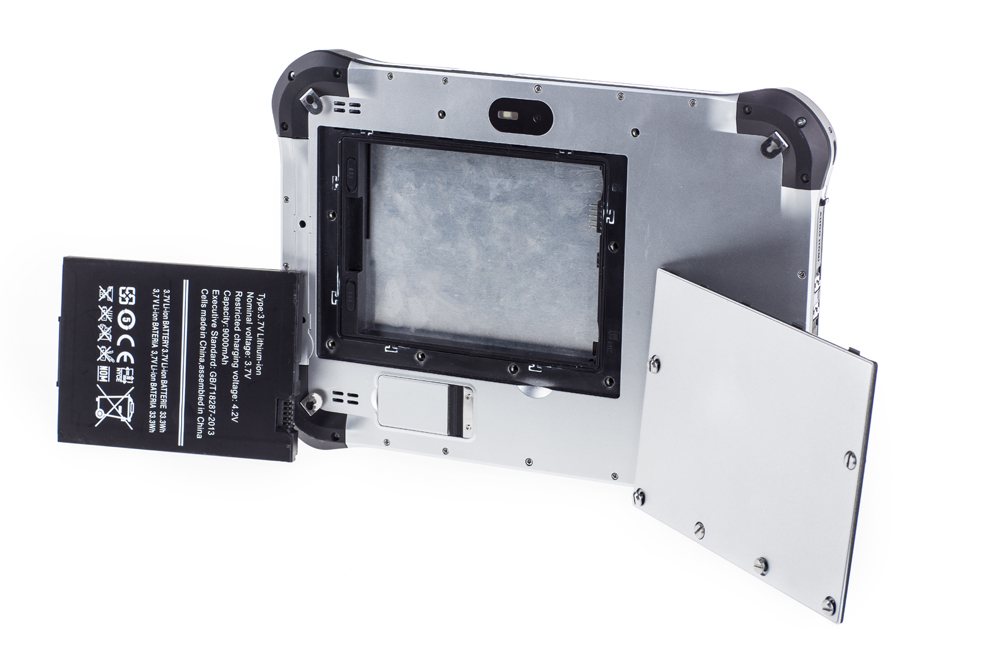

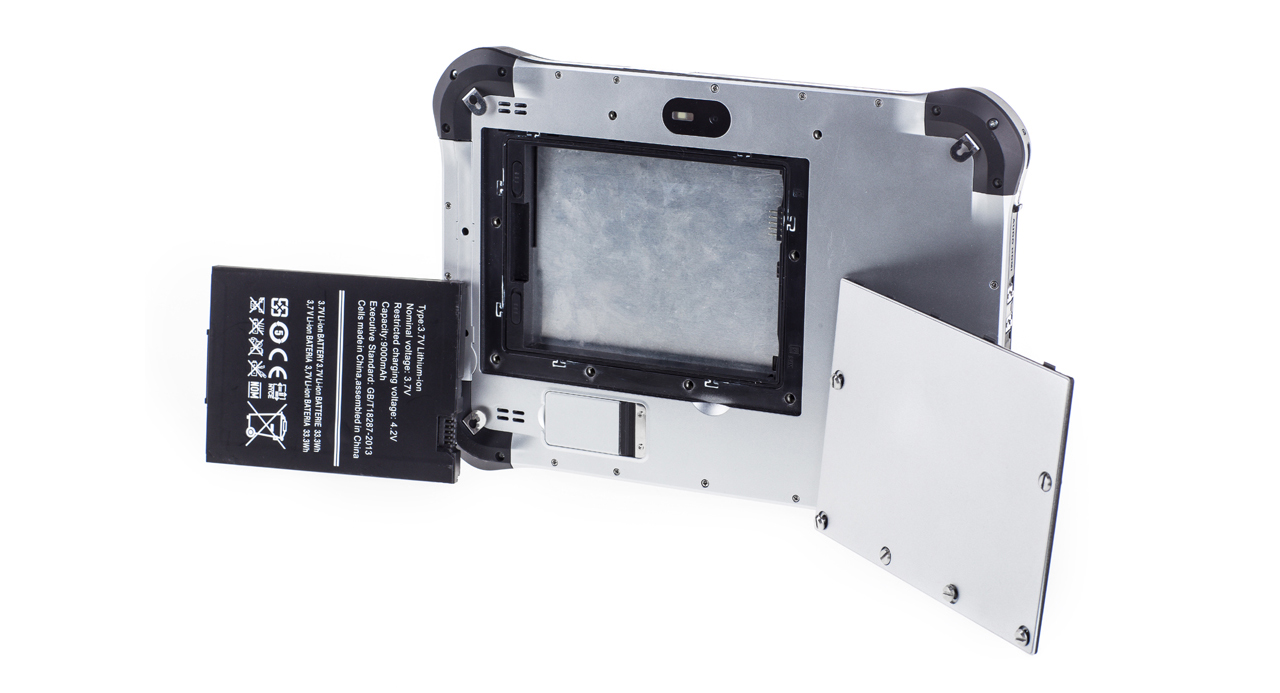

The battery at its best

High quality Li-Polymer battery provides a long operating life under severe temperature conditions. With MobiPad I12M you can easily work out at temperatures as low as -20 ° C.

go top... do góry menu… menu

external battery  i12m mobipad

IP65

IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust.  The second digit is a degree of protection against water.

Complete protectionm against contact, protection from infiltration of dust.
6

5

Protection from water projected from a nozzle.

go top... do góry menu… menu

Modules and Wireless Networks

mobipad i12m unicorecomm bluetooth 4.0

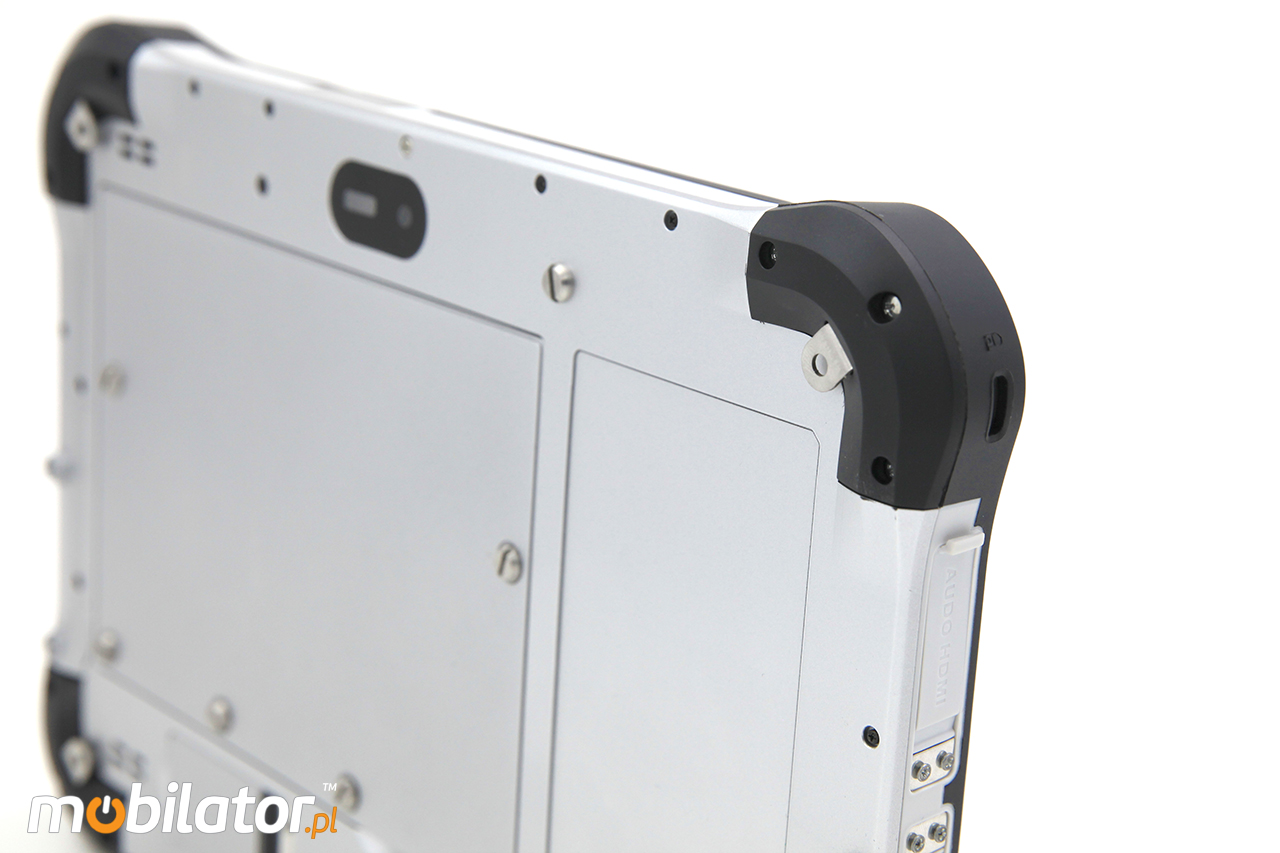

MobiPad describes the I12M tablet as "rugged" and with its corner protection it certainly looks much tougher than all those Barbie-thin and fragile consumer tablets. MobiPad's experience in rugged mobile computing, we assume those are just partial specs.

 WIFI  802.11 a/b/g/n
 GPS Unicorecomm UM220-III (GPS+Beidou)
 Bluetooth  Bluetooth 4.0
 3G
WCDMA (850 / 900 / 1900 / 2100 MHz)
 4G (optional) LTE FDD: Band 1, 3, 5, 7, 8, 20
LTE TDD: Band 38, 39, 40, 41

barcode scanner 1d/2d rugged tablet

go top... do góry menu… menu

Functionality

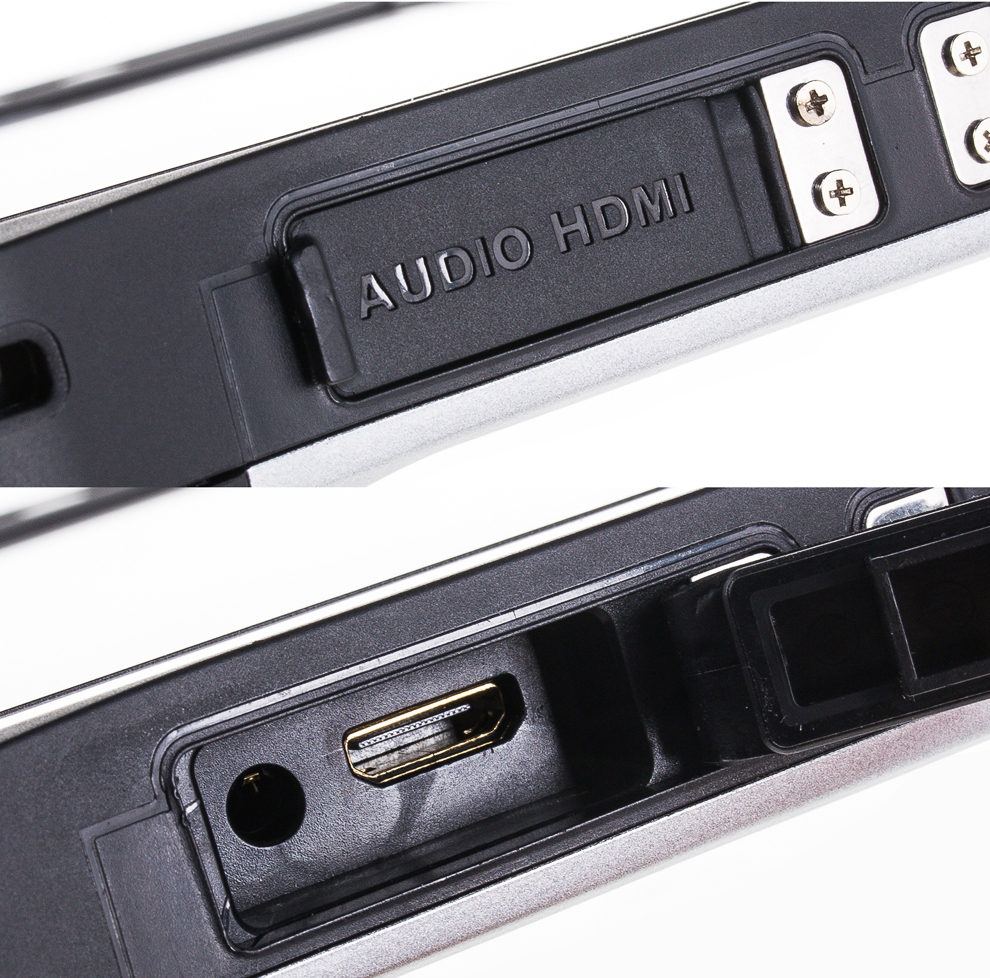

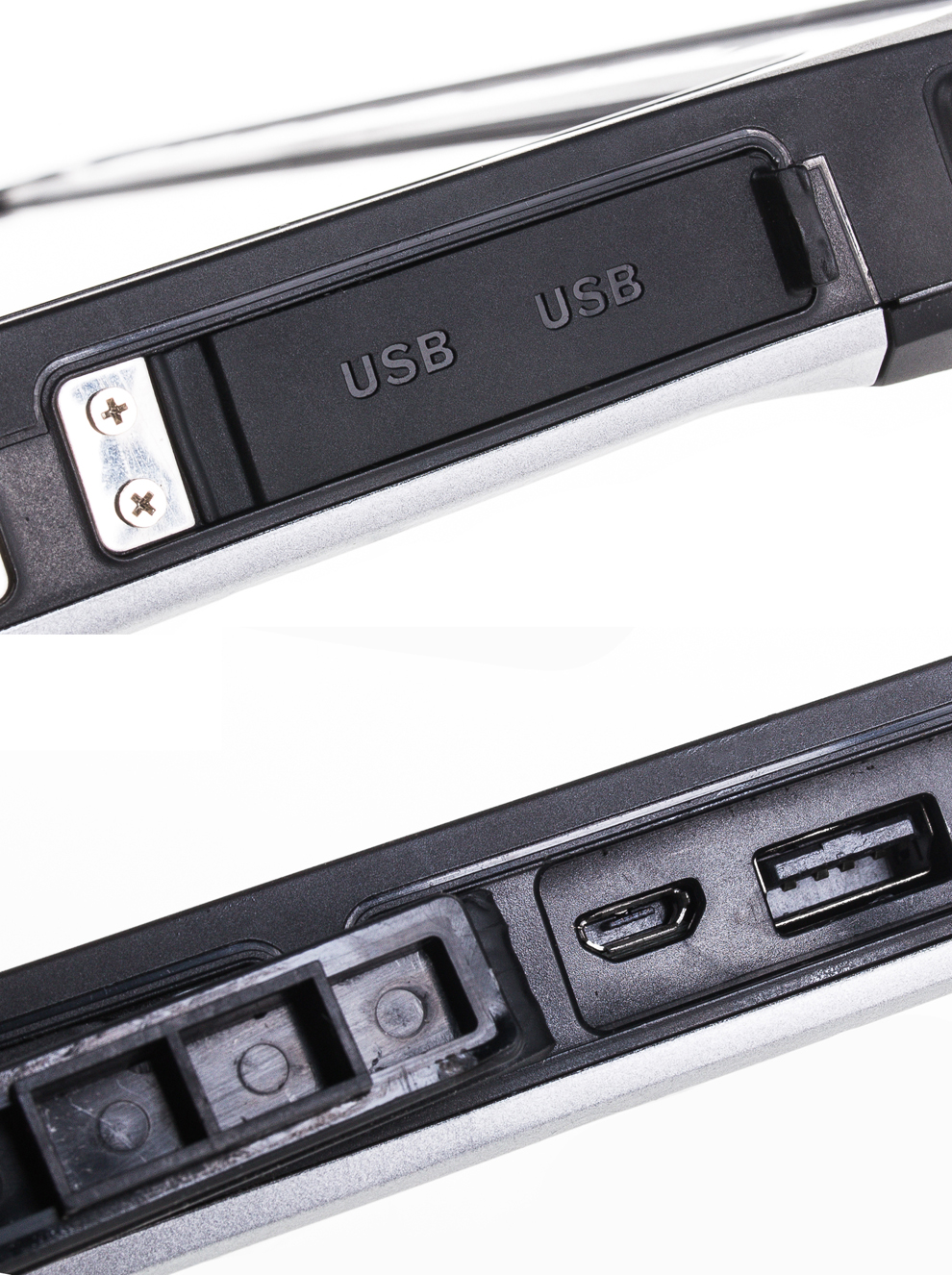

hdmi microusb barcode scanner 1d/2d docking station

Real-time data access to the right information is very important to mobile users. I12M offers 3G, 4G LTE, GPS, WiFi 802.11 a/b/g/n, Bluetooth 4.0 which enable users to get connect in the way that best suits their needs. With built-in 5.0 Mega Pixels camera on rear side, users can capture photos, videos, documents instantly, or utilize the front 2.0 Mega Pixel camera for application such as user self video recording, or video communication.

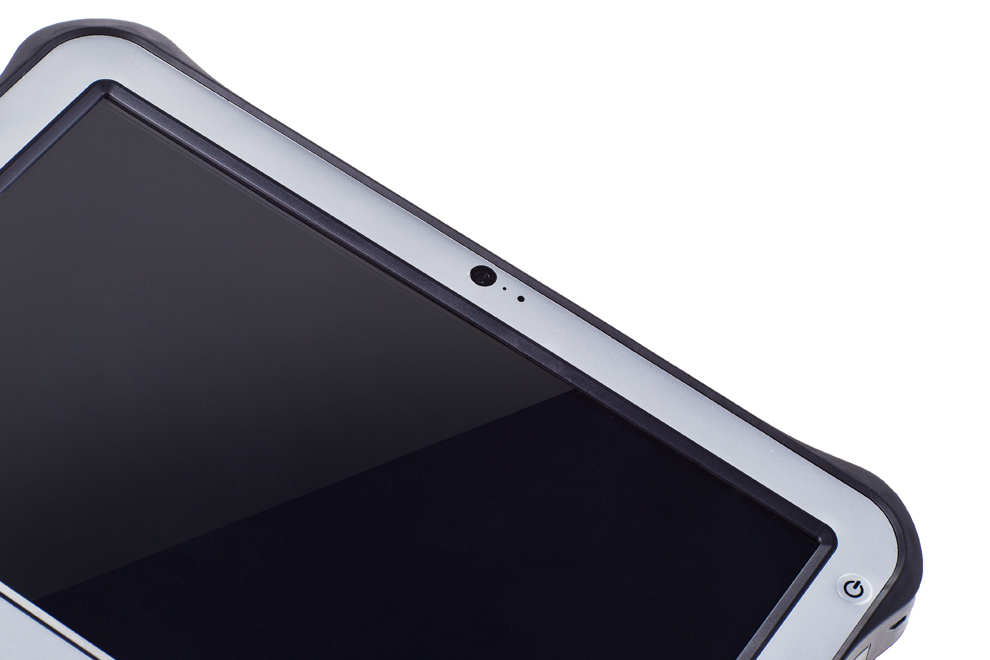

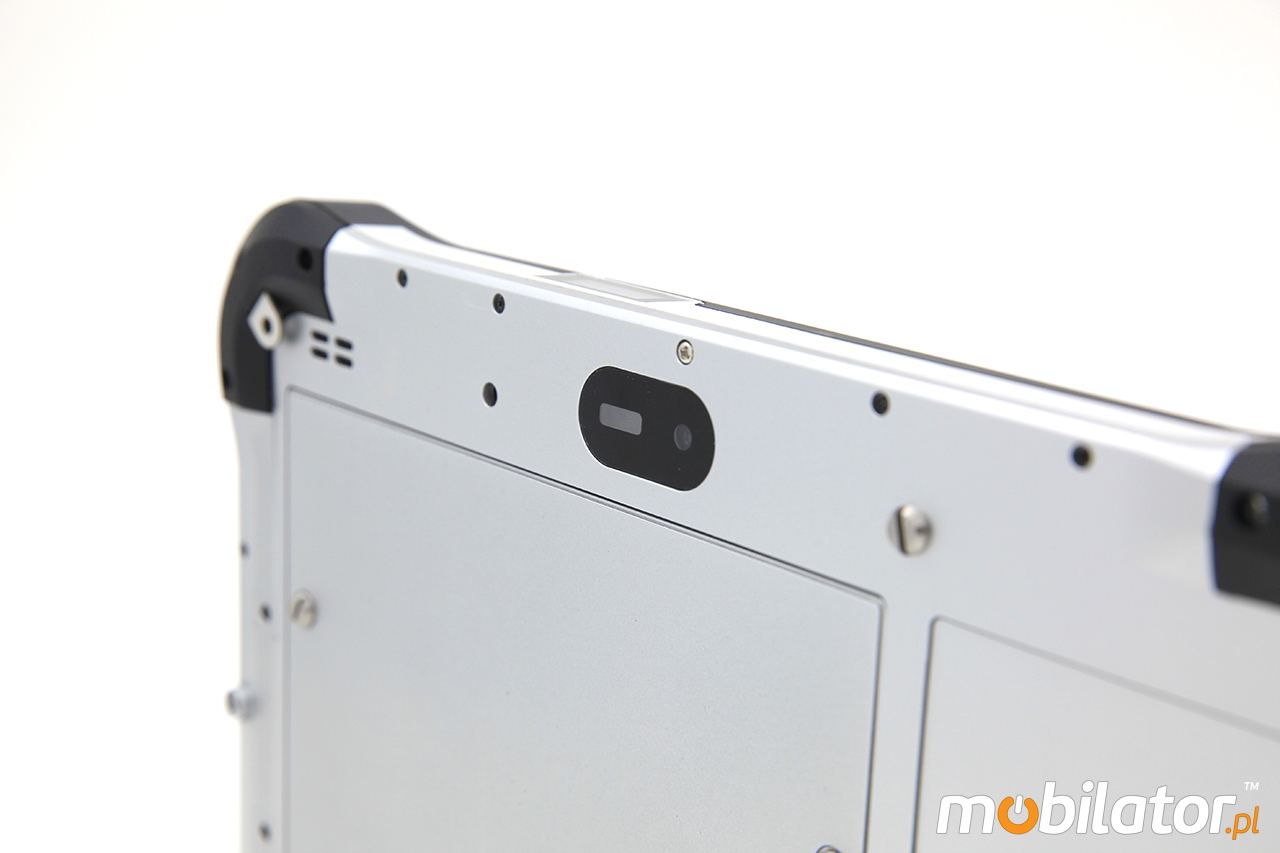

mobipad hdmi connector camera 2/5mpx corning glass

 Dimensions 272 x 195 x 22mm
 Weight 700g

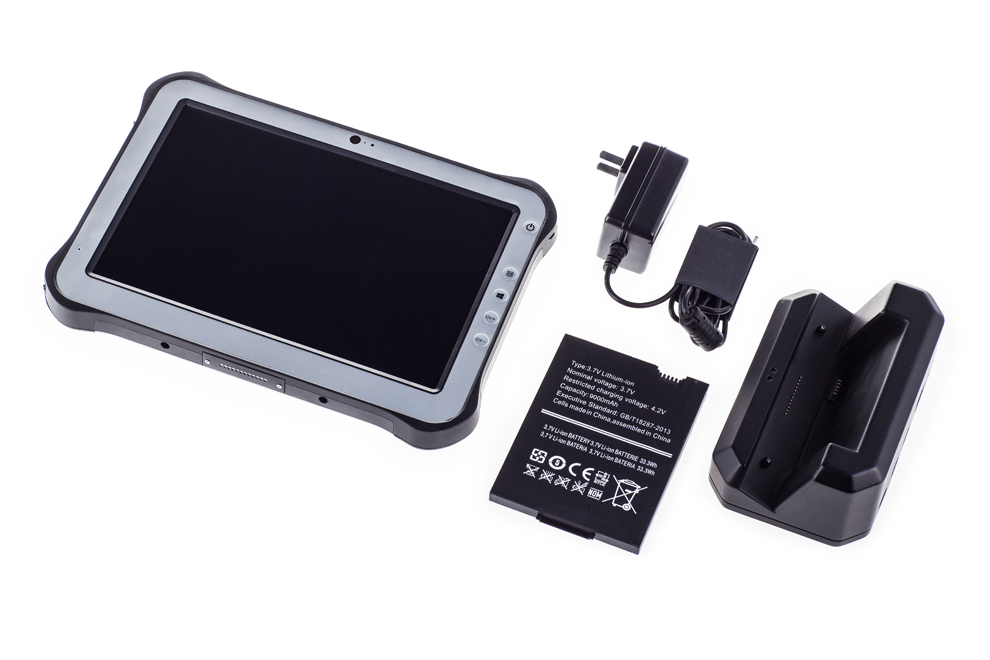

Additional equipment

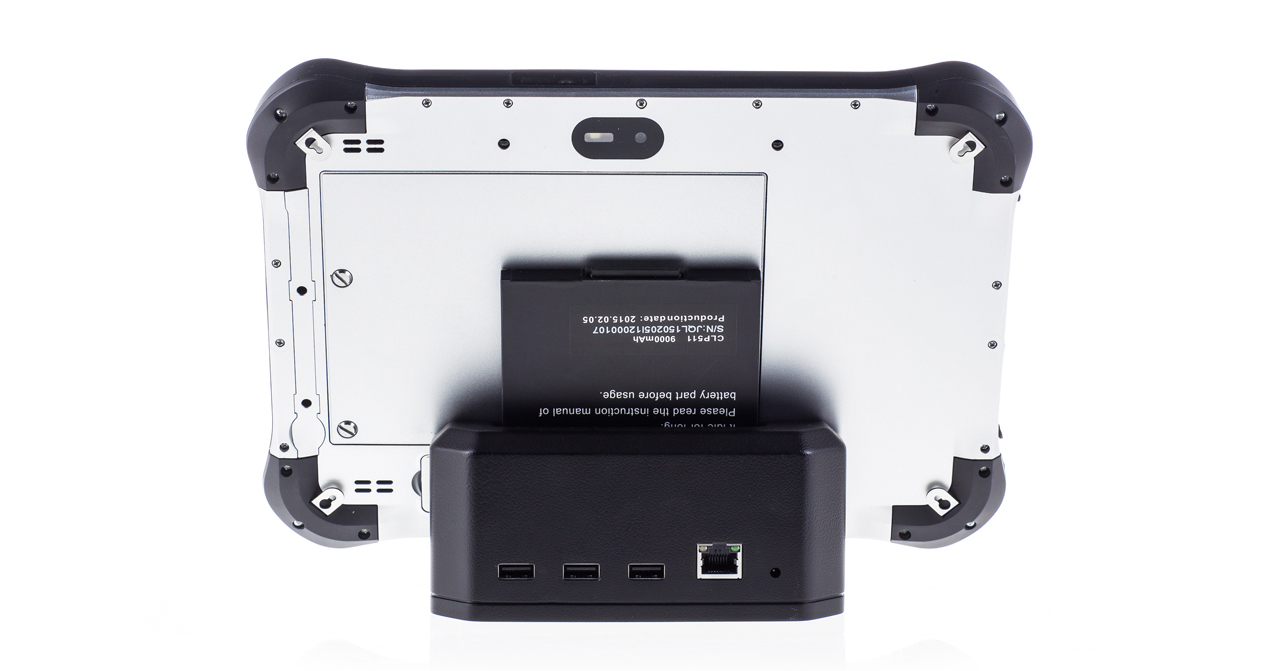

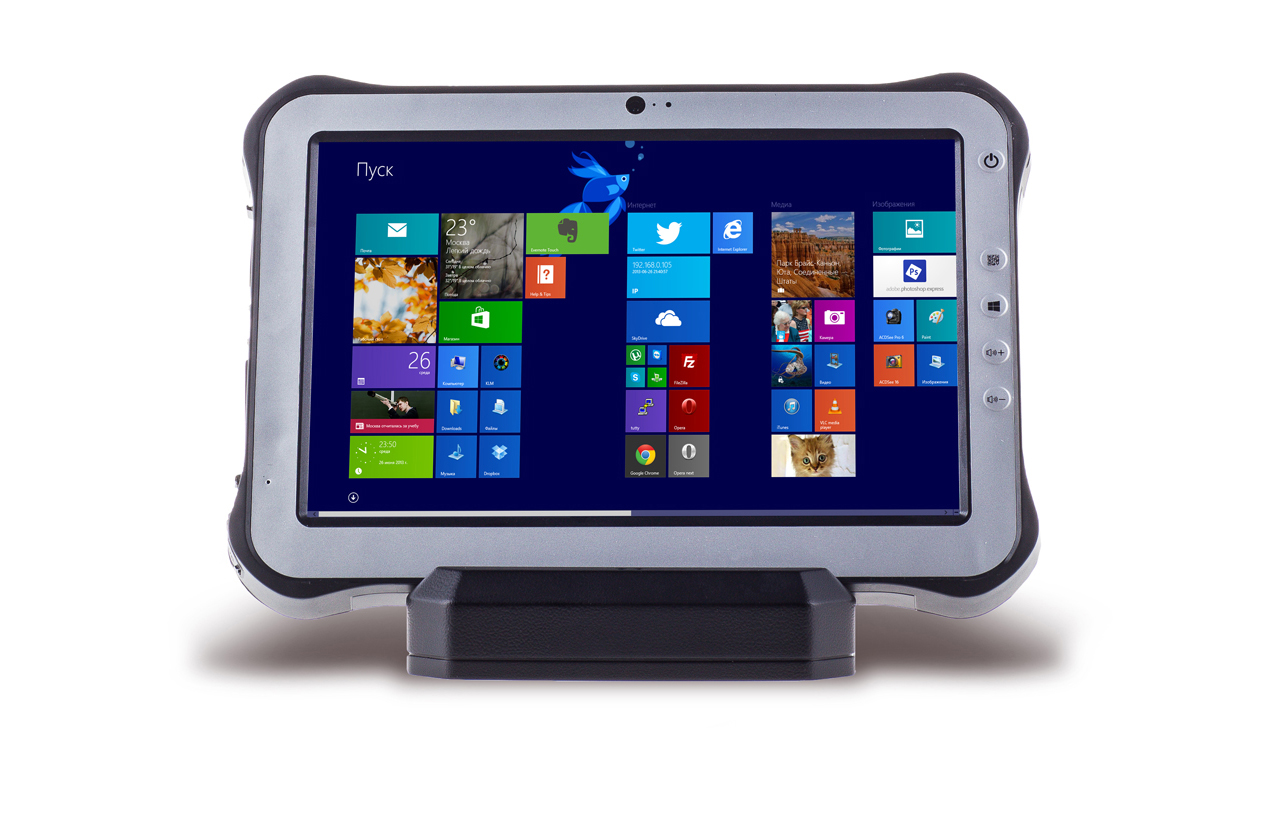

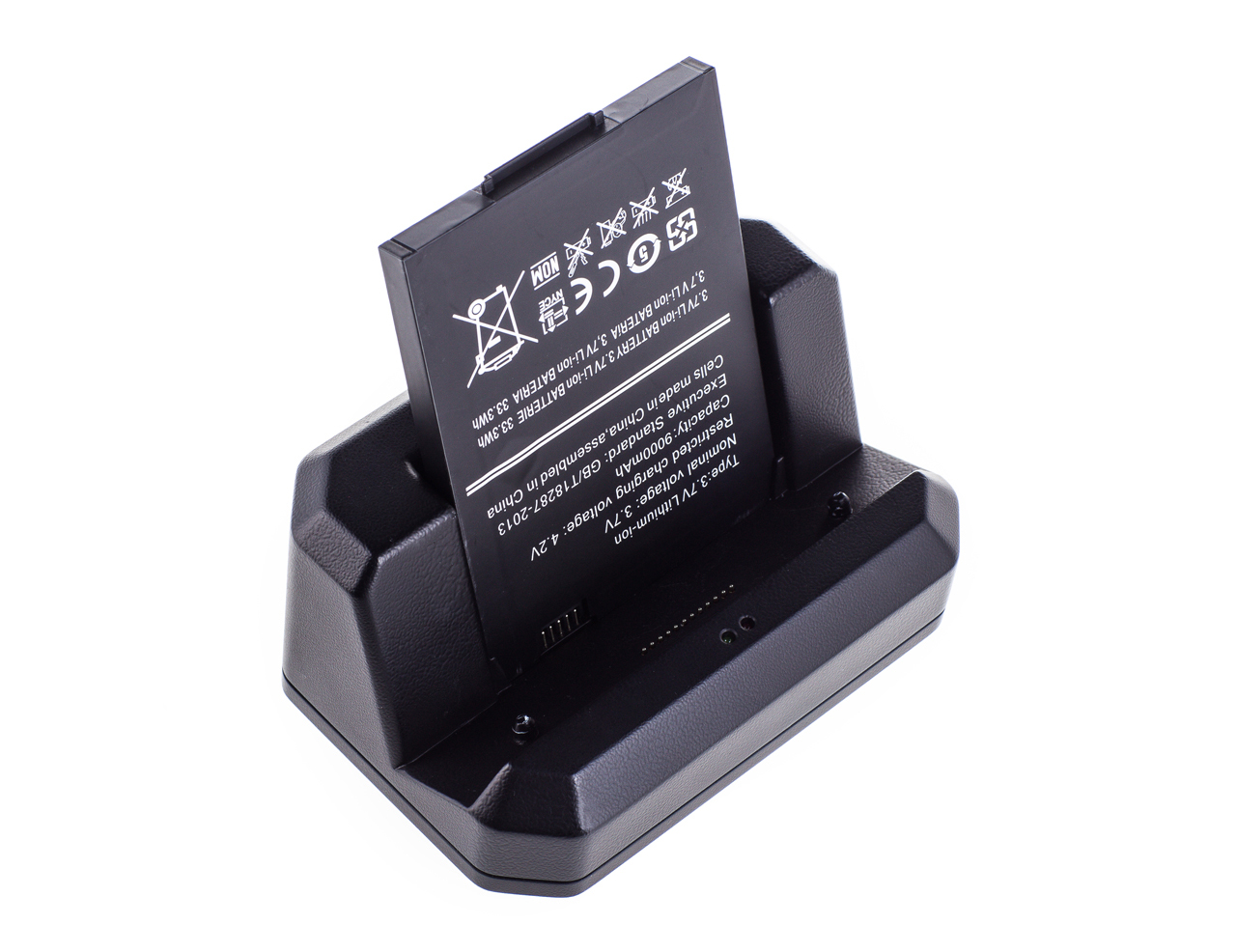

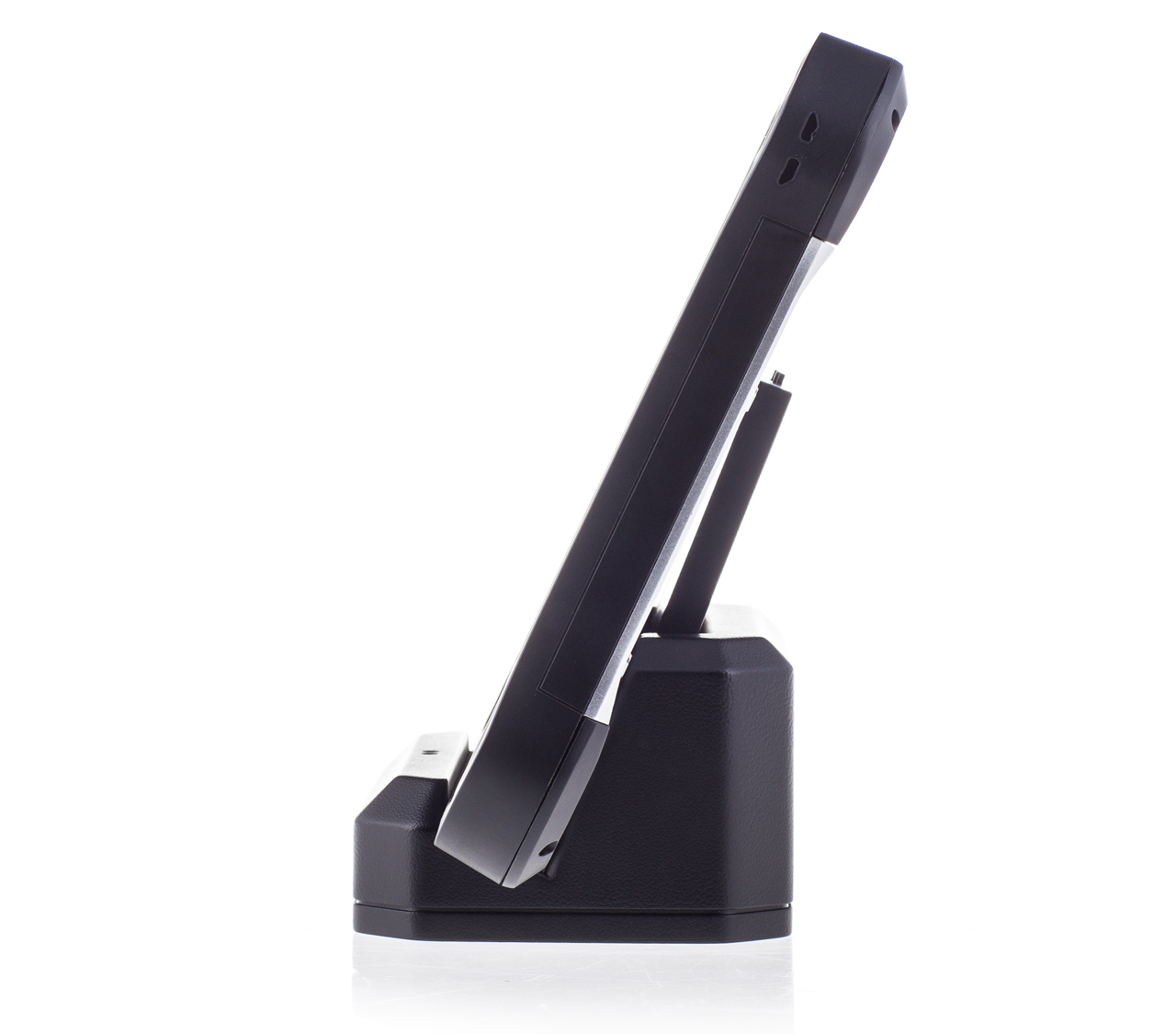

Docking Station

The docking station (optional) enables simultaneous battery charging device and the battery itself. When you dock your device will be extended to additional ports located directly at the station. You can buy an accessory in the "Accessories" or direct contact with the shop.

docking station i12m usb rj45 dc in umpc

 Available ports
2x - charging ports | 3x - USB 2.0 | RJ45 | DC In

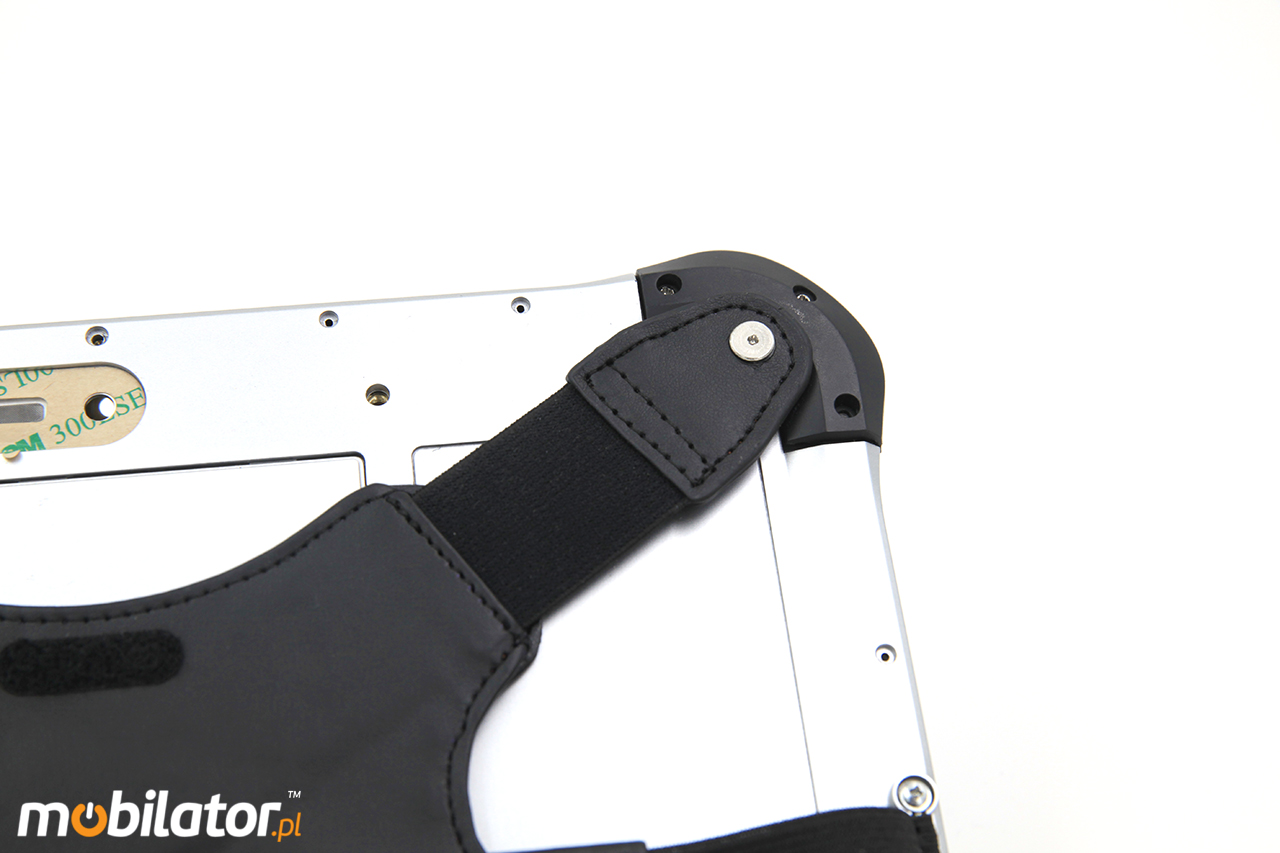

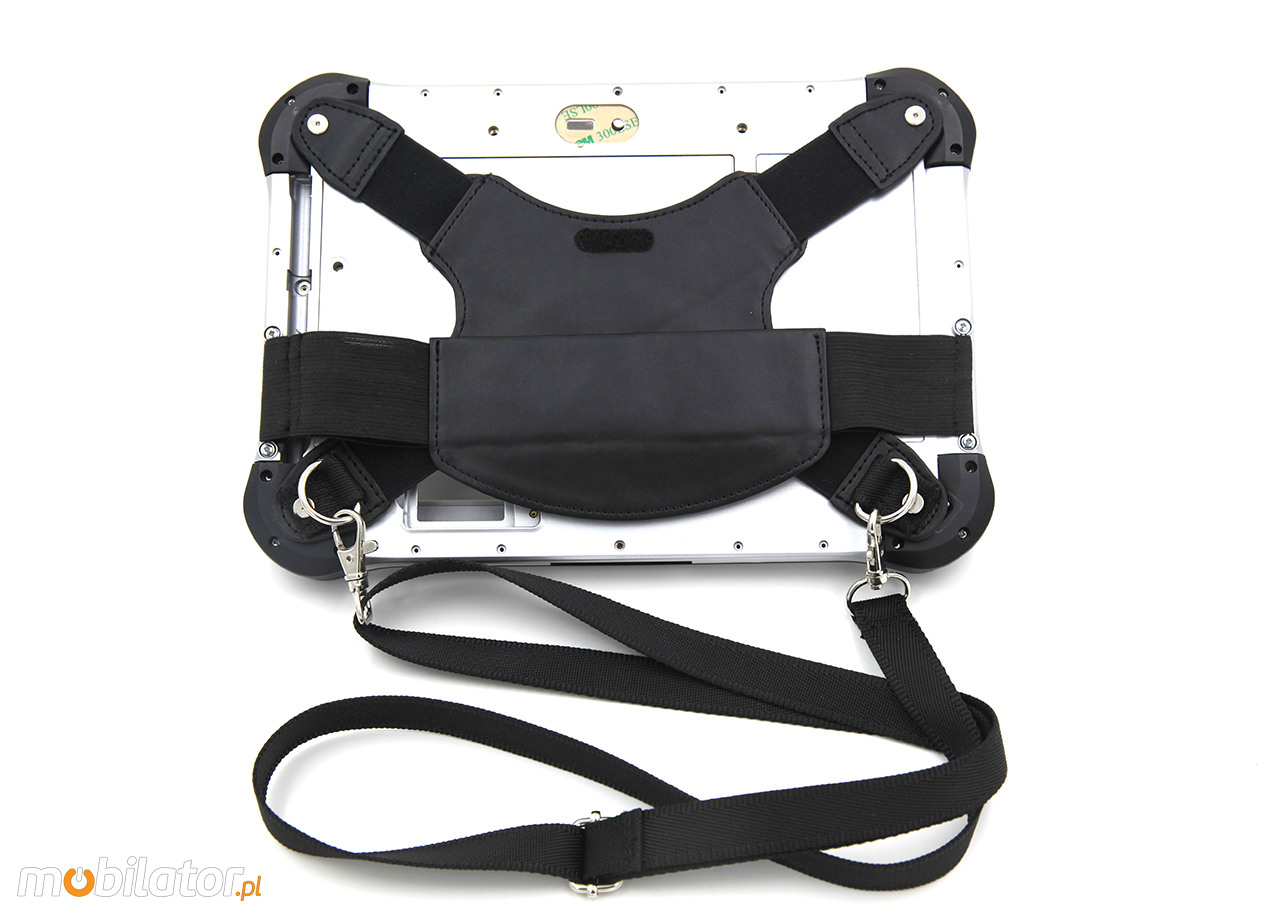

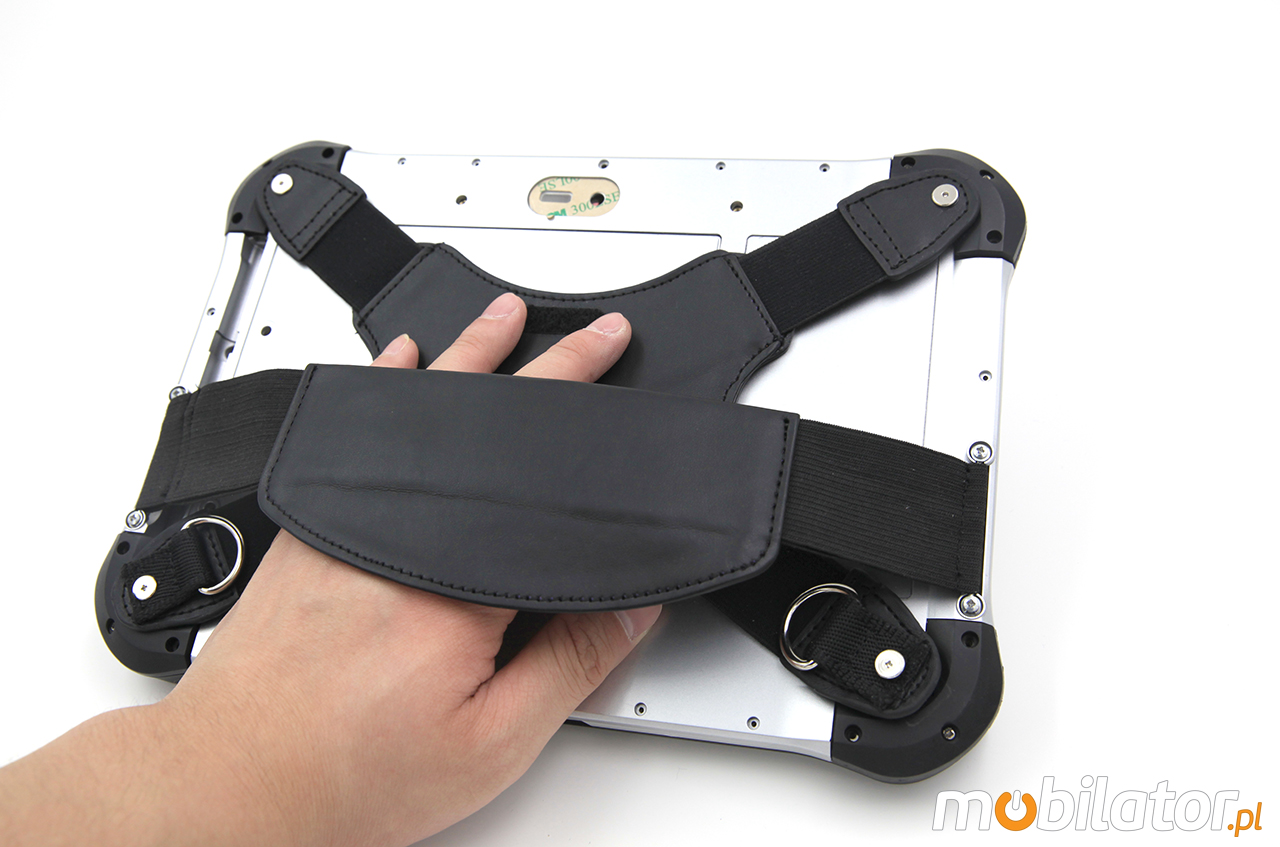

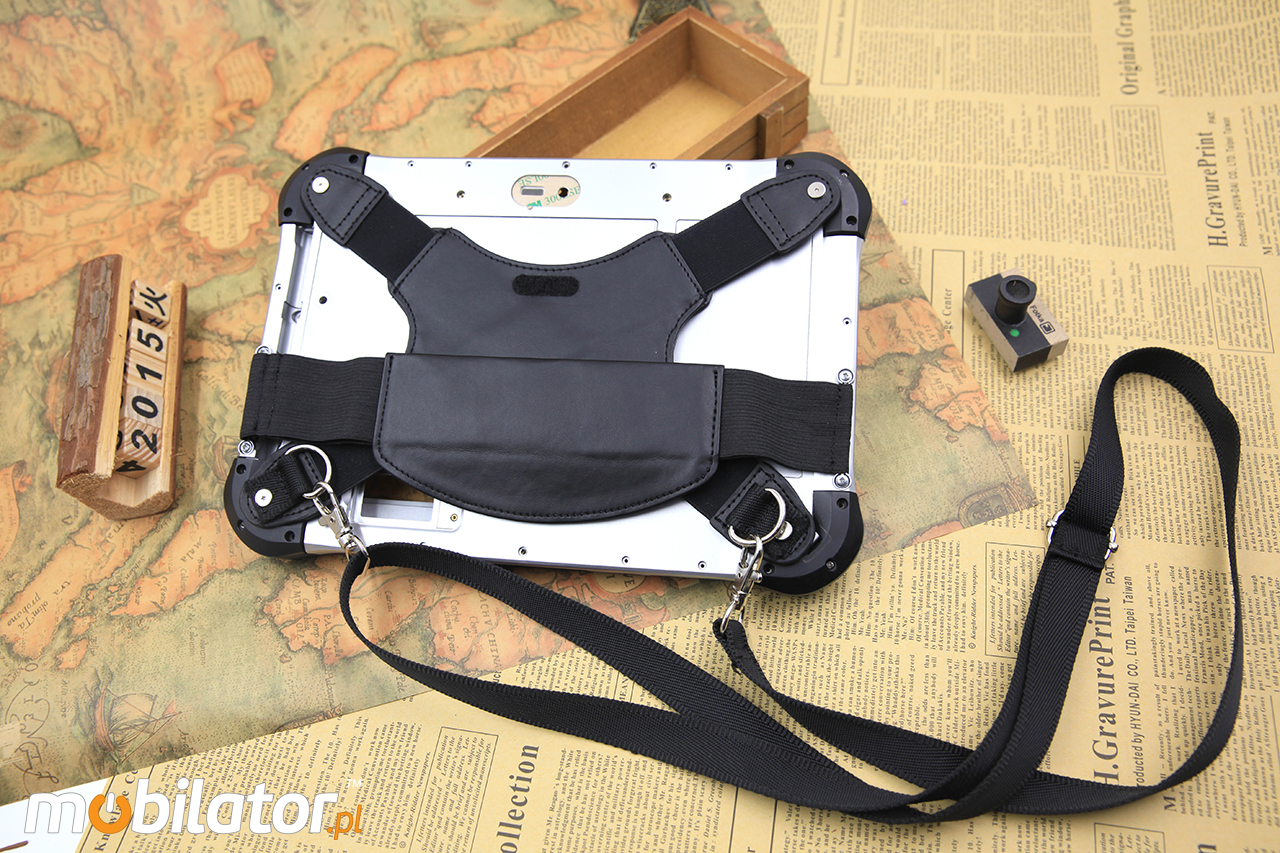

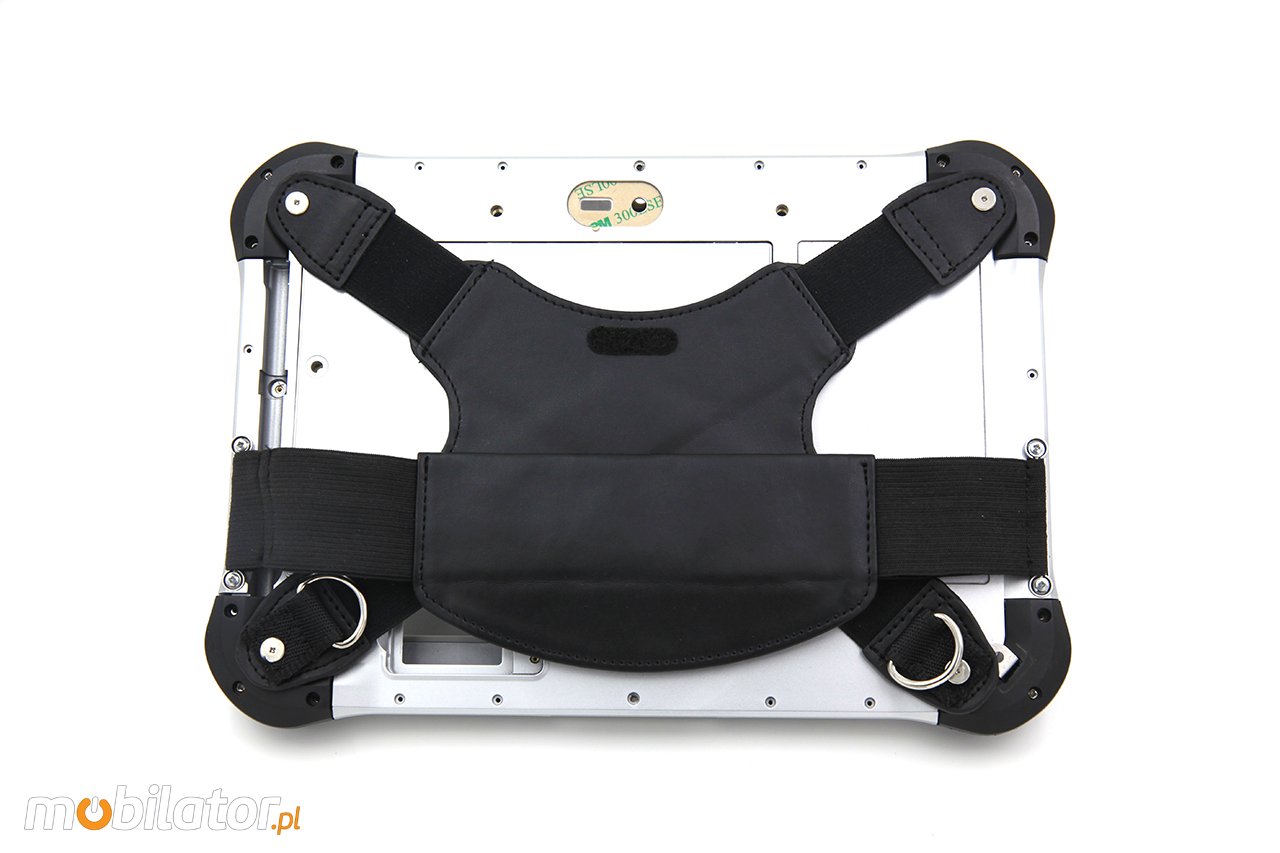

Wrist Strap

Working comfort with the device can help you by buying durable strap (optional). It provides a stable position or facilitate safe movement on the tablet.

mobipad i12m wrist strap shoulder strap umpc

go top... do góry menu… menu



more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...



Compare all versions
