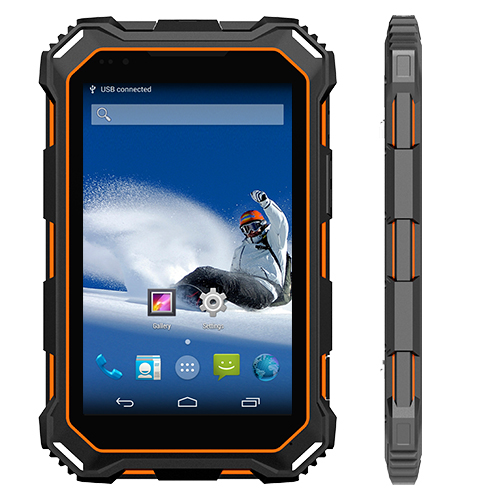

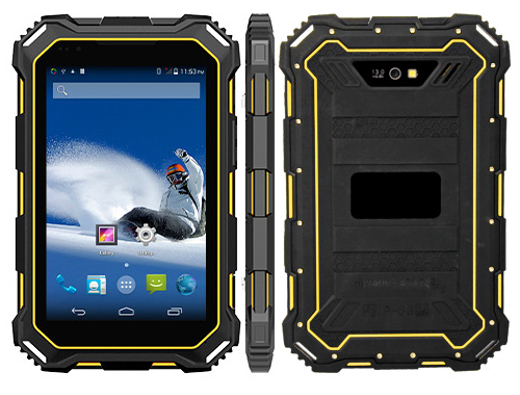

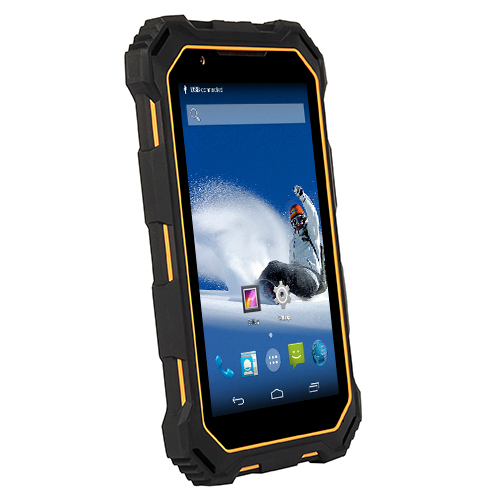

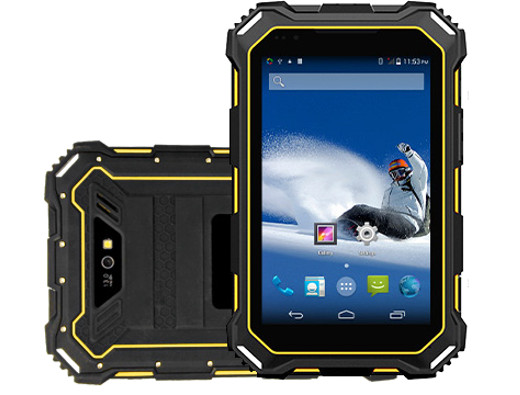

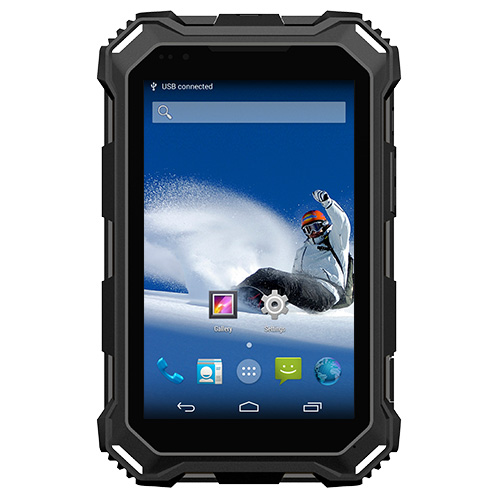

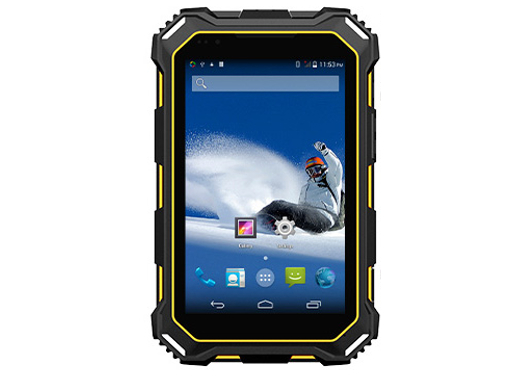

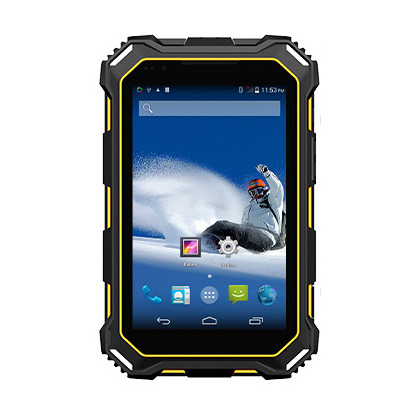

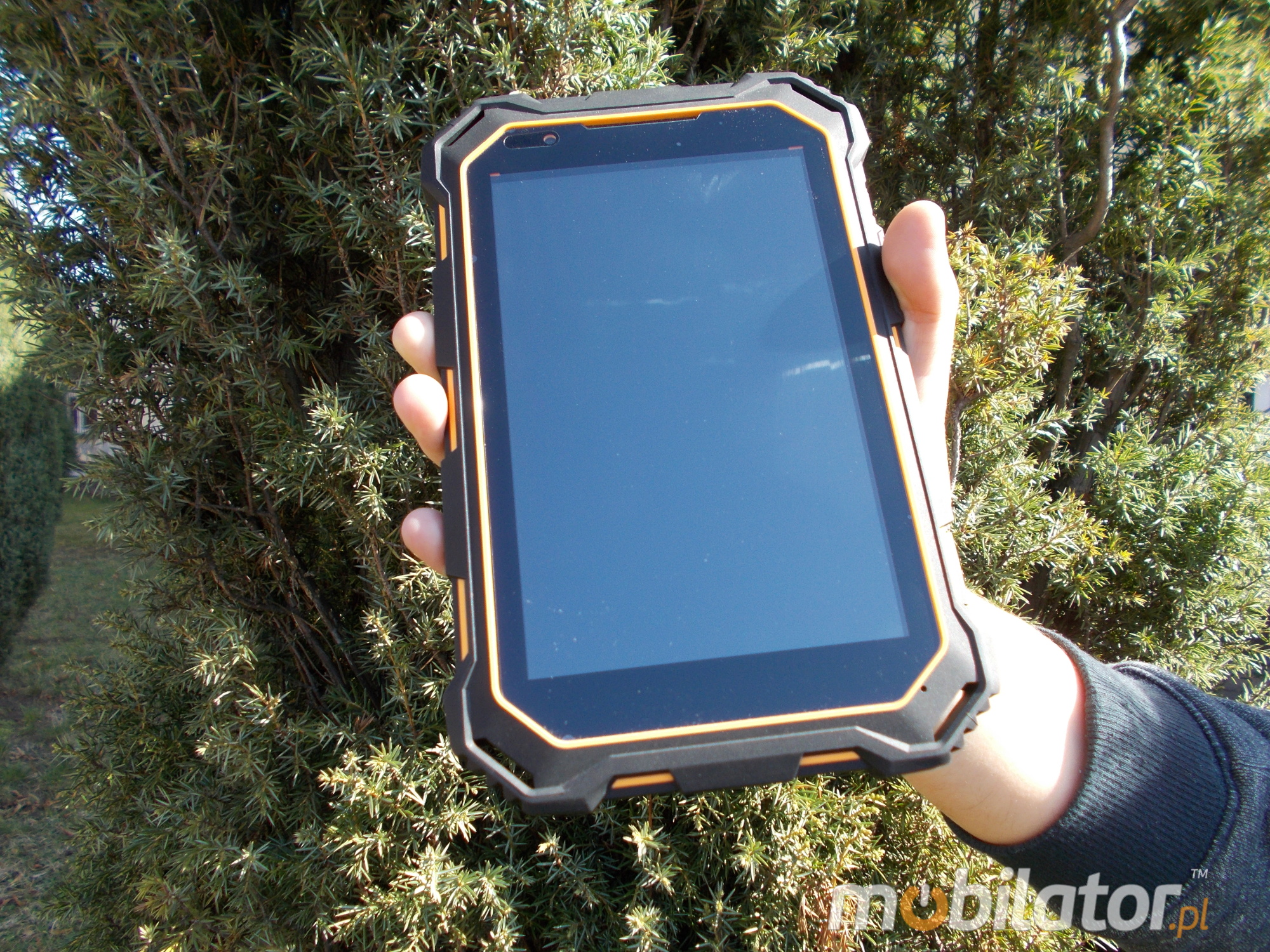

Rugged Tablet MobiPad 339S-IP68 4G
|
|
The product from the archive - production terminated
|
Compare all versions

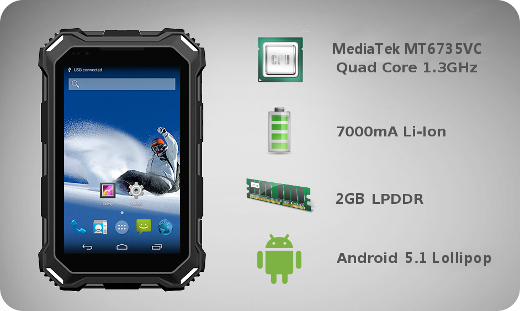

MobiPad 339S-IP68 adopts the combination of platformization and modular function design concept. It not only has intelligent operation platform, but also has modular functions with flexible configuration. So it can satisfy the customized requirements from different customer.
|
|
.jpg)
|
Procesor |
MT6735VC Quad Core 1.3GHz |
|
Graphics |
ARM Mali-400 MP2 |
|
Display |
7.0" | 1280 x 800 HD |
Type of display
|
Capacitive |
|
RAM |
2GB
|
|
ROM |
16GB
|
|
Connectors (factory) |
MicroUSB (OTG) | MicroSD | SIM Card | Audio Jack
|
|
GPS (factory) |
Standard (GPS/AGPS) |
|
Audio |
Built-in Microphone | Speaker | Receiver | Audio Jack |
Camera (Front)
|
2Mpx |

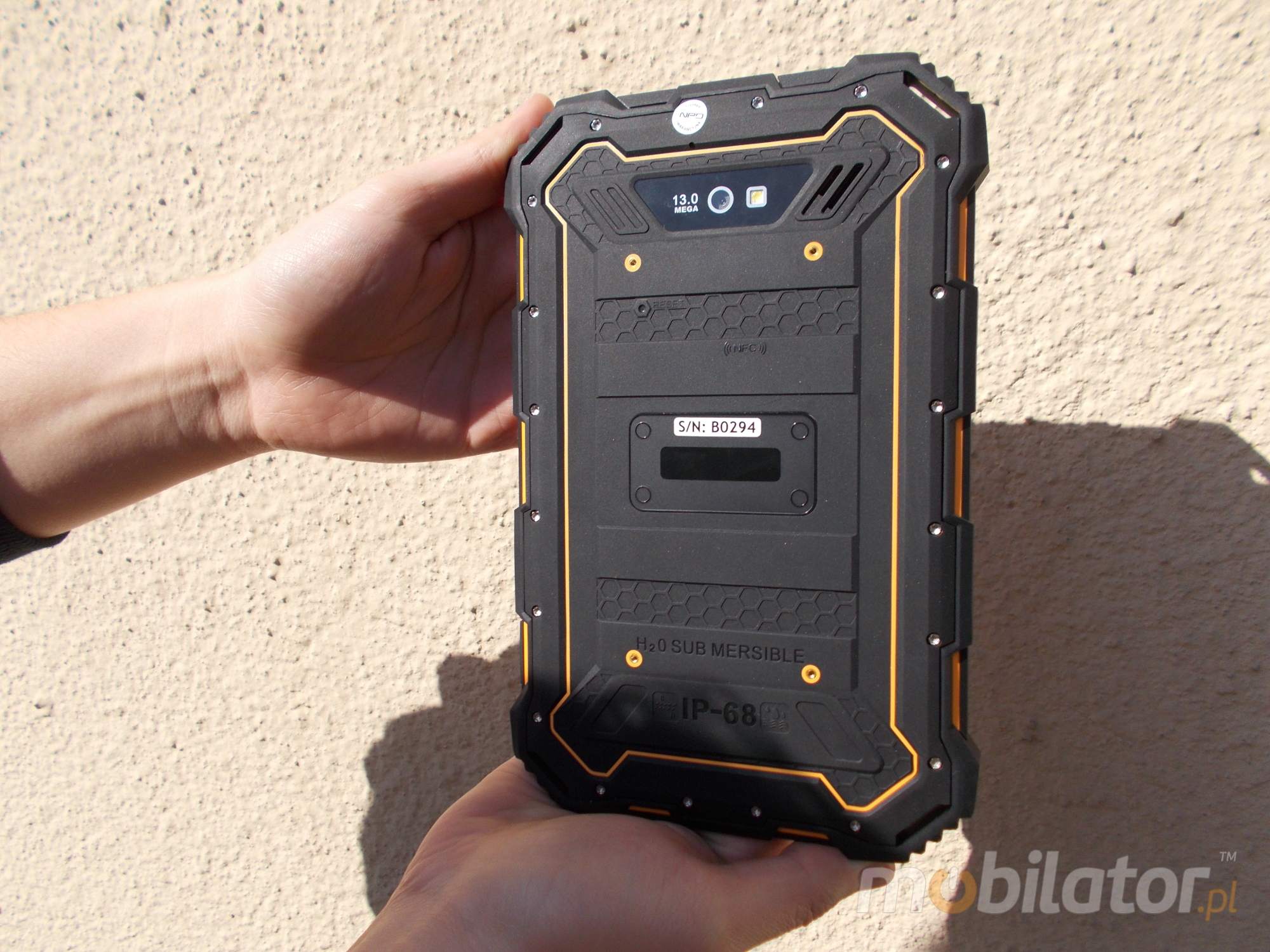

Camera (Rear)
|
13Mpx + Flash |
|
Keyboard |
On-Screen + Function Keys
|
|
Battery |
Li-Ion 7000mA |
|
System |
Android 5.1 |
|
Modules (factory) |
WiFi | Bluetooth 4.0 | 2G/3G (GSM/WCDMA) | GPS | NFC
|
|
Dimensions |
214.5 x 133 x 18mm | 590g |
|
Resistance |
IP68 |
|
Sensors (factory) |
Accelerometer | Geomagnetic Sensor | Gravity Sensor | Proximity Sensor
|
|
Warranty |
12 months |
|
MobiPad 339S-IP68 adopts the combination of platformization and modular function design concept. It not only has intelligent operation platform, but also has modular functions with flexible configuration. So it can satisfy the customized requirements from different customer.
|
|
.jpg)
Resistance
Work temperature
|
-20°C -- +70°C |

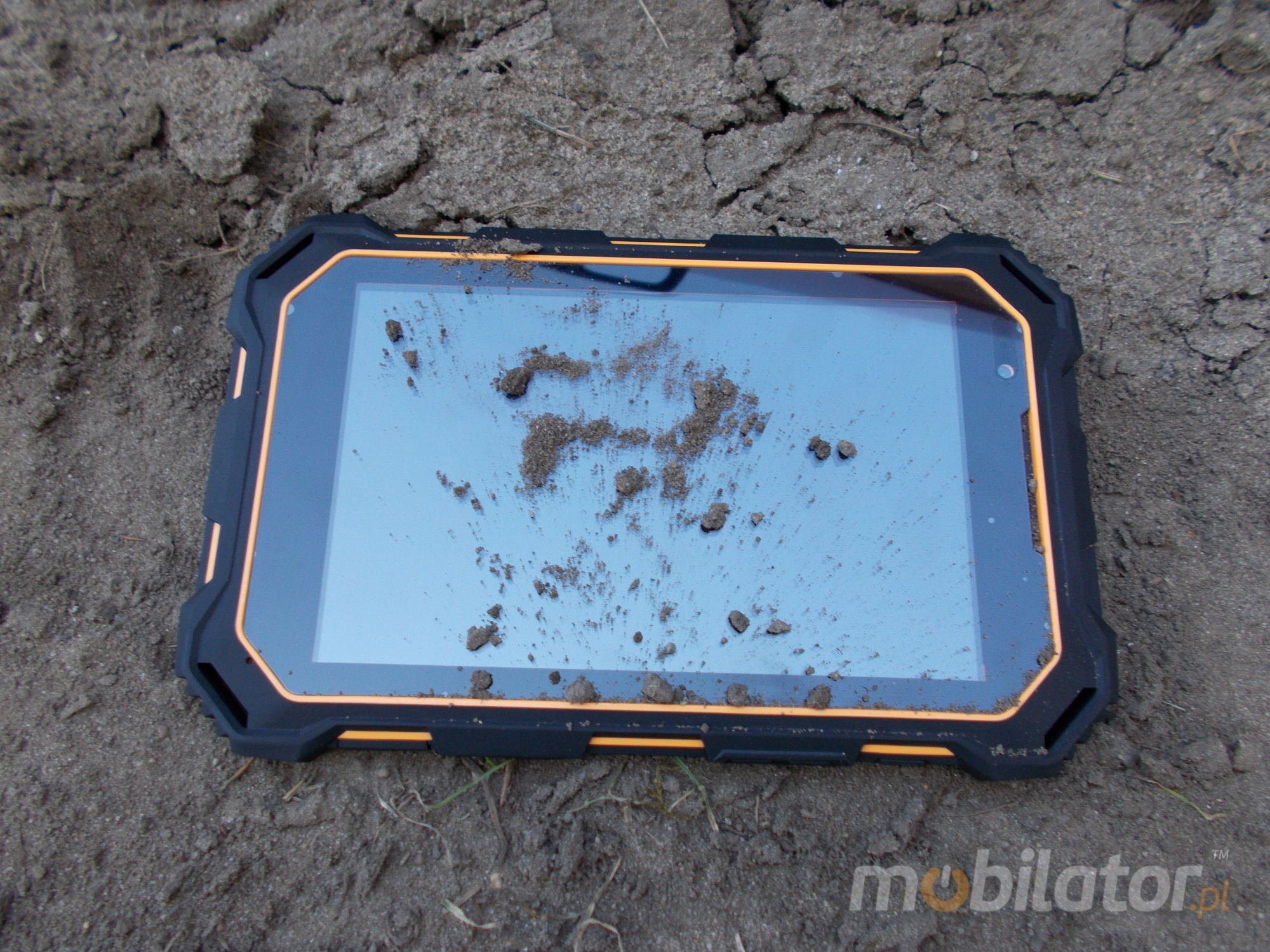

Dust resistance
|
IP6x
|
Water resistance
|
IPx8
|
|
Humidity |
0% - 95% non-condensing |
IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from solid objects greater than 50mm in diameter |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from splashed water |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection from water projected from a nozzle |
|
|
|
 |
7
|
|
Protection against immersion |
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water |
go top…  menu…
|
|
|
|
(1).jpg)

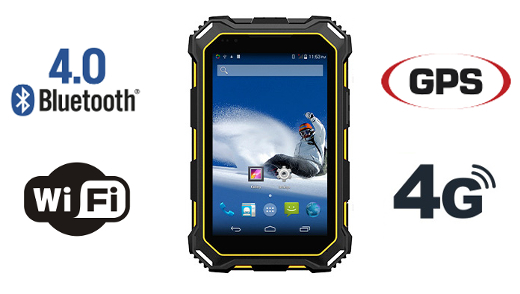

With WCDMA module, you need only insert a SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and customize mobile networks. Also used in internal 339S-IP68 WCDMA module adapts automatically to transfer and network coverage.
|
WIFI |
802.11 b/g/n |
GPS (Standard)
|
Standard |
|
Bluetooth |
Bluetooth 4.0
|
WWAN
|
2G:GSM B8/B3/B2/B5
3G:TD-SCDMA B34/B39
WCDMA B1/B2/B5/B8
CDMA:BC0
4G:TDD-LTE B38/B40/B41
FDD-LTE B1//B3/B7/B20 |
|
|
The ability to make voice calls (speaker / audio jack) |
The latest WiFi wireless module operating in 802.11n provides a very fast and secure communication with the AP tablet such as a router, providing a fast and convenient web browsing, smooth playback of HD video.

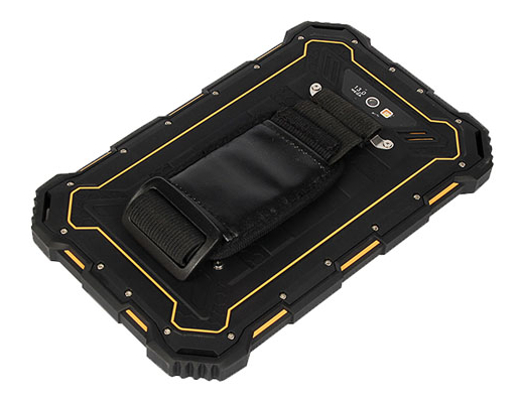

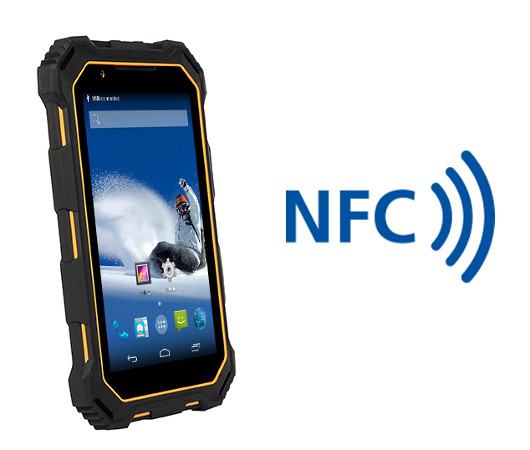

Near Field Communication (NFC)
Its a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less.
|
|
NFC |
|
Frequency |
13.56 MHz |
Read distance
|
about 3 cm |
Supported standards
|
ISO14443
|
go top… menu…
|
|
|
|
.jpg)

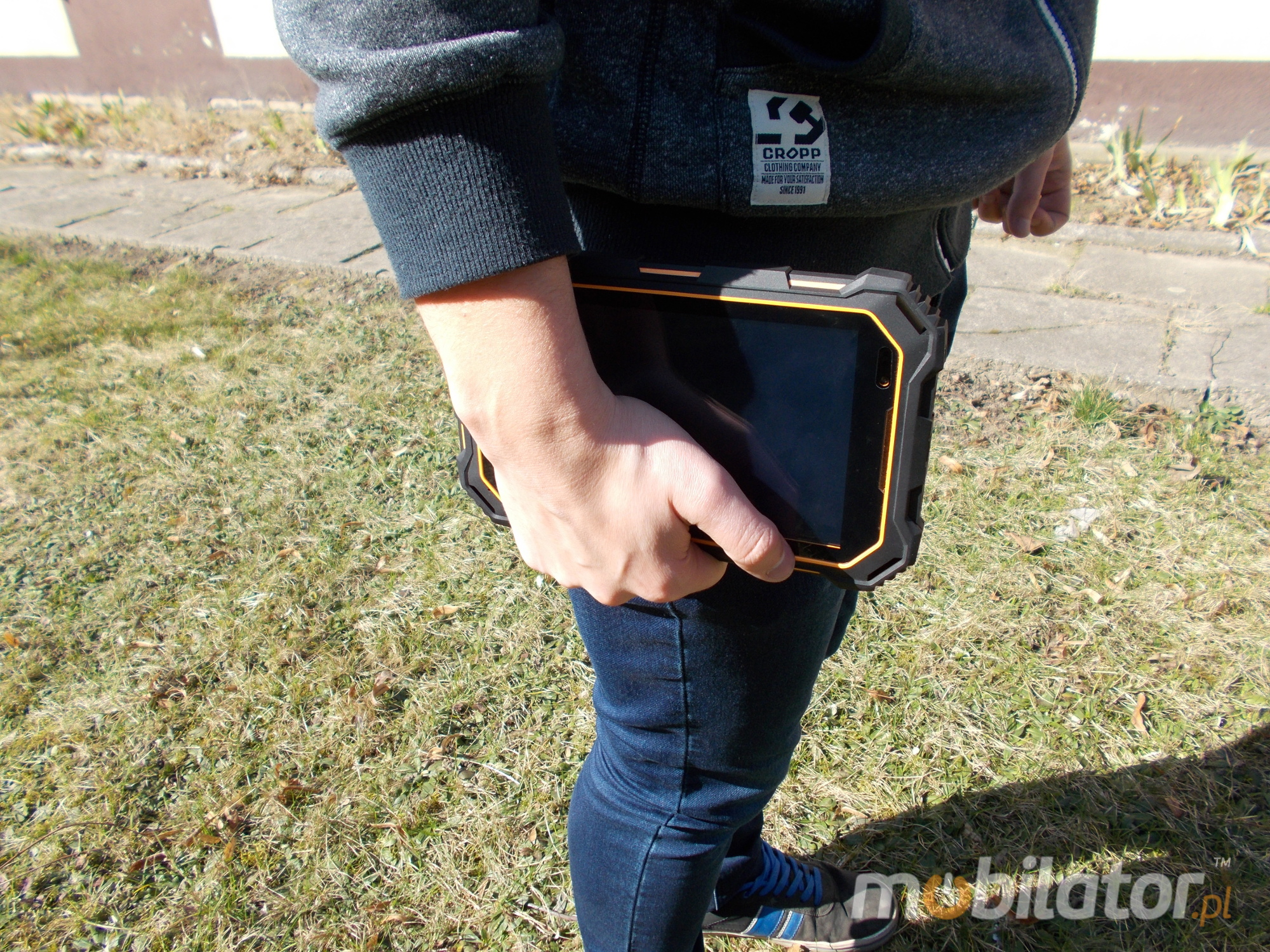

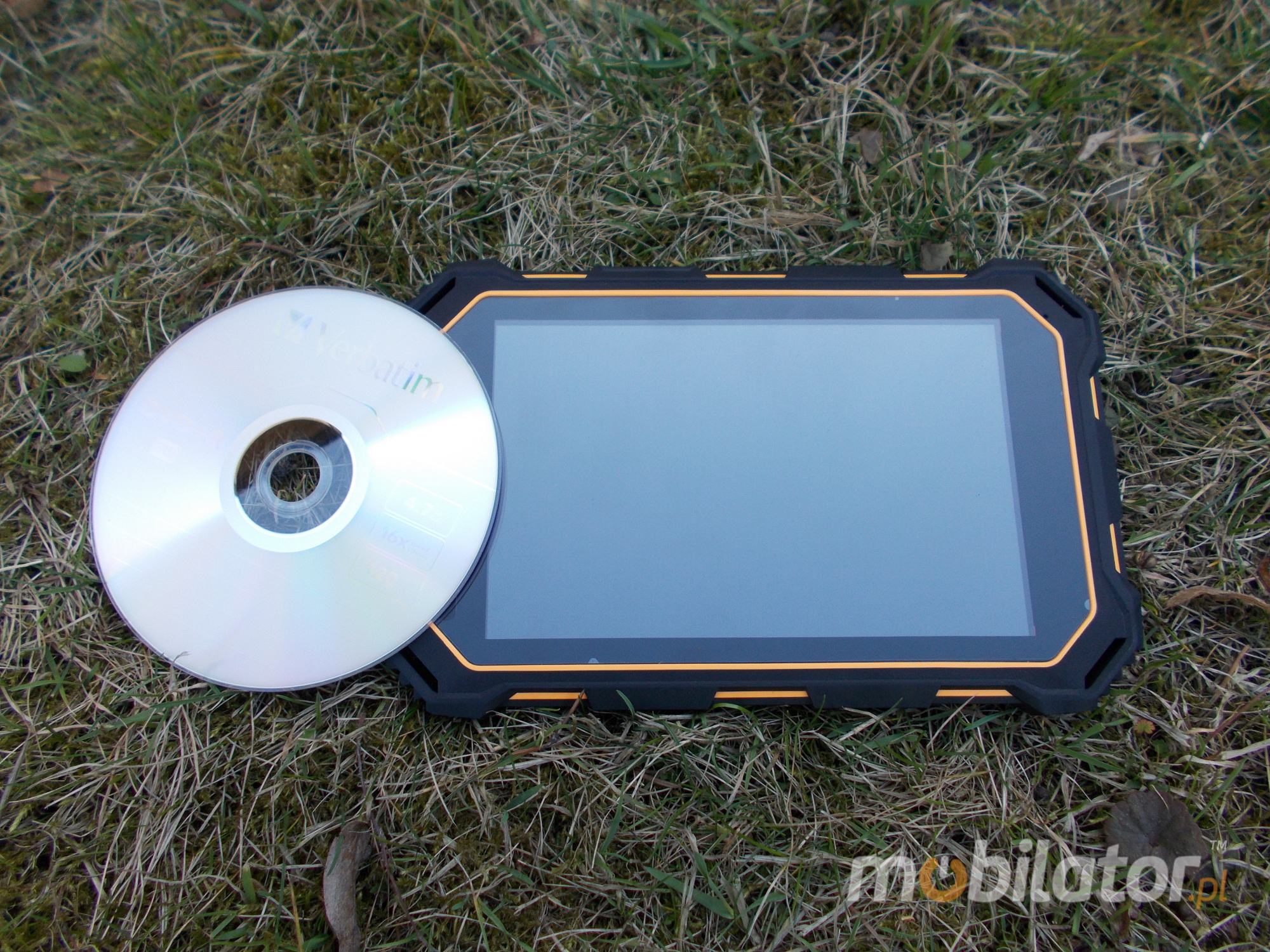

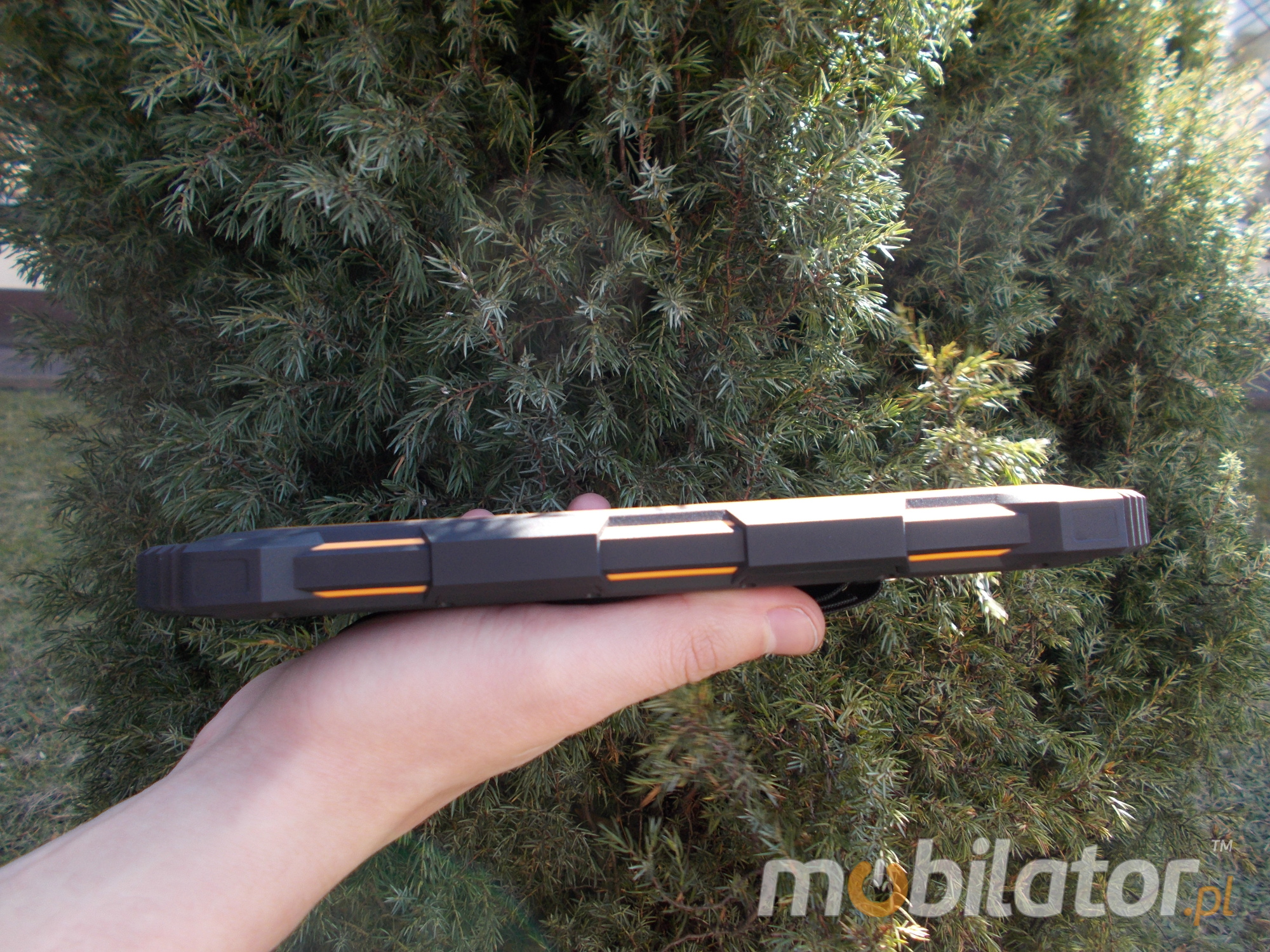

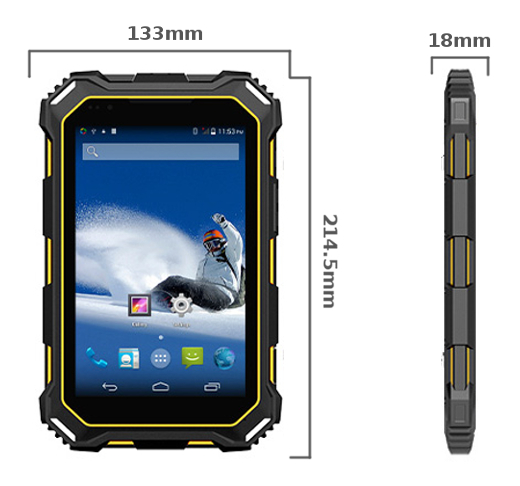

You do not have to worry about whether you will put your old laptop into a briefcase, backpack or travel bag with MobiPad problem disappears forever, as it weighs only 590g and its dimensions (214.5 x 136 x 18mm) allow to carry it with you everywhere. With exquisite workmanship and energy efficient it is in the forefront of devices in this segment and is hit on the Europe market in the industrial segment.
|
|
|
Dimensions |
214.5mm x 133mm x 18mm |
|
Weight |
590g |

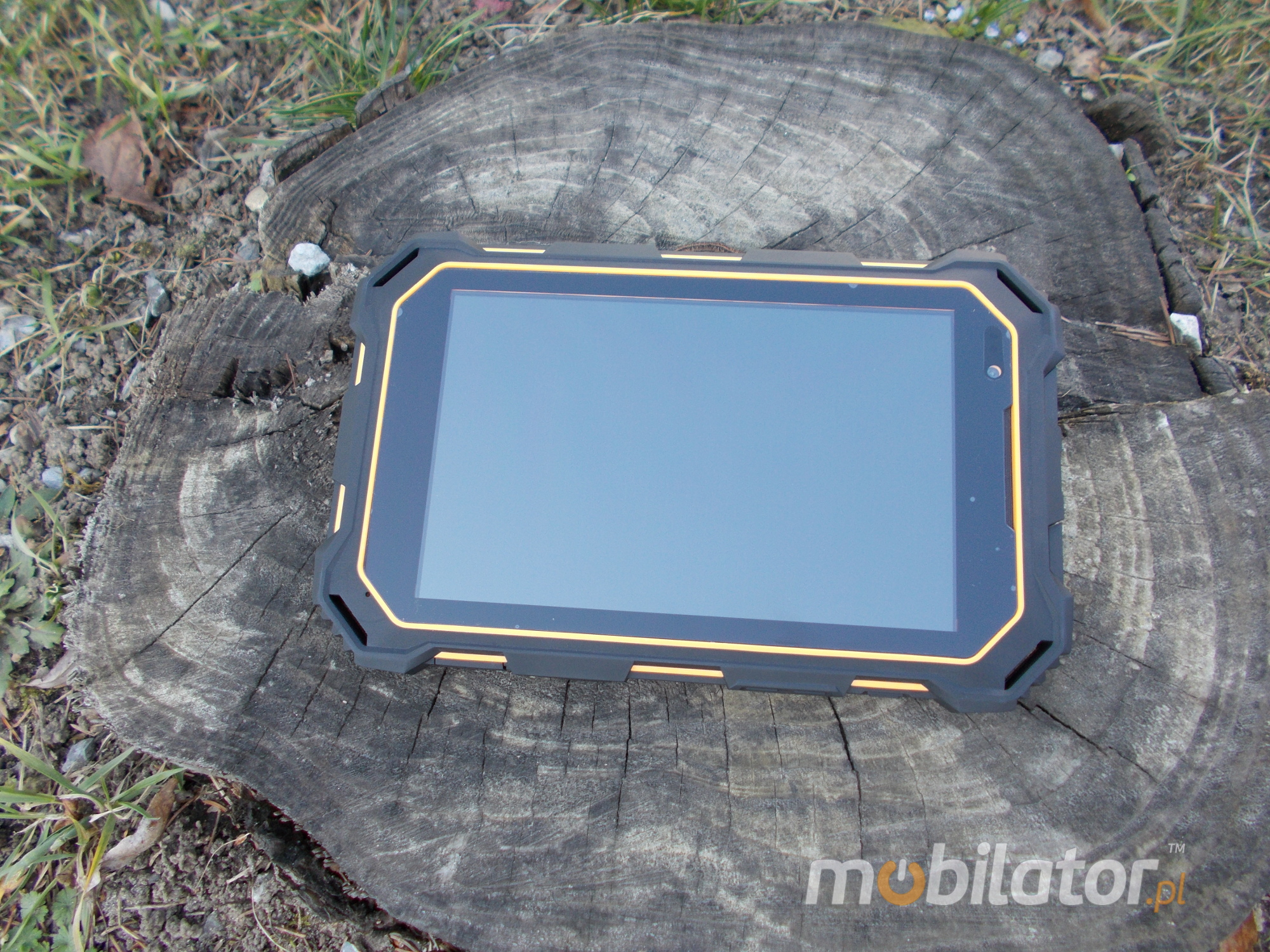

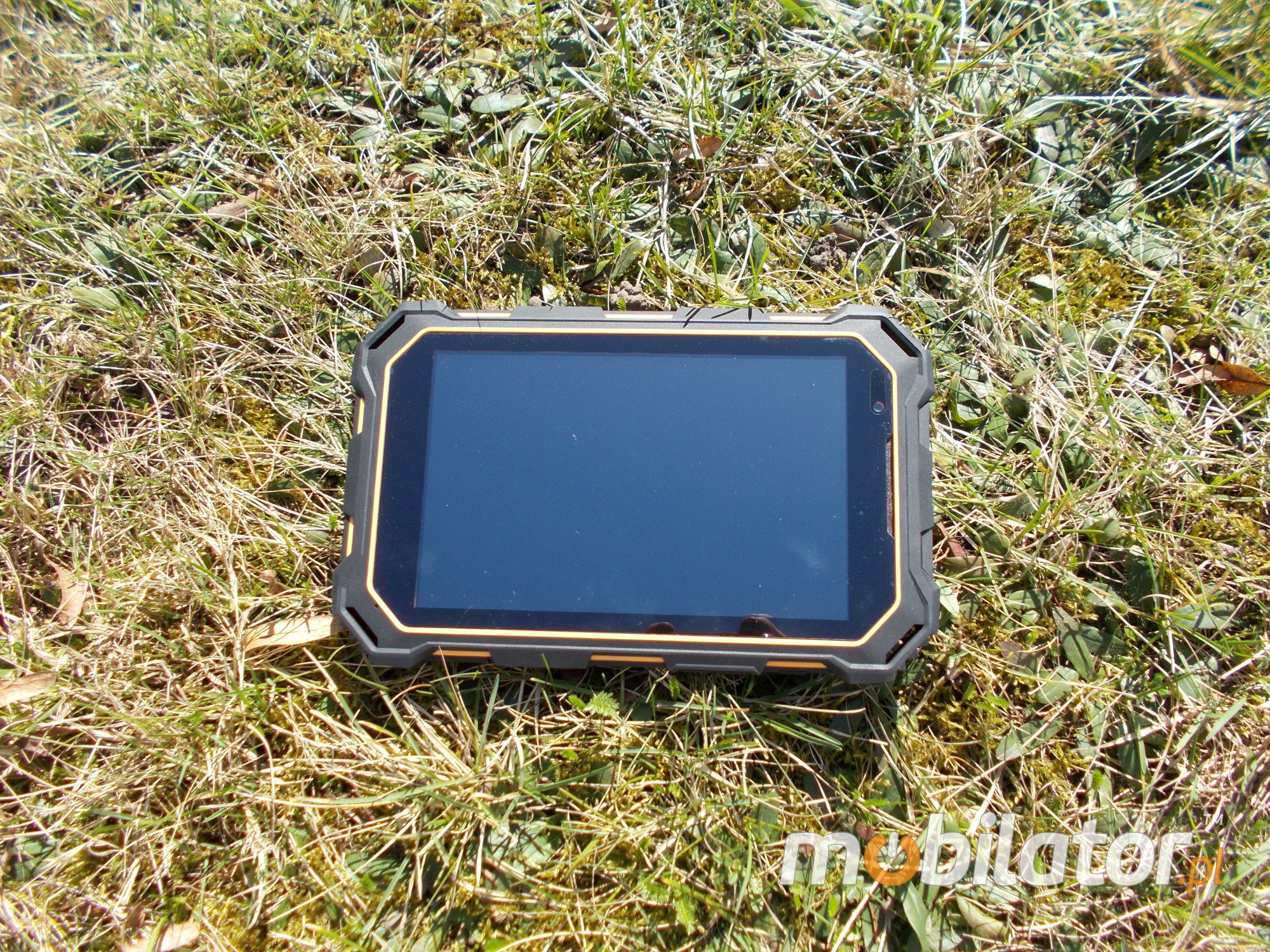

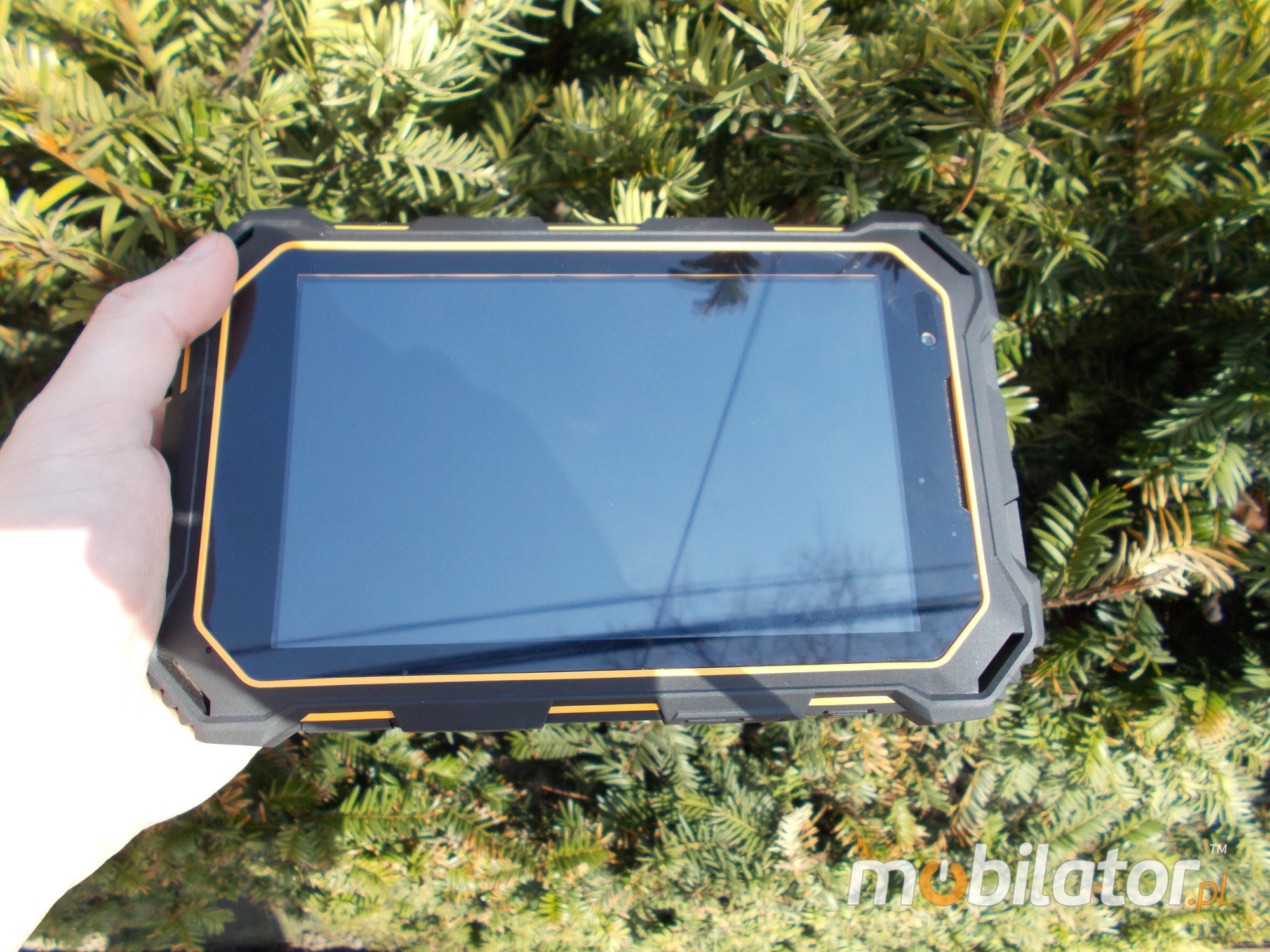

more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ...
|
Compare all versions
| Durability: |
IP68 |
| Humidity: |
0 - 95% non-condensing |
| Waterproof: |
IP68 |
| Weight: |
|
| Temperature: |
Work temperature: -20°C -- +70°C |
| Shock: |
----- |
| Vibration: |
----- |
| Drop: |
----- |
| Sand and dust: |
IP68 |
| 1D barcode scanner (reader): |
----- |
| 2D barcode scanner (reader): |
----- |
| RFID scanner (reader): |
----- |
| Magnetic card reader (MSR): |
----- |
| Microchip card reader: |
----- |
| Docking station connector: |
----- |
| VESA standard – holders and mounts support: |
----- |
| COM port: |
No |
| Dispaly: |
7.0" | ( 1280x800px HD) | Capacitive |
| Brightness: |
----- |
| Contrast: |
----- |
| Touch screen: |
Tak |
| Graphics card: |
ARM Mali-400 MP2 |
| Swivel Hinge: |
----- |
| VGA out: |
----- |
| TV Out: |
----- |
| TV Tuner: |
----- |
| Processor: |
MT6735VC Quad Core 4x 1.3Ghz |
| Chipset: |
----- |
| BIOS: |
----- |
| Memory: |
2GB |
| Hard Drive: |
----- |
| Flash Memory: |
16GB |
| Battery: |
Li-Ion 7000mA |
| Working time on battery: |
----- |
| HotSwap battery: |
No |
| Fast battery replacement ability: |
----- |
| Size: |
214.5 x 136 x 18mm | 590g |
| Casing material: |
PC + TPU |
| Fanless casing: |
Yes |
| Operating System: |
Android 5.1 |
| LAN: |
----- |
| WLAN: |
IEEE 802.11b/g/n |
| Bluetooth: |
Bluetooth 4.0 |
| WAN: |
2G:GSM B8/B3/B2/B5
3G:TD-SCDMA B34/B39
WCDMA B1/B2/B5/B8
CDMA:BC0
4G:TDD-LTE B38/B40/B41
FDD-LTE B1//B3/B7/B20 |
| GPS: |
Standard |
| Flash Card Reader: |
micro SD/TF max. 32GB |
| CD/DVD: |
----- |
| Camera: |
FRONT: 2MPX
REAR: 13MPX + Flashlight |
| Audio: |
Built-in Microphone | Speakers | Receiver | Audio Jack |
| Seciurity: |
IP68 |
| In/Out: |
MicroUSB (OTG) | MicroSD | SIM | Audio Jack |
| Keyboard: |
On-screen + Function keys |
| Additional Navigation Devices : |
----- |
| Color: |
----- |
| Optional accessories: |
----- |
| Other: |
G-Sensor | Gravity Sensor | Geomagnetic Sensor | Proximity Sensor |
