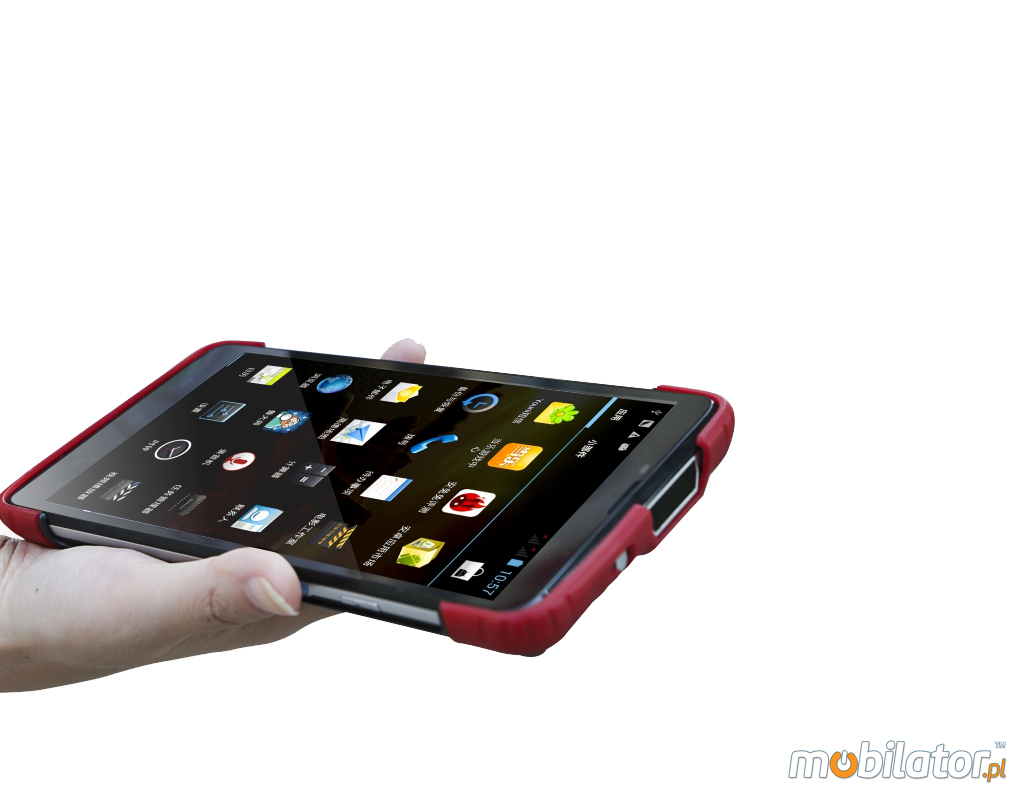

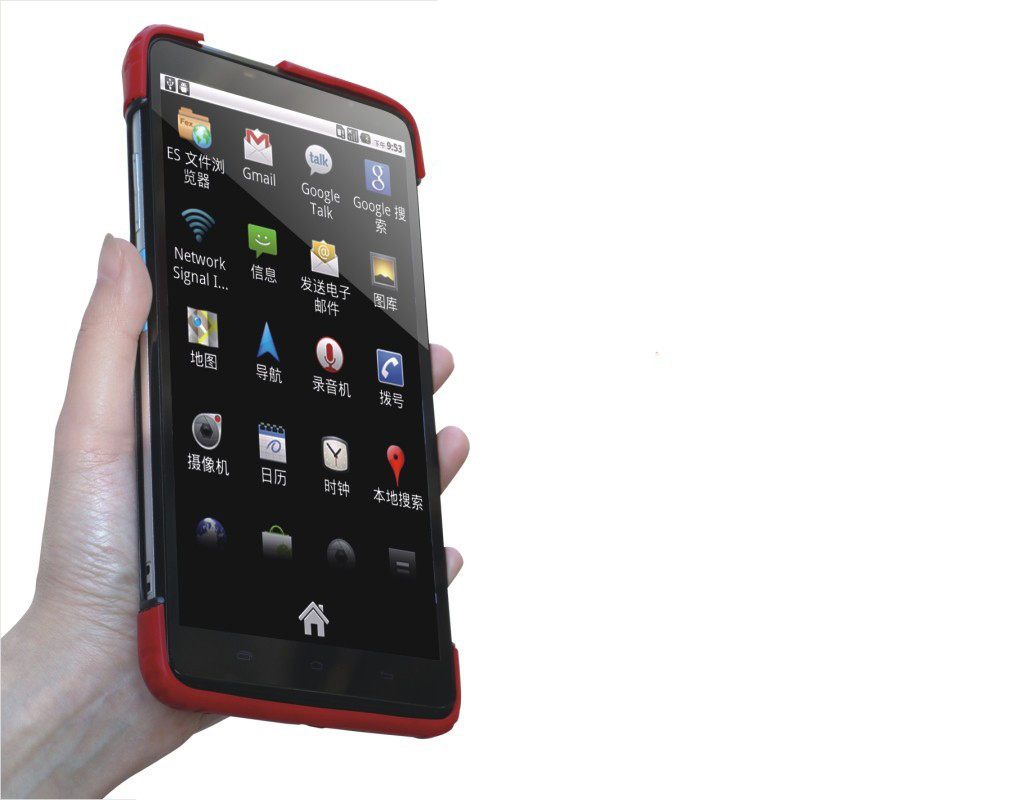

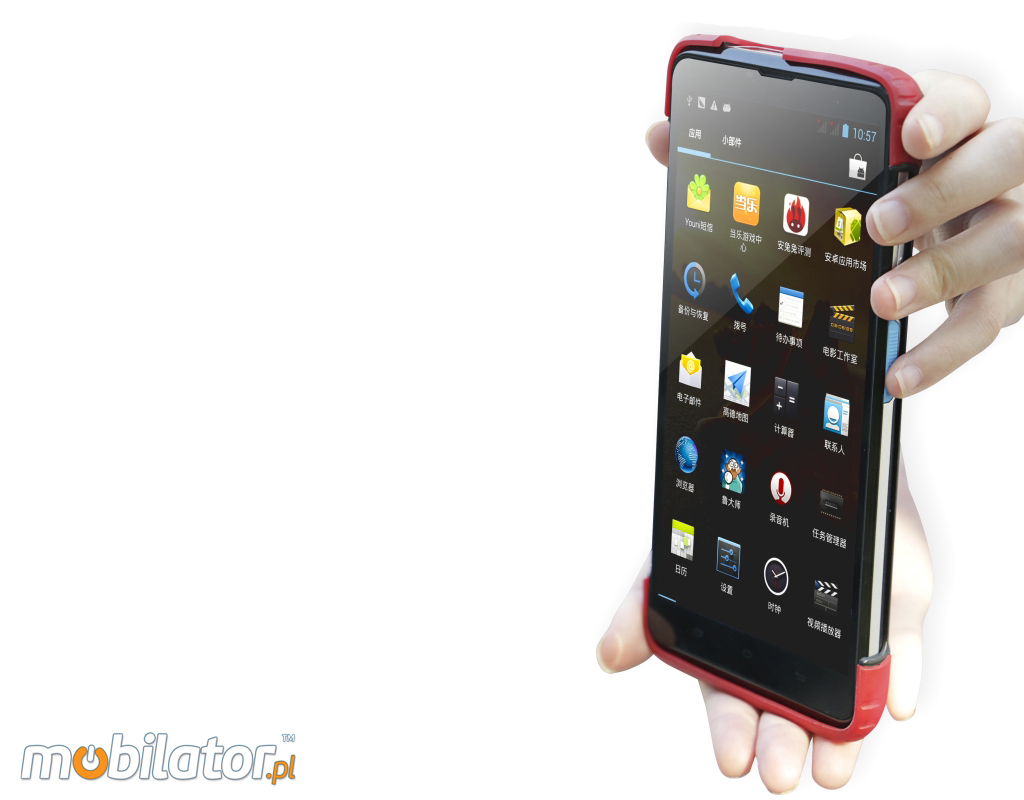

Rugged Tablet CILICO C7-2D
|
|
The product from the archive - production terminated
|
Compare all versions

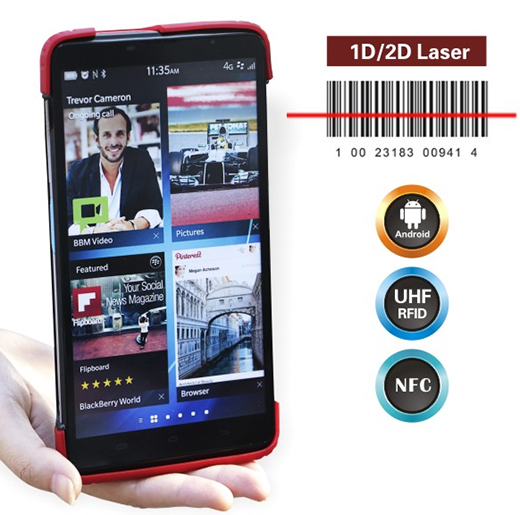

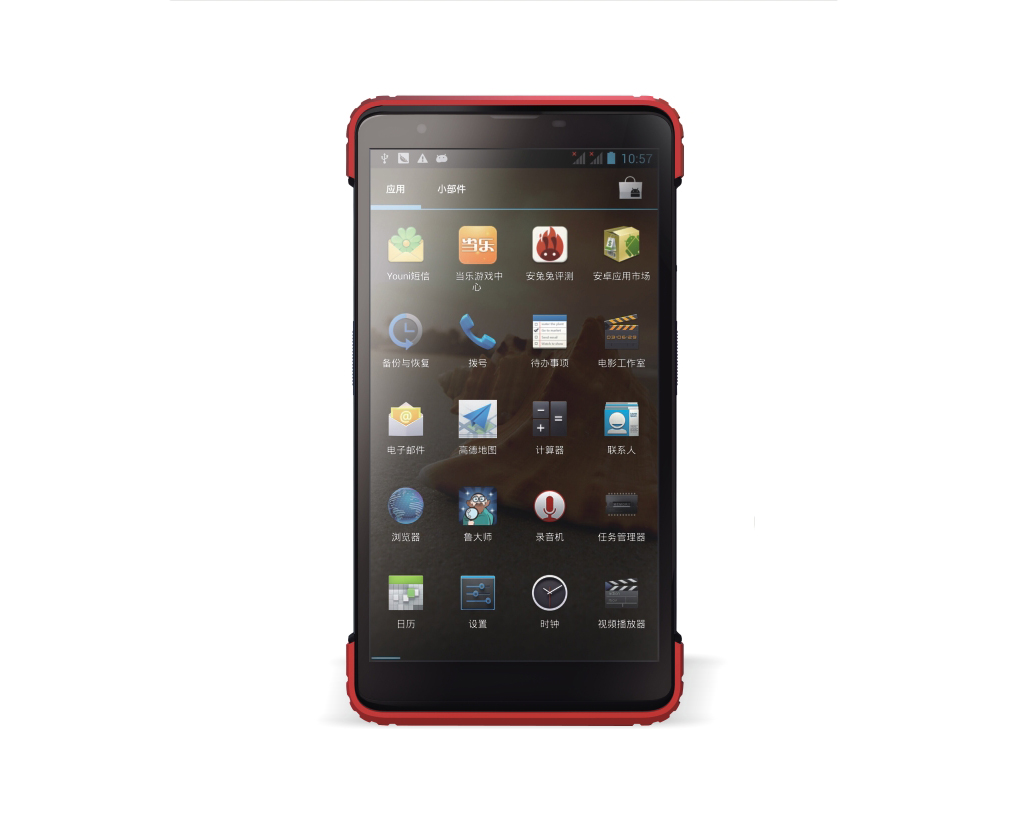

Tablet CILICO C7 adopts the combination of platformization and modular function design concept. It not only has intelligent operation platform, but also has modular functions with flexible configuration. So it can satisfy the customized requirements from different customer.
|
|
Processor |
Mediatek MT6582 ARM® Cortex®-A7 (Quad Core 4x - 1.3GHz) |
|
Graphics |
Mali-400 MP |
|
Display |

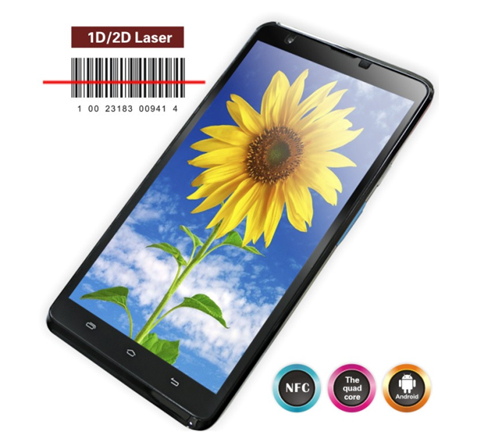

7" (1280x720) LCD | Multi-Touch | Corning Glass |
|
Type of display |
Capacitive |
|
RAM |
1GB LPDDR2 |
|
ROM |
4GB EMMC |
|

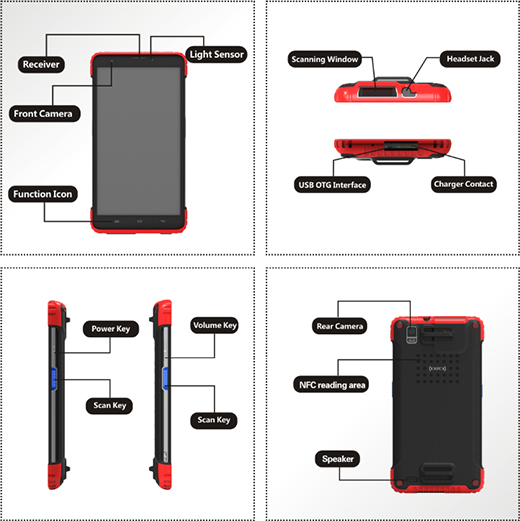

Connectors (factory) |
MicroUSB (OTG) | MicroSD | Port SIM | Audio Jack | Docking |
|
GPS (factory) |
GPS + A-GPS |
|
Audio |
Built-in Microphone | Speaker | Receiver | Audio Jack |
|
Camera (REAR) |
8Mpx (Autofocus + Flash) |
|
Camera (FRONT) |
2Mpx |
|
Keyboard |
On-Screen |
|
|
Home | Menu | Return | ON/OFF | Volume |
|
|
2x - Barcode Trigger |
|

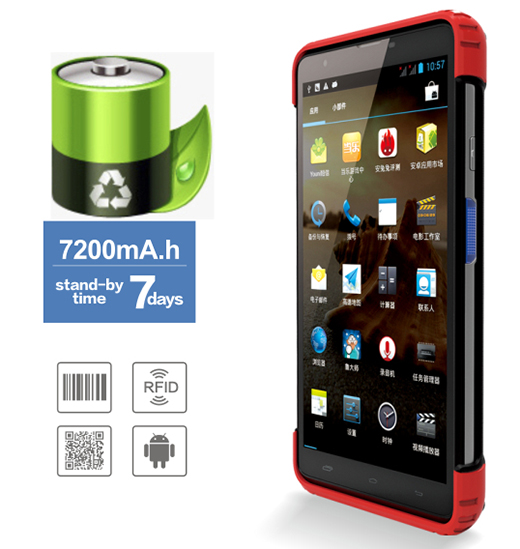

Battery |
Li-Polymer 7200mAh |
|
Standby mode - 168h |
|
|
Operating mode (depending of usage) - 9h |
|
System |
Android 4.2.2 |
|
Modules (factory) |
802.11 b/g/n | Bluetooth v4.0 | 2G/3G | GPS | NFC
|
|
Modules (optional) |
(1D) MINDEO™ UE966 (LASER) | (1D/2D) NEWLAND™ EM3095 (CMOS)
|
|
Housing |
Black |
|
Dimensions |
188*99*14mm | 350g (z bateri±) |
|
Resistance |
IP65 |
|
Sensors (factory) |
G-Sensor | Distance Sensor | Light Sensor | E-Compass |
|
Warranty |
12 months |
|
Operating
|
-10°C -- +60°C |
|
Storage |
-20°C -- +65°C |
Humidity
|
5% - 90% non-condensing
|
|
Dust |
IP6x (dust) |
|
Water |
IPx5 (water) |
|
Drop |
1.2m |
Resistance
IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.
|
Complete protectionm against contact, Protection from infiltration of dust. |
|
6 |
 |
5
|
|
Protection from water projected from a nozzle. |
go top…  menu…
|

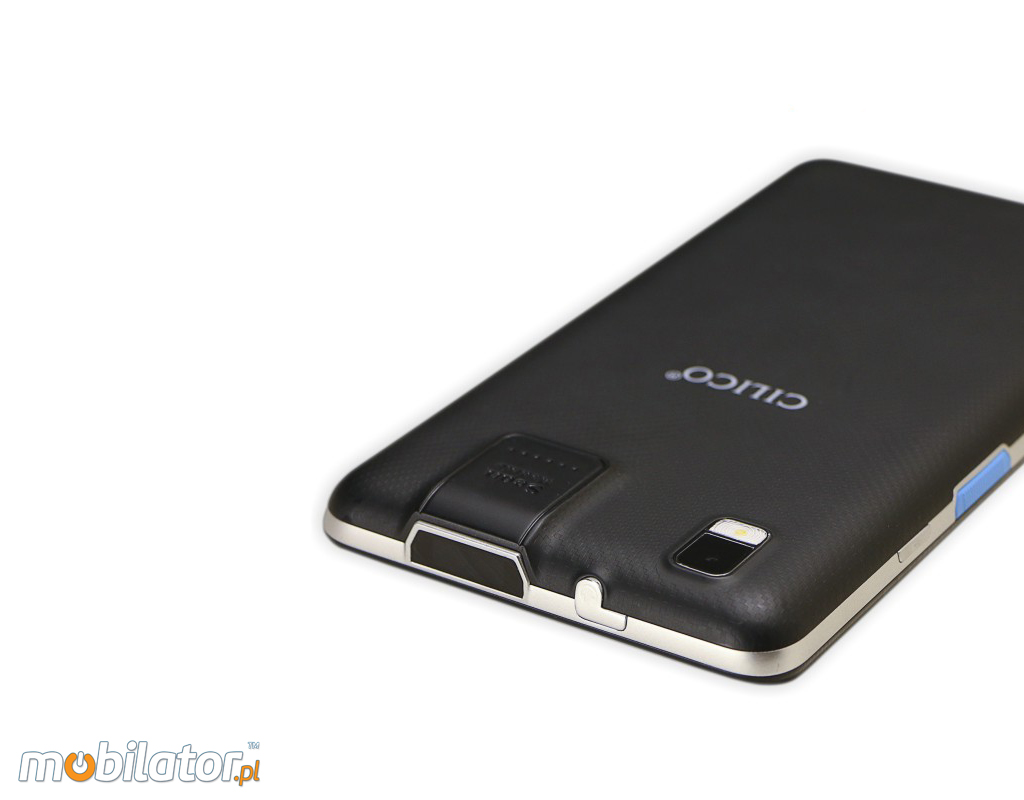

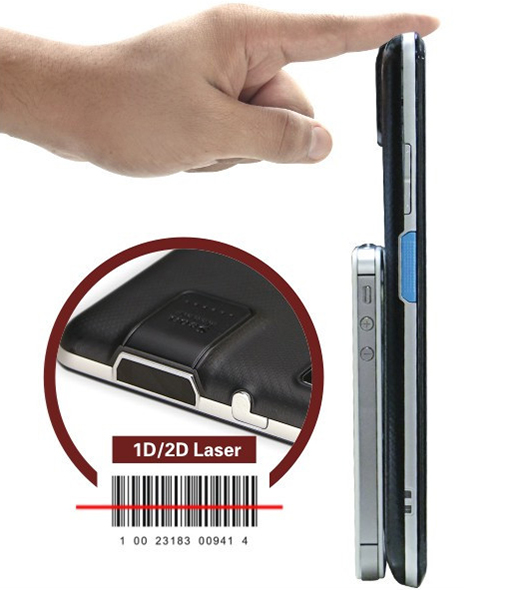

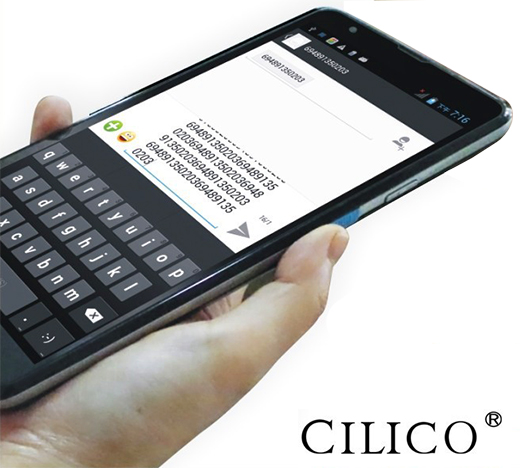

Barcode Scanner
Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.
|
1D |
1D / 2D |
|
MINDEO ™ UE966 (LASER) |
NEWLAND™ EM3095 (CMOS) |
.jpg)

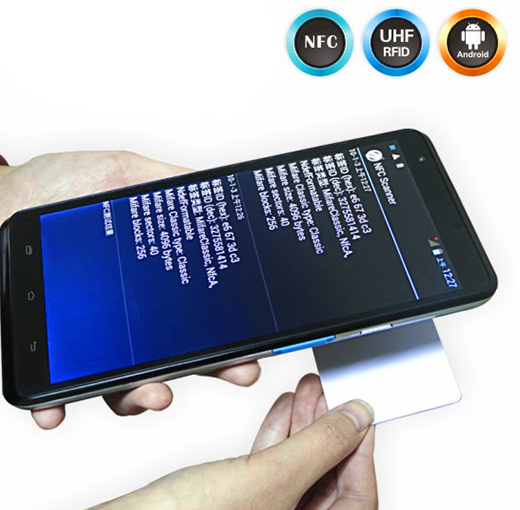

NFC
Near field communication (NFC) is a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm (3.9 in) or less.
|
Type |
NFC |
|
Frequency |
13.56 MHz |
Reading distance
|
2 ~ 5 cm |
|
Standard |
ISO/IEC 15693 |
|
|
ISO/IEC 14443A/B |
go top… menu…
|
|
|
With 3G module, you need only insert a SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and customize mobile networks. Also used in internal C5 WCDMA module adapts automatically to transfer and network coverage.
|
WIFI |
802.11 a/b/g/n |
GPS (Standard)
|
GPS + A-GPS |
|
Bluetooth |
Bluetooth v4.0 |
2G/3G
|
850/900/1800/1900 Mhz |
|
|
850/2100MHz |
|
|
The ability to make voice calls |
The latest WiFi wireless module operating in 802.11n provides a very fast and secure communication with the AP tablet such as a router, providing a fast and convenient web browsing, smooth playback of HD video.
go top… menu…
|
|
|

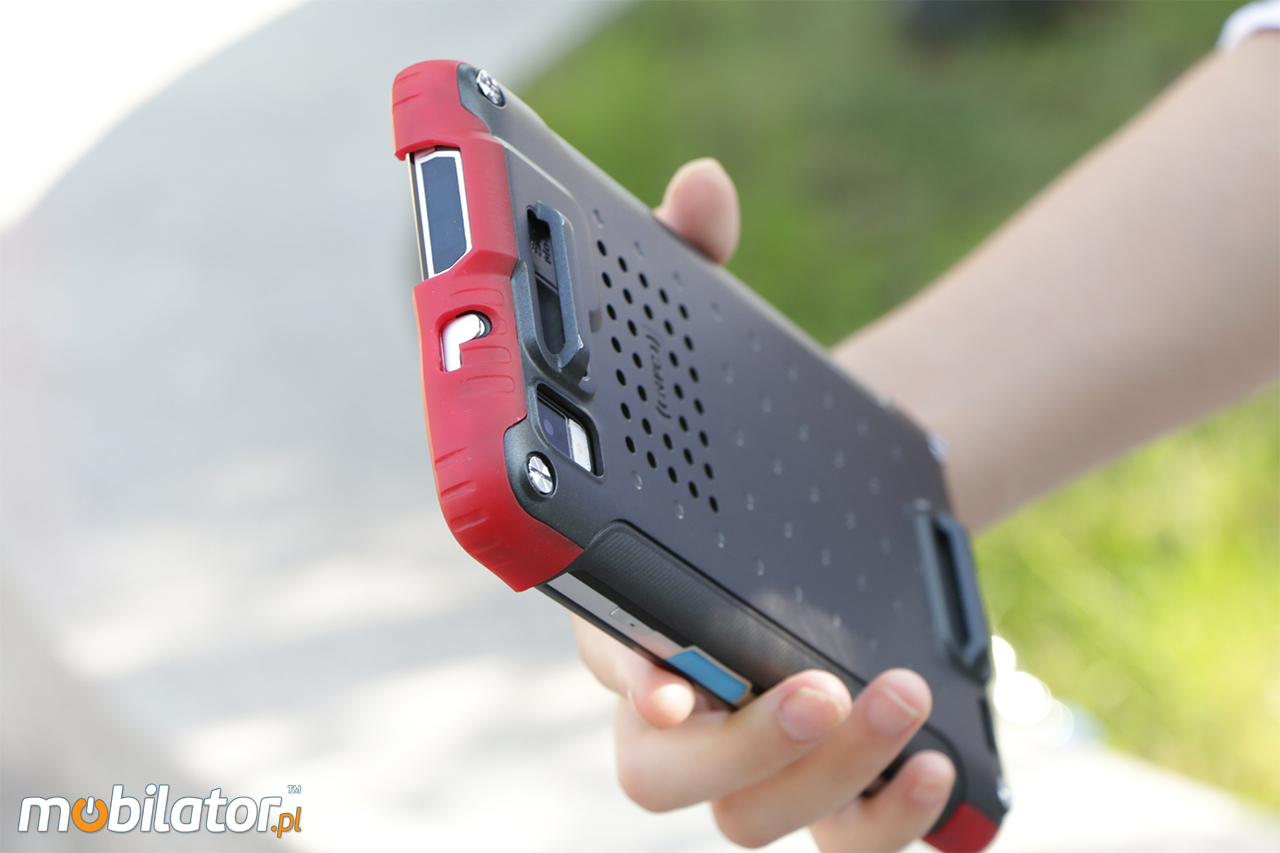

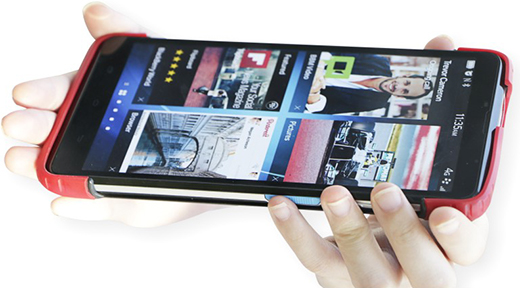

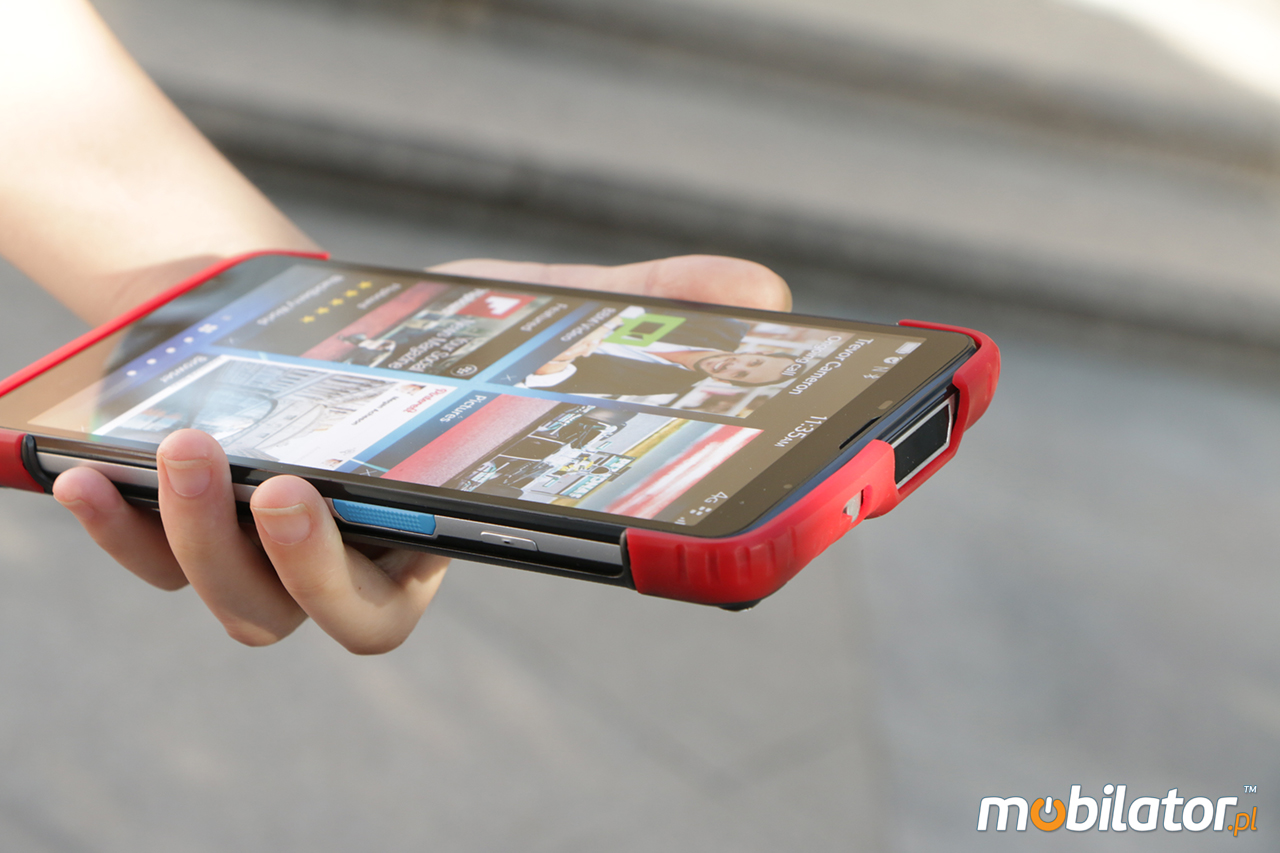

Minimalism
C7 weighs only 350g and its dimensions (188 x 99 x 14mm) allow you to take it with them everywhere. With sleek performance and energy efficiency is on the forefront of devices in this segment and enjoys great popularity on the Polish market in the industrial segment.
|
|
Dimensions |
188*99*14mm |
|
Weight |
350g (with battery) |
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ...
|
Compare all versions
| Durability: |
IP65 |
| Humidity: |
5% - 90% bez kondensacji |
| Waterproof: |
IPx5 |
| Weight: |
|
| Temperature: |
Operating temperature: -10°C -- +60°C
Storage temperature: -20°C -- +65°C |
| Shock: |
----- |
| Vibration: |
----- |
| Drop: |
1.2meters |
| Sand and dust: |
IP6x |
| 1D barcode scanner (reader): |
(1D/2D) NEWLAND™ EM3095 (CMOS) |
| 2D barcode scanner (reader): |
(1D/2D) NEWLAND™ EM3095 (CMOS) |
| RFID scanner (reader): |
NFC (13.56MHz)
ISO 14443A/B
15693 |
| Magnetic card reader (MSR): |
----- |
| Microchip card reader: |
----- |
| Docking station connector: |
----- |
| VESA standard – holders and mounts support: |
----- |
| COM port: |
No |
| Dispaly: |
7" (1280x720) LCD | Multi-Touch | Szk³o hartowane |
| Brightness: |
----- |
| Contrast: |
----- |
| Touch screen: |
Yes - capacitive |
| Graphics card: |
Mali-400 MP |
| Swivel Hinge: |
----- |
| VGA out: |
----- |
| TV Out: |
----- |
| TV Tuner: |
----- |
| Processor: |
Mediatek MT6582 ARM® Cortex®-A7 (Quad Core 4x - 1.3GHz) |
| Chipset: |
----- |
| BIOS: |
----- |
| Memory: |
1GB |
| Hard Drive: |
4GB |
| Flash Memory: |
|
| Battery: |
Li-Polymer 7200mAh |
| Working time on battery: |
Operating time (depending on usage) - 6h
Standby time - 168h |
| HotSwap battery: |
No |
| Fast battery replacement ability: |
Nie |
| Size: |
188*99*14mm
350g |
| Casing material: |
high quality plastic and rubber |
| Fanless casing: |
Yes |
| Operating System: |
Android 4.2.2 |
| LAN: |
----- |
| WLAN: |
IEEE 802.11b/g/n |
| Bluetooth: |
Bluetooth v4.0 |
| WAN: |
2G: 850/900/1800/1900 Mhz
3G: 850/2100MHz |
| GPS: |
GPS + A-GPS |
| Flash Card Reader: |
Yes - max. 32GB |
| CD/DVD: |
----- |
| Camera: |
REAR: 8MPX (Auto Focus+ Flash) |
| Audio: |
Built-in Microphone | Built-in Speaker | Receiver | Audio Jack |
| Seciurity: |
IP65 |
| In/Out: |
|
| Keyboard: |
on-Screen
Home | Menu | Return | ON / OFF | Volume
2x - Barcode Trigger |
| Additional Navigation Devices : |
----- |
| Color: |
black or white |
| Optional accessories: |
----- |
| Other: |
Accessories:
1x - Charger
1x - microUSB Cable
1x - Battery
Charging Station (optional)Sensors:
G-Sensor
Distance Sensor
Light Sensor
E-Compass |
