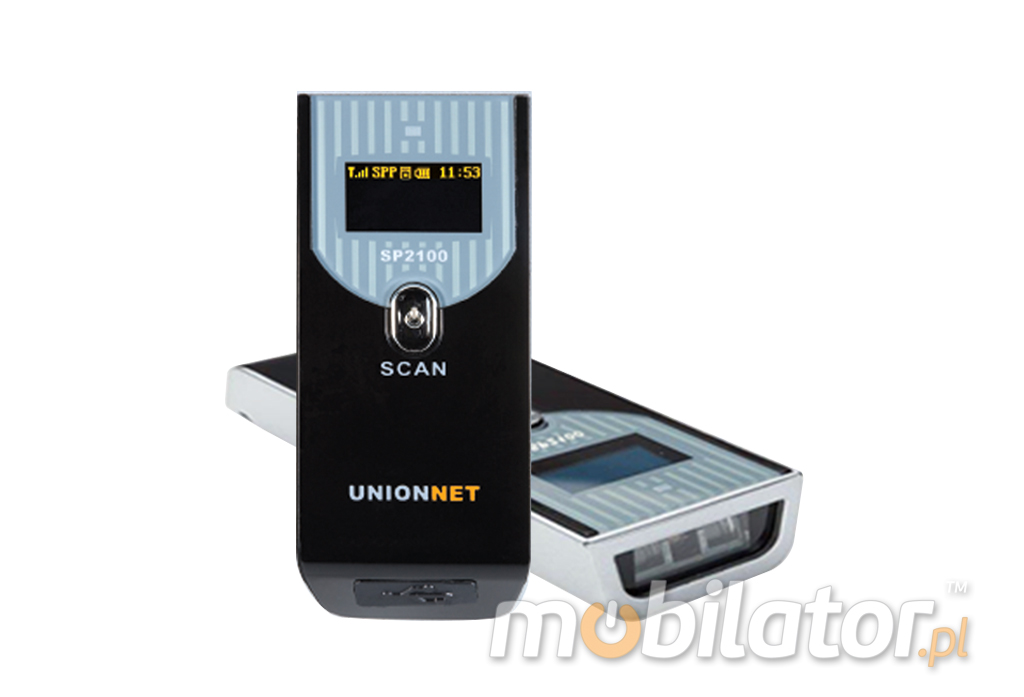

SP-2100 Mini Scanner 2D (CCD) Bluetooth
|
|
The product from the archive - production terminated
|
Compare all versions
|
.jpg)
|

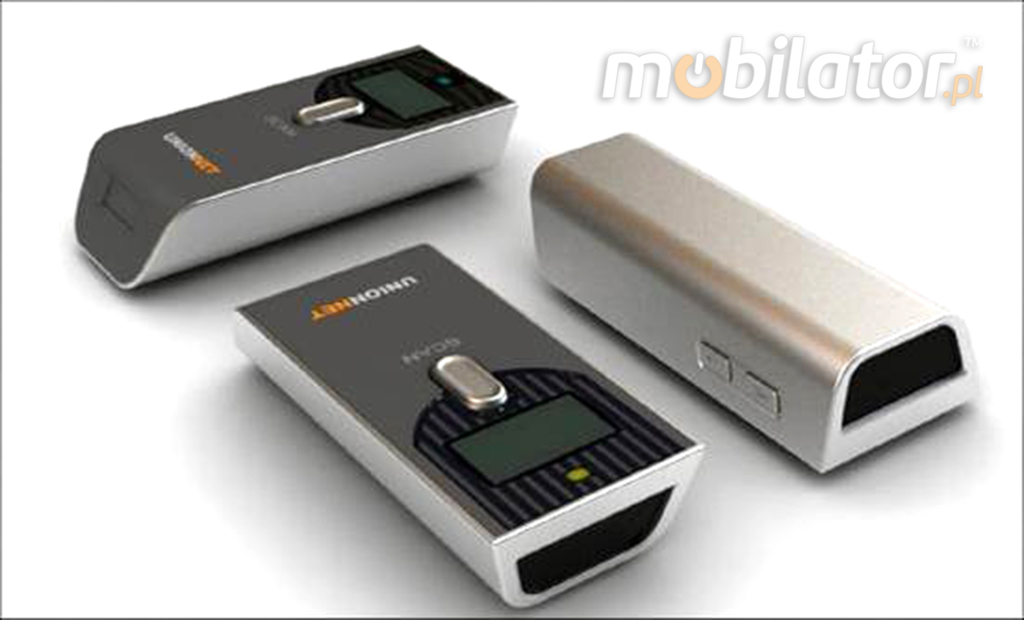

The company's UnionNet new distribution of Mobilator. Company achieved an excellent reputation as a manufacturer of bar code scanners. Due to the high position of the products in the high-tech won the trust of many customers around the world.
|
.jpg)
|
|
|
The bar code scanner is a device that allows data read barcodes from boxes, equipment, documents and all the places where these codes were implemented. UnionNet products are of high quality and the ability to trouble-free operation for many years.
.jpg)
|
|
UnionNet SP-2100 2D CCD |
Barcode scanner
|
2D (CCD)
|
|
Display |
LCD (4-lines) |
Working time
|
2,5h |
Support system
|
Android, iOS, Windows Mobile, Windows XP, Windows 7, Windows 8,
|
|
Range |
15 m |
|
Communication |
Bluetooth 2.1+EDR Class 2
|
|
Dimensions |
43 x 89 x 19 mm
|
Weight
|
79g |
|
Other |
Vibrator motor (option)
|
|
The detailed specification of the configuration available in the "Technical data"
|
|

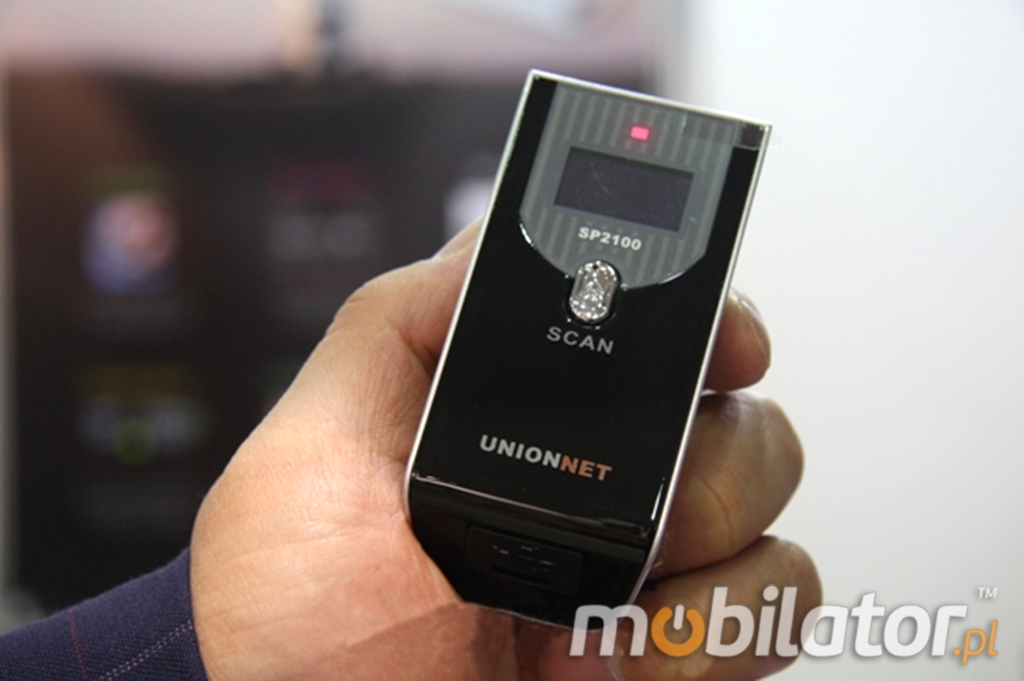

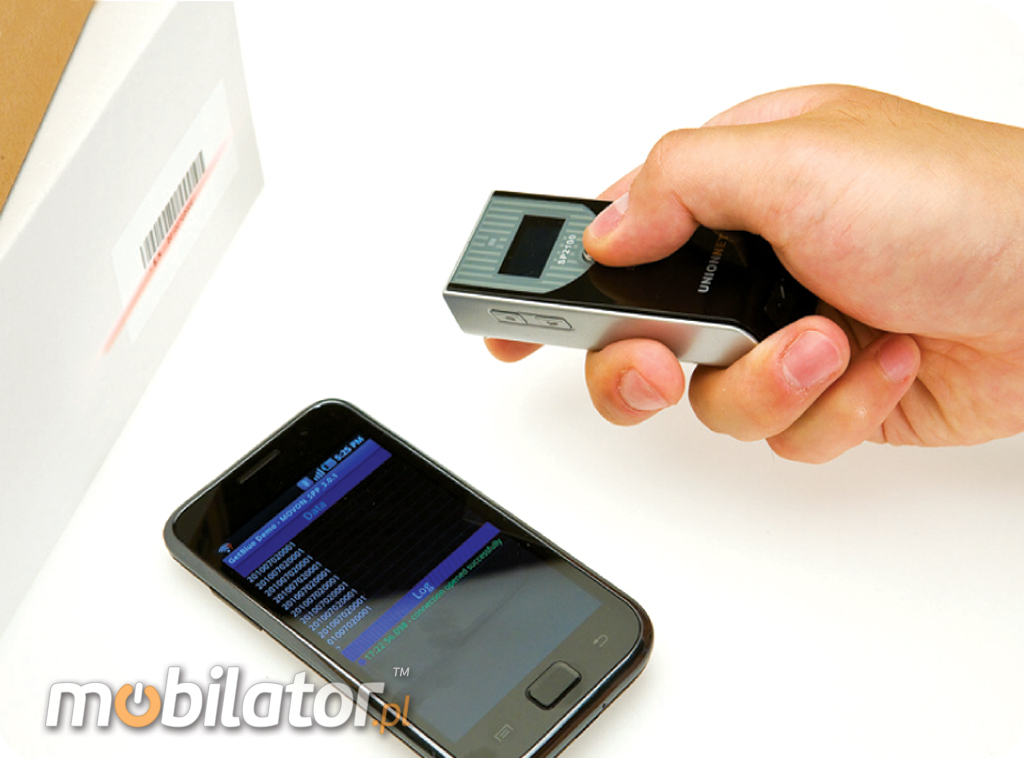

Quirky, curious, wireless mini barcode scanner UnionNet SP-2100 is connected to the device via the Bluetooth is designed for users who require the meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc.

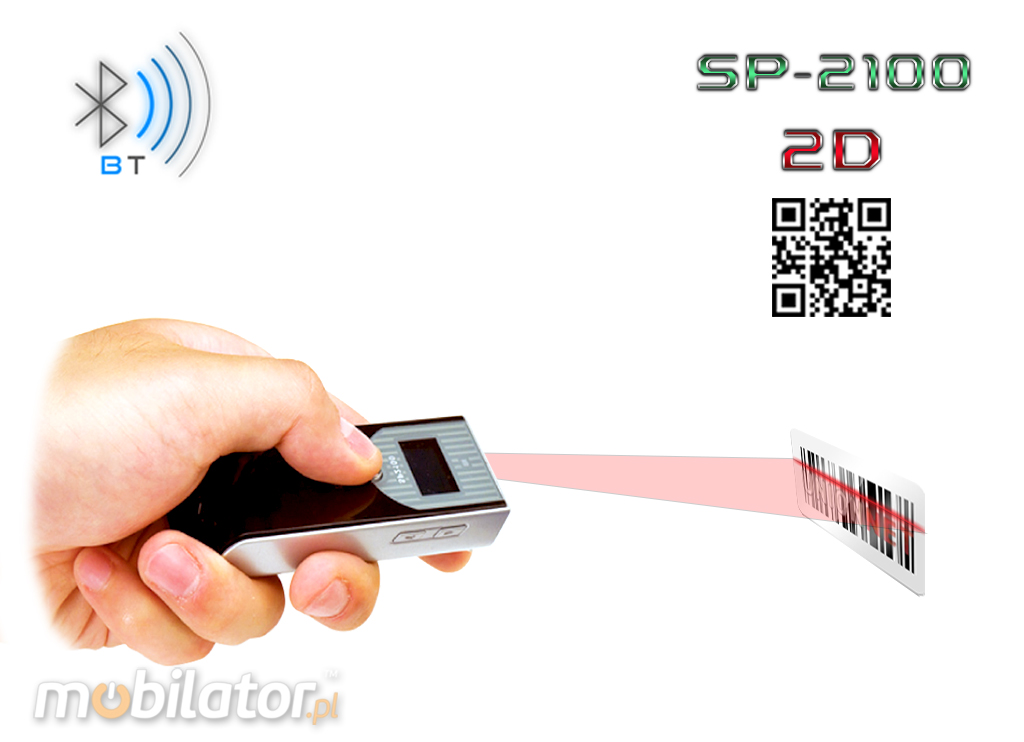

.jpg) SP-2100 intelligent and ergonomic, handheld barcode reader (1D, 2D, QR) will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers and logistics, quality controllers and inspectors of manufacturing processes and all those who work in need of cataloging and storing information with barcodes.
.jpg) 2D barcode scanner CCD - UnionNet SP-2100 through Bluetooth module (which provides reliable communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).
.jpg)
|
Available version UnionNet Scanner SP-2100
|
Version
|
v.1 |
v.2 |
v.3 |
v.4 |
Sensor Type
|
1D(CCD) |
1D Laser |
2D(CCD) |
2D HD
|
 The next generation of mini scanner his appearance. This ergonomic, compact and extremely lightweight barcode reader with appropriate surface texture provides a firm grip and reduces hand fatigue with long hours work.
 SP-2100 2D CCD Bluetooth is equipped with Li-Ion battery with sufficient capacity 1450mAh, which allows about 2.5 hours the to work scanner . At this time it can scan a 30,000 barcode when fully charged.

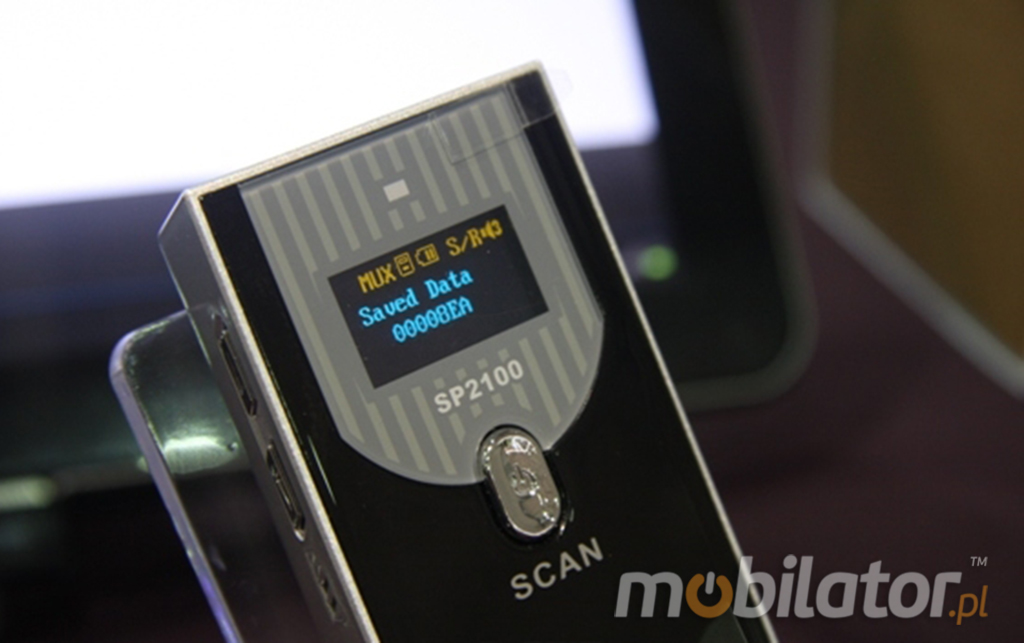

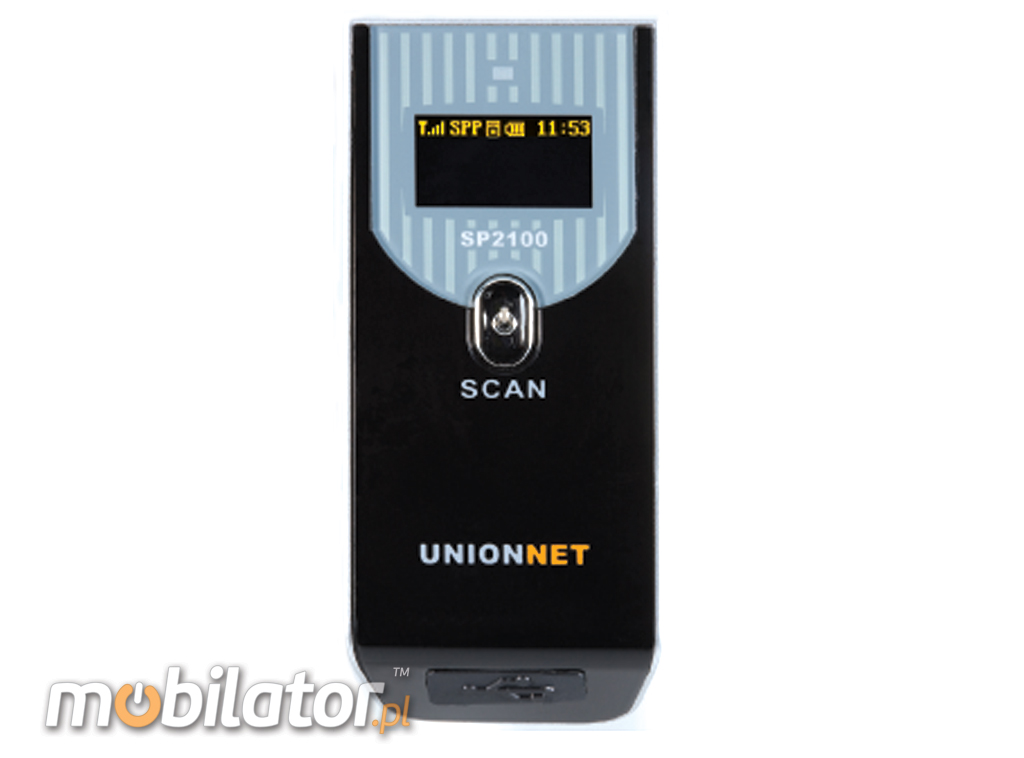

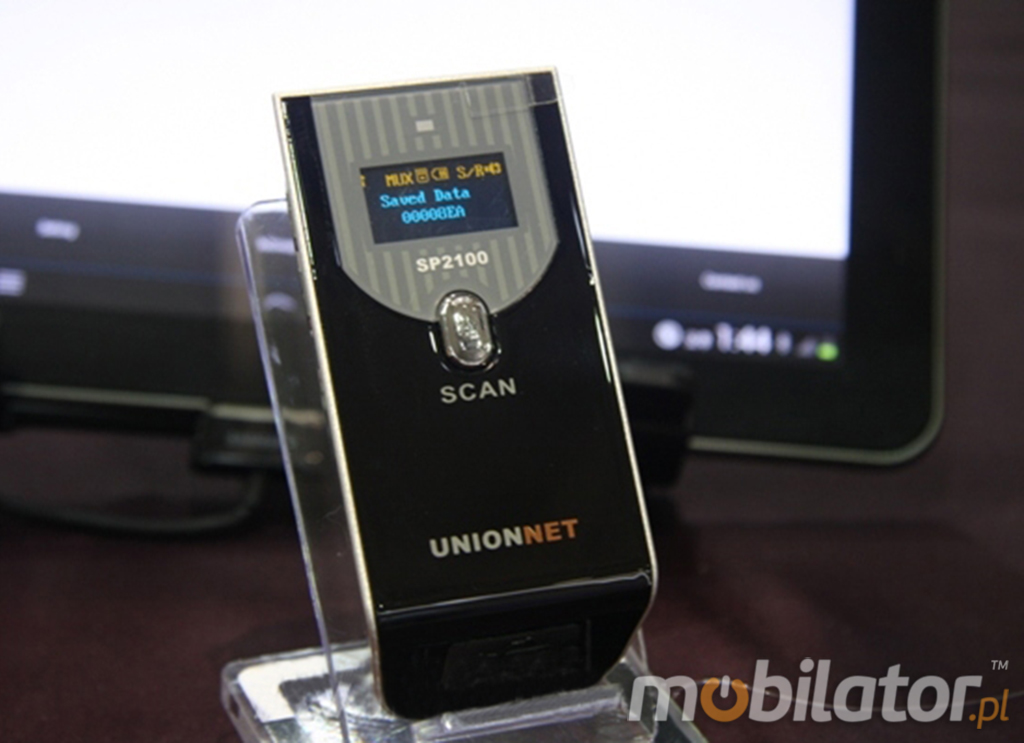

Presented mini barcode scanner has a built-in four line LCD display. So that we can check on the status bierzêco miser and read bar code data in real time.
.jpg)
|
|

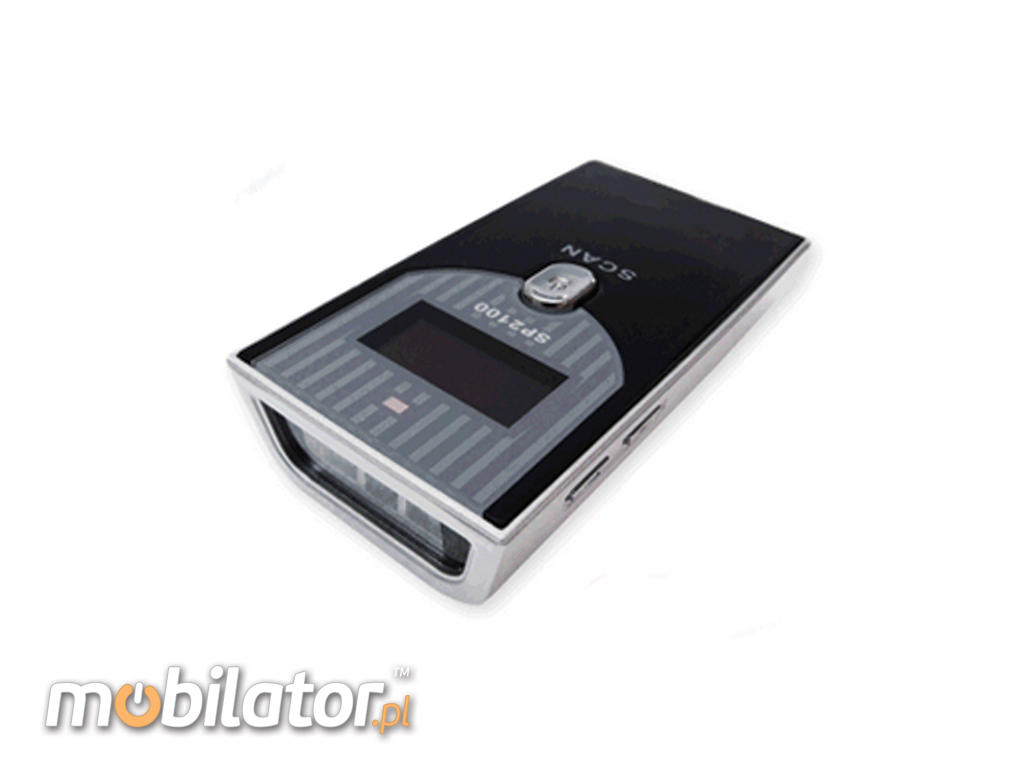

.jpg) Mini scanner has a built-in 2D barcode reader CCD, which is connecting via Bluetooth to the device provides information such as the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.

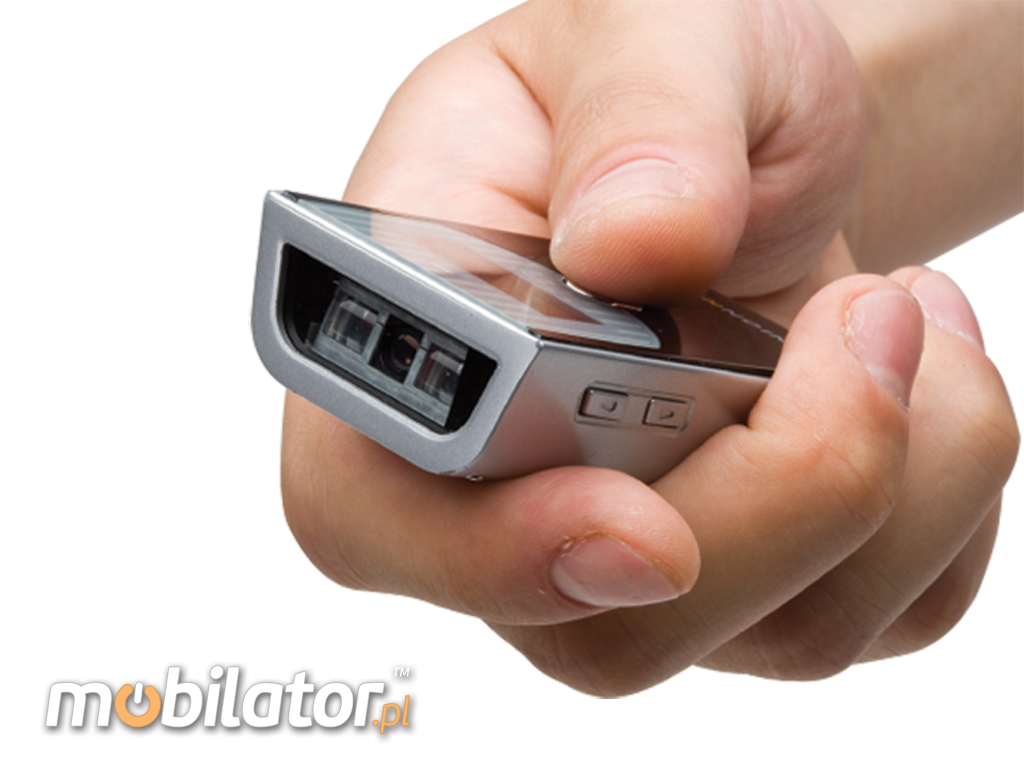

Designed to be tailored to various applications, .jpg) Wireless (Bluetooth) barcode scanner can be compatible with systems such as Android, iOS, Windows Mobile, Windows XP, Windows 7, Windows 8 Users can transfer data in real time to a PC or mobile devices.
|
|
Portable (radio and bluetooth-arid) barcode readers through the use of laser read-out techniques are convenient and easy to use and offer a wealth of configuration parameters. Enable automatic operation and manual. Read codes with different contrasts with a distance of several centimeters. The use of wireless communication offer a range of up to 15m from the computer.
.jpg) Scanner SP-2100 has an additional application, which offers limited functionality for Android and iOS user rev. Free software called UniLinker can be downloaded from the AppStore or GooglePlay. Certainly, it is thanks to her we can better manage the device.
The device uses the HID interface
To scanner devices need to use the right software to a serial port (RS-232) collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.
If we have the right scanner (USB HID) - when barcode in fact our introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswaæ text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.
Supported Bluetooth profiles SPP system
SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment).
Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .
|
|
|
|
|
|
Operating |
-10° to 50°C |
|
Operating Humidity |
5% do 95%
|
|
Dust |
IP5x (Protection against dust deposit) |
|
Water |
IPx4 (splashed water) |
|
Drop |
Drops to concrete 4,9ft./1.2m |
IP54 Resistance
 Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.
The first digit [x]
Protection against solid objects
|
|
The second digits [y]
Protection against liquids
|
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from object not greater than 12mm in diamete |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from water projected from a nozzle |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
|
|
|
 |
7
|
|
Protection against immersion
|
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water
|
|
UnionNet SP-2100 which the manufacturer recommends widely used in situations where it is necessary to rapidly identify the goods in commerce, logistics, transport, shipping, industrial, financial and public sectors.
|
|
Pharmacy
The Scanner allows you to quickly identify and enter prescriptions into the database. With a small, mobile, lightweight design is easy to carry and effectively accepting orders.
|
|
Trade
The device is used for fast read-out bar codes. Certainly can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Mini barcode reader Allows you to quickly update the inventory with the help of Bluetooth wireless data transfer.
|
|
Logistics and transport
Small scanner will find all kinds of use including in transport - a portable and super light barcode reader for fast identification.
|
|
|
.jpg) Barcode readers allow you to in the bar code read and send to your database. We offer high quality device for reading bar codes that work flawlessly even in the harshest industrial environments.jpg)
After scanning the coded data can be transferred to a computer or a portable database. Such a rapid and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes.
The bar code scanner can be connected to almost any device of computer - via USB.
UnionNet SP-2100 2D CCD Bluetooth
|
Mechanical
|
Height: 19 mm
Width: 43 mm
Length: 89 mm
Weight: 79g
|
|
Button & Functions: |
One Scan, Button, Two Navigation Buttons, Reset Button.
Functions: Autro Paring, Auto Power-off, Soft Key(toggling in at Android & iOS),
HID Batch, Vibrator motor(option)
|
|
Processor |
ARM 7 32Bit
|
|
Memory |
SRAM: 32KB(RAM) FLASH: 256KB(ROM) External: 8MB (ROM)
|
|
Indicator: |
Dual LED: Scan State / OLED: 4Lines / 2 Colors, RTC (Real Time Clock) Function |
Electrical
|
DC: 5V±10%
|
Scan Preformance
|
Sensor Type: 2D LED Area Imager
Light Source: LED (622nm-628nm)
Scan Rate / Resolution: 752x480
|
Baterry Power
|
Li-ion 1450 mAh
Work time: 2,5h ( 30000 scan.)
|
Barcode Type
|
Code128, EAN-13, EAN-8, Code39, UPC-A, UPS-E, Codabar, Interleaved2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Datarbar, etc.
PDF 417 QR Code (model 1/2), Datamatrix (ECC200, ECC000, 050, 080, 100, 140), Aztec Maxicode etc.
|
|
Communication |
Bluetooth 2.1+EDR Class 2
Range: 15 m
Cabel MiniUSB
|
Scan Range
|
PDF 417 (10mil): 45mm-155mm,
PDF 417 (10mil): 45mm-175mm,
Data Matrix (10mil): 35mm-130mm,
Data Matrix (10mil): 50mm-150mm,
QR Code (10mil): 35-125mm,
QR Code (10mil): 50mm-160mm. |
|
Accessories |
Manual, miniUSB cable, charger, hand strap (optional), car charger (optional)
|
|
more photos in "Gallery"...
specification of this version is available in the "Specifications"...
|
|
|
VIDEO
Barcode SP-2100 HID Bluetooth  Scanner sp-2100 image sending  Bluetooth barcode scanner SP-2100  New Barcode Scanner SP 2100  UnionNet SP2100  SP-2100 Bluetooth Barcode Scanner  SP-2100 Windows 7  SP-2100 Continuous mode  Scanner SP-2100 Bluetooth
Compare all versions
| Supported Operating Systems: |
Android, iOS, Windows Mobile, Windows XP, Windows 7, Windows 8 |
| Internal memory: |
SRAM: 32KB(RAM) / FLASH: 256KB(ROM) / External: 8MB (ROM) |
| Operation Voltage: |
5V ±10% - DC |
| Reading indicator: |
2D CCD |
| Dimensions: |
43 x 89 x 19 mm |
| Weight: |
79 g |
| Battery: |
1450 mAh Li-ion |
| Housing material: |
Plastic |
| Scan rate: |
100 ± 10 scan/sec |
| Light source: |
LED (622nm-628nm) |
| Resolution: |
Area- Imager (752 x 480 Pixels) |
| Communication distance: |
15 m |
| Readable codes: |
Code128, EAN-13, EAN-8, Code39, UPC-A, UPS-E, Codabar, Interleaved2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Datarbar, etc. PDF 417 QR Code (model 1/2), Datamatrix (ECC200, ECC000, 050, 080, 100, 140), Aztec Maxicode etc. |
| Sensor: |
2D LED Area Imager |
| Scan Angle: |
- |
| Print Contrast Ratio: |
- |
| Scan range: |
PDF 417 (10mil): 45mm-155mm, PDF 417 (10mil): 45mm-175mm, Data Matrix (10mil): 35mm-130mm, Data Matrix (10mil): 50mm-150mm, QR Code (10mil): 35-125mm, QR Code (10mil): 50mm-160mm. |
| Cable Type: |
MiniUSB |
| Battery Life: |
2.5 h |
| Communication: |
Bluetooth 2.1+EDR Class 2 |
| Interface/ Pro le: |
HID / SPP / MFi |
| Operating Temperature: |
-10°C ~ 50°C |
| Storage Temperature: |
-20°C ~ 60°C |
| Relative Humidity: |
5% ~ 95% |
| Resistance IP: |
IP54 |
| Drop test: |
1.2 m |
| Barcodes 1D: |
Barcodes 1D: |
| 2 of 5 Chinese: |
No |
| 2 of 5 Discrete: |
Yes |
| 2 of 5 IATA: |
Yes |
| 2 of 5 Industrial: |
Yes |
| 2 of 5 Interleaved: |
Yes |
| 2 of 5 Matrix: |
Yes |
| 2 of 5 Standard: |
Yes |
| BC - 412: |
No |
| Bookland EAN: |
Yes |
| Codabar: |
Yes |
| Codabar - NW7: |
No |
| Code - 11: |
Yes |
| Code - 11(USD-8): |
No |
| Code - 32: |
Yes |
| Code - 39: |
Yes |
| Code - 39 Extended (full ASCII): |
Yes |
| Code - 39 Trioptic : |
No |
| Code - 93: |
Yes |
| Code - 128 (A, B, C): |
Yes |
| EAN-8: |
Yes |
| EAN-13: |
Yes |
| EAN -128 / UCC-128: |
Yes |
| GS1 DataBar: |
Yes |
| Intelligent Mail: |
No |
| ISBN: |
Yes |
| ISBT - 128: |
Yes |
| ISSN: |
Yes |
| ITF-6: |
Yes |
| ITF-14: |
Yes |
| KIX code: |
No |
| Matrix 25: |
Yes |
| MSI: |
Yes |
| MSI - Plessey: |
Yes |
| Pharmacode - One Track: |
No |
| Pharmacode - Two Track: |
No |
| Planet: |
No |
| Plessey: |
Yes |
| Post - Australian (4-State Postal Code): |
No |
| Post - China (4-State Postal Code): |
No |
| Post - Japanese (4-State Postal Code): |
No |
| Post - Singapore (4-State Postal Code): |
No |
| PostNET: |
No |
| Royal Mail (RM-4SCC): |
No |
| Telepen Code: |
No |
| UK/Plessey: |
Yes |
| UPC - A: |
Yes |
| UPC - E: |
Yes |
| UPC - E1: |
No |
| Barcodes 2D: |
Barcodes 2D: |
| Aztec: |
Yes |
| Composite code: |
Yes |
| DataMatrix: |
Yes |
| MaxiCode: |
Yes |
| Micro PDF 417: |
No |
| Micro QR Code : |
Yes |
| PDF 417: |
Yes |
| QR Code : |
Yes |
| RSS: |
Yes |
| TLC-39: |
No |
Compare all versions
