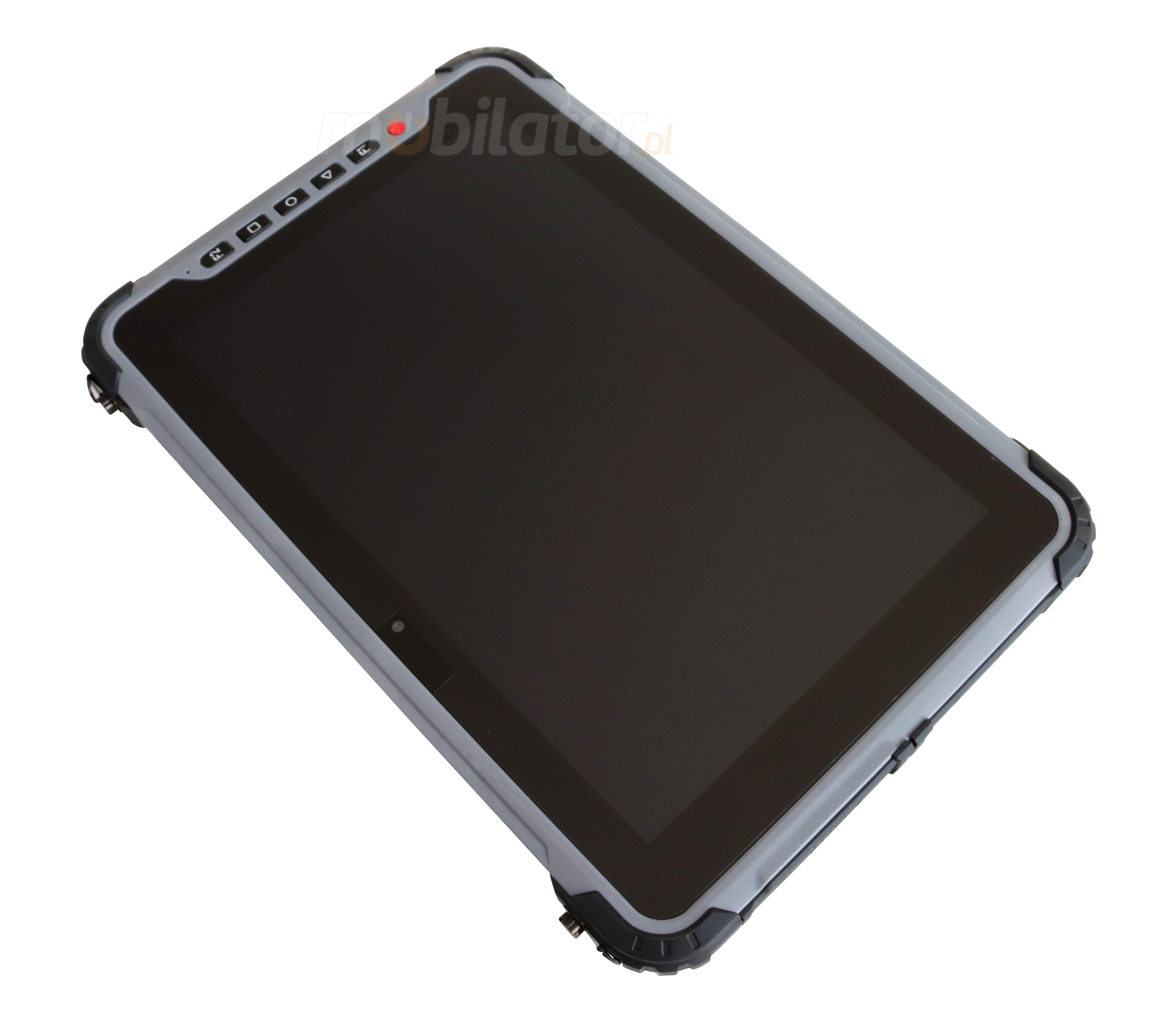

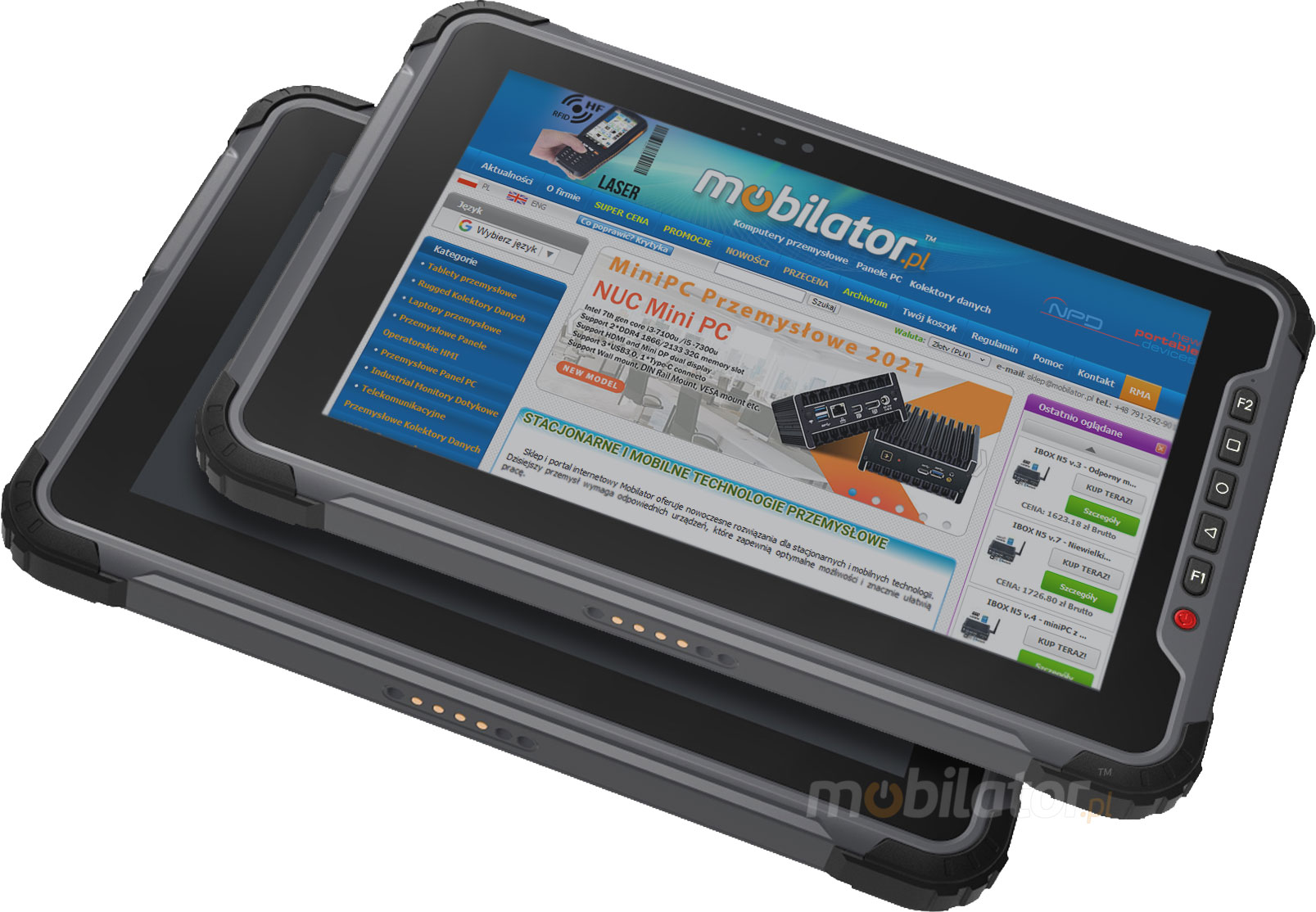

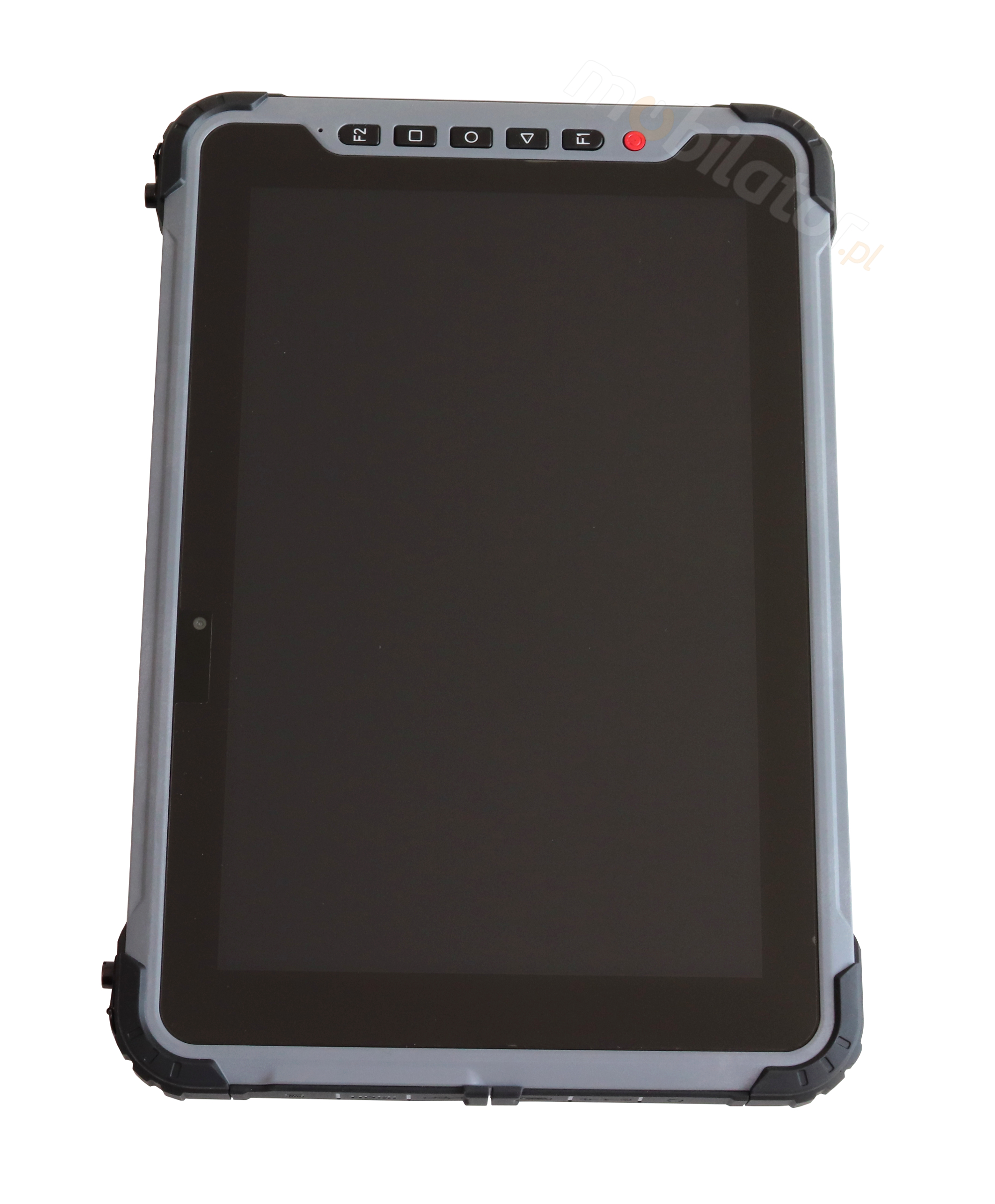

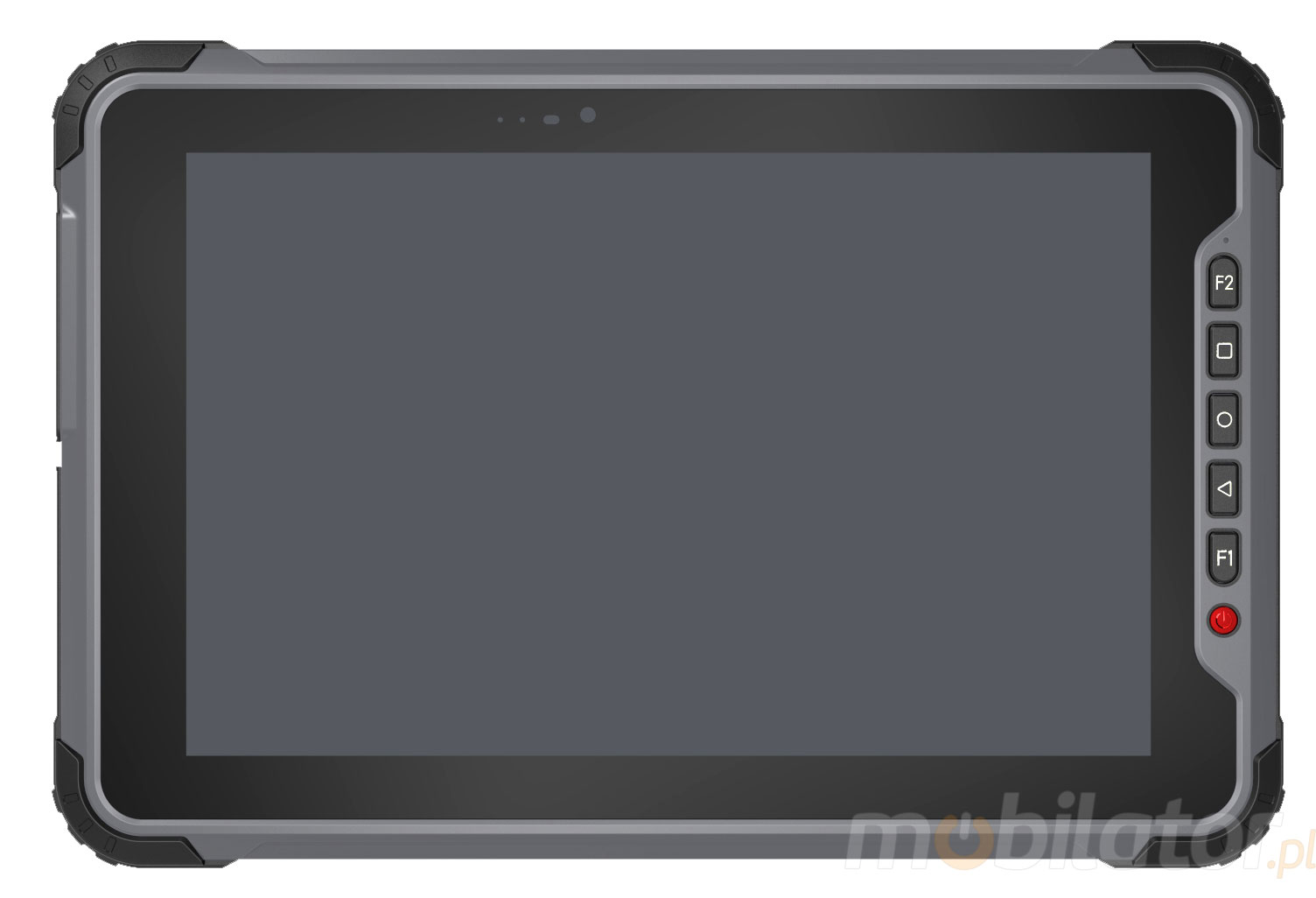

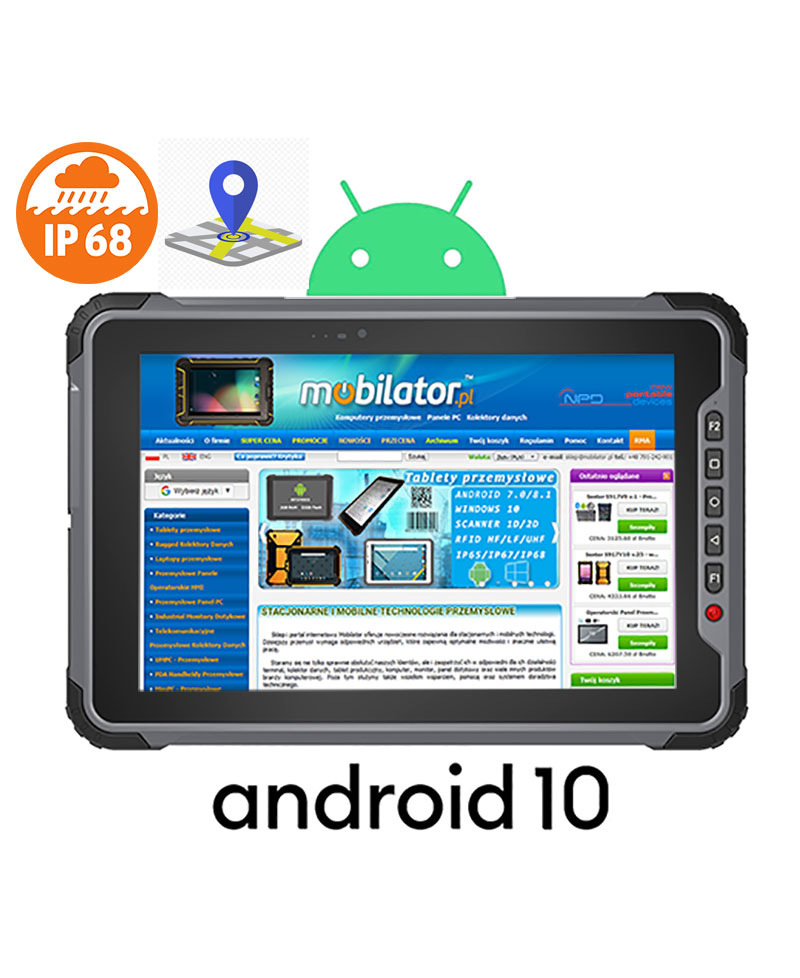

Senter S917V9 is a modern, waterproof industrial tablet designed for extreme applications. It has a specially designed, reinforced construction that meets the requirements of IP67, which confirms the protection of the device against dust and water. Like the military equipment, the tablet has the MIL-STD 810 military standard.
Specification
| Senter S917V9 |
| Processor |
Qualcomm MSM8953 (8x 2GHz) |
| Graphics |
Adreno 506 GPU |
| Operating system |
Android 10.0 |
| RAM |
4GB |
| ROM |
64GB |
| Display |
10.1" | 1920 x 1200 |
| Touch screen |
Capacitive |
| Battery |
3.8V/10000mAh |
| Camera |
5Mpx Front | 13Mpx Rear |
| Protection |
IP68 | MIL-STD 810 |
| Communication |
2G/3G/4G | Bluetooth | NFC | Wi-Fi | GPS* | GPS UBLOX M8N |
| Connectors |
Audio Jack | Charging port |
HDMI
USB-C | LAN | USB-A
|
| Memory card |
Micro SD (max. 512GB) |
| SIM card |
Micro SIM |
| RFID Reader* |
NFC/RFID 13.56MHz | RFID LF | RFID UHF |
| 2D Scanner* |
Honeywell N6603 |
* Optional equipment, available on specific versions only.
Dustproof industrial tablet Senter S917V9 was equipped with high performance, energy-efficient Qualcomm processor. Inside, there are eight cores that allow for more efficient processing of multiple tasks simultaneously. Shared caching, which uses a multi-level hierarchy, is dynamically allocated to each processor core according to the load. This reduces the average access time to main memory. Enhanced graphics card technology lets you enjoy full FHD video and movies. Low power consumption guarantees long battery life.

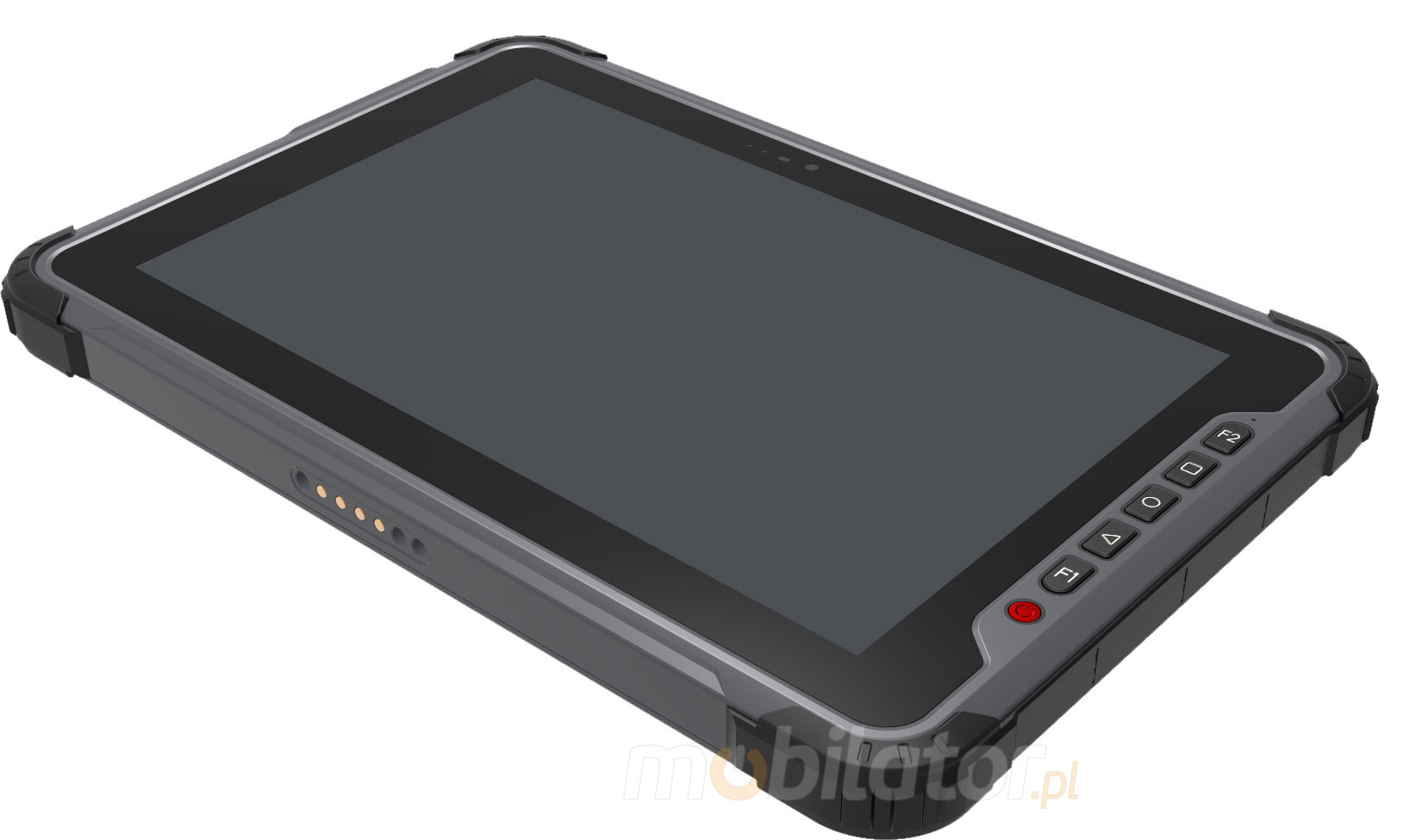

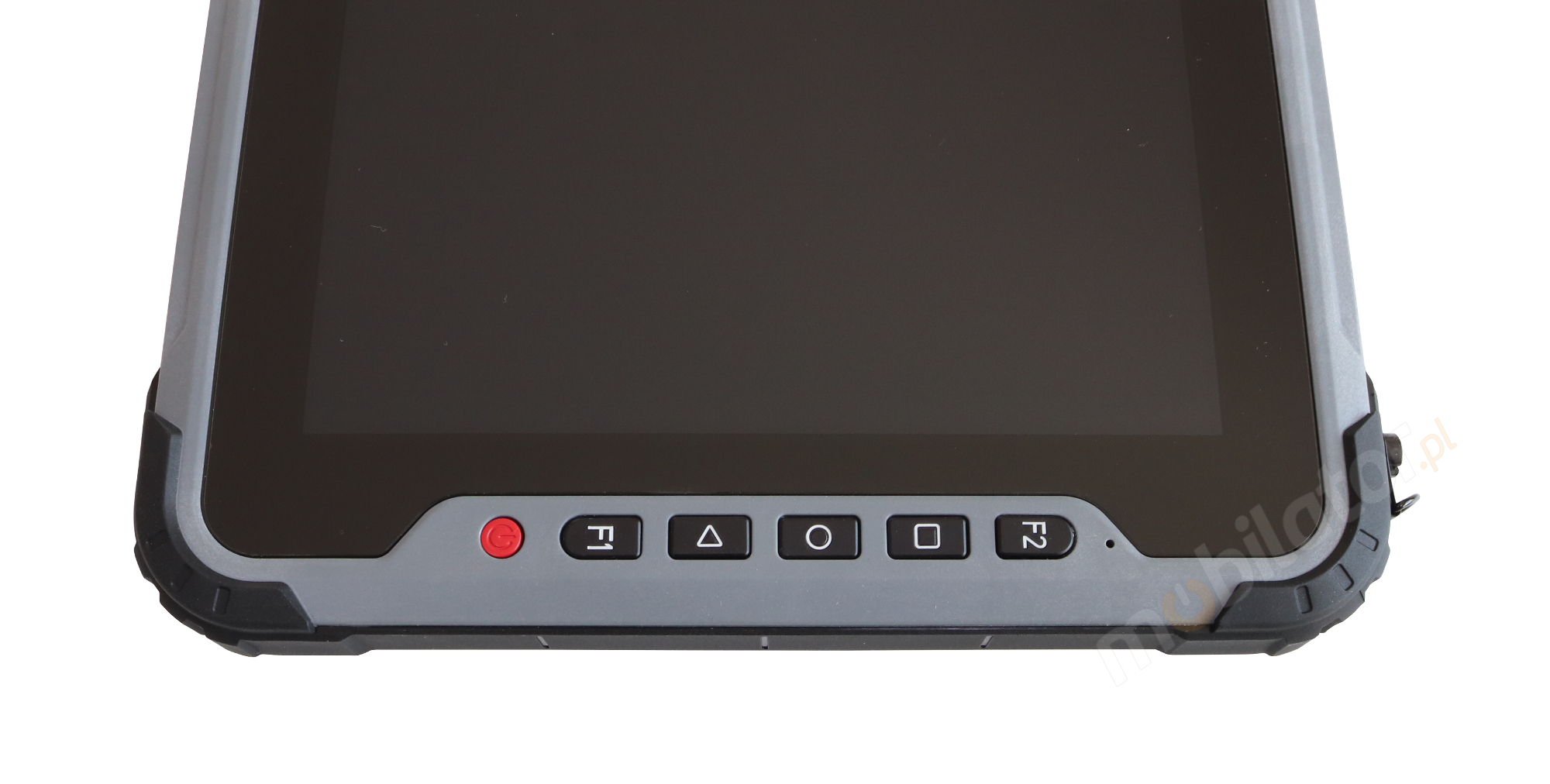

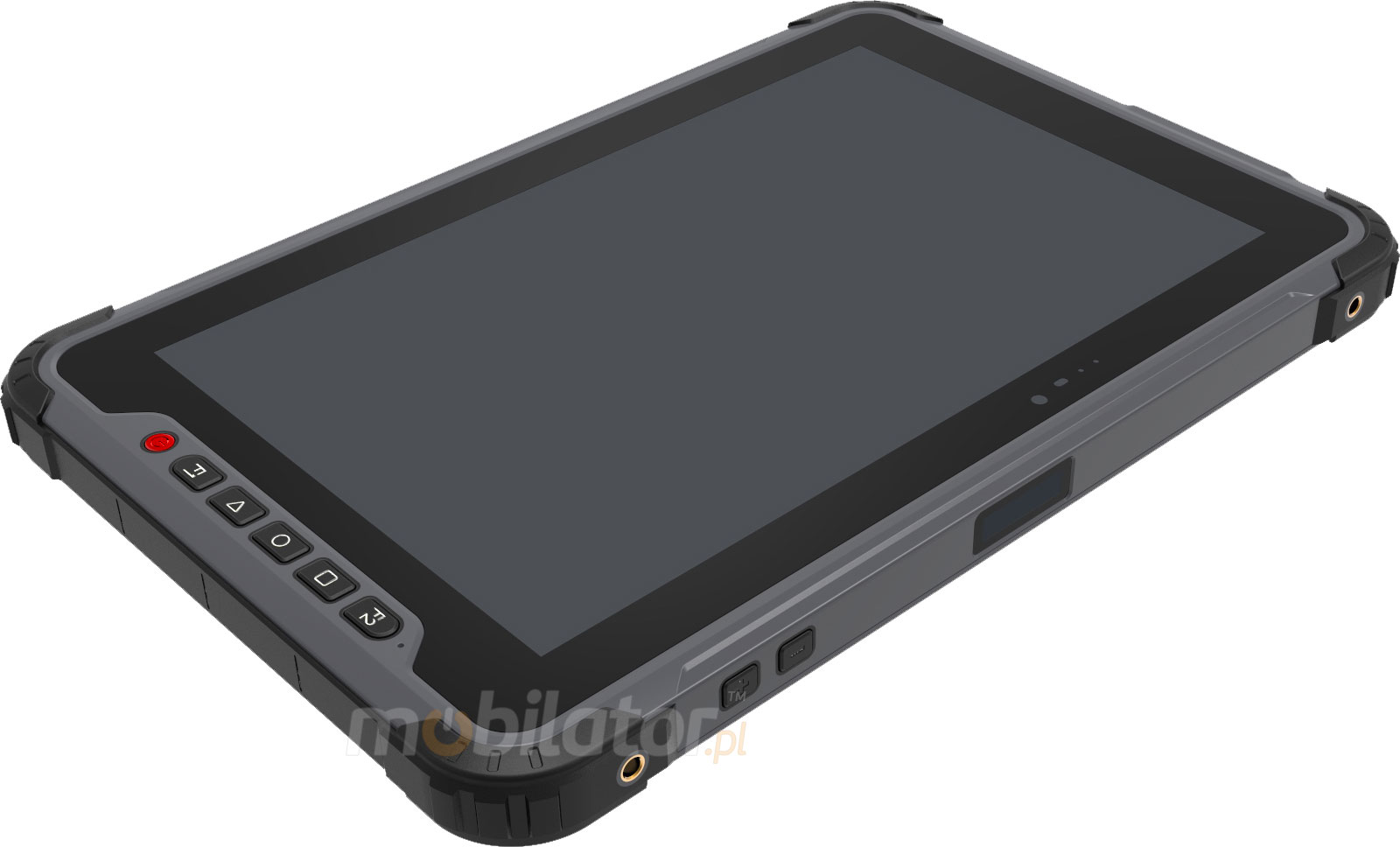

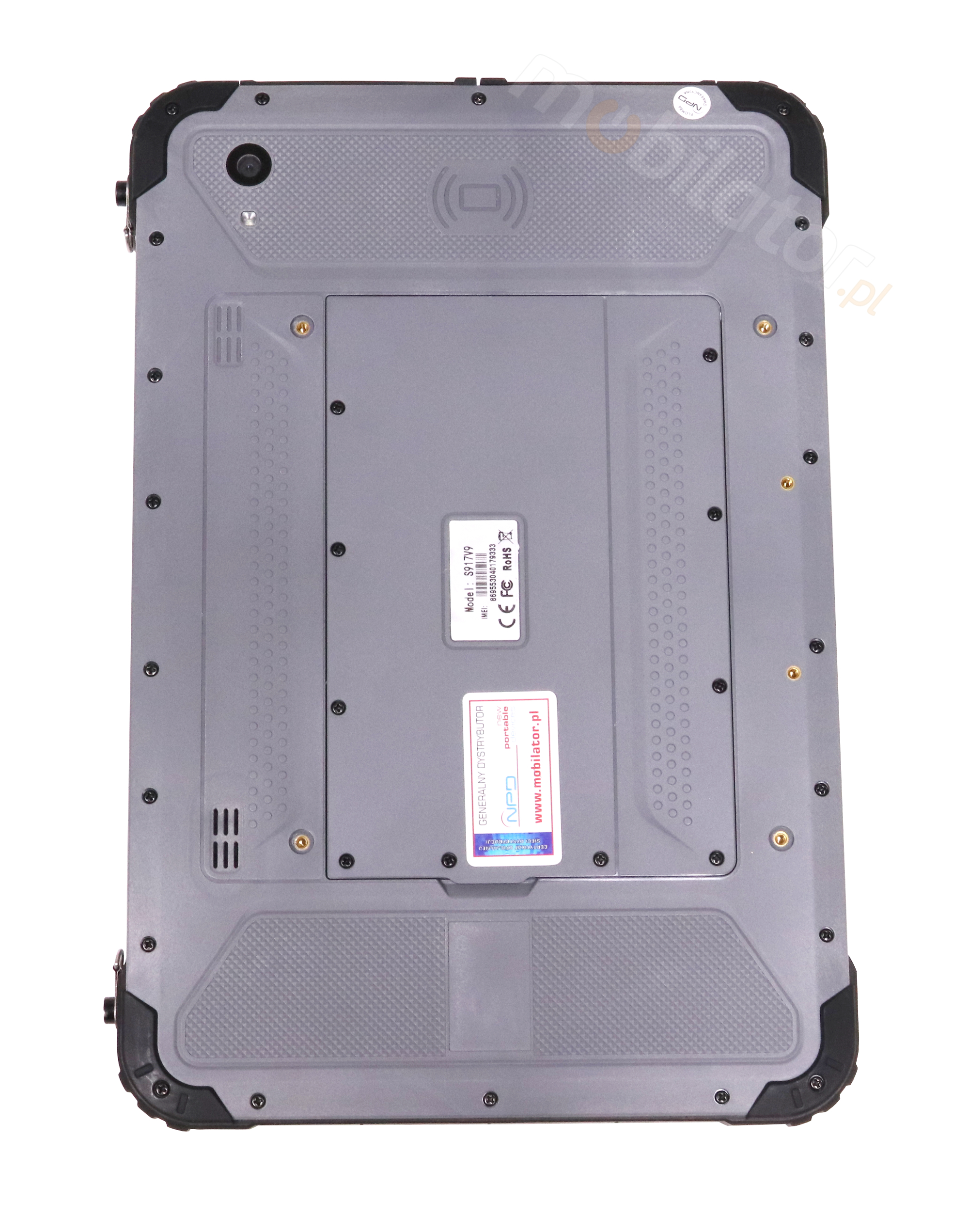

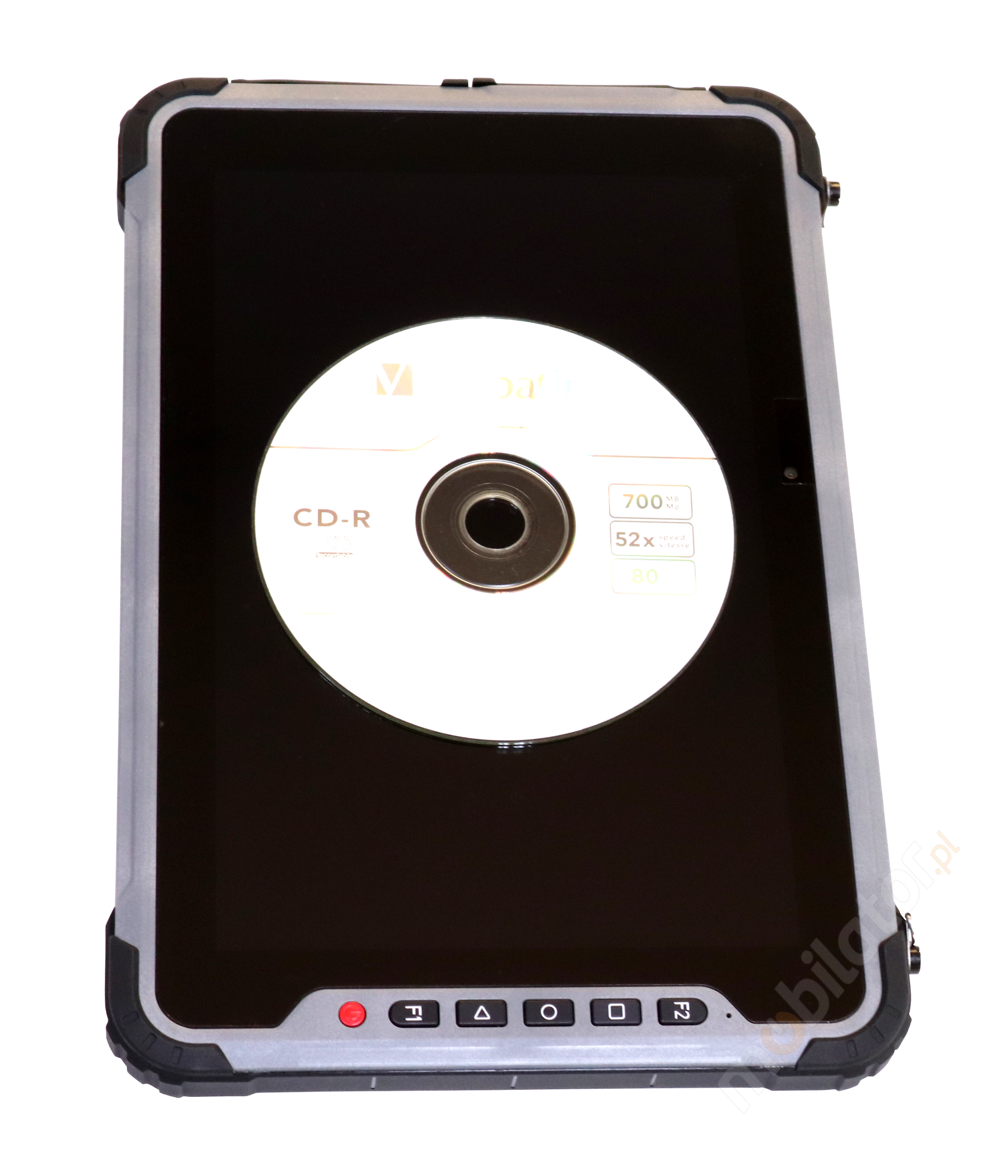

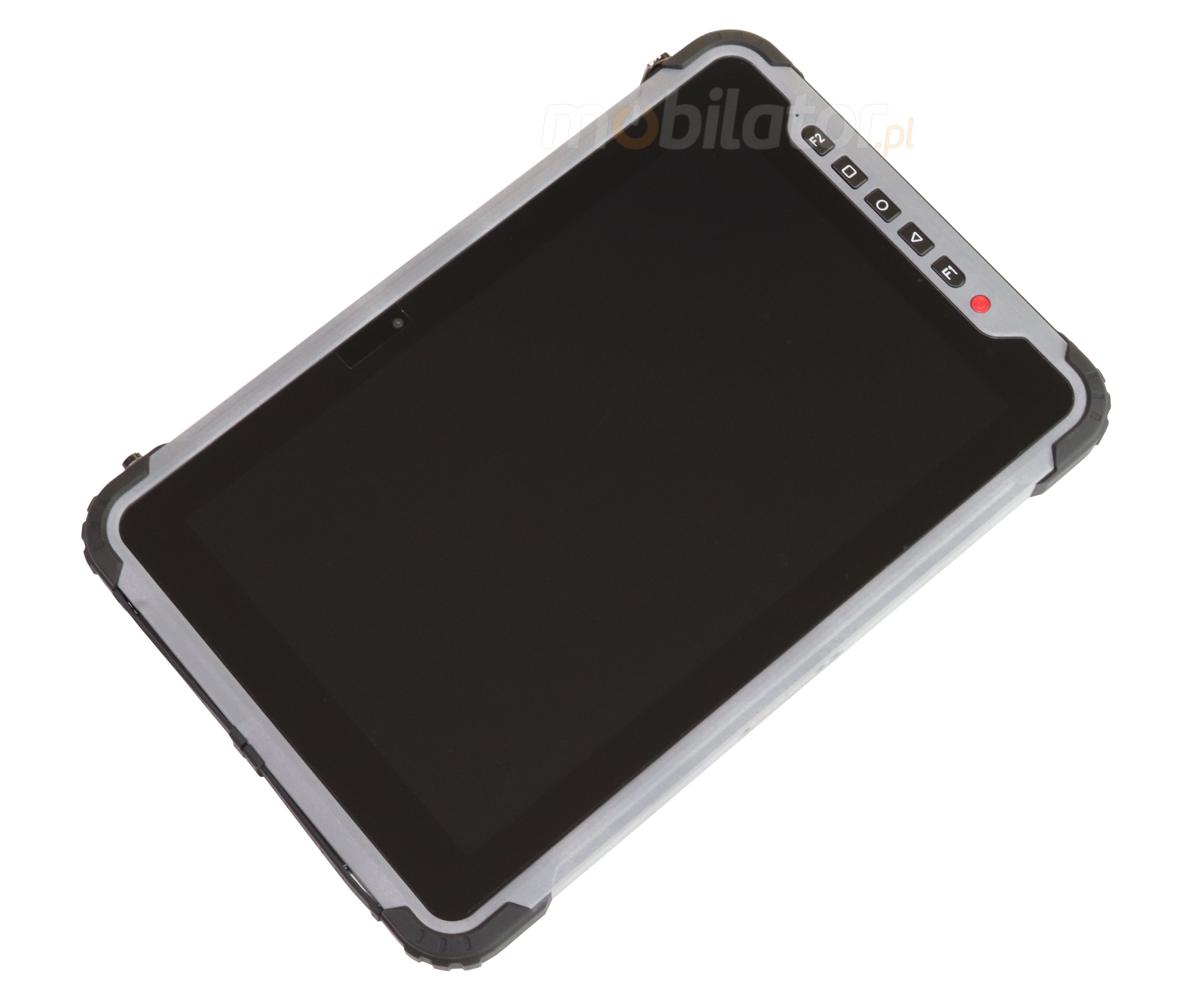

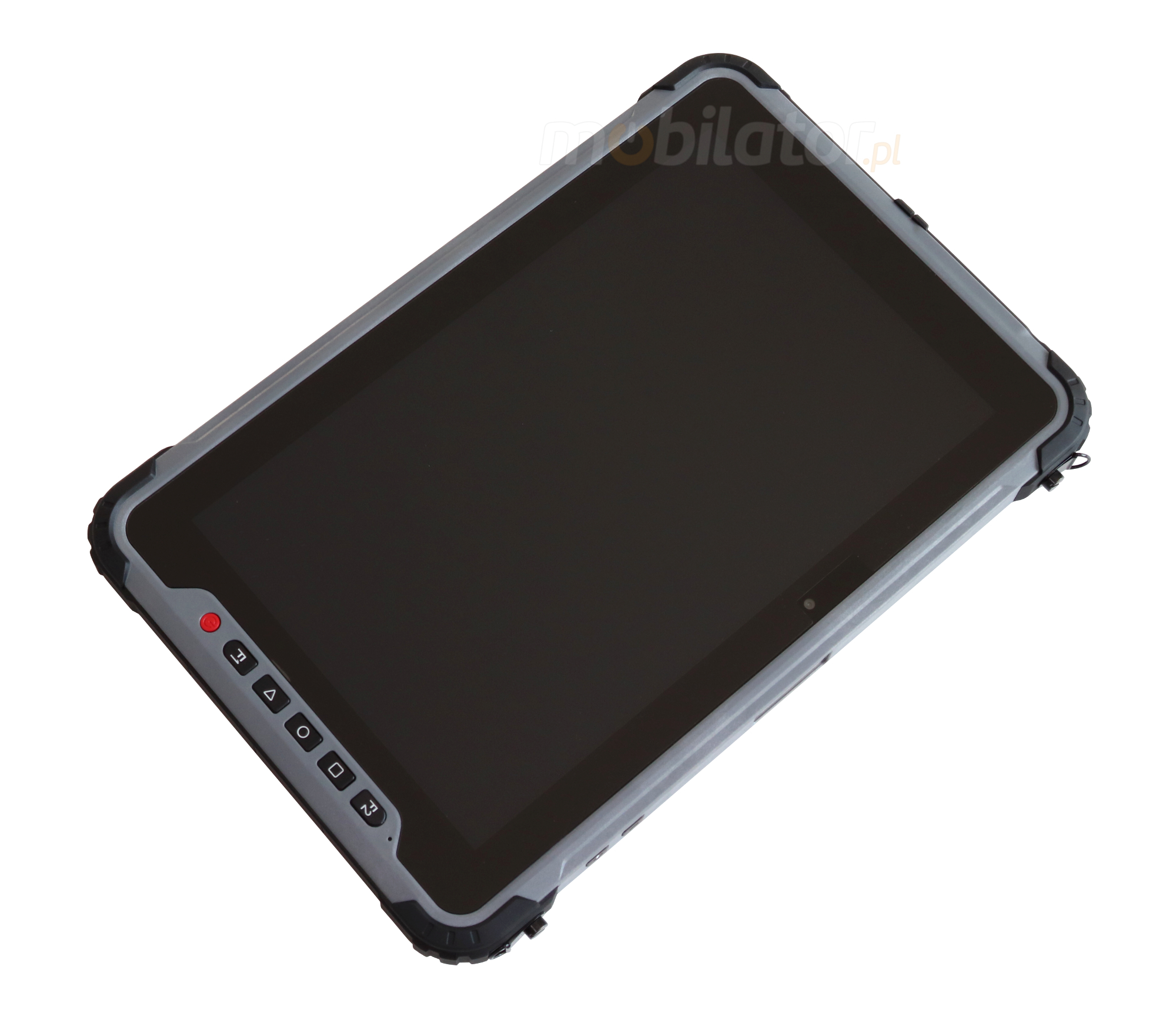

Ergonomic design

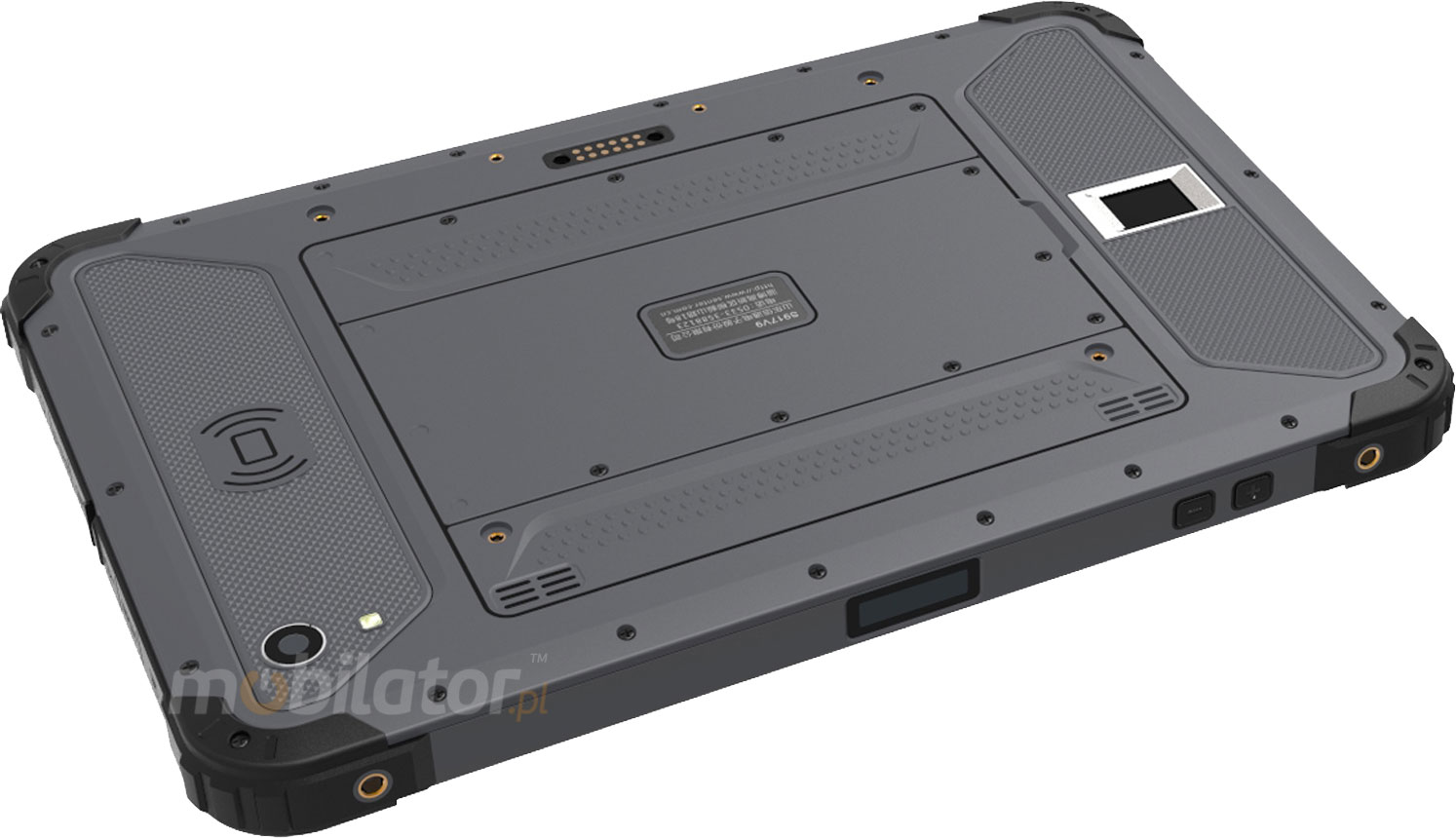

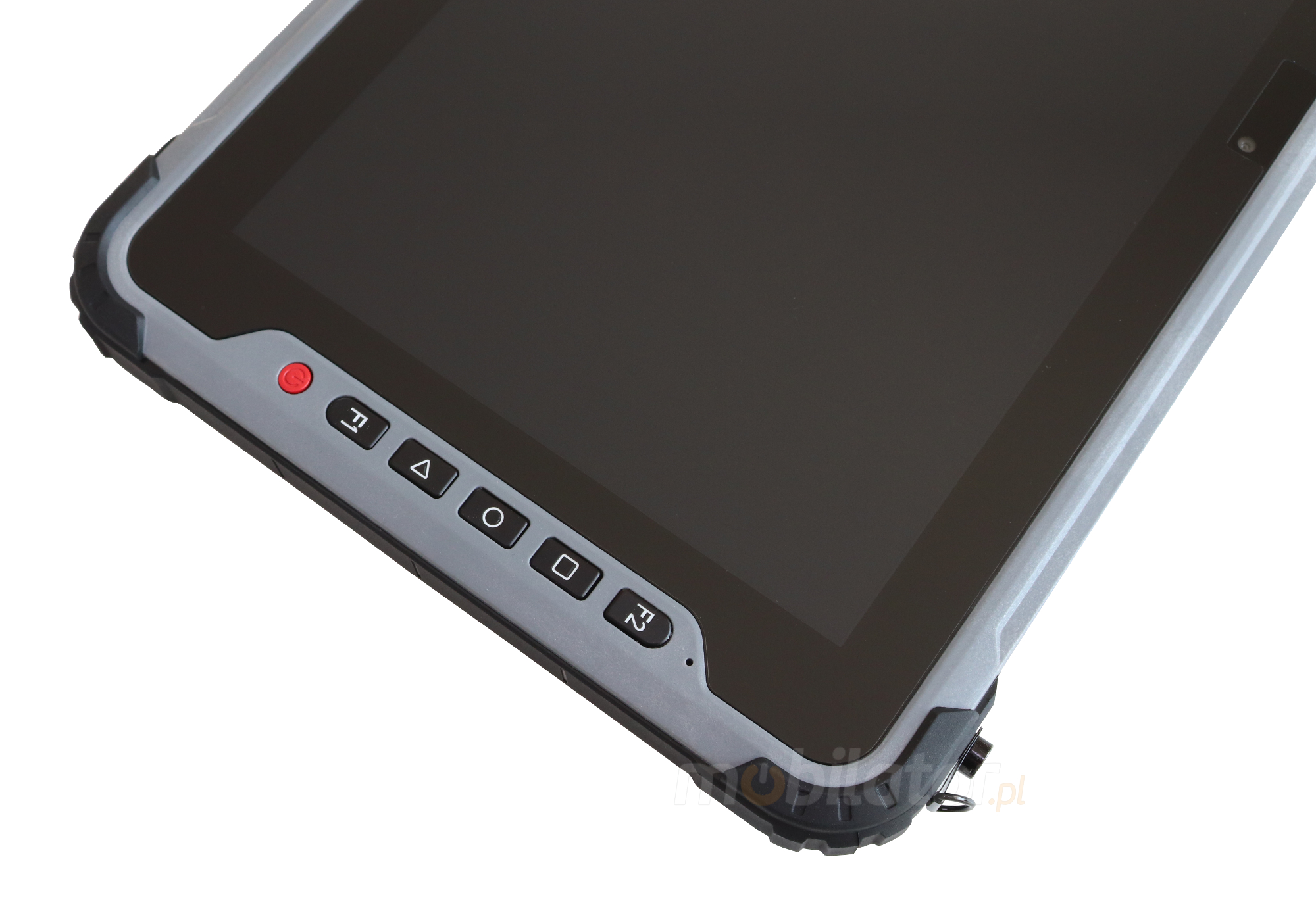

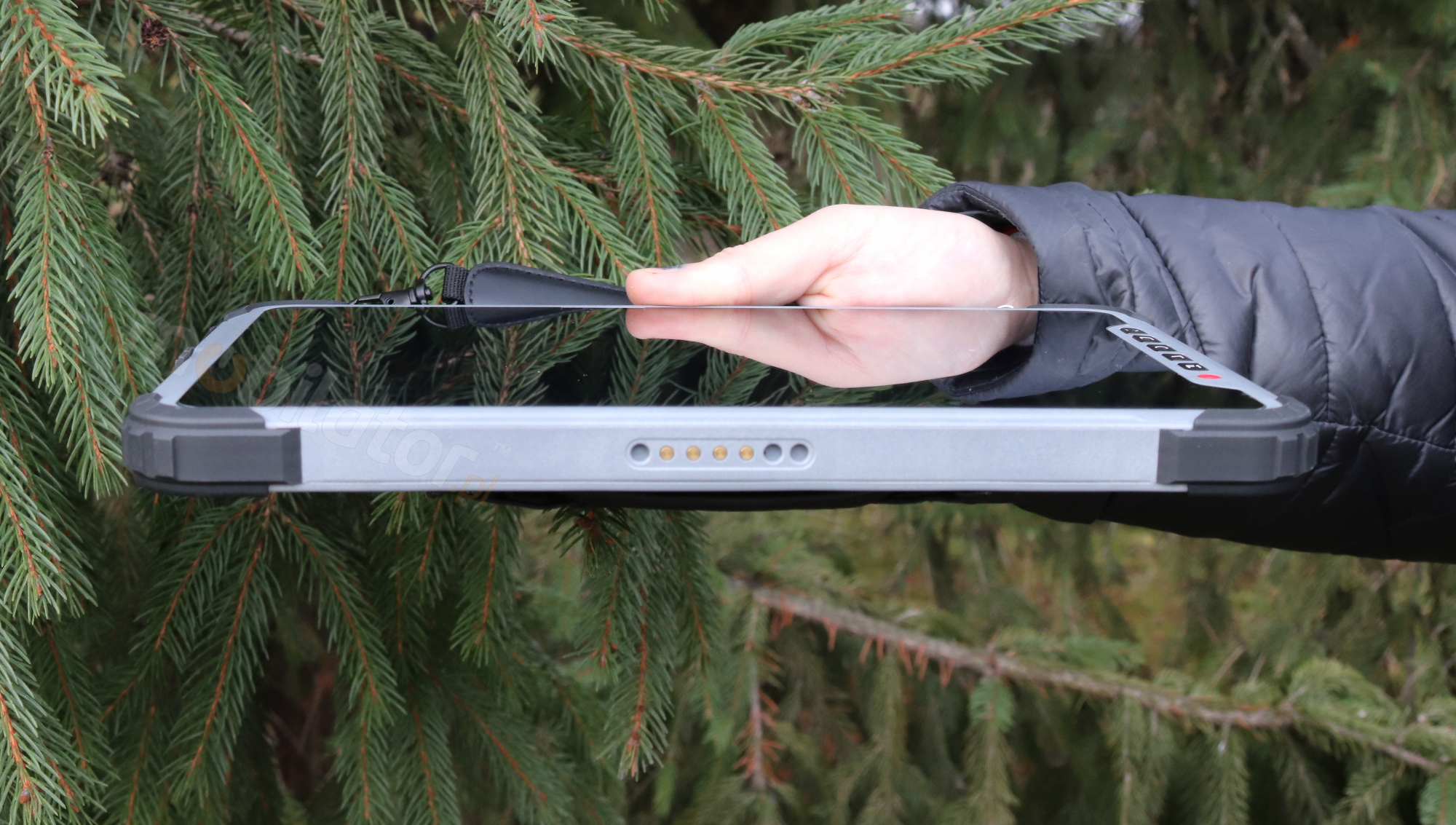

Senter S917V9 industrial tablet is designed for resistance and convenience. The sleek and rugged 19mm thick design and stylish case will make the tablet very well suited for industrial use and more. The unique size has been carefully thought out to make the device more comfortable and ergonomic. The non-slip casing makes it safe and secure to hold it in your hand, and the rubber corners further protect your device against possible damage as a result of falls.
| Dimensions |
277 x 183 x 19mm |
| Net weight |
1109g |

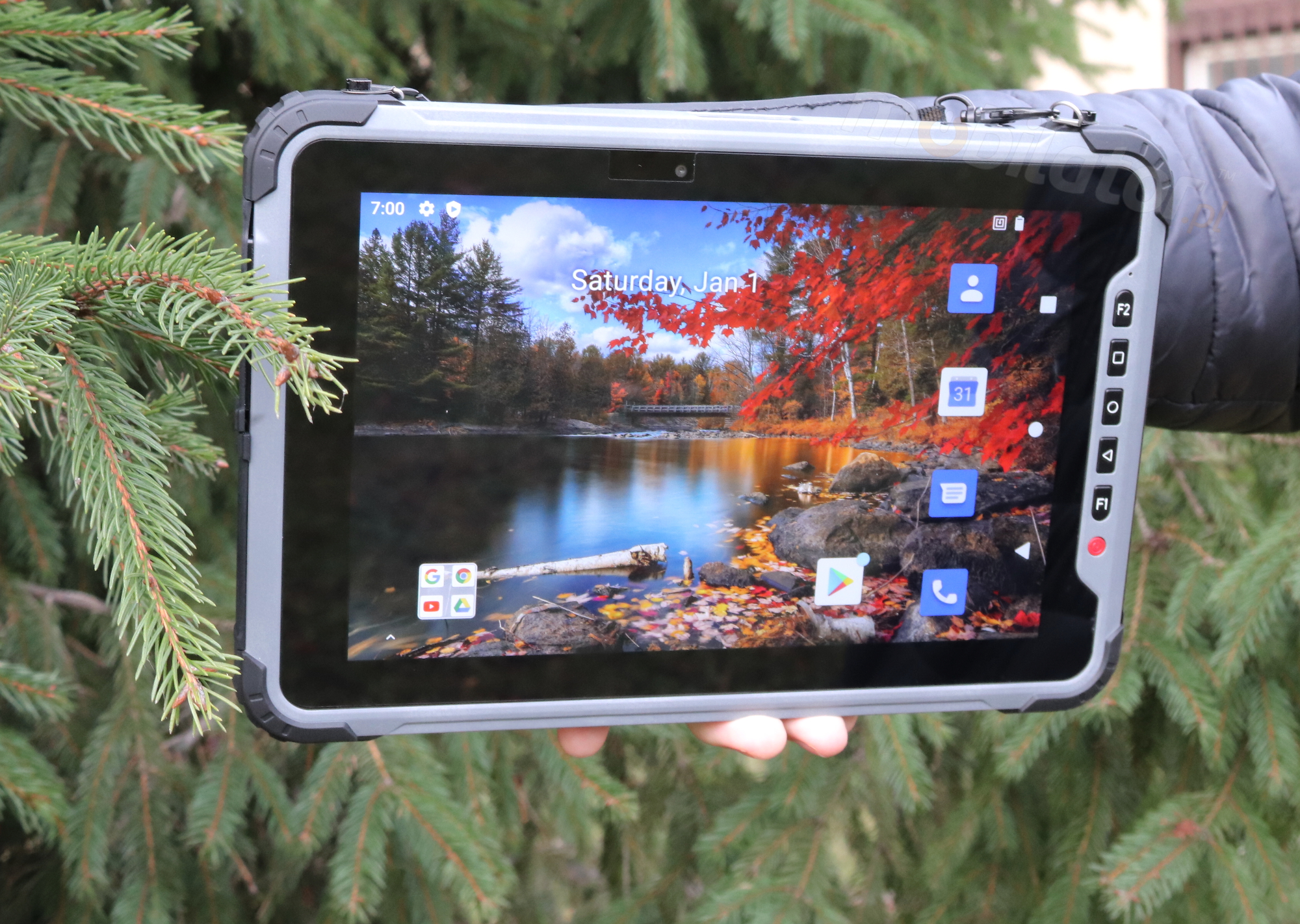

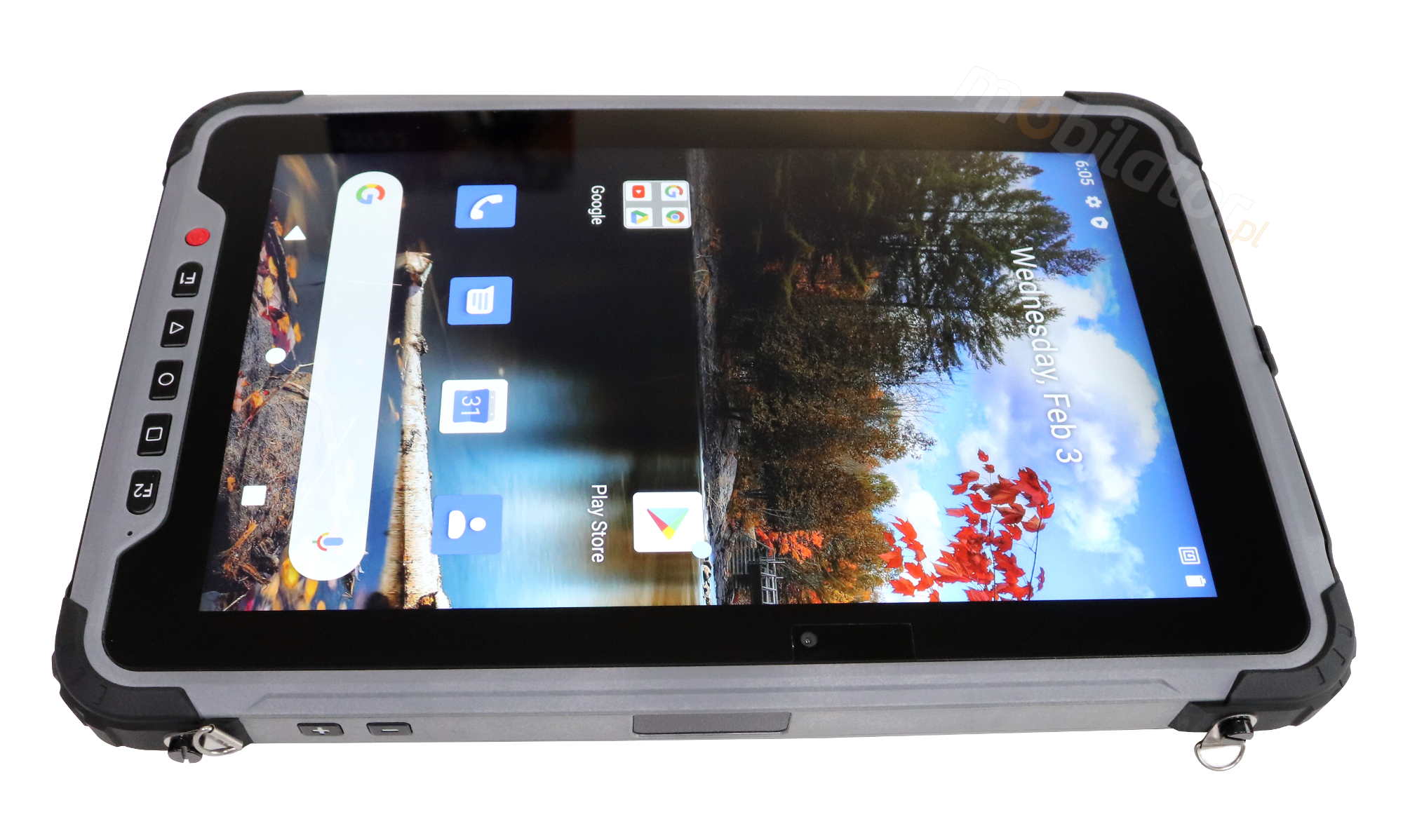

Capacitive screen
With the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our tablet or the collector with a few fingers at once.

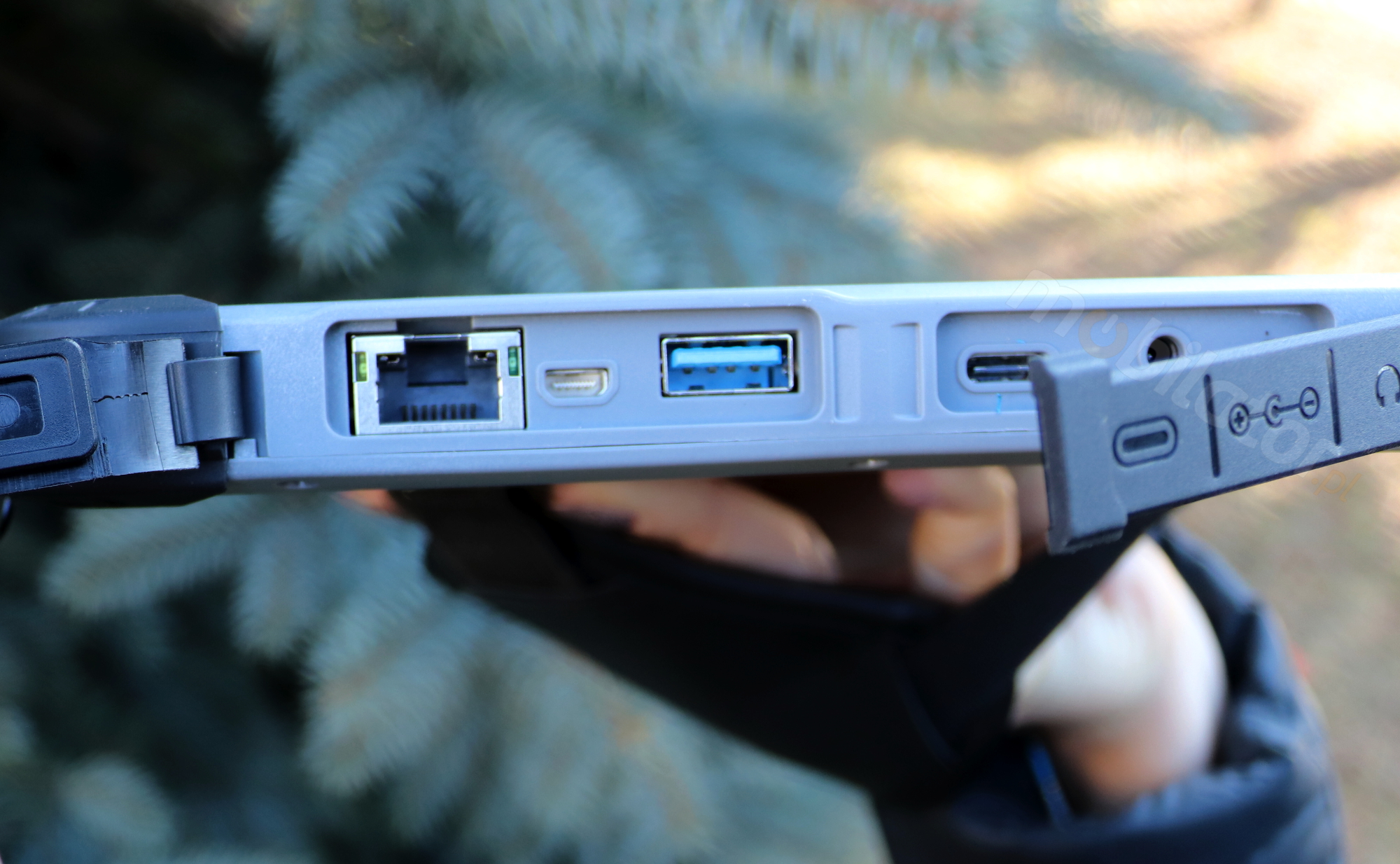

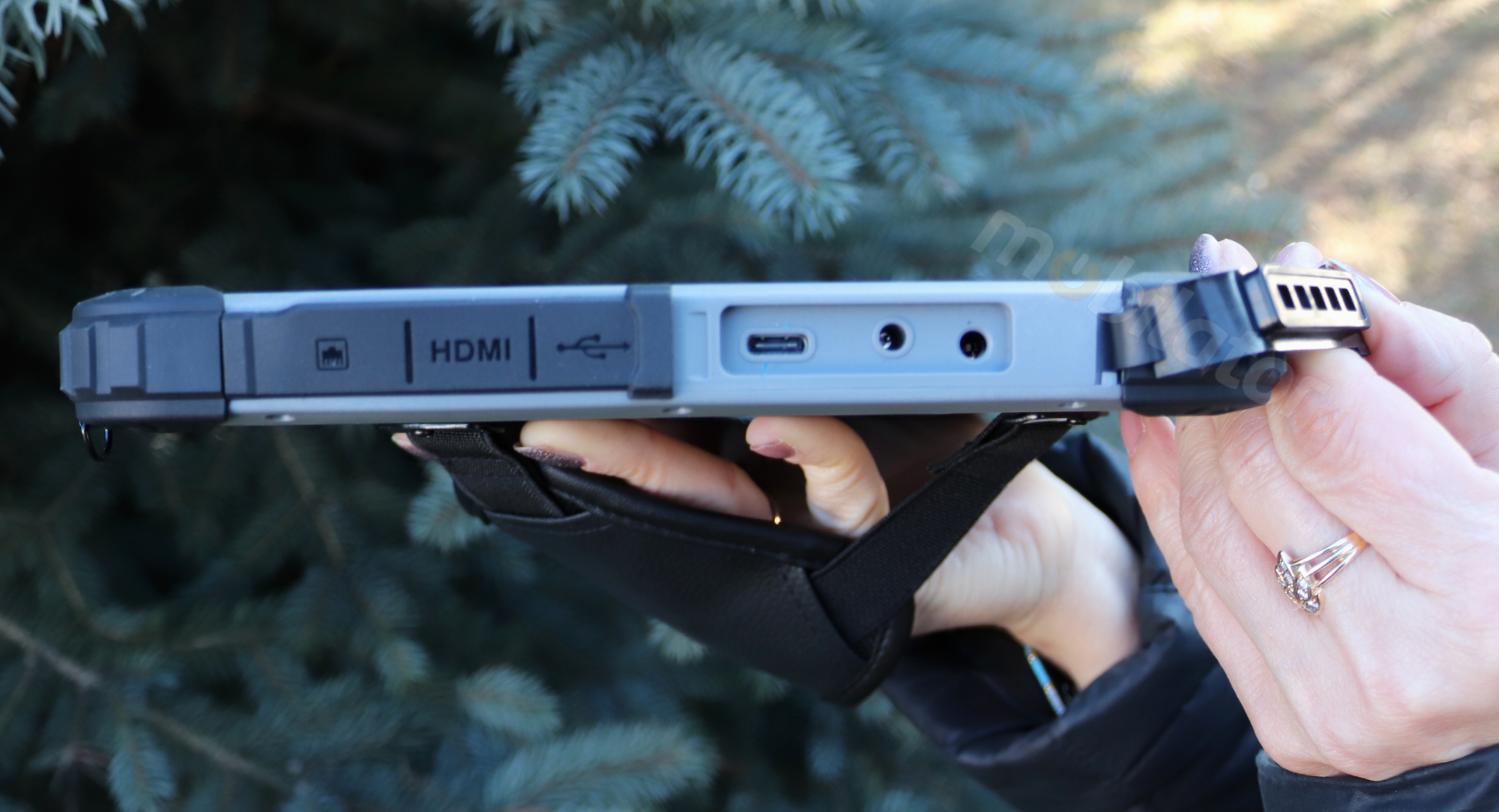

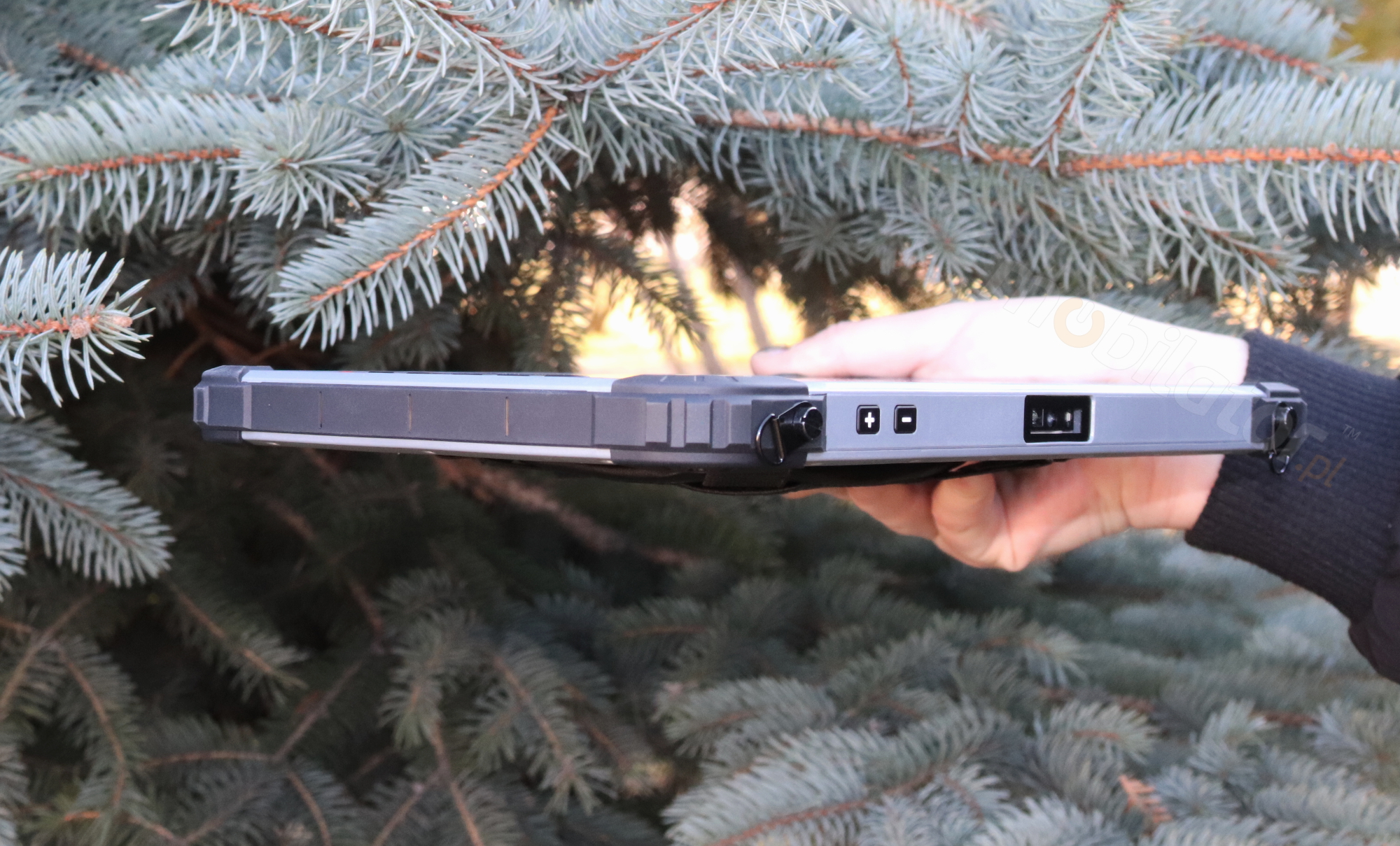

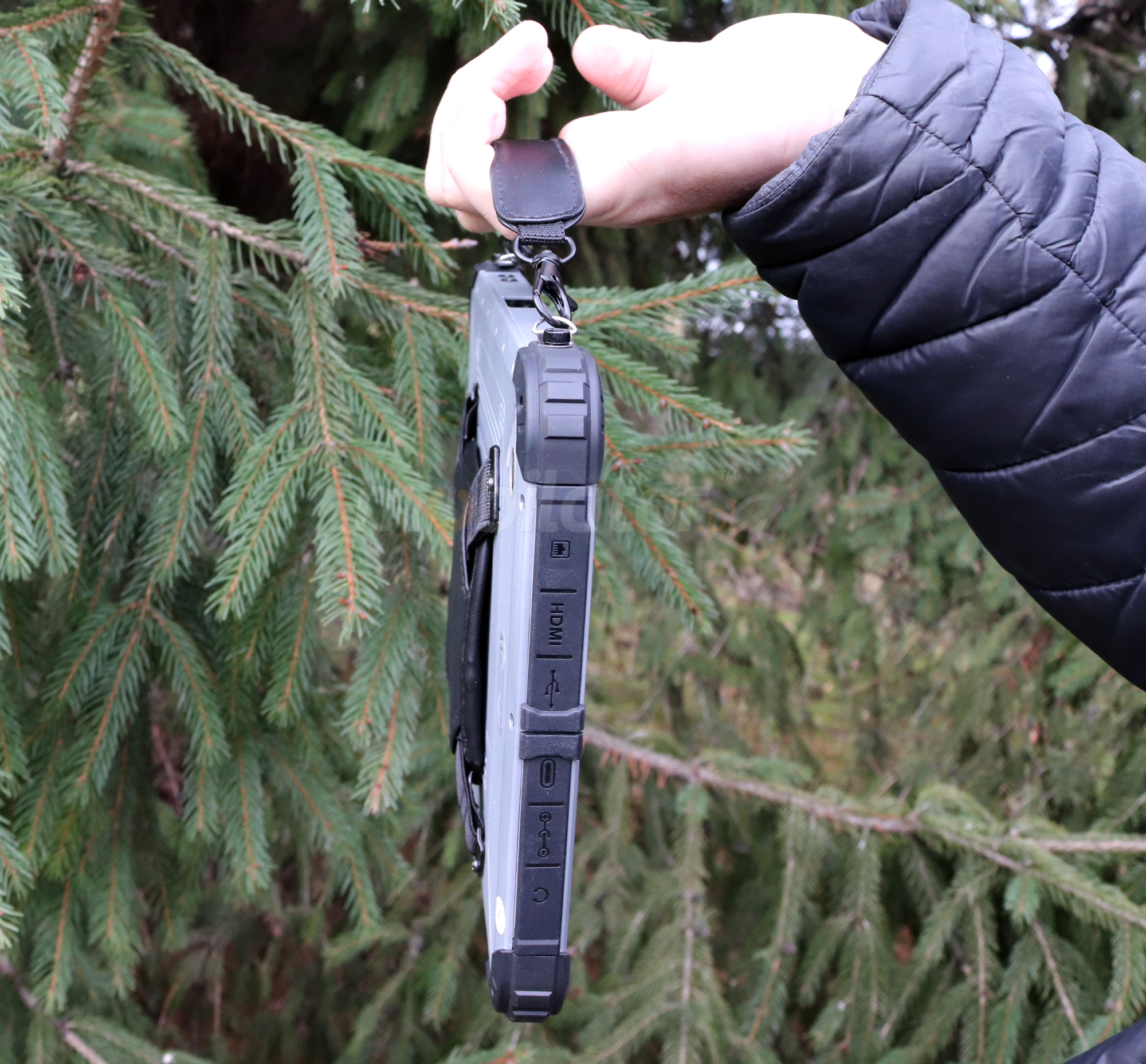

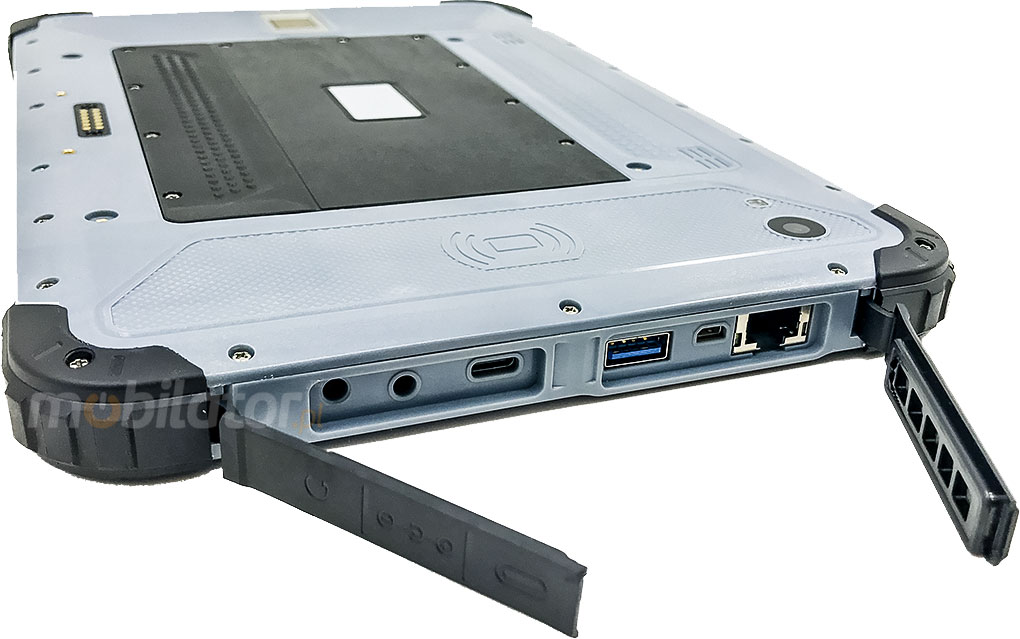

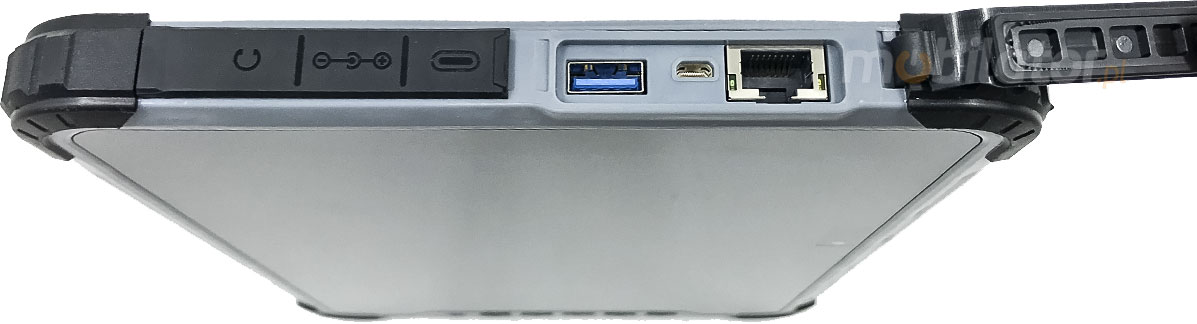

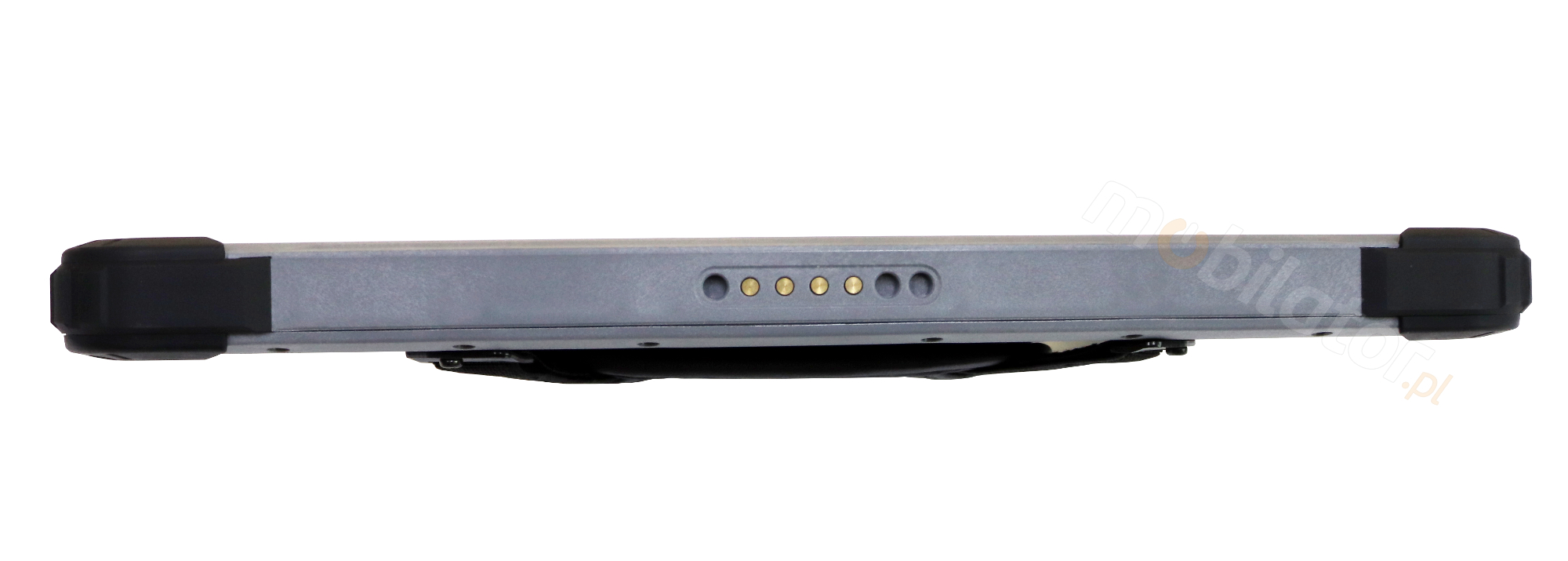

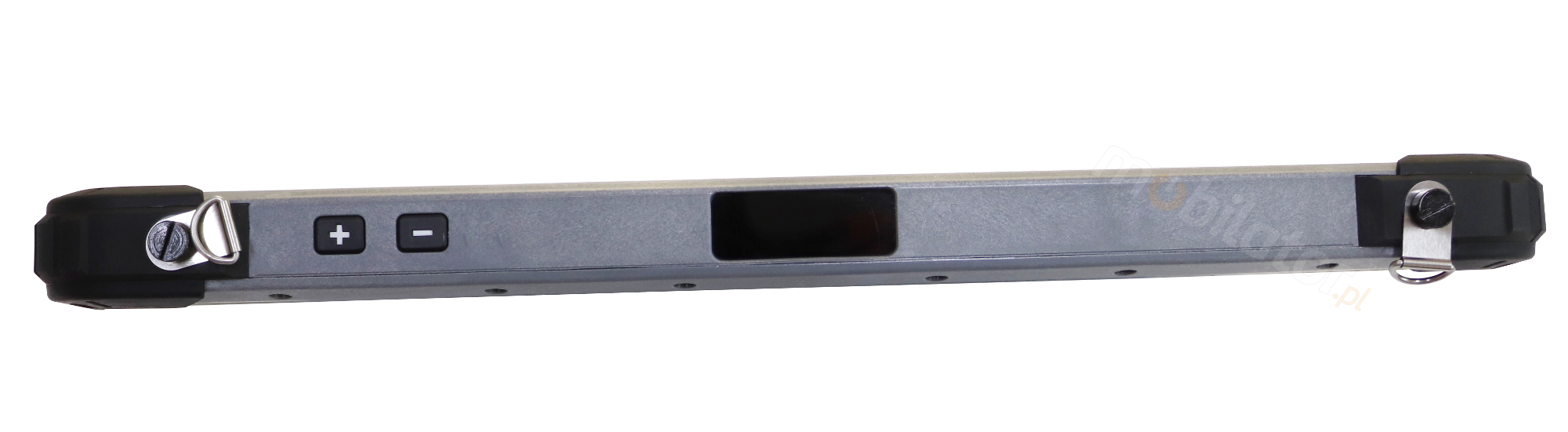

Connectors and dimensions
to up…
menu…
REsistance
IP68 Protection
The IP standard defines the degree of protection provided by the enclosure of an electrical device against such factors as: access to dangerous parts inside the enclosure, penetration of foreign matter, splashing or immersion.
| IP6X |
No ingress of dust, complete protection against contact. A vacuum must be applied. Test duration of up to 8 hours based on air flow. |
| IPX8 |
Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion). |
MIL-STD 810 Standard
The MIL-STD-810 is a strict military standard used in the United States Army. It determines the immunity of the equipment to severe environmental and weather conditions such as extreme low and high temperatures, temperature changes, rain or dust, as well as various accidents (shocks, floods, high altitude falls, etc.). Although the MIL-STD-810 is mainly used for military equipment, it is often used by private companies that produce equipment that requires unmatched durability.
1.2m drop resistance
Specially designed construction gives the machine a chance of accidental falls from up to 1.2 meters in operating mode, even on hard surfaces. In addition, the tablet screen is protected by specially tempered glass Gorilla Glass.
Extreme temperatures
Senter S917V9 is suitable for continuous operation in both low and high temperatures in the range of -20 ° C to 55 ° C. When the device is off, it can handle temperatures ranging from -40 ° C to 60 ° C. In addition, the rugged industrial tablet performs well in rooms with increased humidity, ensuring proper operation even with 95% relative humidity.
| Working Temp. |
-20°C to 55°C |
| Storage Temp. |
-40°C do 60°C |
| Humidity |
5% do 95% |
to up… menu…
data collecting

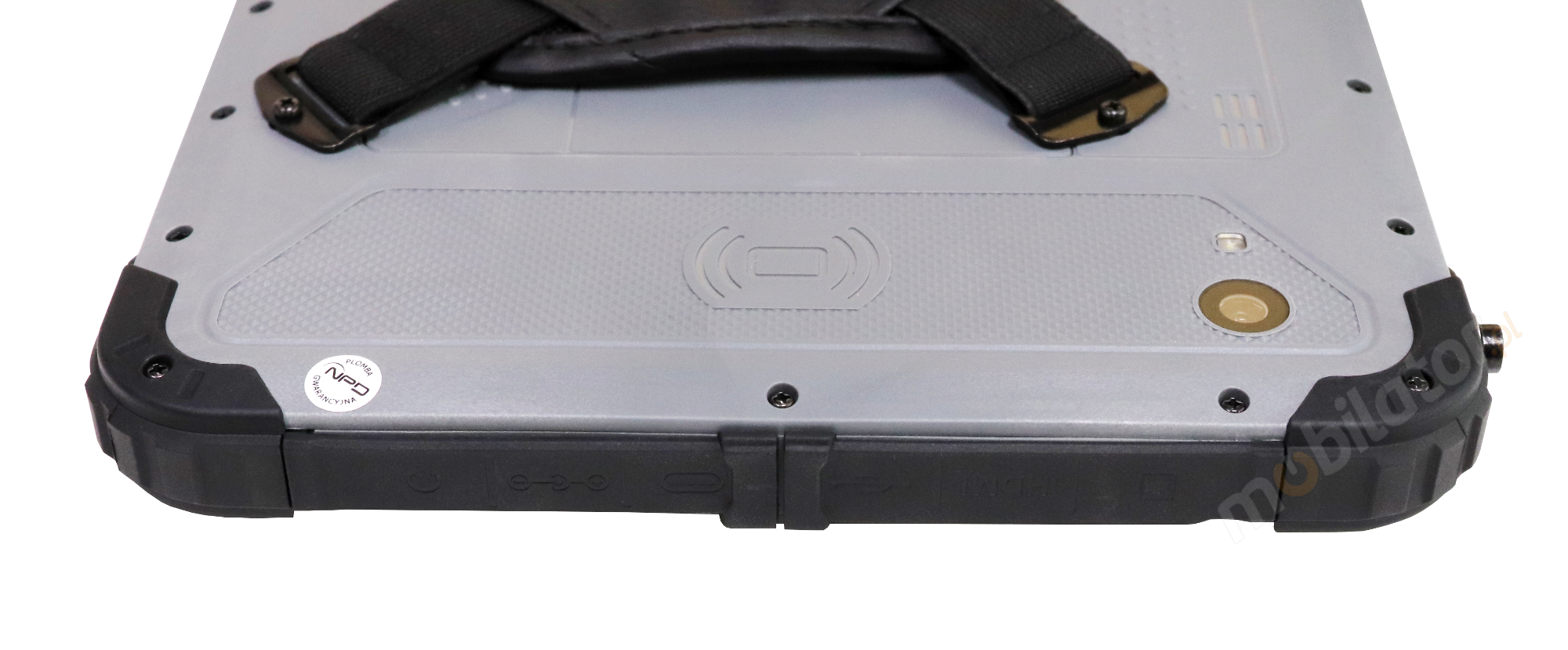

NFC
Short-range communication, known as NFC, is a radio communication standard that allows for wireless data exchange at a distance of a few centimeters. This technology is a simple extension of the proximity card standard that combines smart card interface and reader in one device. NFC devices can communicate with existing equipment in the standard ISO / IEC 14443 (cards and readers) as well as with other NFC devices, and thus are compatible with existing and already used public transport and payment infrastructures such as MIFARE.
RFID Reader (option)
RFID is a technology used to identify objects and to control the flow products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.
| RFID LF (option) |
Option 1: 134.2KHz (FDX),read distance up to 3cm
Support ISO11784/5, IC cards
Option 2: 125KHz, support ID cards
|
| RFID UHF (option) |
Bulit-in ceramic antenna
Support EPC C1 GEN2/ISO 18000-6C protocol
Read distance up to 1m
|
Barcode scanner (option)
Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.
to up… menu…
wireless communication
4G Module
4G technology is based on a radio network with fast transmission and the rare occurrence of downtime or transfer errors. The main distinguishing feature of the 4G from its predecessor (3G) is the speed of transfer between devices. The fourth generation network offers 100 Mb / s of mobile internet speed and 25 Mb / s of packet transfer. Technology enables users, including: extremely fast radio networks, Internet access, personalized telephony, and access to modern media and games services.
| 4G Module |
FDD-LTE: B1/B3/B5/B7/B8 2100/1800/850/2600/900
TDD-LTE :
Band38:2570 MHz - 2620 MHz,
Band39: 1880 MHz - 1920 MHz,
B41: 2555-2655MHz,
B40: 2300-2400MHz, B38/B39/B41/B40/B38/B39/B40/B41 |
| 3G Module |
GSM: 850/900/1800/1900 B5/B8/B3/B2
WCDMA: B1/B2/B4 2100/1900/1700
TD-SCDMA: B34/B39 |
GPS Navigation
Waterproof tablet Senter S917V9 is equipped with a professional GPS module with Beidou and GLONASS support, combining low power consumption with high accuracy. Navigation is fast and smooth, allowing you to easily and easily reach any destination.
Bluetooth 4.1
Bluetooth enables wireless short-range communication between various electronic devices, such as the keyboard, computer, laptop, palmtop, mobile phone and many others. In the fourth version of this standard, energy consumption was reduced considerably, at the expense of lower transfer costs, and real operating coverage increased.
Wi-Fi network
Dual-band Wi-Fi provides fast network access wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a work or residence router and a wireless network that can be used at no extra cost. The shock-resistant industrial tablet, the Emode I18H, is equipped with the latest 802.11n technology, which allows file transfer speeds up to 150 Mb/s.
| Standards |
802.11(a/b/g/n) |
| Frequencies |
2.4G + 5.8G (Dual-Band) |
to up… menu…
Application
Trade and Services
Thanks to their size and light weight, tablet and smartphone data collectors are a useful tool for sales representatives. Today's applications running under the collector system enable even entering the data collector's contractor database, which allows us to later search for it quickly by name or NIP number. We can do the same with our commodity base, which can work in parallel with the database of contractors. Additional use of collectors in the trade, such as sending orders or invoices directly to the company through the GSM network or Wi-Fi.
Industry and Construction
Industrial tablets and data collectors are characterized by high resistance to adverse working conditions. Tightness, dust and water resistance of enclosures, certified by IP (dust and water resistance standards) and often MIL-STD military standard, can withstand even the harshest conditions in industrial infrastructure or on the construction site. With appropriate applications, collectors can be used for control and control of various industrial processes, as well as for data collection and analysis.
Warehouse
An industrial data sheet is the ideal solution for quick stocktaking. In addition, depending on the software used, it streamlines the process of entering and delivering goods into the warehouse, enables price control and dispensing, helps to collect and order orders, and identifies customers and servicing the rental. The advantages of using data collectors are undoubtedly: time savings, customer satisfaction thanks to the correct price and speed of operation.
to up… menu…
Available versions and accessories
The industry-leading Senter S917V9 tablet is available in several versions to suit different needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters given in the table below. In addition, on request, you can create a configuration not currently available in the offer.
Porównaj wszystkie wersje
| |
v.1 |
v.2 |
v.3 |
v.4 |
v.5 |
v.6 |
v.7 |
v.8 |
v.9 |
v.10 |
| NFC |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
| 2D Honeywell N6603 |
— |
✔ |
— |
— |
— |
— |
— |
✔ |
✔ |
✔ |
| LF RFID 134.2kHz |
— |
— |
✔ |
— |
— |
— |
— |
✔ |
— |
— |
| LF RFID 125kHz |
— |
— |
— |
✔ |
— |
— |
— |
— |
✔ |
— |
| UHF RFID 865-868MHz |
— |
— |
— |
— |
✔ |
— |
— |
— |
— |
✔ |
| UHF RFID 902-928MHz |
— |
— |
— |
— |
— |
✔ |
— |
— |
— |
— |
| High precision GPS |
— |
— |
— |
— |
— |
— |
✔ |
— |
— |
— |
| Ekran 1000 Nits |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
| |
v.11 |
v.1.1 |
v.12 |
v.13 |
v.14 |
v.15 |
v.2.1 |
v.7.1 |
v.9.1 |
v.10.1 |
| NFC |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
| 2D Honeywell N6603 |
✔ |
— |
✔ |
✔ |
✔ |
✔ |
✔ |
— |
✔ |
✔ |
| LF RFID 134.2kHz |
— |
— |
✔ |
— |
— |
— |
— |
— |
— |
— |
| LF RFID 125kHz |
— |
— |
— |
✔ |
— |
— |
— |
— |
✔ |
— |
| UHF RFID 865-868MHz |
— |
— |
— |
— |
✔ |
— |
— |
— |
— |
✔ |
| UHF RFID 902-928MHz |
✔ |
— |
— |
— |
— |
✔ |
— |
— |
— |
— |
| High precision GPS |
— |
— |
✔ |
✔ |
✔ |
✔ |
— |
✔ |
— |
— |
| Ekran 1000 Nits |
— |
✔ |
— |
— |
— |
— |
✔ |
✔ |
✔ |
✔ |
| |
v.15.1 |
| NFC |
✔ |
| 2D Honeywell N6603 |
✔ |
| LF RFID 134.2kHz |
— |
| LF RFID 125kHz |
— |
| UHF RFID 865-868MHz |
— |
| UHF RFID 902-928MHz |
✔ |
| High precision GPS |
✔ |
| Ekran 1000 Nits |
✔ |
We also offer a number of extra accessories for this tablet to further enhance its functionality and comfort. Below is a list of available accessories. Click on the "Check" link to go to the description page and the price of the accessory.

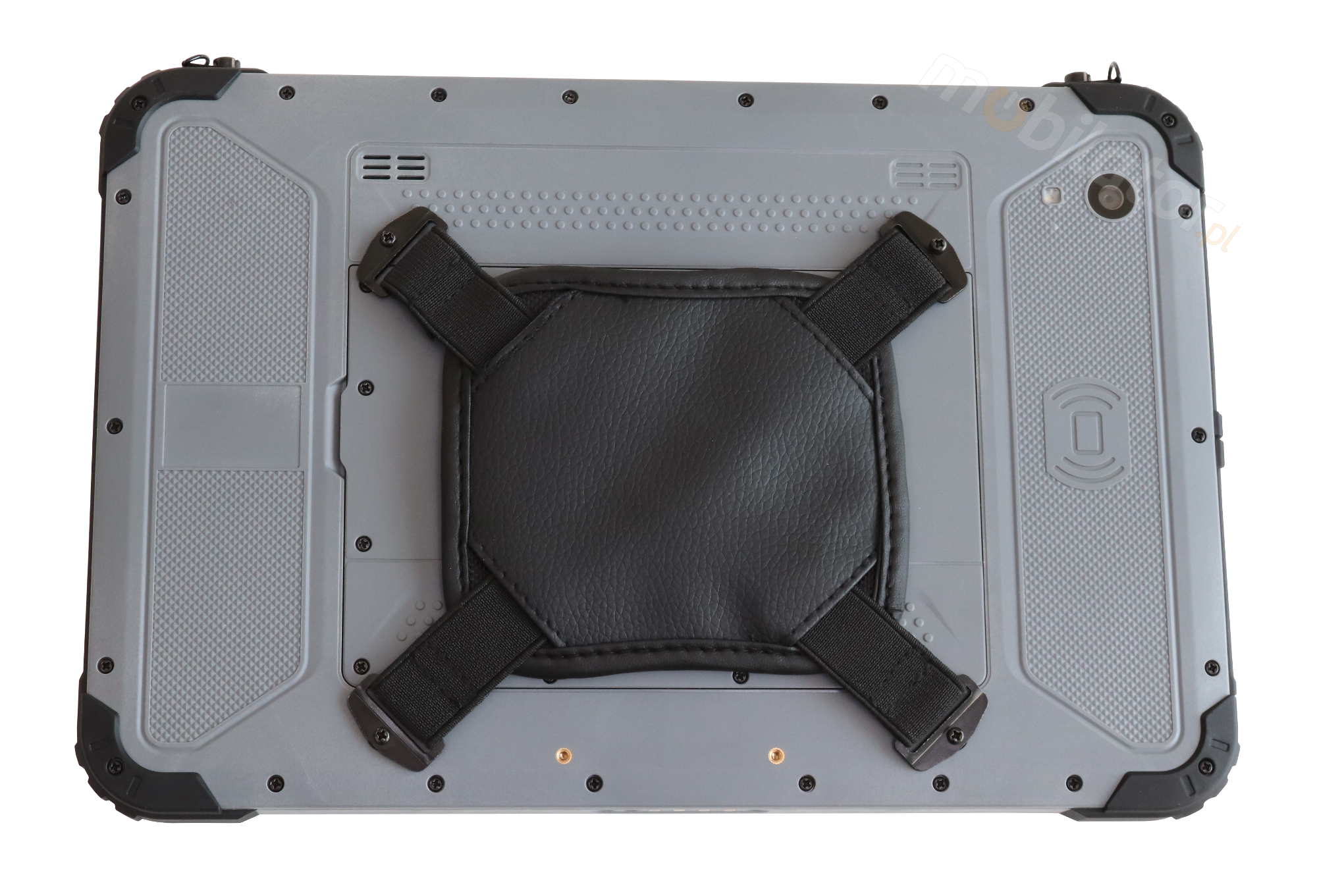

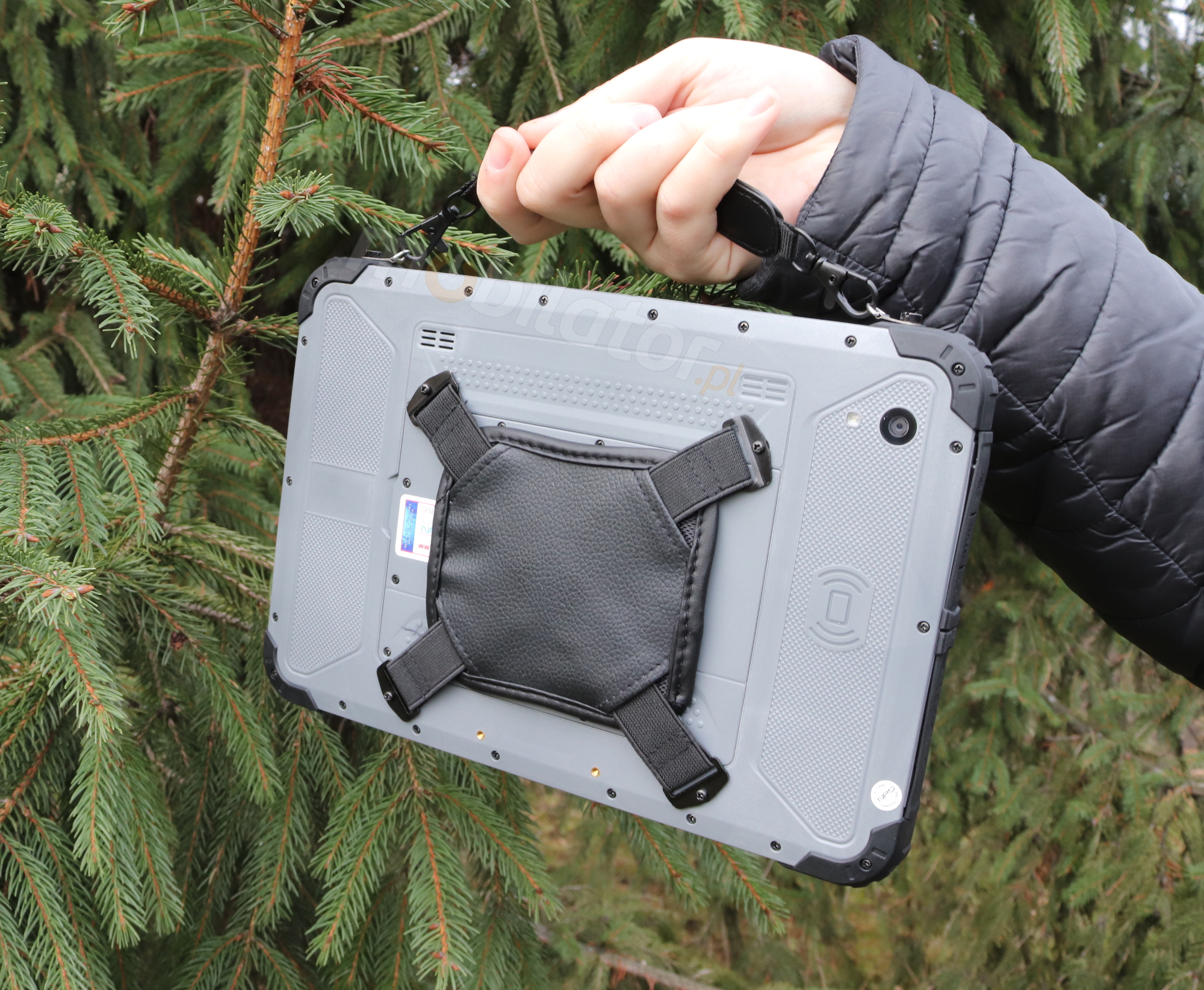

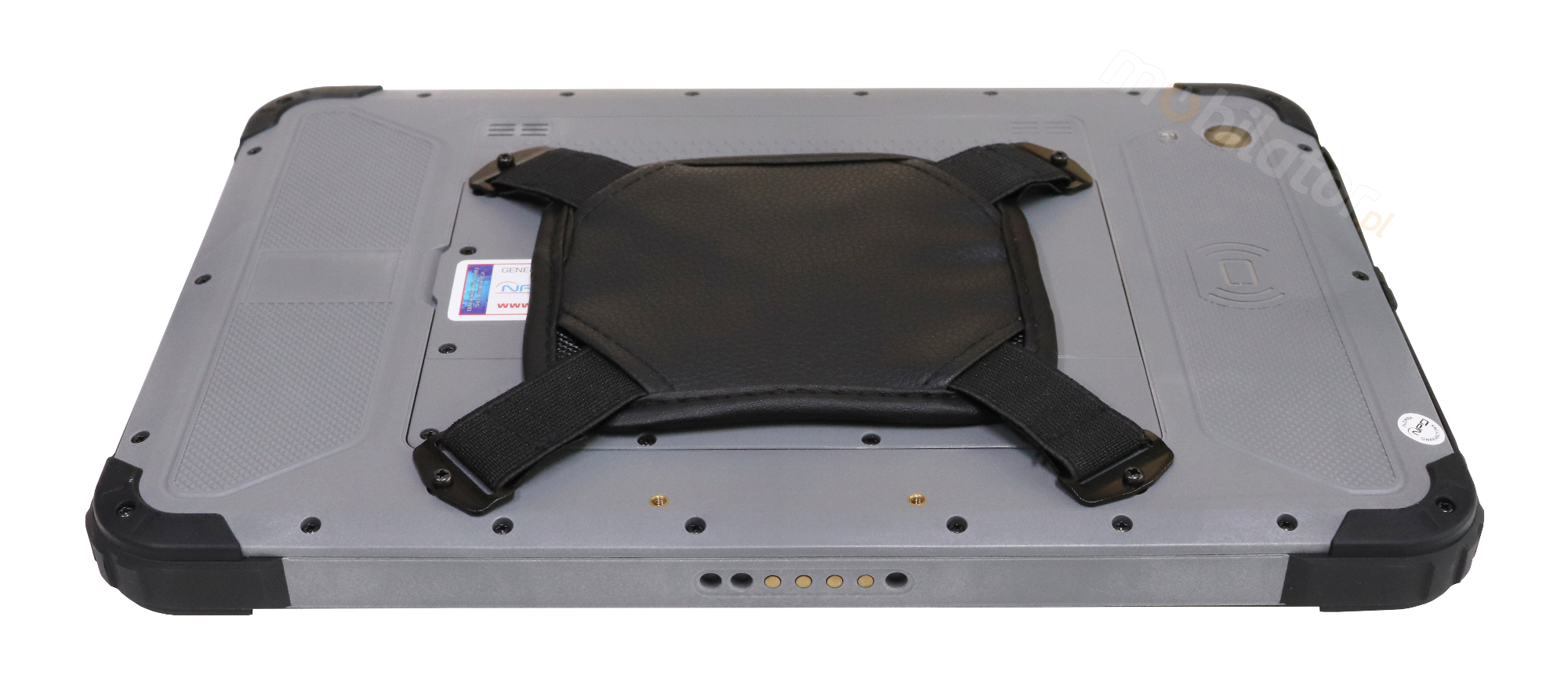

Wrist holder
.png)

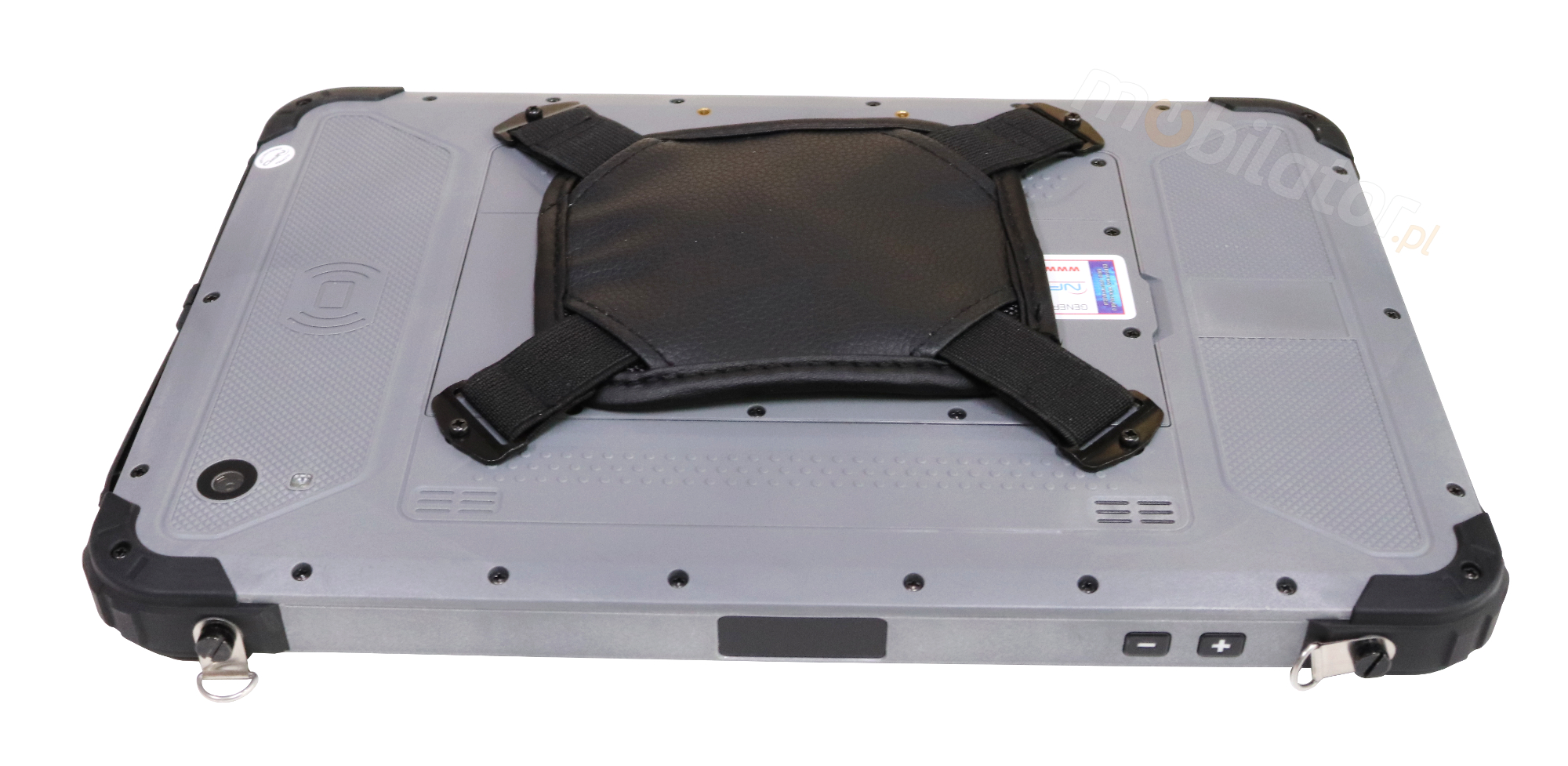

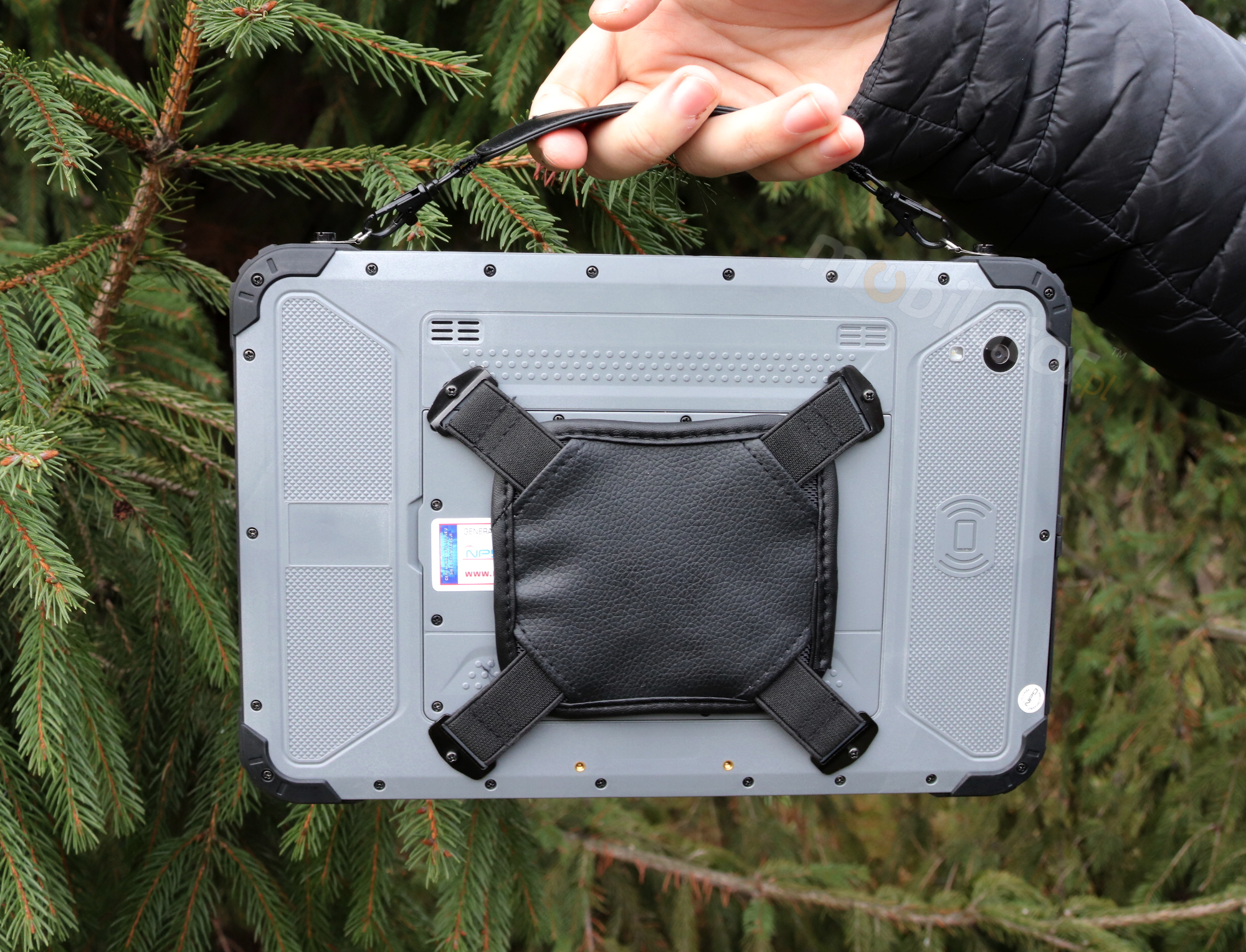

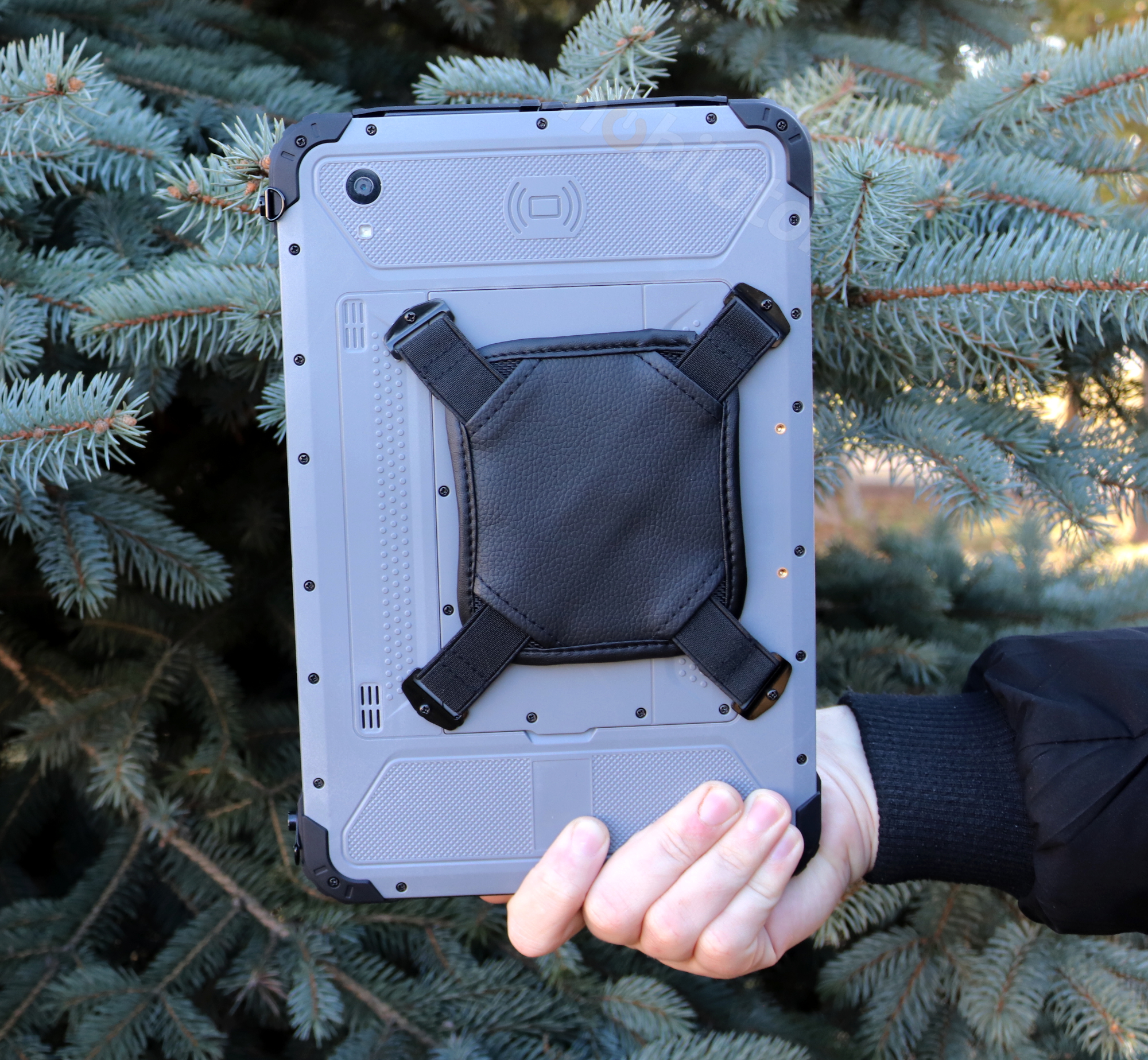

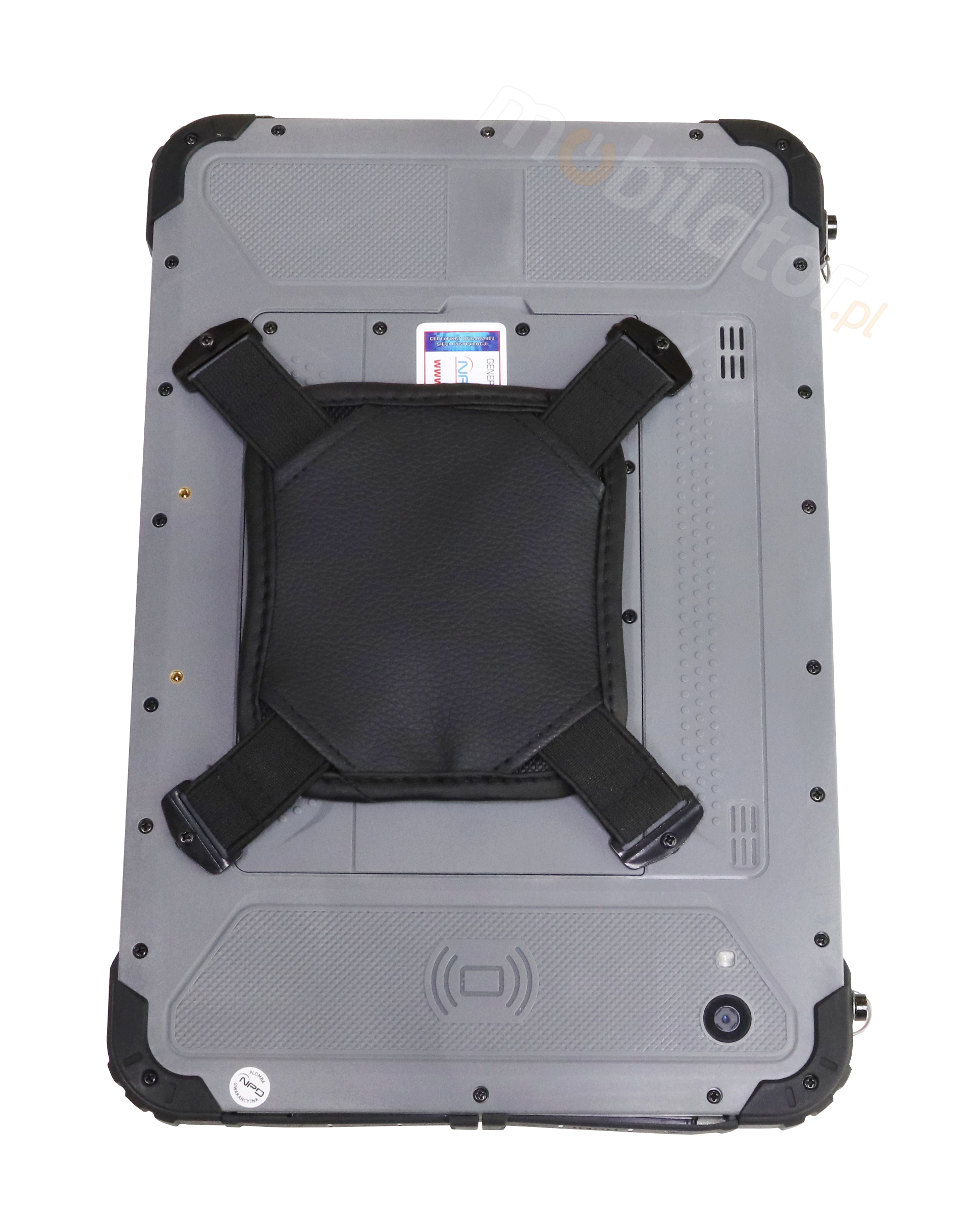

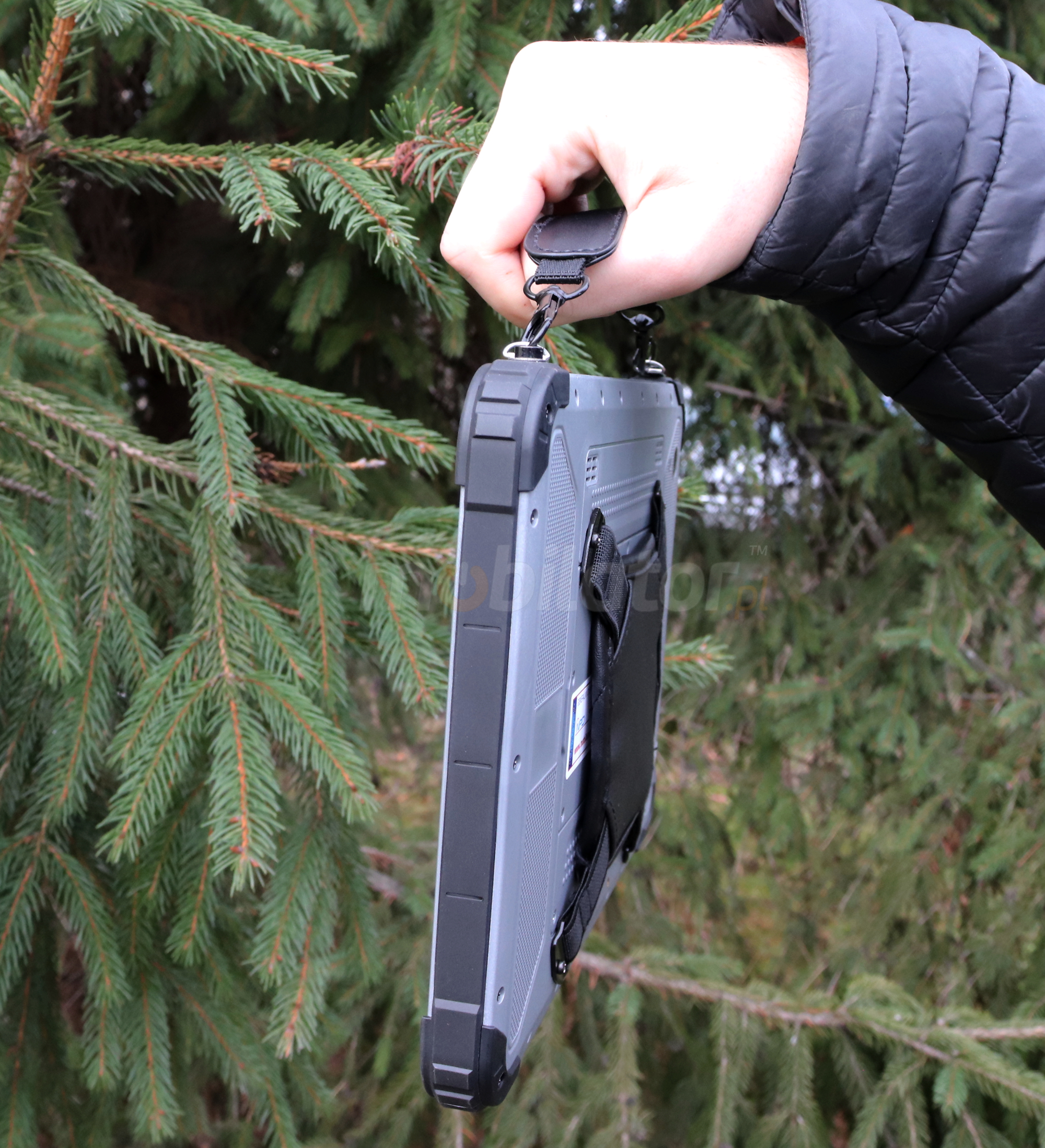

The wrist strap increases the comfort and confidence of holding the tablet during long-term work .
USB OTG cable
The OTG cable allows you to connect some peripherals to the device, such as a mouse, USB flash drive or keyboard.
Docking Station
The docking station allows you to easily and conveniently charge your tablet.
Car charger
It allows you to charge the device in the car using the built-in cigarette lighter socket.
USB adapter - RJ45
.JPG)
It allows you to connect the tablet to a wired network using a standard LAN cable.

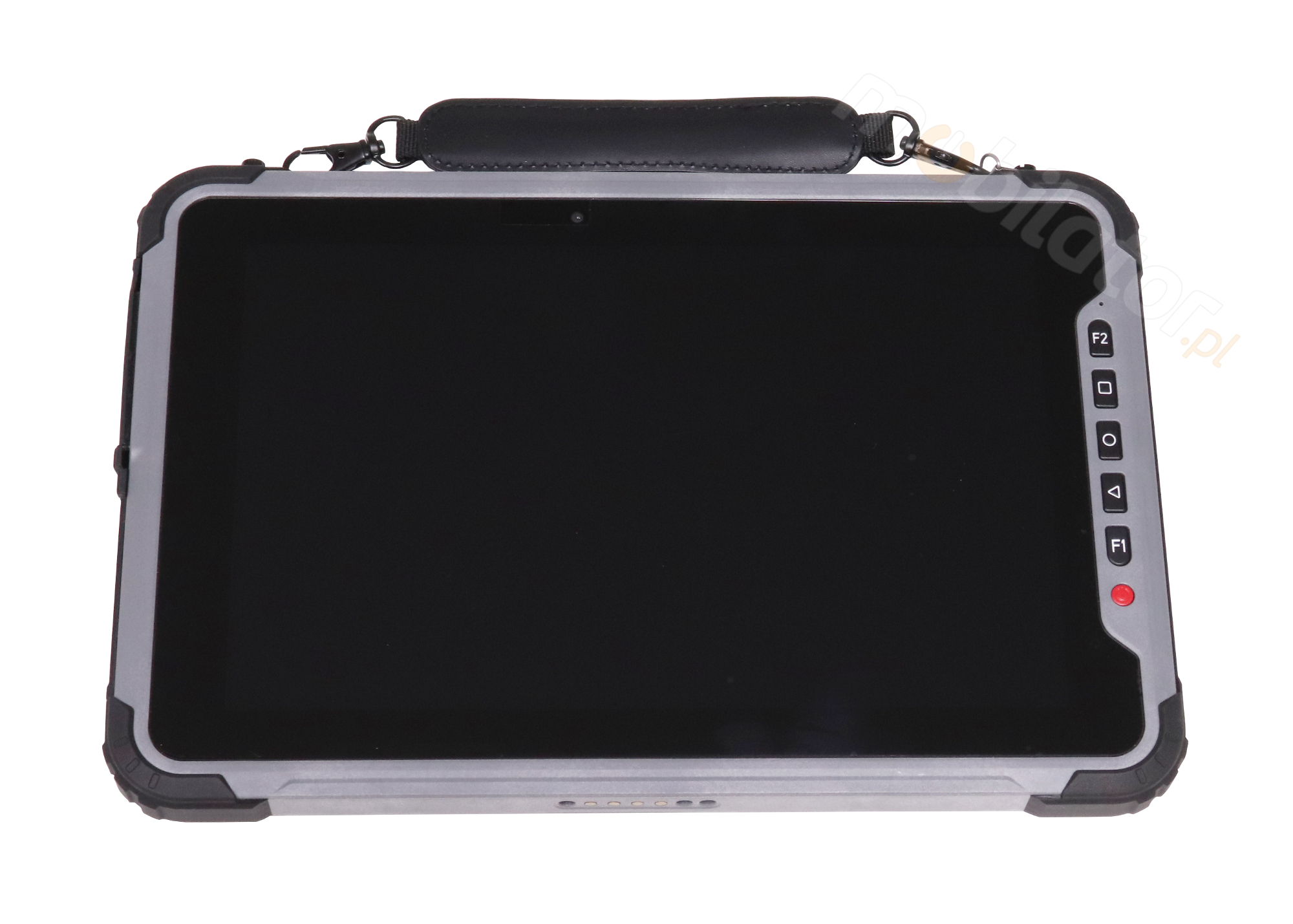

Shoulder belt
The shoulder strap allows you to comfortably carry the device over your shoulder.
Car holder
The car holder ensures a stable mounting of the tablet in the car.
Additional charger
Additional charger for the Seneter S917V9 tablet.
Capacitive stylus
Capacitive stylus for easy tablet operation.
