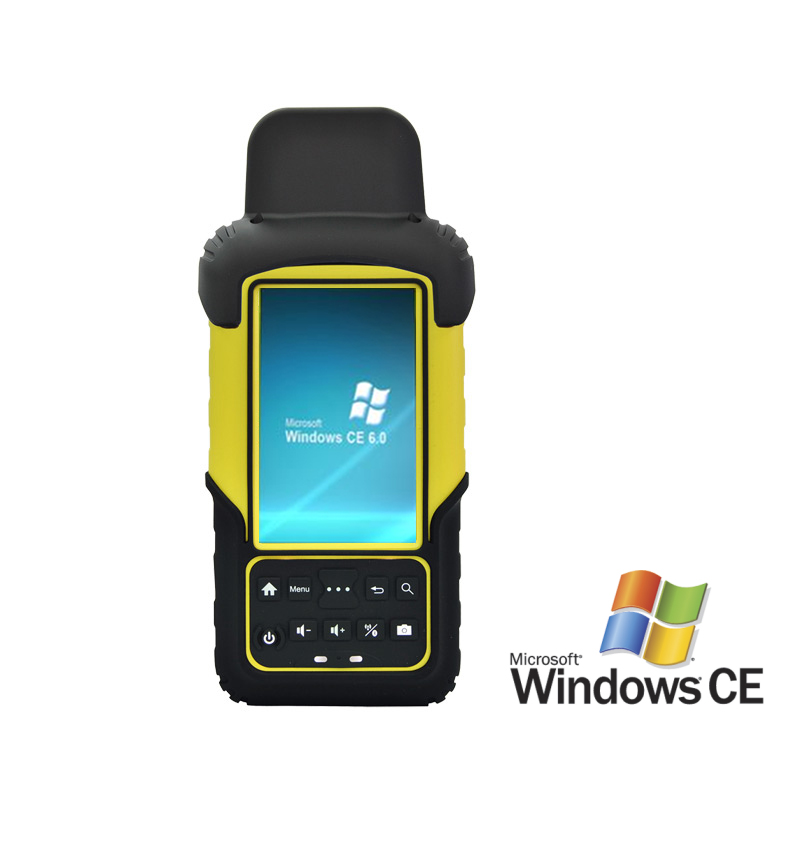

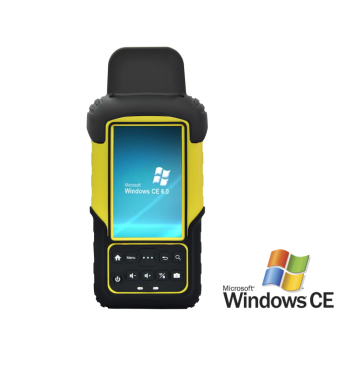

Rugged Winmate S430T-3LFC
|
|
The product from the archive - production terminated
|
Compare all versions
Founded in 1996 in Taiwan, the company Winmate achieved an excellent reputation as a manufacturer of industrial LCD displays and laptops. Due to the high position of the products in the high-tech enterprise, has won many awards in tests conducted around the world.
Winmate Company introduced a new model S430T reinforced Full Rugged Tablet PC that meets the most stringent military standards established by the U.S. military.
|
|
.jpg)
|

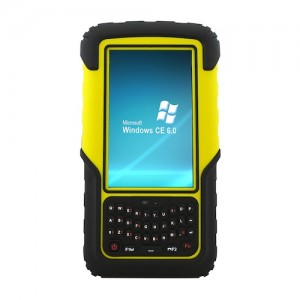

Winmate S430T-3LFC
|
|
• |
Windows CE 6.0 |
|
• |
400 nit 480 x 800 LED displa |
|
• |
5 megapixel digital camera |
|
• |

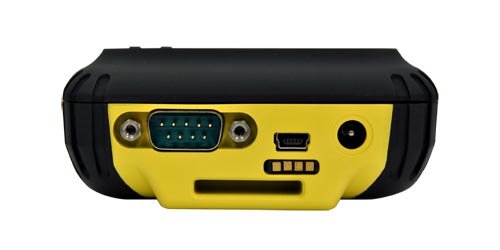

RS232 | USB OTG | Docking |
|
• |
IP65 Dust & Water Protection |
|
• |
Micro SD card slot |
|
• |
Optional 1D/2D Barcode reader |
|
• |
Optional LF/HF RFID reader |
|
• |
Robust battery |
|
• |
Flexible warranty |

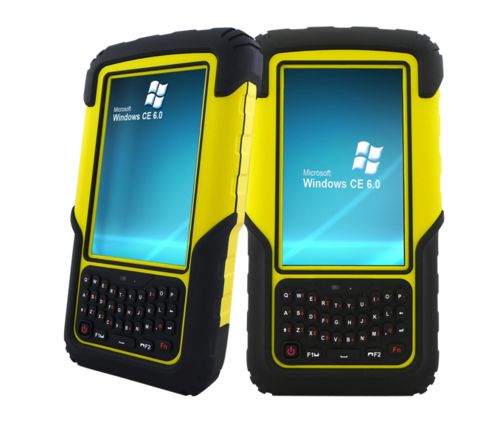

This compact PDA works where other equipment long refuse to obey. With a sealed casing and rubber corners, the device is resistant to mechanical damage, dirt, dust and moisture, and can operate in temperatures from -20 to 60 degrees Celsius. Protection was defined by MIL-810F.
|
System specifications
|
Processor |
ARM®Cortex™ - A8 OMAP DM3730 1.0Ghz |
|
Display |
4.3" (480x800) Capacitive : Multi-Touch : Sunlight Readable
|
|
RAM |
512MB Mobile DDR RAM |
ROM
|
512MB Flash Memory |
|
Camera |
5Mpx : LED : auto-focus |
|
Klawiatura |
35Keys QWERTY |
|
Connectors |
USB OTG : RS232 : Micro SD (max.32GB) |
|
Audio |
Microphone : Speaker 1.2W |
|
Battery |
3.7V Li-Poli 5000 mAh |
|
Sensors |
Light : Proximity
|
|
Readers |
2D via Camera |
|
|
RFID HF 13.56 MHz (optional) |
|
|
RFID LF 125 KHz |
|
|
1D Barcode Scanner (optional) |
|
Modules |
WiFi : Bluetooth V2.1+EDR |
|
|
HSPA/ UMTS / GPRS / WCDMA / GSM
|
|
GPS |
Built-in EO-6Q GPS module |
|
System |
Windows CE 6.0 |
|
Versions |
Standard
|
S430T-C |
3.5G
|
S430T-3C |
1D Laser
|
S430T-B2C |
1D Laser + 3.5G
|
S430T-3B2C |
RFID HF
|
S430T-HFC |
|
RFID HF + 3.5G |
S430T-3HFC |
|
RFID LF |
S430T-LFC |
RFID LF + 3.5G
|
S430T-3LFC |
|
|
Refer to the "Available hardware configurations" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form. |
 |
|
Barcode Scanner (optional)
 Quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large scope of the reading of the data collector collects data Winmate exactly what helps to increase the speed and productivity. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.
|
Barcodes |
Density (mil) |
Near (mm) |
Far (mm) |
|
Code 39 |
5 |
55 |
115 |
|
Code 39 |
10 |
30 |
215 |
|
PDF417 |
5 |
50 |
105 |
|
PDF417 |
10 |
30 |
215 |
|
QR Code |
10 |
25 |
135 |
|
QR Code |
15 |
25 |
210 |
|
Datamatrix |
10 |
25 |
150 |
|
Datamatrix |
15 |
20 |
220 |
|
|
RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.
|
|
RFID HF
|
RFID LF |
|
Reference Standards |
ANSI/ISO Standards 14443A
|
EM 64 bits, ASK Manchester coding |
|
Operating Frequency |
13.56MHz |
125 KHz |
|
Detect Range |
1 ~3cm
|
1 ~3cm |
Modules and Wireless Networks
|
WiFi |
802.11 a/b/g/n |
|
Bluetooth |
Bluetooth Class2.1 with EDR |
|
GPS |
Built-in EO-6Q GPS module |
|
WCDMA |
HSPA/ UMTS / GPRS / WCDMA / GSM
|
.jpg)
S430T is aimed at mobile applications in the field, warehouse, hospital, vehicles and combat vehicles. The wireless communication using Bluetooth, WLAN 802.11 b / g / n, 3.5G and GPS module. Unquestionable advantage is the presence of the RS-232 side has a mini USB standard. Optionally, it can be embedded barcode or RFID.
go top...  menu…
|
|
|
|
 Body and dimensions
The small size (179x99x38mm) tablet will work where other equipment long refuse to obey. With a sealed casing and rubber corners, the computer is very resistant to mechanical damage, dirt, dust and moisture, and can operate in temperatures from -20 to 60 degrees Celsius. Protection was defined by MIL-810F. The manufacturer also provides full immunity standard IP65.
Processor and Chipset
Winmate is supported processor TI OMAP 3730 Cortex A8 1000MHz, making it extremely energy efficient while maintaining high performance. All applications work very smoothly and the use of multiple modules at the same time does not affect the operation of the device.
|
Dimensions |
99x179x38mm |
|
Weight |
450g |
go top... menu…
|
|
|
|
Operating |
-20°C -- +60°C |
Operating Humidity
|
95% no condensing |
|
Dust |
IP6x (dust) |
|
Water |
IPx5 (water) |
|
Vibration |
MIL-STD-810G M514.6 |
|
Drop |
MIL-STD-810F Method 516.5 | Multiple drops to concrete 4ft./1.2m |
|
Regulatory |
CE, FCC class B |
go top... menu…
Resistance IP65
.jpg) Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.
go top... menu…
|
The first digit [x]
Protection against solid objects |
|
The second digits [y]
Protection against liquids |
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from object not greater than 12mm in diamete |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Protection from splashed water |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from water projected from a nozzle |
|
Complete protection against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
|
|
|
 |
7
|
|
Protection against immersion |
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water |
|
Use
The S430T, rugged tablet is ideal solution for Government; industrial/commercial customers who are interested in the ability to work in rough environments yet maintain productivity without the risk of data or performance losses.
|
|
Public Health Services
With Winmate 4,3" Handheld, doctors are able to quickly tracking patients medical records ordiagnostic information with barcode reader without going back and forth between offices andwards. The compact size of 4,3" Handheld makes medical workers easier to carrying light-weightcomputer around and increasing work efficiency.
|
|
High Mountain Engineering
For high mount engineering which requires multi-functional devices for all kinds of harsh environments, 4,3" Handheld assists engineers to utilize digital compass to determine directionas well as altimeter to estimate altitute. In addition, the digital camera with auxiliary LED backlightallows them to take photos during night time or dim environments.
|
|
|
|
Warehousing
In warehousing industry, users are able to obtain product and inventory information by using
4,3" Handheld and transfer data back to the office with built-in 3G and WLAN.
|
|
Mining Industry
Miners are frequently requested to work in high-temperature and inconvenient place. 4,3" Handheld optimizes all functions in a wide range of temperature from -20°C to 60°C. Furthermore with digital compass helps miners determine the right direction under ground.
|
|
Hardware configuration
|
If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories. |
|
|
Compare all versions
| Durability: |
MIL-STD 810F |
| Humidity: |
95% non-condensation |
| Waterproof: |
IP 65 |
| Weight: |
|
| Temperature: |
Operating temperature: -30°C - 60°C / -4°F - 140°F, Storage temperature: -40°C - 71°C / -40°F - 160°F |
| Shock: |
MIL-STD-810F Metod 516.5 |
| Vibration: |
MIL-STD-810F Metod 514.5 |
| Drop: |
MIL-STD-810F Metod 516.5 |
| Sand and dust: |
IP 65 |
| 1D barcode scanner (reader): |
none (available in other configurations) |
| 2D barcode scanner (reader): |
Yes - via Camera |
| RFID scanner (reader): |
Yes - LF RFID Reader:Support EM compatible 64 bits,ASK Manchester coding(125 KHz Frequency), detect range 1~3 cm |
| Magnetic card reader (MSR): |
----- |
| Microchip card reader: |
----- |
| Docking station connector: |
Yes |
| VESA standard – holders and mounts support: |
----- |
| COM port: |
Yes |
| Dispaly: |
4.3" (480x800) Capacitvie : Sunlight Readable : Multi-Touch |
| Brightness: |
400nit |
| Contrast: |
800:1 |
| Touch screen: |
Yes - Touch Capacitive |
| Graphics card: |
----- |
| Swivel Hinge: |
----- |
| VGA out: |
----- |
| TV Out: |
----- |
| TV Tuner: |
----- |
| Processor: |
ARM®Cortex™ - A8 OMAP DM3730 1.0Ghz |
| Chipset: |
----- |
| BIOS: |
----- |
| Memory: |
512MB Mobile DDR RAM |
| Hard Drive: |
512 MB Flash |
| Flash Memory: |
|
| Battery: |
Li-Poly 3.7V 5000mAh, adapter 100-240V, 50-60Hz, 15VDC |
| Working time on battery: |
up to 8h |
| HotSwap battery: |
Yes |
| Fast battery replacement ability: |
Yes |
| Size: |
179 x 99 x 38 mm / 470g |
| Casing material: |
plastic |
| Fanless casing: |
Yes |
| Operating System: |
Win CE6.0 (optional: Windows Mobile 6.5 o rAndroid 2.3.4) |
| LAN: |
----- |
| WLAN: |
Yes - 802.11 2.4GHz b/g/n mode |
| Bluetooth: |
Yes - 2.1+ EDR (No audio profile) |
| WAN: |
Yes - HSPA/ UMTS / GPRS / WCDMA / GSM |
| GPS: |
Yes - NEO-6Q GPS (factory) |
| Flash Card Reader: |
Yes - SDIO / SDHC up to 32GB |
| CD/DVD: |
No |
| Camera: |
Yes - 5.0M pixel Camera with LED auxiliary light (Rear Side , with Auto Focus) |
| Audio: |
Microphone : Speaker 1.2W |
| Seciurity: |
Gum case |
| In/Out: |
1xRS232 : 1xmicroUSB : 1xUSB OTG : 1xDocking station slot : DC |
| Keyboard: |
Yes - 35Key QWERTY |
| Additional Navigation Devices : |
----- |
| Color: |
black-yellow |
| Optional accessories: |
Barcode scanner : HF RFID scanner : 3G module |
| Other: |
Warranty 1 year (Option 2/3 years) |
Compare all versions
